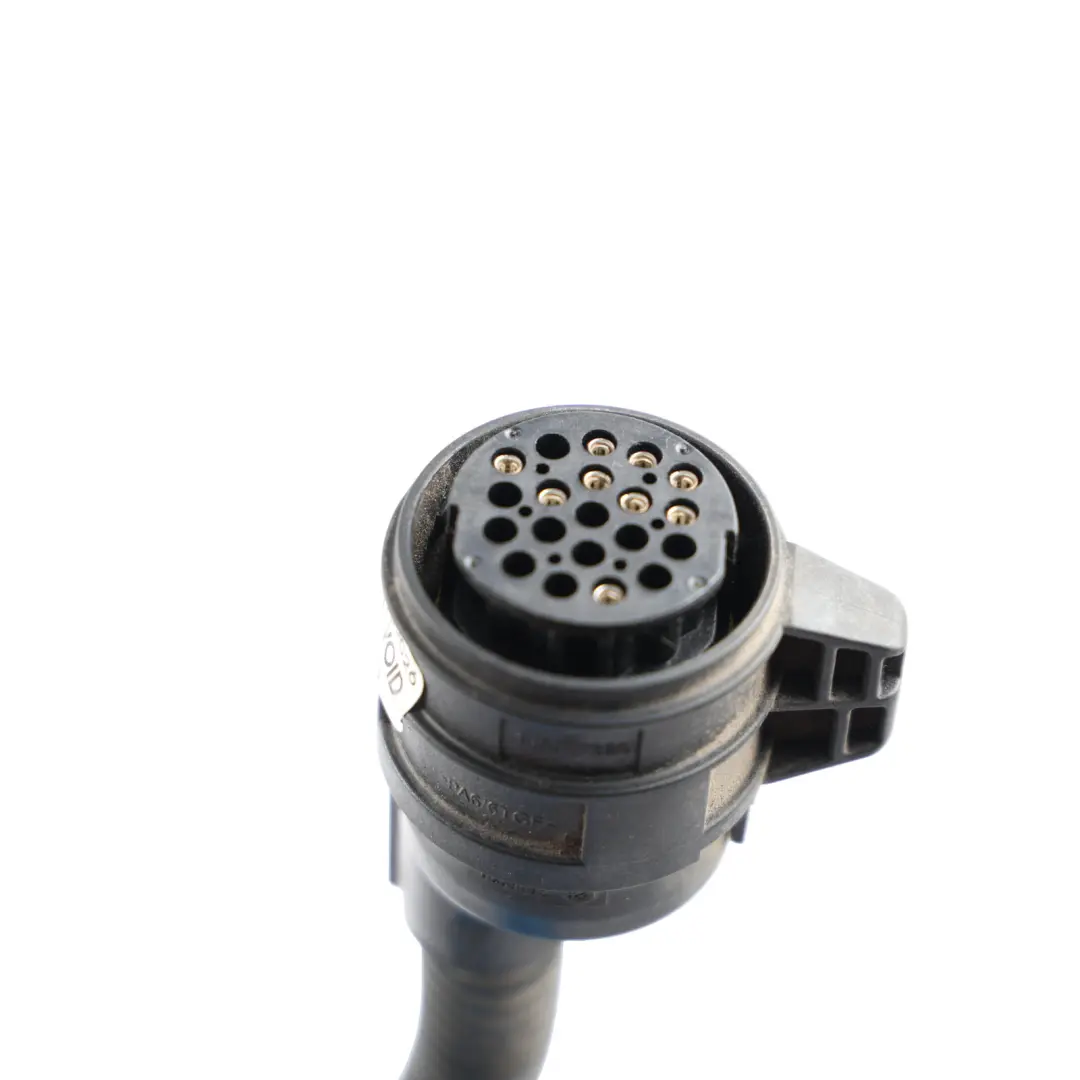

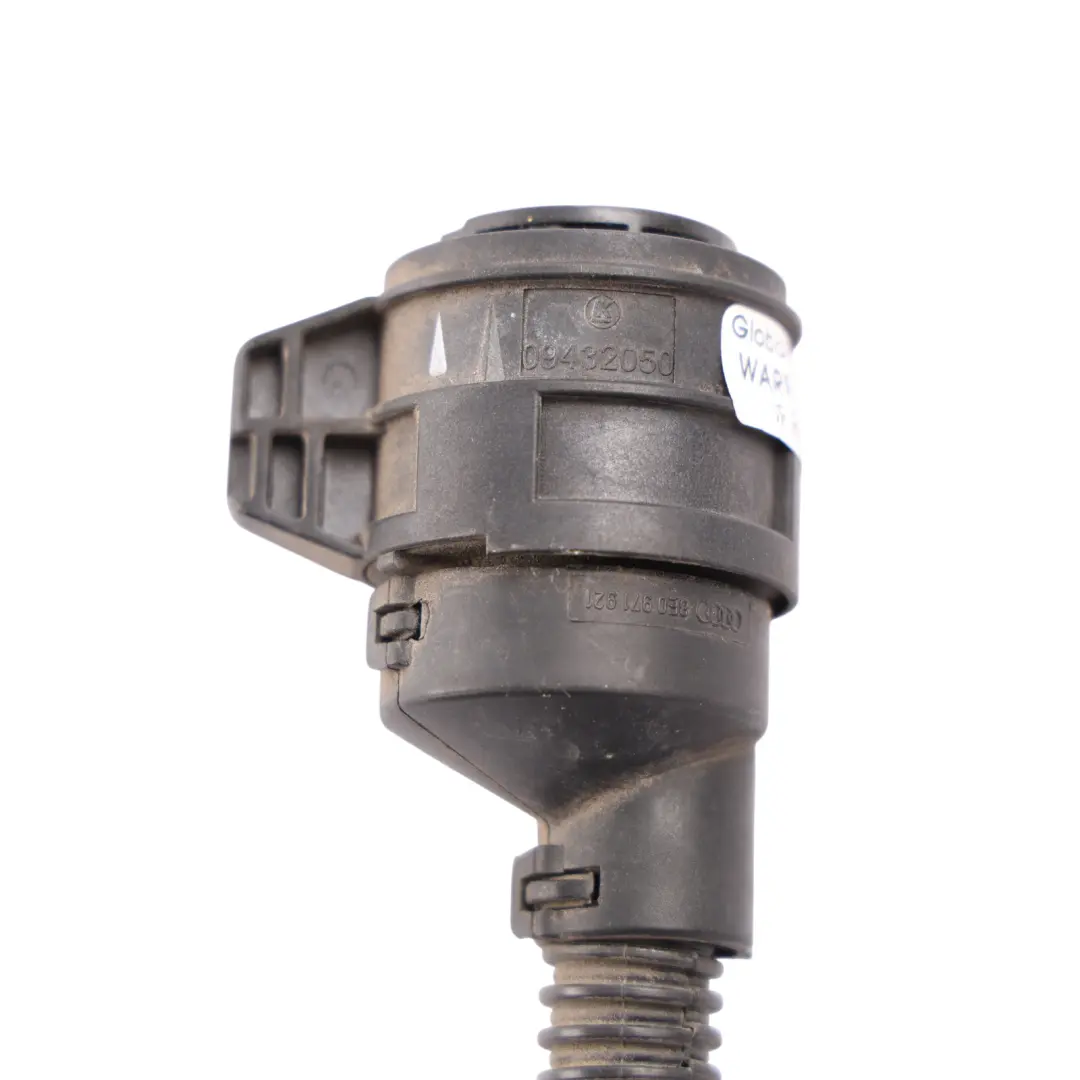

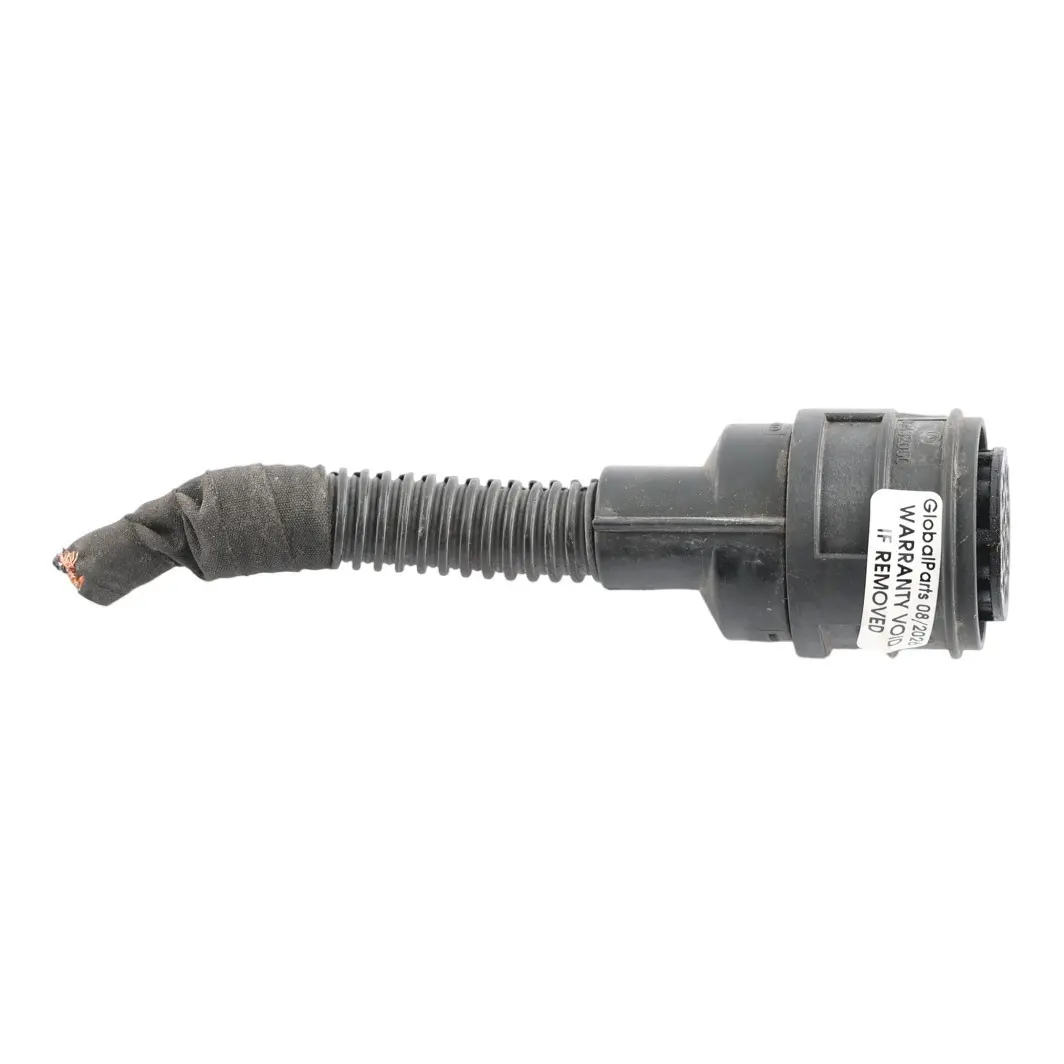

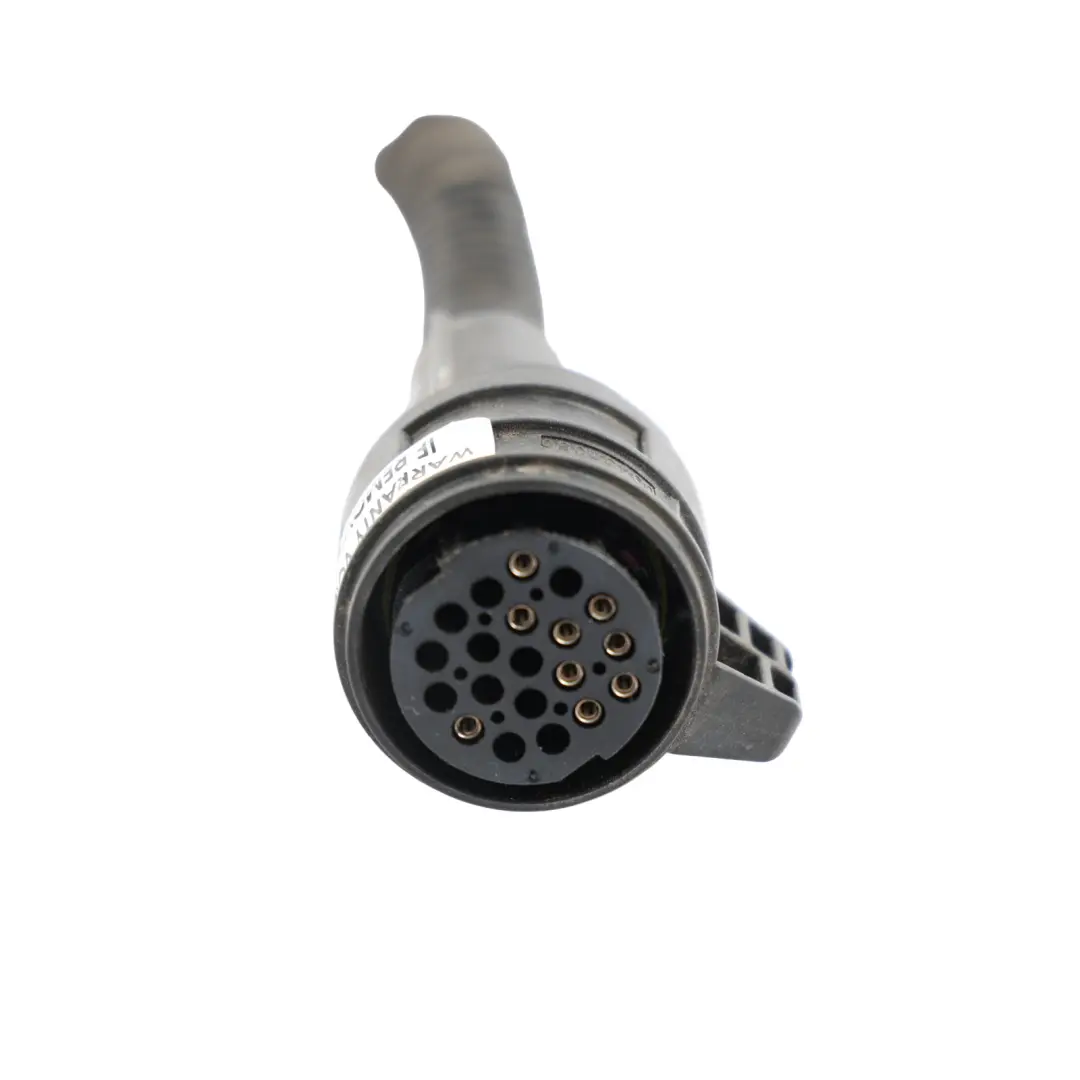

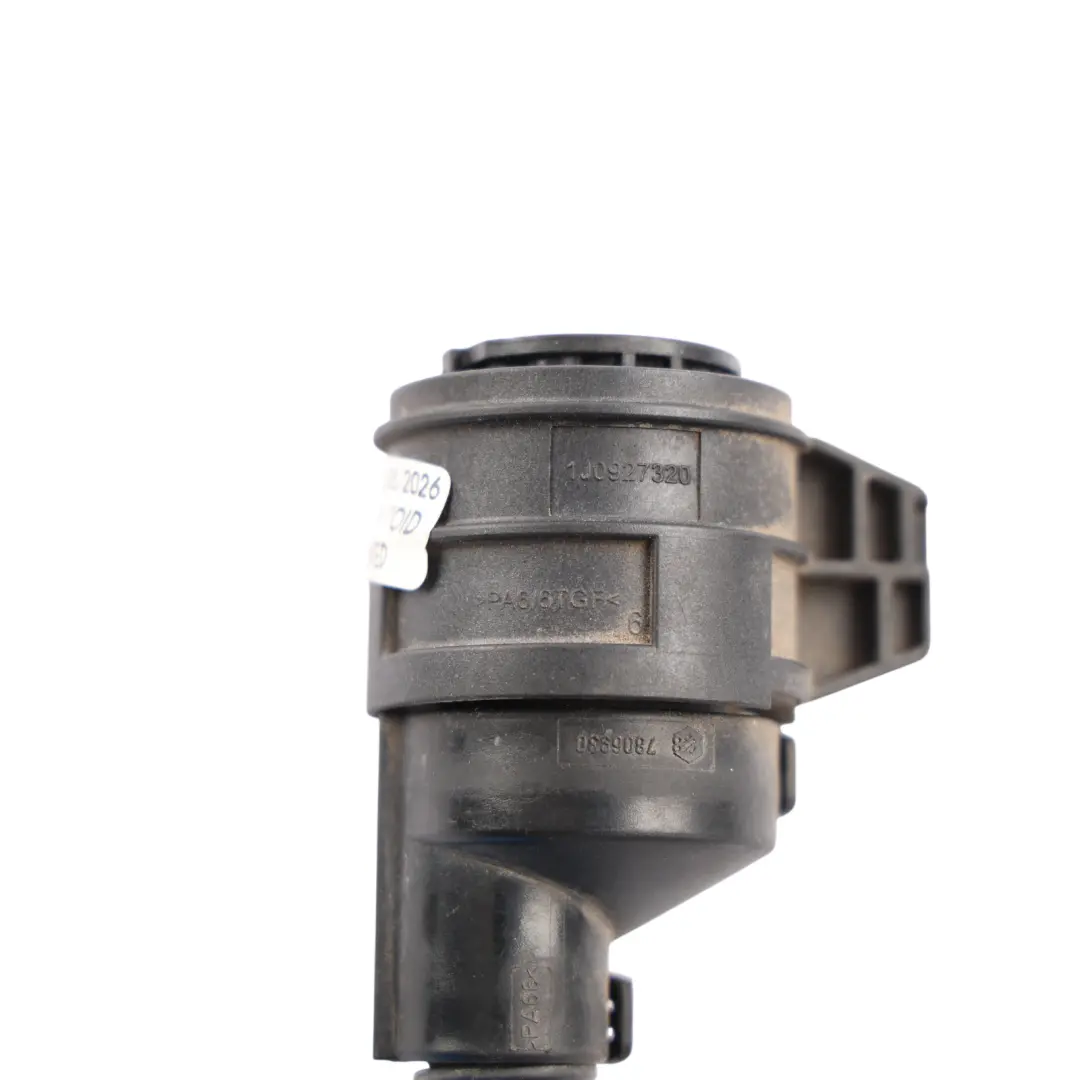

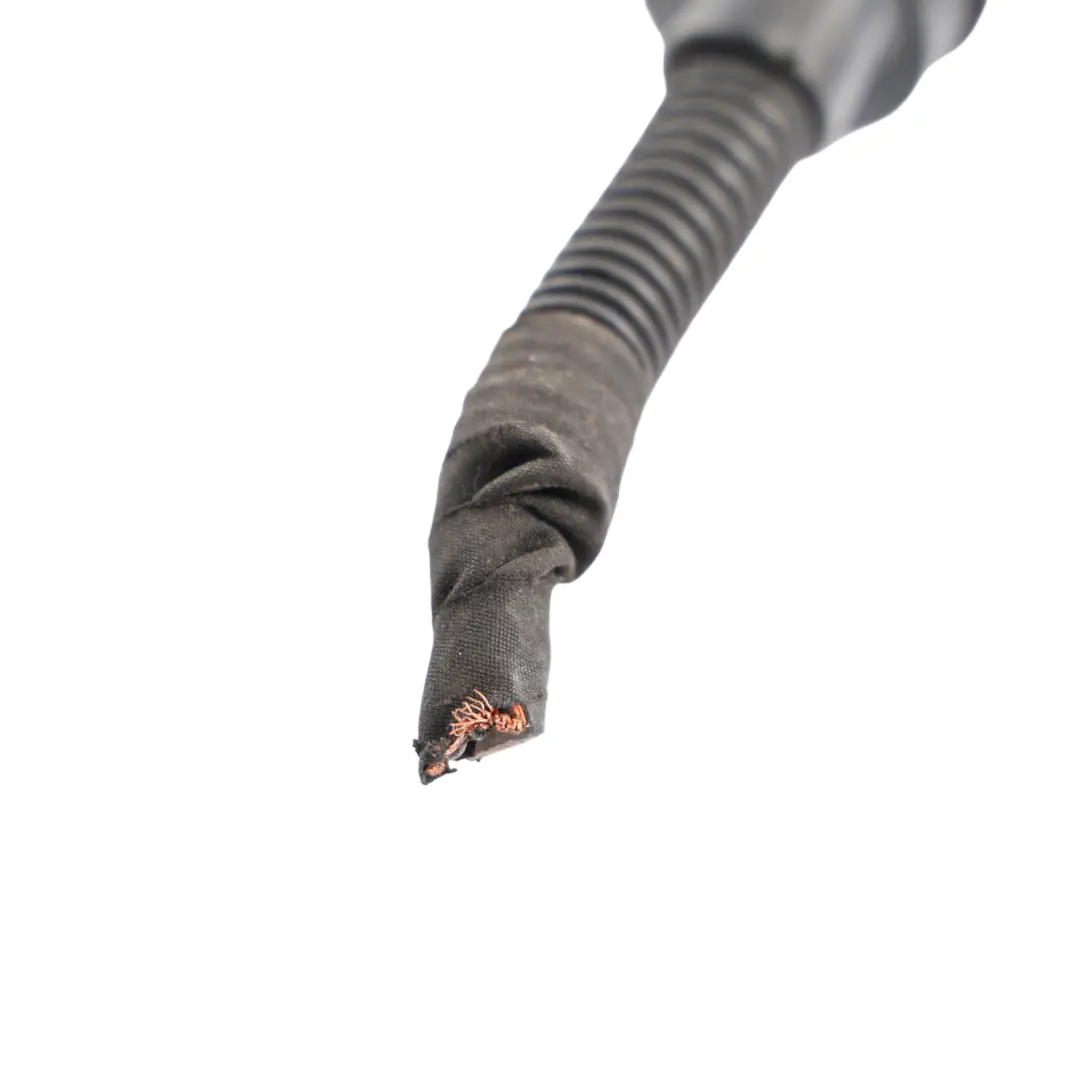

Audi A6 C6 VW Passat B7 DSG Gearbox Mechatronic Wiring Loom Connector 1J0927320

The Audi A6 C6 VW Passat B7 DSG Gearbox Mechatronic Wiring Loom Connector is a specialized component from the Wires, looms, and connectors group, designed to connect the mechatronic module to the vehicle's electrical system. A properly selected connector ensures stable transmission of control signals and power, which translates into predictable operation of the DSG automatic transmission in Audi and VW vehicles.

Specifications and technical data

• SKU: 1J0927320
• Mark: Audi
• Condition: Used
• OEM Part Number: 1J0927320
• Substitutable numbers: 1J0927320, 1J0 927 320
• Part type: Connector
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the DSG gearbox system

The described mechatronic wiring loom is a component connecting the DSG gearbox control electronics with the rest of the vehicle's installation. It is responsible for:

• transmitting control signals between the mechatronic module and the vehicle's ECU,
• providing stable power to the components responsible for gear shifting,
• a secure connection with factory sockets in the Audi A6 C6 and VW Passat B7. By maintaining the original geometry of the wires and connectors, the loom allows for precise placement within the gearbox housing, which reduces the risk of insulation abrasion and unwanted mechanical stress.

Connector construction and benefits of use

The loom belongs to the Wires, looms, and connectors group, which means it has been designed to work in the demanding environment of the gearbox housing. The connectors used are matched to the factory mechatronic sockets, and the appropriately selected wire length facilitates installation without interfering with the original wiring. Key advantages of this solution include:

• compatibility with the factory DSG gearbox control system in Audi and VW,
• the ability to restore proper electrical communication after damage to the old loom,
• reducing the risk of gearbox errors resulting from circuit breaks or unstable connections.

Application in Audi A6 C6 and VW Passat B7

The component has been developed for Audi vehicles and VW group models equipped with a DSG gearbox, such as the Passat B7. In practice, this means it matches factory mounting points and wire routing, which facilitates service and shortens repair time. Replacing the mechatronic wiring loom is particularly recommended in situations where the following occur:

• intermittent communication with the gearbox controller,
• electrical errors related to mechatronic circuits,
• visible insulation damage, corroded contacts, or overheated connectors.

Condition and installation aspects

The offered item is in used condition, which in practice means it has been removed from a vehicle and verified for further use. This type of part is a good solution for an economical DSG gearbox repair when maintaining the original installation specification is desired. Due to the nature of the gearbox's operation, it is recommended to entrust the installation of the loom to a workshop with experience in servicing DSG transmissions to ensure proper wire routing, correct connector fastening, and connection tightness.
