BMW F07 GT F10 F11 F12 F13 X3 F25 OBD Plug Socket Mounting Frame 9252670

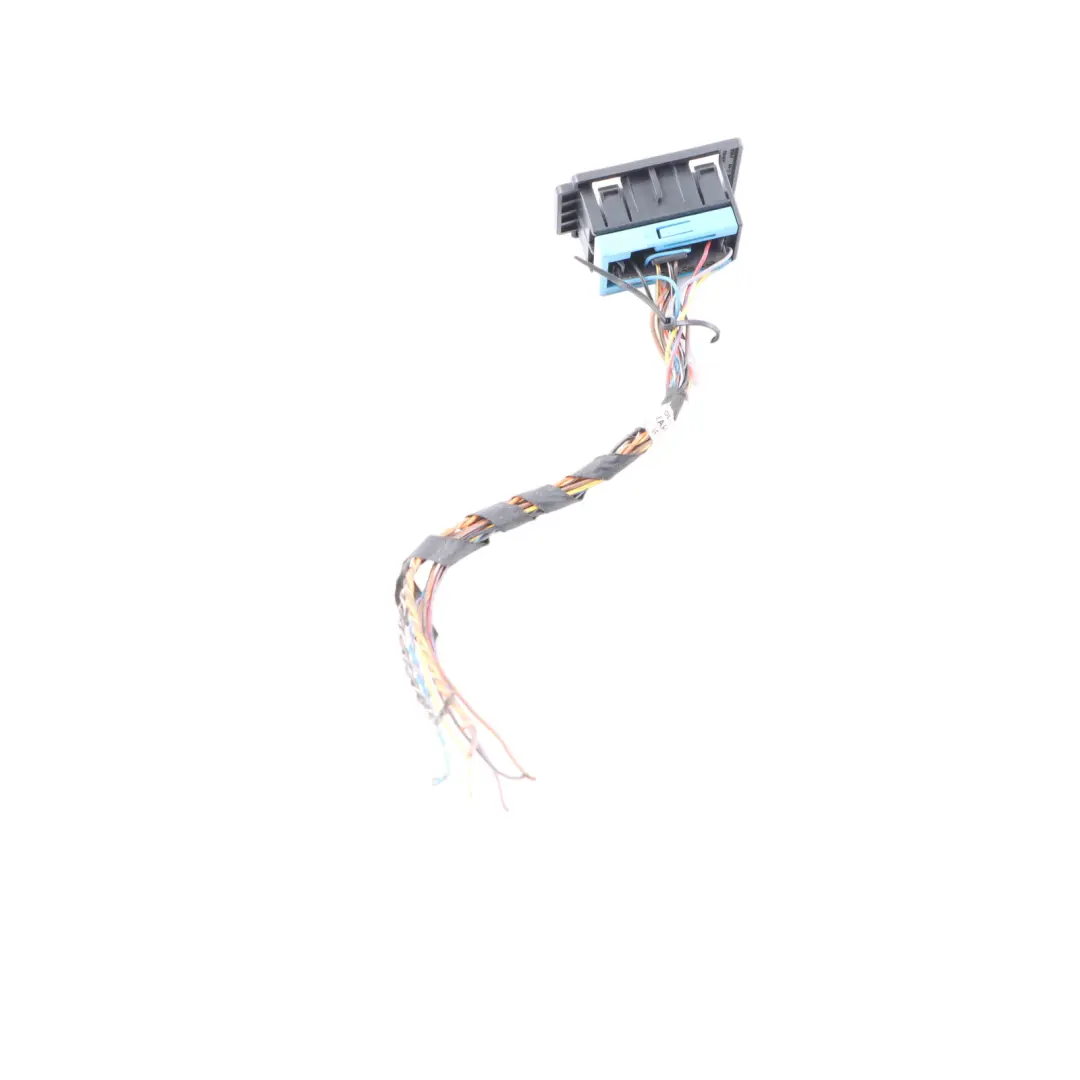

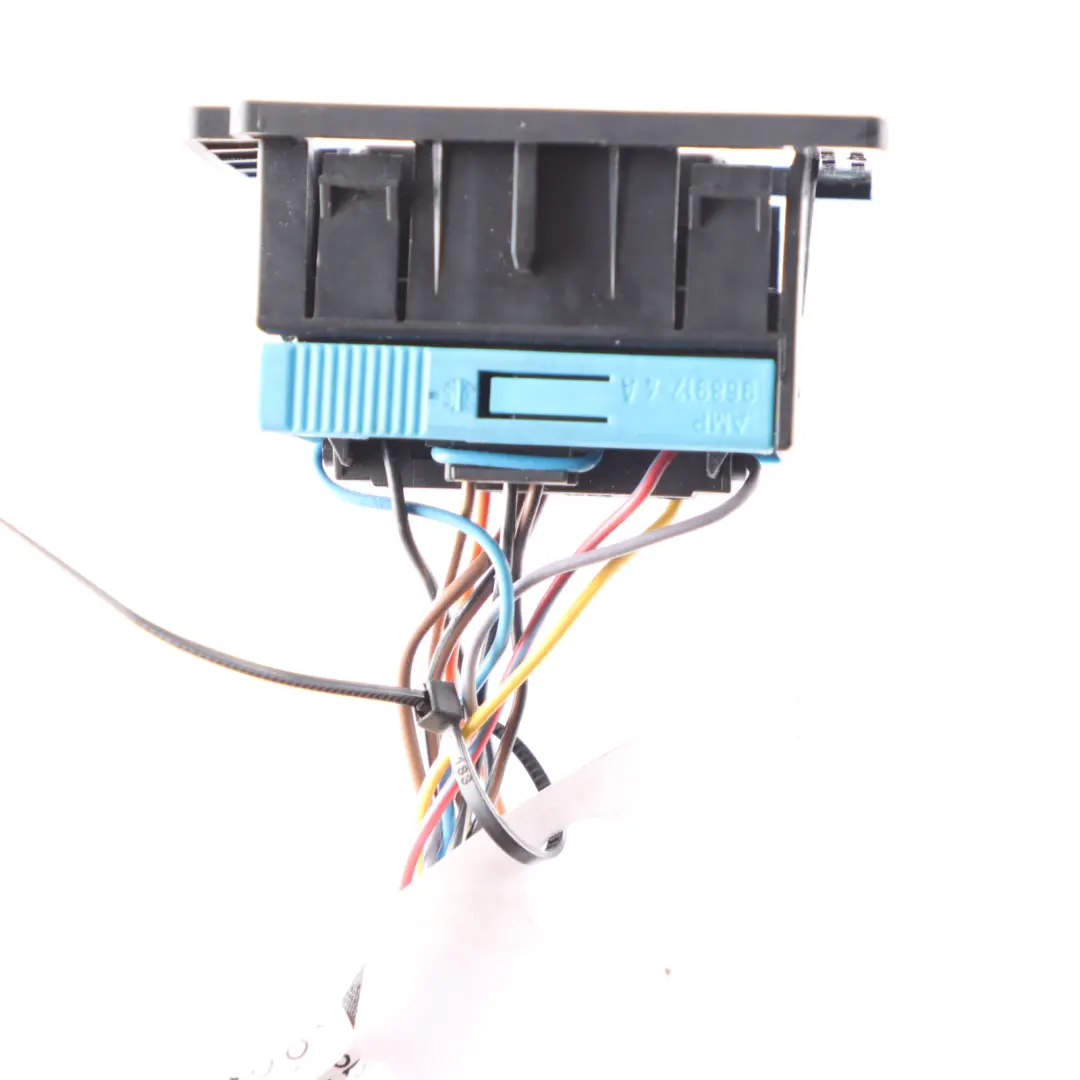

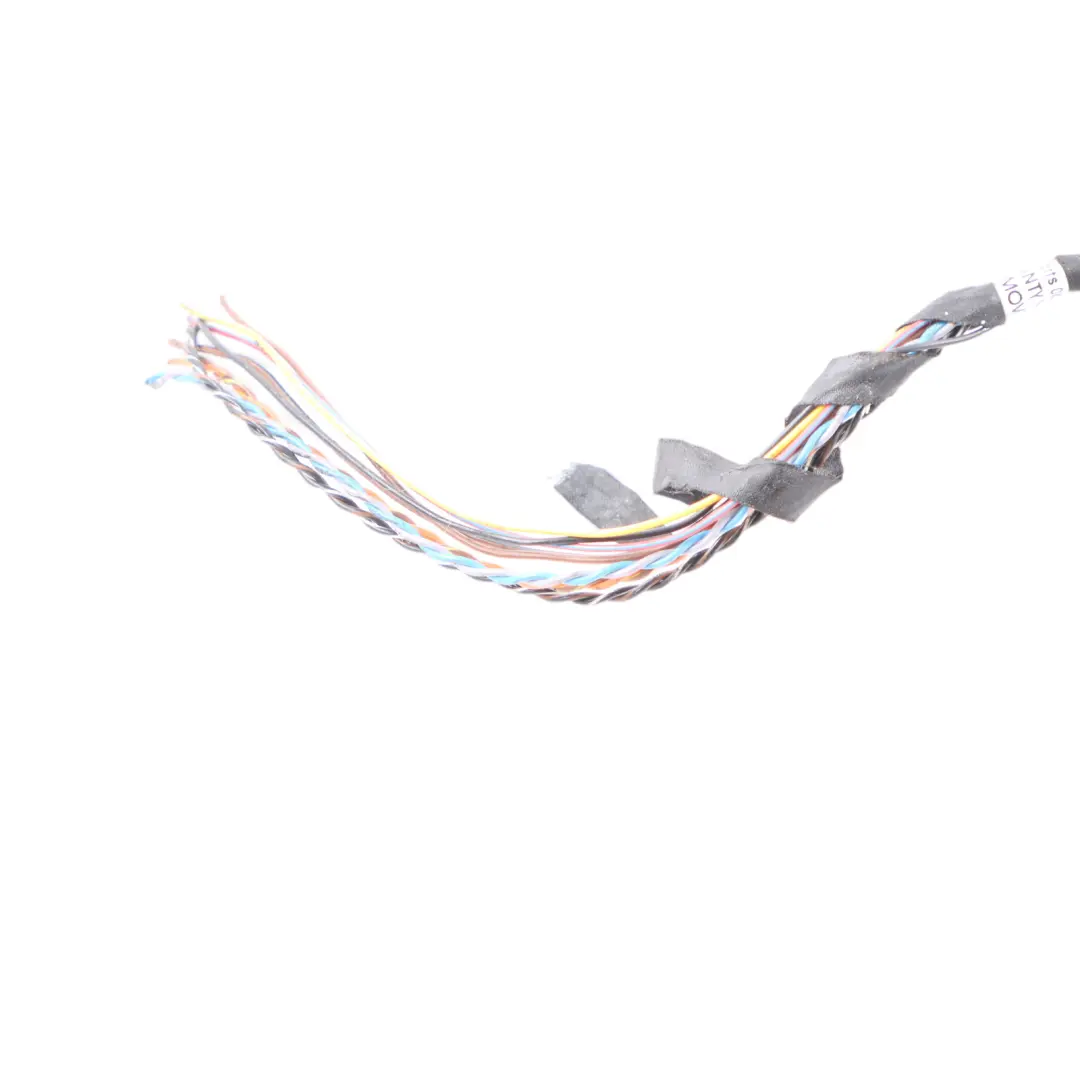

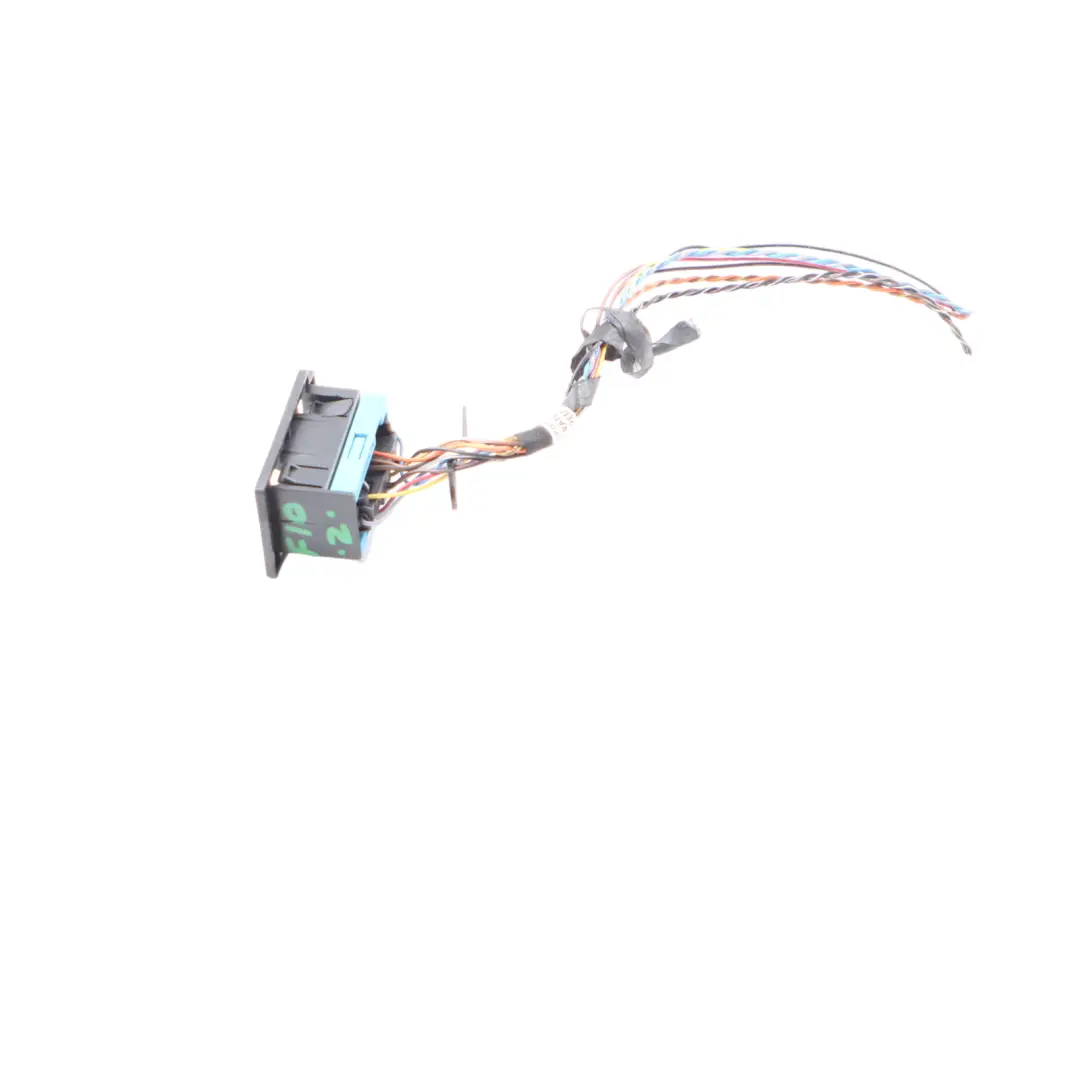

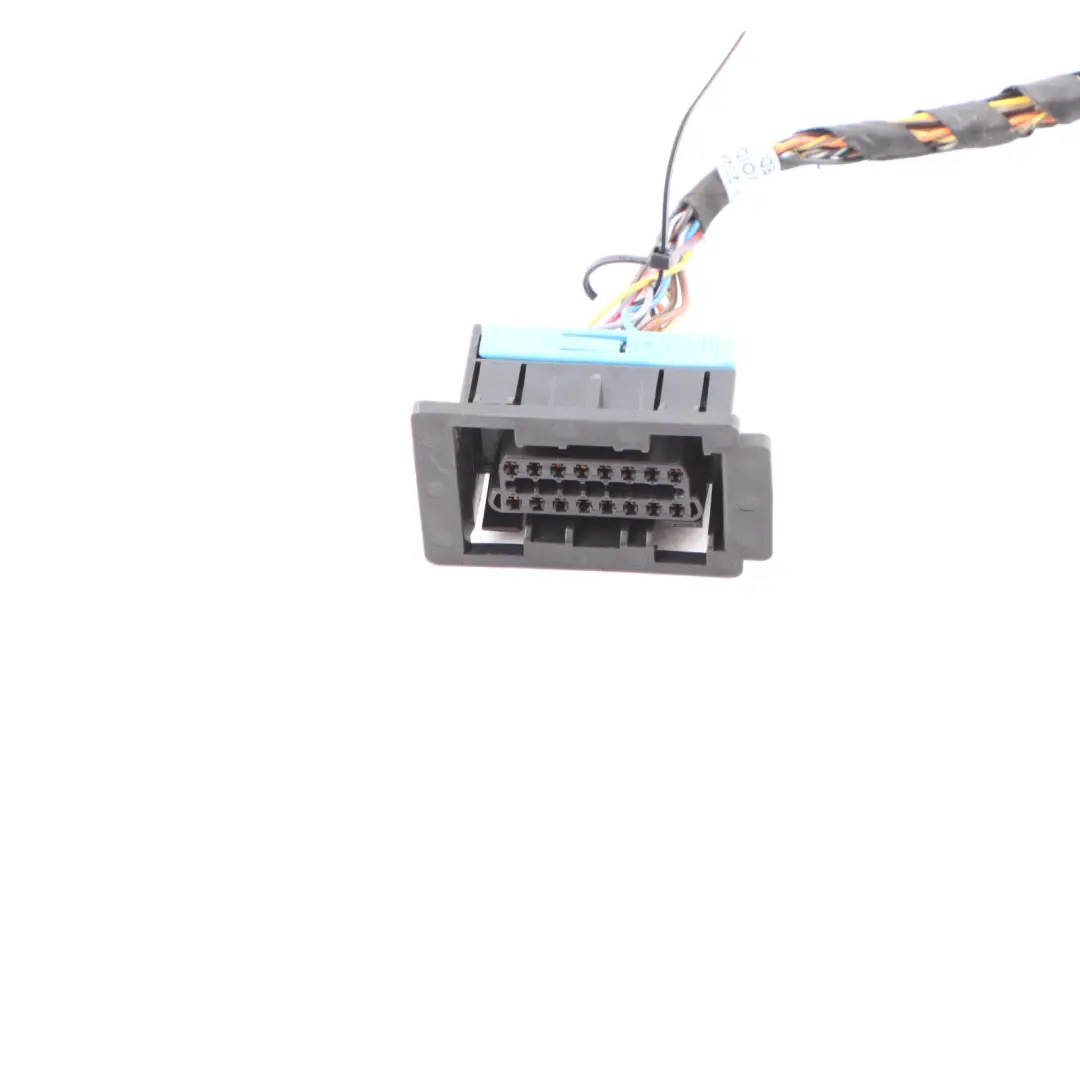

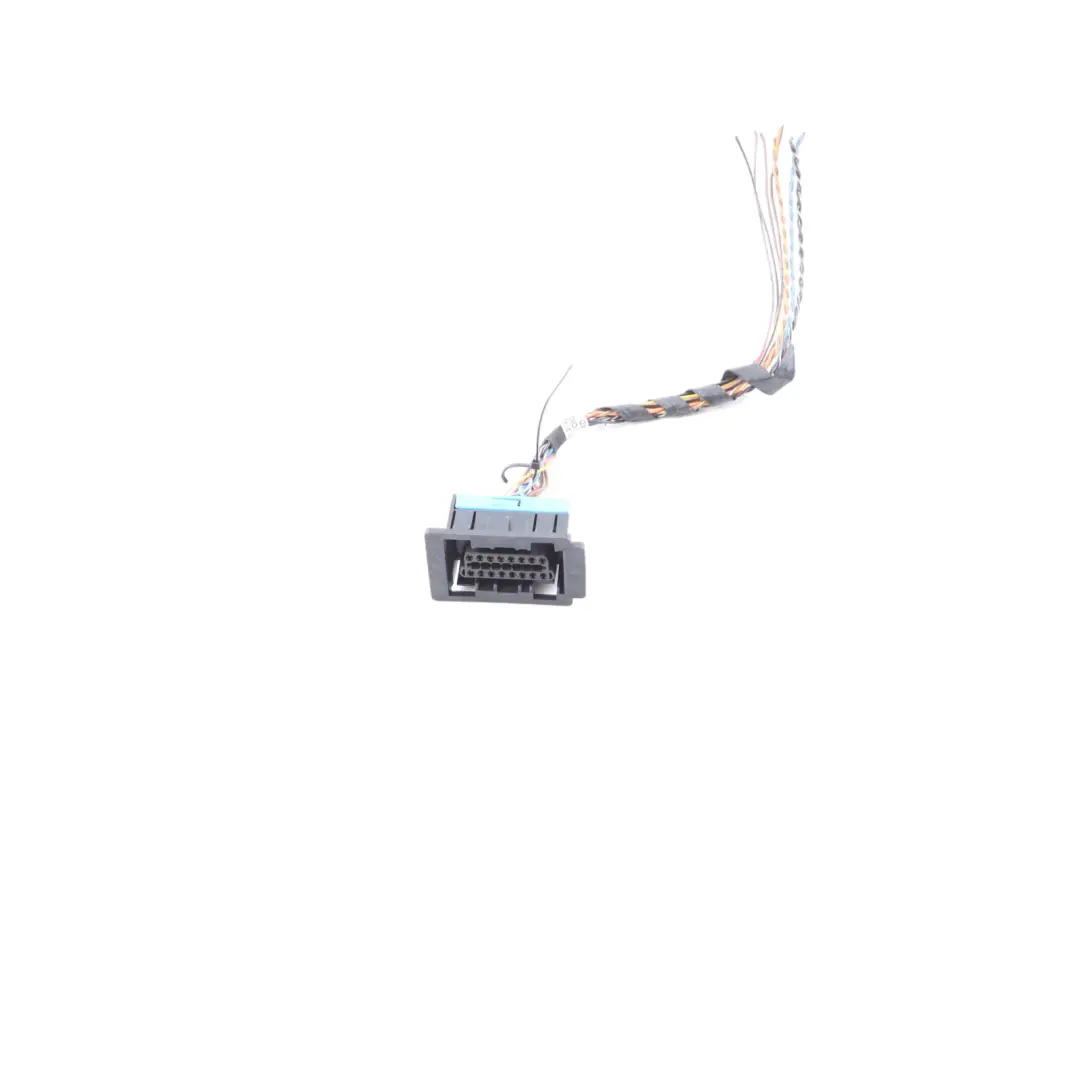

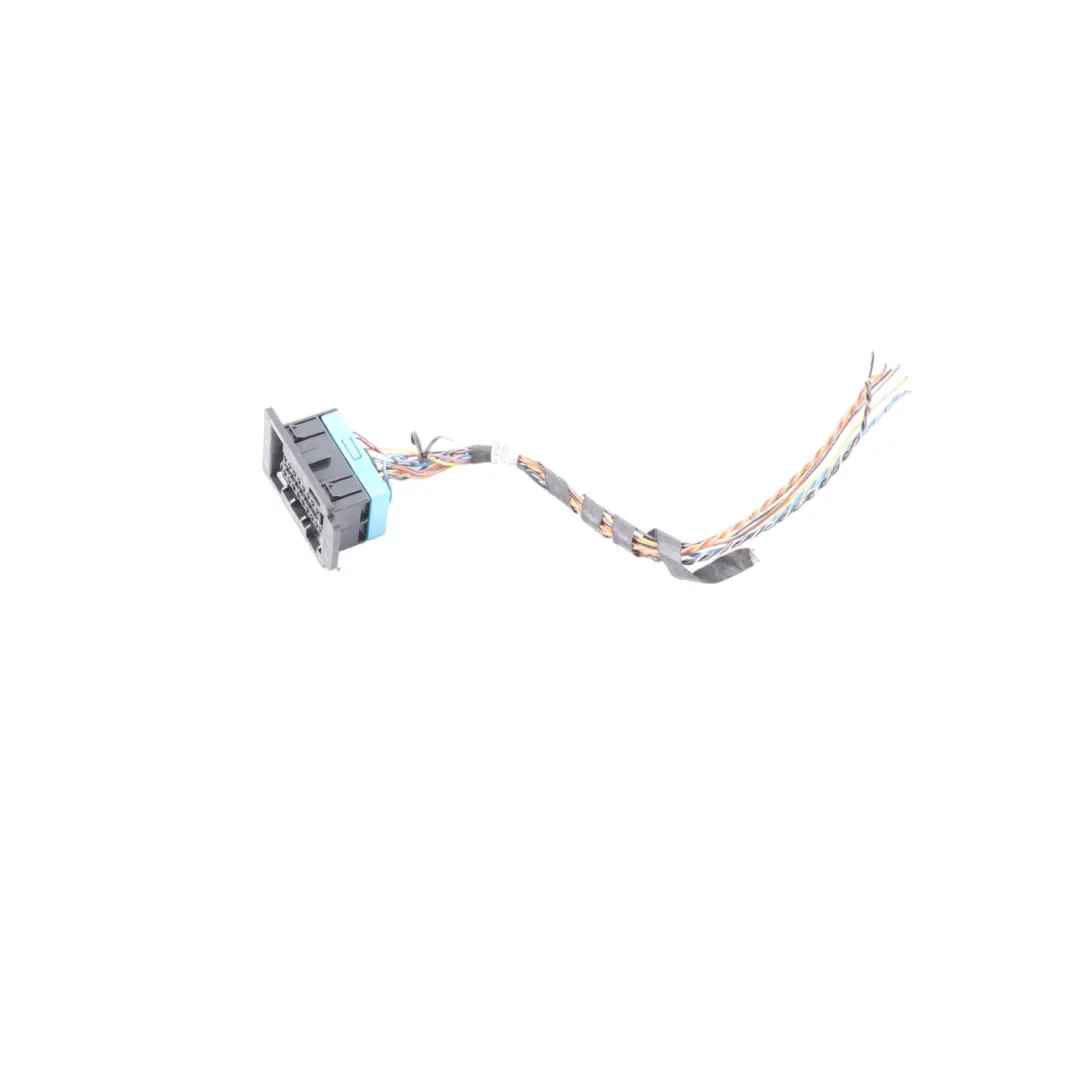

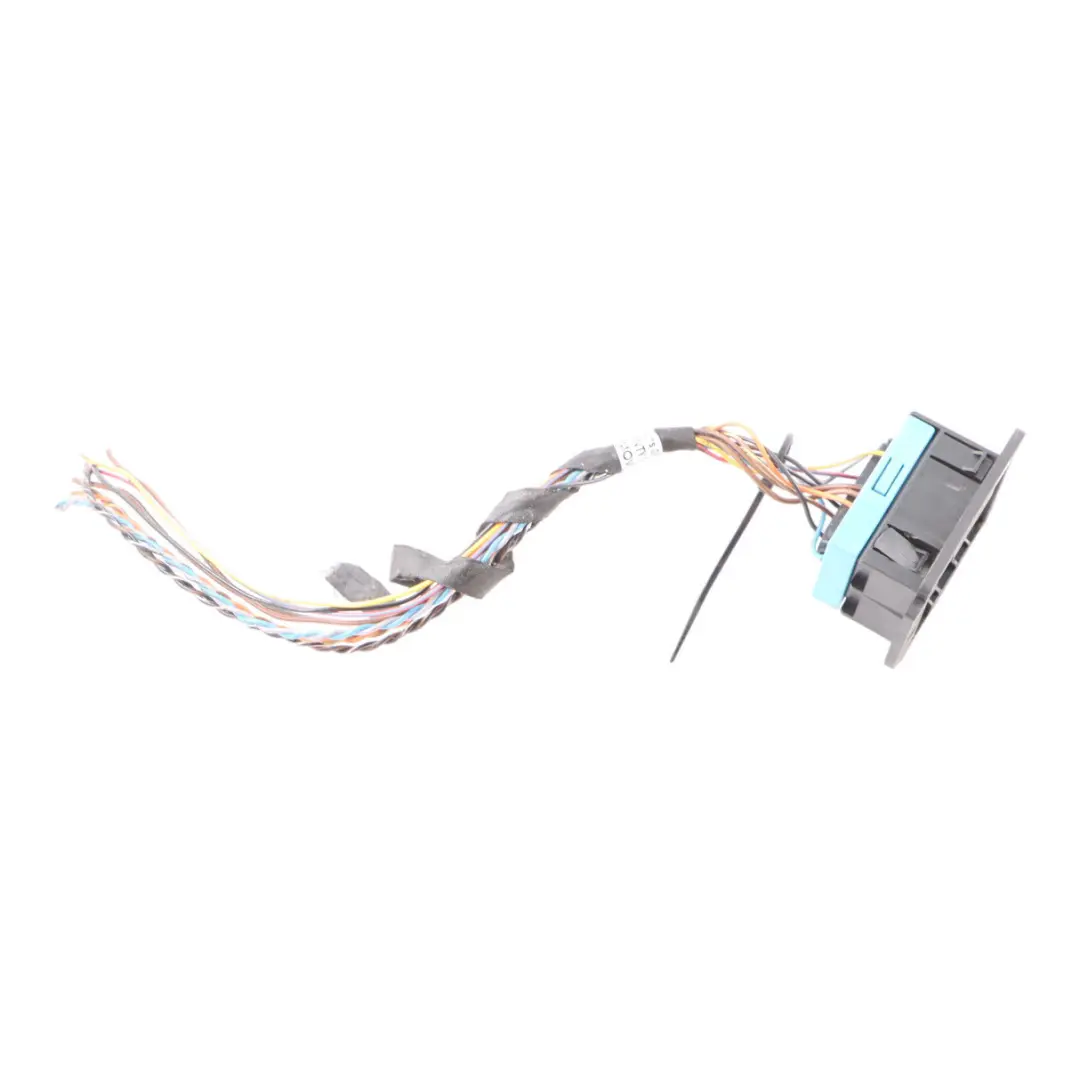

The BMW F07 GT F10 F11 F12 F13 X3 F25 OBD Plug Socket Mounting Frame is an original OBD diagnostic socket mounting frame designed for select BMW 5 Series, 6 Series, and X3 models. This component belongs to the Cables, Harnesses, and Connectors group and provides a practical base for securely mounting the factory OBD connector within the console or dashboard. The used OEM component ensures proper integration with the vehicle's electrical system and maintains the original mounting geometry.

Specifications and technical data

• SKU: 9252670
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9252670
• Substitutable numbers: 9252670, 61139252670
• Category: Wiring Harnesses, Cables & Connectors

Purpose and Function of the OBD Frame in BMW

The OBD socket mounting frame in BMW F07, F10, F11, F12, F13, and X3 F25 models is responsible for the stable mounting of the diagnostic connector within the vehicle's interior structure. This keeps the service plug in the correct position, making it easier to connect testers, diagnostic interfaces, and service devices without risking excessive strain on the wiring harness.

This element is part of the Cables, Harnesses, and Connectors system, working in conjunction with the factory electrical installation. A correctly fitted frame minimizes the possibility of looseness, misalignment of the socket, or mechanical damage from frequent use of computer diagnostics.

Construction and Compatibility with BMW Models

The offered OBD frame has been designed by BMW as an OEM component, ensuring full compatibility with factory mounting points in the body. The shape and arrangement of the clips are adapted to the interior architecture of:

• BMW 5 Series generations F10/F11 and F07 GT versions,
• BMW 6 Series F12/F13,
• BMW X3 F25.

This precise fit translates to a secure mounting of the diagnostic socket without the need for modifications, custom brackets, or makeshift solutions. The used OEM element retains the original geometry, which is crucial for vehicle servicing at authorized and independent workshops.

Application in Electrical System and Diagnostics

The OBD socket mounting frame is a key element for service operations within the electrical system. It supports:

• safe routing of the diagnostic harness in the driver's area,
• easy access to the OBD connector for service testers,
• reduction of mechanical stress on the wires during repeated connection of interfaces.

By maintaining the factory position of the socket, vehicle system diagnostics – including powertrain, safety, and comfort systems – proceed smoothly, and the risk of damage to the wires or the connector itself is reduced. This is particularly important in modern BMWs, where data bus communication requires stable connections.

Condition, Origin, and Benefits of Choosing OEM Parts

The offered OBD frame is an original BMW part from the Cables, Harnesses, and Connectors group, sourced from disassembly. Choosing an OEM component over an aftermarket alternative ensures compatibility with the factory interior design, simplifying installation and eliminating fitting issues. A used element is a good solution for post-accident repairs, replacing damaged mounts, or restoring the original state of the installation after previous modifications.

In practice, this means:

• original mounting points consistent with BMW's design,
• no need for modifications to the interior plastic structure,
• an aesthetically pleasing and technically correct mounting of the diagnostic socket.

Expanding the Electrical System and Selecting Related Components

If you are planning a comprehensive repair or upgrade of the electrical system area in your BMW and need other components from the same group, such as harnesses, connectors, or wire retainers, check the available parts in the BMW Cables, Harnesses, and Connectors category.

For users interested in a broader perspective on the technical solutions used in the powertrains and electronics of premium brands, an article describing various all-wheel-drive systems, typical components, and the approach to servicing and selecting used parts may be helpful – you can find it here: xDrive, 4Matic, quattro or 4Motion – comparison of AWD drives from BMW, Mercedes, Audi, and VW.
