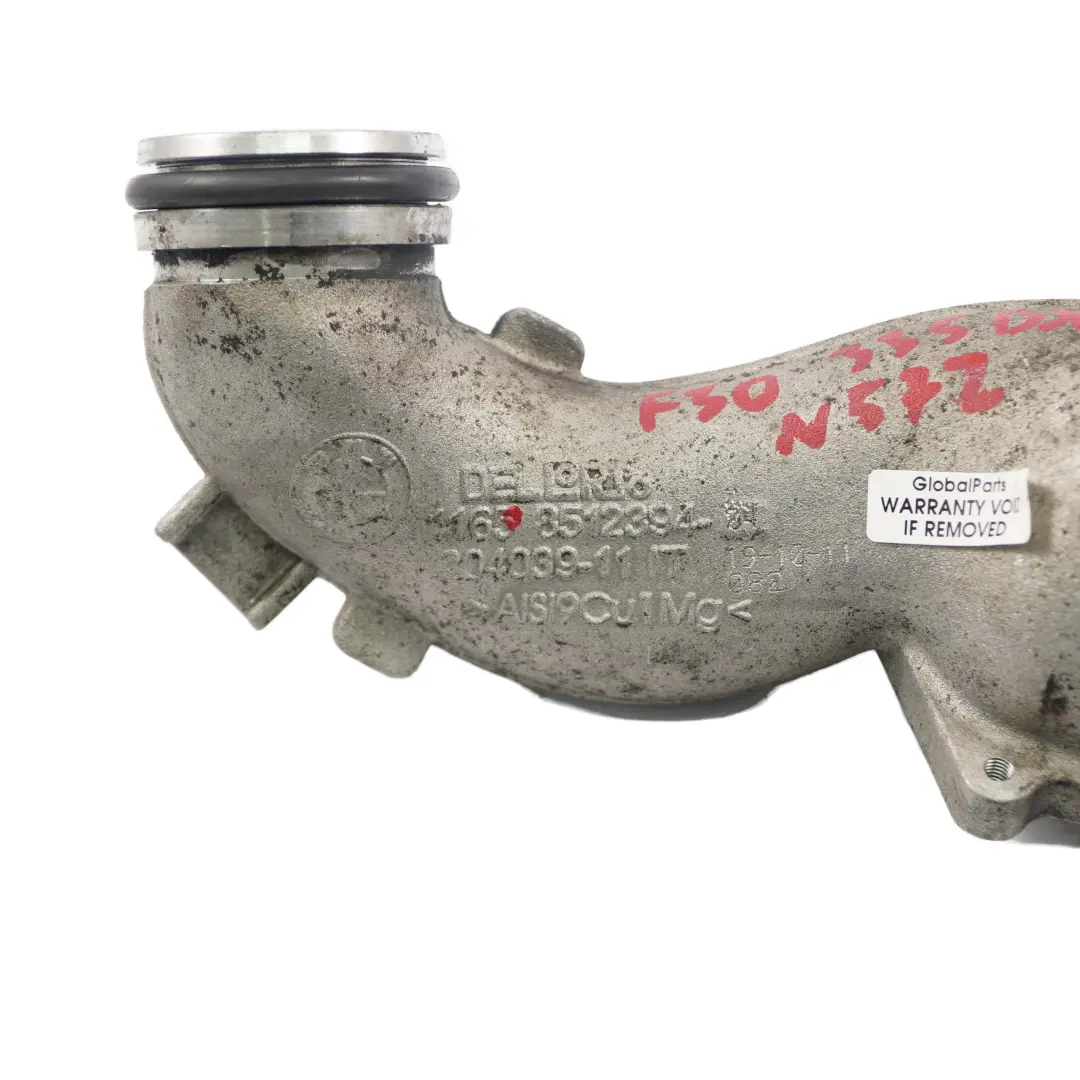

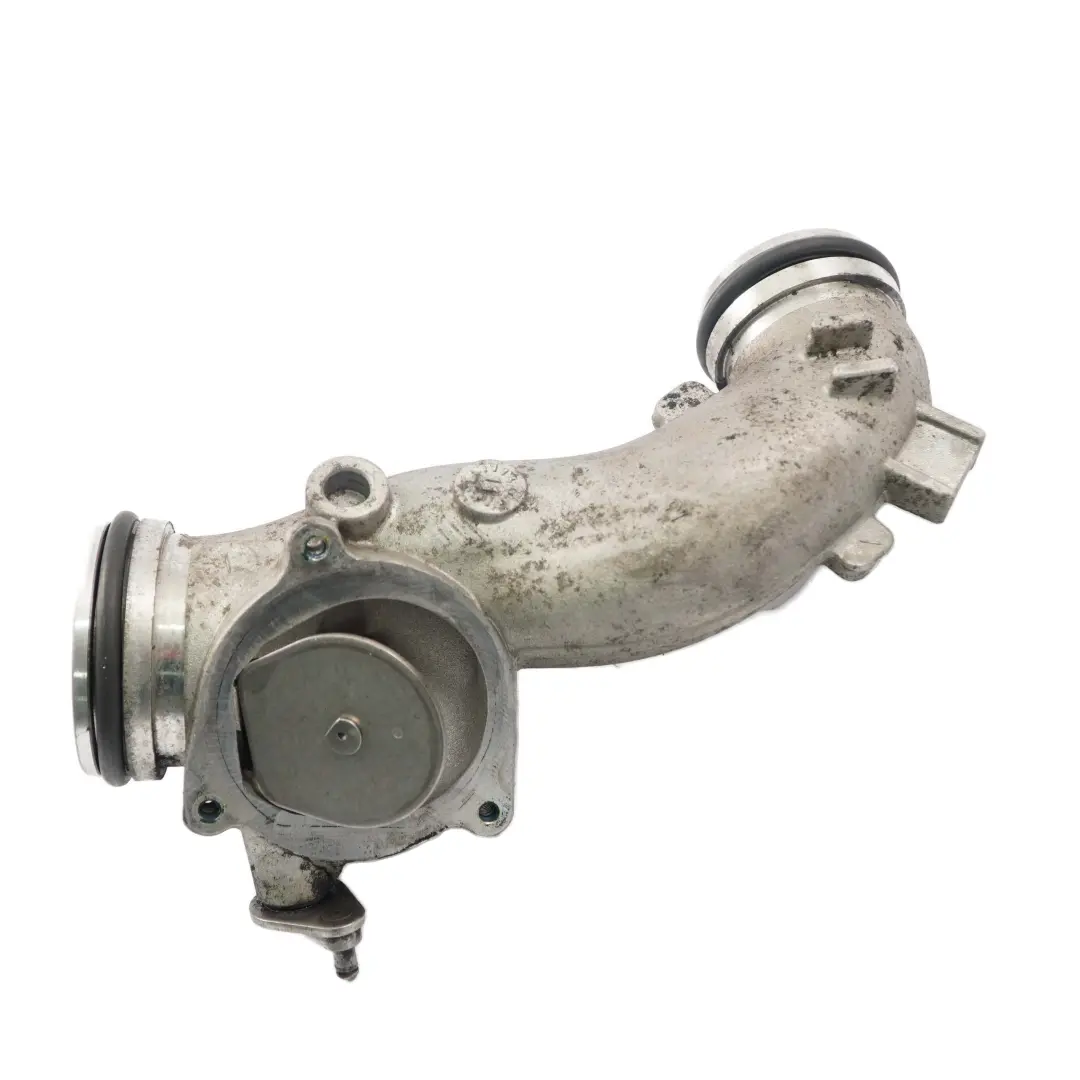

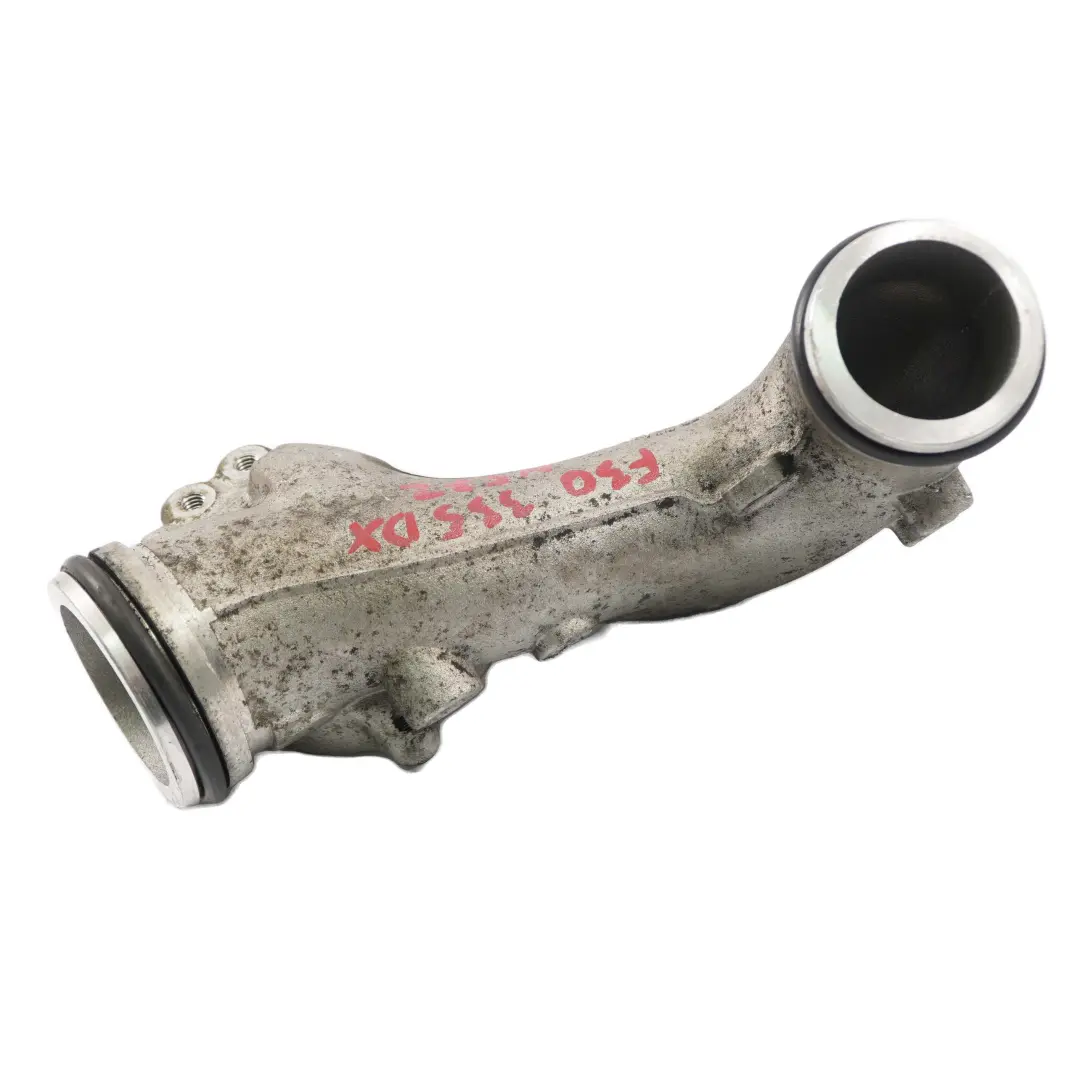

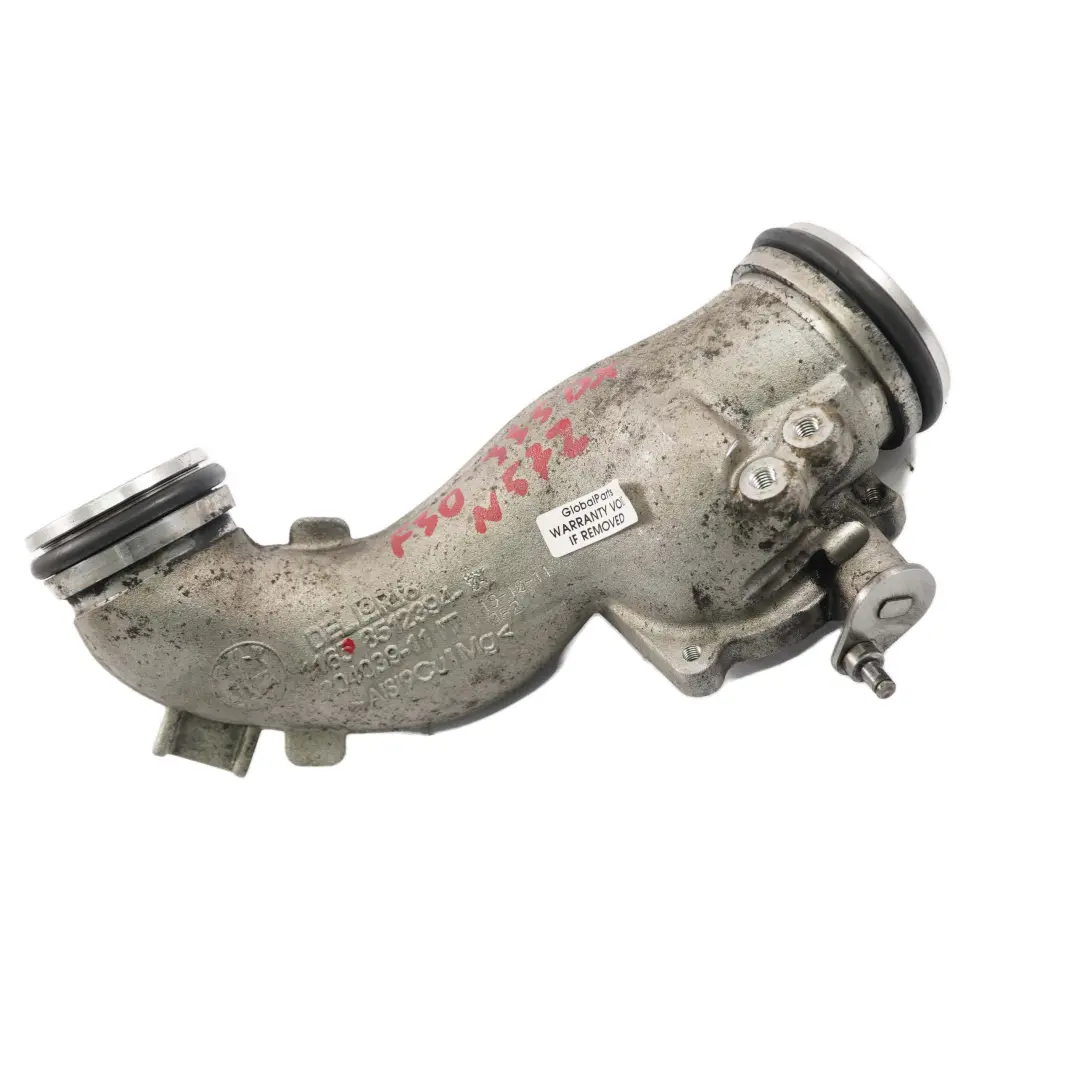

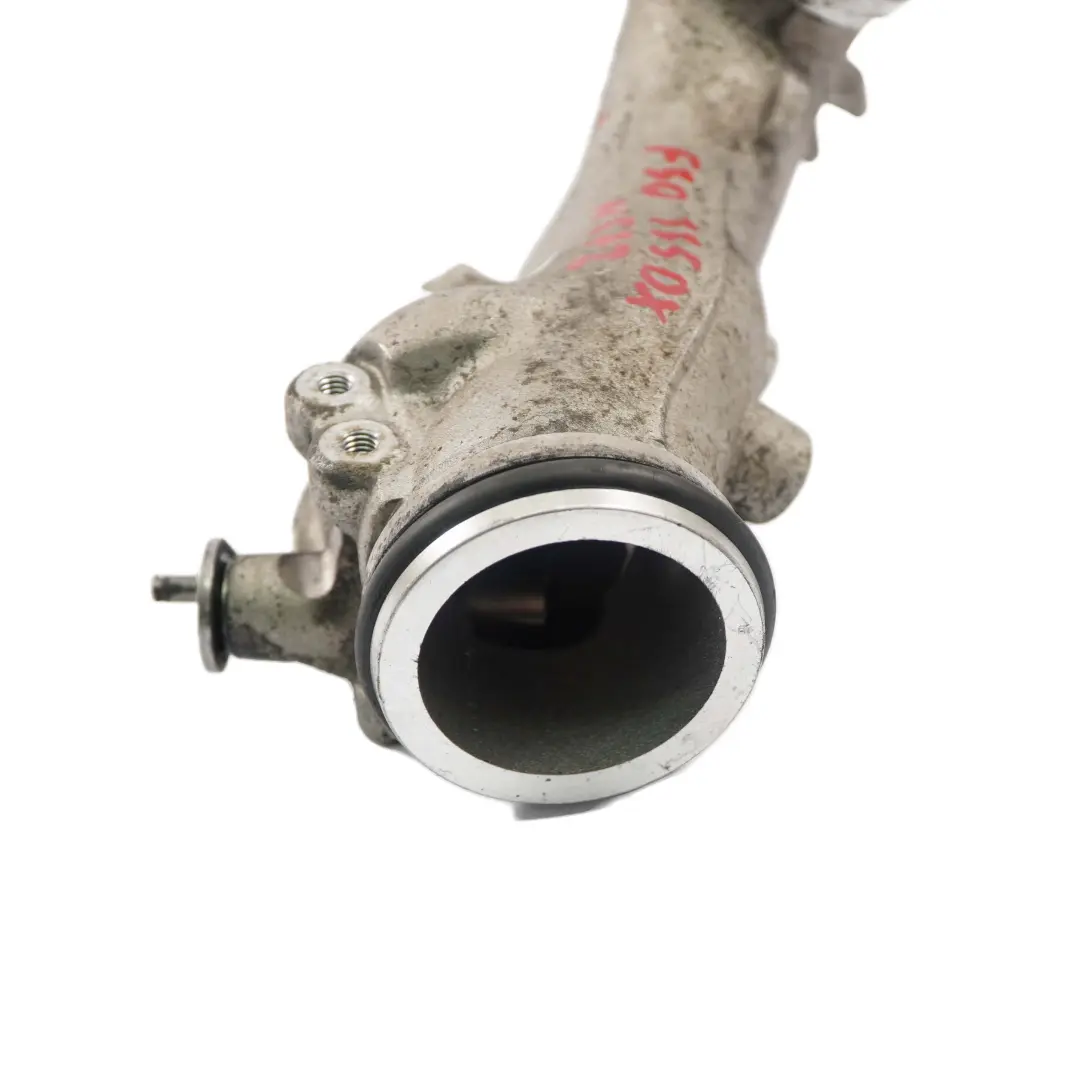

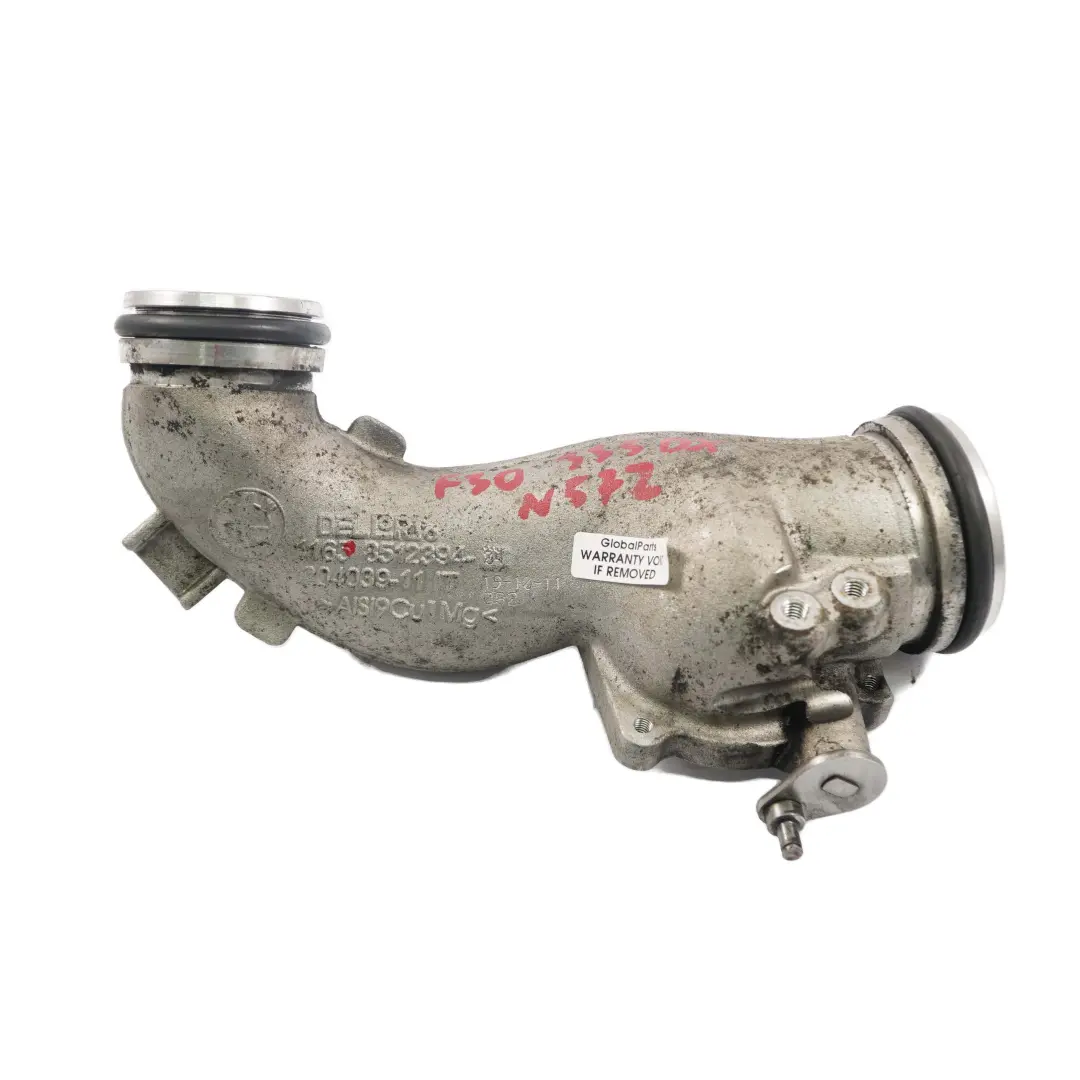

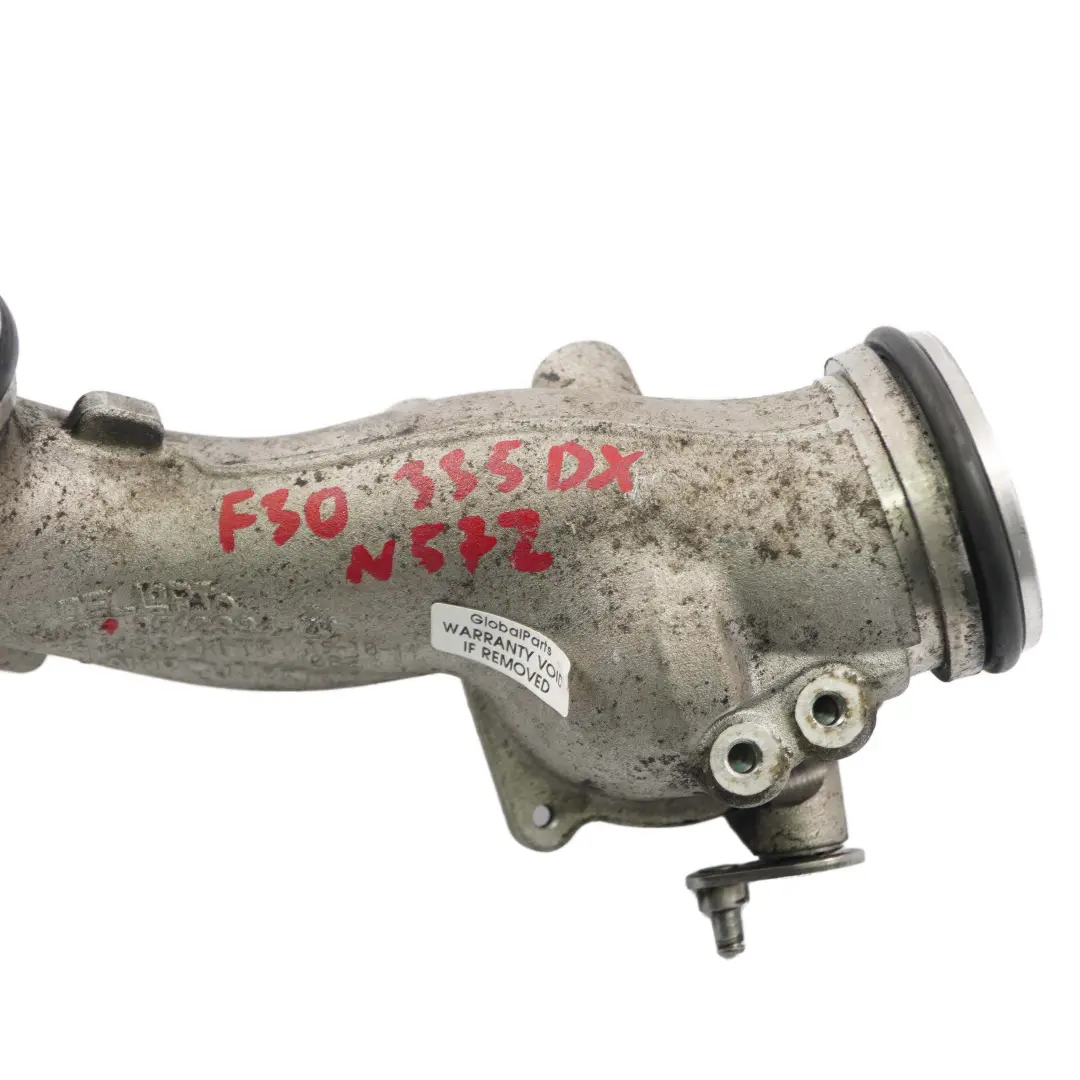

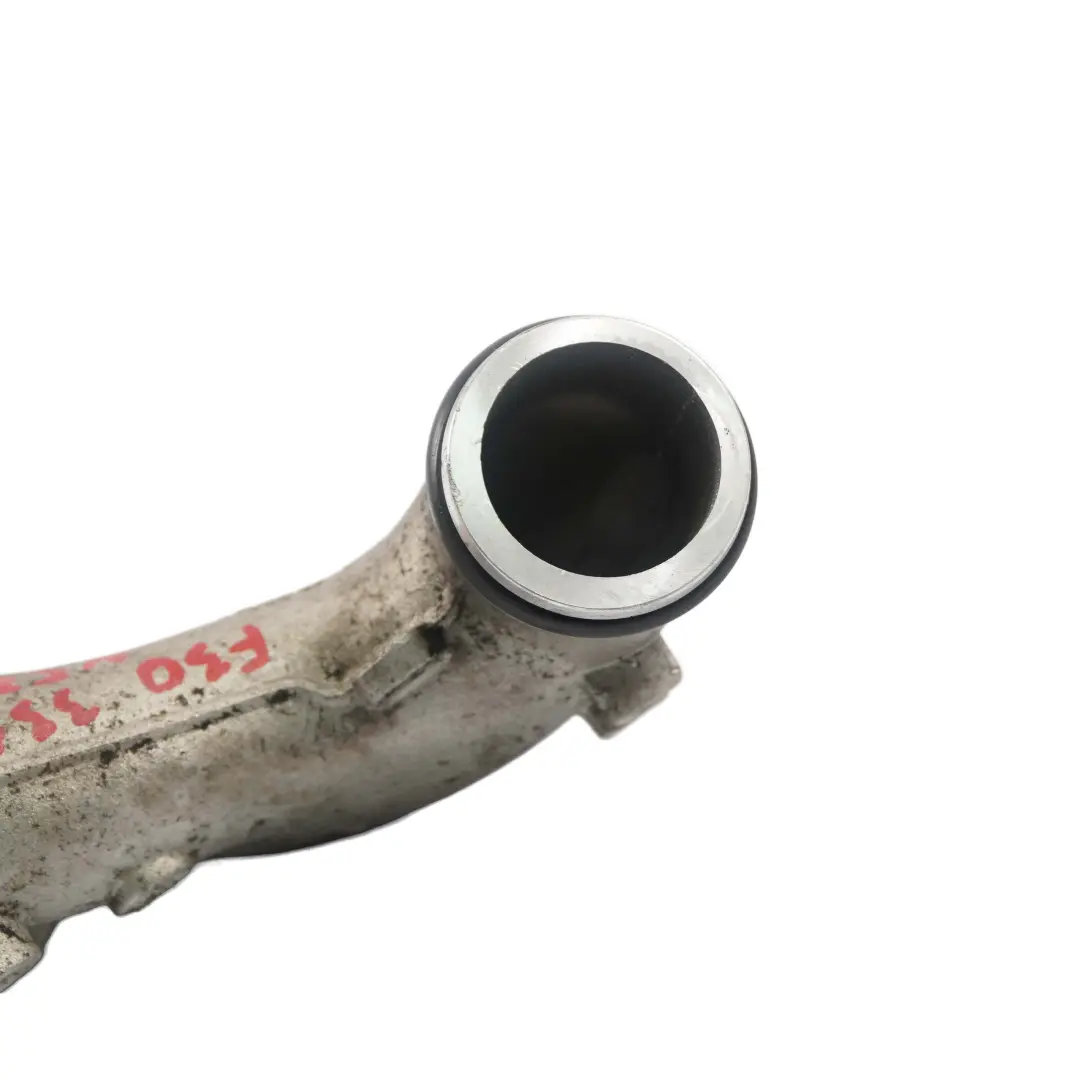

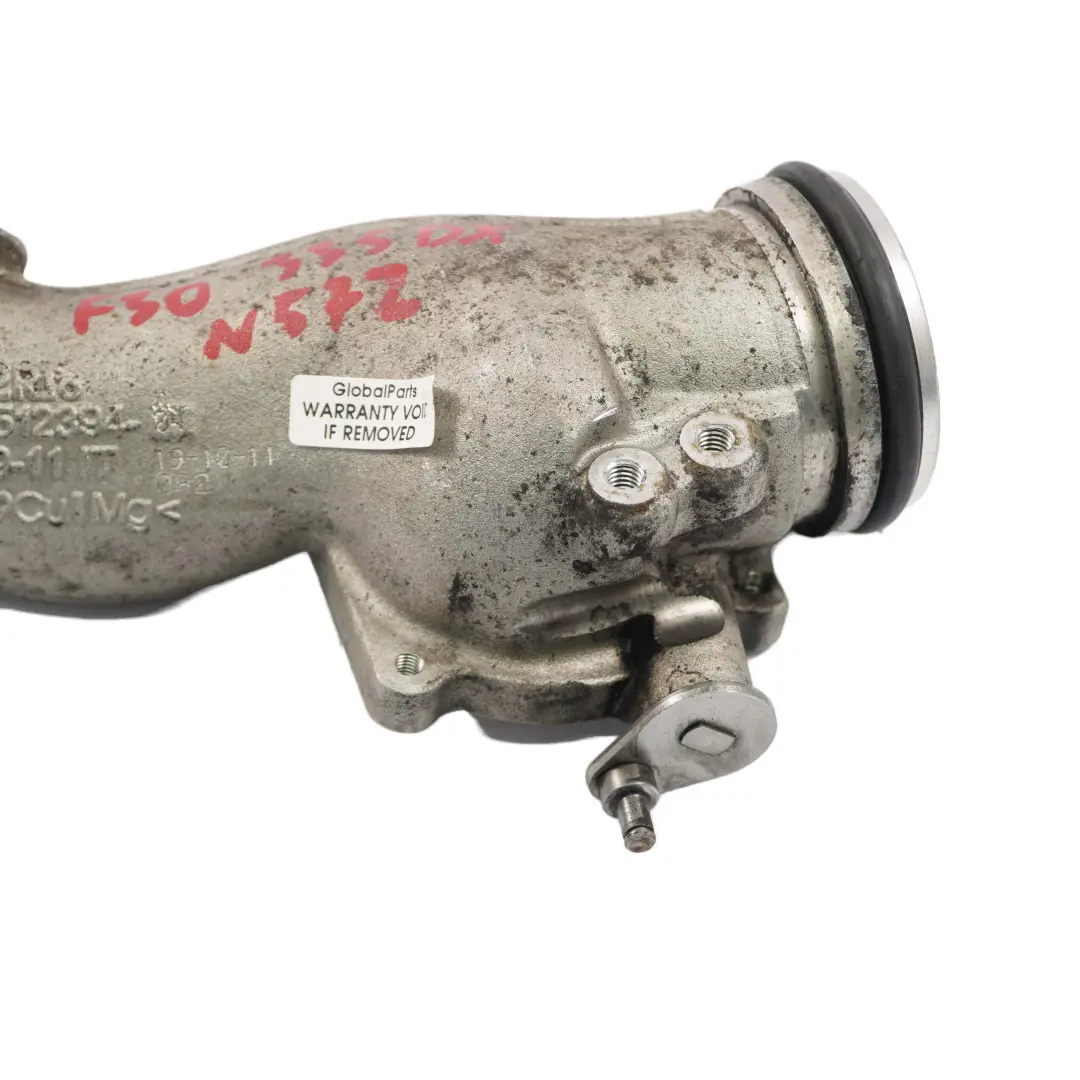

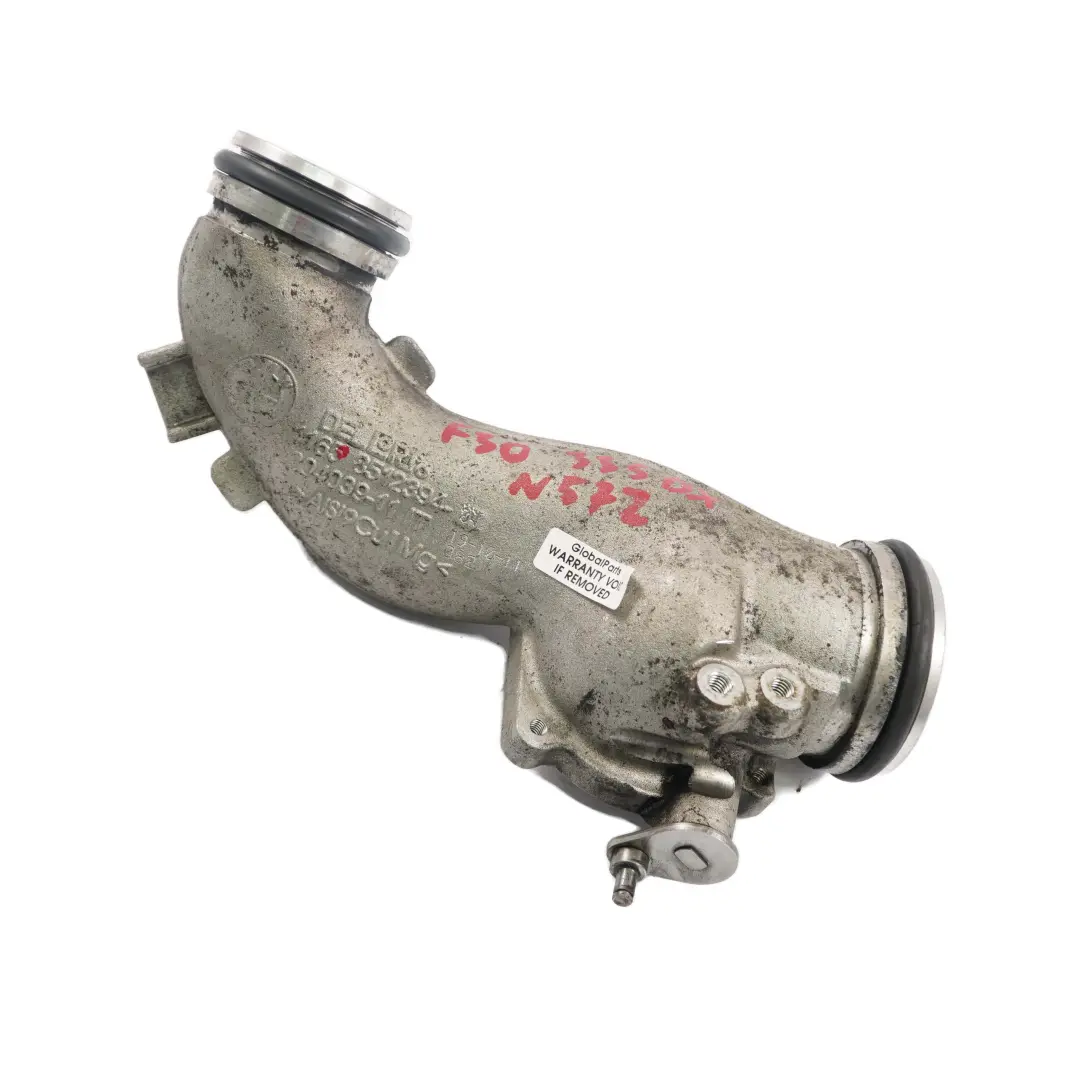

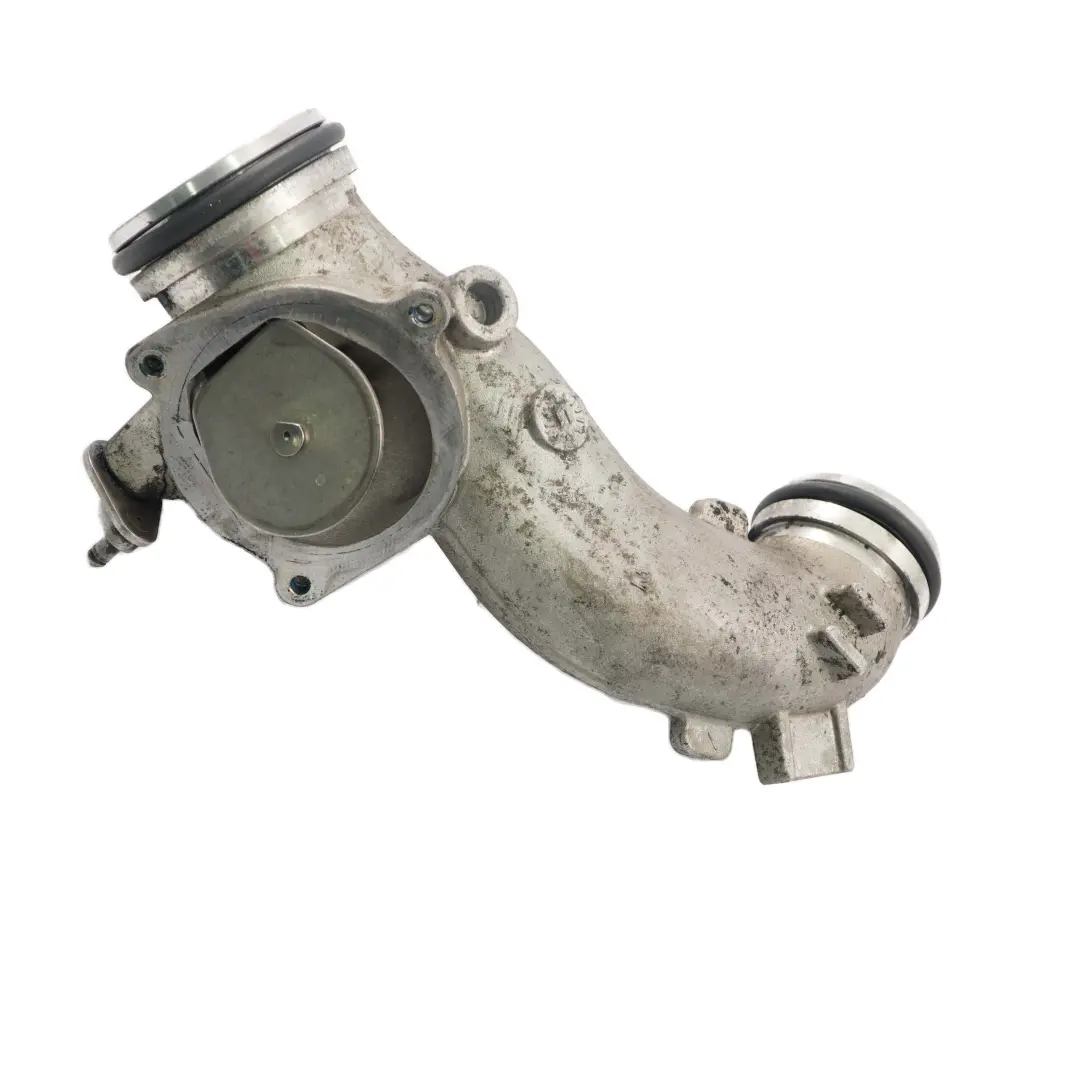

Turbocharger Pipe BMW F30 F32 LCI 335dX 435dX N57Z Connecting Tube 8512394

The BMW F30 335dX F32 435dX N57Z turbo connecting pipe is a turbocharger and parts component designed for use in BMW vehicles with the N57Z engine. This pipe is an original, used part that provides a functional link between the turbocharger and the remaining intake system components.

Specifications and technical data

• SKU: 8512394
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8512394
• Substitutable numbers: 11658512394, 8512394
• Category: Turbos & Parts

Purpose and role in the charging system

The BMW F30 335dX F32 435dX N57Z turbo interconnect pipe operates at high pressures and elevated temperatures, ensuring stable compressed air flow from the turbocharger to downstream system components. A properly selected pipe minimizes pressure drops, reduces the risk of leaks, and helps maintain proper diesel engine operating parameters.

In the BMW 3 Series F30 and 4 Series F32 models with xDrive and the N57Z engine, the tightness and appropriate cross-section of the connecting pipe have a direct impact on:

• stable boost pressure over the full load range,
• correct response to gas and engine operation culture,
• reducing smoke and power losses resulting from air leakage.

Technical characteristics and fit

This hose is categorized as a turbocharger and parts, meaning it's designed to work with the factory BMW supercharger system. The pipe's design is adapted to the engine bay geometry of the F30 335dX and F32 435dX, ensuring proper hose routing, clearances with other components, and safe vibration management.

The original execution translates to:

• precise fit with the turbocharger connectors and other intake components,
• maintaining factory stiffness and flexibility in the appropriate zones,
• compatibility with the mounts and clamps provided by the manufacturer.

Used condition and operational aspects

The turbo connecting pipe is offered in used condition, allowing for cost-effective replacement while maintaining original specifications. When properly maintained, this type of part can still ensure proper sealing and stable operation of the turbocharging system, making it a sensible choice for workshops and users seeking a factory-sourced replacement.

Before installation, a standard workshop procedure is recommended, including:

• verification of sealing surfaces and seats,
• checking the condition of clamps, bands and fasteners working with the pipe,
• checking the intake system for other potential leaks.

Benefits of using the original BMW turbo connection pipe

Using the original connecting pipe in the BMW F30 335dX / F32 435dX N57Z supercharger system allows you to maintain engine operating parameters in line with the manufacturer's specifications. Compared to random replacements, a component from the same design line provides:

• stable operating conditions of the turbocharger thanks to proper air flow,
• lower risk of leaks resulting from shape or diameter mismatch,
• easier installation, without the need for modifications or cable adjustments.

Selection of OEM parts and interchangeable numbers

The turbo connecting pipe has a dedicated OEM part number and associated interchange numbers, facilitating clear identification in BMW catalogs and parts selection systems. When selecting a specific vehicle, it's important to use the manufacturer's designations and vehicle data to ensure full compatibility with the engine and drivetrain version.
