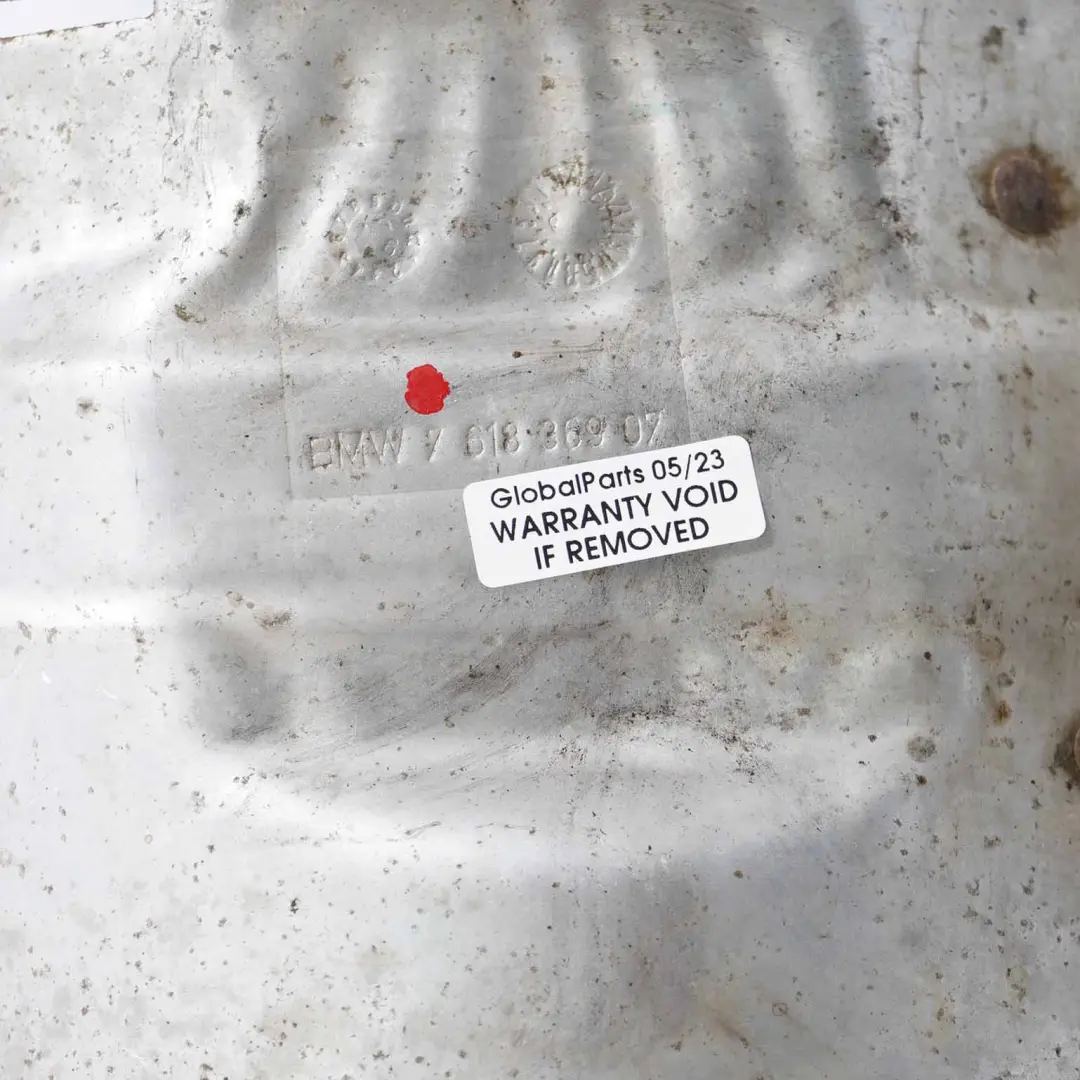

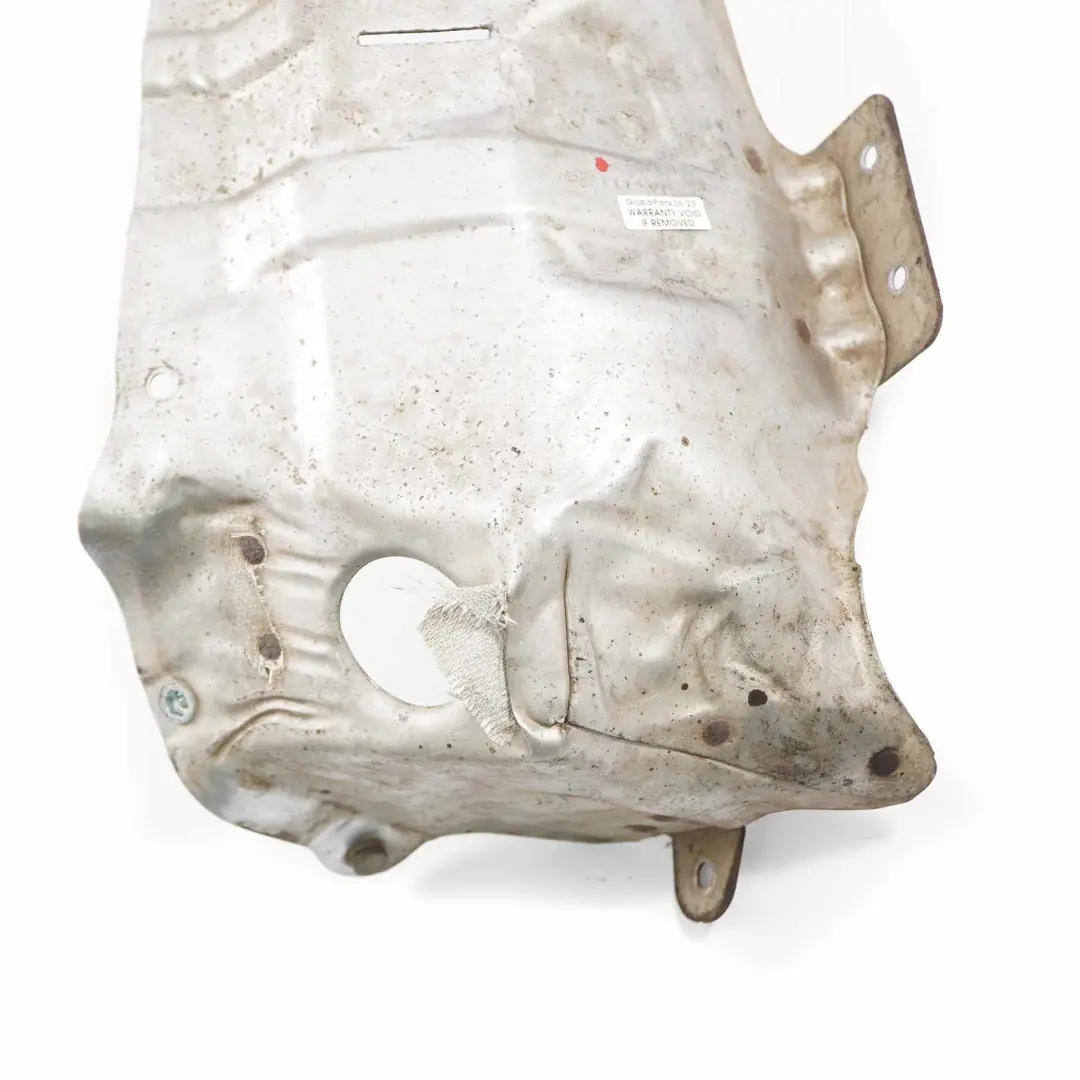

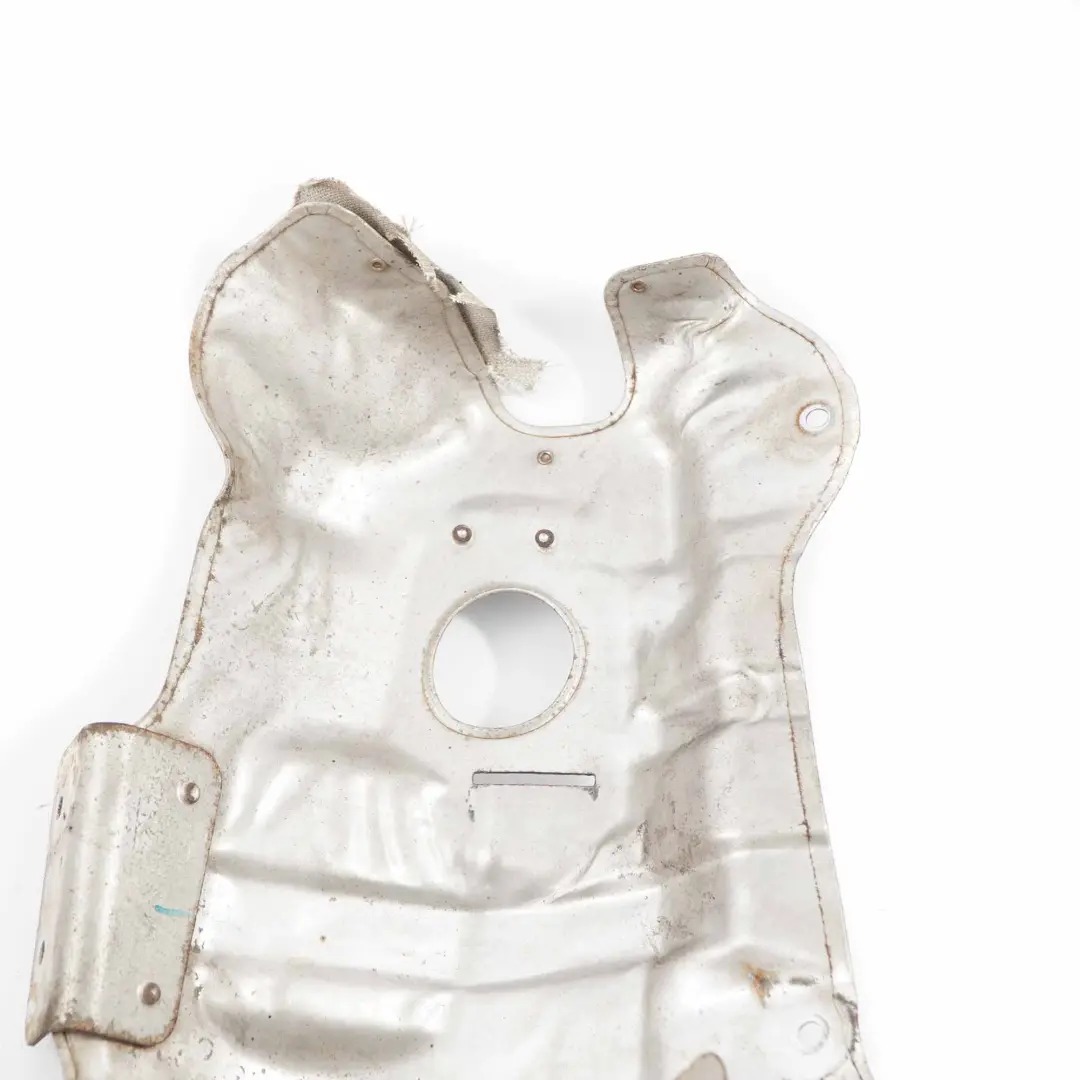

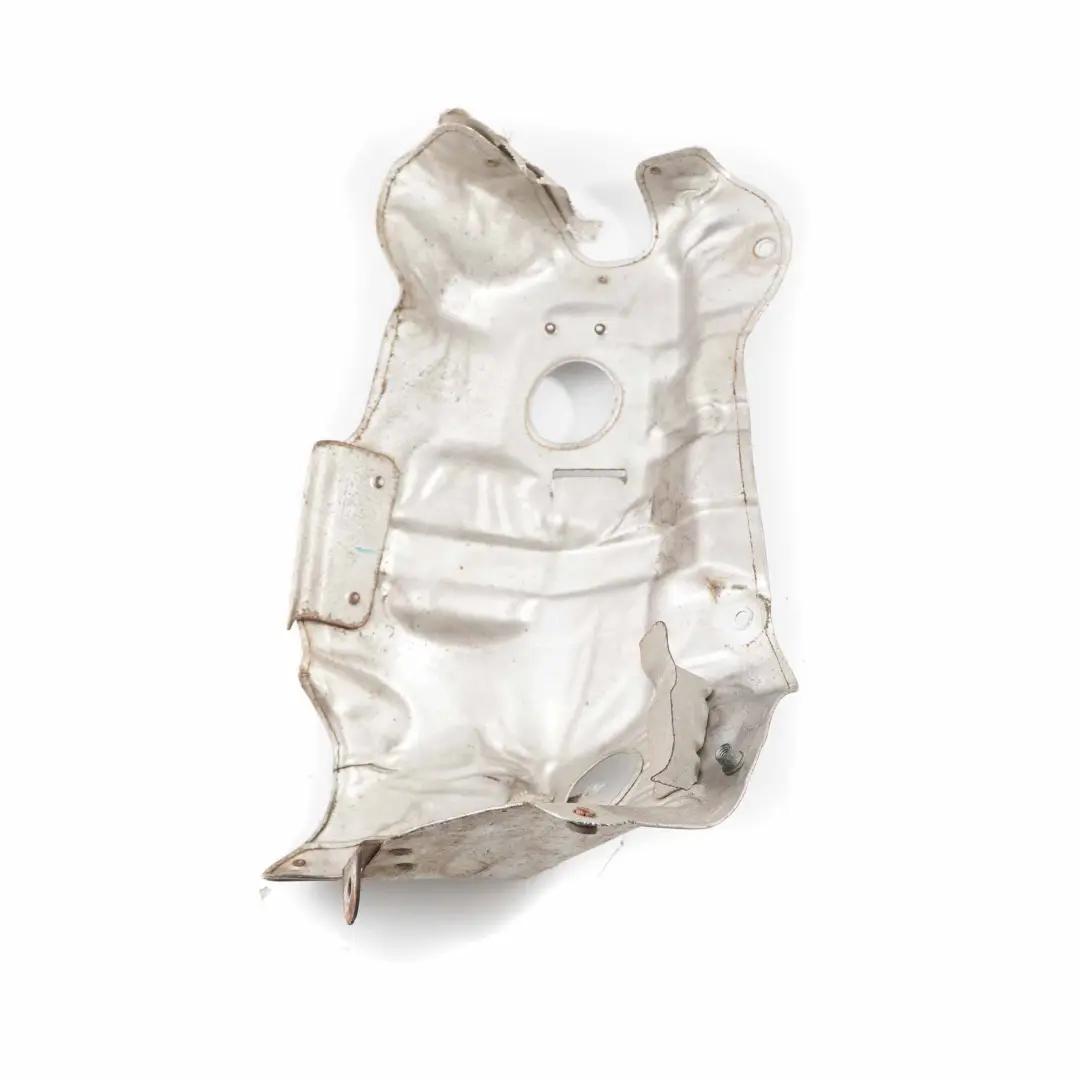

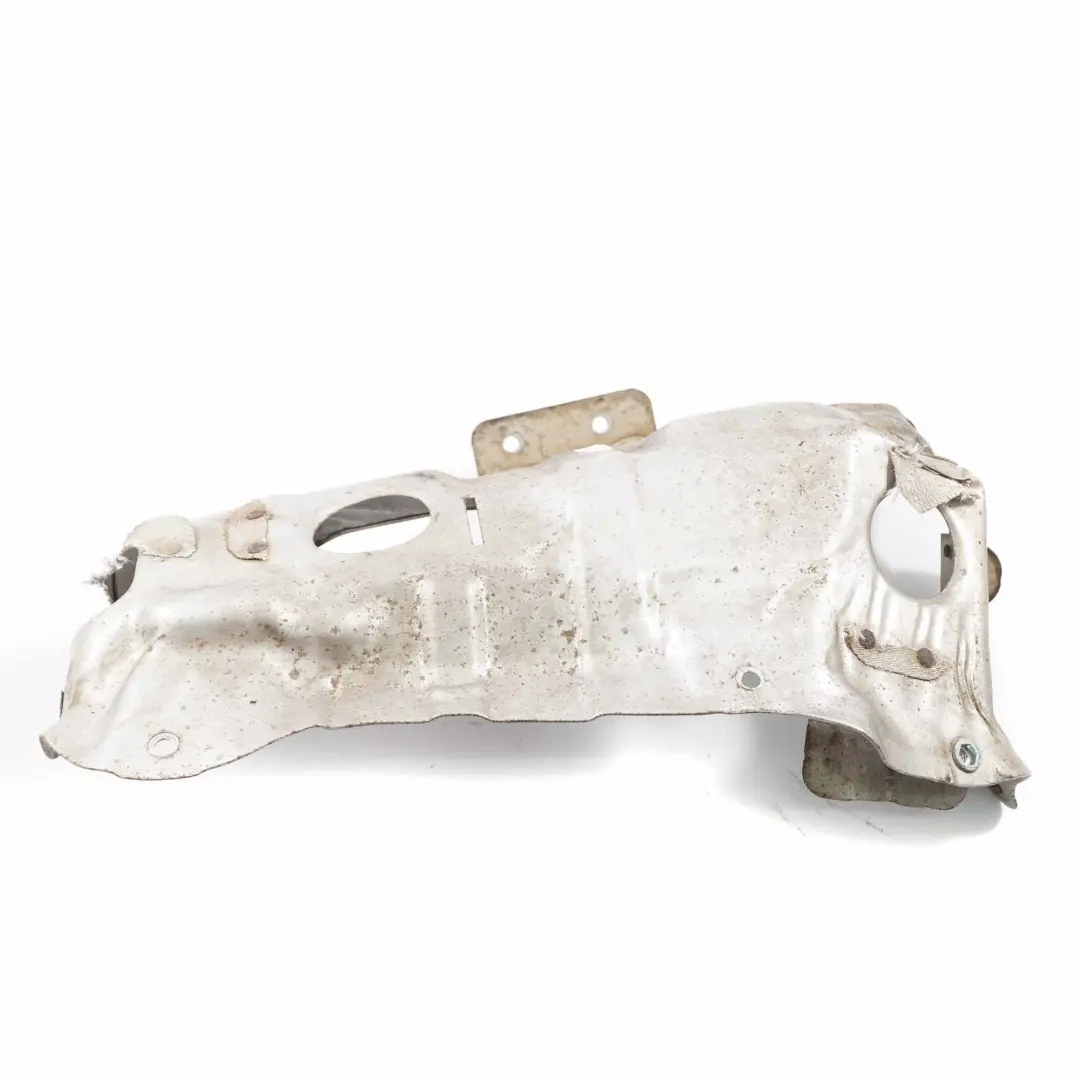

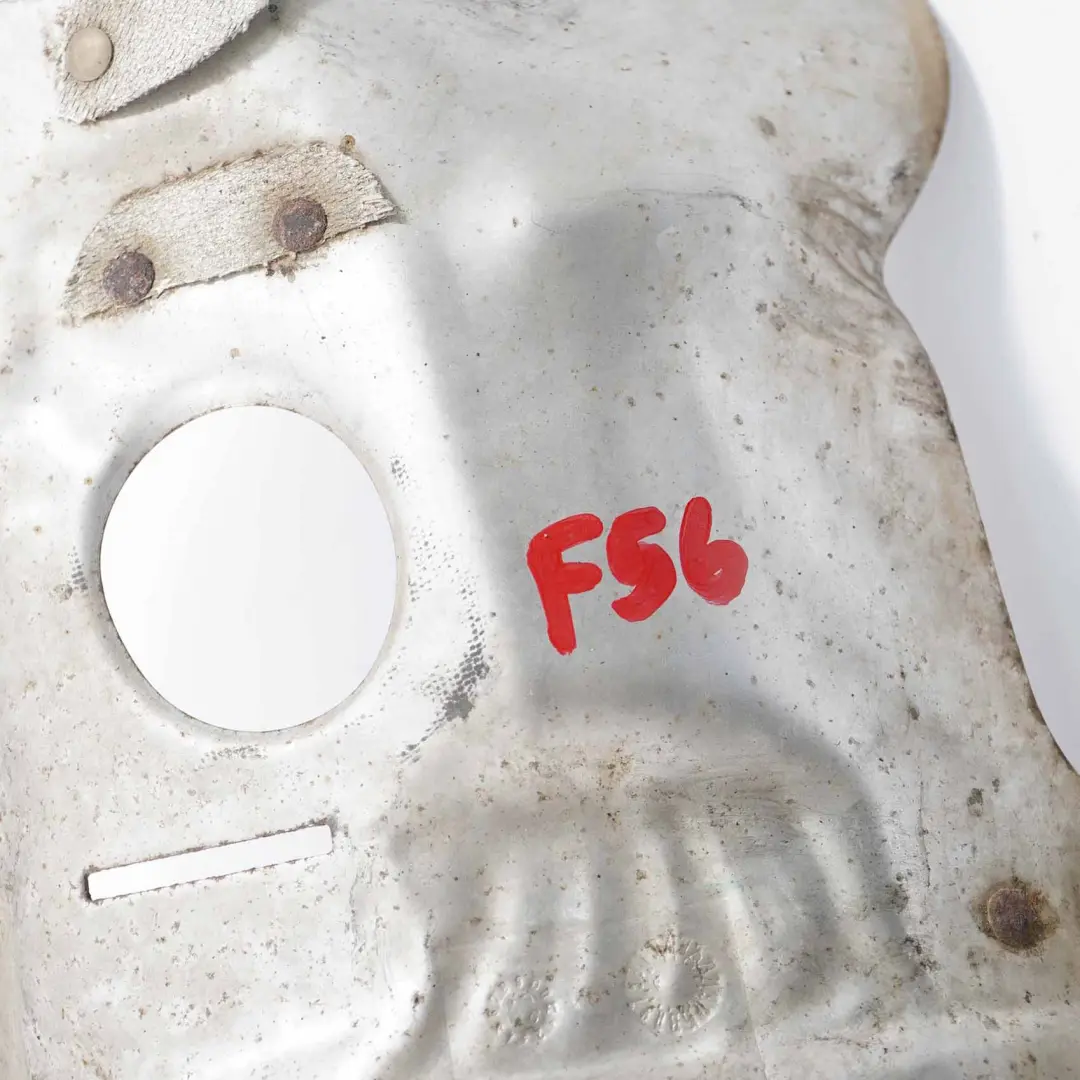

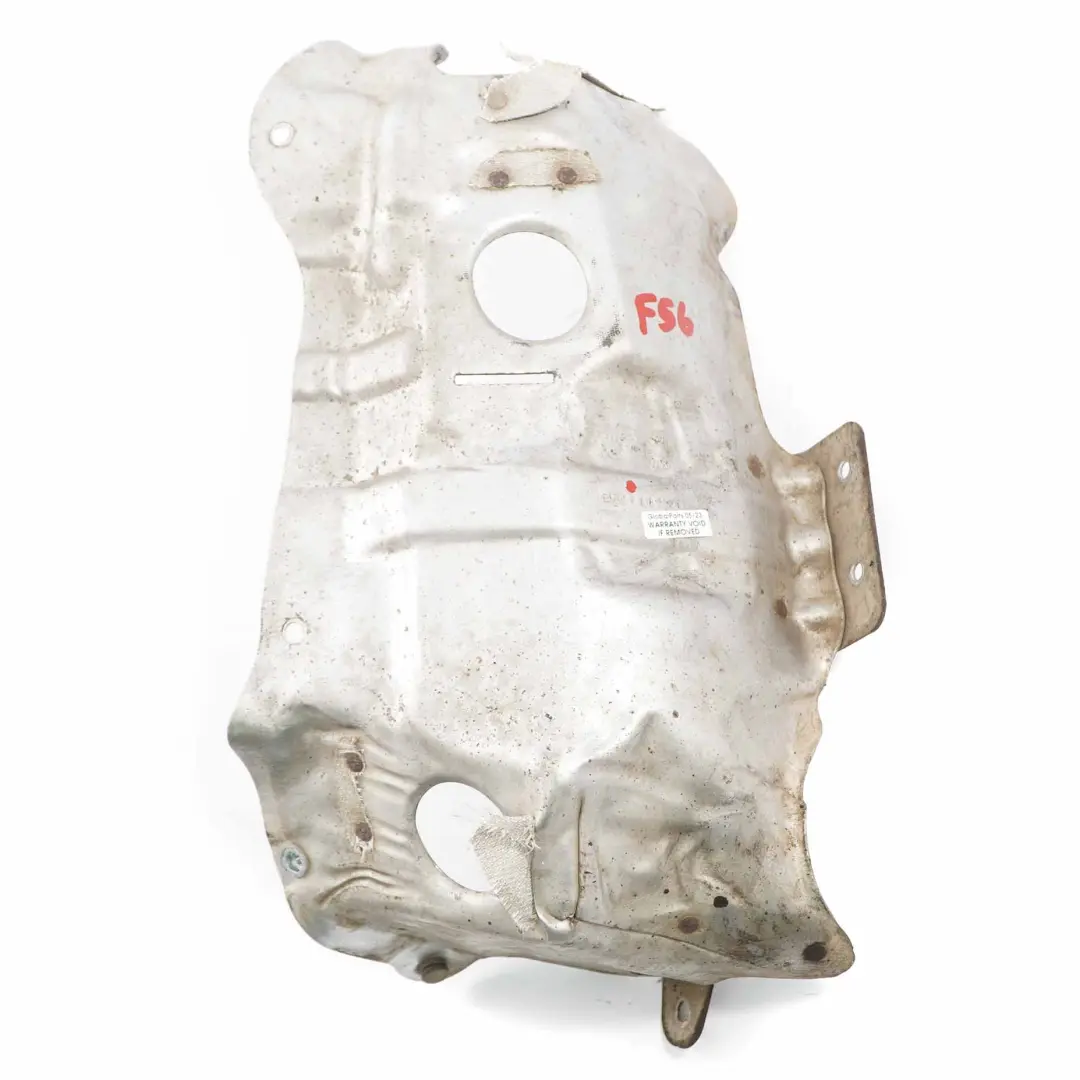

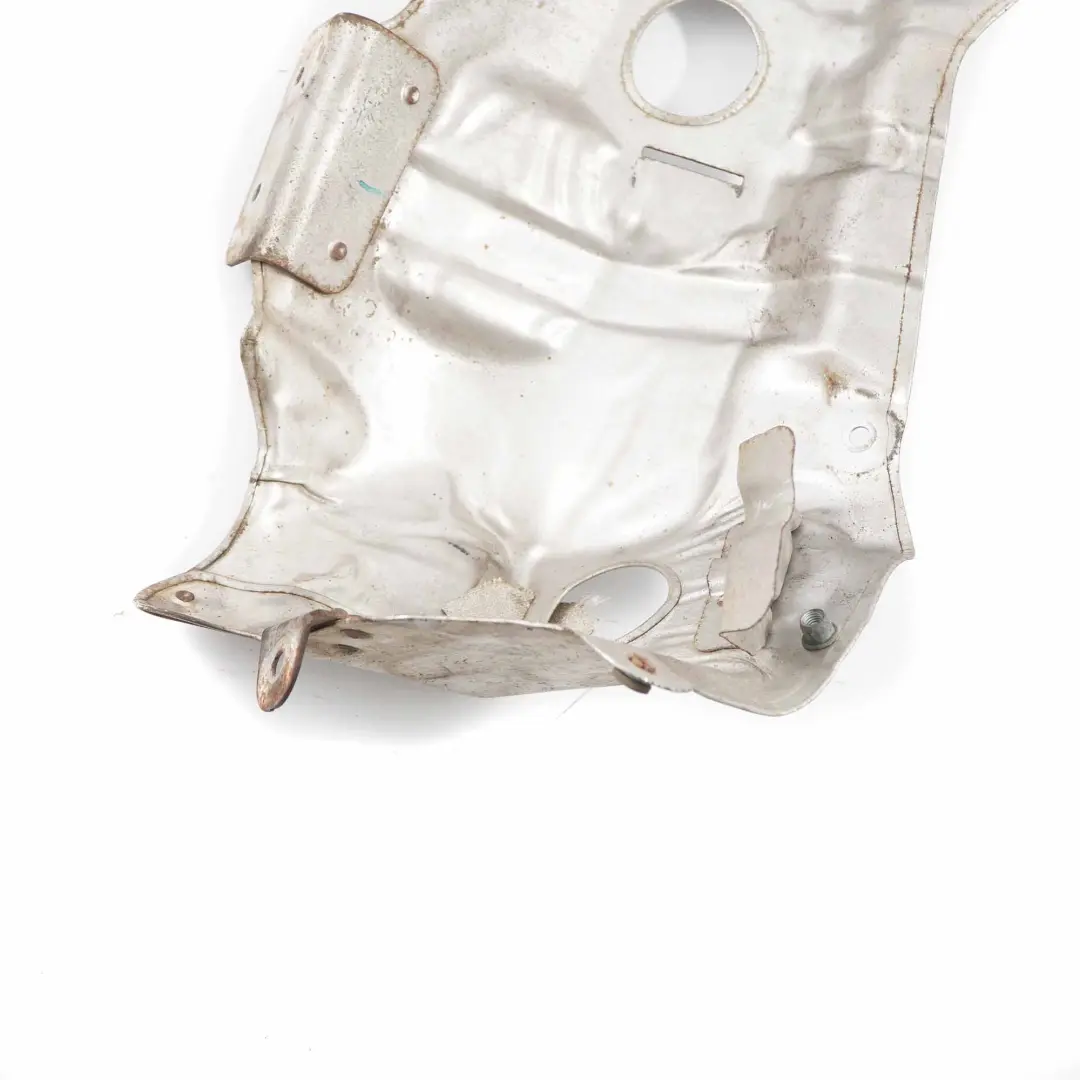

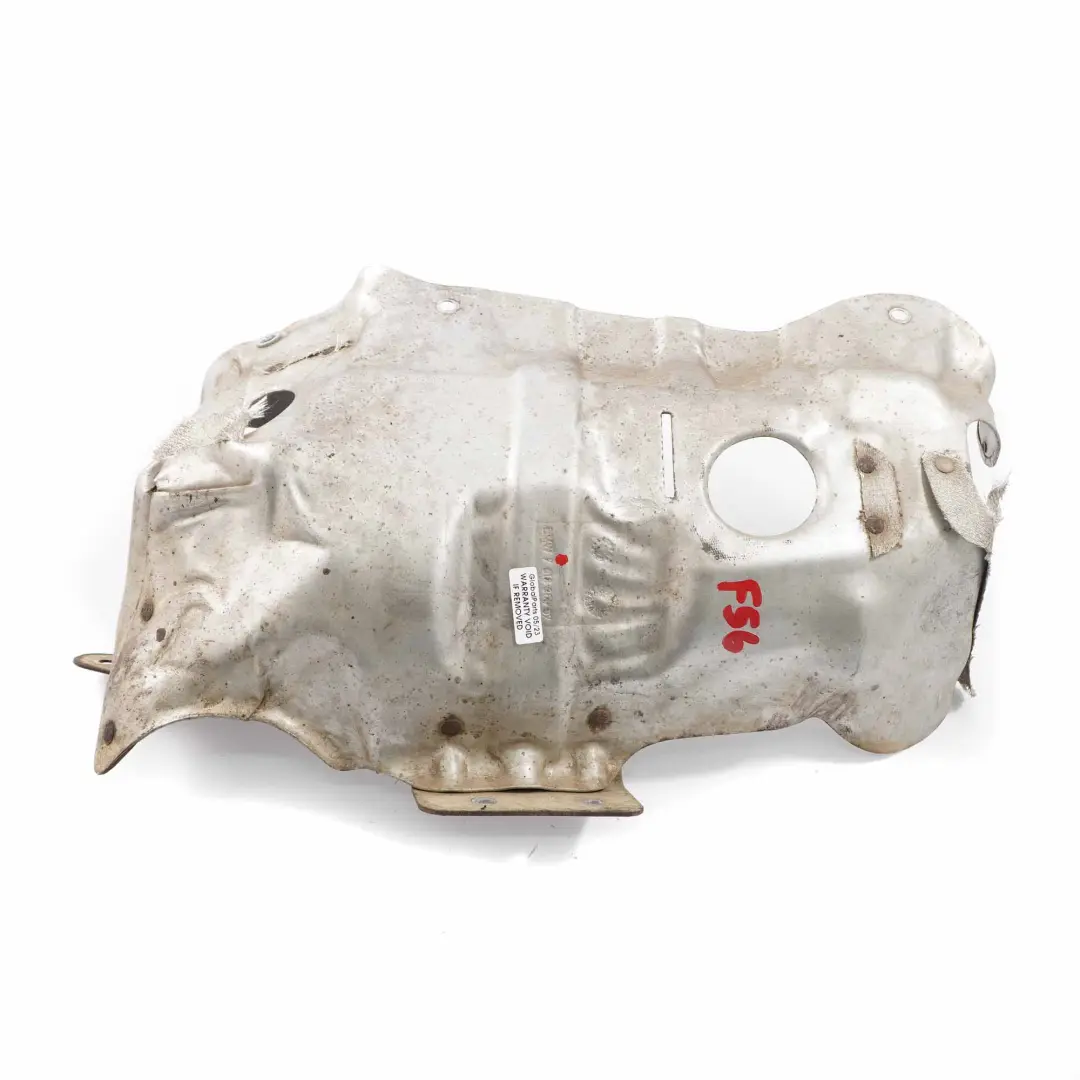

Heat Insulation Plate BMW X1 F48 Mini F56 S JCW Turbo Charger Top Shield 7618369

The BMW X1 F48 Mini F56 S JCW Turbo Heat Shield is an original equipment turbocharger and parts component designed to provide thermal protection for the supercharger system in select BMW X1 F48 and Mini F56 S / JCW models. This used shield ensures a factory fit and allows for a technically correct repair or replacement of the existing component.

Specifications and technical data

• SKU: 7618369
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7618369
• Substitutable numbers: 7618369, 11657618369, BG
• Category: Turbos & Parts

Purpose and function of the turbo heat shield

The turbocharger's heat shield is responsible for limiting heat radiation from the hot turbocharger section to adjacent engine compartment components. This is particularly important in the BMW X1 F48 and Mini F56 S / JCW due to the compact engine design and high thermal loads during dynamic driving.

The use of a dedicated cover allows, among other things:

• temperature stabilization in the turbocharger area,
• reducing the heating of wires, harnesses and plastic components,
• more repeatable operating conditions of the charging system,
• maintaining compliance with the manufacturer's factory specifications.

Construction and fit for BMW X1 F48 and Mini F56 S / JCW

This BMW / Mini turbo heat shield is an OEM-grade part, designed specifically to work with the turbocharger used in the X1 F48 and Mini F56 S and JCW models. This means it retains the original geometry, mounting points, and shape to match the factory exhaust and intake systems.

The key design features of this cover are:

• factory fit with the turbocharger and adjacent components,
• adaptation to high thermal loads typical of supercharged units,
• compatibility with original brackets and accessories in the engine compartment.

Used condition and assembly aspects

The part is offered in used condition, which in practice means maintaining the original design while remaining cost-effective compared to a new part. This used BMW X1 F48 / Mini F56 S JCW turbo heat shield is a good solution when the existing shield has suffered mechanical damage, thermal deformation, or corrosion.

During installation, it is worth paying attention to:

• correct positioning relative to the turbocharger housing,
• correct tightening of all mounting points,
• no contact of the cover with moving parts of the exhaust system or accessories.

Using an original, used cover allows you to maintain the factory heat management concept and minimizes the risk of incorrect fit, typical of universal replacements.

Benefits of using the original turbo heat shield

Choosing an original, used heat shield is a reasonable compromise between cost and quality. Key advantages include:

• maintaining factory thermal protection in the turbocharger area,
• reducing the risk of overheating of adjacent components,
• no need for modifications during installation thanks to OEM fit,
• consistency with other components of the supercharging system in the BMW X1 F48 and Mini F56 S / JCW.

For users of four-wheel drive vehicles with complex drivetrains, maintaining stable thermal conditions in the engine compartment is particularly important. In this context, it's worth reading this article discussing various AWD drivetrain solutions: xDrive, 4Matic, quattro, and 4Motion – a comparison of AWD drivetrains from BMW, Mercedes, Audi, and VW .

Related Products and BMW Supercharging System Development

If you're looking for other BMW turbocharger and parts components that will provide a comprehensive approach to supercharging system maintenance, check out our dedicated offering: BMW turbochargers and parts . Selecting components from a single brand and category facilitates technical consistency throughout the entire system and improves operational predictability.

Summary

The BMW X1 F48 Mini F56 S JCW Turbo Heat Shield is an original, used turbocharger and parts component designed to provide thermal protection for the turbocharger in select BMW and Mini models. It ensures a factory fit, supports stable turbocharger operation, and is a technically sound solution for repairs and upgrades to the exhaust and turbocharger systems in these vehicles.
