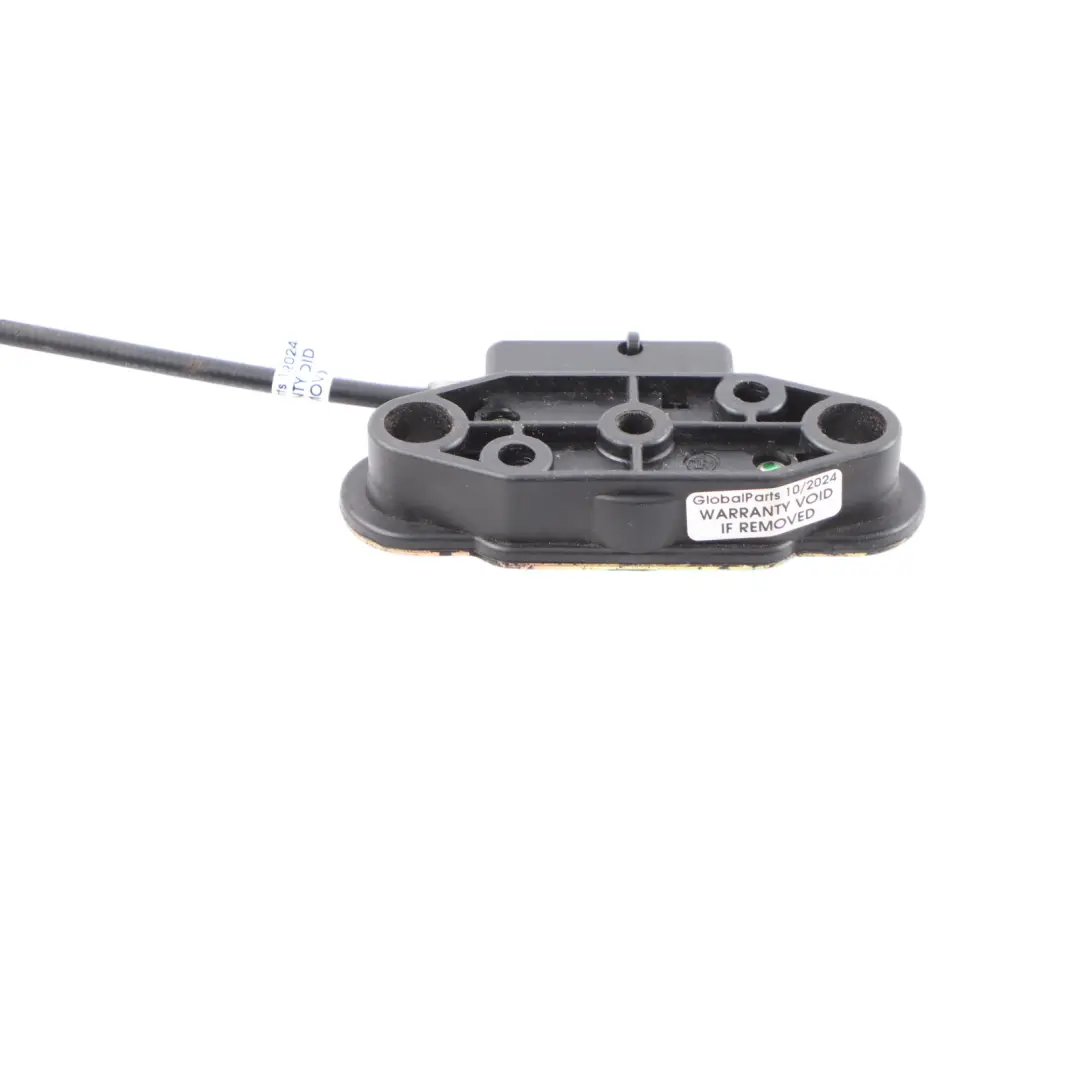

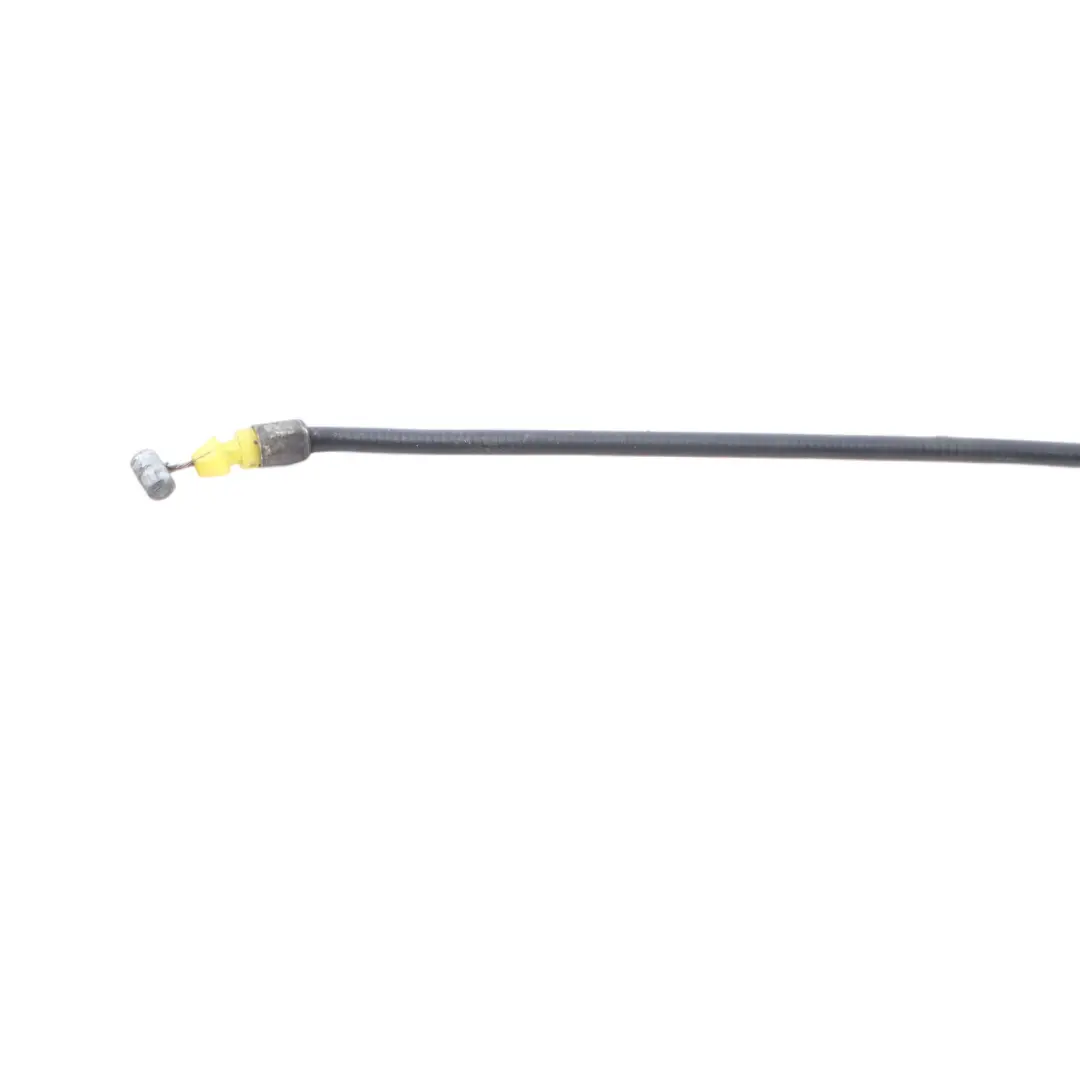

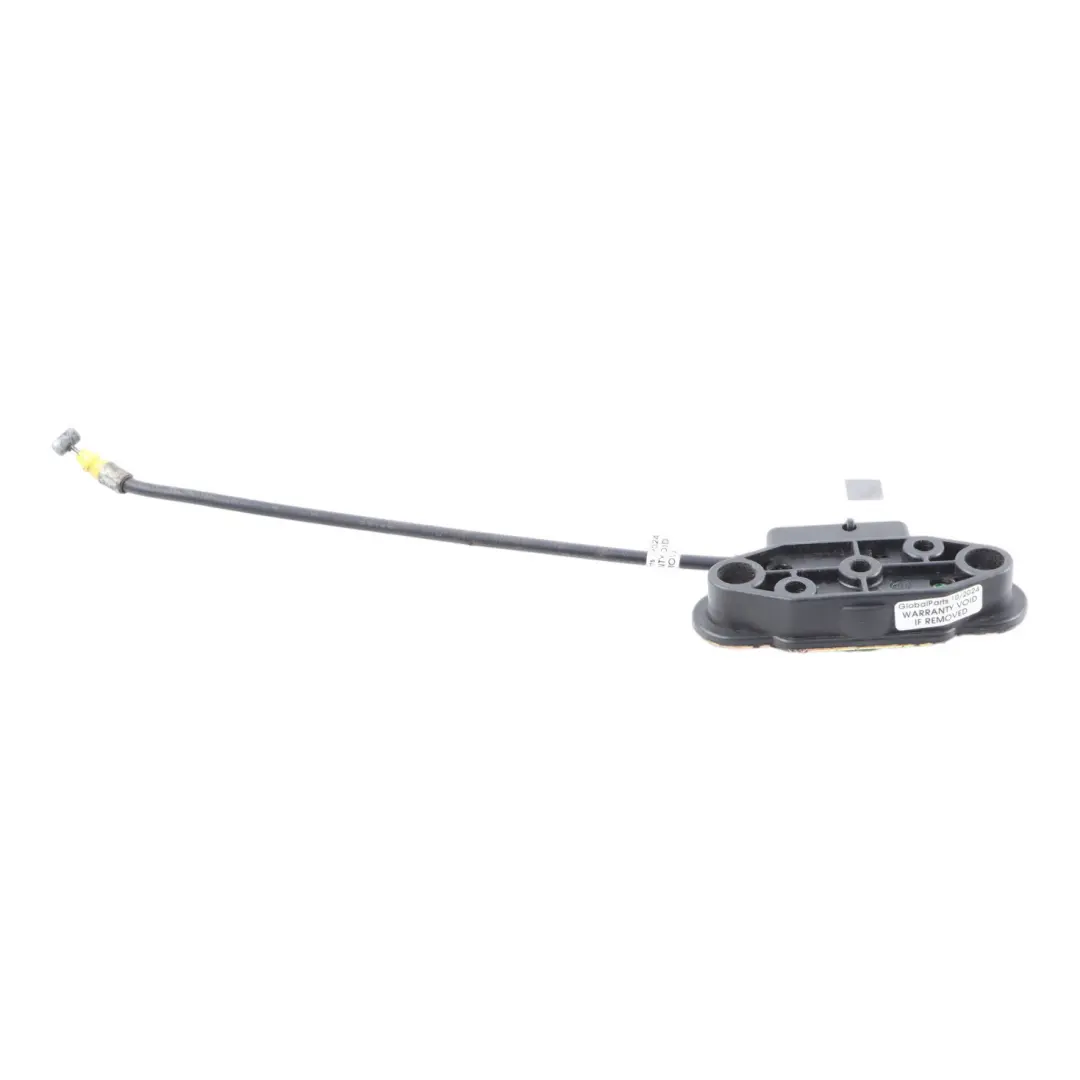

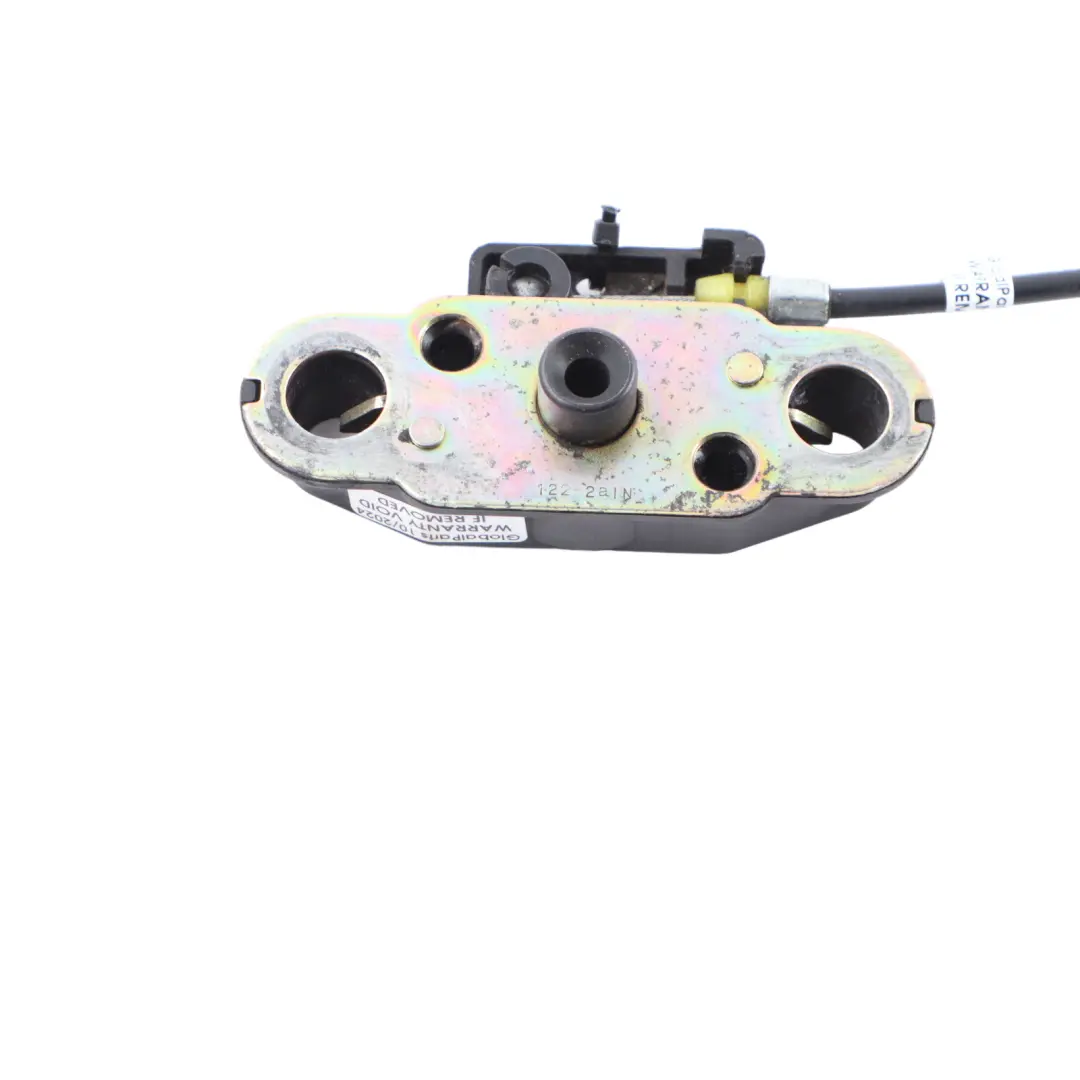

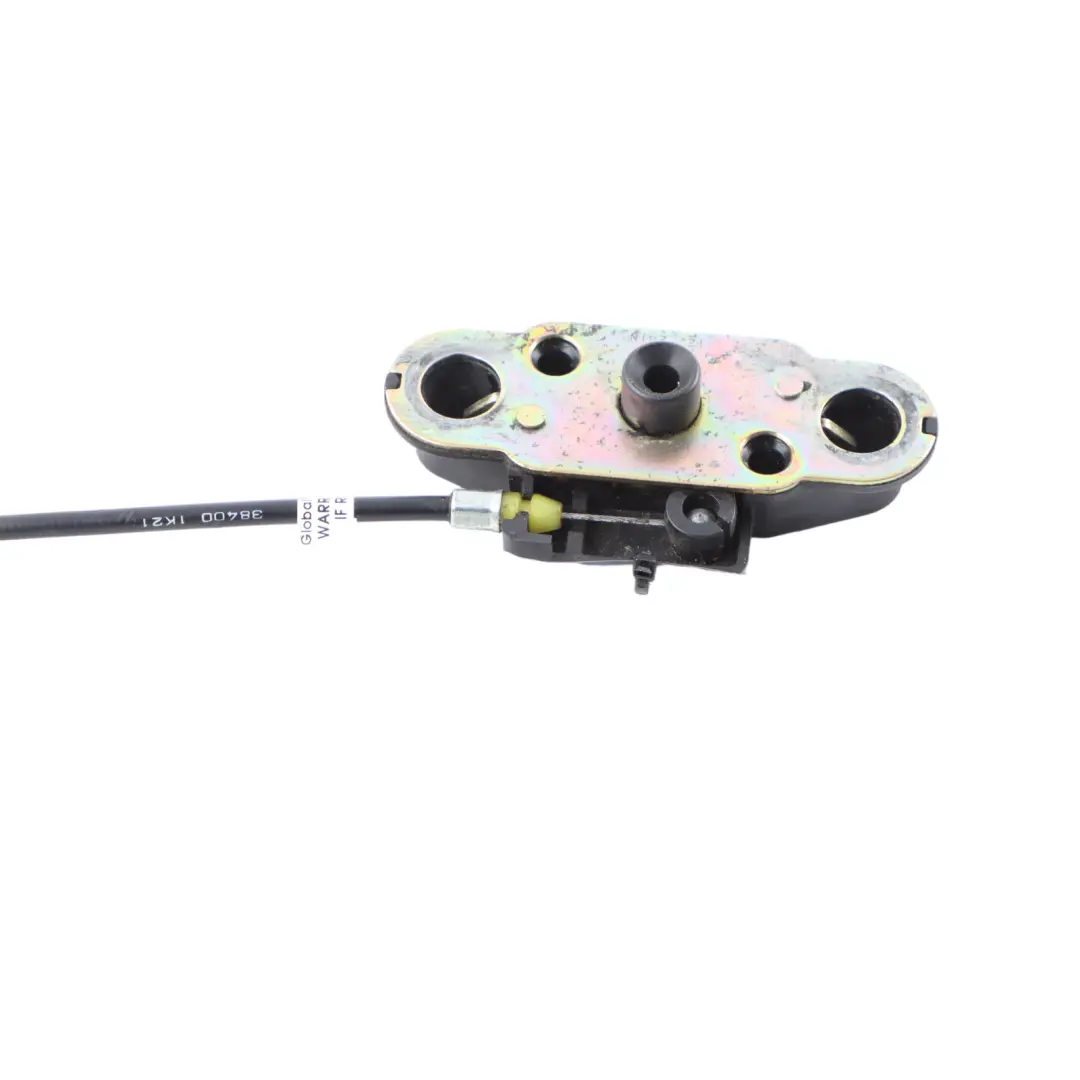

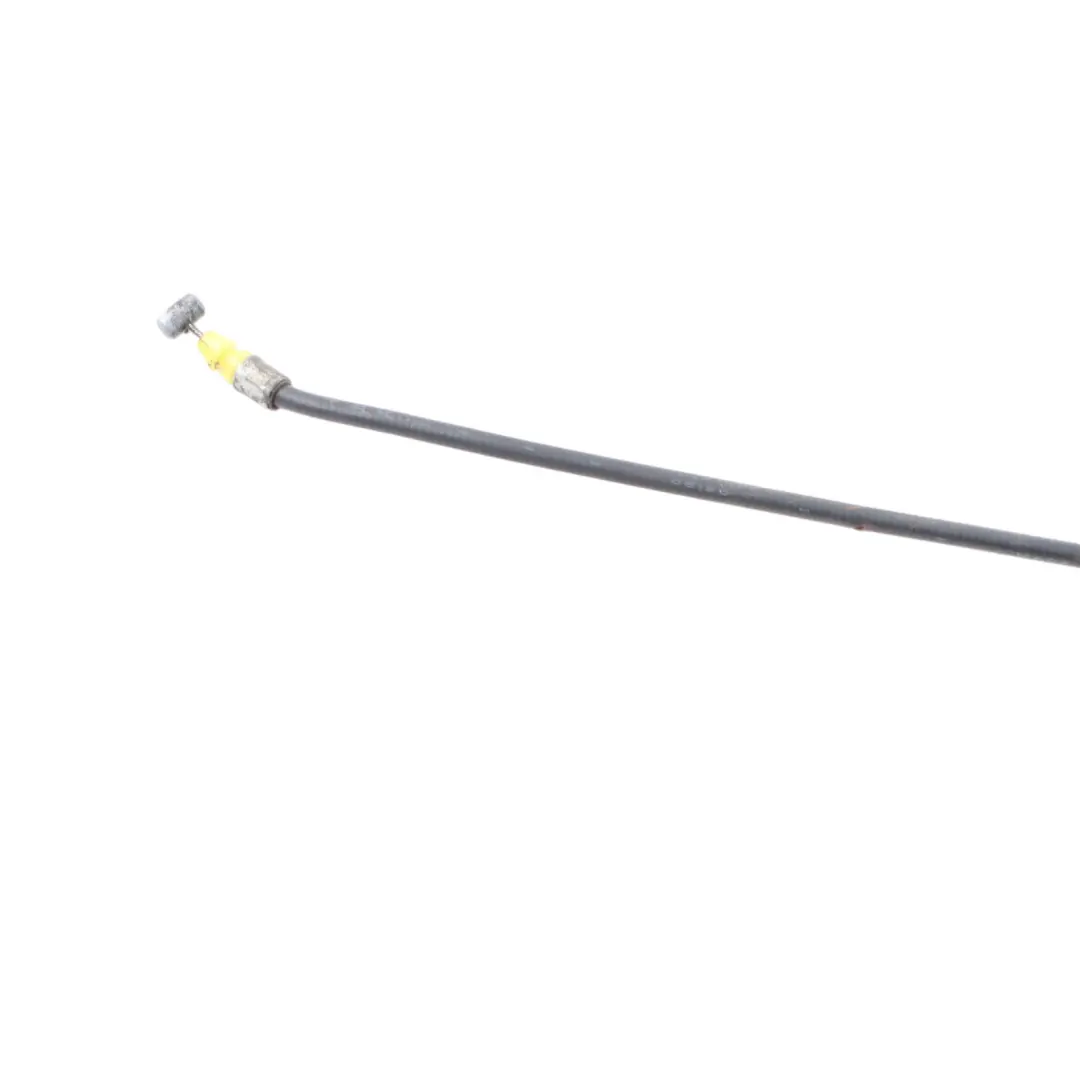

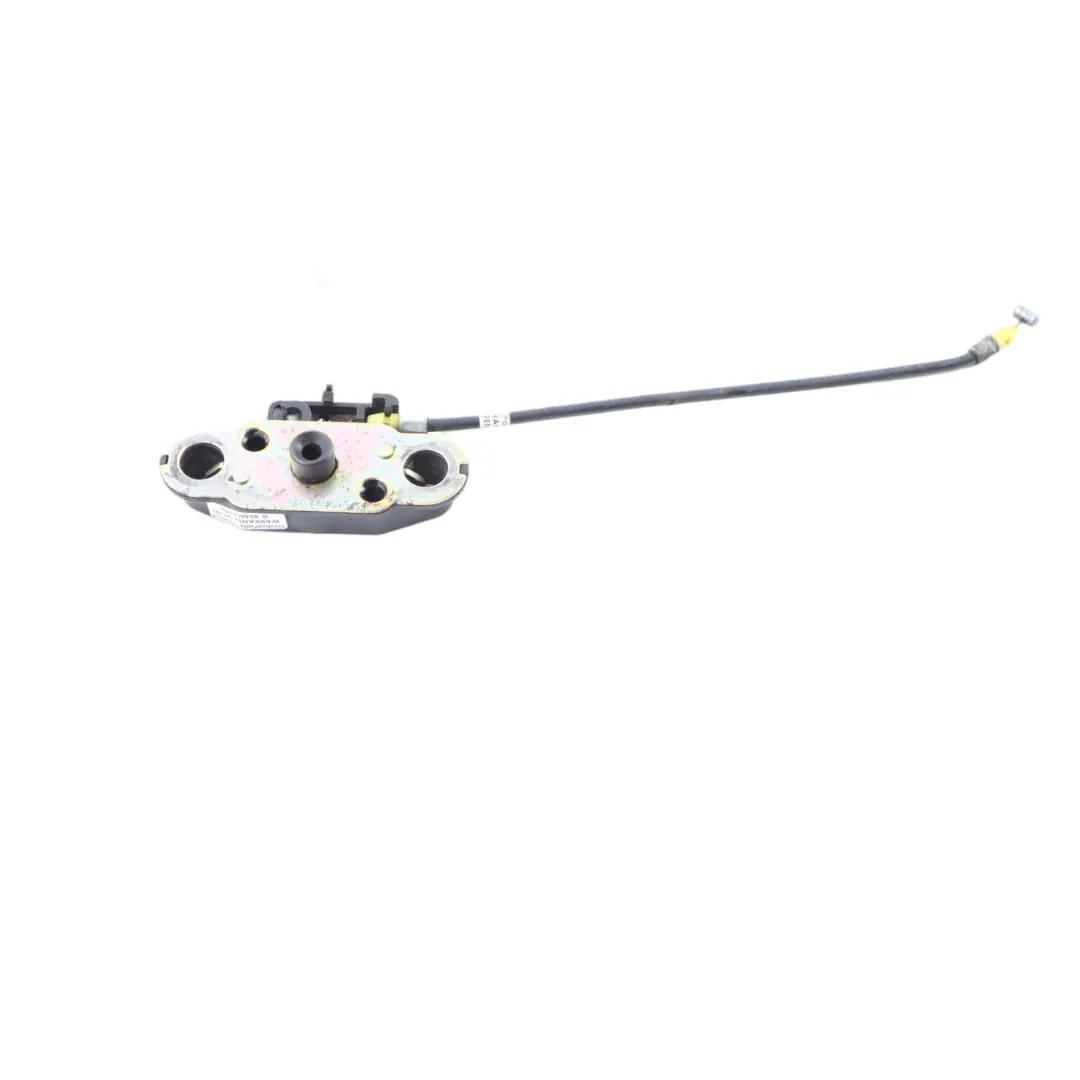

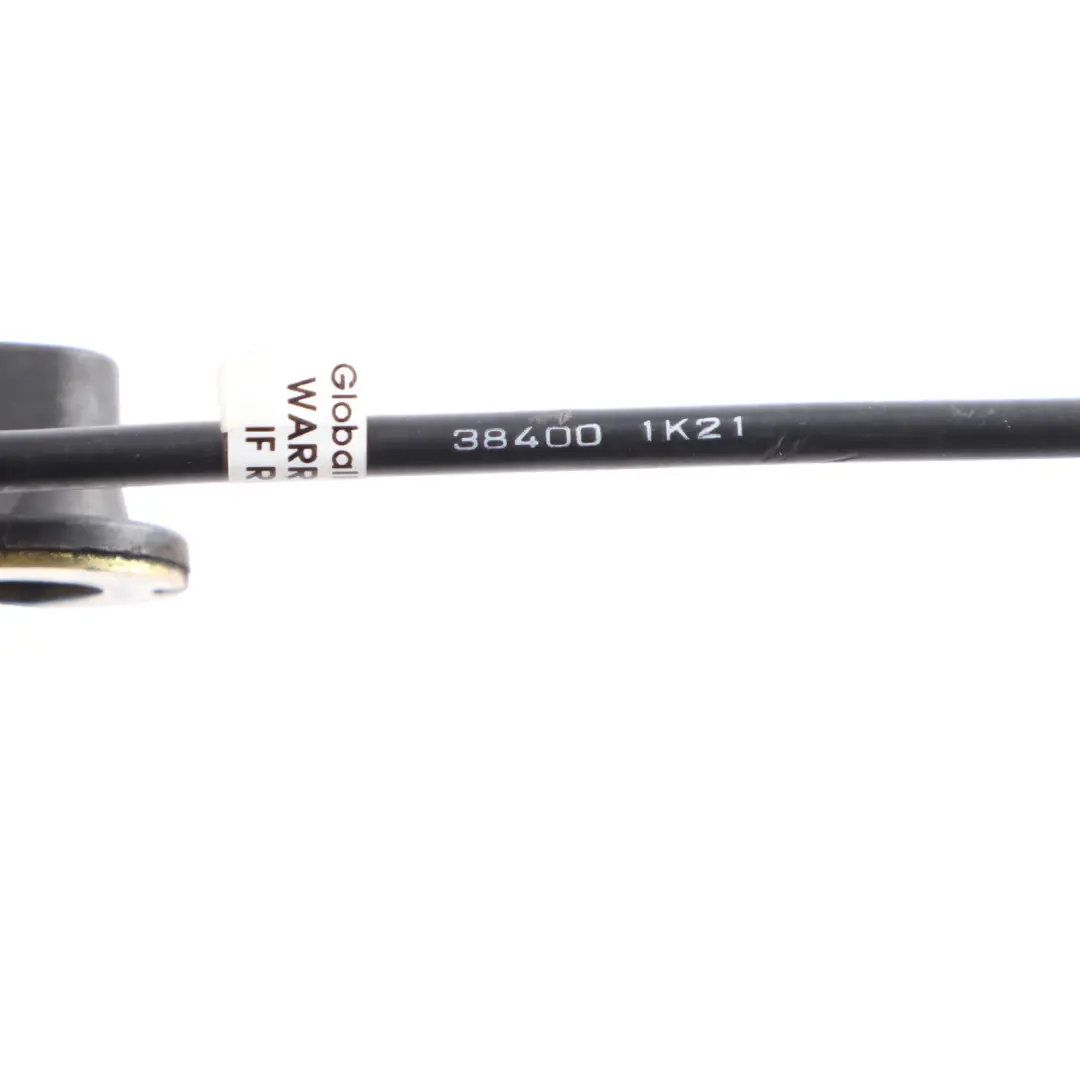

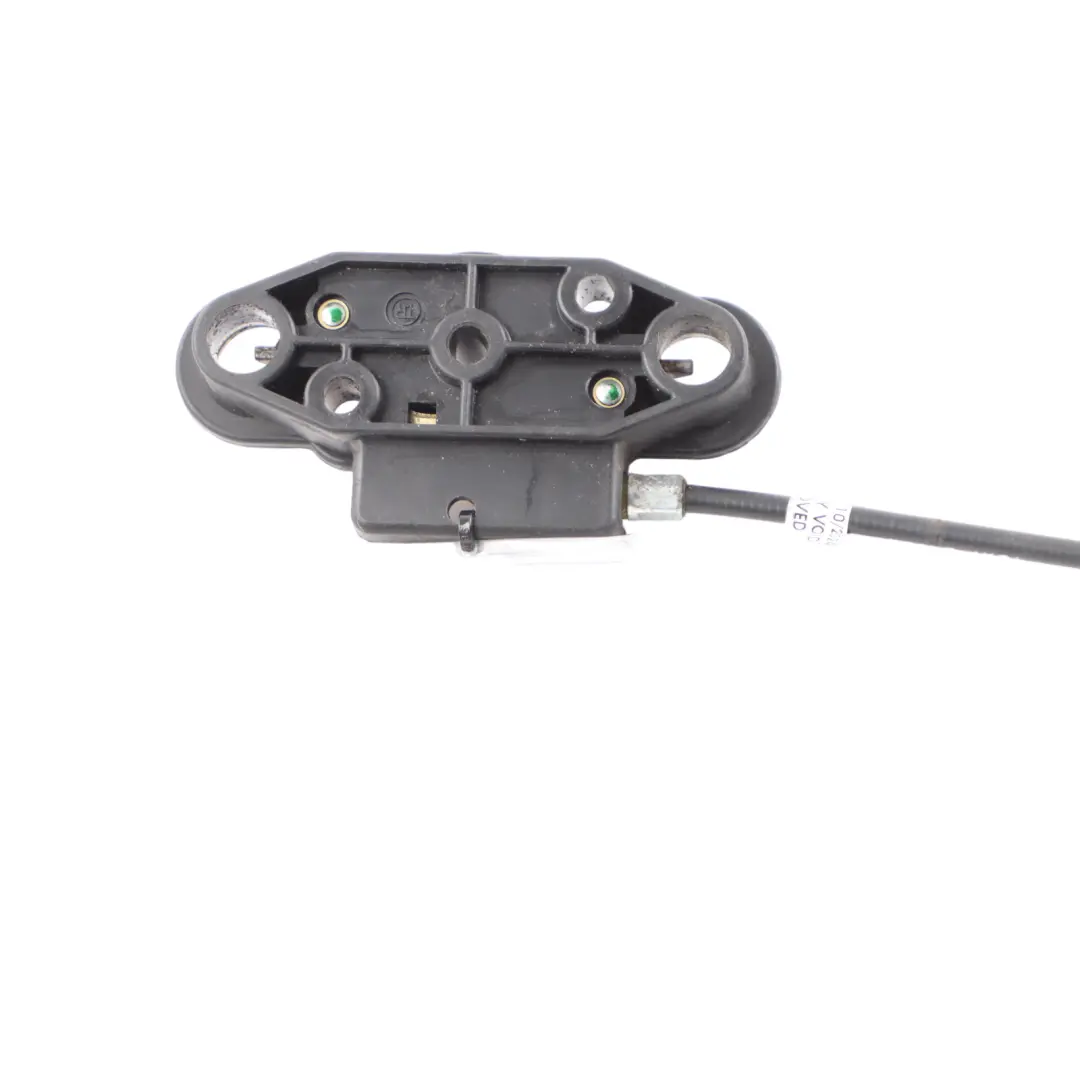

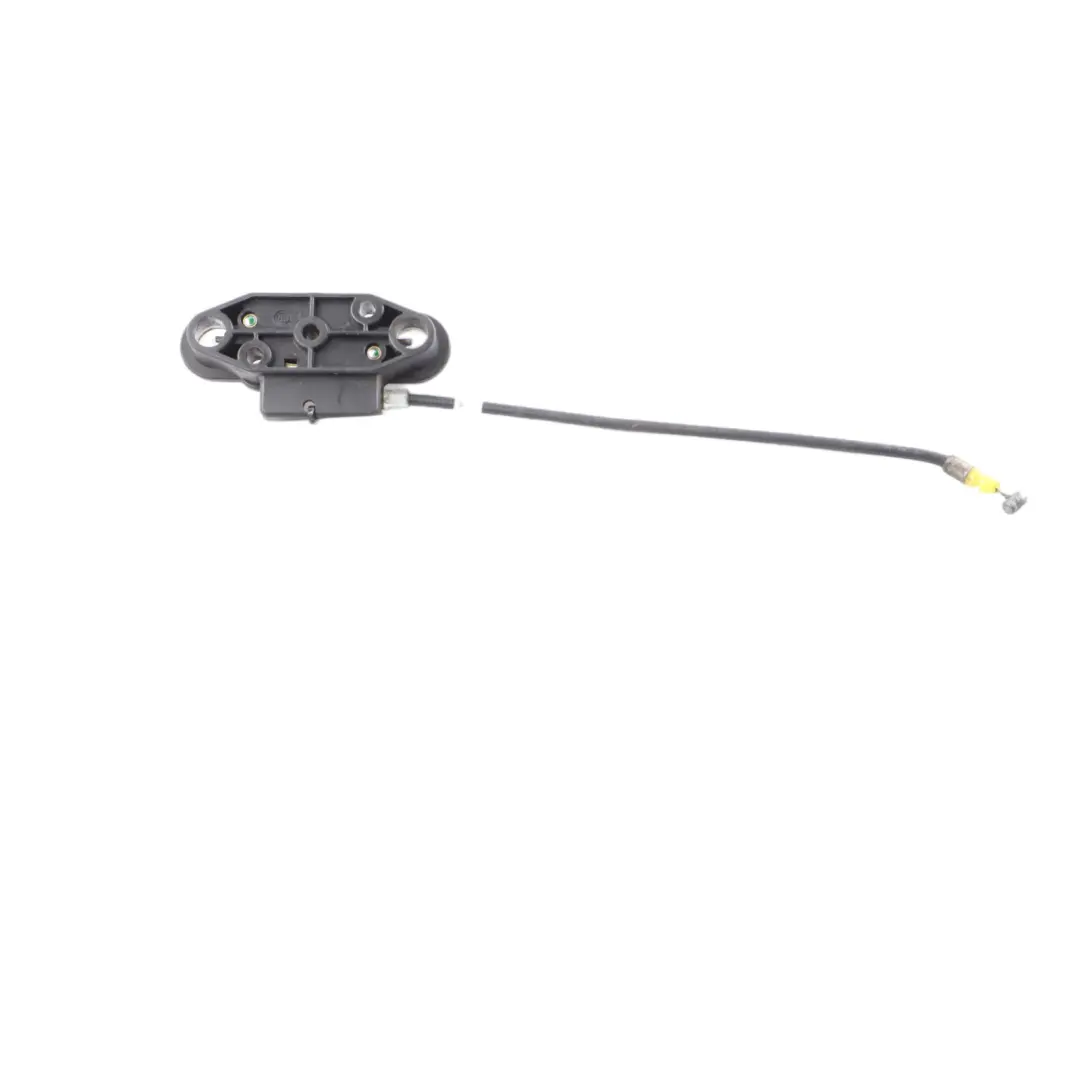

Suzuki SV650 Seat Release Lock Bracket Holder Saddle Unit 4522047H00000

The Suzuki SV650 Seat Latch Bracket is an original part from the Seats and Saddles group, designed for mounting the seat release mechanism on a Suzuki motorcycle. It's a practical component that ensures the latch is securely positioned and the seat opening lever operates reliably, facilitating daily motorcycle use and access to the under-seat storage.

Specifications and technical data

• SKU: 4522047H00000
• Mark: Suzuki
• Condition: Used
• OEM Part Number: 4522047H00000
• Substitutable numbers: 4522047H00000, 45220-47H00-000
• Category: Seats

Purpose and Function of the Seat Latch Bracket

The presented bracket is a structural element responsible for securely holding the seat release latch on the Suzuki SV650. A correctly installed bracket ensures proper cable routing and consistent operation of the seat opening mechanism, which is important for both daily motorcycle use and servicing.

Thanks to its factory-designed geometry, the bracket maintains compatibility with the original mounting points on the frame, minimizing the risk of stress, misalignment, or issues with the seat closing properly. This is particularly crucial for motorcycles used intensively, where the precise fit of components impacts user comfort.

Construction and Fit for Suzuki SV650

The seat latch bracket is designed as an OEM Suzuki part, meaning its shape, mounting hole spacing, and interaction with the latch and cable align with the original design specifications. Original origin translates to predictable installation and no need for frame or seat mechanism modifications.

The component is intended for use in the rear section of the motorcycle, in close proximity to the seat. The appropriately selected rigidity of the bracket limits flexing under pressure on the seat, helping to maintain proper engagement of the latch bolt and reducing the risk of accidental opening.

Condition, Service Application, and Benefits of Replacement

This product comes from the used parts category, making it an attractive alternative to new OEM components while retaining the original design. It serves well as a replacement for a damaged seat latch bracket, as well as a part used to complete missing components after accident repairs or motorcycle restoration.

Replacing the bracket is particularly recommended when there are issues with the seat closing, play in the mechanism, or visible deformations in the latch mounting area. Using the original bracket allows for the restoration of correct mechanism operation without the need for makeshift solutions.

Practical Installation Tips

During installation, pay attention to:

• correct positioning of the bracket relative to the frame and latch,
• checking the free movement of the seat release cable,
• verifying that the latch bolt securely engages with the seat catch,
• testing the seat opening and closing multiple times after completing the work.

This approach allows for quick verification of correct installation and avoids problems with access to the under-seat storage during motorcycle operation.
