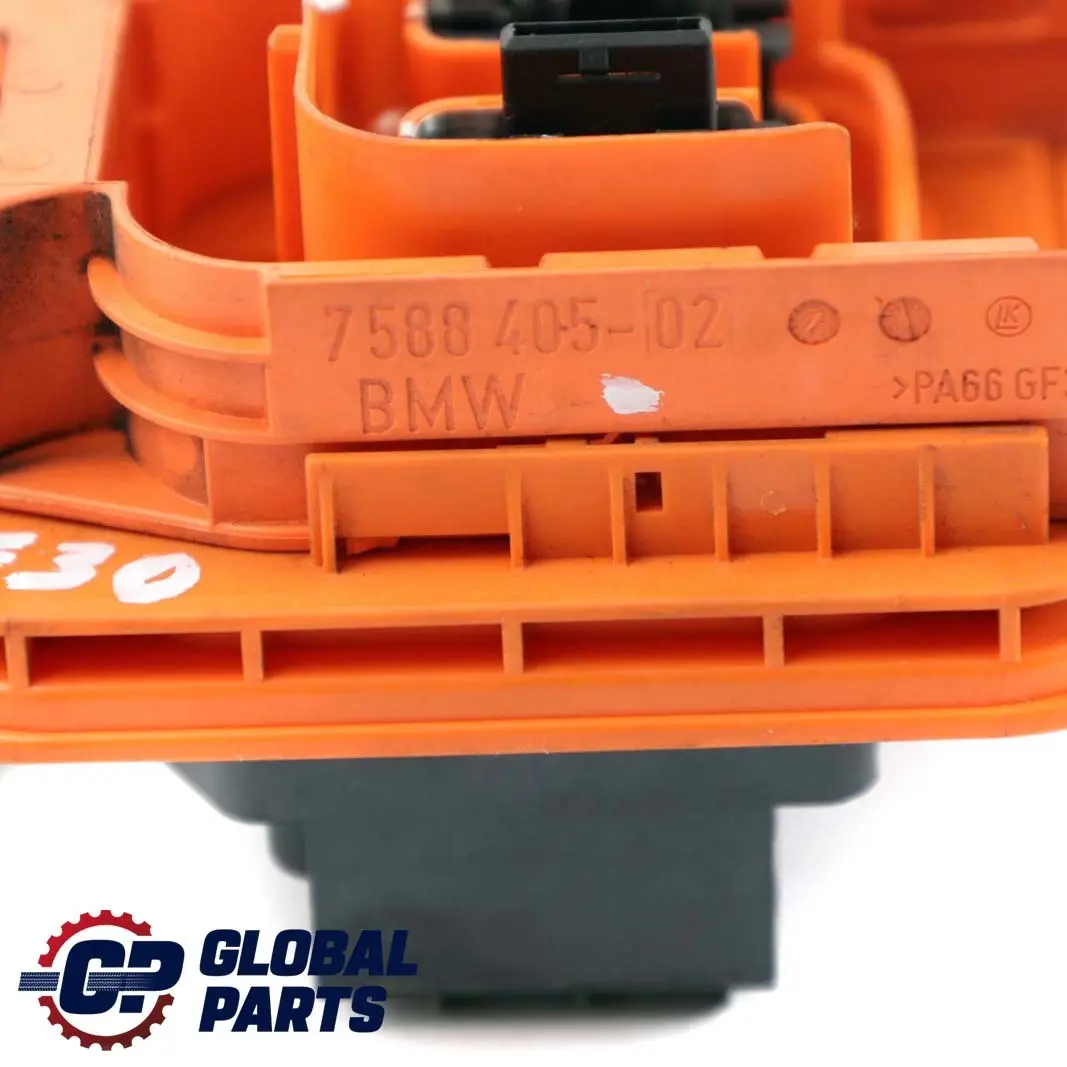

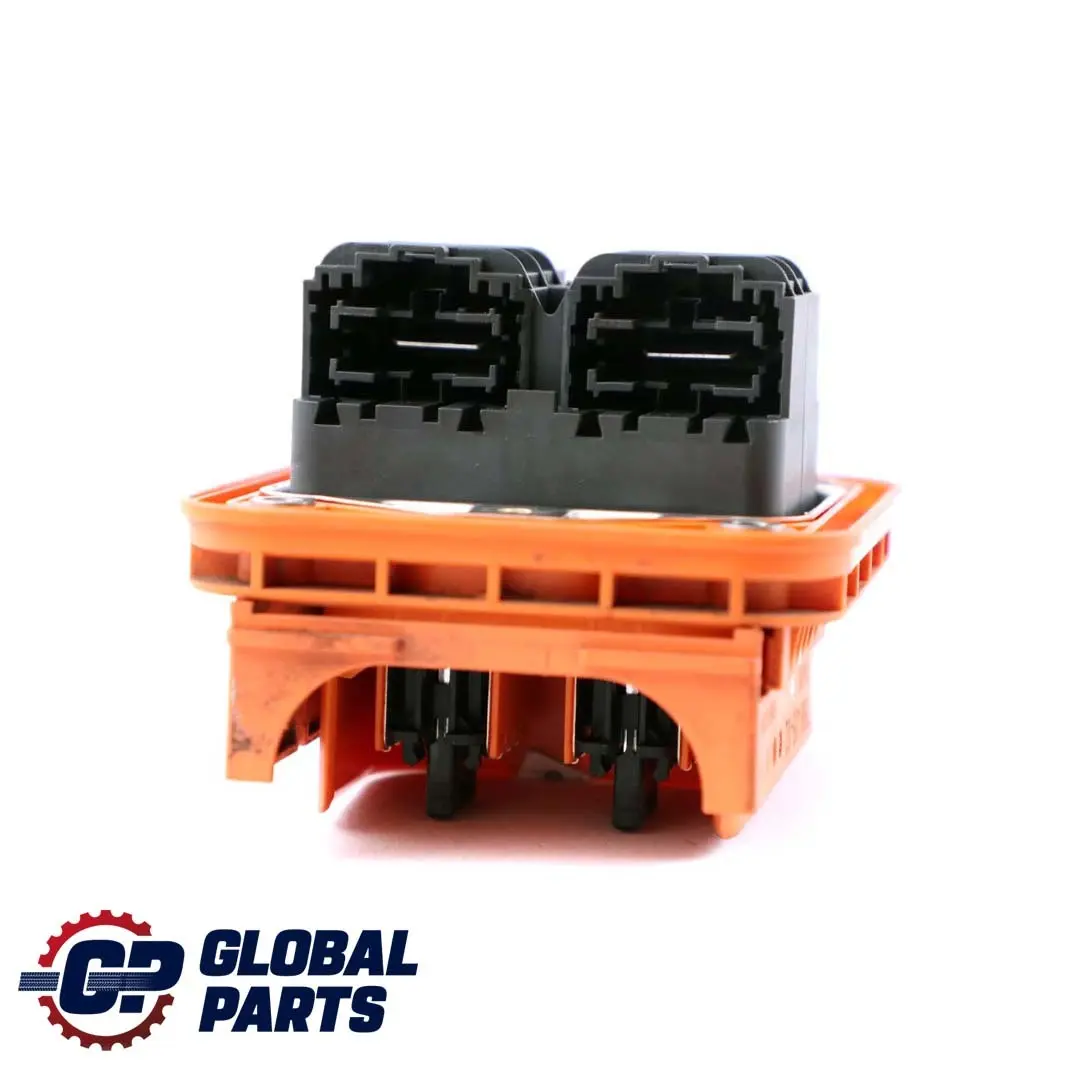

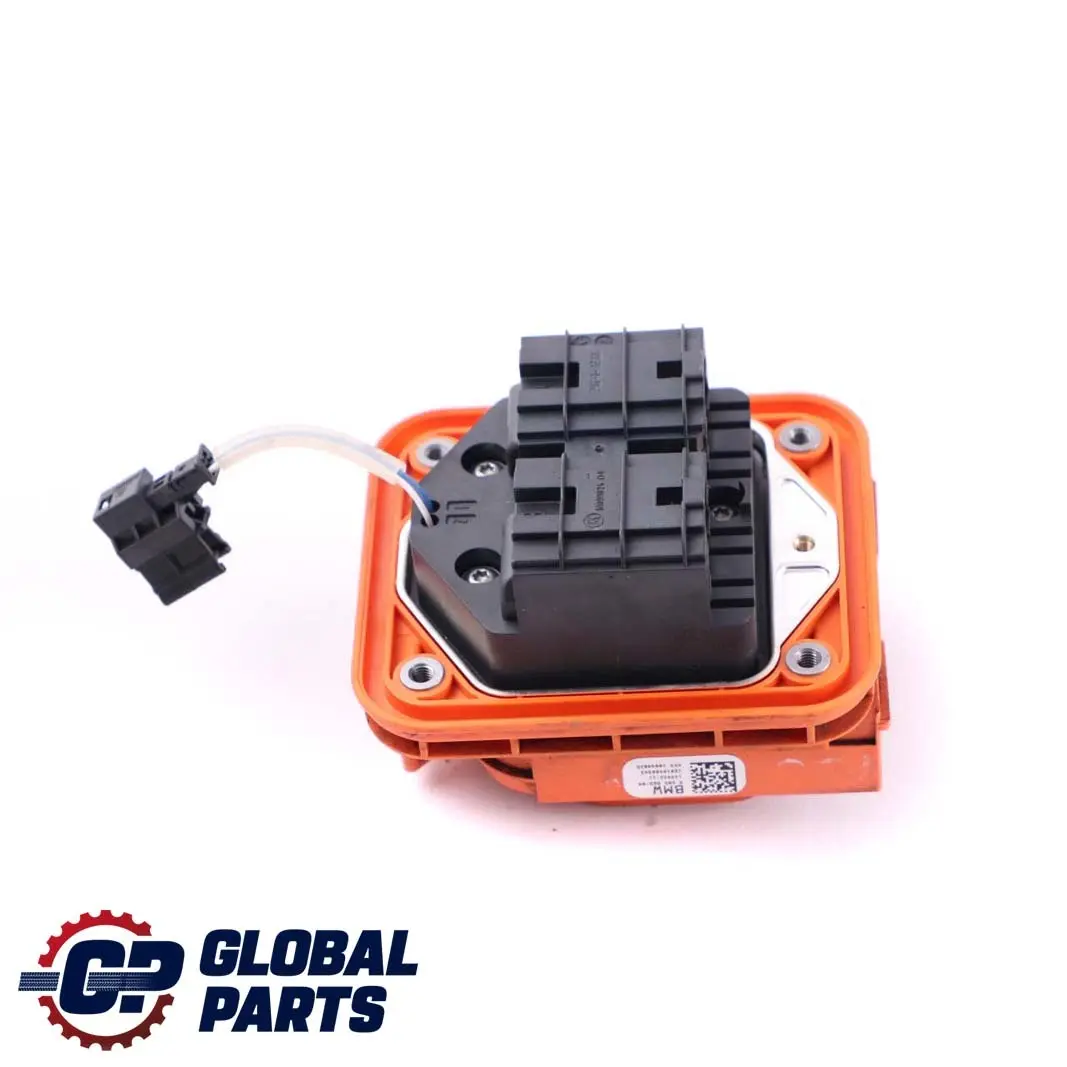

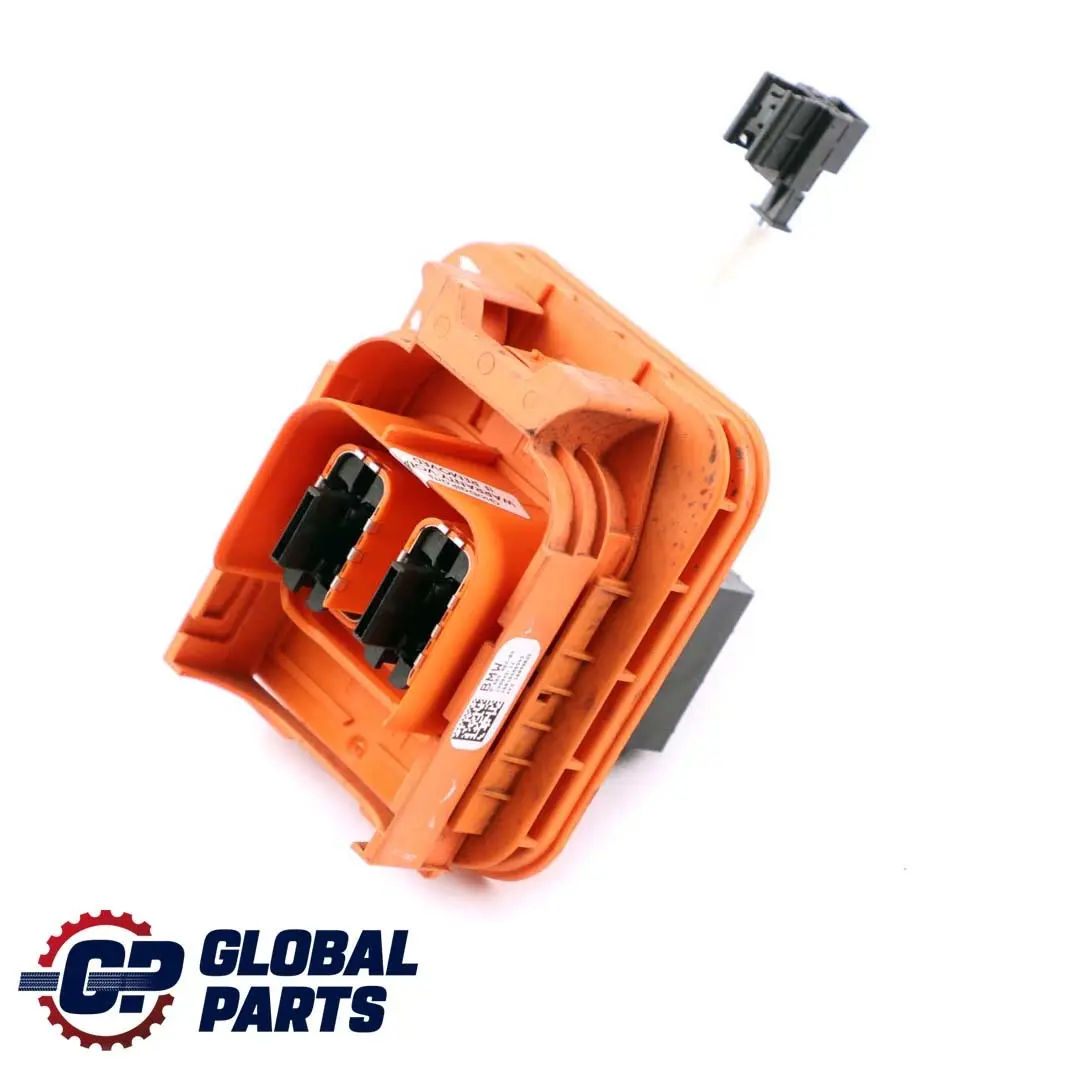

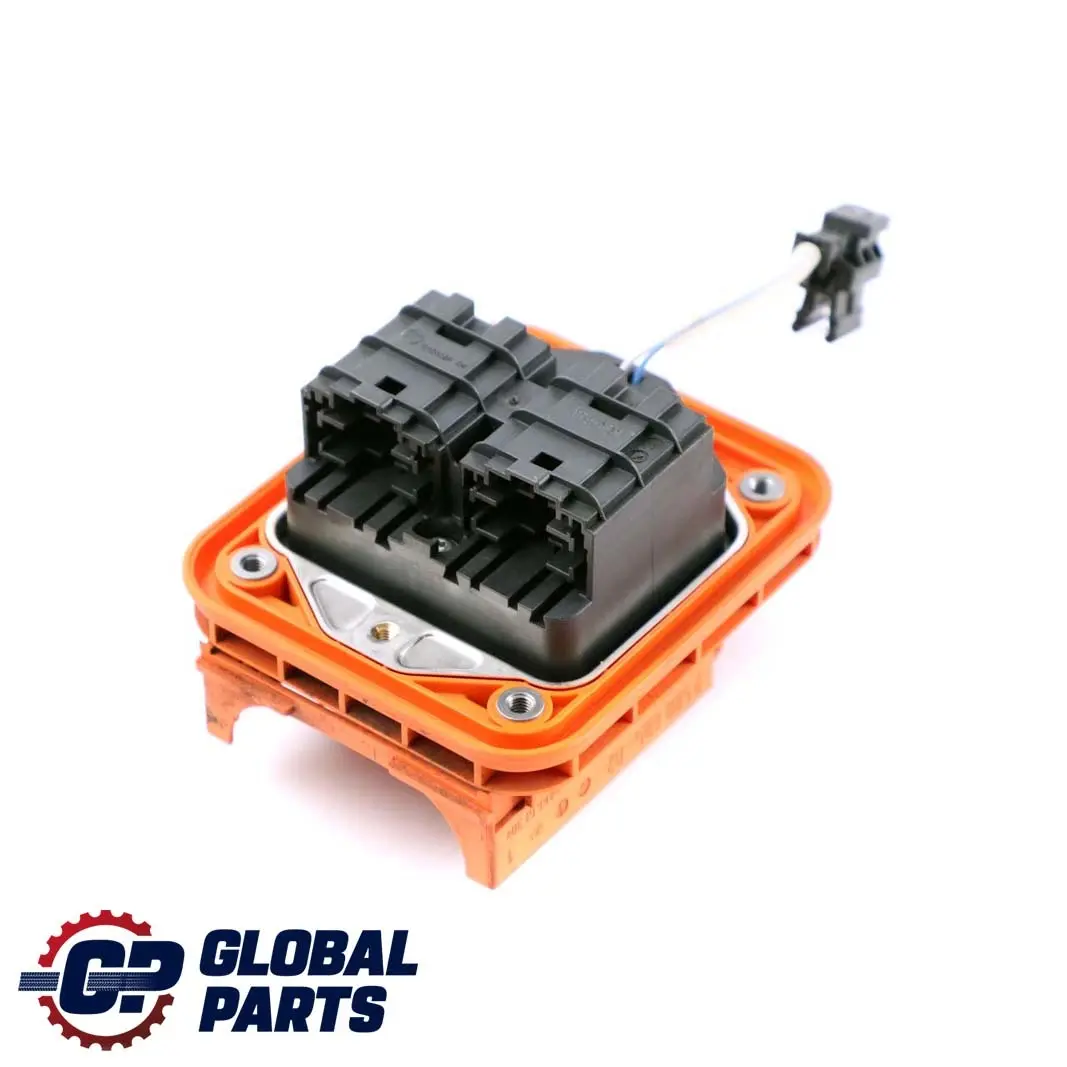

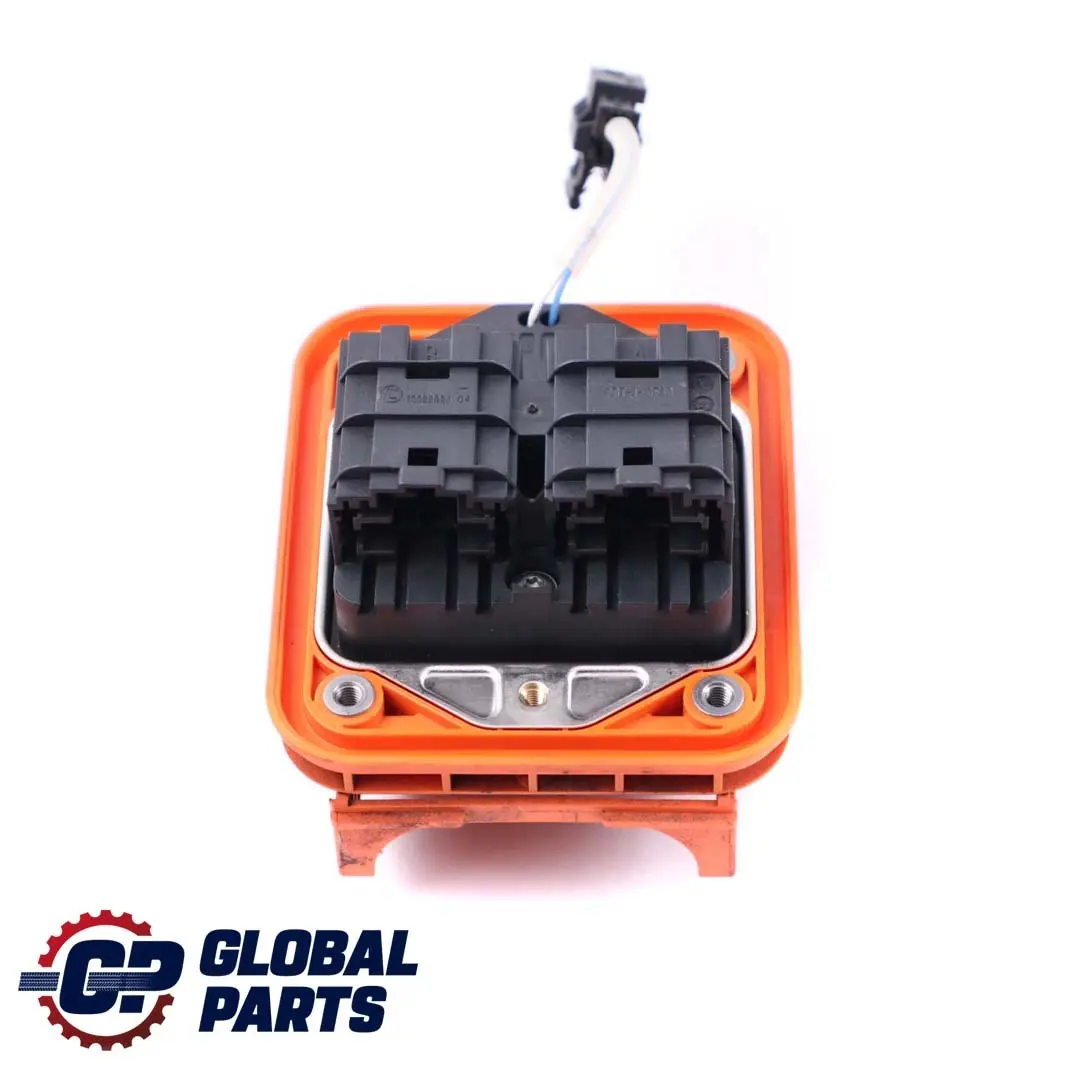

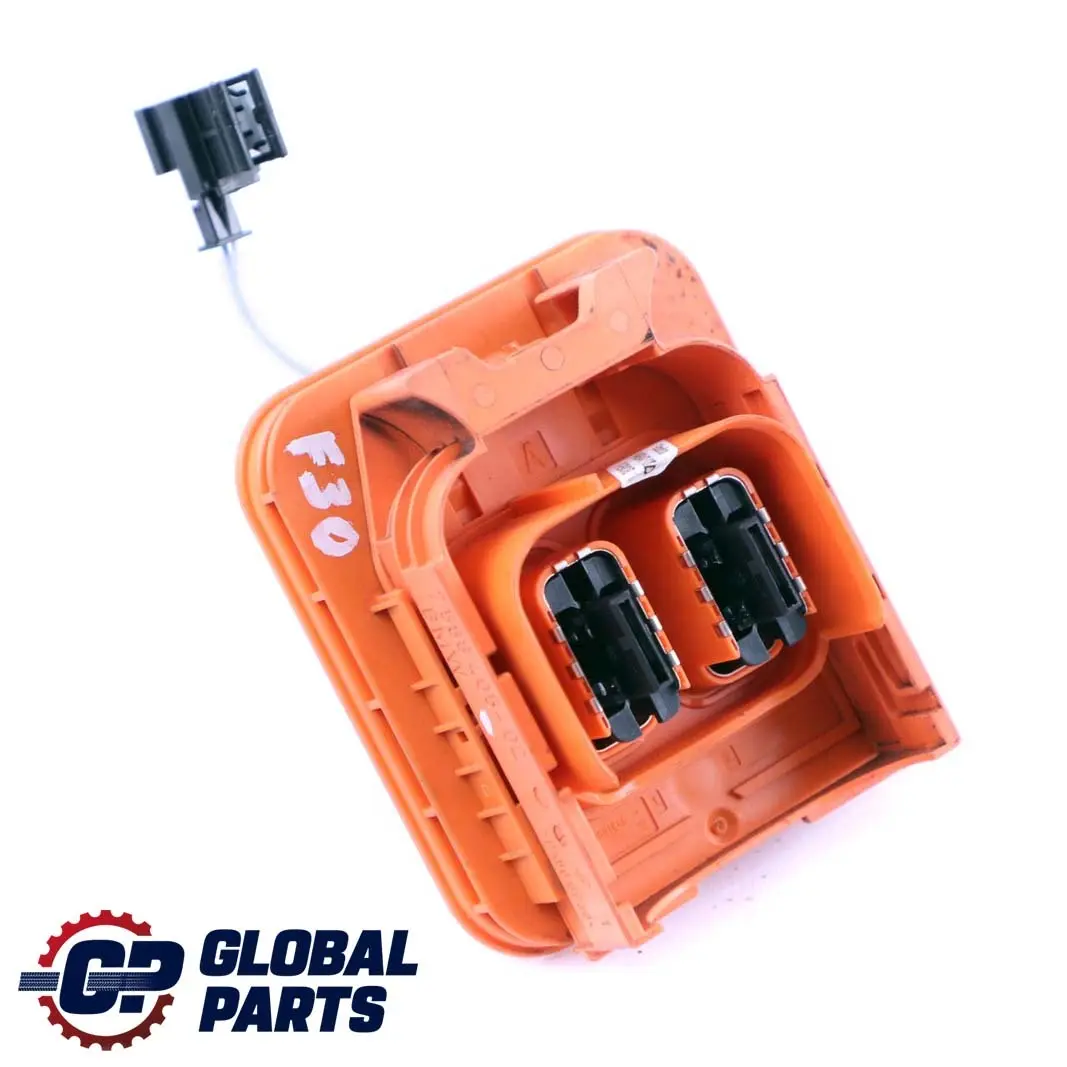

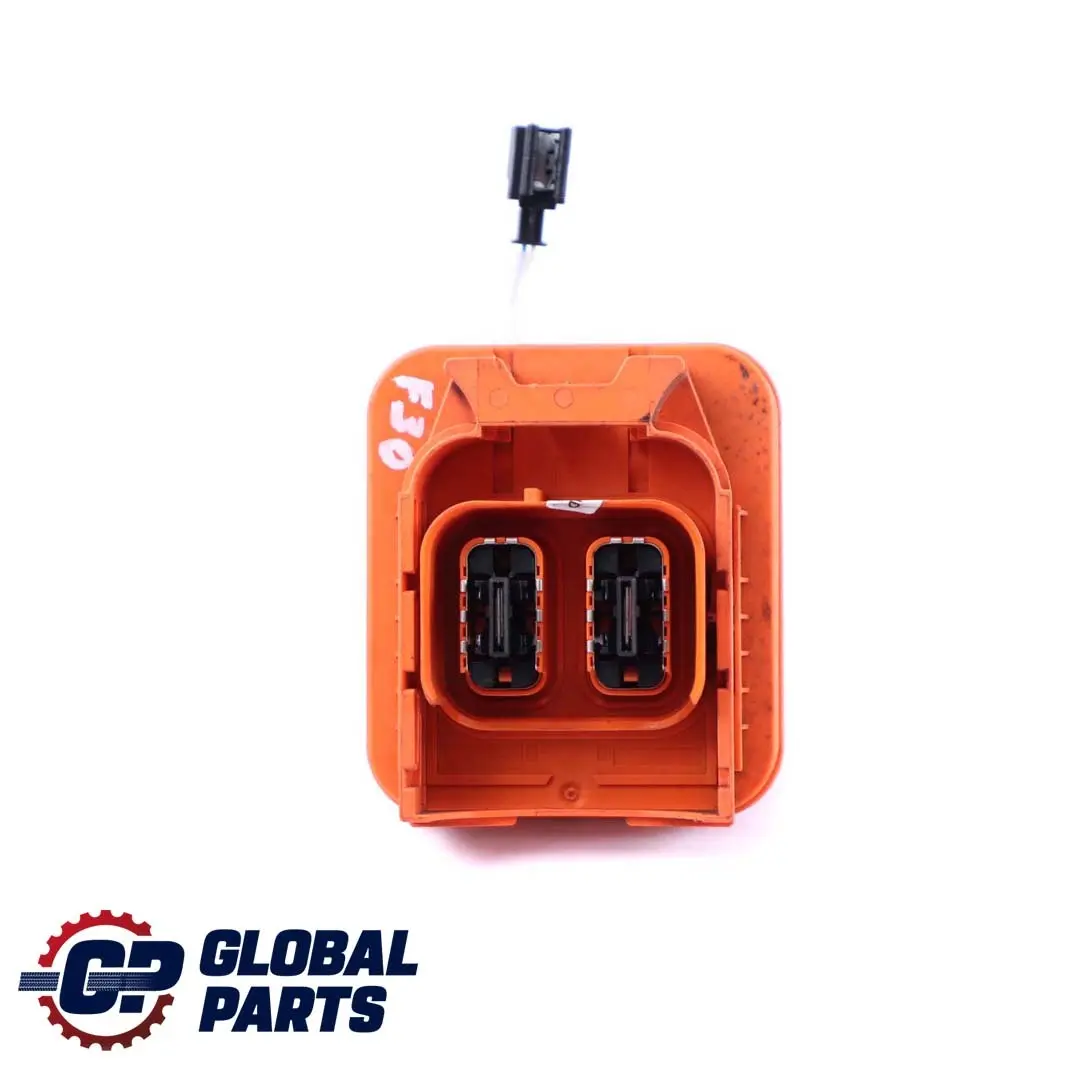

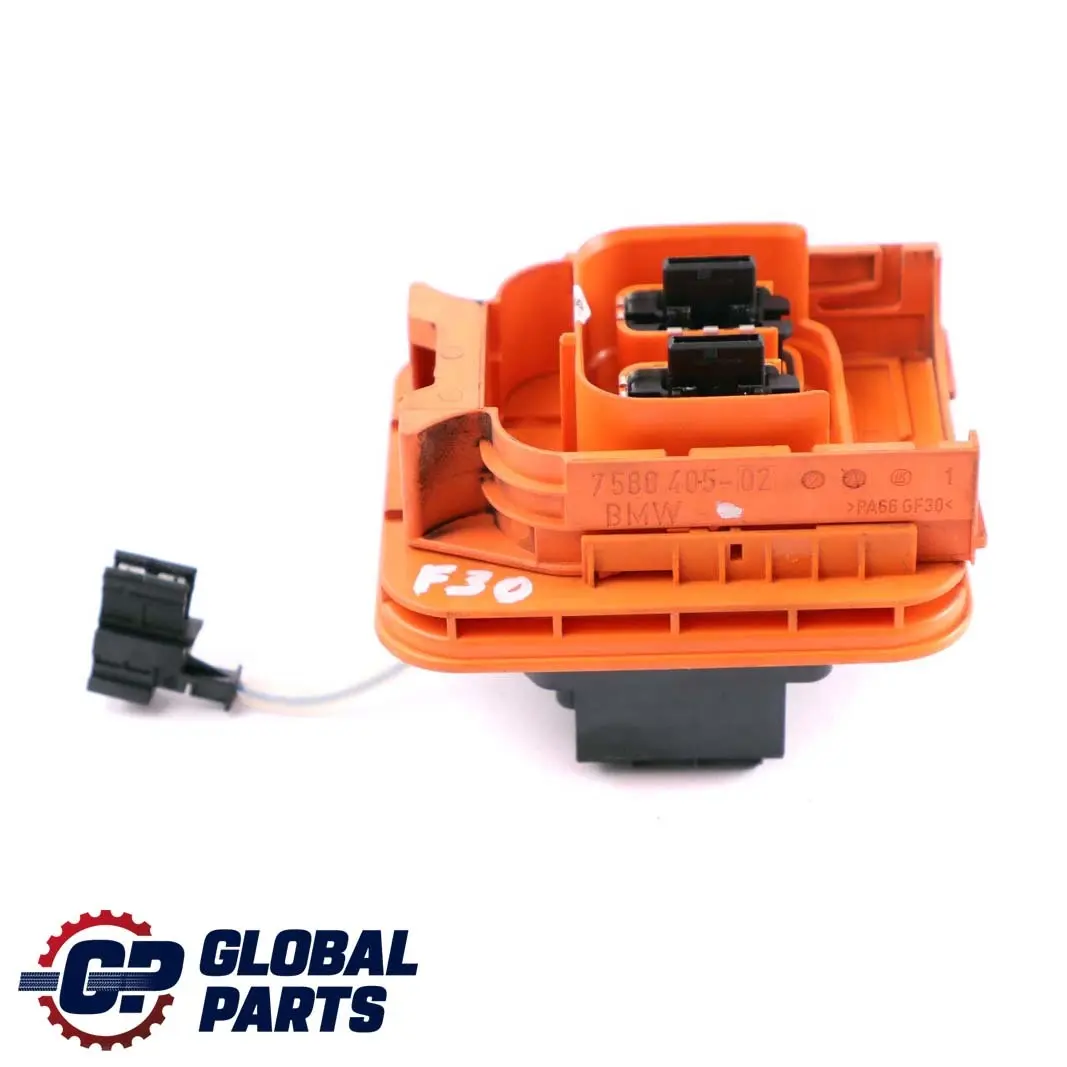

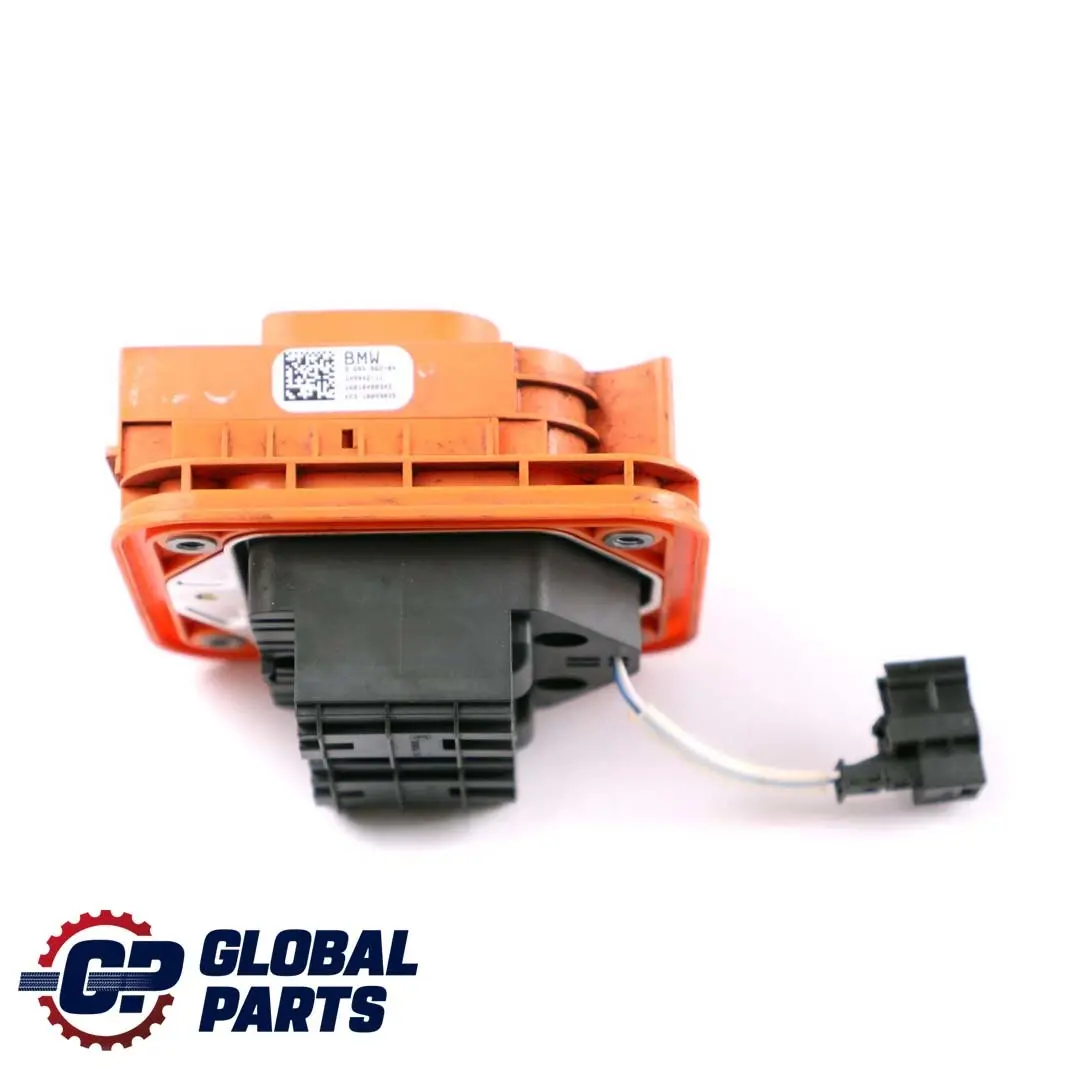

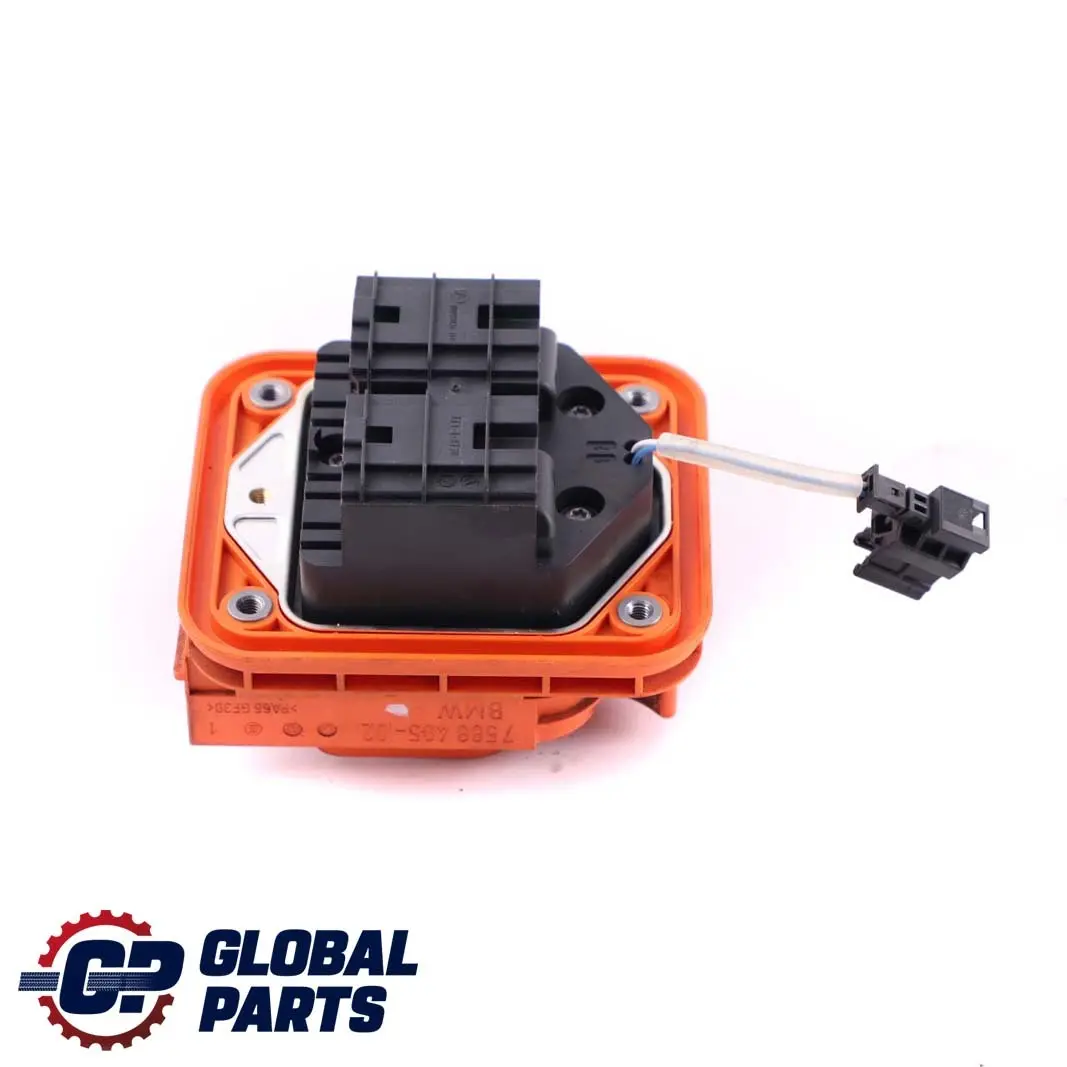

BMW 3 7 Series F30 LCI G11 Hybrid Battery Charging Connector Plug Unit 8605862

The BMW 3 7 Series F30 LCI G11 Hybrid Battery Charging Connector Plug Unit is an original high-voltage system component designed for hybrid systems in BMW 3 Series F30 LCI and 7 Series G11 models. This specialized hybrid battery charging connector assembly ensures a stable electrical connection between the charging socket and the high-voltage system, supporting safe and efficient operation of the entire system. As part of the Relays group, it is responsible for controlled switching of the charging circuit on and off under demanding operating conditions.

Specifications and technical data

• SKU: 7588405
• Mark: BMW (Genuine OE)
• Condition: Used

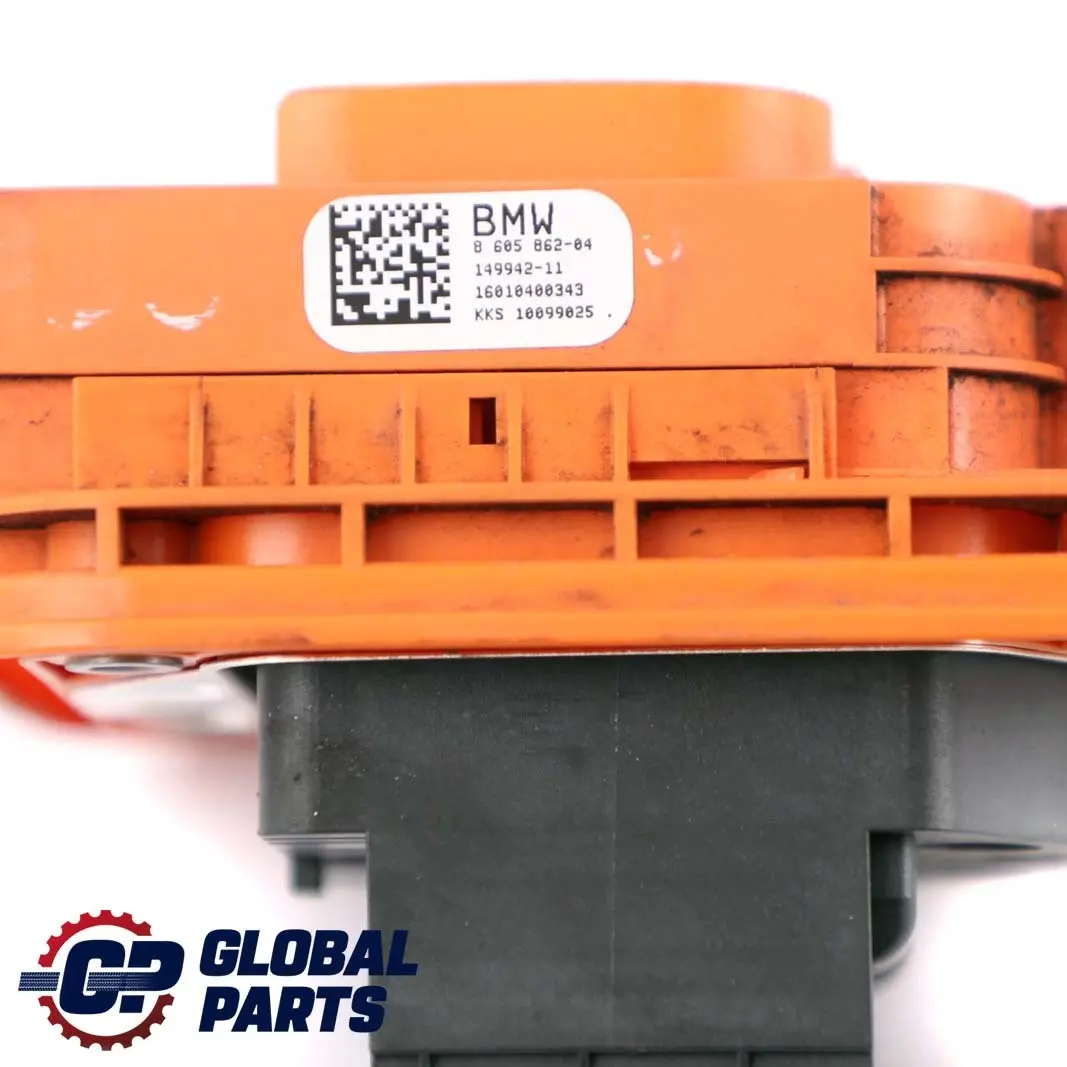

• OEM Part Number: 8605862
• Substitutable numbers: 61278605862, 8605862, 12527588405, 7588405, BG
• Category: Relays

Purpose and Function in BMW Hybrid Systems

The described hybrid battery charging connector assembly is an original BMW part, designed to work with the factory electrical architecture of hybrid models in the 3 Series F30 LCI and 7 Series G11. Its tasks include:

• establishing a controlled connection between the charging socket and the high-voltage battery,
• cooperating with the control system responsible for the circuit activation sequence,
• protecting the system from incorrect current flow during the charging process.

This ensures that the charging system maintains proper operational stability, and the high-voltage components are better protected against overloads resulting from frequent connection and disconnection of the power source.

Construction and Role in the Relays Category

Although the name suggests a connector assembly, this element belongs to the Relays group because it functions as an electrically controlled switch in the hybrid battery power path. In practice, this means that:

• it operates in close integration with the hybrid system's control modules,
• it is responsible for physically opening and closing the charging circuit under specific conditions,
• it is designed to operate with the high voltage characteristic of BMW hybrid systems.

This solution allows for precise energy flow management, which translates into more predictable vehicle behavior during charging and electric mode operation.

Benefits of Using an Original BMW Part

Using an original charging connector assembly to replace a worn or damaged component offers a range of practical benefits for the BMW hybrid vehicle owner:

• Full System Compatibility – perfect fit for factory wiring, mounting points, and control logic in 3 Series F30 LCI and 7 Series G11 models.
• Consistency with control unit software – no need for adaptation of universal solutions or replacements with uncertain parameters.
• Maintained charging process stability – reduced risk of hybrid system errors related to improper high-voltage path operation.
• Improved diagnostic predictability – the original part is correctly recognized by factory BMW service tools.

For hybrid vehicles, where the high-voltage system is crucial for safety and driving comfort, using the correct component in the battery power supply area directly impacts the reliability of the entire drivetrain.

Condition, Selection, and Service Application

The offered BMW hybrid battery charging connector assembly is a used part, allowing for economical system repair while maintaining original manufacturer specifications. Before installation, it is recommended to:

• verify compatibility with the specific vehicle equipment version,
• inspect the high-voltage system for any mechanical or thermal damage,
• perform a hybrid system diagnosis after installation to confirm correct cooperation of all modules.

This approach facilitates the restoration of proper charging system operation without the need to interfere with other high-voltage system components.
