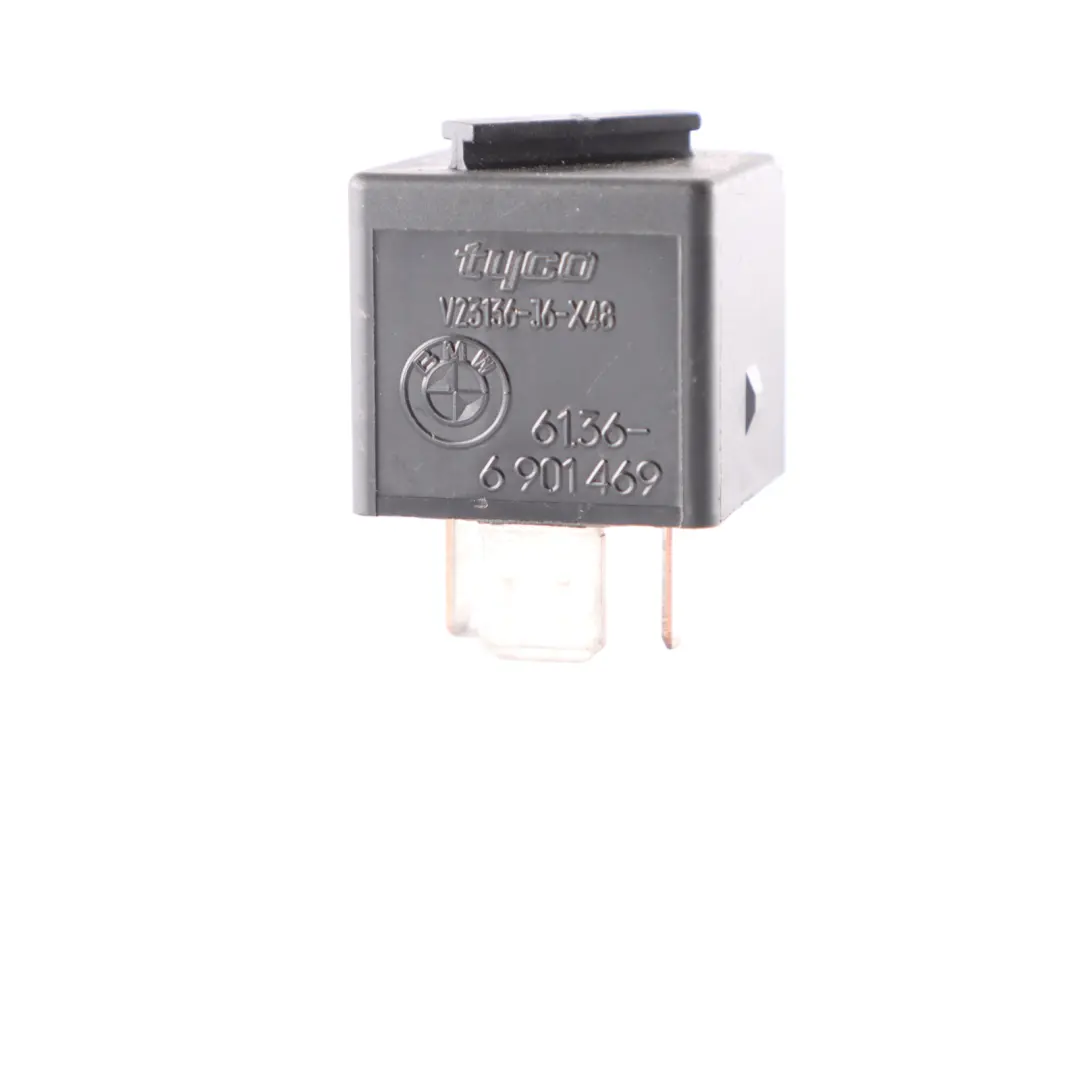

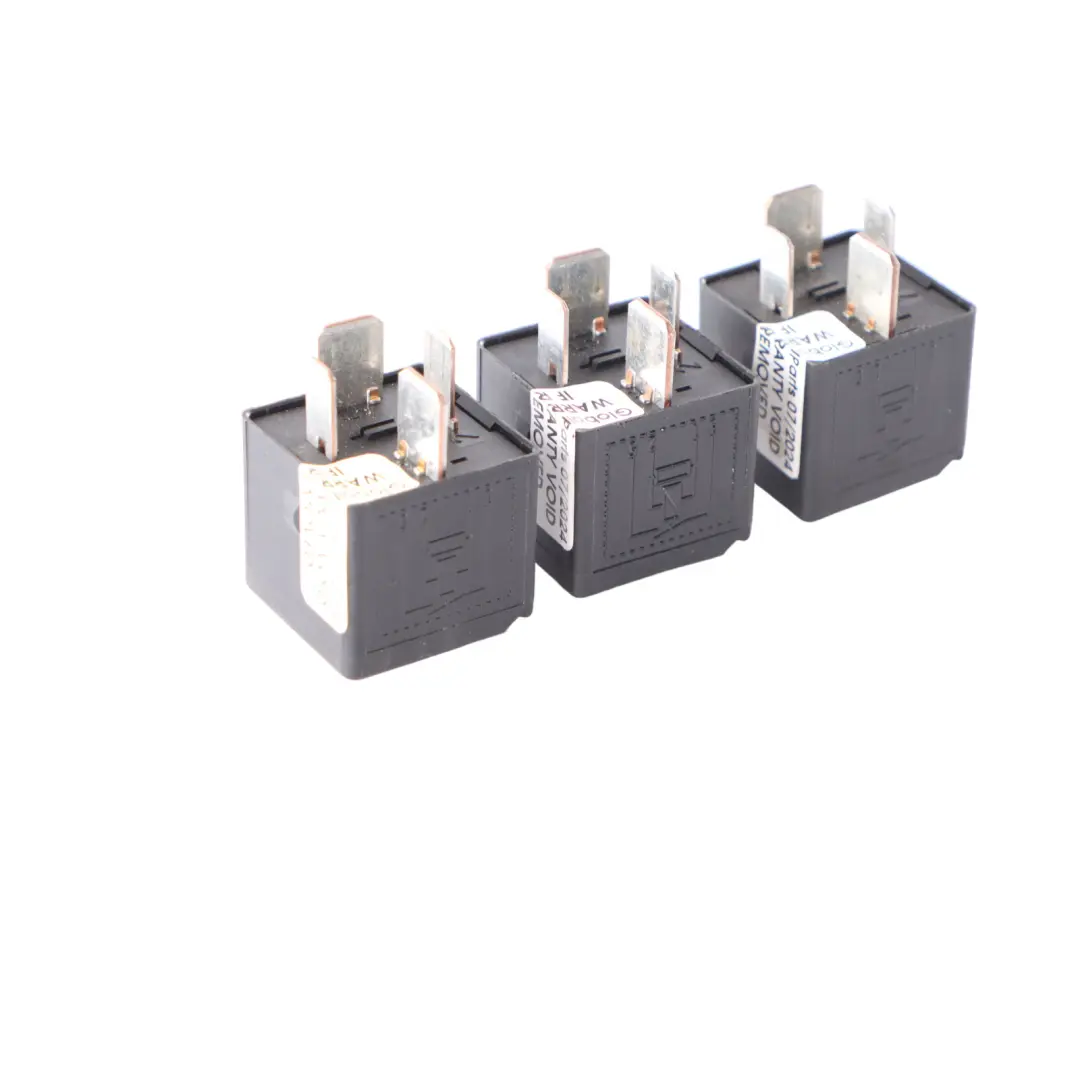

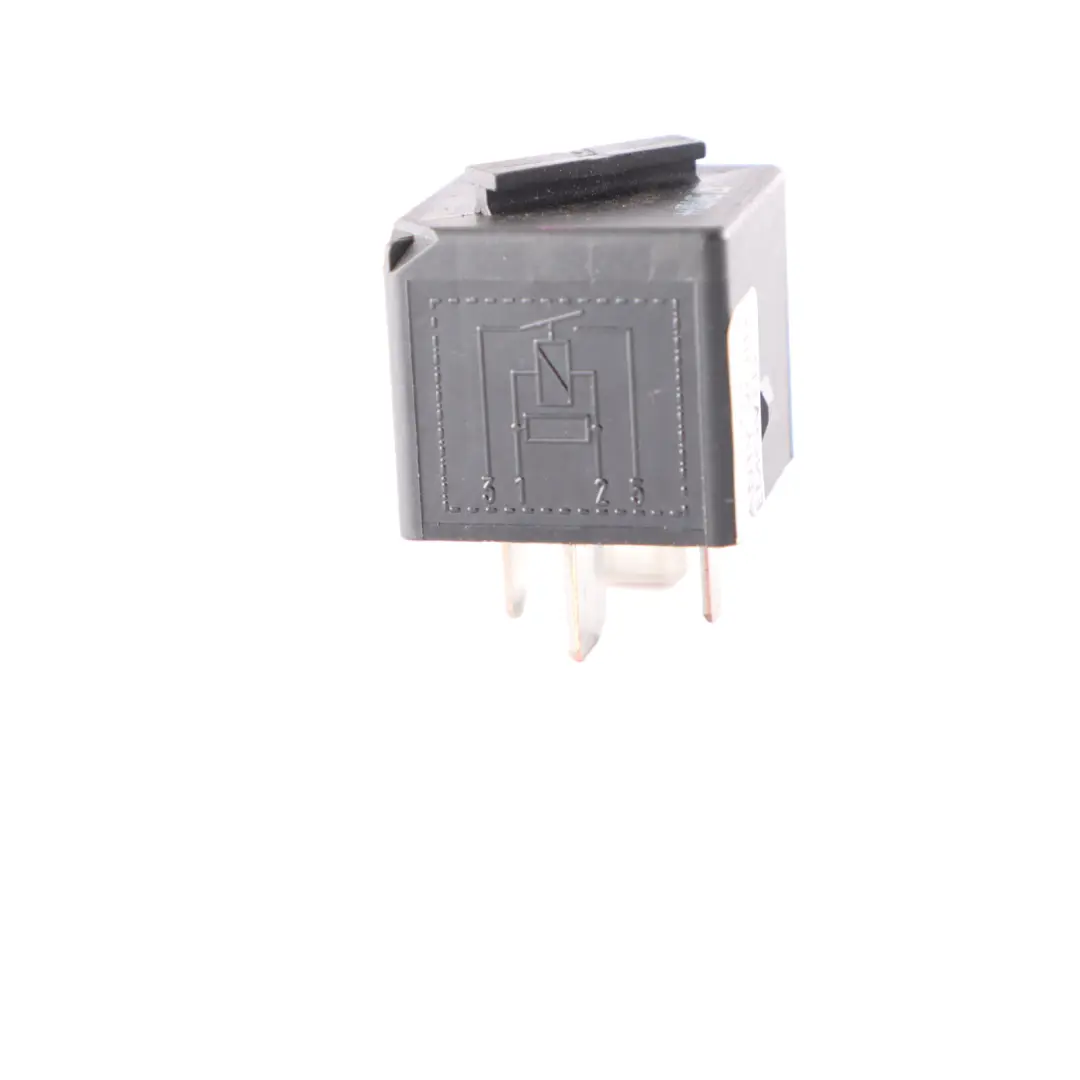

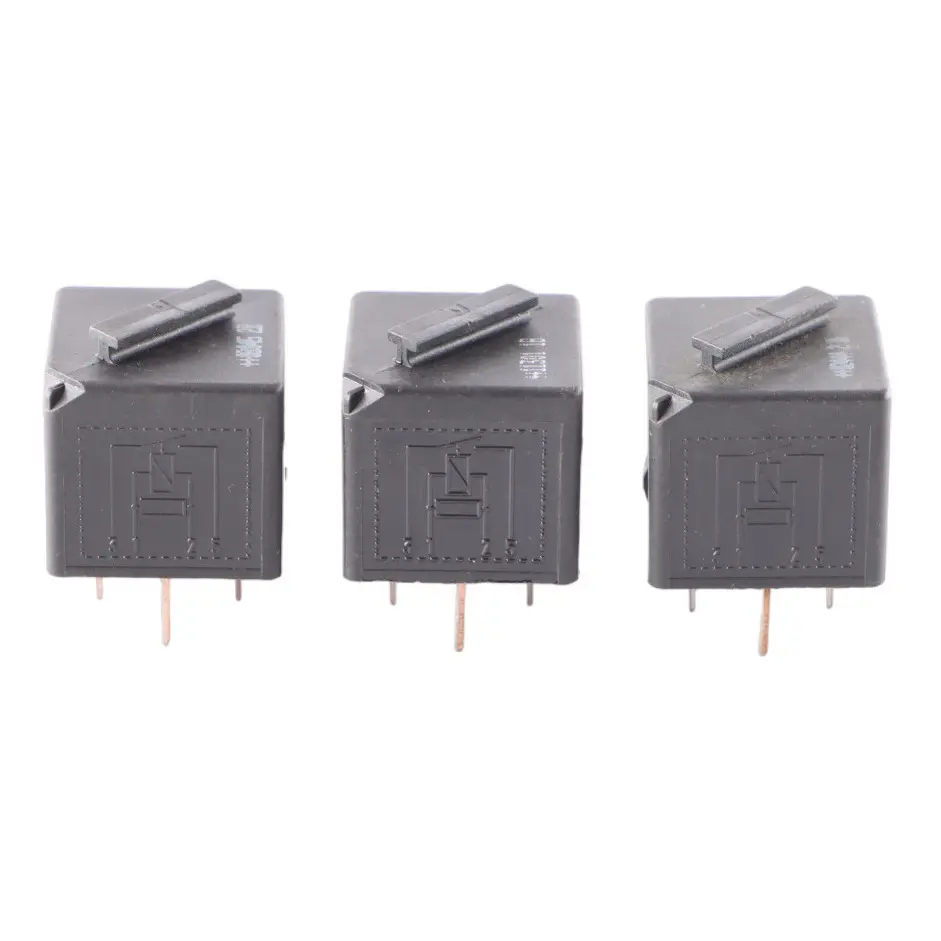

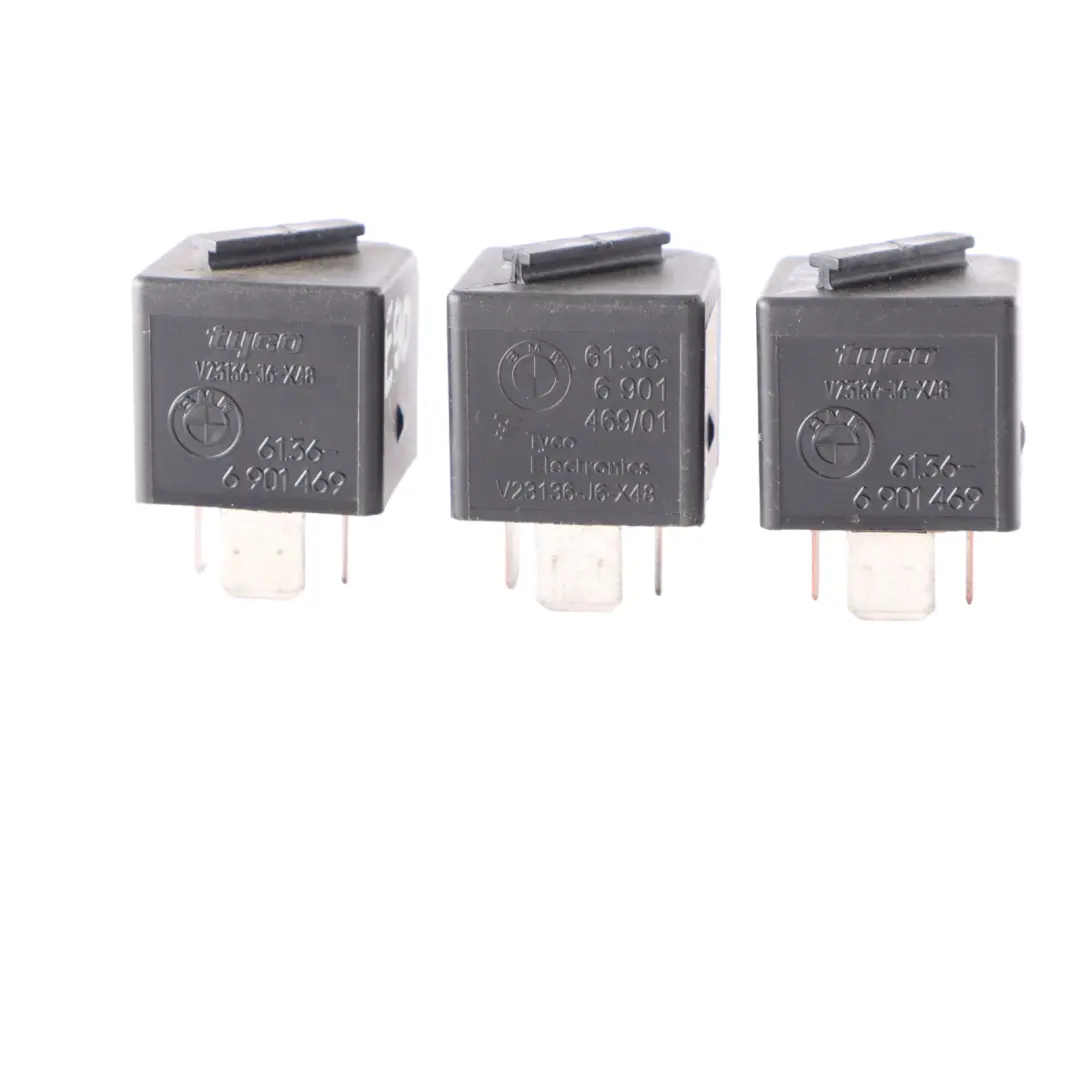

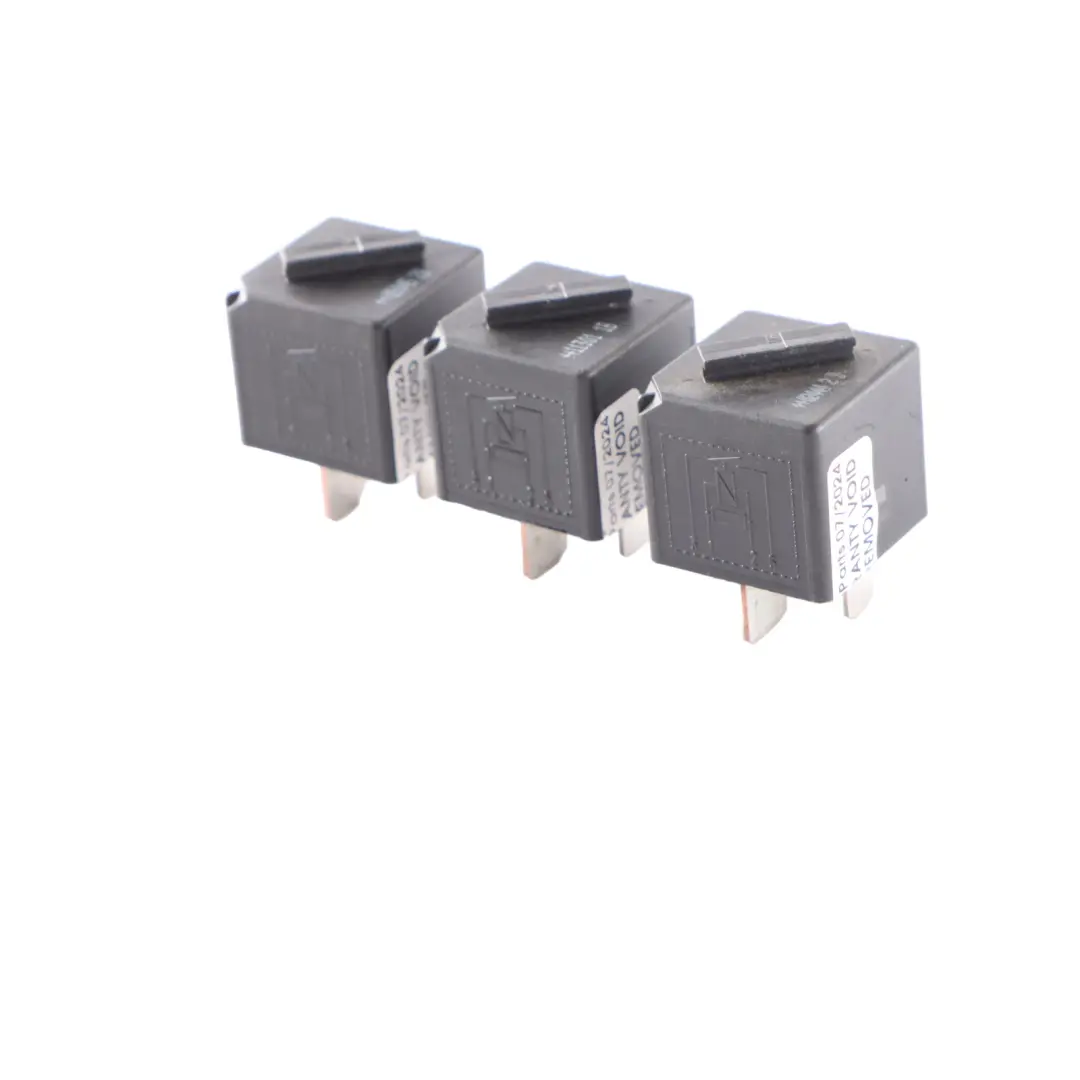

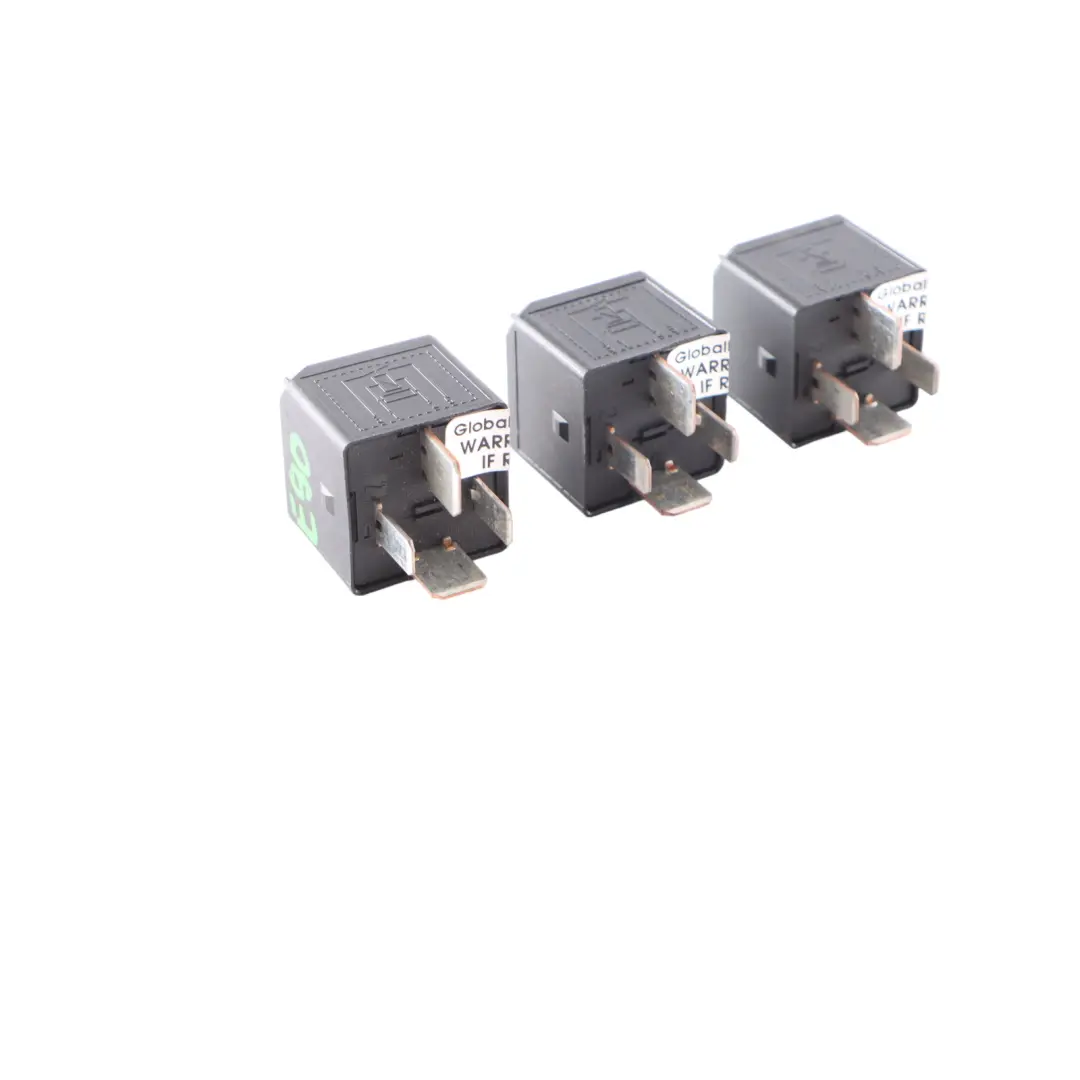

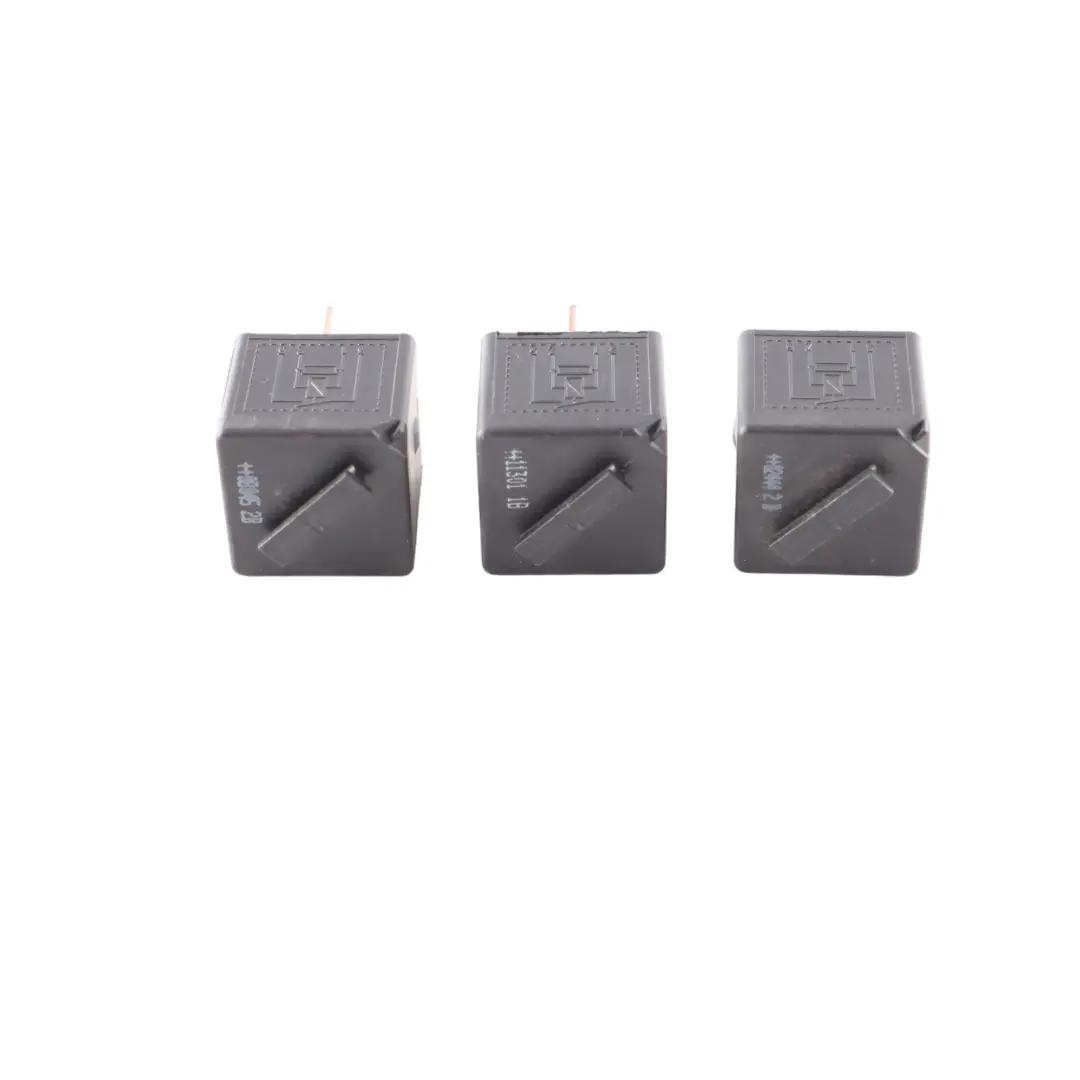

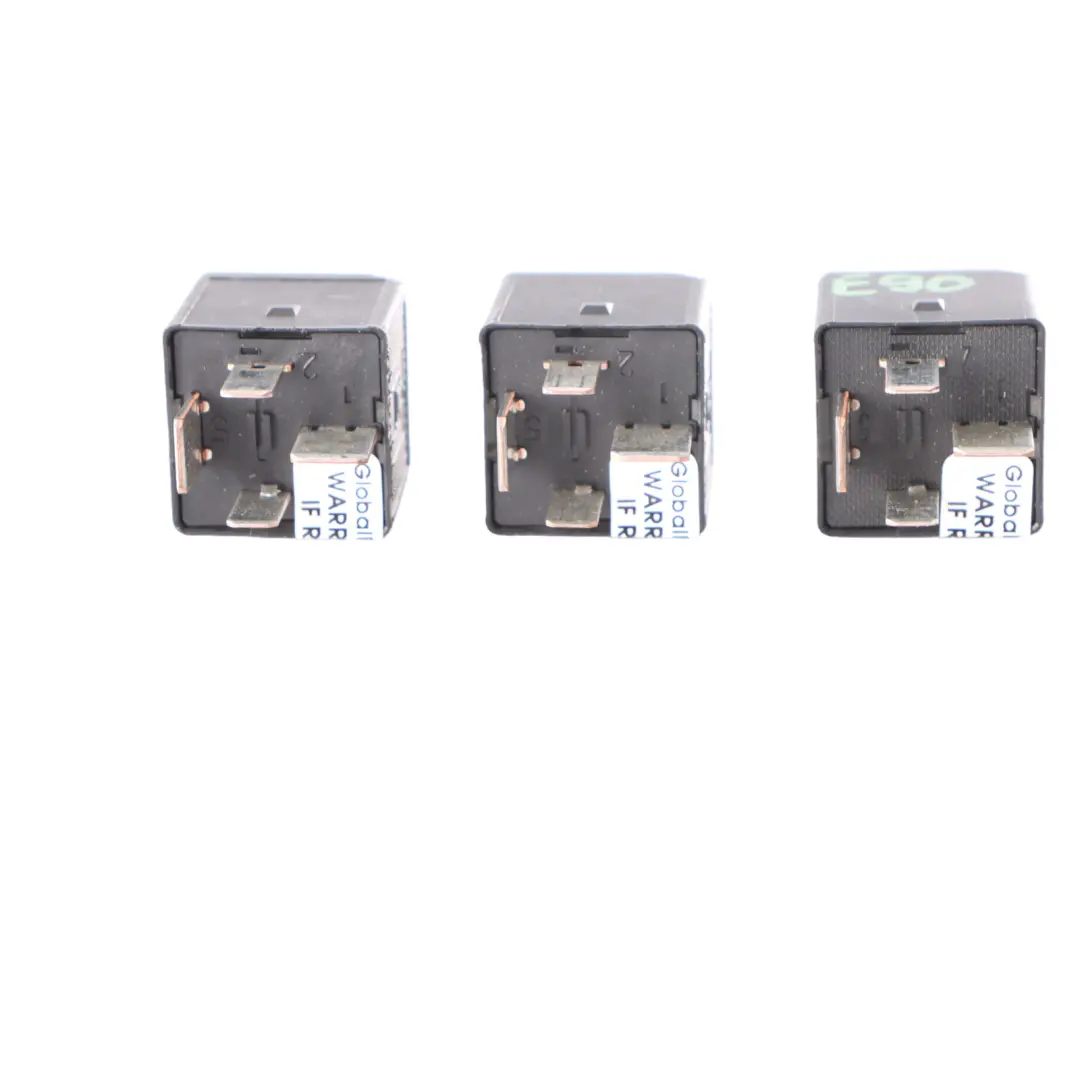

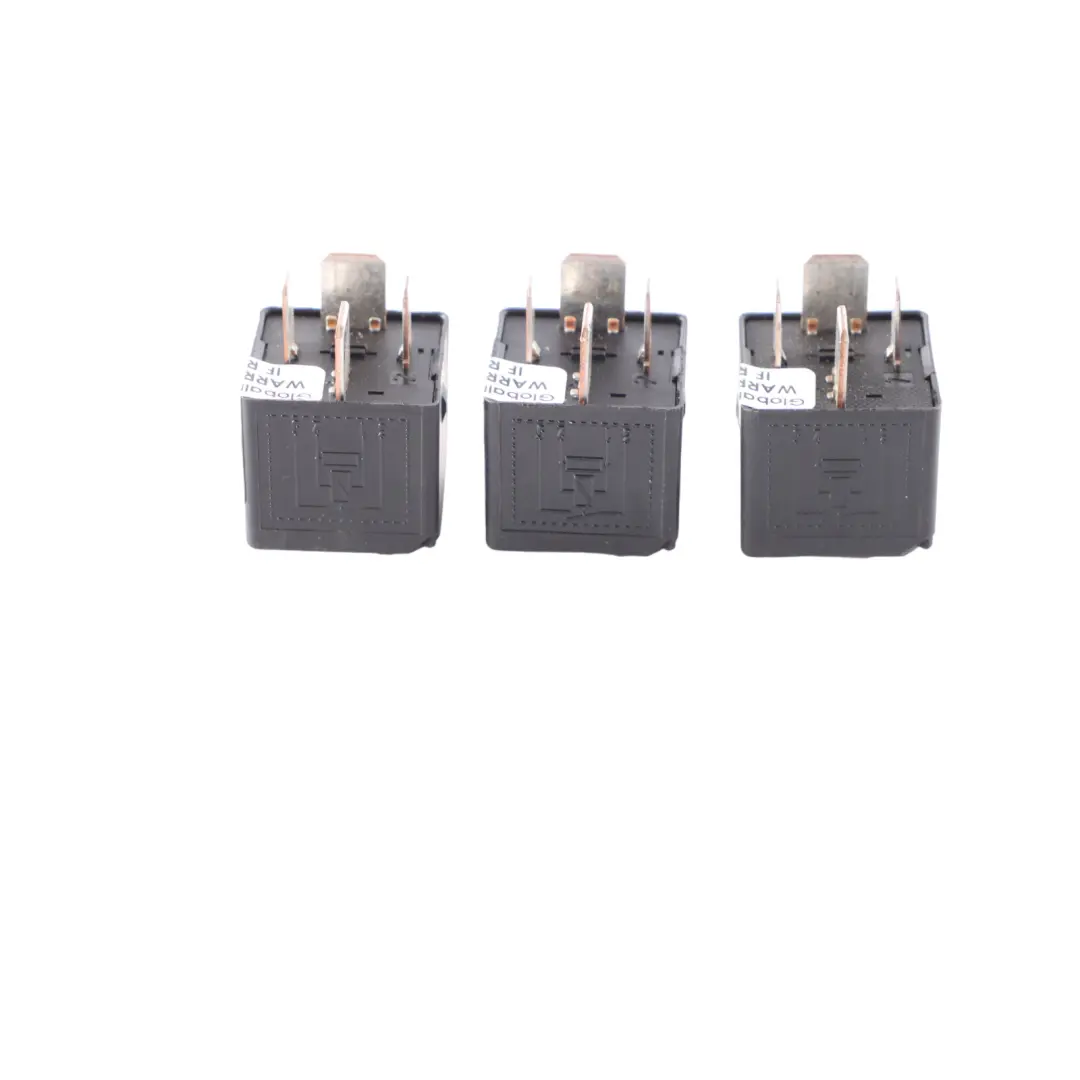

3X Relay BMW E60 E87 E90 F10 F30 4 Pin Tyco Set Black 6901469

3X Relay BMW E60 E87 E90 F10 F30 4 Pin Tyco Set Black is a practical set of original electrical components designed for wiring systems in popular BMW models. The set of three relays allows for the efficient replacement of worn-out components, ensuring stable operation of the vehicle's control circuits. Thanks to their compact design and black housing, they easily integrate into the factory electrical harness.

Specifications and technical data

• SKU: 6901469-2
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6901469
• Substitutable numbers: 6901469, 61366901469, 0141228, 61360141228, 6800543, 61366800543
• Color: Black
• Category: Relays

Technical specifications and application

The presented set includes three 4-pin BMW relays that act as intermediate components between low-current controls and higher-current consumers. This type of solution is typical for factory BMW installations, where parameter repeatability, load resistance, and predictable behavior under various operating conditions are essential.

Tyco relays in this configuration are used in many vehicle circuits – from comfort systems and specific body functions to various auxiliary circuits. Using the same type of component in multiple locations within the installation facilitates diagnostics and subsequent maintenance.

Construction and functional features

Each element of the set features a compact, modular design, adapted for installation in relay sockets used in BMW vehicles. The black housing facilitates visual matching with the original fuse and relay box, and the standard four-pin layout allows for quick replacement of the previously used component.

The solution based on Tyco relays is valued for the repeatability of electrical parameters and stable operation during frequent switching cycles. Using three identical units in one set allows for the simultaneous replacement of several key relays or keeping parts as a service reserve.

Benefits of using the 3X relay set

Choosing a complete relay set for BMW offers a number of practical advantages:

• the possibility of simultaneous replacement of several elements with a similar degree of wear,
• simplified testing – quick relay swapping in a suspected circuit,
• consistency of electrical parameters within a single vehicle,
• a spare component on hand in case of a sudden failure.

Thanks to this set, you can take an organized approach to maintaining the electrical system, minimizing the risk of accidental power interruptions to consumers and reducing the time required for diagnostics.

Condition of elements and assembly aspects

The relays come from disassembly and are offered as used original BMW components. Such elements, when used correctly, retain their properties for a long time, which is why their reuse in another vehicle is both an economical and technically sound solution.

Installation involves inserting the relay into the appropriate socket in the fuse box or relay module. Thanks to the factory housing format and standard pin layout, the replacement is efficient and does not require interference with the wiring harness or additional modifications.
