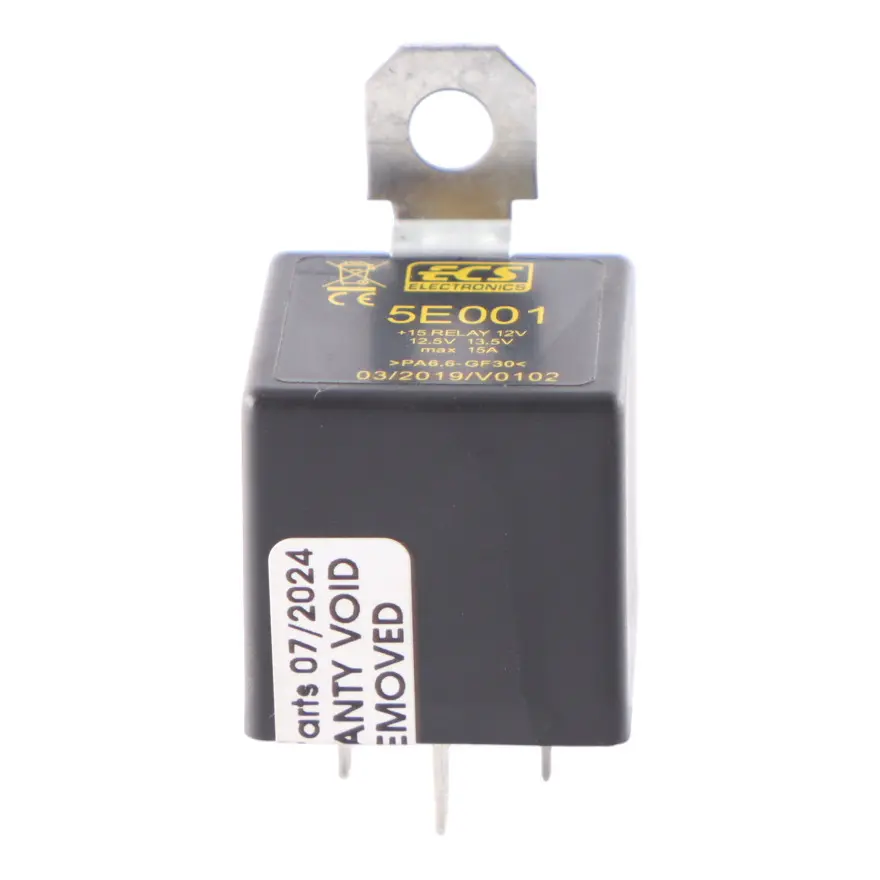

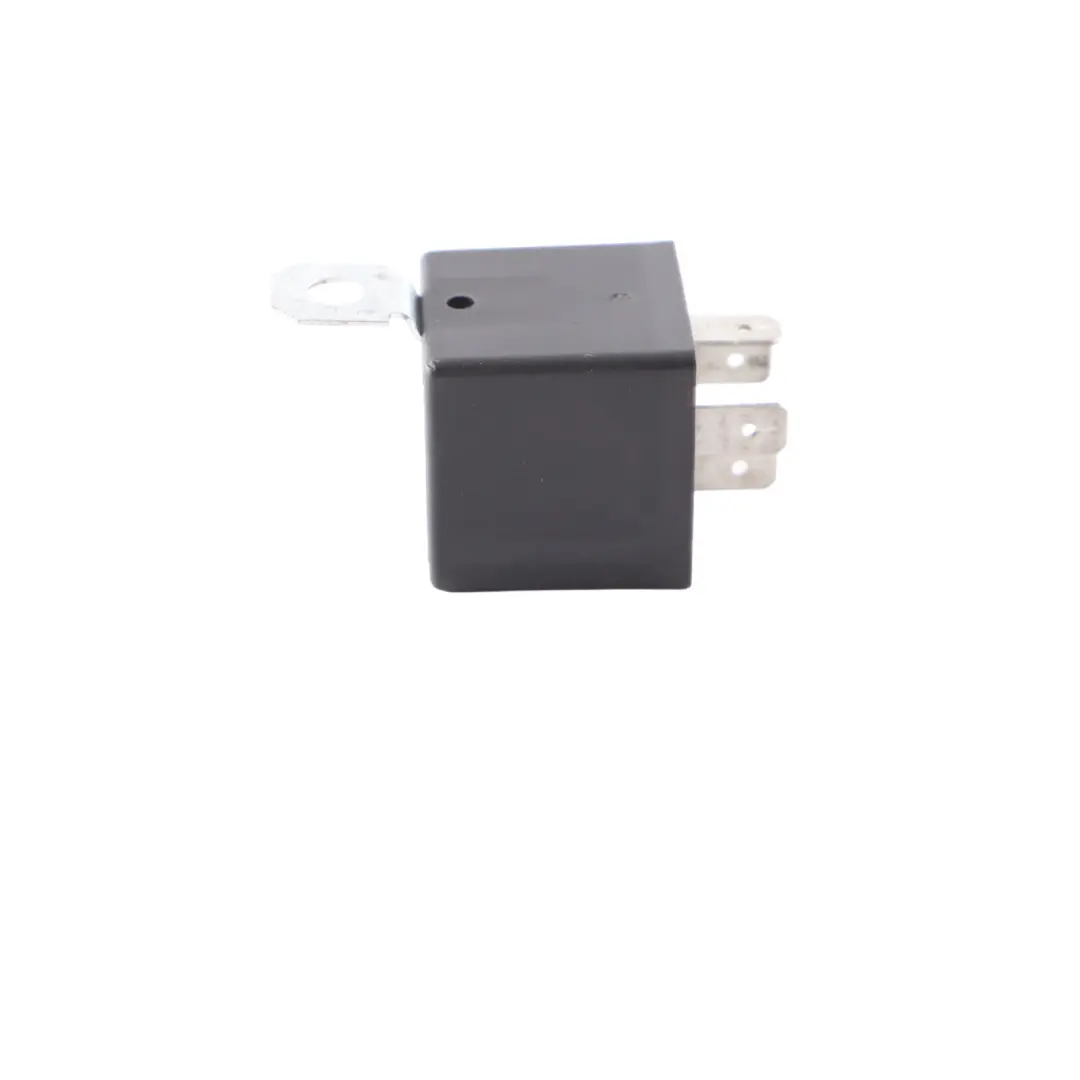

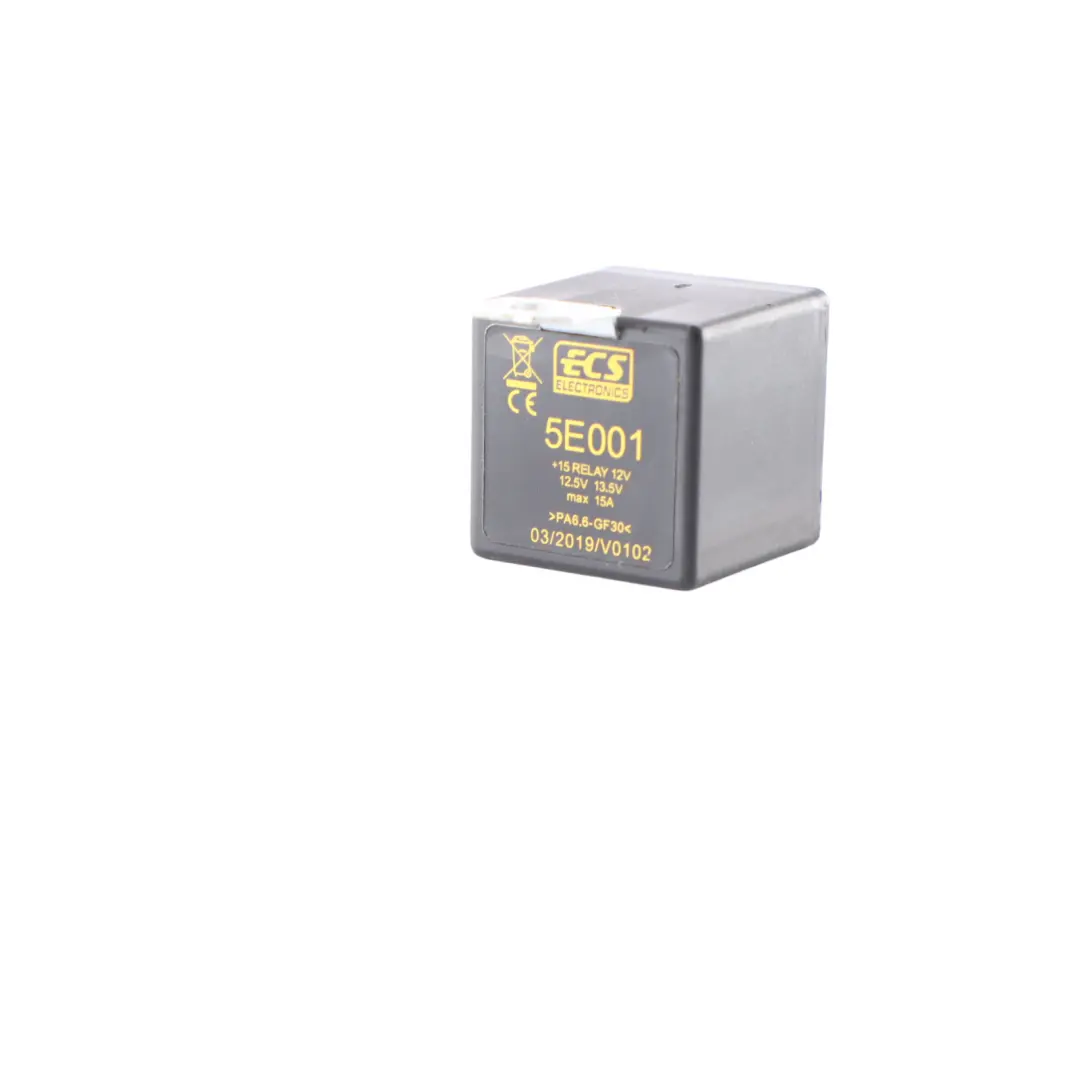

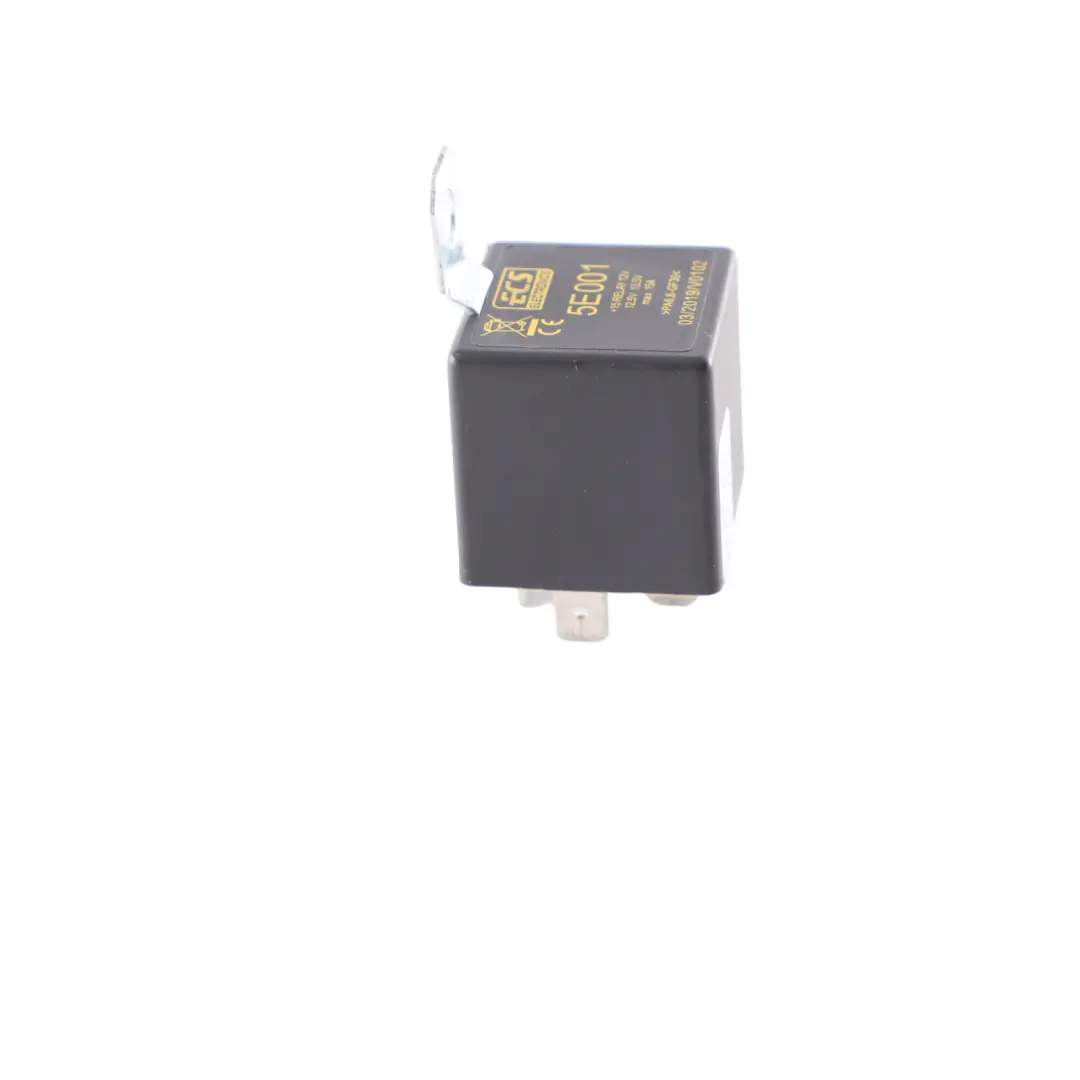

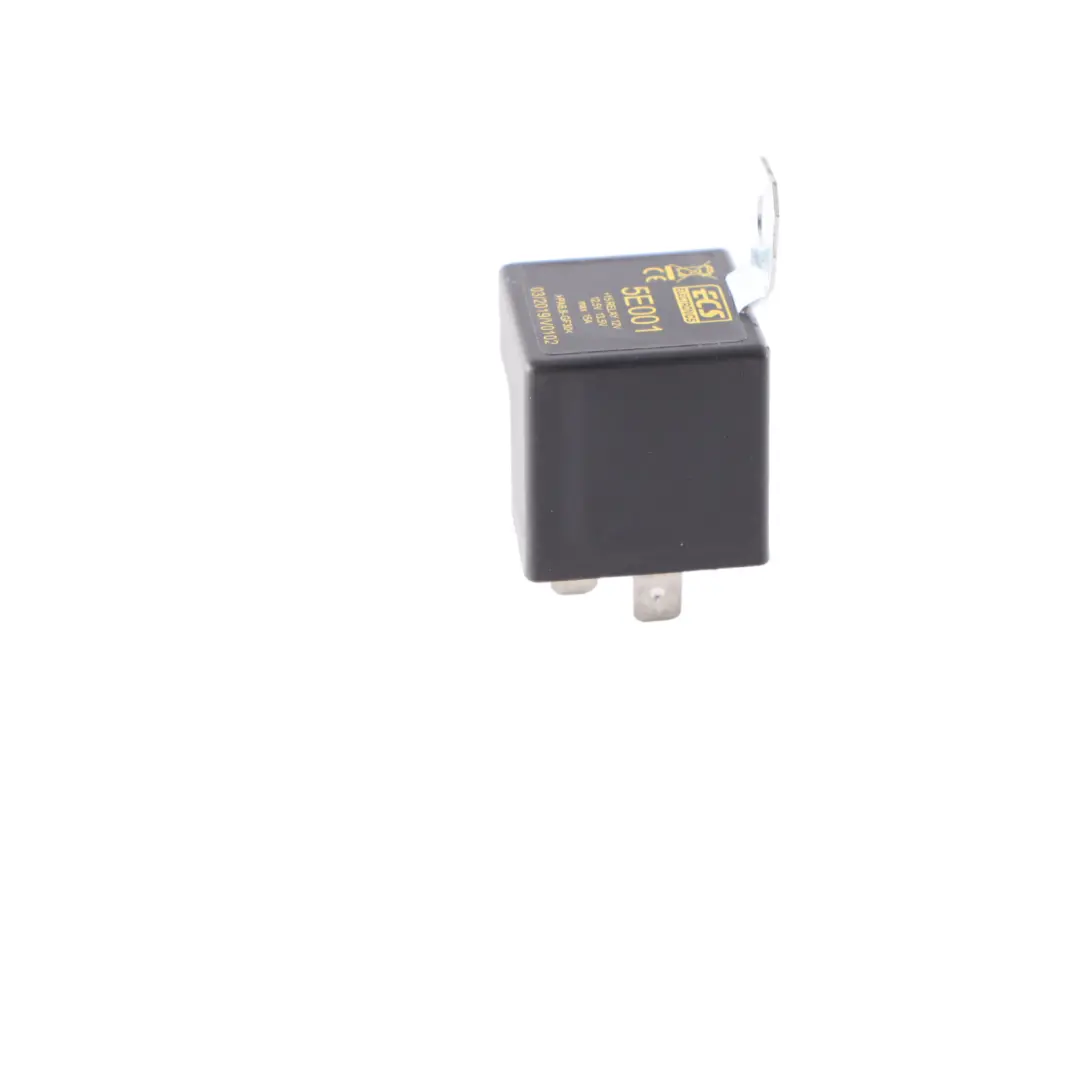

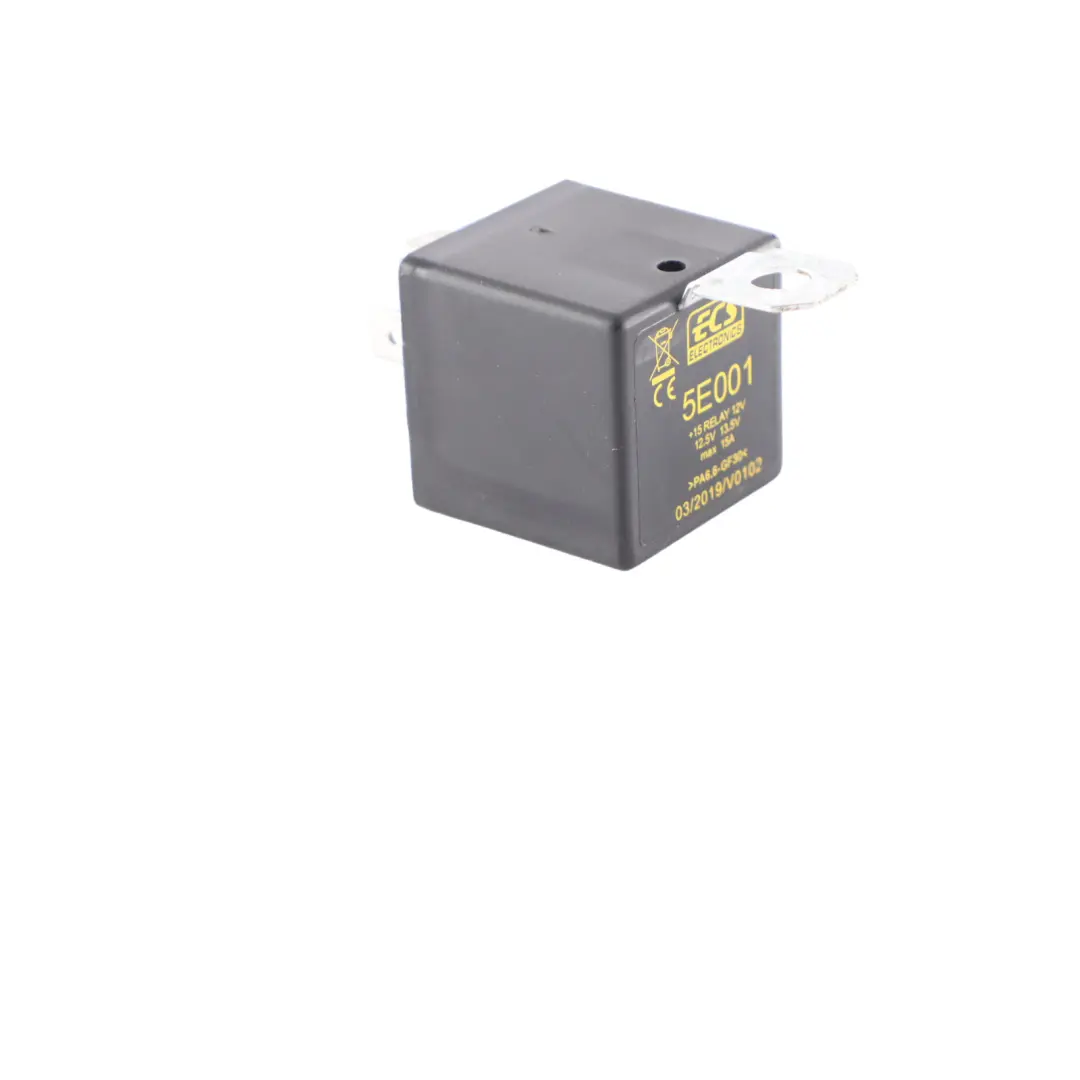

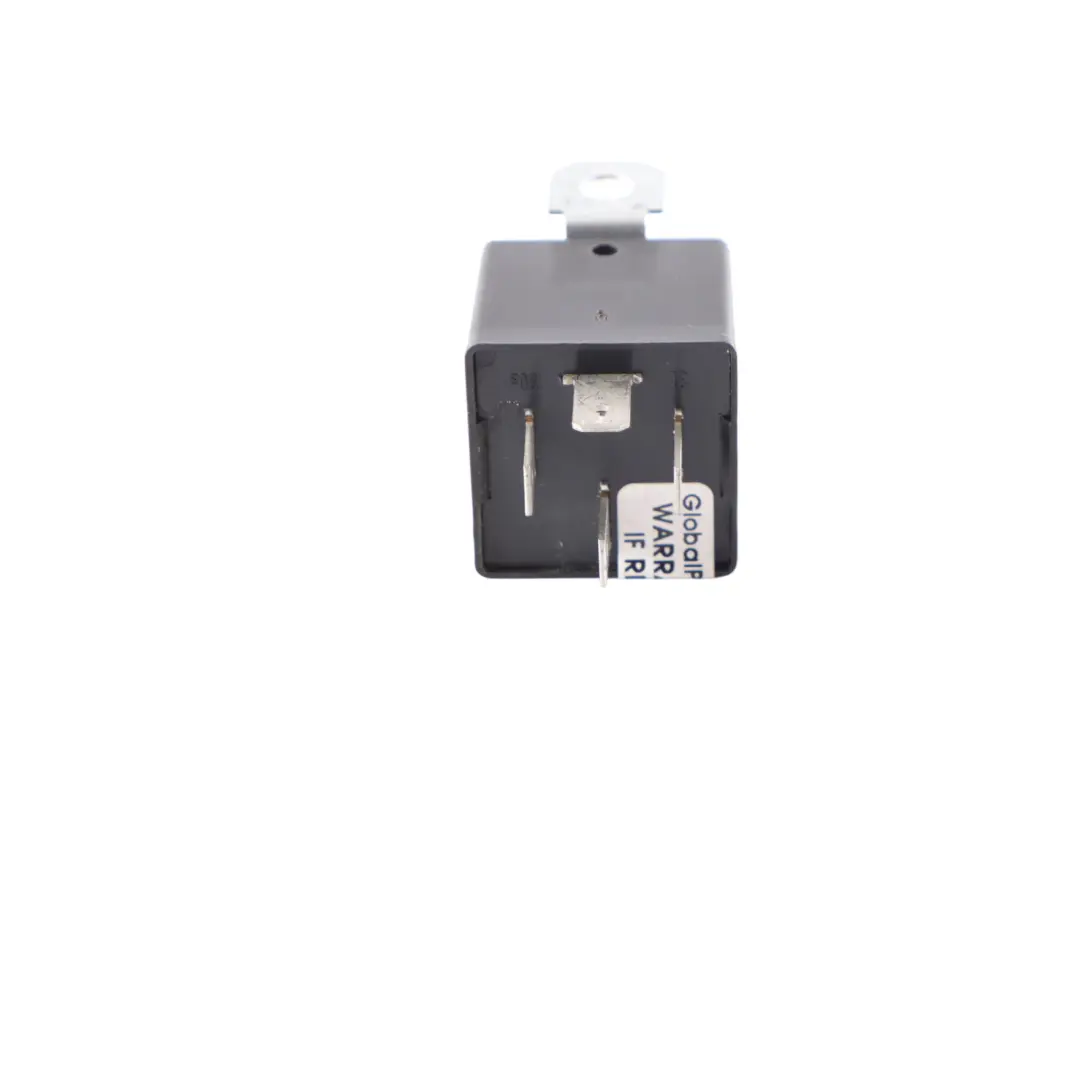

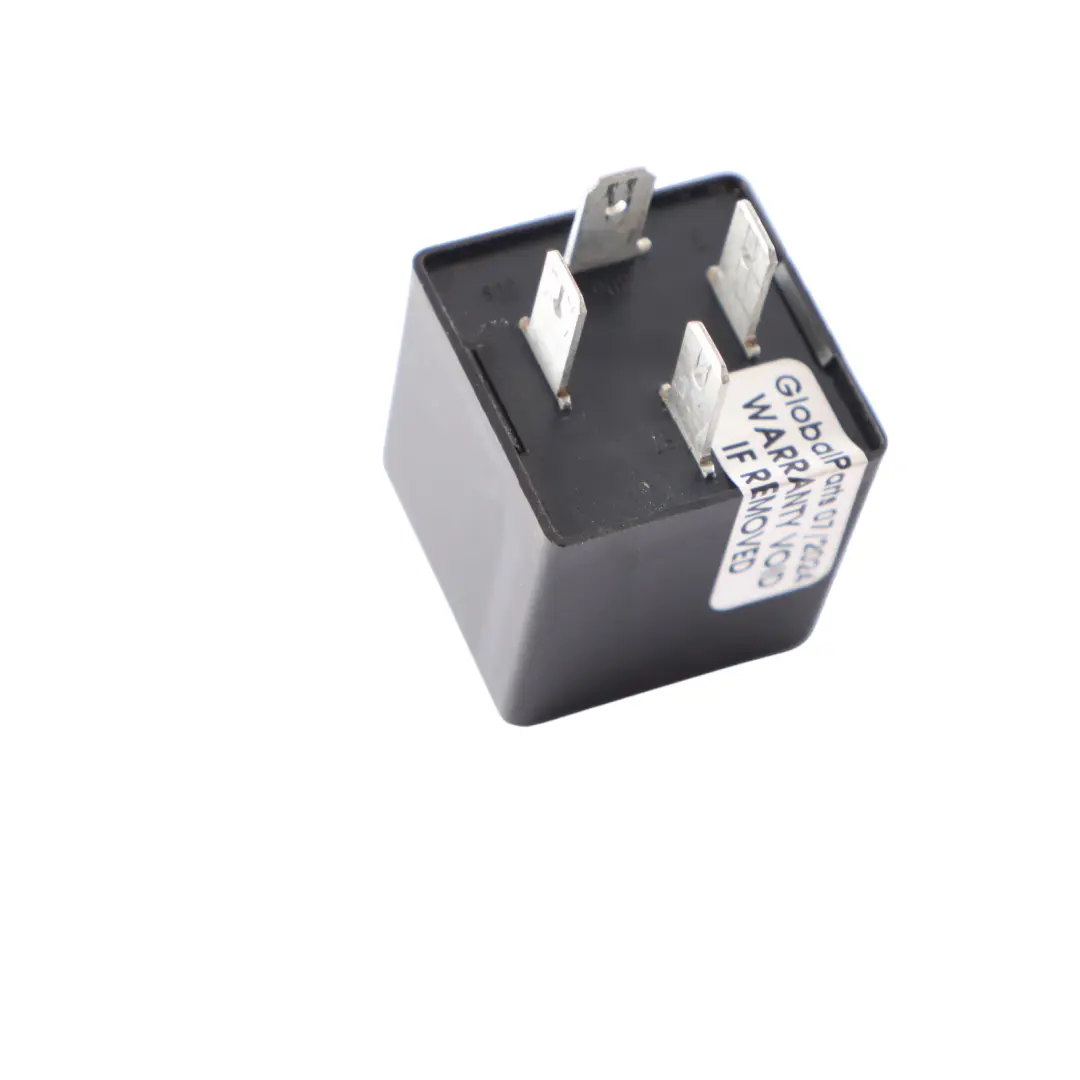

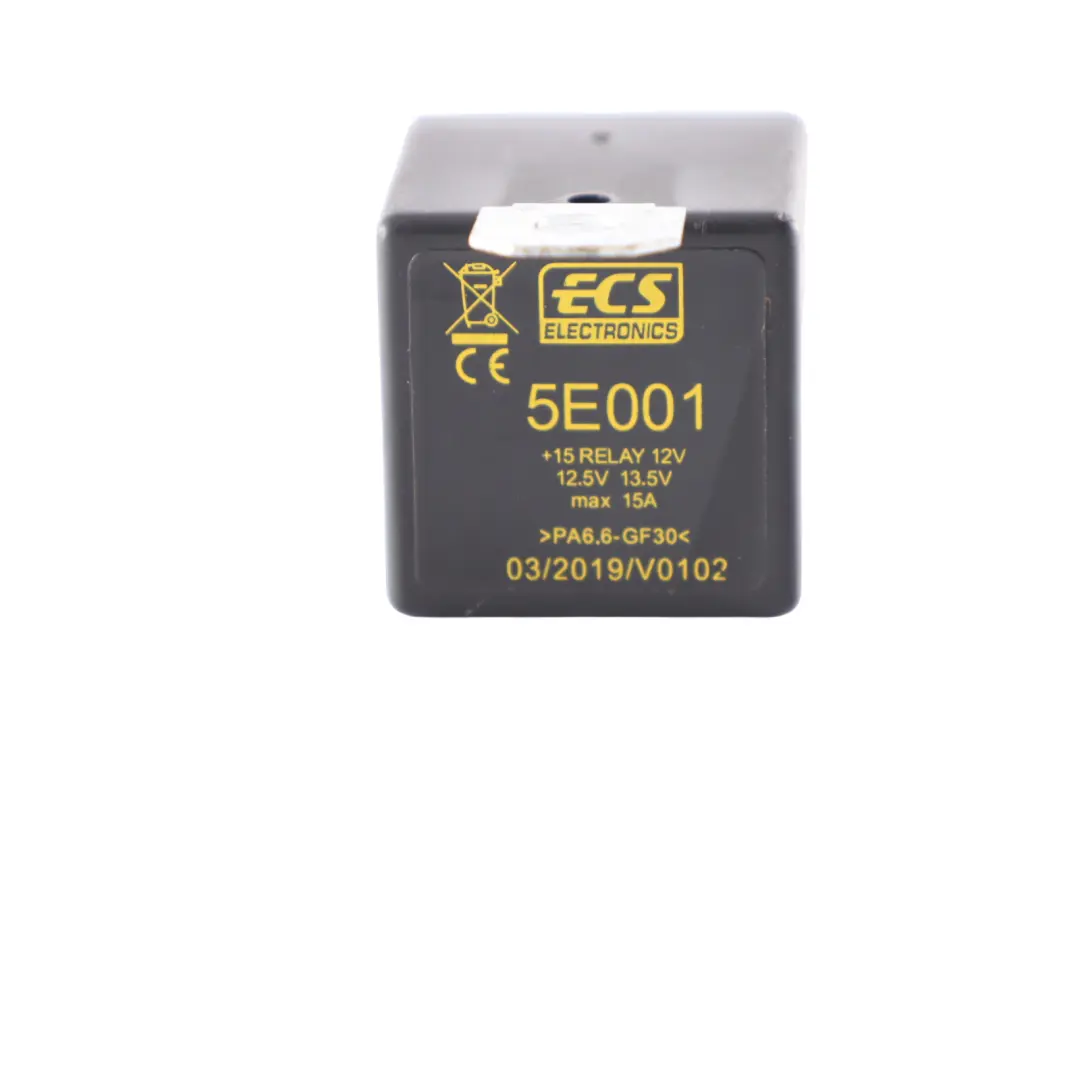

Relay Black Control Unit 4 Pin 12V 5E001

Relay Black Control Unit 4 Pin 12V is a compact, black relay with a four-pin connector, designed for operation in 12V electrical systems. It enables precise control of vehicle electrical circuits, ensuring stable switching and organized system operation. Thanks to its design within the Relays group, it serves as a functional control element in many automotive applications.

Specifications and technical data

• SKU: 5E001
• Mark: Unbranded
• Condition: Used
• OEM Part Number: 5E001
• Substitutable numbers: 5E001
• Color: Black
• Category: Relays

Application and function of the relay

The presented relay is designed as a control element in automotive installations where reliable circuit switching at 12V is required. The four-pin configuration allows for classic use as a power switch for loads such as control modules, lighting, or other auxiliary systems where separation of control and power circuits is essential.

The relay can be used both as a main power path component for selected devices and as part of more complex control systems, where operational repeatability and resistance to typical operating conditions in the engine bay or inside the vehicle are important.

Design, color, and integration with the installation

The Black housing facilitates aesthetic integration with the wiring harness and other components in the engine bay or fuse box. Four pins ensure a clear, organized connection layout, which promotes quick installation and subsequent system diagnostics. This type of design is widely used in the automotive industry due to its simplicity and sufficient functionality for many auxiliary circuits.

As an item from the Relays category, this product can be used in standard relay sockets or mounted directly into dedicated control modules, depending on the solutions implemented by the vehicle manufacturer.

Benefits of using the 4-pin 12V relay

Using a four-pin relay in a vehicle's electrical system allows for:

• relieving control circuits by transferring higher current to the power path,
• organizing the switching logic of selected loads,
• easier fault diagnostics thanks to a clearly separated switching element,
• the possibility of quick replacement if necessary, without interfering with the entire harness.

For the user, this means more predictable operation of electrical systems and the possibility of flexible installation expansion with additional loads, if the vehicle design allows it. A used component from this group can be a cost-effective solution while maintaining proper functionality.

Selection and compatibility

When selecting a relay, it is important to match the electrical parameters and pin configuration to the existing installation. This model, as a representative of the Relays group, is intended for 12V systems and four-pin sockets, which corresponds to many popular applications in passenger cars and light commercial vehicles. In practice, this allows it to be used both as a replacement in an existing system and in modernization projects where additional, electrically controlled circuit switching is needed.

If you are planning a comprehensive repair or modernization of the electrical installation area in your Unbranded vehicle and need other components from the same group, such as additional relays, control modules, or switching elements, check the available parts in the Unbranded Relays category.

Practical installation and operating tips

Before installation, it is worth verifying the pin layout in the vehicle and the wiring diagram to ensure proper connection of the coil and working contacts. It is also recommended to check the condition of the relay socket – loose contacts or signs of overheating can affect the stability of the entire system. After installation, it is good to perform a circuit operation test, observing the behavior of the controlled load under various operating conditions.
