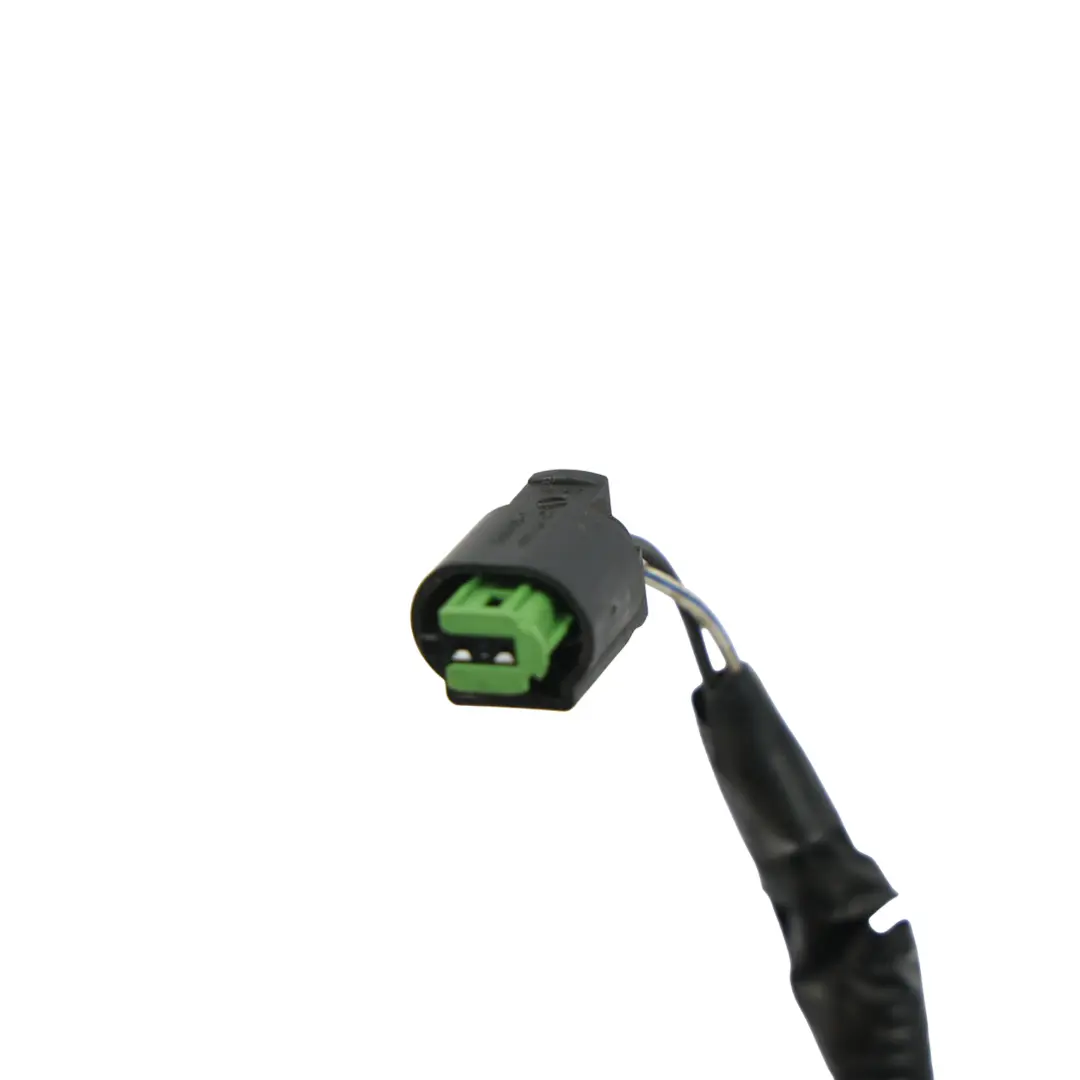

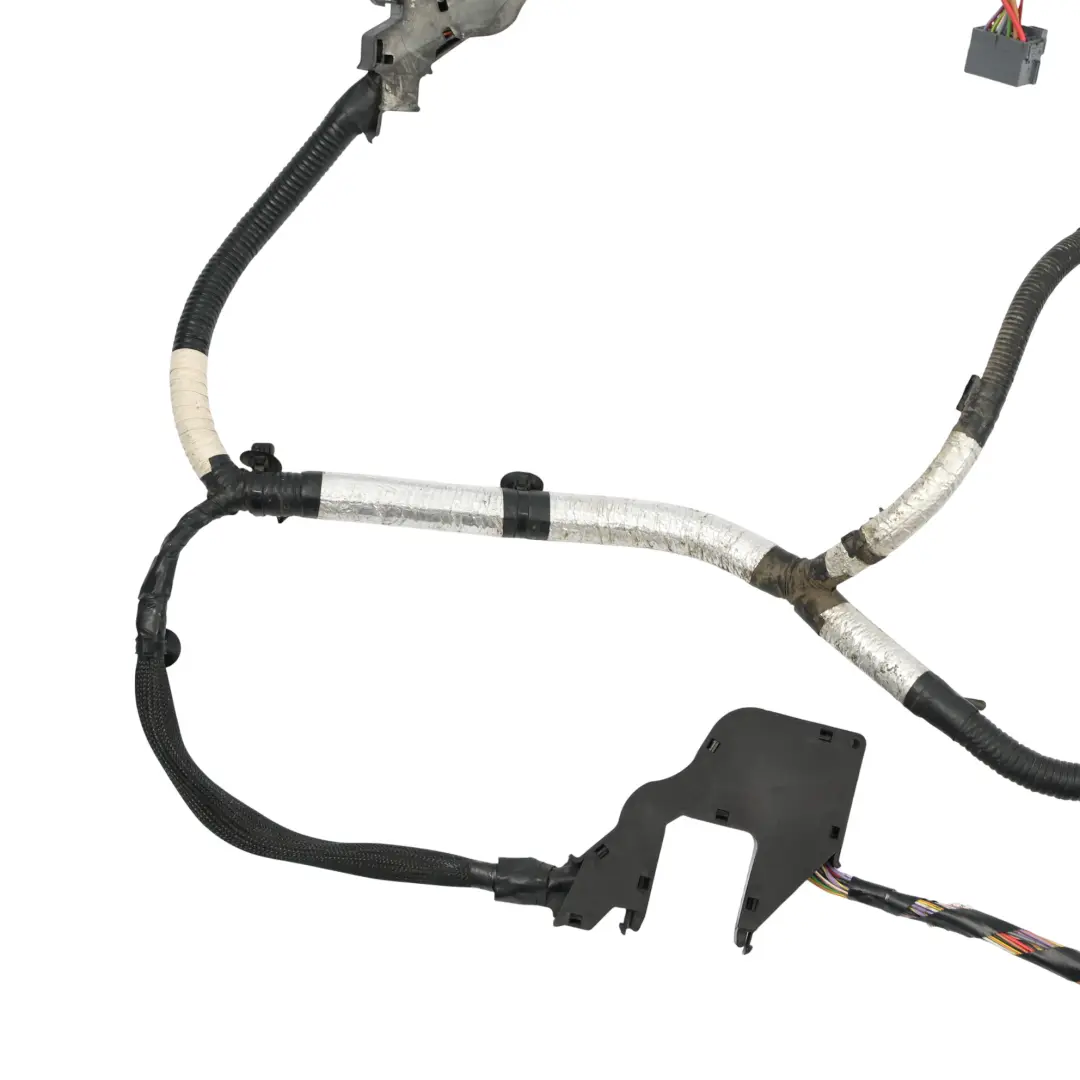

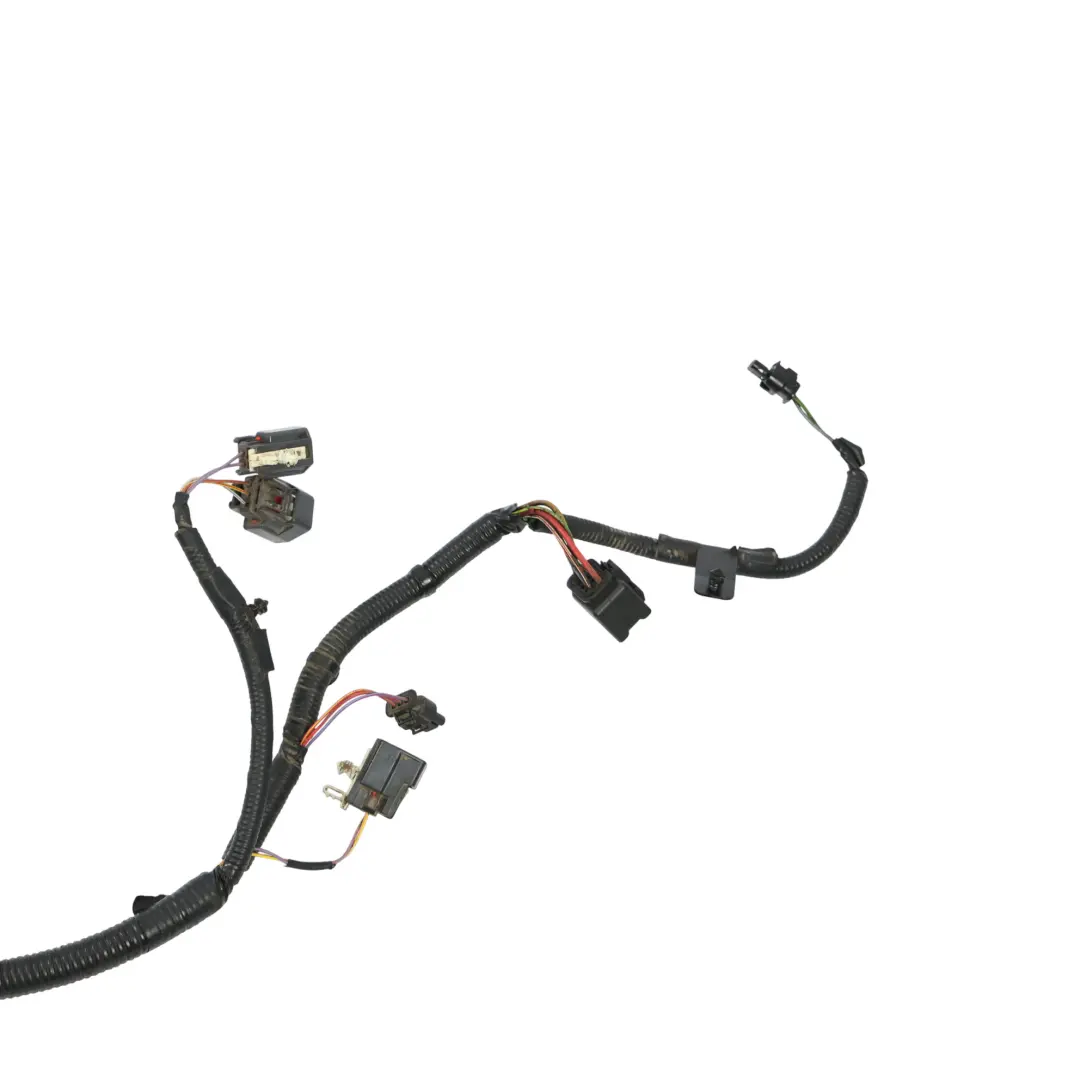

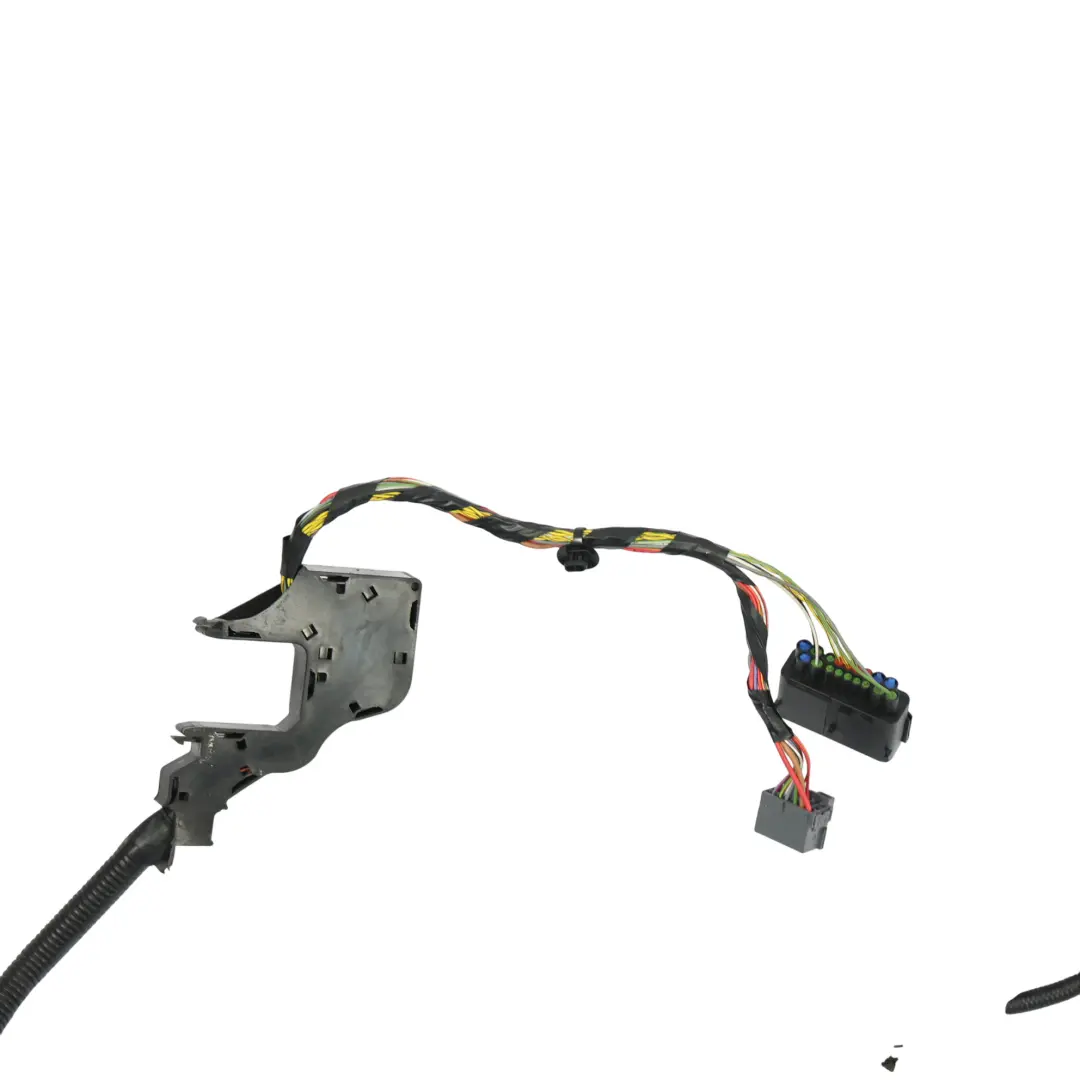

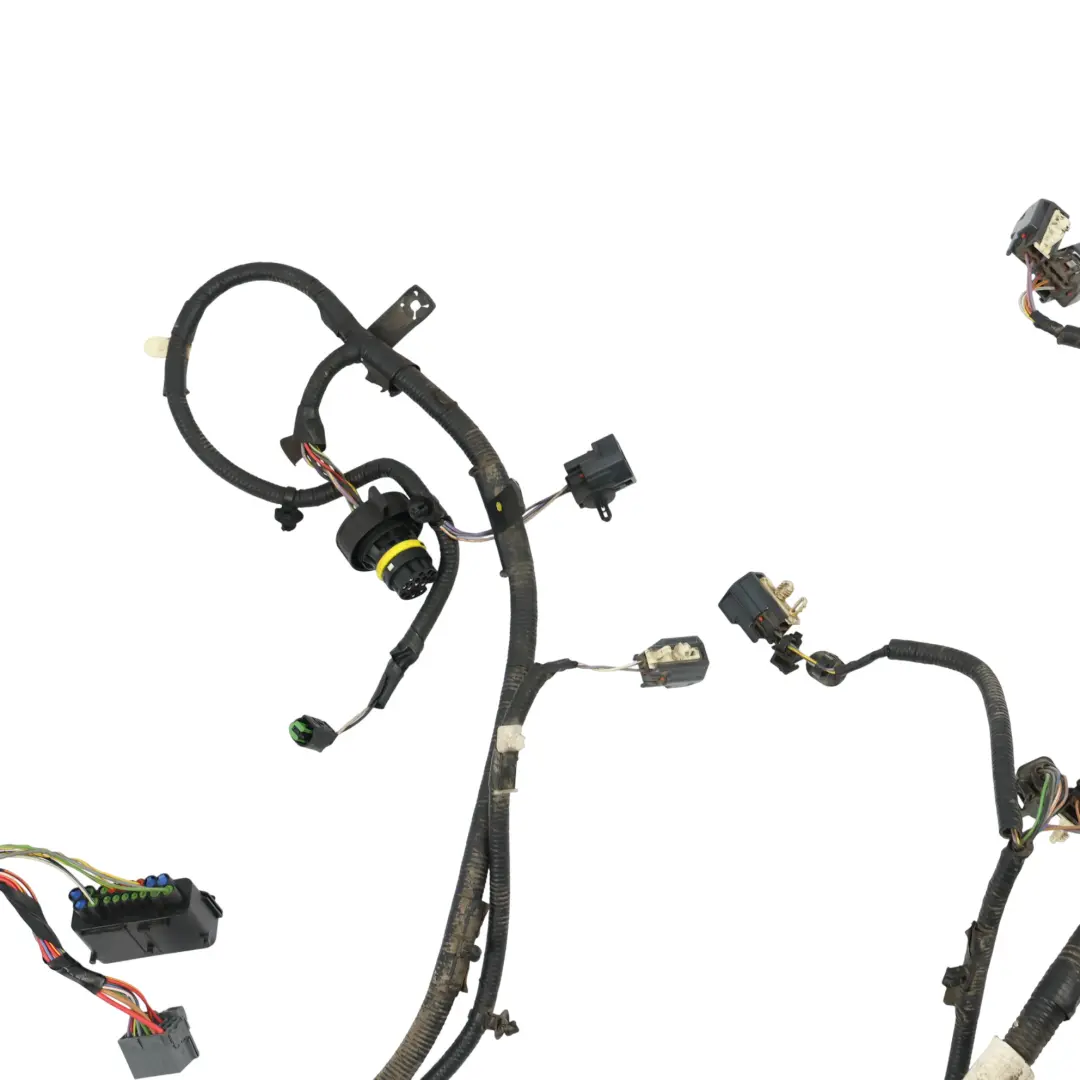

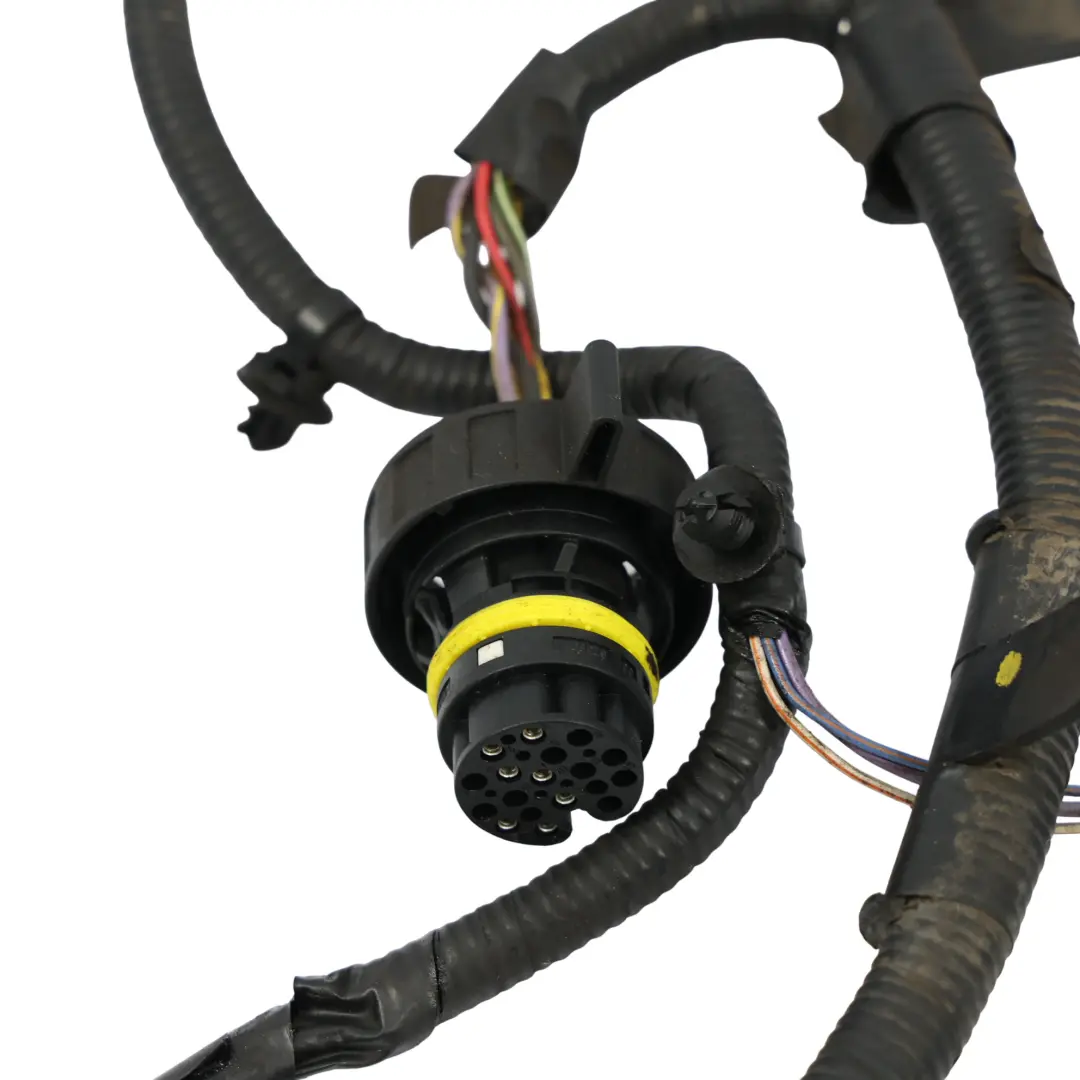

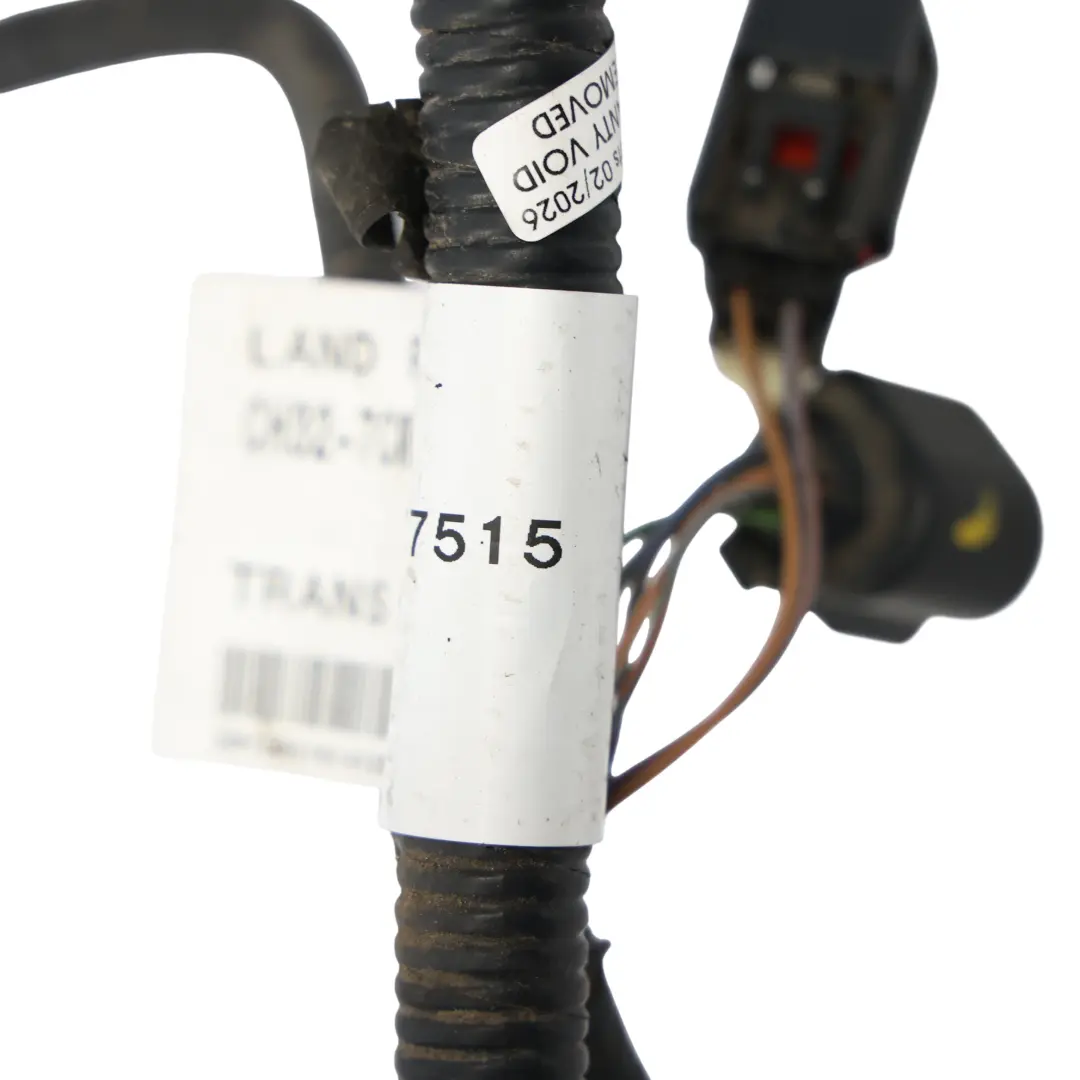

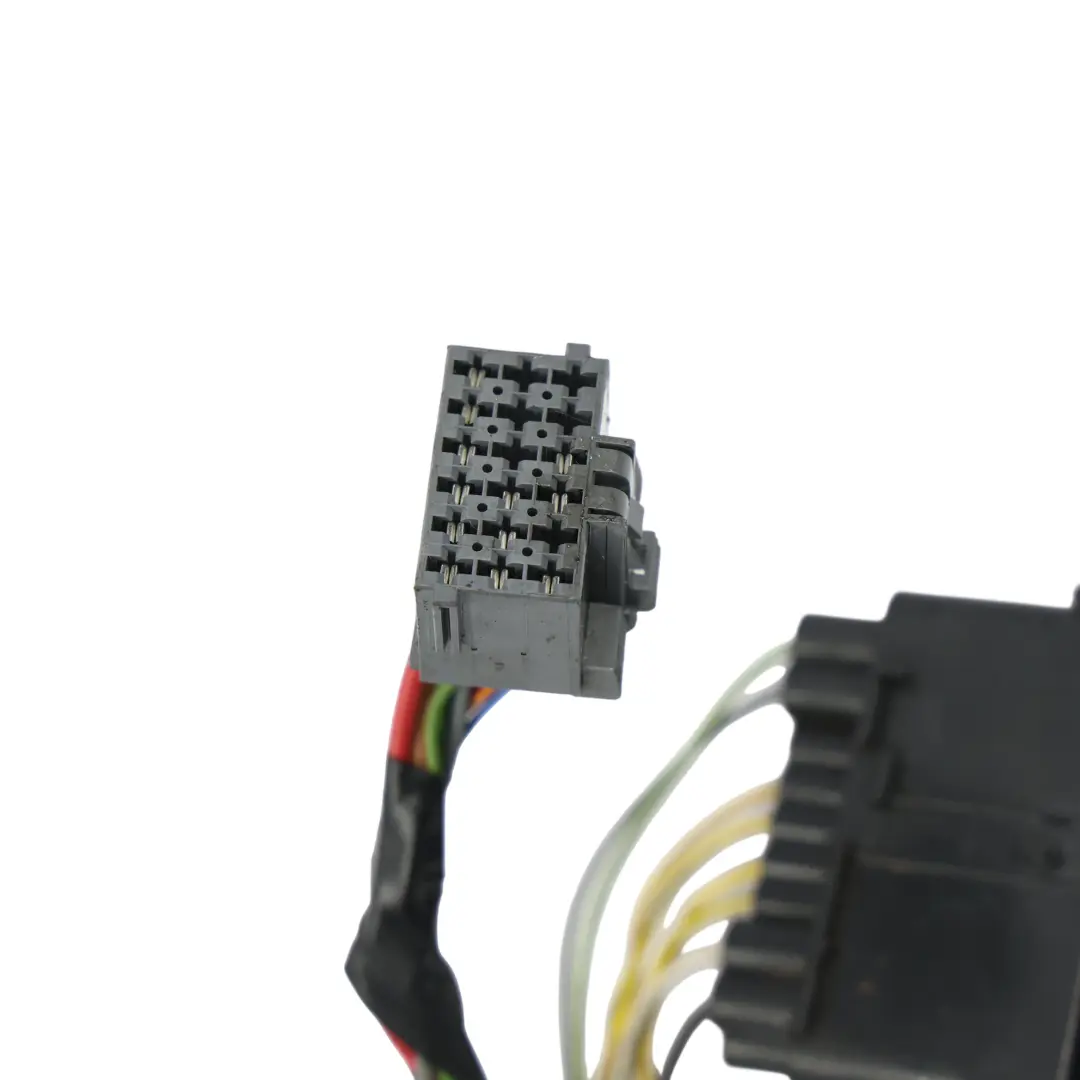

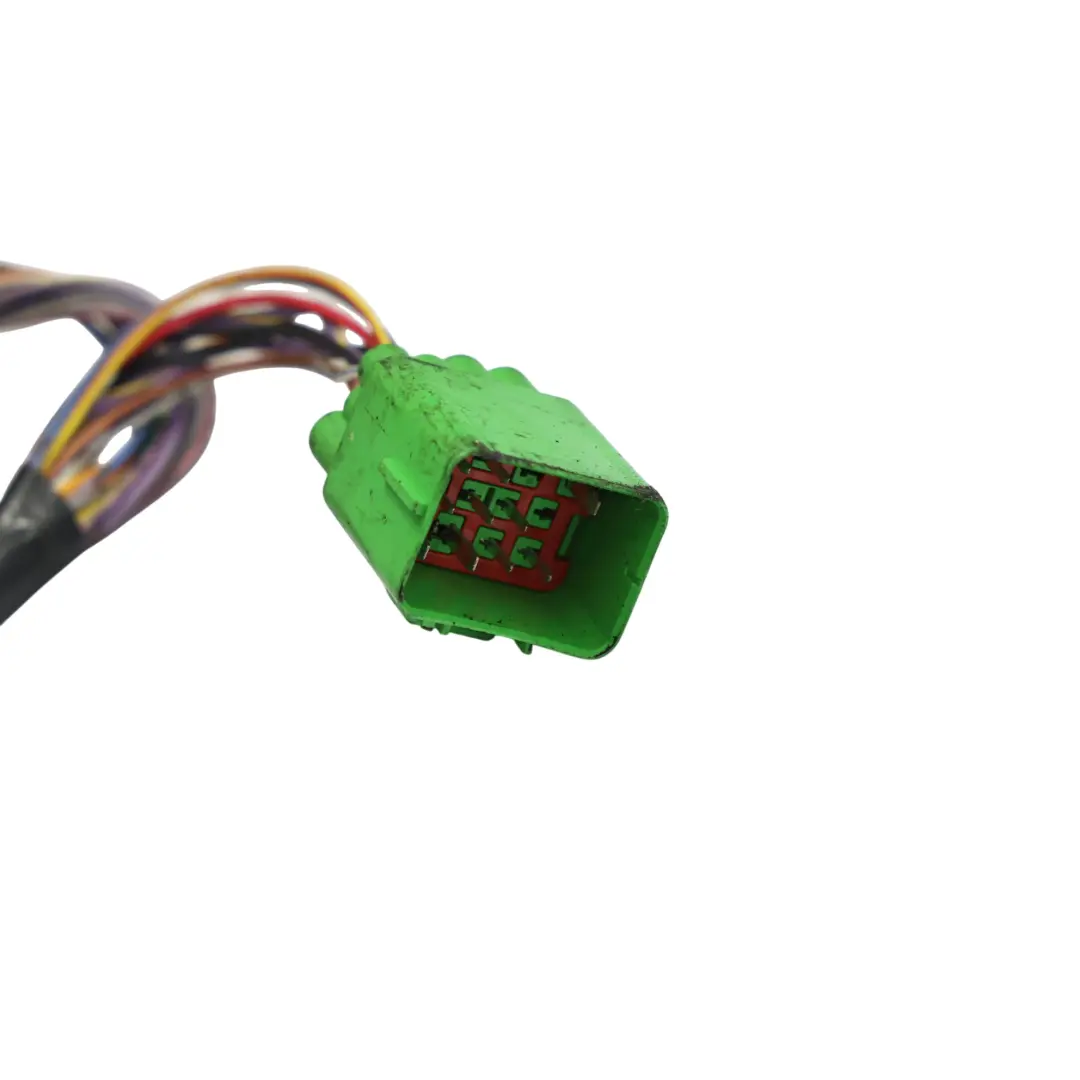

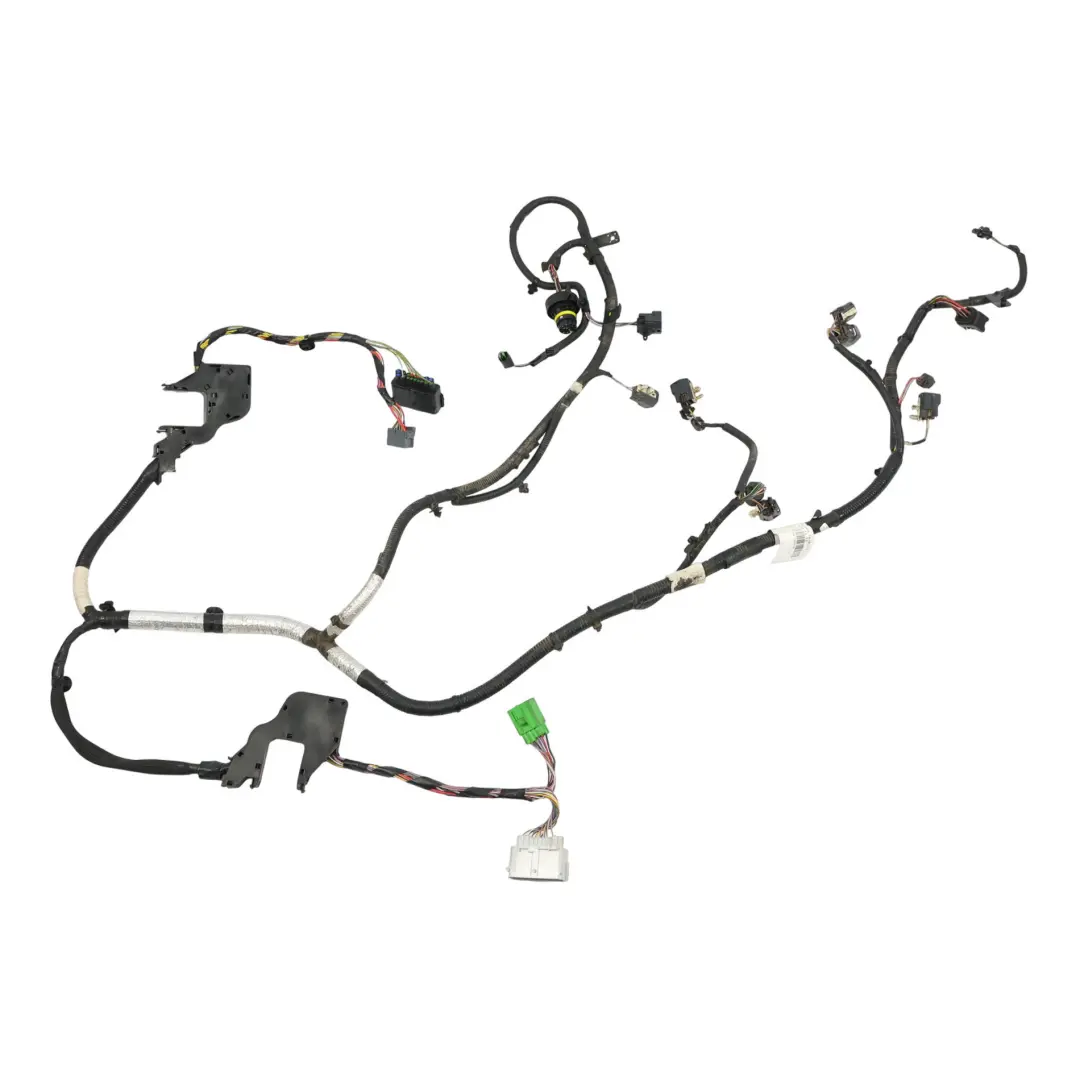

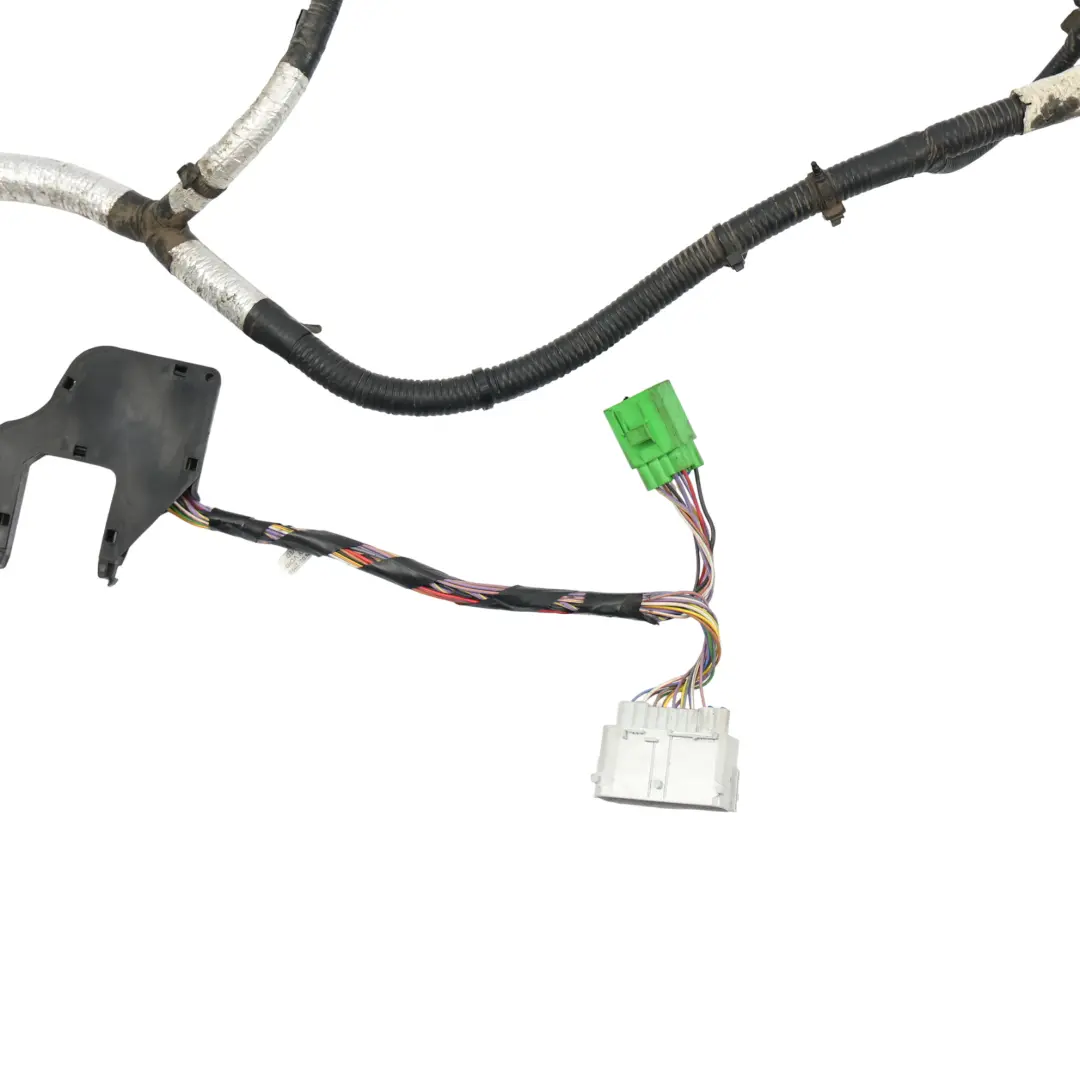

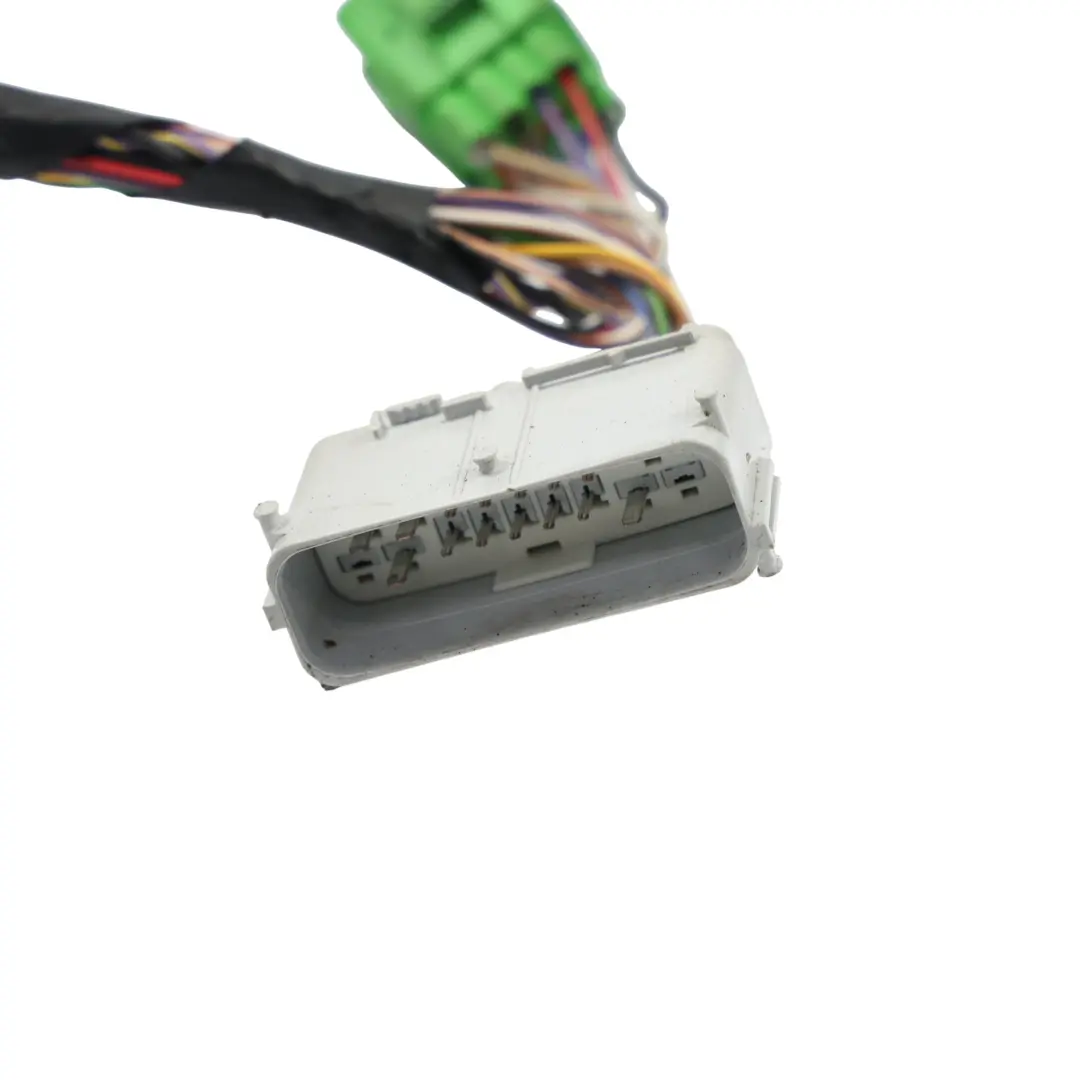

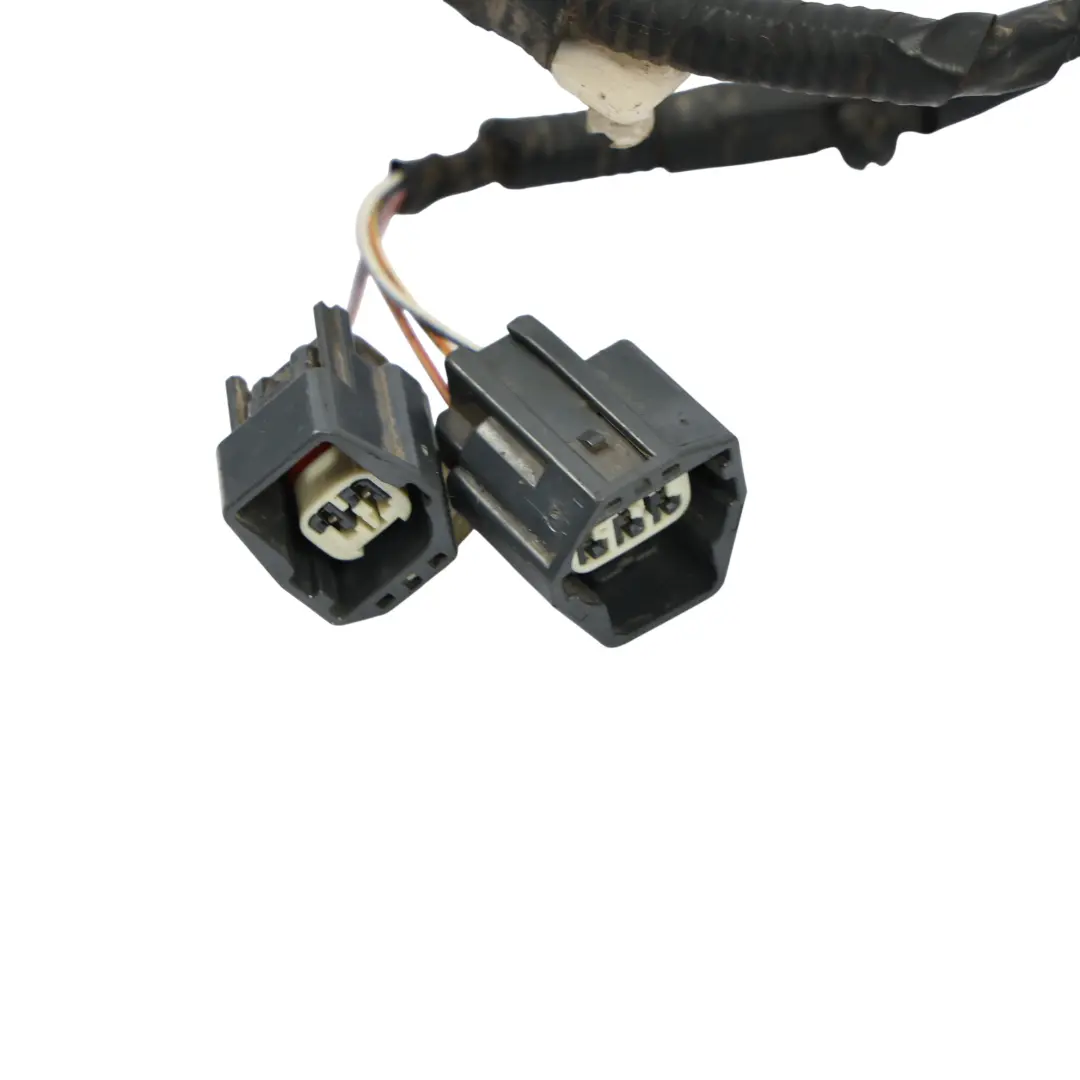

Land Rover Discovery 4 L319 Diesel Automatic Gearbox Wiring Loom CH32-7C078-HB

The Automatic Transmission Wiring Harness for Land Rover Discovery 4 L319 Diesel is a specialized installation component designed for models with a diesel engine and automatic transmission. It ensures a stable electrical connection between the transmission control unit and other vehicle components, leading to precise powertrain operation. This is the ideal solution for users seeking a proven component built to original Land Rover factory standards.

Specifications and technical data

• SKU: RHD-LR030284
• Mark: Land Rover
• Condition: Used
• OEM Part Number: LR030284

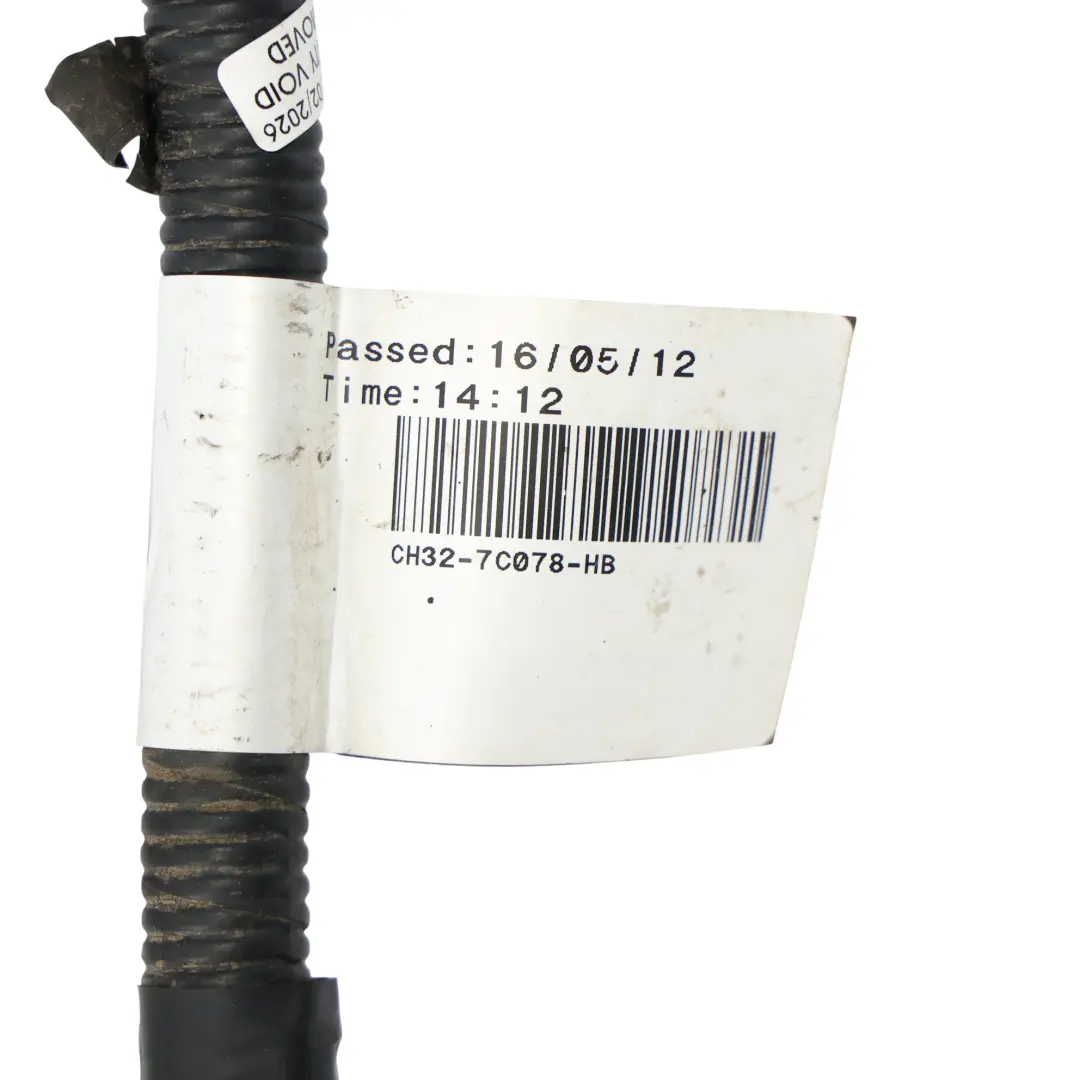

• Substitutable numbers: CH32-7C078-HB, CH327C078HB, LR030284
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Other Starters, Alternators, ECUs & Wiring

Vehicle Application and Function

This wiring harness is designed to work with the automatic transmission in the Land Rover Discovery 4 generation L319 with a diesel engine. Its purpose is to transmit signals between sensors, control modules, and transmission actuators such as solenoids and the gear selector. A correctly fitted harness minimizes the risk of communication errors, transmission limp mode, and incorrect gear ratios during driving.

Thanks to its design based on the original Land Rover project, the harness maintains proper wire routing, correct cable lengths, and connector placement, facilitating installation at the original mounting points on the body and transmission.

Benefits of Using an Original Automatic Transmission Harness

Using a dedicated harness in the Discovery 4 L319 diesel model offers several practical operational benefits:

• maintaining correct communication between the transmission control unit and the rest of the vehicle's electrical system,
• reducing the risk of chafing and damage due to precisely routed wiring,
• simplifying diagnostics of electrical faults within the transmission system,
• compatibility with factory connectors and mounting brackets,
• ensuring predictable automatic transmission performance under various load and temperature conditions.

For users modernizing or repairing the powertrain, choosing such a harness helps minimize the need for electrical modifications, soldering, or adapters, resulting in a more professional and durable service outcome.

Condition, Origin, and Service Application

The offered wiring harness is from a Land Rover vehicle and is a used part, making it an attractive cost-effective alternative to new components while retaining original construction. This type of part is suitable for both standard replacement of damaged wiring and comprehensive repairs of automatic transmissions in vehicles used off-road or in demanding fleet conditions.

The harness is particularly useful in situations where there are transmission communication issues, electrical errors, unstable gear shifting, or visible mechanical damage to the wires in the original installation. Using a complete, factory-spec wiring section often allows for faster fault resolution than makeshift repairs of individual wires.

Professional Installation and Diagnostics

To fully leverage the potential of this wiring harness, installation by a specialized service center focusing on Land Rover vehicles or automatic transmissions is recommended. Proper wire routing, protection against chafing, and inspection of connector condition significantly contribute to the long-term, stable operation of the system. After installation, it is advisable to perform a computer diagnostic scan of the transmission to confirm correct communication and the absence of active electrical installation-related errors.
