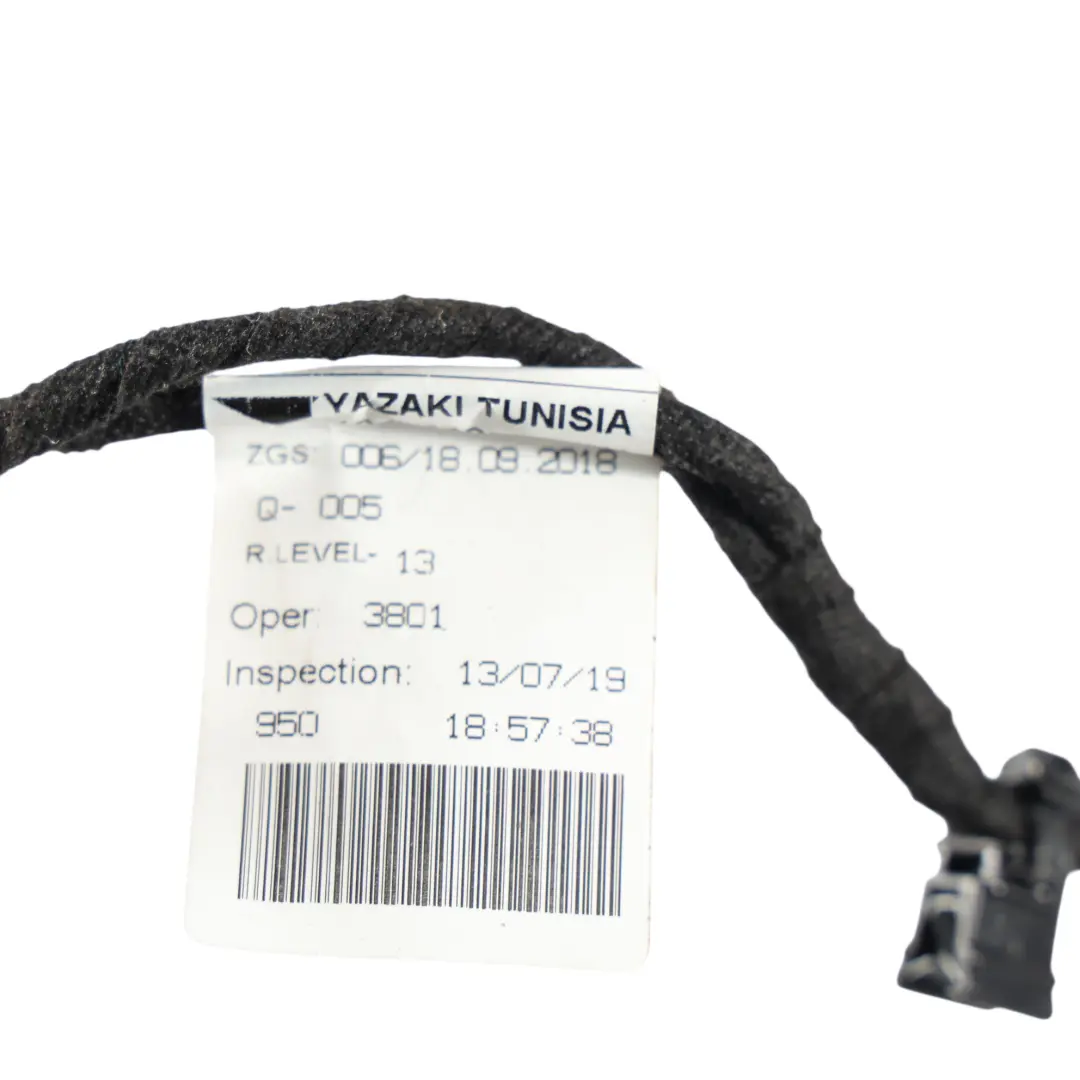

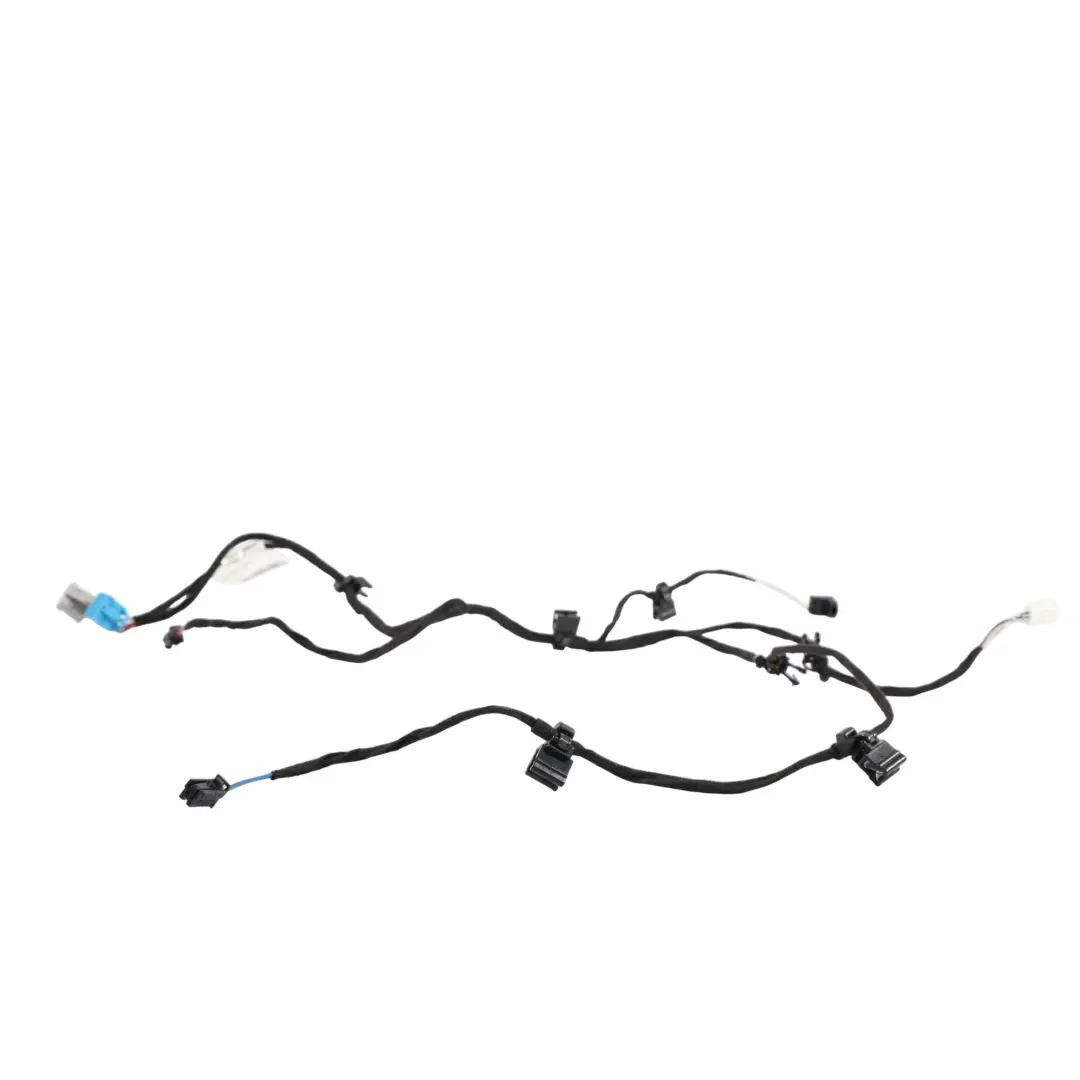

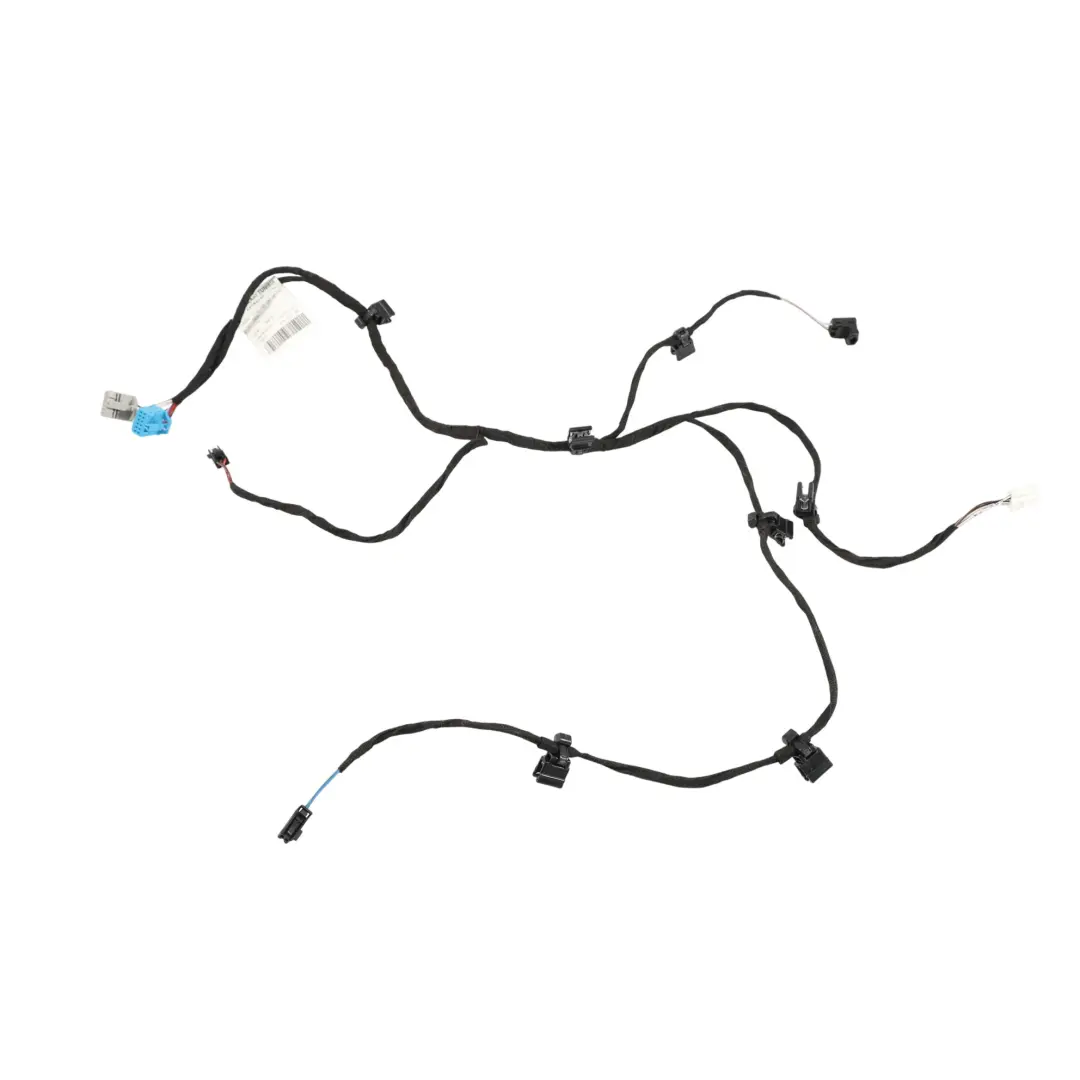

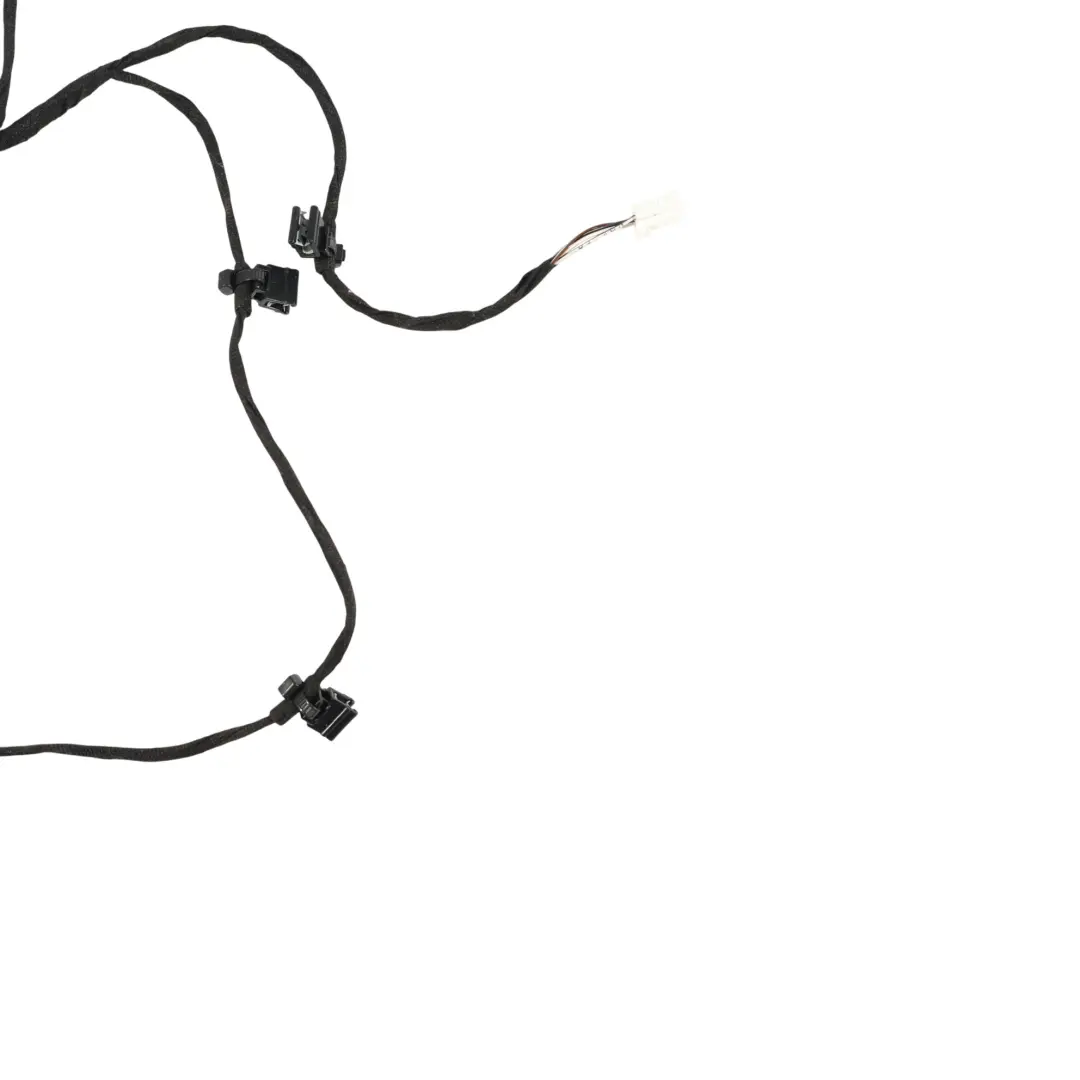

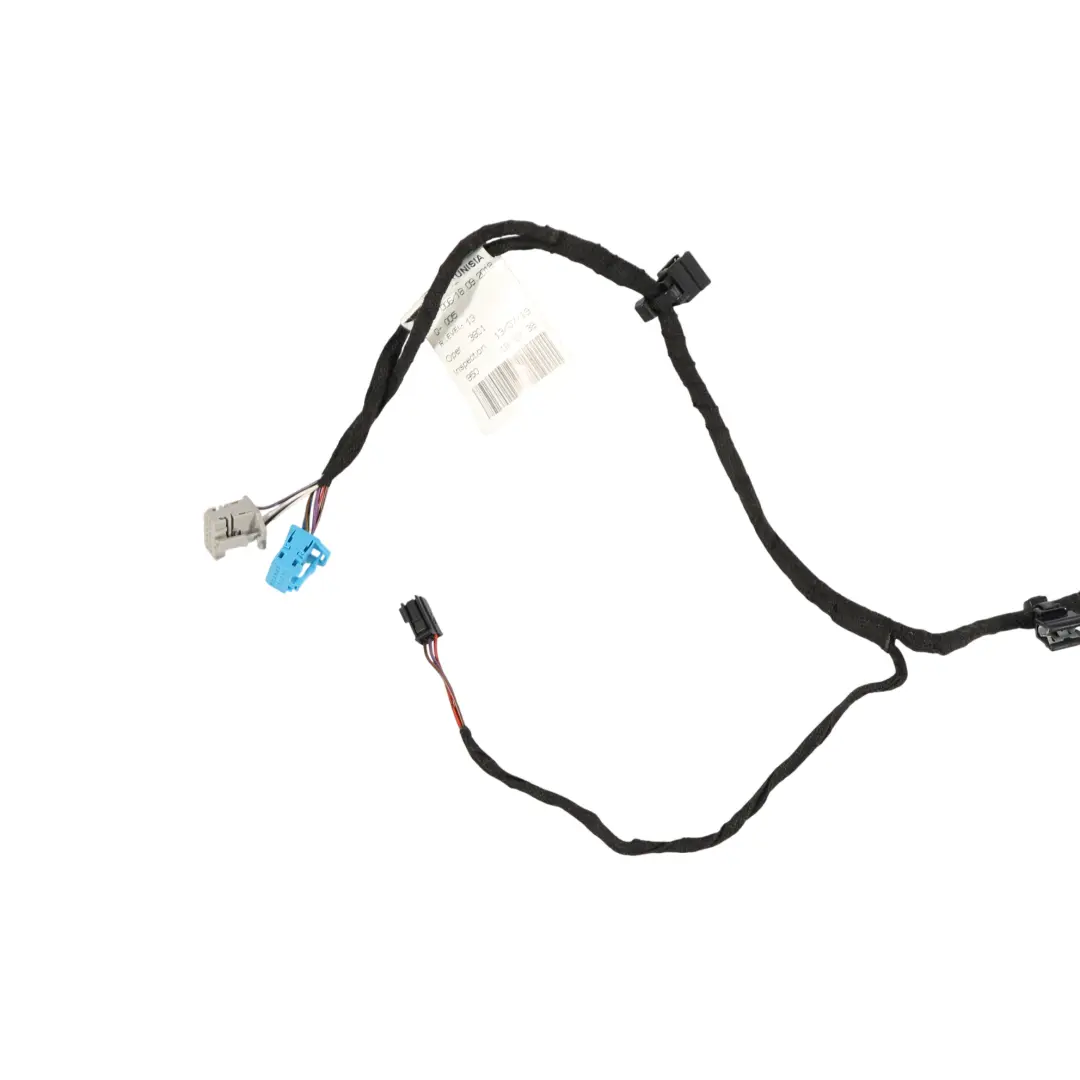

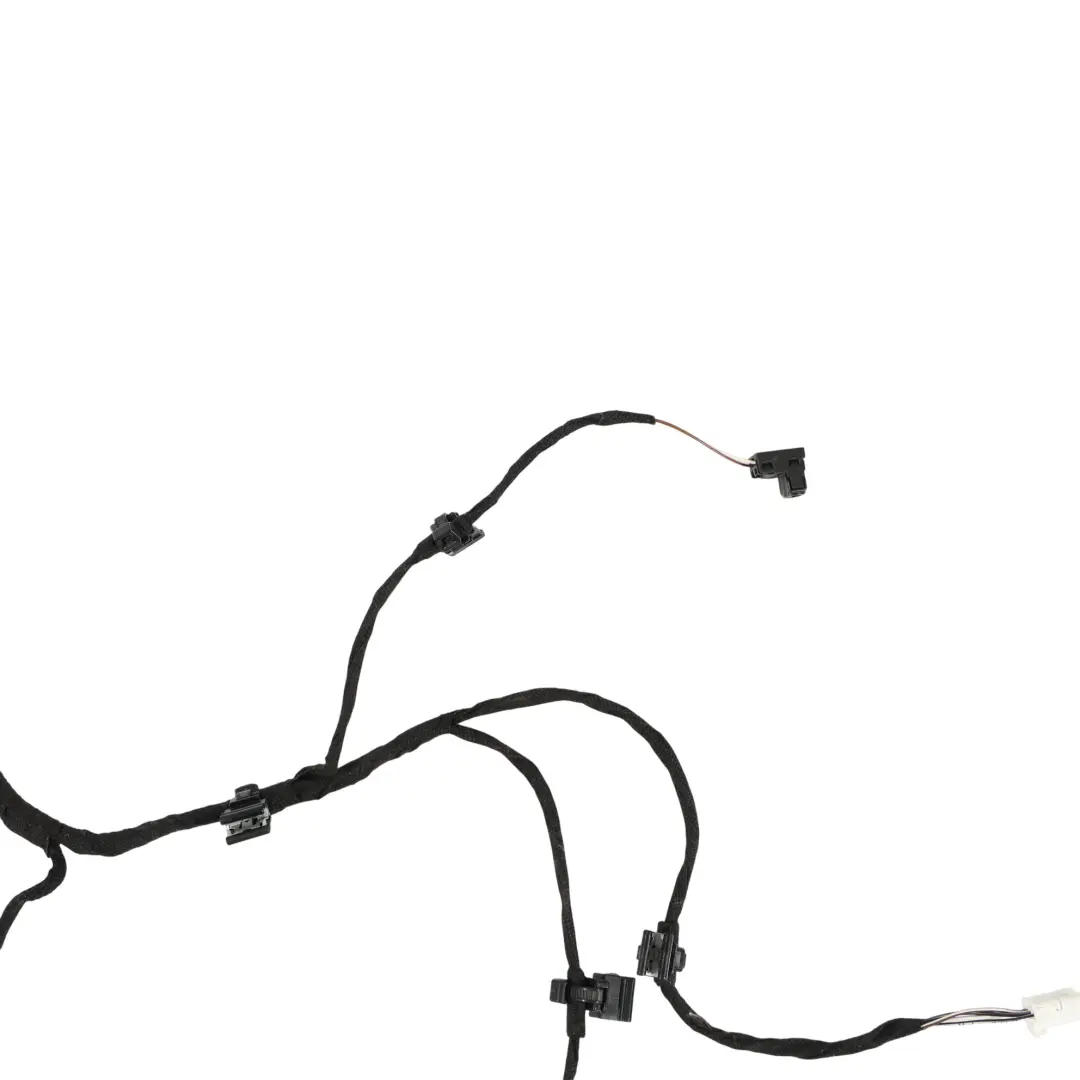

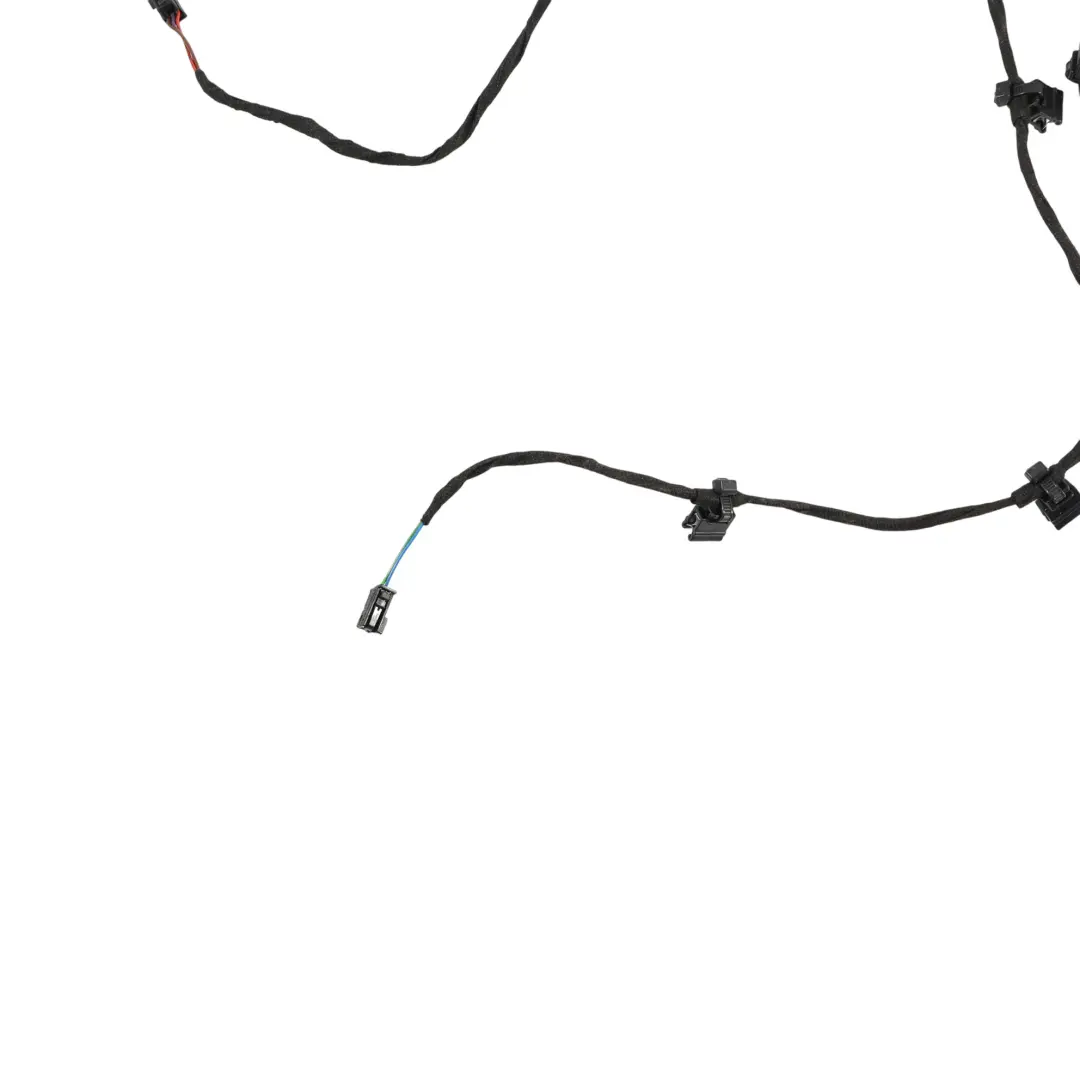

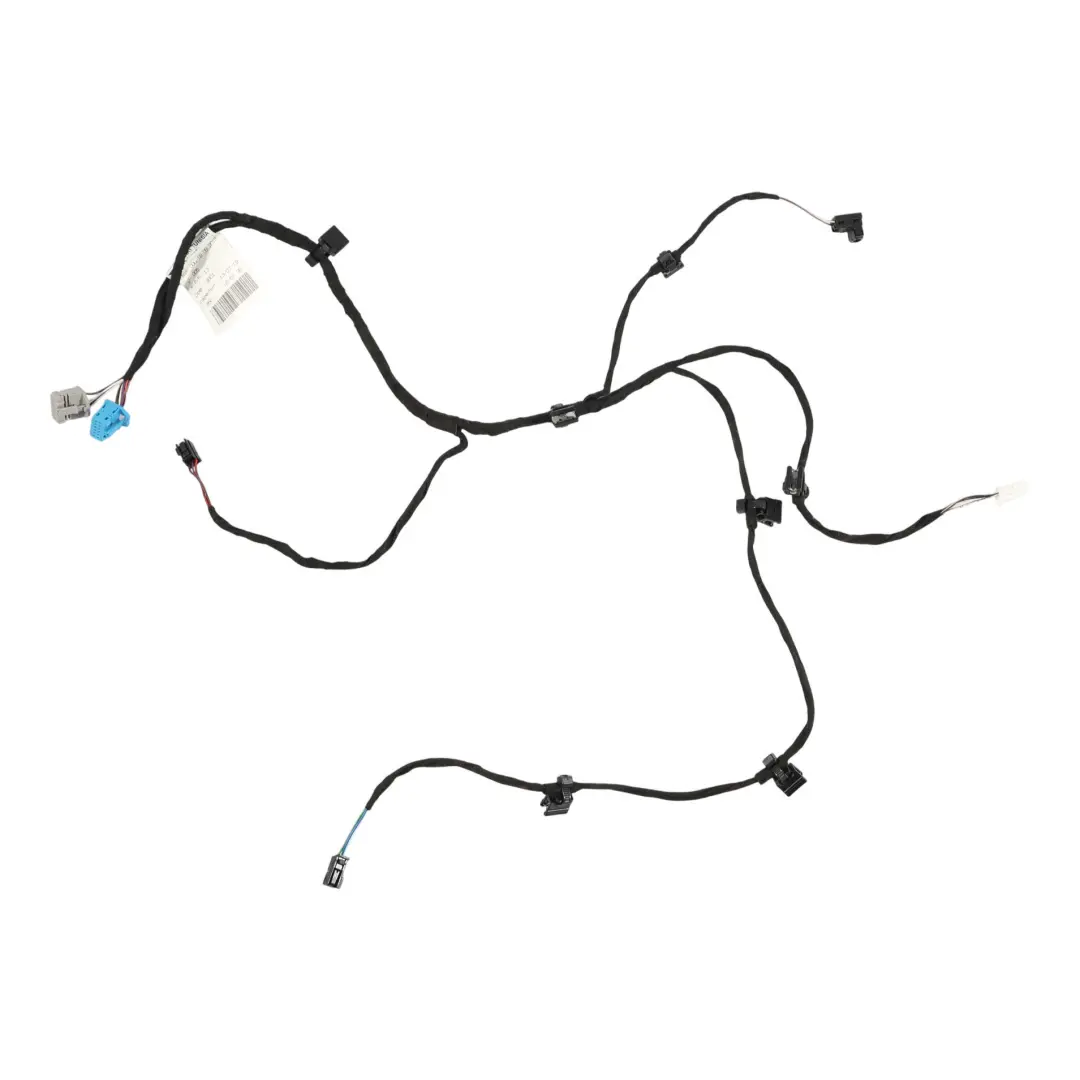

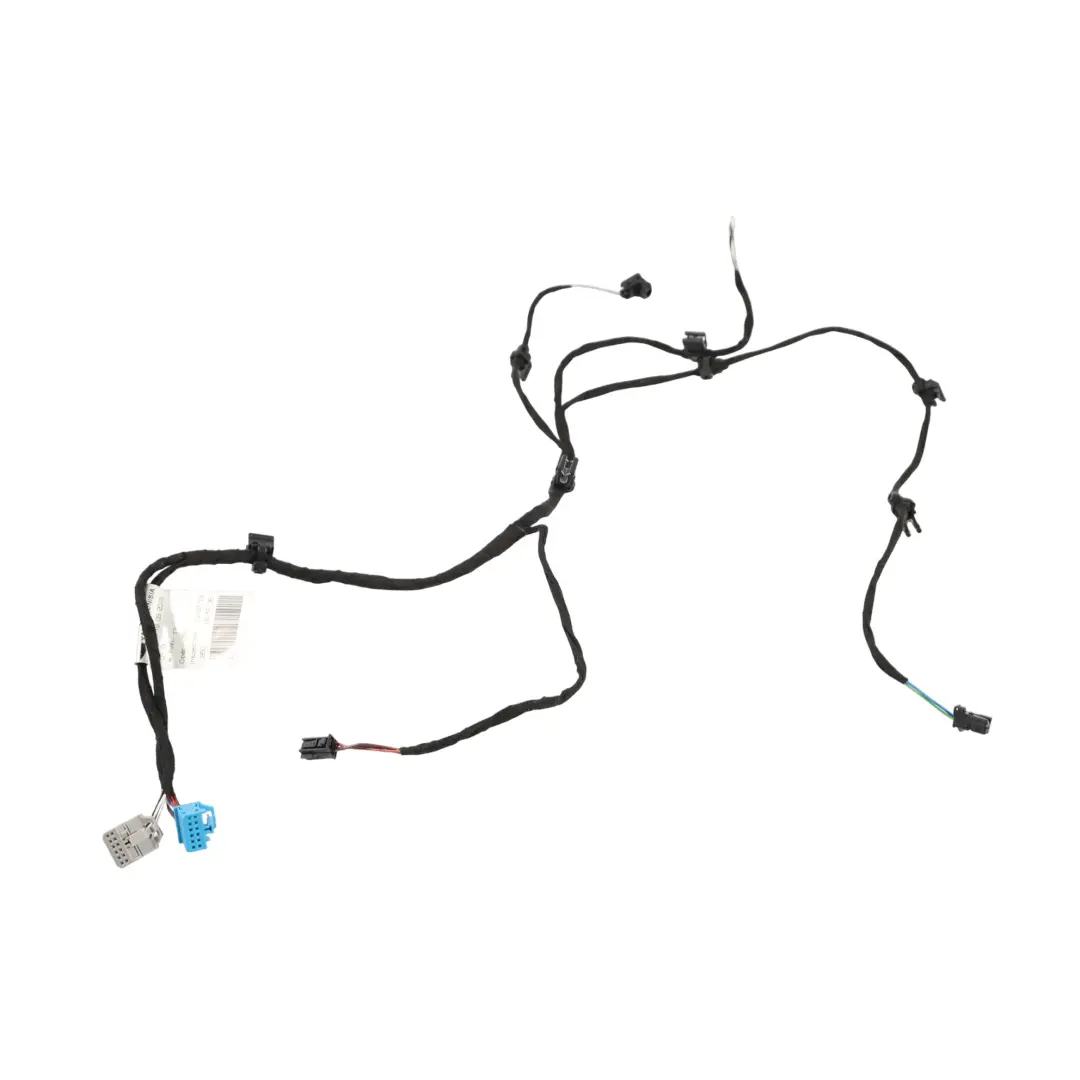

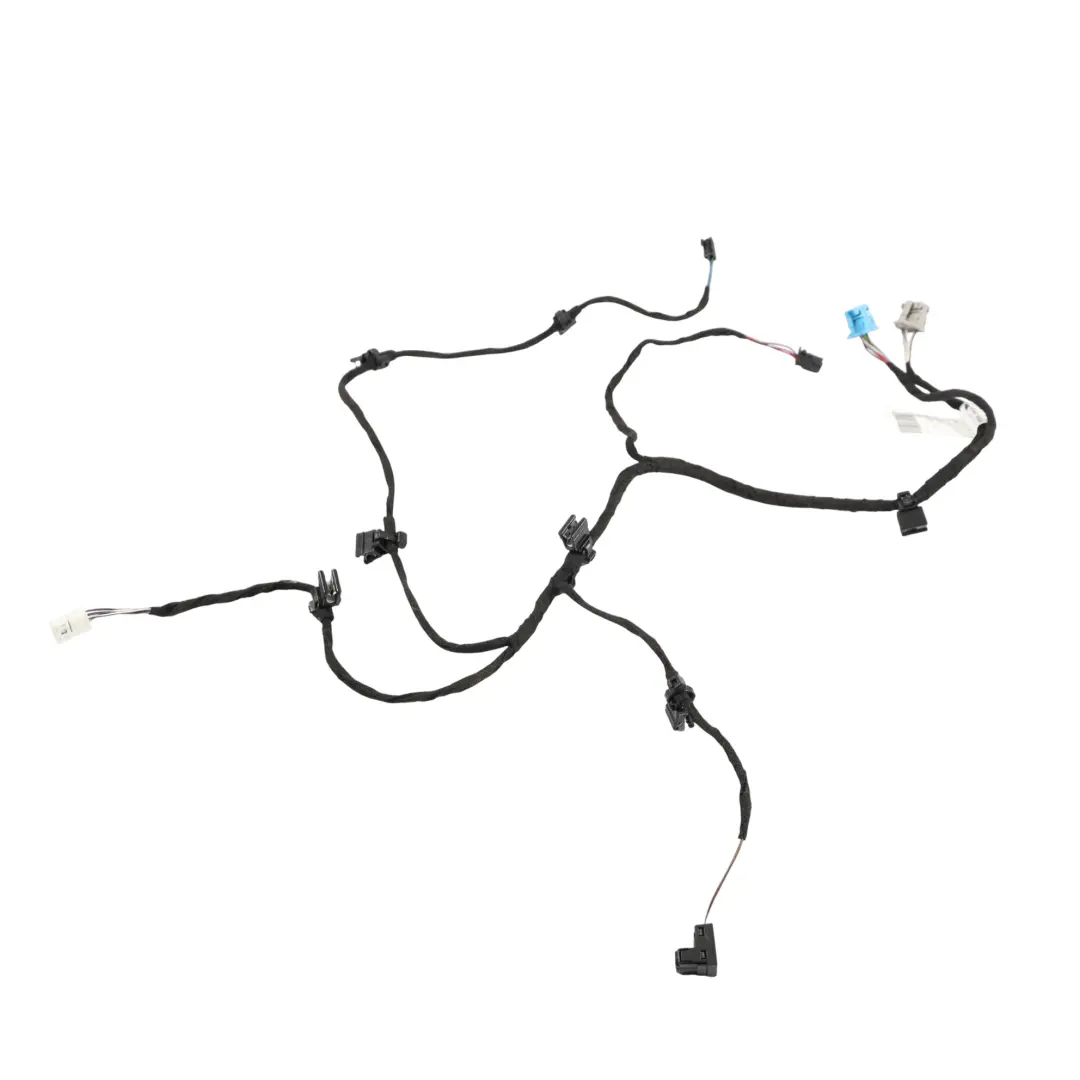

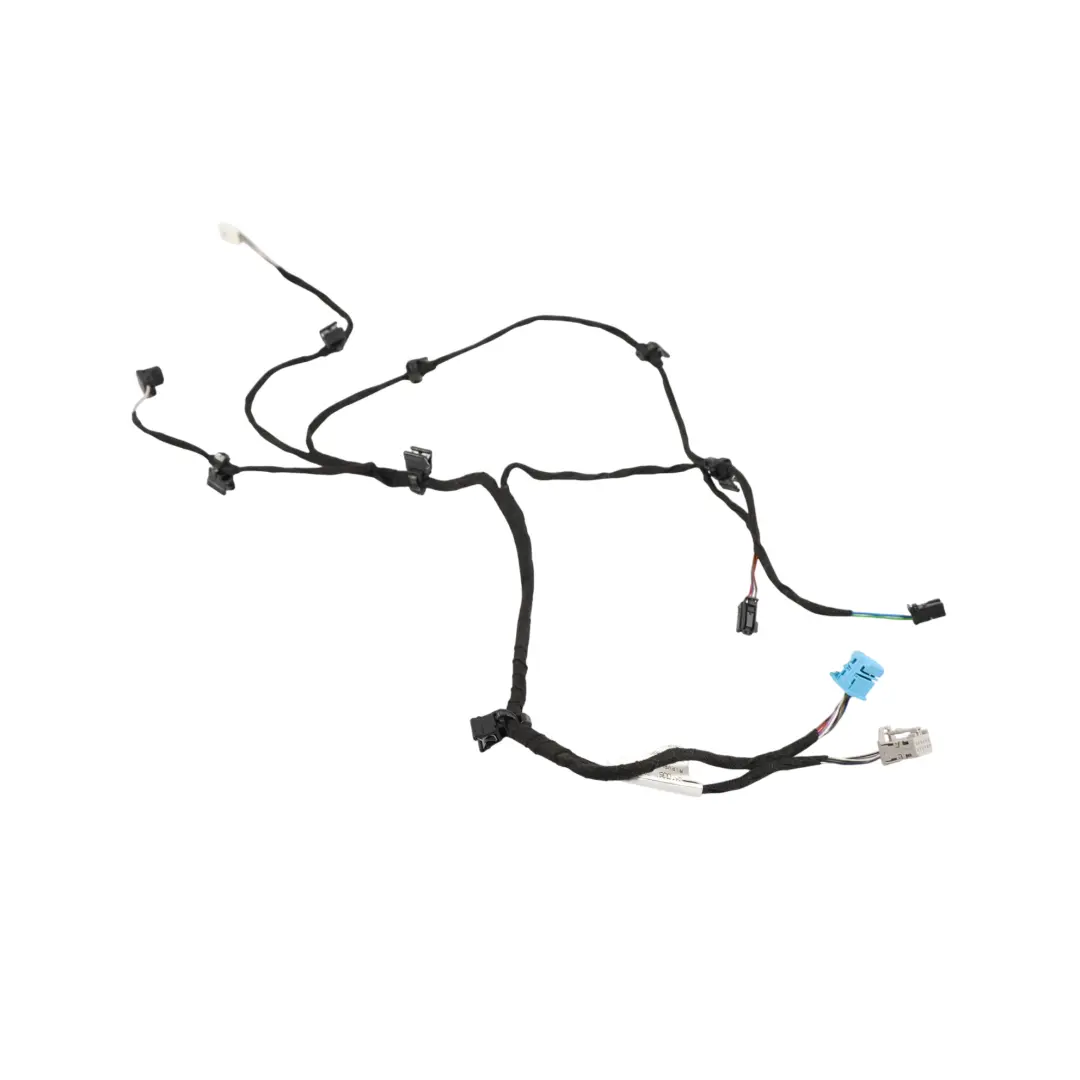

Mercedes W177 Door Wiring Harness Front Left N/S Passenger Side A1775409801

Mercedes W177 Door Wiring Harness Front Left N/S Passenger Side is an original electrical installation component designed for the passenger side of the W177 body. It provides a stable electrical connection between the body modules and the door equipment, which translates into the proper operation of window controls, locks, or mirror adjustments. This solution is dedicated to users who want to restore the factory functionality of the electrical system in the front left door.

Specifications and technical data

• SKU: RHD-A1775409801
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A1775409801
• Substitutable numbers: A1775409801, A 177 540 98 01
• Location on the vehicle: Front, Left
• Category: Other Starters, Alternators, ECUs & Wiring

Purpose and function in the vehicle

The presented Mercedes W177 Door Wiring Harness Front Left N/S Passenger Side is responsible for integrating all electrical components located in the passenger door with the vehicle's main wiring harness. Its placement in the front-left area of the body allows for precise fitting to factory grommets, mounts, and connectors without the need for any modifications to the installation.

This element is particularly important in the case of:

• repairs after collisions in the front left door area,
• installation damage resulting from chafing, flooding, or contact corrosion,
• problems with electrical communication in the door (e.g., intermittent power loss to accessories).

Construction and fitment for Mercedes W177

The harness has been designed specifically for the electrical architecture of the Mercedes A-Class W177 generation, thanks to which it maintains factory wire routing and the appropriate length of sections for individual mounting points. The connectors are configured for original modules and door equipment, which minimizes the risk of installation errors and eliminates the need for rewiring.

Such a fit allows for:

• maintaining the tightness of the grommets between the pillar and the door,
• maintaining the correct operation of comfort and safety systems,
• easier diagnostics of potential future faults.

Condition, installation, and service aspects

The item comes from a used vehicle, making it an attractive cost-effective alternative to a new part while maintaining the original manufacturer's specification. Thanks to factory connectors and the proper shaping of the wires, the installation process is similar to a plug-and-play concept – after fitting it to the pillar and door and correctly routing the harness through the grommet.

Before installation, a standard service procedure is recommended, including checking the condition of the connectors, correctly routing the wires in the factory guides, and verifying the operation of all door functions after connection. This approach allows for restoring full electrical functionality to the front left door zone without interfering with the vehicle's main wiring.

Application in repairs and upgrades

The Mercedes W177 Door Wiring Harness Front Left N/S Passenger Side will work well both for typical replacement of damaged wiring and for more extensive service work in the body area. Using an original component helps maintain the consistency of the electrical system, which is important for subsequent computer diagnostics and the operation of advanced comfort systems.

If you are planning a comprehensive repair or upgrade of the body zone in your Mercedes and need other elements from the same group, such as door harnesses, sections of the electrical installation, or additional service wires, check the available parts in the Other Mercedes category.
