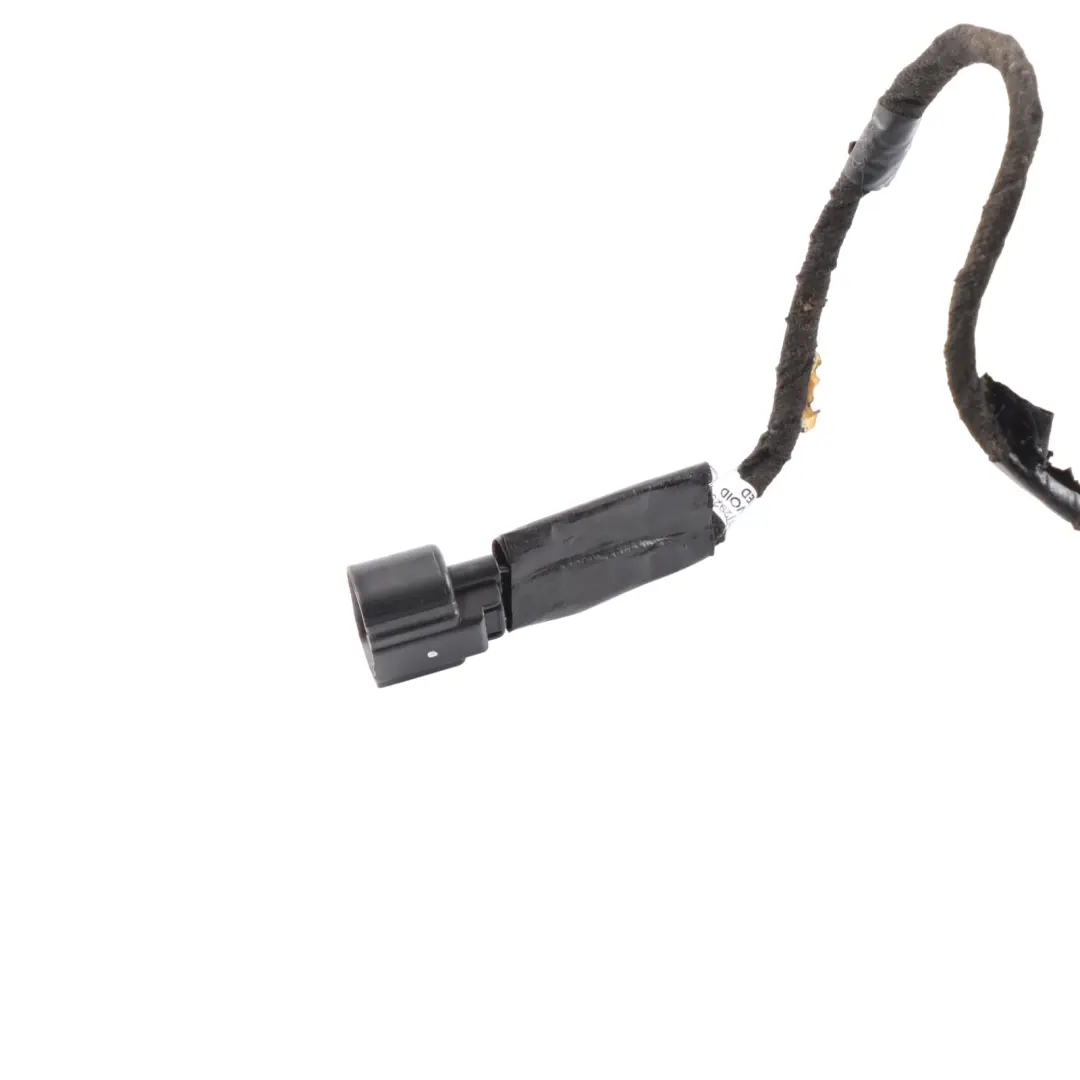

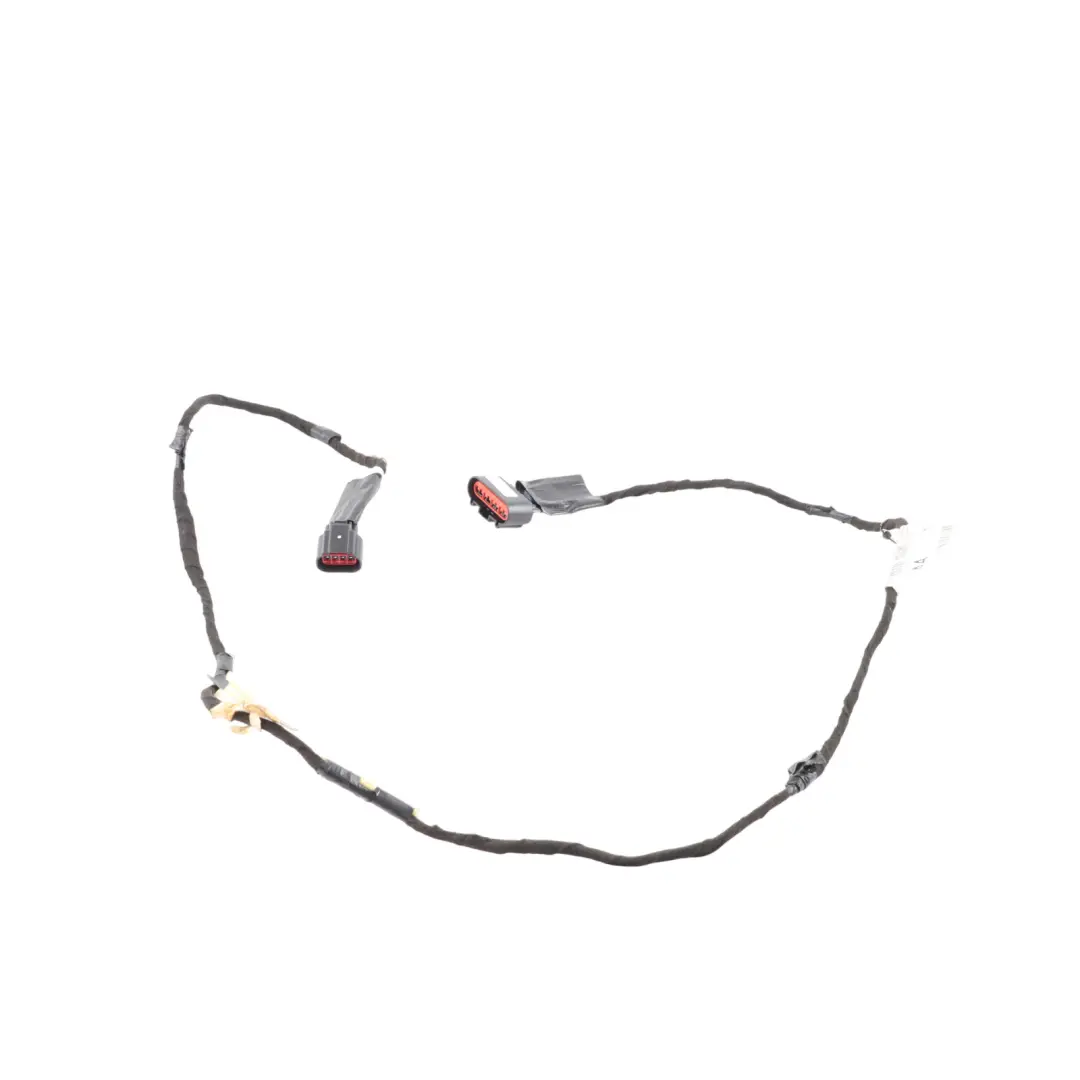

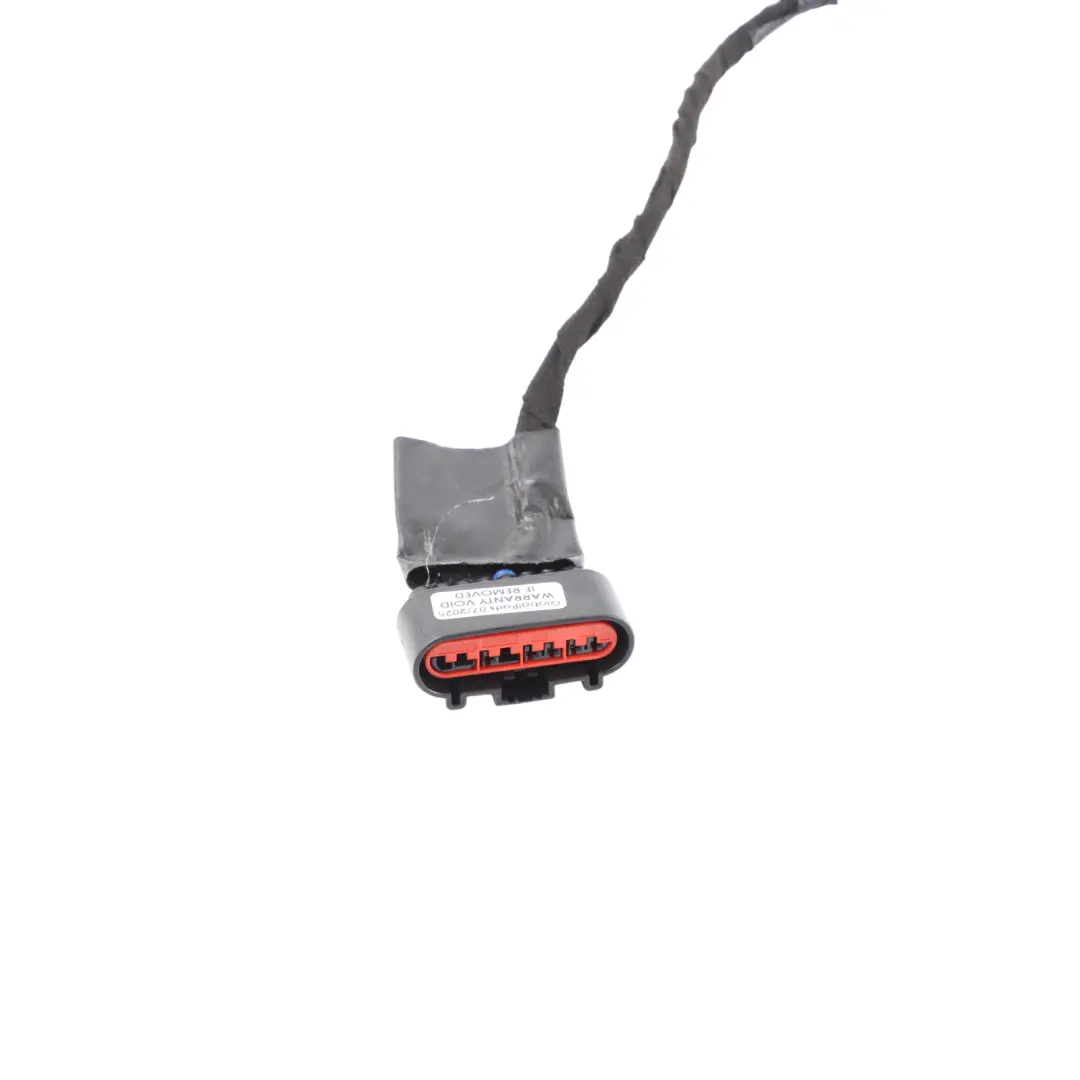

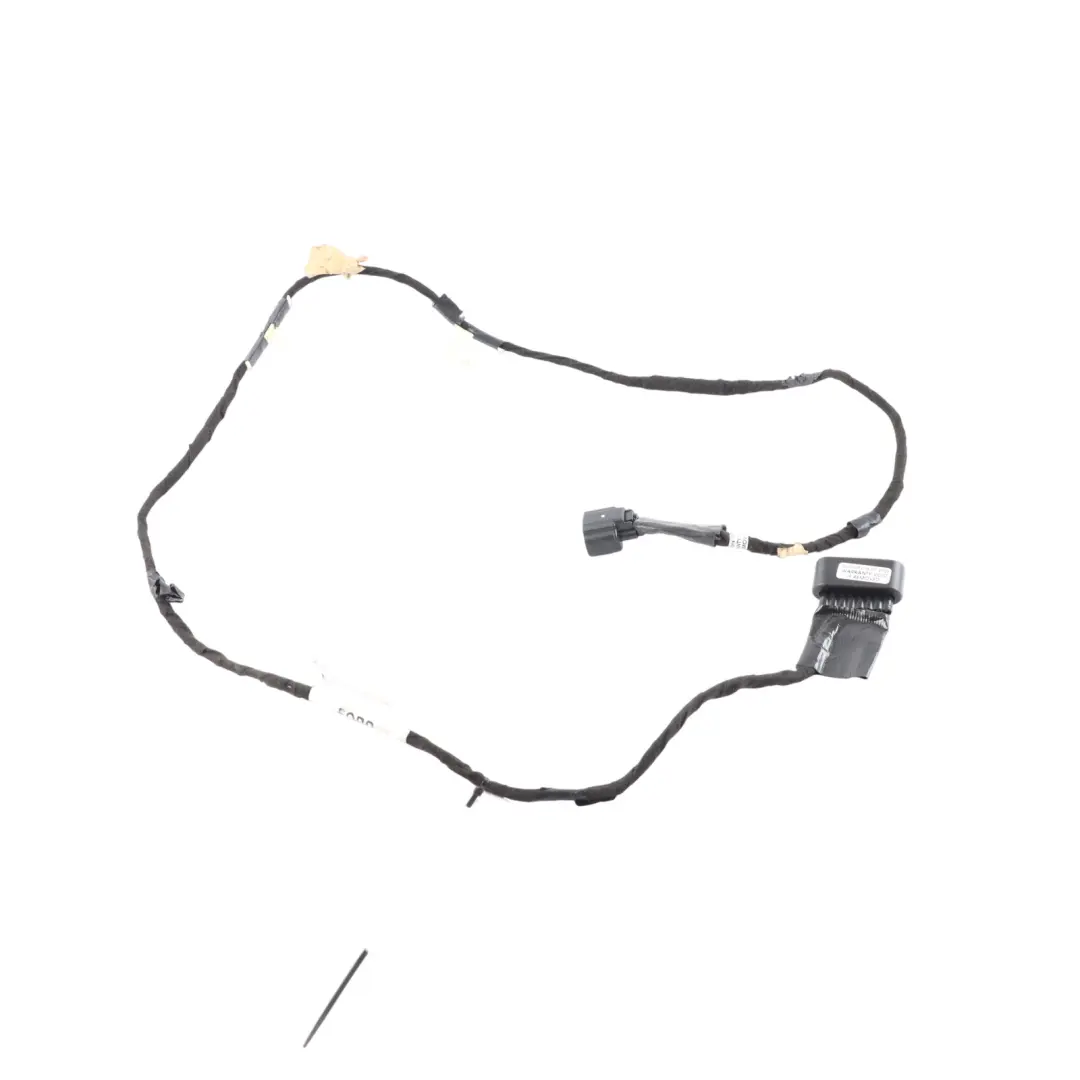

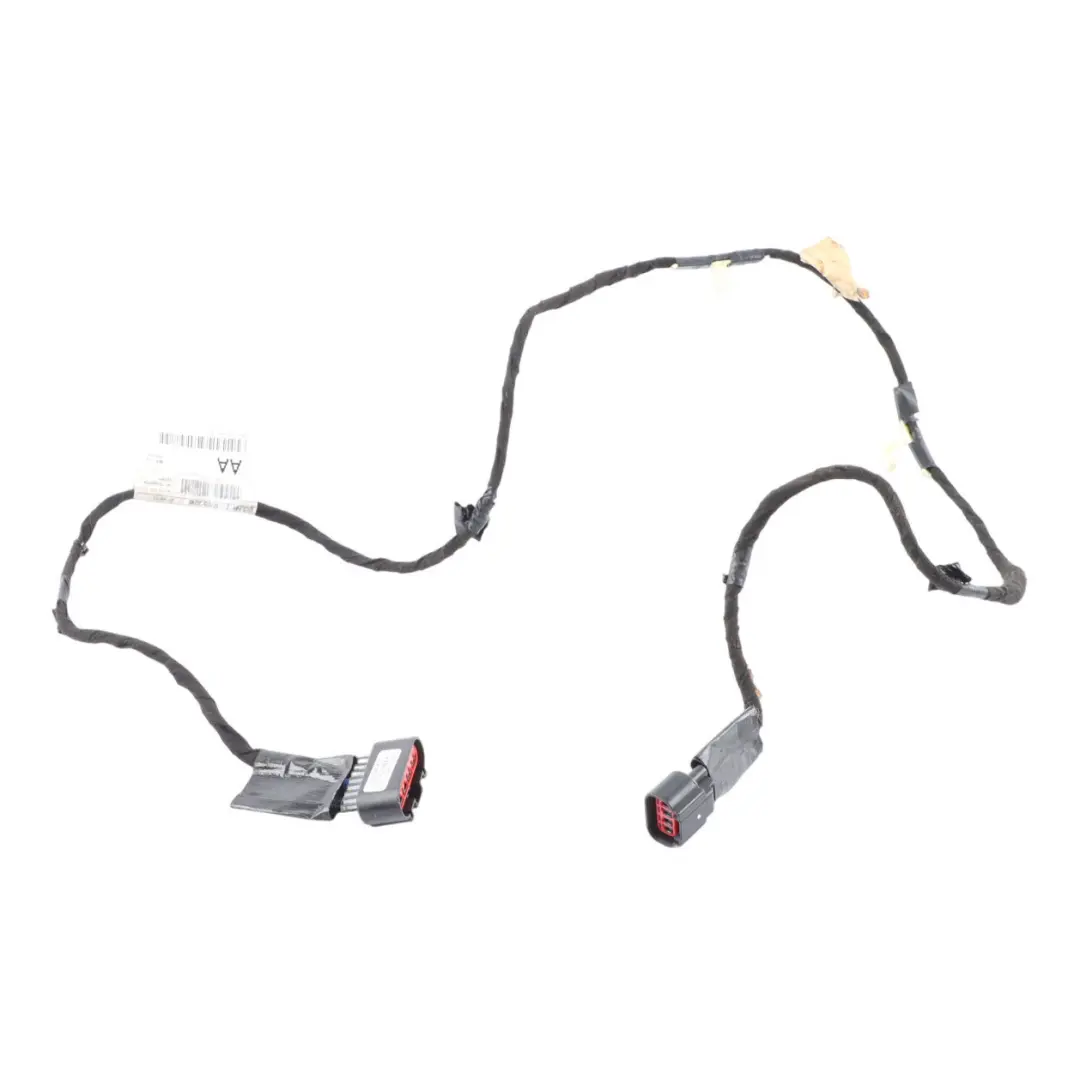

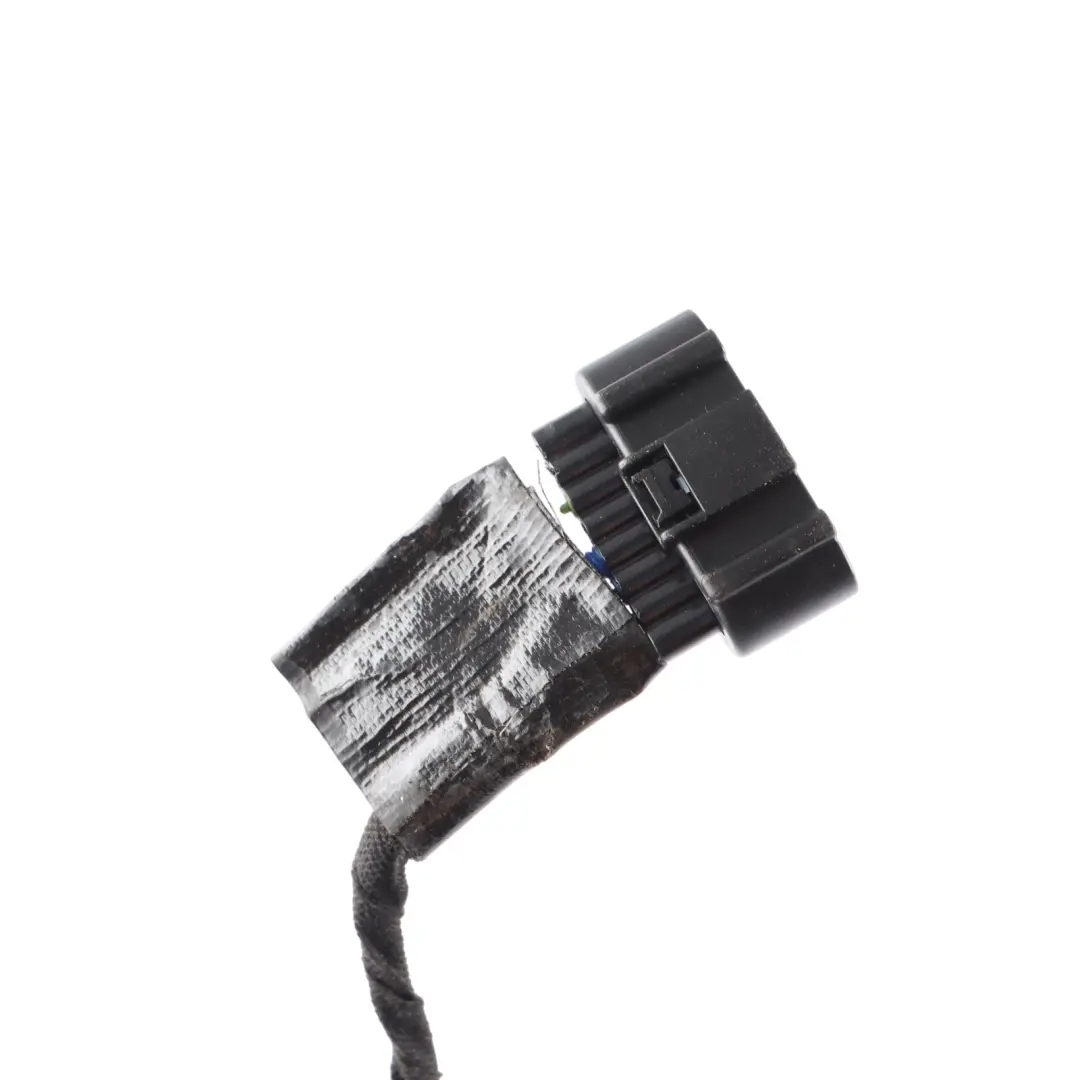

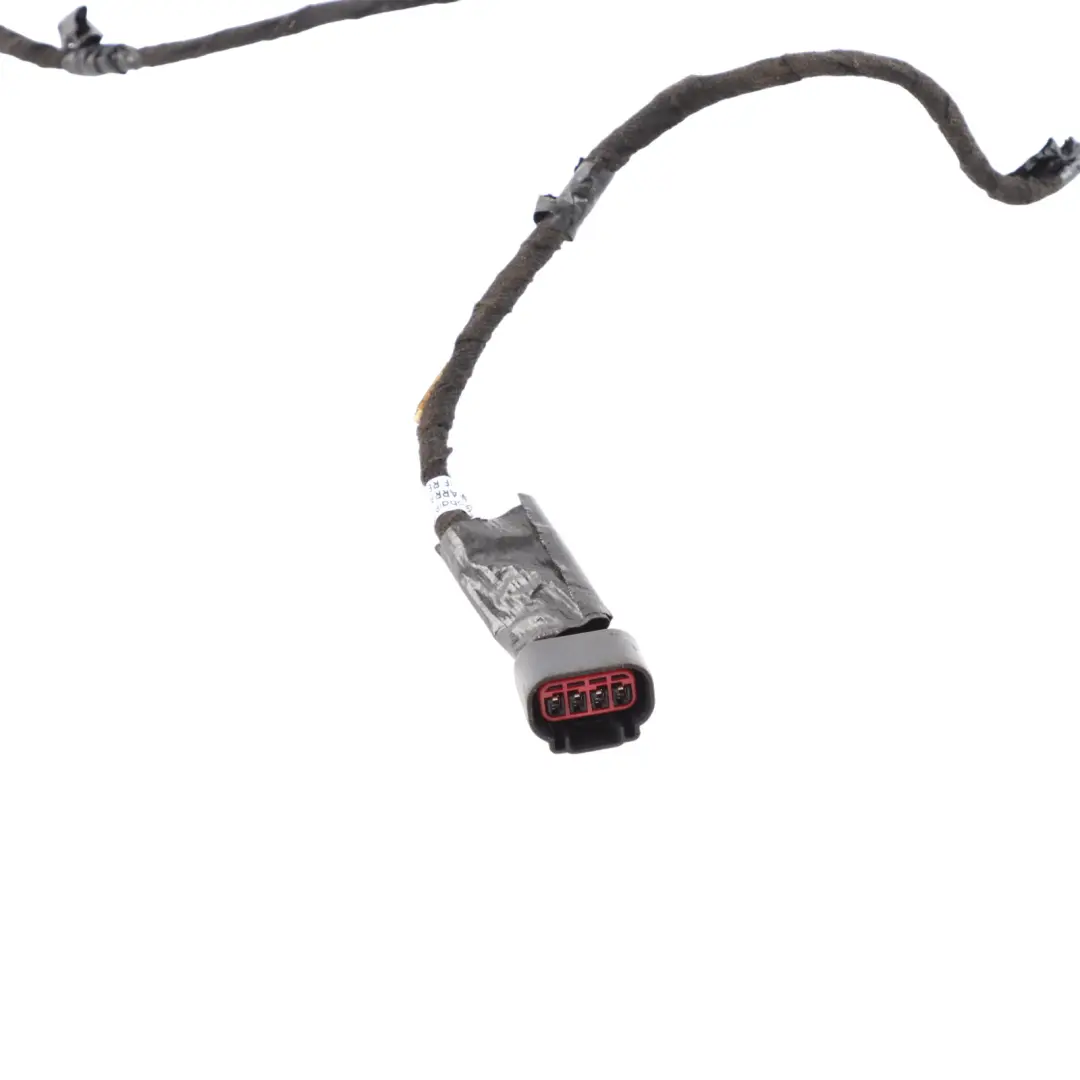

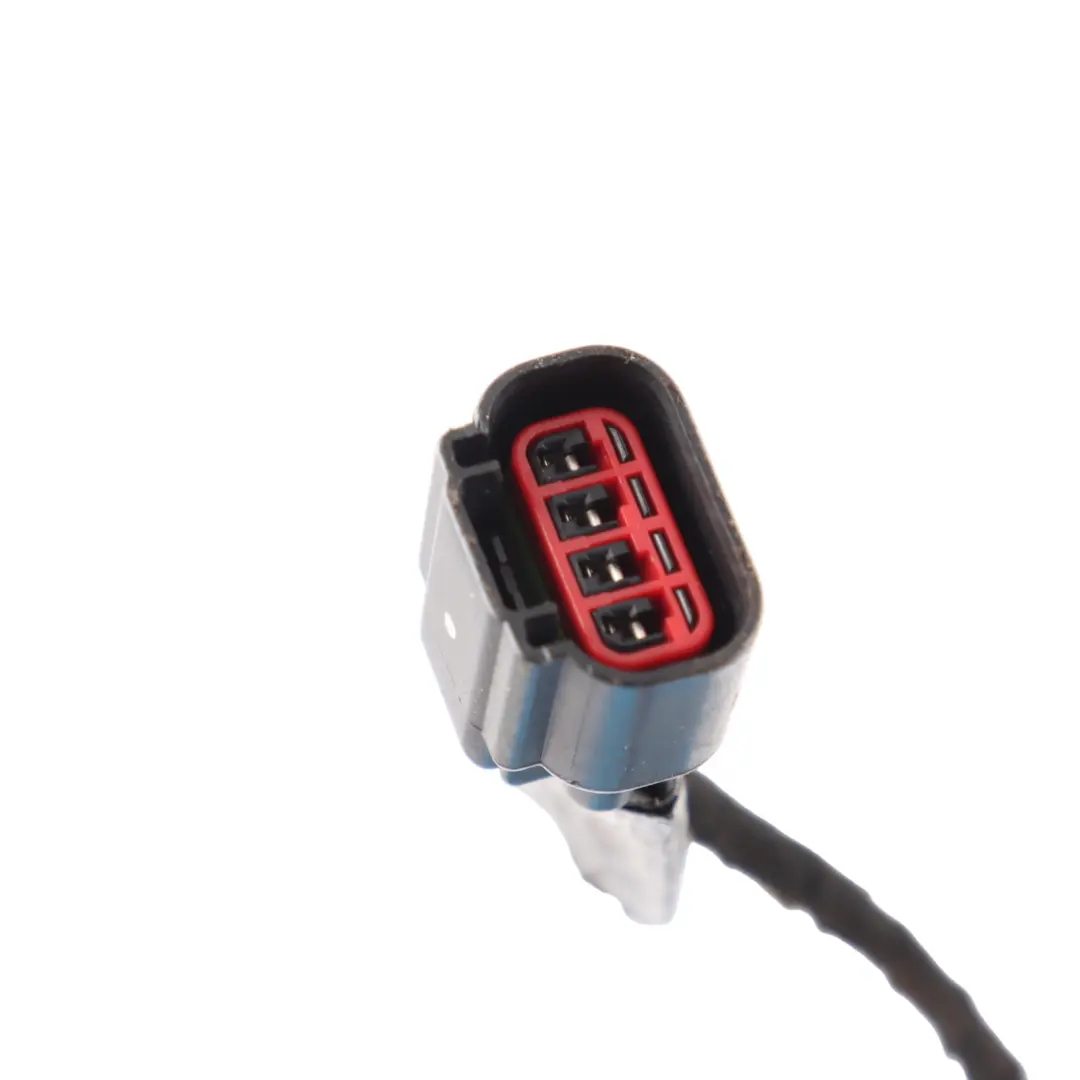

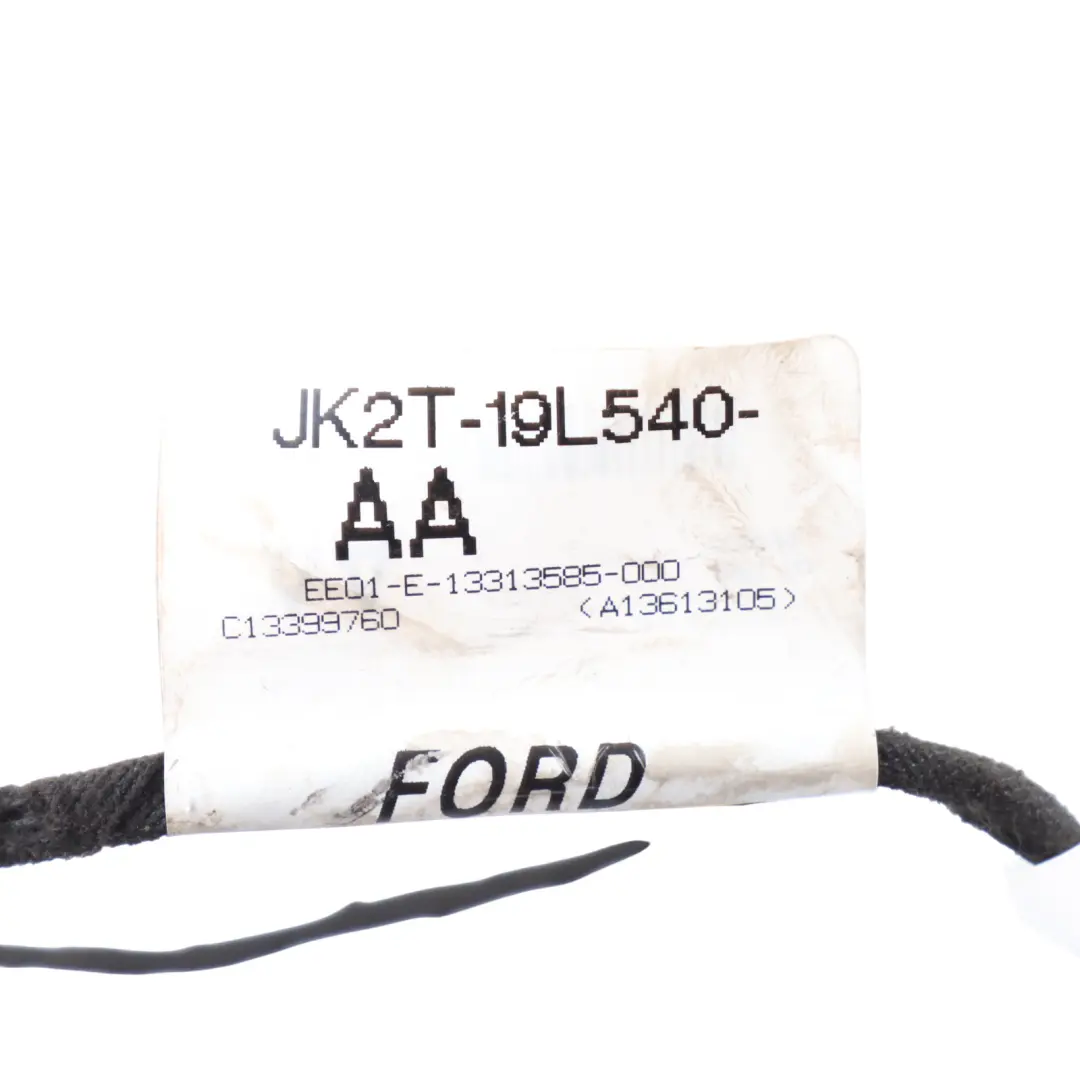

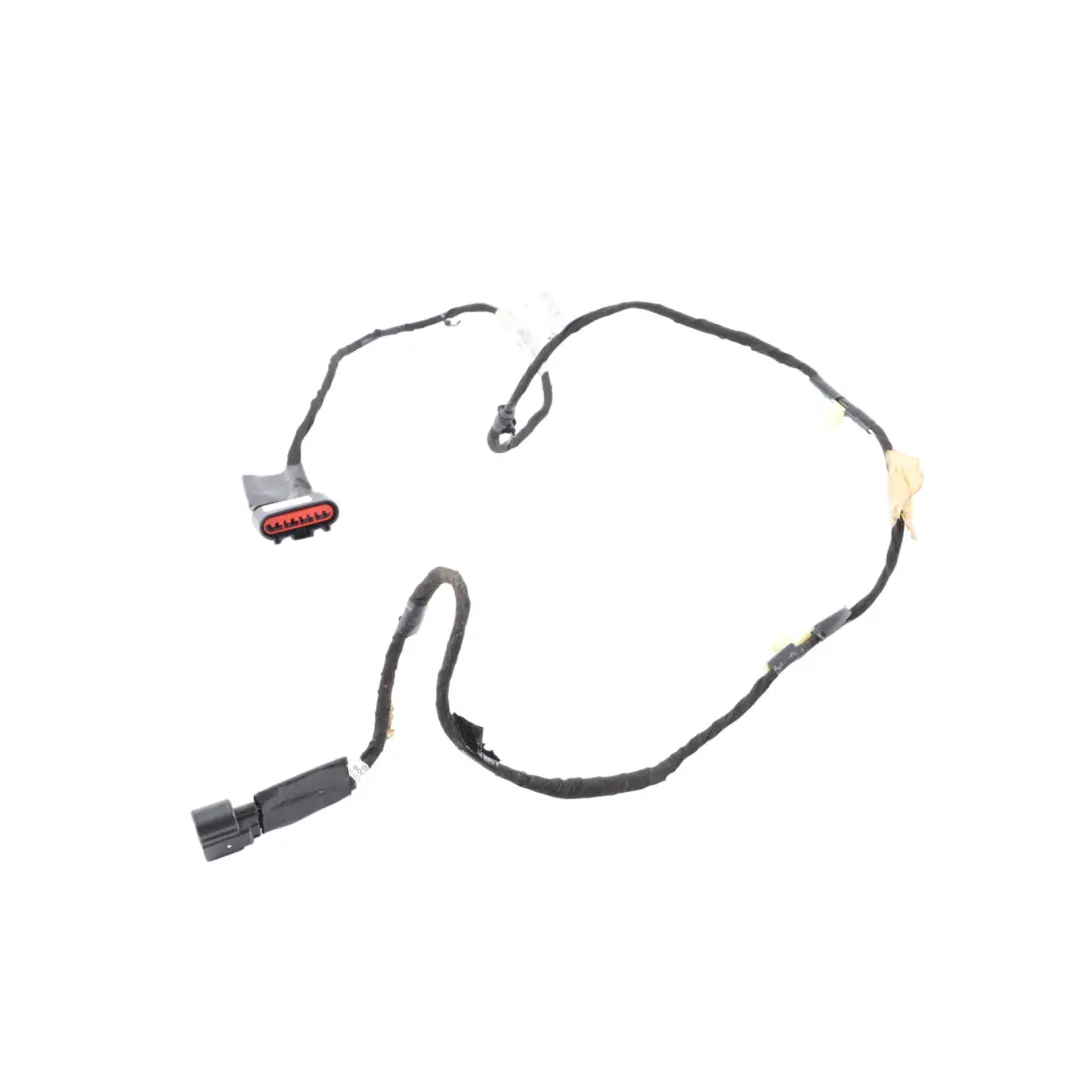

Ford Transit Custom Load Door Wiring Harness Cable Loom Left N/S JK2T19L540AA

Ford Transit Custom Load Door Wiring Harness Cable Loom Left N/S is an original electrical installation component designed to support the equipment of the driver-side sliding door. Thanks to its factory design, it ensures proper signal routing and a stable connection between the door and the vehicle's main wiring harness, which translates into trouble-free operation of locks, lighting, and other electrical components in this area.

Specifications and technical data

• SKU: JK2T19L540AA
• Mark: Ford
• Condition: Used
• OEM Part Number: JK2T19L540AA
• Substitutable numbers: JK2T19L540AA, JK2T 19L540 AA, JK2T-19L540-AA
• Location on the vehicle: Left
• Category: Other Starters, Alternators, ECUs & Wiring

Purpose and function in the vehicle

The presented wiring harness is an electrical installation component dedicated to the load door on the left side of the vehicle body. It is responsible for transmitting power and control signals between the body and the modules and components located in the door, such as actuators, sensors, or lighting. Using an original cable allows for maintaining compliance with the factory Ford electrical diagram, which facilitates future diagnostics and servicing.

The placement on the left side is significant in terms of cable length, connector layout, and routing the harness through the sills and body pillars. Using the correct component eliminates the need for modifications, soldering, or creating additional cable sections.

Construction and technical features

The load door wiring harness has been designed as a complete, ready-to-install solution with factory connectors and appropriately selected wire cross-sections. The insulation and cable covers used are adapted for operation in the door and sill area, where frequent movement, temperature changes, and exposure to moisture occur.

Key functional features of this harness include:

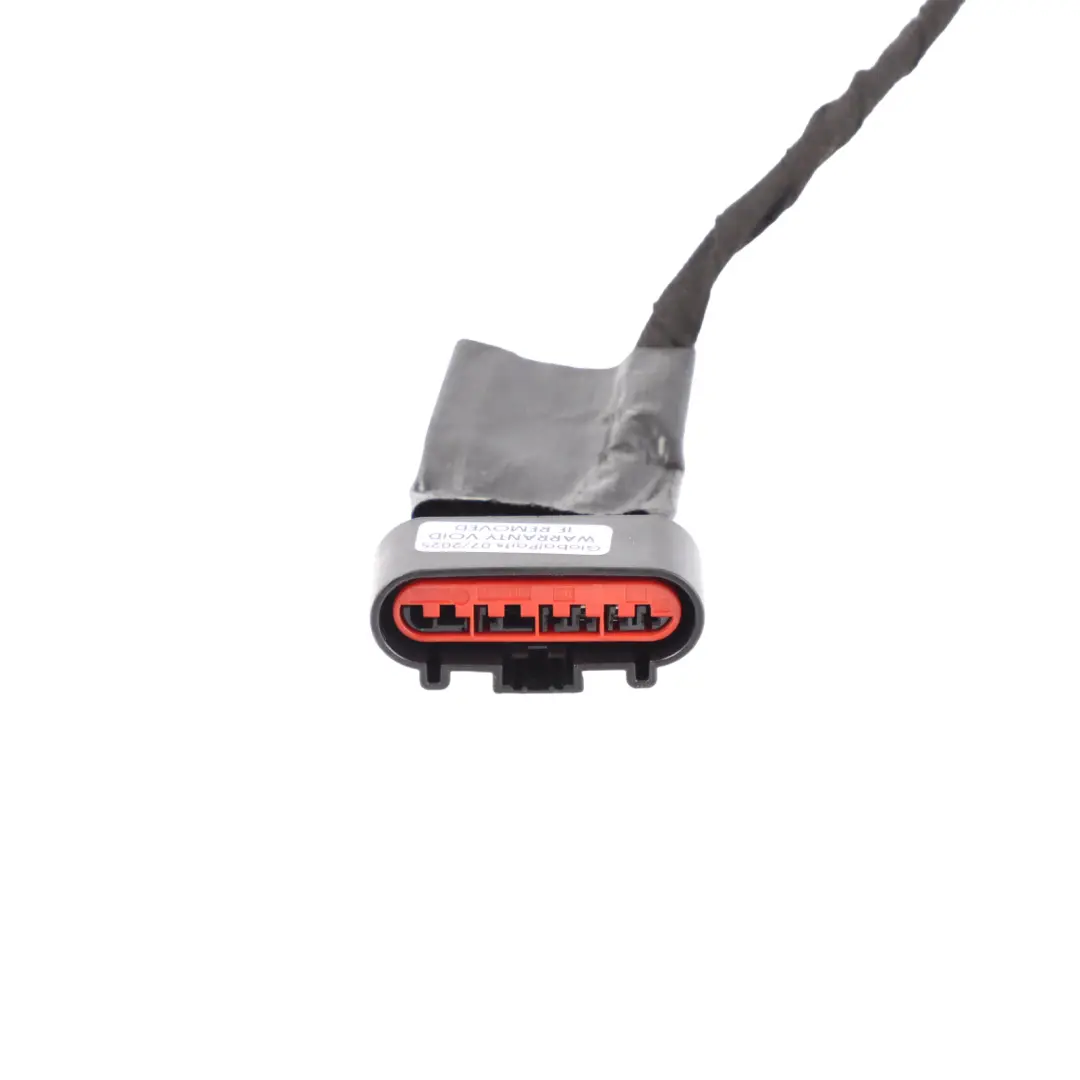

• factory connectors matched to the Ford Transit Custom installation,
• appropriately selected cable length for the left side of the vehicle,
• mounting and routing points provided by the manufacturer,
• compatibility with the factory electrical diagram.

As a result, the installation process is orderly, and the risk of mechanical or electrical damage during operation is minimized.

Benefits of using an original Ford wiring harness

Using an original load door wiring harness in a Ford Transit Custom allows for maintaining the integrity of the entire electrical system. Factory connectors and wire cross-sections are selected based on current load and resistance to operating conditions, which reduces the risk of overheating, voltage drops, or signal interference.

The main advantages of such a solution include:

• secure fit to the door and body structure,
• easier diagnostics of electrical system faults,
• no need for modifications to the factory installation,
• compliance with Ford service documentation.

For workshops and users, this means faster installation, a lower risk of errors, and stable operation of electrical systems in the load door area.

Application in service and repairs

The left-side load door wiring harness is particularly useful for repairs after collisions, mechanical damage to cables in door hinges, or in situations where previous repairs were performed in a makeshift manner. Replacing a damaged section with a complete, original harness allows for restoring the proper operation of locks, lighting, and other components without the need for time-consuming reconstruction of individual circuits.

This solution is beneficial for both professional service centers and individual users who expect predictable repair results and want to avoid problems with cable chafing or unstable connections.

If you are planning a comprehensive repair or upgrade of your Ford's body electrical system and need other components from the same group, such as additional harnesses, connectors, or cable sections, check the available parts in the Other Ford category.
