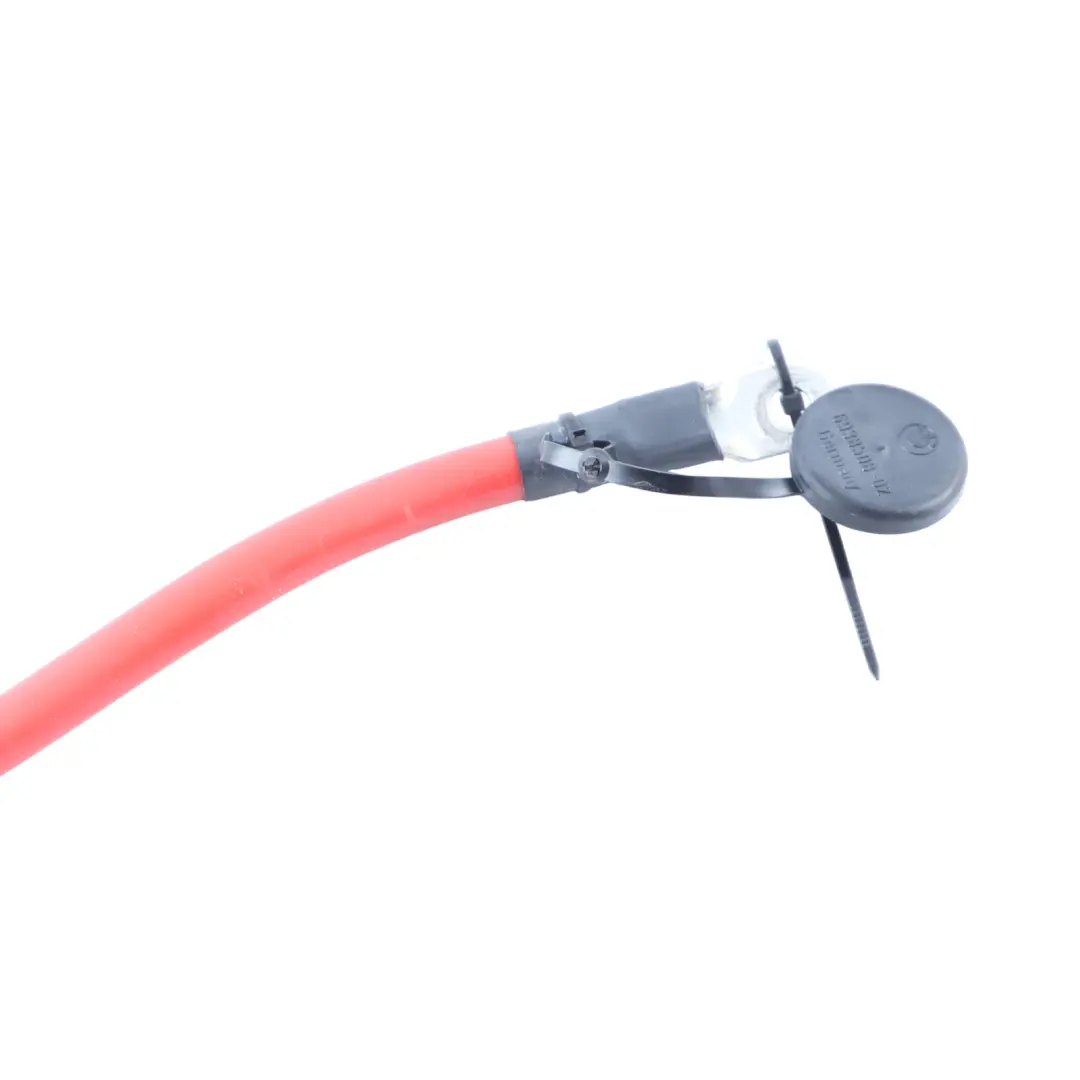

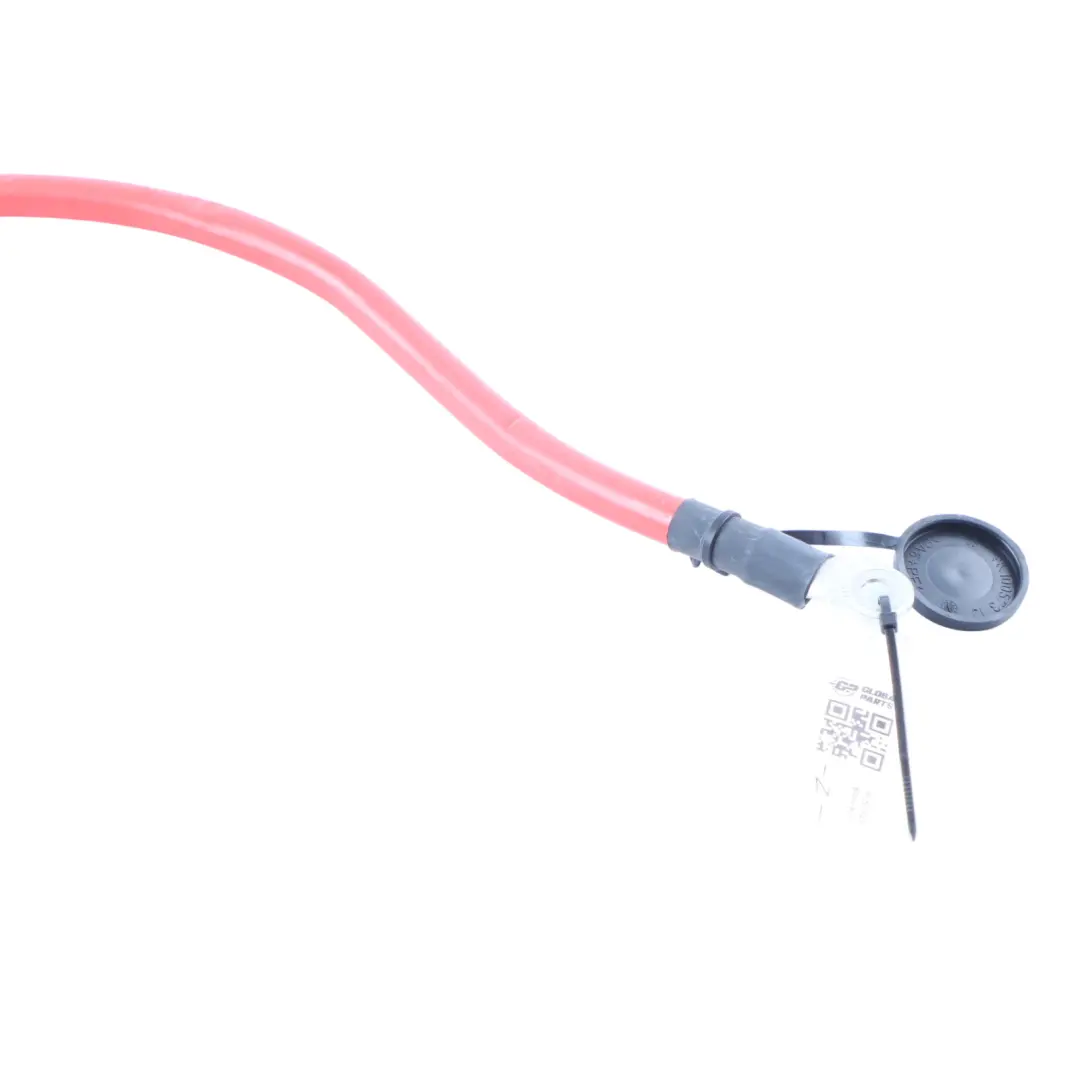

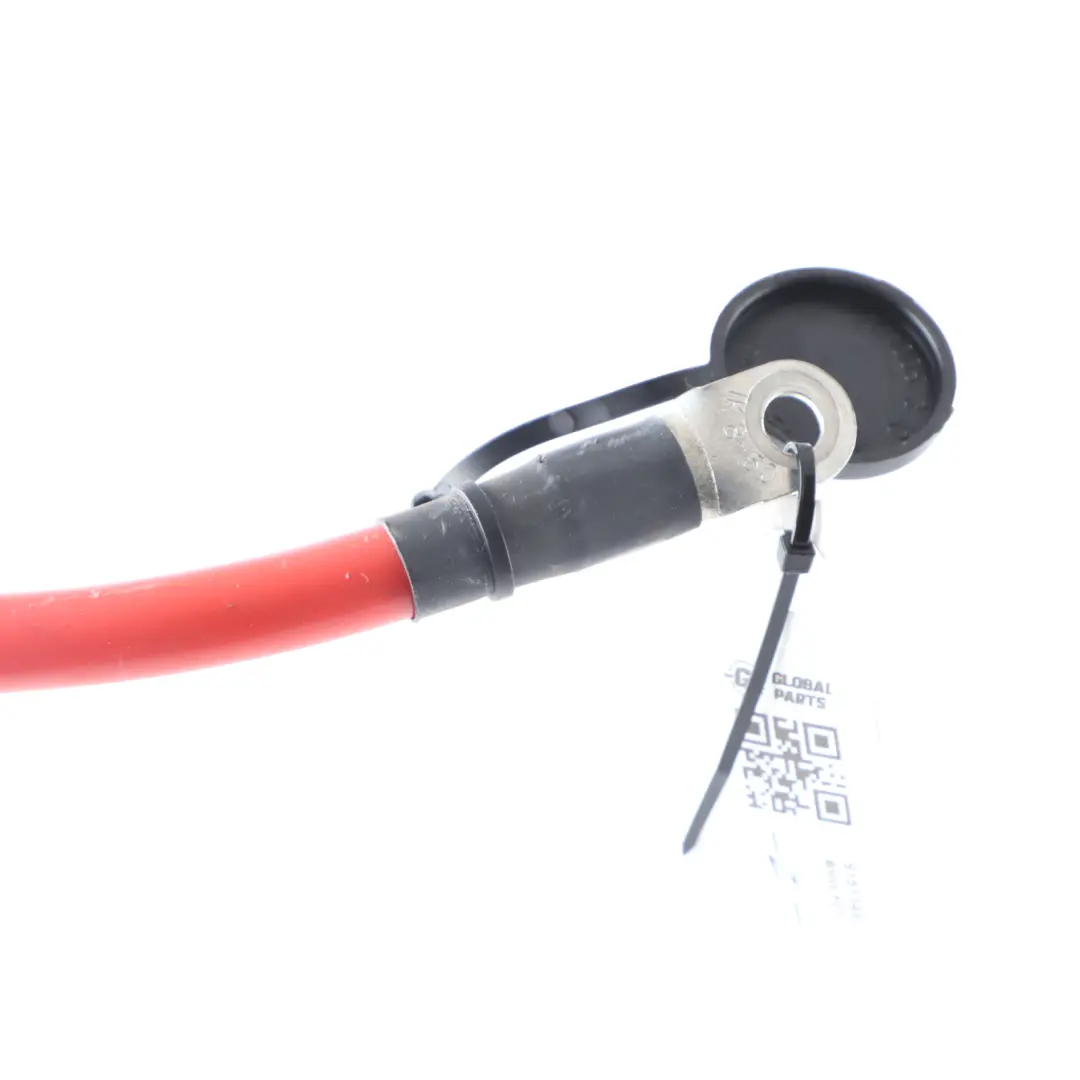

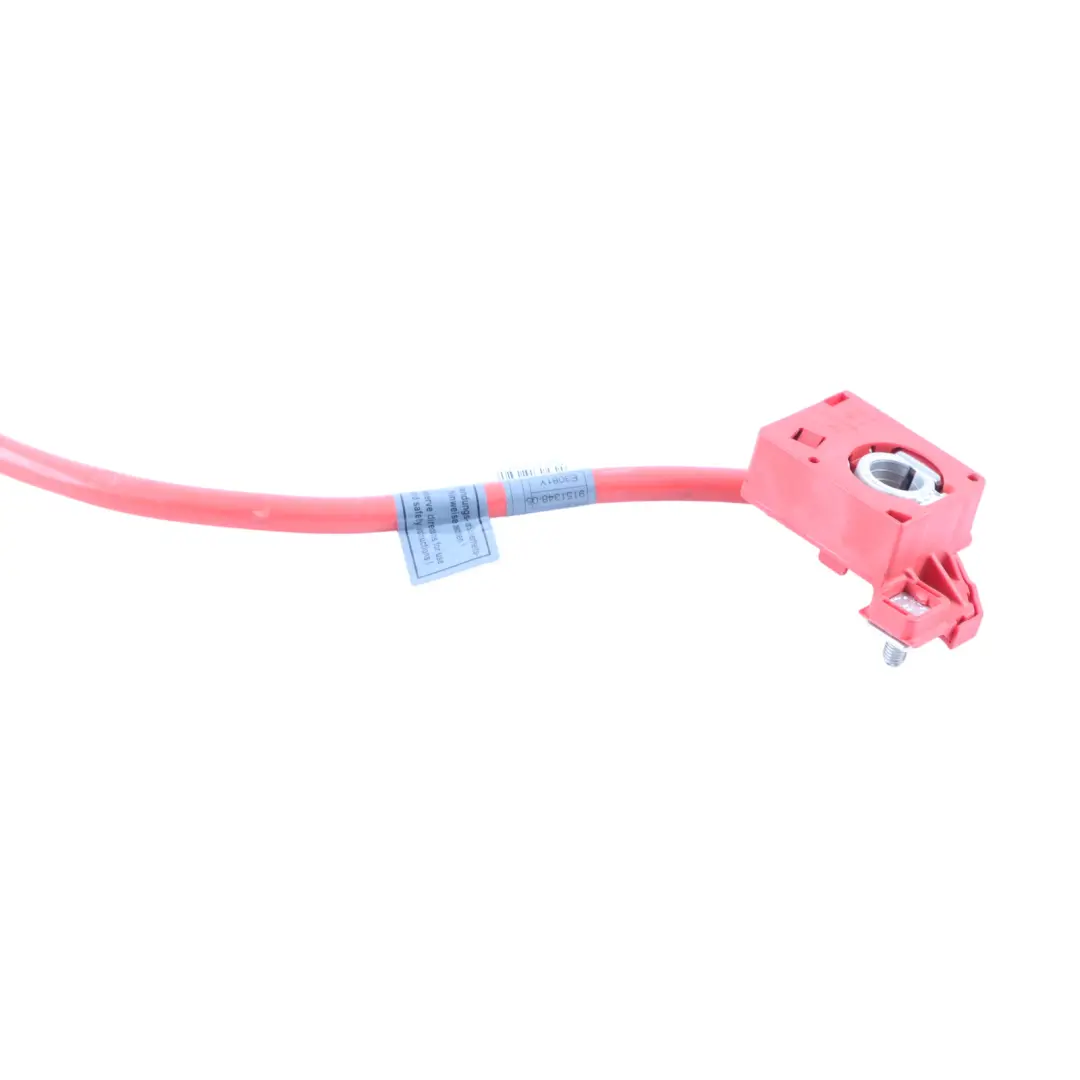

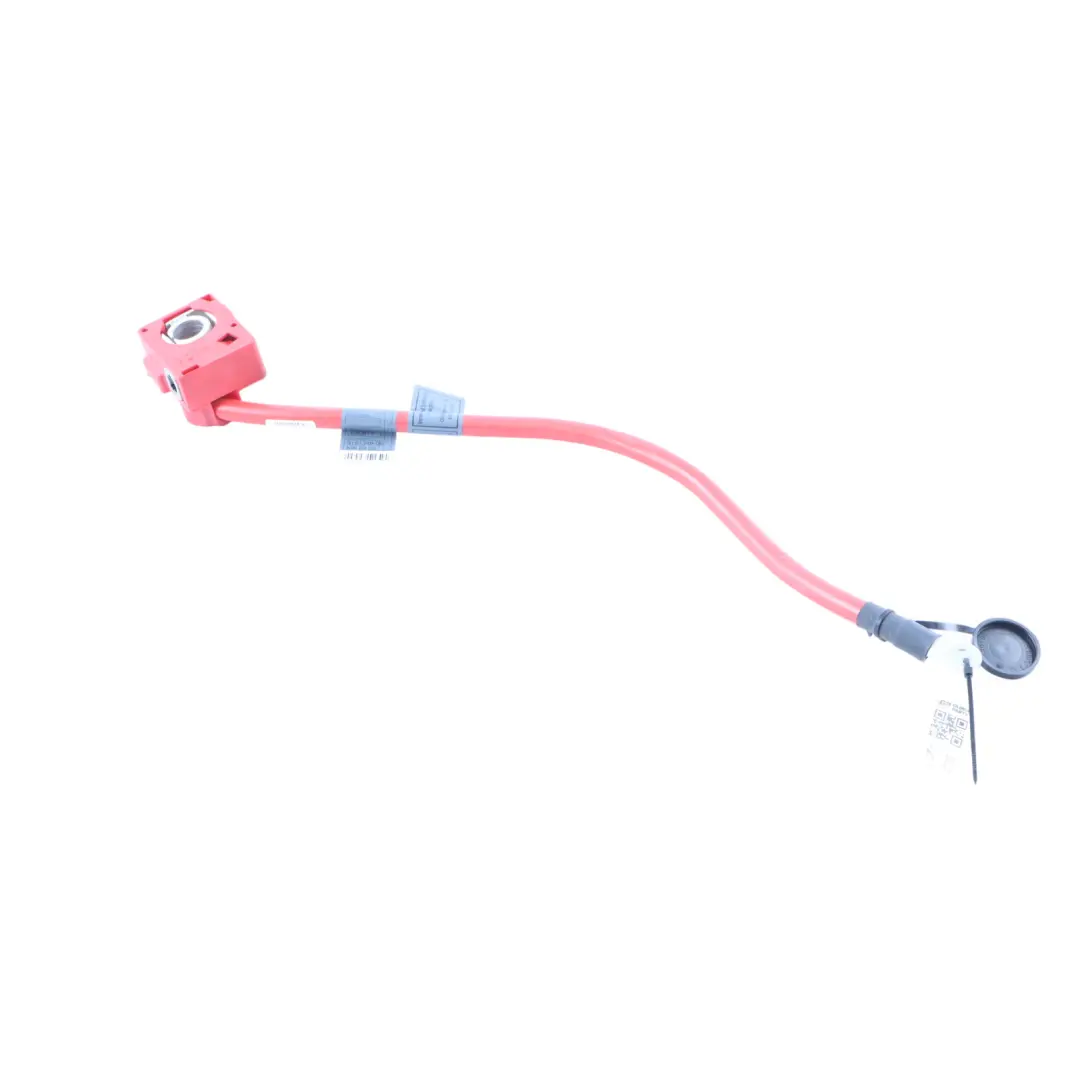

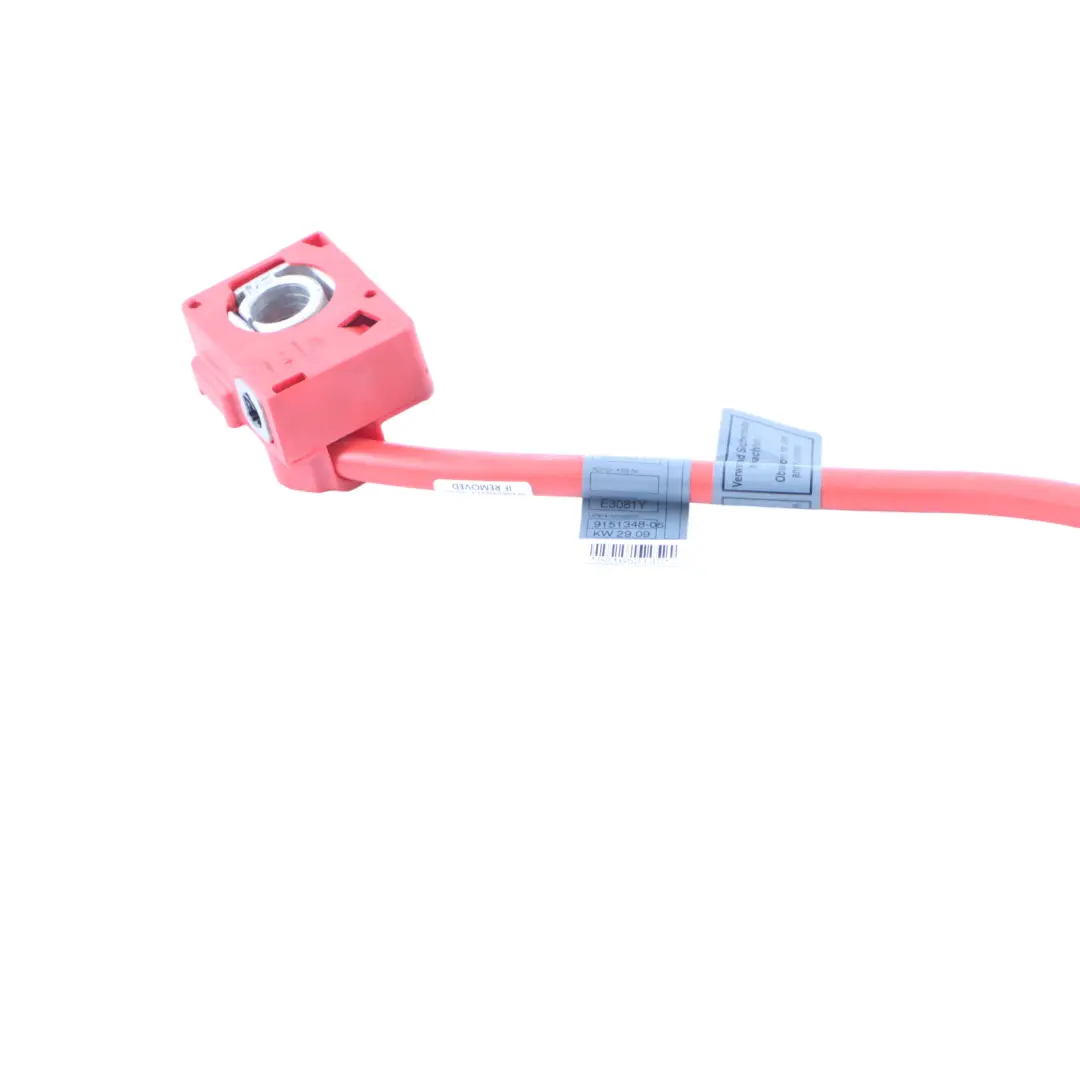

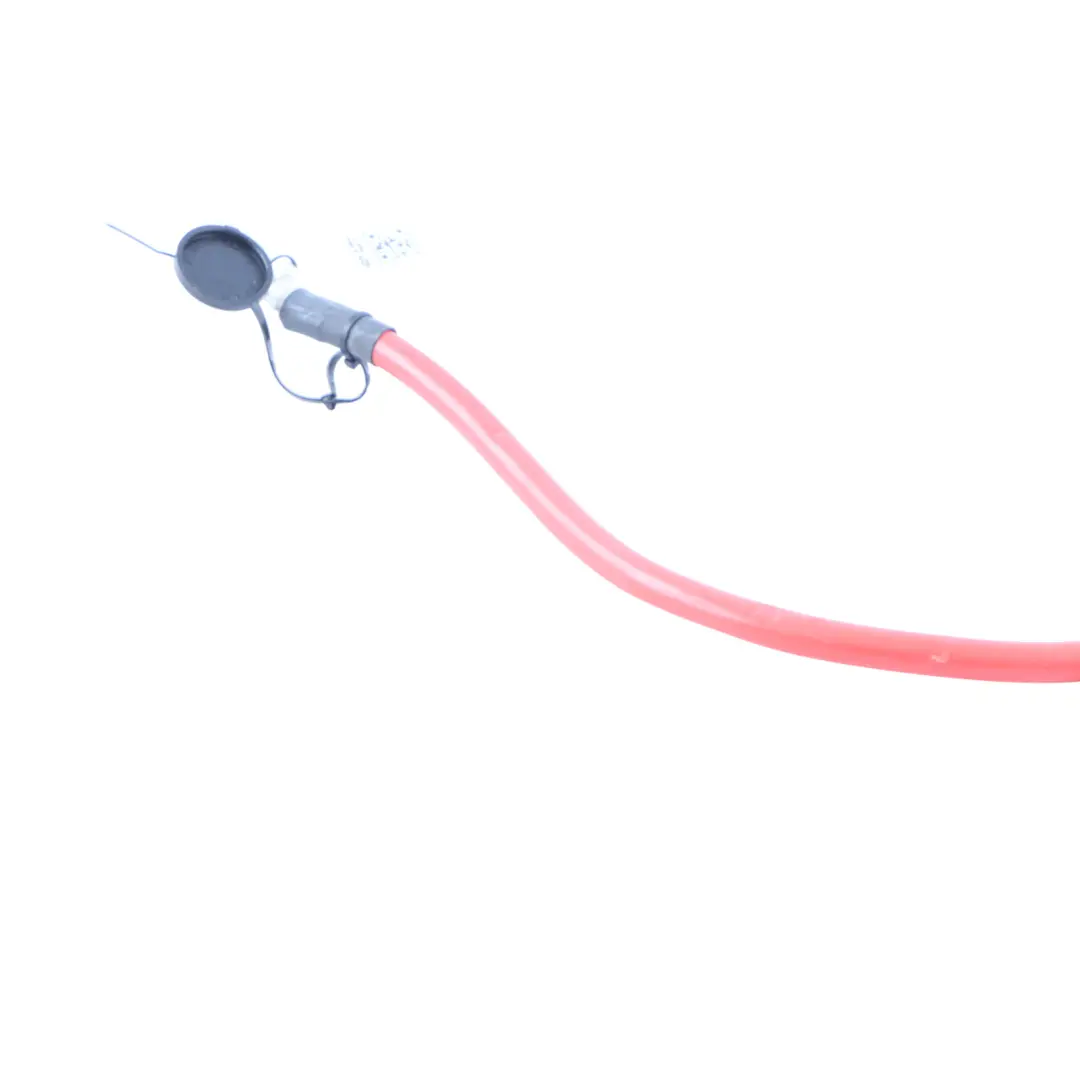

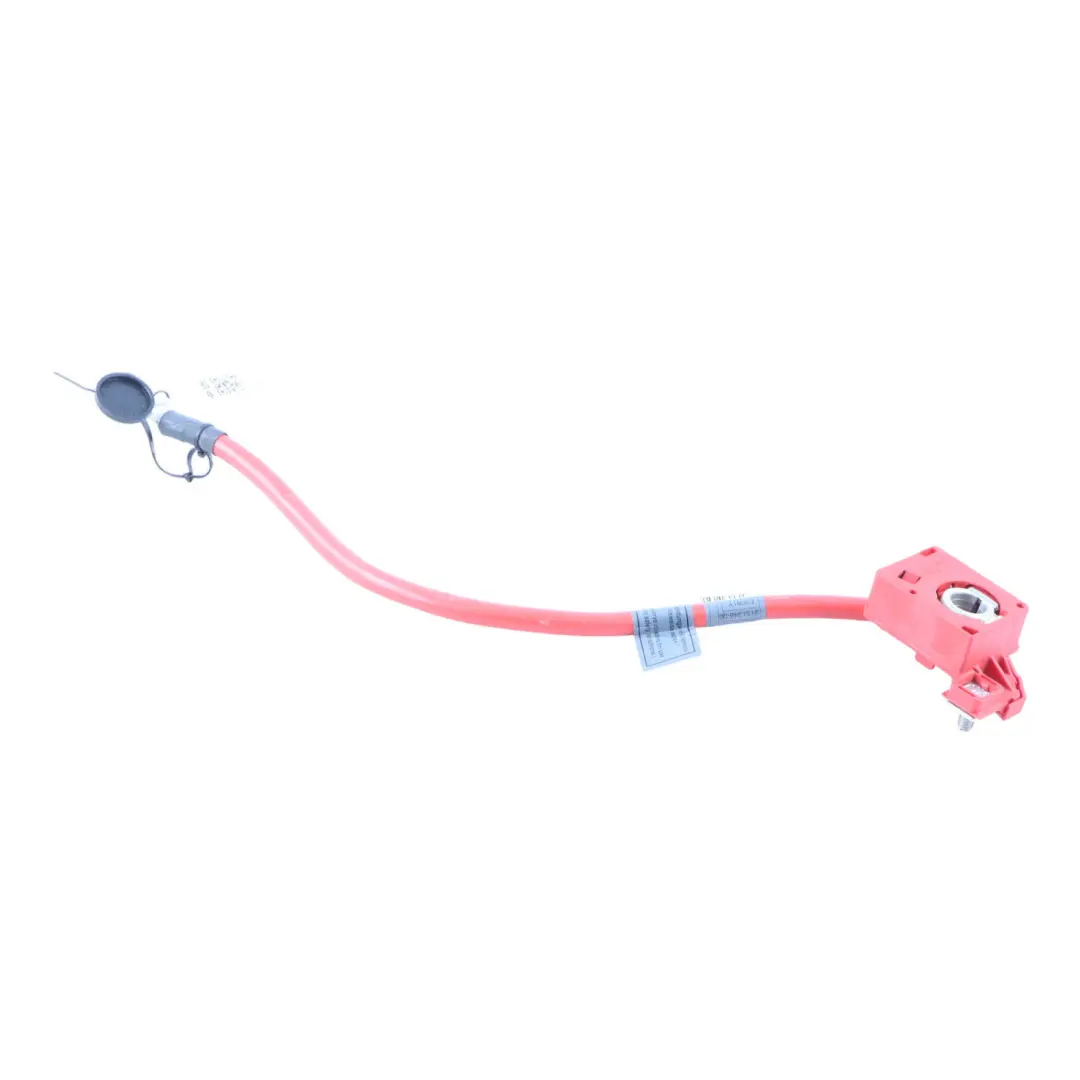

BMW F07 HV Battery Positive Terminal Lead Clamp Wire Harness Cable Loom 9151348

BMW F07 HV Battery Positive Terminal Lead Clamp Wire Harness Cable Loom is an original electrical system component designed for the HV system in 5 Series Gran Turismo models. Thanks to its factory design, BMW ensures a stable connection of the HV battery positive terminal to the rest of the electrical system and proper current routing under demanding operating conditions. This is a solution for users who expect compatibility with the factory system and predictable performance parameters.

Specifications and technical data

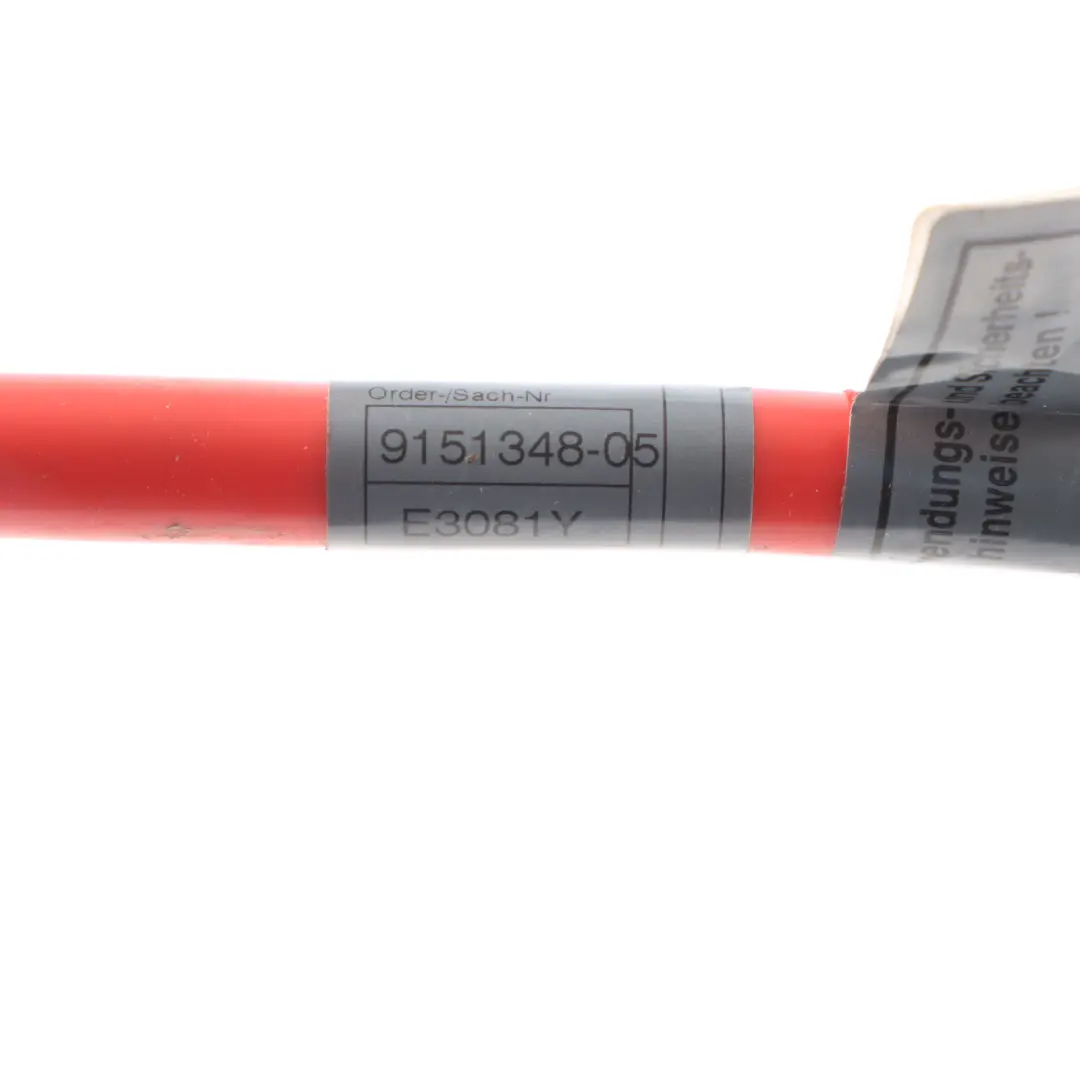

• SKU: 9151348
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9151348
• Substitutable numbers: 9151348
• Category: Other Interior Parts & Accessories

Purpose and function in the BMW F07 HV system

The described HV battery positive terminal lead clamp wire harness is a component responsible for the safe and controlled connection of the high-voltage battery to the vehicle's electrical system. In BMW F07 hybrid vehicles, the proper condition of this cable is essential for:

• maintaining adequate conductivity in the high-voltage circuit,
• stable power supply to powertrain components,
• reducing energy losses at connection points,
• maintaining correct electrical safety parameters.

Thanks to its factory design, the harness is matched to the geometry of the F07 body, which facilitates cable routing through the original mounting points and minimizes the risk of incorrect installation.

Construction, connectors, and integration with the vehicle harness

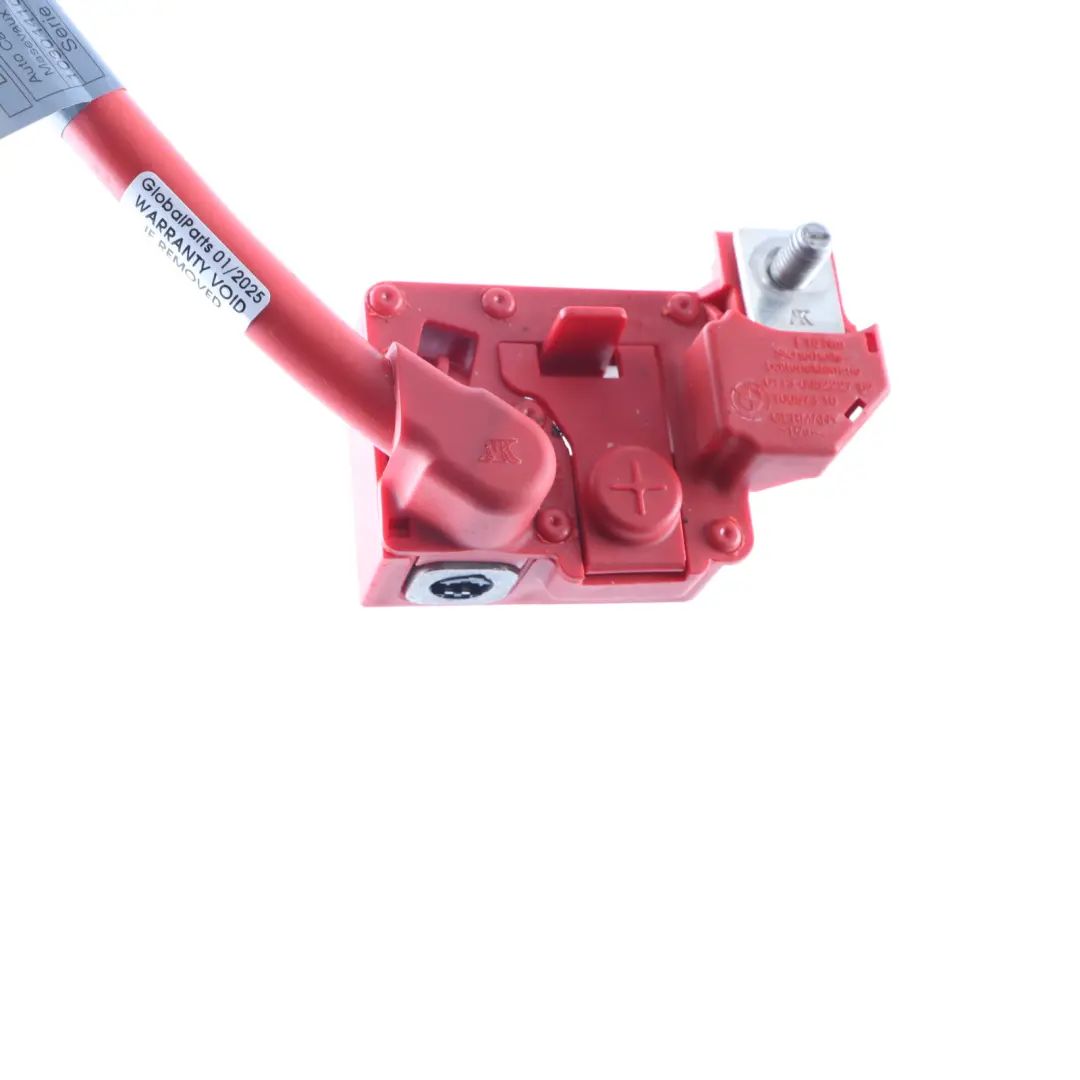

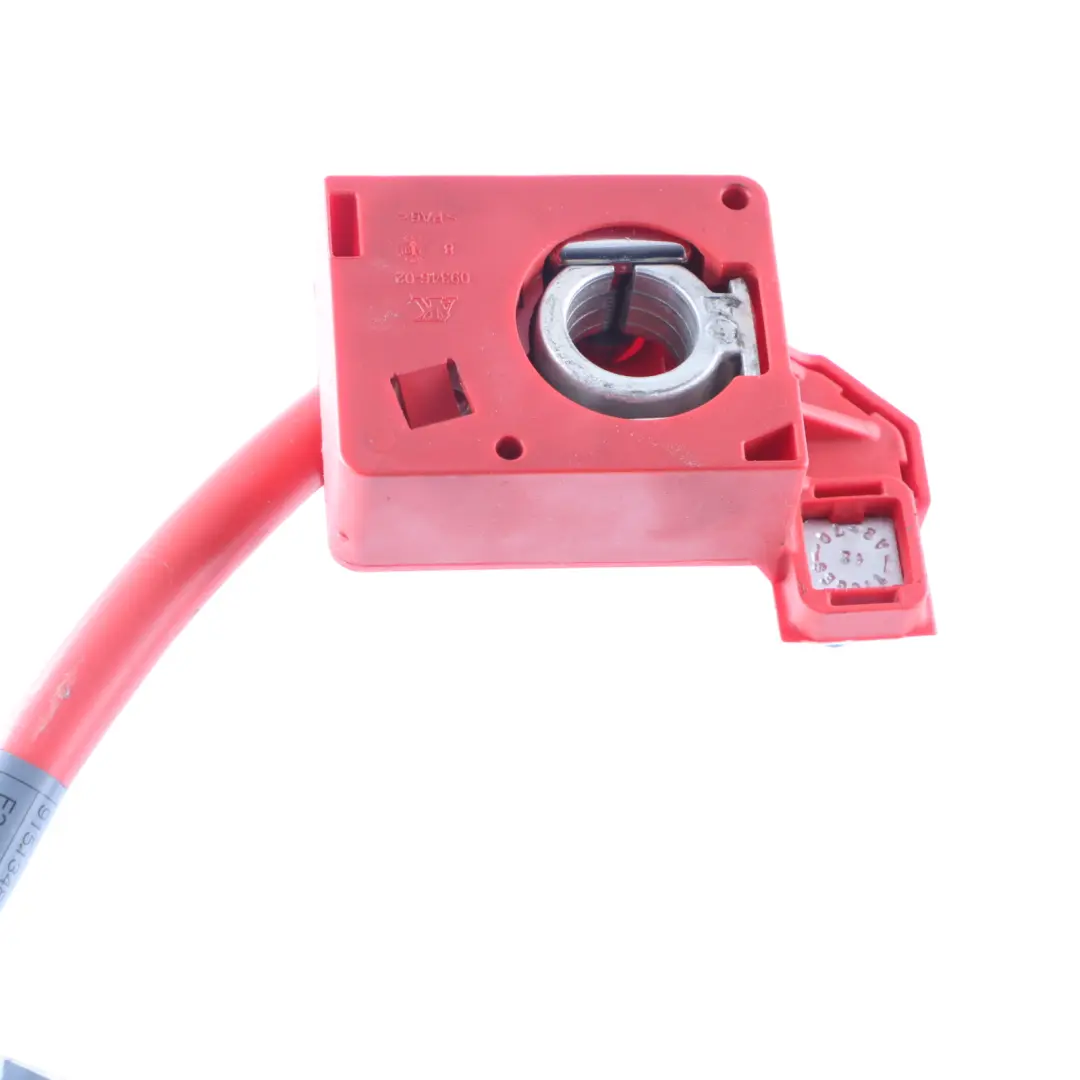

The cable is part of a complete harness, including the HV positive terminal cable section along with a dedicated clamp and factory-fitted terminals. The construction is prepared to work with the original BMW high-voltage battery and high-voltage auxiliary components in the F07 model.

This type of solution allows for:

• maintaining the original cable routing path in the battery compartment and body tunnel,
• correct positioning of the clamp on the positive terminal,
• easier identification and future service due to compliance with BMW documentation.

The harness is prepared for installation in place of the factory component, which reduces the need for system modifications and helps maintain the integrity of the entire electrical system.

Benefits of using the original HV positive terminal harness

Using the original HV battery positive terminal cable in a BMW F07 allows for maintaining high-voltage system performance at the level intended by the manufacturer. Key advantages include:

• Factory compatibility with the BMW system – matching length, cross-section, and terminals to the specific vehicle configuration.
• Consistency with the HV safety system – the cable works with original protective elements and the high-voltage battery construction.
• Easier diagnostics – using a part compliant with service documentation facilitates workshop work and reduces the risk of installation errors.
• Reduction of unwanted voltage drops – properly selected cross-section and connector design promote stable system operation.

For users and workshops specializing in BMW hybrid repairs, this is a solution that helps keep the vehicle in a configuration close to the factory state, without the need for compromise replacements.

Condition, service application, and part selection

The item comes from the group of original BMW components and is intended for service applications in F07 series hybrid vehicles. It is suitable for both replacing a damaged cable and for post-accident repairs in the high-voltage battery area.

When selecting this harness, it is recommended to verify compatibility with the specific vehicle equipment version and HV system configuration. Proper matching allows for maintaining electrical system continuity and avoiding interference with factory safety features and cable routing.

If you are planning a comprehensive repair or upgrade of the electrical system area in your BMW and need other elements from the same group, such as power cables, signal harnesses, or service connectors, check the available parts in the Other BMW category.
