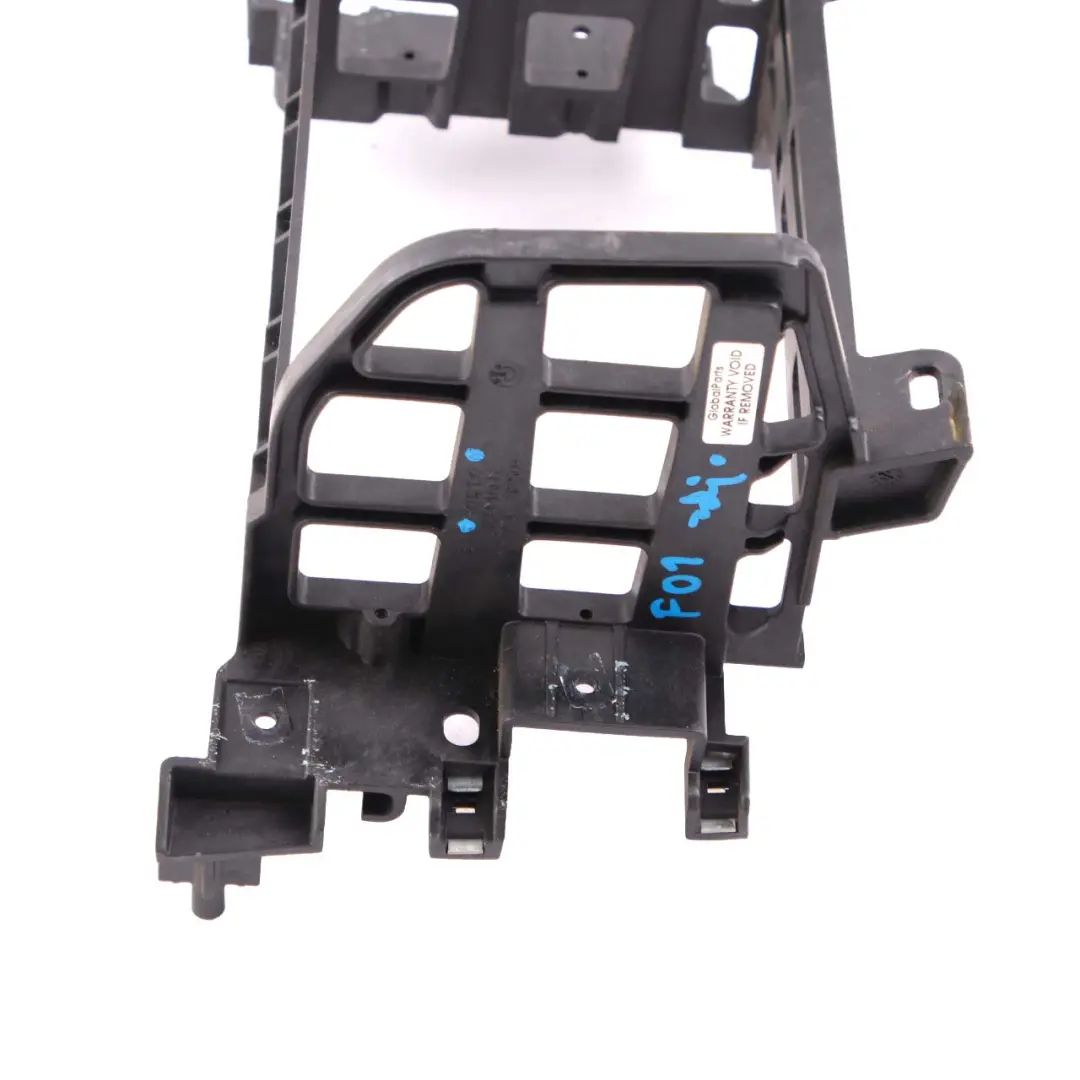

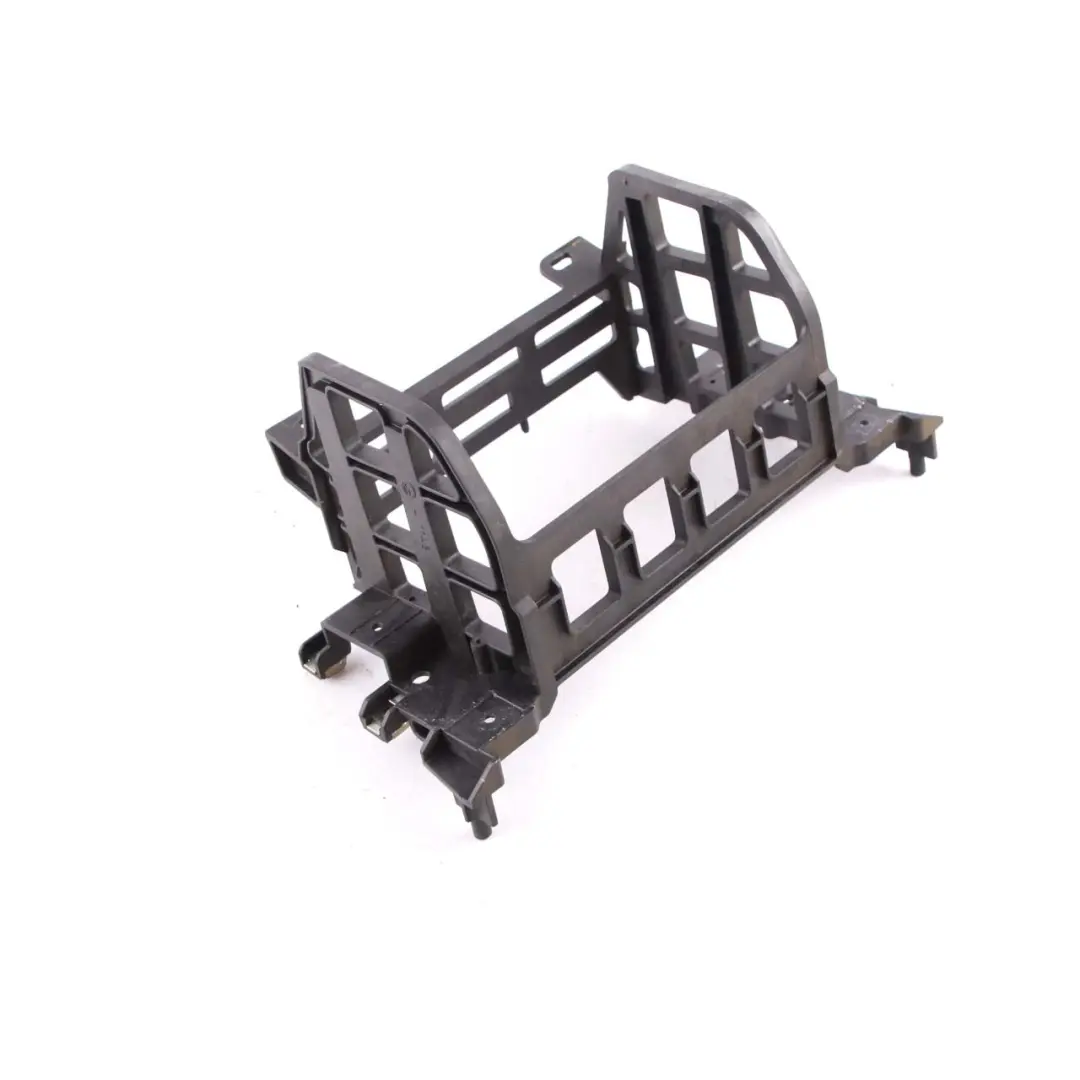

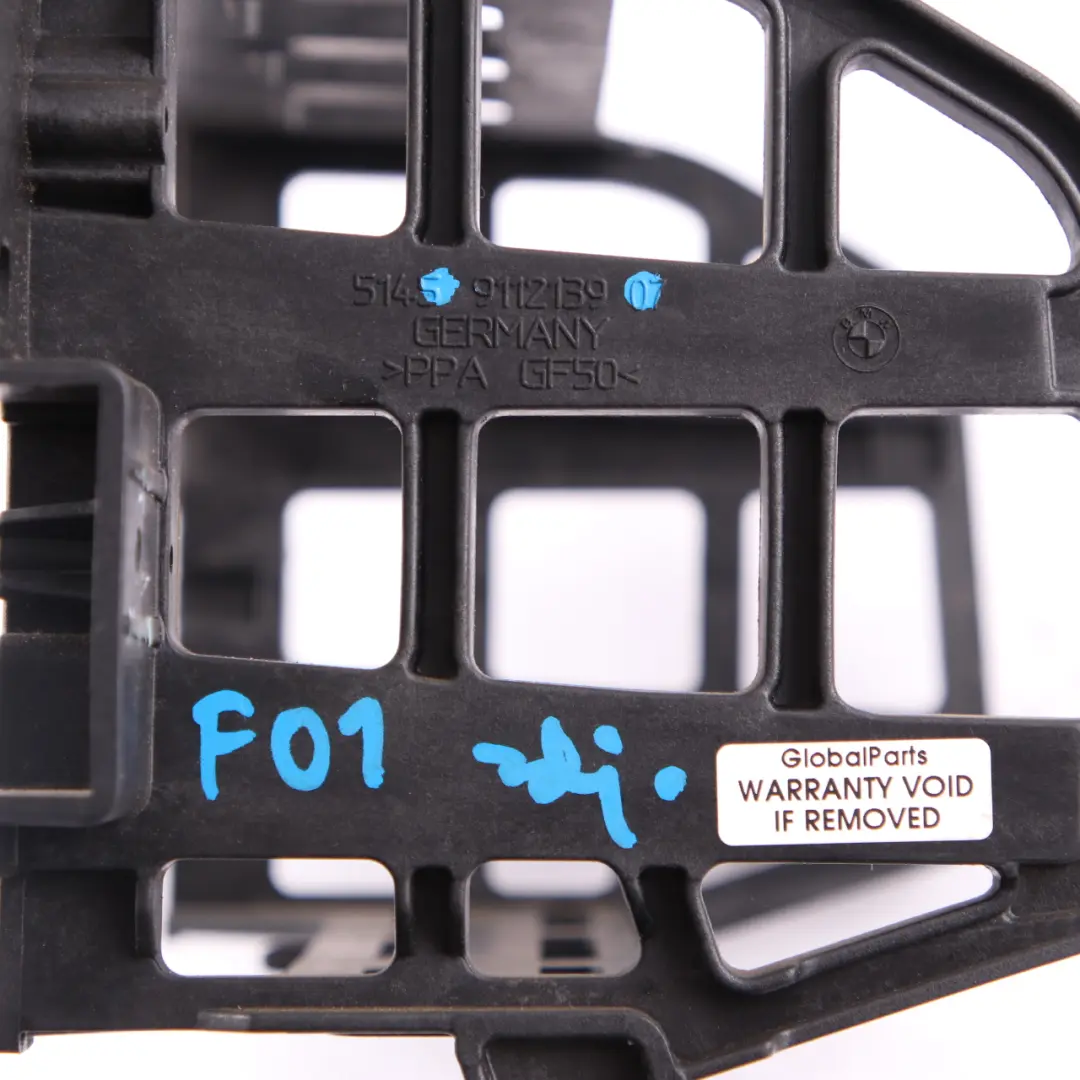

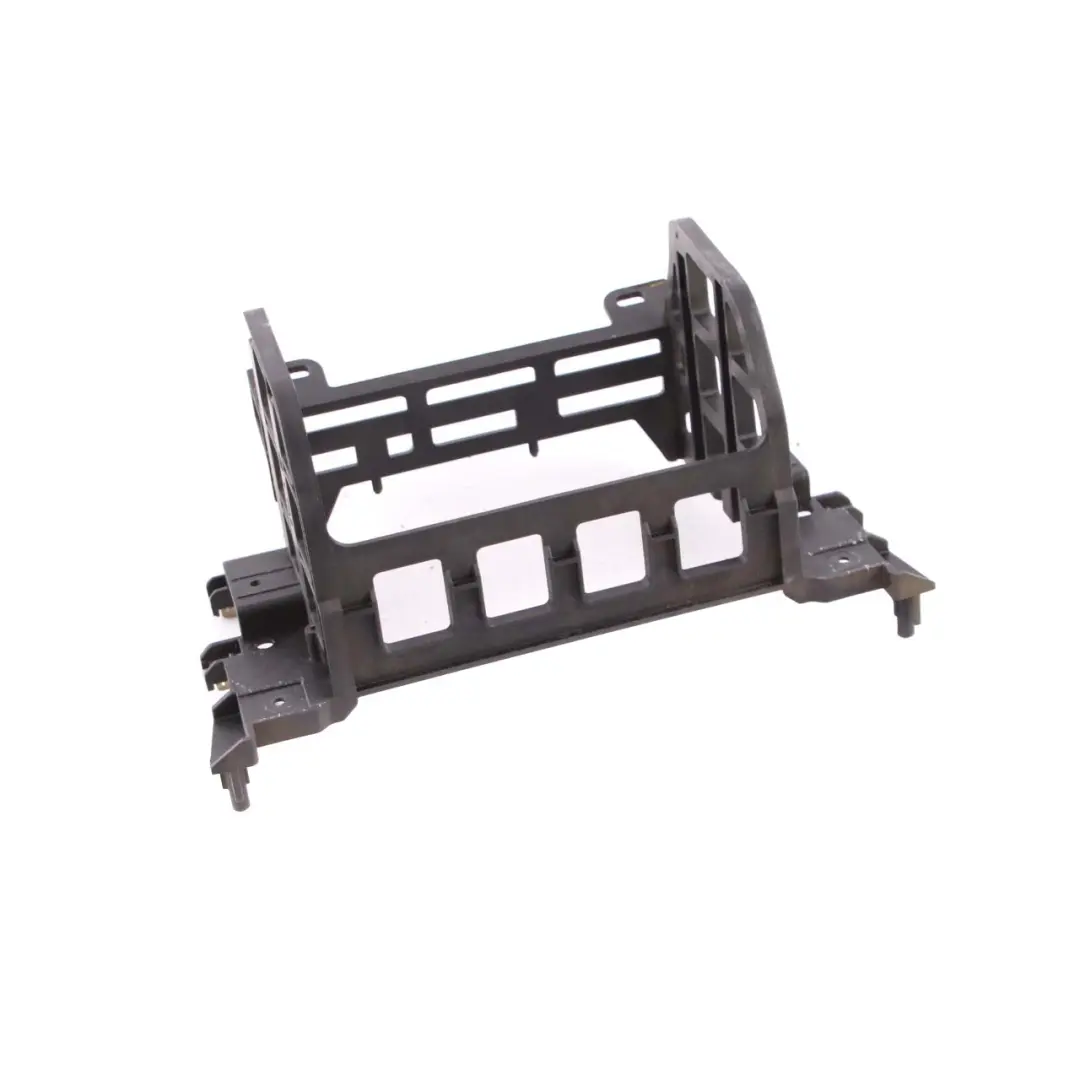

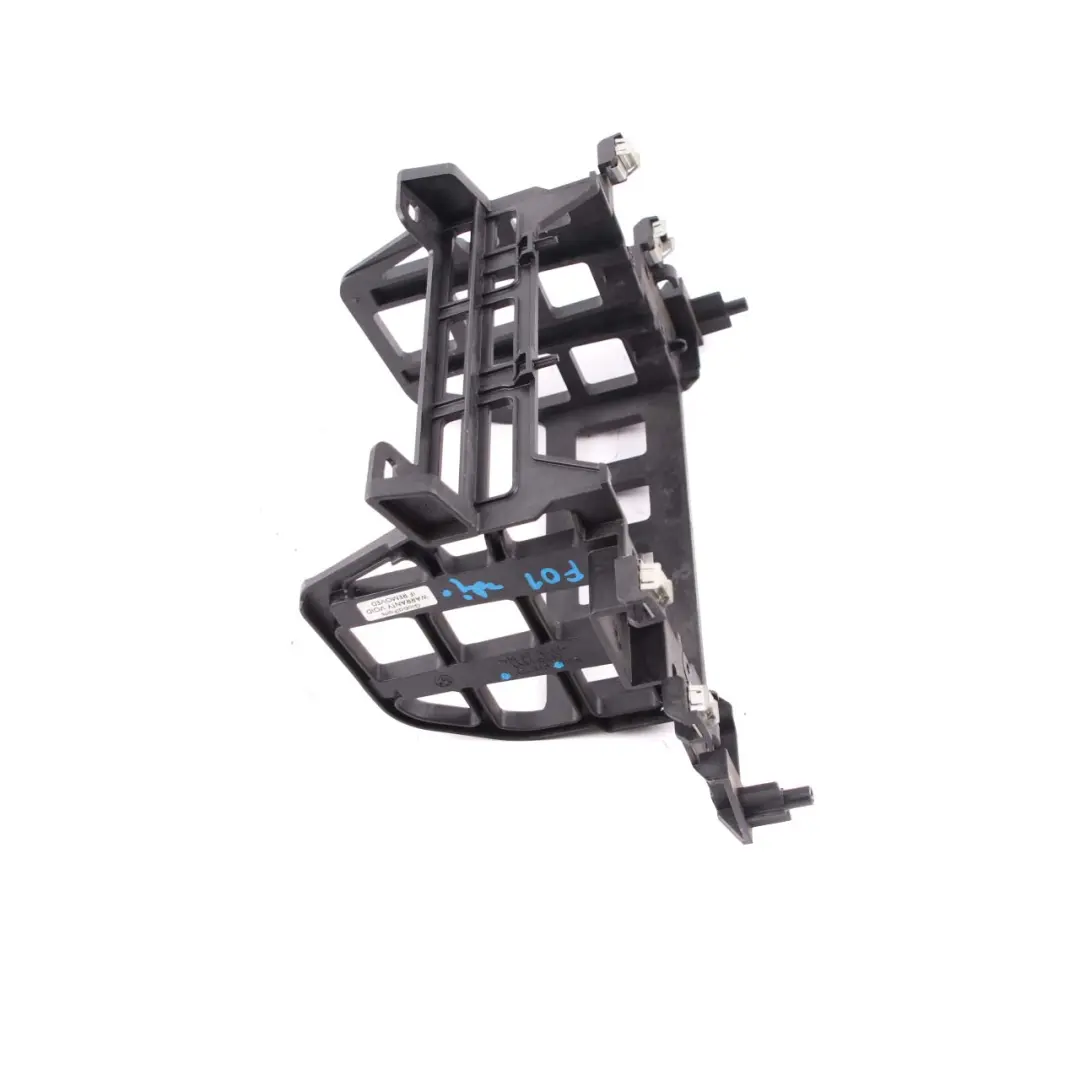

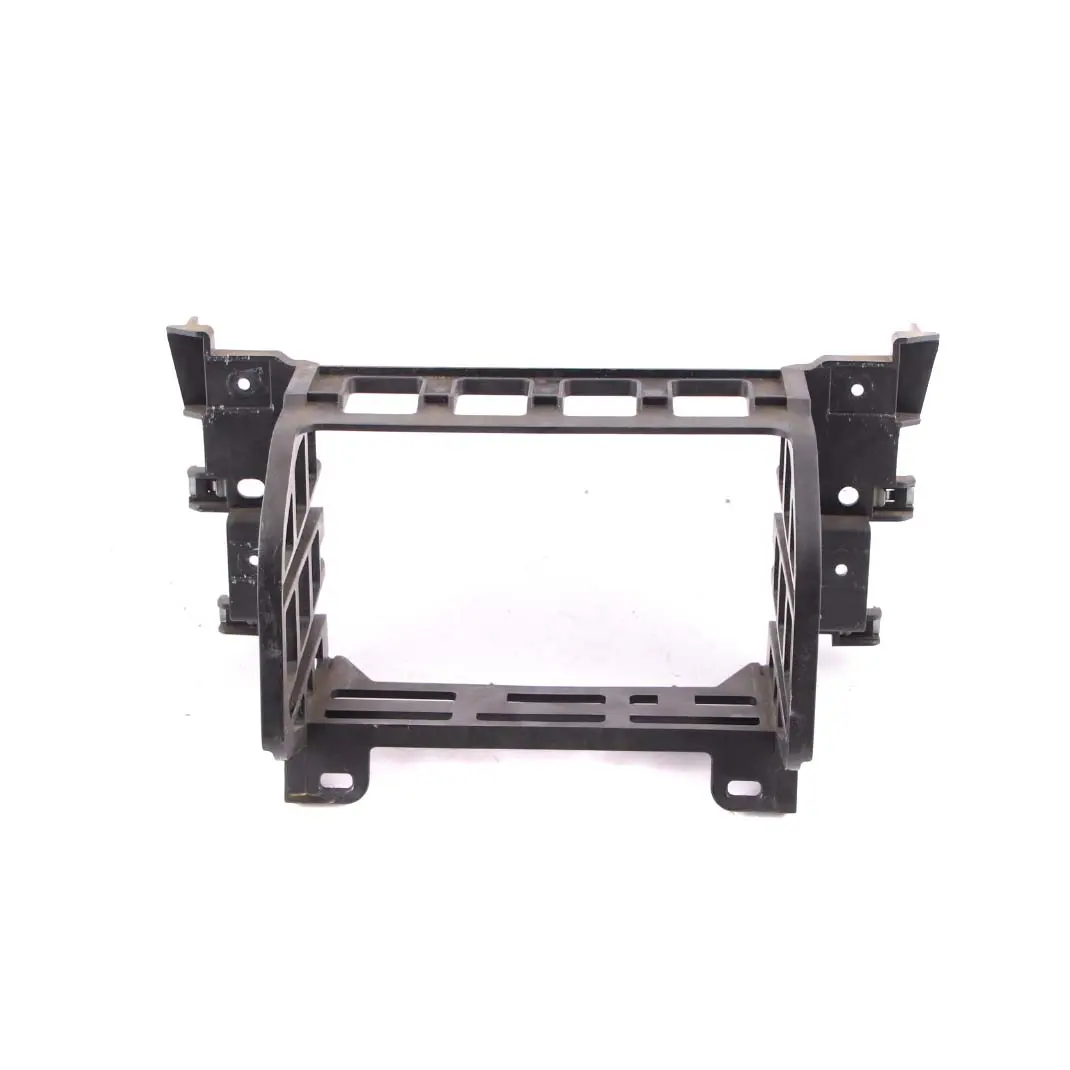

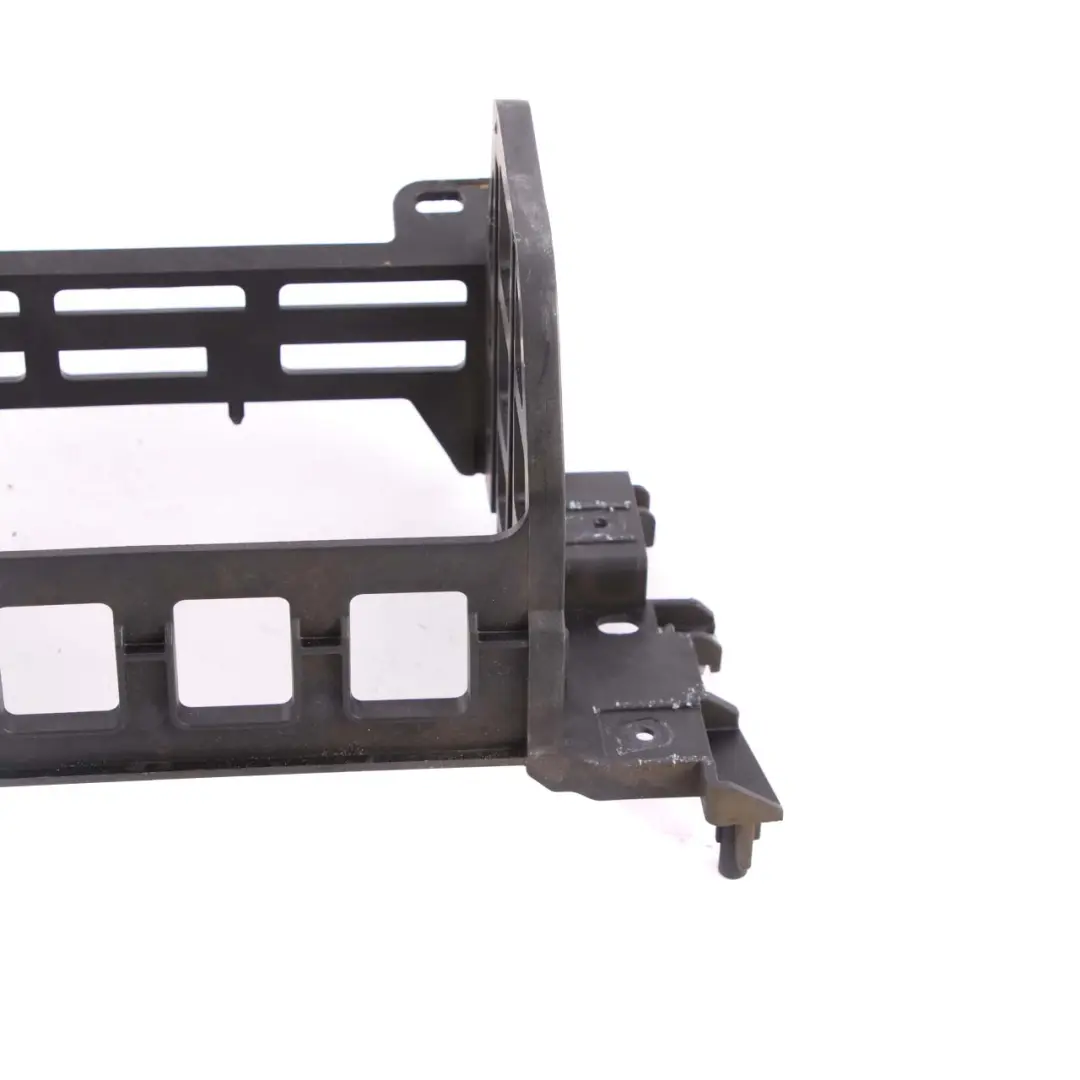

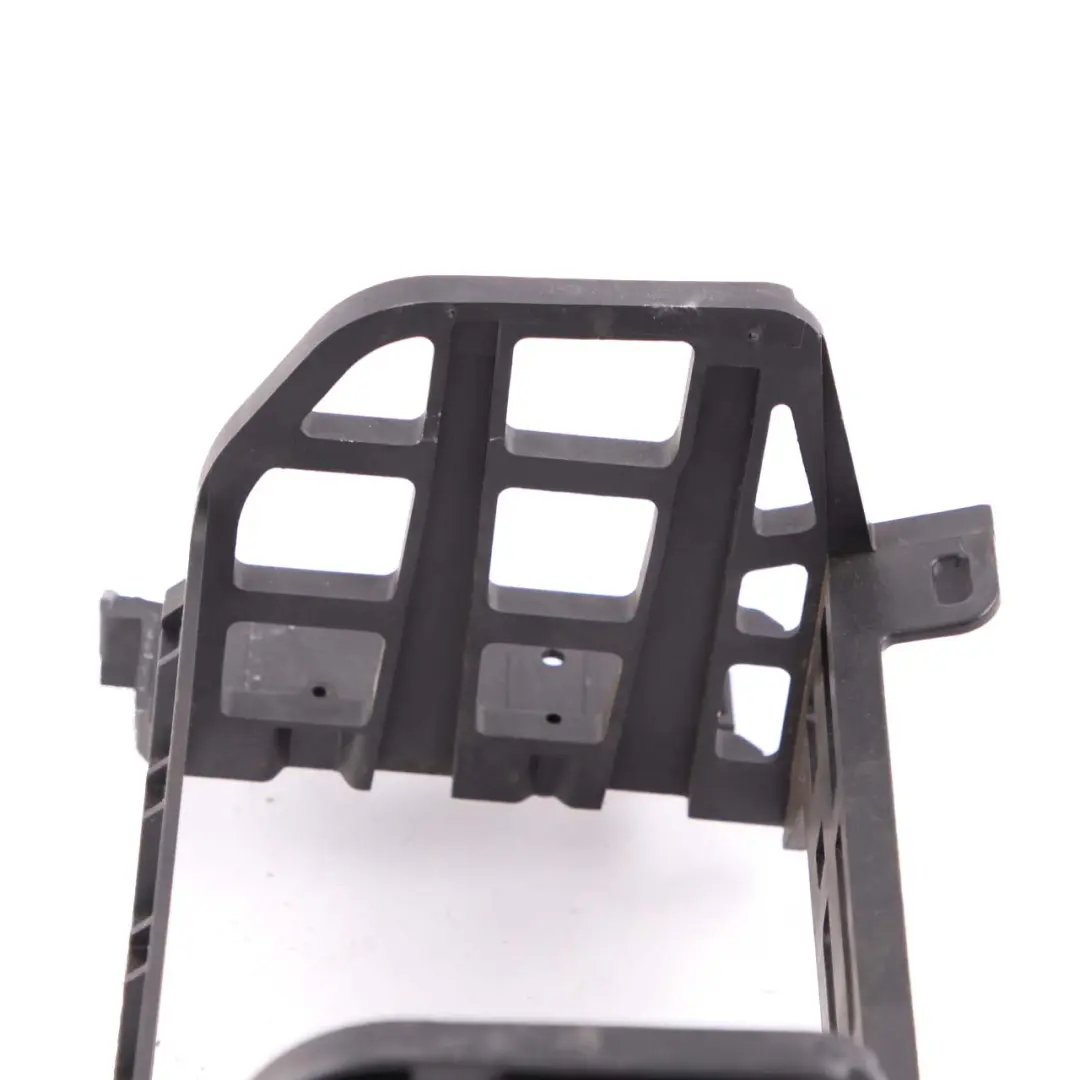

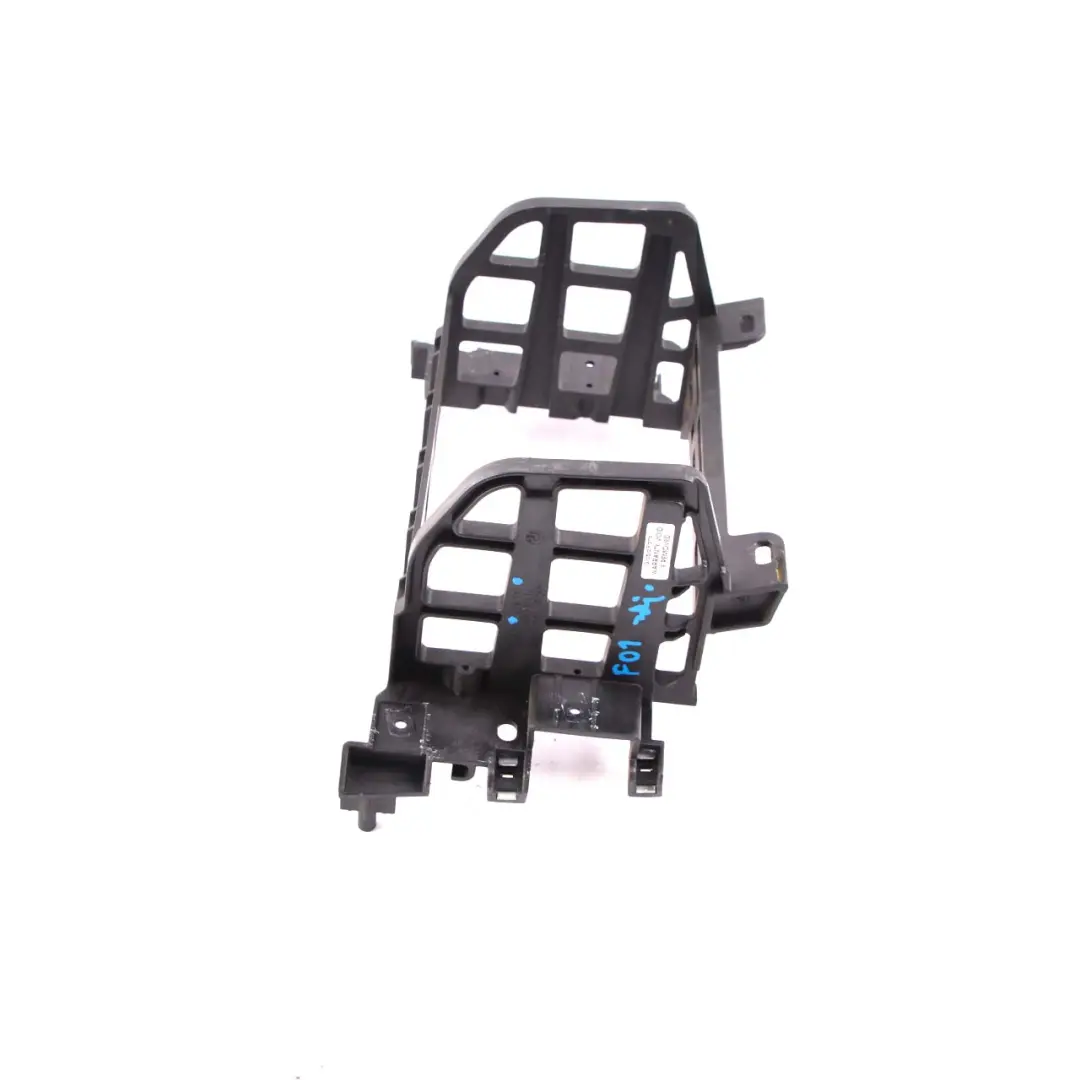

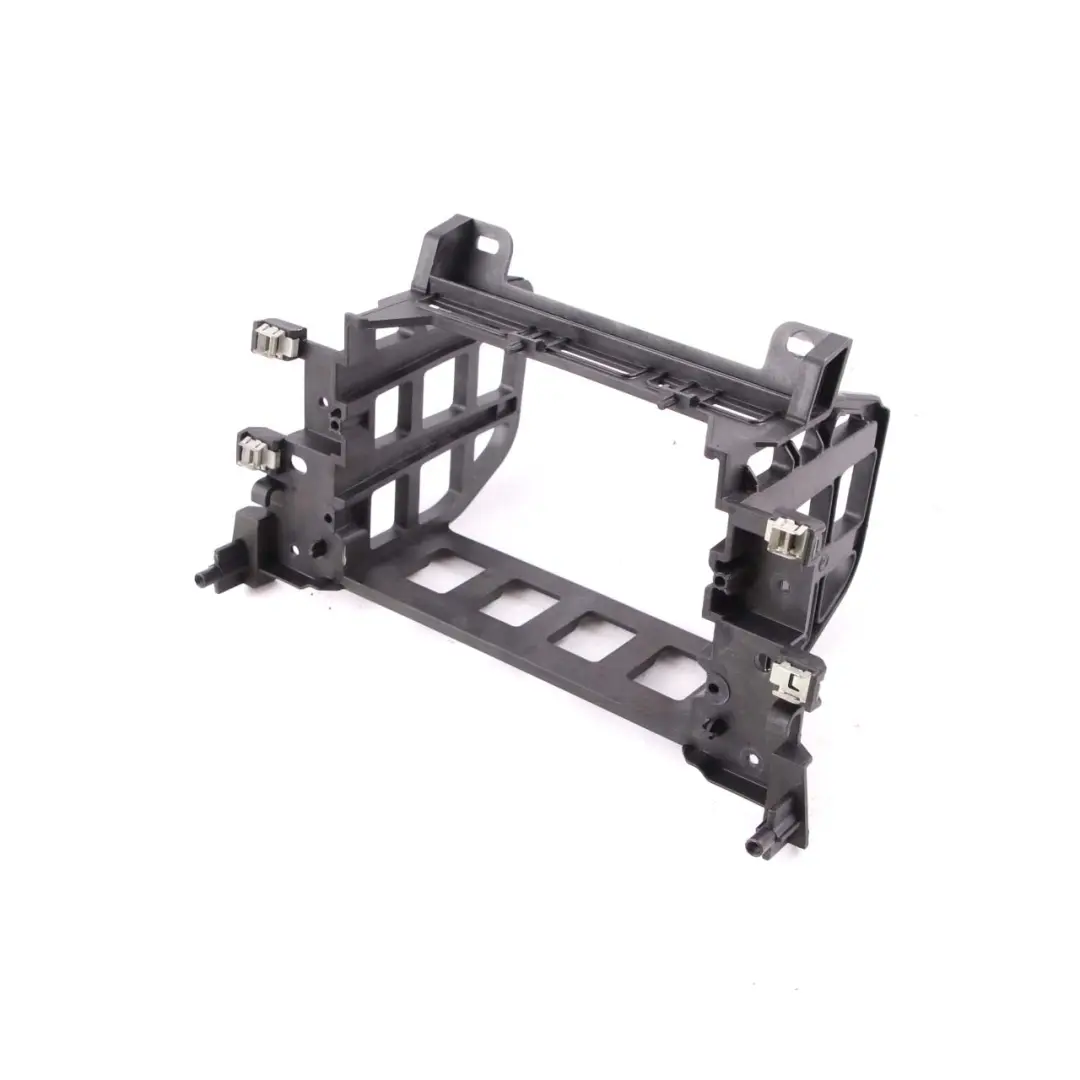

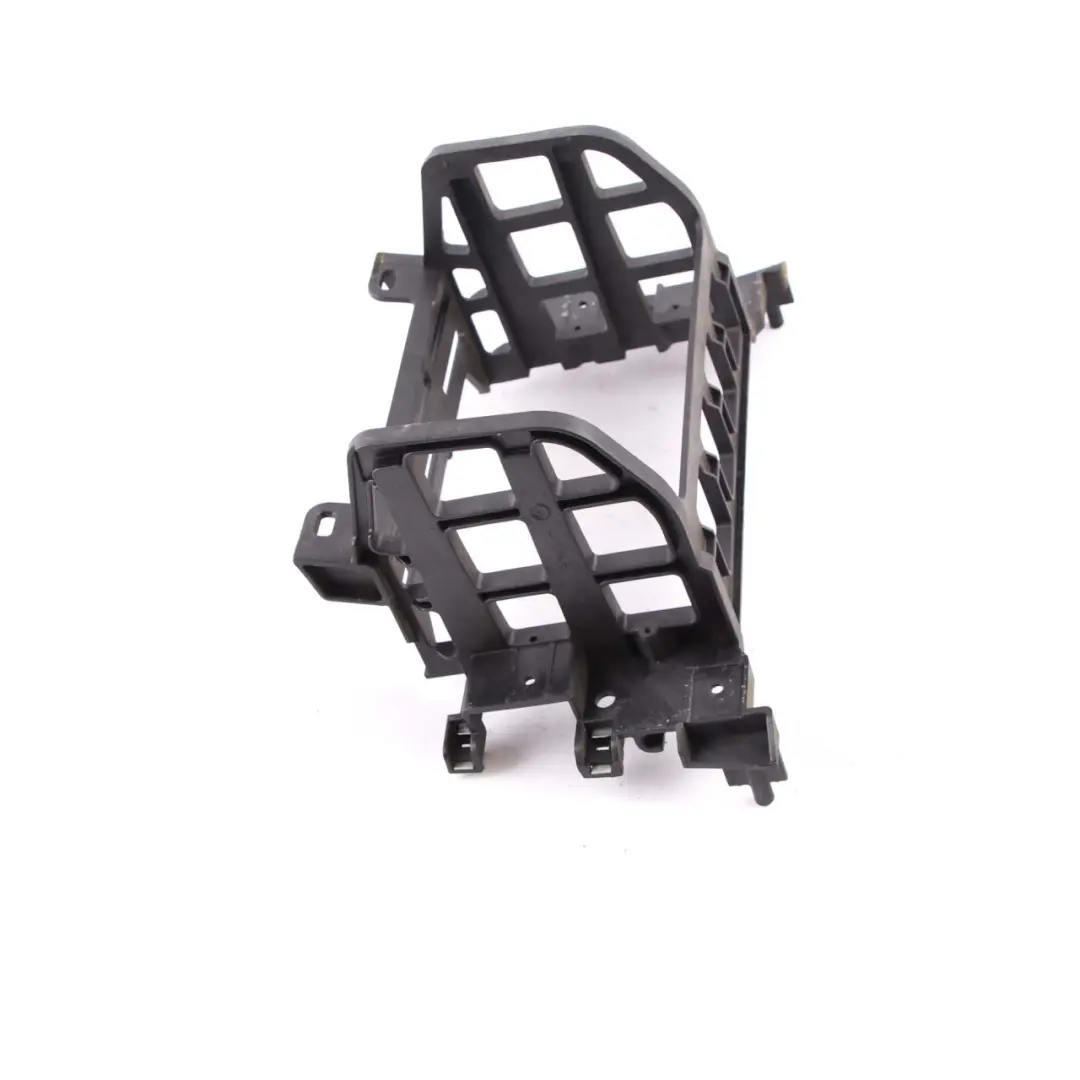

Instrument Carrier BMW F01 F02 F03 Instrument Panel Holder Bracket 9112139

The BMW F01/F02/F03 Dashboard Gauge Holder is a precisely designed carrier for the instrument cluster, intended for installation in the front part of the cockpit. The original BMW design ensures stable seating of the gauge panel, correct mounting alignment, and a secure connection with the structural elements of the dashboard. Consequently, this instrument panel frame provides a solid base for professional repair or replacement of the factory holder.

Specifications and technical data

• SKU: 9112139
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9112139
• Substitutable numbers: 51459112139, 9112139, EM
• Location on the vehicle: Front
• Category: Other Interior Parts & Accessories

Purpose and Function in BMW 7 Series F01/F02/F03

The Instrument Carrier for BMW 7 Series F01, F02, and F03 serves as a structural support for the instrument cluster in the front of the vehicle. It is responsible for:

• Stable mounting of the instrument panel in the dashboard area,
• Proper positioning of the speedometer relative to the driver,
• Maintaining the geometry of the mounts during cockpit disassembly and reassembly,
• Reducing vibrations and unwanted play around the instrument cluster.

By preserving the original holder geometry, precise alignment of the speedometer with the covers and other interior elements is possible, leading to a professional repair outcome.

Construction and Mounting Fit

The instrument panel frame is specifically designed for the cockpit architecture of the BMW F01/F02/F03, taking into account the dashboard shape and the location of factory mounting points. The holder's design allows for:

• Installation in the front zone of the vehicle without altering the body's supporting structure,
• Use of original screws and clips provided by the manufacturer,
• Maintaining the correct alignment axis of the speedometer relative to the steering column,
• Easier disassembly and reassembly of the instrument cluster during service work.

Such a fit minimizes the risk of stress, plastic creaking, or speedometer misalignment, which is particularly important for the precise installation of premium interior components.

Application in Cockpit Repairs and Upgrades

The BMW F01/F02/F03 Dashboard Gauge Holder is suitable for both standard replacement of a damaged support and more extensive cockpit work. It can be used for, among other things:

• Repairs after collisions in the front interior,
• Dashboard replacement or refurbishment,
• Swapping cockpit components between vehicles of the same generation,
• Instrument cluster service requiring the removal of the factory holder.

By maintaining the original carrier design, the overall mounting integrity of the instrument cluster can be preserved, facilitating the work of workshops specializing in the BMW brand.

Characteristics of a Used Part

The presented gauge holder is a used part, which means it comes from a dismantled vehicle and may show signs of wear typical for this category of parts. This type of component is often chosen as an economical and original-compliant solution for interior repairs, allowing the factory construction to be maintained without the need for aftermarket alternatives with uncertain fit.
