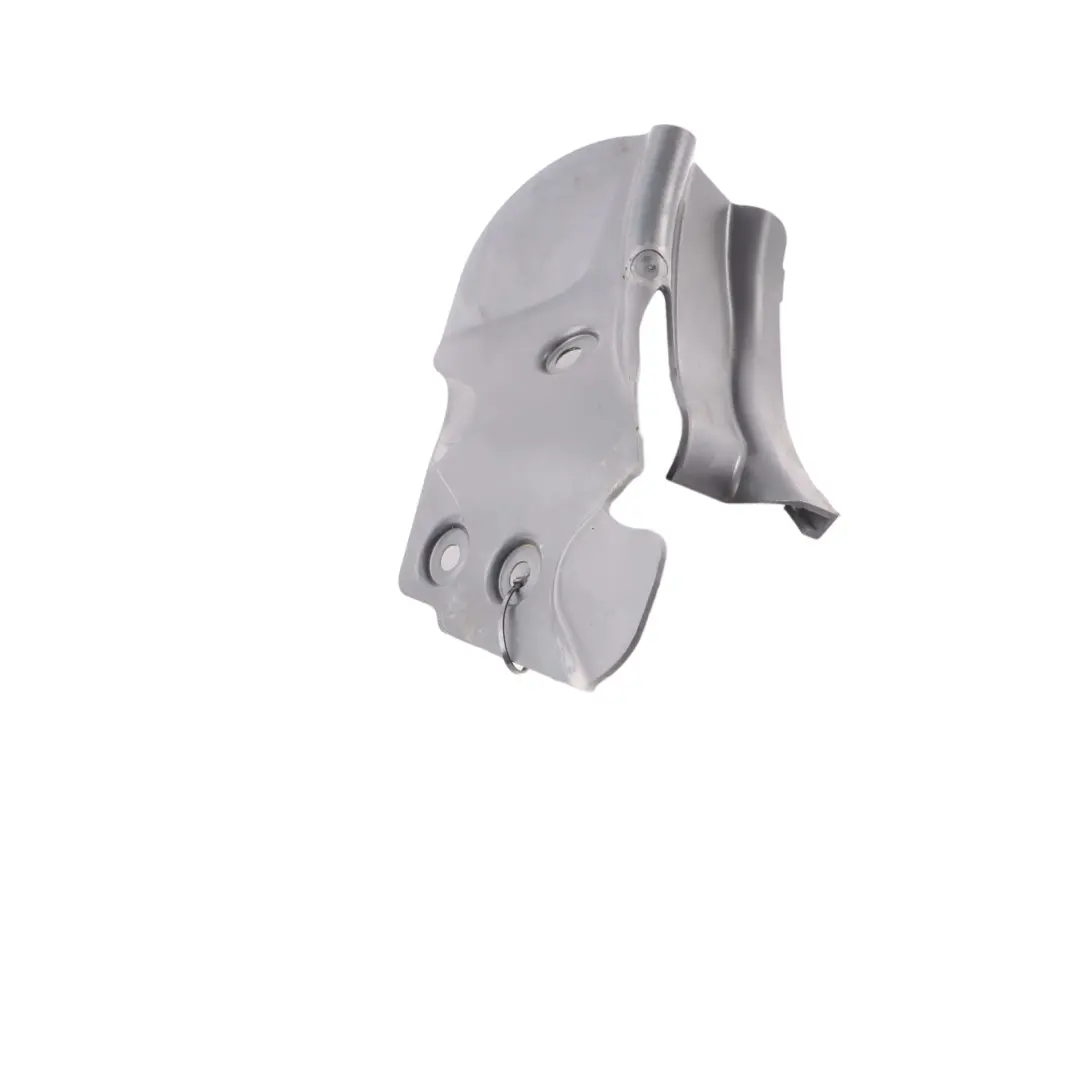

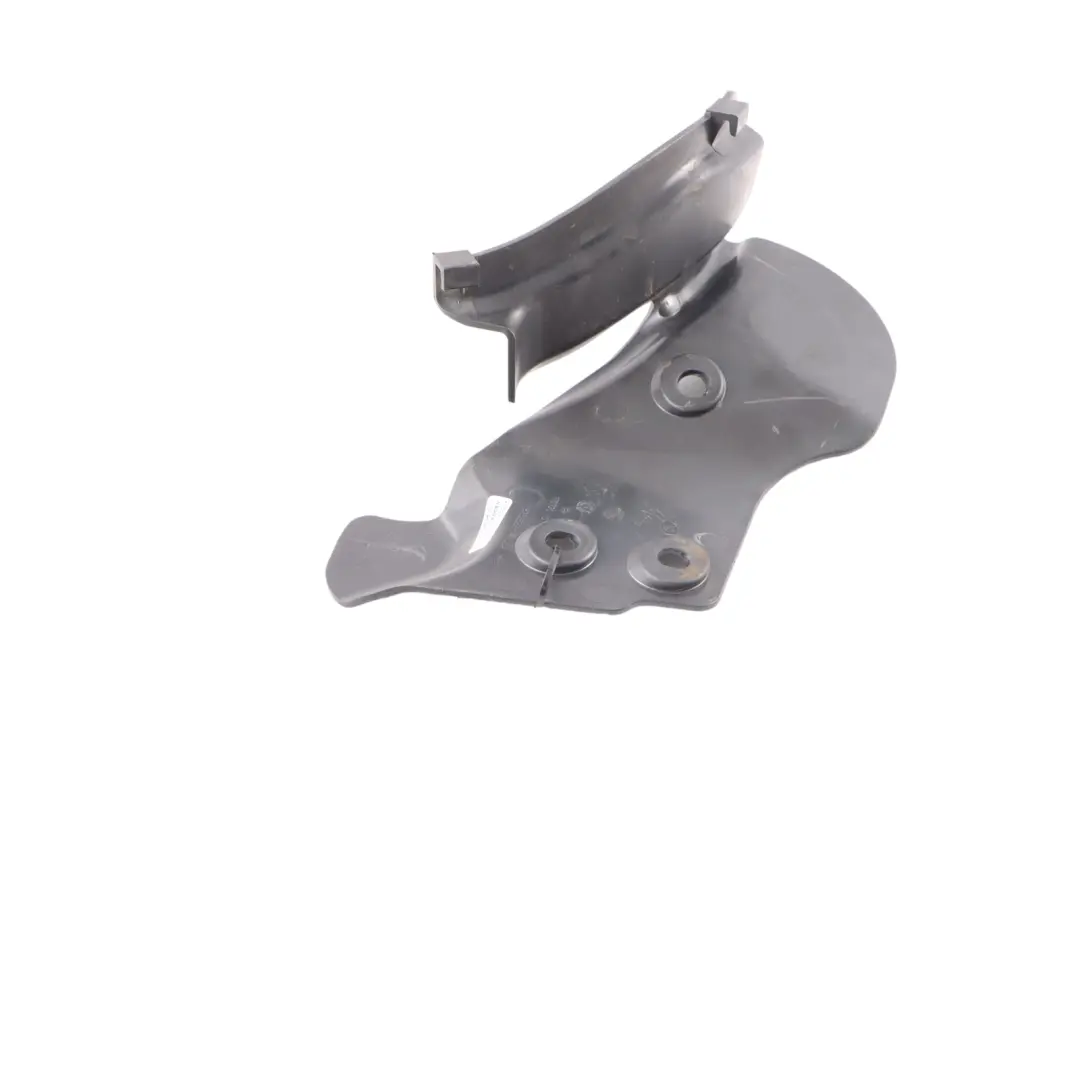

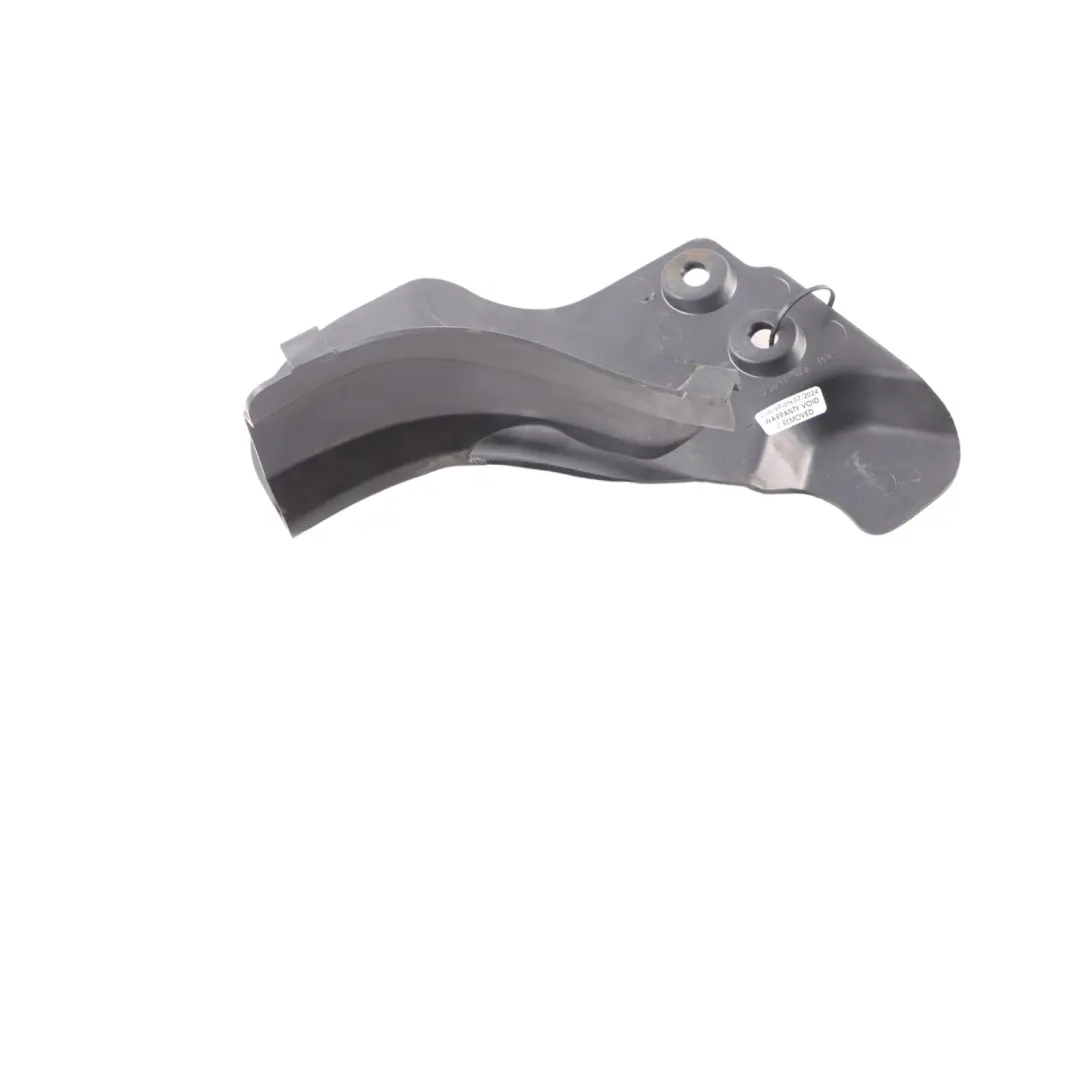

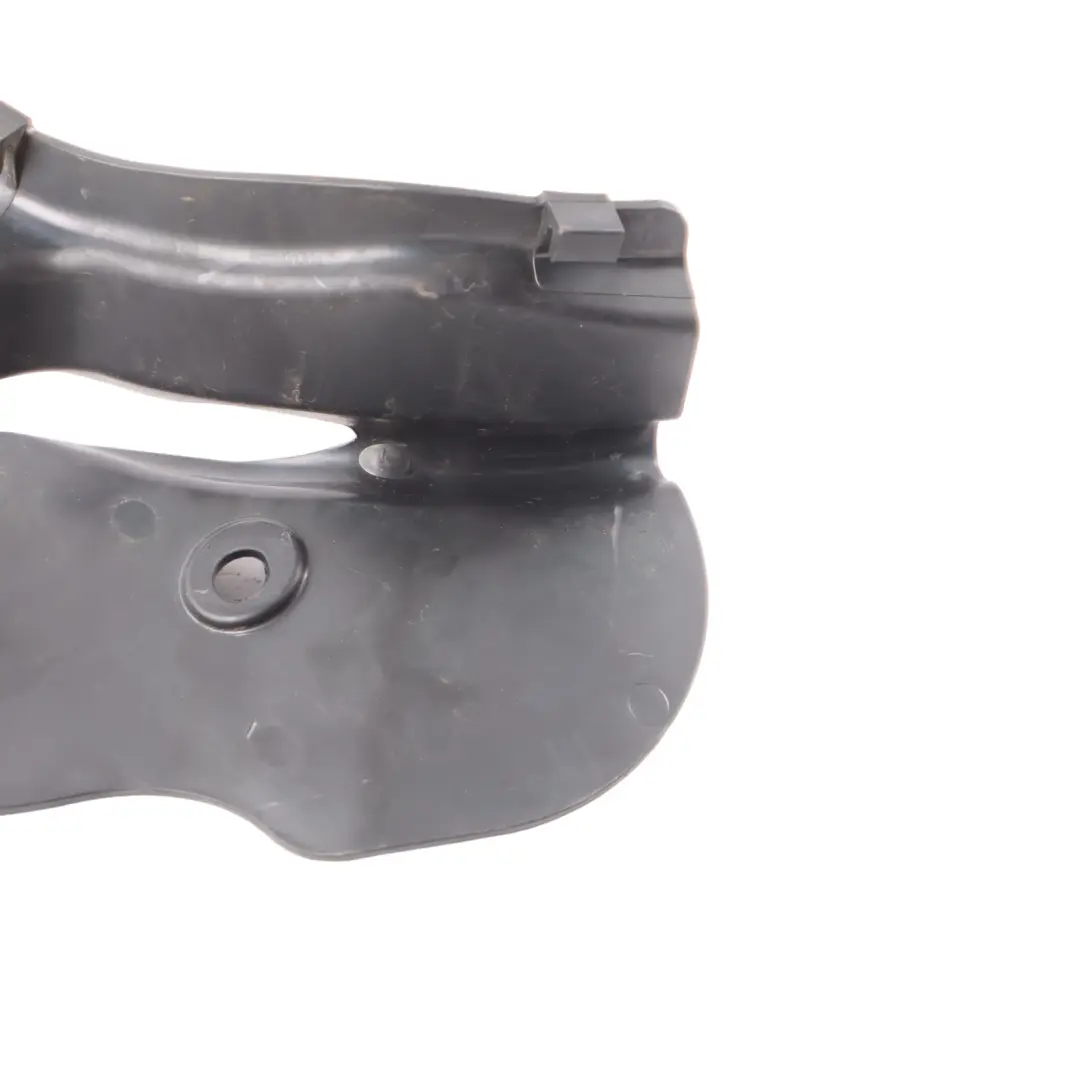

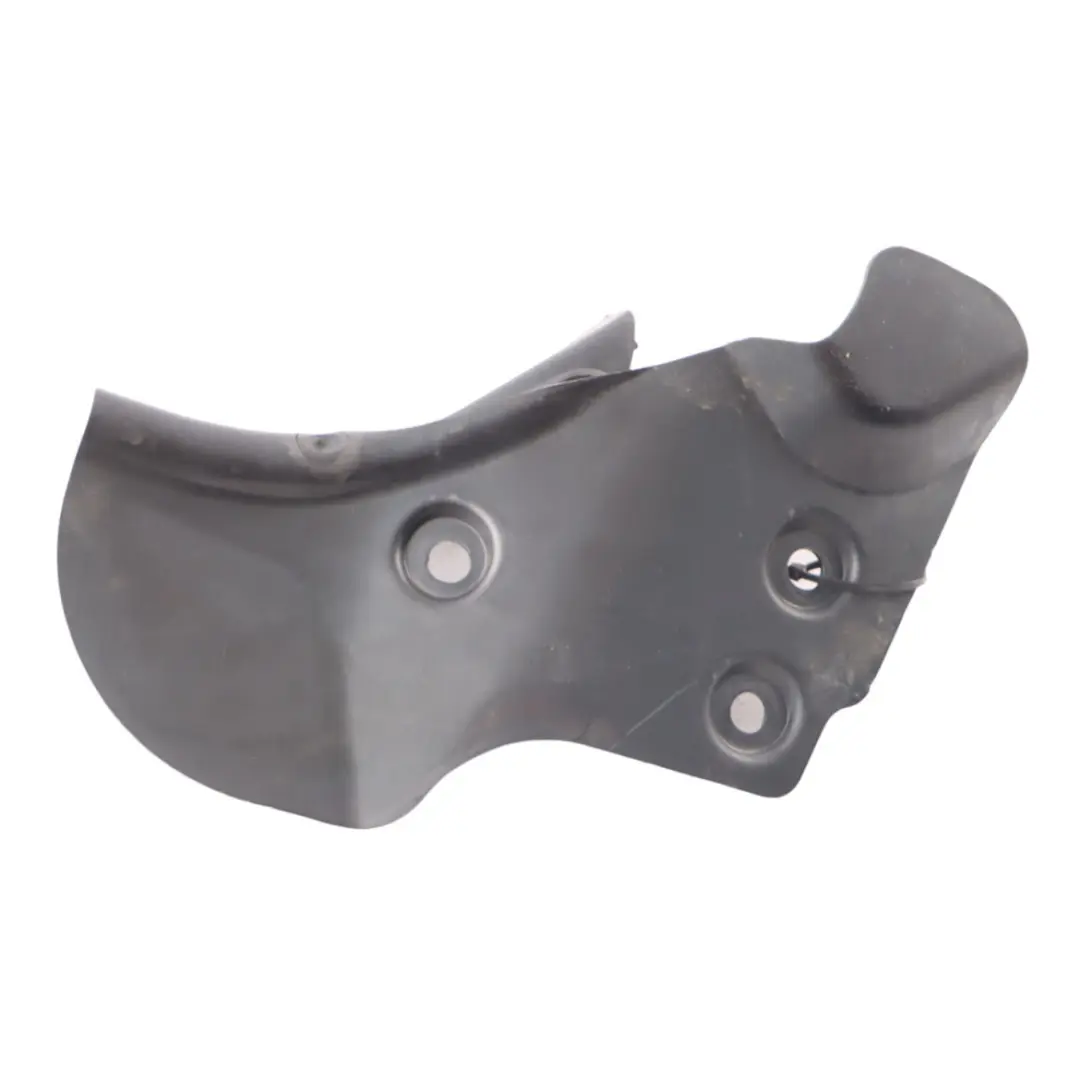

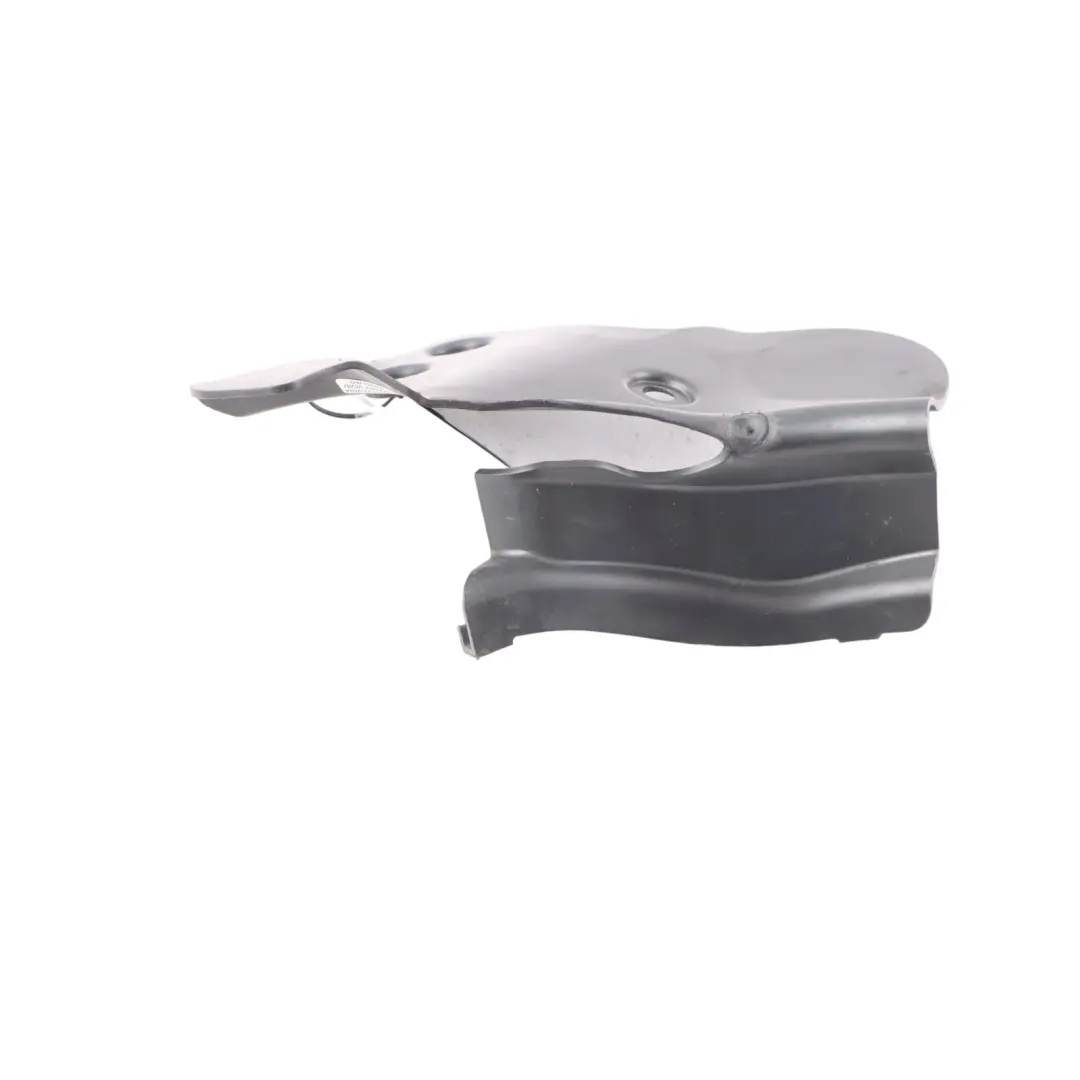

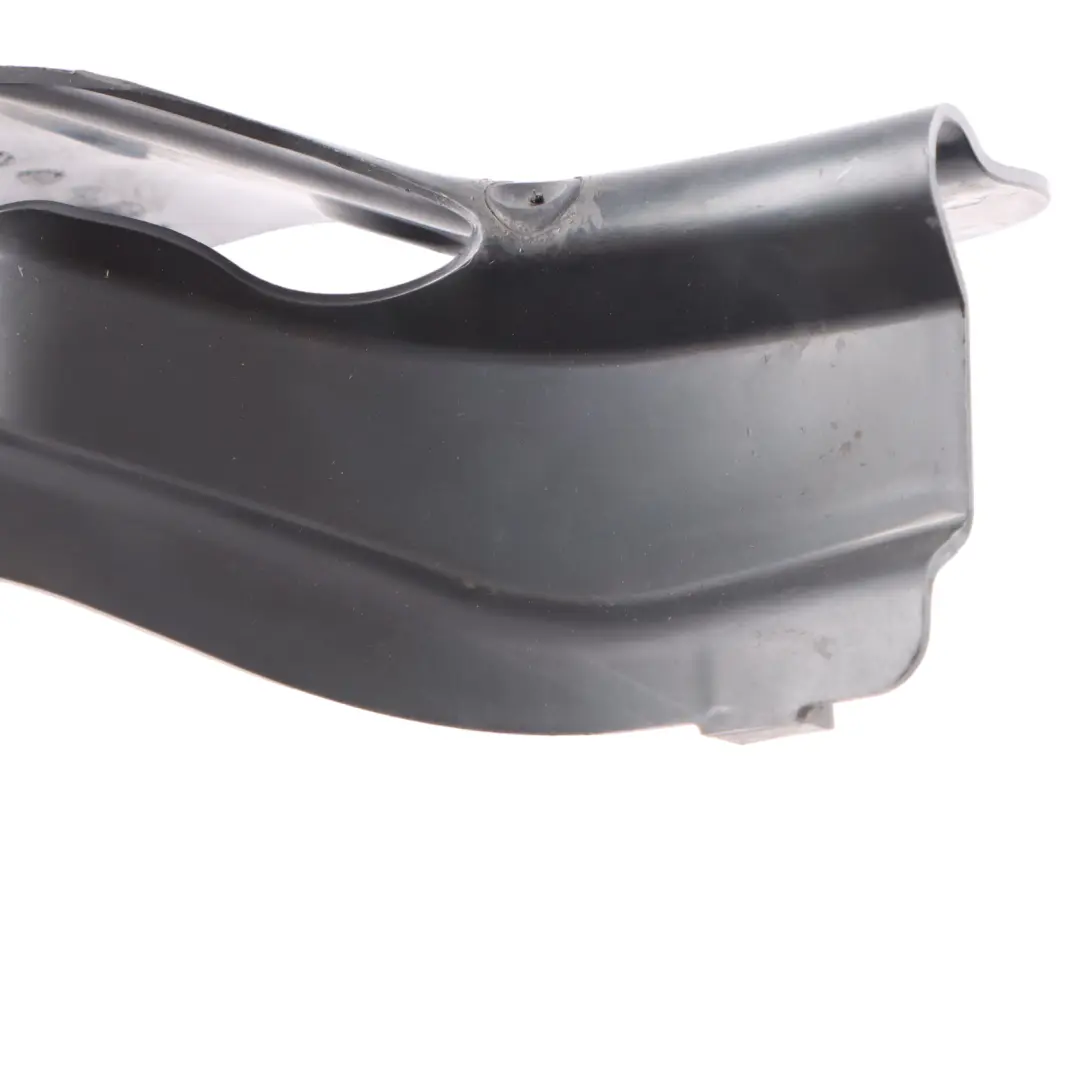

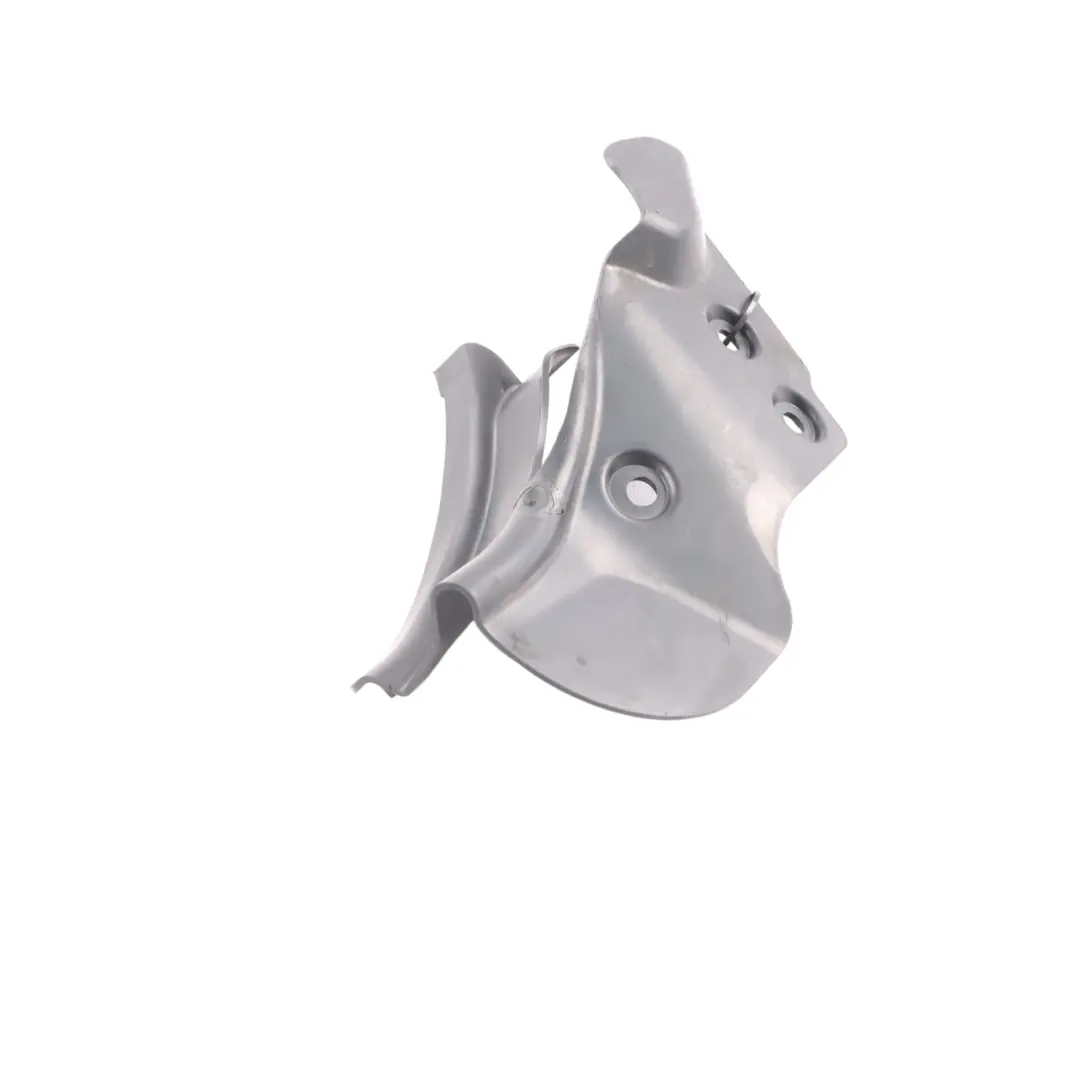

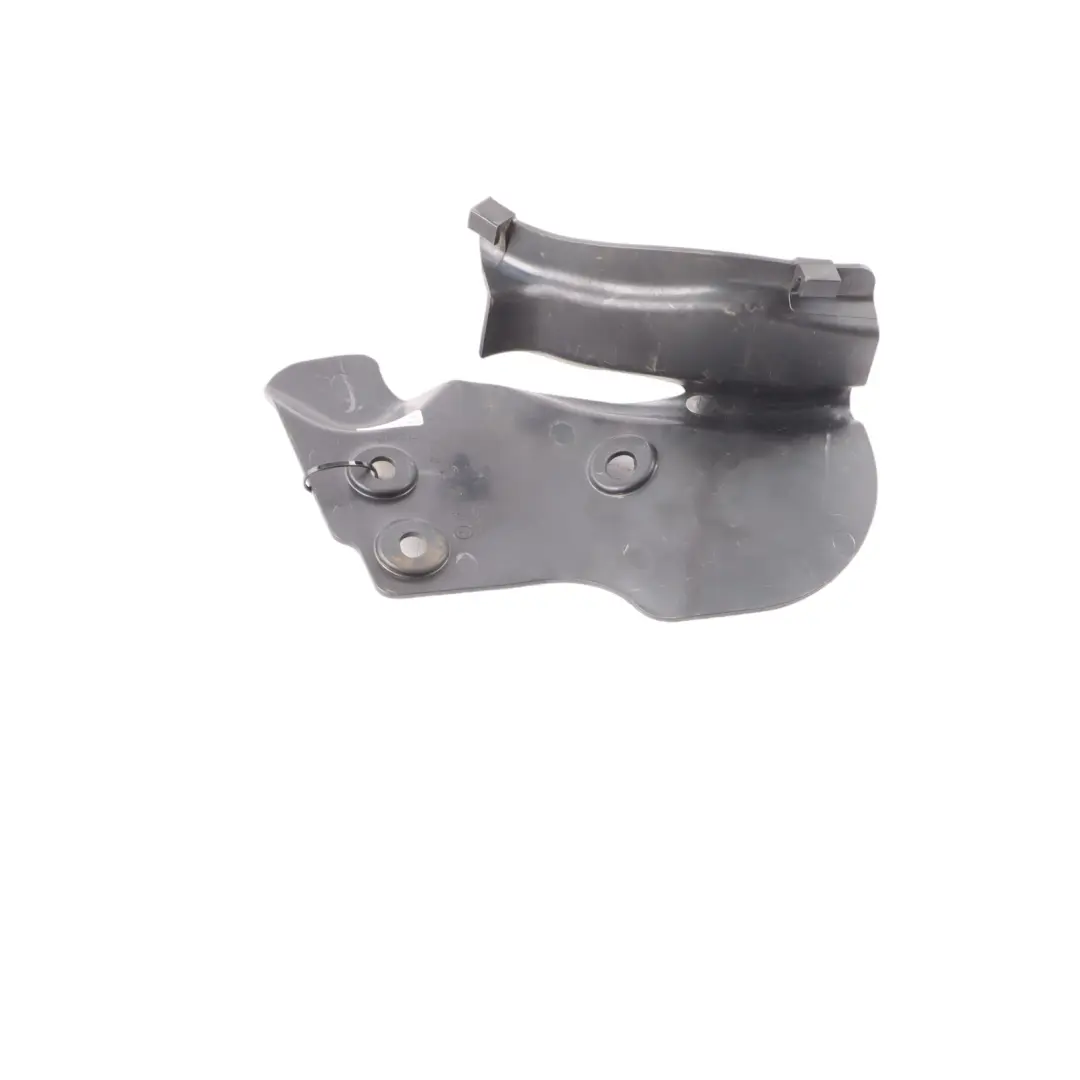

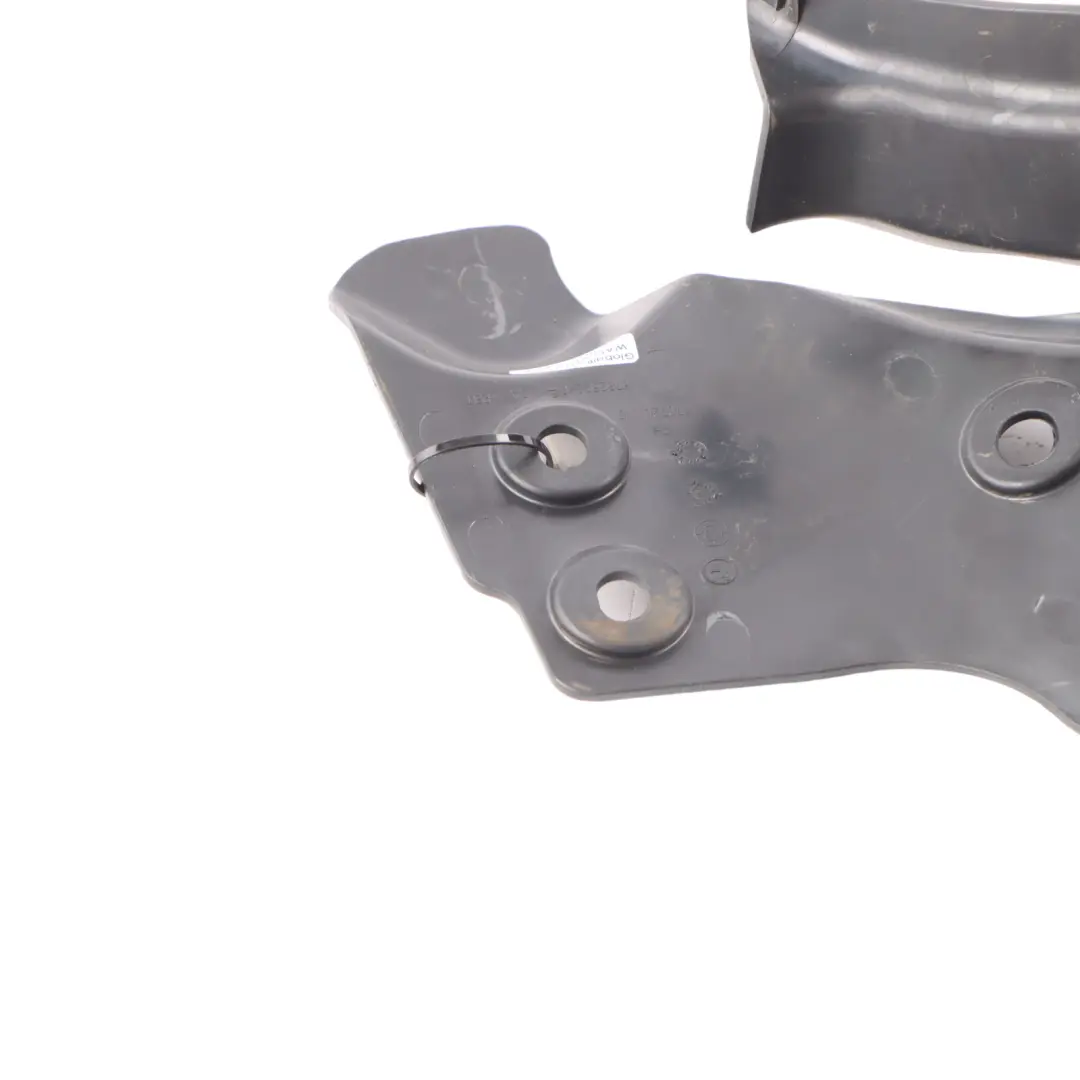

BMW F15 F16 E70 Subframe Stone Chip Cover Panel Trim Right O/S 6782522

The Right Rear Subframe Underbody Shield for BMW F15 F16 E70 is an original body part designed to protect the undercarriage from stone impacts and debris. Thanks to its factory fit for specific BMW models, it ensures stable mounting and proper airflow and dirt management in the rear suspension area. This is a practical solution for users who want to maintain the undercarriage structure in good operational condition.

Specifications and technical data

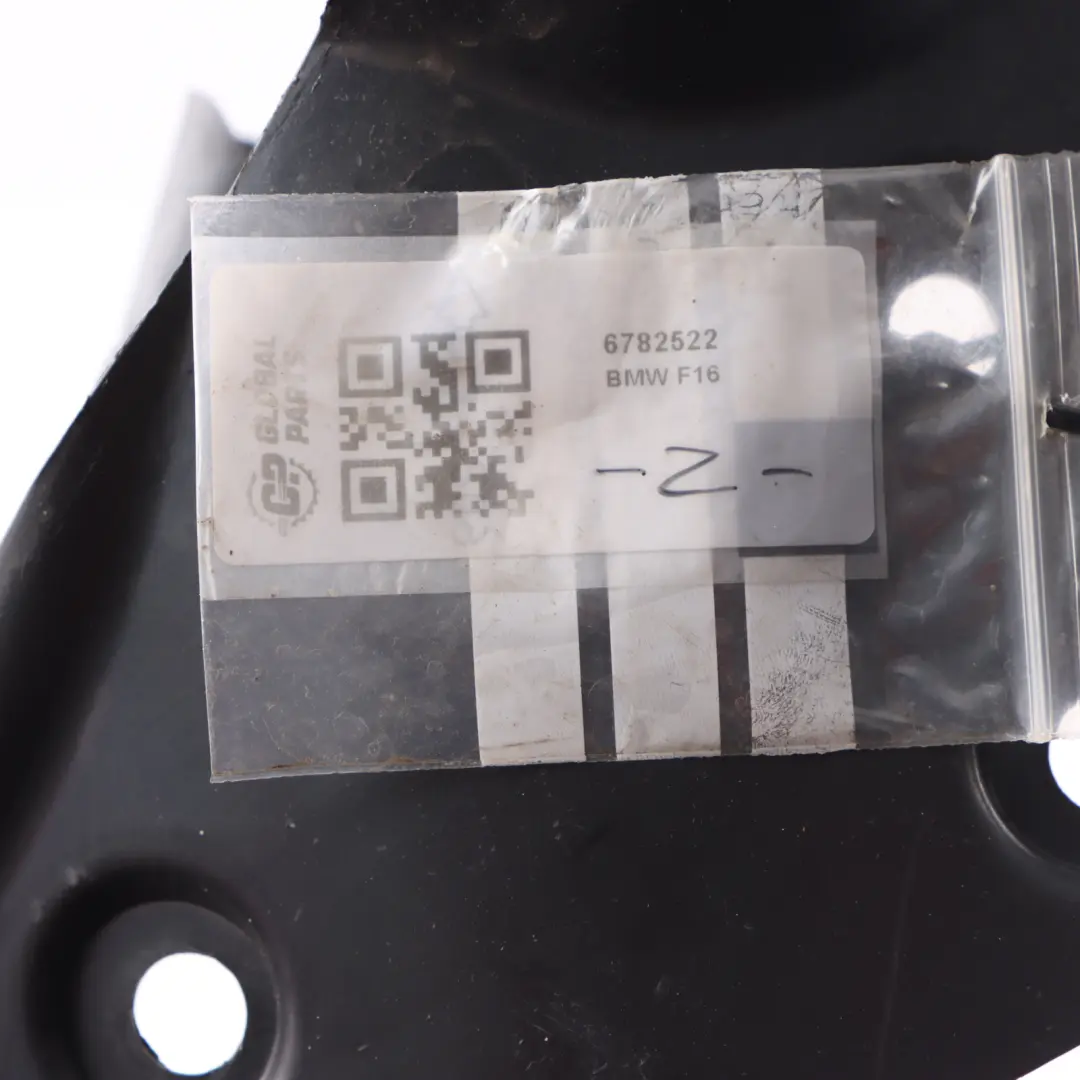

• SKU: 6782522
• Mark: BMW (Genuine OE)
• Condition: Used

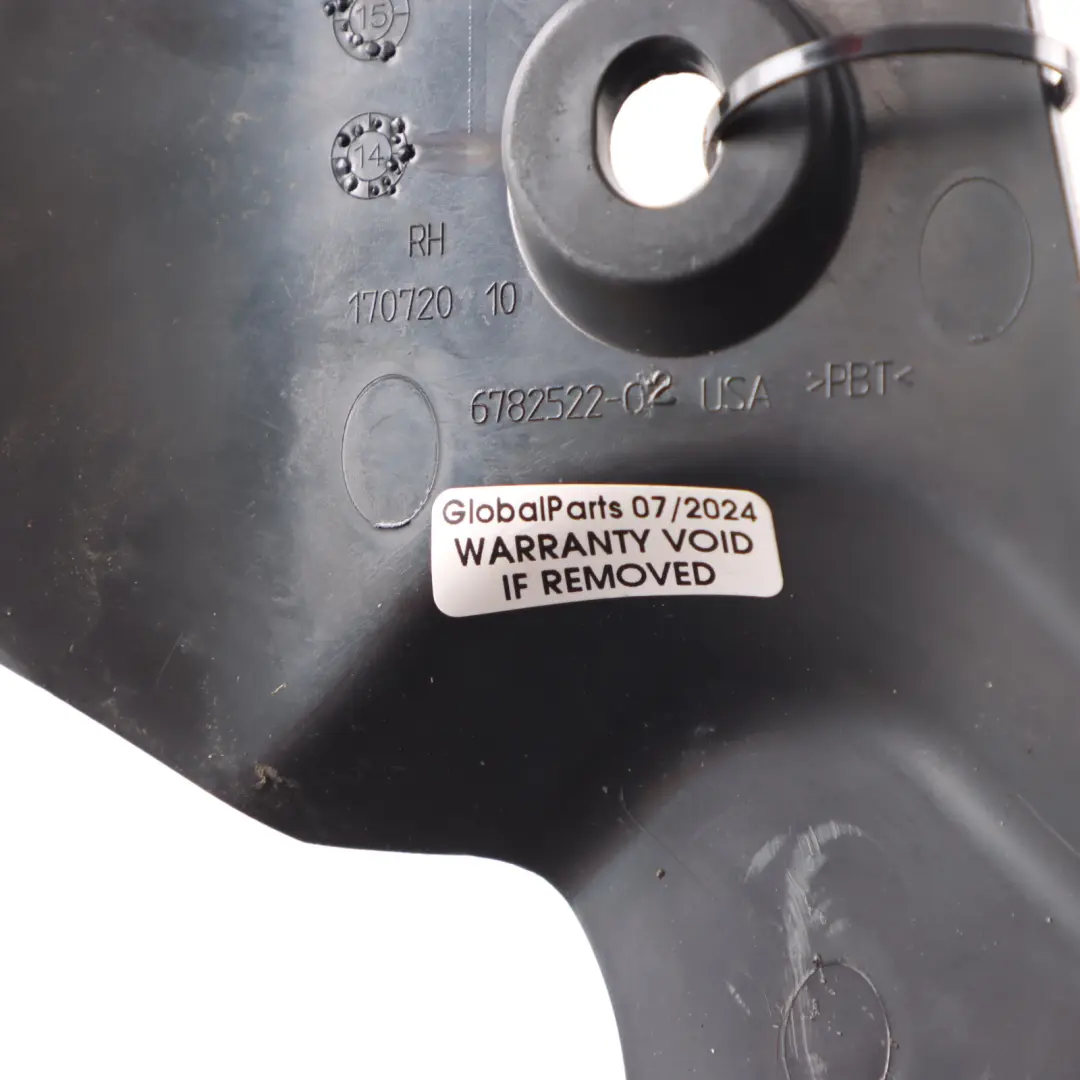

• OEM Part Number: 6782522
• Substitutable numbers: 6782522, 33316782522
• Location on the vehicle: Right
• Category: Other Exterior Parts & Accessories

Purpose and Function of the Part

The shield presented is intended for installation on the right side of the vehicle in the rear subframe area for BMW models F15, F16, and E70. Its purpose is to:

• limit direct contact of stones, gravel, and mud with the undercarriage structural components,
• protect critical suspension mounting points from excessive dirt,
• assist in maintaining appropriate working conditions for metal and rubber components in the rear subframe zone.

Thanks to its precise fit to the specific BMW undercarriage geometry, the shield helps maintain aerodynamic consistency and order in the rear suspension area, facilitating subsequent inspections and servicing.

Construction and Fit for BMW

The subframe under-shield is designed as an original BMW part, meaning its shape, mounting points, and material thickness are consistent with the manufacturer's factory specifications. In practice, this translates to:

• secure, repeatable fit to factory mounting holes,
• no need for modifications or adjustments during installation,
• preservation of the original undercarriage protection concept when replacing a damaged shield.

The part is structurally prepared to operate in demanding road conditions typical for BMW SUVs, where the undercarriage is exposed to frequent contact with loose road material.

Application in Service and Repairs

The right-side subframe shield is particularly useful in situations where the existing part has suffered mechanical damage, cracked, or been lost during operation. Replacing it with an original shield allows for:

• restoring the factory level of rear subframe protection,
• limiting the accumulation of mud and road salt around suspension mounts,
• maintaining clear service access to undercarriage components during inspections.

This is a practical solution for both workshops specializing in the BMW brand and for users who independently maintain their vehicle's undercarriage.

Condition and Origin of the Part

The offered shield is a used part, sourced from disassembly, which allows for maintaining compliance with original BMW specifications while optimizing repair costs. A part of this type is particularly attractive for accident repairs or for restoring a vehicle to full functionality after operation in challenging road conditions.

Compatibility and Part Selection

Due to the specific fit for the rear subframe construction in BMW F15, F16, and E70, it is advisable to verify the shield's compatibility with your specific model, year, and body version before purchasing. Comparing the shape and mounting points with the currently installed part or service documentation can be helpful. A correctly selected shield will ensure quick installation and restoration of full undercarriage protection.
