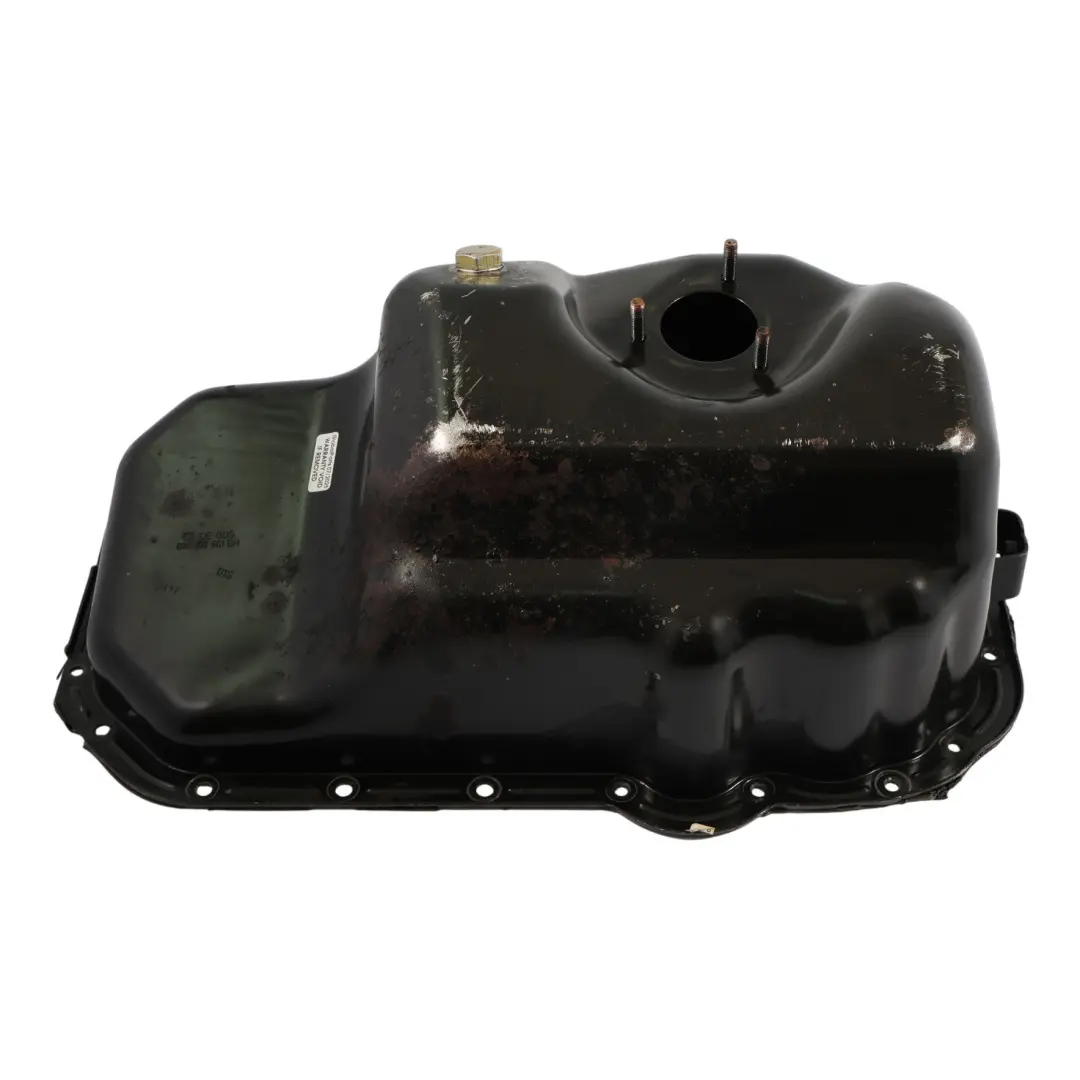

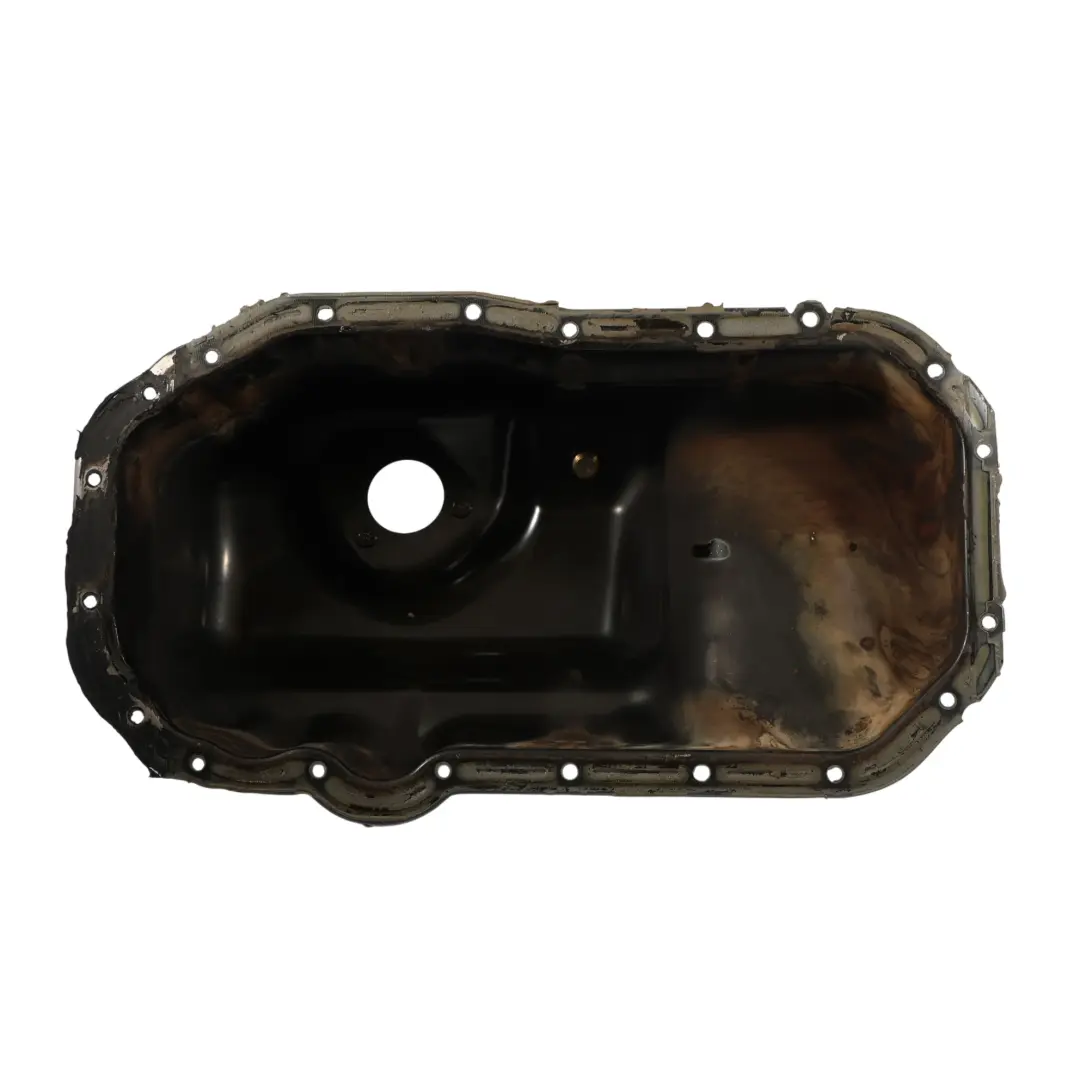

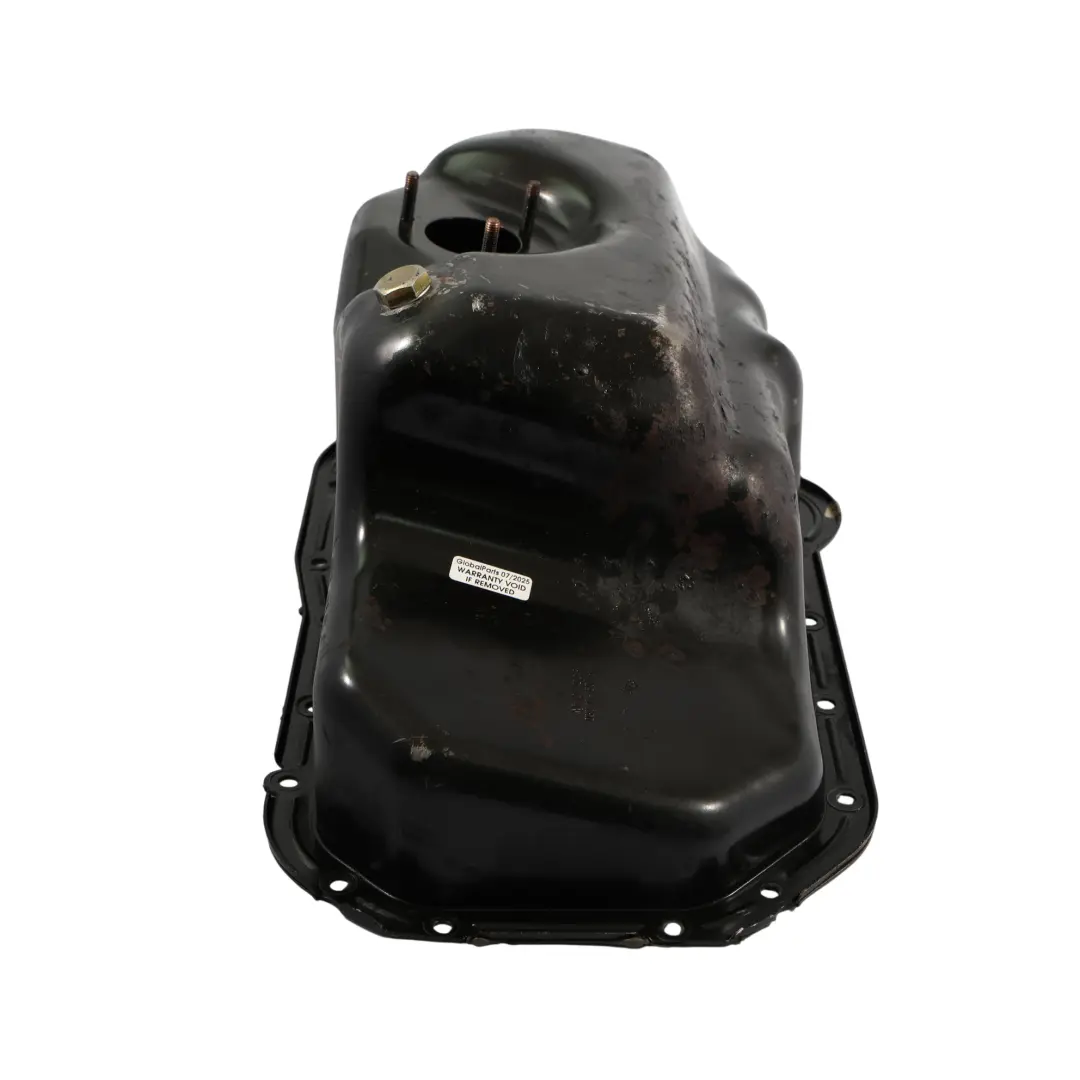

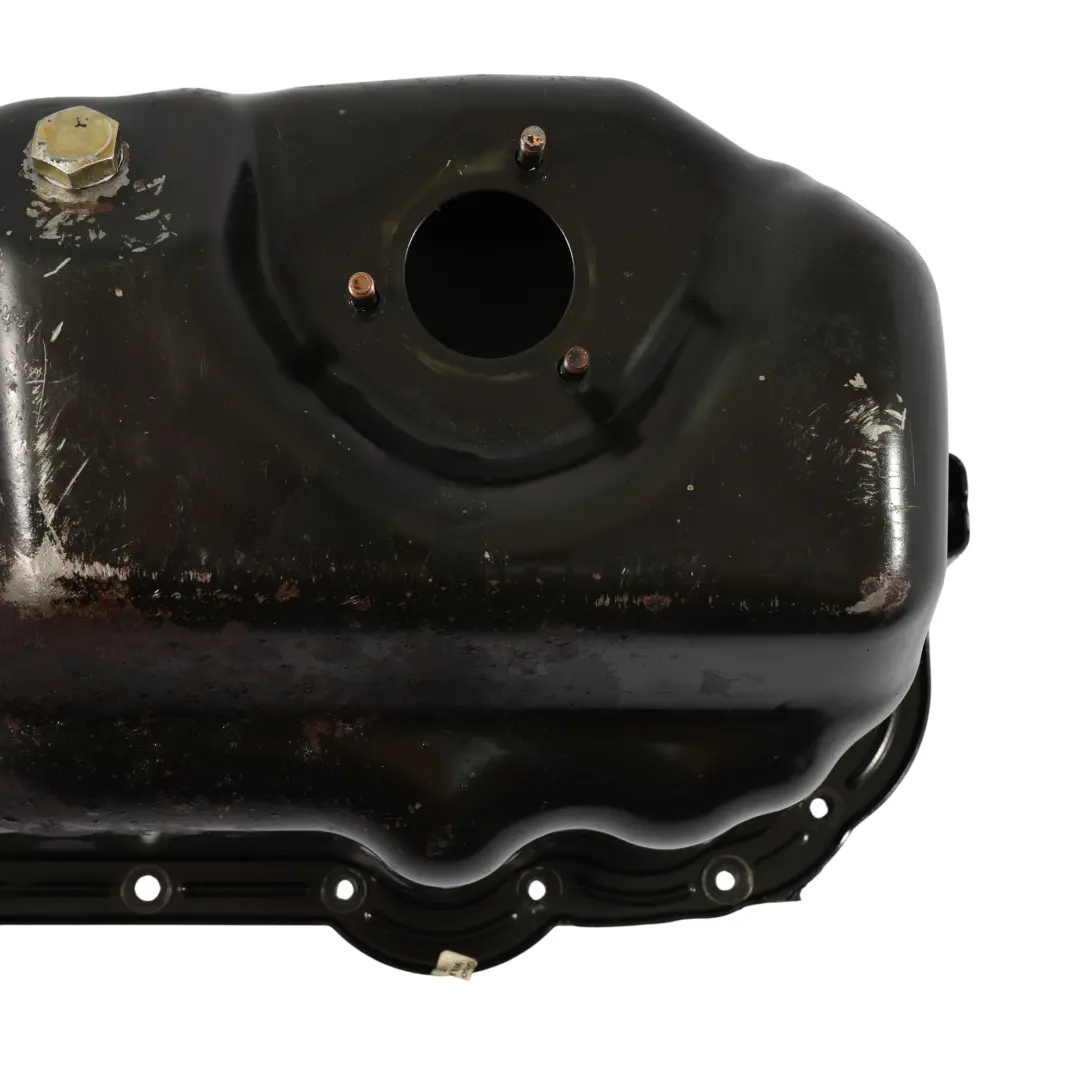

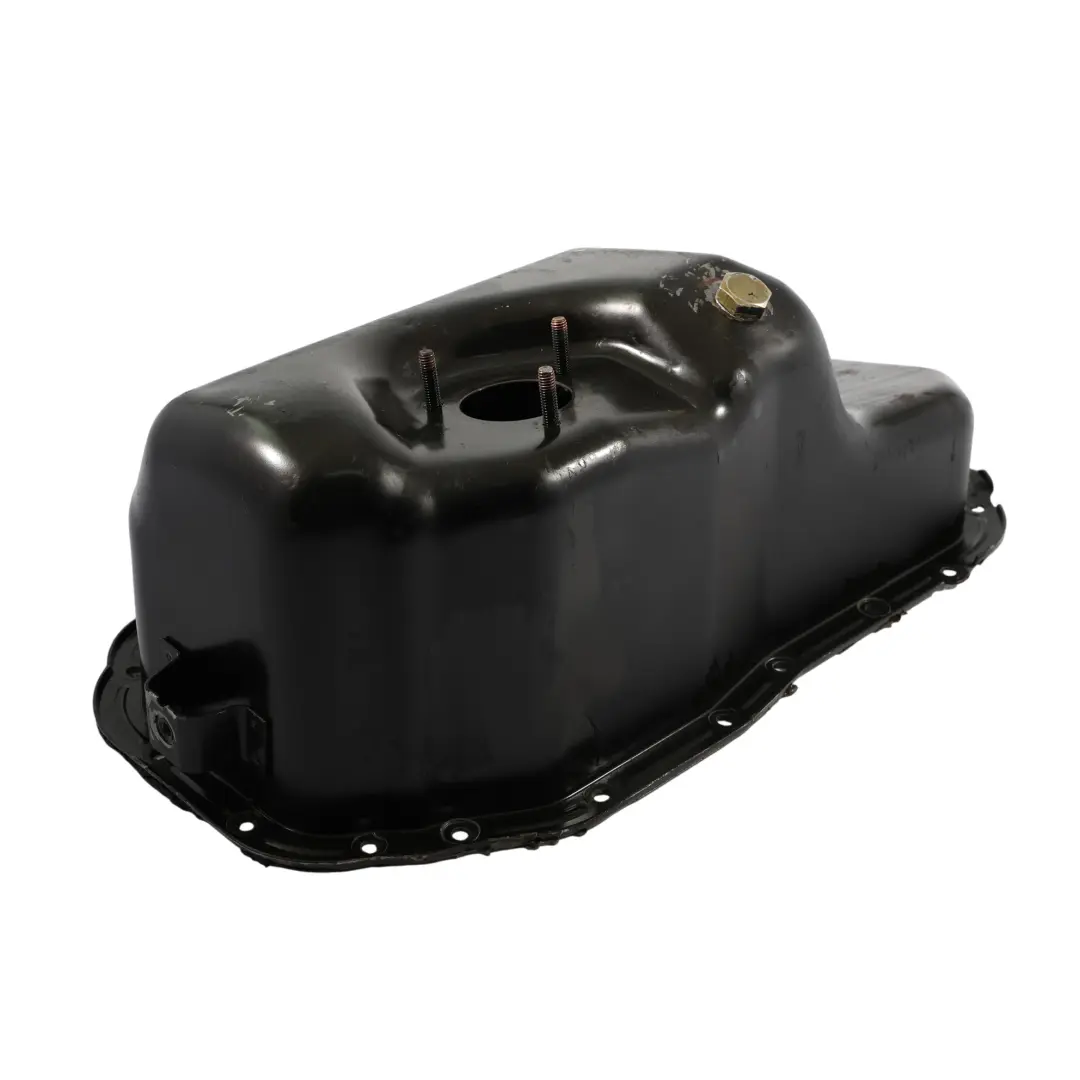

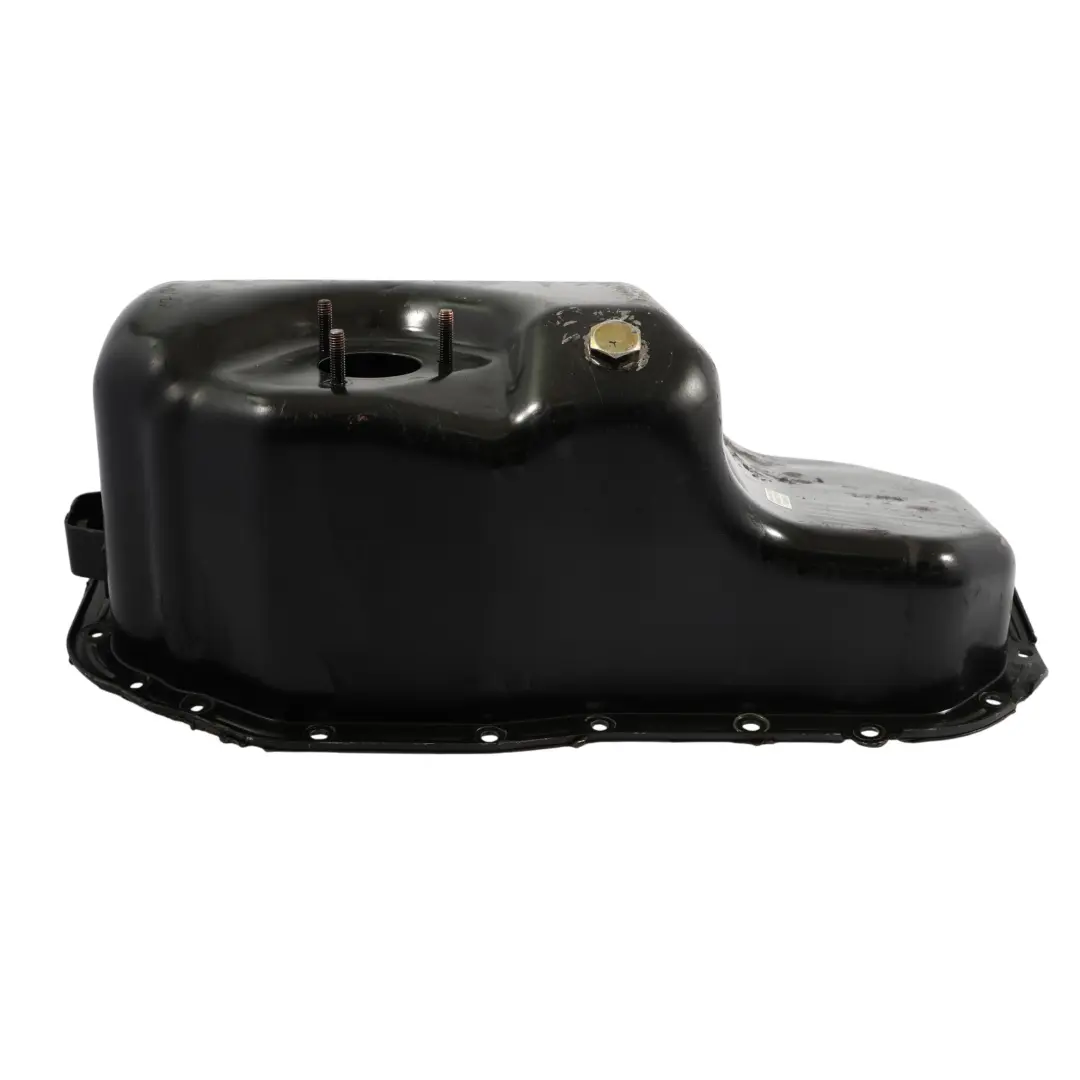

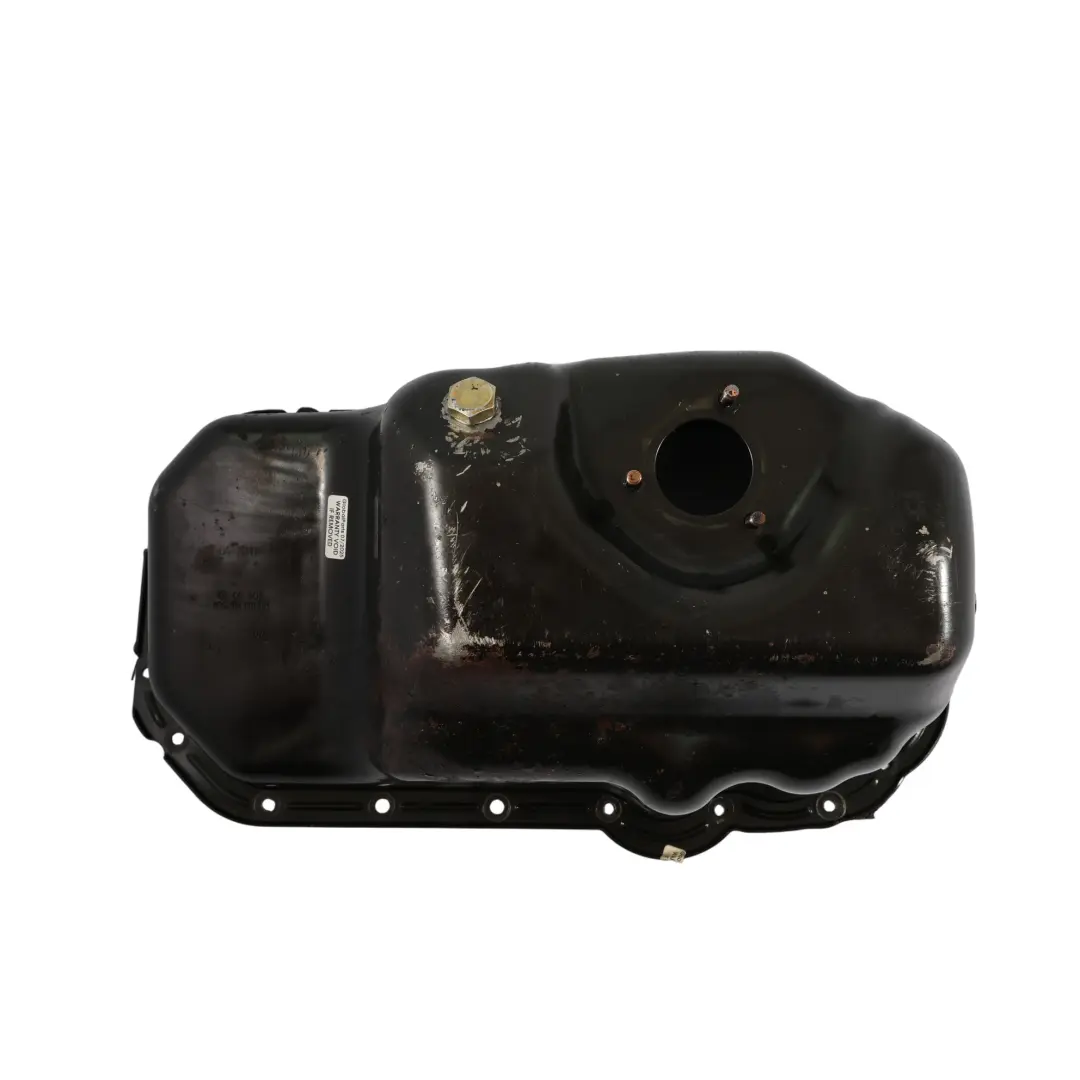

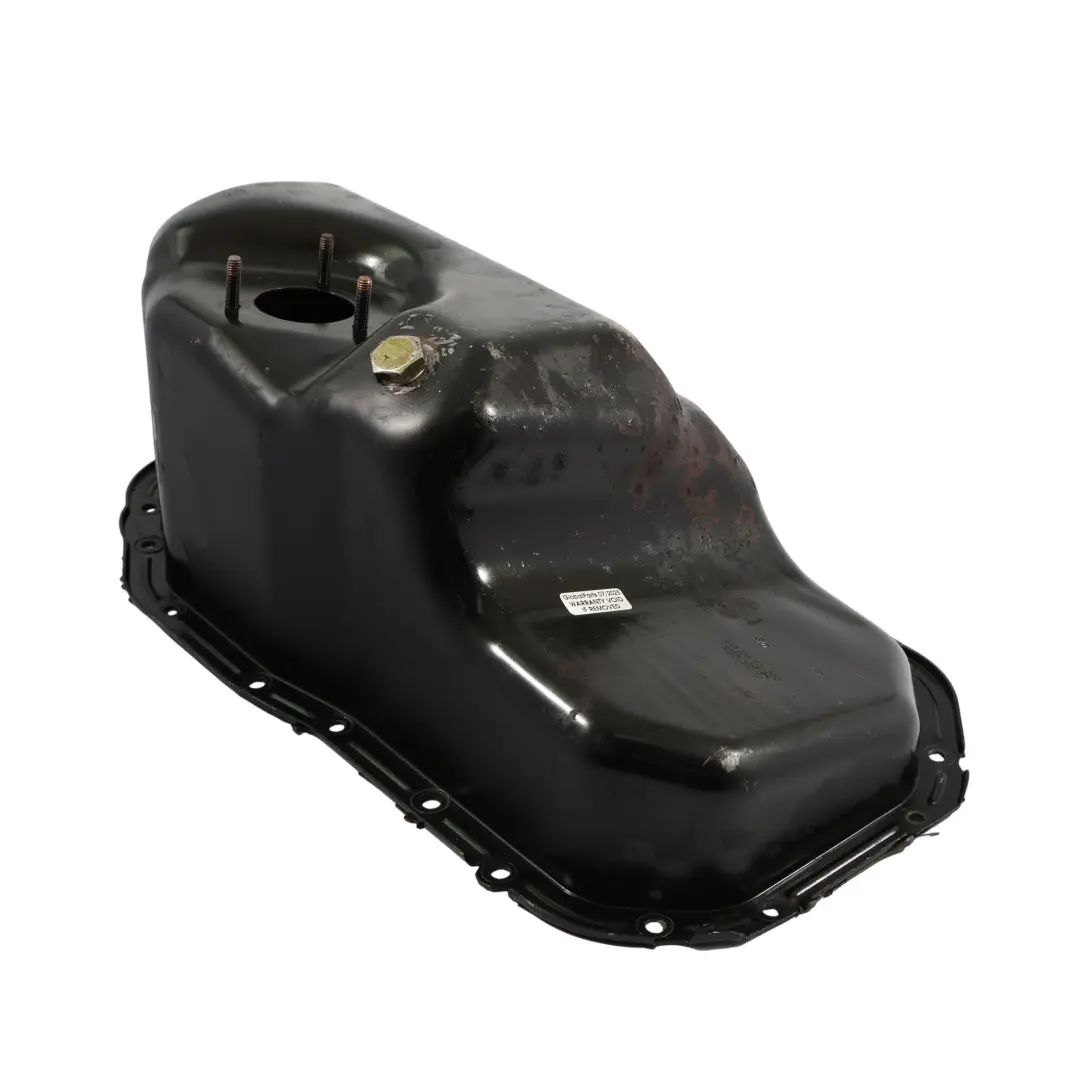

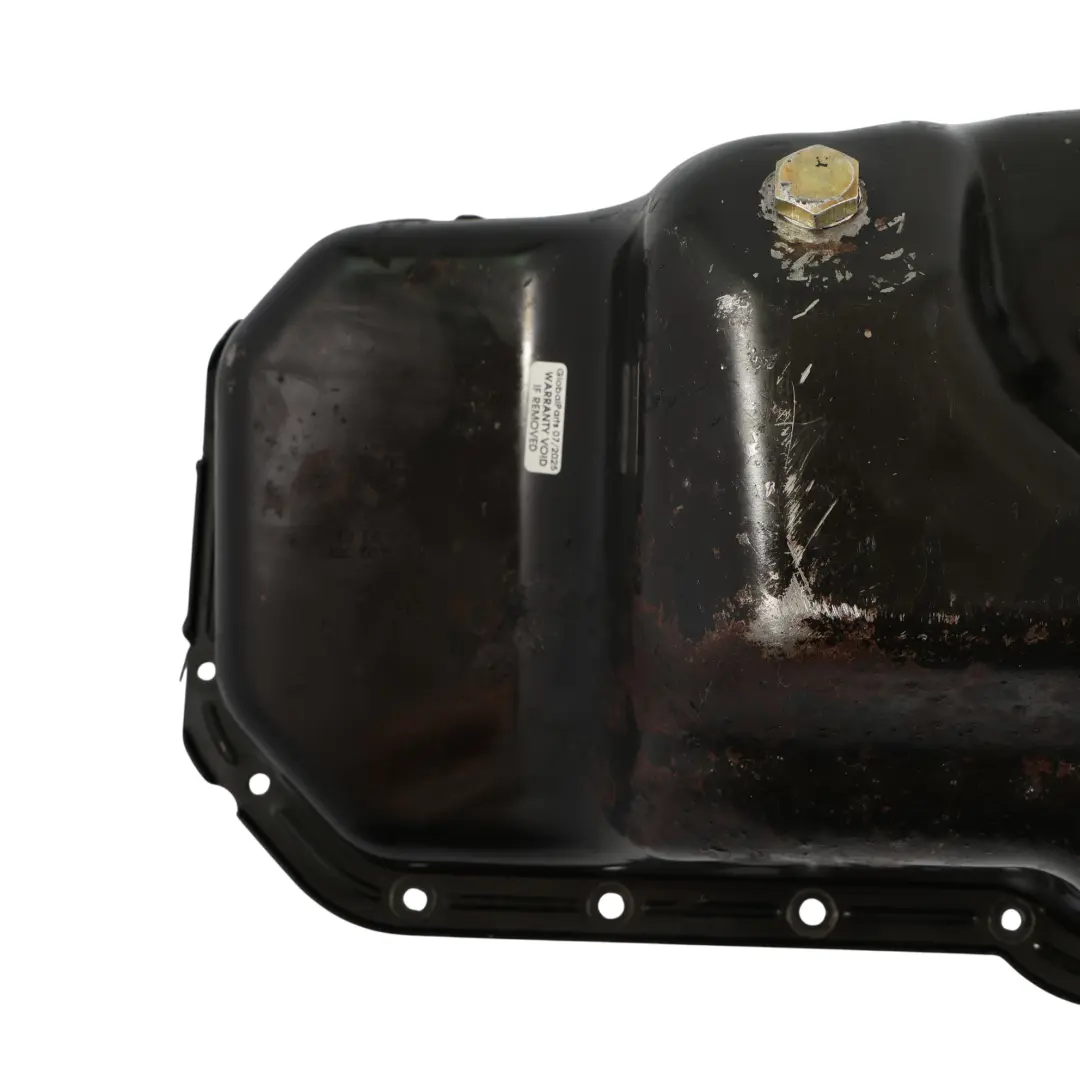

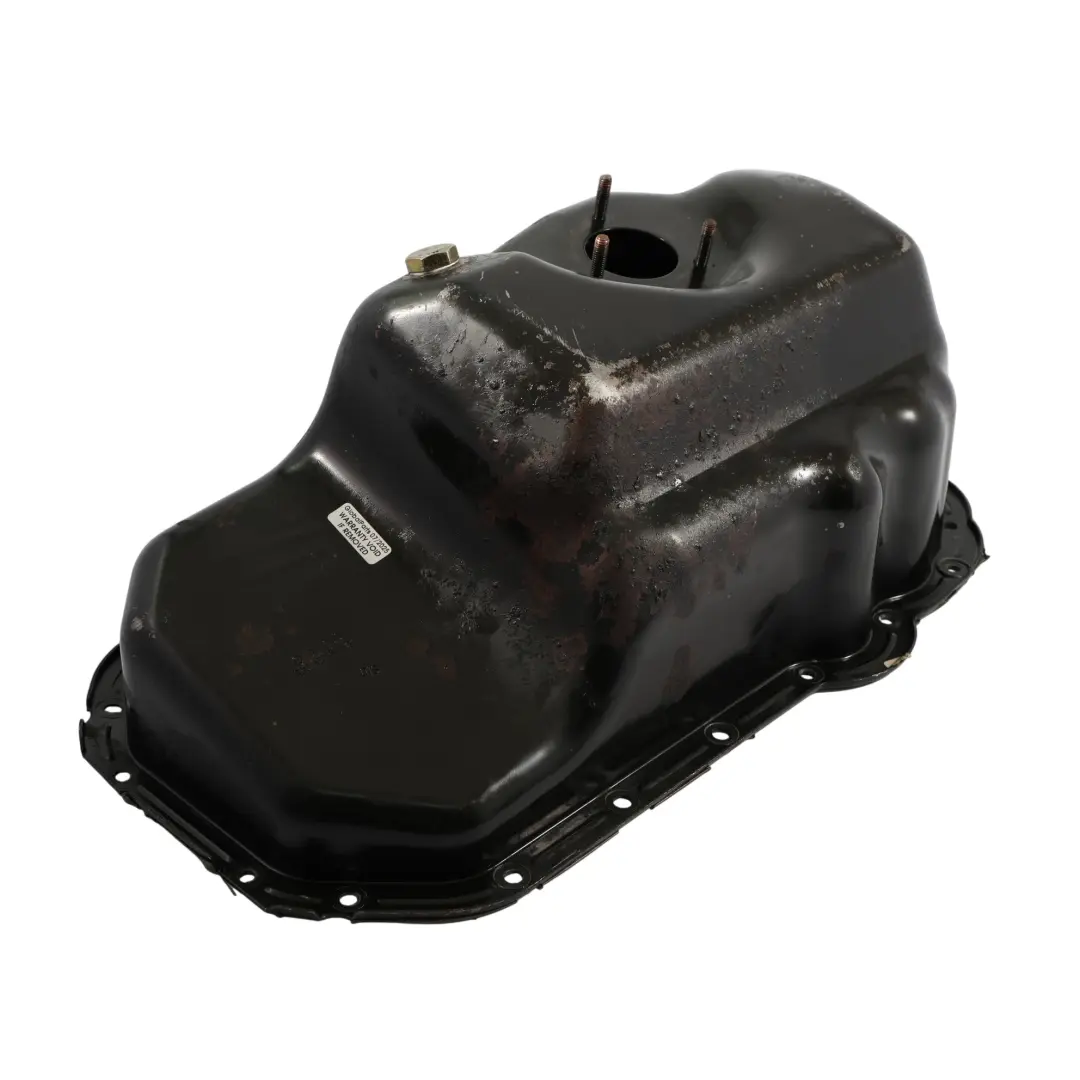

VW Golf Mk6 Audi A1 8X Engine Lower Oil Sump Pan 1.2 Petrol 03C103601BH

VW Golf Mk6 Audi A1 8X Engine Lower Oil Sump Pan 1.2 Petrol is an original component from the Oil sumps group, designed for petrol-powered engines. Thanks to its factory geometry and properly designed working space, it ensures stable engine lubrication conditions and correct oil drainage into the lubrication system.

Specifications and technical data

• SKU: 03C103601BK
• Mark: Volkswagen
• Condition: Used
• OEM Part Number: 03C103601BK
• Substitutable numbers: 03C103601BK, 03C 103 601 BK
• Fuel type: Petrol
• Category: Oil Sumps

Purpose and function in the lubrication system

The presented oil sump is structurally matched to 1.2 petrol engines used in VW Golf Mk6 and Audi A1 8X models. It is responsible for collecting operating oil, maintaining the appropriate level of the lubricating medium, and its return to the oil pump. A properly selected sump minimizes the risk of air suction by the lubrication system, which is particularly important during dynamic driving and sudden changes in load.

Construction and performance parameters

The design of the sump has been engineered for proper oil flow in the lower part of the engine block. The appropriately shaped bottom and internal embossments promote oil level stabilization and improve its flow to the pump suction zone. As a result, the lubrication system maintains predictable operating parameters across a wide range of temperatures and rotational speeds.

The component is prepared for use with factory equipment of petrol units, which facilitates installation and limits the need for additional modifications. Original fitment for the specific application translates into proper sealing of the connection with the block and compatibility with standard mounting elements.

Benefits of using an original oil sump

Using a dedicated oil sump in a 1.2 petrol engine allows for maintaining stable lubrication system operating conditions, which directly impacts the durability of the power unit. Key advantages include:

• maintaining the factory oil flow geometry in the lower part of the engine,
• correct positioning of the oil pump suction point,
• fitment to standard mounting and sealing points,
• consistency with Volkswagen's factory design solutions.

Thanks to this, compliance with the manufacturer's requirements regarding lubrication is maintained, which reduces the risk of premature wear of moving engine parts.

Condition, installation, and service application

The offered oil sump is a used component, making it an attractive solution for service repairs where the priority is to maintain the original design while optimizing costs. It is particularly useful in situations such as mechanical damage to the sump (e.g., after contact with an obstacle) or the need for replacement during a major engine overhaul.

During installation, it is recommended to use a new seal and check the flatness of the contact surface with the engine block. A properly performed installation allows for restoring the tightness of the lubrication system and ensuring trouble-free operation in typical road conditions.
