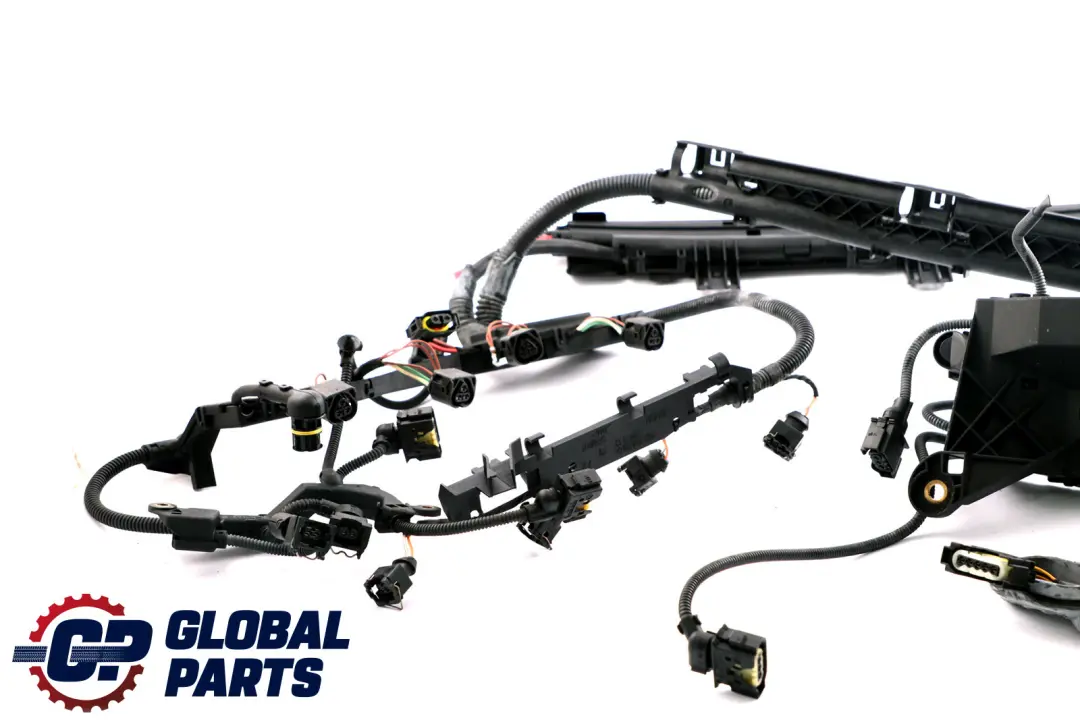

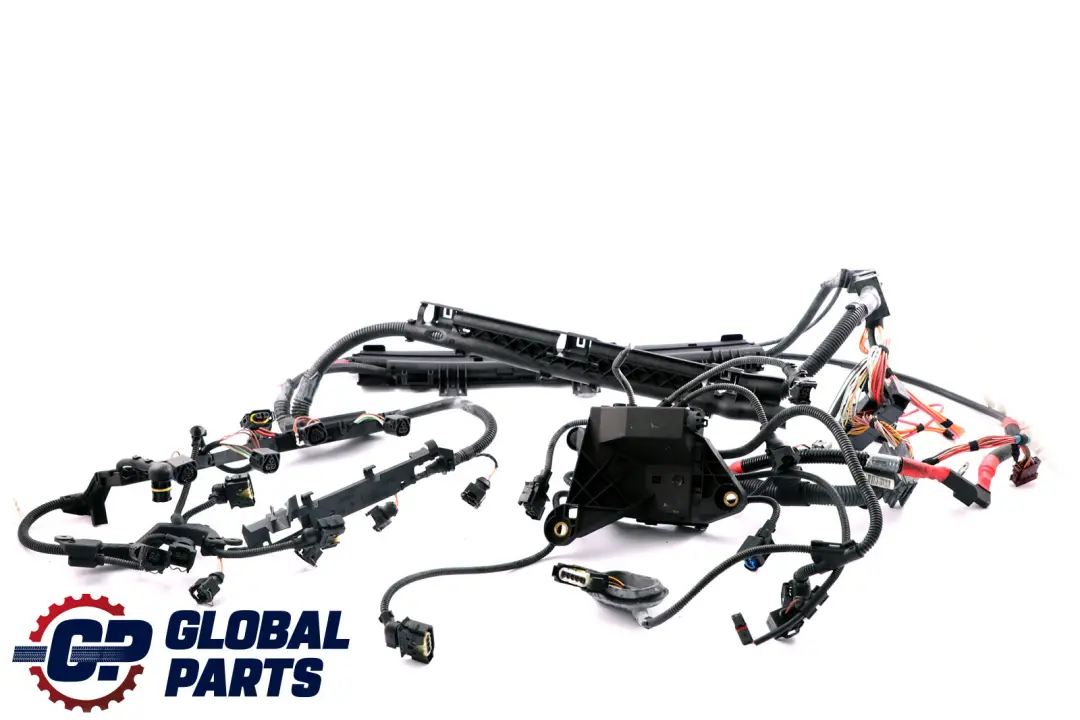

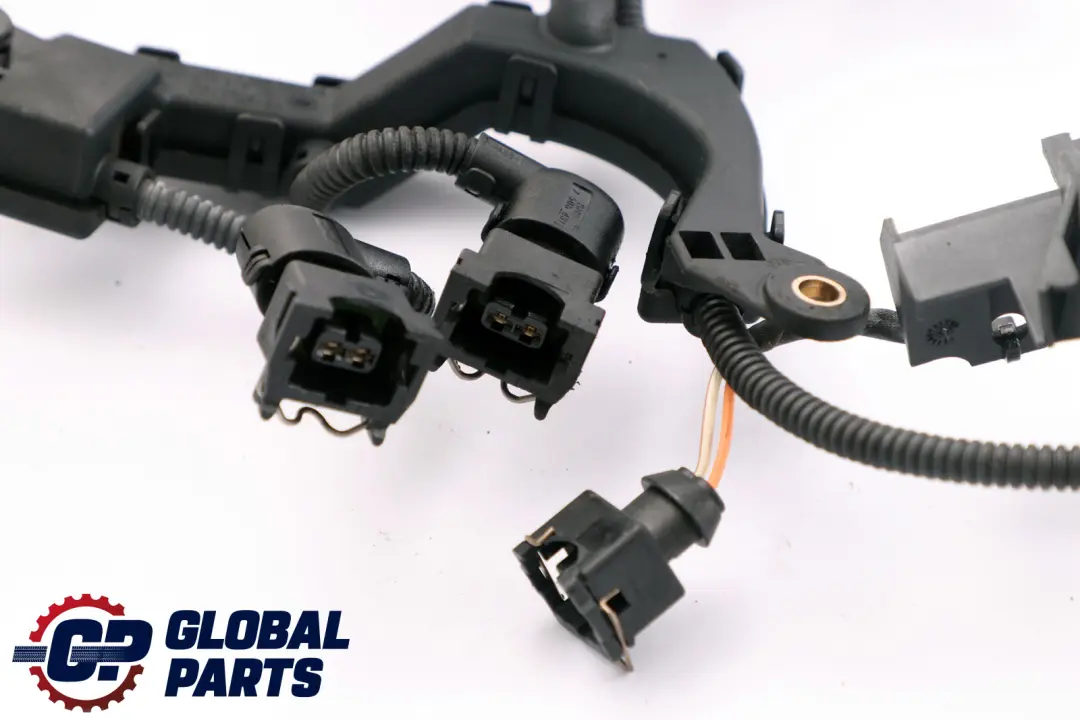

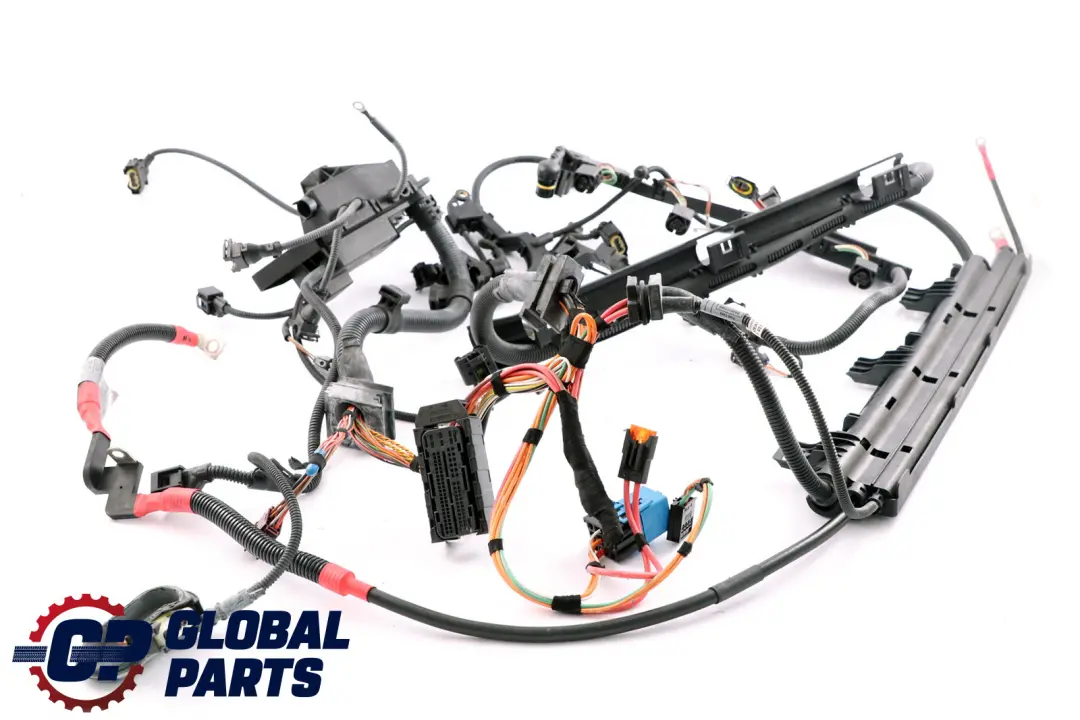

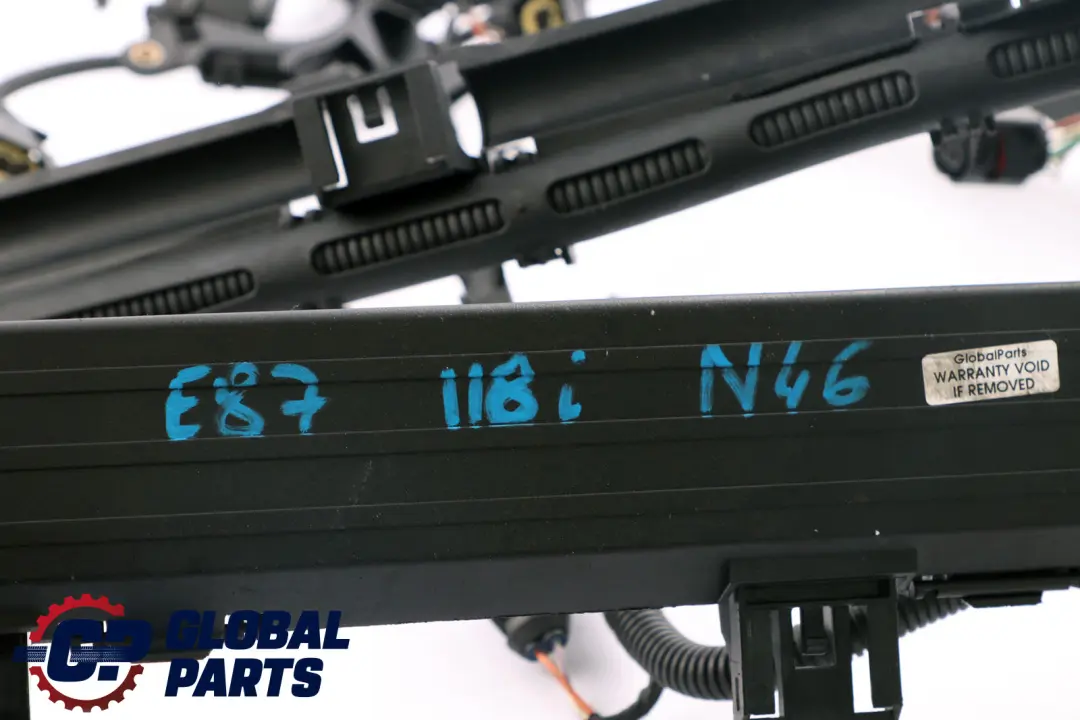

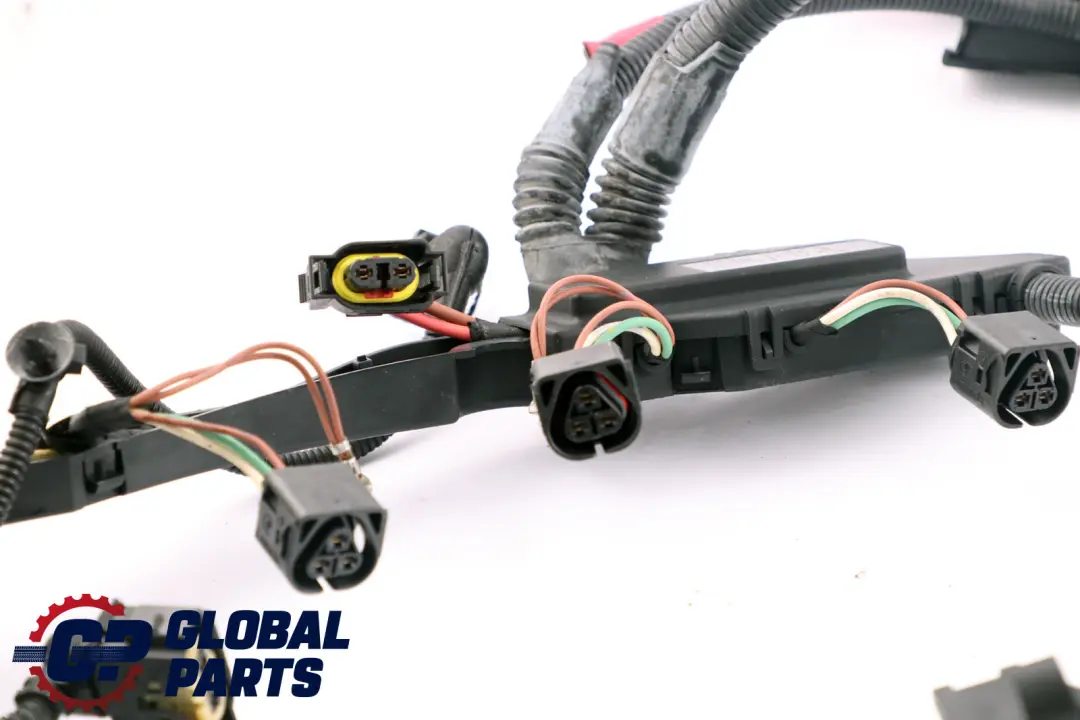

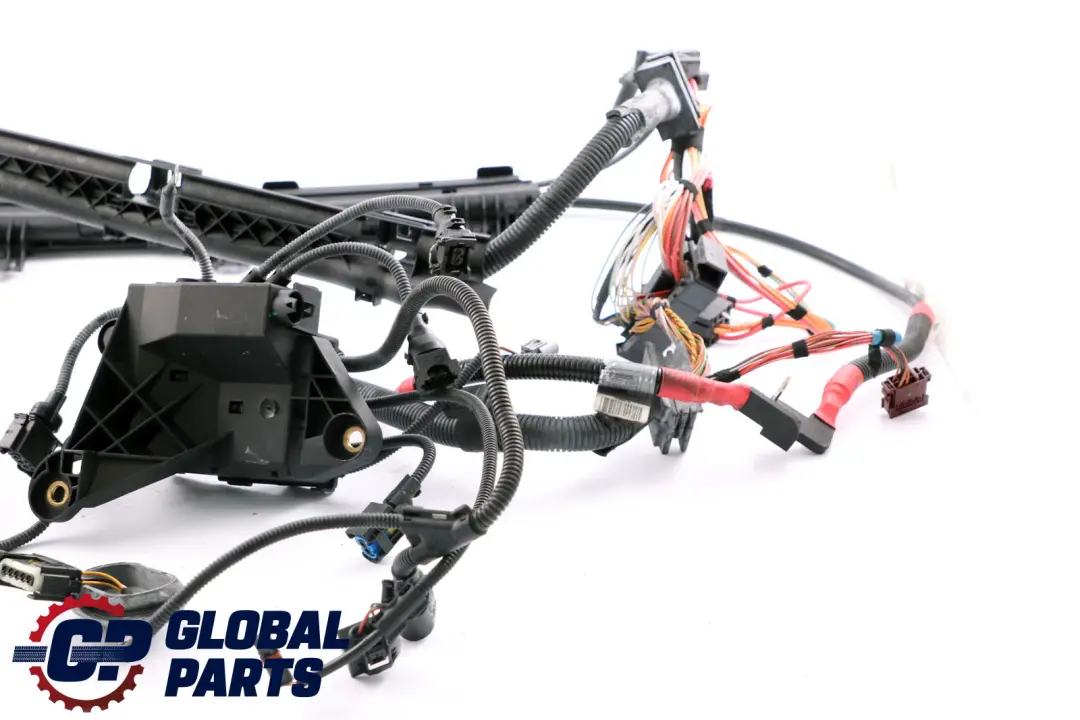

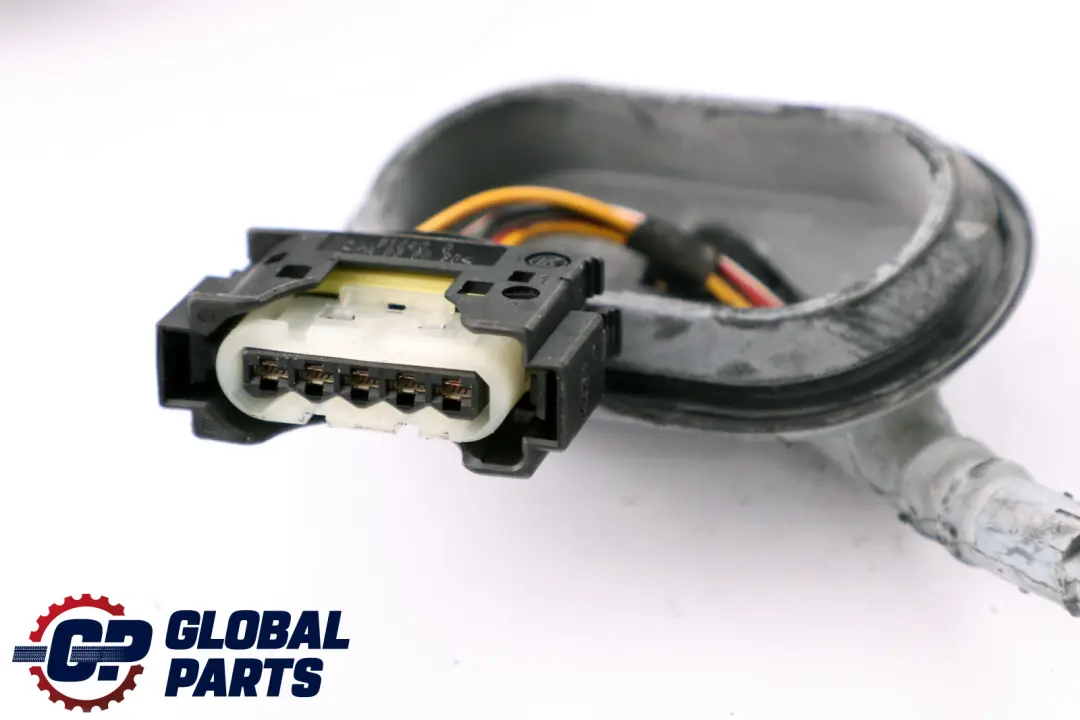

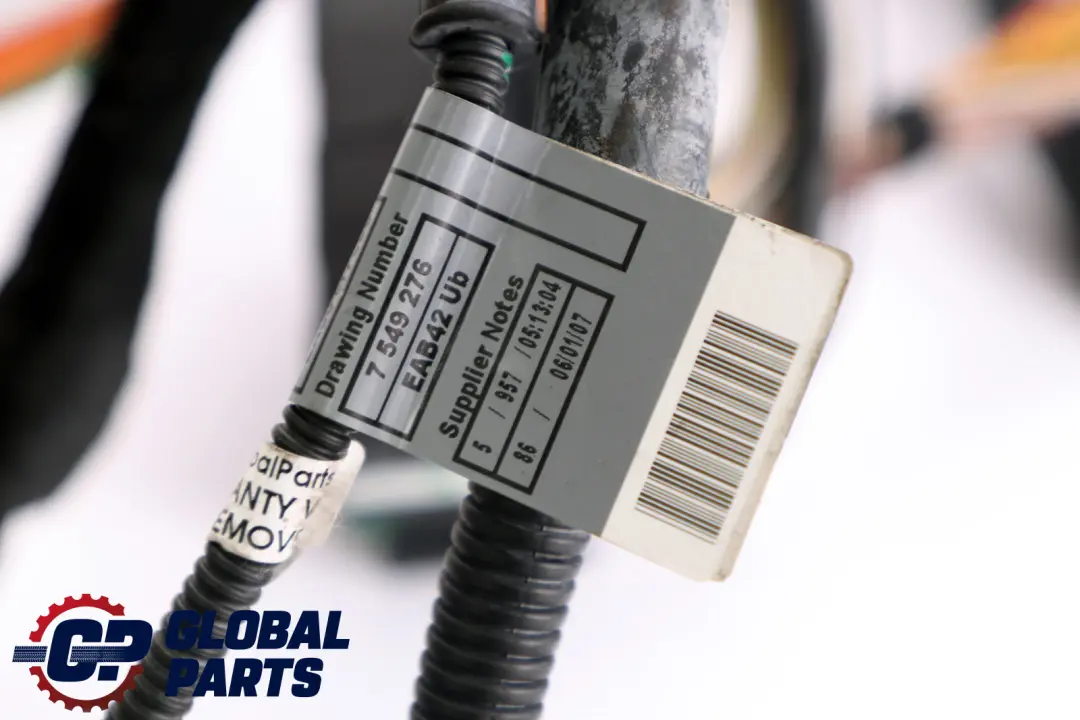

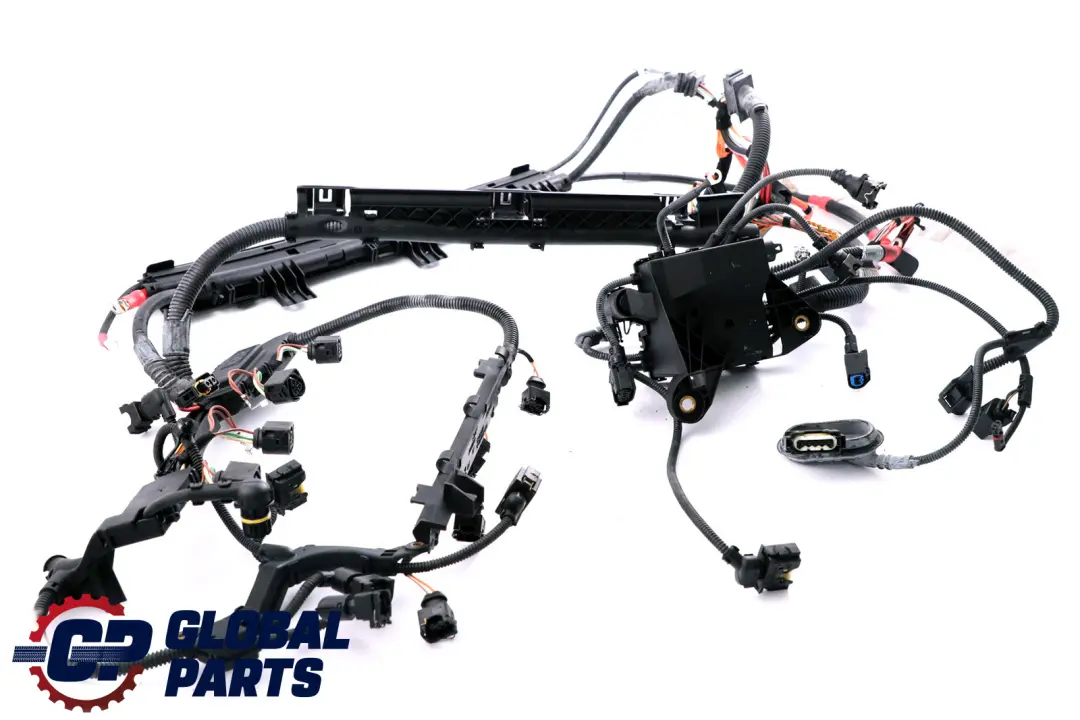

BMW 1 3 Series E87 E90 E91 118i 318i N46 Engine Wiring Loom Harness 7549275

BMW 1 3 Series E87 E90 E91 118i 318i N46 Engine Wiring Loom Harness is an original electrical component designed for the N46 engine unit in popular 1 and 3 Series models. Engineered by BMW, it ensures the proper connection of all sensors, actuators, and the engine control unit, which translates into stable powertrain performance. This is a practical solution for users who want to restore proper communication within the engine wiring system following damage or interference with the factory cabling.

Specifications and technical data

• SKU: rhd-7549275
• Mark: BMW (Genuine OE)
• Condition: Used

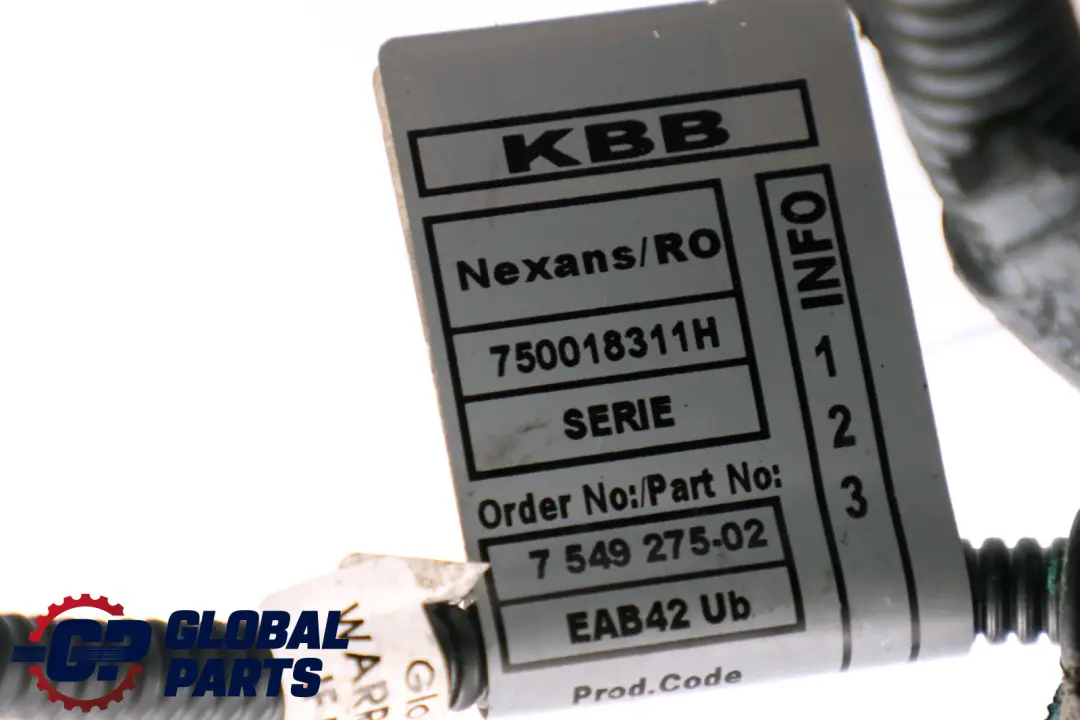

• OEM Part Number: 7549275
• Substitutable numbers: 12517549275, 7549275

Purpose and function in the vehicle

The presented engine wiring harness for BMW 1 Series E87 and 3 Series E90/E91 supports the N46 petrol engine in 118i and 318i versions. It is responsible for transmitting signals between sensors, injectors, ignition coils, engine accessories, and the ECU. A correctly selected harness eliminates issues with ignition misfires, communication errors, and unstable engine operation resulting from damaged wires or connectors.

Using a complete, factory-spec harness is particularly important after accident repairs, engine swaps, or when replacing damaged cabling, especially when maintaining the vehicle's original electrical architecture is a priority.

Advantages of using an original BMW harness

The engine wiring harness from the BMW range has been developed for the specific configuration of the N46 unit, ensuring:

• factory-standard wire routing and precise length of individual sections,
• proper placement of connectors for sensors and engine accessories,
• compatibility with the stock ECU and vehicle electrical system,
• reduced risk of faults resulting from modifications or unprofessional harness repairs.

For the user, this means more predictable diagnostics, easier installation, and a reduction in problems caused by random electrical errors. The original design ensures compliance with BMW service documentation and wiring diagrams.

Characteristics of the salvaged part

The offered harness is a used part, sourced from vehicle dismantling, which allows for a reasonable cost while maintaining the manufacturer's original specifications. This type of part is particularly attractive for repairs of older 1 and 3 Series models, where a full replacement with a new component may be economically unjustified.

A salvaged harness is also a good alternative to point-repairs of damaged wires – instead of time-consuming soldering and creating custom sections, you can use a complete component, reducing the number of potential failure points.

Selection and compatibility

To correctly select a harness for a specific BMW vehicle, it is worth paying attention to:

• compatibility with the N46 engine type in 118i or 318i versions,
• body generation (1 Series E87, 3 Series E90/E91),
• engine accessory configuration in the given vehicle.

In case of doubt when matching the part, it is helpful to compare it with the existing harness in the vehicle and verify the markings in the service documentation. This helps avoid issues with wire length, connector types, or the placement of mounting points.

Practical installation tips

When installing the engine wiring harness, it is worth taking care of a few technical aspects:

• routing wires according to factory paths and clips,
• securely seating connectors in sensors and actuators,
• checking the condition of insulation in areas exposed to heat and vibration,
• verifying the harness layout relative to moving parts (e.g., belt-driven accessories).

This approach minimizes the risk of chafing, short circuits, and subsequent engine diagnostic errors. After installation, it is recommended to perform an error code scan and a short test drive to confirm stable system operation.
