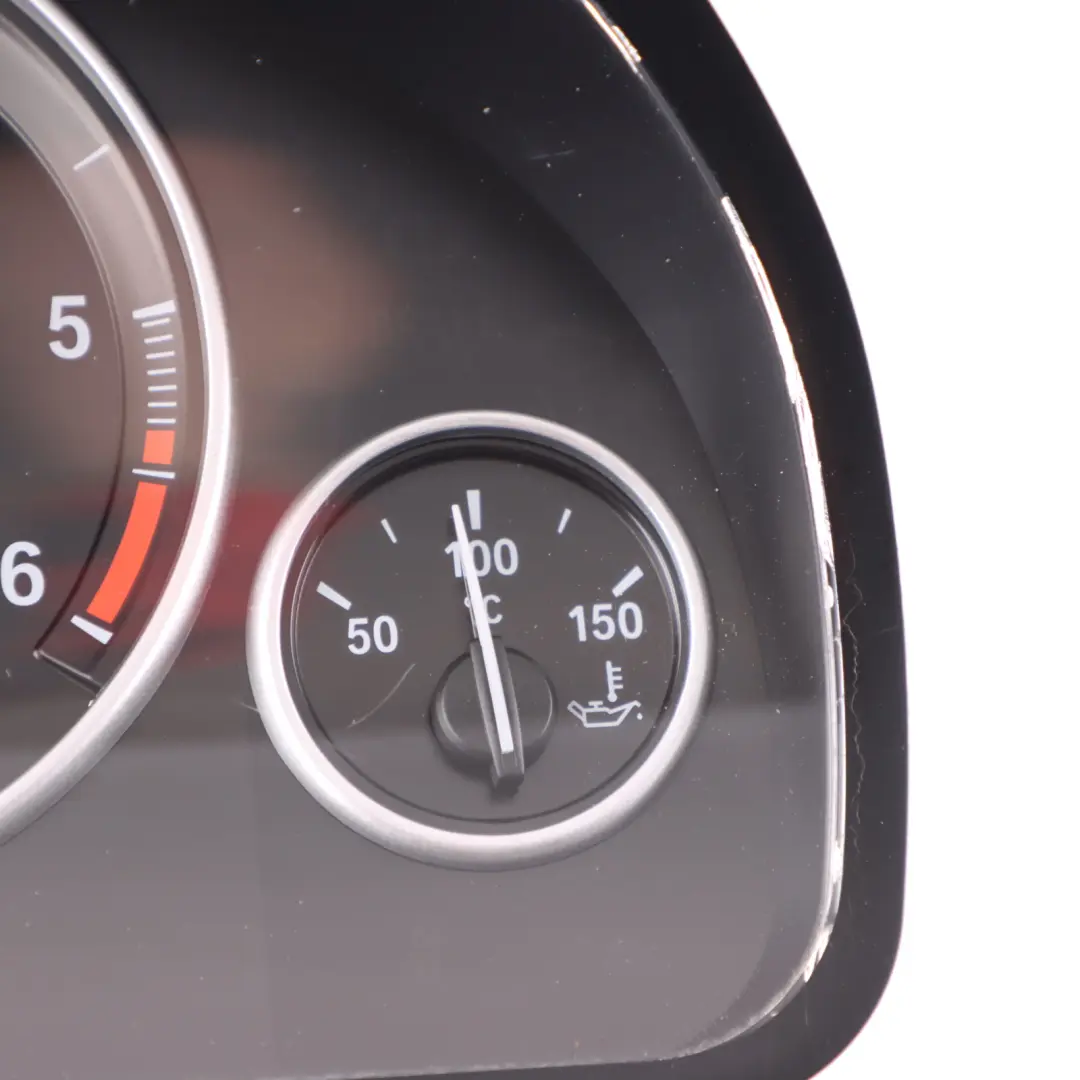

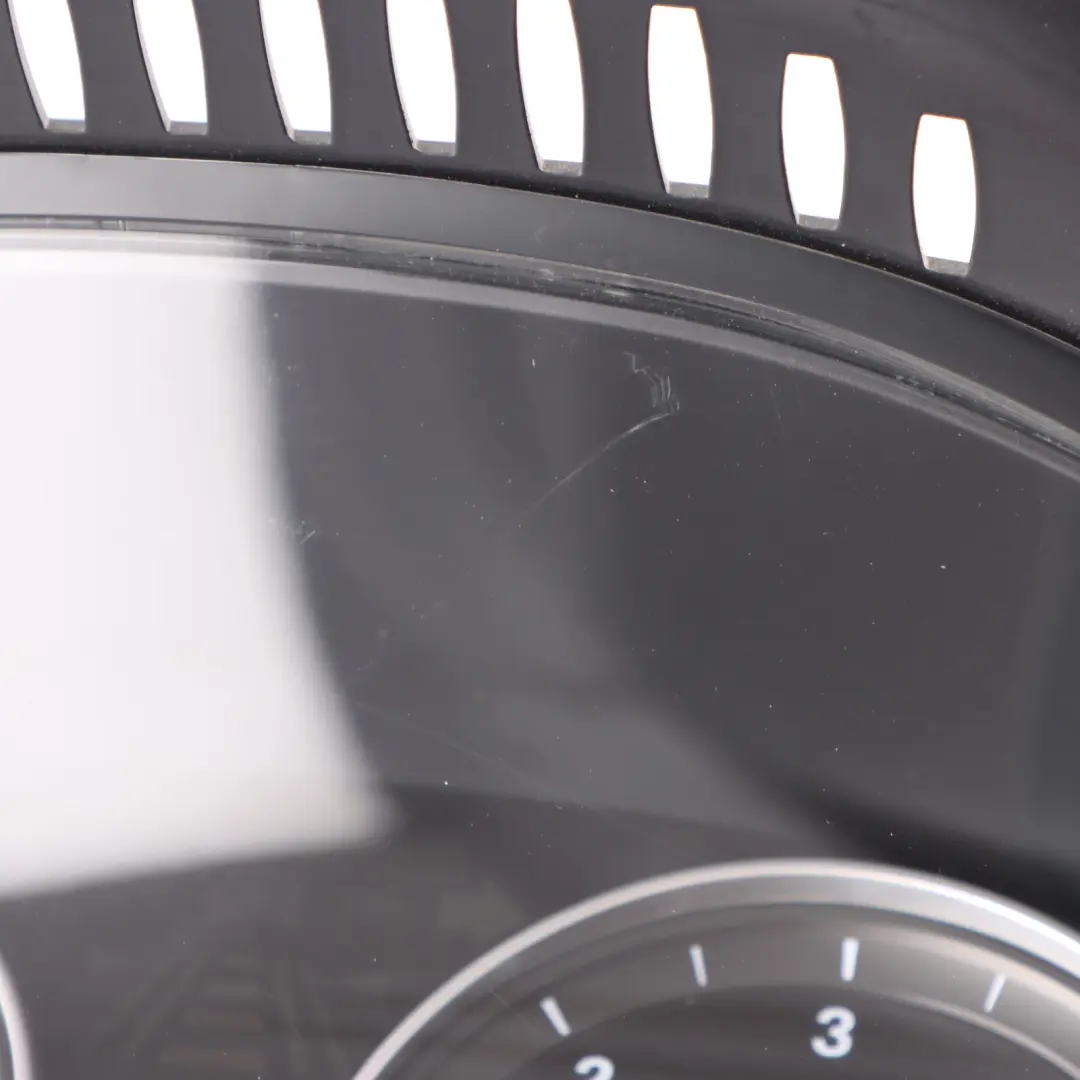

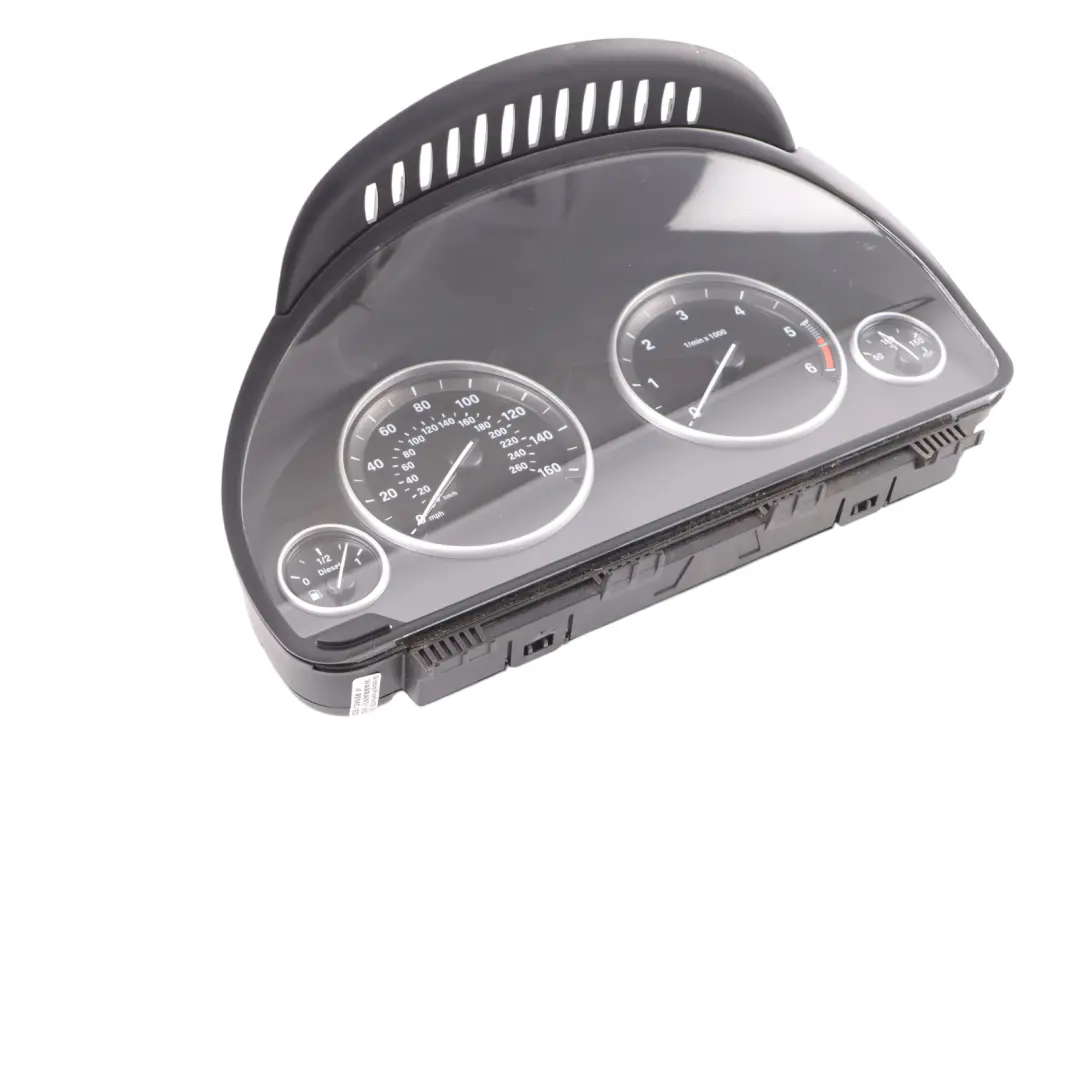

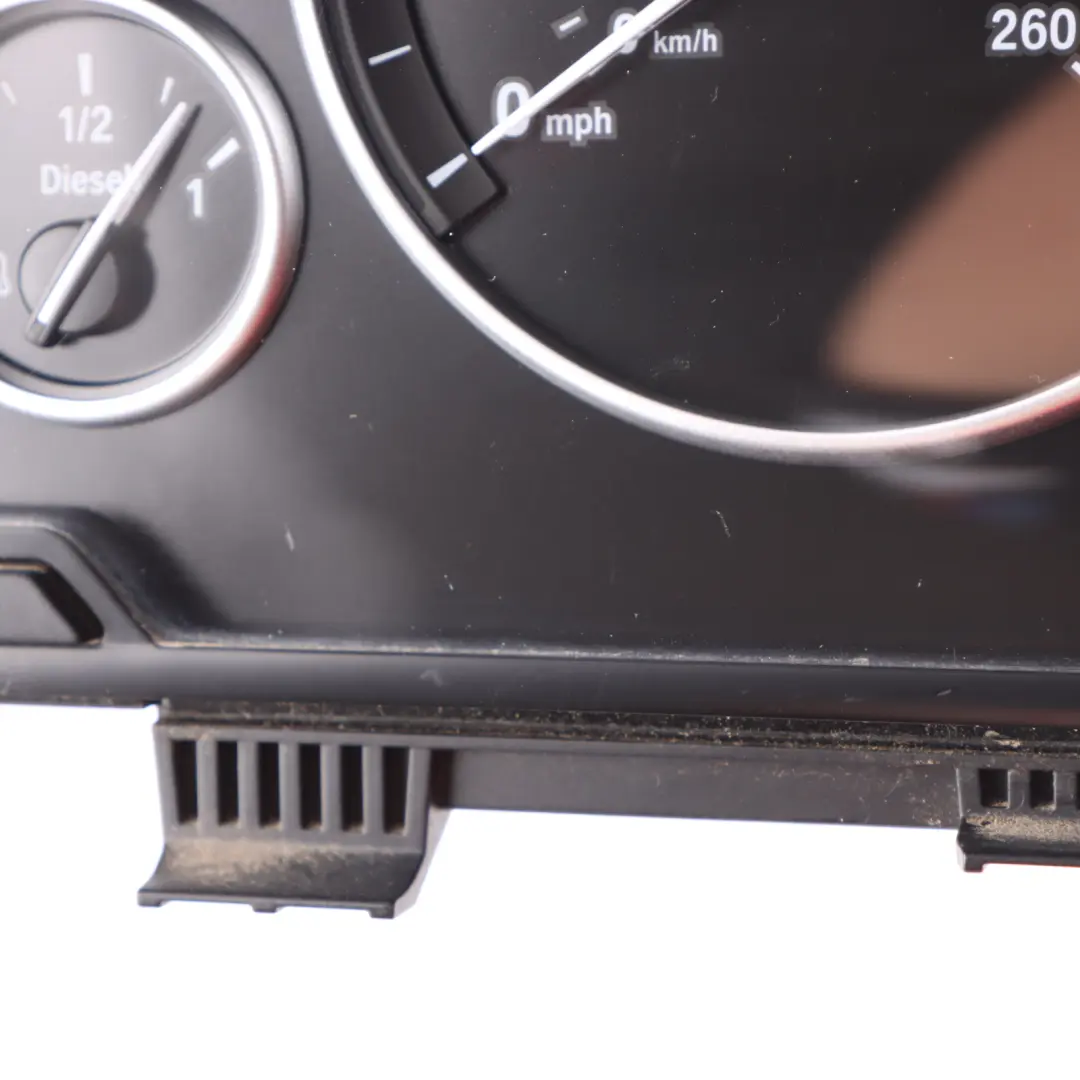

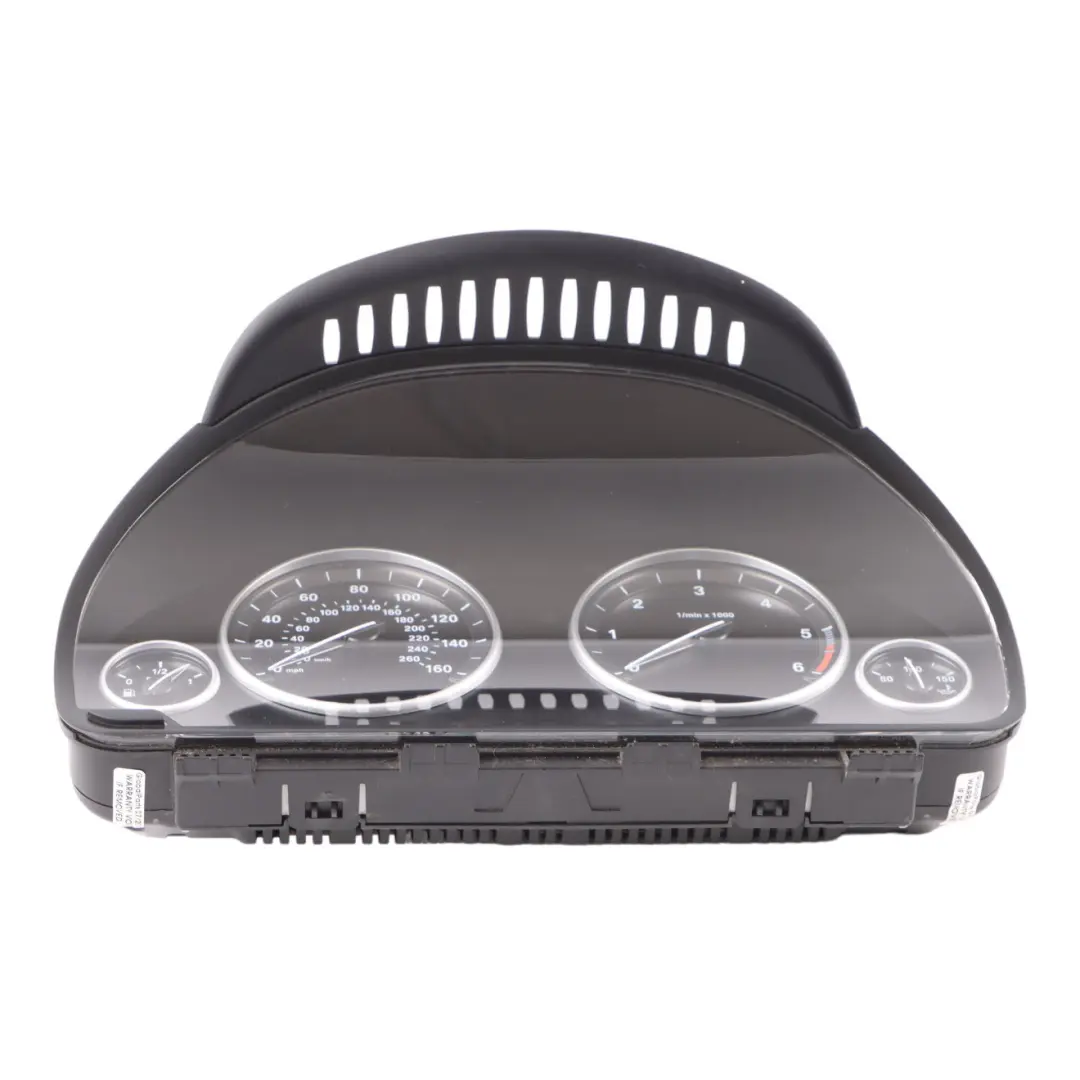

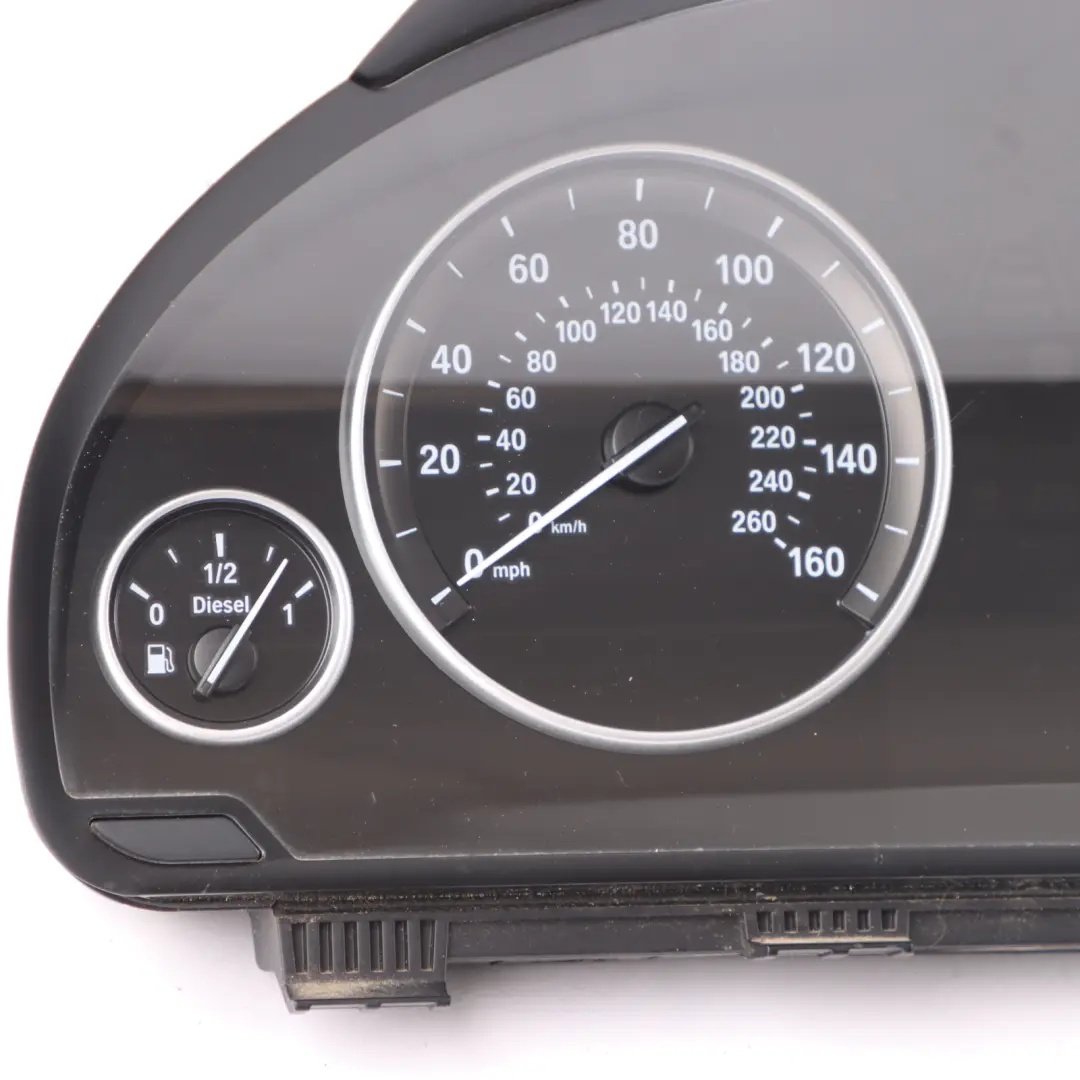

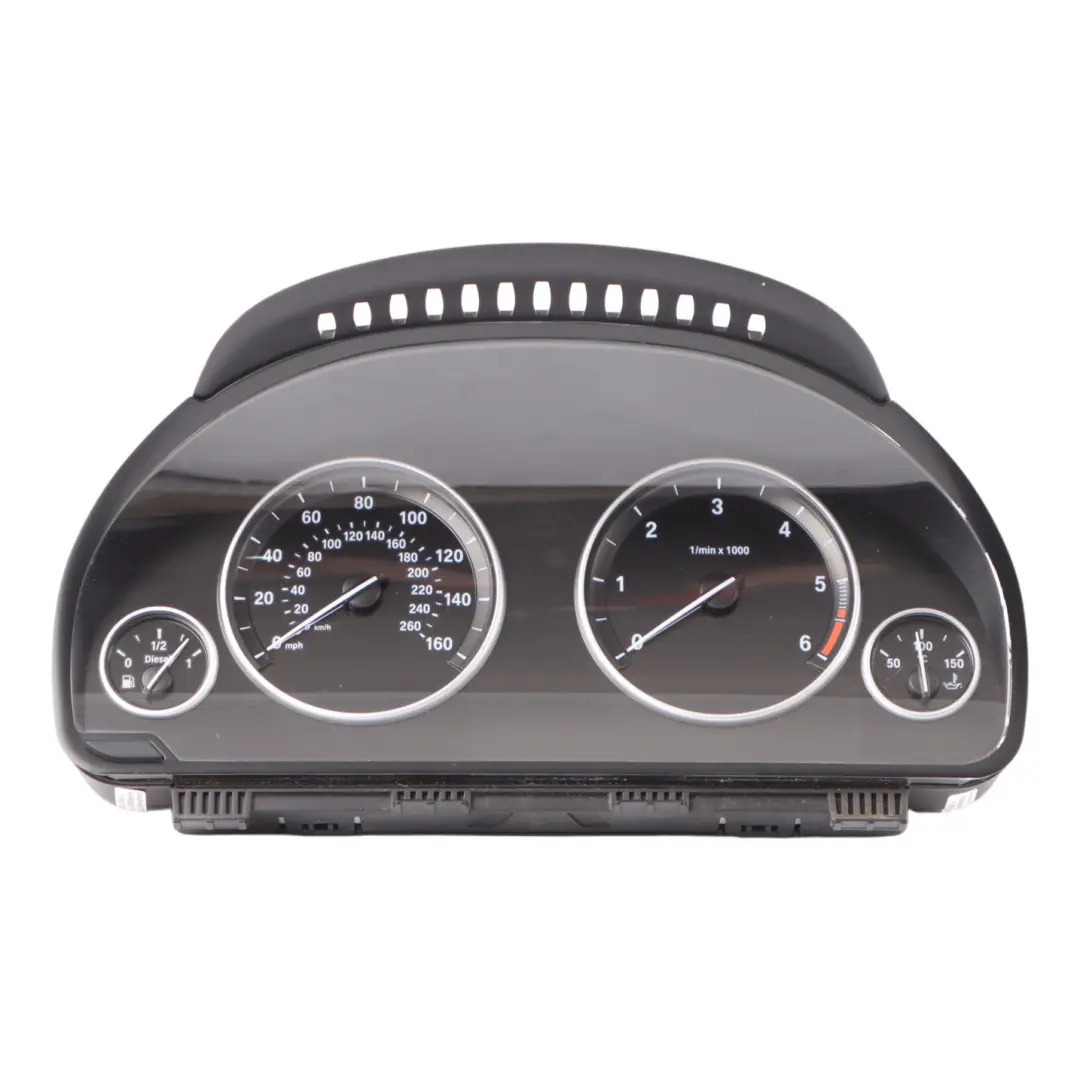

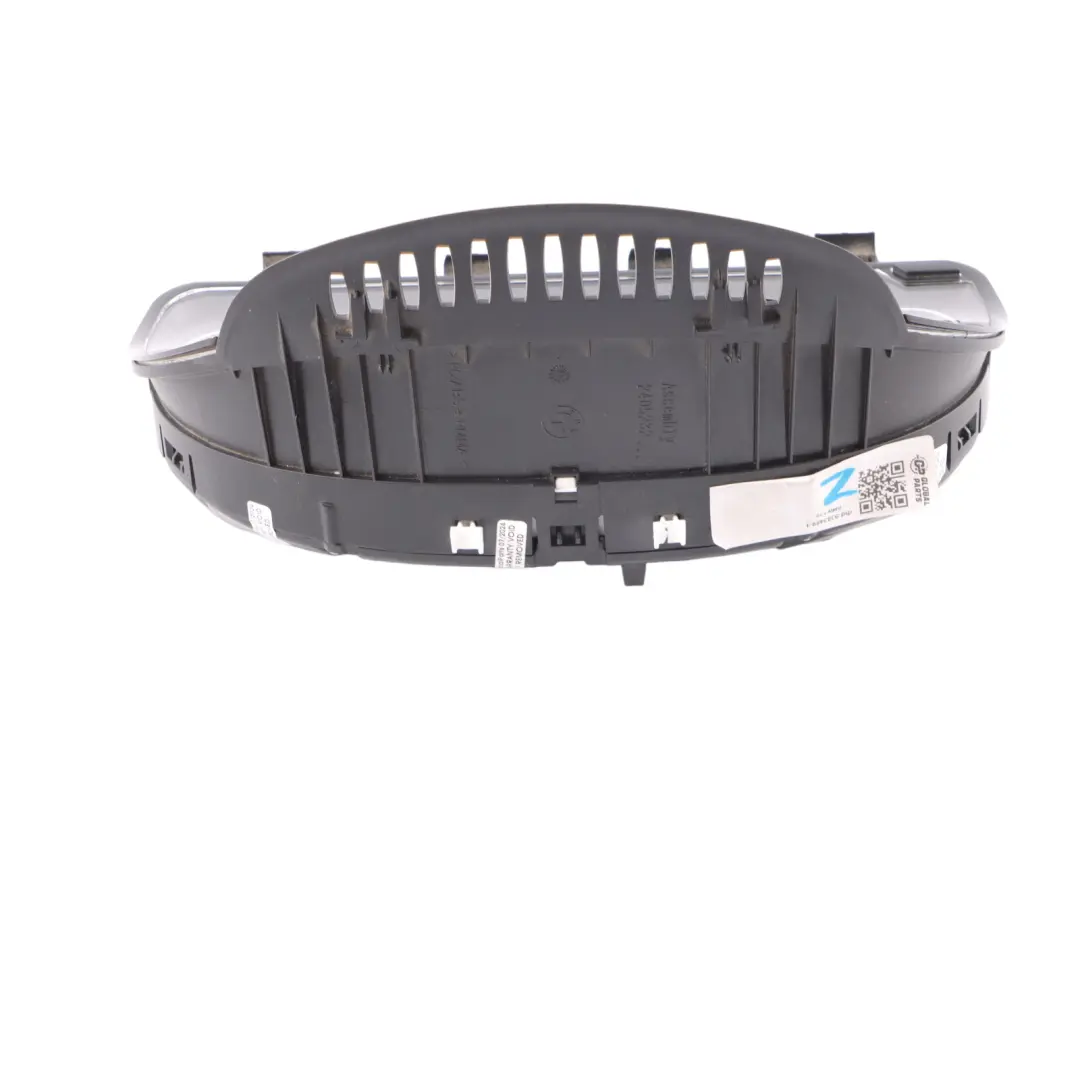

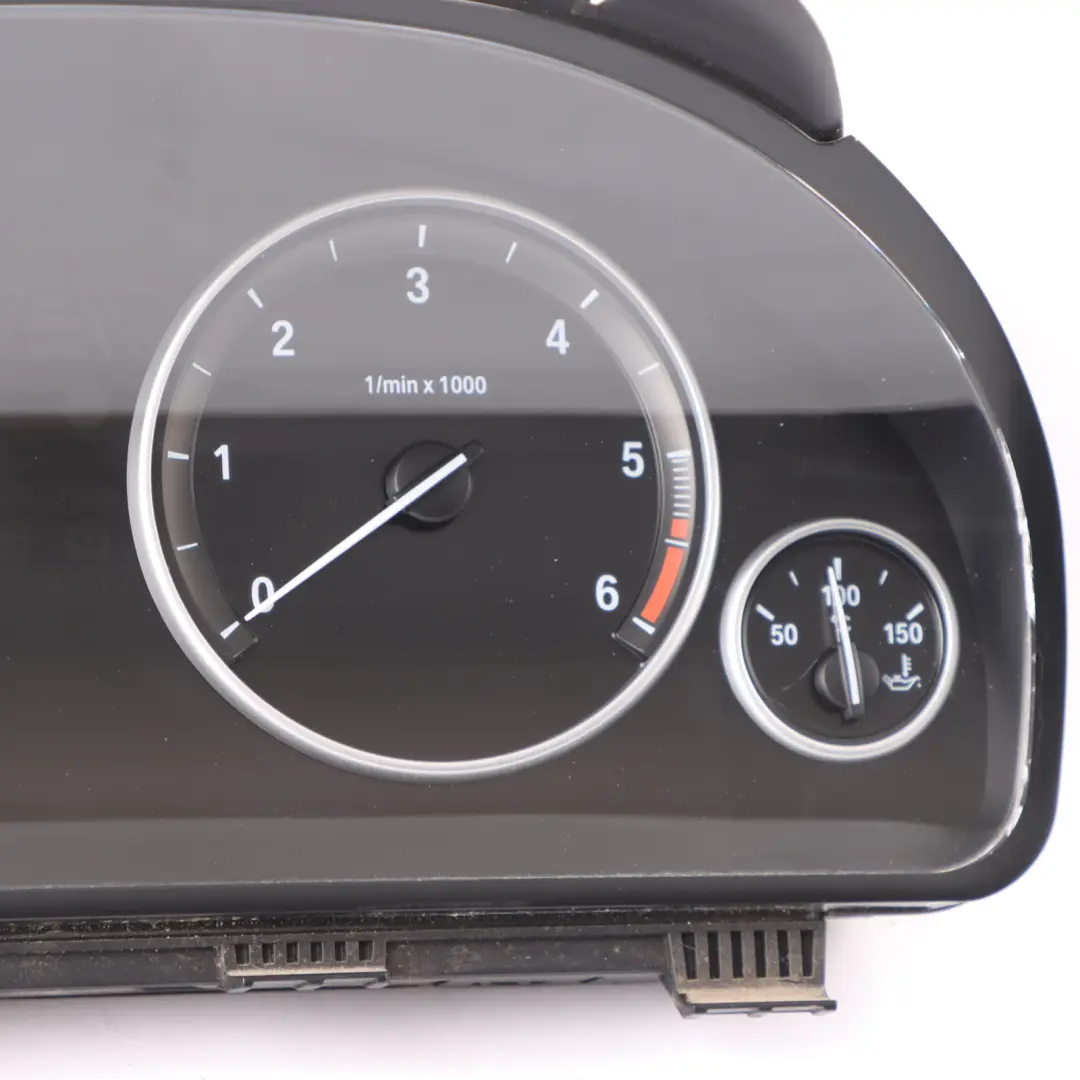

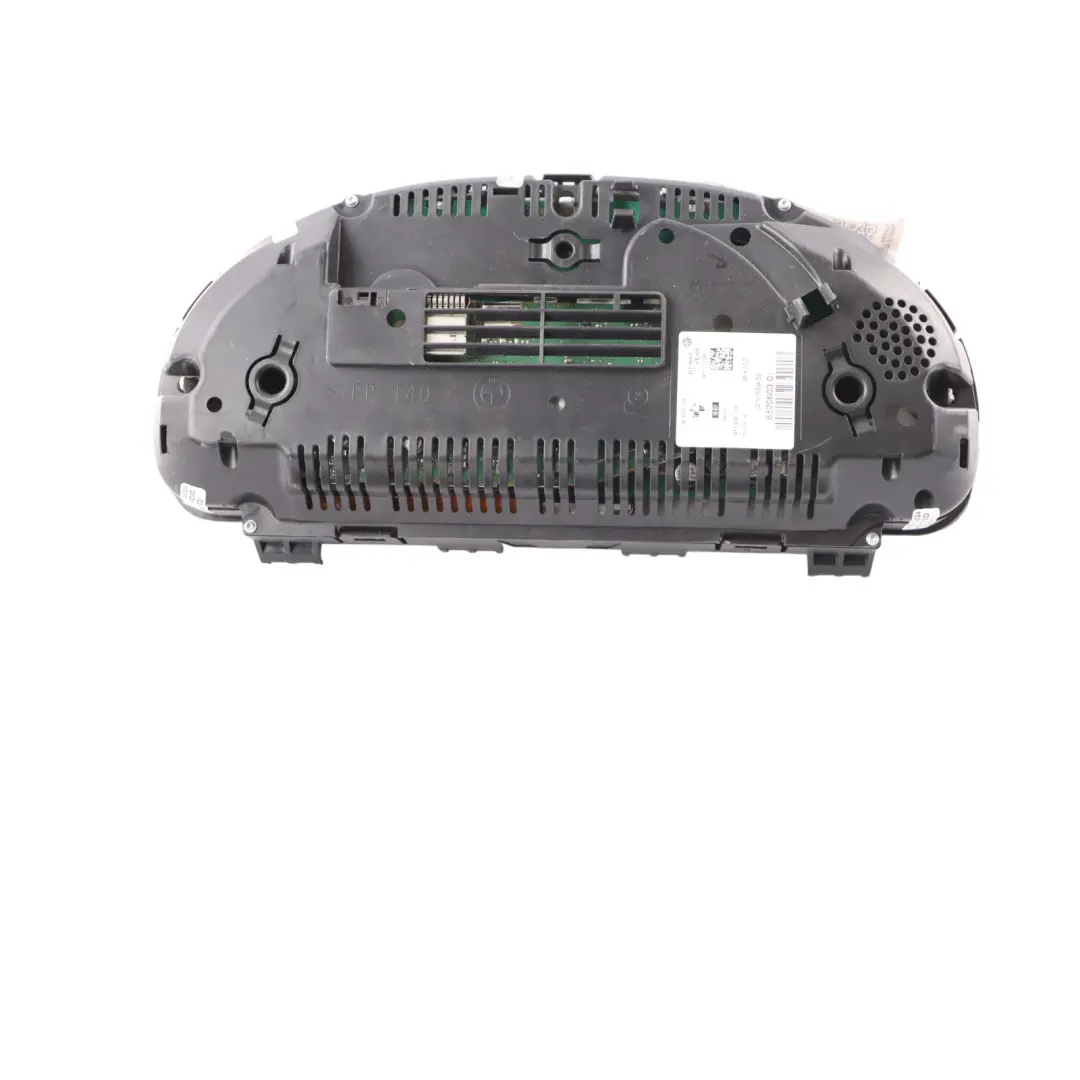

Instrument Cluster BMW F10 LCI X3 F25 Diesel Speedo Clocks Automatic 9383489

The Instrument Cluster BMW F10 LCI X3 F25 Diesel Speedo Clocks Automatic is an original instrument cluster designed for BMW models with a Diesel engine and an Automatic transmission. This component is responsible for precisely displaying key vehicle operating parameters, ensuring a clear reading of speed and other information for the driver. It's a solution for users seeking factory fitment and consistency with the car's electronics.

Specifications and technical data

• SKU: rhd-9383489-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9383489

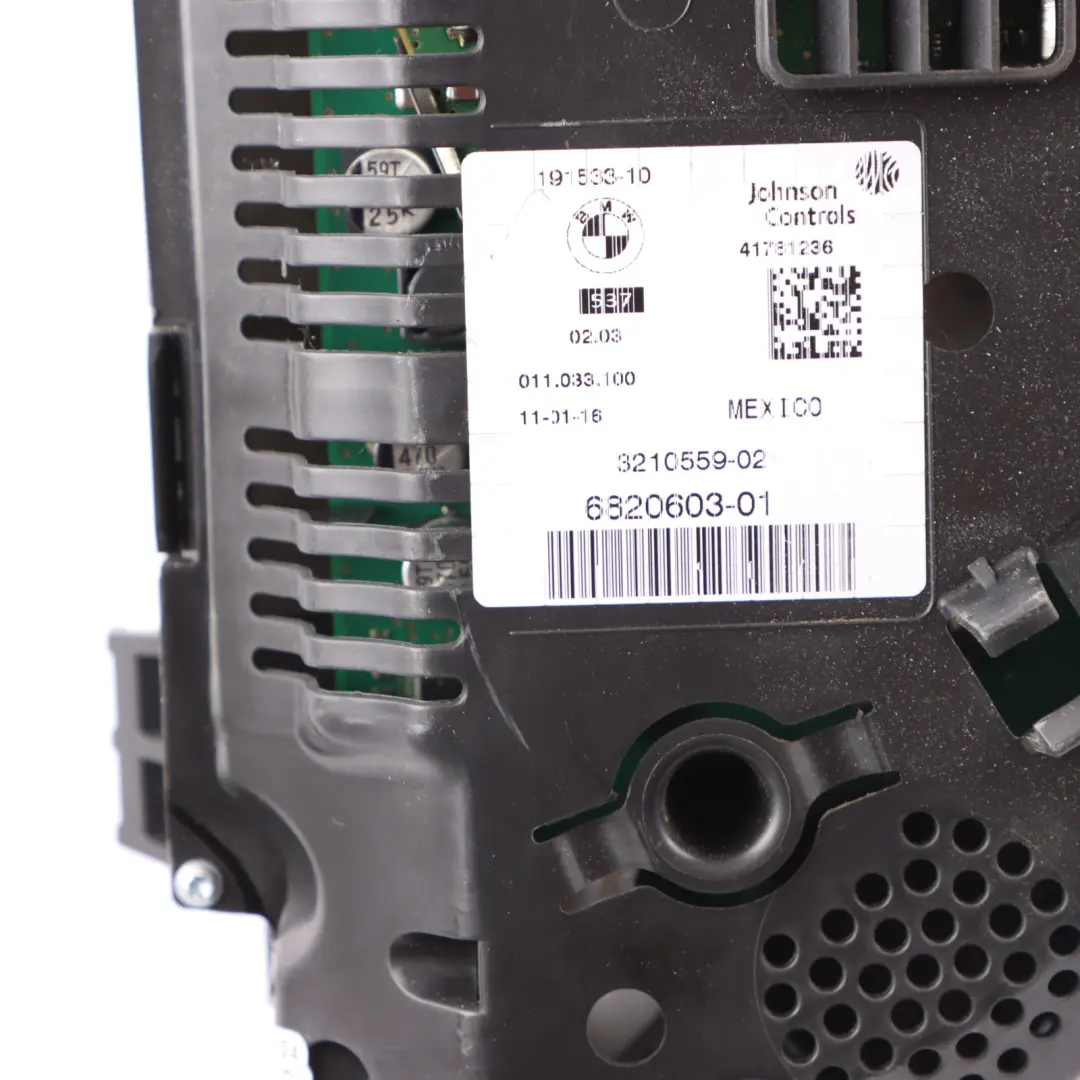

• Substitutable numbers: 9383489, 62109383489, 6820603, 62106820603
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

BMW Instrument Cluster Features

The presented BMW instrument cluster has been designed for integration with the factory systems of F10 LCI and X3 F25 series vehicles. The speedometer's construction works with the electrical system and control modules, ensuring consistent readings and system messages. The applied electronic architecture is adapted to the specifics of diesel engines, so the tachometer, speedometer, and other functions are calibrated for diesel engine operation.

The version intended for cars with an automatic transmission includes appropriate indicators for transmission modes and the logic for displaying information related to its operation. This provides the driver with a clear overview of the currently selected gear, improving vehicle operation ergonomics.

Intended Use: Diesel and Automatic Transmission

This speedometer has been configured for vehicles powered by Diesel fuel, which is important for the correct operation of the indicators and communication with the engine control unit. The tachometer's characteristics, scale ranges, and data display logic are adapted to the specifics of diesel engines, minimizing the risk of incorrect readings.

Adaptation for an Automatic transmission means the instrument cluster supports information related to automatic gear changes. In practice, this translates to:

• clear indicators for transmission modes,
• correct cooperation with the transmission control module,
• consistency of display messages with the actual drivetrain status.

Integration with Vehicle Electronics

Instrument clusters in this series are designed as components that work closely with BMW's electronic network. Proper configuration enables communication with modules responsible for the drivetrain, safety, and comfort, allowing for the display of diagnostic and operational information on the gauges. This gives the driver access to consistent data regarding engine operation, gearbox, and assistance systems.

The original origin of the component promotes compatibility with the vehicle's software, which is important when replacing a speedometer in modern BMW constructions. Proper parameter matching helps reduce the need for additional modifications to the wiring.

Practical Application and Benefits of Installation

By installing this instrument cluster in a BMW F10 LCI or X3 F25, the user gains a component tailored to the specifics of a diesel powertrain and an automatic transmission. This solution is suitable for both replacing a damaged speedometer and for service work related to interior electronics. Maintaining the factory operating logic of the indicators facilitates daily vehicle use and helps maintain equipment consistency.

For vehicles where compliance with the original configuration is important, using such a component helps reduce the risk of communication problems between modules and ensures predictable behavior of the onboard systems.
