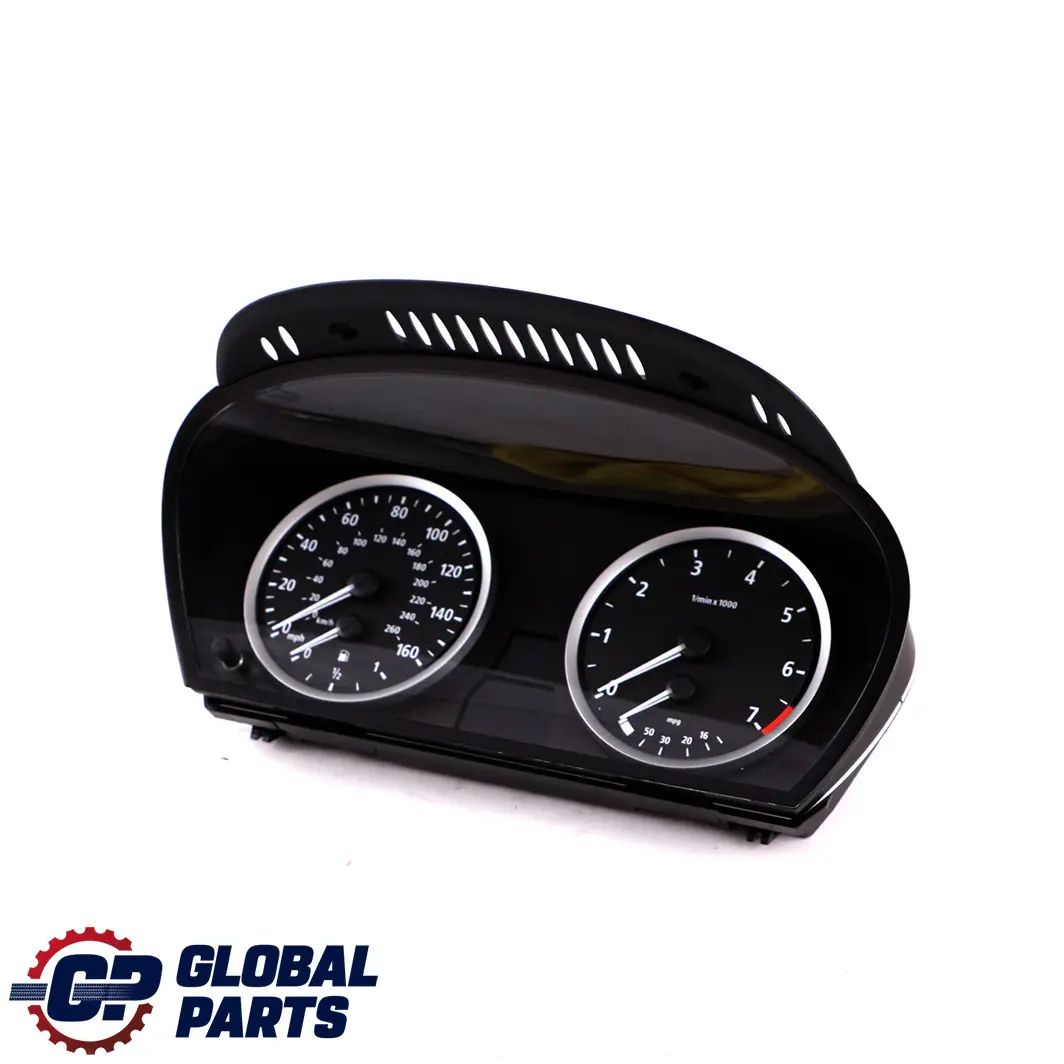

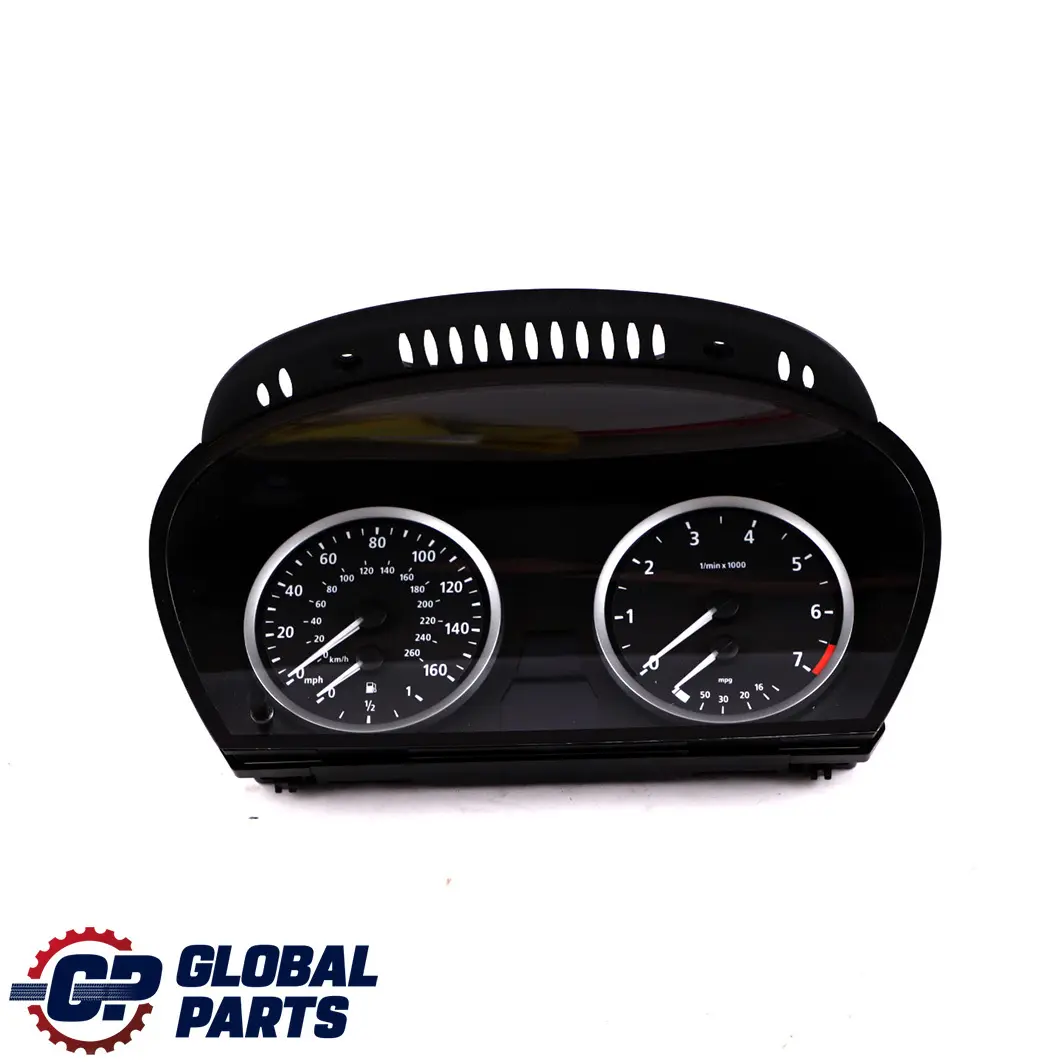

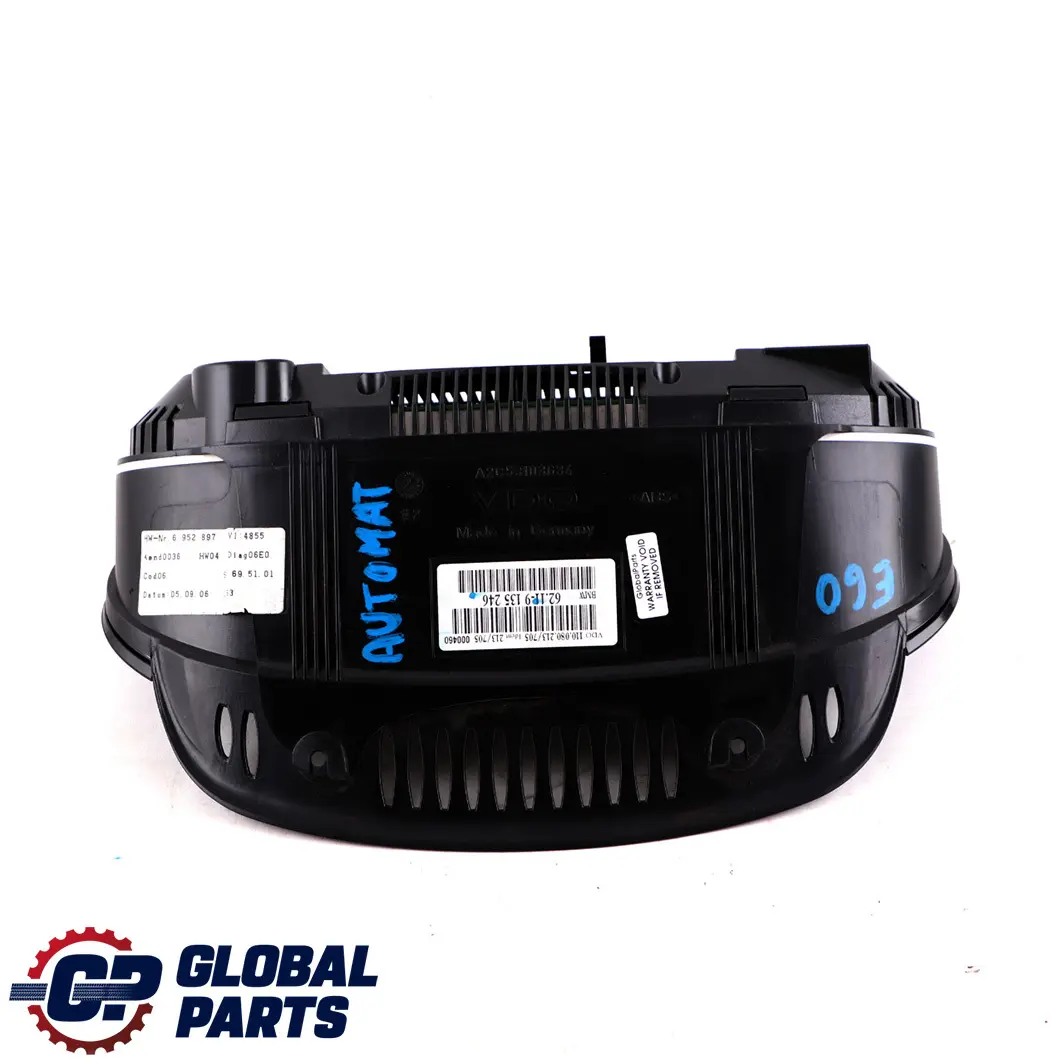

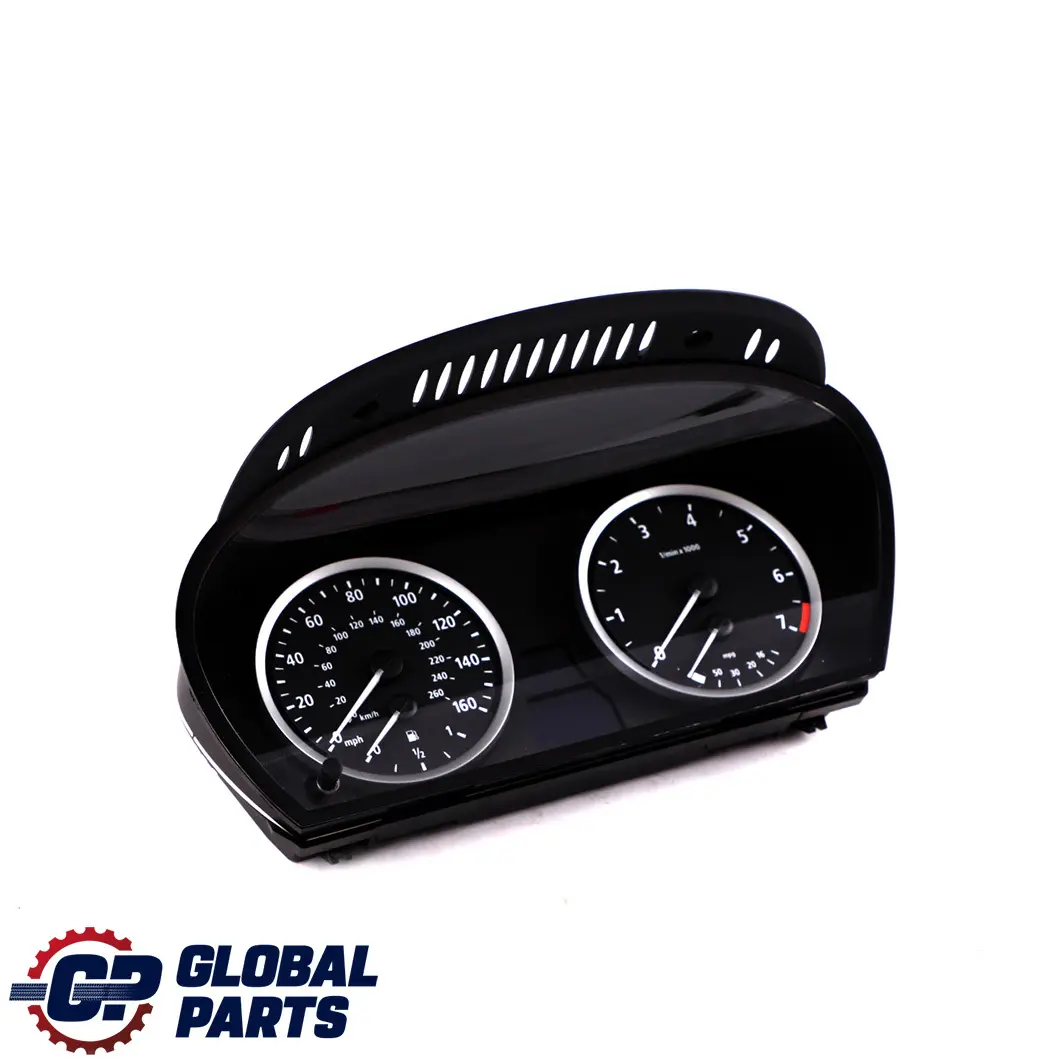

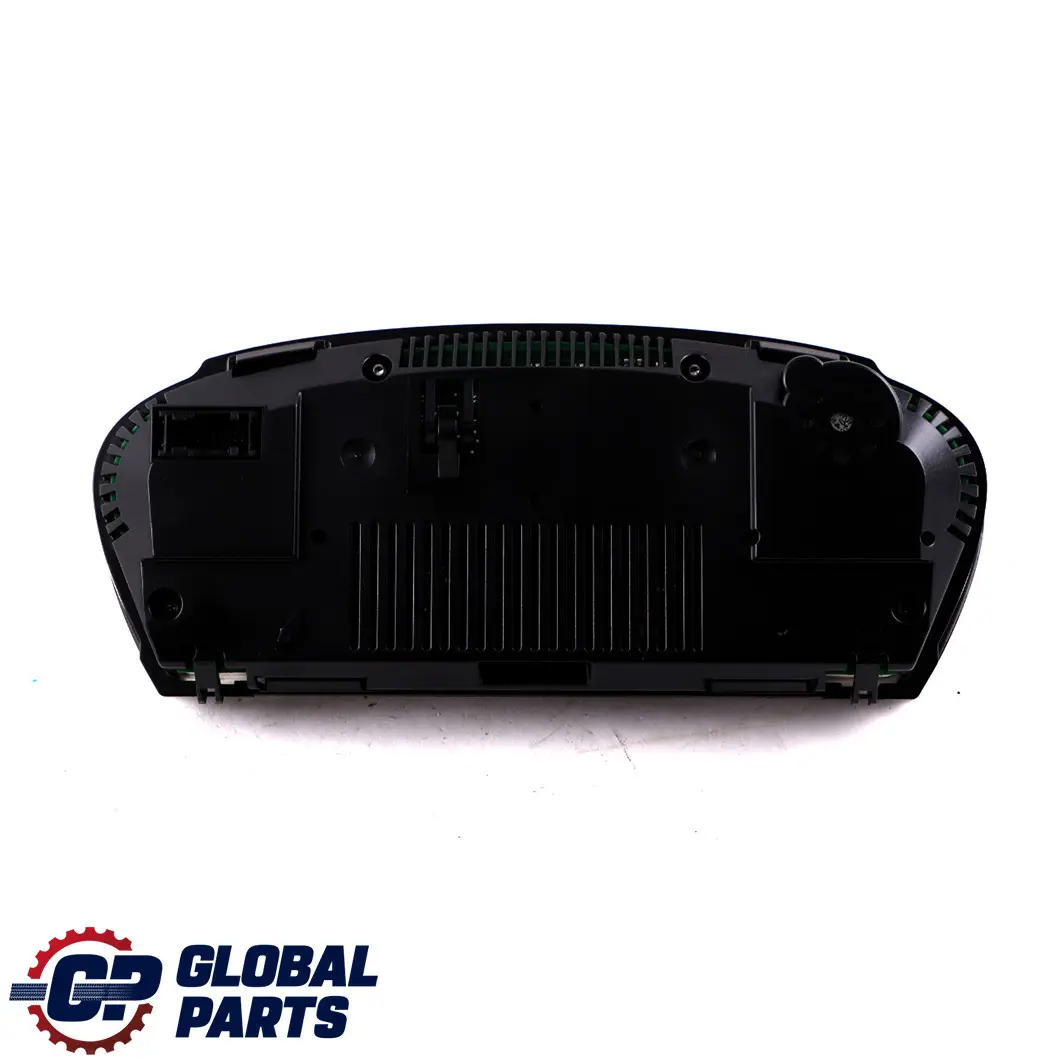

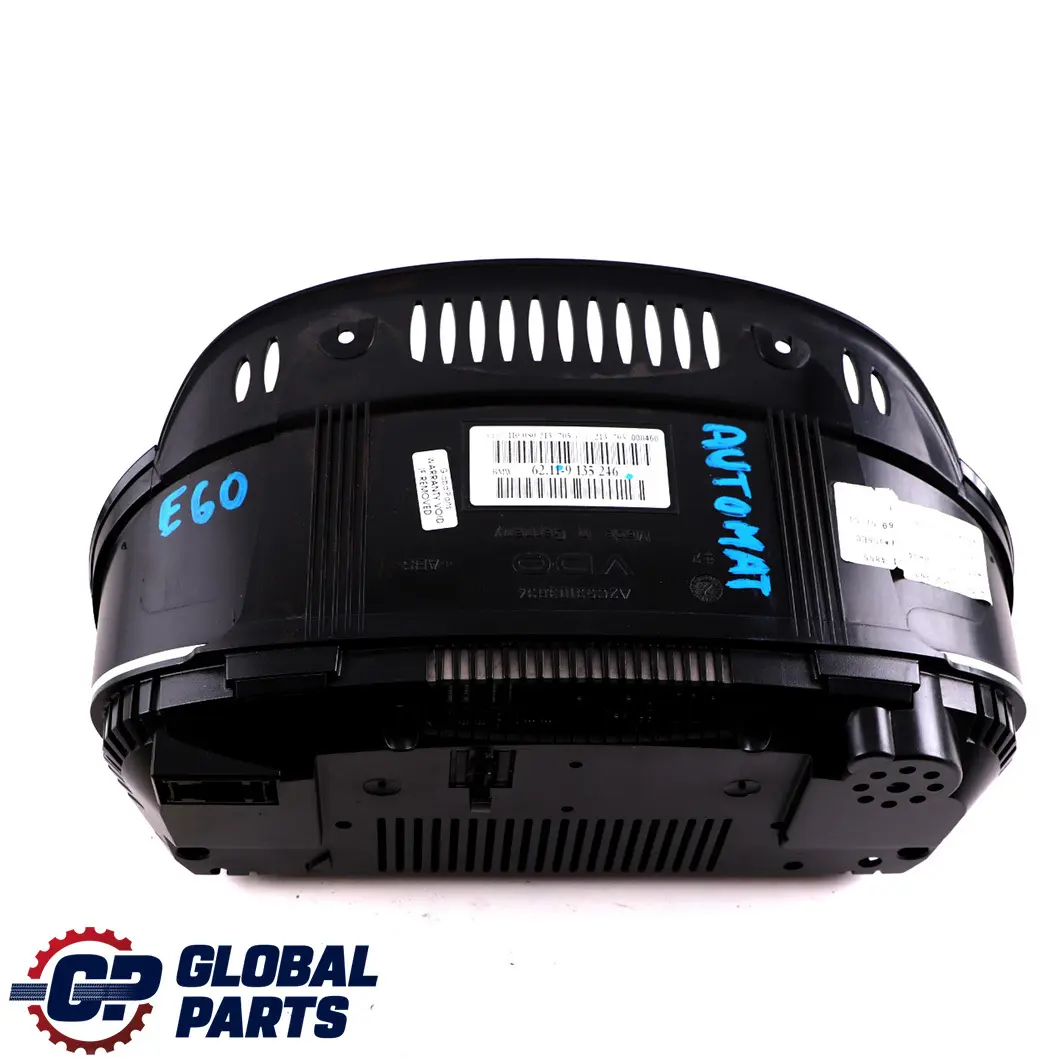

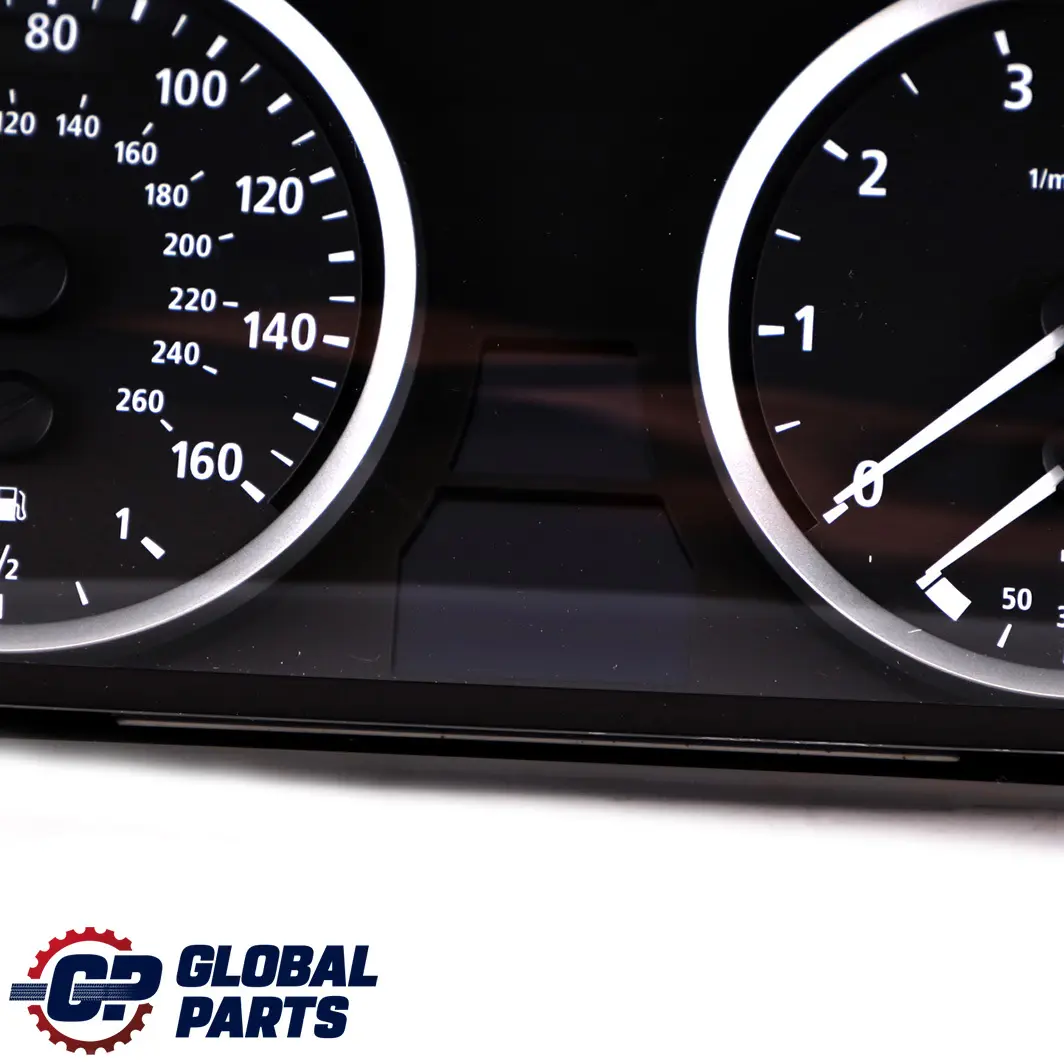

BMW 5 E60 E61 Instrument Cluster Speedo Clocks Petrol MPH Automatic 9135246

BMW 5 E60 E61 Instrument Cluster Speedo Clocks Petrol MPH Automatic is a factory-fitted instrument panel designed for vehicles with a speedometer in miles per hour (MPH). This original instrument cluster ensures full integration with the BMW electrical system, maintaining stylistic and functional consistency with the car's interior.

Specifications and technical data

• SKU: rhd-9135246
• Mark: BMW (Genuine OE)
• Condition: Used

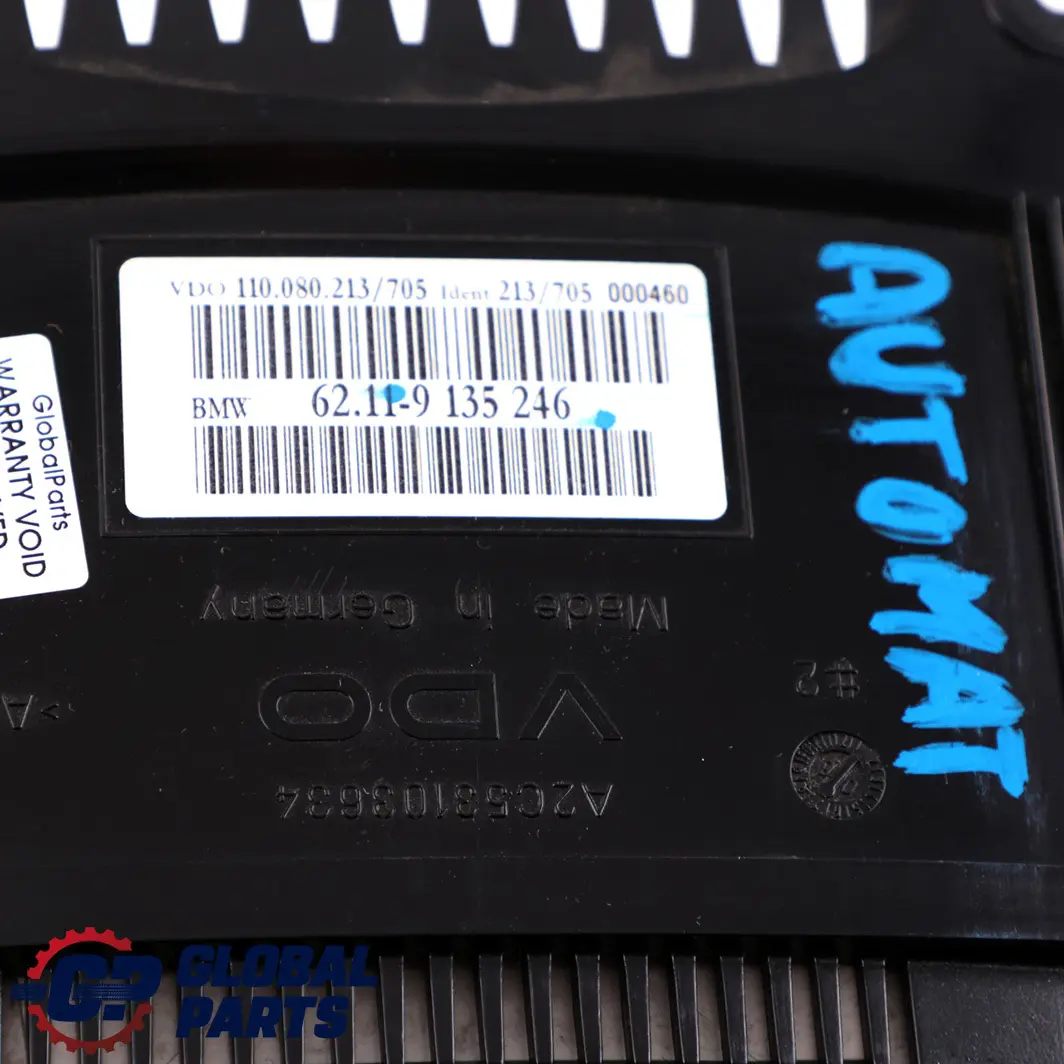

• OEM Part Number: 9135246
• Substitutable numbers: 62119135246, 9194882 9135246, 62116944119 62116968718 62116945626 62116937611, 6944119 6968718 6945626 6937611, 62116935748 62116971891 62116983146 62106947356, 935748 6971891 6983146 6947356, 62116936074 62119130122 62116974569, 6936074 9130122 6974569, 6211694
• Fuel type: Petrol
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster is designed specifically for BMW 5 Series E60 and E61 models equipped with a petrol engine and an automatic transmission. The panel's design is adapted to the factory electrical architecture and bus communication of these generations, which facilitates installation and subsequent configuration.

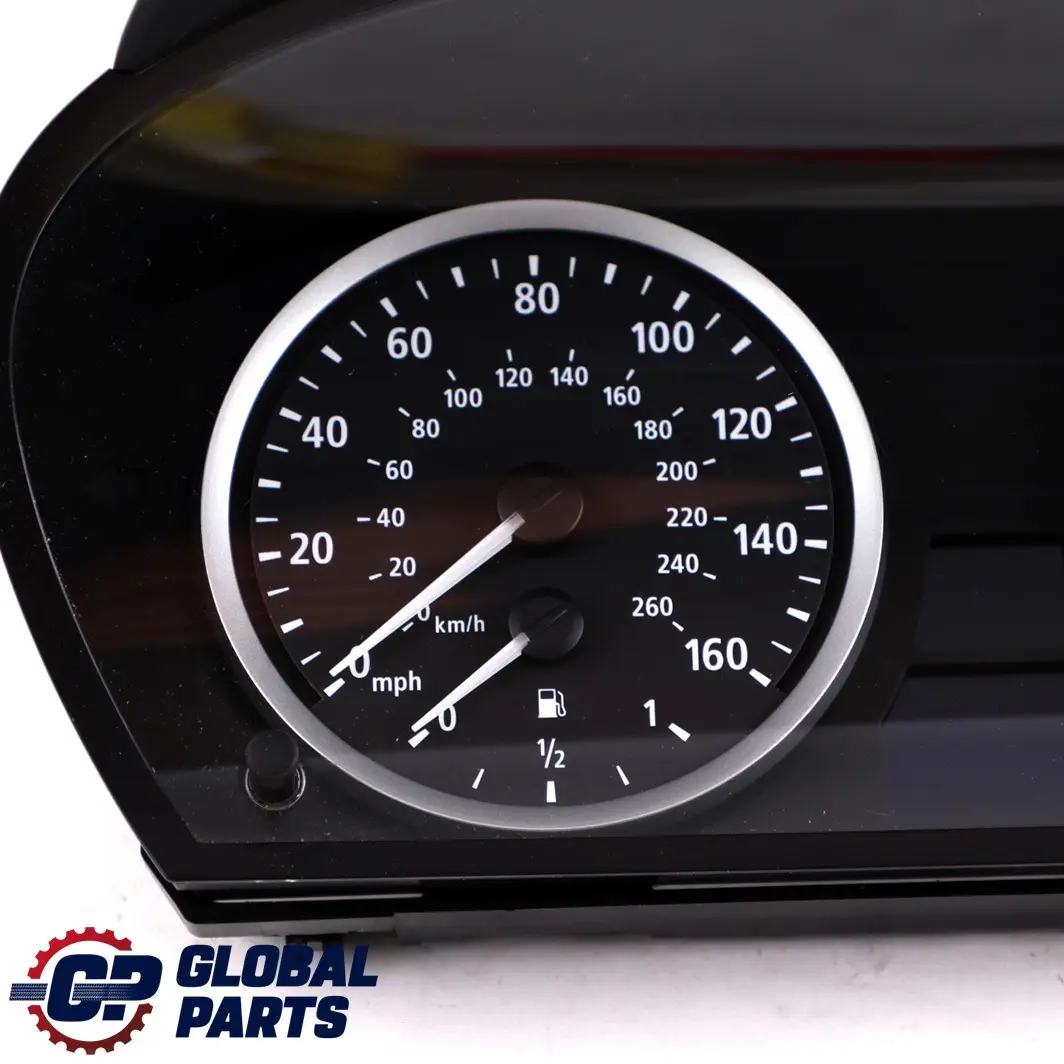

The speedometer scaled in miles per hour (MPH) is particularly suitable for cars imported from markets where this standard applies, ensuring clear speed readings and consistency with other vehicle systems.

Functionality of the instrument cluster

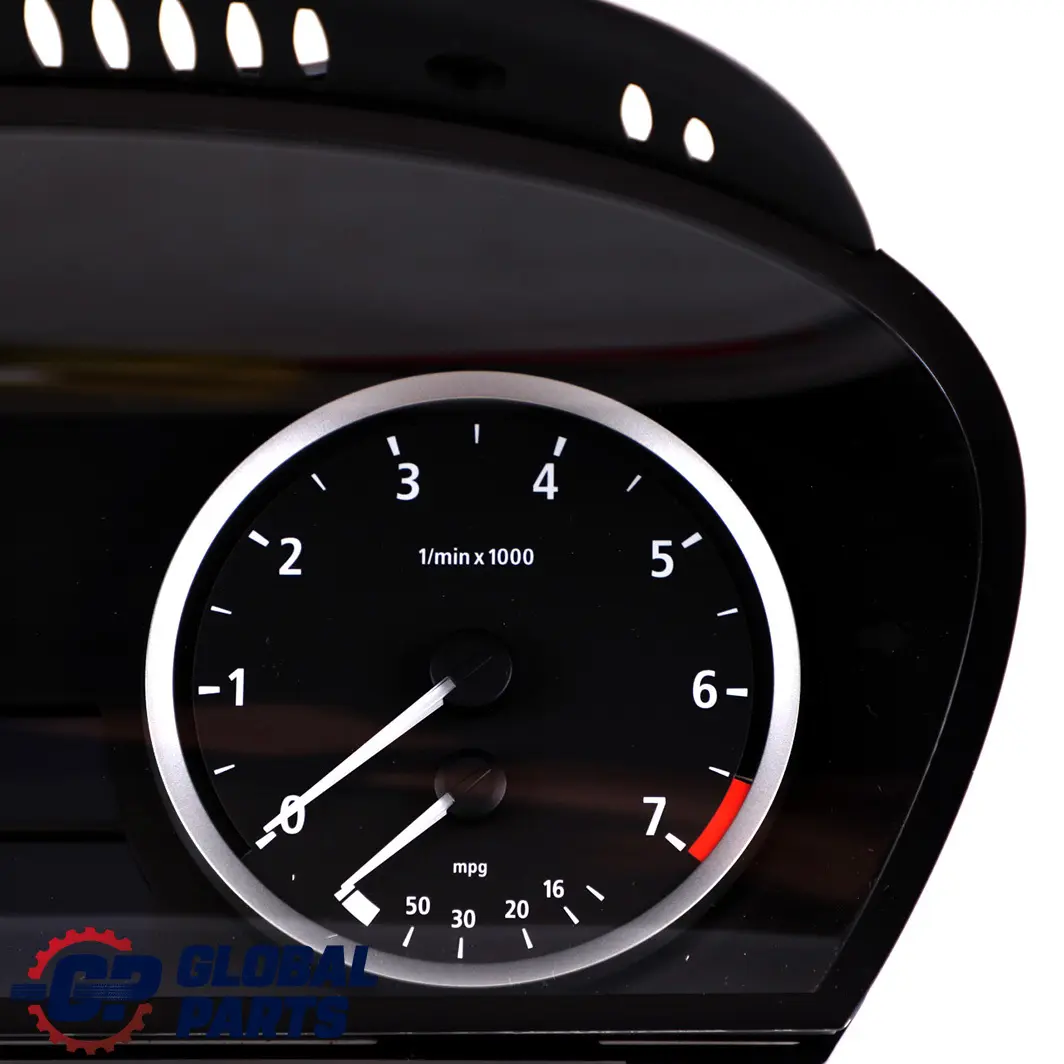

The instrument panel is responsible for displaying key vehicle operating parameters, such as speed, engine RPM, fuel level, and basic system messages. Thanks to its integration with BMW control systems, the cluster works with the electronics responsible for the petrol powertrain and automatic transmission, enabling the correct display of information related to transmission operating modes.

The software and electronics of the cluster are adapted to work with petrol units, which is important for the correct interpretation of sensor signals and the accuracy of readings. This solution allows for stable operation of the instrument system after proper matching to a specific vehicle.

Benefits of using an original instrument cluster

Using a factory instrument panel in a BMW 5 Series E60/E61 offers a number of practical advantages:

• consistent fit with the vehicle's electrical installation and communication,
• preservation of the original cockpit aesthetics,
• adaptation to petrol engines and automatic transmissions,
• possibility of using existing mounting points and wiring harnesses.

As a result, installation is carried out in an orderly manner, and the risk of compatibility issues is reduced compared to non-factory replacements.

Condition and installation aspects

The offered instrument cluster is a used item, which in practice means that before installation, it is worth planning standard service activities, such as verifying the electronics, potentially adjusting the mileage, or configuring it for the specific vehicle specification. Installation by a workshop with experience in BMW 5 Series E60/E61 electronics is recommended.

When replacing the instrument panel, procedures related to security systems and communication with control modules must be taken into account to maintain full vehicle functionality after installation.
