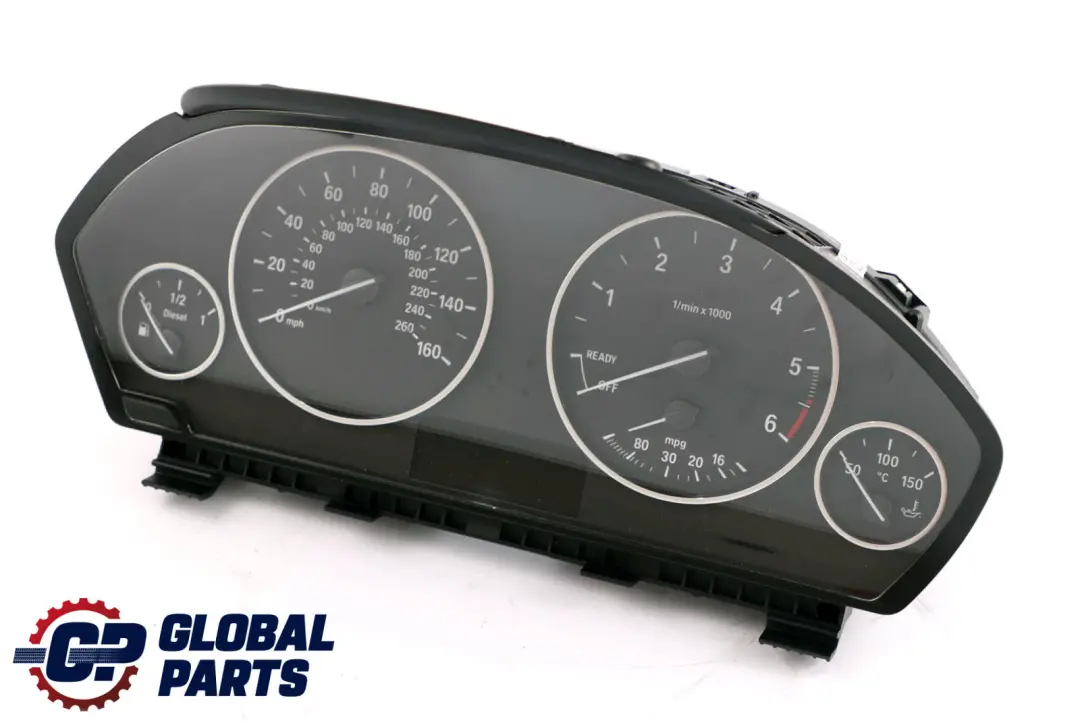

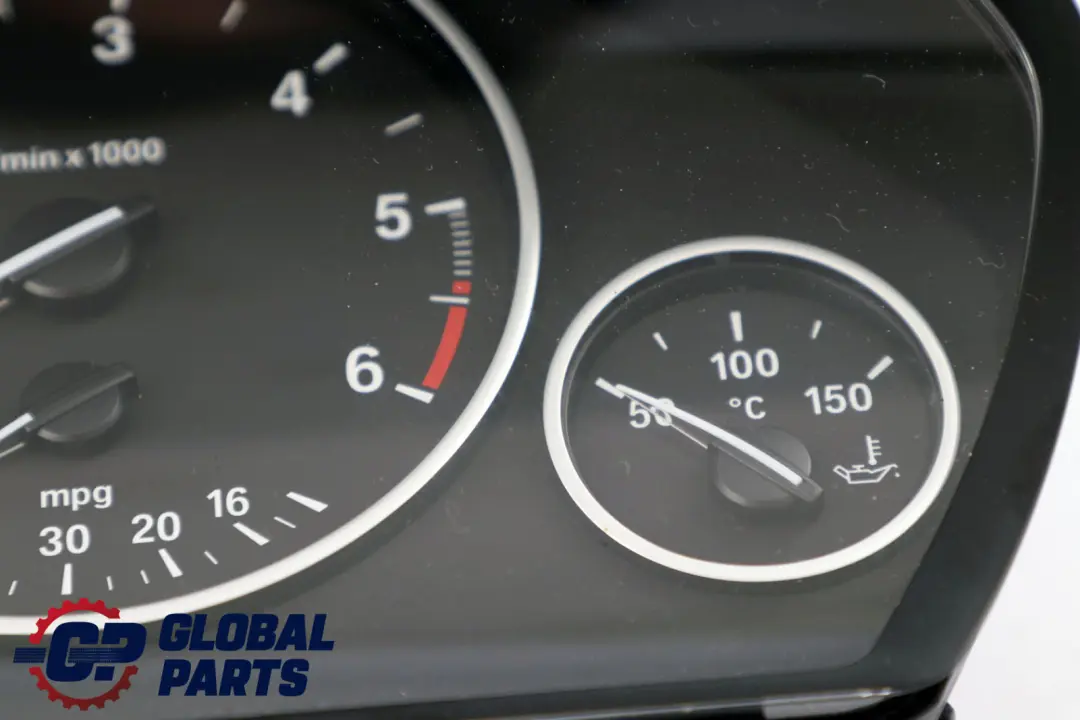

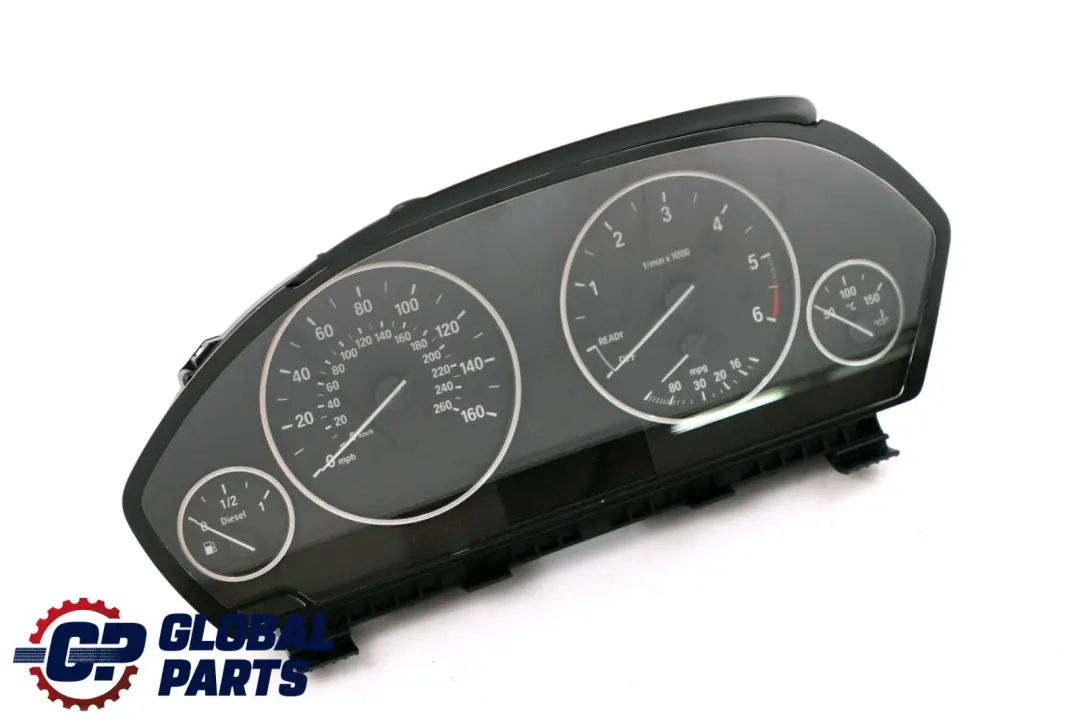

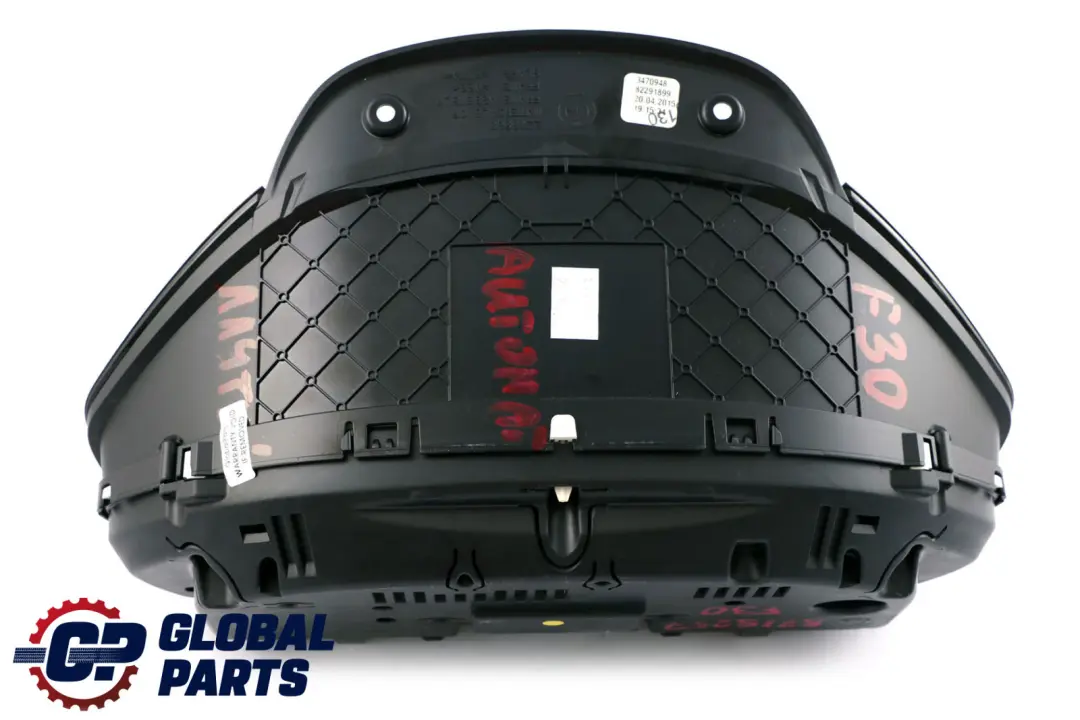

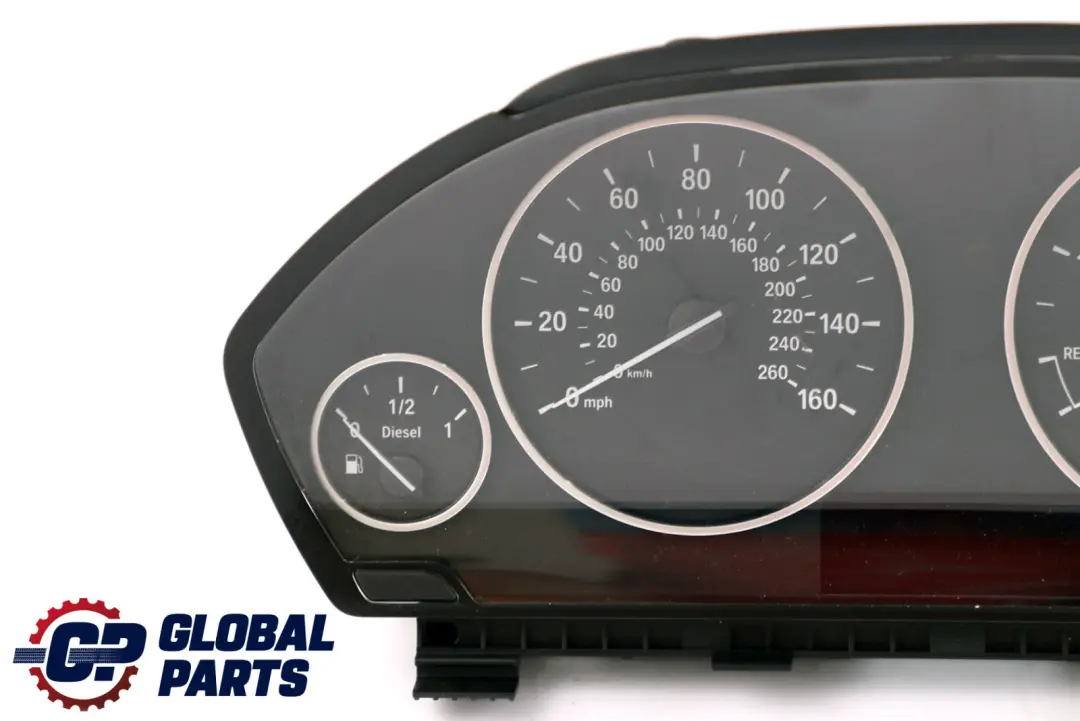

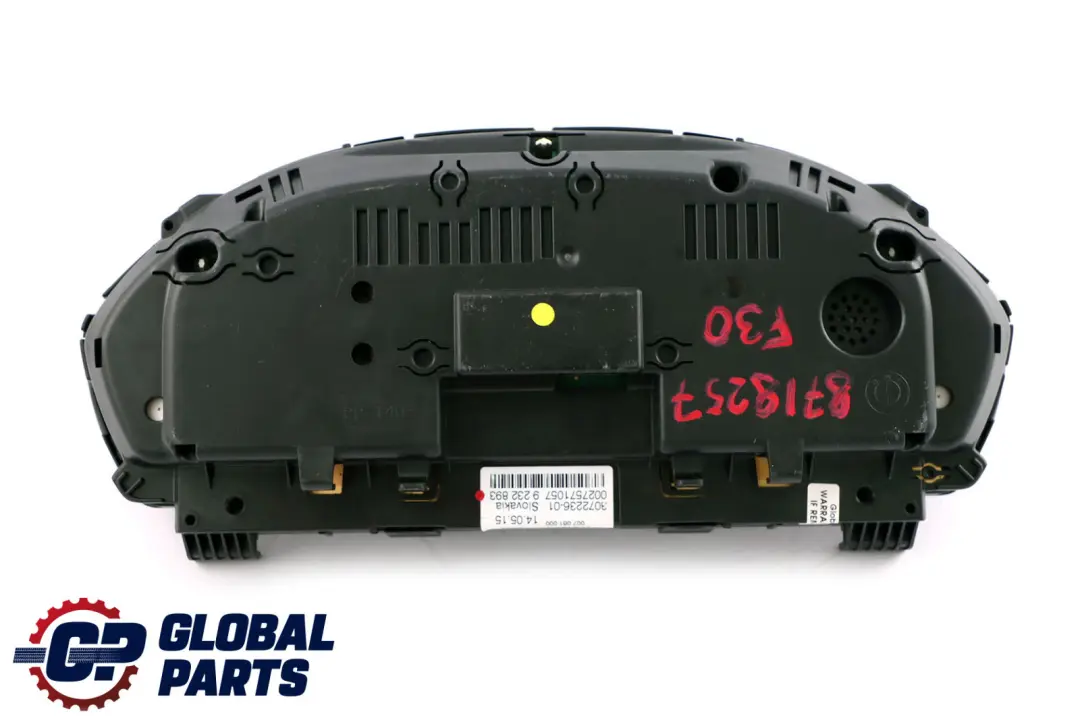

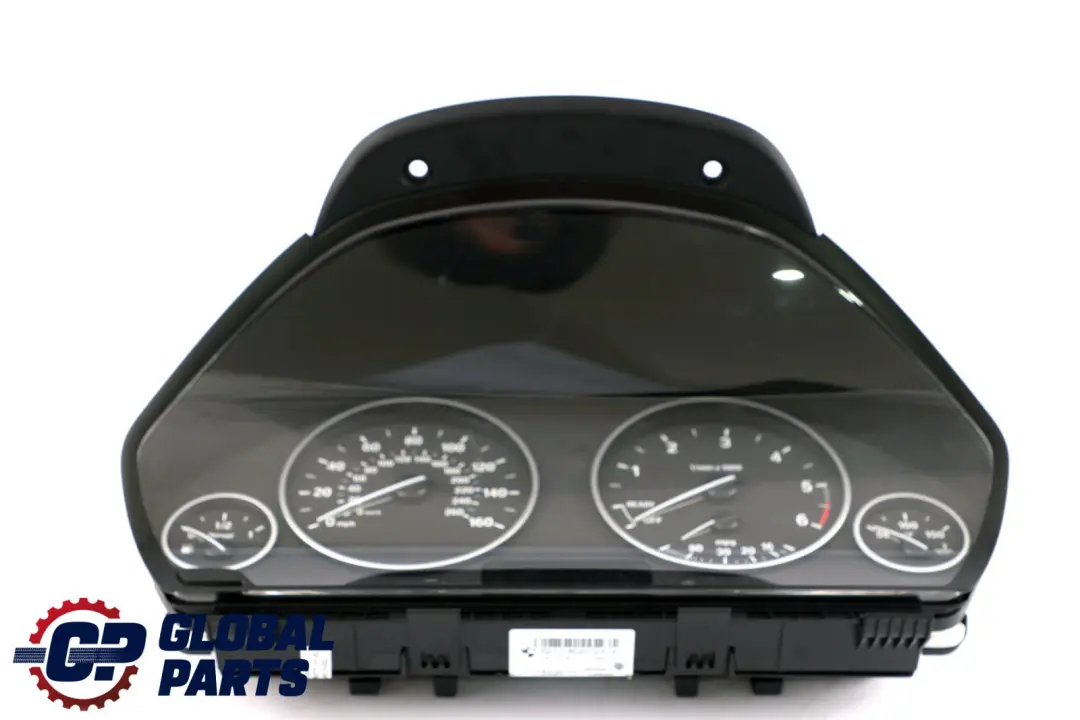

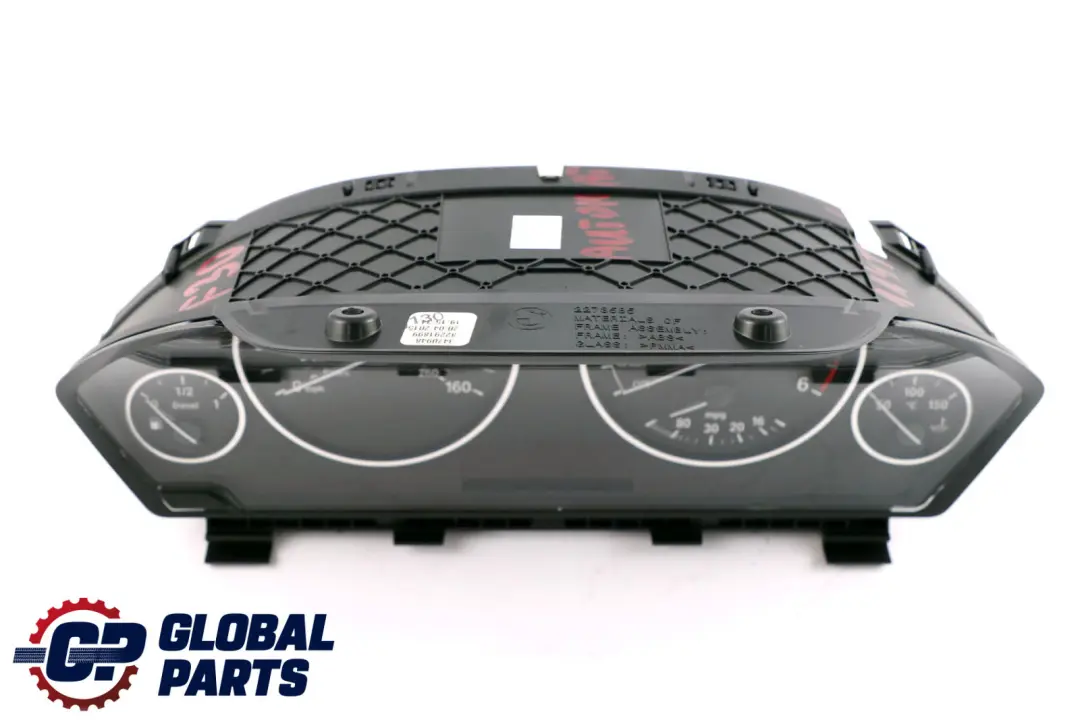

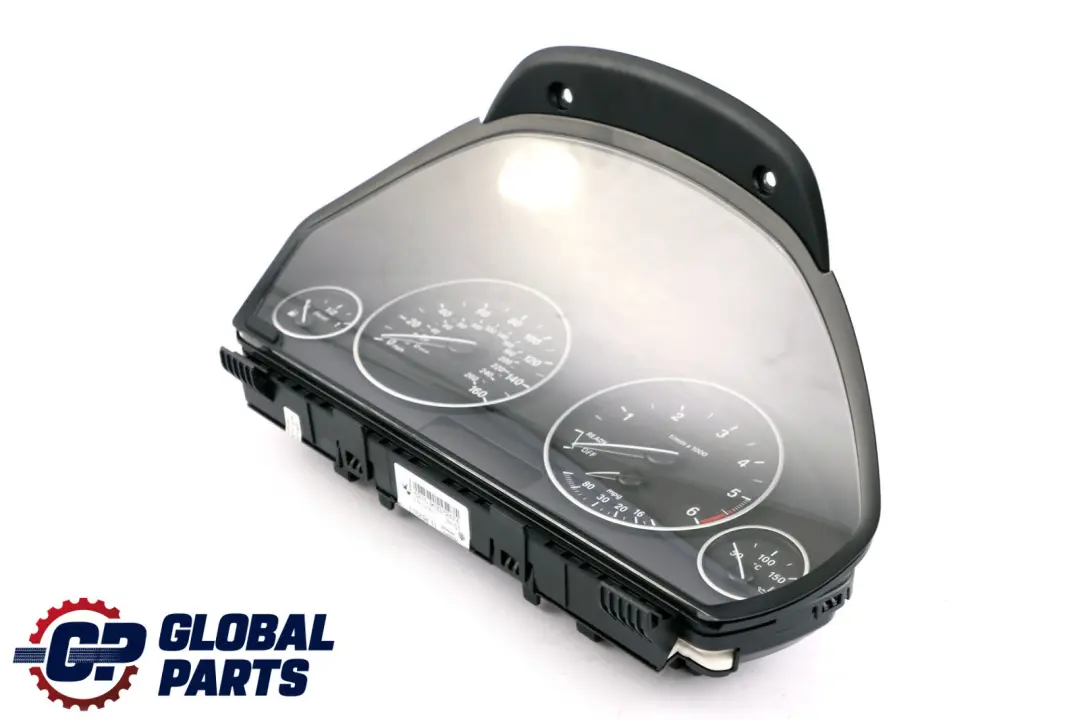

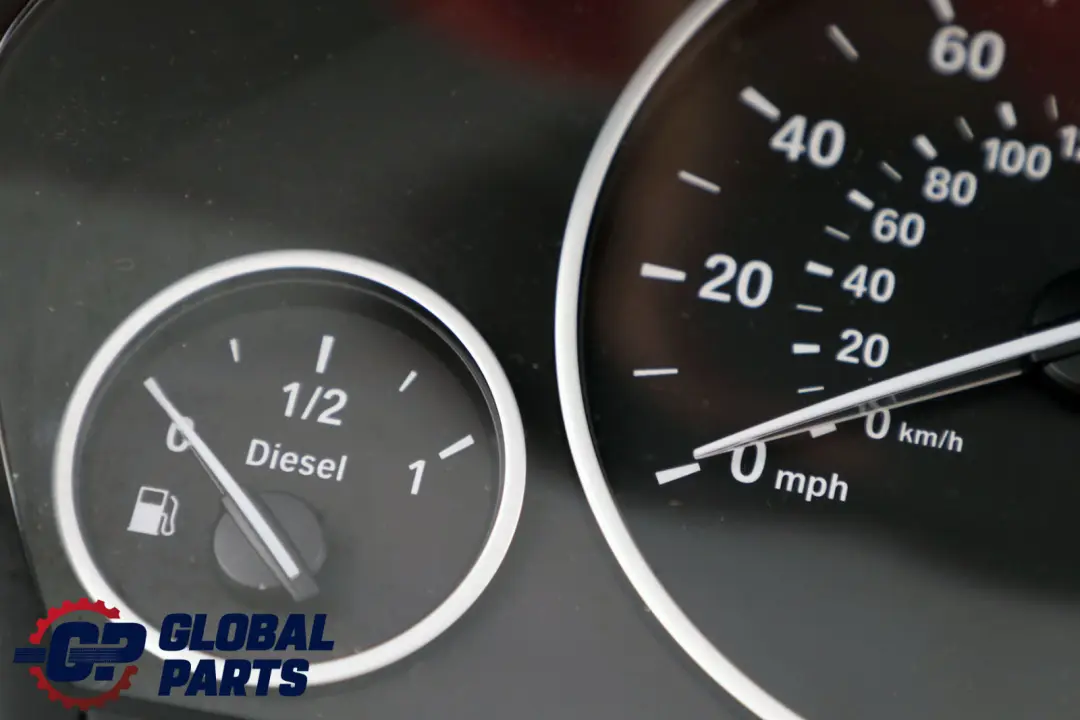

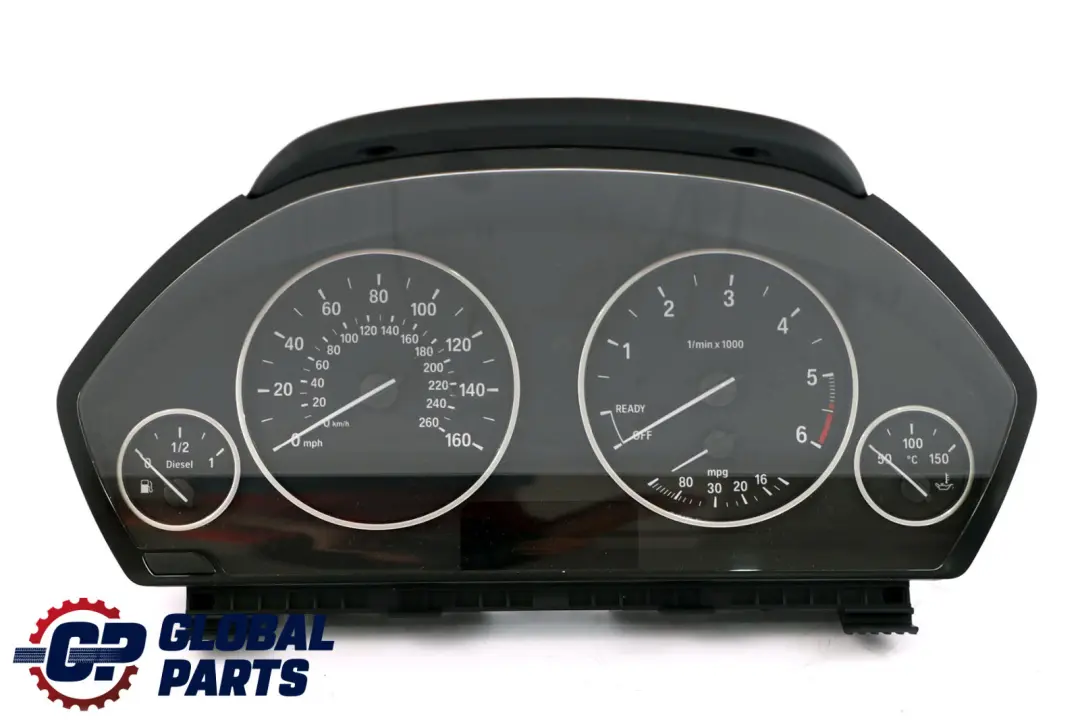

BMW 3 4 F30 F31 F32 Diesel Instrument Cluster Speedo Clocks Automatic 9232893

The BMW 3 / 4 F30 F31 F32 Diesel Automatic Transmission Instrument Cluster is a factory instrument panel designed for BMW 3 and 4 Series models with a diesel engine and automatic transmission. This original instrument cluster ensures full integration with the vehicle's electronics, accurate speed and RPM readings, and clear monitoring of the powertrain's operating parameters.

Specifications and technical data

• SKU: rhd-8718257
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8718257
• Substitutable numbers: 62108718257, 8718257, 9232893, EM, 62108803144, 8803144, 62108794240, 8794240
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Intended Use and Compatibility

The presented BMW instrument cluster is designed for the interior of 3 Series F30/F31 and 4 Series F32 models with a diesel engine and automatic transmission. The speedometer's design is adapted to the electrical architecture of these generations, enabling correct cooperation with control modules, speed and RPM sensors, as well as comfort and safety systems.

Thanks to its factory origin, the panel maintains the correct mounting geometry, housing shape, and connector layout, facilitating installation in place of the original cluster without the need for modifications to the wiring or dashboard.

Instrument Cluster Functionality

The instrument cluster is responsible for presenting key information to the driver in BMW vehicles with diesel engines and automatic transmissions. It works with the powertrain, ABS/ESP system, and transmission control unit, ensuring consistent readings and warning messages.

The main functions of the cluster include:

• continuous display of driving speed and engine RPM,
• cooperation with vehicle diagnostic systems and display of messages,
• integration with the automatic transmission for appropriate indications,
• clear real-time information for the driver about the vehicle's status.

Condition and Benefits of Using a Used Part

This component comes from the Instrument Clusters category and is offered as a used part, allowing for economical repair or replacement of a damaged cluster while maintaining original BMW manufacturing quality. A used instrument panel is a particularly beneficial solution in case of electronic failures, mechanical damage, or problems with reading parameters on the currently installed cluster.

Using an original instrument cluster ensures:

• a cohesive look with the factory interior finish of BMW 3 and 4 Series,
• maintained proper ergonomics and readability of indications,
• potential for adaptation to the existing vehicle configuration with appropriate programming.

Powertrain Parameters – Diesel and Automatic Transmission

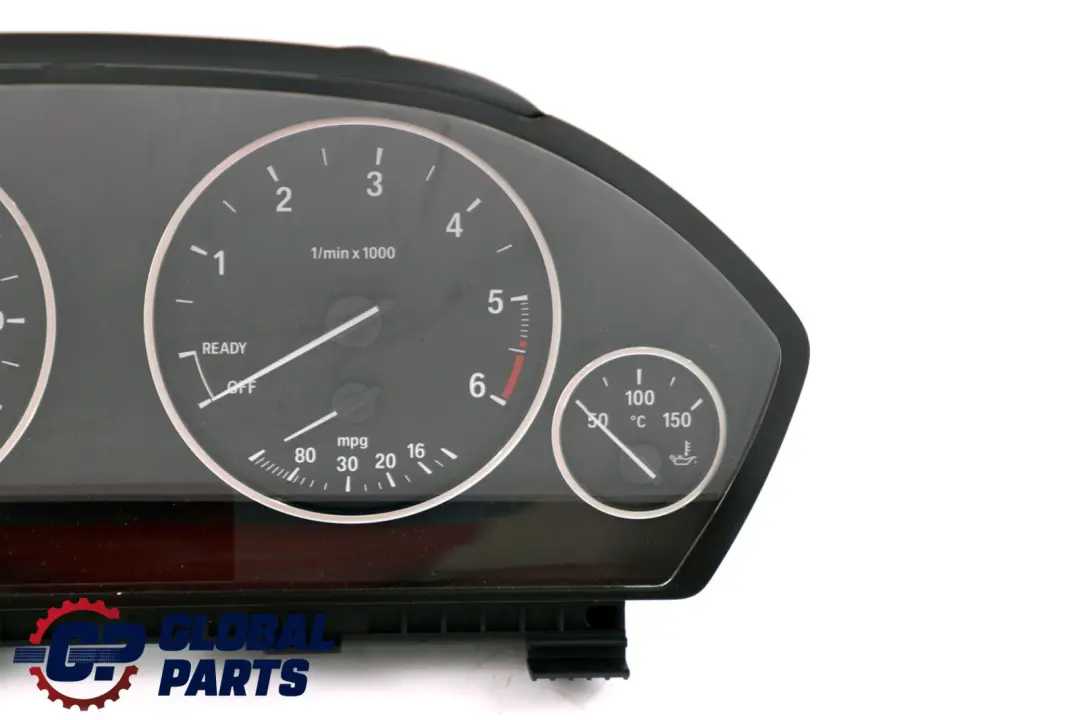

The presented cluster is intended for vehicles with a diesel engine, meaning the tachometer scale and message logic are adapted to the characteristics of BMW diesel units. Additionally, it works with an automatic transmission, enabling it to handle the appropriate transmission operating modes and related information displayed to the driver.

This adaptation to a specific drive configuration minimizes the risk of incorrect readings and facilitates integration with the vehicle's factory systems.

Selection and Other BMW Instrument Clusters

When selecting a cluster for a BMW 3 or 4 Series with a diesel engine and automatic transmission, it is important to pay attention to the compatibility of the body generation and powertrain configuration. If necessary, consult a car electrician or a BMW specialist service for installation. If you are also interested in other solutions for upgrading or repairing the instrument panel in your car, check the available parts in the BMW Instrument Clusters category.

If you want to better understand the relationships between the cluster, speed sensors, and powertrain components, and learn how to assess the condition of used components, a practical guide will be useful – you can find it here: Used Differentials – What You Should Know About Used Differentials, Sensors, and Powertrains.
