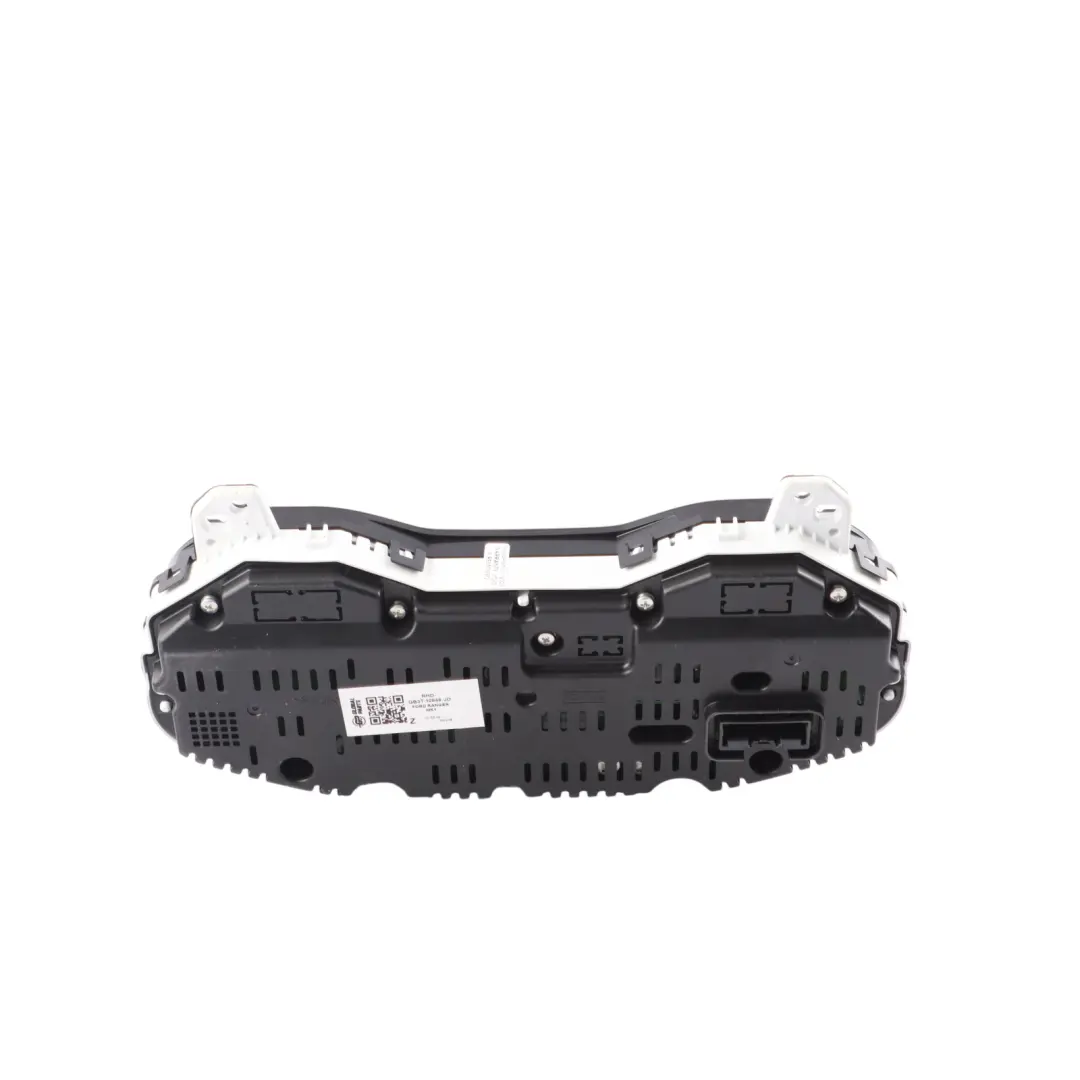

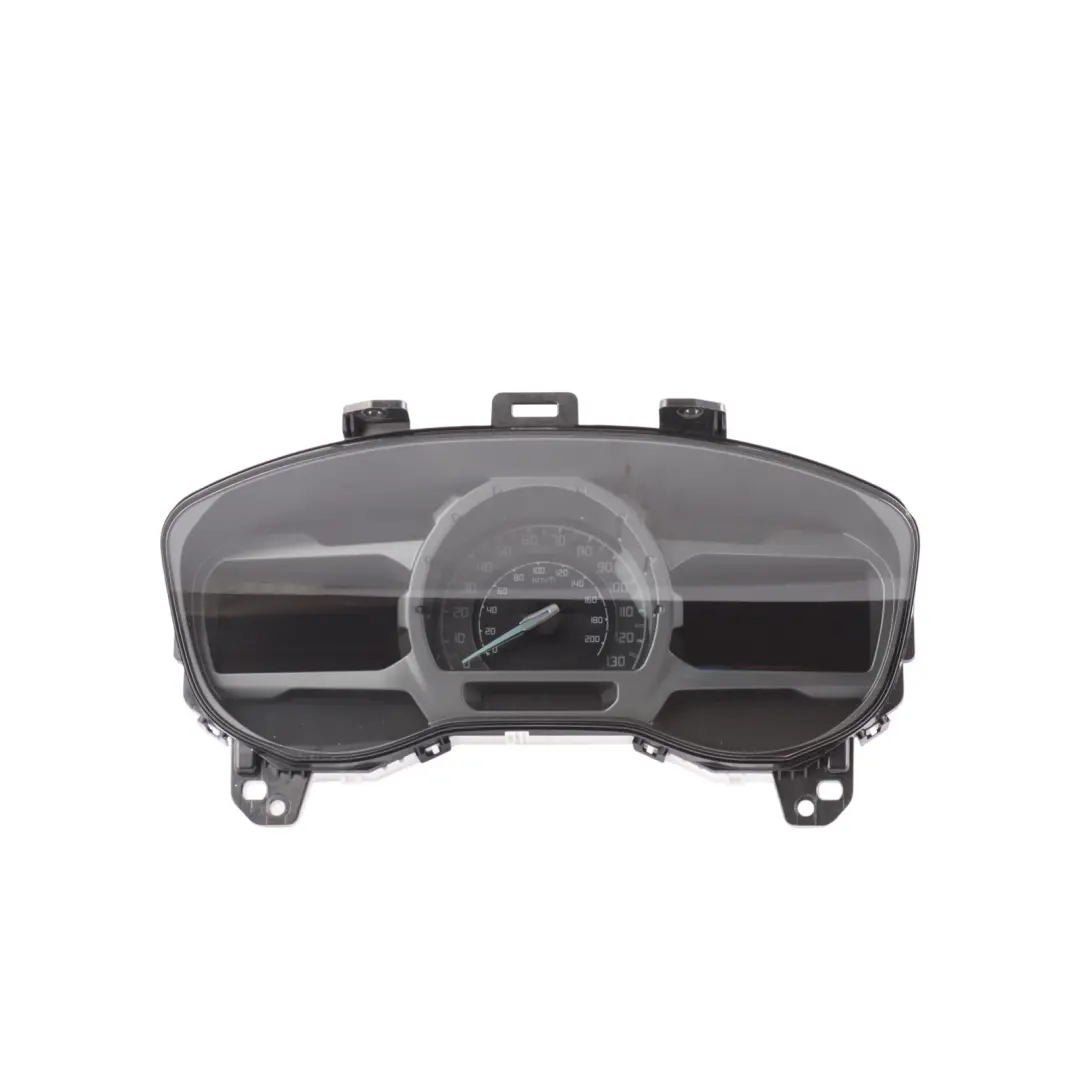

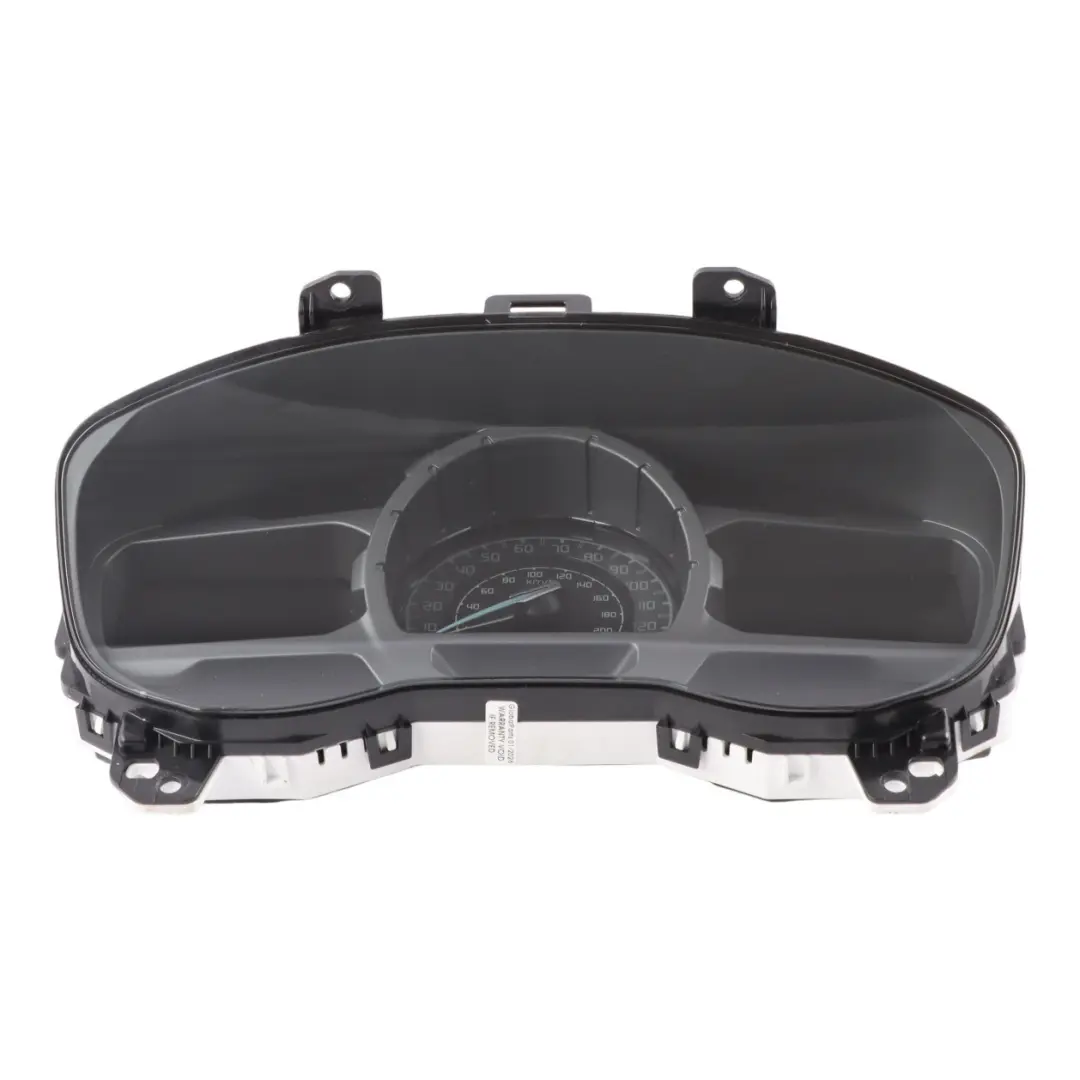

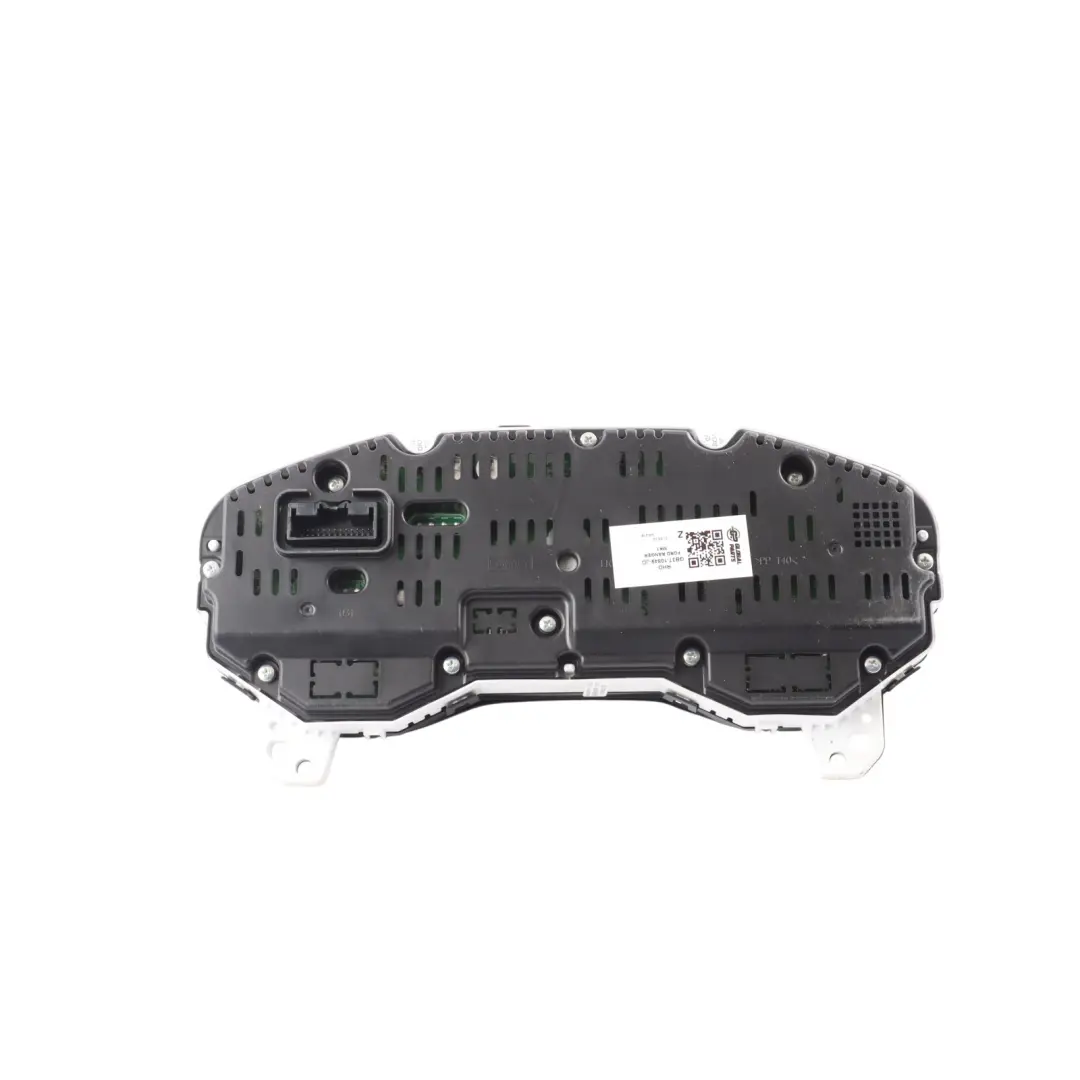

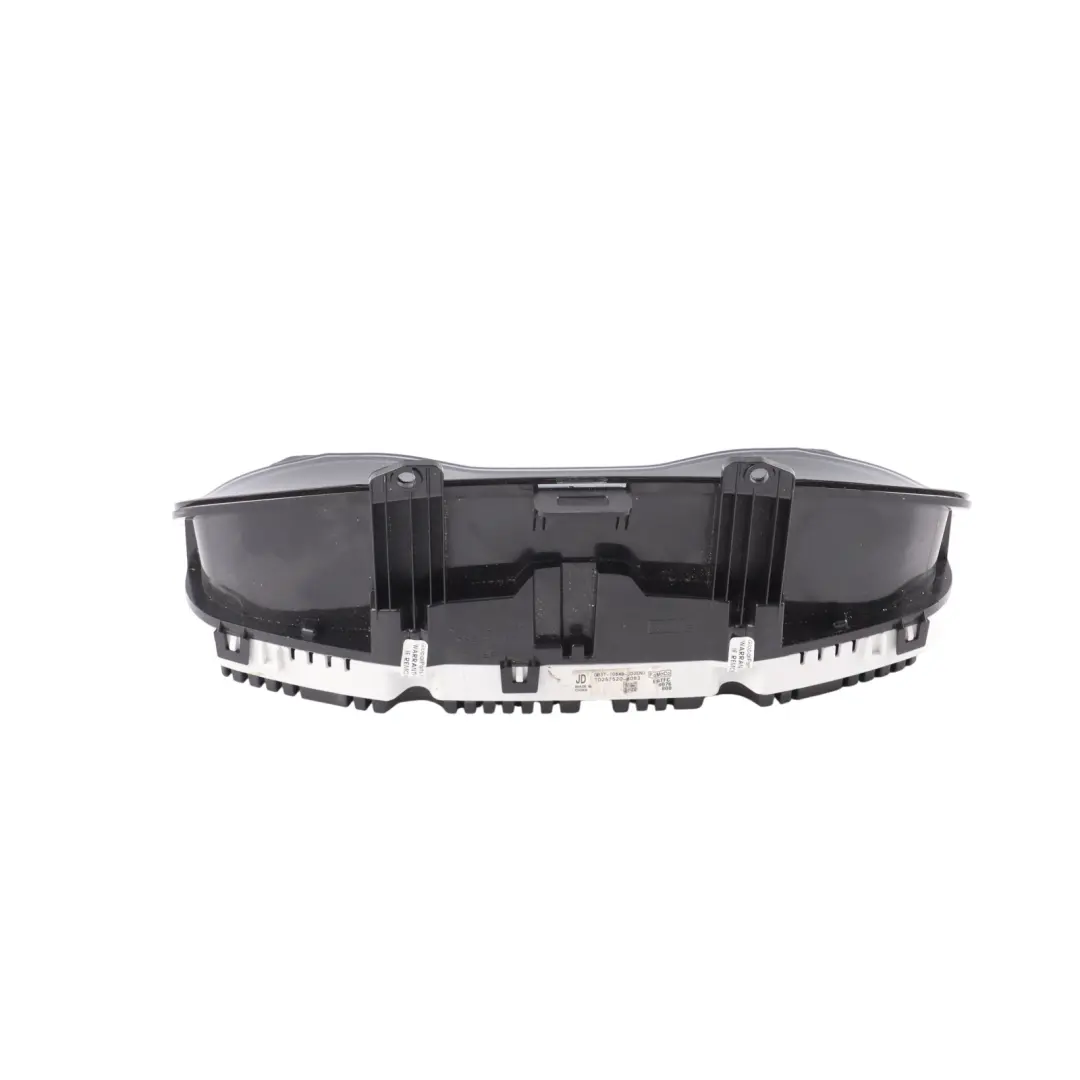

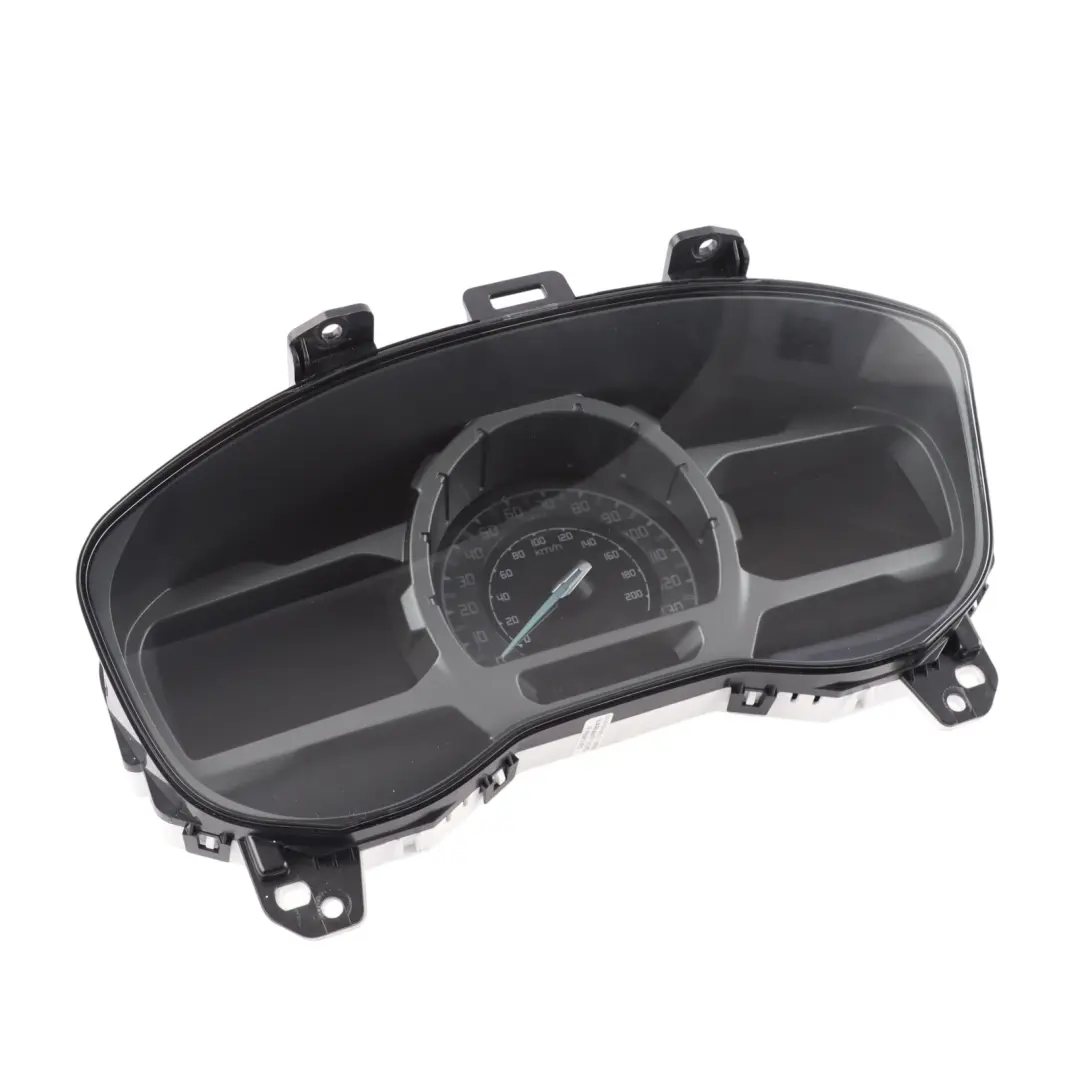

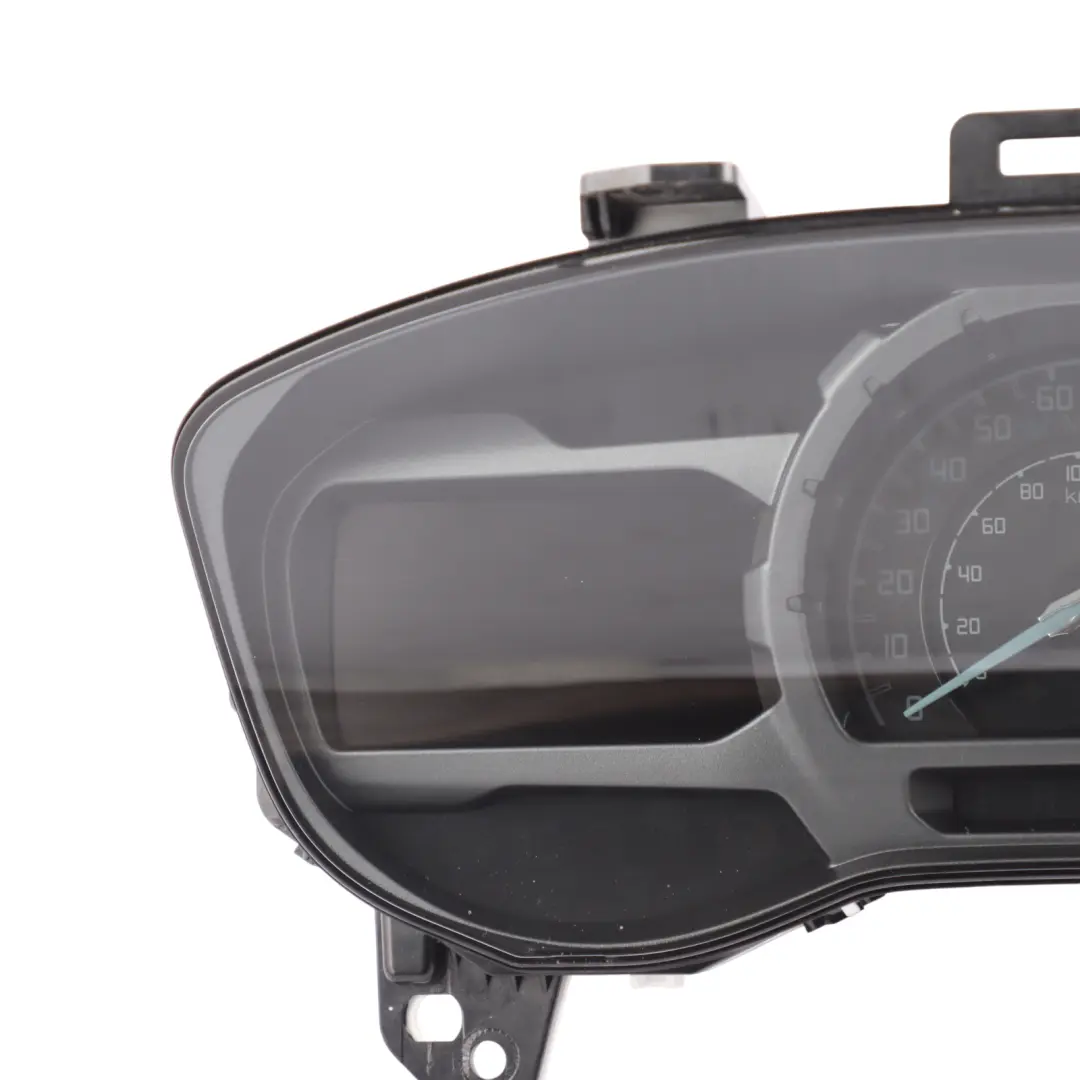

Ford Ranger Mk5 Speedometer Speedo Clock Cluster Diesel Automatic GB3T-10849-JD

Ford Ranger Mk5 Diesel Automatic Instrument Cluster is a factory-original speedometer and gauge set, designed for precise integration with the vehicle's electronics. This is a practical solution for users who need a reliable gauge panel tailored to the specific drivetrain and equipment of their vehicle.

Specifications and technical data

• SKU: RHD-GB3T-10849-JD
• Mark: Ford
• Condition: Used
• OEM Part Number: GB3T-10849-JD
• Substitutable numbers: GB3T-10849-JD, GB3T10849JD, GB3T-10849-JD3ENU, GB3T10849JD3, 2200051ENU
• Fuel type: Diesel
• Gearbox type: Automatic
• Part type: Instrument Cluster
• Category: Instrument Clusters

Purpose and Compatibility

The Ford Ranger Mk5 Instrument Cluster is designed for vehicles equipped with a diesel engine and an automatic transmission. This means that the scale, indication logic, and communication with control modules are adapted to the characteristics of a diesel engine and the operation of an automatic gearbox.

By using an original manufacturer solution, the cluster works seamlessly with the vehicle's factory systems, such as drivetrain control, safety systems, and comfort modules. This is crucial wherever stable onboard electronics performance and accurate display of vehicle operating parameters are important.

Construction and Function of the Instrument Cluster

The presented Ford Ranger Gauge Set integrates key driver information into a single housing, including driving speed, engine RPM, warning lights, and automatic transmission operation indicators. The layout of the gauges is optimized for readability, facilitating quick data retrieval while driving.

The panel is prepared for communication with the vehicle's bus system, allowing it to transmit and receive data from other control units. This type of solution promotes consistency throughout the entire electronic system and reduces the risk of communication errors after replacing the cluster.

Practical Application and Benefits of Installation

Installing this instrument cluster is particularly beneficial in situations where the original cluster has suffered mechanical or electronic damage, or when a replacement part compatible with the Diesel and automatic configuration is required. Choosing an original panel allows you to:

• maintain predictable vehicle system behavior in terms of electronics and indications,
• preserve communication consistency with engine and gearbox control modules,
• minimize the risk of compatibility issues compared to aftermarket replacements of unknown origin.

This solution is recommended for both standard repairs and professional vehicle rebuilds after collisions or instrument system failures.

Characteristics of a Used Product

The offered cluster comes from the category of used instrument clusters, which means it is a part removed from a vehicle, retaining its manufacturer-intended functionality. Such components are often chosen by workshops and individual users because they allow for rational cost reduction for repairs while maintaining original construction.

Before installation, it is recommended to follow the standard procedure for matching the cluster to the specific vehicle instance, in accordance with service practices for instrument clusters – especially regarding electronics configuration and potential vehicle adaptation.

Selection, Brand, and Additional Technical Information

As a product from a brand associated with Ford OE, this cluster is designed for the specific requirements of the Ranger Mk5 model. When selecting a part, it is important to pay attention to compatibility with the fuel type and gearbox type to ensure proper cooperation with the drivetrain and control units.

If necessary, you can refer to manufacturer markings and interchangeable part numbers, which facilitate the identification of the correct panel version. This is particularly important when comparing different variants of instrument clusters used in the same vehicle model.
