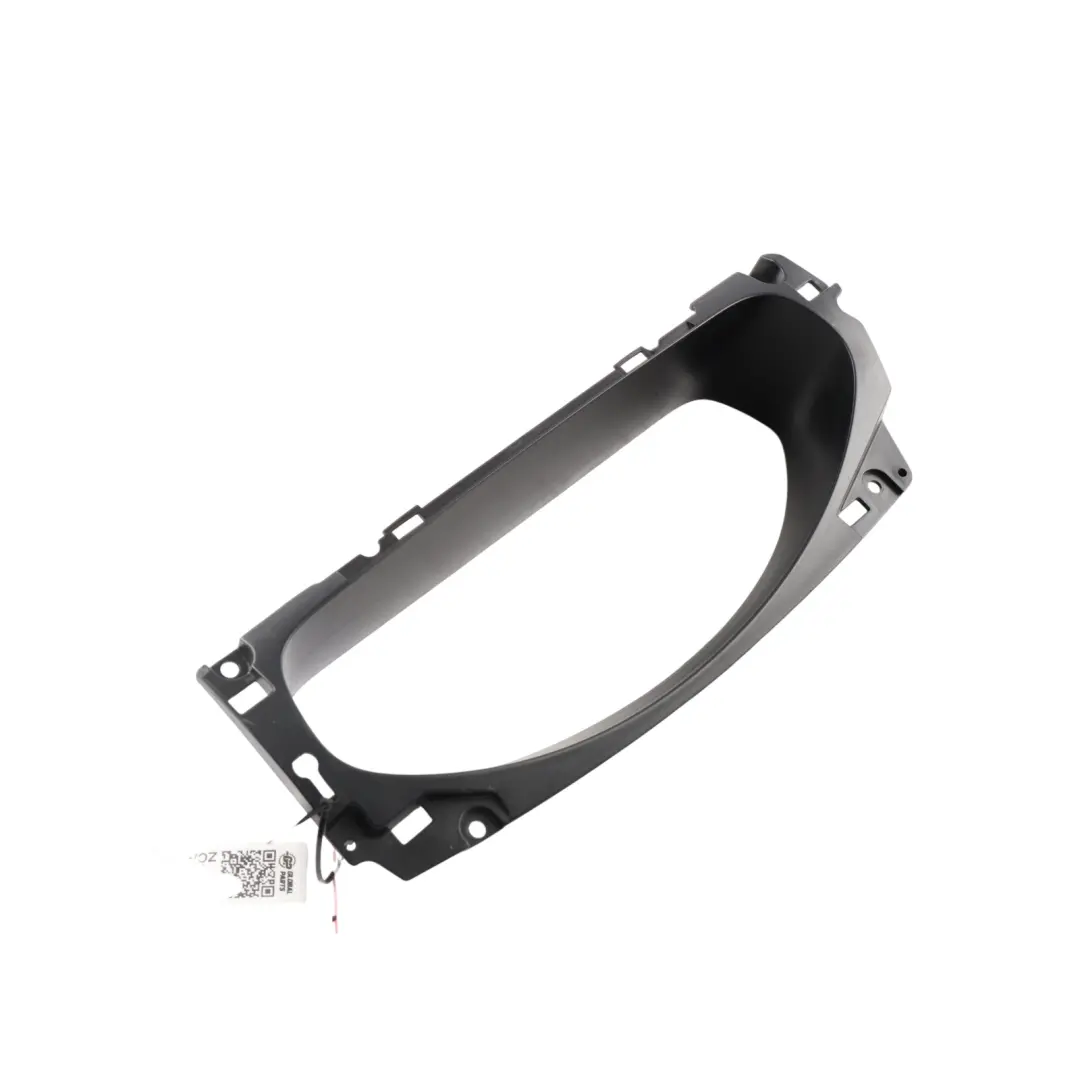

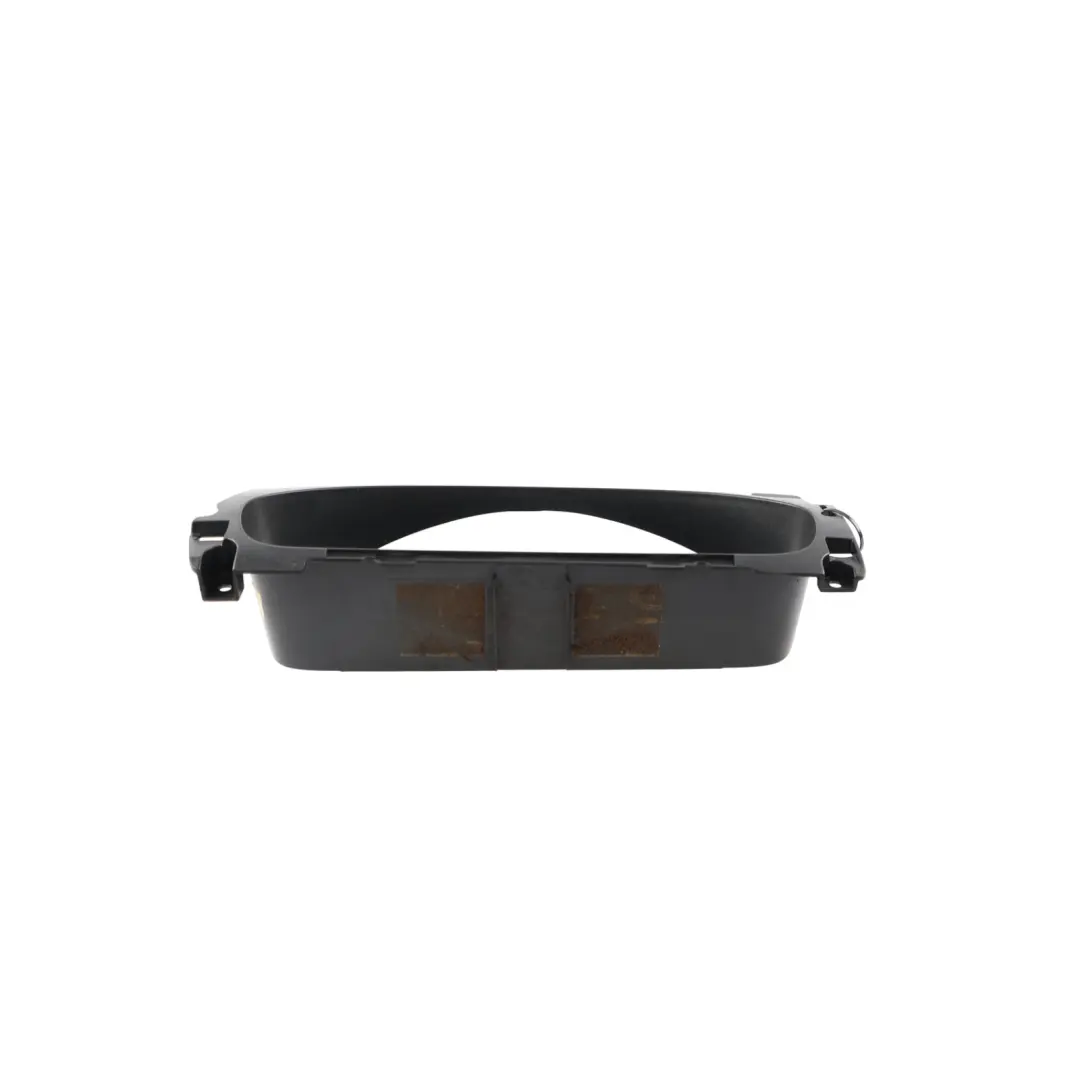

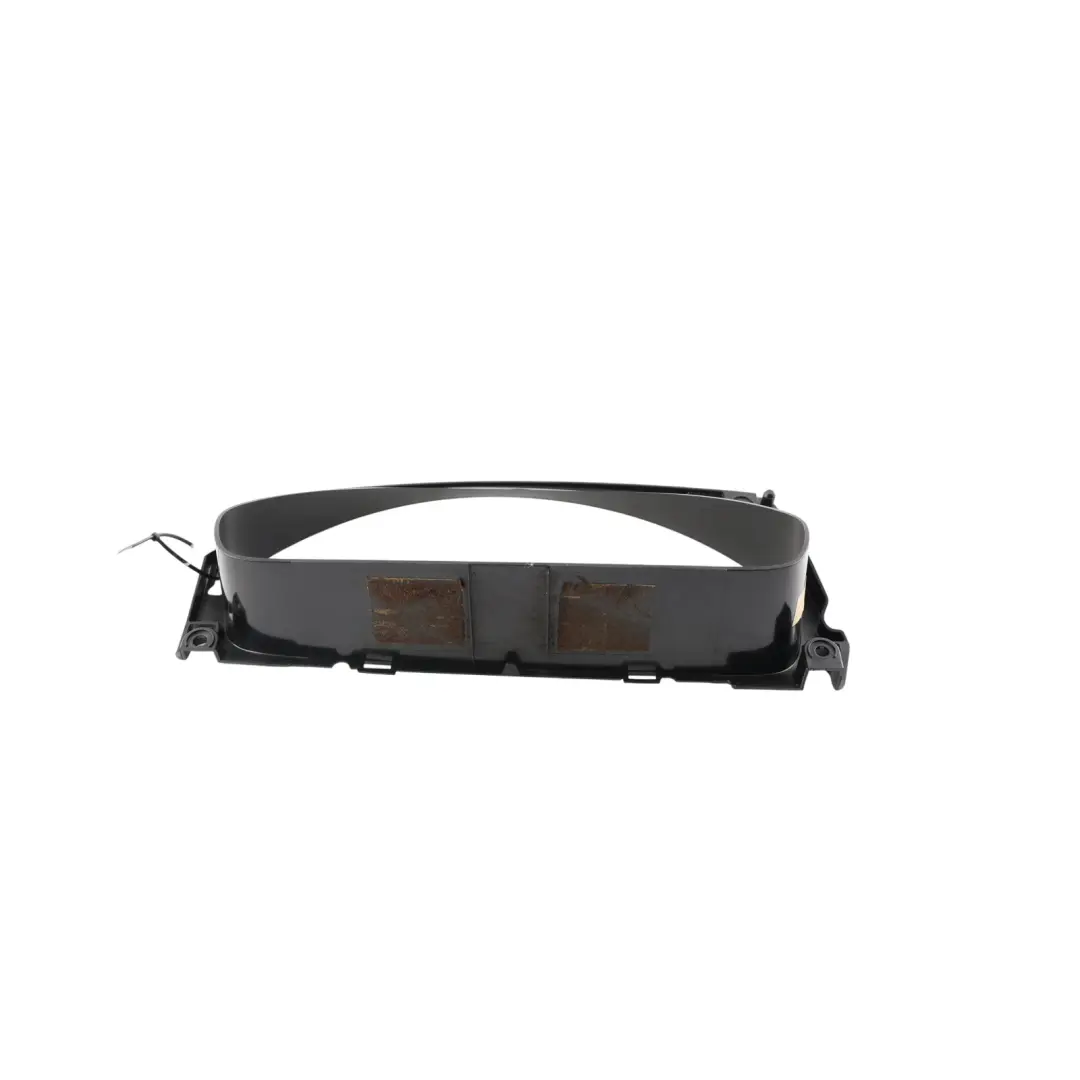

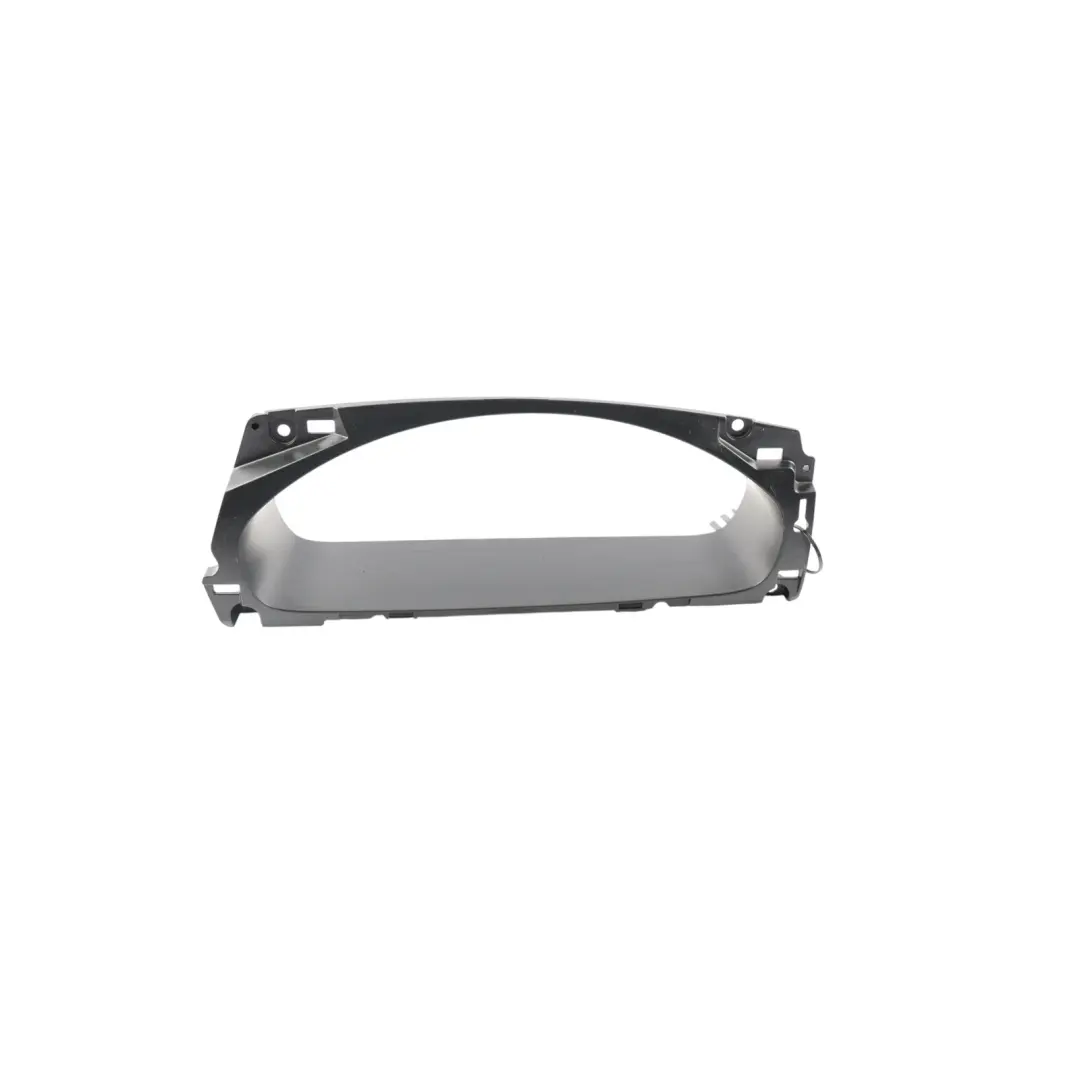

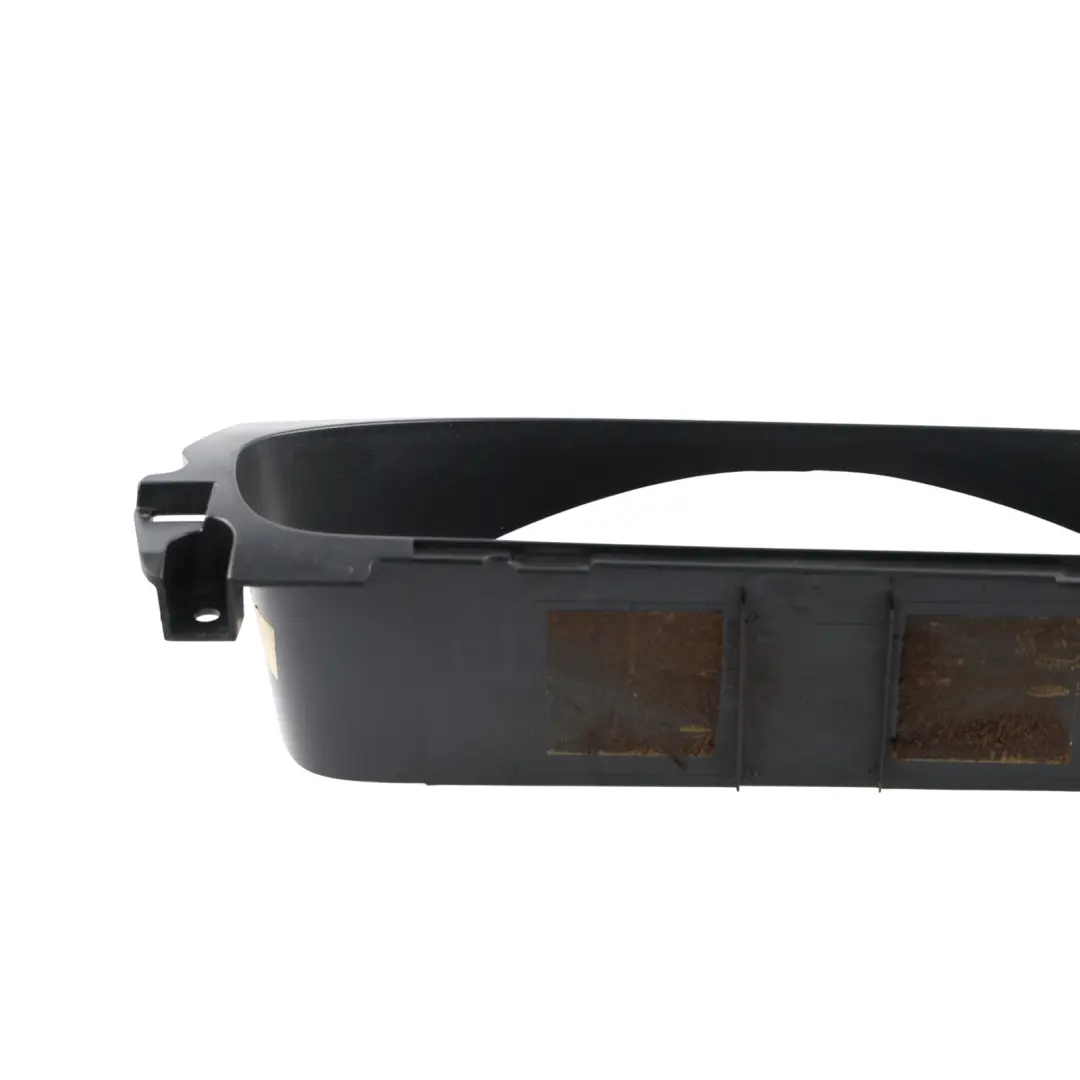

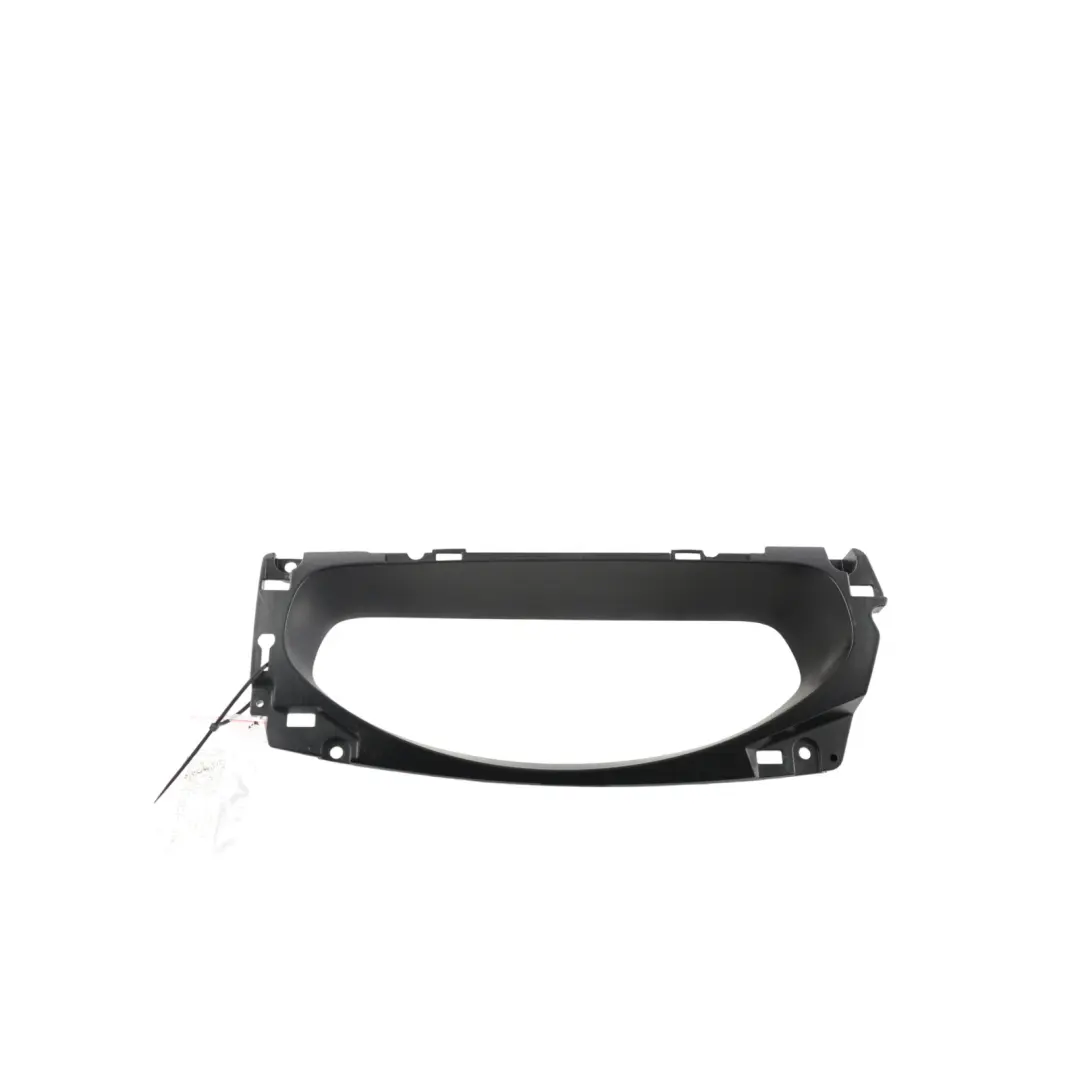

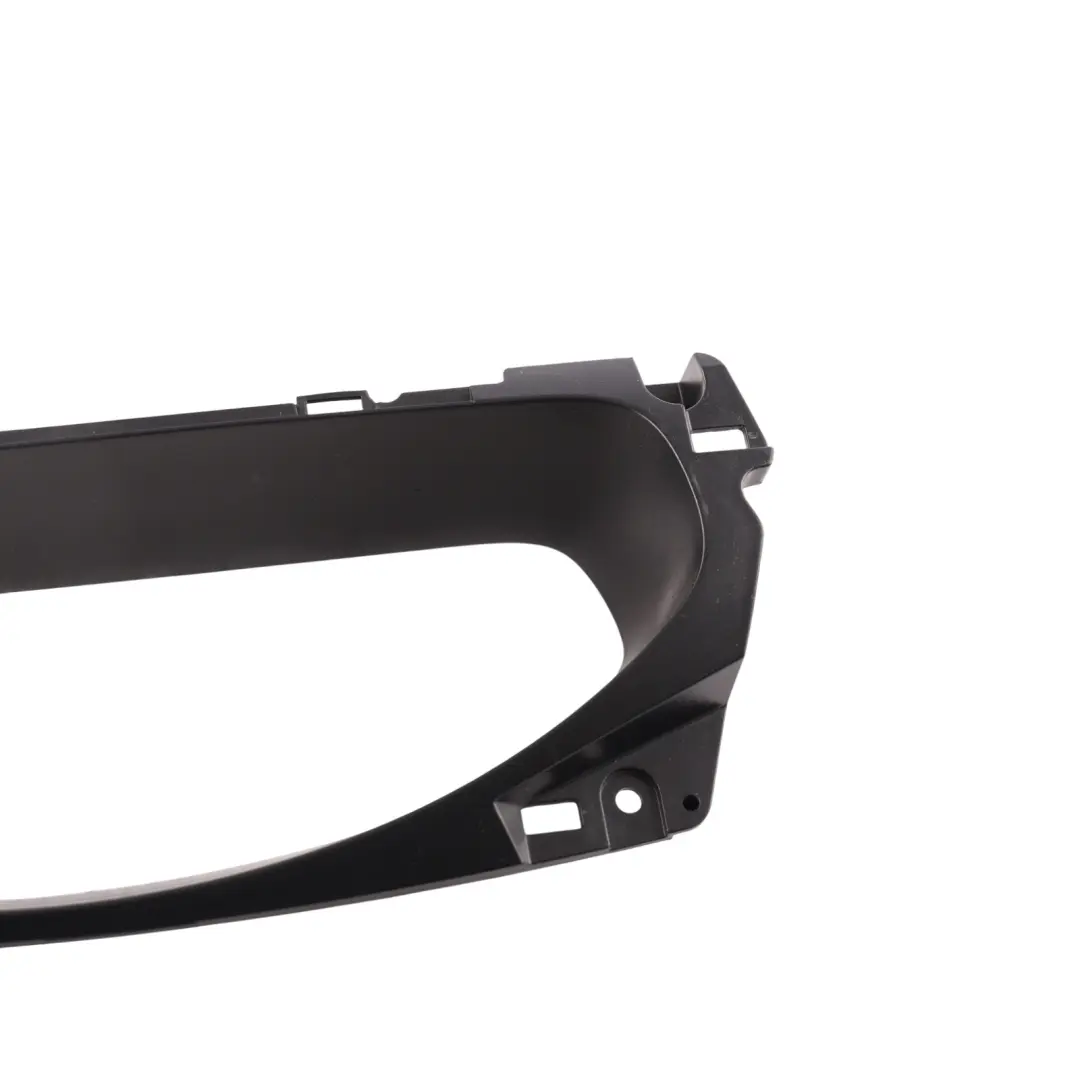

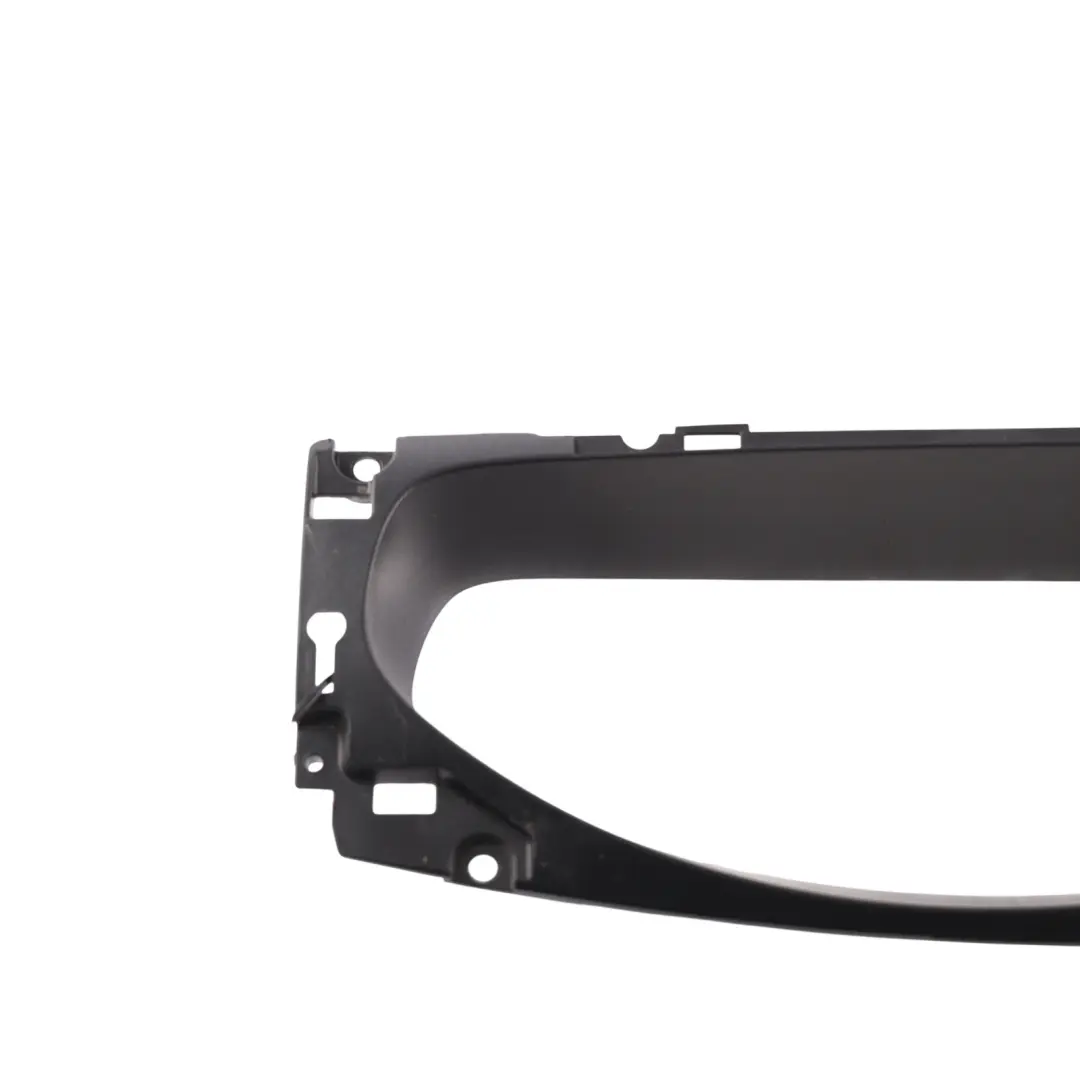

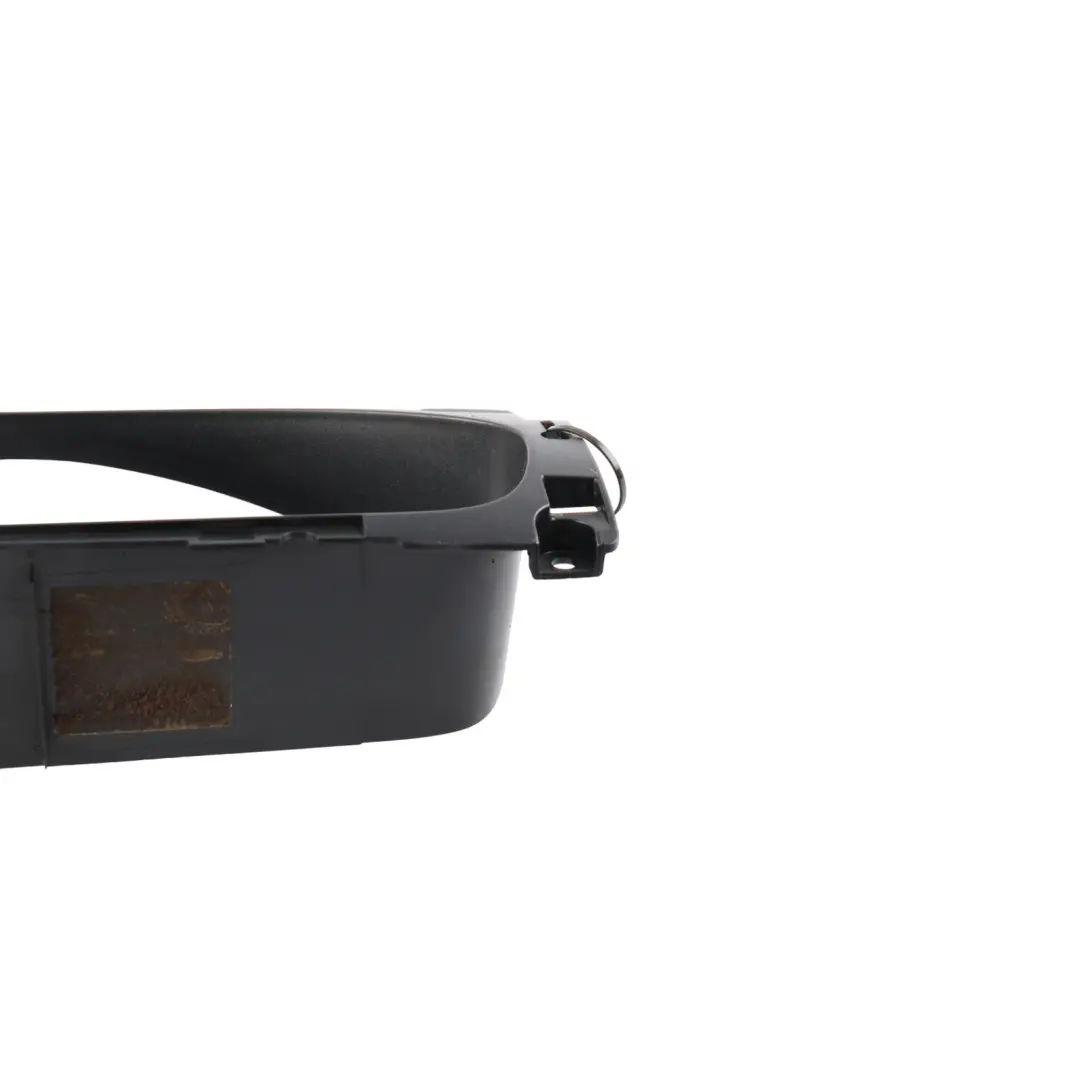

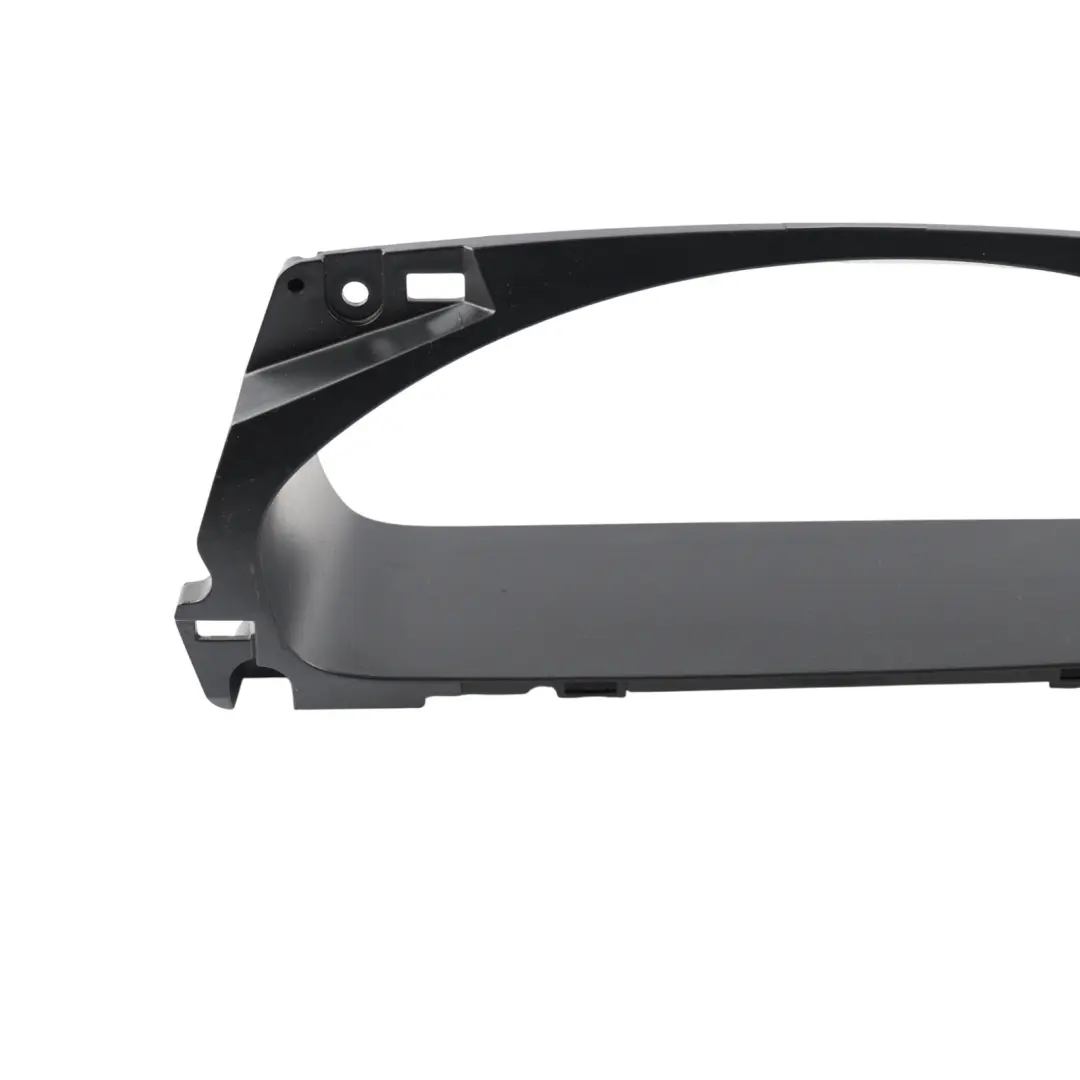

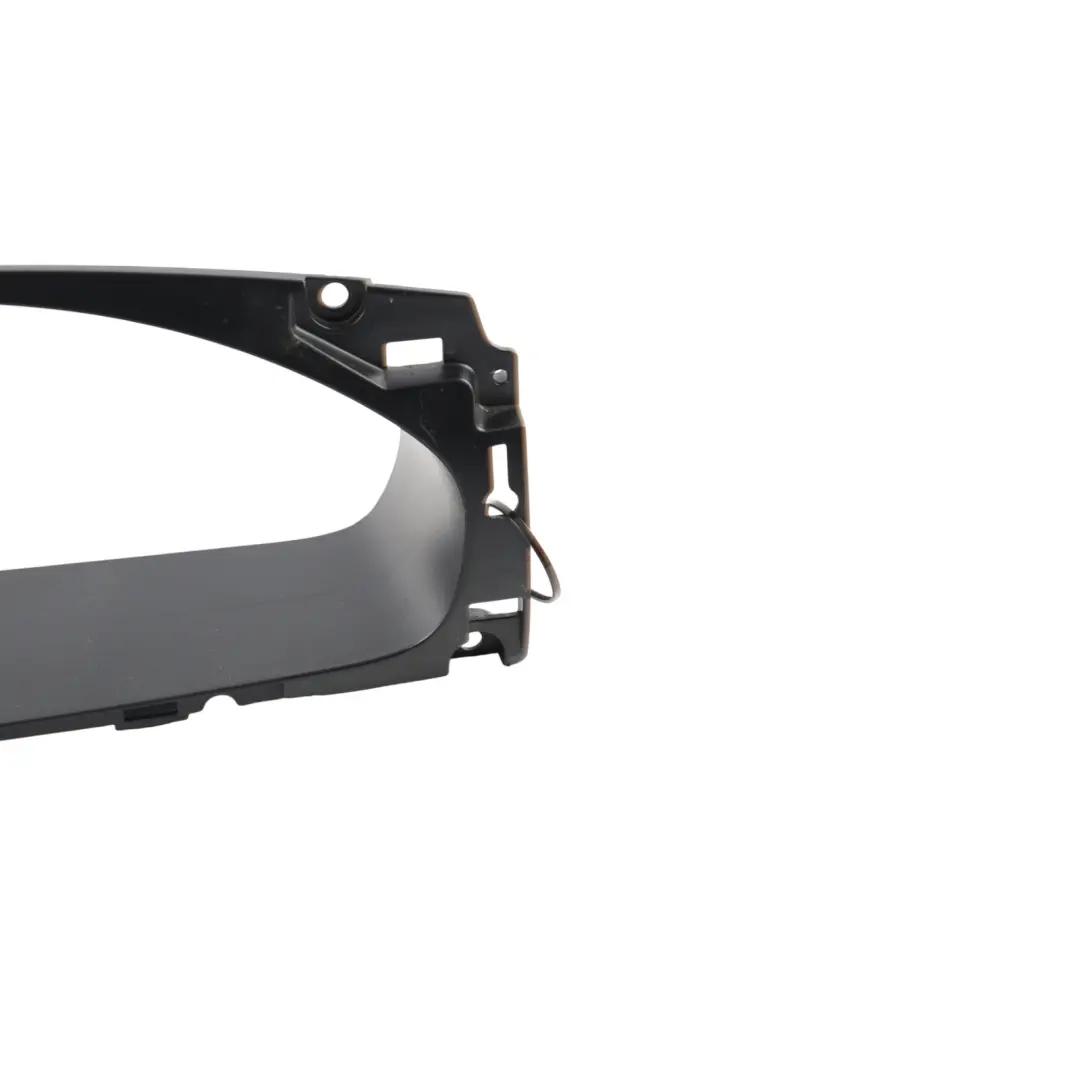

Jaguar X-Type X400 Instrument Cluster Warm Housing Trim Bracket C2S16713LEG

Jaguar X-Type X400 Instrument Cluster Warm Housing Trim Bracket is an original interior component designed for the proper seating and support of the instrument cluster within the dashboard. Thanks to its factory-spec geometry and fitment for the X-Type X400 construction, this part ensures a stable, secure mounting of the instrument cluster and maintains the correct cockpit alignment. It is a practical solution when replacing the instrument cluster, repairing the dashboard, or completing the interior after disassembly.

Specifications and technical data

• SKU: RHD-C2S16713LEG
• Mark: Jaguar
• Condition: Used
• OEM Part Number: C2S16713LEG
• Substitutable numbers: C2S16713LEG, C2S1-6713-LEG, 1X4XF6990BE0LEG, 1X4X-F6990BE0-LEG
• Part type: Instrument Cluster
• Category: Instrument Clusters

Purpose and function in the vehicle

The described component serves as a structural housing and bracket for the instrument cluster in the Jaguar X-Type X400 model. It is responsible for:

• precise positioning of the instrument cluster relative to the steering wheel and dashboard,
• rigid support for the instrument cluster body,
• reducing vibrations and unwanted play while driving,
• maintaining consistent geometry of the cockpit opening after the instrument cluster is installed. By maintaining factory mounting points, the housing allows for the installation of the instrument cluster according to the manufacturer's specifications, which promotes readability of the gauges and proper operation of the electronic components of the instrument cluster.

Benefits of using the original housing

Using the factory mounting in a Jaguar X-Type X400 translates into a number of practical advantages:

• Proper fit with the dashboard – no need for modifications, drilling additional holes, or using makeshift brackets.
• Stable position of the instrument cluster – reducing the risk of rattles, squeaks, and shifting of the instrument cluster on uneven surfaces.
• Easier disassembly and reassembly – access to the instrument cluster, wiring harnesses, and connectors remains consistent with the factory service procedure.
• Visual consistency of the cockpit – maintaining the original line and depth of the gauge seating. This solution is particularly useful when replacing a damaged instrument cluster, reconstructing the interior after a collision, or completing missing elements after previous disassembly.

Application in the Instrument Clusters category

The instrument cluster mounting housing is an integral part of the Instrument Clusters group, responsible for presenting key information to the driver. A correctly selected bracket:

• ensures the appropriate viewing angle for dials and displays,
• protects the instrument cluster body from excessive stress,
• stabilizes electrical connections and connectors at the rear of the instrument cluster. As a result, the entire instrument cluster module can operate under conditions close to factory standards, which promotes long-term, repeatable performance of the electronics and gauge mechanics.

Product characteristics and condition

The presented housing comes from an original Jaguar vehicle and is a salvaged part, which allows for maintaining compatibility with the factory dashboard construction. The used nature of the part means that the component has been previously operated, but it retains the structural functionality necessary for reinstallation in the vehicle. It is a practical choice for vehicle maintenance where fitment for a specific model and the ability to use existing mounting points are important.

Selection and compatibility

To correctly select the housing for a specific Jaguar X-Type X400, it is worth verifying compatibility with your existing instrument cluster and dashboard type. Comparing the shape, placement of brackets, and general geometry of the element with the factory-installed part is helpful. In case of doubt, a good solution is to consult a mechanic or a specialist dealing with electronics and interior equipment of vehicles of this brand. If you are planning a comprehensive repair or modernization of the cockpit area in your Jaguar and need other elements from the same group, such as instrument clusters, bezels, or covers around the gauges, check the available parts in the Jaguar Instrument Clusters category.
