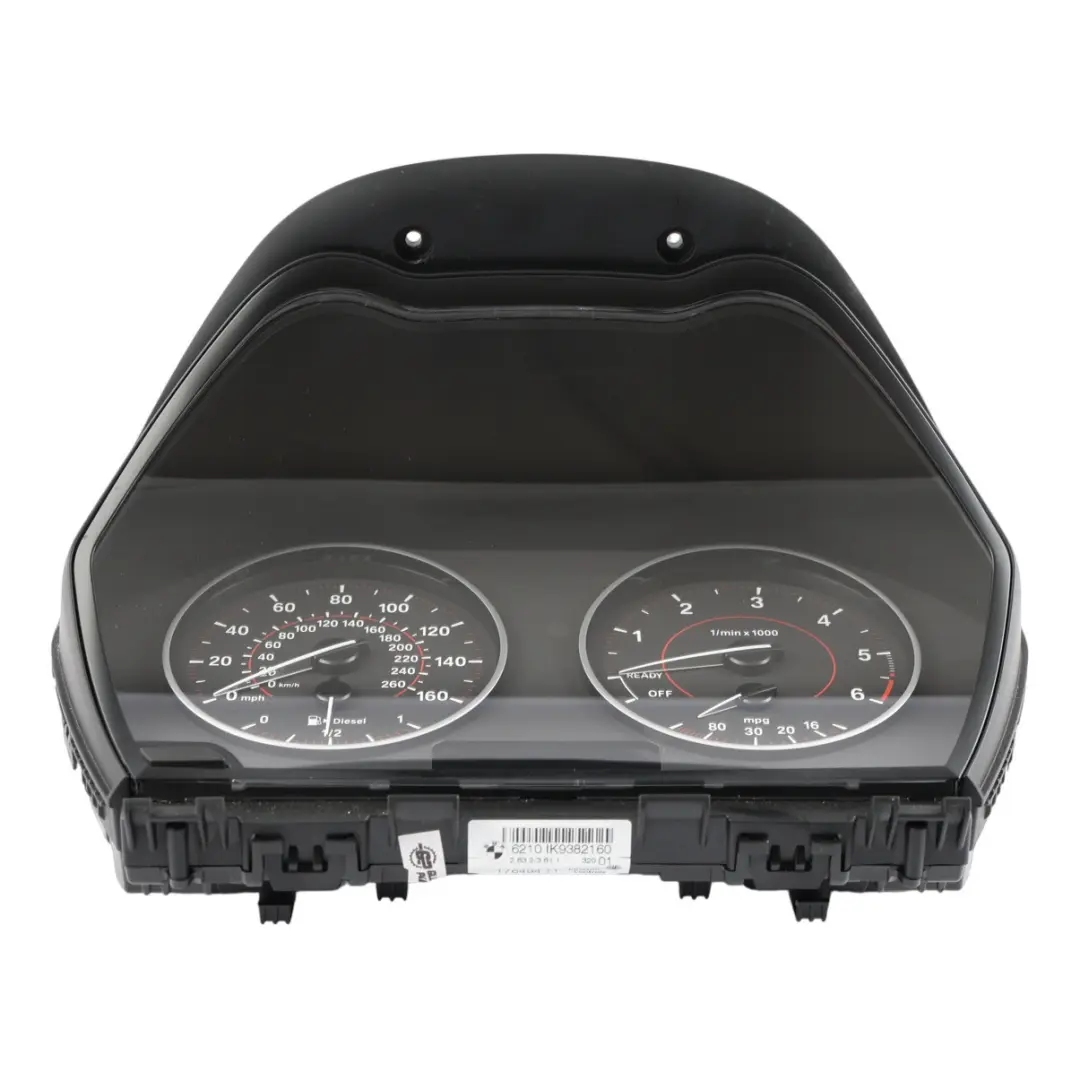

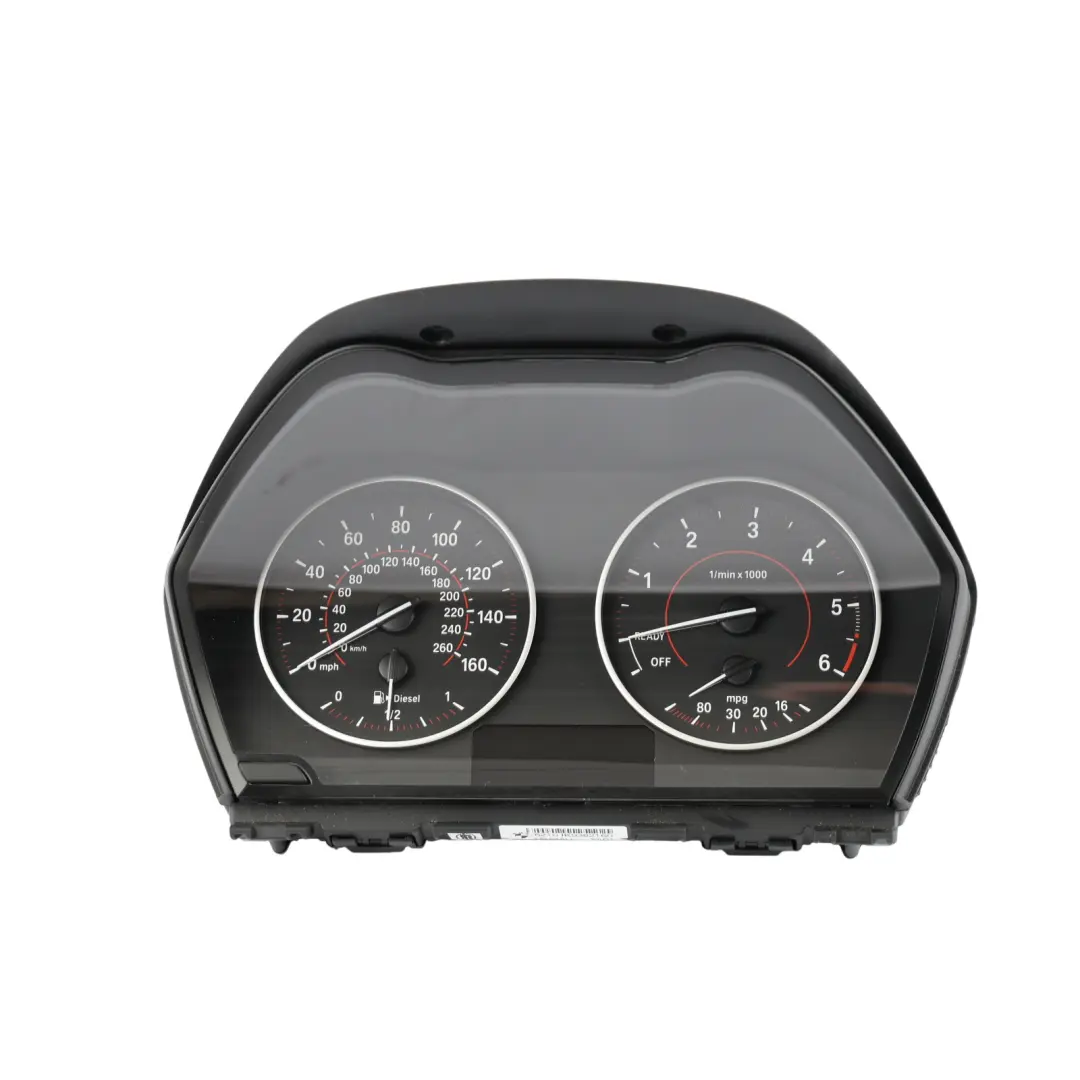

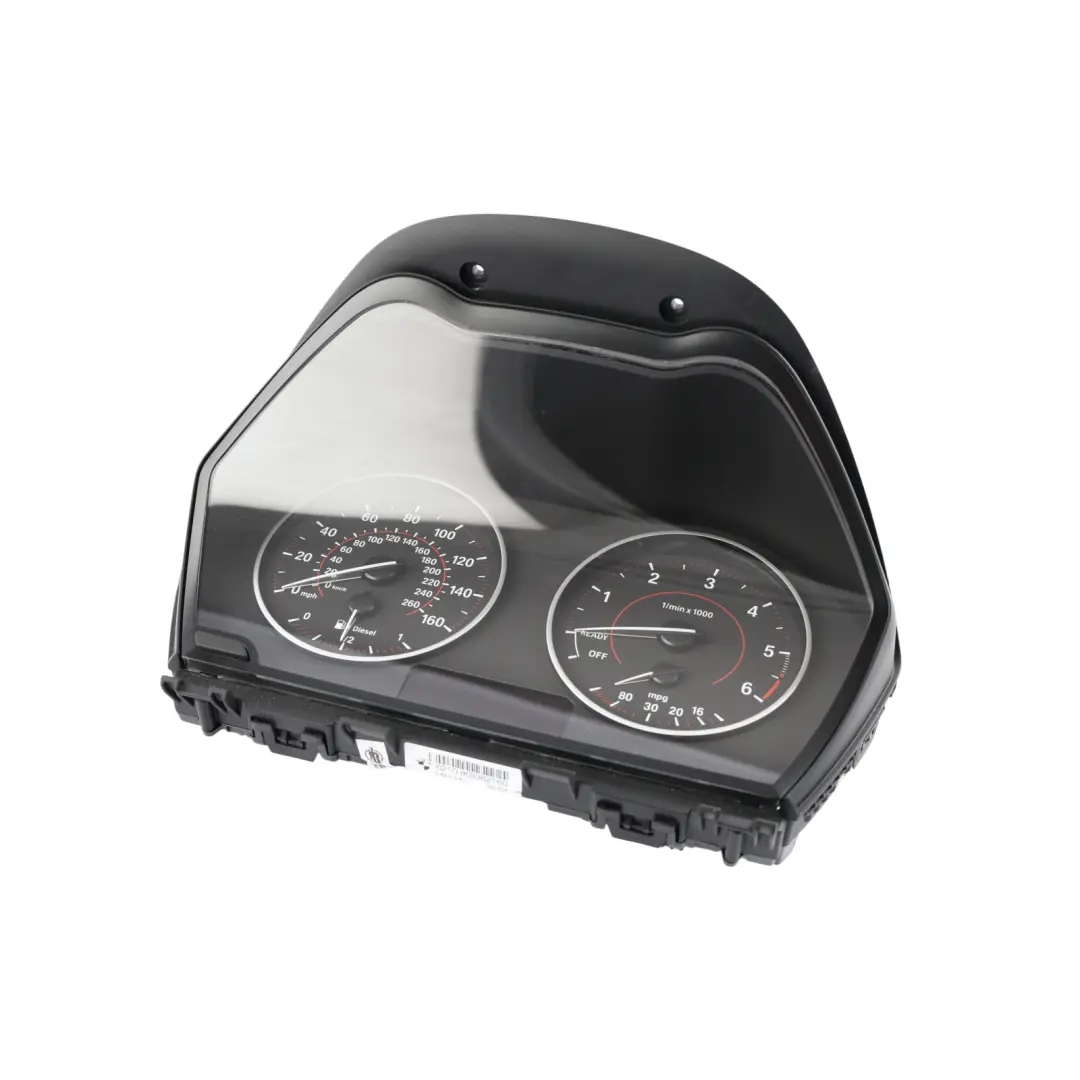

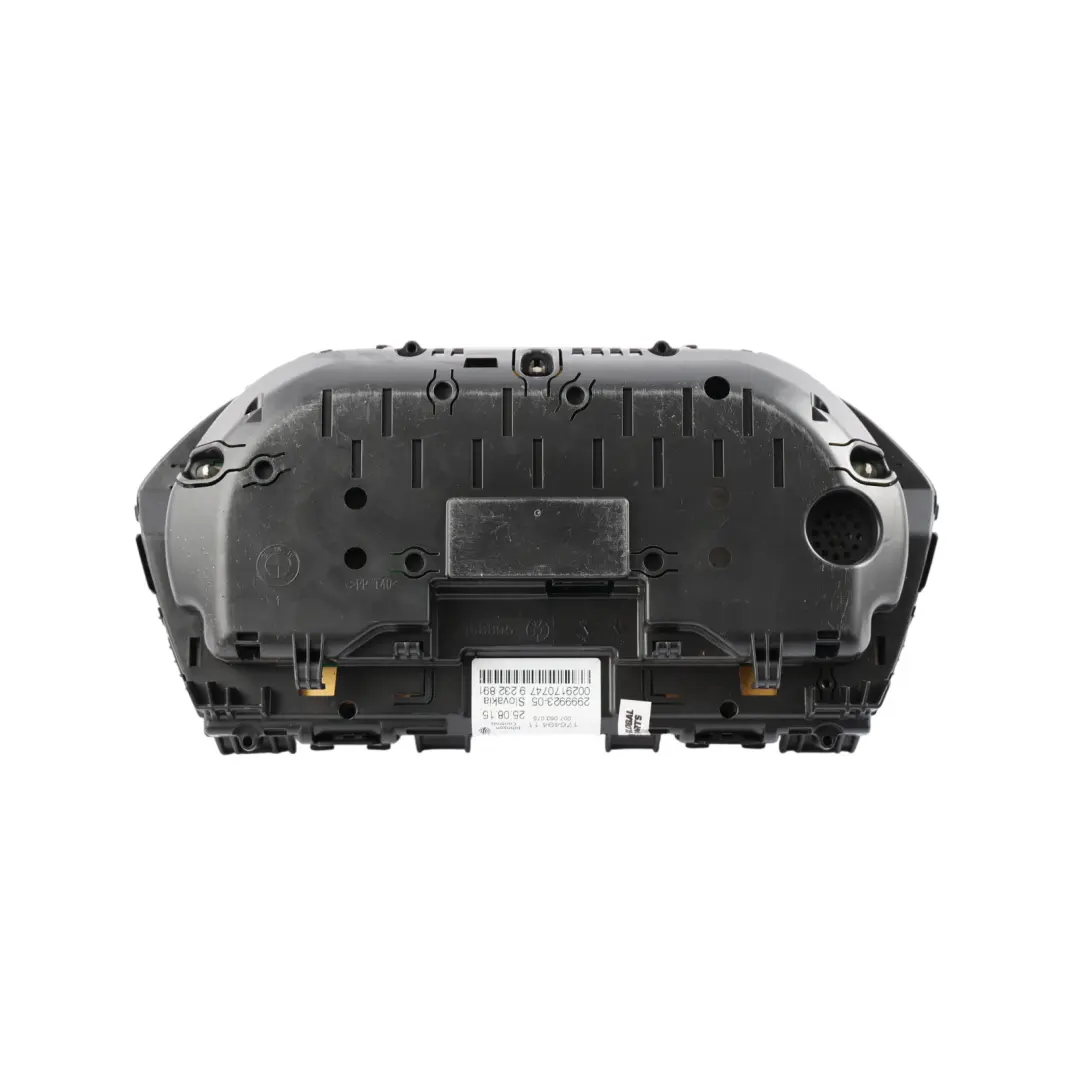

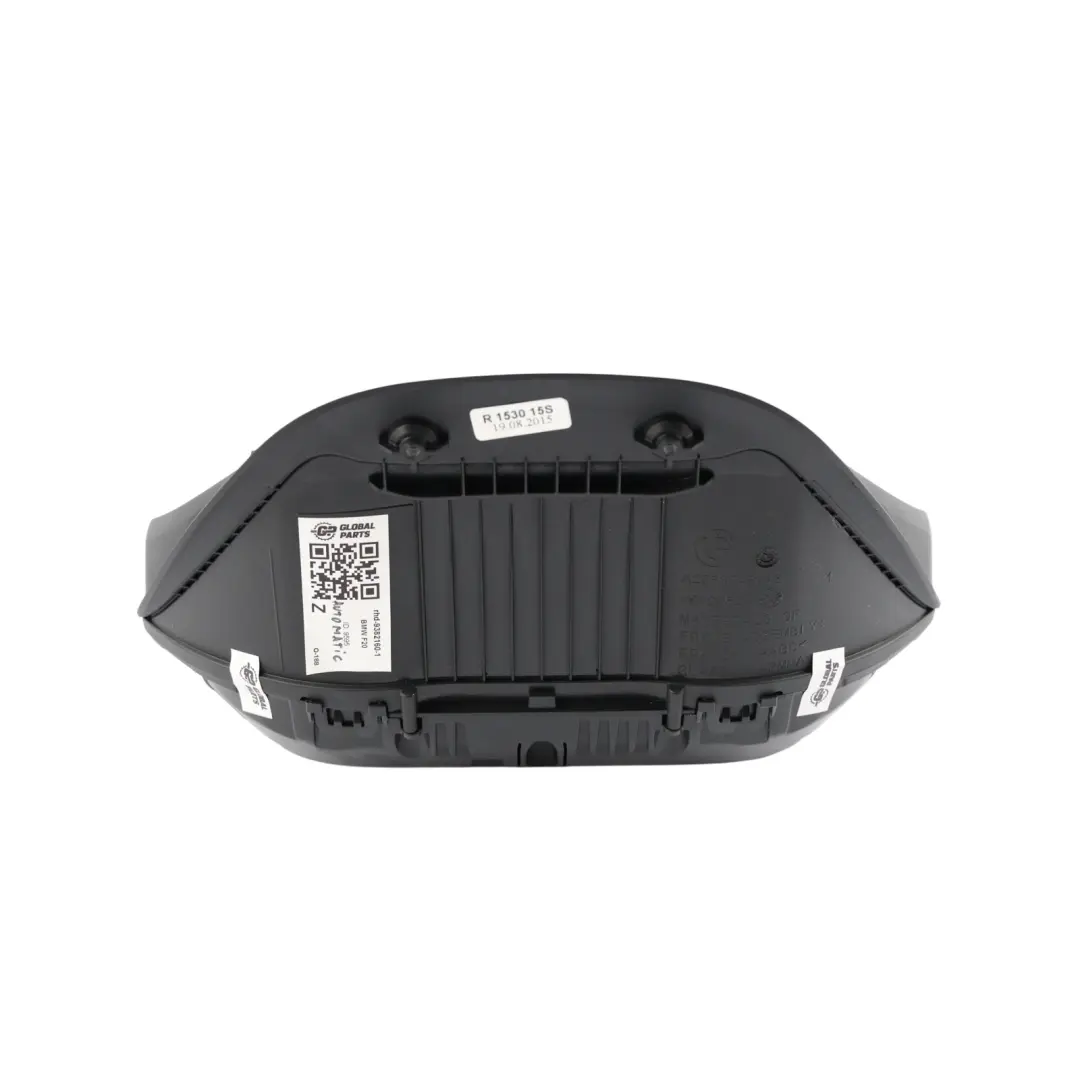

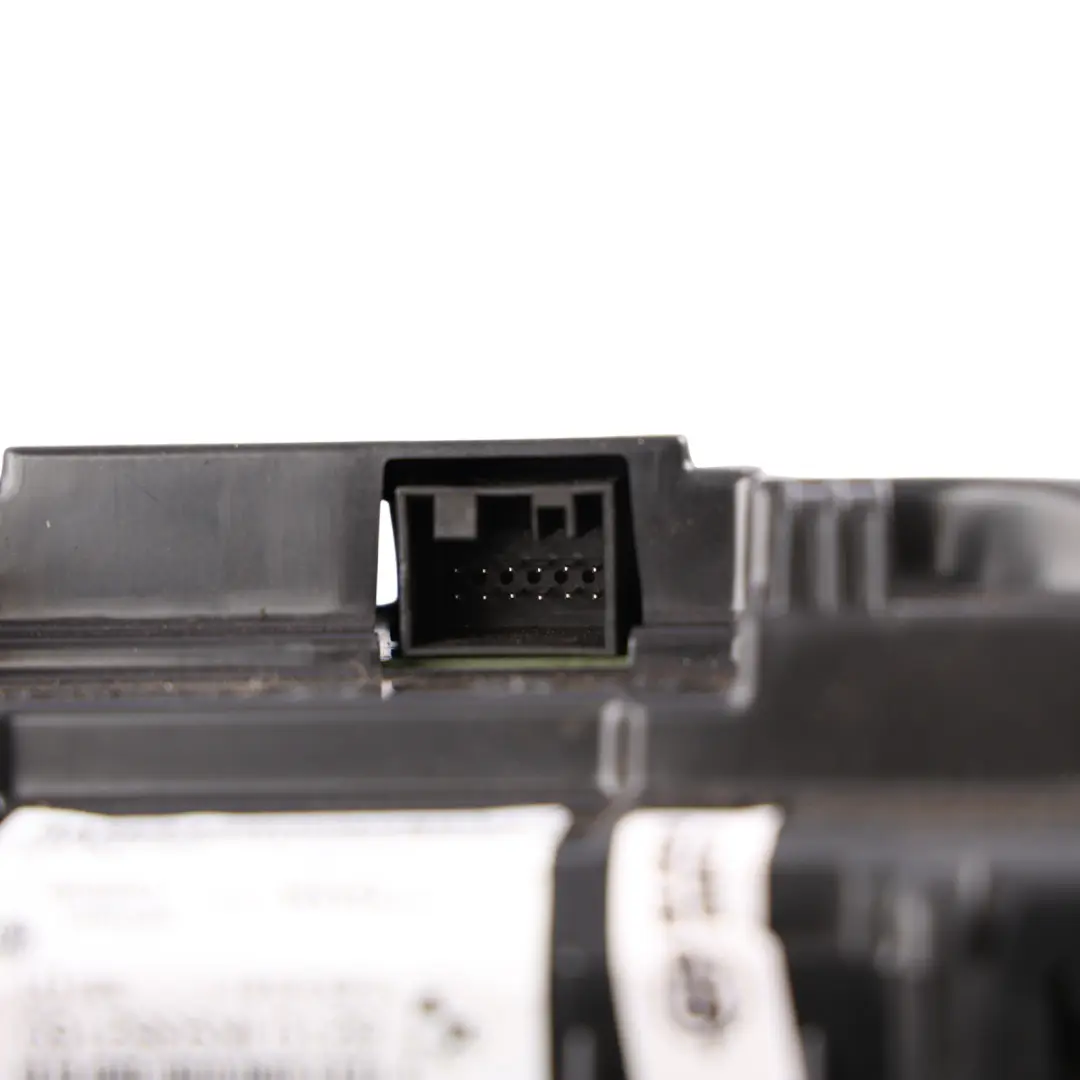

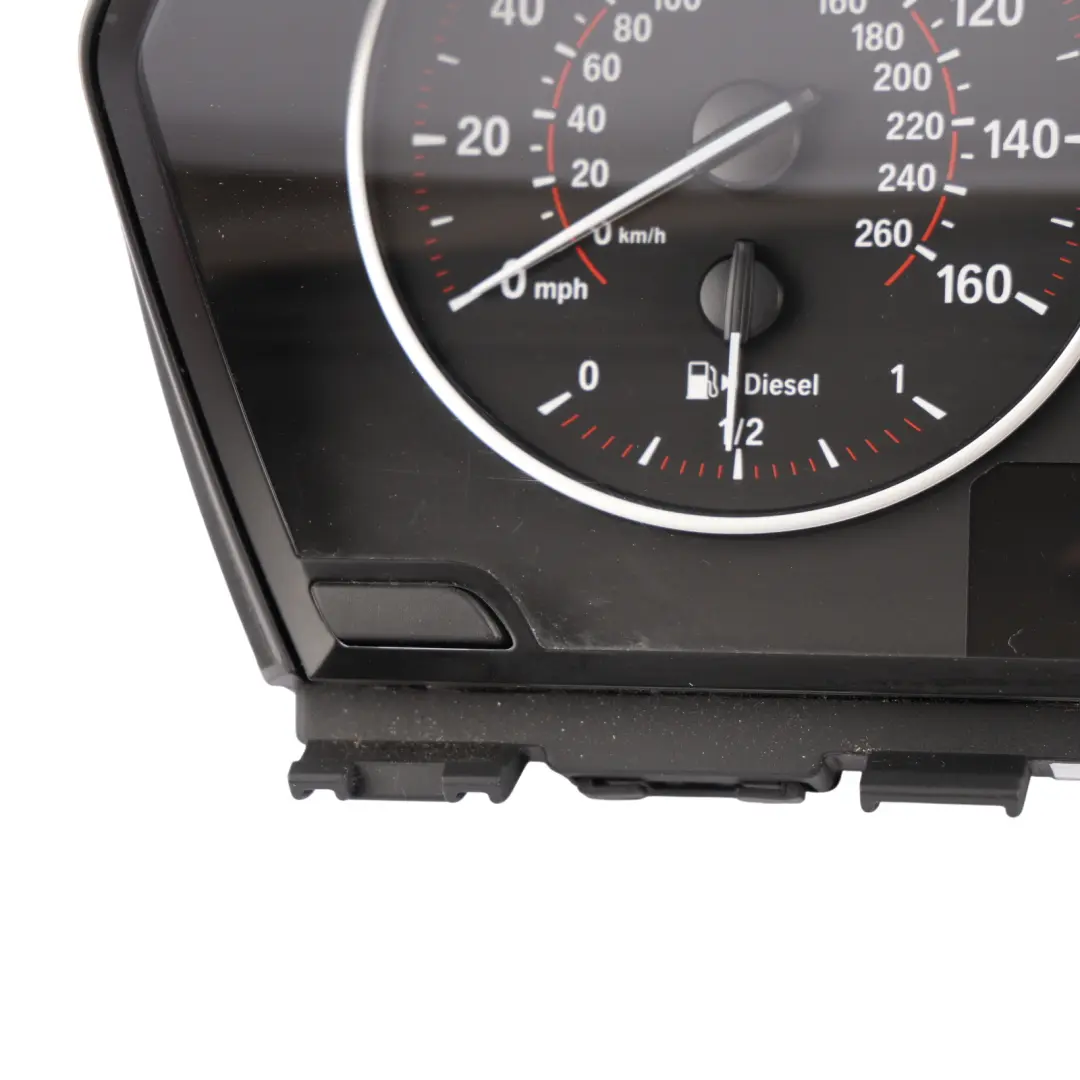

BMW F20 F21 F22 Instrument Cluster Speedo Clocks Meter Diesel Automatic 9382160

BMW F20 F21 F22 Instrument Cluster Speedo Clocks Meter Diesel Automatic is an original instrument cluster panel designed for factory installation in compact BMW 1 and 2 Series models. This component from the Instrument Clusters category ensures clear reading of speed, RPM, and basic engine operating parameters, maintaining consistency with the vehicle's factory electronics. Thanks to its OEM design, it is a solution technically matched to the electrical installation and interior architecture of the BMW.

Specifications and technical data

• SKU: RHD-9382160-1
• Mark: BMW (Genuine OE)
• Condition: Used

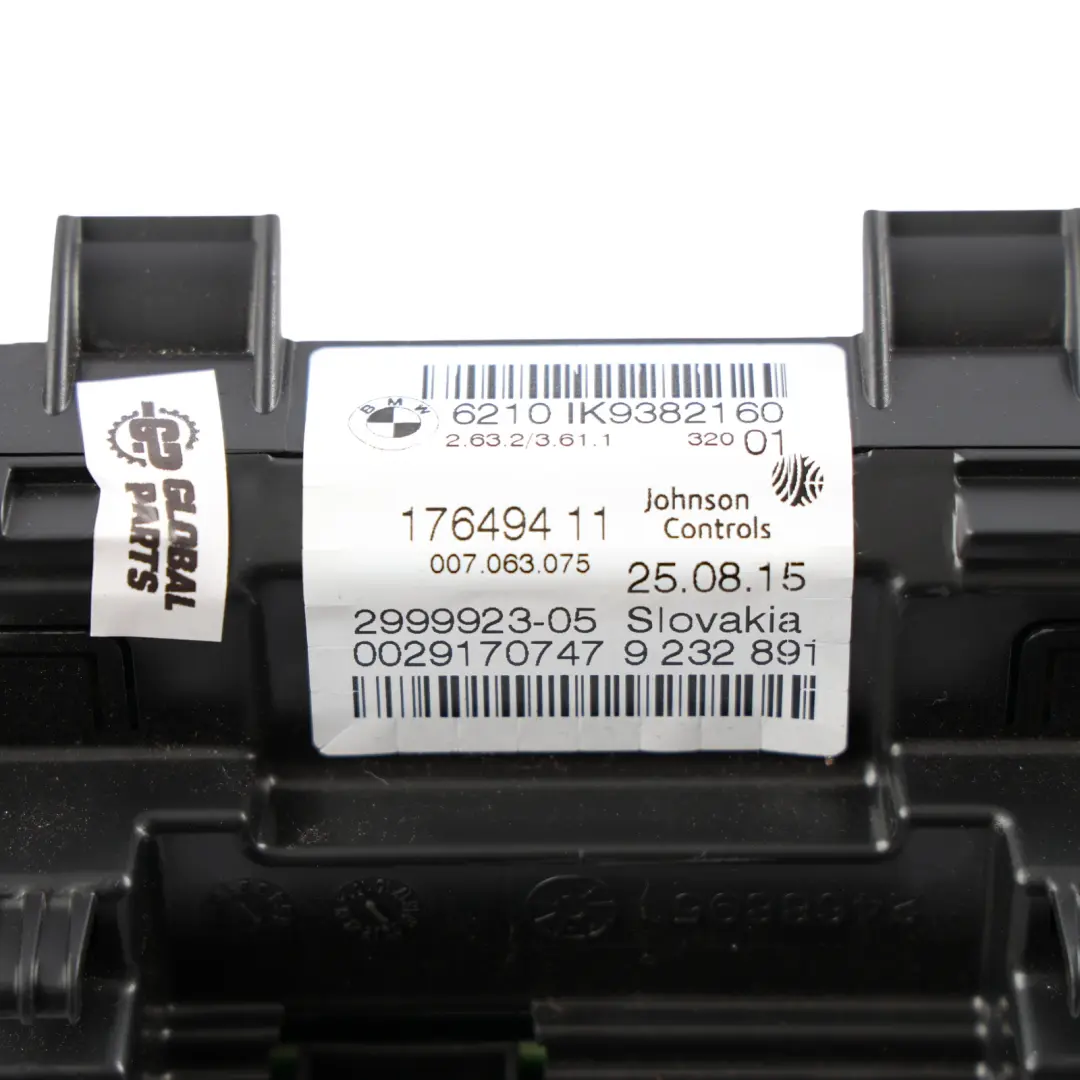

• OEM Part Number: 9382160
• Substitutable numbers: 9382160, 62109382160, 6805198, 62106805198, 9350125, 62109350125, 9283290, 62109283290, 9277555, 62109277555, 9275108, 62109275108, 9334745, 62109334745, 9325635, 62109325635, 9287468, 62109287468, 9371850
• Fuel type: Diesel
• Gearbox type: Automatic
• Part type: Instrument Cluster
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster has been designed specifically for BMW F-series models from the F20, F21, and F22 families equipped with a diesel engine and an automatic transmission. This means that the indication logic, speedometer and tachometer scales, and transmission mode signaling are adapted to the characteristics of diesel units and automatic transmission control.

As an OEM component from the BMW range, the panel works with the vehicle's factory control modules, which facilitates integration with the diagnostic system, onboard computer, and the car's communication network. Using an original instrument cluster minimizes the risk of software compatibility and bus communication issues.

Instrument cluster functionality

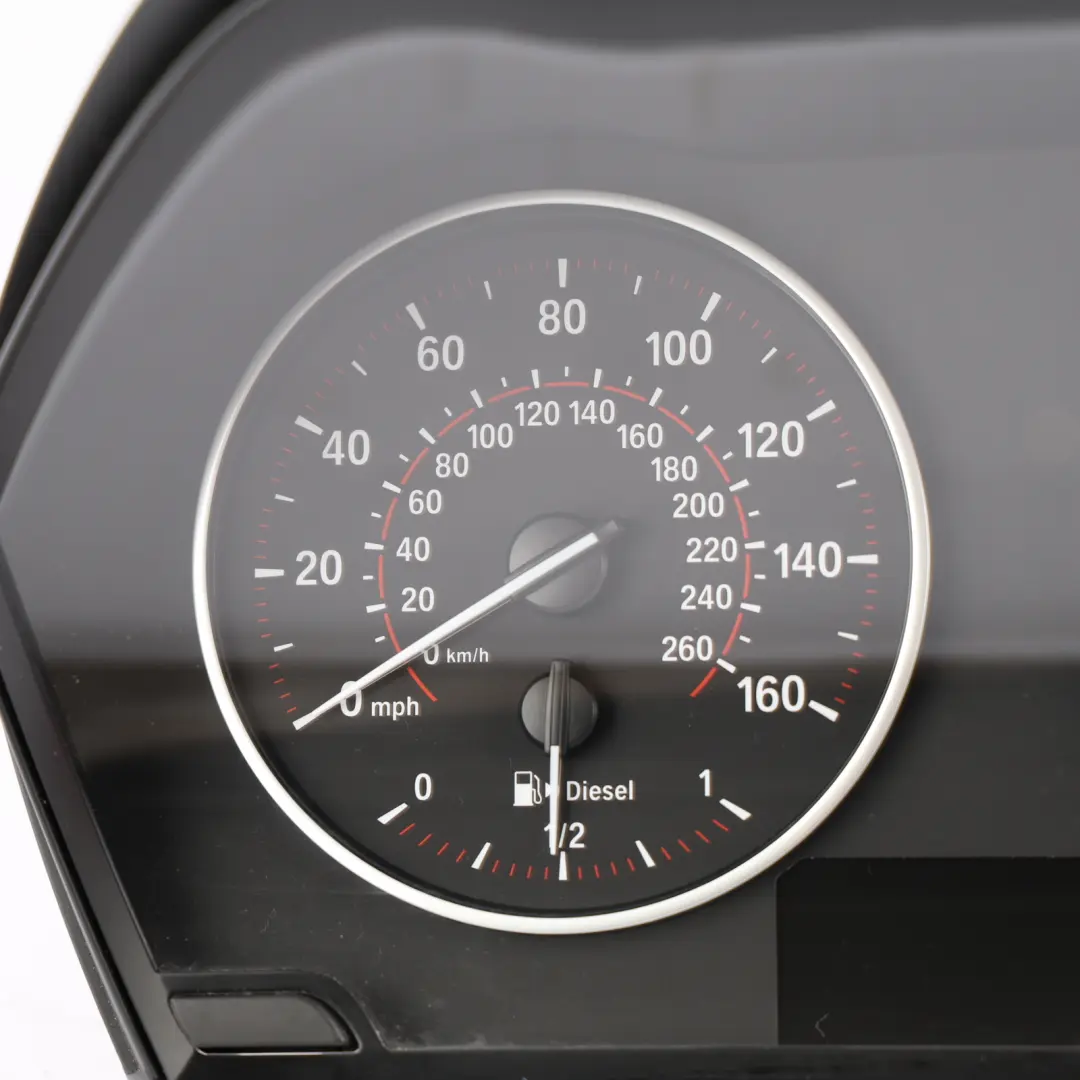

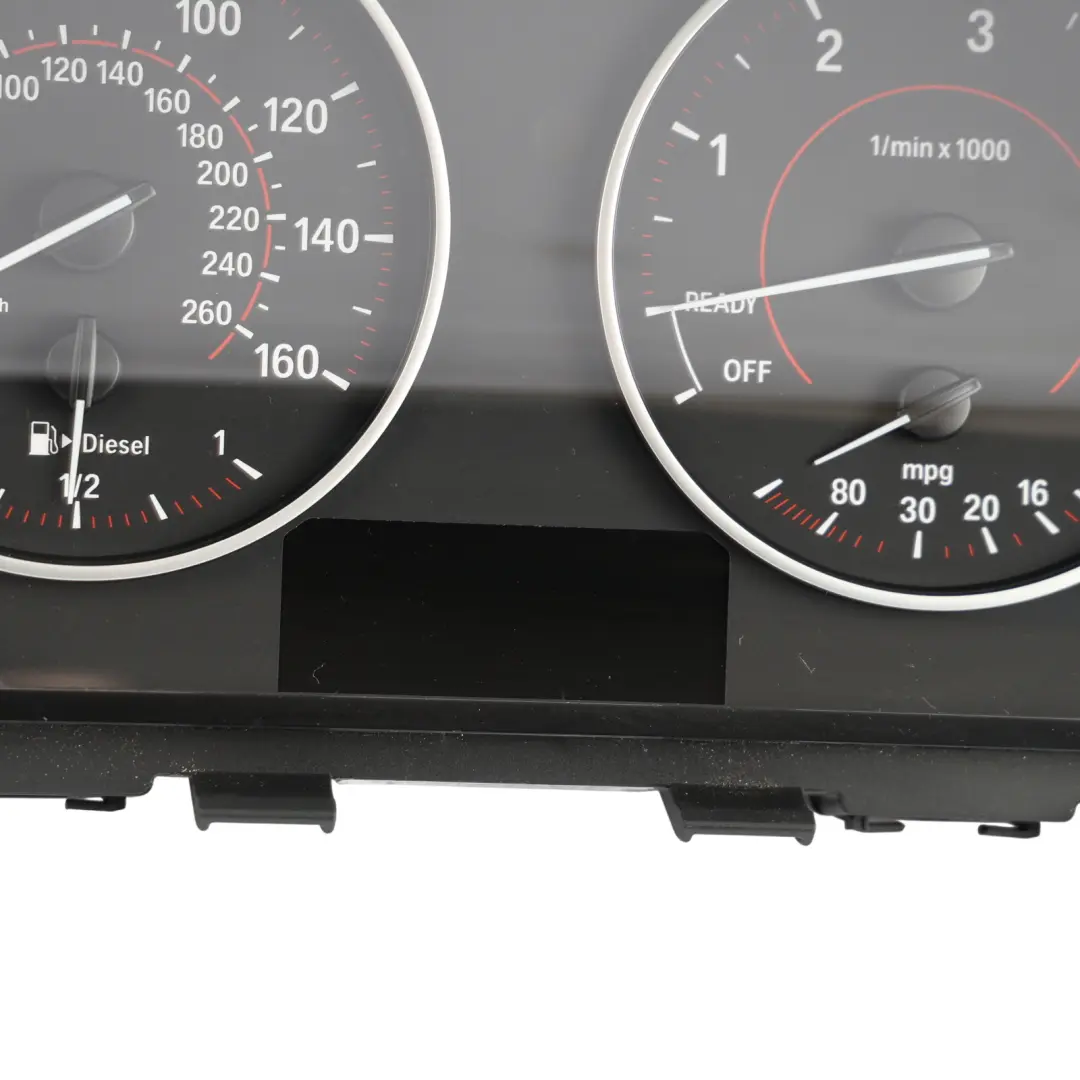

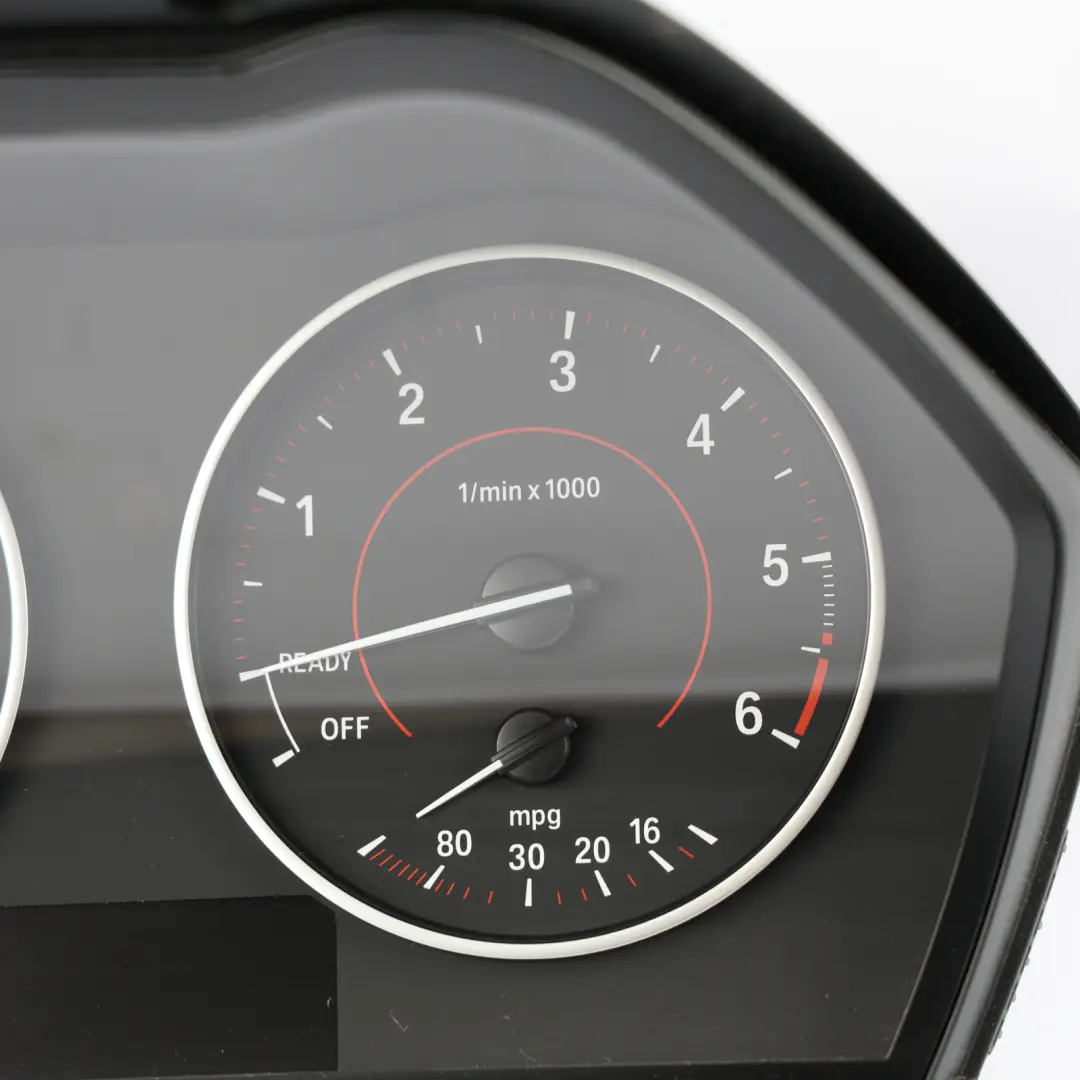

This instrument cluster serves as the driver's central interface with the vehicle. In addition to basic speed and engine RPM indications, the panel integrates warning and information lights related to safety, drivetrain, and comfort systems. The layout of the gauges is optimized for ergonomics, facilitating quick data reading while driving.

The version dedicated to the automatic transmission includes signaling for the currently selected transmission mode, which improves the readability of drivetrain operation and increases user comfort. The cluster is prepared to work with factory onboard computer functions, ensuring consistency of operation with the original vehicle configuration.

Technical characteristics and vehicle integration

As an item from the Instrument Clusters category, the panel has been constructed for stable operation in conditions typical for a car interior – under variable temperatures, vibrations, and long-term use. The cluster's electronics are adapted to communicate with the engine control unit, the automatic transmission module, and other controllers responsible for safety and comfort systems.

The original design promotes precise fitting to the dashboard, which facilitates installation and allows for maintaining the factory look of the cockpit. Using a tested, functional instrument cluster is a reasonable cost-effective solution while maintaining high build quality and proper cooperation with the vehicle's electronics.

Why choose a used BMW instrument cluster

Choosing an original, used instrument cluster for the BMW F20/F21/F22 allows you to combine savings with maintaining the factory operating parameters of the gauge system. This type of component is particularly recommended for post-accident repairs, replacing a damaged speedometer, or matching the element to an existing diesel engine and automatic transmission configuration.

If you want to better understand the specifics of installing and selecting used onboard electronics, including modules and sensors, a guide dedicated to this topic will be helpful – check out the article on choosing used automotive electronics and control modules, which discusses, among other things, compatibility issues, selection by part numbers, and practical application examples.

Expanding the instrument system in BMW

If you are planning a comprehensive repair or upgrade of the cockpit area in your BMW and need other elements from the same group, such as additional instrument panels, display modules, or alternative gauge configurations, check out the available parts in the BMW Instrument Clusters category.
