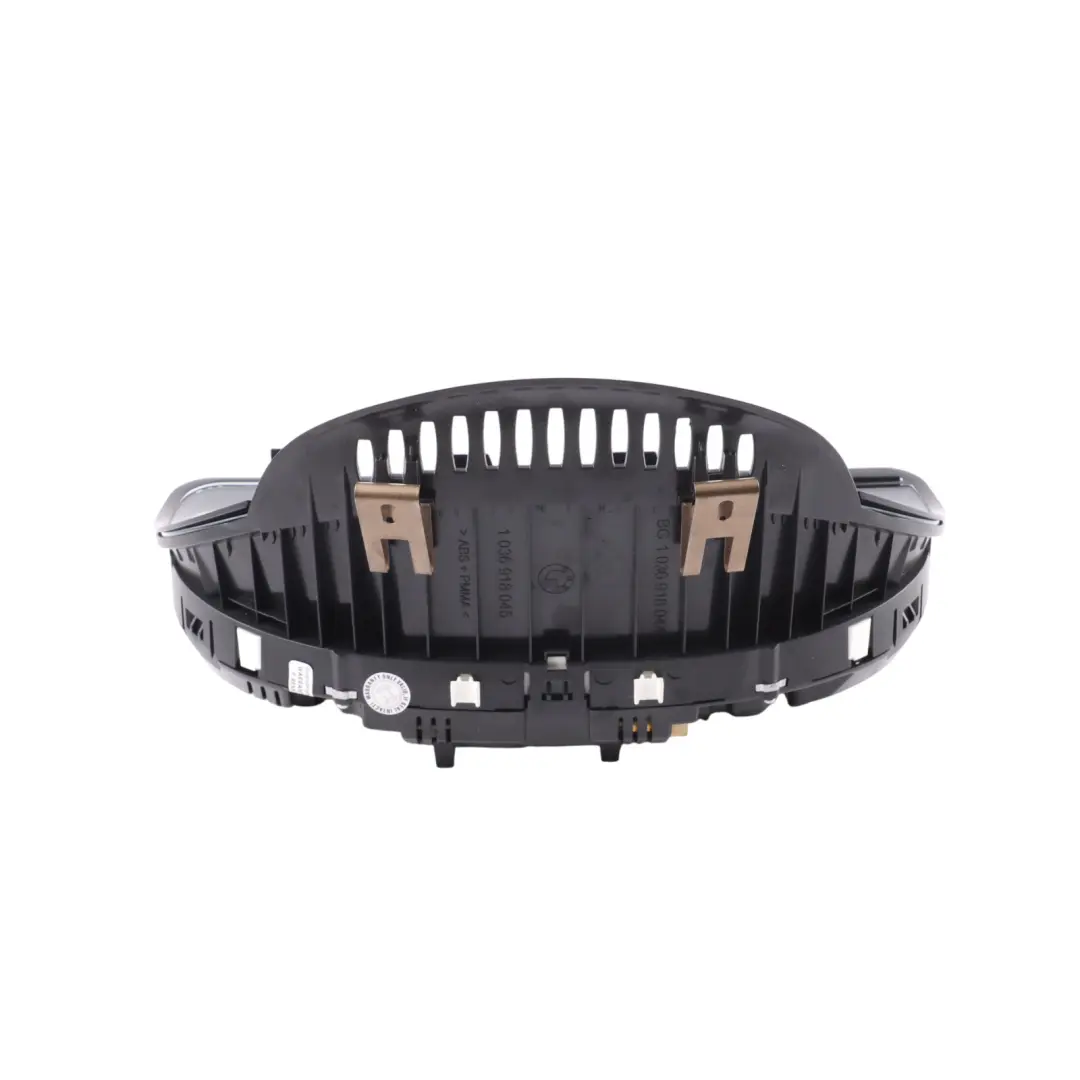

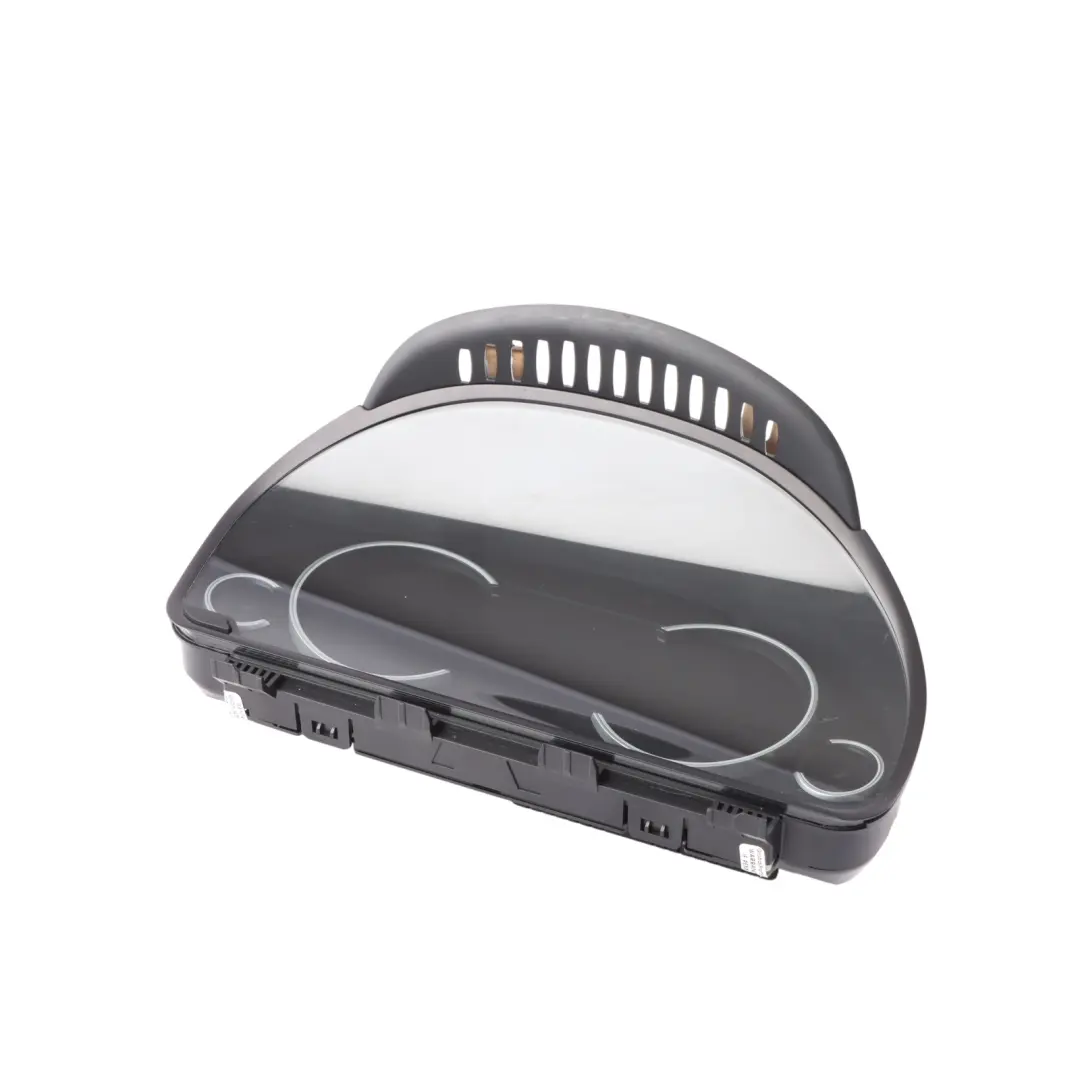

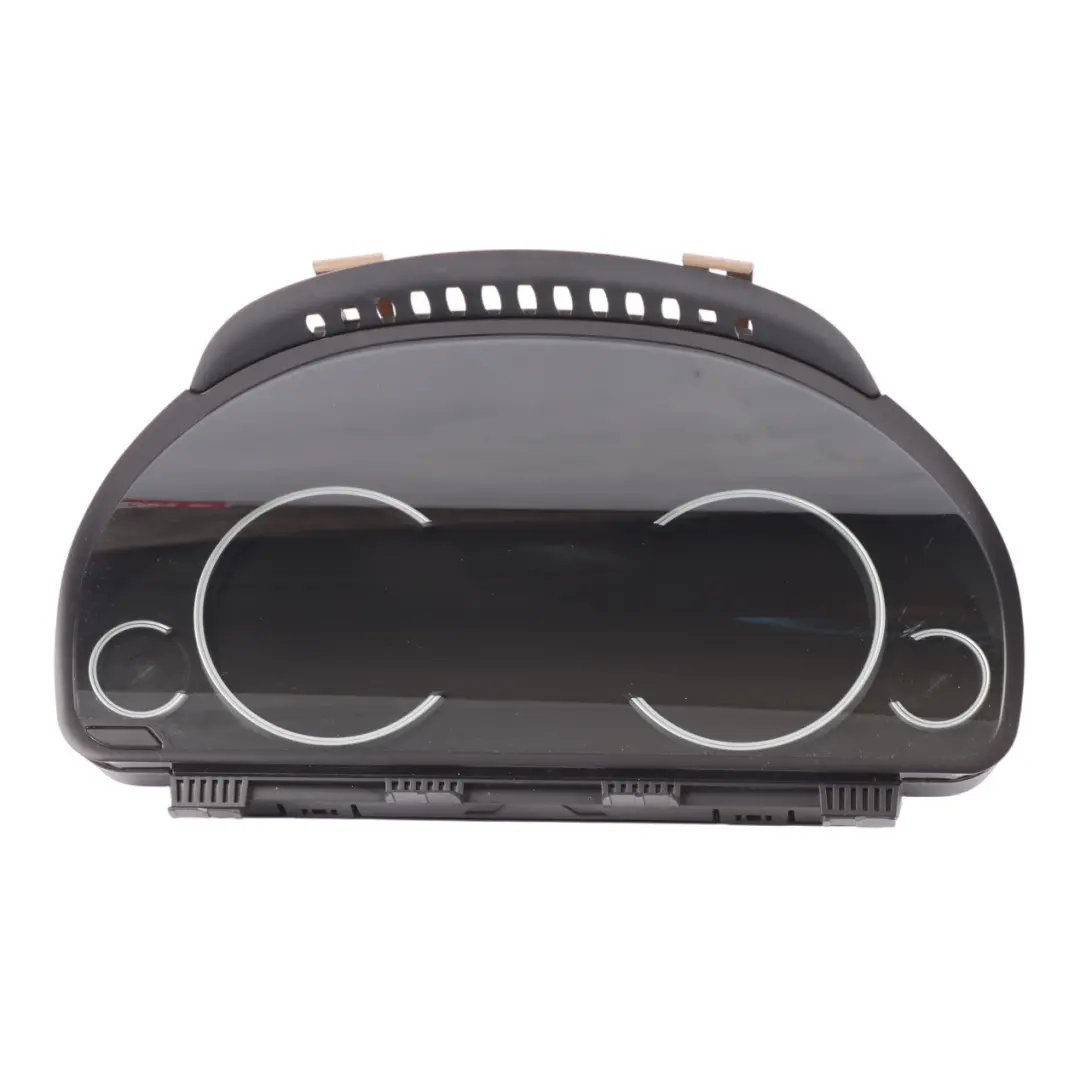

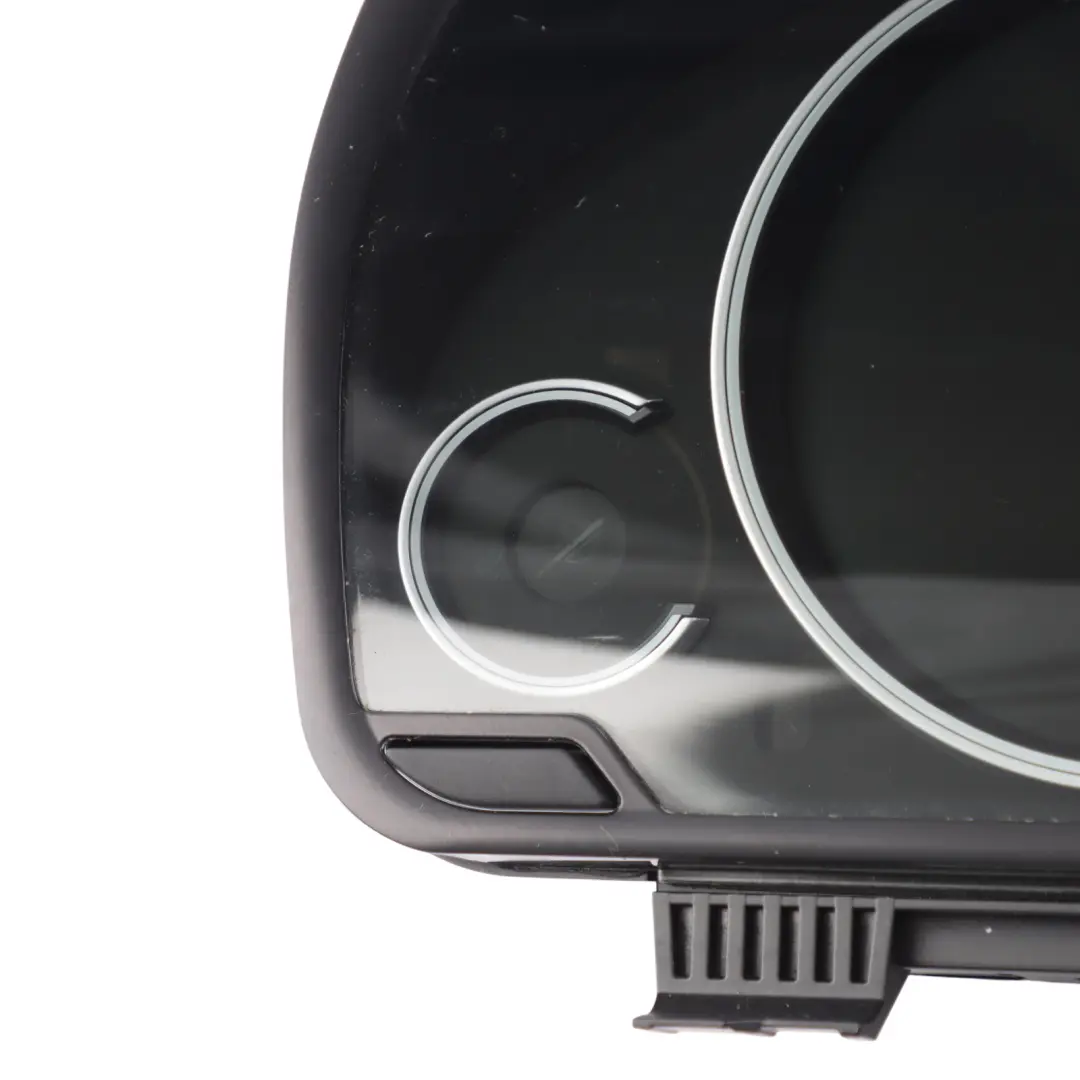

BMW F01 F06 F07 F10 F11 Multifunctional Instrument Display LED Cluster 9350404

BMW F01 F06 F07 F10 F11 Multifunctional Instrument Display LED Cluster is an advanced, multifunctional LED instrument cluster designed for luxury BMW F-series models. Thanks to modern backlight technology and extensive functionality, it provides a clear, consistent, and aesthetic view of key vehicle operating parameters, perfectly matching the premium interior character. This solution is created for drivers who expect precise information, high ergonomics, and seamless integration with BMW's factory electronics.

Specifications and technical data

• SKU: RHD-8796113-1
• Mark: BMW (Genuine OE)

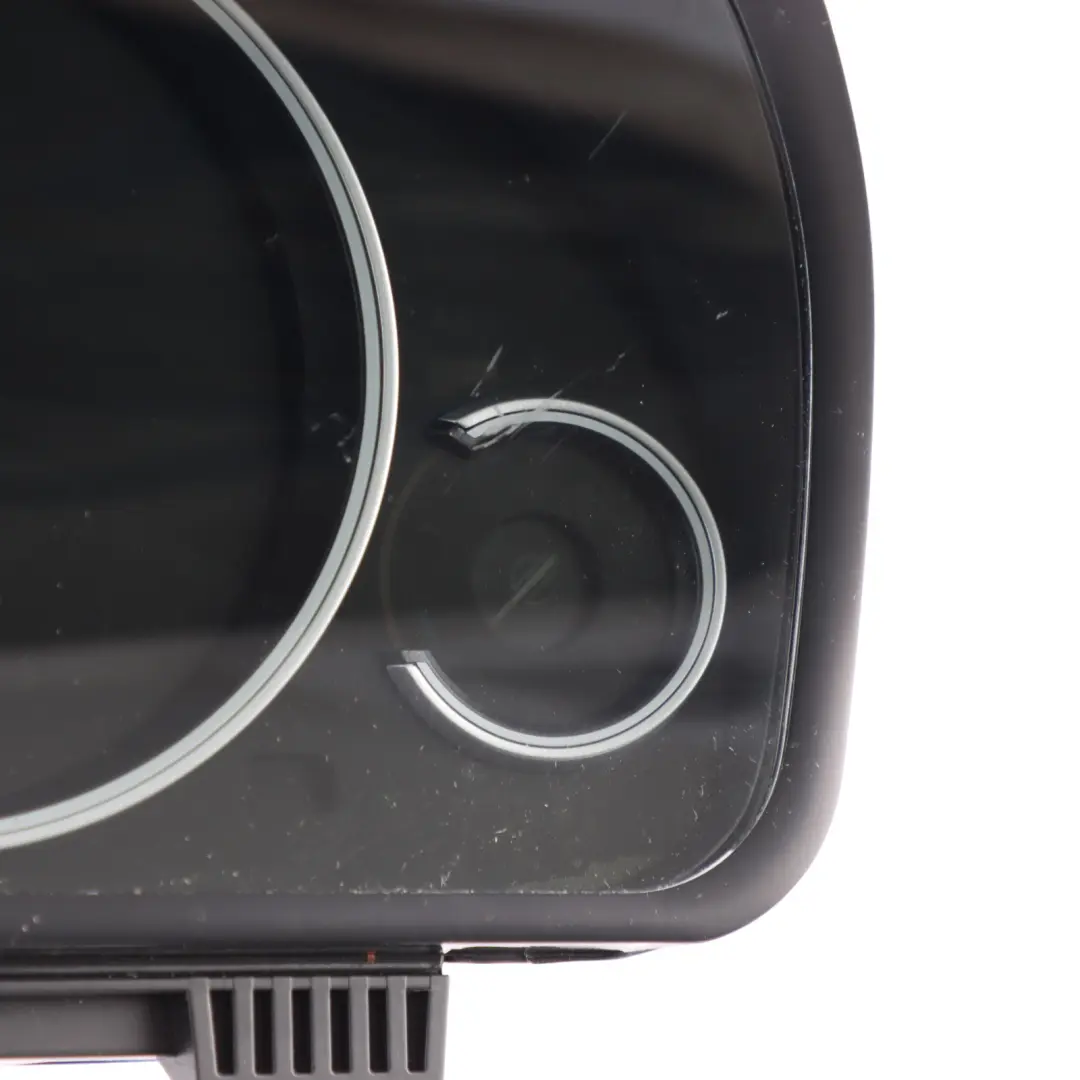

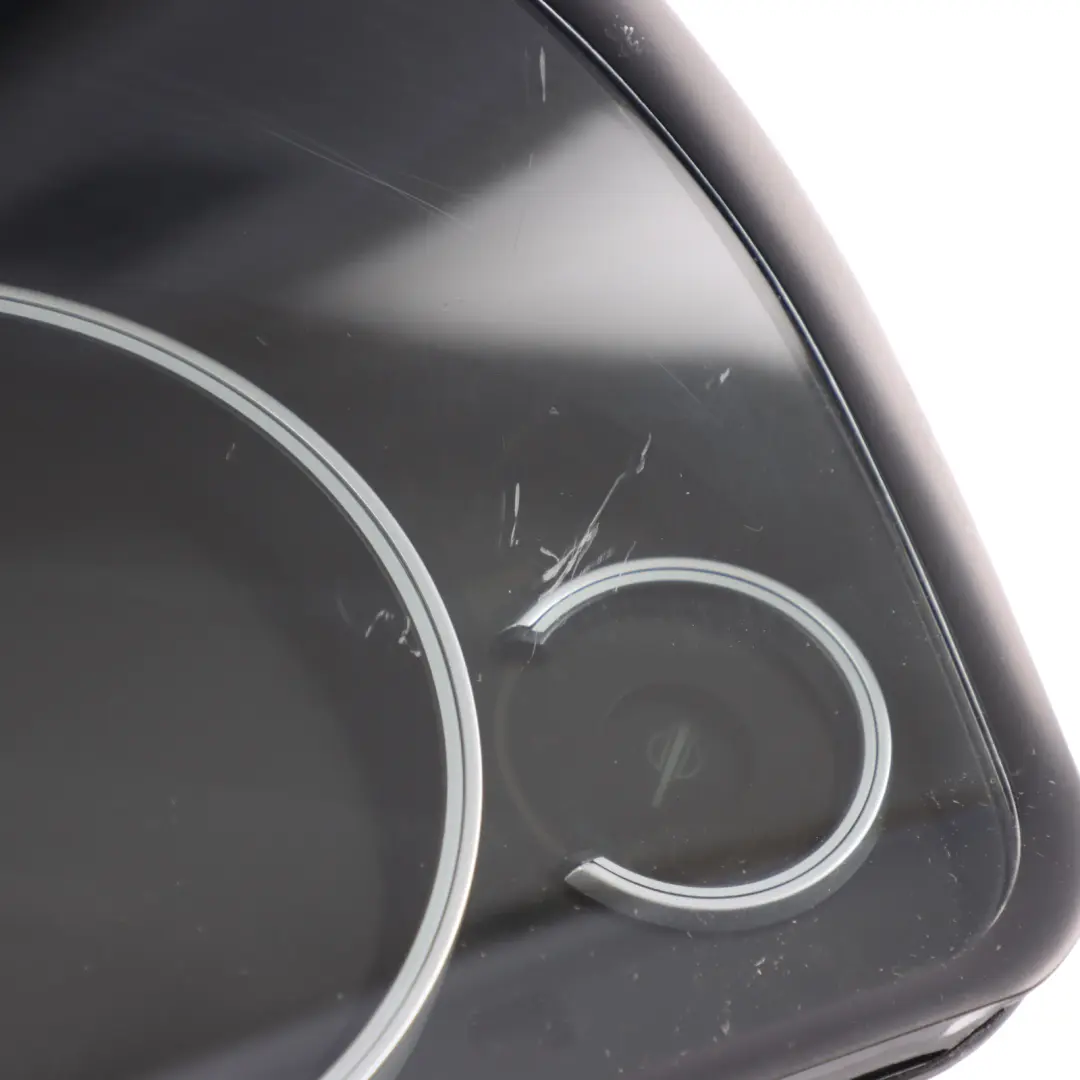

• Condition: Used

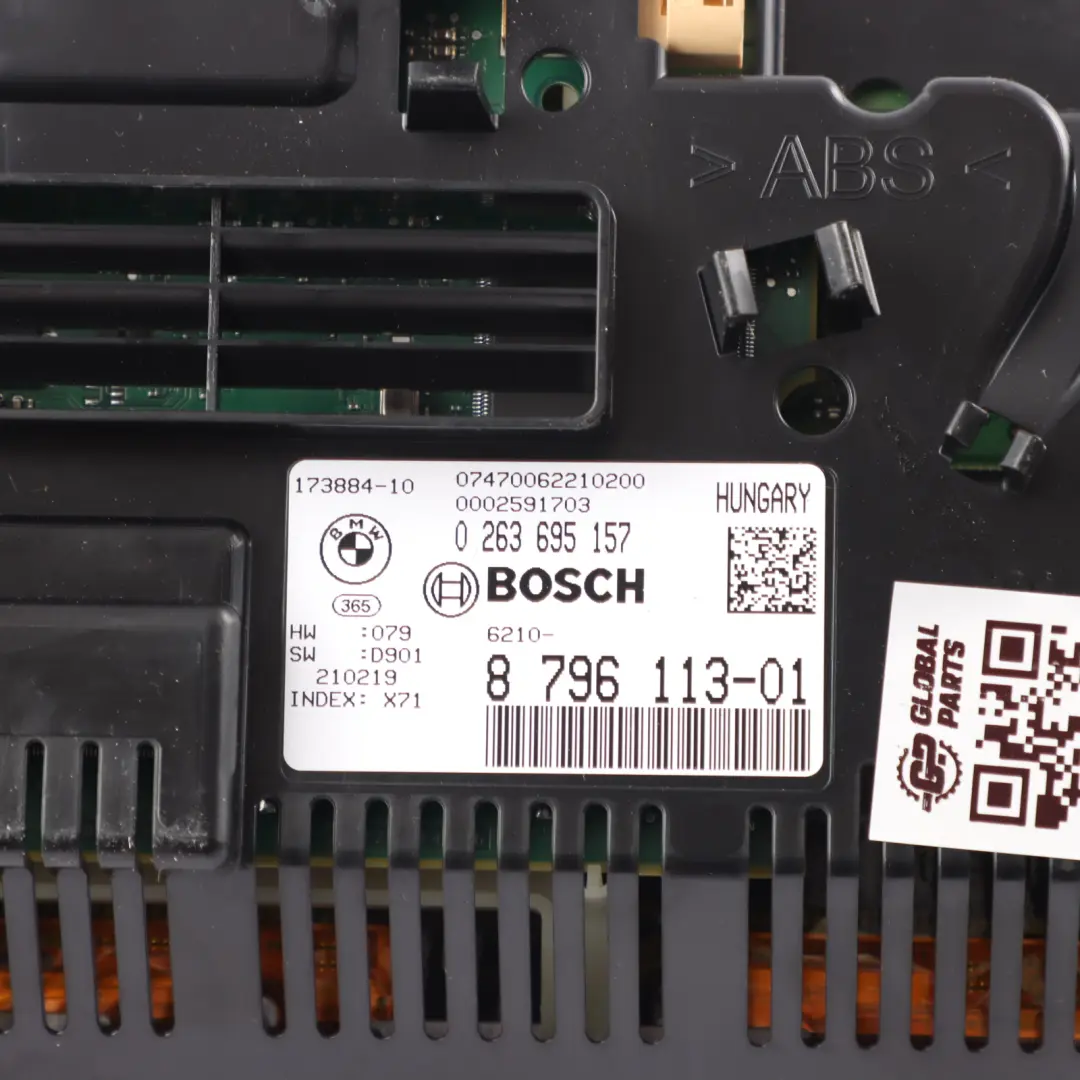

• OEM Part Number: 8796113
• Substitutable numbers: 62108796113, 8796113, 62108781319, 8781319, 62108795215, 8795215, 9342809, 0263715189, 0 263 715 189, 0263695081, 0 263 695 081, 6805245, 9363248, 9363247, 8795226, 9342808
• Fuel type: Petrol
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and vehicle integration

The presented LED instrument cluster has been developed specifically for selected BMW F-series models, such as the F01, F06, F07, F10, and F11, which translates into an excellent fit for the electrical architecture and cockpit design. The construction developed by the vehicle manufacturer ensures full compatibility with factory onboard systems, including the engine control unit, comfort modules, and driver assistance systems.

As a result, the driver receives a consistent, clear interface that presents information in accordance with BMW logic, without the need for universal solutions or the adaptation of non-original components. The instrument cluster maintains the factory character of the interior and allows for the integrity of the entire system to be preserved.

Display technology and functionality

The multifunctional LED display used in this instrument cluster ensures high readability of indications in various lighting conditions, both day and night. The use of LED technology enables precise graphic reproduction, smooth animations, and clear warning messages, which improves reading comfort and reduces driver reaction time.

Extensive functionality includes the presentation of key engine operating parameters, vehicle system status, and maintenance information. The multifunctional nature of the instrument cluster allows for dynamic adjustment of the displayed data to the current driving mode and user needs, which is particularly important in modern high-end BMW models.

Compatibility with drivetrain configuration

The instrument cluster in question has been prepared for use in vehicles equipped with a gasoline engine and an automatic transmission. This means that the logic of the indications, the tachometer scale, messages regarding drivetrain operation, and the presentation of transmission modes are adapted to the specifics of such a drivetrain configuration.

Such compatibility ensures consistency between the indications and the actual behavior of the vehicle, as well as correct handling of messages related to automatic transmission operation. Integration with the gasoline engine and automatic transmission translates into predictable operation of the instrument cluster and daily ease of use.

Performance characteristics and installation benefits

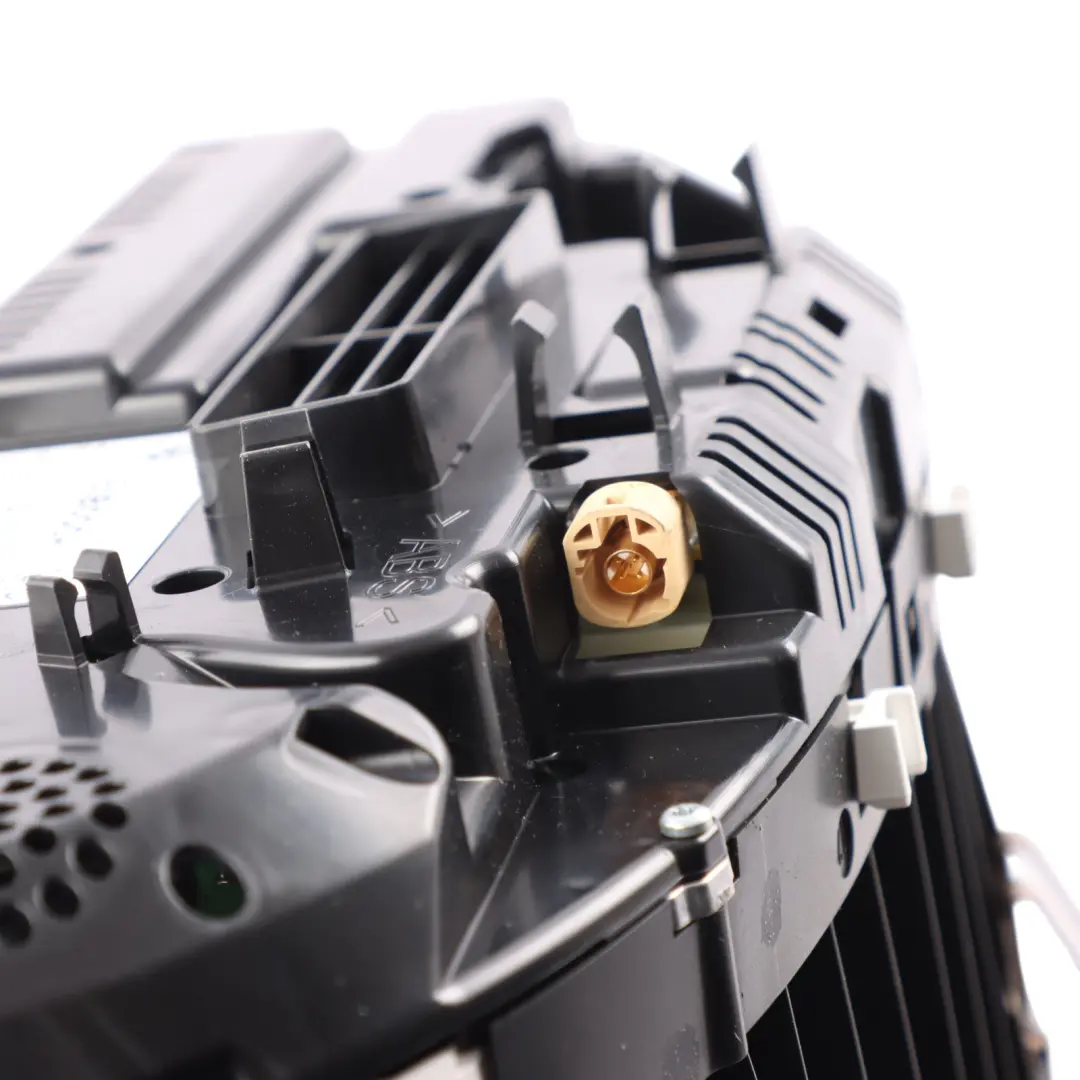

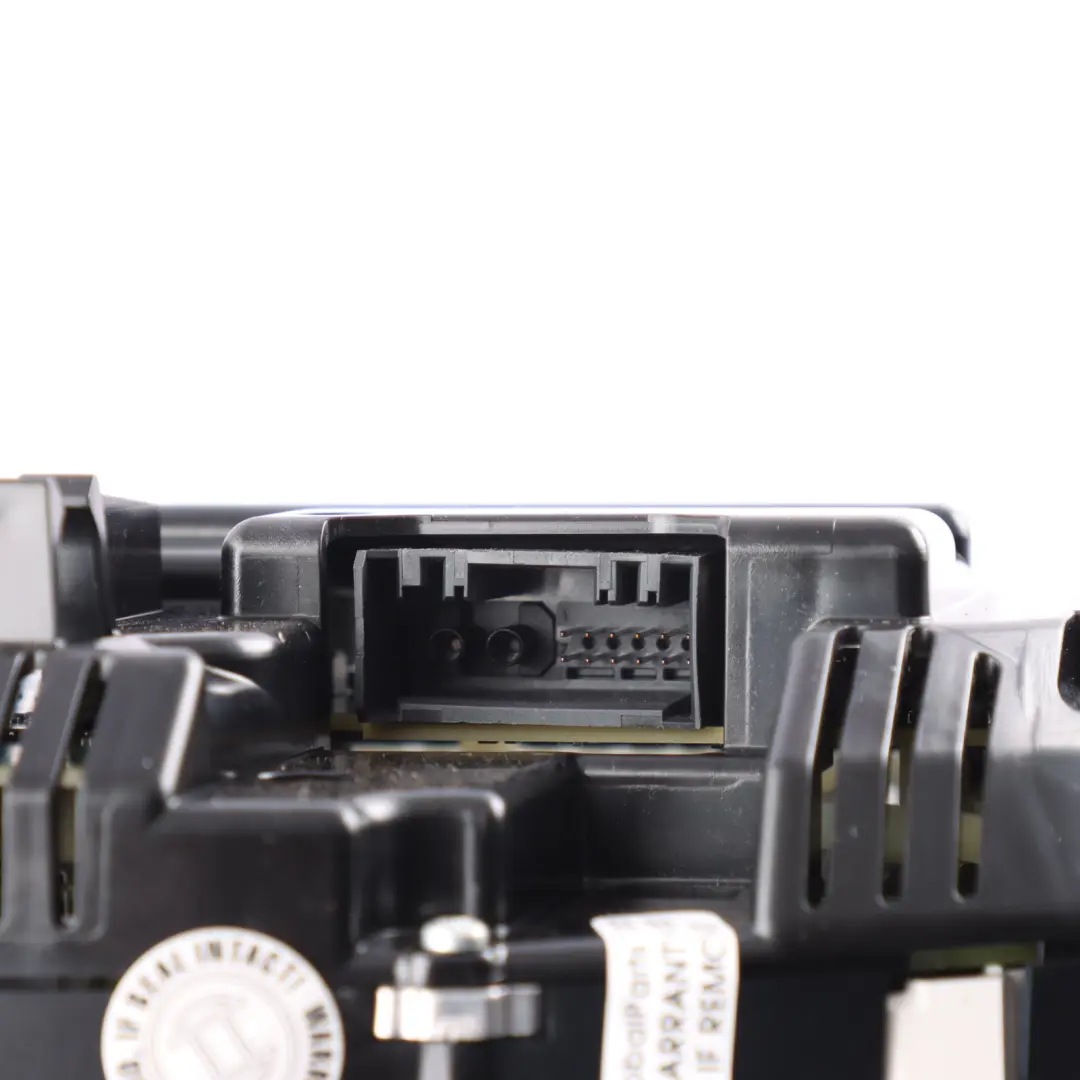

As a component sourced from dismantling, the instrument cluster retains its factory construction and original manufacturer solutions, which facilitates installation in the vehicle. The installation is based on factory mounting points and electrical connectors, which minimizes the need for wiring modifications and allows for compliance with BMW service documentation.

Key benefits of using this component include:

• preservation of the original aesthetics and ergonomics of the BMW cockpit,
• consistency with the vehicle's factory electronic systems,
• a clear, modern interface based on LED technology,
• the ability to restore full functionality of the instrument cluster after a failure of the previous unit.

Choosing an original instrument cluster from dismantling is a solution that allows you to combine cost control with maintaining a high level of quality and technical compatibility.

Application in service and modernization practice

This type of instrument cluster is often used both in post-accident repairs and when replacing damaged interior electronics components. Thanks to its factory origin, it serves as a valuable base for restoring full cockpit functionality, and in some configurations, it can also be used as a modernization element within the same vehicle generation, in accordance with service recommendations and software capabilities.

If you are planning a comprehensive repair or modernization of the cockpit area in your BMW and need other components from the same group, such as additional gauges, control modules, or lighting elements, check the available parts in the BMW Instrument Clusters category.
