BMW F30 F31 Instrument Cluster Speedo Meter Clocks Diesel Automatic 9232895

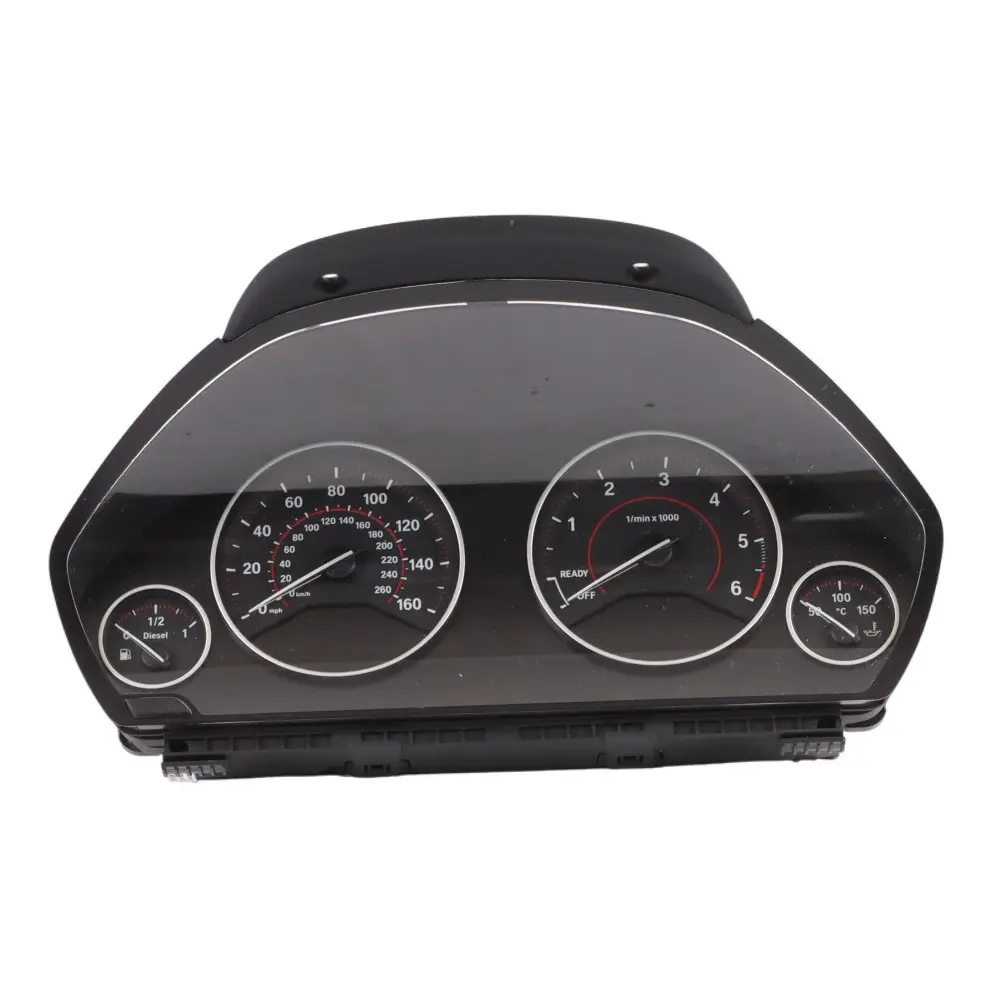

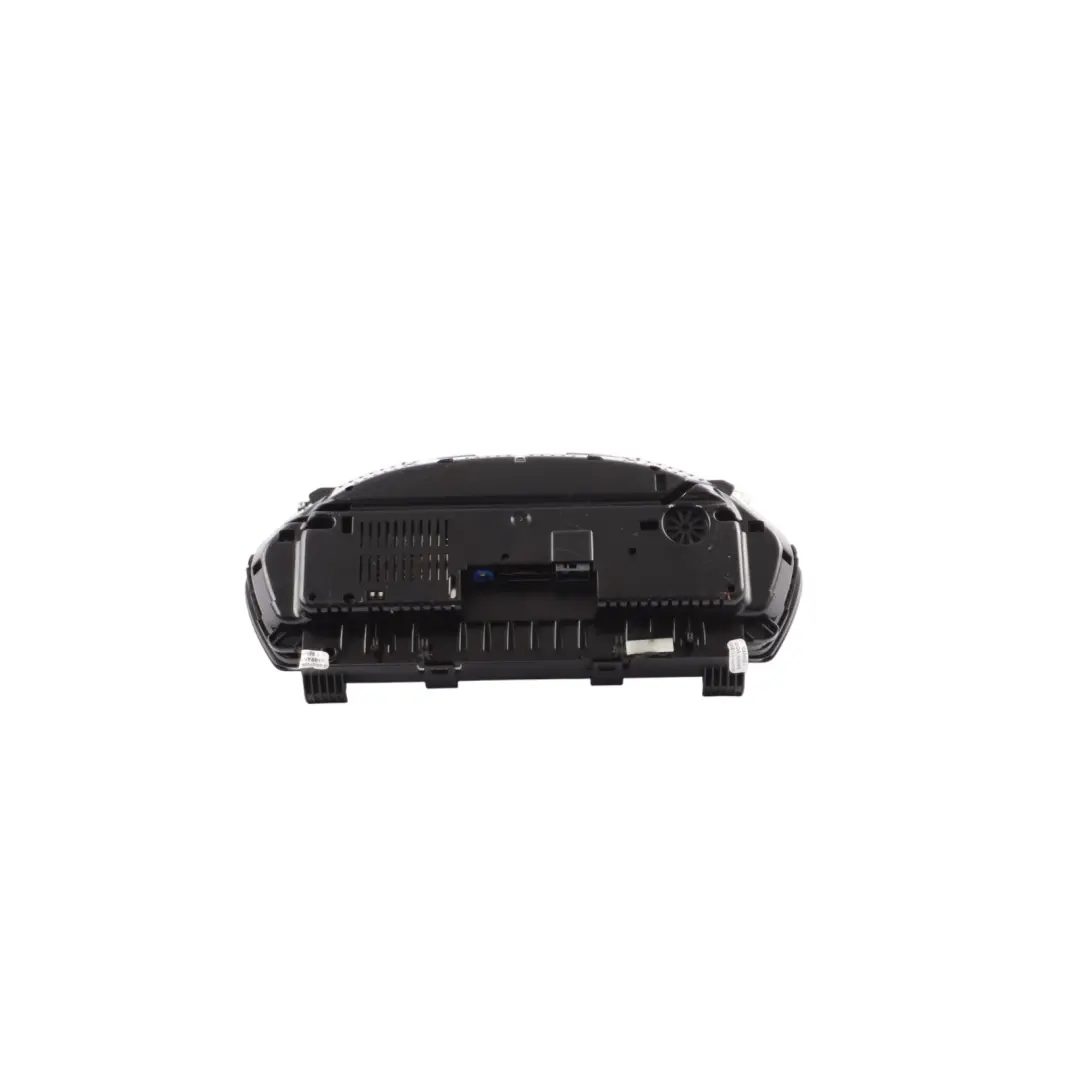

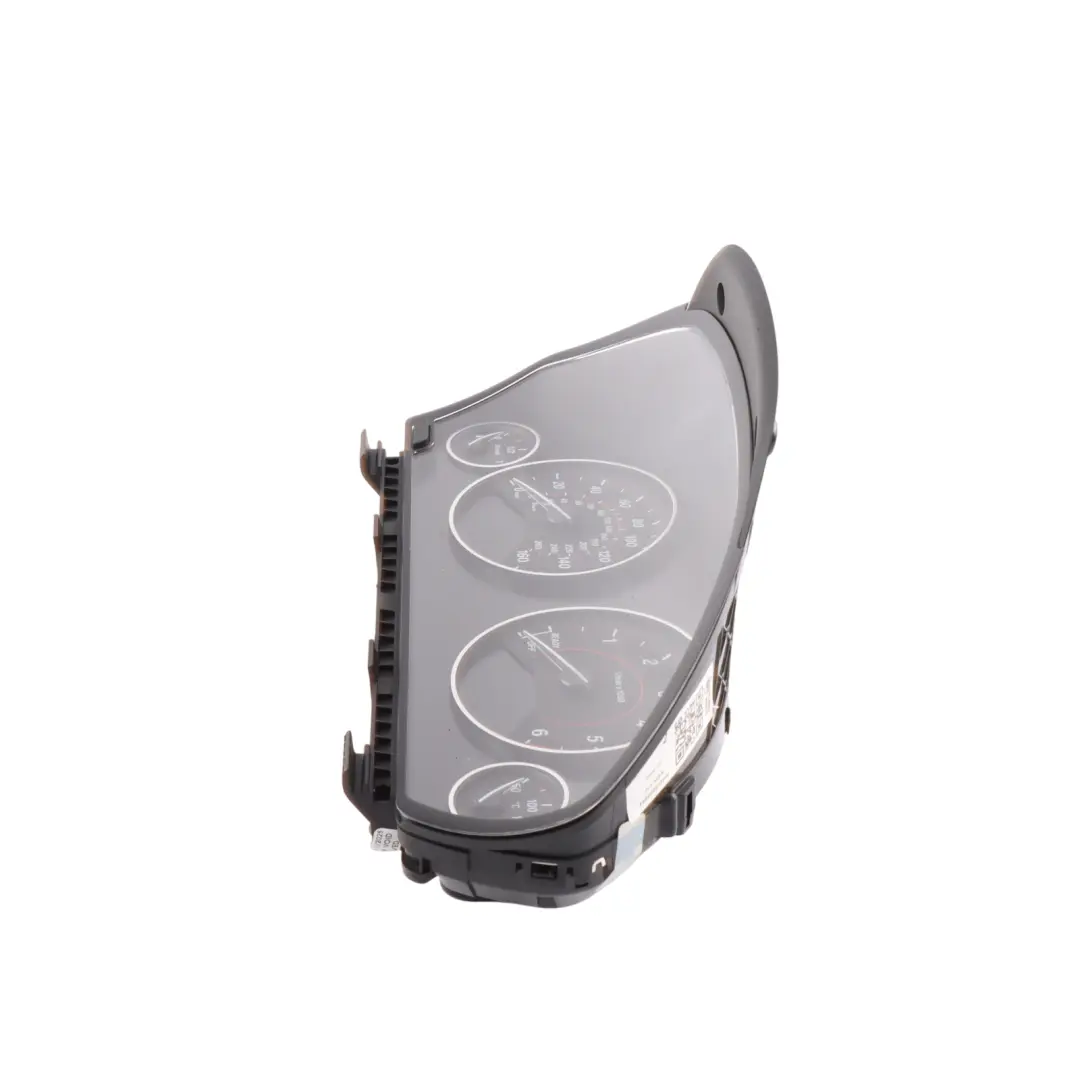

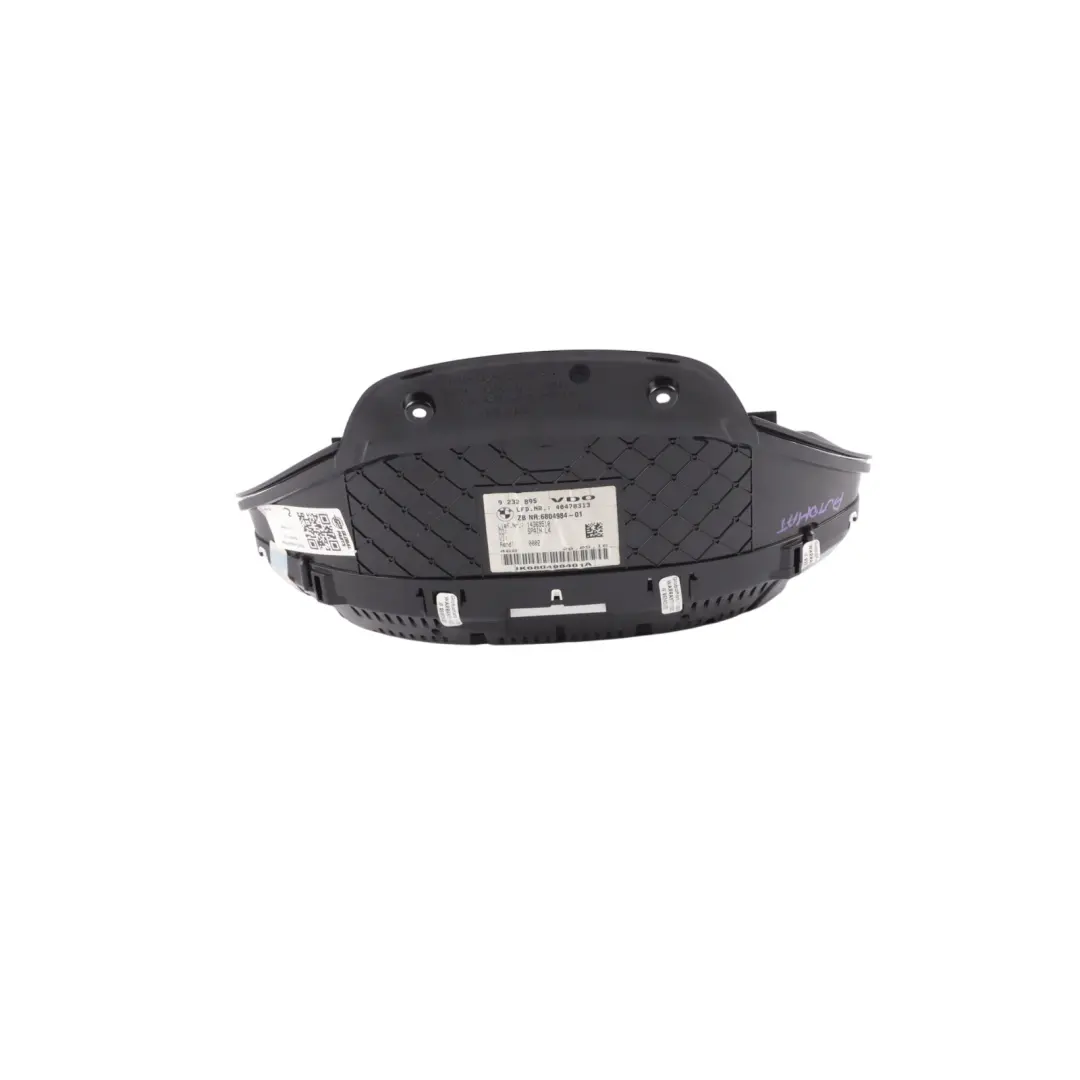

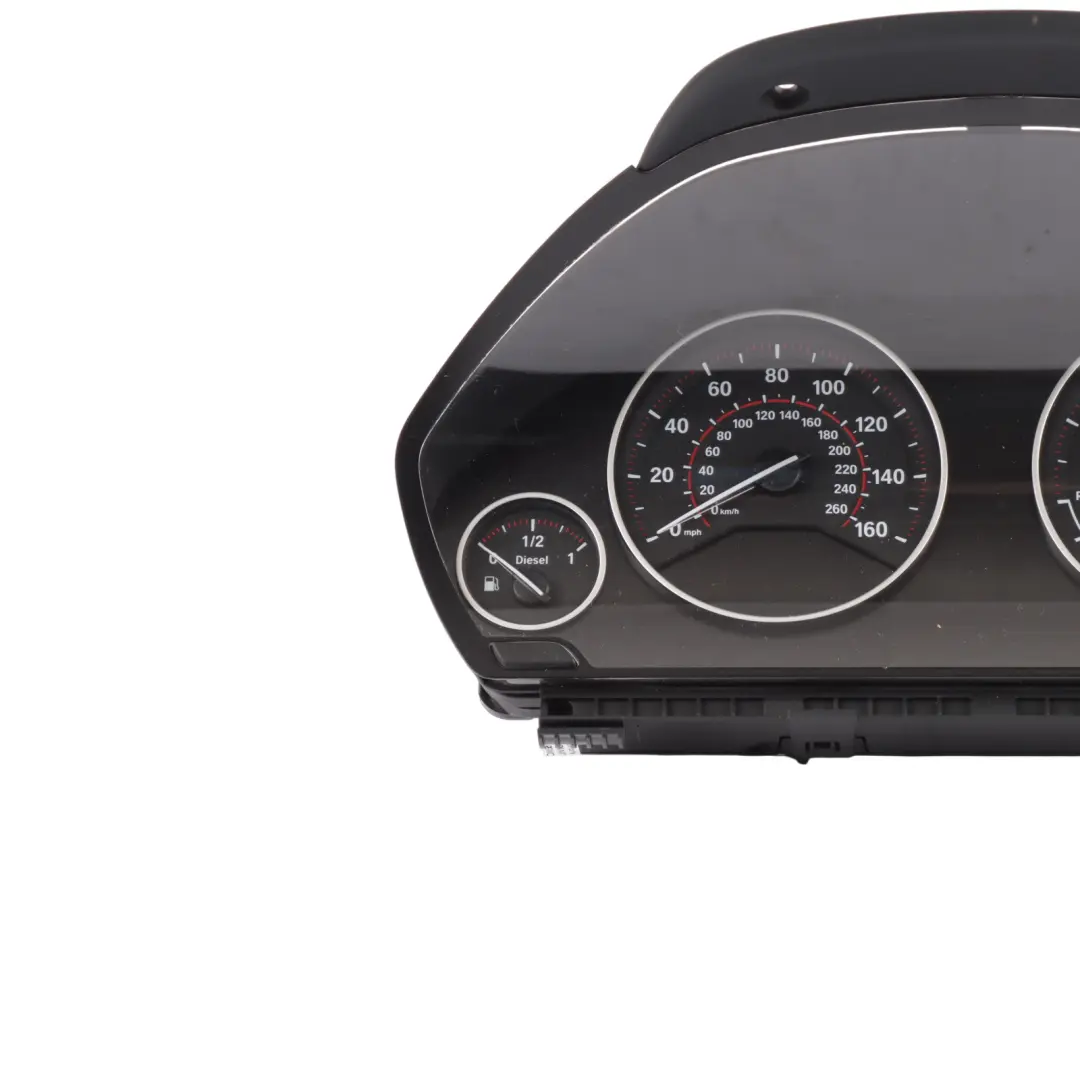

Visual condition of the part

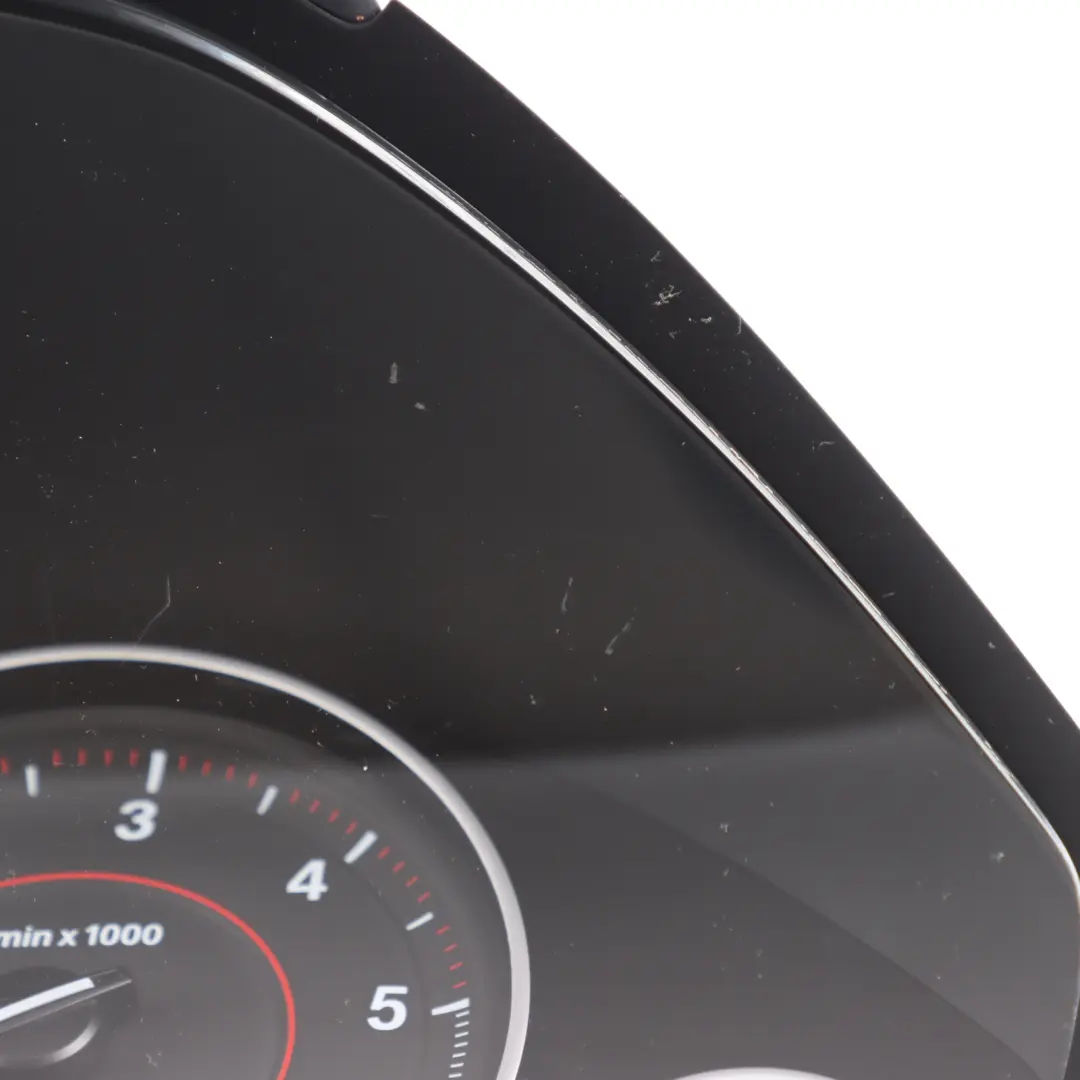

The product shows signs of use visible in the photos.

BMW F30 F31 Instrument Cluster Speedo Meter Clocks Diesel Automatic is an original instrument panel designed for factory installation in the cockpit of 3 Series models. Thanks to its precise fitment to the vehicle's electrical system and compatibility with the car's electronics, it ensures consistent operation of all display functions and driver communication, while allowing for professional repair or replacement of a damaged instrument cluster.

Specifications and technical data

• SKU: RHD-6804984
• Mark: BMW (Genuine OE)
• Condition: Used

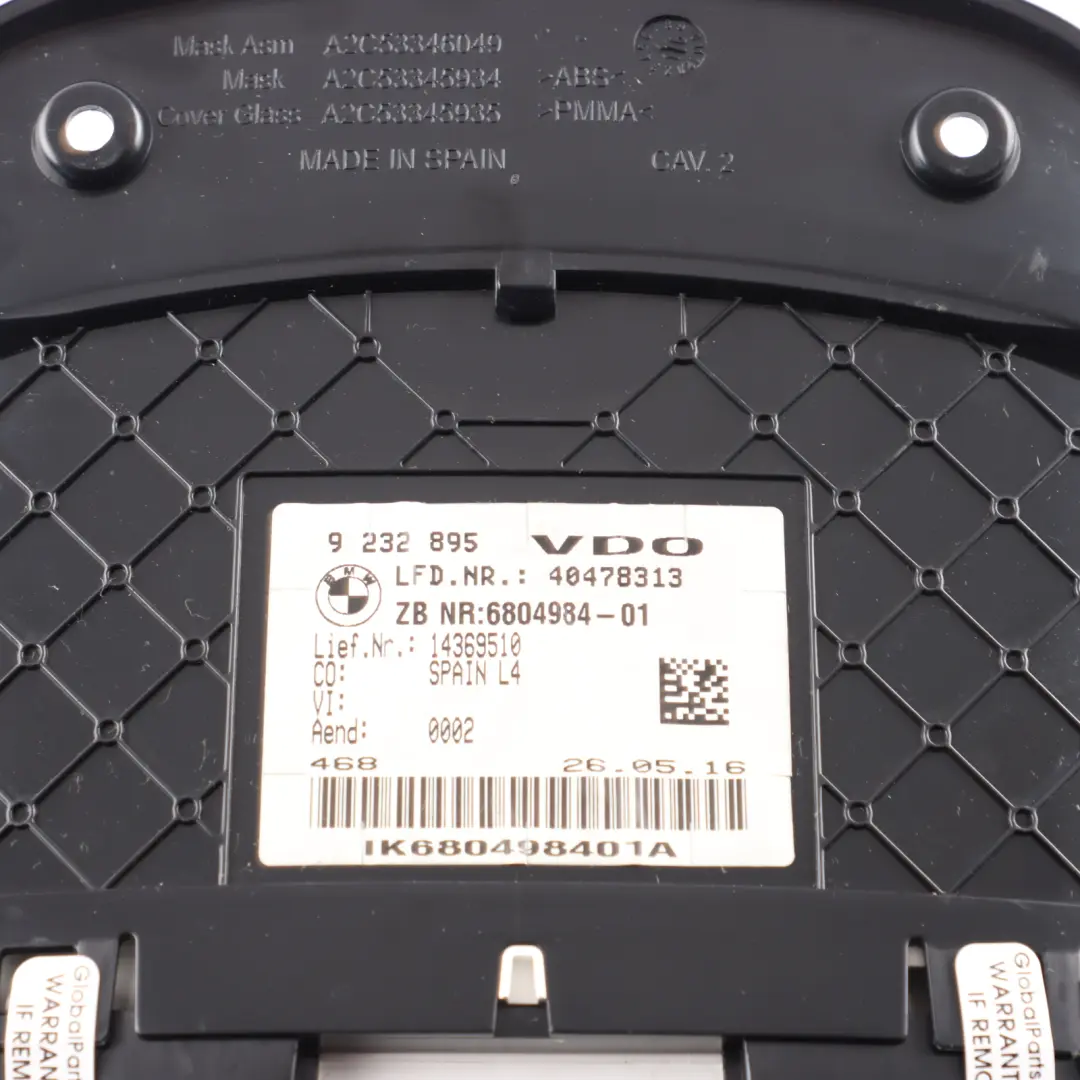

• OEM Part Number: 6804984
• Substitutable numbers: 6804984, 62106804984, 9436315, 62109436315, 6843152, 62106843152, 9382114, 62109382114, 9311407, 62109311407, 9363191, 62109363191, 9379992, 62109379992, 9285655, 62109285655, 8803218, 62108803218, 6847255, 62106847255, 9279344, 62109279344, 9232895
• Fuel type: Diesel
• Gearbox type: Automatic
• Category: Instrument Clusters

Purpose and compatibility

The presented instrument cluster is designed specifically for the BMW 3 Series F30/F31 generation with a diesel engine and automatic transmission. This means that the indication logic, speedometer and tachometer scales, as well as transmission mode signaling are adapted to the characteristics of the diesel unit and automatic gearbox, which facilitates integration with the vehicle's factory software.

As an item from the Instrument Clusters group, the panel works with the car's data bus, collecting information from sensors and control units, and then presenting it in a clear form on the dashboard. As a result, the driver receives a consistent overview of powertrain operating parameters, safety system status, and service messages.

Functionality and role in the vehicle

The instrument cluster plays a key informational role in the BMW F30/F31 cabin. It is responsible for:

• presenting driving speed and engine RPM,
• visualizing automatic transmission operating modes,
• signaling warning and information lights,
• displaying basic operational data, such as mileage or service messages.

Thanks to its factory design, the panel maintains the original BMW ergonomics – readability of the dials, logical layout of warning lights, and intuitive placement of gauges. This is important both for daily use and during diagnostics or road tests after repairs.

Benefits of using an original instrument cluster

Choosing an original instrument cluster for the BMW F30/F31 brings a number of practical benefits:

• Factory electrical and mechanical fitment – the panel is prepared for installation in the original mounting points, with appropriate connectors and housing geometry.
• Consistency with vehicle systems – cooperation with the diesel engine electronics and automatic transmission minimizes the risk of communication errors and incorrect readings.
• Professional repair result – maintaining the original look of the cockpit and the functionality of the instrument cluster increases the vehicle's utility value after replacement.

This solution is particularly recommended when replacing damaged clocks after an electronics failure, interior flooding, or a collision, where the priority is to restore full functionality and aesthetics to the dashboard.

Product characteristics and condition

The offered BMW instrument panel belongs to the group of used Instrument Clusters, sourced from dismantling. This type of component allows for economical vehicle repair while maintaining the manufacturer's original specifications. Before installation, it is recommended to perform standard service procedures, such as verifying compatibility with the car's equipment, potential programming, and adaptation to the specific vehicle according to BMW procedures.

In practice, this means the ability to restore full dashboard functionality without the need to invest in a new part, while maintaining the factory look of the interior and correct cooperation with safety and comfort systems.

Installation support and additional information

When replacing the instrument cluster in a BMW F30/F31, it is worth using service documentation and diagnostic tools to properly carry out the coding and functional testing process. This helps avoid communication errors with control modules and ensures the correct operation of warning lights and gauges related to the diesel powertrain and automatic transmission.

If you are planning a comprehensive repair or upgrade of the cockpit and dashboard area in your BMW and need other elements from the same group, such as additional instrument panels, display modules, or alternative clock configurations, check the available parts in the BMW Instrument Clusters category.
