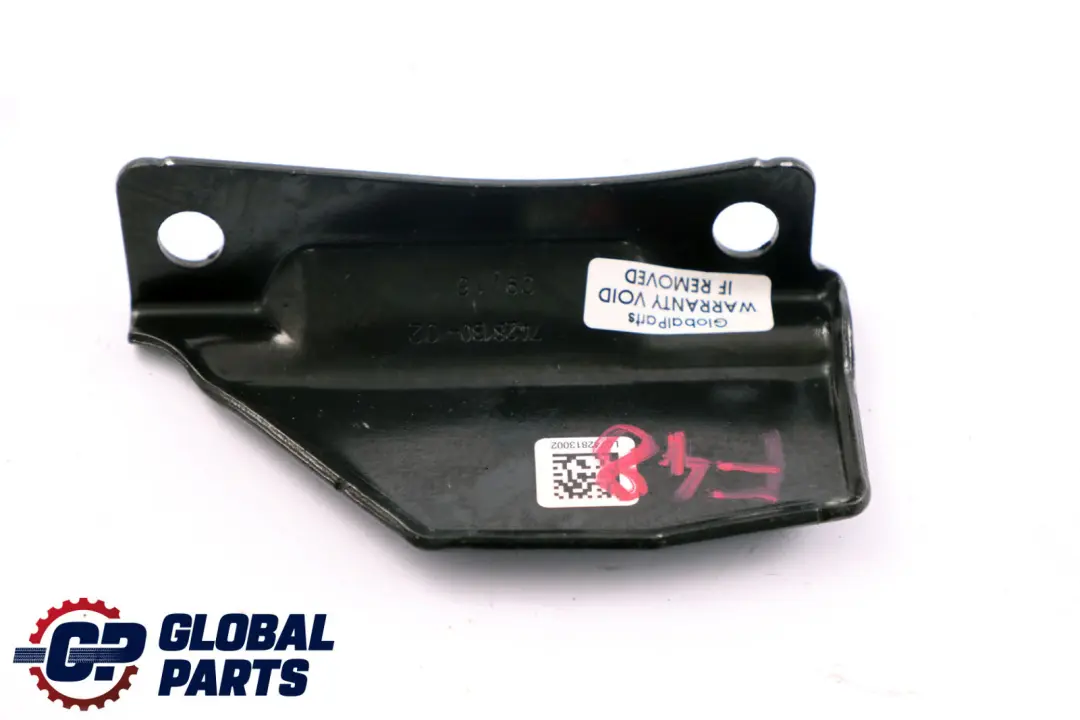

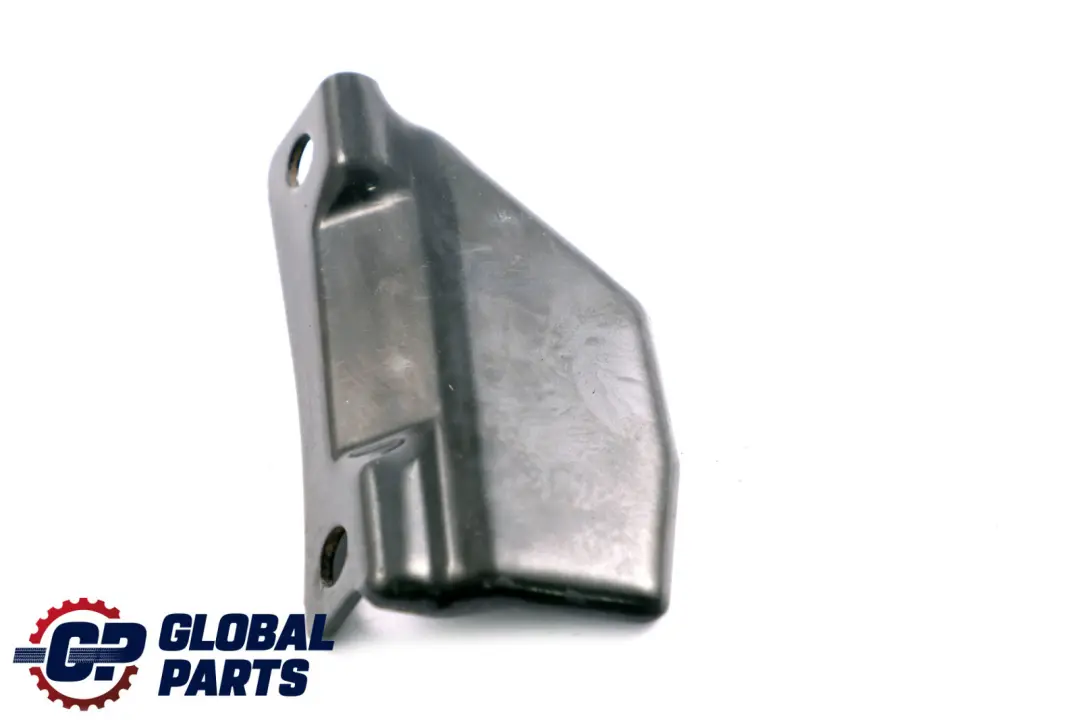

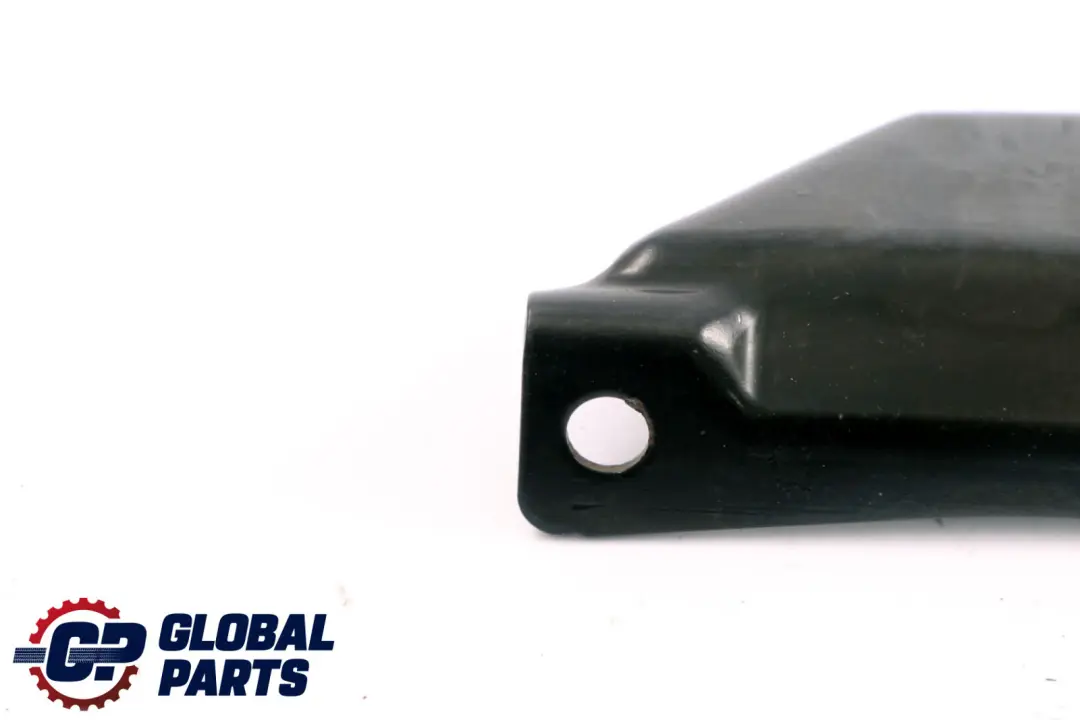

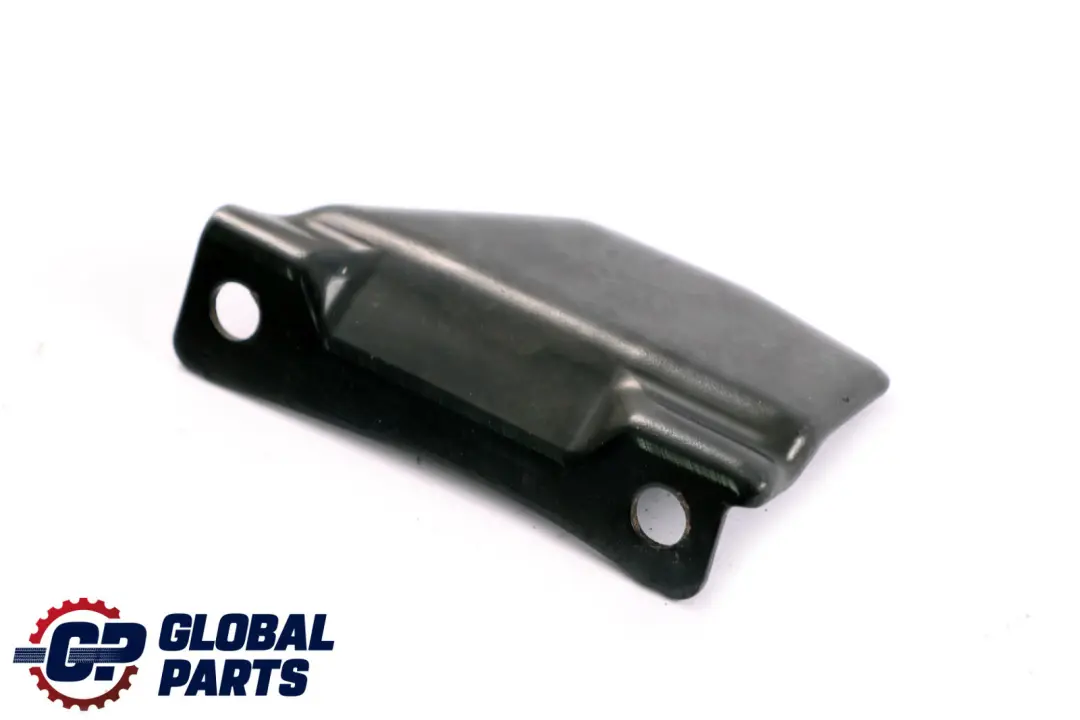

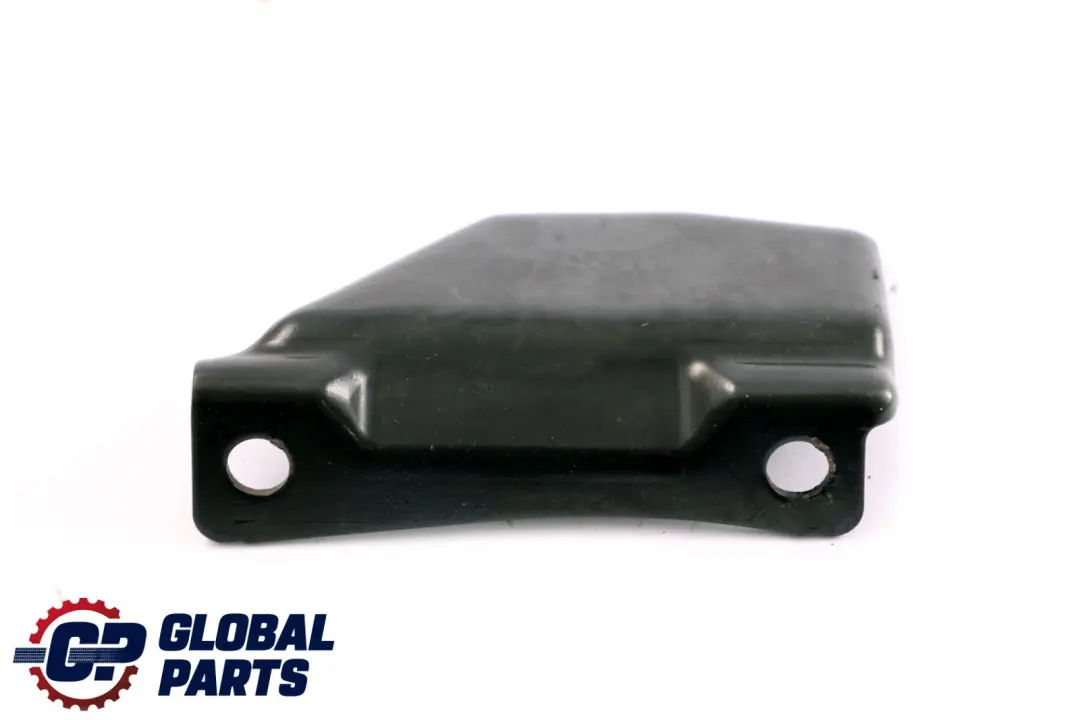

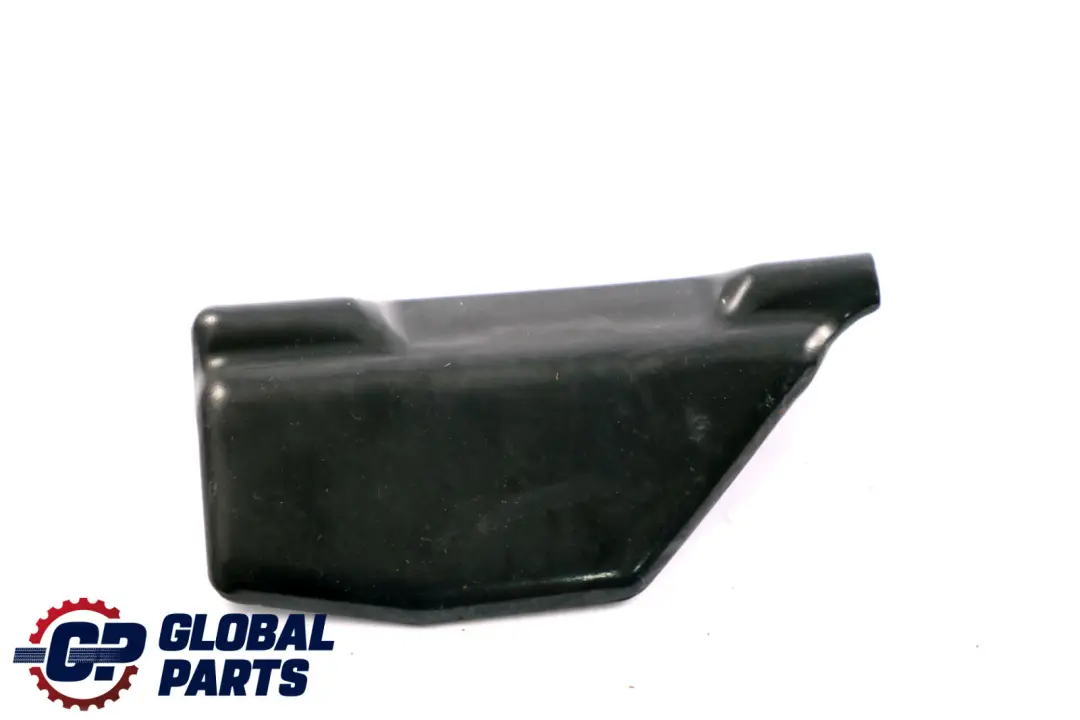

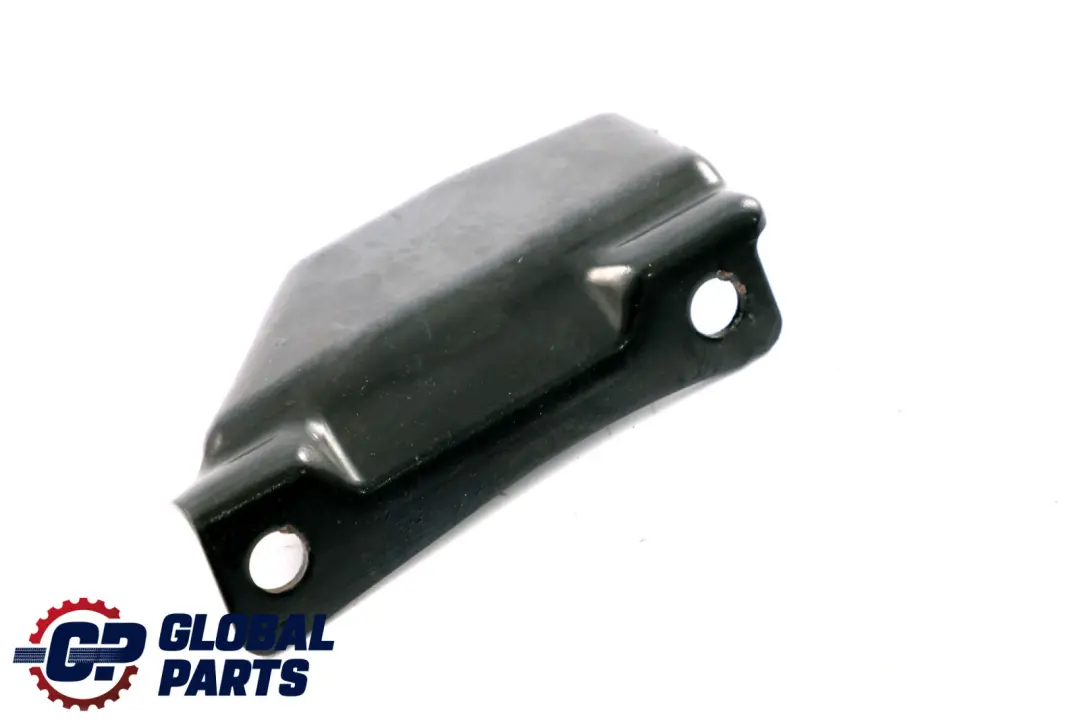

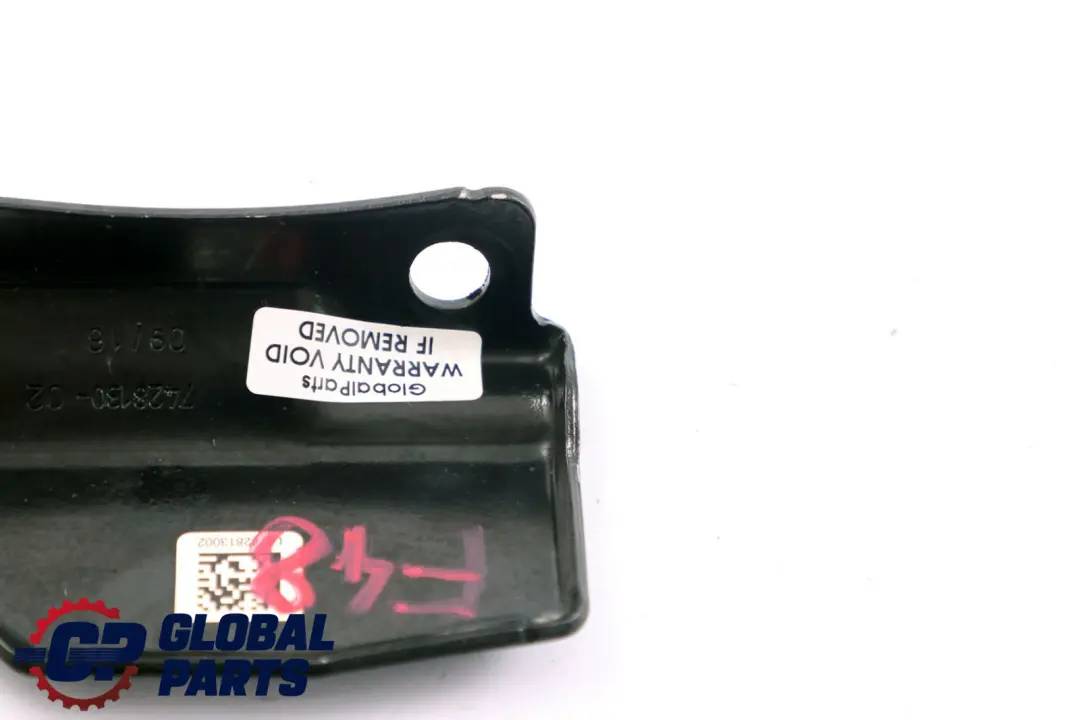

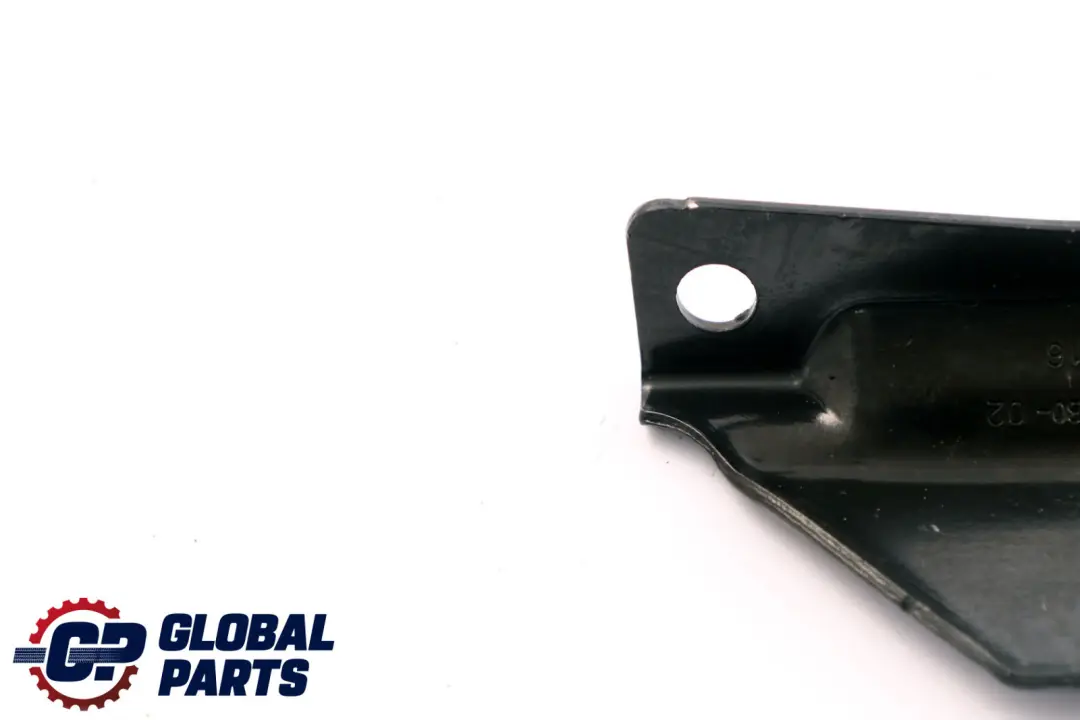

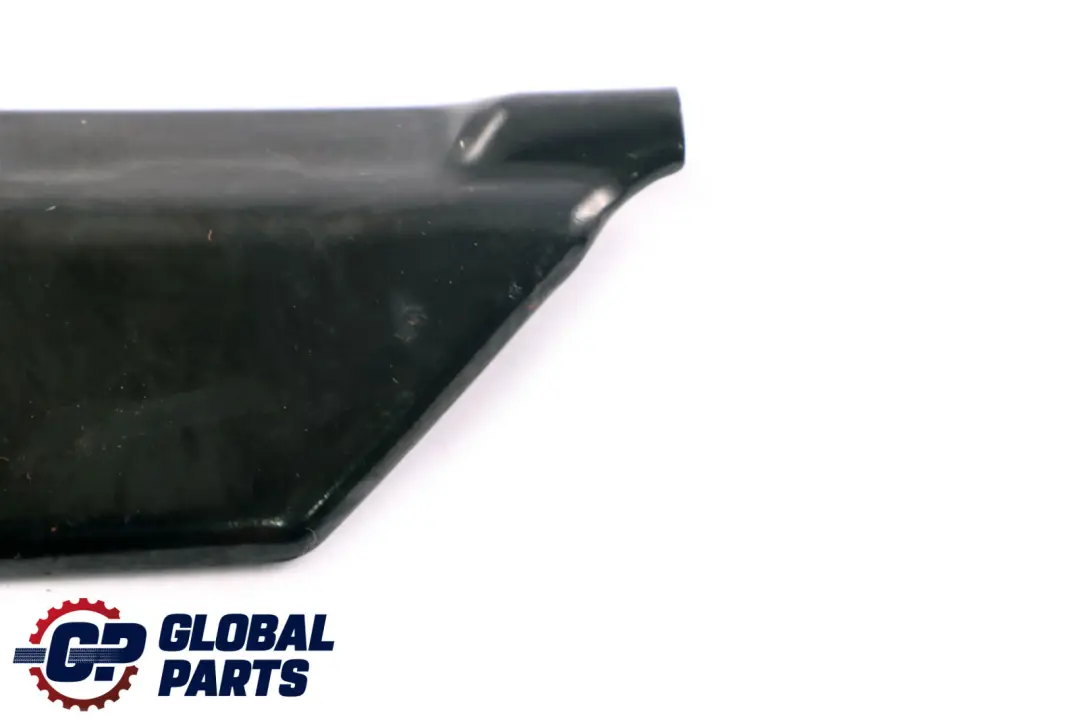

BMW X1 Series F48 Mini Countryman F60 Guard Plate Fuel Pipes 7428130

The BMW X1 F48 / Mini Countryman F60 Fuel Pipe Guard is an original fuel system component, designed by BMW for stable routing and protection of fuel pipes. Thanks to its factory fit for specific models, it ensures consistency with the chassis design and facilitates fuel system servicing.

Specifications and technical data

• SKU: rhd-7428130
• Mark: BMW (Genuine OE)
• Condition: Used

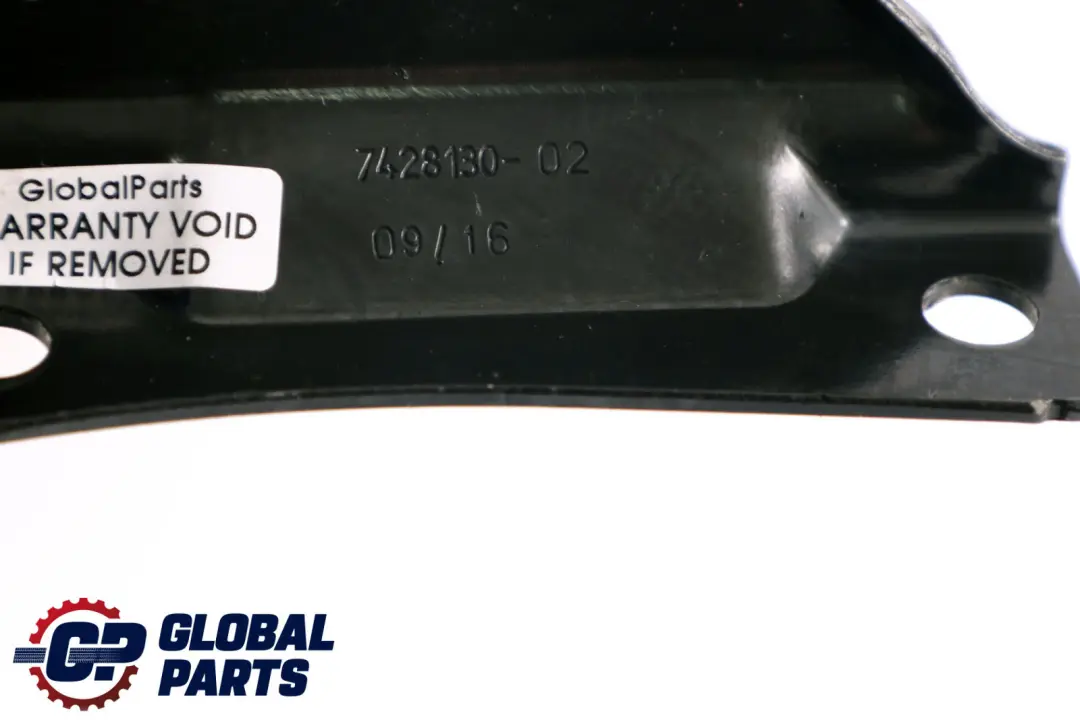

• OEM Part Number: 7428130
• Substitutable numbers: 16127428130, 7428130, EM
• Category: Hoses, Lines & Pipes

Purpose and Function in the Fuel System

The fuel pipe guard in the BMW X1 F48 series and Mini Countryman F60 is responsible for the stable routing of fuel pipes along the underbody and their mechanical protection. This element reduces the risk of chafing, point stress, and damage resulting from suspension operation, body vibrations, or contact with road debris.

A properly selected fuel pipe guard helps maintain:

• safe routing of fuel pipes relative to underbody components,
• appropriate distance from moving suspension parts,
• assembly order within the fuel system, facilitating diagnostics and service.

Construction and Fit for BMW X1 F48 / Mini Countryman F60

The presented guard is designed as a factory fuel system component for the platform shared by the BMW X1 F48 and Mini Countryman F60. This means its geometry, mounting points, and routing relative to the underbody are in line with the vehicle manufacturer's specifications.

Key construction features:

• dedicated mounts for factory points on the underbody,
• profile adapted to the routing of fuel pipes along the tunnel and structural elements,
• bracket placement that limits pipe movement during driving.

This ensures an organized installation and maintains the integrity of the entire fuel system in accordance with original BMW service documentation.

Condition, Service Application, and Benefits of Installation

This part is a used original BMW part, offered as a used original BMW part, allowing for the preservation of factory fit standards while optimizing repair costs. Replacing the fuel pipe guard is particularly recommended when:

• the existing guard is mechanically damaged or deformed,
• fuel pipes have been serviced and require renewed, stable routing,
• the vehicle has undergone bodywork and underbody repairs in the fuel system area.

Using an original part helps reduce the risk of leaks resulting from improper fuel pipe routing and facilitates future diagnostic work on the fuel system.

Technical Support and Selection by Part Numbers

The BMW X1 F48 / Mini Countryman F60 Fuel Pipe Guard belongs to the Pipes, Hoses, and Tubes group, which aids in its identification in service documentation and parts catalogs. The selection of the correct part should always be verified based on vehicle data and manufacturer part numbers to ensure full compatibility with the specific model version.

If you are planning a comprehensive repair or upgrade of the fuel system area in your BMW and need other parts from the same group, such as guides, brackets, or additional guards, check the available parts in the BMW Pipes, Hoses, and Tubes category.

To deepen your knowledge of fuel system diagnostics and operation, it is worth reading the article describing the function of injectors, pumps, and the fuel tank – you will find practical tips in the material: Fuel System – Injectors, Pumps, and Fuel Tank: Maintenance and Repair.

Summary

The BMW X1 Series F48 Mini Countryman F60 Guard Plate Fuel Pipes is a functional fuel pipe guard that supports the safe routing of fuel pipes along the underbody and helps maintain assembly order in the fuel system. Choosing an original part from the Pipes, Hoses, and Tubes group is a beneficial solution both technically and for servicing, especially for repairs of BMW and Mini vehicles based on the same construction platform.
