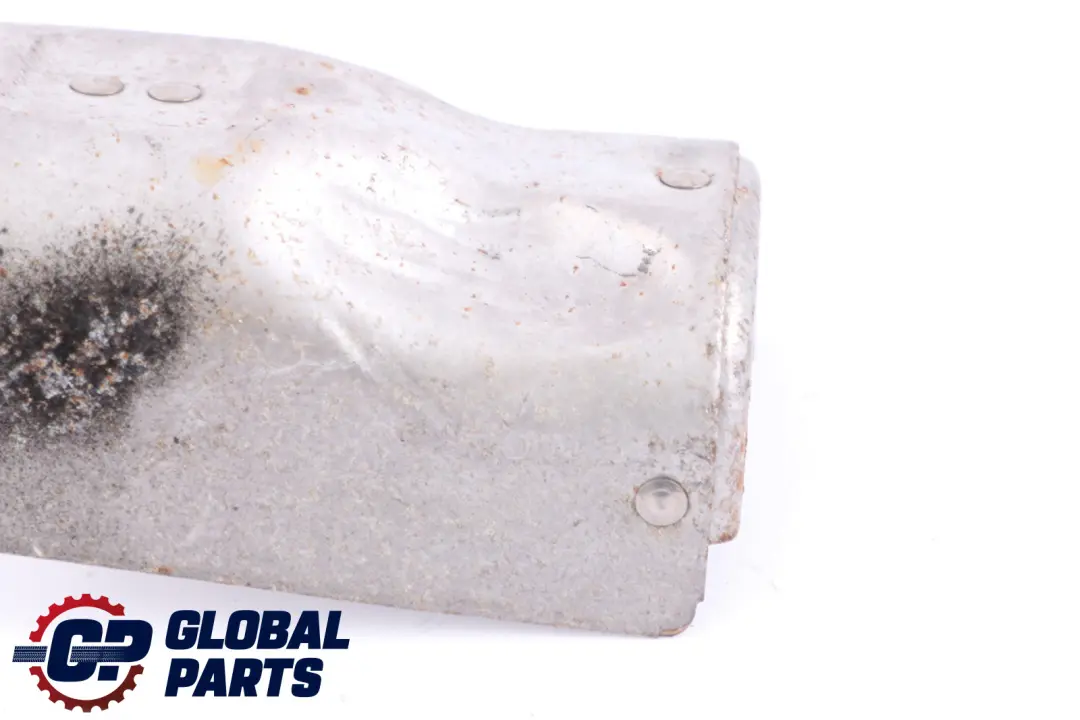

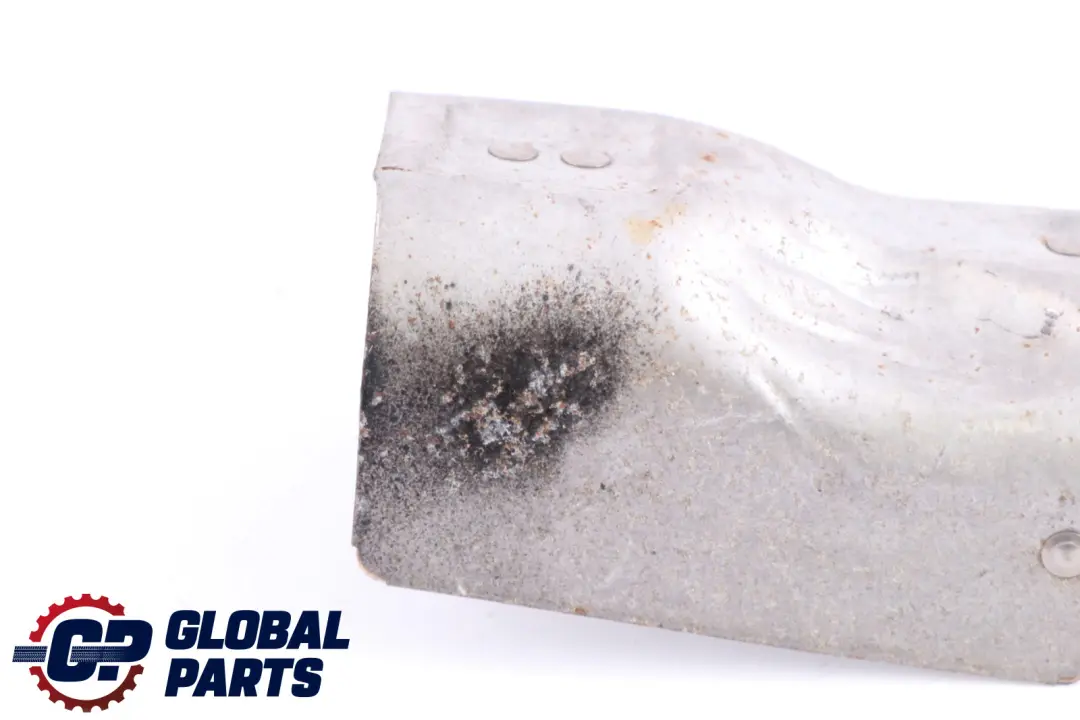

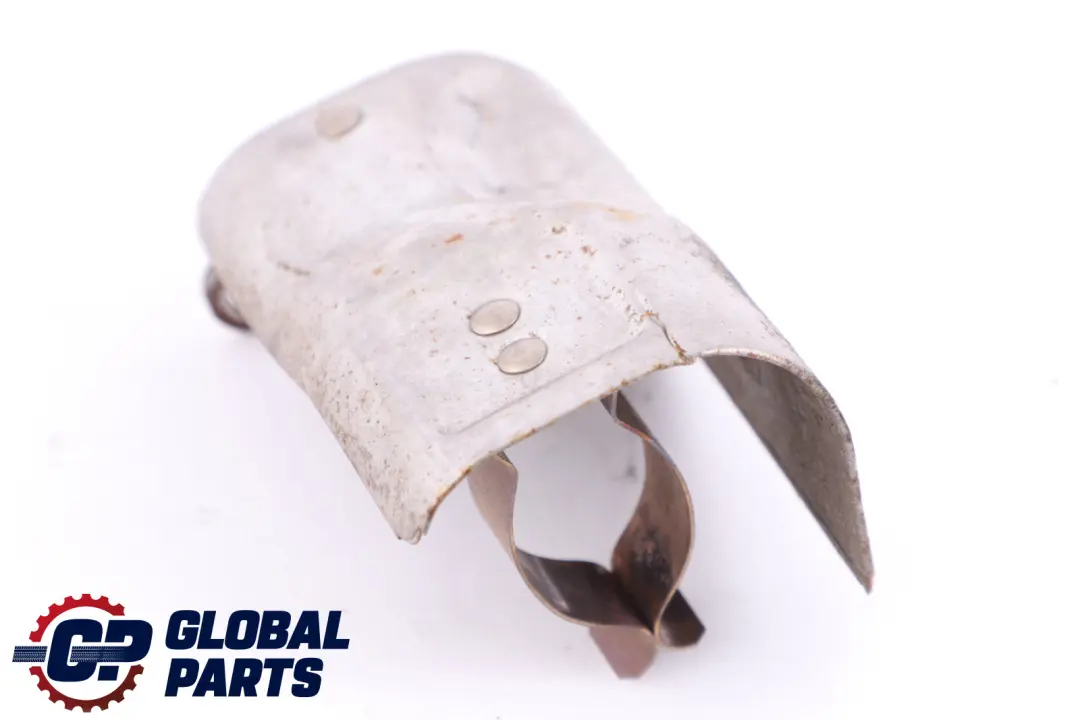

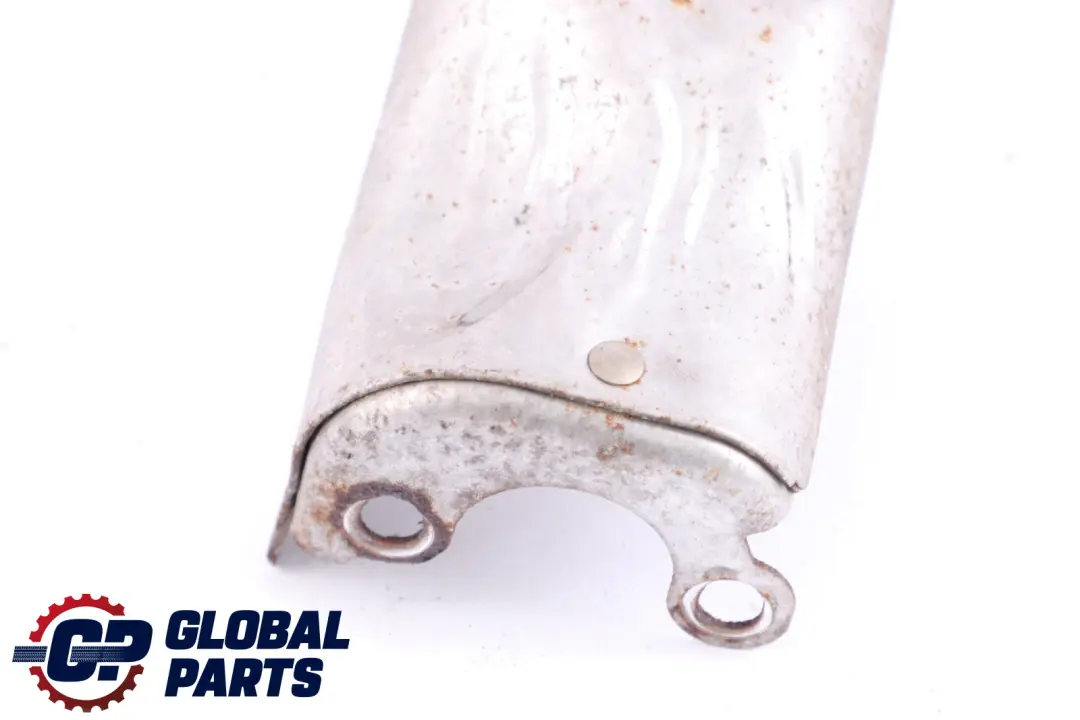

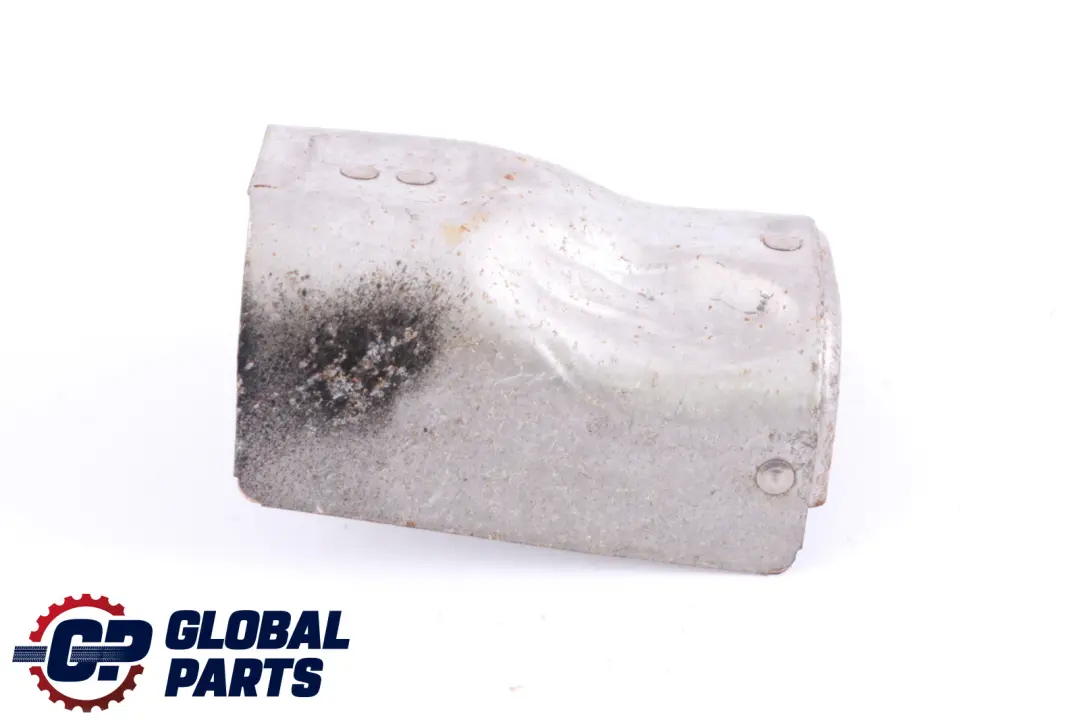

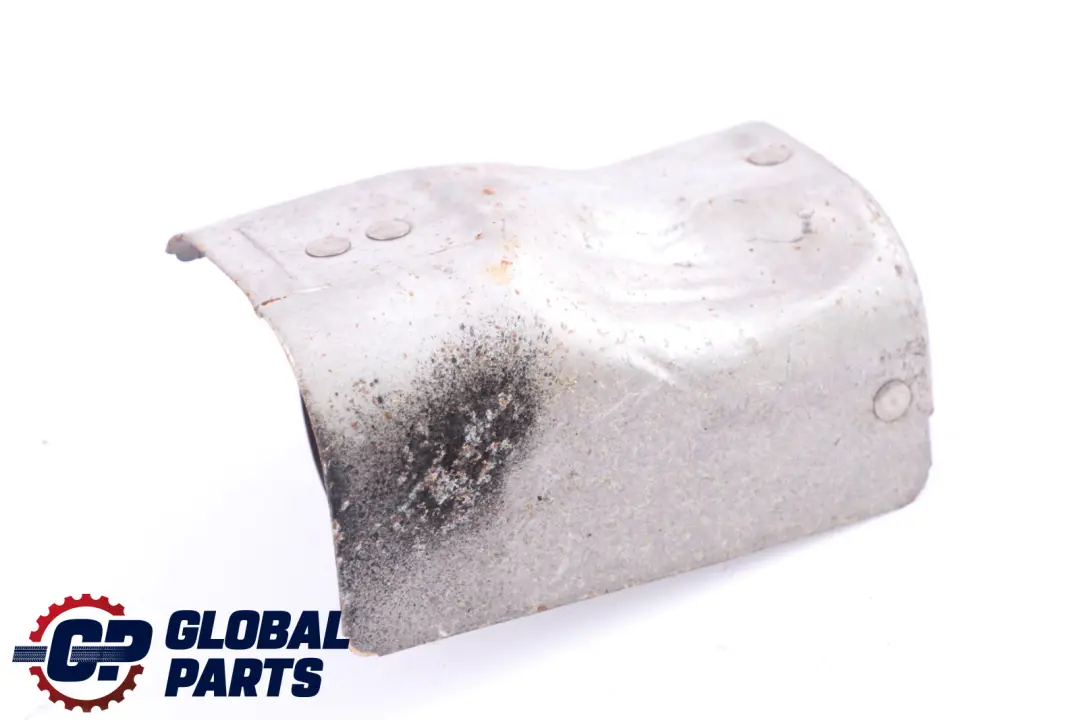

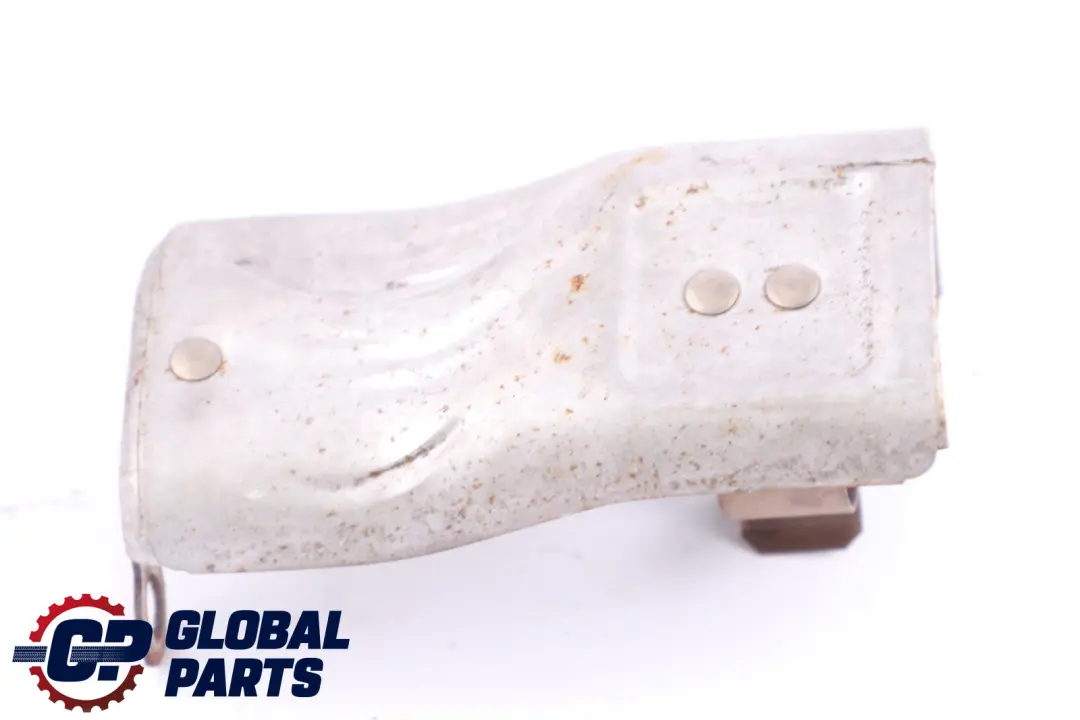

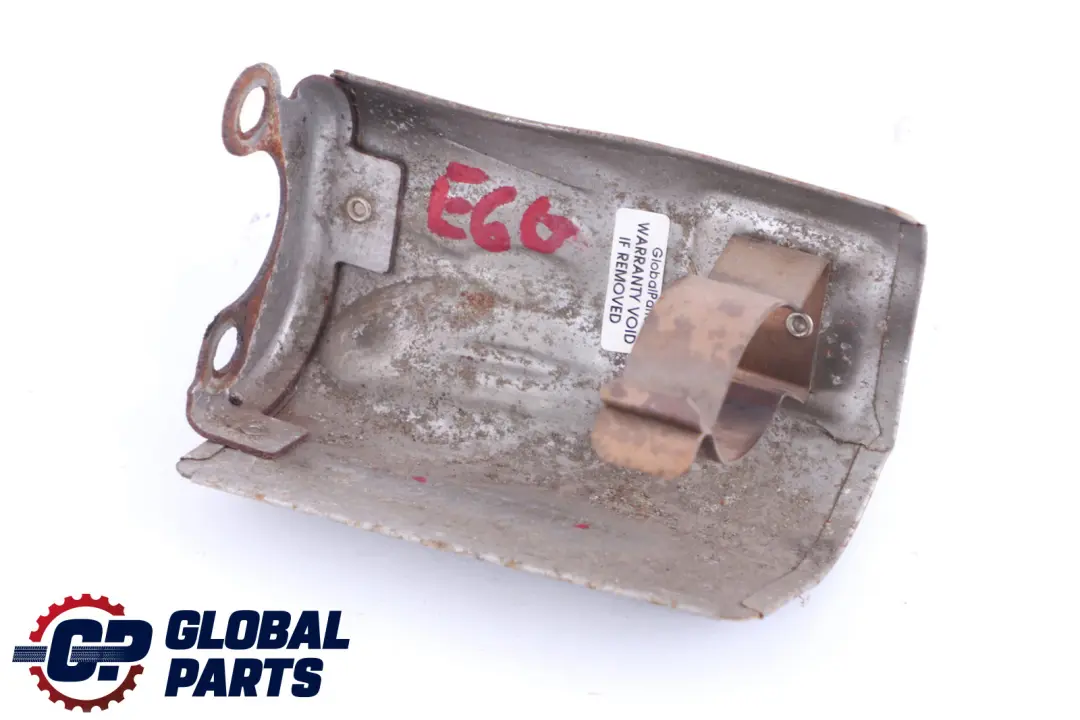

BMW 3 5 X3 Series E46 E60 E83 Exhaust Manifold Heat Shield Protection 7787650

BMW X3 E46 E60 E83 Muffler Heat Shield is an original part from the heat shields, connectors, and sleeves group, designed for use in select BMW models. This used OEM part ensures a factory fit, effective thermal protection for the exhaust system, and stable mounting consistent with the vehicle's design.

Specifications and technical data

• SKU: 7787650
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7787650
• Substitutable numbers: 11627787650, 7787650
• Category: Heat Shields, Wraps & Sleeves

Purpose and Function of the BMW Muffler Heat Shield

The BMW Muffler Heat Shield is responsible for thermally isolating exhaust system components from adjacent body and chassis parts. It limits the heating of the floor, wiring, and plastic elements, which contributes to user comfort and the durability of components located near the muffler.

This part is particularly important in vehicles used in urban and highway conditions, where the exhaust system operates at elevated temperatures for extended periods. A correctly selected shield helps maintain stable operating conditions for the system and reduces the risk of localized overheating.

Construction and Fit for BMW Models

The shield belongs to the Heat Shields, Connectors, and Sleeves category, meaning it is designed to work in close proximity to hot exhaust system components. The OEM construction ensures:

• geometry matched to the factory routing of the muffler and exhaust pipes,
• mounting points as specified by the manufacturer,
• adequate rigidity while maintaining required thermal resistance.

This allows for predictable installation in compatible BMW models, without the need for modifications or forcing the part to fit.

Characteristics of a Used OEM Part

The presented heat shield comes from the BMW line, ensuring compliance with the vehicle manufacturer's original quality standards. As a used part, it retains its original construction and mounting method, which is crucial when replacing components responsible for thermal protection.

In practice, this means:

• original mounting points are preserved,
• the shield is compatible with the stock exhaust system,
• there is no need to use universal adapters or additional brackets.

Benefits of Using an Original Muffler Heat Shield

Using an original heat shield to replace a worn or damaged part offers tangible operational benefits:

• Stable Thermal Protection – limiting heat transfer into the cabin and to adjacent components.
• Factory Fitment – no interference with other chassis elements and maintaining manufacturer-specified ground clearance.
• Hassle-Free Installation – can be installed using original mounting points, without altering the vehicle's structure.

For workshops and individual users, this translates to shorter installation times and a reduced risk of subsequent operational issues related to inadequate thermal protection.

Selection and Related Parts

When selecting a muffler heat shield, it is important to consider compatibility with the specific engine and body version of the vehicle, as well as related exhaust system components such as connectors or sleeves. In case of doubt, OEM part numbers and cross-reference numbers available in the product's technical specifications can be helpful.

If you need other parts from the exhaust system shields and mounts group dedicated to this brand, check the available parts in the BMW Heat Shields, Connectors, and Sleeves category.

When working with used brake and exhaust system components, it is advisable to be familiar with best practices for assessing their technical condition – practical tips can be found in the article Used Brake System: How to Safely Choose Discs, Calipers, and ABS?, which helps to organize the verification process for aftermarket parts.
