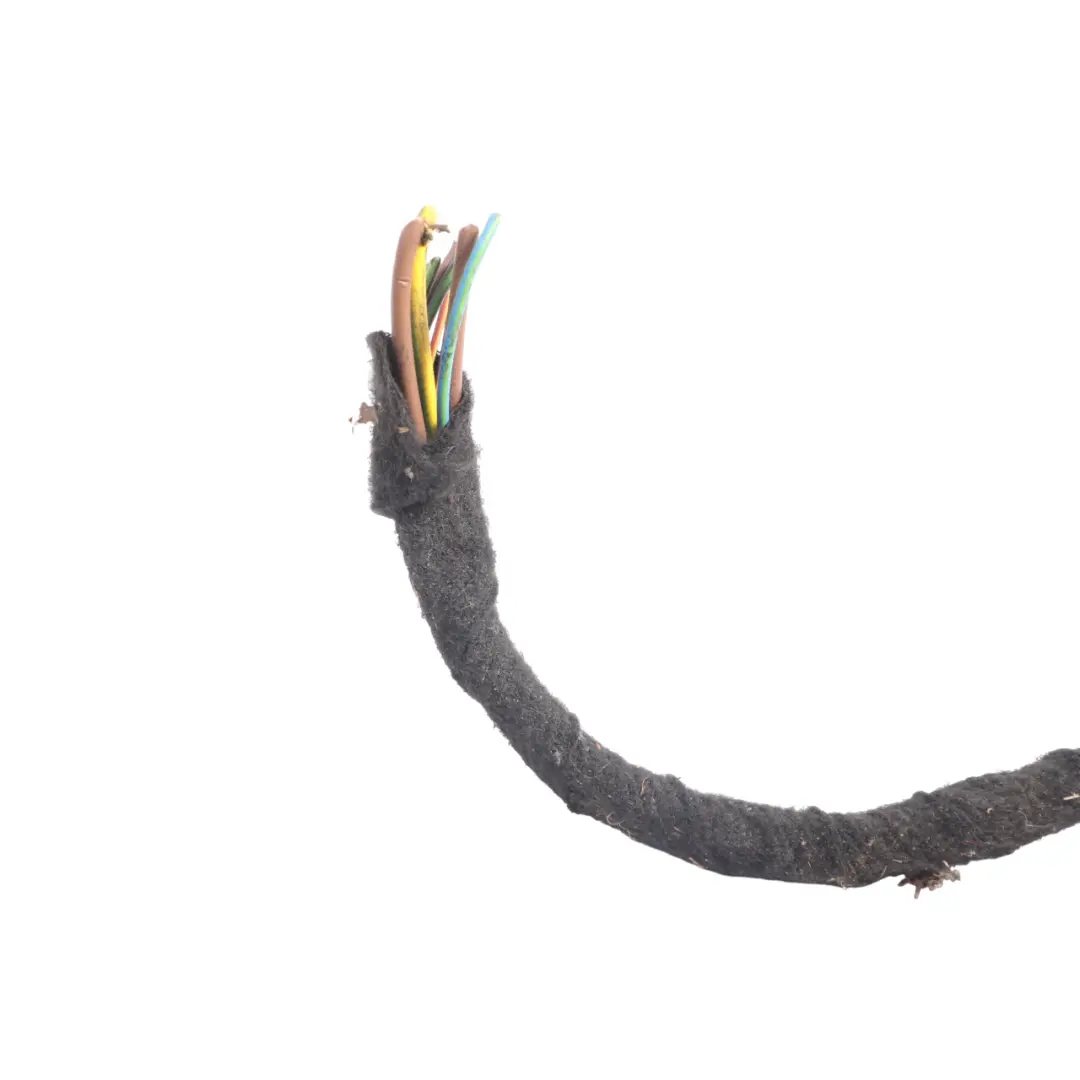

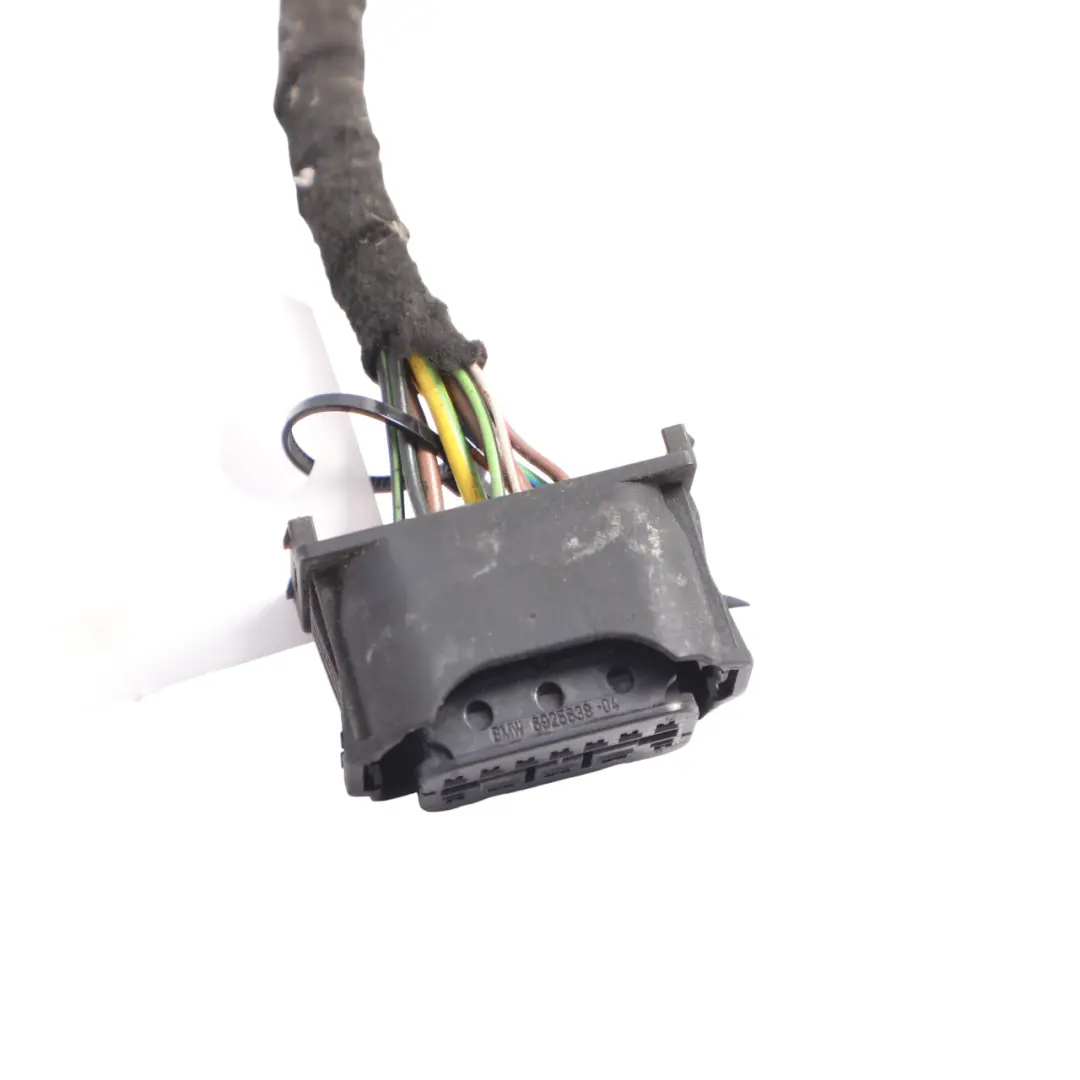

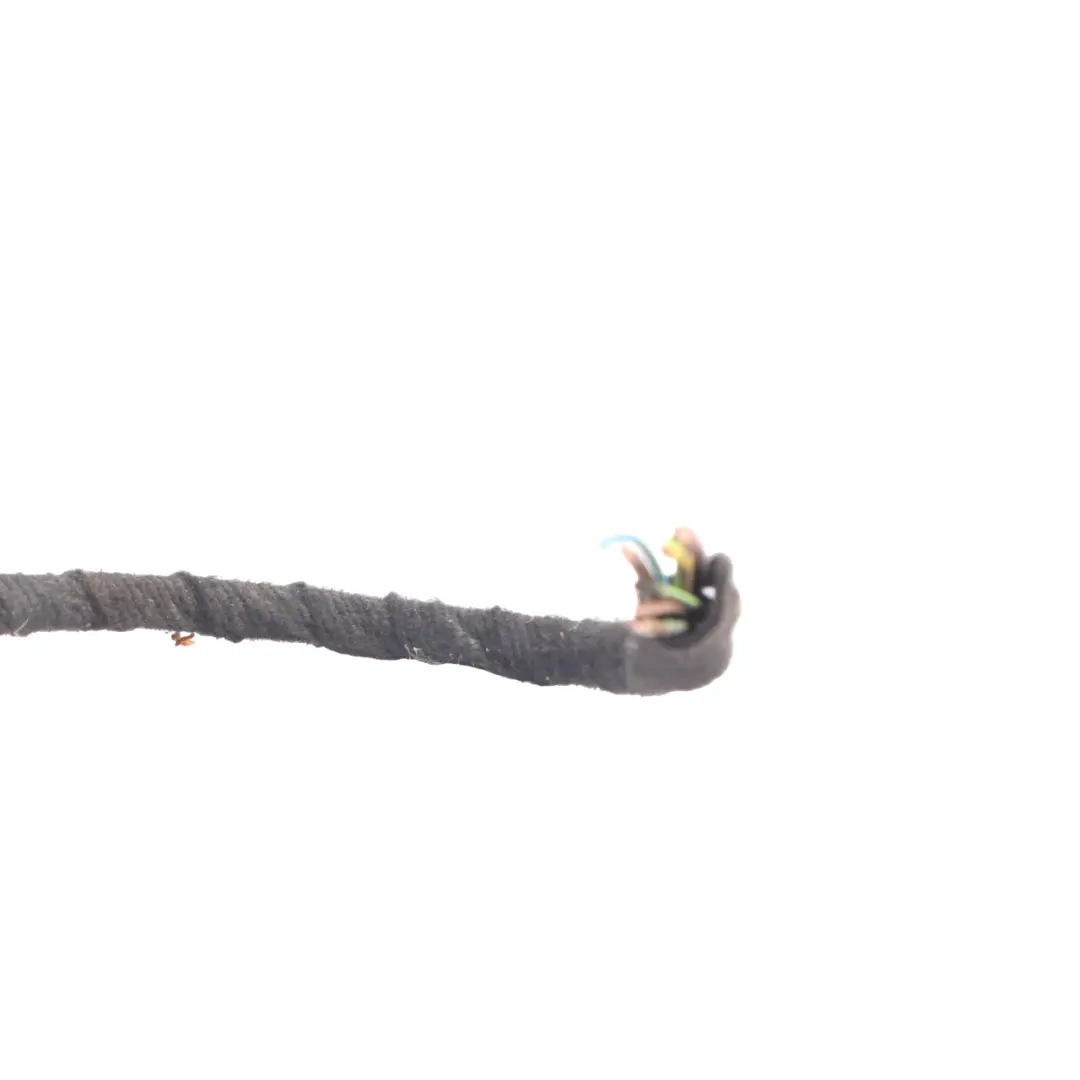

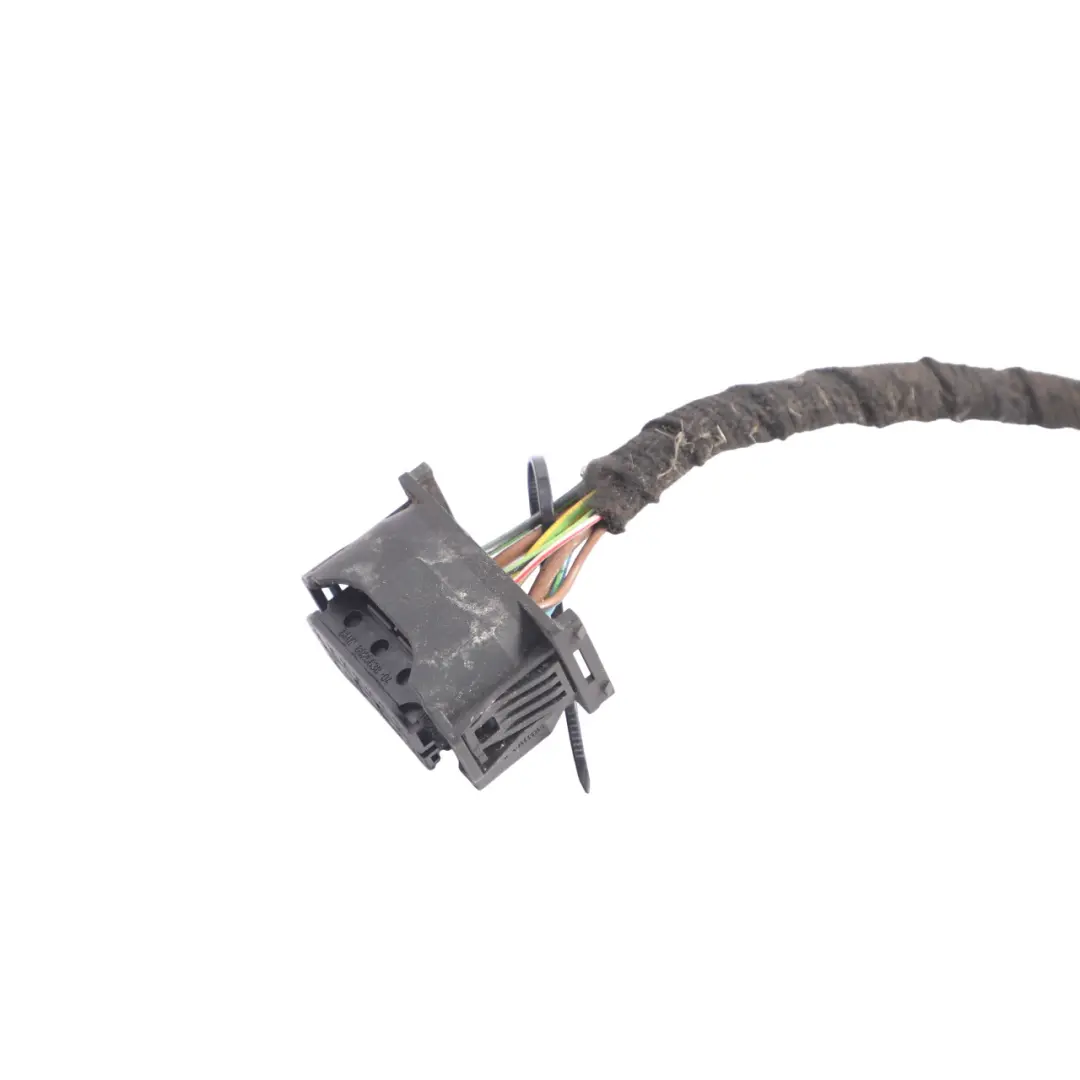

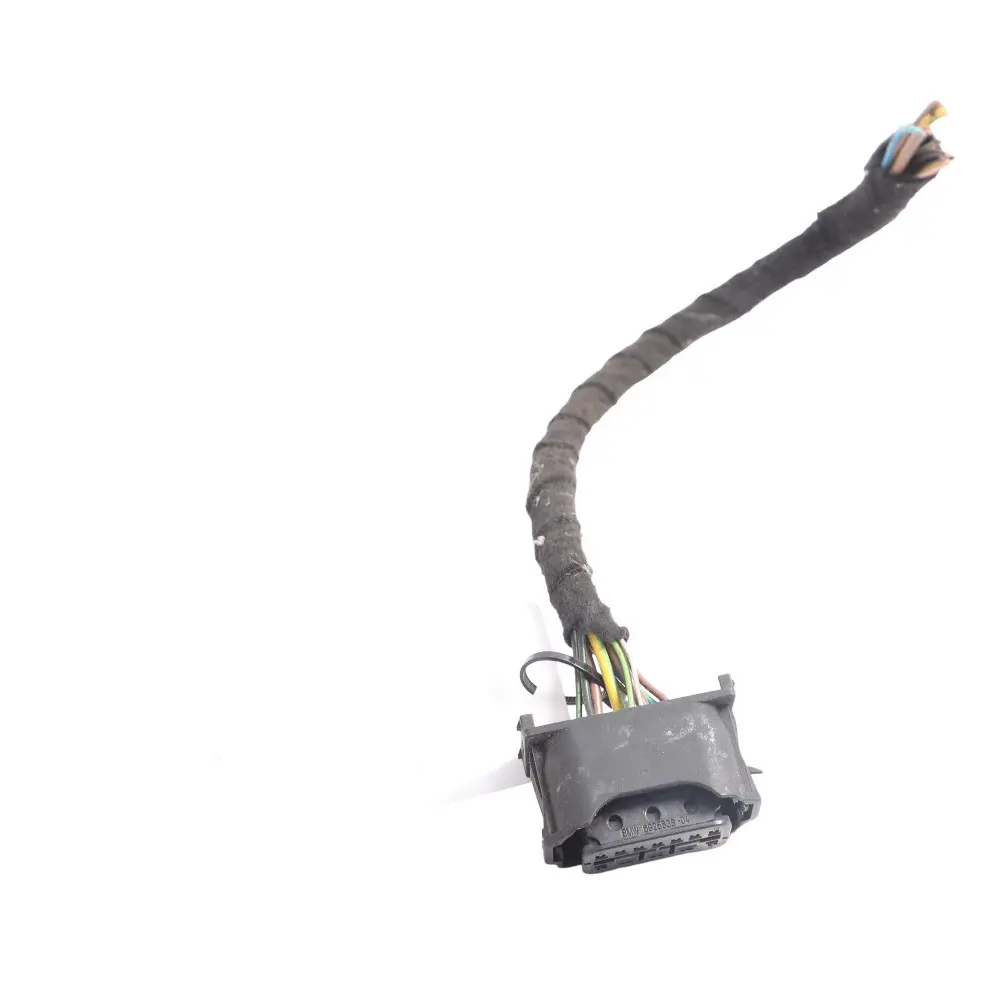

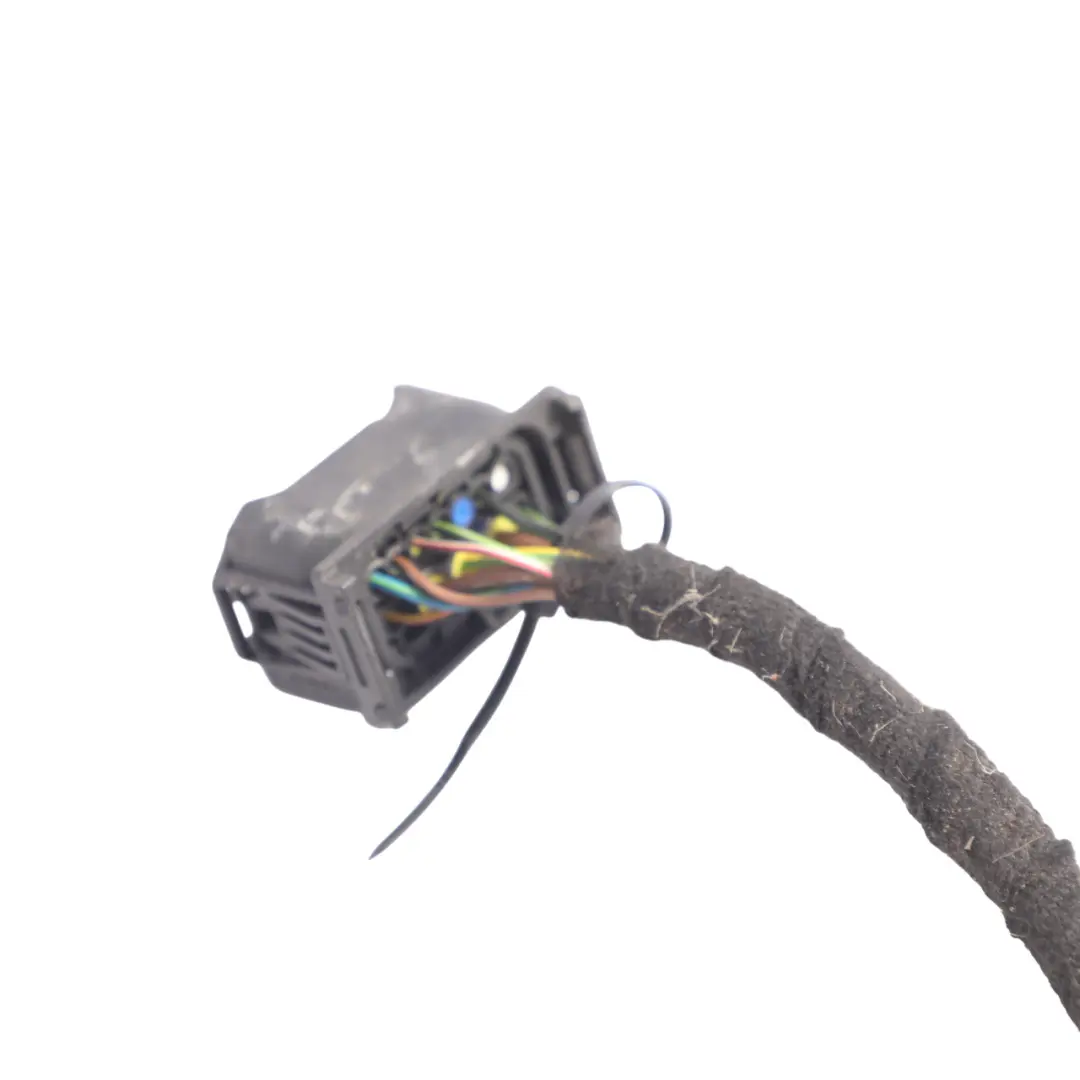

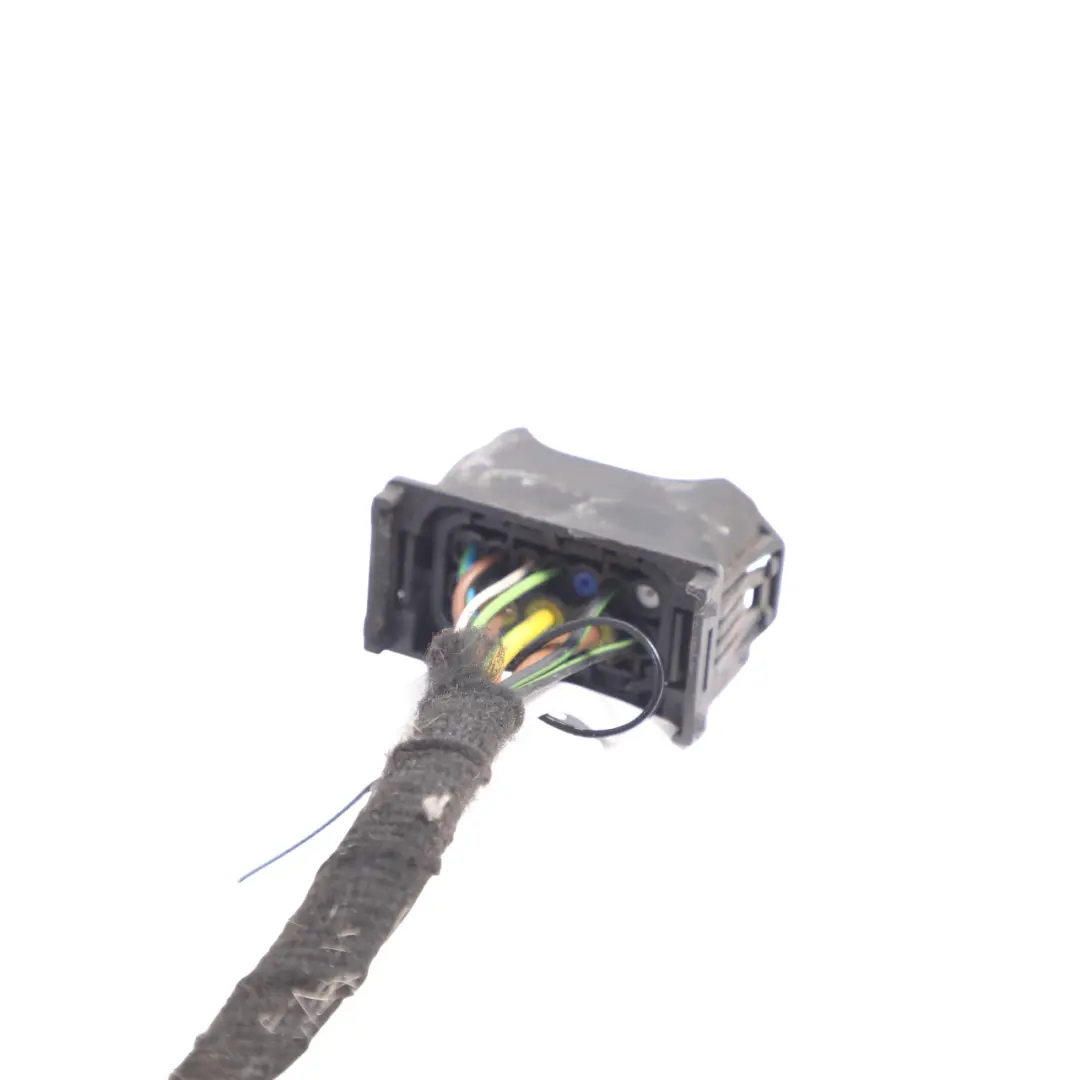

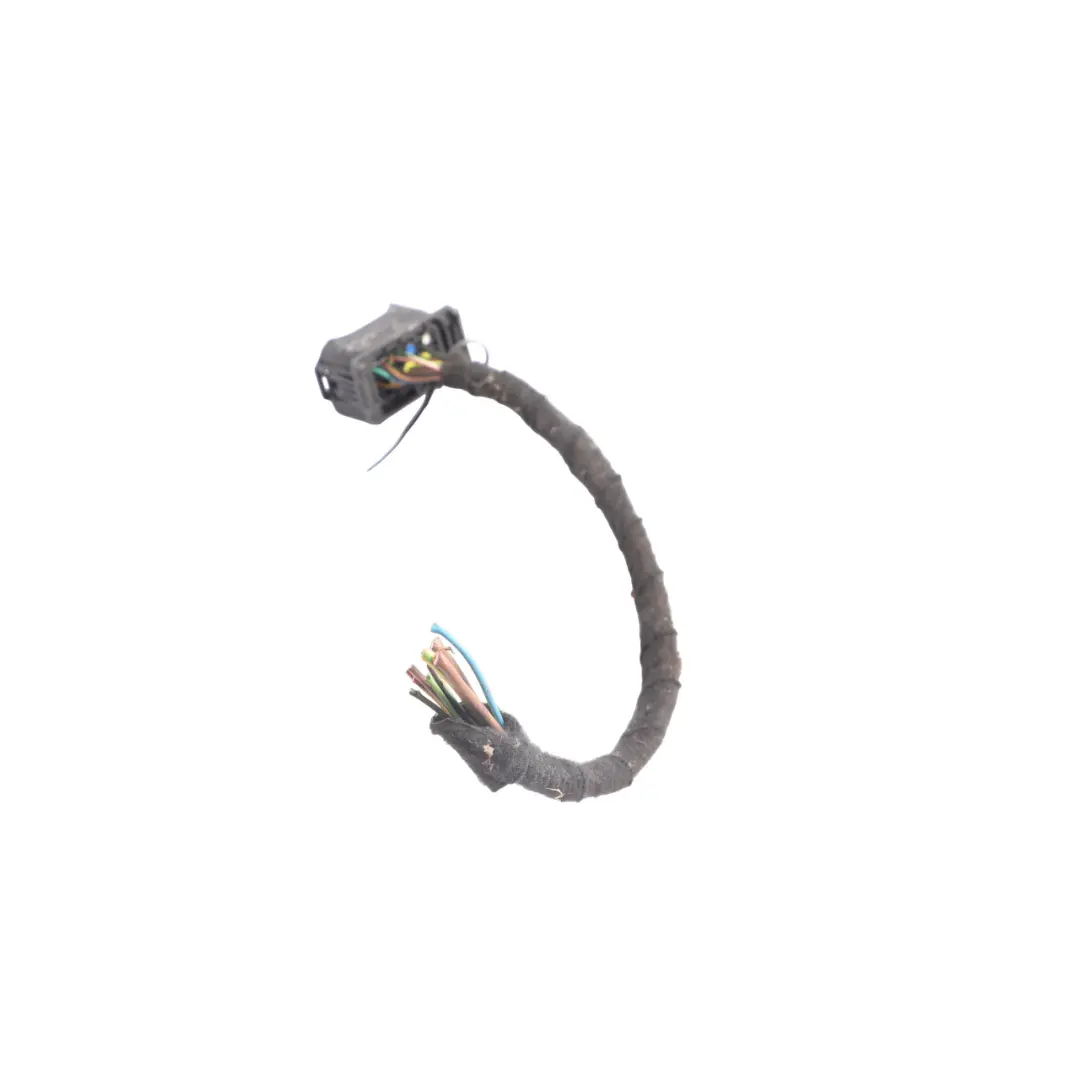

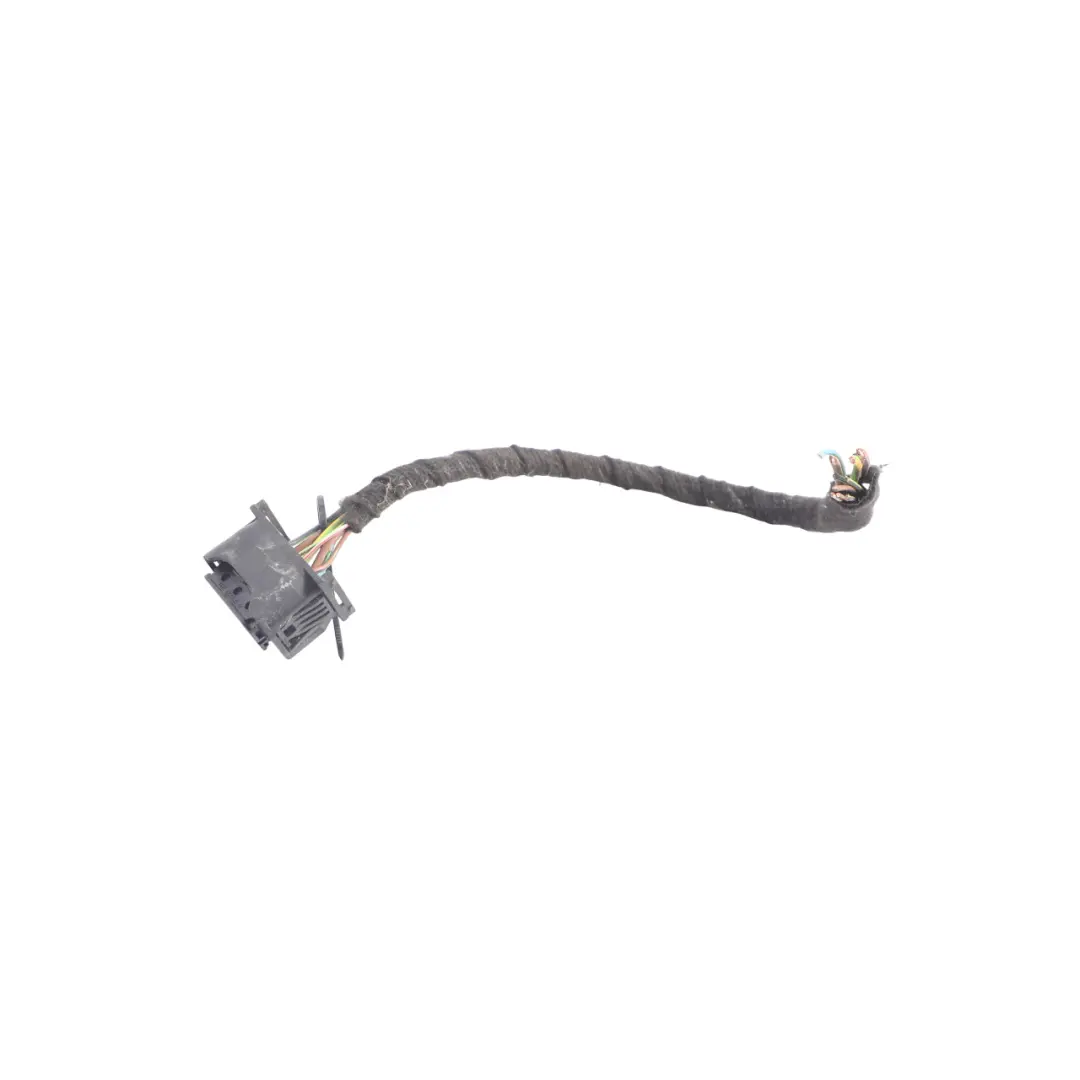

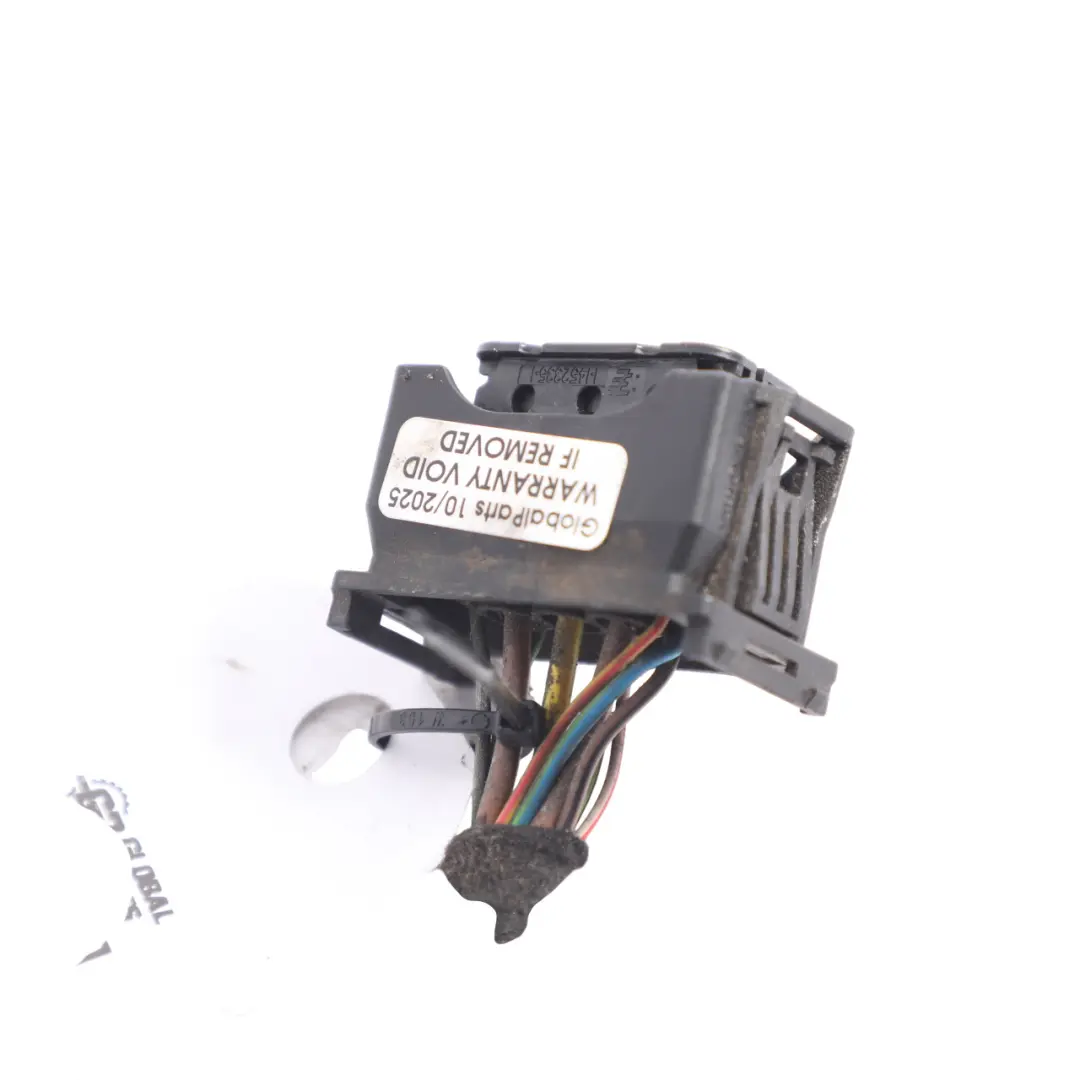

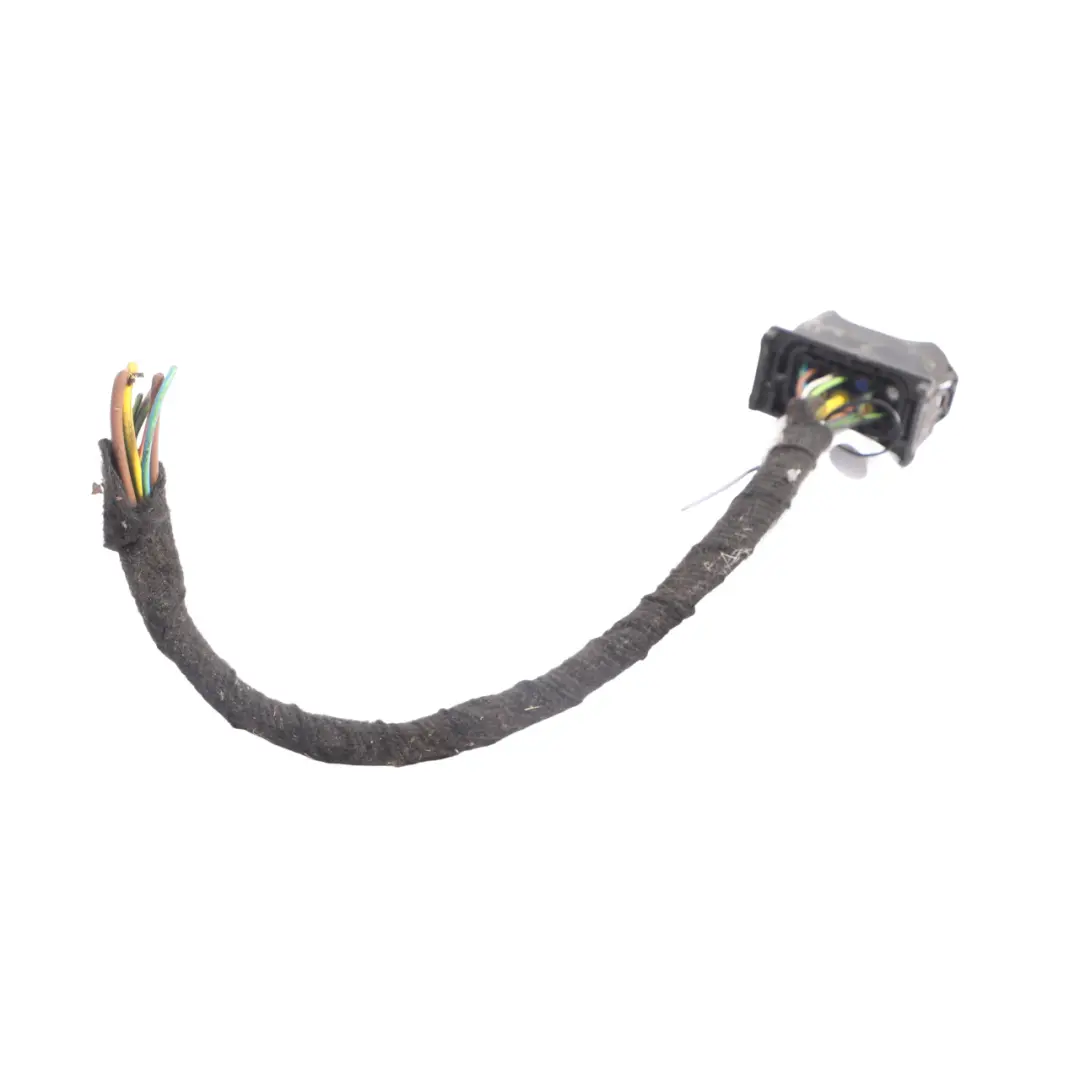

BMW E70 LCI Front Lamp Headlight AHL- Xenon Wiring Loom Harness Left N/S 7221897

BMW E70 LCI Front Lamp Headlight AHL- Xenon Wiring Loom Harness Left N/S is a specialized electrical component designed for the driver-side headlight. Engineered for the factory AHL adaptive headlight system, this dedicated wiring harness ensures proper power supply and control of the xenon headlight, maintaining compatibility with the original BMW electrical architecture. As a result, it provides a precise service solution for repairs or headlight replacement in the facelifted E70 model.

Specifications and technical data

• SKU: 7240793-1
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7240793
• Substitutable numbers: 7240793, 63117240793, 7221897
• Location on the vehicle: Front, Left
• Category: Headlight Assemblies

Purpose and vehicle function

The presented wiring harness is designed for the front left xenon headlight in a facelifted (LCI) BMW E70 equipped with the AHL (Adaptive Headlight) system. It is responsible for:

• transmitting power to the modules and xenon bulbs within the headlight,
• handling control signals for the AHL adaptive functions,
• integrating the headlight with the vehicle's electrical system on the driver's side.

Its placement in the front – left side zone allows for direct fitment to factory mounting points and cable routing paths in the front compartment.

Construction and BMW fitment

The wiring harness has been developed as a component compliant with factory BMW standards, which translates into:

• the use of appropriate connectors for the xenon headlight with AHL,
• correct cable length tailored to the geometry of the front body section,
• compatibility with original installation brackets and guides.

Thanks to this, installation is orderly, without the need for wiring modifications or the use of adapters. Consistency with the factory lighting system reduces the risk of diagnostic errors and lighting module malfunctions.

Service application and installation benefits

The wiring harness is particularly useful in situations where the headlight wiring has been damaged, e.g., as a result of a collision, overheating, or tampering with the lamp. Its use allows you to:

• restore full functionality of the left-side xenon headlight with AHL,
• maintain proper operation of the adaptive cornering lights,
• preserve compliance with factory BMW electrical parameters.

As a component in the Front lights category, the wiring harness has a direct impact on driving safety after dark and on the proper interaction of the headlight with the vehicle's electronic systems.

Condition, verification, and installation

The item comes from dismantling and is offered as a used BMW part, which provides a cost-effective solution while maintaining the original specification. Before installation, a standard check of the connector condition, wire insulation, and correct routing of the harness relative to factory mounting points is recommended.

For the proper operation of the AHL system and xenon lights, it is crucial that the harness is installed in accordance with BMW service procedures, ensuring correct connection to the headlight and the vehicle's left-side installation.
