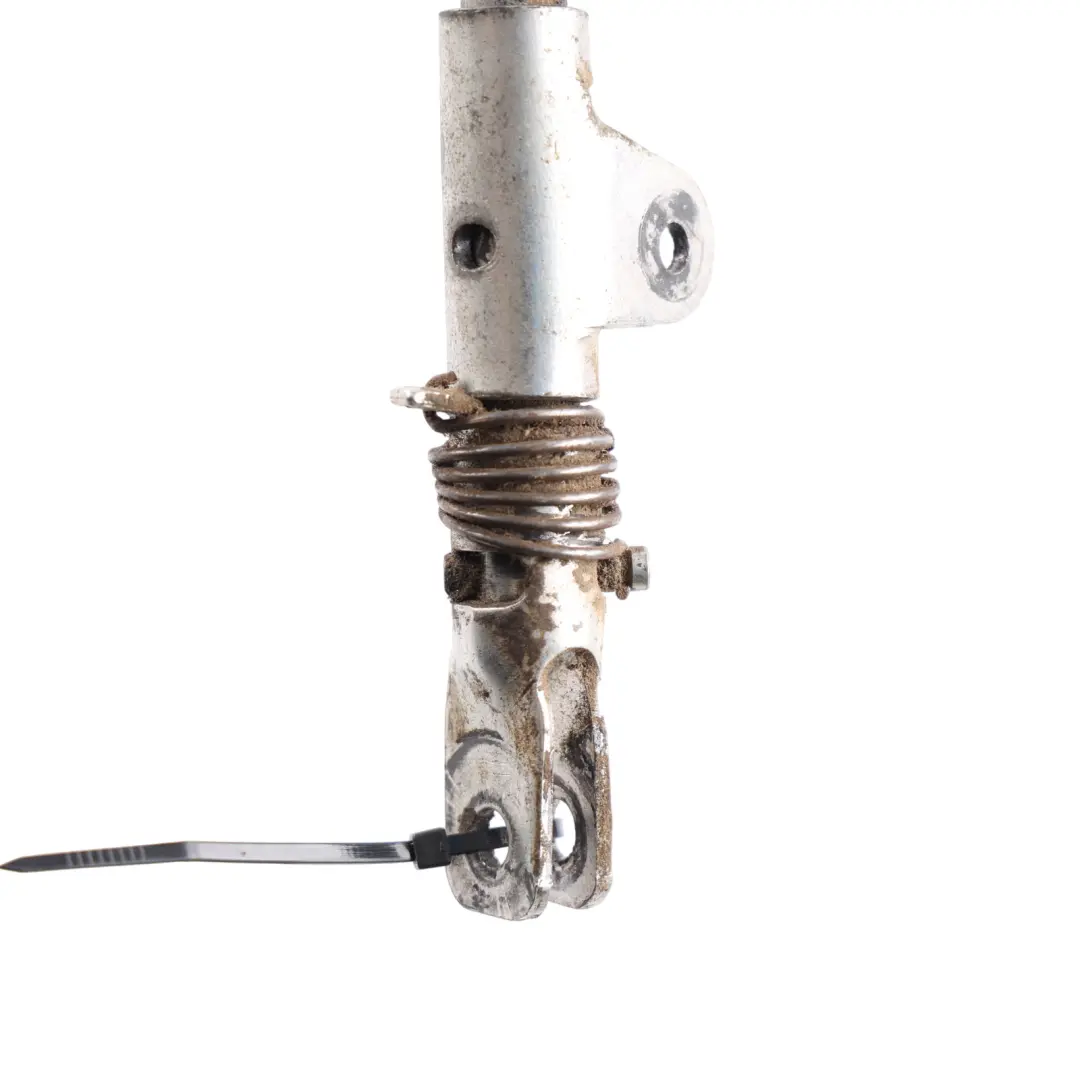

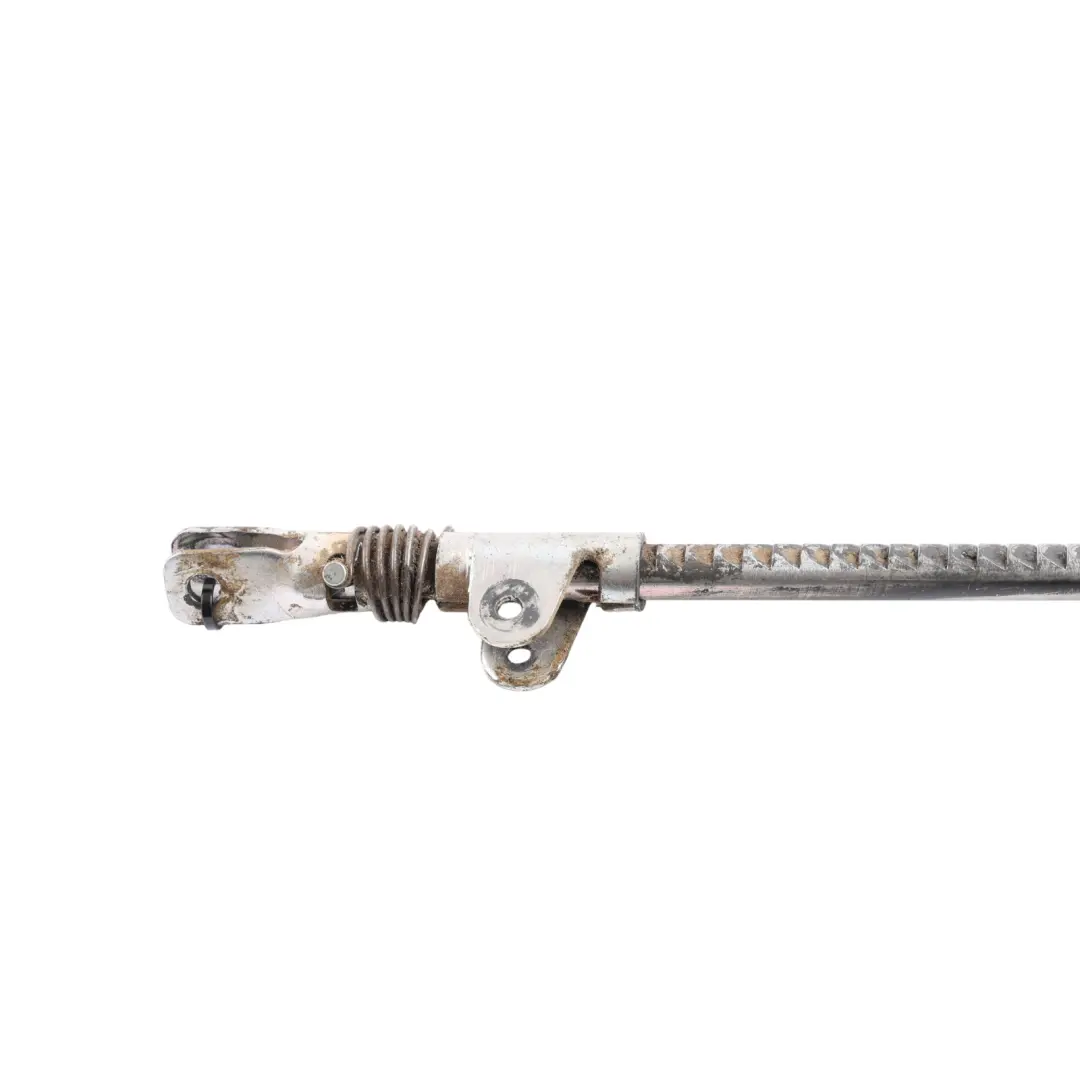

Ford Ranger Mk4 Parking Handbrake Lever Assembly 6M34-2780-CA72

Ford Ranger Mk4 Parking Handbrake Lever Assembly is an original parking brake system component designed for precise control of the handbrake in this model. As part of the Handbrake and gear lever covers group, it ensures consistent operation with other center console components and proper routing of the brake cables. Using an OEM part is a sensible choice for service or repair when you prioritize factory fitment and predictable installation.

Specifications and technical data

• SKU: RHD-1447172
• Mark: Ford
• Condition: Used
• OEM Part Number: 1447172
• Substitutable numbers: 1447172
• Part type: Handbrake Gaiter
• Category: Handbrake & Gear Stick Gaiters

Purpose and function in the Ford Ranger Mk4

The presented parking brake lever assembly is responsible for the mechanical activation of the handbrake in the fourth-generation Ford Ranger. The lever design allows for secure engagement of the brake, stable vehicle holding while parked, and smooth release of the lock when starting to drive. The component is designed for specific mounting points in the body, which facilitates installation and helps maintain the correct operating geometry of the cables.

Construction of the parking brake lever assembly

The parking brake lever assembly in the Ford Ranger Mk4 is a complete unit mounted in the center console. It includes, among other things, the support body, the operating arm with a handle, and a ratchet mechanism responsible for maintaining the selected lever position. The applied design ensures clear, stepped operation, which makes it easier for the driver to assess the degree of brake engagement. The original construction guarantees compatibility with factory covers and center console trim elements, ensuring that interior aesthetics and ergonomics are maintained after installation. Precise fitment with the Ford interior reduces the risk of unwanted play, squeaks, or vibrations during operation.

Benefits of using an original lever

Choosing an original parking brake lever assembly for the Ford Ranger Mk4 ensures compatibility with the factory parking brake system. The component has been designed for specific mounting points, cable lengths, and operating ranges, which translates into:

• stable vehicle holding while parked when the system is properly adjusted,
• repeatable, predictable operation of the ratchet mechanism,
• easier adjustment of the handbrake cable tension,
• consistent fitment with covers and center console elements. The factory design of the lever assembly also facilitates diagnostics and service – the mechanic works with a solution known from the manufacturer's documentation, which shortens installation time and reduces the risk of errors.

Condition, application, and part selection

The offered parking brake lever assembly is a used part, which allows for lower repair costs while maintaining the manufacturer's original specifications. This is a practical solution in situations where the factory lever has suffered mechanical damage, wear of the ratchet mechanism, or body deformation affecting operating comfort. Before installation, it is recommended to perform a standard inspection of the handbrake cables and mounting elements in the body to fully utilize the potential of a functional lever assembly. A properly selected and installed component contributes to the safe operation of the parking brake, especially in a utility vehicle like the Ford Ranger, which is often used with a load or off-road.

Related components and technical knowledge

If you are planning a comprehensive repair or upgrade of the center console area in your Ford and need other components from the same group, such as lever covers, gaiters, or additional trim elements, check the available parts in the Ford handbrake and gear lever covers category. When working within the center console, the topic of maintenance and diagnostics of the drivetrain often arises. To better understand the relationship between the operation of the lever, the gearbox, and the entire drivetrain, it is worth checking the guide: Gearbox: manual, automatic, or DSG – common faults and a guide to buying a used gearbox, which helps in consciously planning repairs and selecting used parts.
