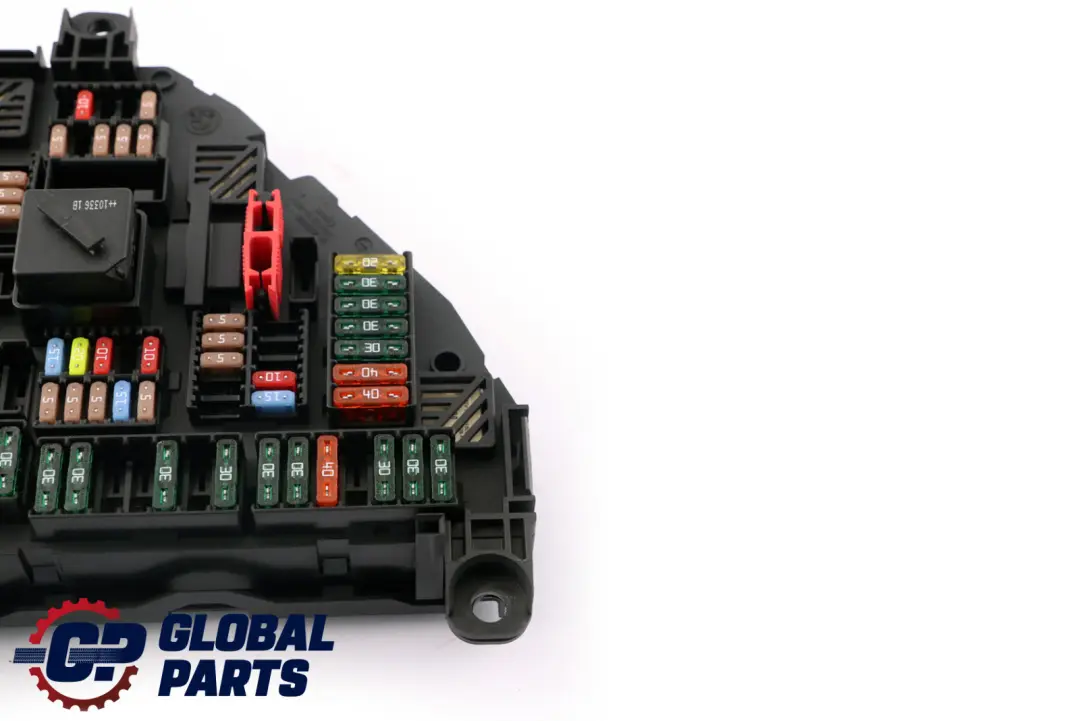

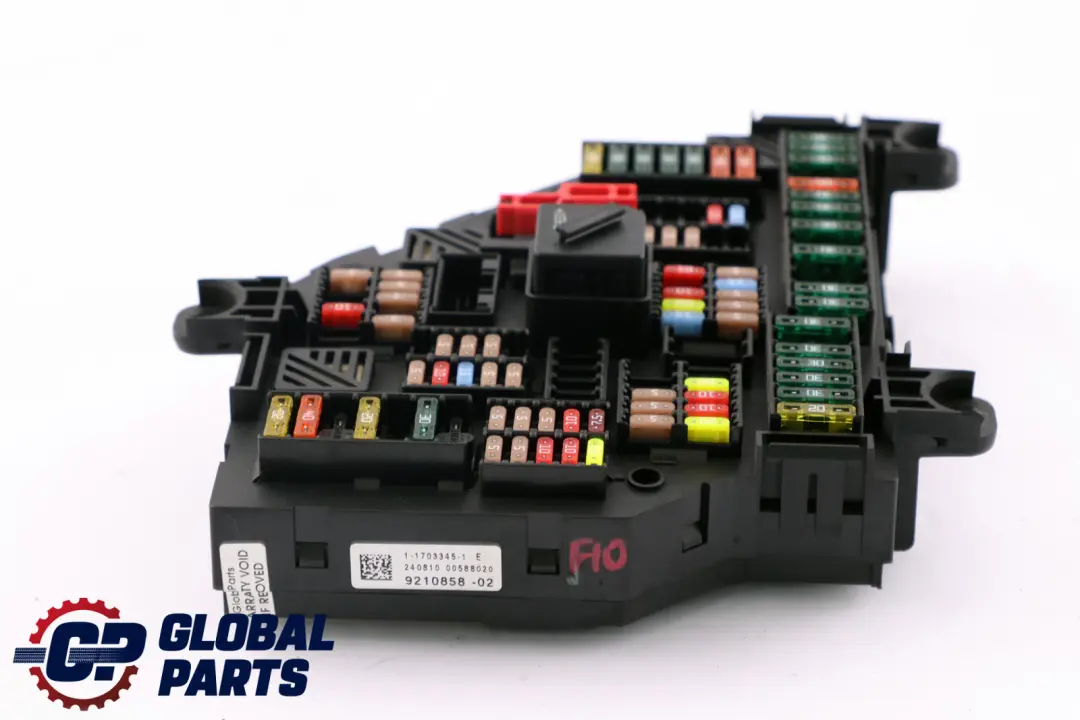

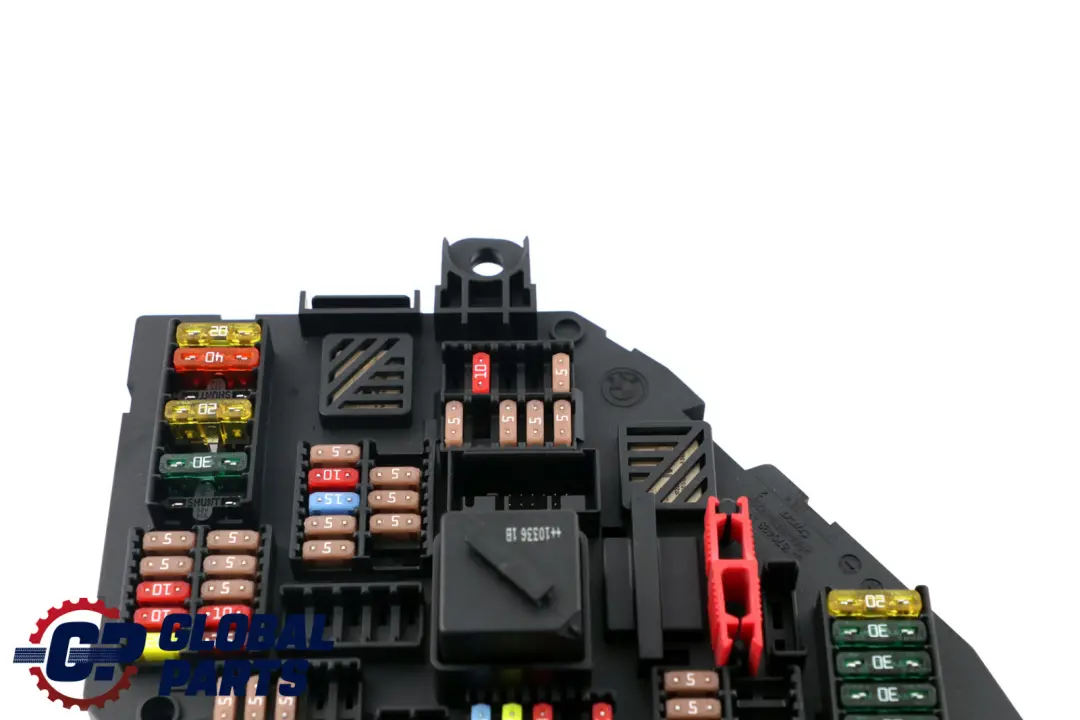

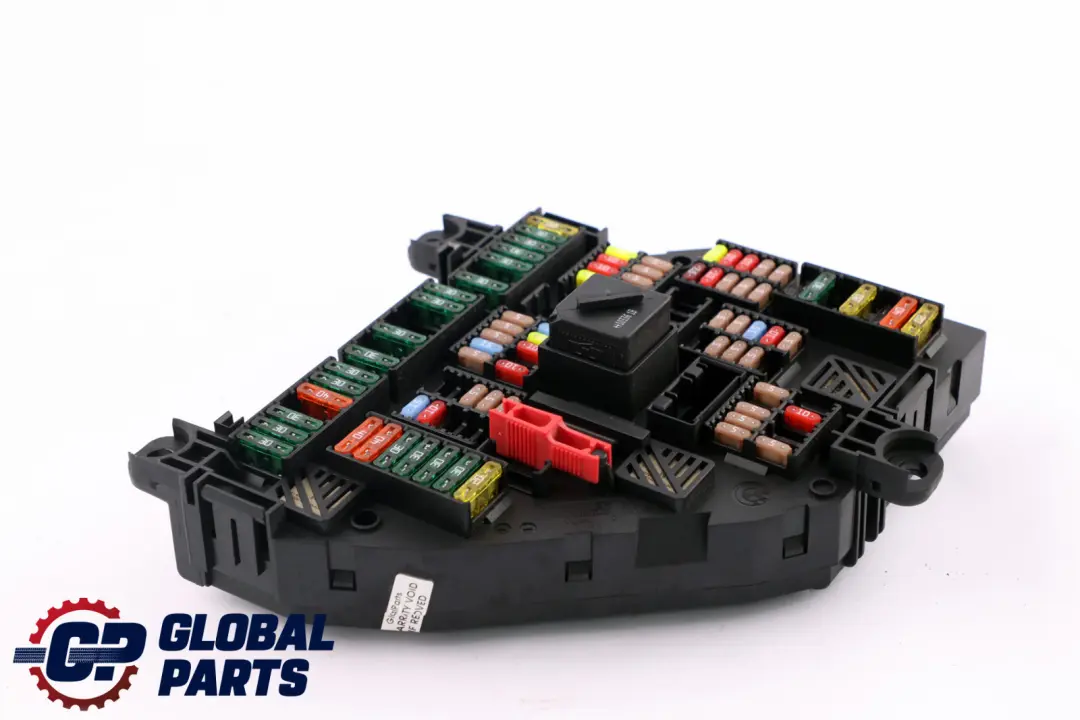

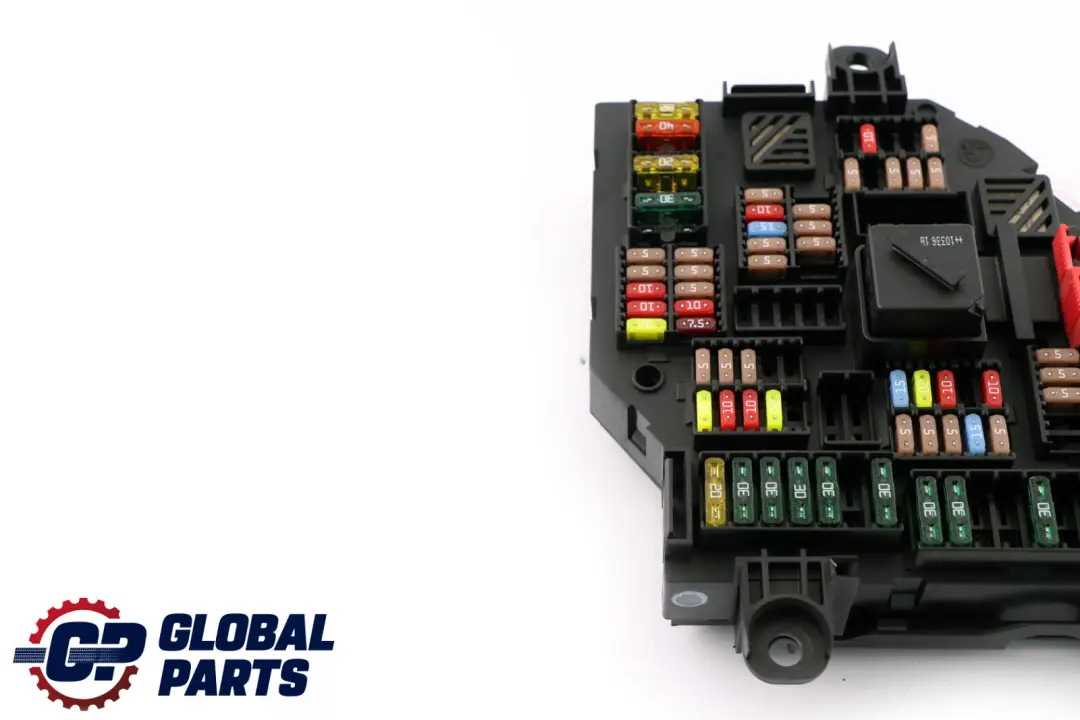

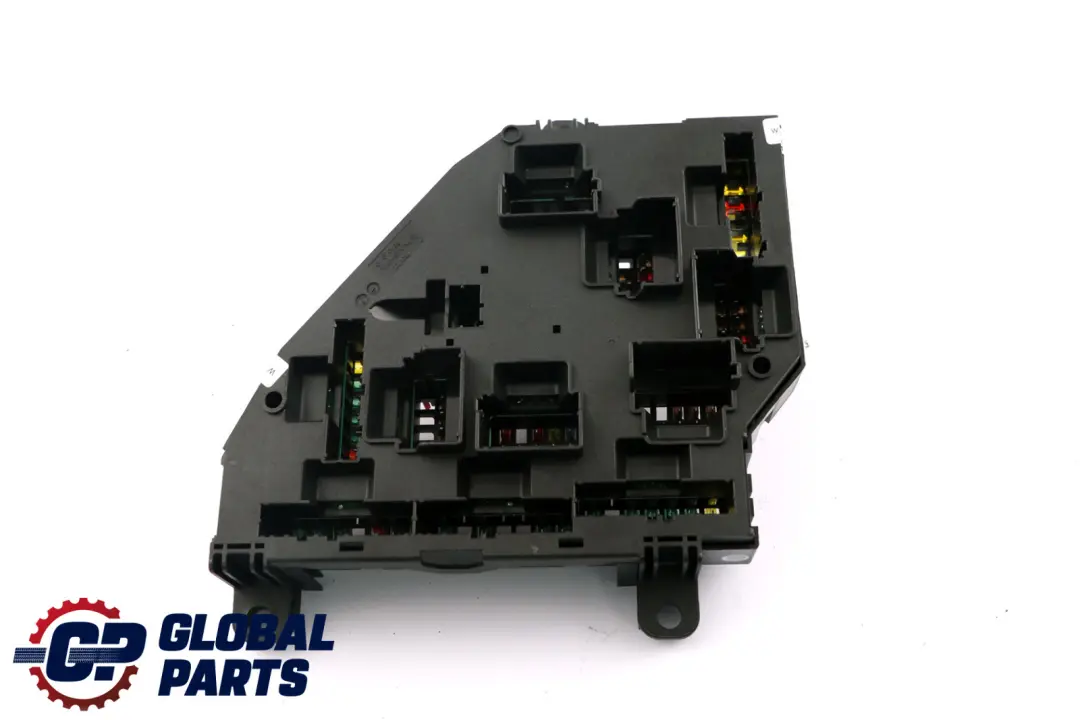

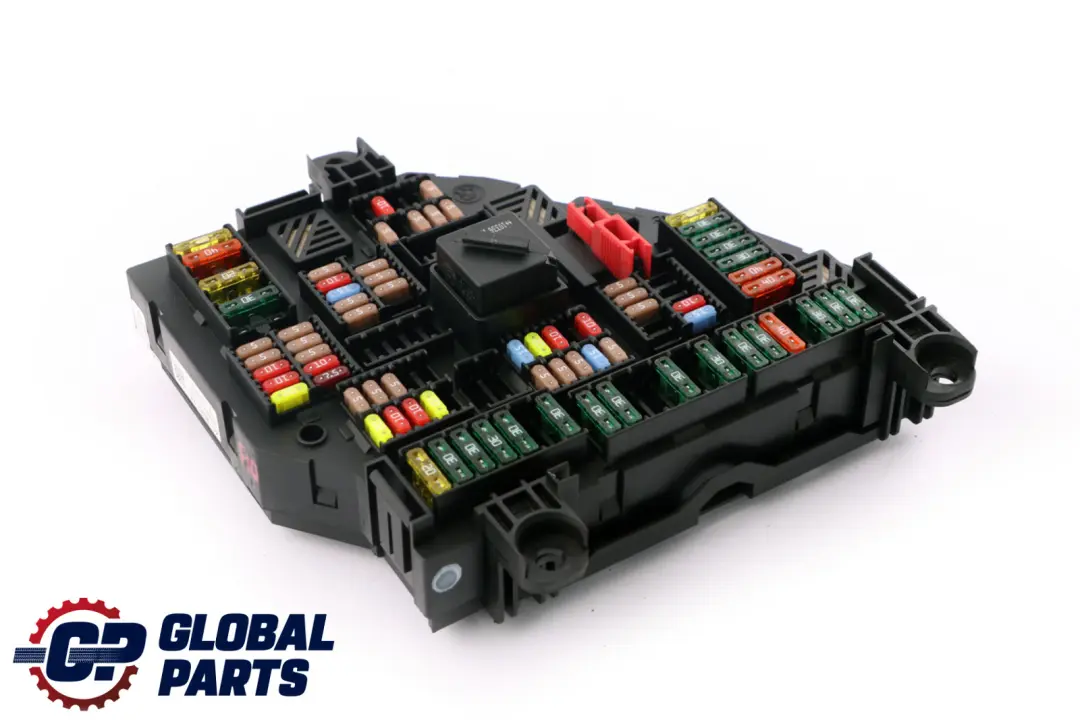

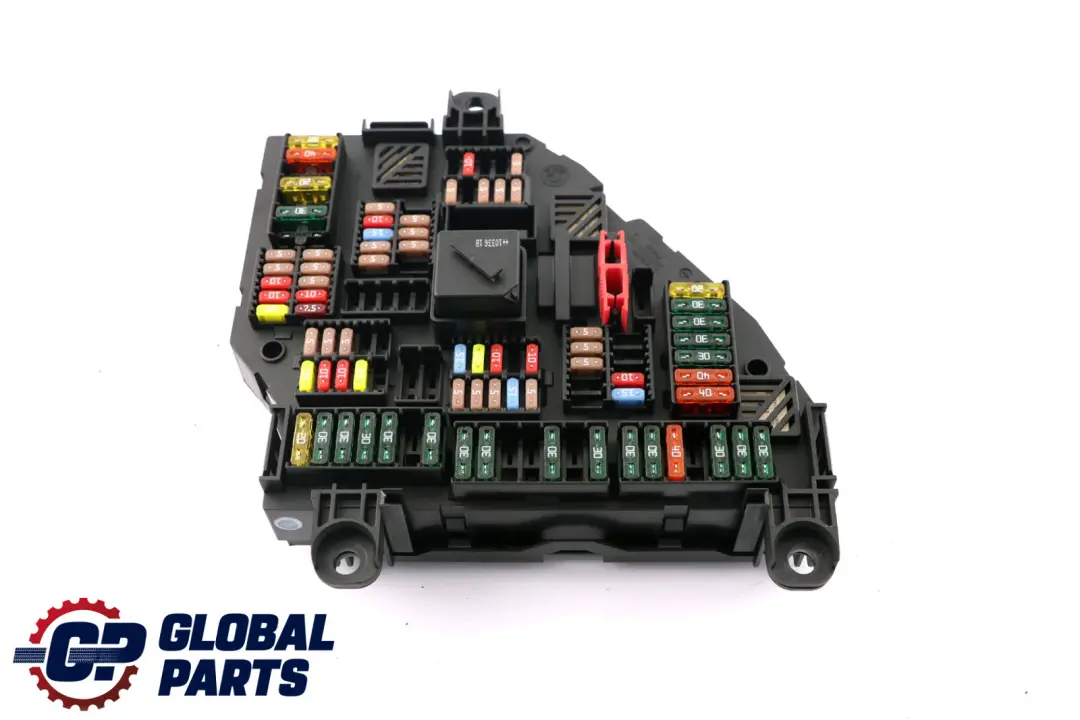

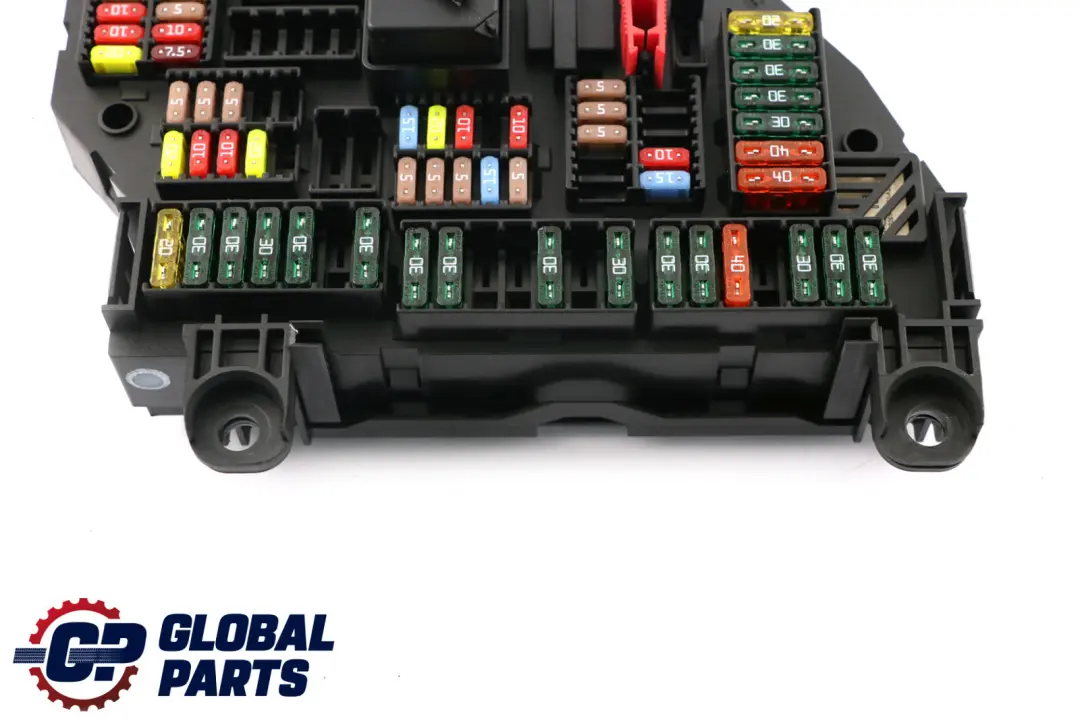

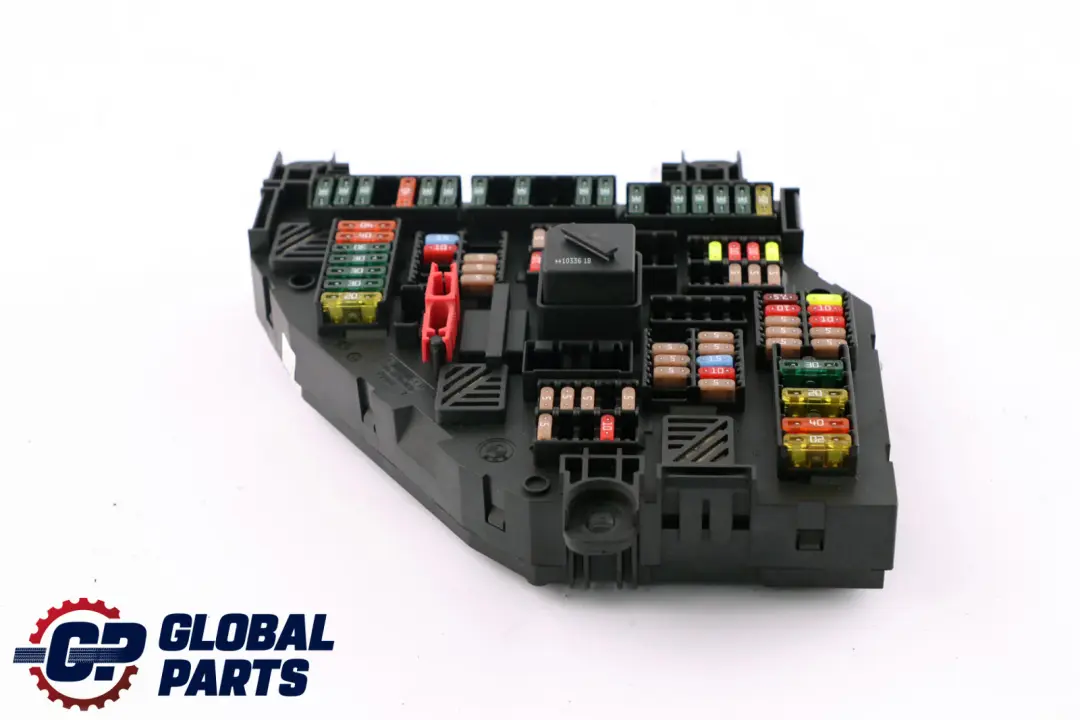

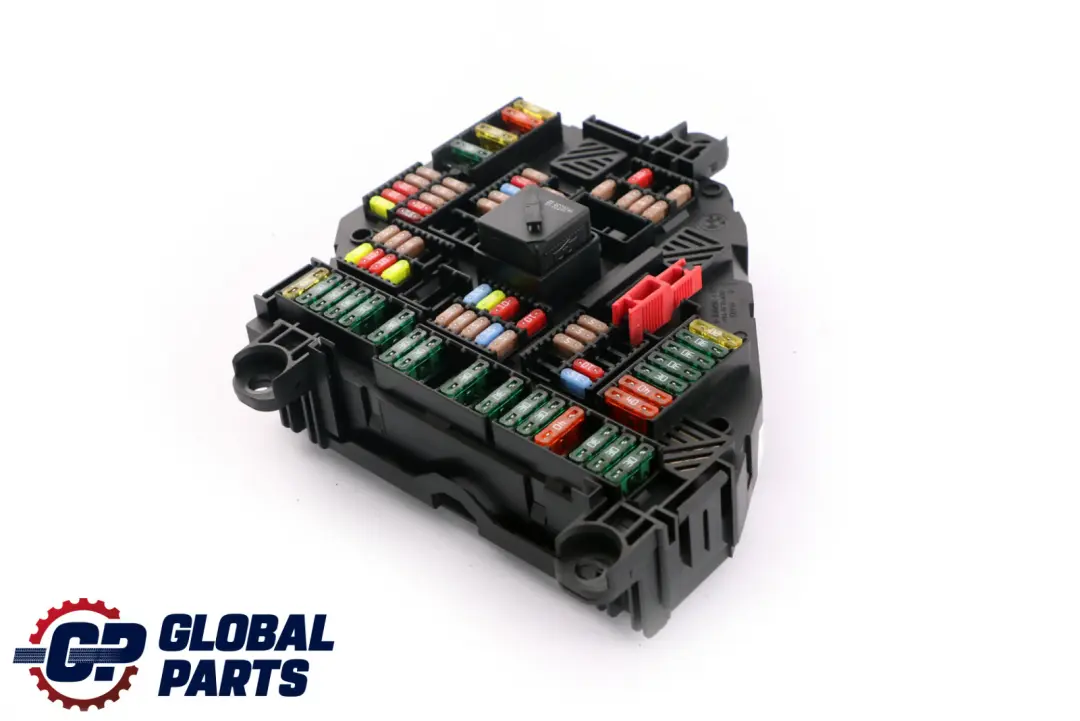

BMW 5 Series F10 F11 Power Distribution Fuse Box Rear 9210858

Rear power distribution unit and fuse box for BMW 5 F10/F11 is an original electrical system component designed for installation in the rear of the body. As a component from the Fuses and fuse boxes group, it is responsible for organized power routing and circuit protection, which translates to stable operation of comfort systems and onboard electronics. A used OEM part allows for a technically correct replacement of a damaged module without altering the factory installation architecture.

Specifications and technical data

• SKU: 9210858
• Mark: BMW (Genuine OE)
• Condition: Used

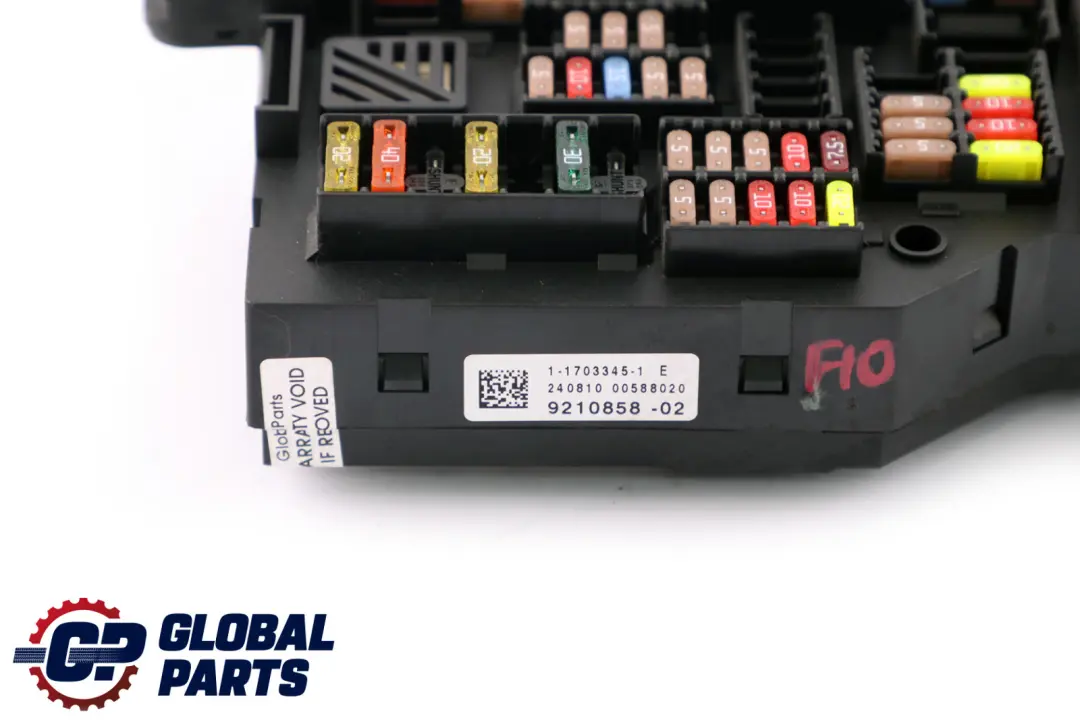

• OEM Part Number: 9210858
• Substitutable numbers: 61149234424, 9234424, 61149210858, 9210858, PK
• Location on the vehicle: Rear
• Category: Fuses & Fuse Boxes

Purpose and Function in BMW 5 F10/F11

The described rear fuse box is dedicated to BMW 5 Series F10/F11 models, where it serves as the central power distribution point in the rear of the vehicle. It is responsible for logically distributing current to individual circuits, as well as protecting them with appropriately selected fuses.

Its location in the rear of the body helps to shorten the length of wiring harnesses to components such as comfort modules, lighting, or additional consumers, which reduces voltage drops and facilitates the diagnosis of potential faults.

Construction and Role in the Electrical System

The unit simultaneously functions as a power distribution unit and a holder for fuses, allowing for compact and organized wiring. The OEM construction is prepared to work with factory BMW harnesses, ensuring that the original circuit topology is maintained after proper installation.

Key advantages of this solution include:

• maintaining the factory power supply layout in the rear of the vehicle,
• easy service access to fuses in one location,
• reducing the risk of harness overheating due to proper load distribution,
• consistency with BMW service documentation, facilitating diagnostics.

Benefits of Using an Original Fuse Box

Using an original component from the Fuses and fuse boxes group in the BMW 5 Series F10/F11 maintains compliance with factory electrical diagrams. This is particularly important for vehicles equipped with advanced comfort and safety systems, where incorrect power distribution can lead to difficult-to-diagnose errors.

Choosing a used OEM component is a cost-effective solution for post-accident repairs, thermal damage, or contact corrosion, as it allows for restoring correct system operation without the need for costly harness reconstruction. Factory-matched connectors and mounting points reduce installation time and minimize the risk of errors during connection.

Installation Area and Service Aspects

The component is designed for installation in the rear of the vehicle, which should be considered when planning service work and access to the electrical system. Proper installation requires maintaining the correct power connection sequence and checking the condition of contacts and harnesses to avoid local voltage drops or overheating of connections.

When replacing, it is recommended to:

• compare the layout of sockets and connectors with the removed element,
• visually inspect wiring harnesses for mechanical and thermal damage,
• verify the correct placement of fuses according to BMW service documentation.

If you are planning a comprehensive repair or upgrade of the electrical zone in the rear of your BMW and need other components from the same group, such as additional power modules, fuse box housings, or mounting brackets, check the available parts in the BMW Fuses and fuse boxes category.

For those interested in a broader context of selecting used OEM components and the impact of proper equipment configuration on vehicle performance, advisory materials may be useful, such as the article on turbochargers in Mini Cooper S: Go-Kart Feeling XXL – used N18 turbocharger vs. B48.
