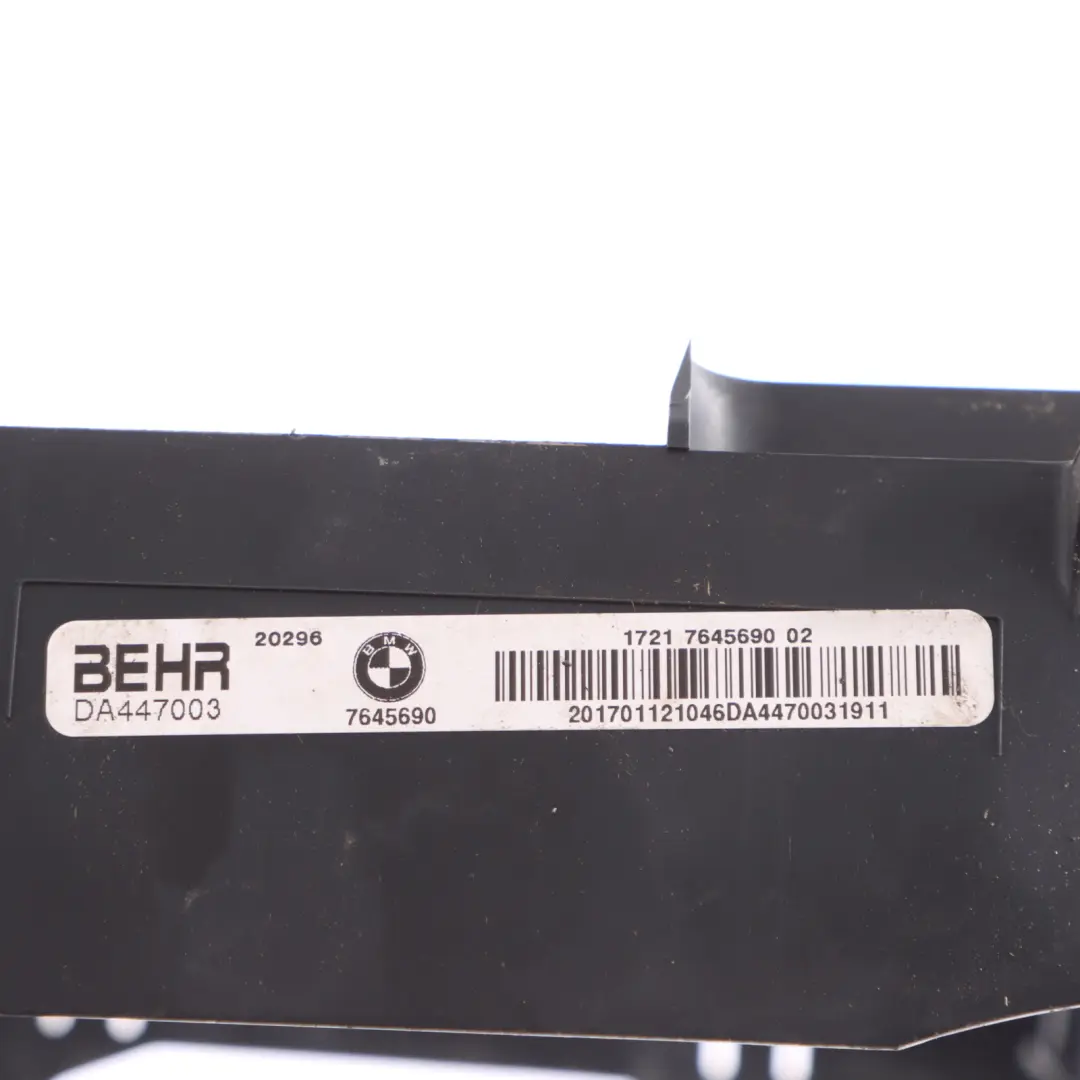

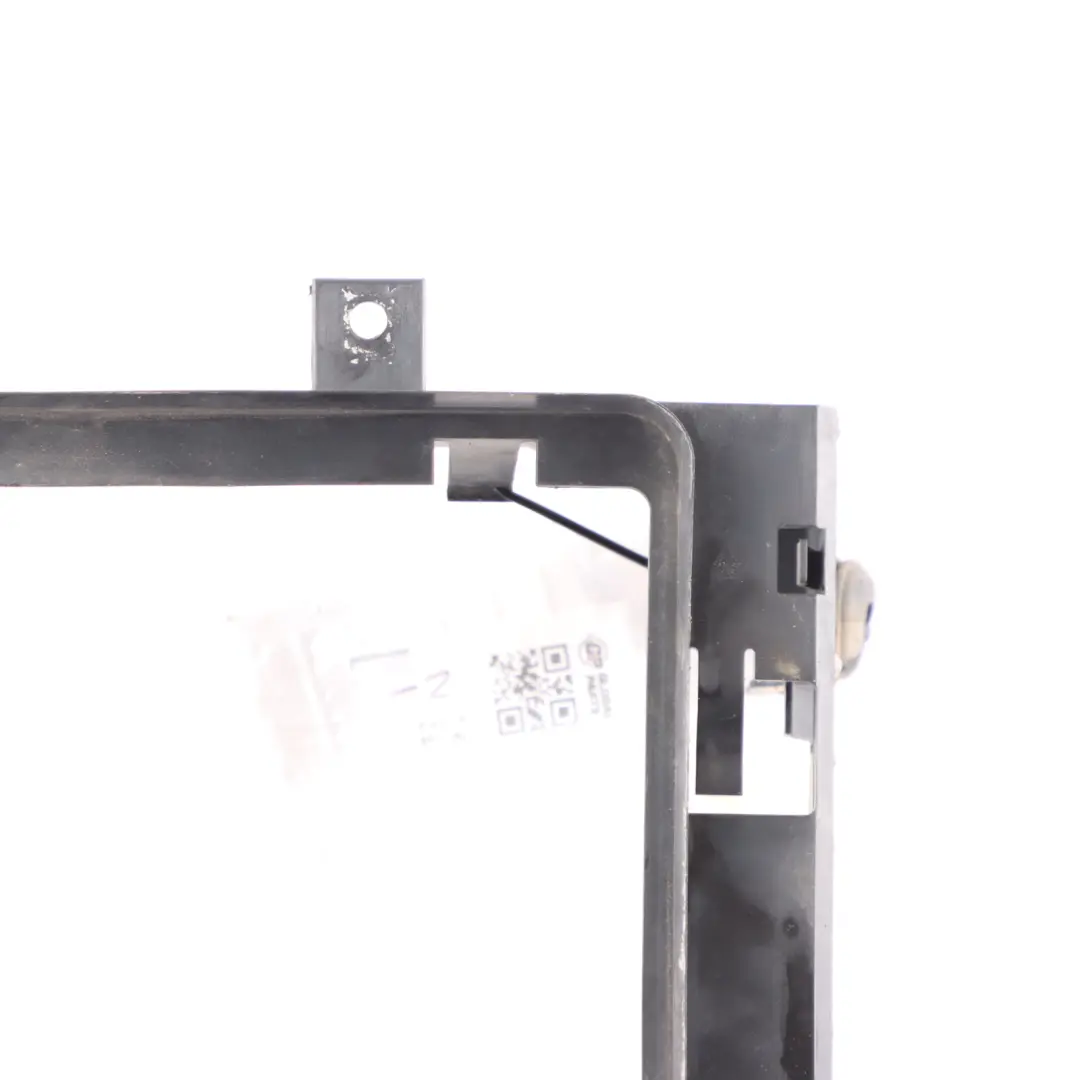

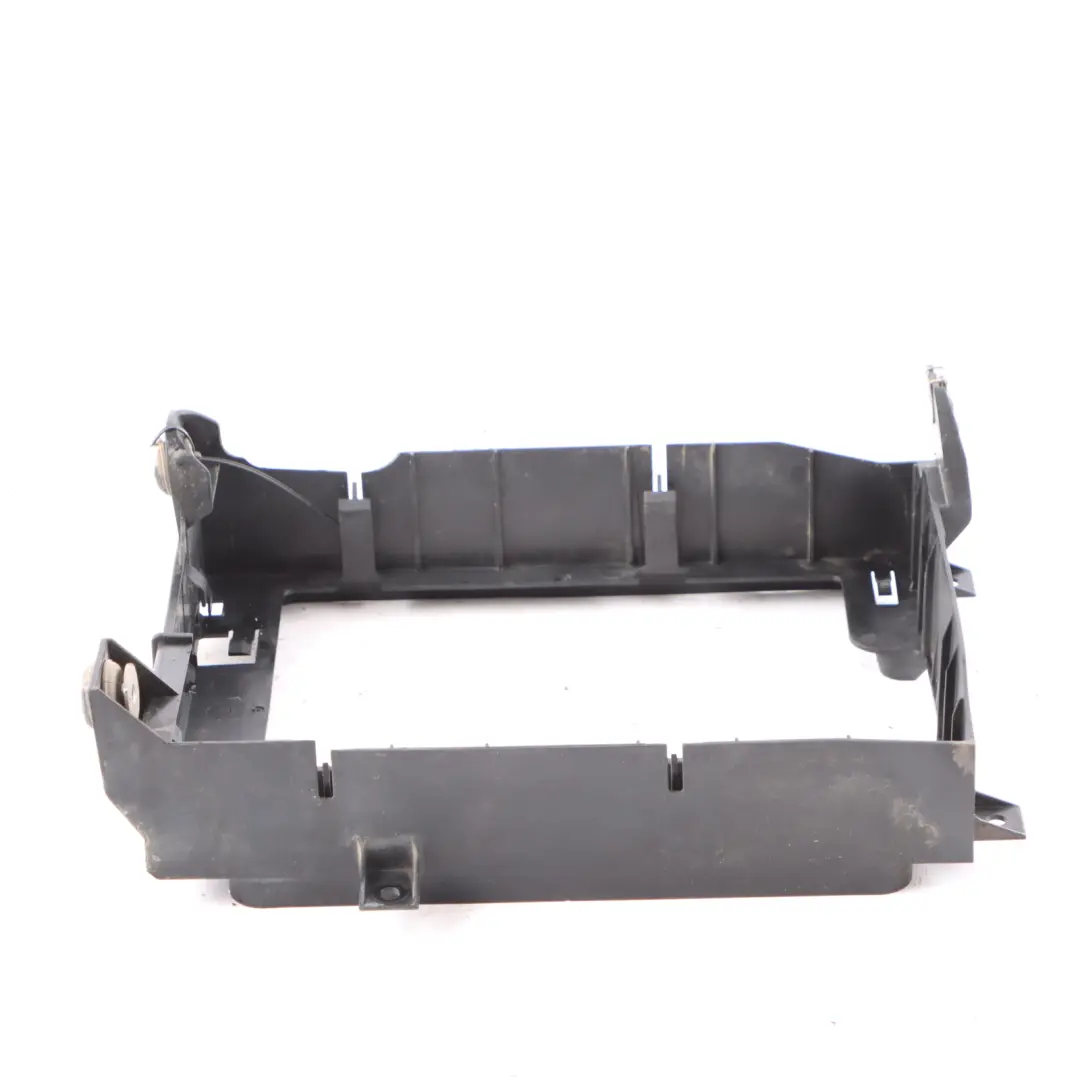

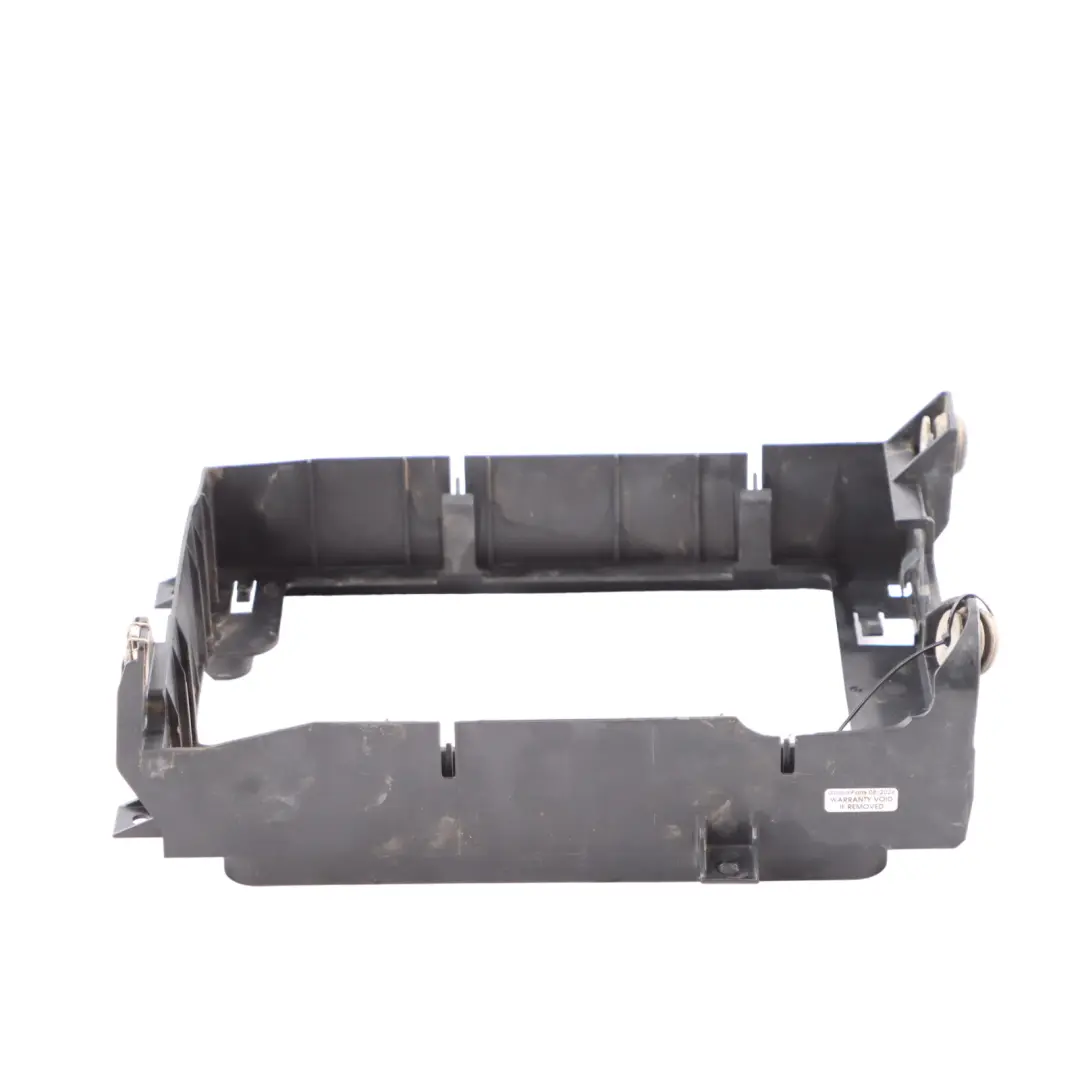

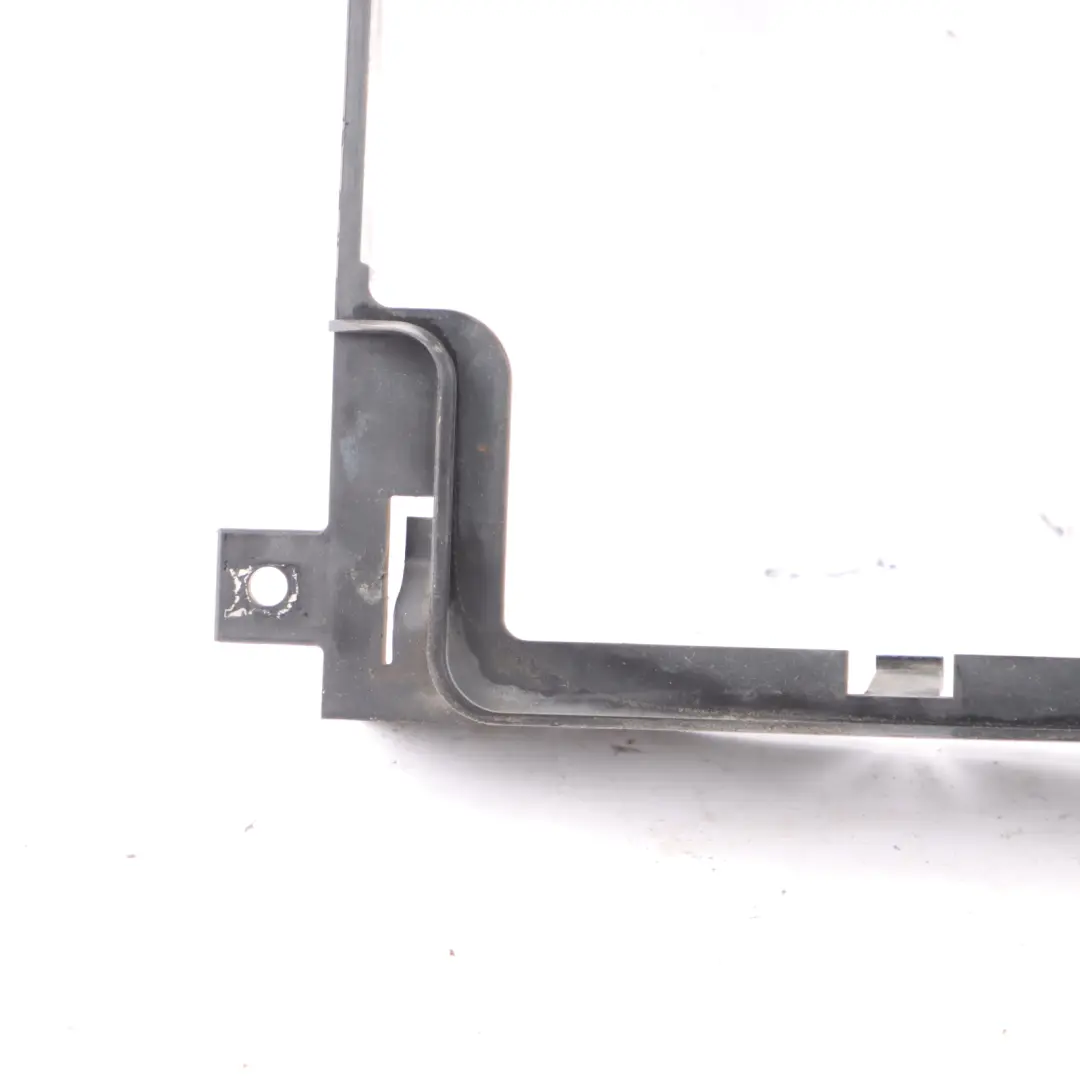

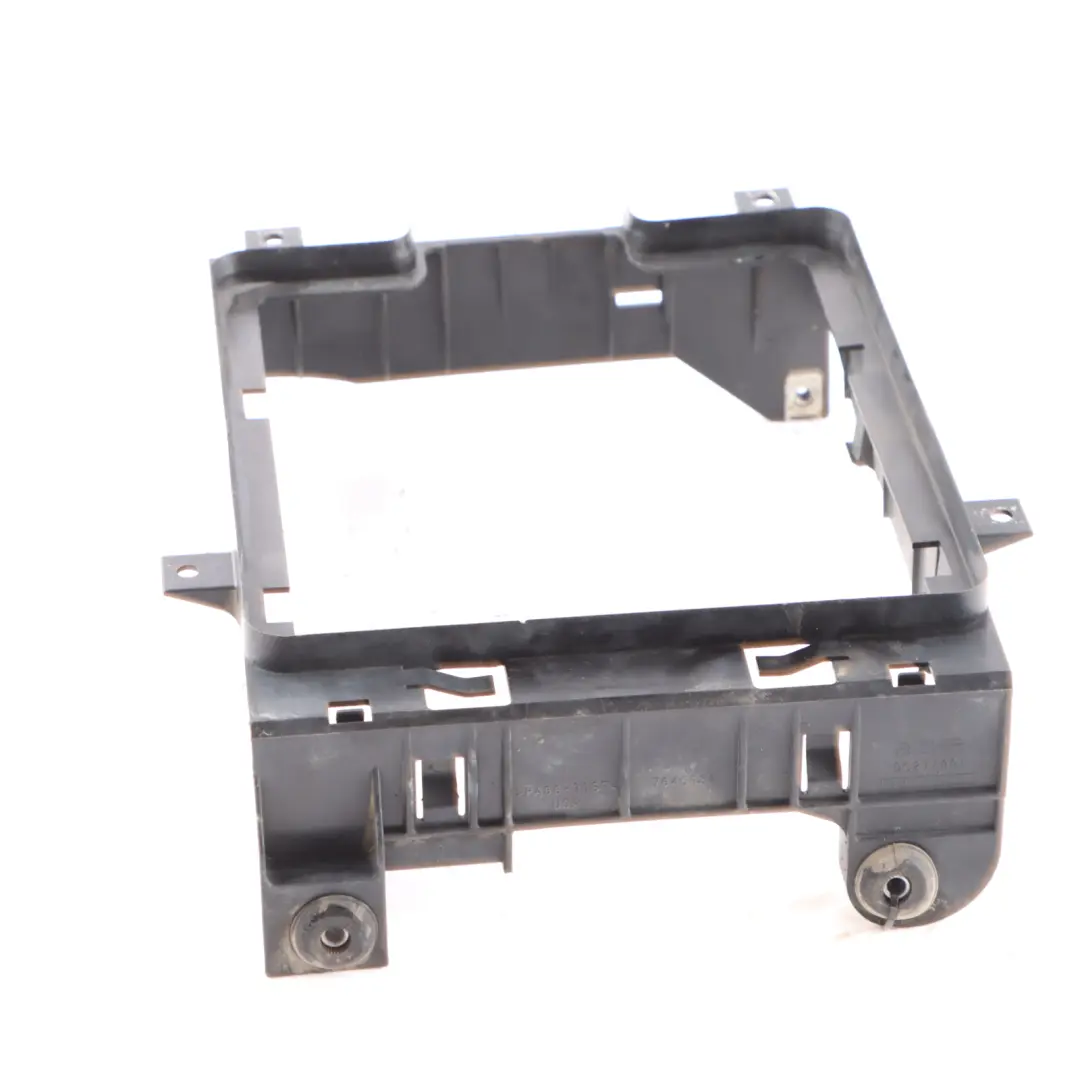

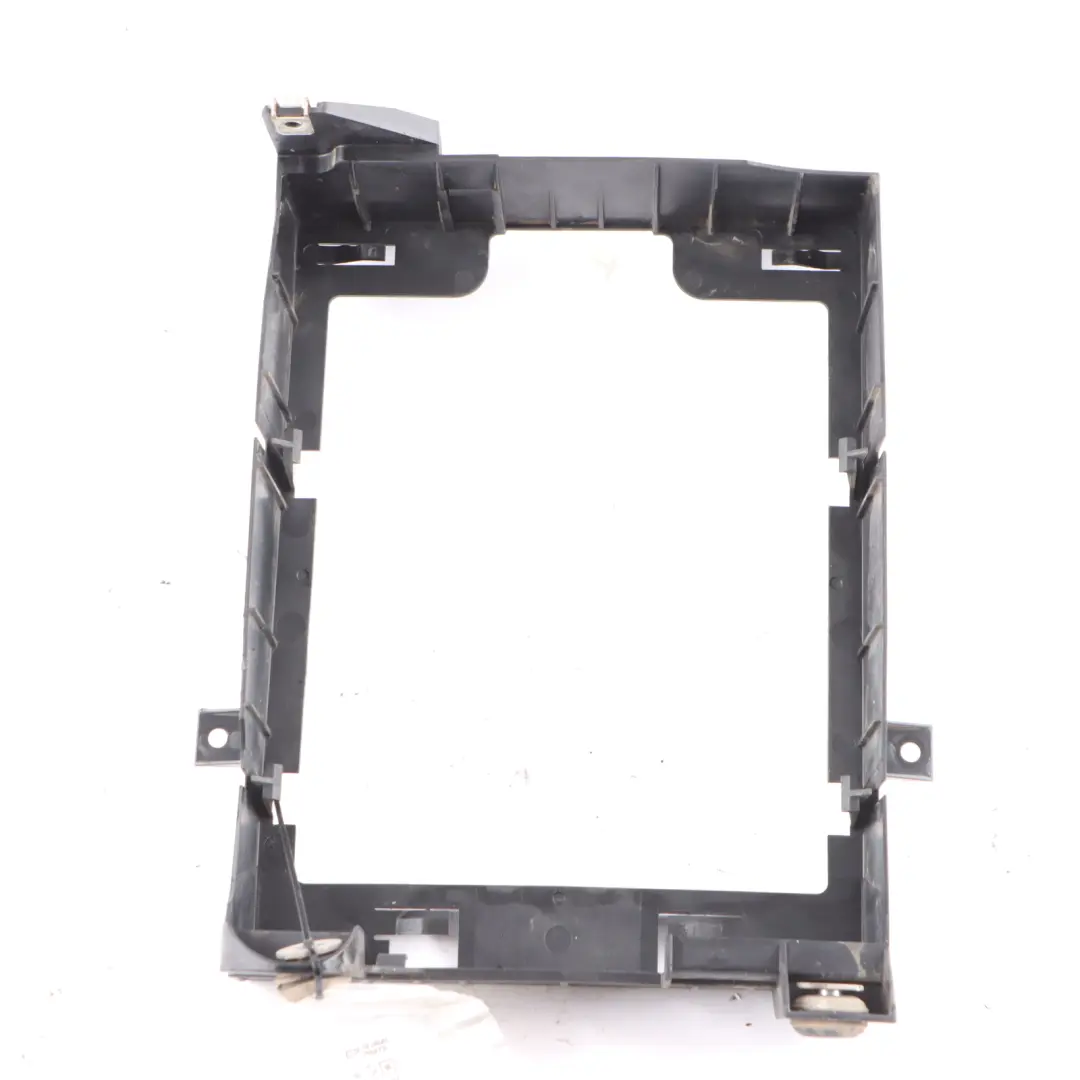

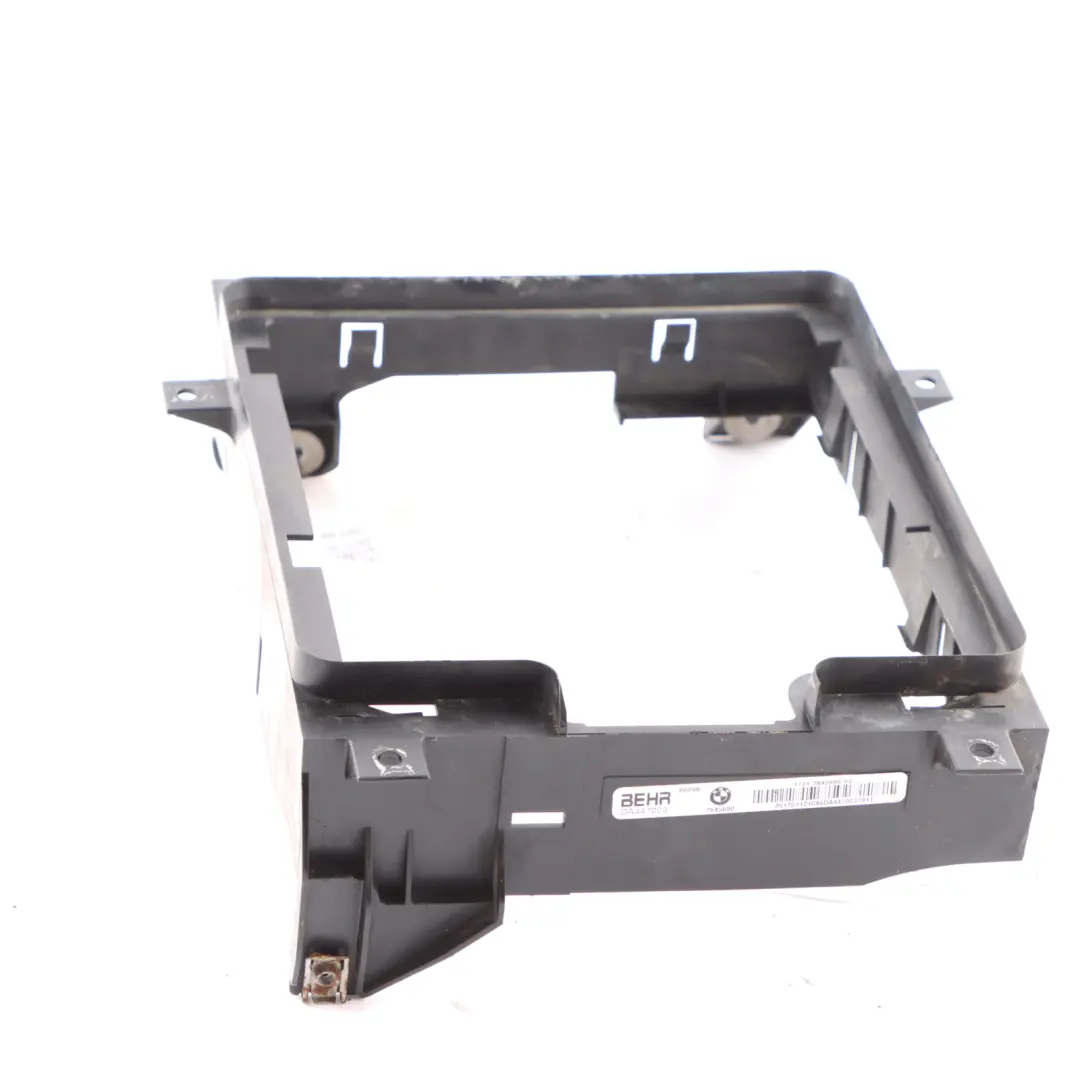

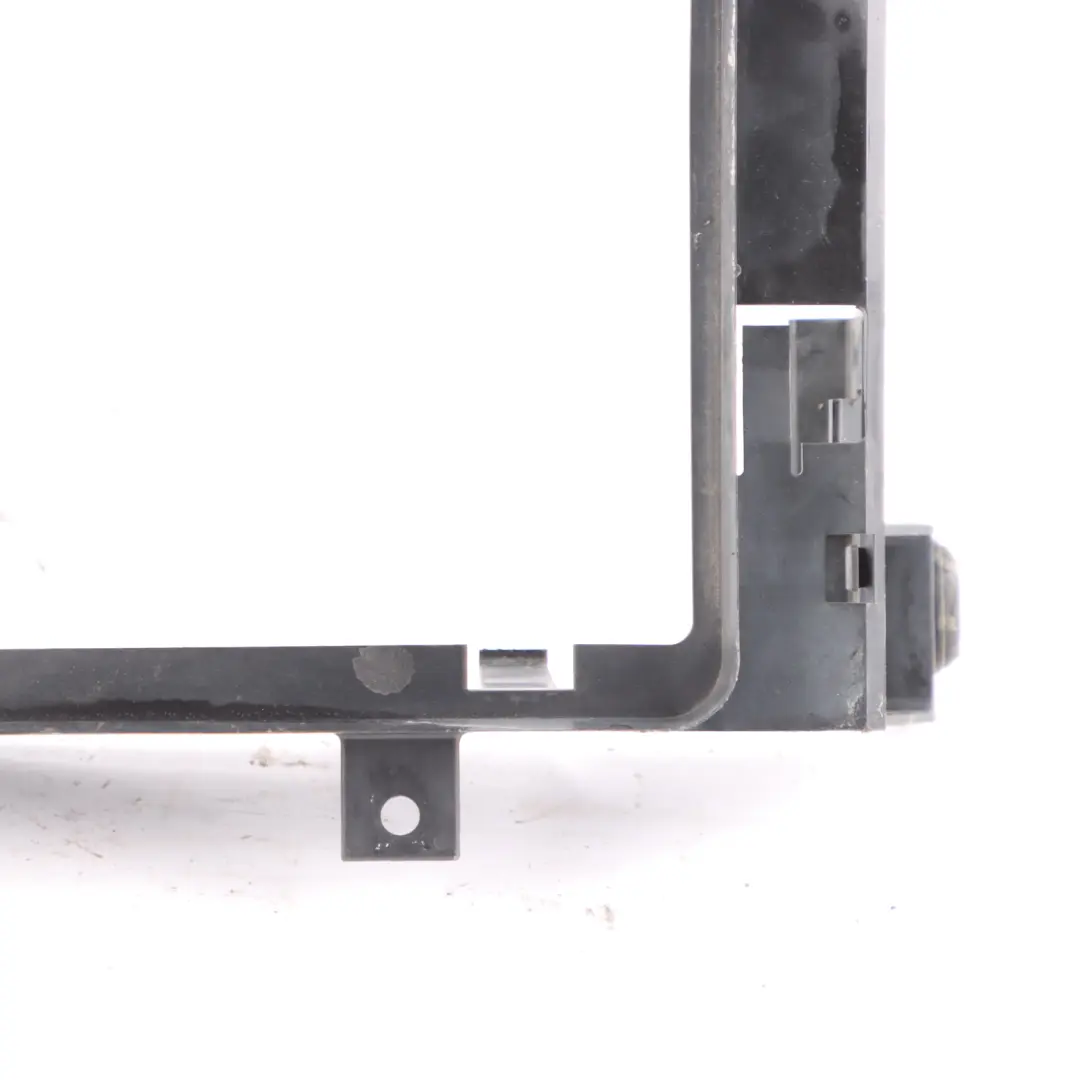

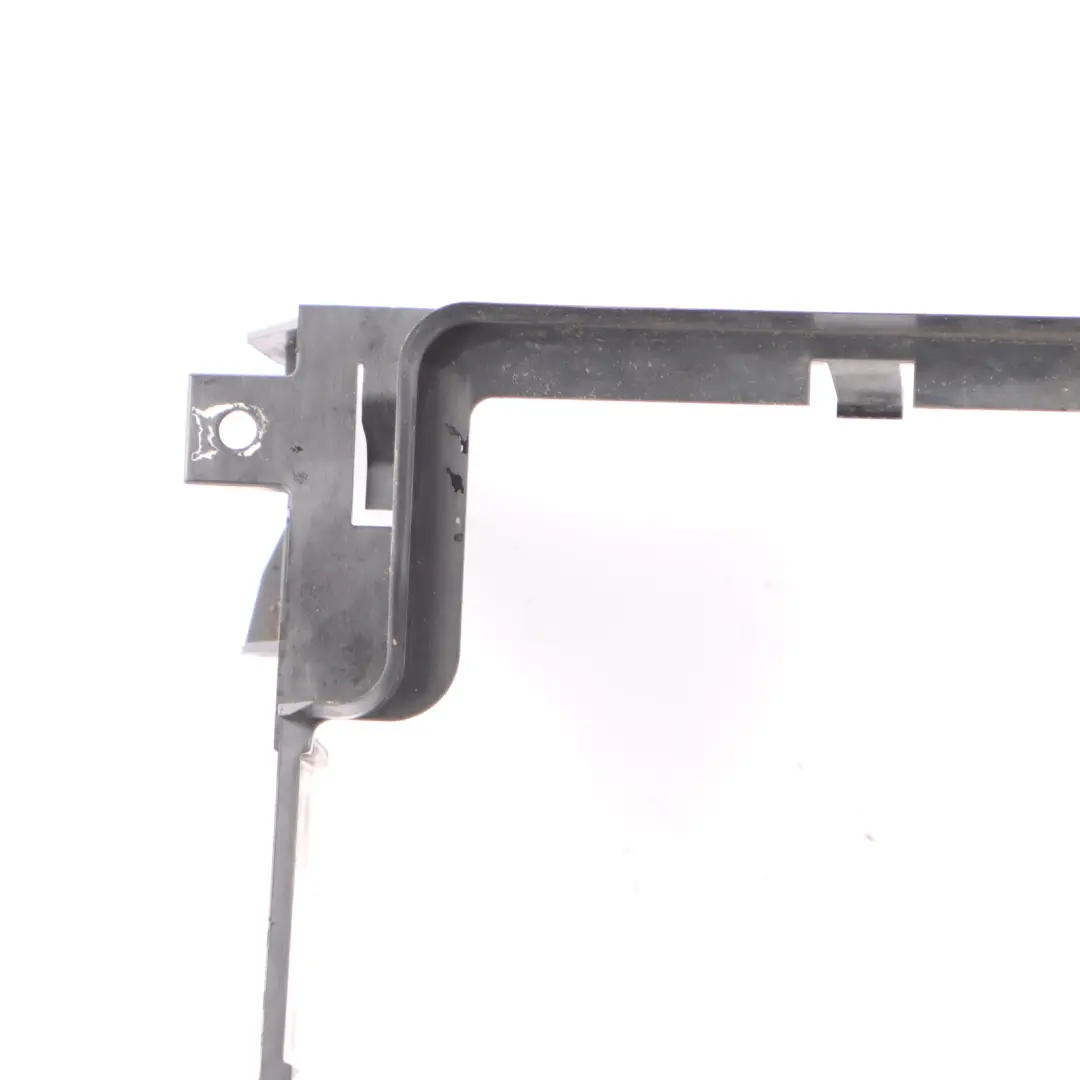

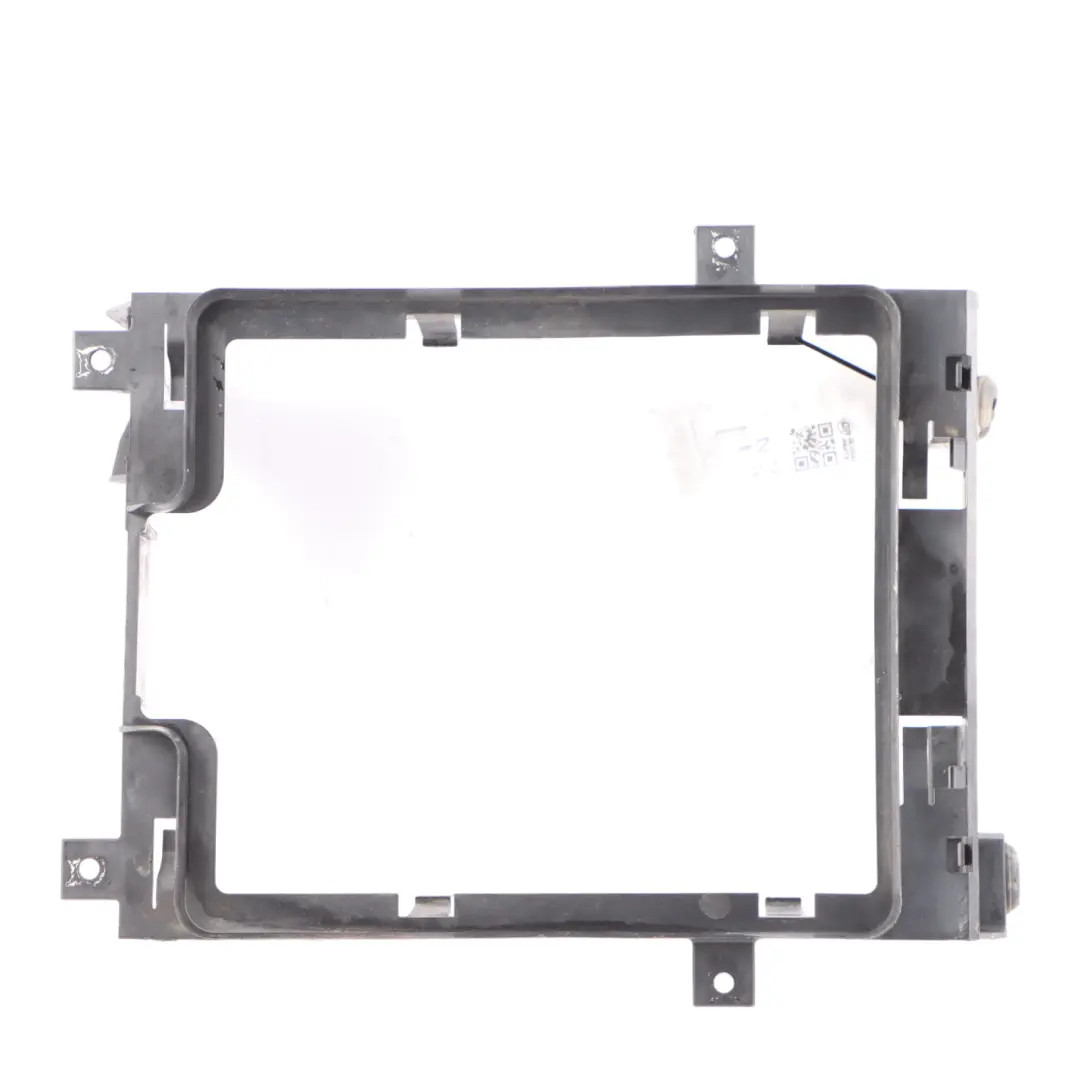

BMW X5 F15 X6 F16 Frame Left N/S Bracket Auxiliary Intercooler Carrier 7645686

The BMW X5 F15 / X6 F16 Intercooler Frame Bracket (Left) is an original body structural component designed for precise mounting of the auxiliary intercooler. It provides stable support for the intercooler module on the left side of the vehicle, which is crucial for safety, rigidity, and proper operation of the intake system.

Specifications and technical data

• SKU: 7645686
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 7645686
• Substitutable numbers: 7645686, 17117645686
• Location on the vehicle: Left
• Category: Frame Rails & Subframes

Purpose and Function of the Component

This left intercooler bracket is specifically designed for BMW X5 F15 and BMW X6 F16 models. It is responsible for the load-bearing connection of the intercooler to the longitudinal body frame parts, transferring loads from the cooling system to the vehicle's structure.

Its left-side placement facilitates proper routing of hoses and air ducts, as well as maintaining the factory assembly geometry. This ensures the intake system retains the rigidity and vibration resistance designed by the manufacturer.

Construction and BMW Fitment

As a component within the BMW Longitudinal Body Frame Parts and Brackets category, this bracket works with the factory mounting points in the BMW body. This means:

• secure fitment with the existing auxiliary frame structure, without the need for structural modifications,
• preservation of the original mounting geometry for the intercooler,
• stable load transfer resulting from the operation of the intake system and driving in various conditions.

Being an original BMW part promotes compatibility with factory covers, mounts, and other components of the charge air cooling system.

Condition, Service, and Repair Application

This part is used, making it an attractive solution for post-accident repairs or restoring a vehicle to its factory specifications without the need for more expensive aftermarket replacements. The bracket is particularly suitable in situations where:

• the left front corner of the body has been damaged,
• the load-bearing mount for the auxiliary intercooler needs replacement,
• it is important to maintain the original BMW construction and mounting points.

It is advisable to confirm the correct bracket for a specific engine version and model year based on BMW catalog data or the part number in the product's technical specifications.

Benefits of Using an Original Bracket

Using the original intercooler frame bracket for the BMW X5 F15 / X6 F16 allows for:

• predictable vehicle behavior by maintaining the factory rigidity of the front body section,
• proper intercooler support, reducing the risk of cracks, leaks, and excessive vibrations,
• easier service installation – utilizing existing mounting points and factory assembly paths,
• consistency with other structural components from the same BMW model line.
