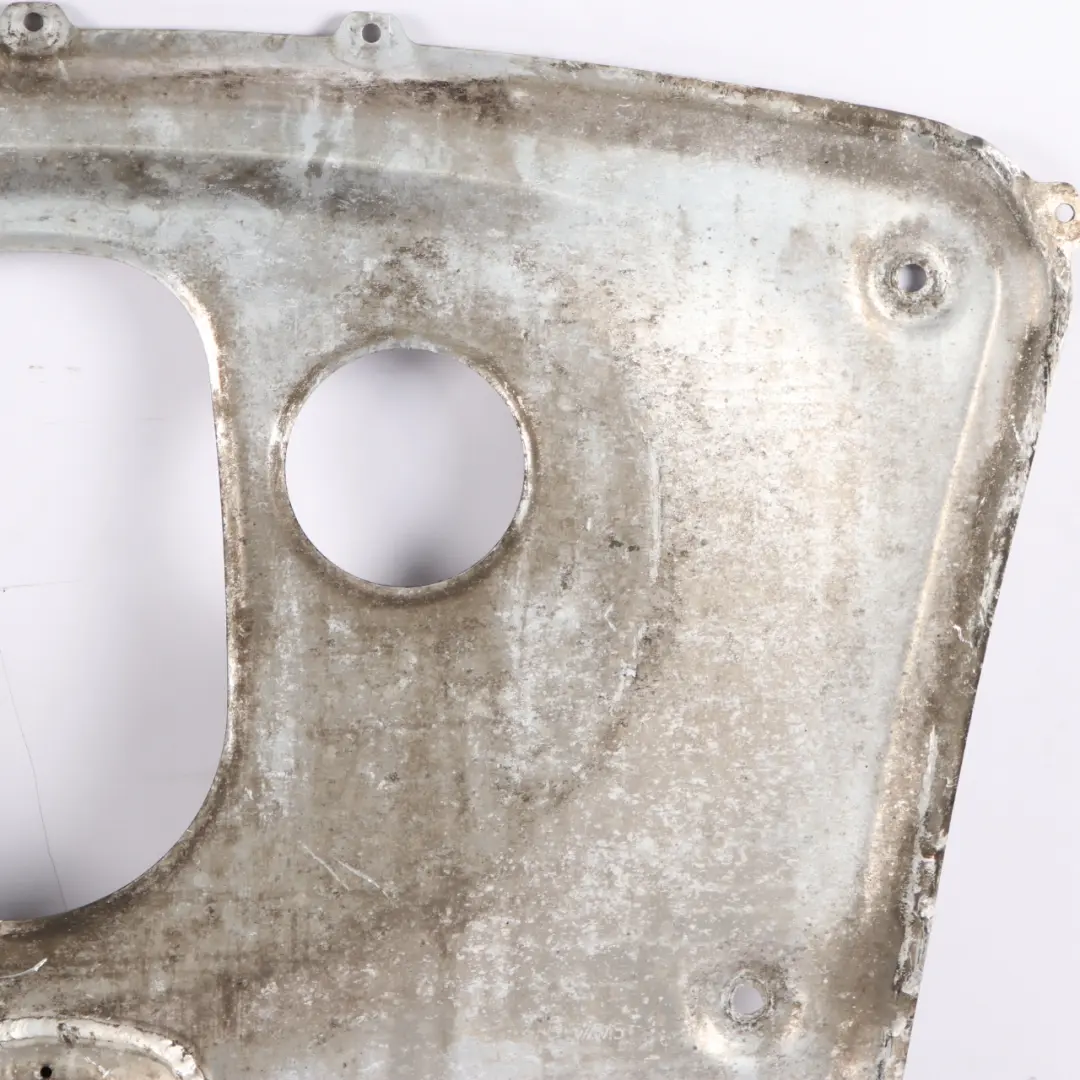

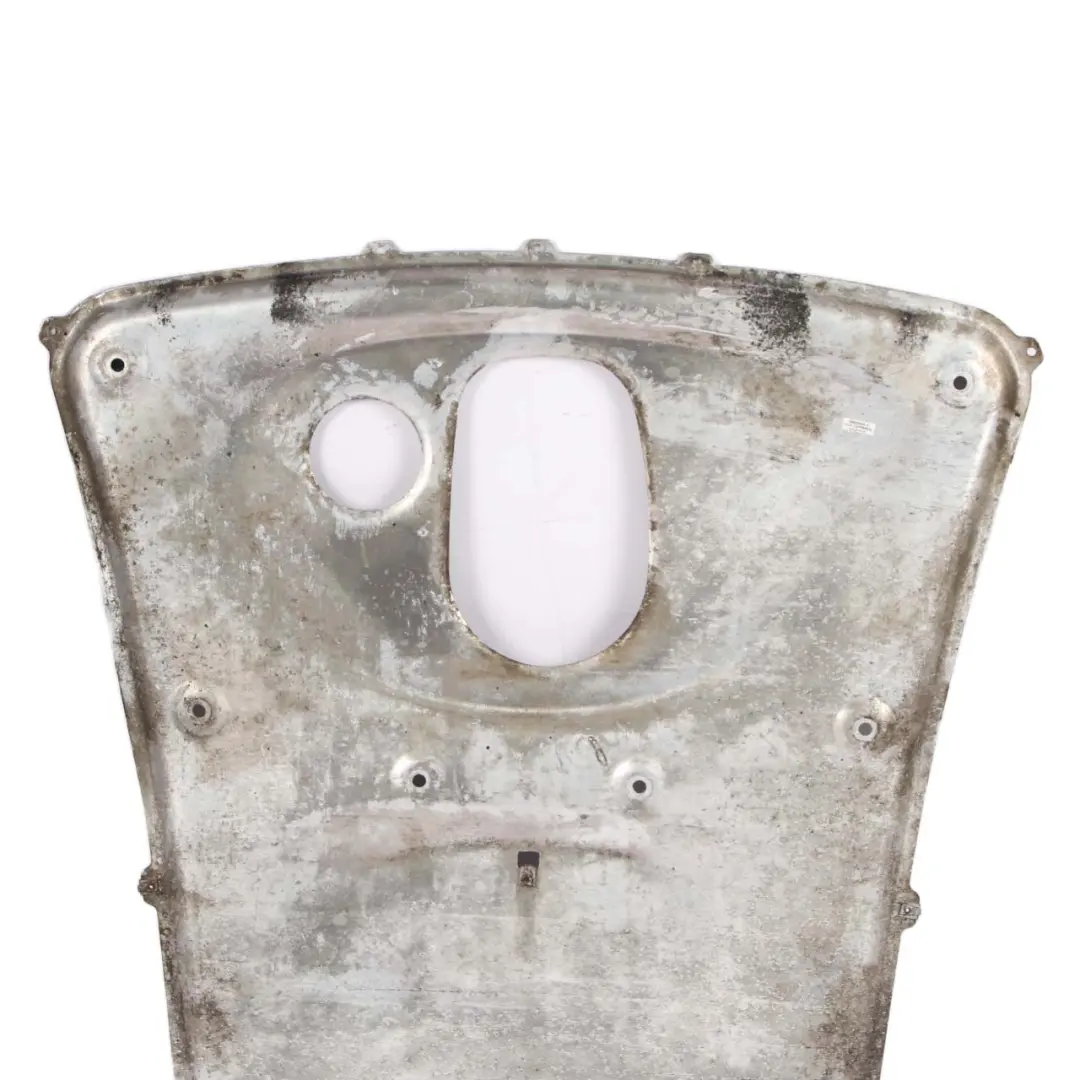

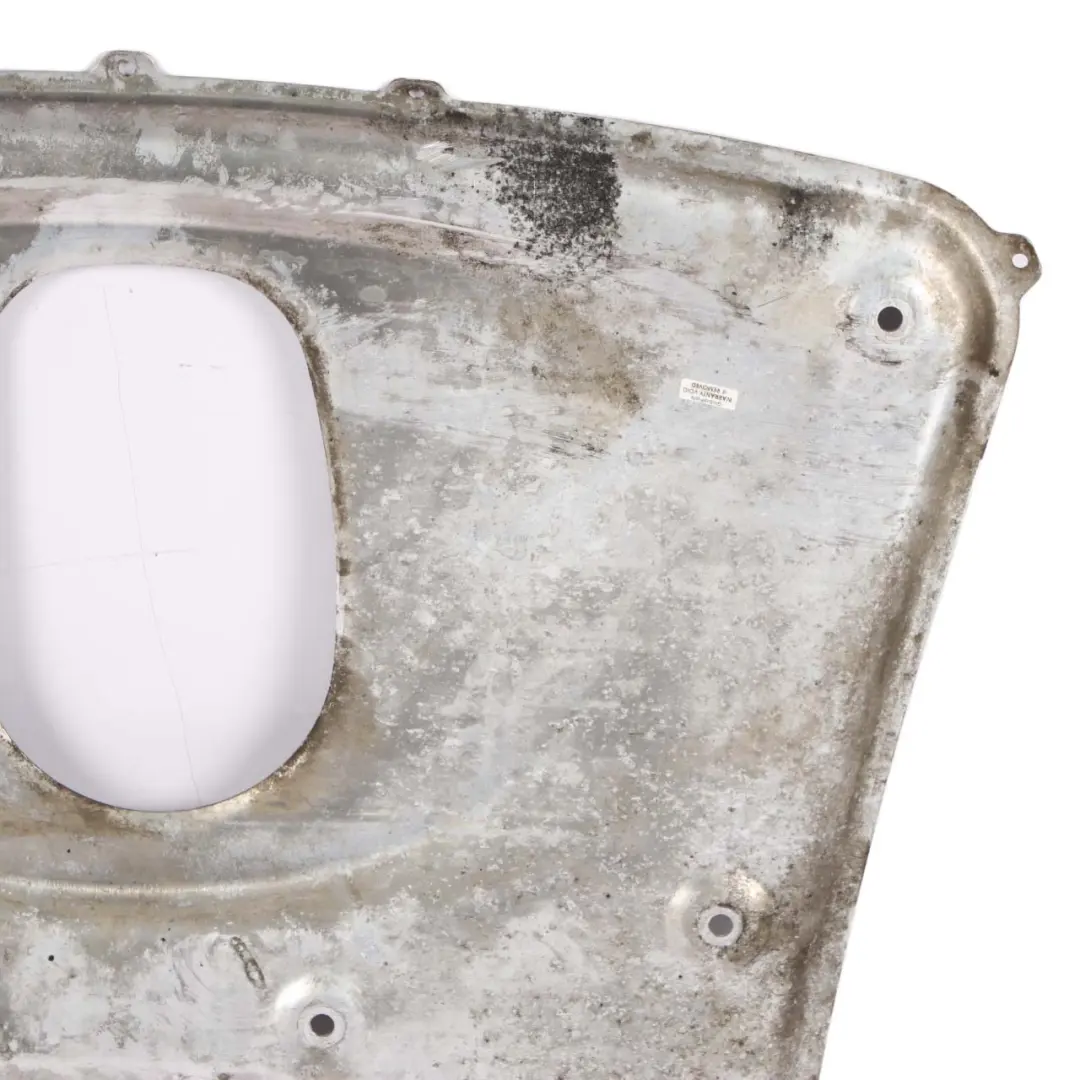

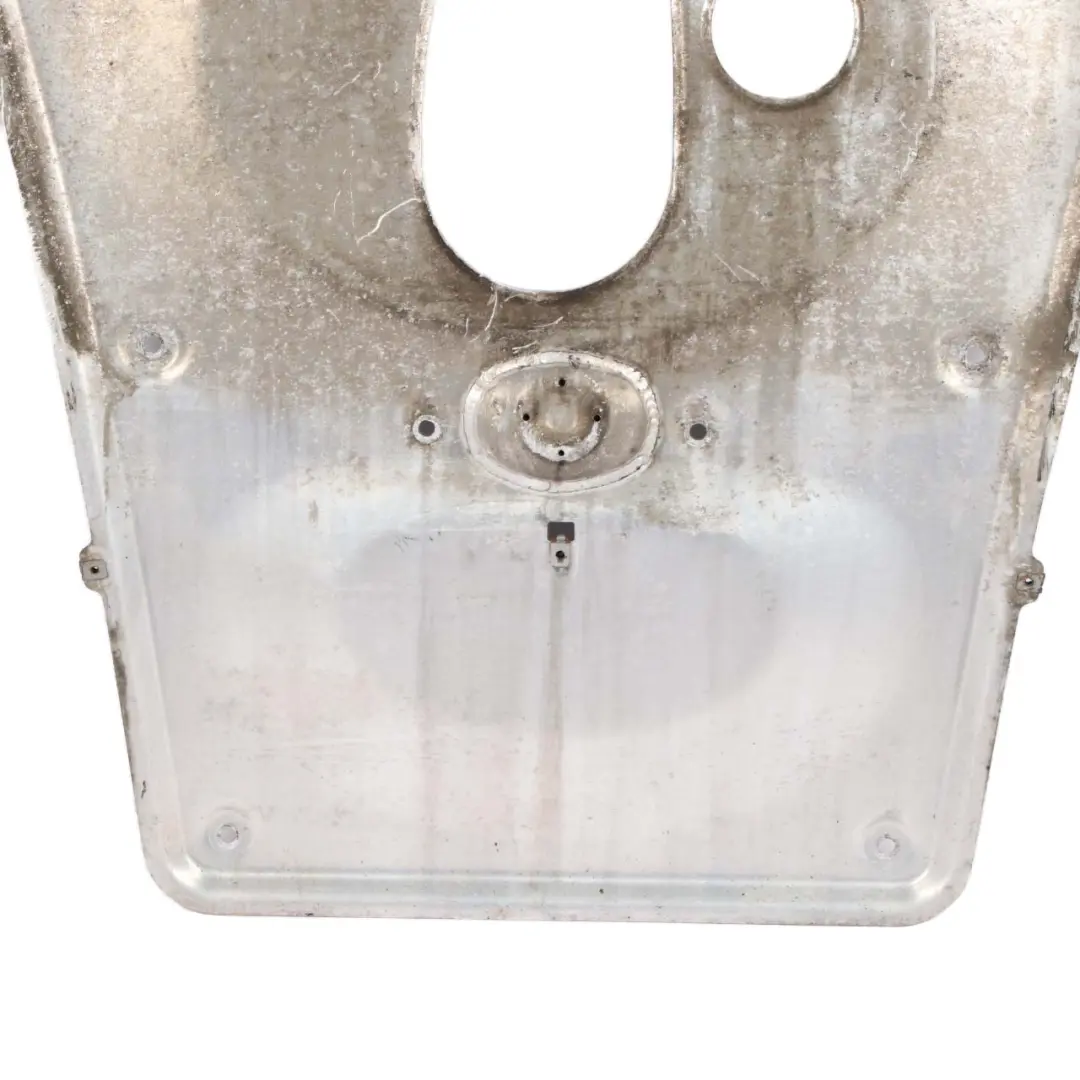

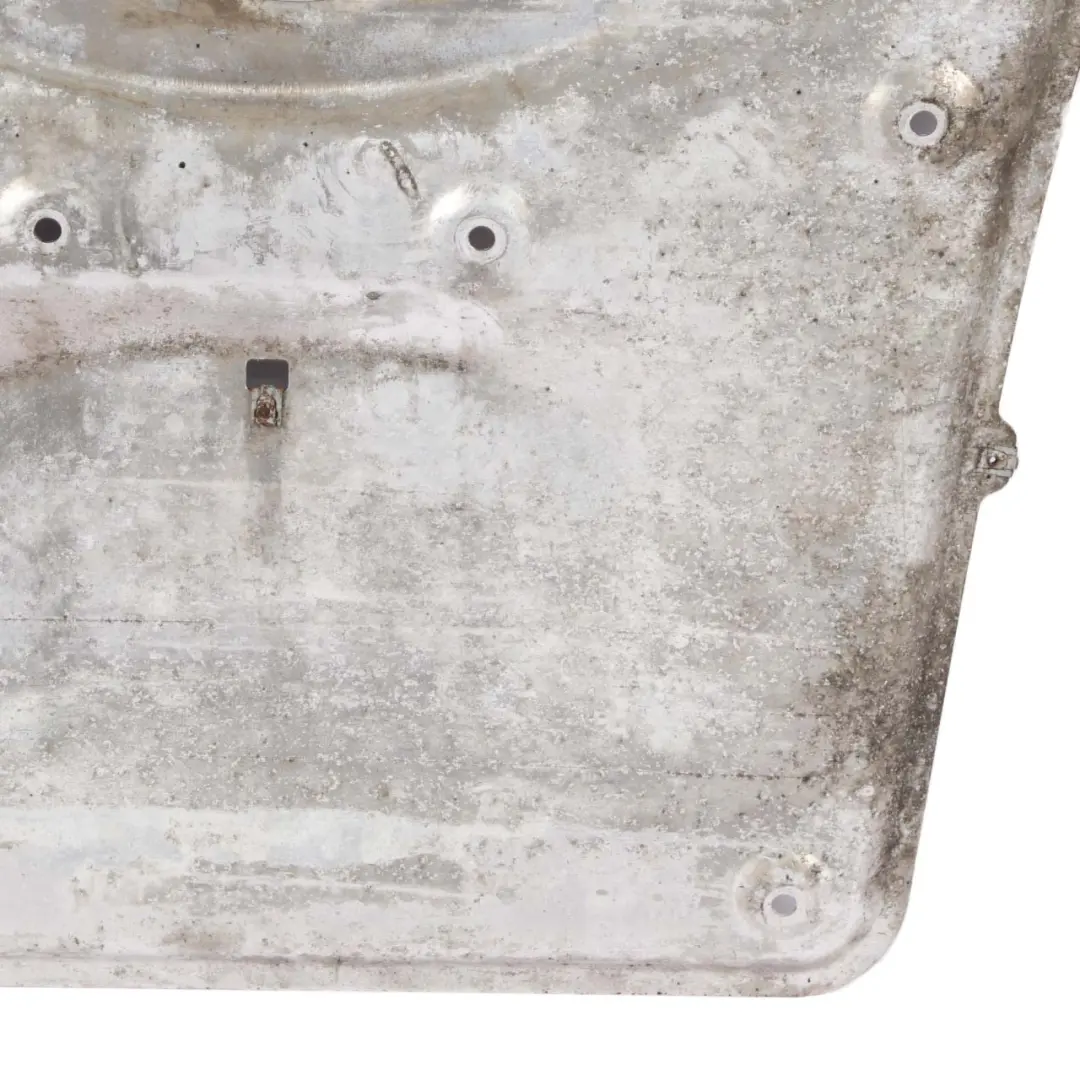

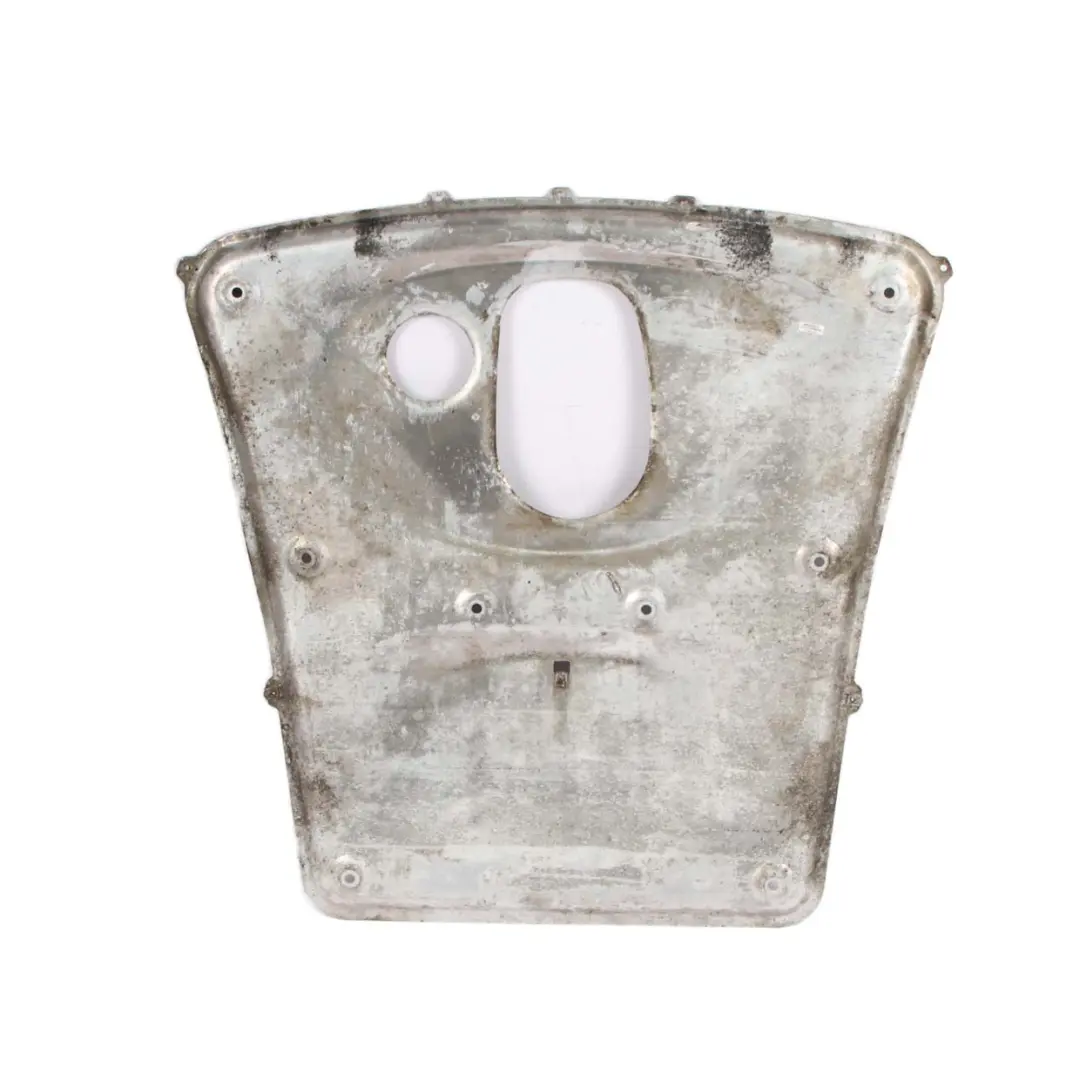

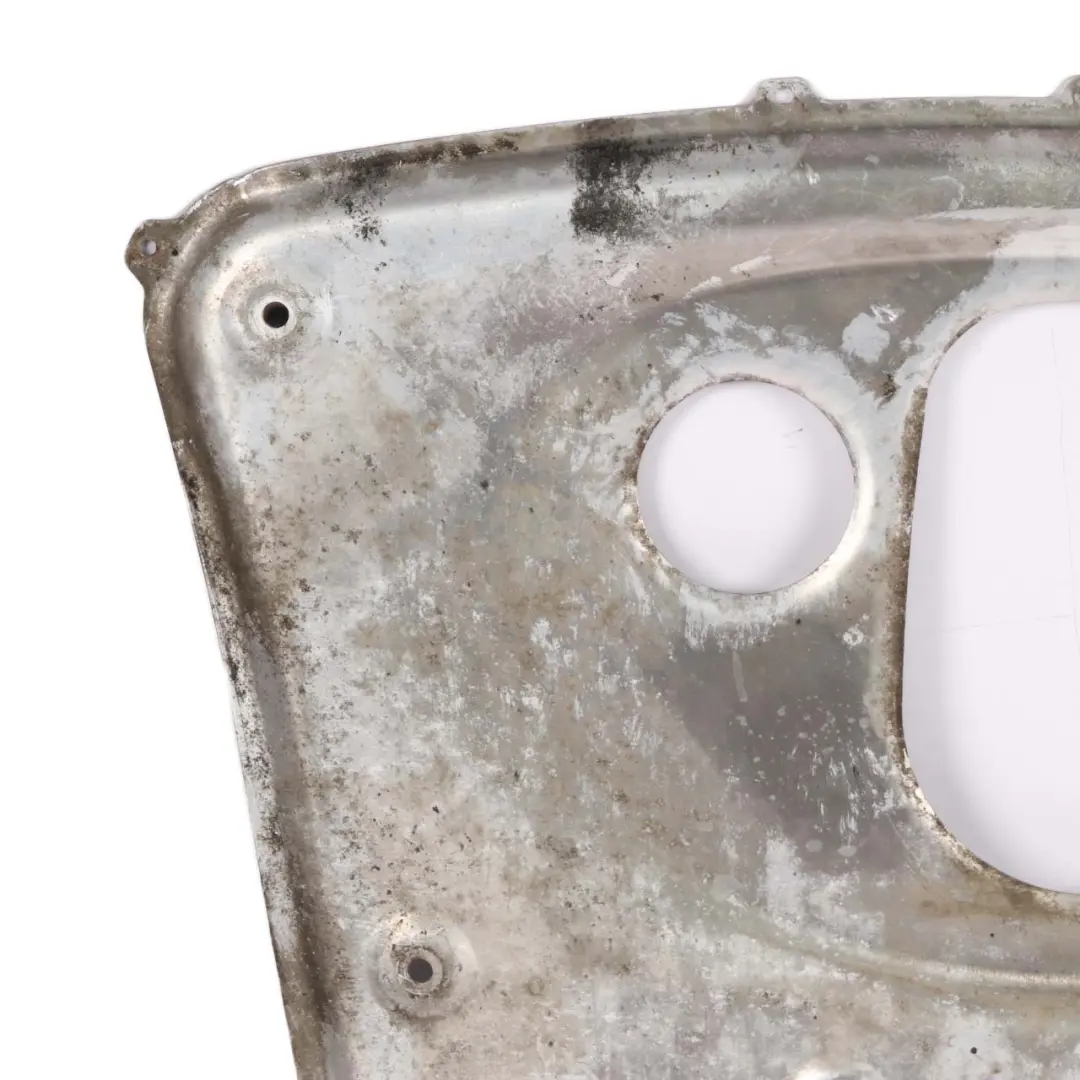

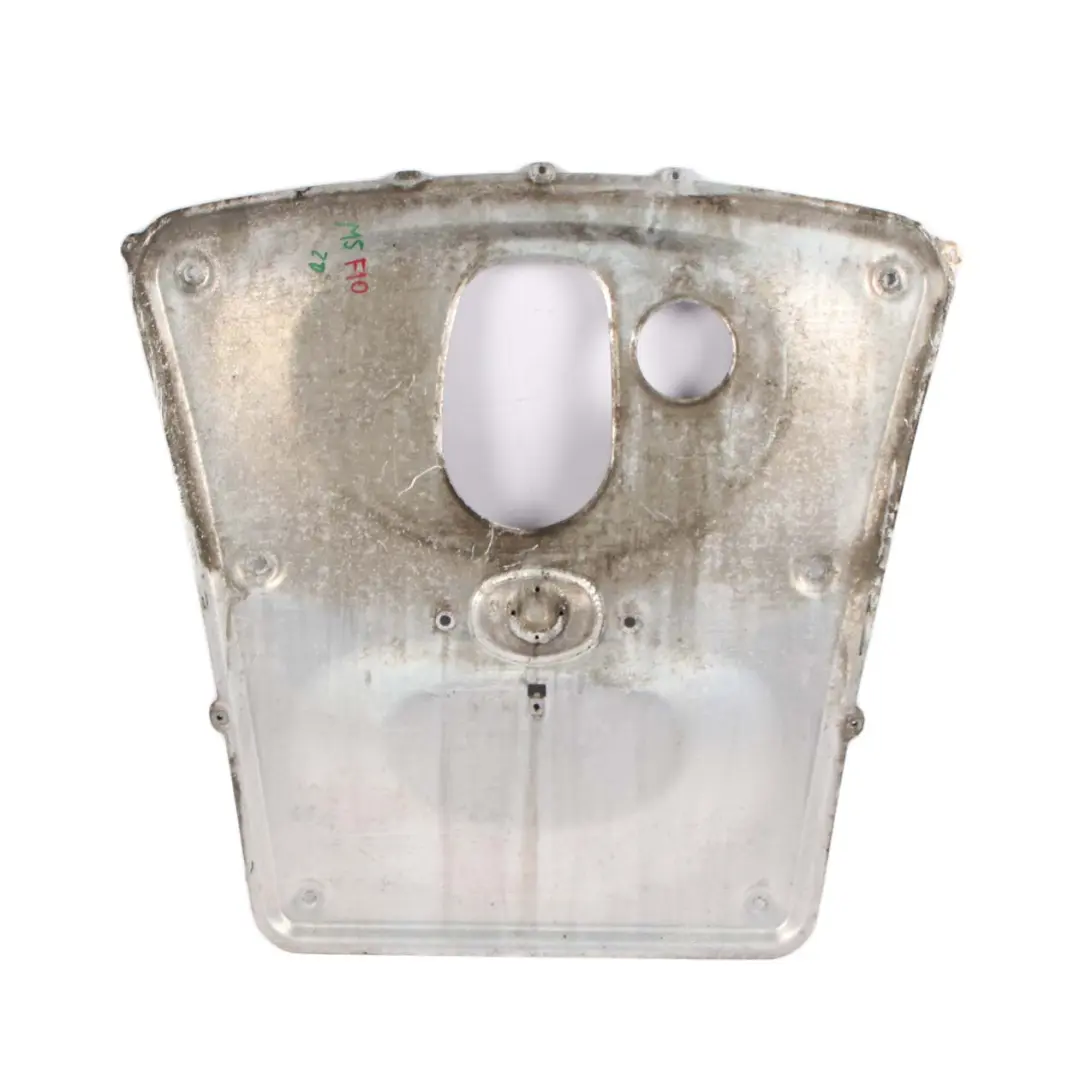

Front Subframe Cover BMW F10 M5 F12 F13 M6 Reinforcement Plate Undertray 2284174

BMW F10 M5 / F12 F13 M6 Front Subframe Reinforcement Plate – Chassis Strengthening Panel is a component from the category of longitudinal body frame parts and brackets, designed for installation in the front section of the vehicle. It provides stable support for critical structural points, enhancing chassis rigidity and protection in sporty M Series BMW models.

Specifications and technical data

• SKU: 2284174
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 2284174
• Substitutable numbers: 31102284174, 2284174, 31102303756, 2303756, KZ
• Location on the vehicle: Front
• Category: Frame Rails & Subframes

Purpose and Function in BMW M Construction

The Front Subframe Reinforcement Plate serves as a strengthening panel and underbody shield in the front subframe area. Its purpose is to:

• stiffen the front body section in the subframe area,
• stabilize suspension geometry during dynamic driving,
• protect underbody components from impacts from below and dirt.

In powerful M5 and M6 units, a properly selected reinforcement plate is crucial for precise handling, especially at high speeds and under lateral loads.

Construction and Technical Characteristics

The front subframe reinforcement plate in these BMW models is designed as a structural component working with the longitudinal members and brackets. This allows it to:

• distribute loads from the front suspension over a larger area of the subframe,
• reduce deformation in the area of the control arm and subframe mounts,
• support underbody aerodynamics by partially smoothing airflow under the car.

This element belongs to the group of longitudinal body frame parts and brackets, meaning it is an integral part of the load-bearing structure, not just a visual cover.

Benefits of Using an Original BMW Part

Choosing an original front subframe reinforcement plate for BMW M5 F10 and M6 F12/F13 offers a range of practical benefits:

• factory fit to mounting points – no need for modifications or hole adjustments,
• preservation of designed body rigidity according to BMW M engineers' specifications,
• cohesion with other brackets and longitudinal members within the front subframe,
• guaranteed compatibility with the factory suspension system and underbody shields.

For owners of high-performance vehicles, intensively used on highways or tracks, a correctly selected reinforcement plate directly impacts the maintenance of predictable vehicle behavior.

Condition, Installation, and Service Application

The offered item is used, allowing for an economical replacement of a damaged or corroded plate while maintaining original BMW specifications. This solution is particularly beneficial in situations where:

• the shield has been damaged due to contact with an obstacle,
• repair is necessary after a collision in the front underbody section,
• undesirable noises or handling changes occur due to element deformation.

Installation should be performed by a workshop experienced with longitudinal body frame parts and brackets, following the correct tightening sequence and torque specifications to fully restore factory geometry.
