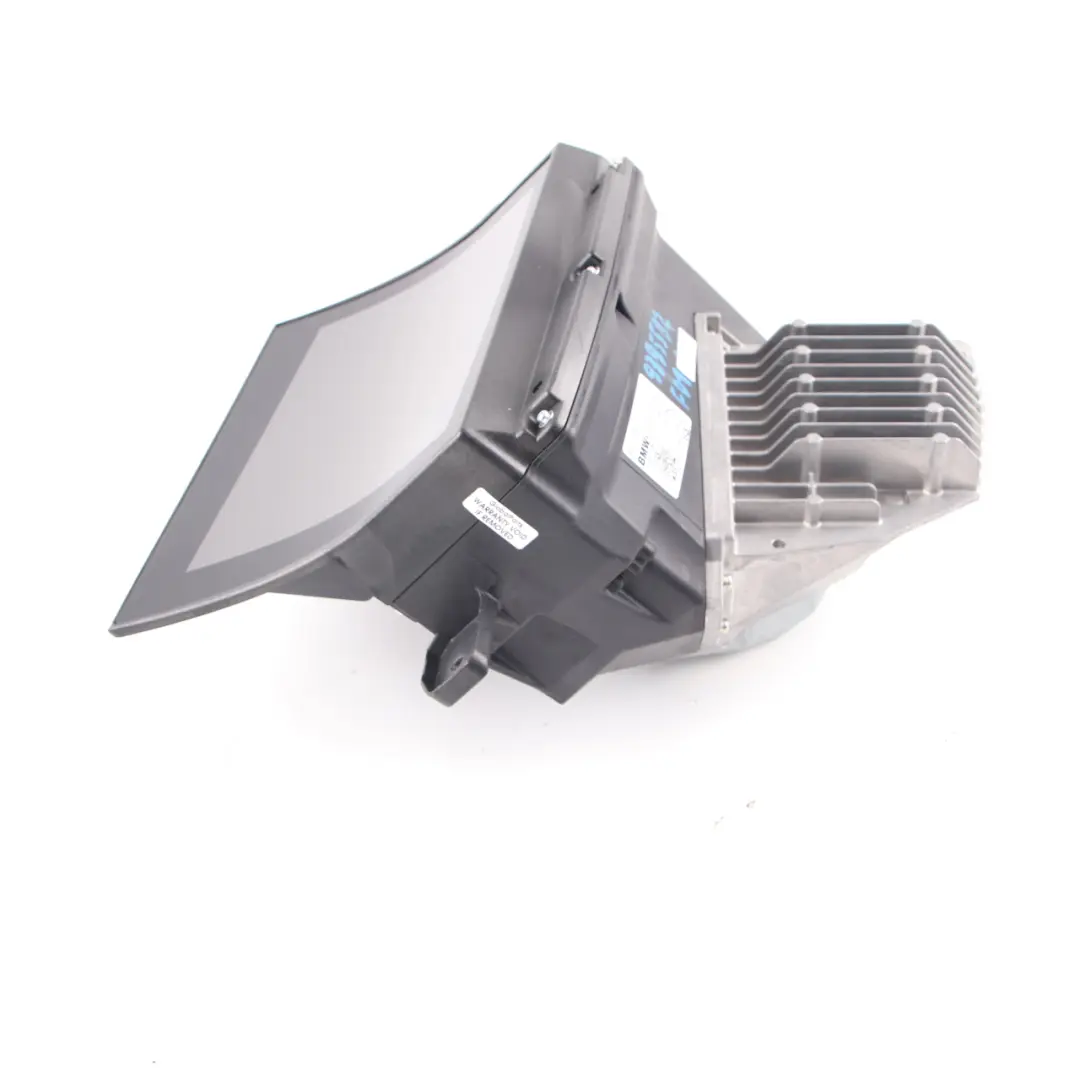

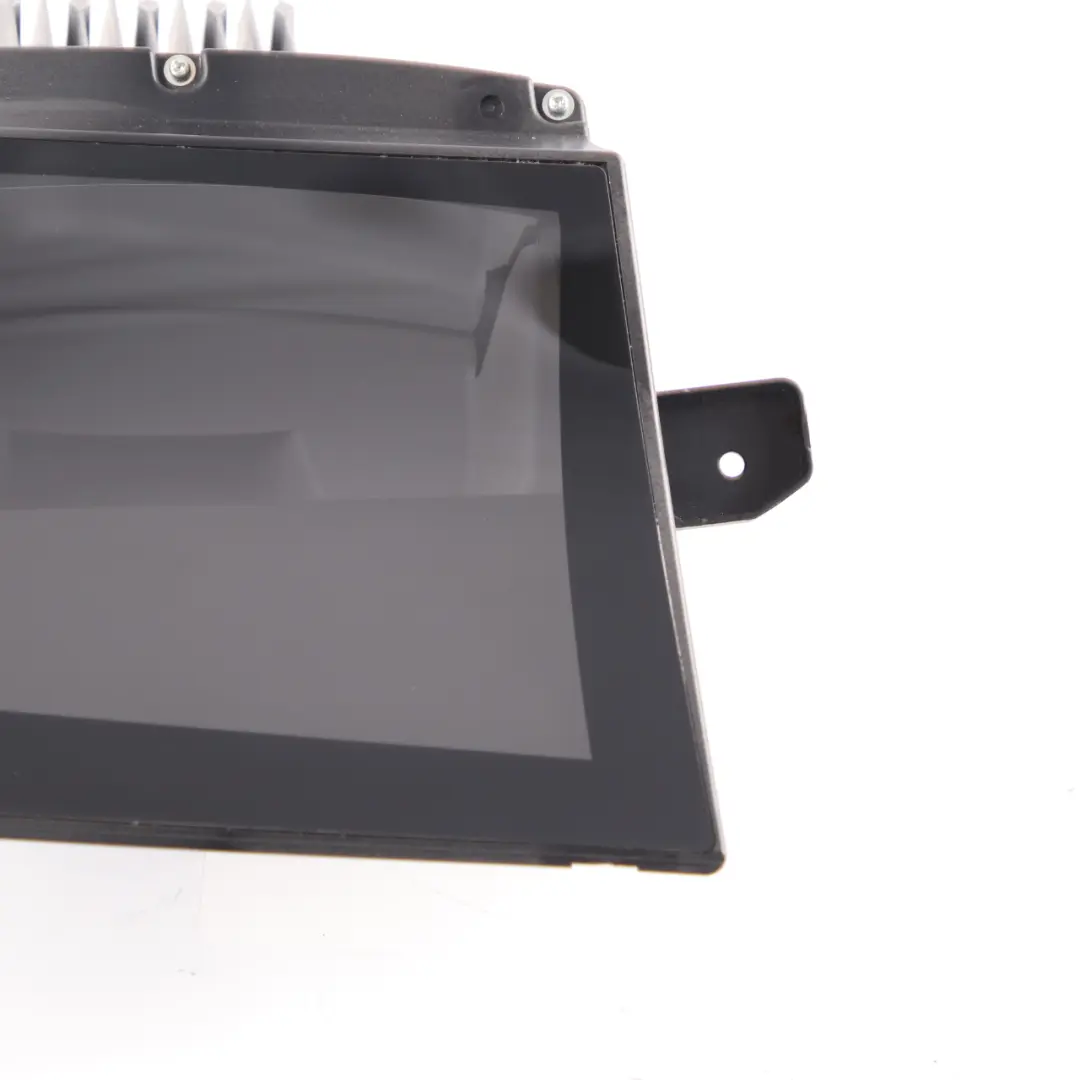

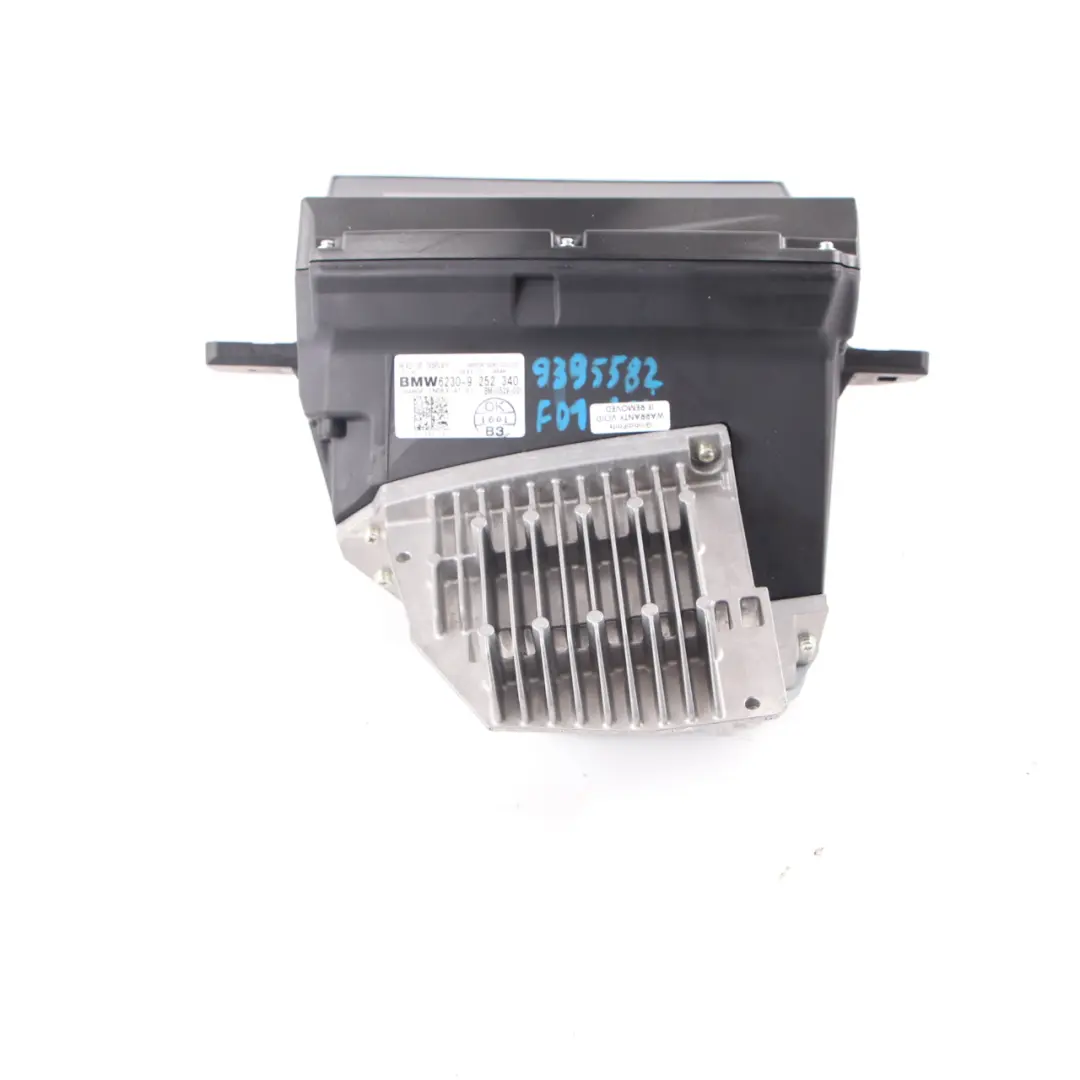

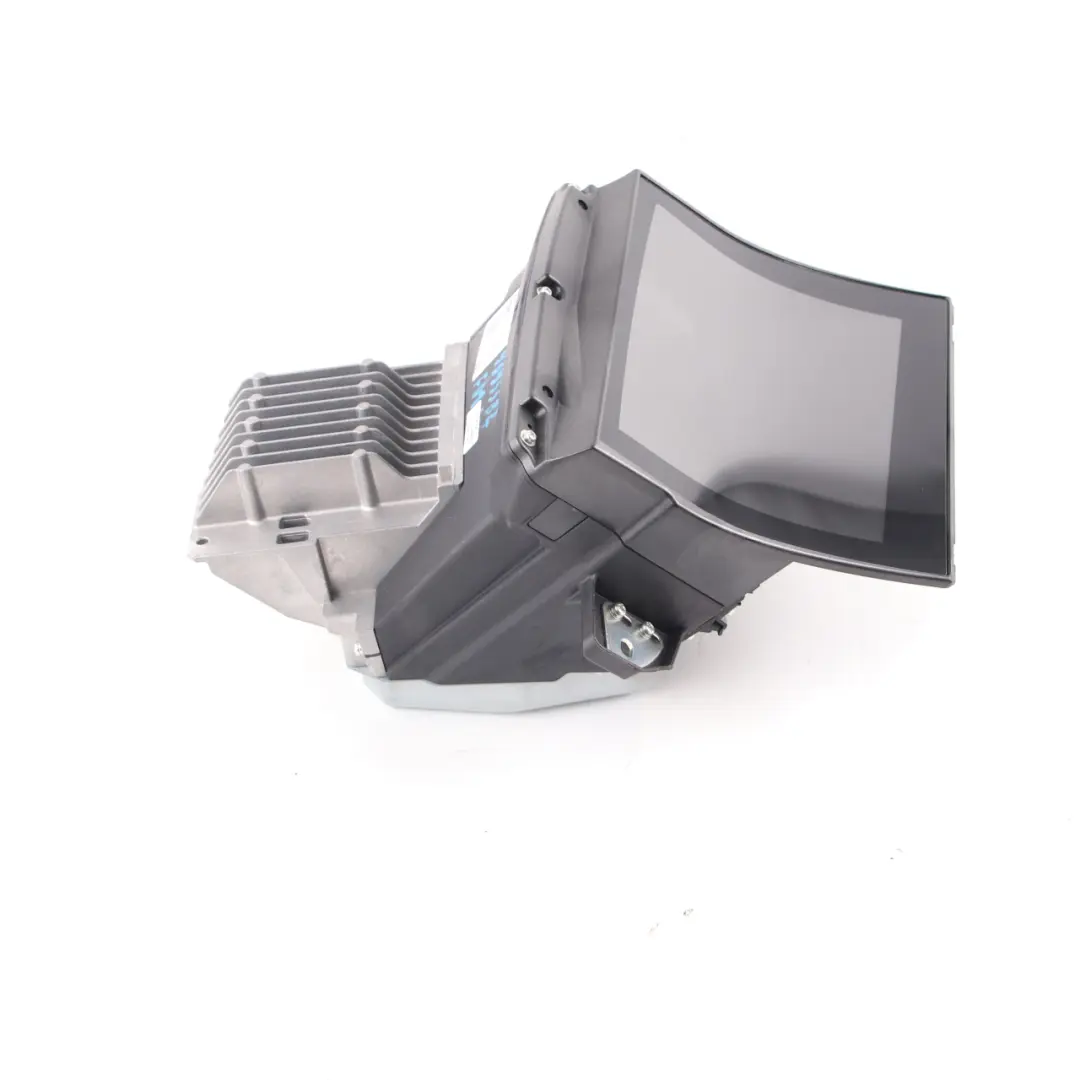

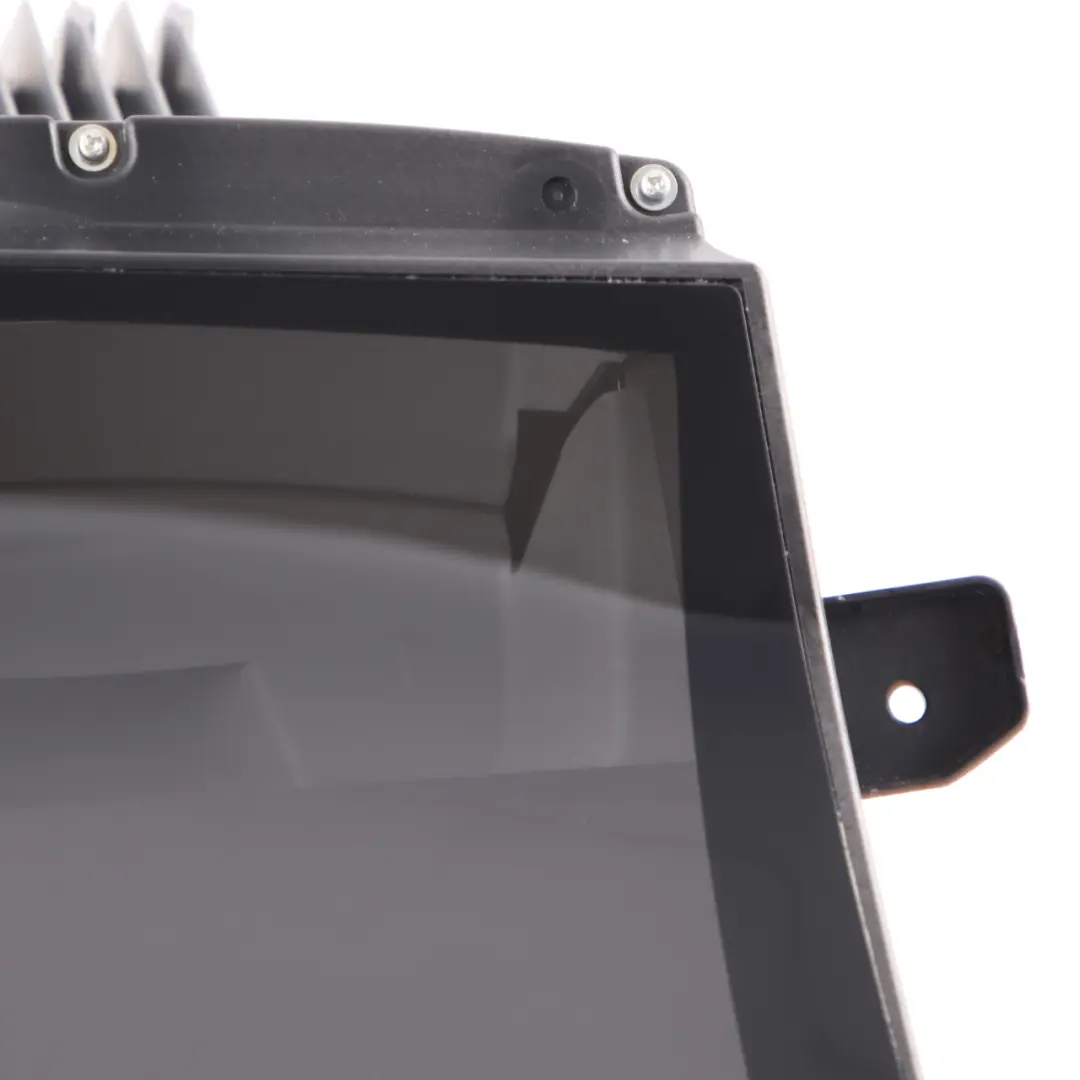

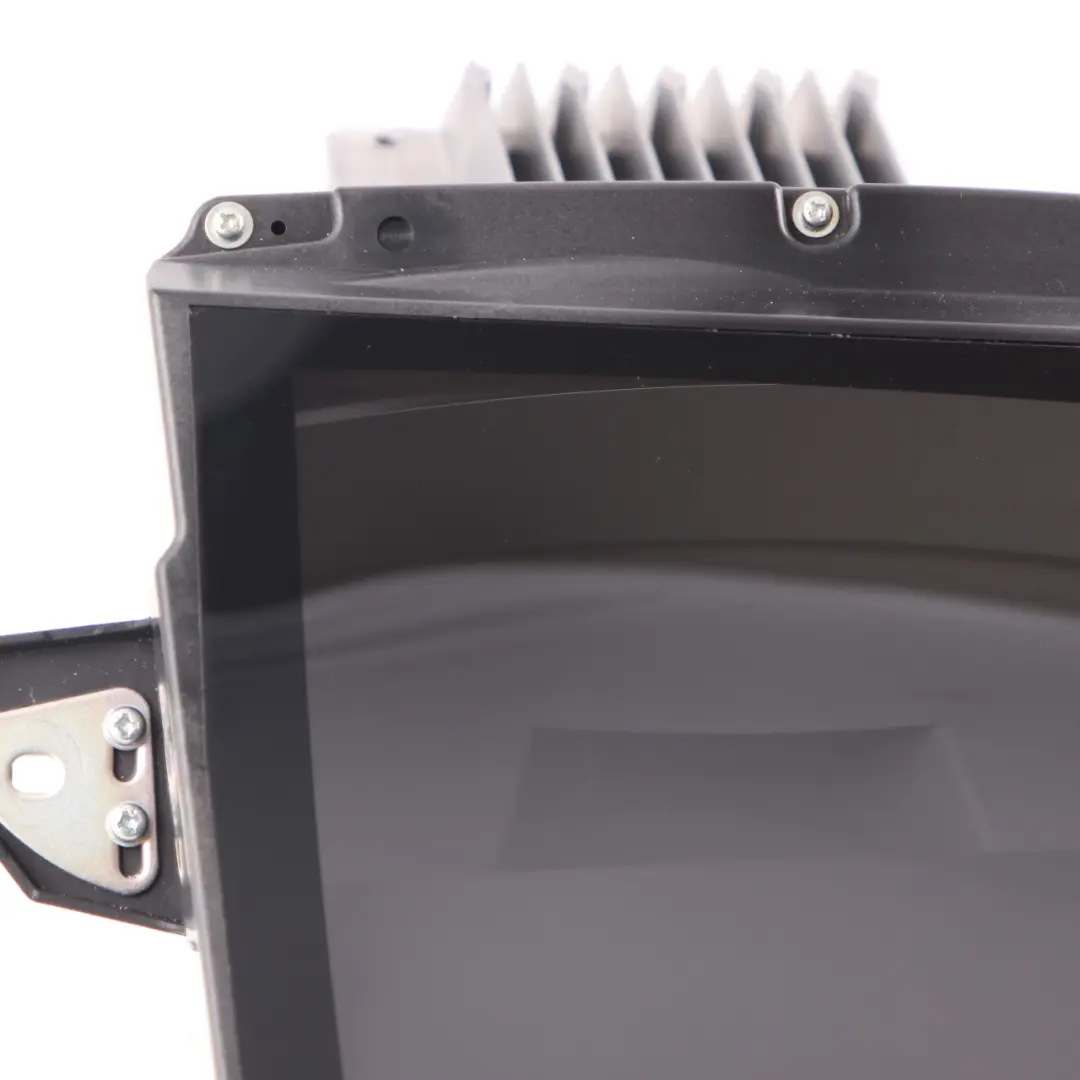

Head-Up Display BMW F01 F02 Hud Project Dash Screen Control Unit Module 9252340

BMW F01 F02 Head-Up Display – Windshield Display Control Module is an original part from the Electronic Control Modules and Controllers group, designed to work with the factory HUD system in the BMW 7 Series F01/F02. It ensures clear data display on the windshield, improving driver concentration and driving comfort, while maintaining factory integration with the vehicle's electronics.

Specifications and technical data

• SKU: rhd-9252340
• Mark: BMW (Genuine OE)
• Condition: Used

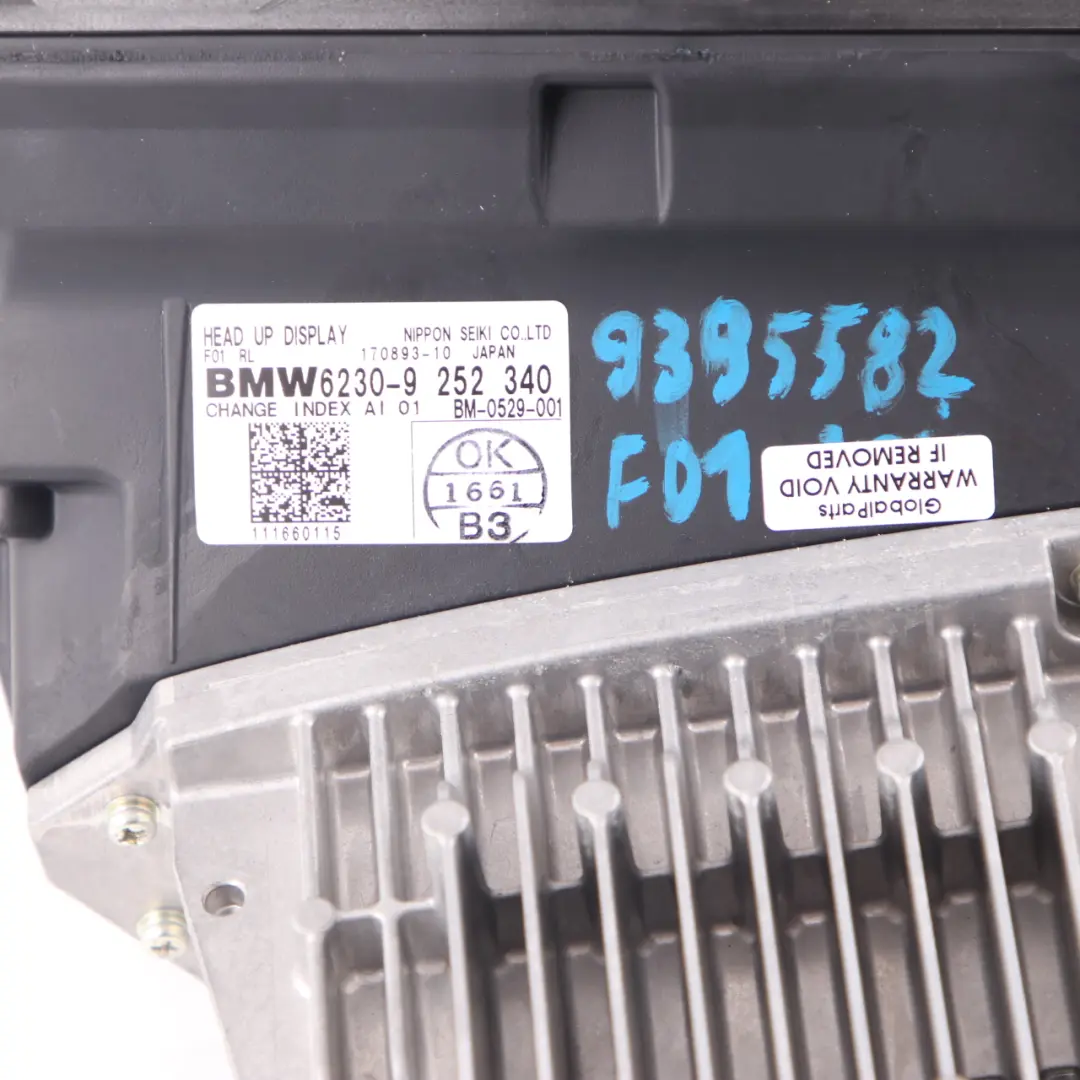

• OEM Part Number: 9252340
• Substitutable numbers: 9252340, 62309252340, 9395582, 62309395582, 9364654, 62309364654, 9326394, 62309326394, 9249964, 62309249964, KZ
• Category: ECUs & Computer Modules

Purpose and Function of the HUD Module

The presented control module is responsible for the operation of the Head-Up Display in the BMW F01/F02, controlling image generation and communication with other vehicle controllers. This allows key information, such as speed or onboard system indicators, to be displayed in the driver's field of vision without having to take their eyes off the road.

As a BMW OE class component, the module maintains full compatibility with the electrical architecture and communication buses used in the 7 Series, which translates to stable HUD system operation and predictable behavior during daily use.

Benefits of Using an Original BMW Module

Using an original Head-Up Display controller to replace a damaged or unstable component allows for the restoration of the system's factory functionality. In practice, this means:

• correct cooperation with other body controllers and the iDrive system,
• consistent display of driving parameters on the windshield,
• retention of factory settings and logic of the HUD system.

For users who prioritize technical consistency and predictable electronic operation, an original BMW module is the preferred solution over aftermarket replacements of unknown origin.

Condition, Origin, and Practical Application

The part is from a disassembly and is offered as a used component, allowing for economical repair of the HUD system while maintaining the original manufacturer's specifications. Such modules are often used by workshops specializing in BMW electronics, as well as by informed users planning to replace a damaged controller without altering the vehicle's installation.

Before installation, it is recommended to verify compatibility by OEM number or interchangeable numbers and, if necessary, perform appropriate configuration using dedicated BMW service software. This will allow the module to be correctly adapted to a specific 7 Series vehicle.

Integration with BMW Electronic Systems

The Head-Up Display module works with other onboard controllers, creating a cohesive electronics ecosystem within the vehicle. Proper part selection is important not only for displaying data but also for the stability of communication within the controller network. For long-term operation, it is worth familiarizing yourself with practical tips on working with used BMW controllers – you can find them in the article on maintaining BMW iDrive systems and electronic modules using parts from disassembly.

If you are interested in a broader approach to selecting original used BMW components, OEM verification procedures, and the impact of such parts on vehicle durability, the material describing how original used parts support BMW's sporty character and precision will also be helpful.

Why Choose This HUD Module

By choosing this Head-Up Display controller, you are investing in a solution specifically designed for the BMW F01/F02, with full consideration of these models' electronic architecture. It is a sensible way to restore the HUD system's functionality, improve driving ergonomics, and maintain the vehicle to the standard intended by the manufacturer.
