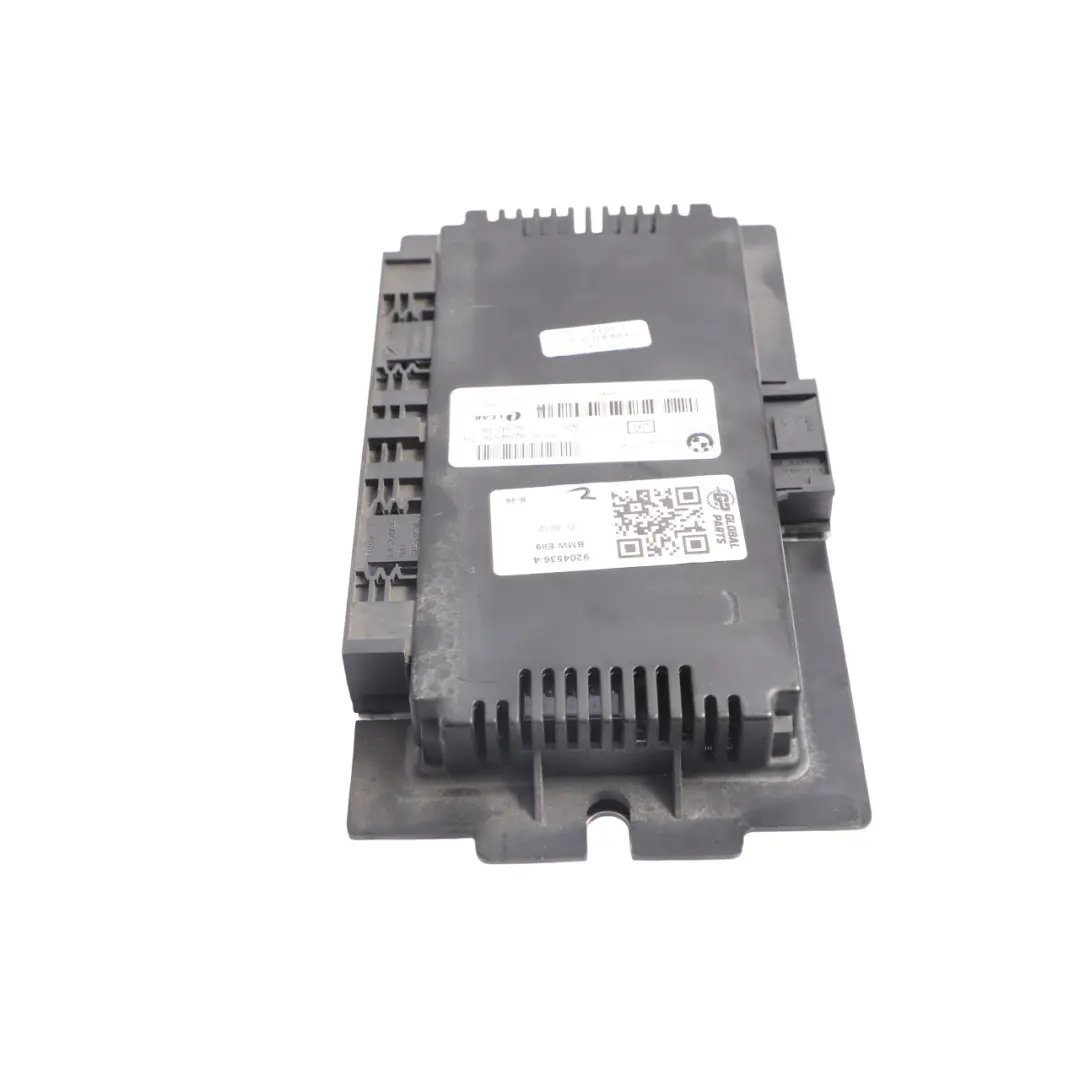

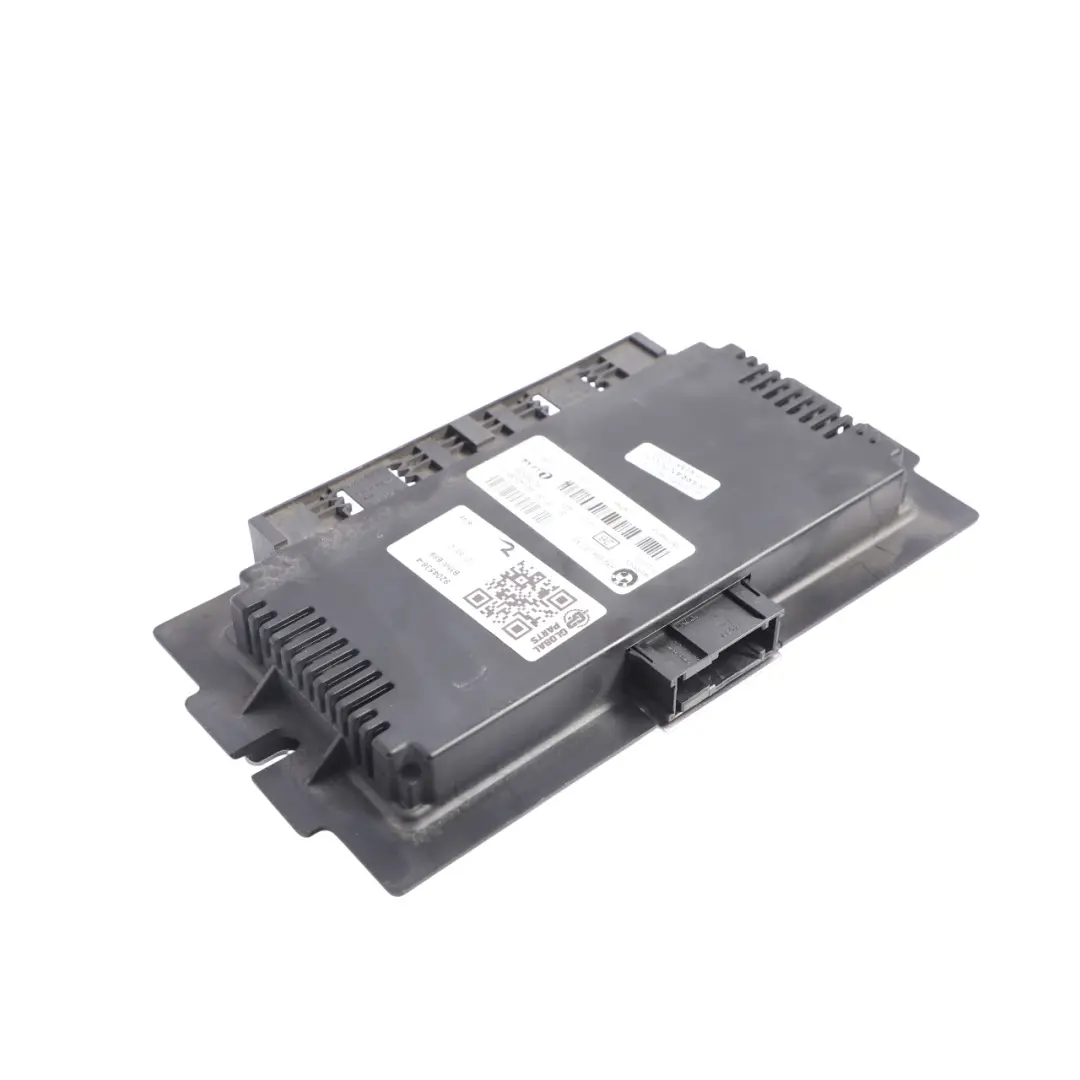

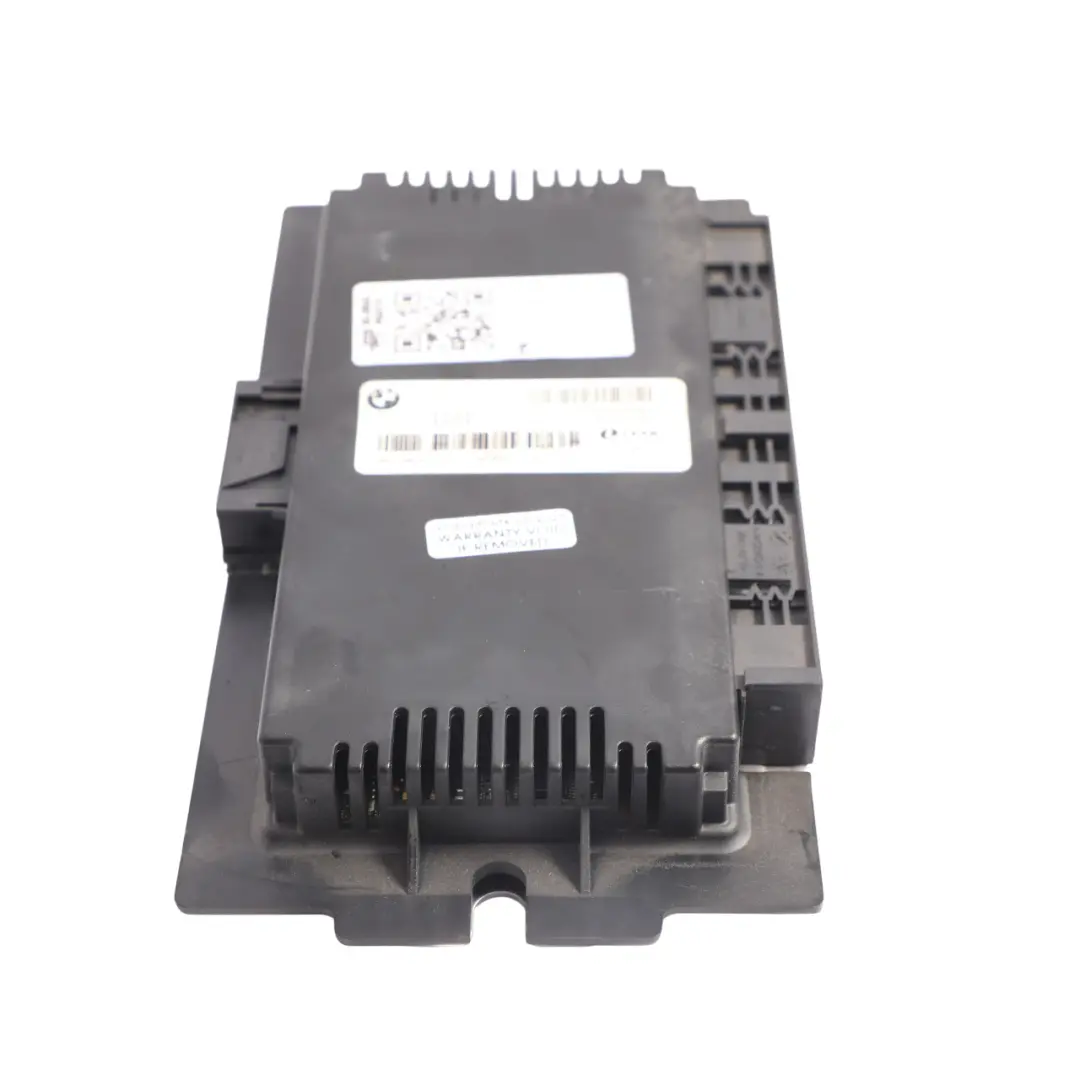

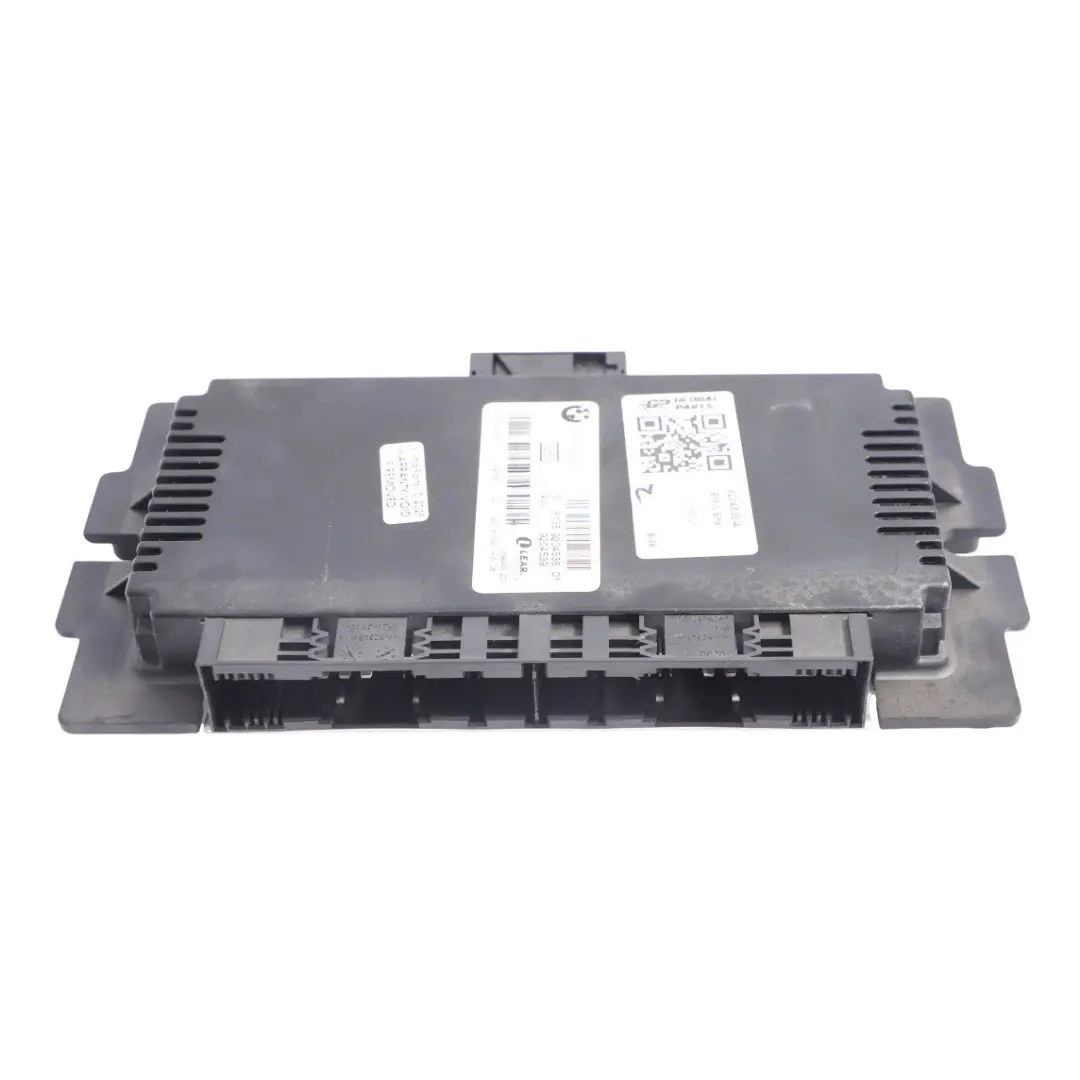

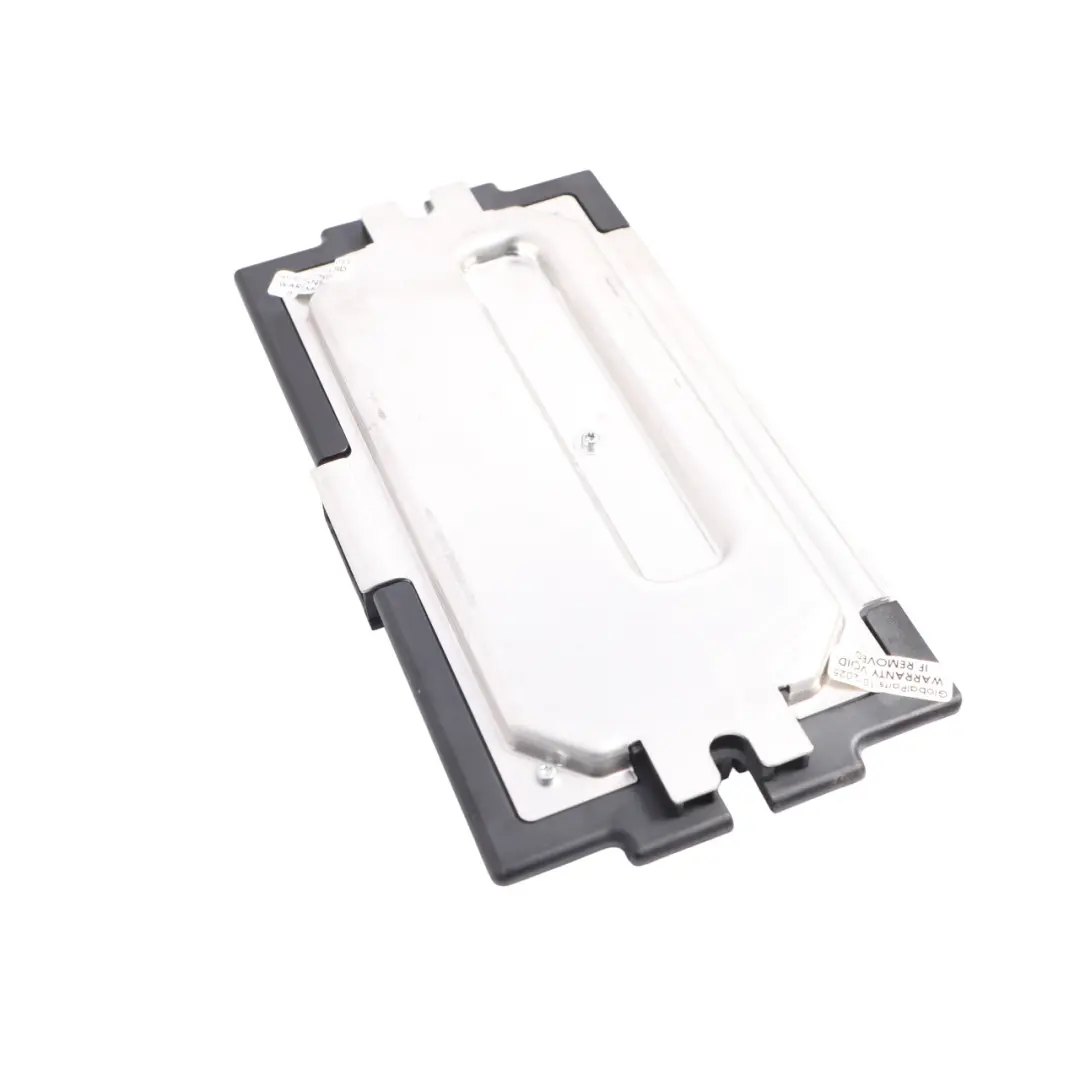

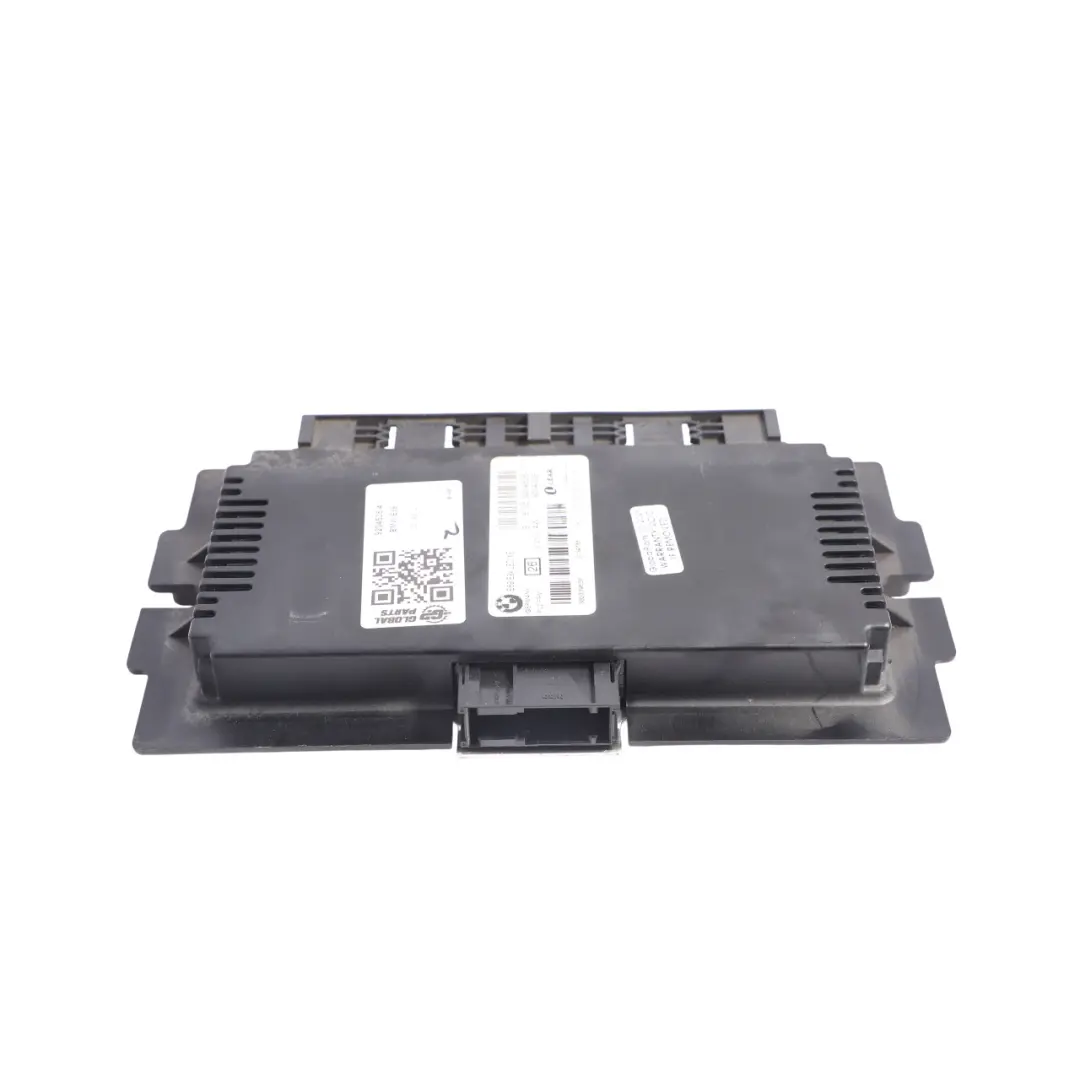

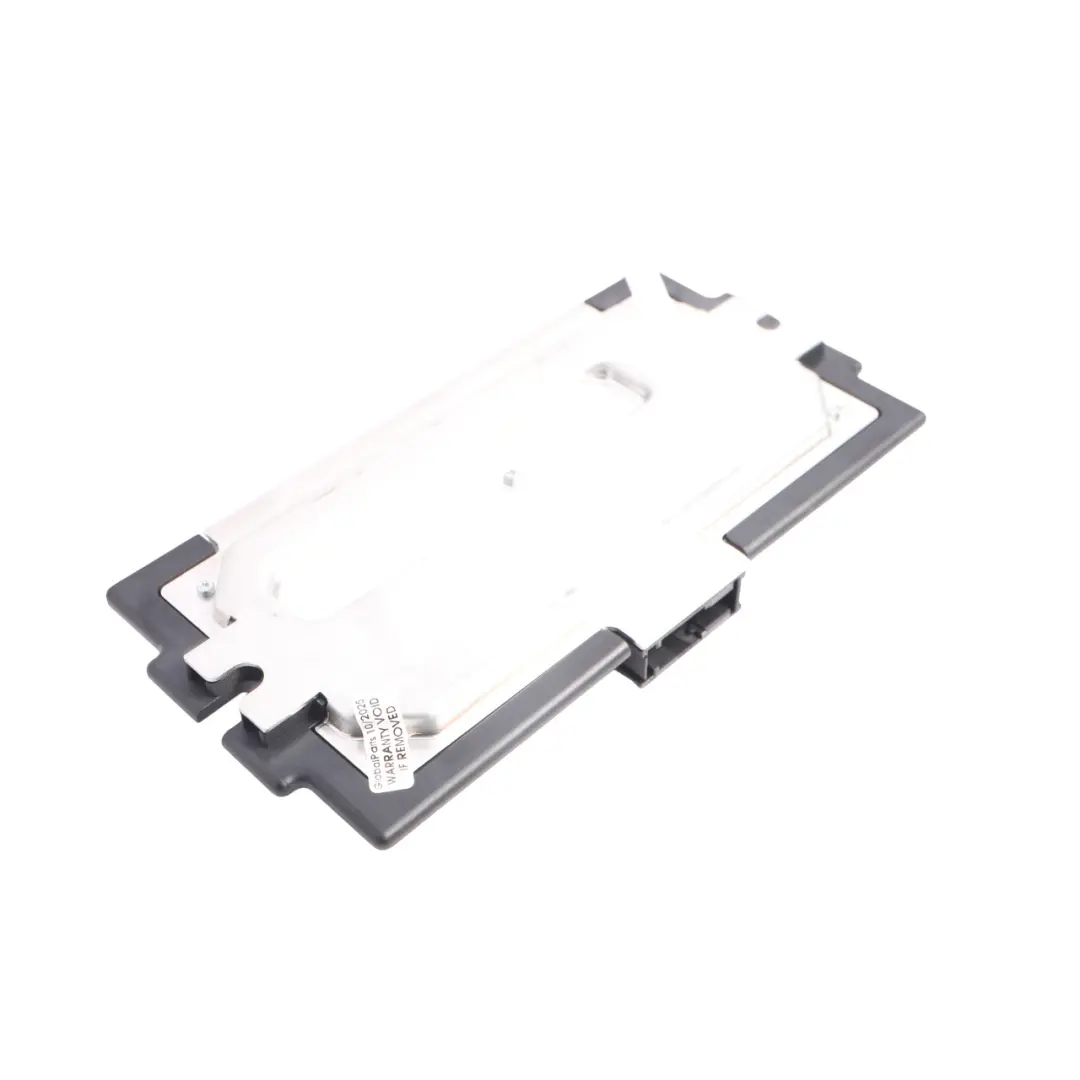

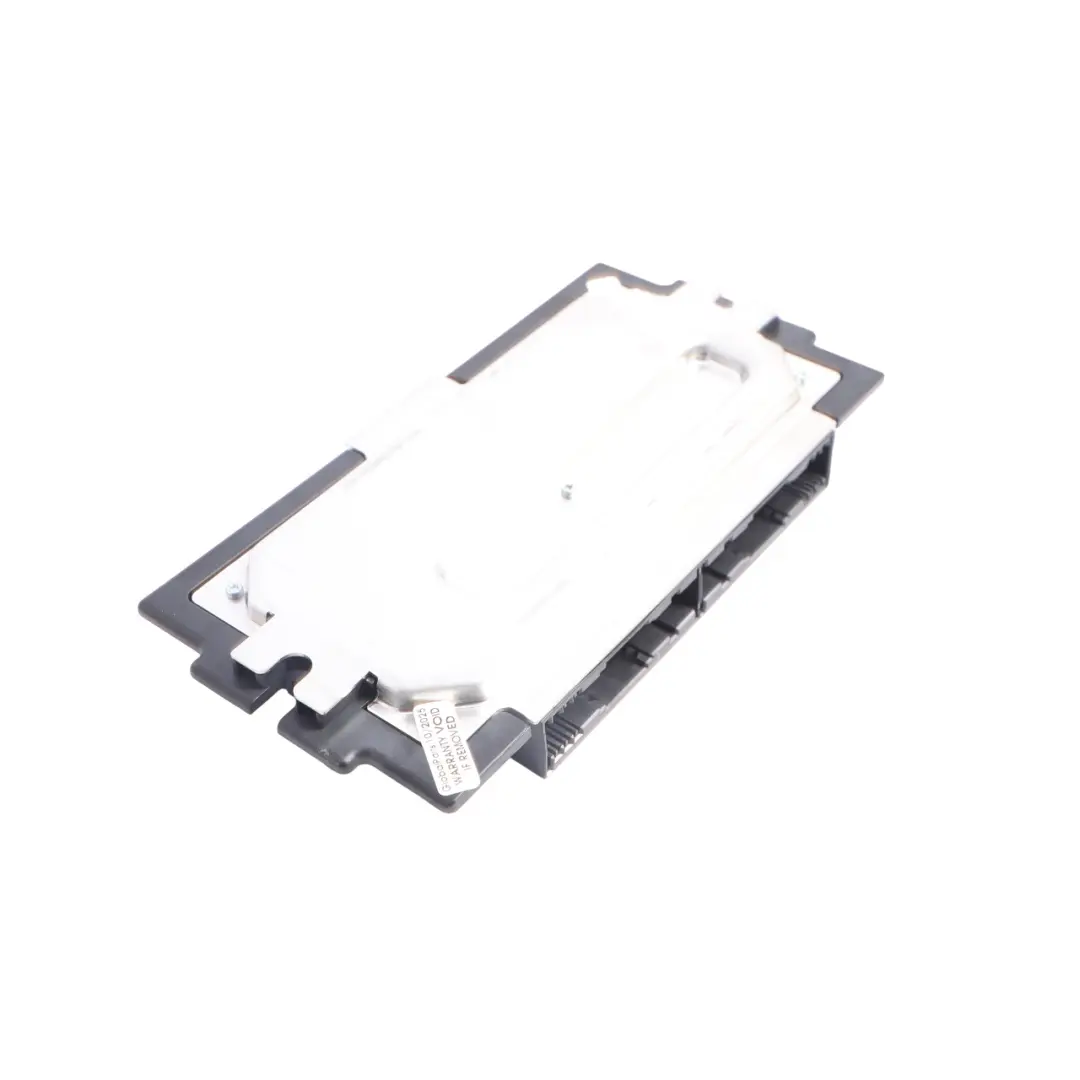

BMW E89 Footwell Light Module ECU Control LED XE PL2 FRM II Lear 9204536

BMW E89 Footwell Light Module ECU Control LED XE PL2 FRM II Lear is a specialized, original module from the Electronic control modules and controllers group, responsible for advanced control of the footwell lighting and related comfort functions in selected BMW models. The FRM II Lear design ensures precise communication with the vehicle's electrical system and stable operation of the LED lighting system.

Specifications and technical data

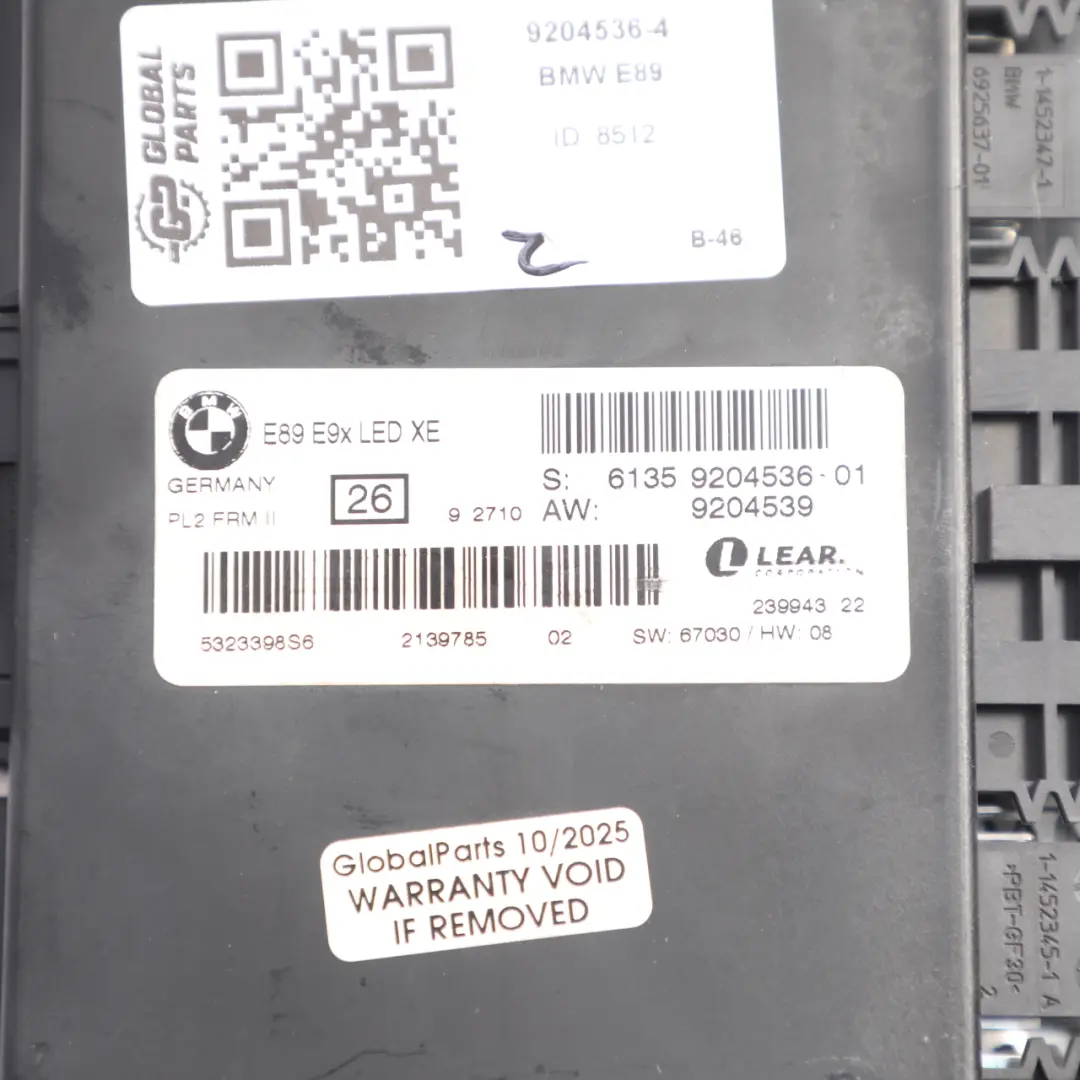

• SKU: 9204536-4
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 9204536
• Substitutable numbers: 61359204536, 9204536
• Category: ECUs & Computer Modules

Purpose and function of the FRM II module

The presented controller is a component of the BMW lighting management system, mounted in the footwell area. As an ECU module for LED lights, it is responsible for:

• controlling interior lighting in the floor and door sill areas,
• cooperating with the body electrical system and other comfort controllers,
• handling signals from sensors and switches related to lighting.

Thanks to this, the lighting system operates in harmony with the vehicle's logic, ensuring user convenience and predictable responses to opening doors, switching on the ignition, or changing operating modes.

Electronic design and integration with the BMW electrical system

The FRM II Lear module has been designed as a component fully integrated with the BMW electrical architecture. In practice, this means:

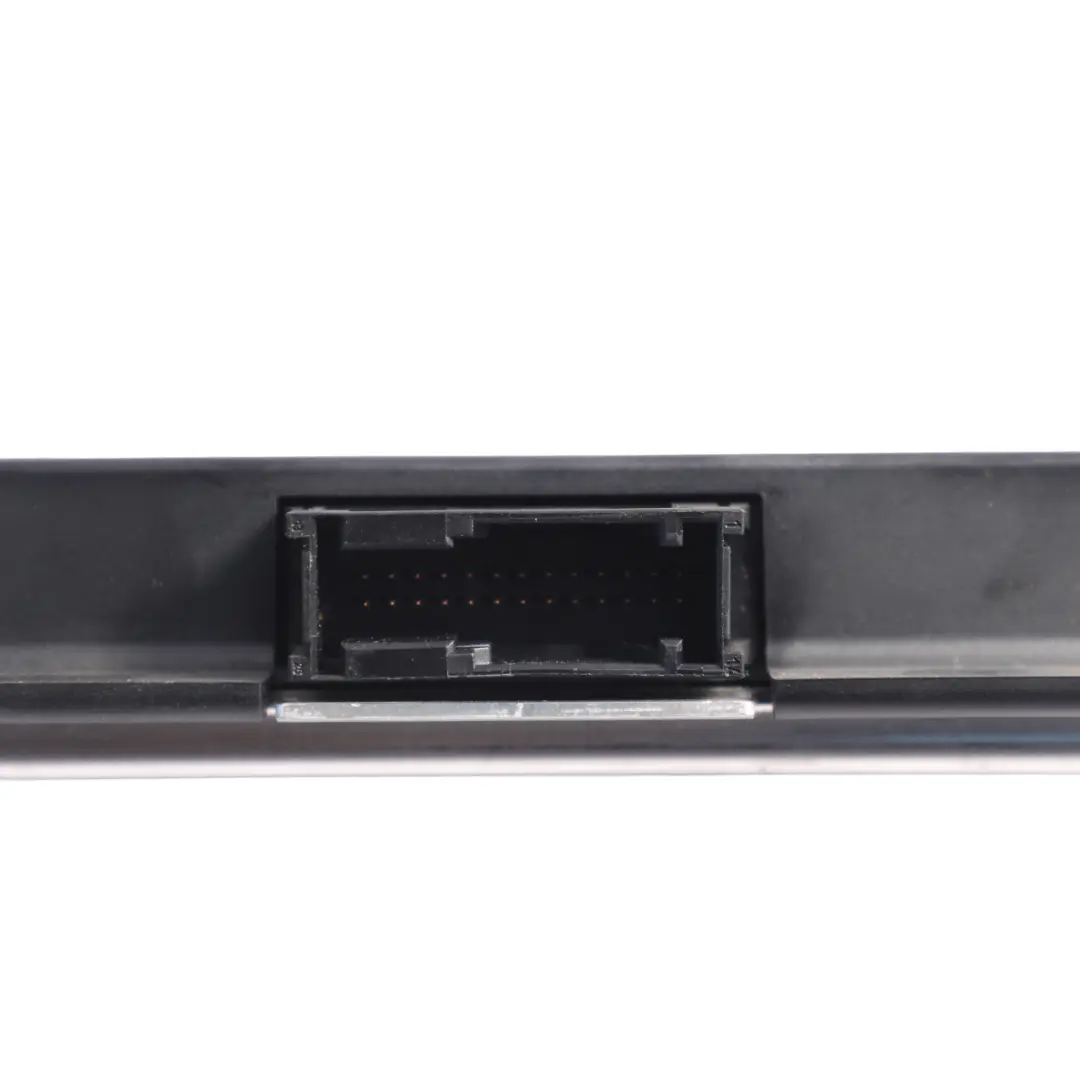

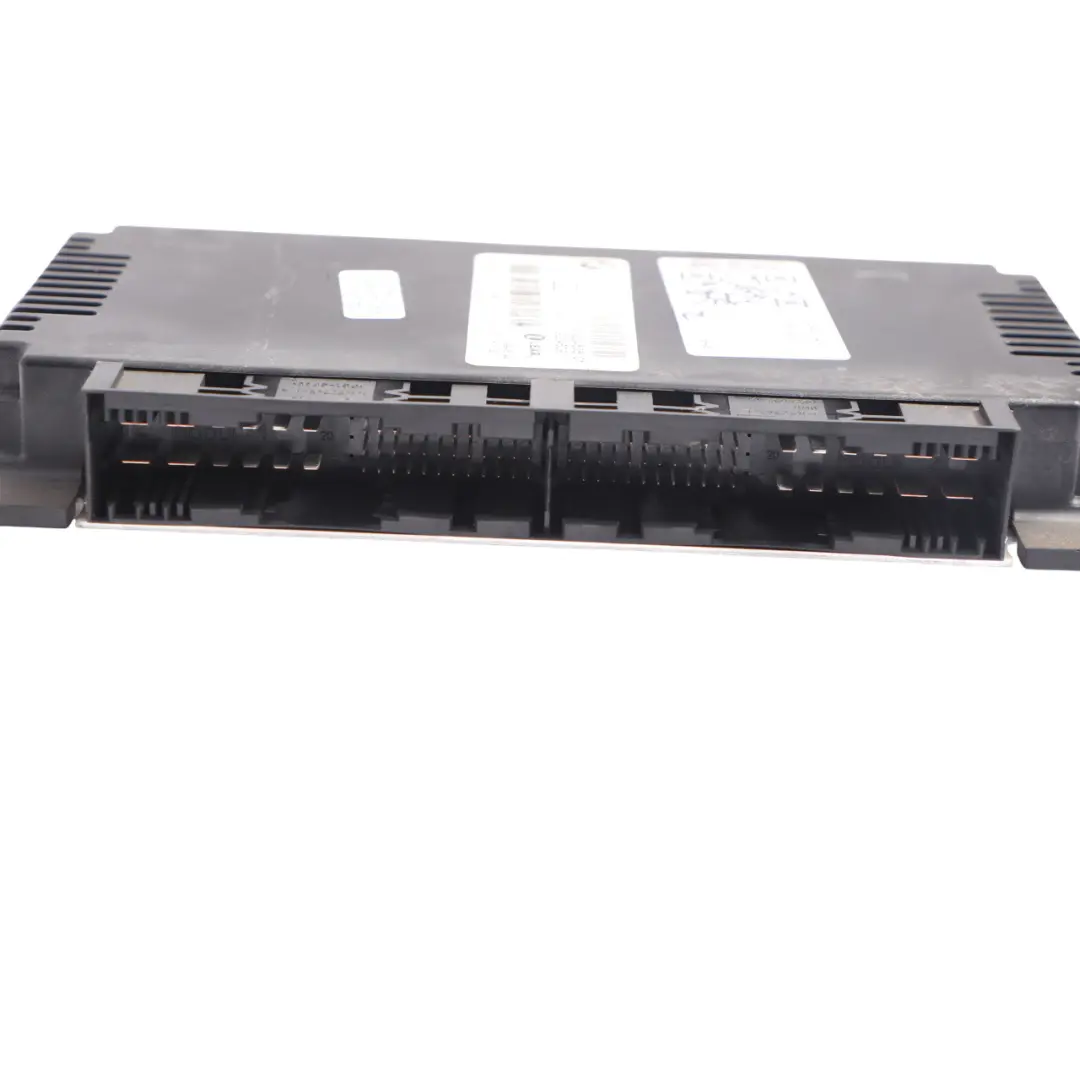

• dedicated connectors matched to the vehicle's wiring harness,
• communication with other controllers via the vehicle's bus,
• optimized control of LED loads to reduce errors and light flickering.

Such a solution allows for maintaining factory functionality without the need for modifications to the installation, and the module itself operates in accordance with the vehicle manufacturer's specifications.

Benefits of using an original used module

Choosing a used controller from the FRM II Lear family for a BMW is a solution that combines cost control with maintaining the original vehicle specification. The most important advantages include:

• factory electrical and software compatibility with BMW systems,
• preservation of the original lighting logic and comfort functions,
• the possibility of economical lighting system repair without giving up OEM parts.

The module comes from the Electronic control modules and controllers segment, which means it is designed to operate in demanding temperature conditions and under variable electrical loads typical for modern automotive installations.

Selection and installation in the vehicle

To correctly select this controller for a specific BMW unit, attention should be paid to the compatibility of the module version with the vehicle's equipment and production year. In many cases, after installation, it is necessary to perform appropriate adaptation or coding procedures using specialized service software so as to:

• synchronize the module with other controllers in the vehicle,
• ensure the correct operation of all LED lighting functions,
• avoid error messages in the diagnostic system.

Professional installation and configuration allow you to fully utilize the module's capabilities and restore the proper operation of the lighting system in the car.
