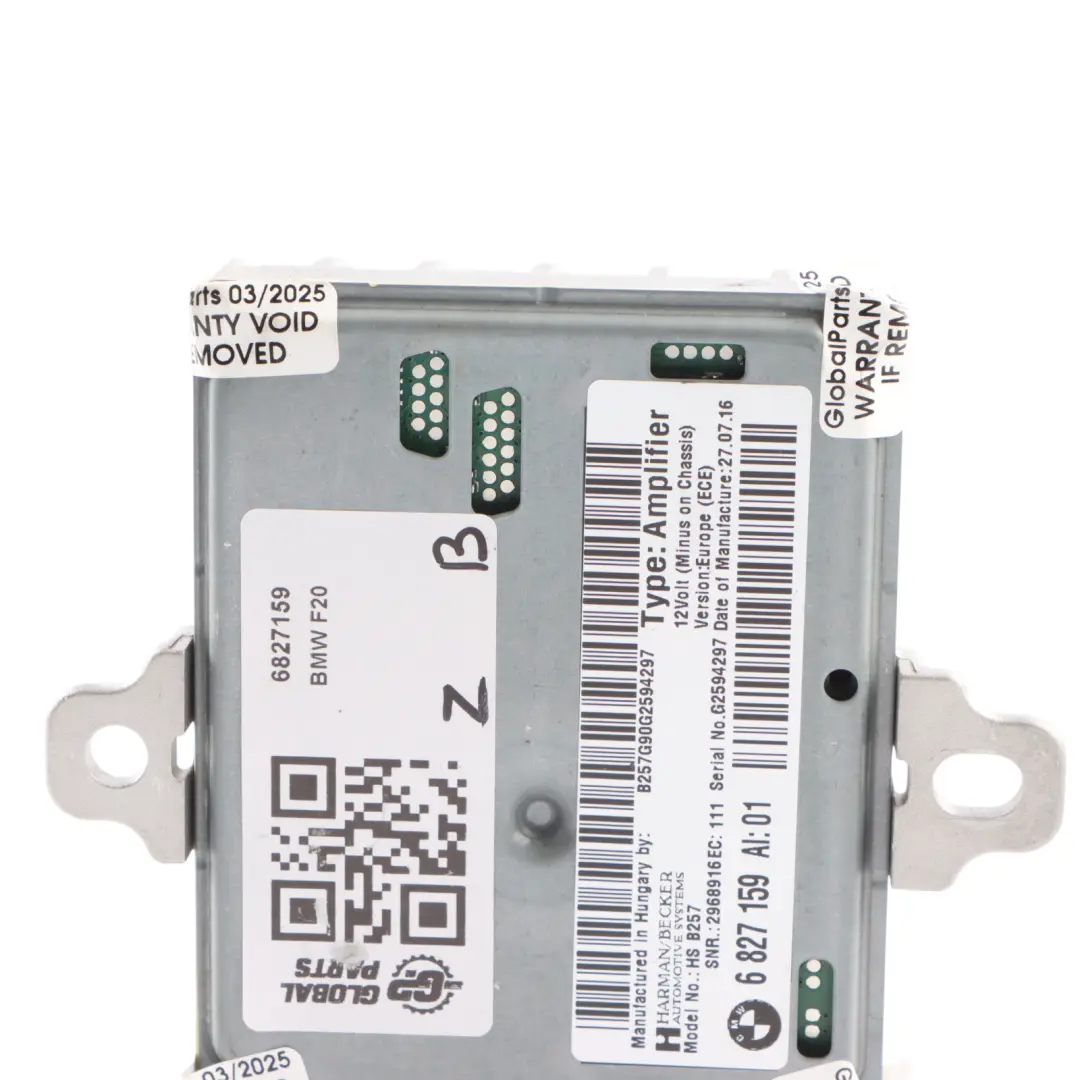

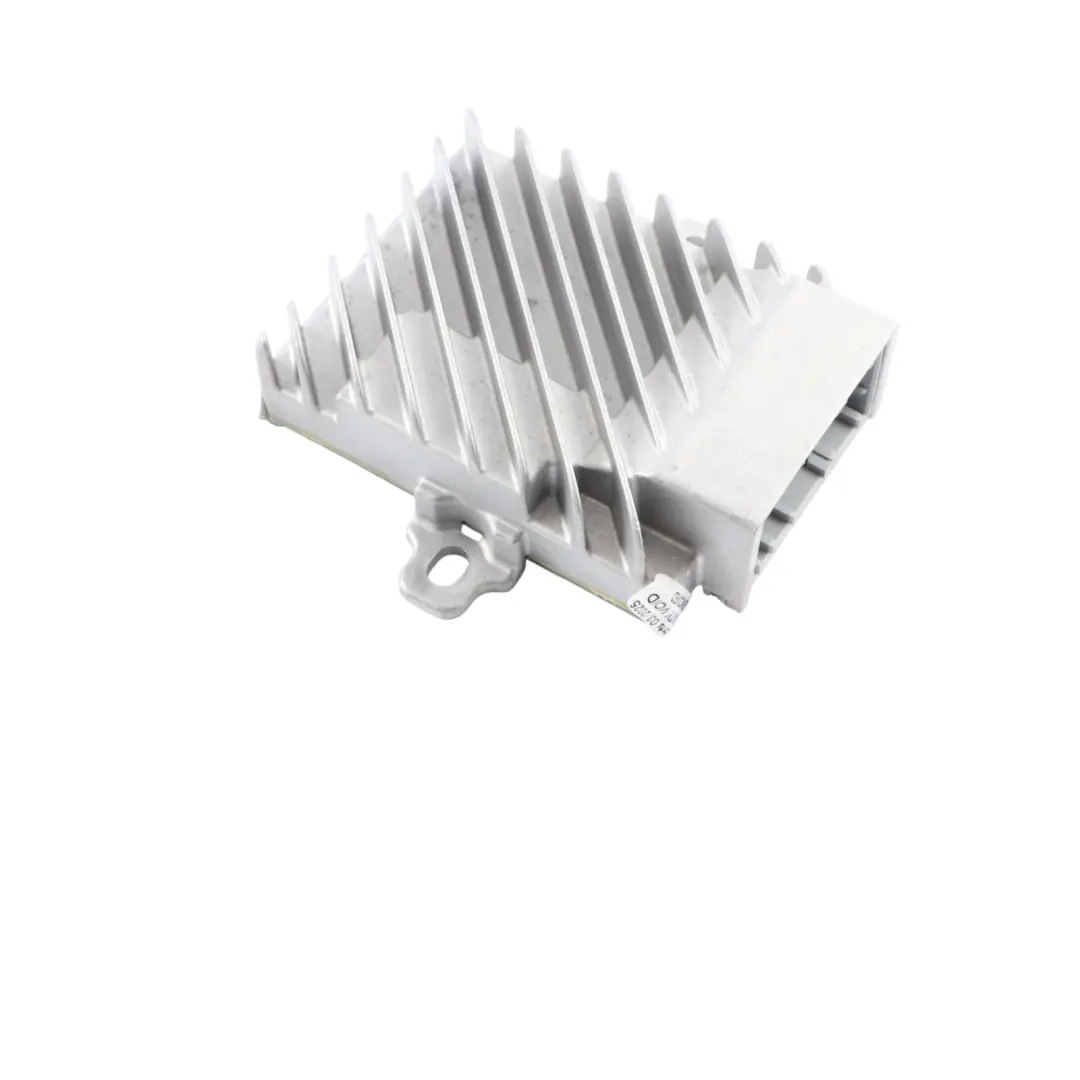

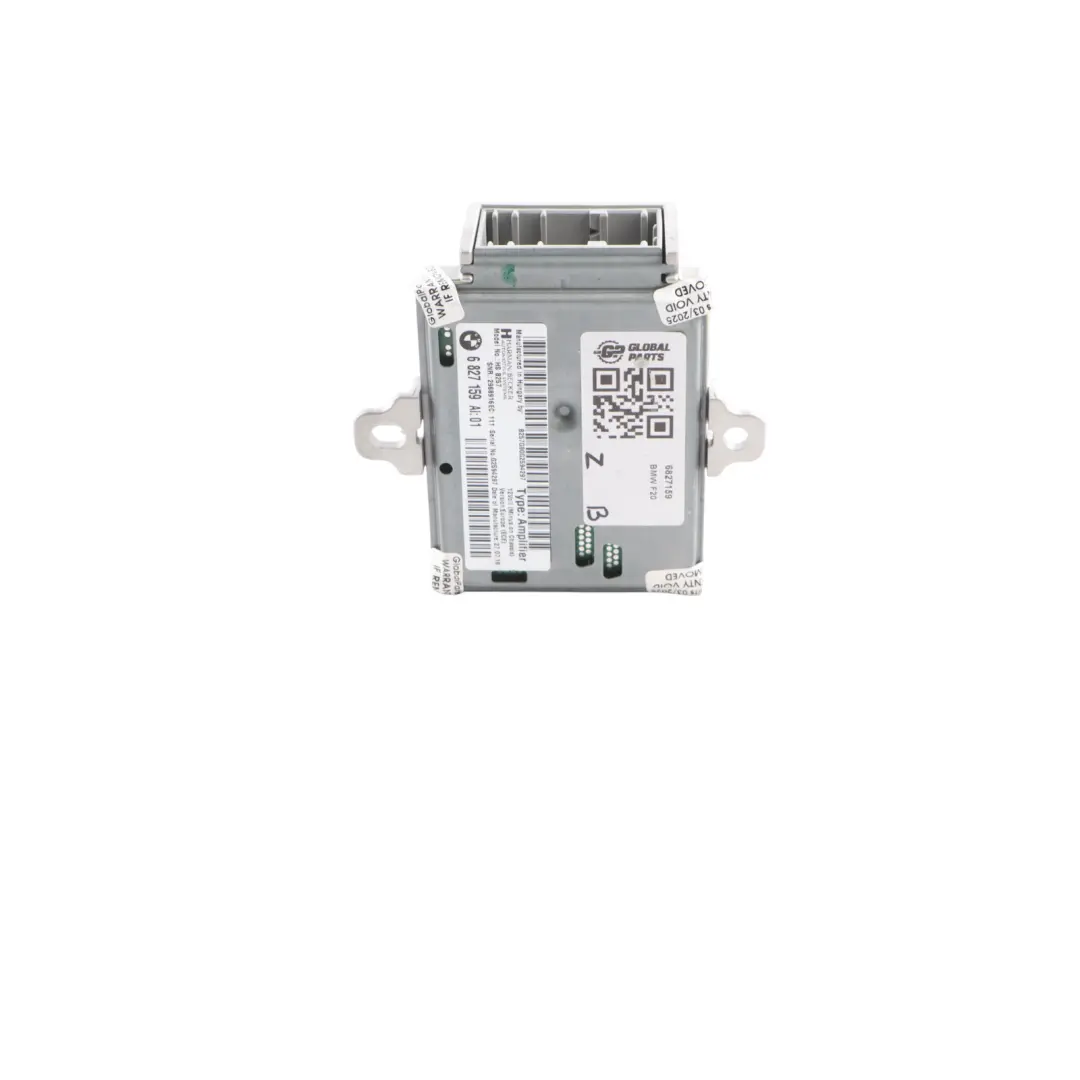

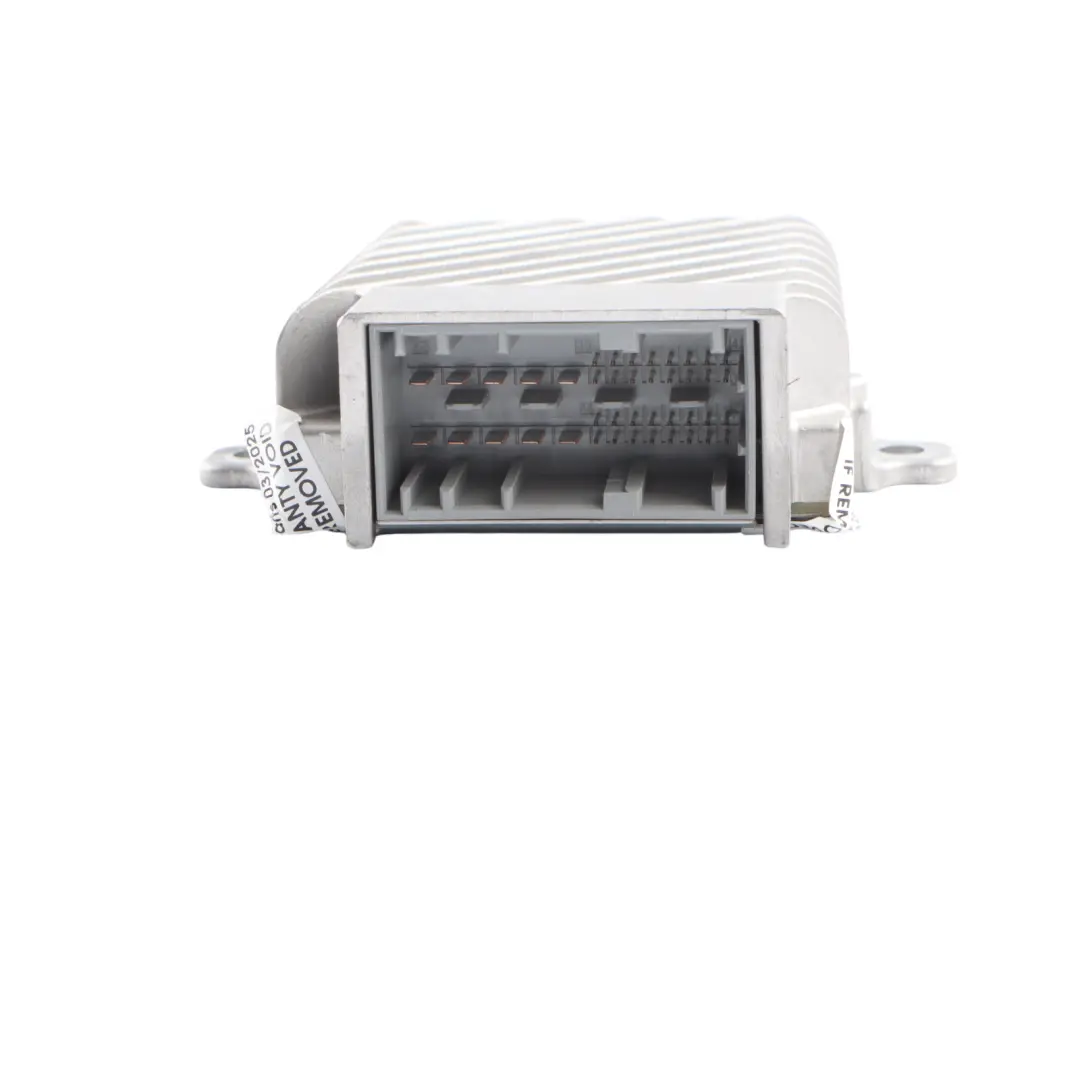

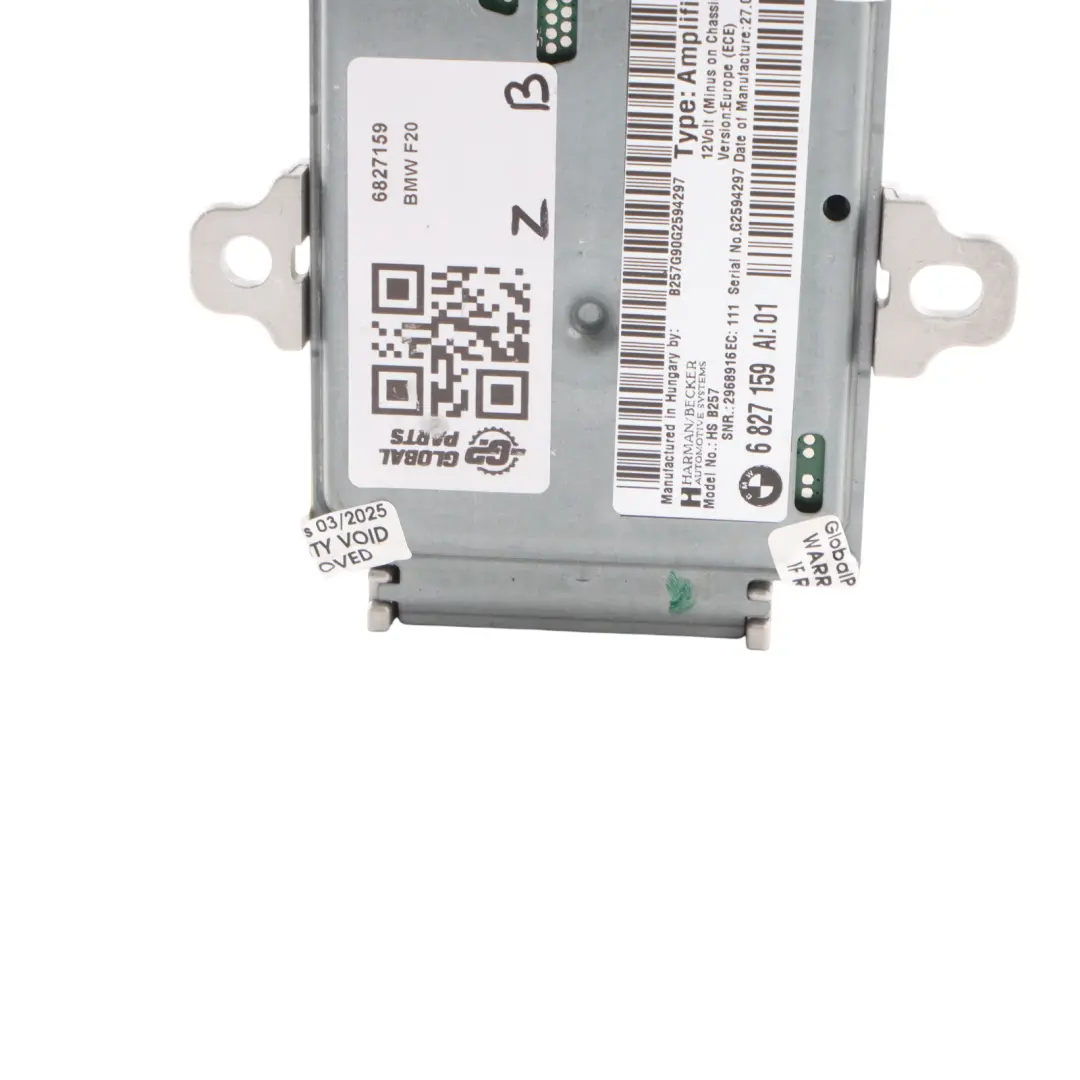

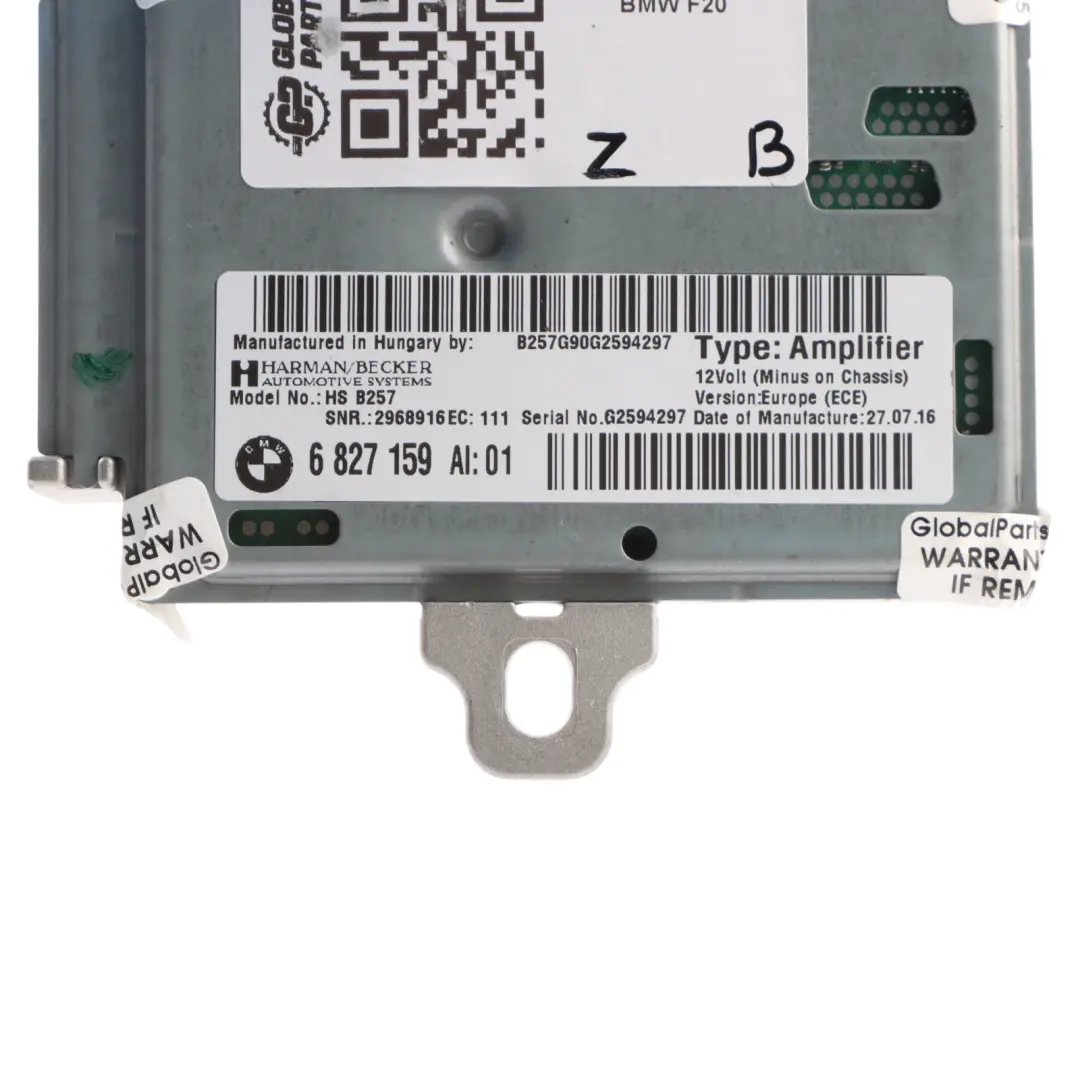

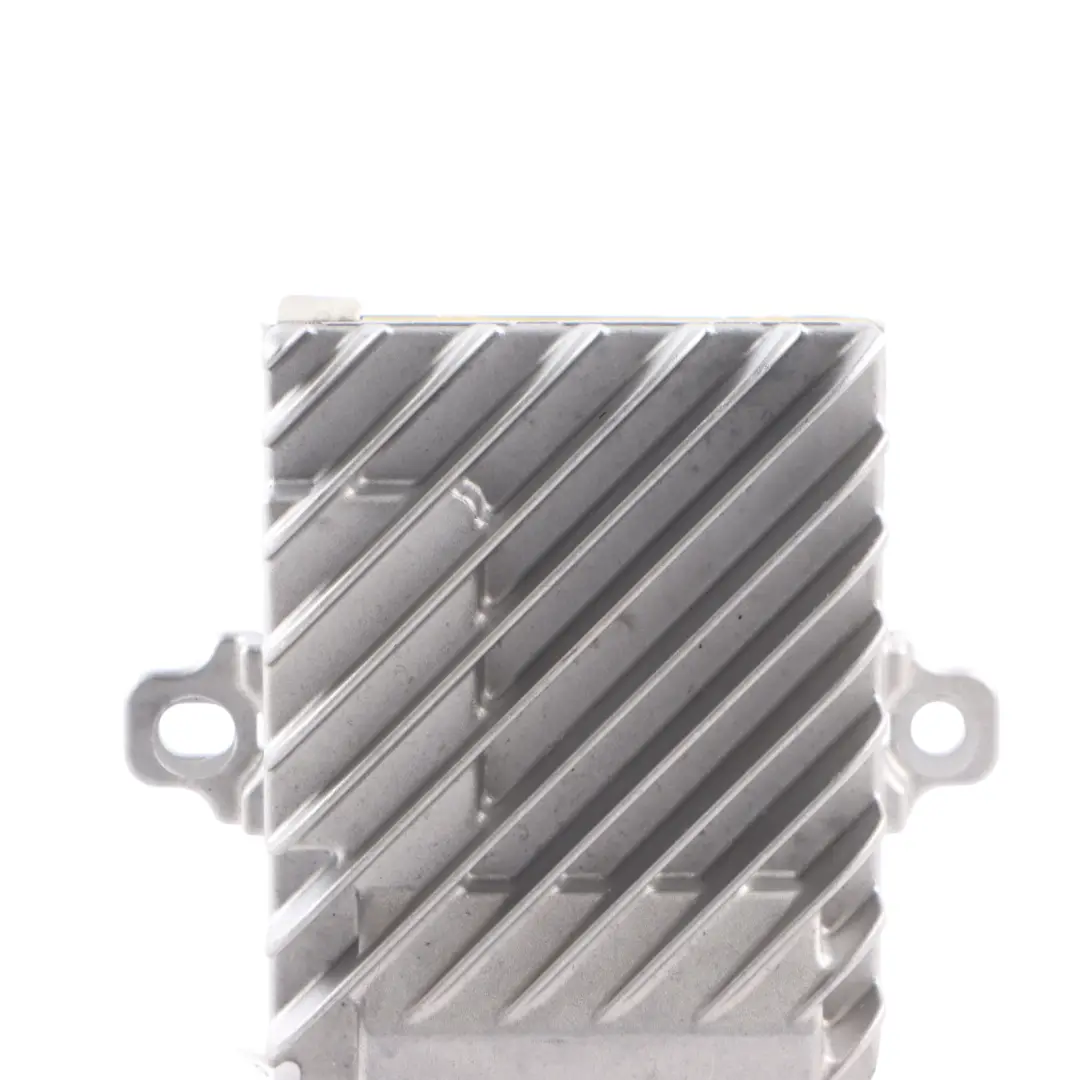

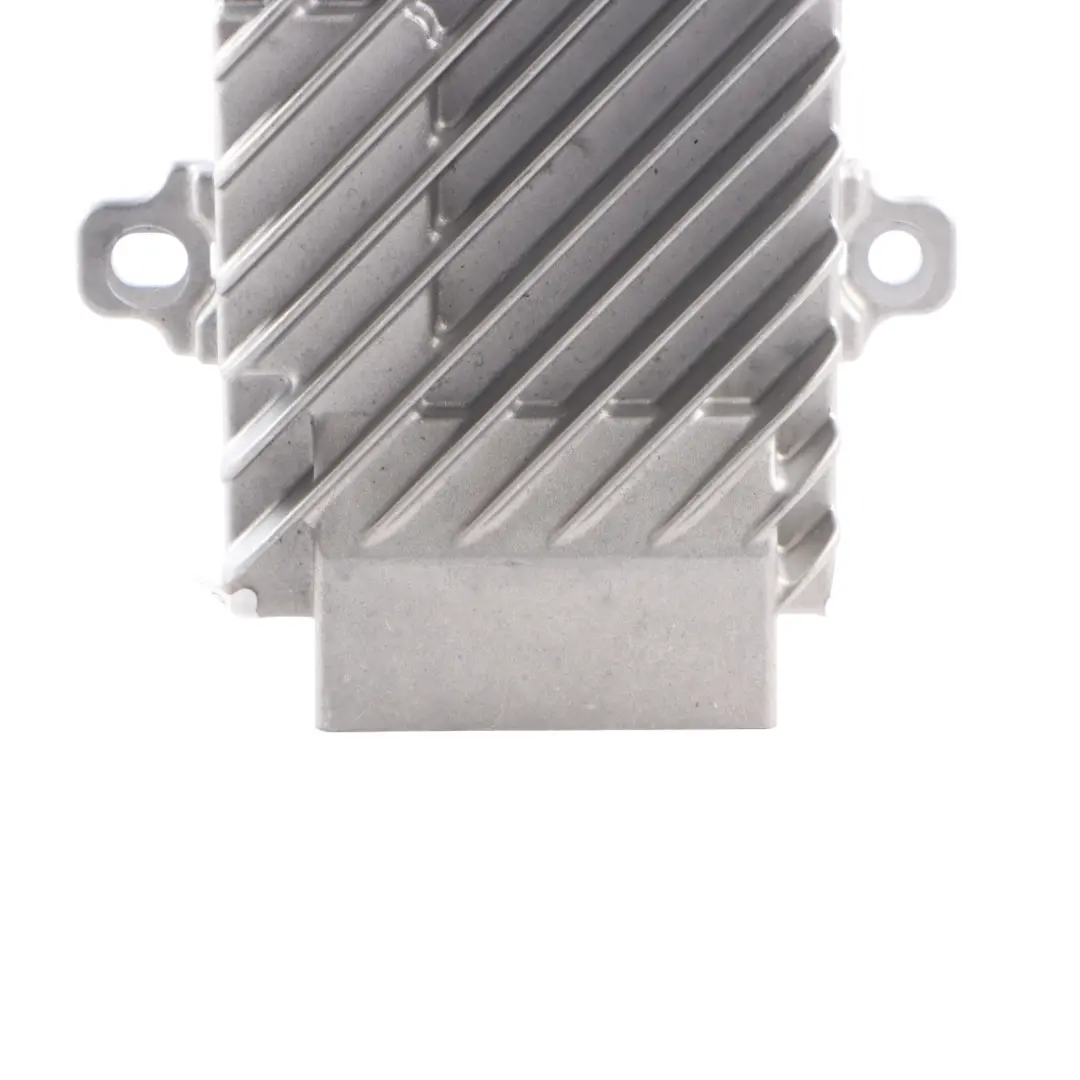

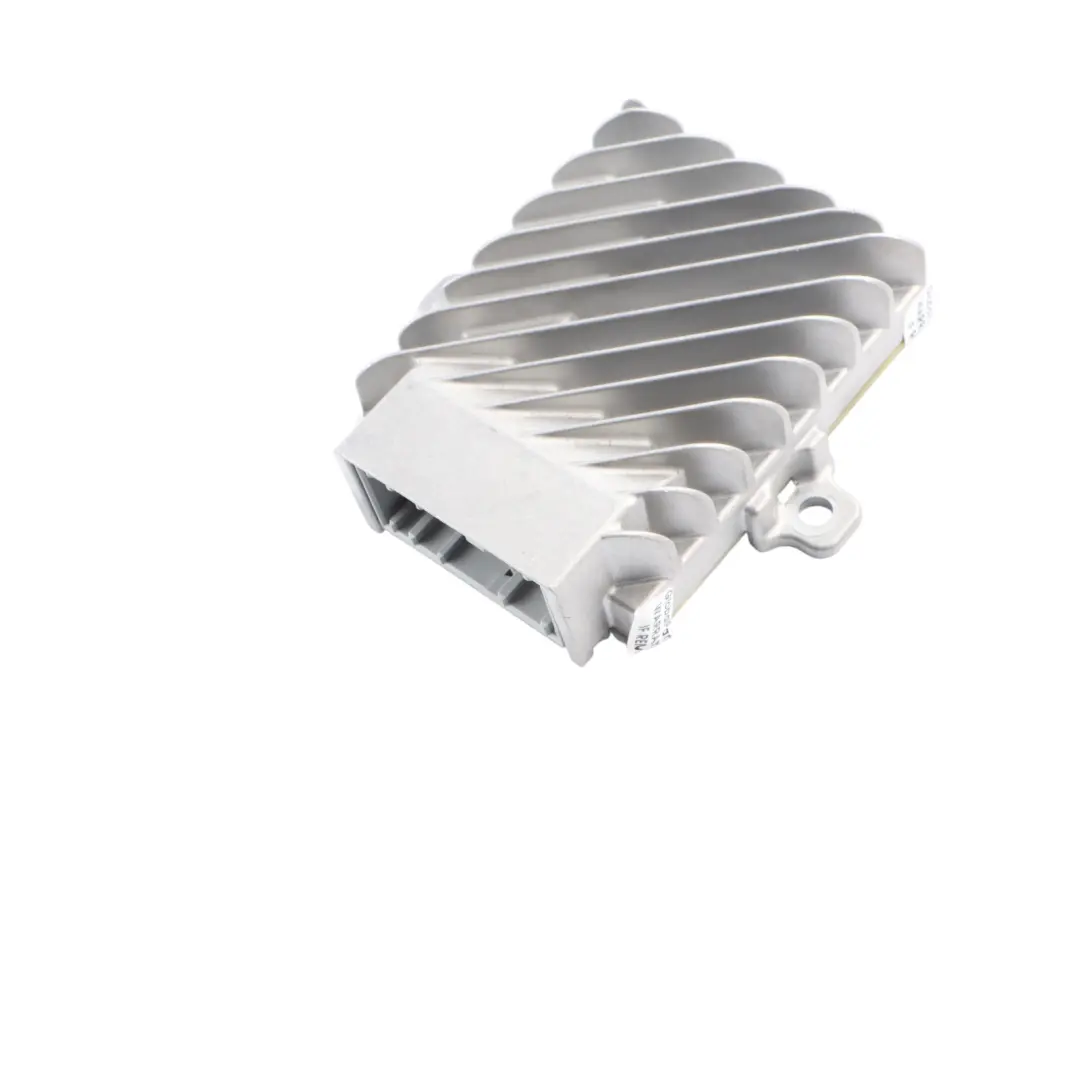

Audio Amplifier BMW F20 F21 F22 Harman/Kardon Active Sound Design System 6827159

Audio Amplifier BMW F20 F21 F22 Harman/Kardon Active Sound Design System is an original electronic control module designed for factory BMW sound systems with the Active Sound Design function. This component is responsible for precise speaker control and generating the characteristic sound inside the cabin, in accordance with the manufacturer's specifications. By using an original amplifier, you maintain vehicle configuration consistency and full integration with the electrical system.

Specifications and technical data

• SKU: 6827159
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 6827159
• Substitutable numbers: 6827159, 65126827159, 2622892, 65122622892, 9390396, 65129390396, 6805821, 65126805821, 6809354, 65126809354, 9362445, 65129362445, 9326555, 65129326555, 9381088, 65129381088, 9367812, 65129367812, 9353021, 65129353021, 9352264, 65129352264, 2622503, 65122622503, 6834089
• Category: ECUs & Computer Modules

Purpose and function of the amplifier

The presented Harman/Kardon audio amplifier with the Active Sound Design system is a component from the Electronic control modules and controllers group, responsible for digital audio signal processing and controlling the sound system operation in selected BMW F-series models. The module communicates with the vehicle's electrical system via the communication bus, integrating with the head unit, sensors, and other comfort controllers.

Active Sound Design allows for shaping the sound character inside the cabin – both for music and synthetically enhanced engine sound – in accordance with the manufacturer's factory settings. Using the original module ensures the preservation of correct sound maps, volume levels, and time delays between channels.

Benefits of using an original BMW module

Choosing an original Harman/Kardon amplifier with the Active Sound Design system primarily ensures full compatibility with the factory installation and vehicle software. The module has been designed specifically for the BMW electrical architecture, allowing it to work with the existing wiring harness, speaker configuration, and iDrive system controls.

Key advantages include:

• preservation of the factory sound quality of the Harman/Kardon system,
• proper operation with the Active Sound Design function without the need for installation modifications,
• stable operation under high acoustic load conditions,
• integration with other comfort and multimedia controllers.

As a result, the module provides a technically coherent solution when replacing a damaged amplifier or restoring the full functionality of the factory audio system.

Technical characteristics and vehicle integration

As a component from the Electronic control modules and controllers group, the amplifier performs advanced signal processing (DSP), channel separation, and volume level control depending on the vehicle's operating mode. The module communicates with other controllers via a digital bus, which enables dynamic adjustment of the sound characteristics to the selected driving profile and user settings.

The original design ensures proper cooling of the power electronics and stability of operating parameters across a wide temperature range. The module is prepared for installation in the factory-designated location, which facilitates service and reduces the risk of incorrect connection.

Product condition and practical application

The offered amplifier is a used component, sourced from dismantling, which provides an attractive cost-effective solution while maintaining the original BMW specification. This type of module is particularly recommended in situations where the factory Harman/Kardon system has stopped working correctly, sound distortions occur, or error messages related to the audio system appear.

Before installation, it is recommended to verify compatibility using the OEM number and interchangeable numbers, as well as to consult with an automotive electrician or a service center specializing in BMW electronics to ensure proper configuration and potential coding of the module in the vehicle.

Selecting a used module and technical support

In the case of electronic audio controllers, it is crucial to match them by part numbers, hardware versions, and software. To better understand the principles of selecting used modules, differences between versions, and compatibility issues, it is worth reading the Global Parts guide: Used automotive electronics on board – why is it worth choosing second-hand ECU modules and sensors?. The article discusses, among other things, selection by VIN/OEM, HW/SW compatibility, and practical installation tips.

If you are planning a comprehensive repair or upgrade of the comfort and multimedia electronics area in your BMW and need other components from the same group, such as audio controllers, comfort modules, or multimedia system control units, check the available parts in the BMW Electronic control modules and controllers category.
