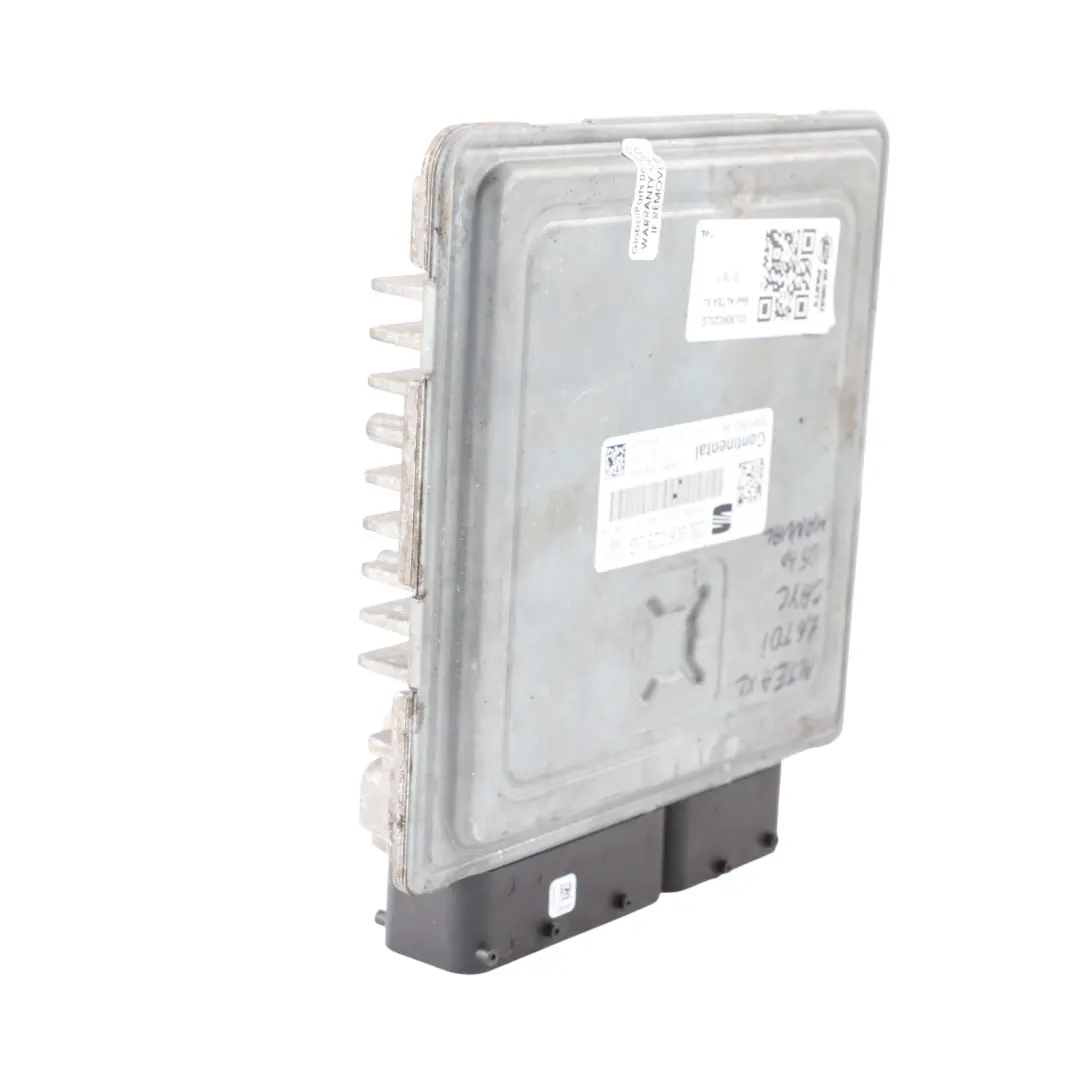

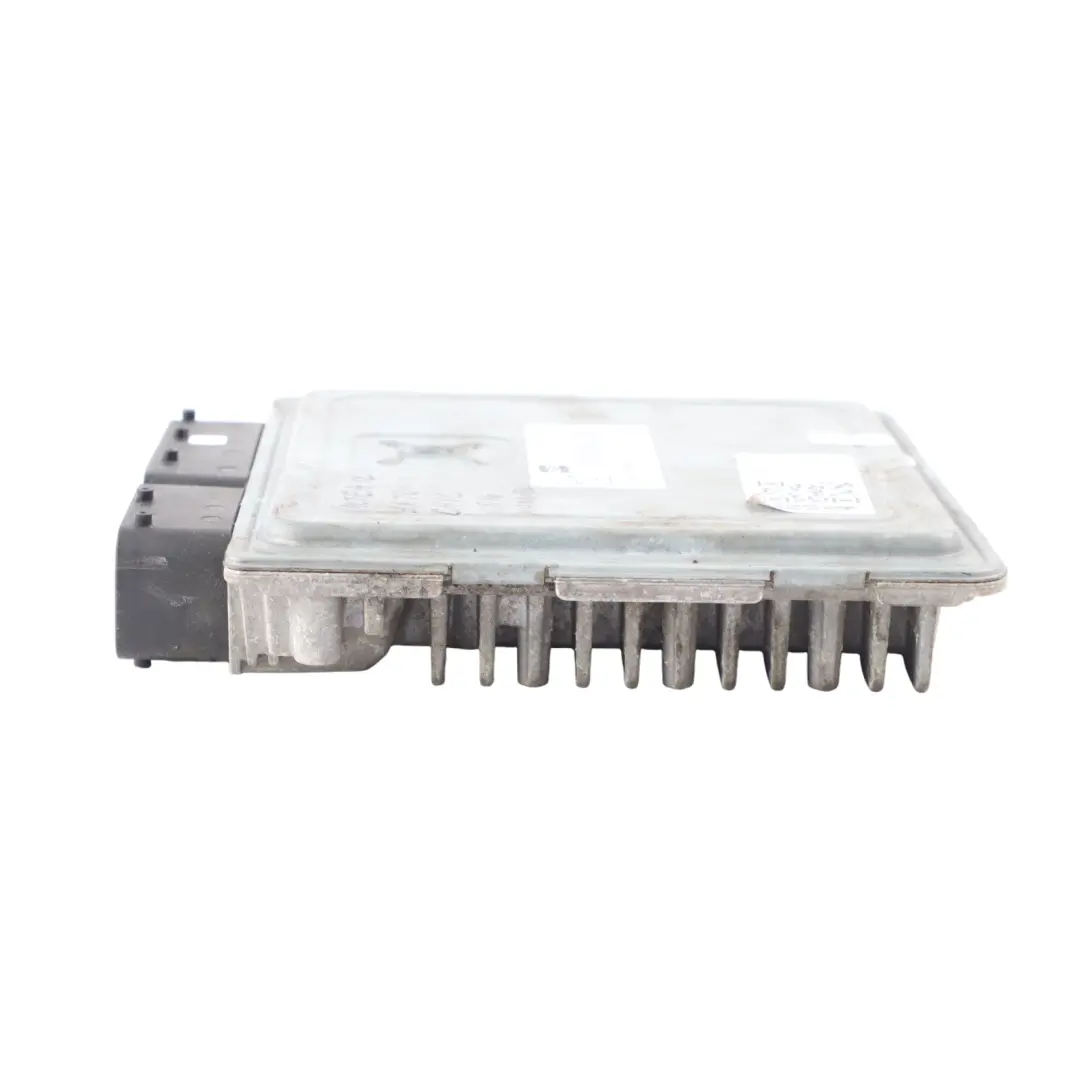

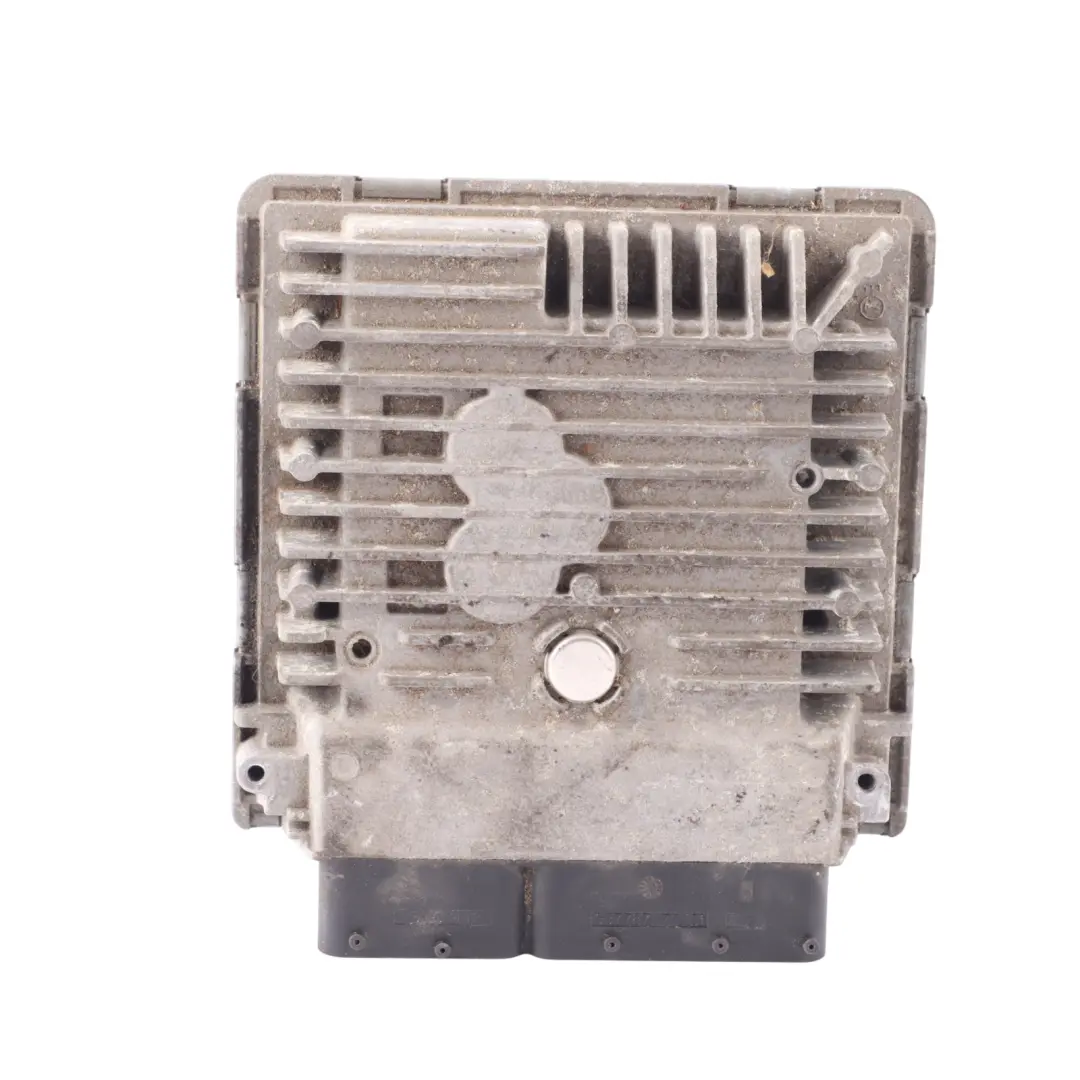

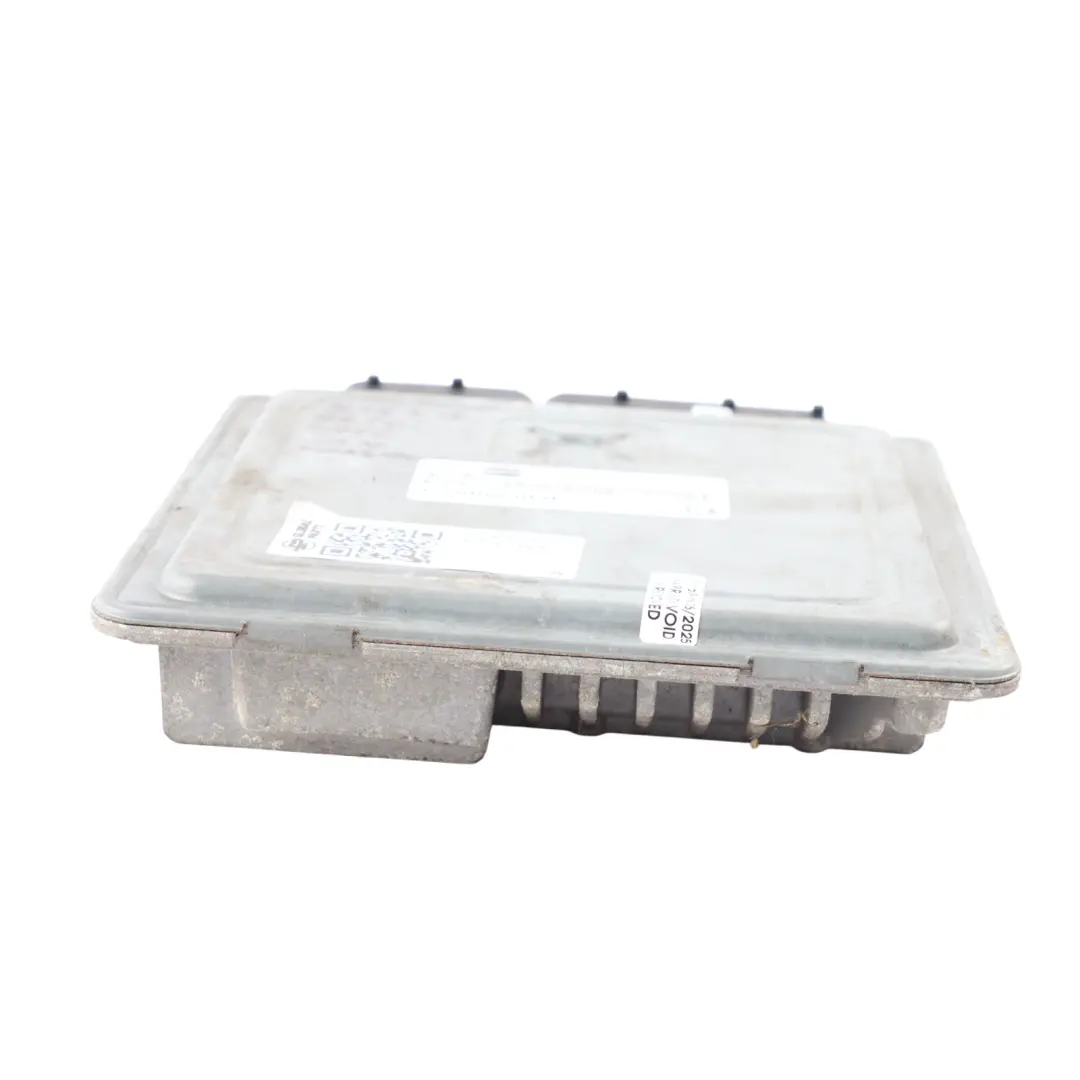

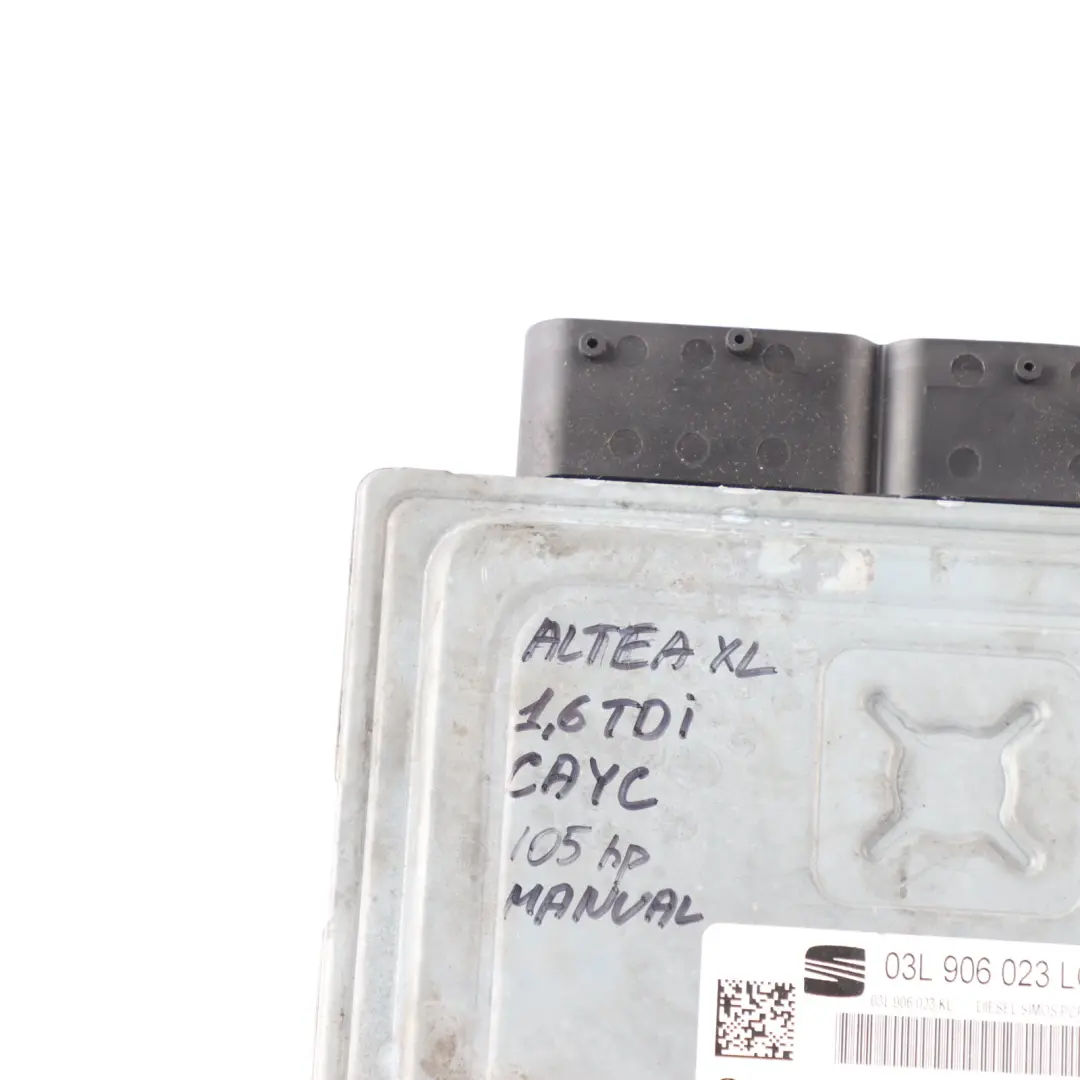

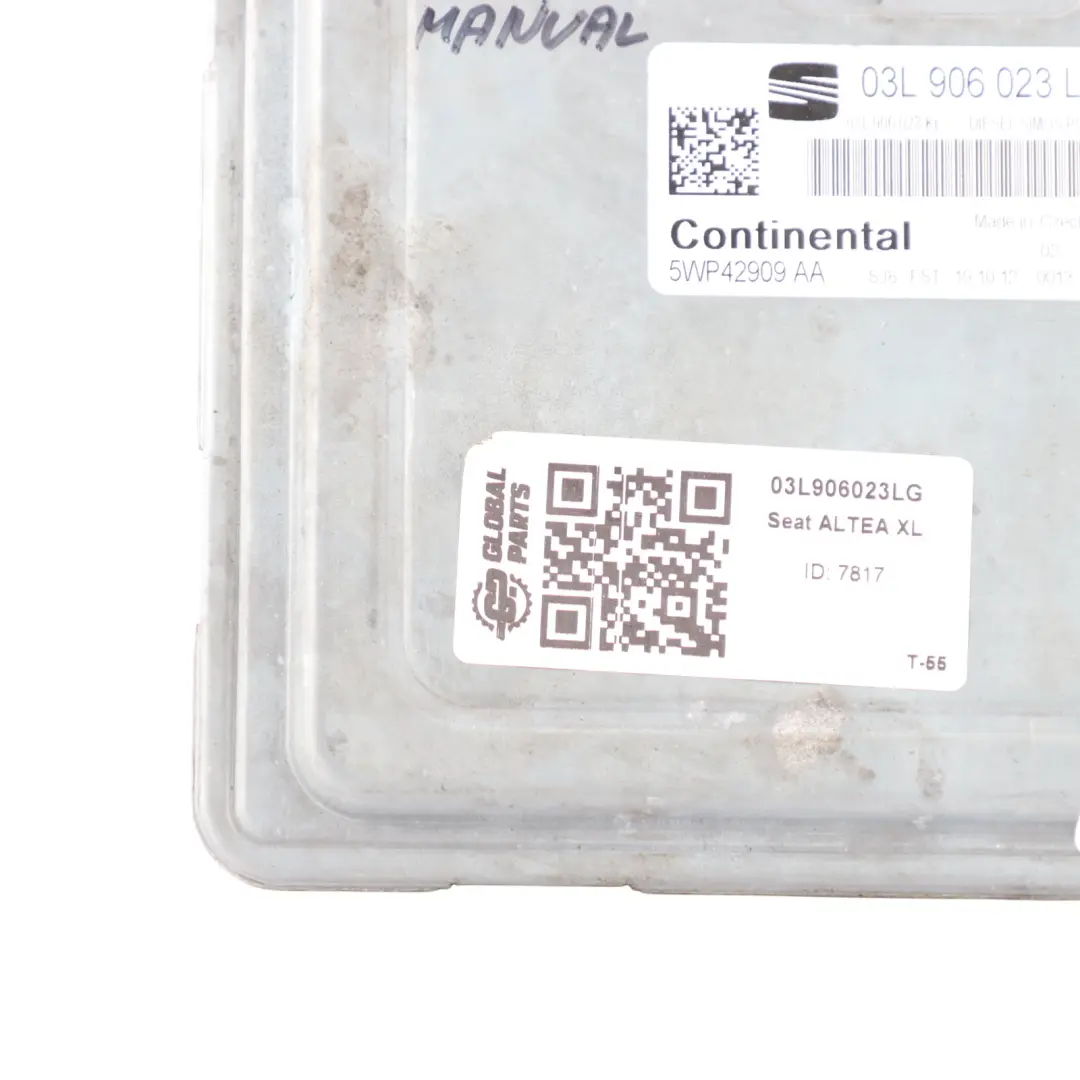

Seat Alta XL 1.6 TDI 105HP Diesel CAYC Engine Control ECU 03L906023LG Manual

The Seat Altea XL 1.6 TDI 105HP Diesel CAYC – Engine Control Unit (ECU) for Manual Transmission is a factory electronic control module designed for precise management of the diesel engine's operation. This component, from the Electronic Control Units and Controllers group, ensures proper communication with the vehicle's electrical system, supporting stable engine performance and associated systems. By maintaining the original electronic architecture, it is a particularly beneficial solution for repairs and replacements in vehicles with the 1.6 TDI CAYC engine.

Specifications and technical data

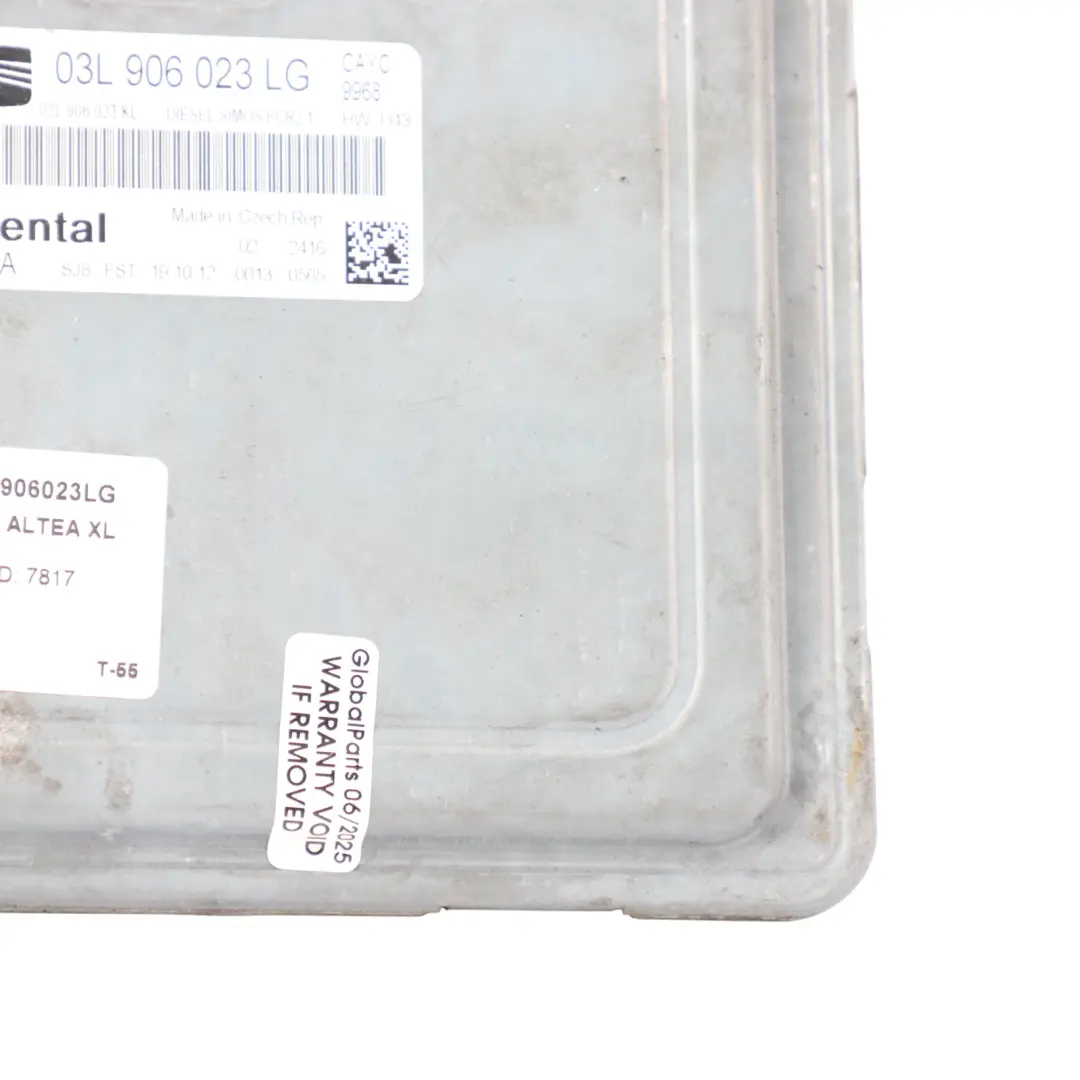

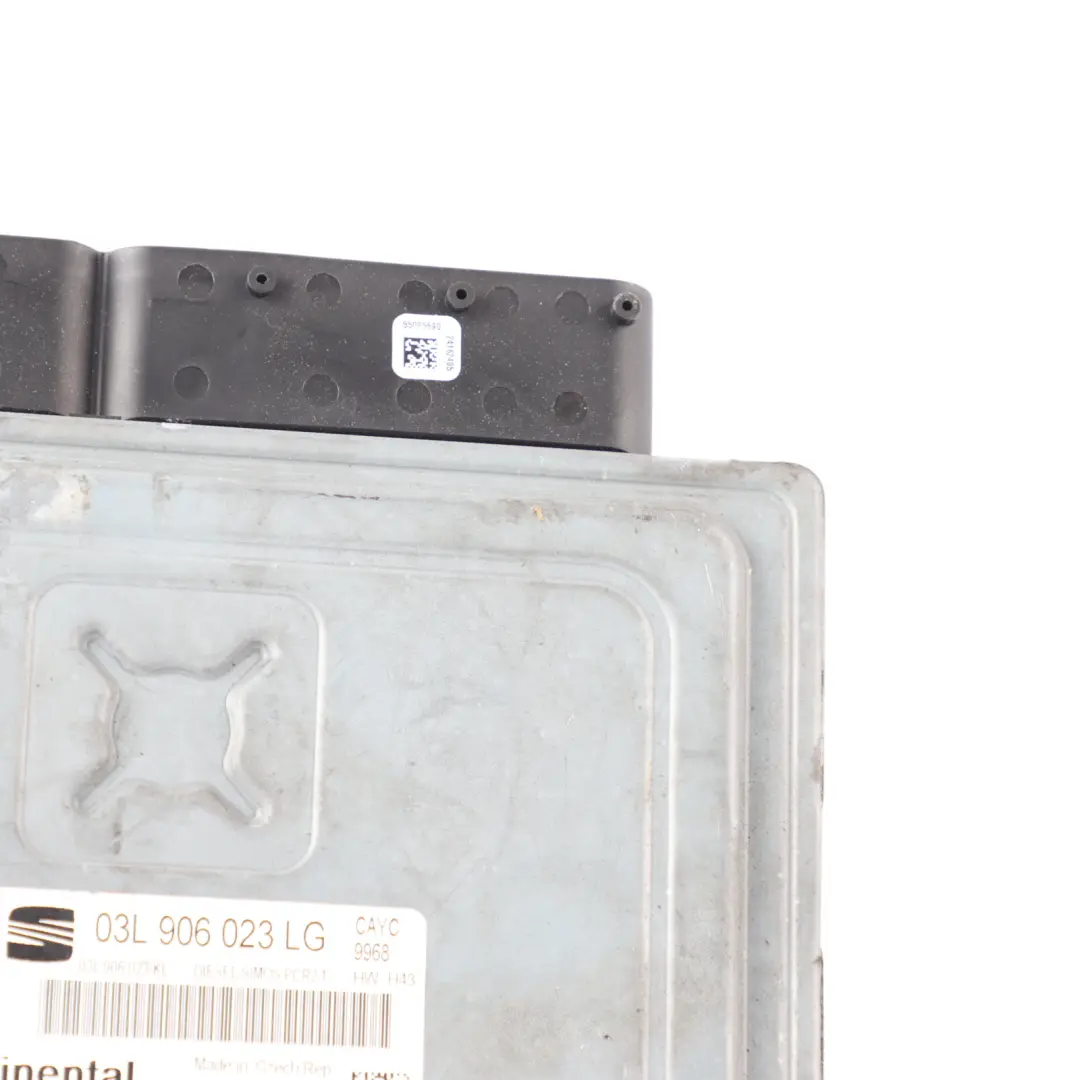

• SKU: 03L906023LG
• Mark: Seat
• Condition: Used
• OEM Part Number: 03L906023LG

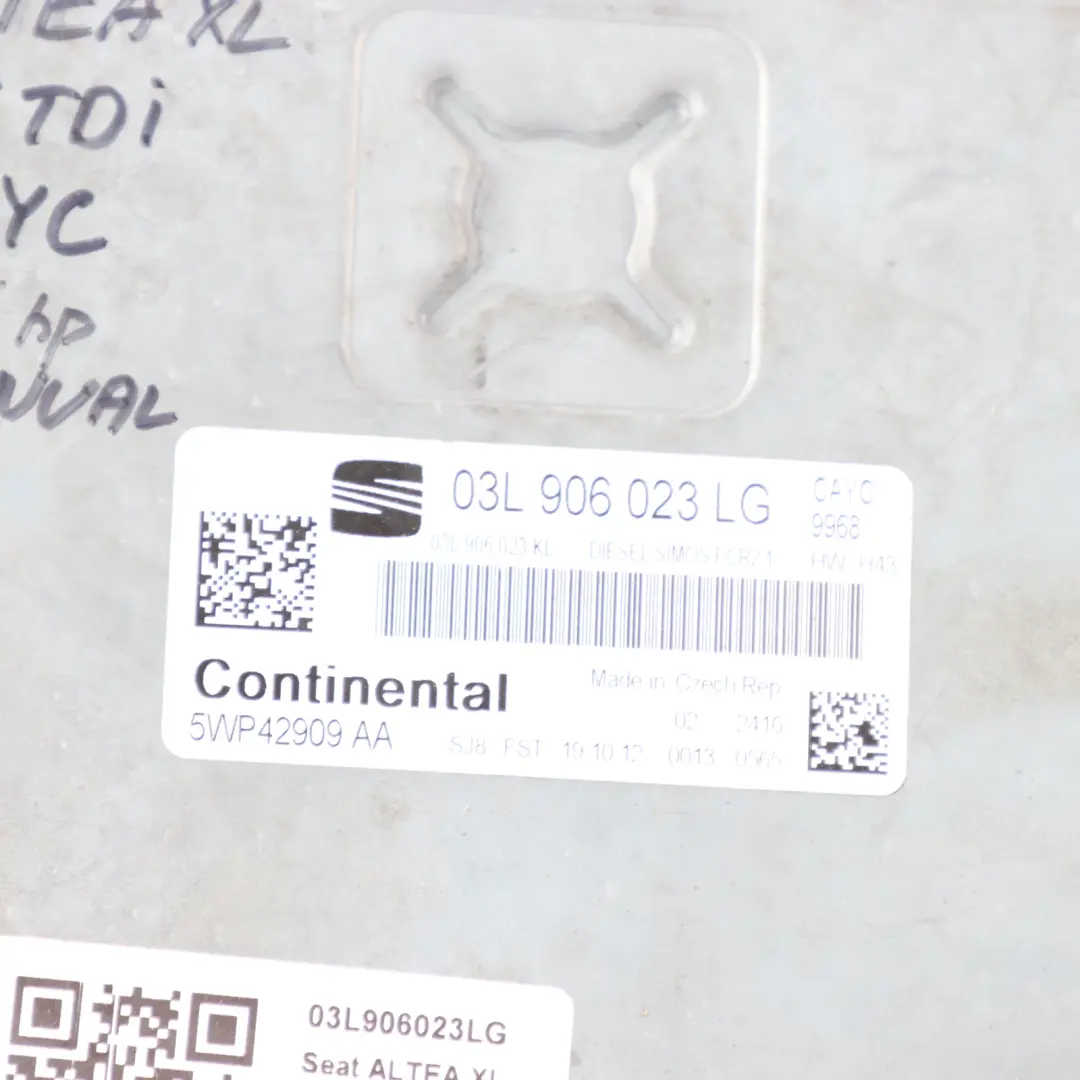

• Substitutable numbers: 03L906023LG, 03L 906 023 LG, 03L906023KL, 03L 906 023 KL, 5WP42909
• Fuel type: Diesel
• Gearbox type: Manual
• Category: ECUs & Computer Modules

ECU Purpose and Function

The engine control unit in the Seat Altea XL 1.6 TDI 105HP is responsible for comprehensive management of the diesel engine's operating parameters, such as fuel injection quantity, boost pressure, and injection corrections. The version dedicated to Diesel engines works with the specific hardware characteristic of the CAYC engine, allowing for the preservation of factory performance characteristics and predictable responses to load.

The module is designed to work with a manual gearbox, which is important for matching control maps to the specific drivetrain configuration. Proper selection of the ECU based on fuel type and transmission type minimizes the risk of communication errors within the vehicle network and facilitates adaptation during programming.

Benefits of Using an Original Control Module

Choosing a controller from the Electronic Control Units and Controllers group specifically designed for the Seat Altea XL ensures consistency with the vehicle's factory electrical system and software. The appropriate connector architecture and compatibility with CAN/LIN communication protocols (as used in this model) simplify installation and subsequent configuration in a service center.

A used ECU module is a sensible choice for repairs where cost-effectiveness is key, while still maintaining the original control logic. In practice, this means the ability to restore proper engine operation, stable idle speed, and correct functioning of systems dependent on the controller, such as OBD diagnostics and emergency mode support.

Selection and Installation in the Vehicle

Before installing the control unit in the Seat Altea XL 1.6 TDI, it is recommended to verify compatibility with the vehicle's configuration regarding fuel type and gearbox type. Proper matching facilitates subsequent adaptation in the vehicle, including potential immobilizer coding and synchronization with other modules. For service work, it is advisable to use technical documentation and diagnostic tools dedicated to the Seat brand.

Due to the nature of an electronic component, installation should be performed under controlled conditions, adhering to electrostatic discharge protection principles and ensuring correct harness connection. A properly selected and configured control unit helps maintain stable fuel consumption parameters, which translates to the smooth operation of the diesel engine and predictable drivetrain responses.
