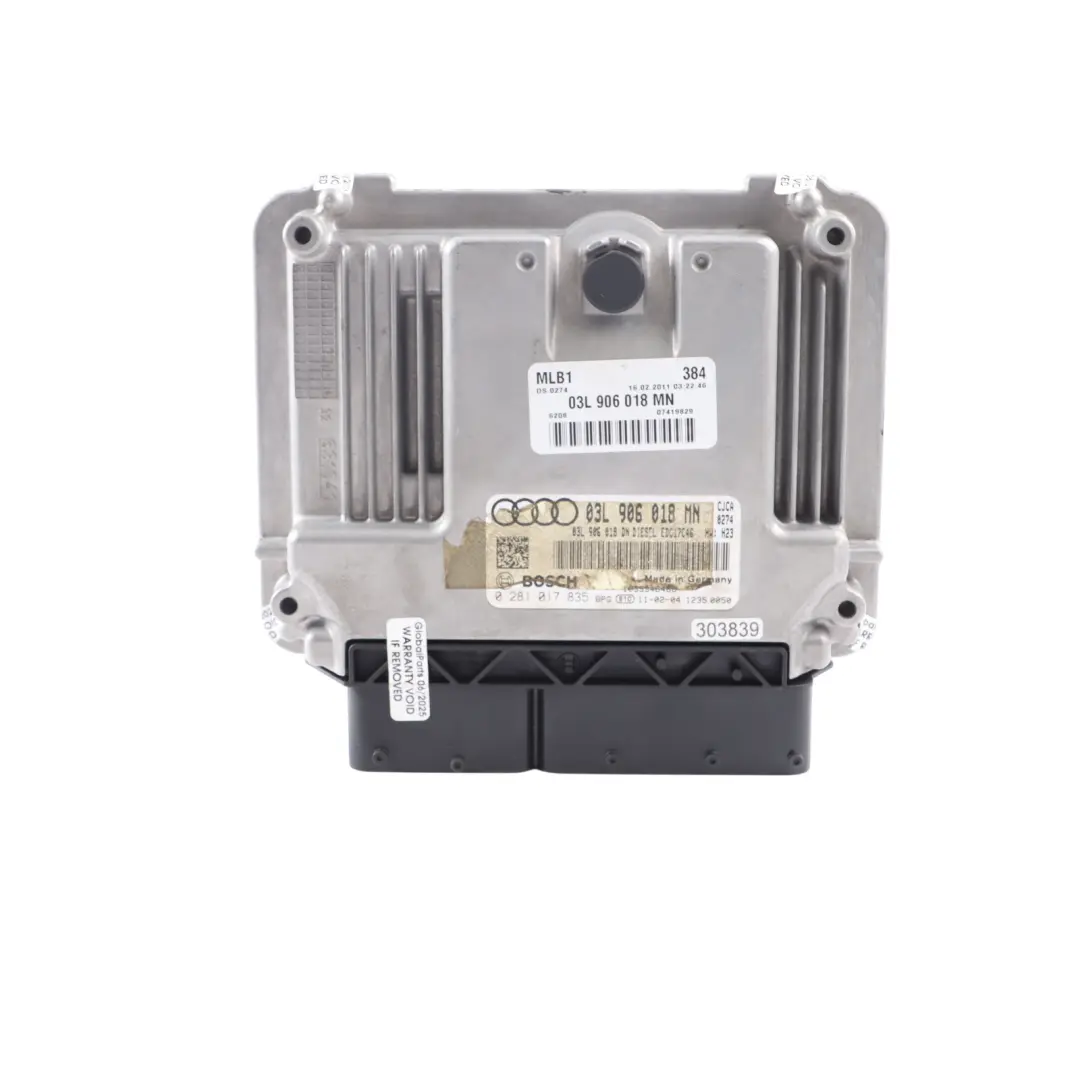

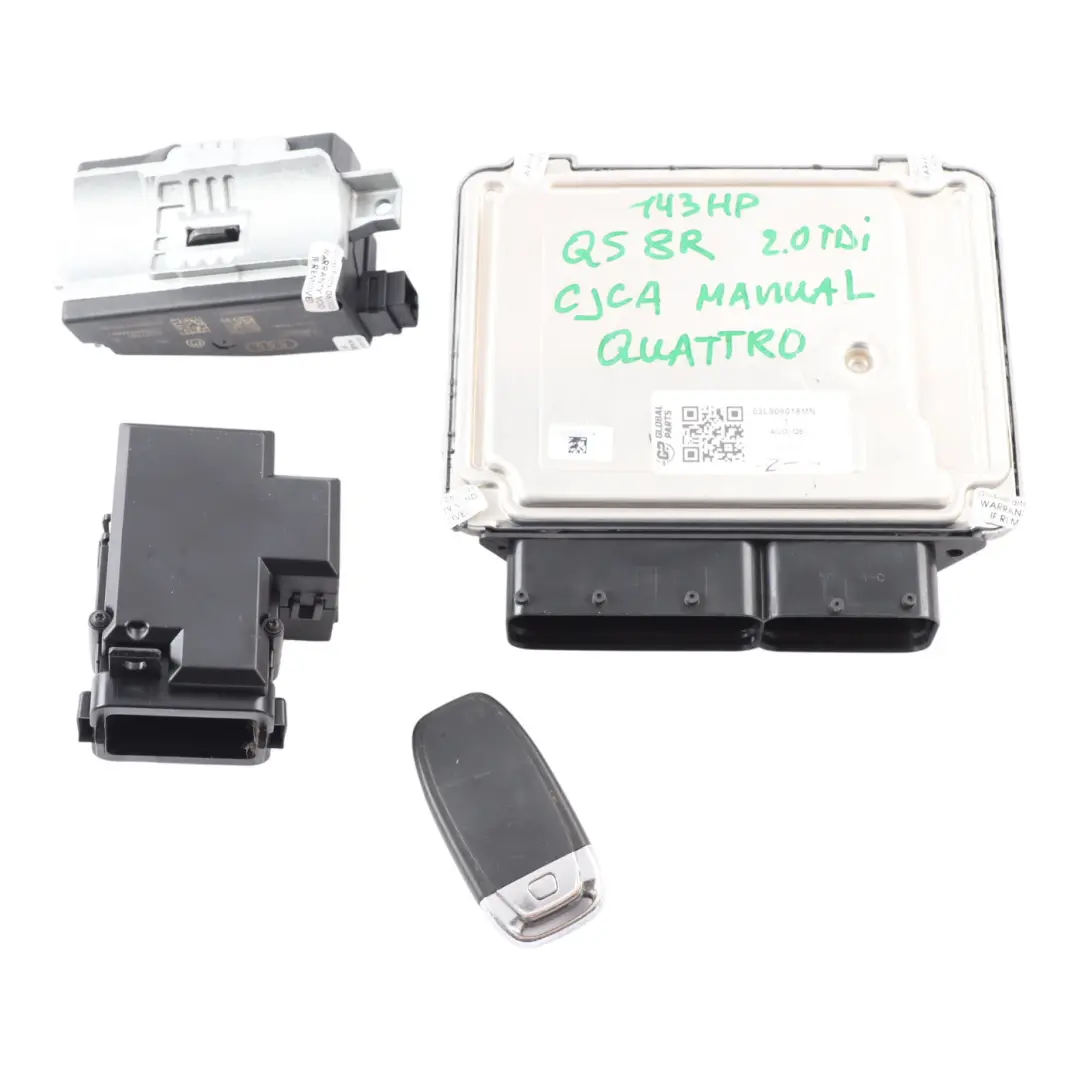

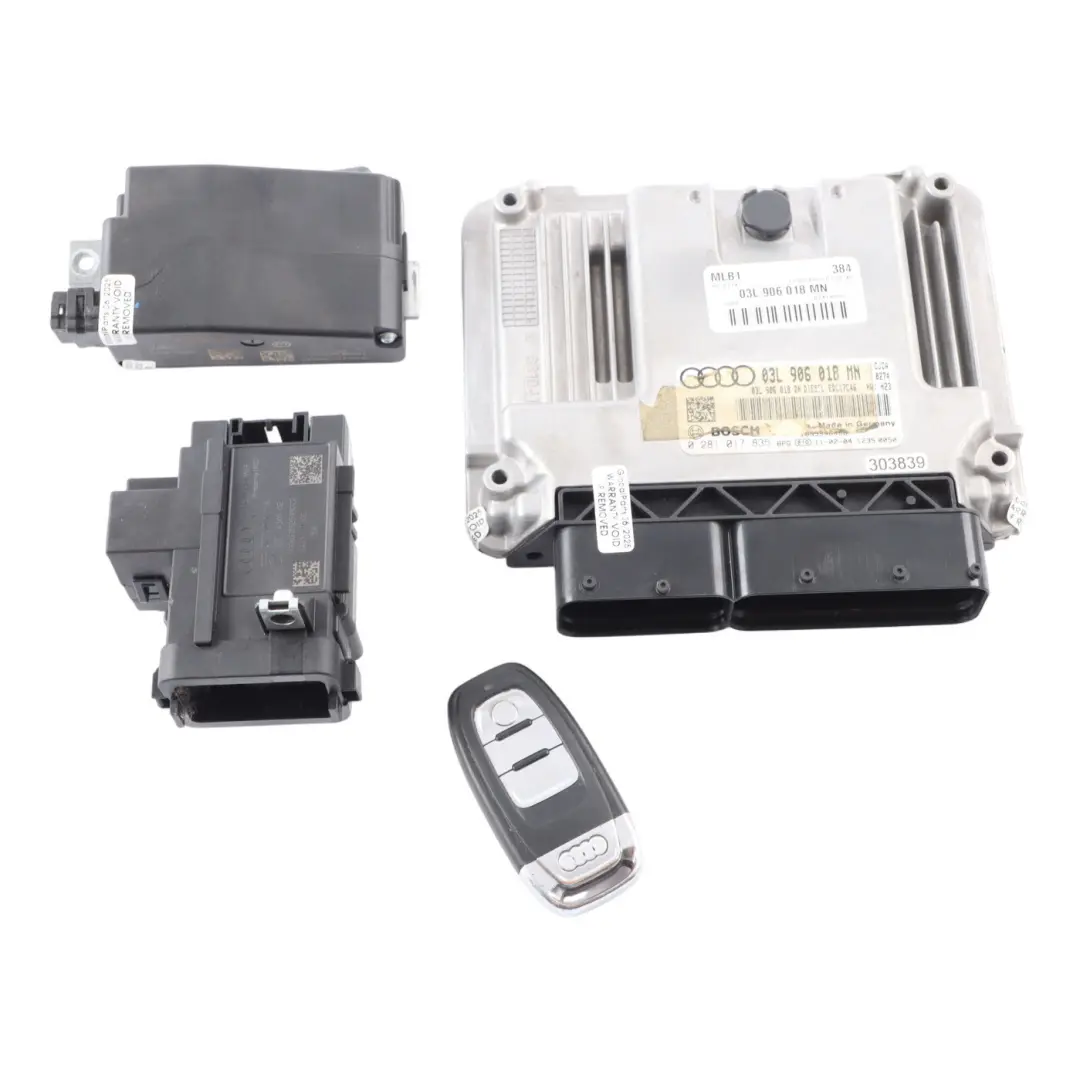

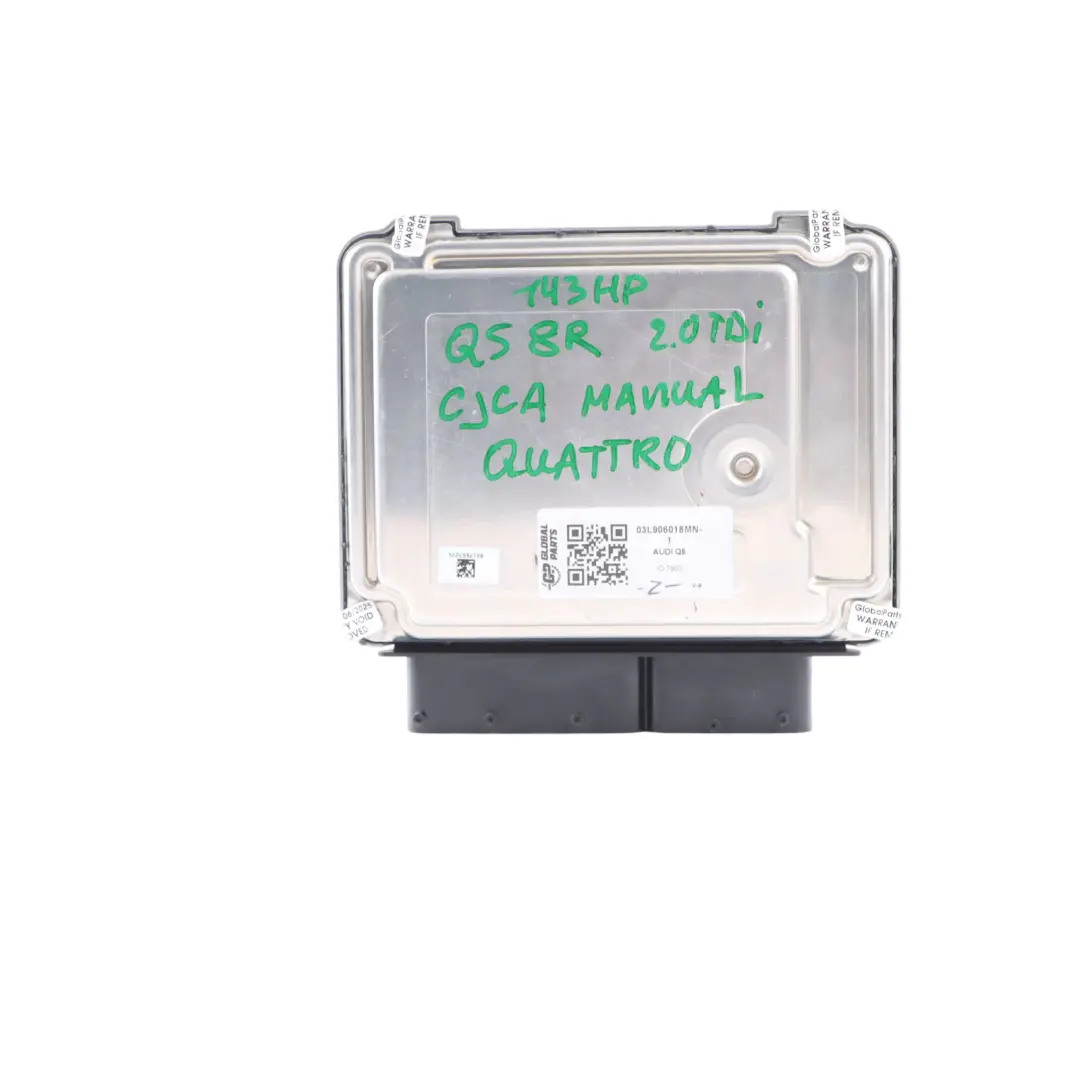

Audi Q5 8R CJCA 2.0 TDI 143HP Quattro Diesel Engine ECU Kit 03L906018MN Manual

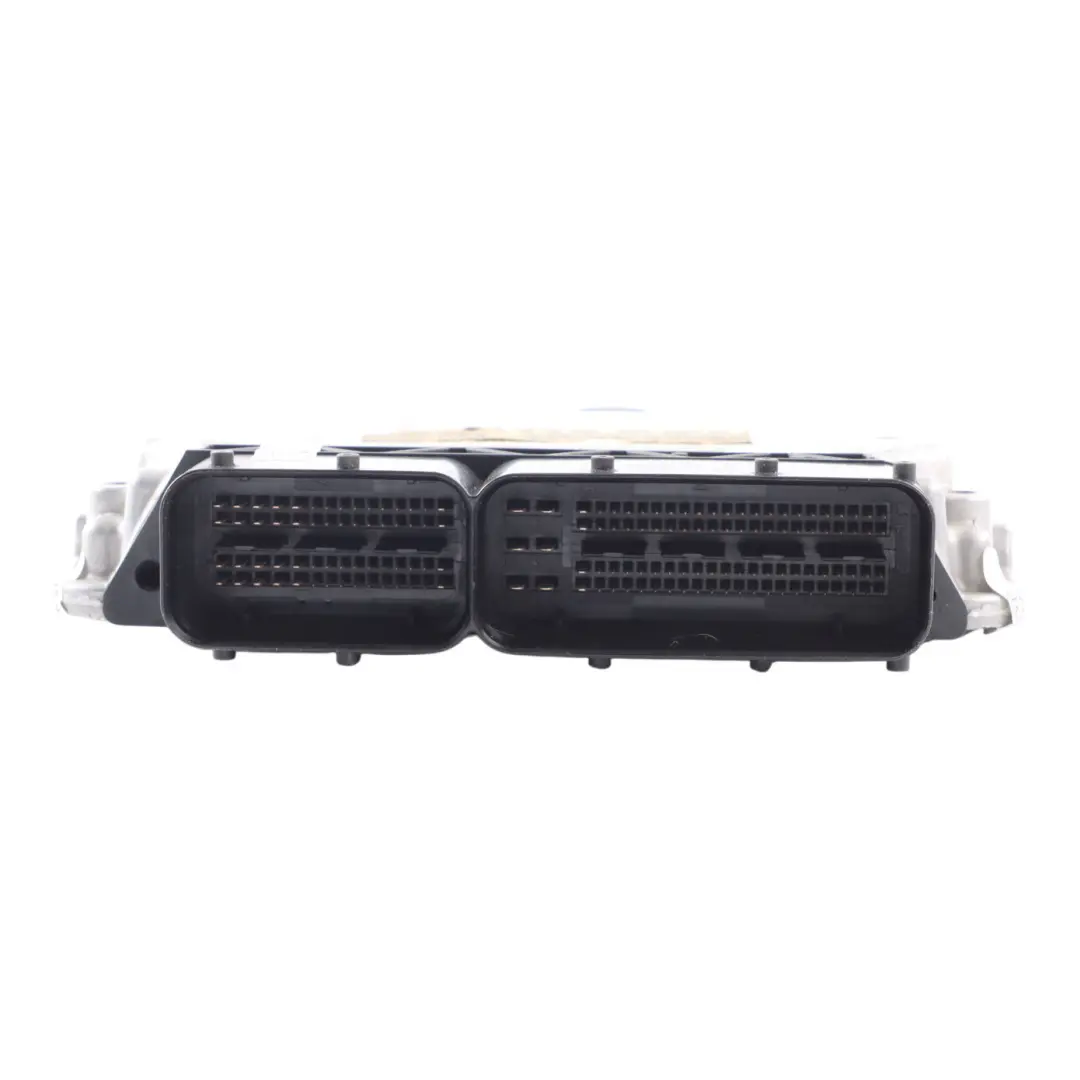

Audi Q5 8R CJCA 2.0 TDI 143HP Quattro Diesel Engine ECU Kit Manual is a complete engine control unit kit from the Electronic Control Modules and Controllers group, designed for a diesel engine paired with all-wheel drive and a manual transmission. The kit is a solution for users who need a tested, used ECU module matched to a specific engine and drivetrain configuration.

Specifications and technical data

• SKU: 03L906018MN-1
• Mark: Audi
• Condition: Used

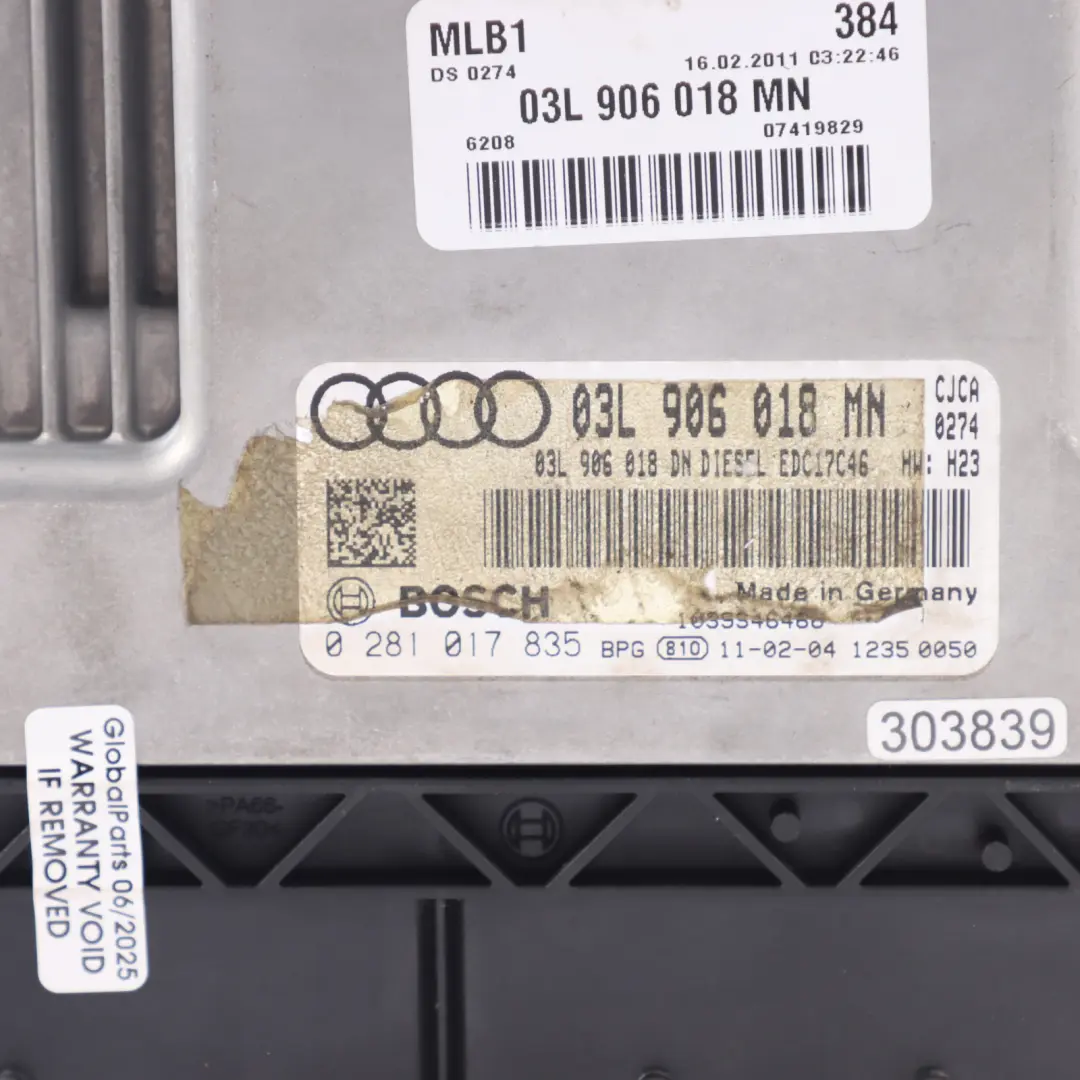

• OEM Part Number: 03L906018MN
• Substitutable numbers: 03L906018MN, 03L 906 018 MN, 03L906018DN, 03L 906 018 DN, 0281017835, 0 281 017 835, 8K0905852D, 8K0 905 852 D, 8K0905852C
• Fuel type: Diesel
• Gearbox type: Manual
• Category: ECUs & Computer Modules

Purpose and Compatibility

The presented ECU kit is designed for the diesel engine in the Audi Q5 8R generation with the CJCA unit, producing 143 HP, paired with Quattro all-wheel drive and a manual gearbox. Proper matching to the specific fuel type and transmission type ensures the correct control logic for the engine, injection system, and auxiliary engine systems.

The module belongs to the Electronic Control Modules and Controllers group, meaning it is responsible for key engine management functions, communication with other vehicle controllers, and handling safety and component protection strategies.

Function and Role of the ECU Kit

In this configuration, the ECU kit serves as the central control element for the diesel engine, adapted for a manual gearbox. It is responsible for, among other things:

• controlling fuel dosage and injection timing based on load and operating conditions,
• managing engine operating parameters during startup, warm-up, and normal operation,
• interacting with systems responsible for vehicle traction and stability in the all-wheel drive configuration,
• communicating with other controllers within the vehicle network.

By matching the specific fuel type and gearbox, the kit ensures software and vehicle configuration consistency, which is crucial when replacing a damaged control unit or repairing the engine control system.

Characteristics of the Used ECU Kit

The offered kit is a used component, which translates to an economical solution for engine control system repair while maintaining the original manufacturer's specifications. For engine control units, it is important that they come from the same design family and are compatible with the drivetrain configuration – in this case, a diesel engine and a manual gearbox in the Audi Q5 8R.

Choosing an original, used ECU module helps reduce the risk of communication issues within the vehicle network and simplifies the adaptation and configuration process during installation in the car.

Practical Installation and Operation Tips

When selecting this type of ECU kit for the Audi Q5 8R, pay attention to compatibility with the engine configuration, fuel type, and gearbox type. A correctly chosen control unit:

• simplifies the coding and adaptation process in the vehicle,
• reduces the risk of communication errors between modules,
• allows for the preservation of the engine's factory operating parameters.

For users and workshops specializing in automotive electronics, it is important to work with components that are consistent with the original specifications, which contributes to the vehicle's stable operation after repair.

If you are planning a comprehensive repair or upgrade of the engine area in your Audi and need other parts from the same group, such as engine control units, drive management modules, or other ECUs, check the available parts in the Audi Electronic Control Modules and Controllers category.
