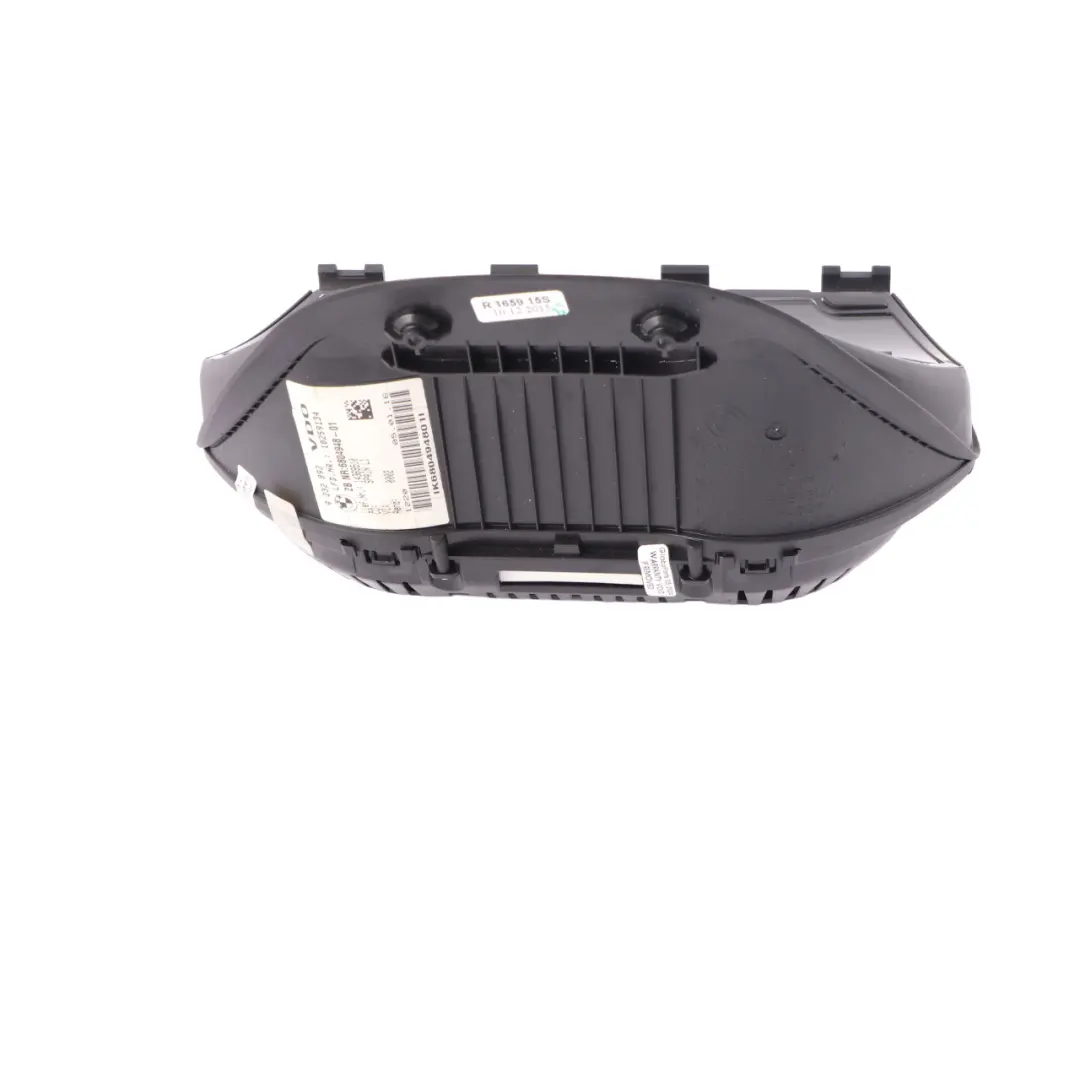

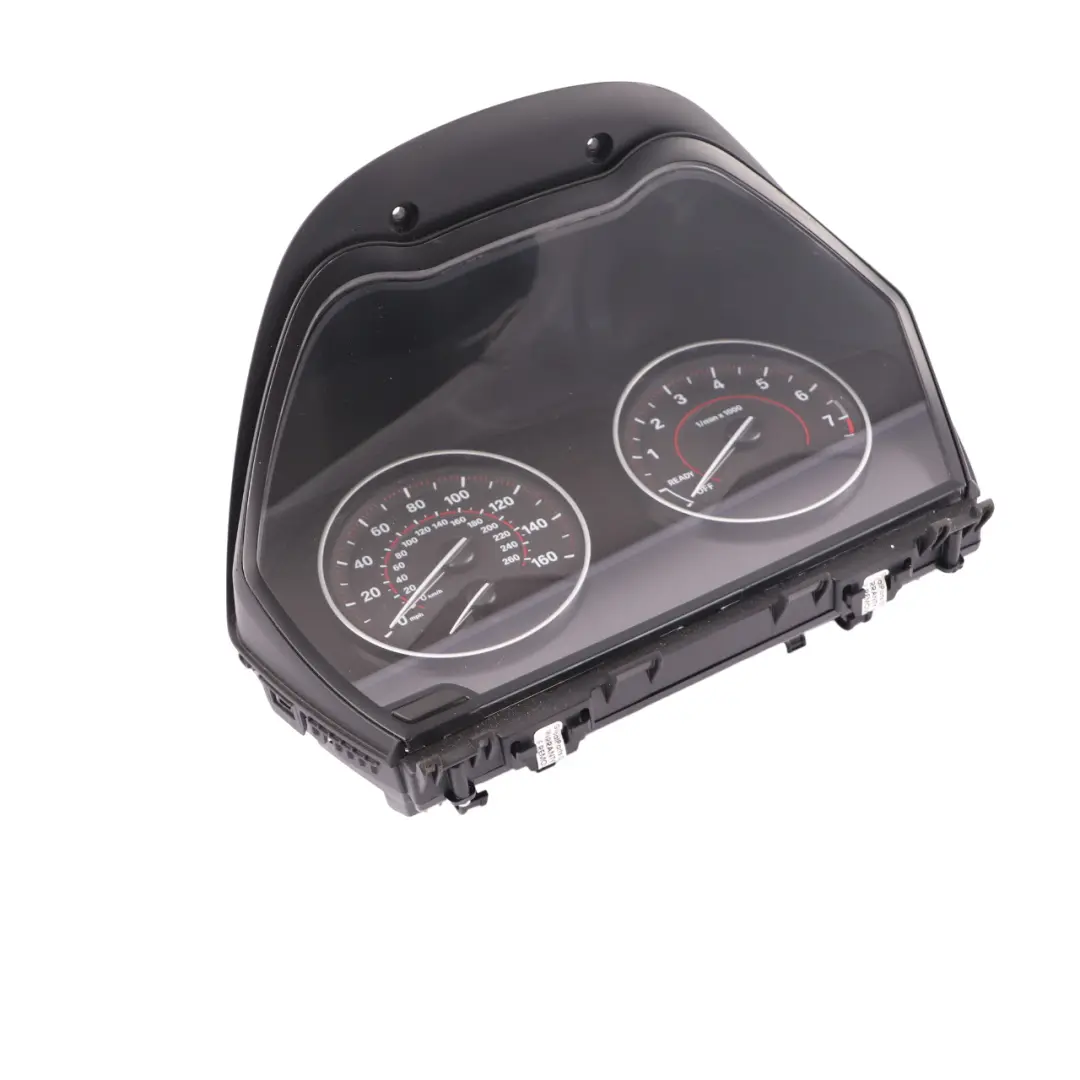

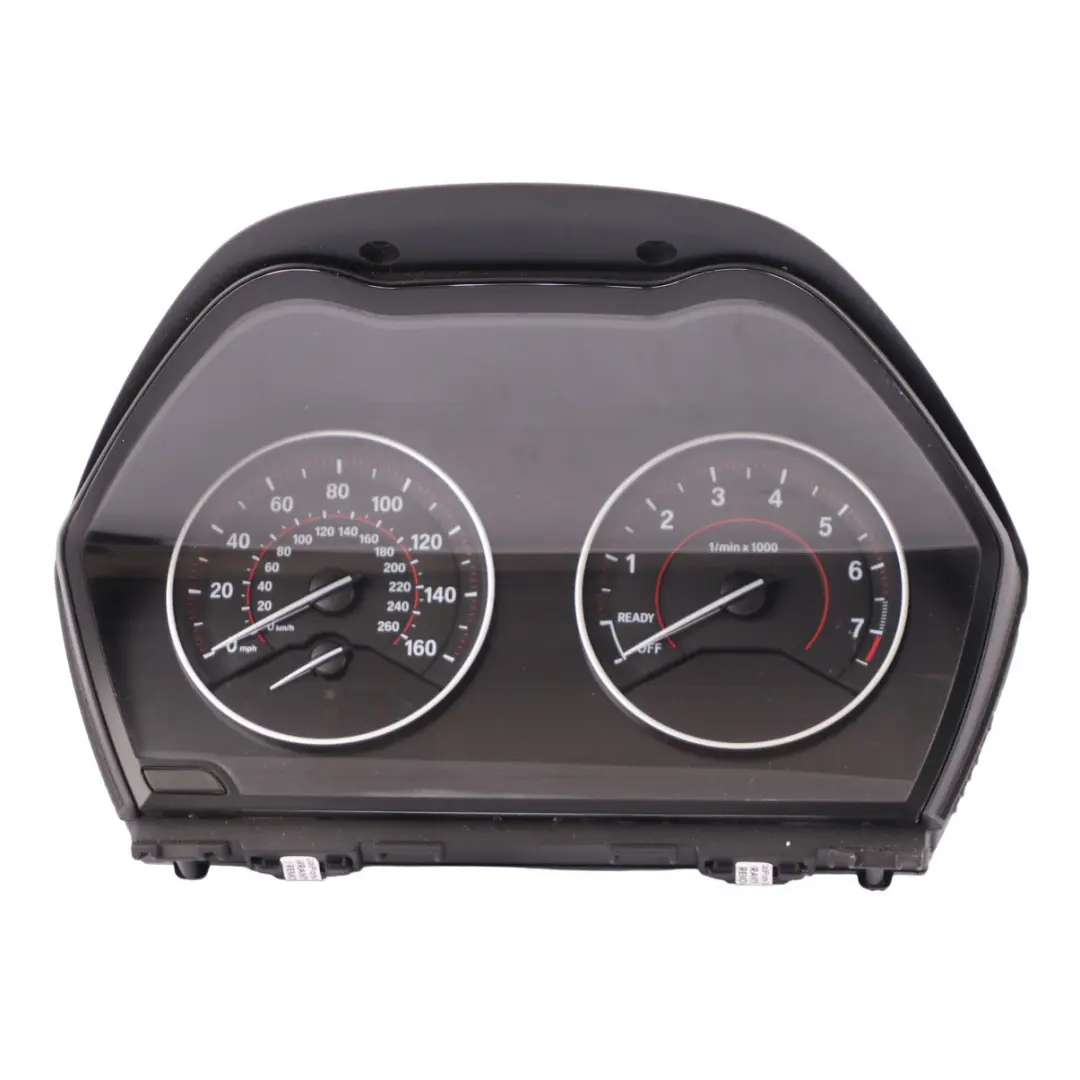

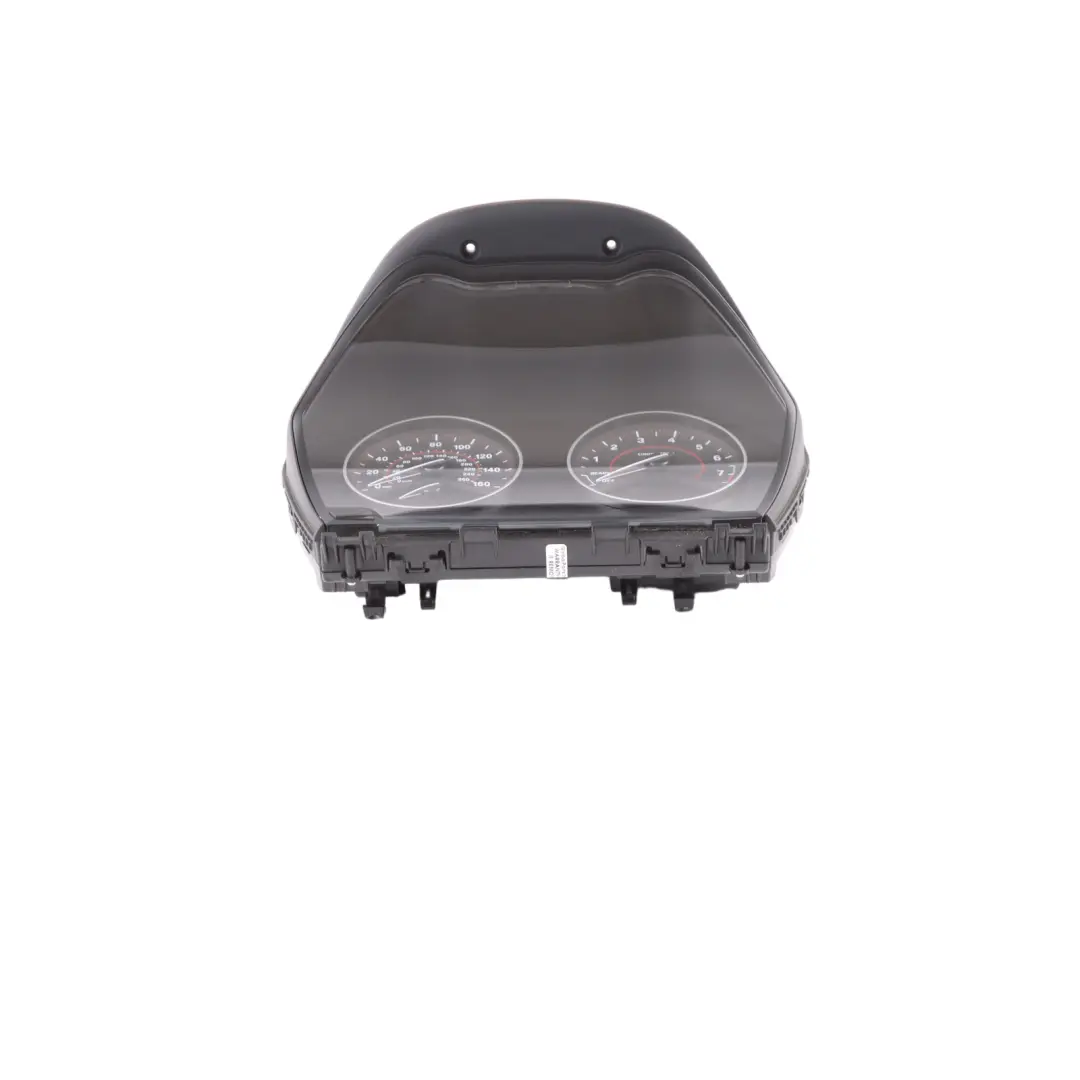

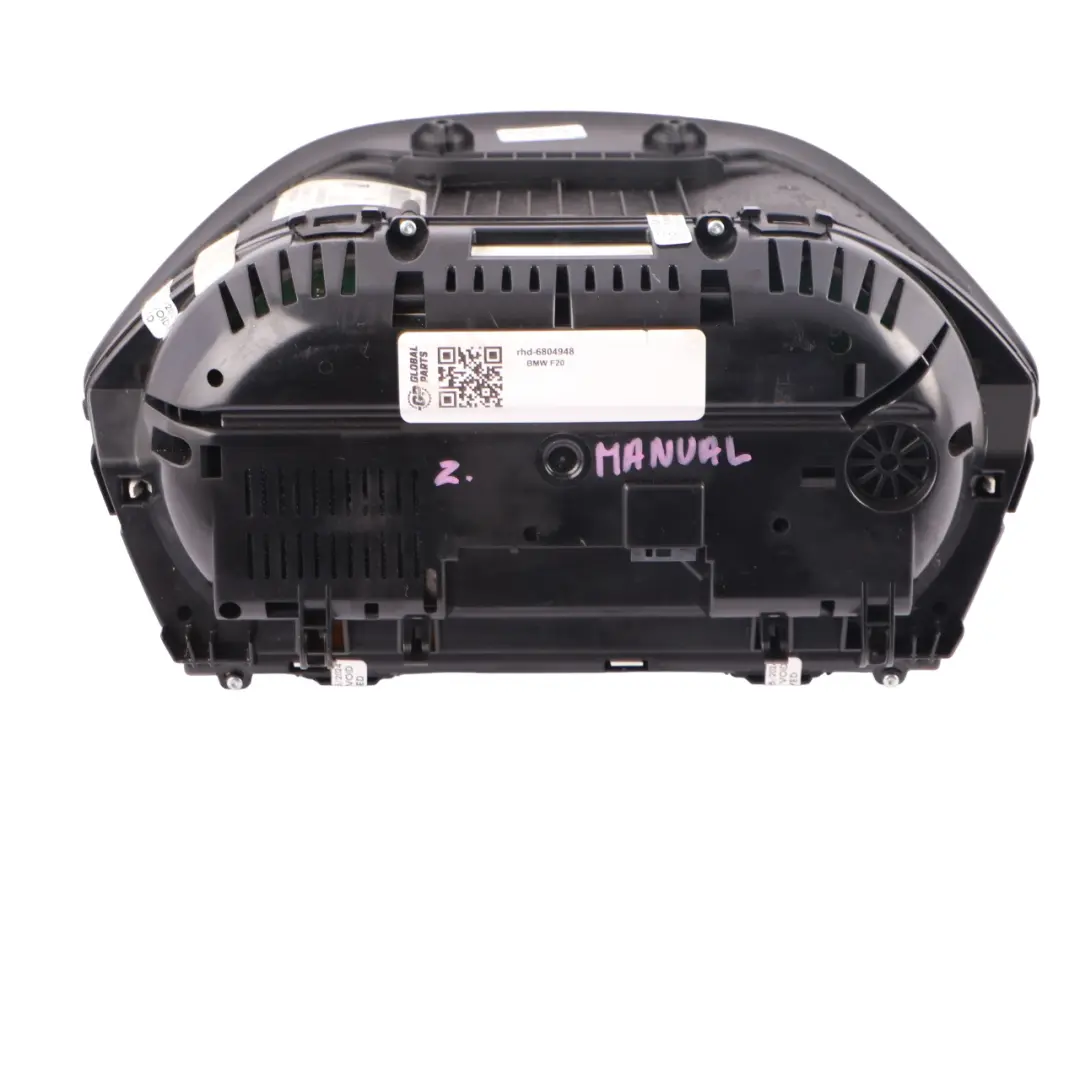

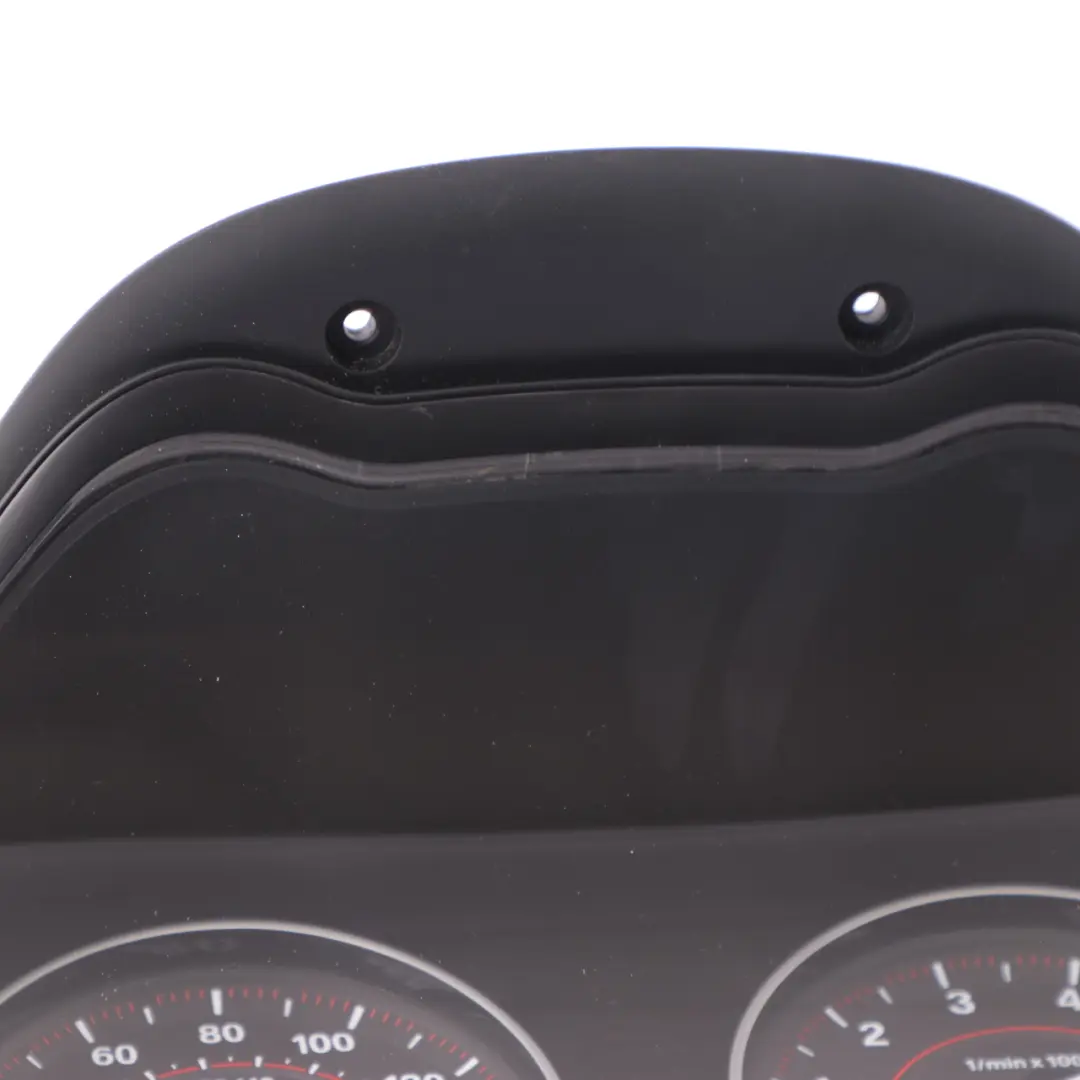

BMW F20 F21 F30 Instrument Cluster Speedo Clocks MPH Petrol Manual 6804948

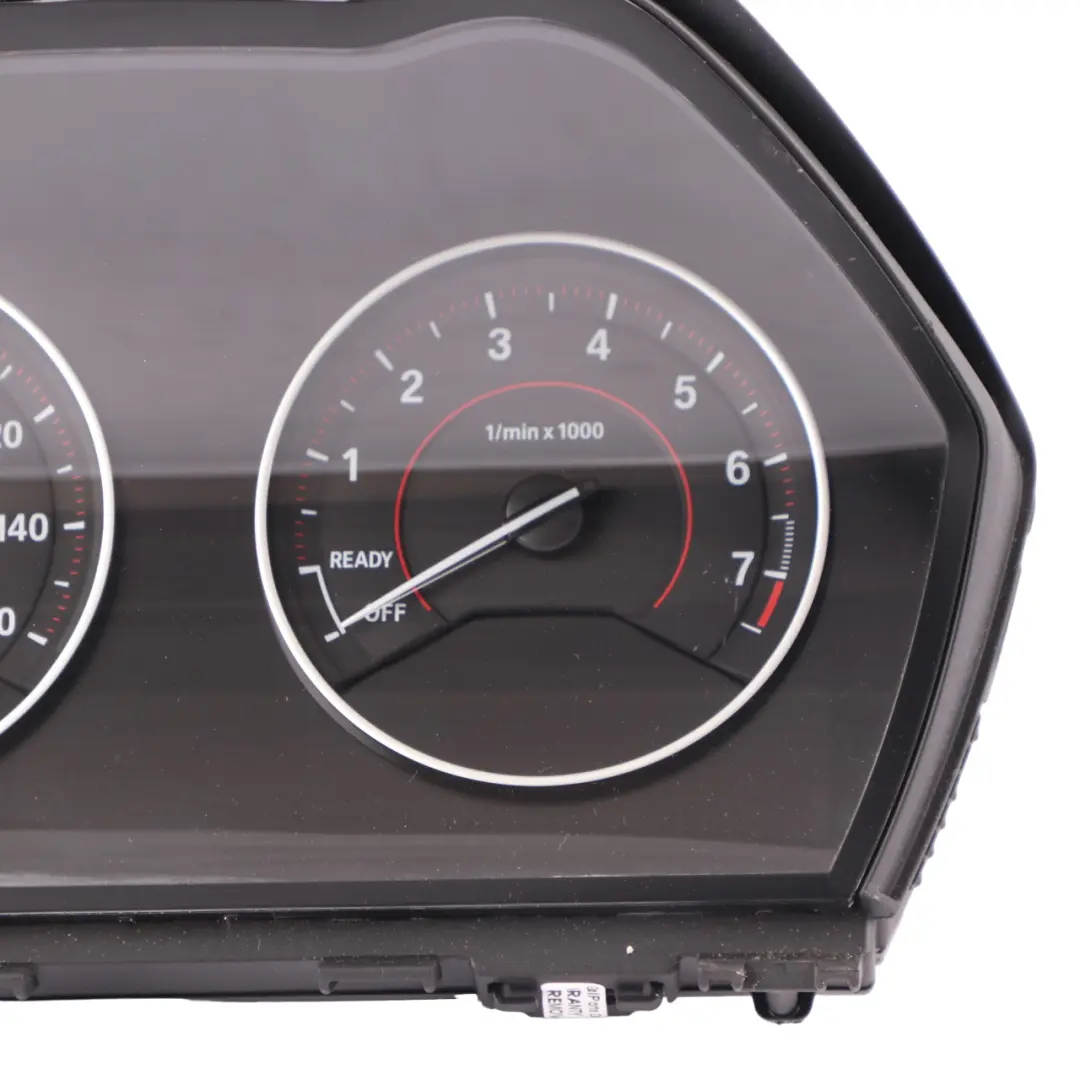

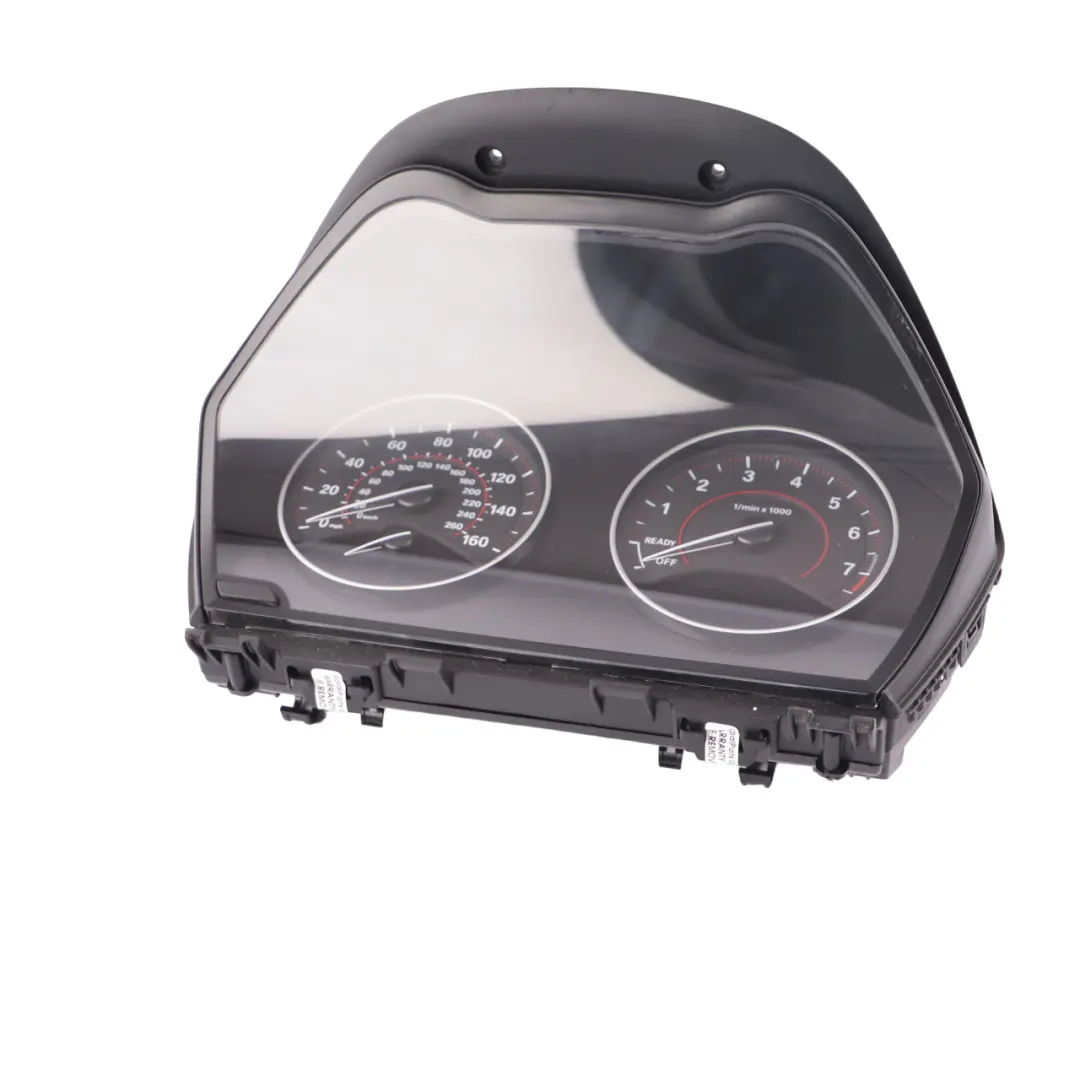

BMW F20 F21 F30 Instrument Cluster Speedo Clocks MPH Petrol Manual is an original instrument cluster panel designed for front cockpit installation in BMW models with a petrol engine and manual transmission. This solution is created for drivers who expect precise speed readings in miles per hour (MPH) and seamless integration with the vehicle's factory installation. By using an OEM component, full compatibility with the BMW electrical architecture and interior styling is maintained.

Specifications and technical data

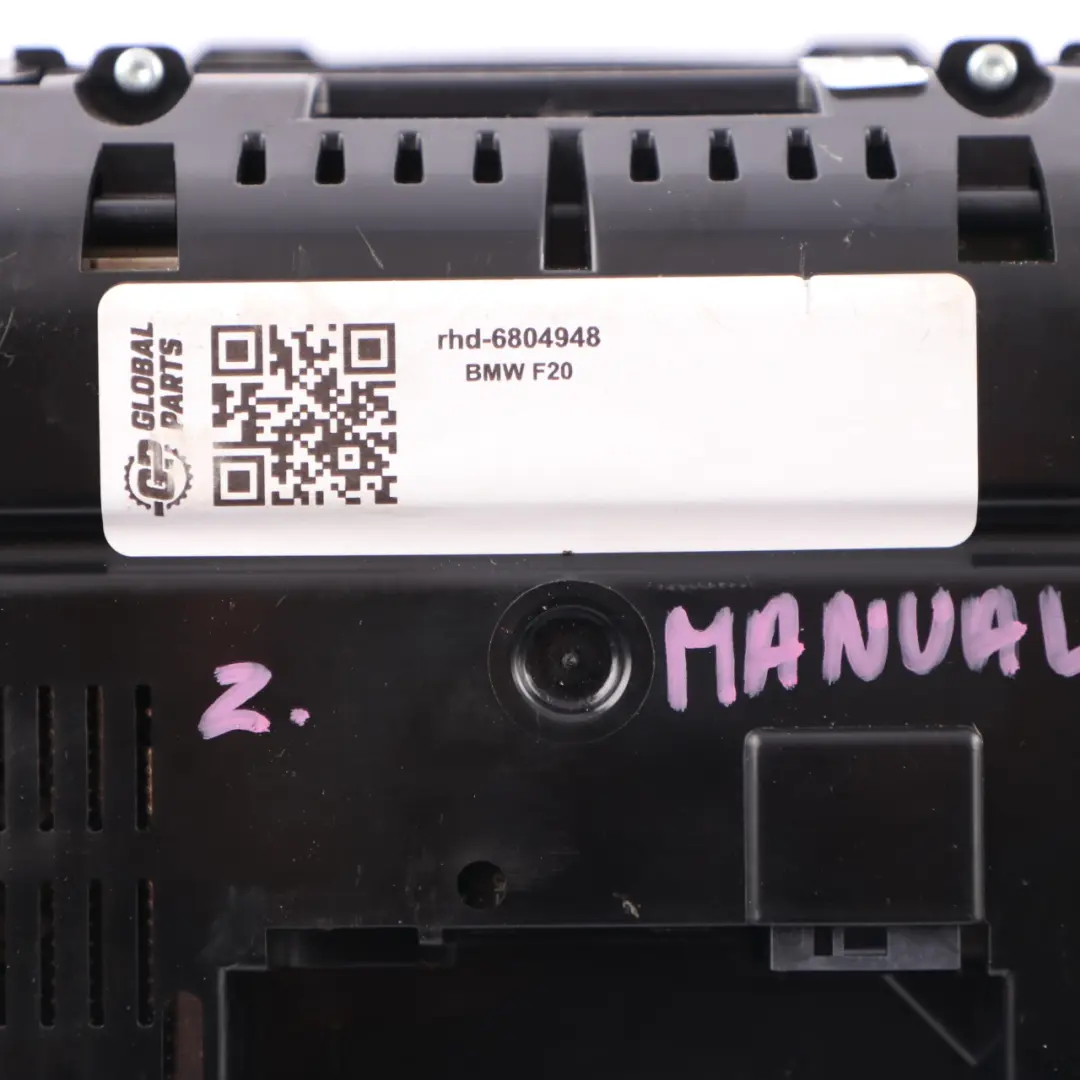

• SKU: rhd-6804948
• Mark: BMW (Genuine OE)
• Condition: Used

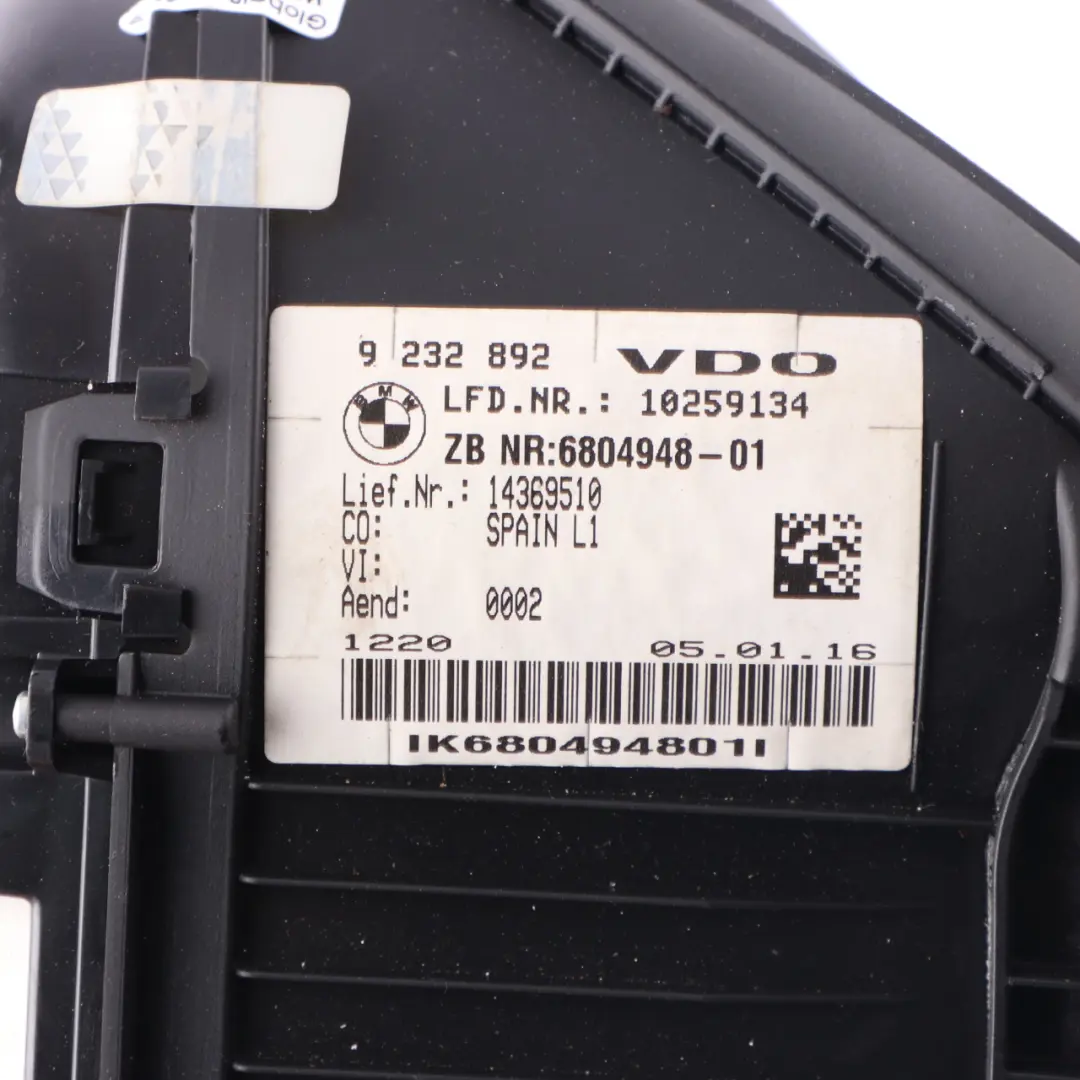

• OEM Part Number: 6804948
• Substitutable numbers: 6804948, 62106804948, 6847108, 62106847108, 9311377, 62109311377, 9279314, 62109279314, 9295822, 62109295822, 9272337, 62109272337, 9363218, 62109363218, 9285597, 62109285597, 9382078, 62109382078, 6843083, 62106843083, 9379956, 62109379956, 6834476, 62106834476, 9325167
• Location on the vehicle: Front
• Fuel type: Petrol
• Gearbox type: Manual
• Category: Doors & Door Skins

Purpose and fitment for BMW F20, F21, F30

The presented instrument cluster is designed specifically for compact and mid-size BMW F-series models, such as the F20, F21, and F30 with a petrol engine. The cluster design is adapted to work with a manual transmission, which is essential for proper interaction with the vehicle's control modules and driver information display logic.

The placement on the vehicle is at the front – the panel is mounted directly behind the steering wheel, in the factory location provided by the manufacturer. This ensures ergonomics, readability of indicators, and proper fitment with the dashboard.

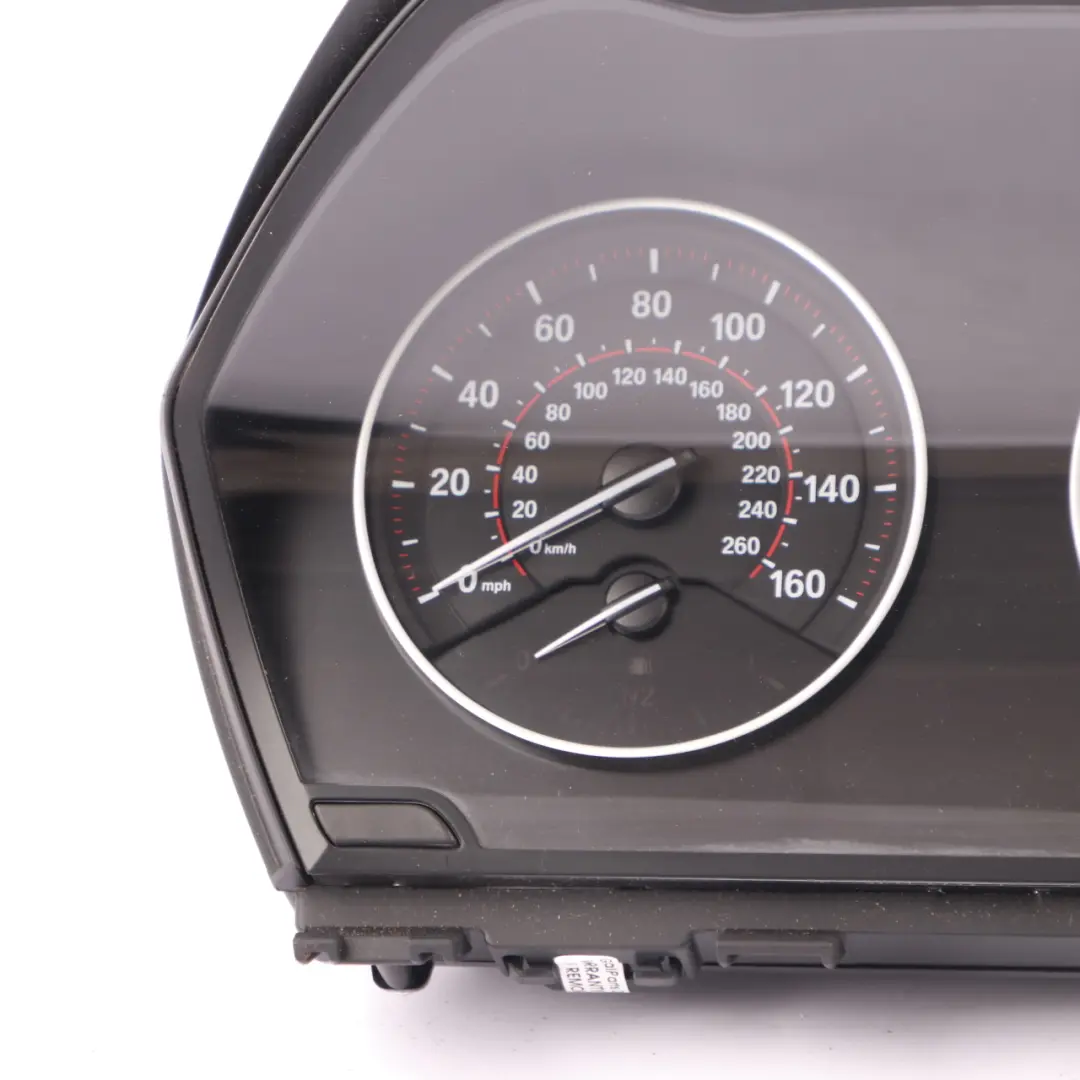

Functionality of the MPH instrument cluster

The MPH version of the instrument panel is particularly useful in vehicles used in markets where the primary unit of speed is miles per hour. The use of a dedicated cluster allows for:

• clear speed reading in MPH, compliant with the homologation of the given market,
• consistent operation with the electrical system of a petrol-powered vehicle,
• proper cooperation with a manual transmission regarding the presentation of driver information.

Thanks to the original BMW design, compatibility with onboard systems is maintained, and integration with the wiring harness proceeds according to factory specifications.

Application in petrol vehicles with manual transmission

This instrument cluster is intended for BMW cars powered by petrol fuel, which is significant for how signals from the powertrain are processed and how engine performance parameters are displayed. At the same time, the cluster design is optimized for use with a manual transmission, which affects the correct representation of driving modes and messages related to the drivetrain operation.

Such matching to a specific powertrain configuration reduces the risk of communication errors between modules and facilitates the adaptation process in a vehicle that factory-uses a petrol engine and manual transmission.

Characteristics of the used component

The offered instrument cluster is a used part, sourced from a dismantled BMW vehicle. This means that the component shows signs of wear typical for parts installed in a car, while maintaining the functionality required for further use. Choosing an original, used instrument panel is a cost-effective solution that also allows for maintaining consistency with the factory interior equipment.

In practice, such a component is often chosen both for post-accident repairs and when replacing a damaged cluster, where the priority is to maintain the original look of the cockpit and proper cooperation with BMW electronics.

Support for upgrades and additional information

If you are planning a comprehensive repair or upgrade of the door area in your BMW and need other elements from the same group, such as panels, reinforcements, or mounting elements, check the available parts in the BMW Doors and door panels category.

For owners of older BMW models who are considering a broader interior upgrade or restoring full functionality of the gauges in youngtimer cars, practical tips on selecting and installing used components may be useful – you can find them in the article The second life of a youngtimer – how used car parts rejuvenate cars from the 1998–2012 model years.
