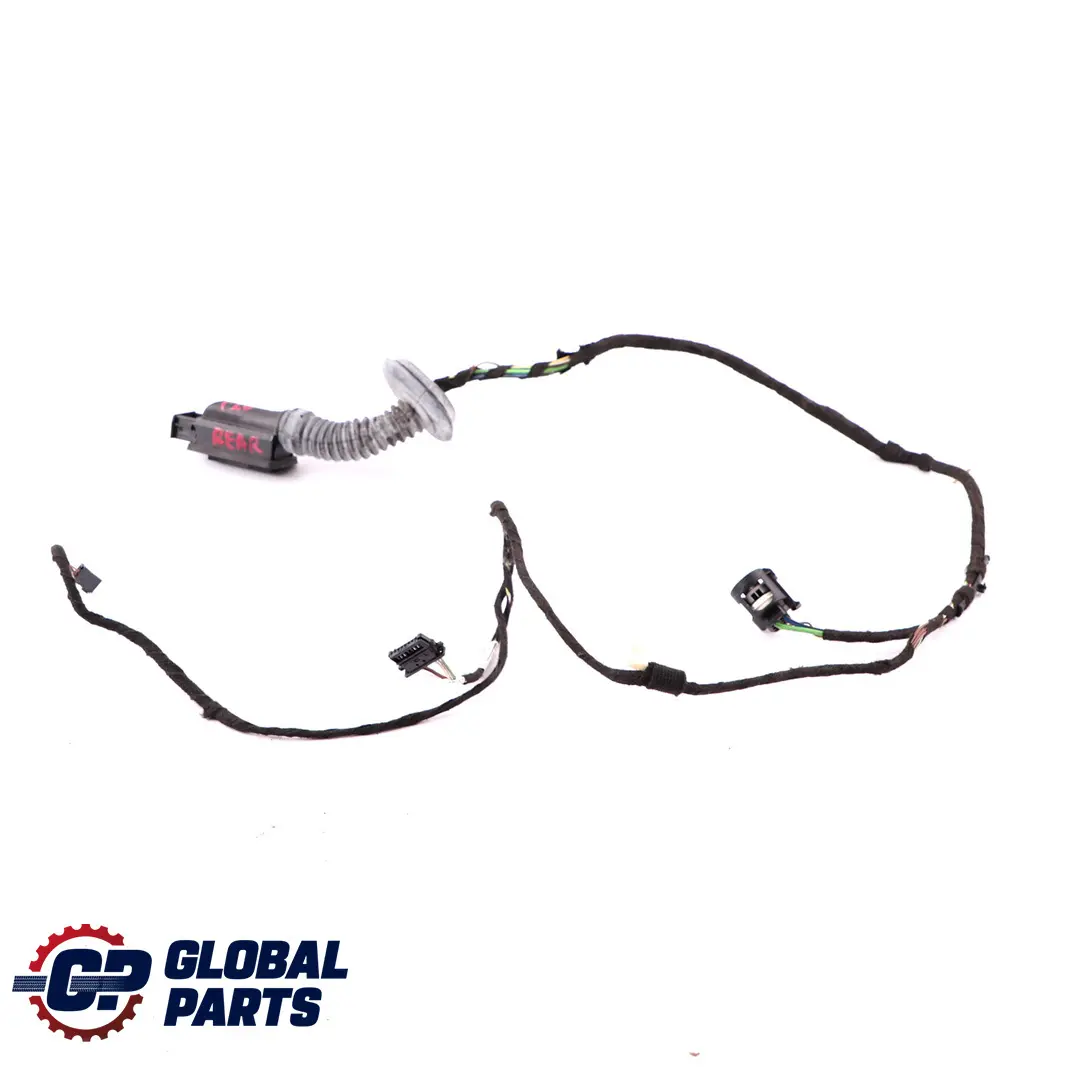

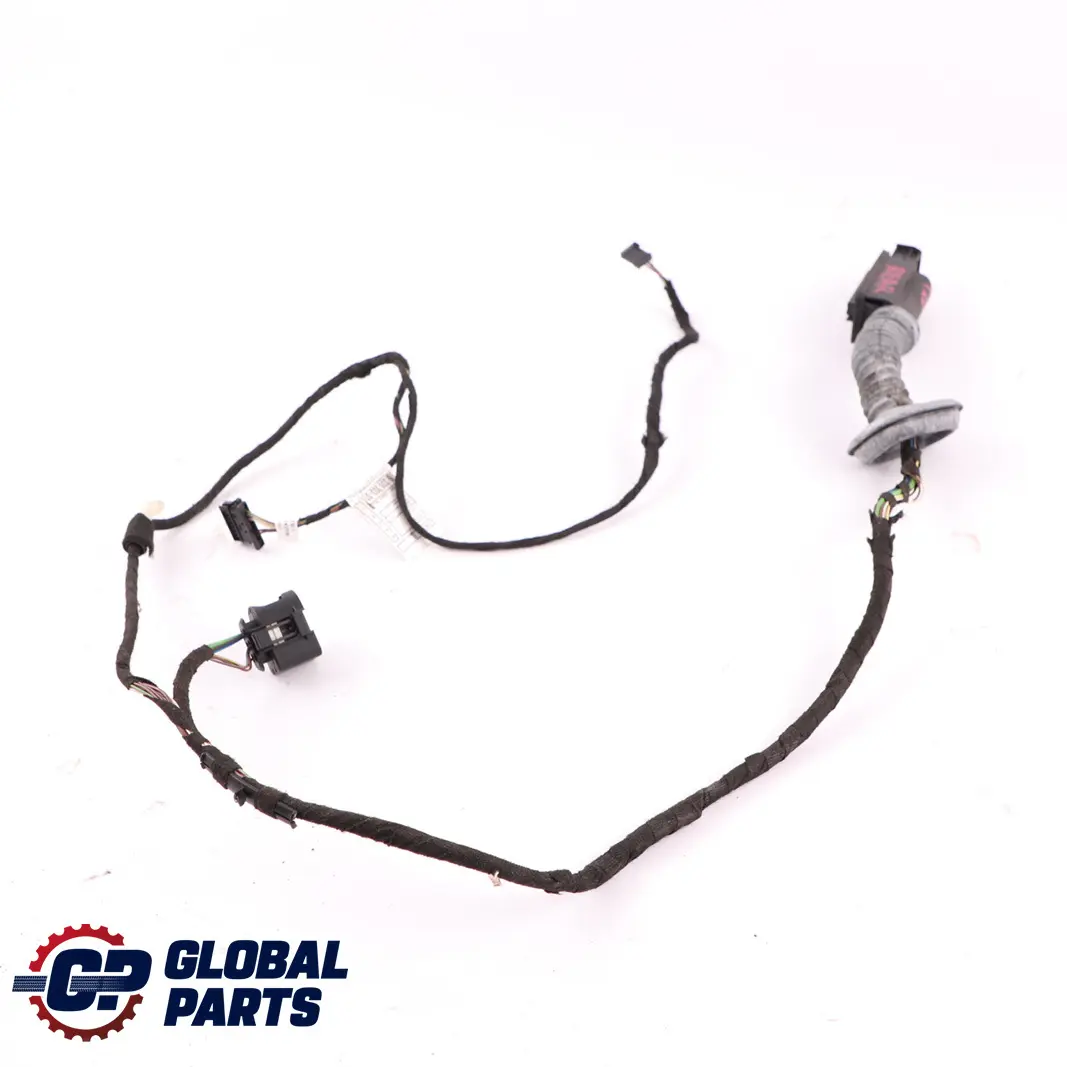

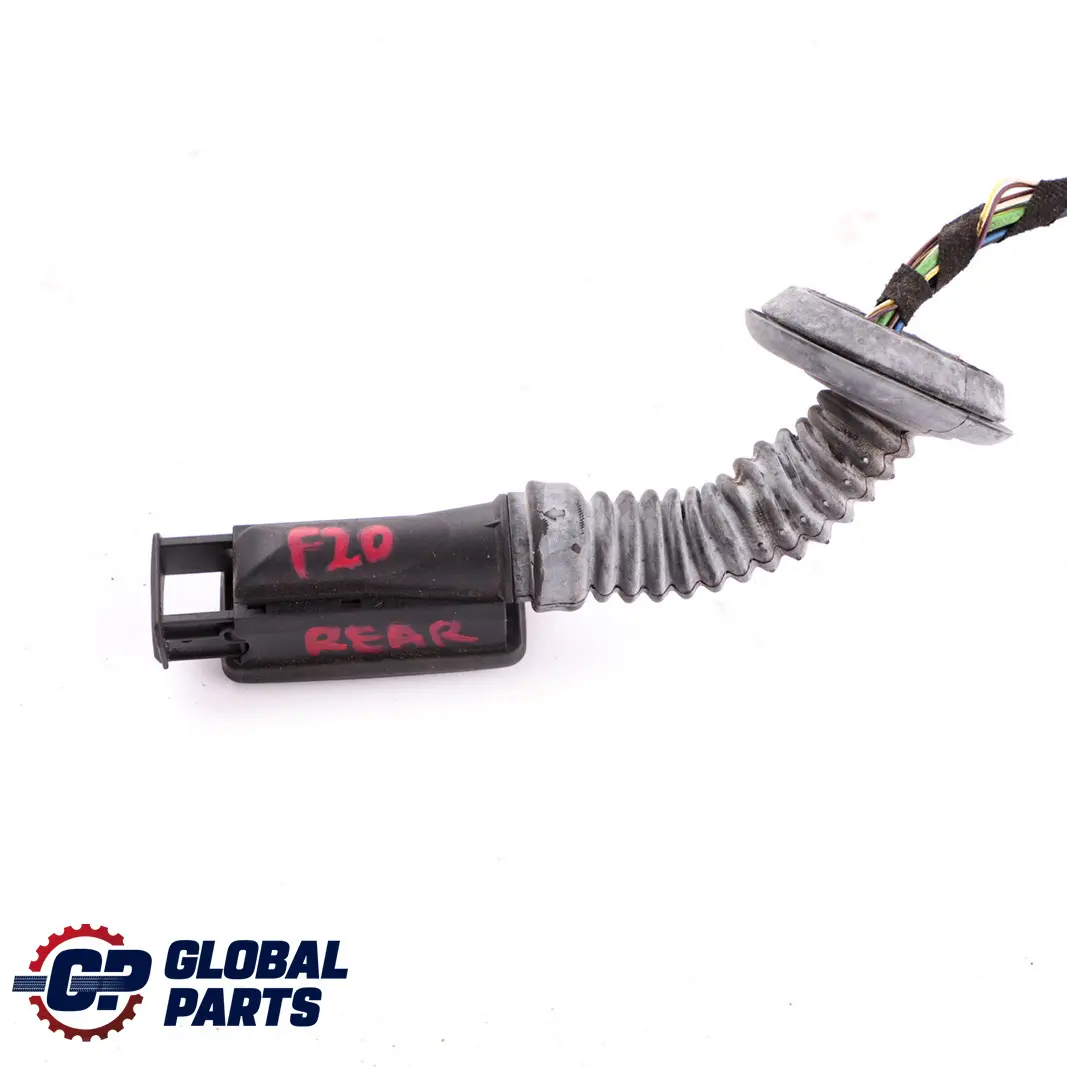

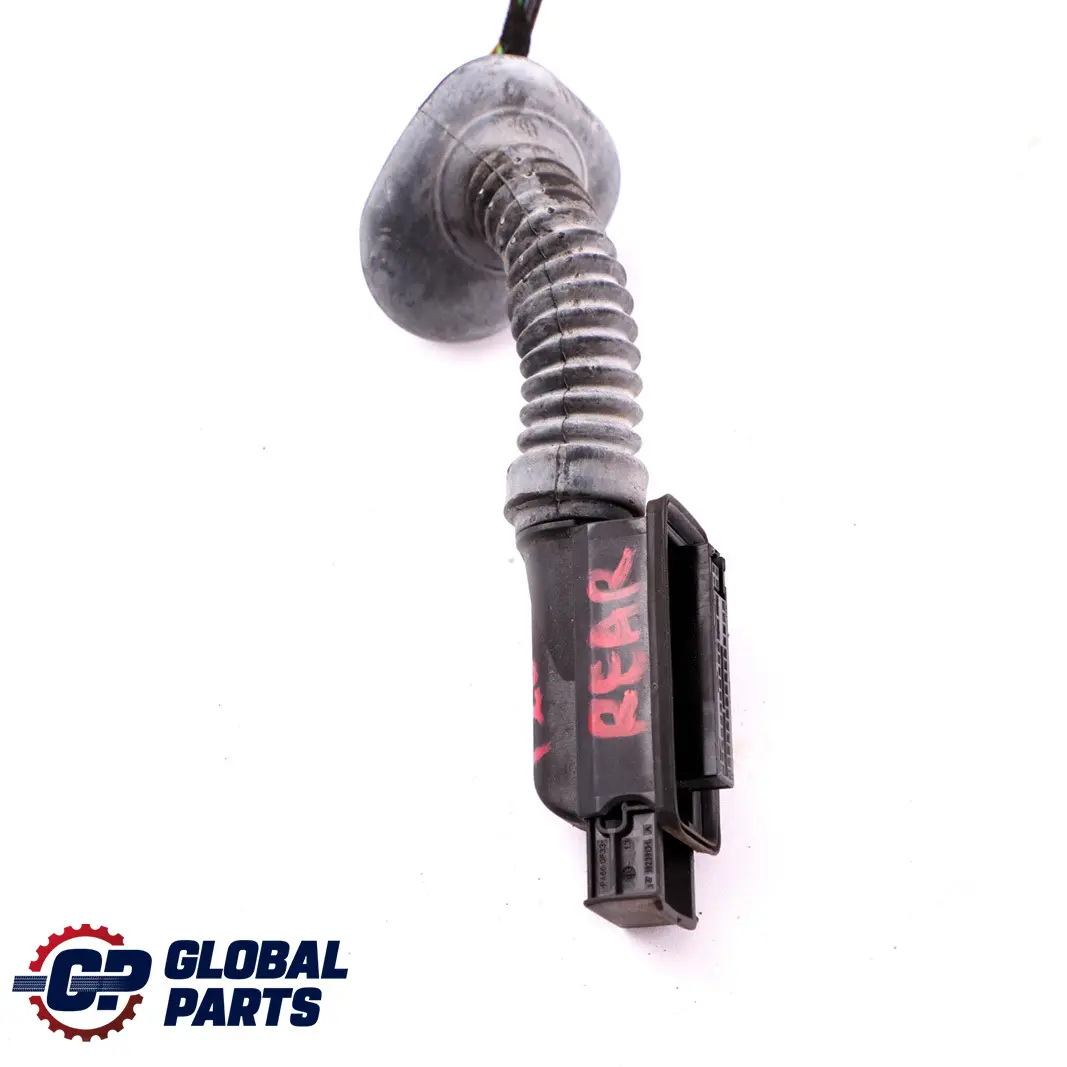

BMW 1 Series F20 Rear Left Right N/O/S Wiring Harness Cable Door Loom 9335303

BMW F20 Door Wiring Harness Left Right Rear is a factory-original wiring harness designed for the rear left and right sides of the body, ideal for replacing or repairing circuits in the rear doors. Its original design ensures proper signal routing to the electrical components within the doors, facilitating diagnostics and restoring full functionality. This is a practical solution for workshops and owners who value electrical system integrity in their BMW.

Specifications and technical data

• SKU: 9335303
• Mark: BMW (Genuine OE)
• Condition: Used

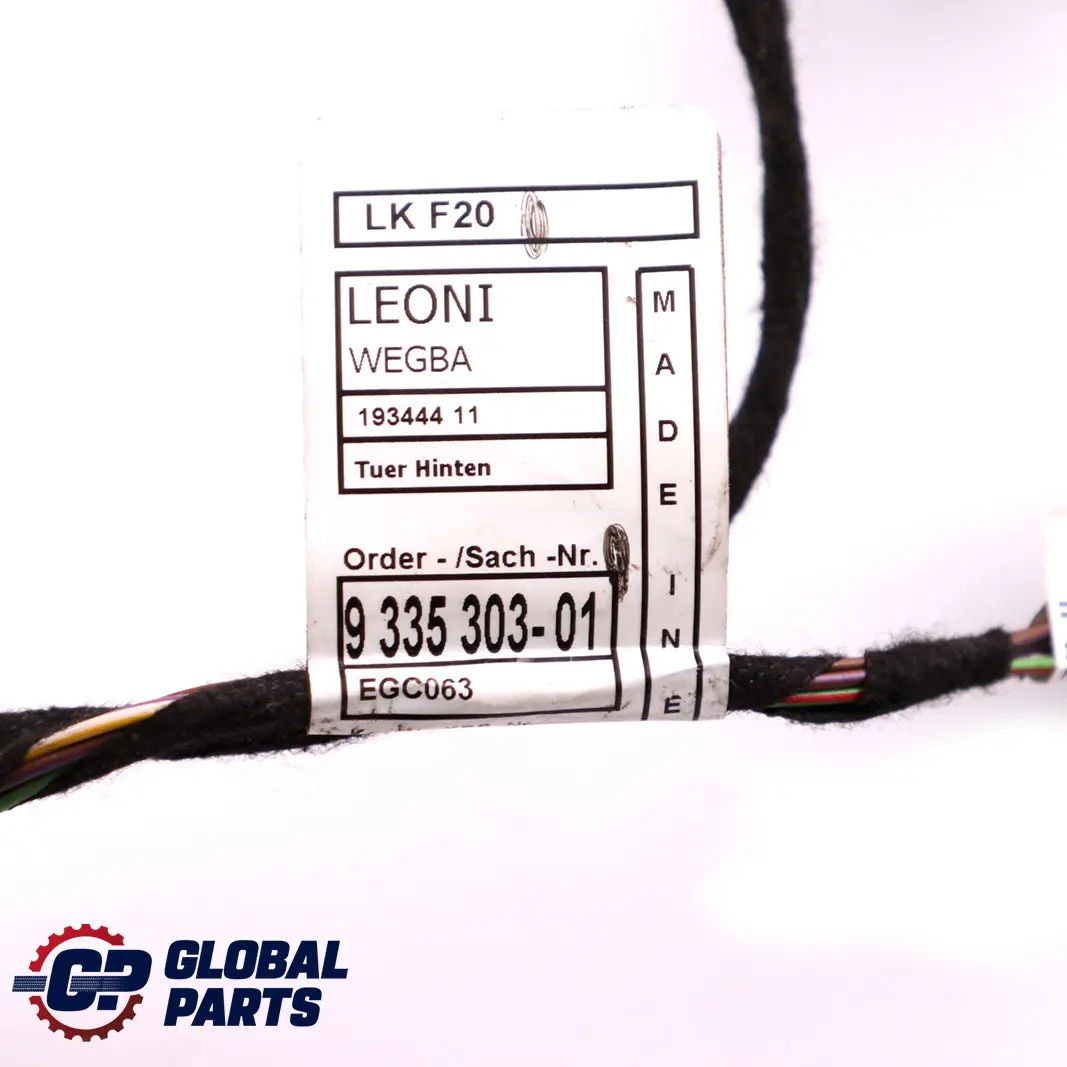

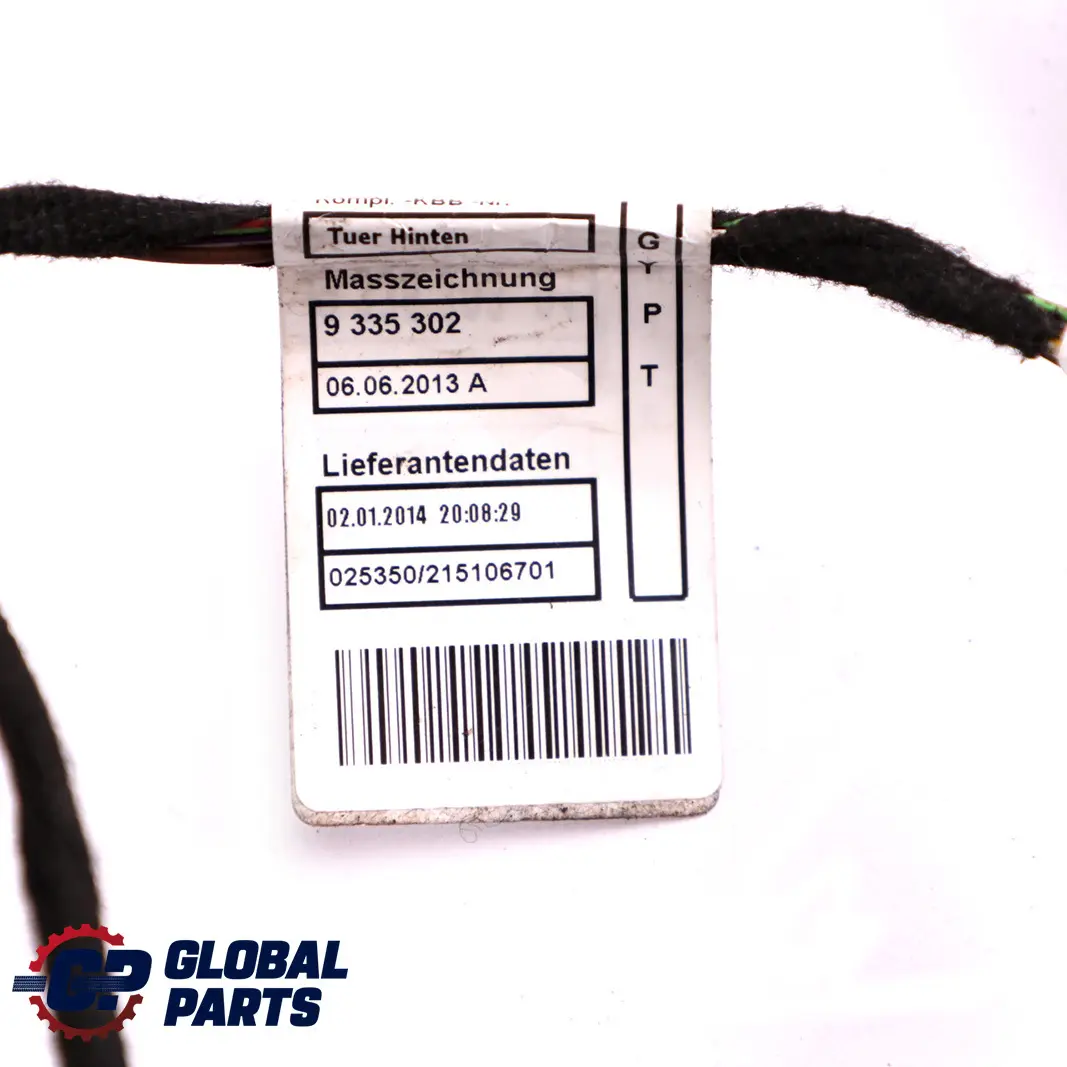

• OEM Part Number: 9335303
• Substitutable numbers: 61129335304, 9335304, 61129335303, 9335303
• Location on the vehicle: Rear, Right, Left
• Category: Doors & Door Skins

Vehicle Application and Placement

This wiring harness is designed for installation in the rear section of the vehicle, on both the left and right sides, within the doors. It is responsible for the electrical connection between the vehicle's main wiring harness and the components located in the rear doors, such as window controls, central locking, and lighting. Thanks to its dedicated wire routing and proper circuit division, the harness maintains stable power supply and communication for all door sub-assemblies.

Technical Specifications and Compatibility

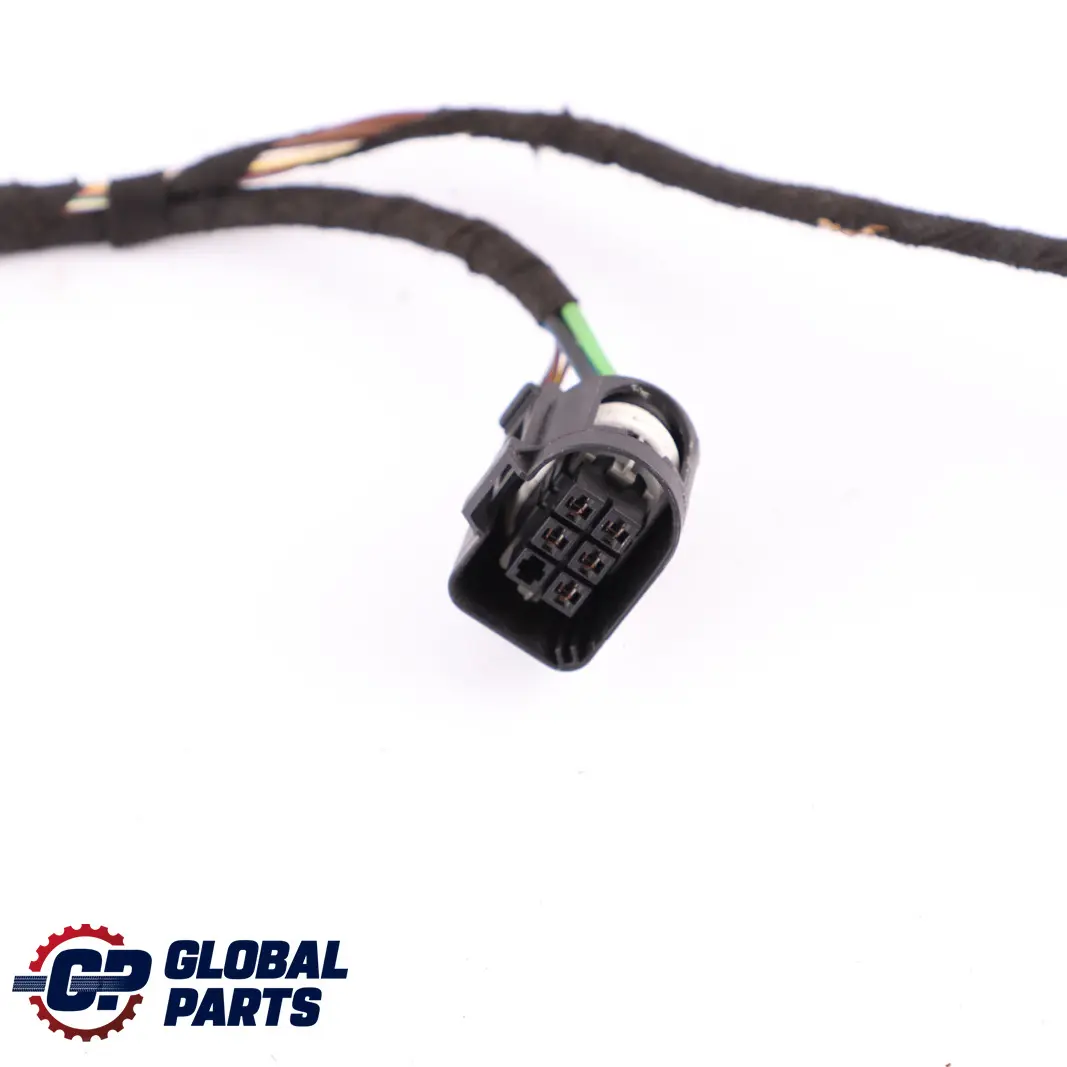

As a component within the Doors and Door Panels group, this wiring harness has been specifically developed for the electrical architecture of the BMW F20 series. The connectors used are designed to match factory sockets, minimizing the risk of installation errors and eliminating the need for modifications. The presence of the OEM part number and associated interchangeable numbers simplifies unambiguous identification in service catalogs and ensures the selection of the correct part for a specific vehicle configuration.

Using the original wiring harness ensures compliance with factory electrical schematics, which is particularly important when working with comfort and safety systems. It also simplifies subsequent computer diagnostics, as the system remains consistent with the manufacturer's documentation.

Application in Repairs and Upgrades

The rear left and right door wiring harness is suitable for both post-accident repairs and replacement of damaged harness sections due to wear and tear (cuts, abrasions, contact corrosion). Replacing the entire harness instead of making spot repairs to individual wires allows for:

• minimizing the risk of future circuit interruptions,
• maintaining clarity of the door's wiring,
• preserving the factory routing and mounting of wires,
• reducing the number of additional splices and intermediate connections.

For workshops specializing in the BMW brand, this is a convenient solution that speeds up the service process and facilitates high-quality workmanship.

Benefits of Choosing an Original BMW Wiring Harness

Opting for an original BMW door wiring harness translates to superior electrical compatibility and a precise fit with the body structure. The connectors, wire gauges, and lengths used comply with the manufacturer's design, which reduces circuit load and minimizes the risk of malfunctions caused by an incorrectly selected harness. Using an OEM part also optimizes repair costs while maintaining the system's factory operating parameters.

In case of issues with the drivetrain and related components, it is also worth considering the use of original used parts – more on this topic can be found in the article about the advantages of a used OEM drive axle in the context of a whining differential, which illustrates why factory parts are often a safer choice than random aftermarket replacements.

Support for Selecting BMW Door Components

If you are planning a comprehensive repair or upgrade of the door area in your BMW and require other components from the same group, such as panels, reinforcements, or additional structural elements, check the available parts in the BMW Doors and Door Panels category.
