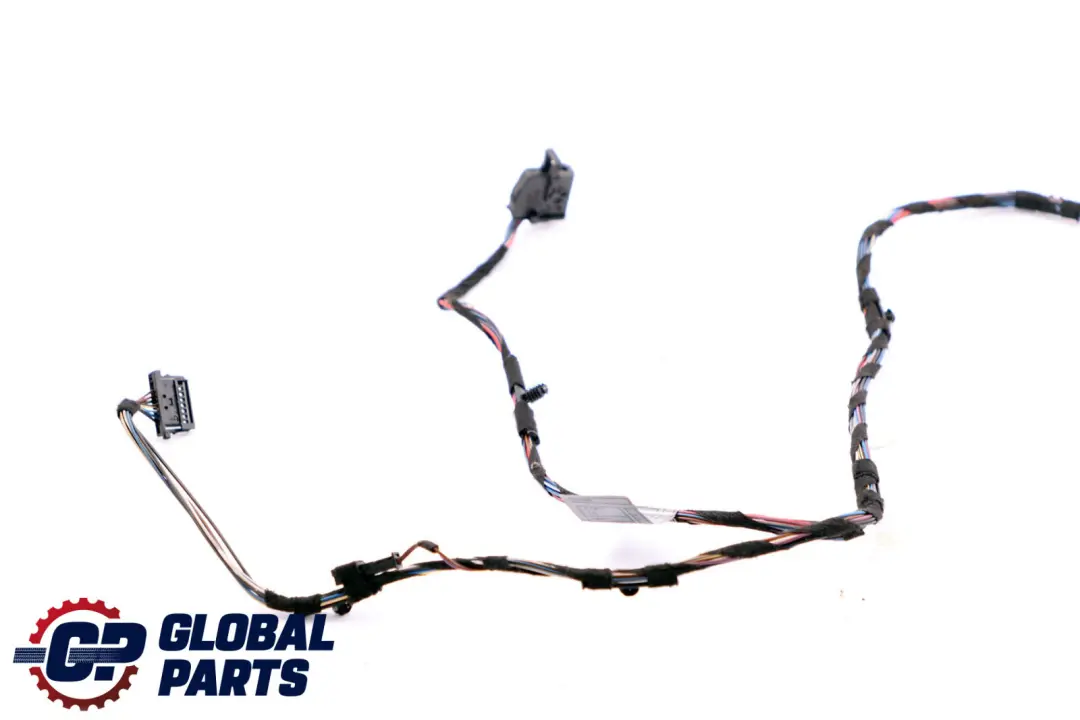

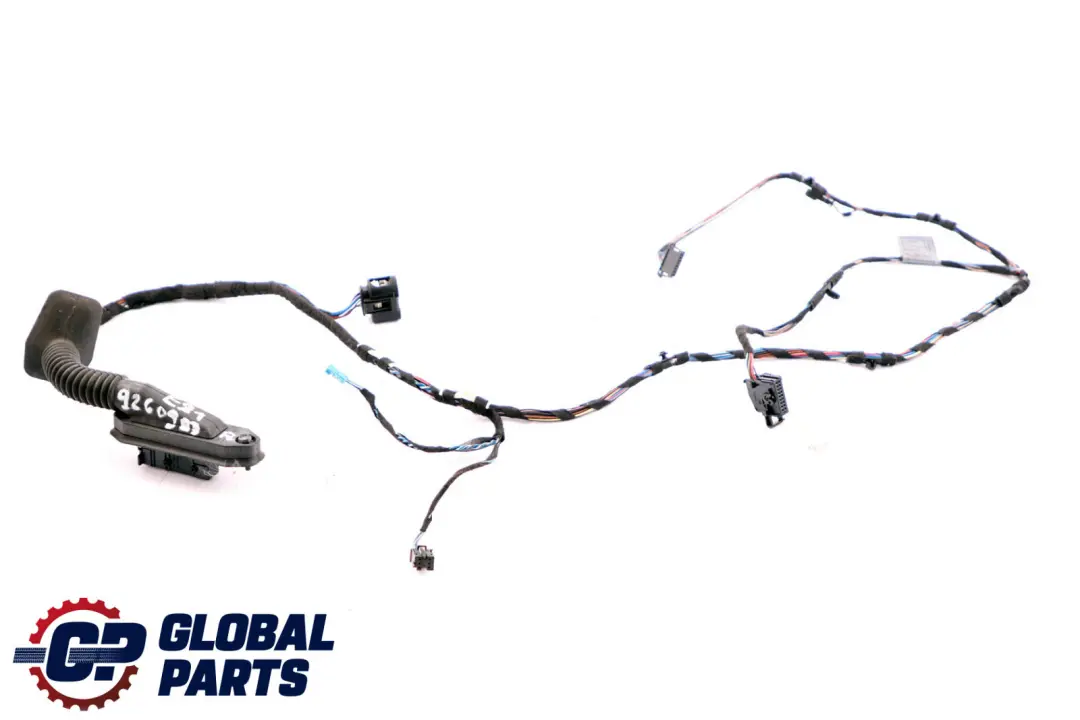

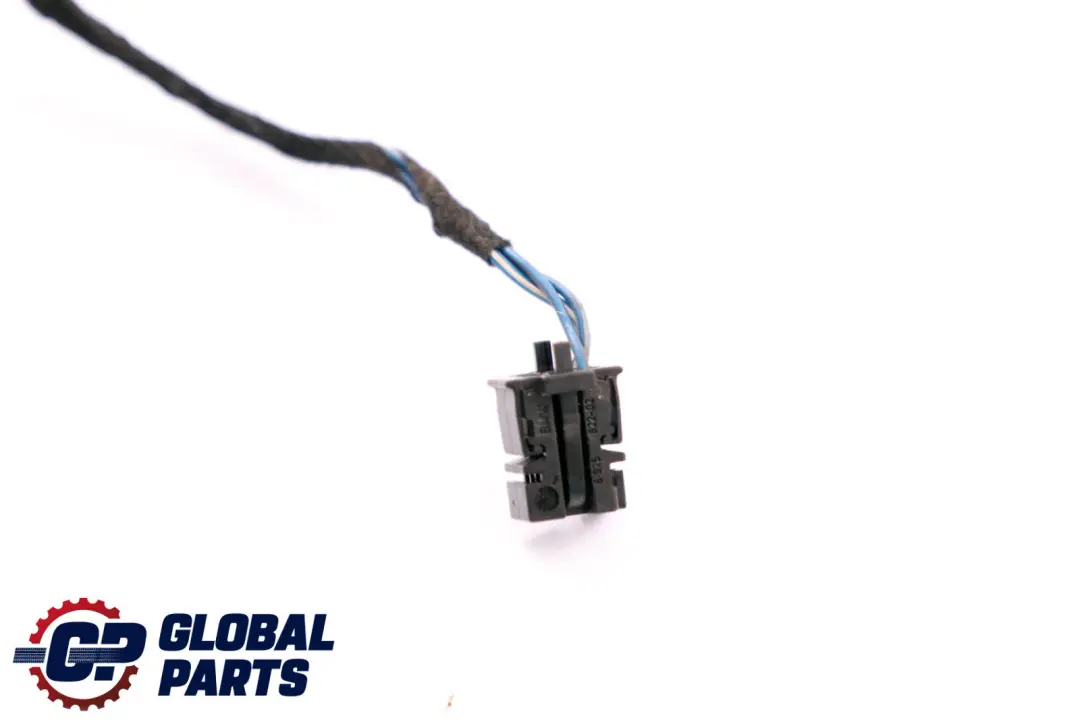

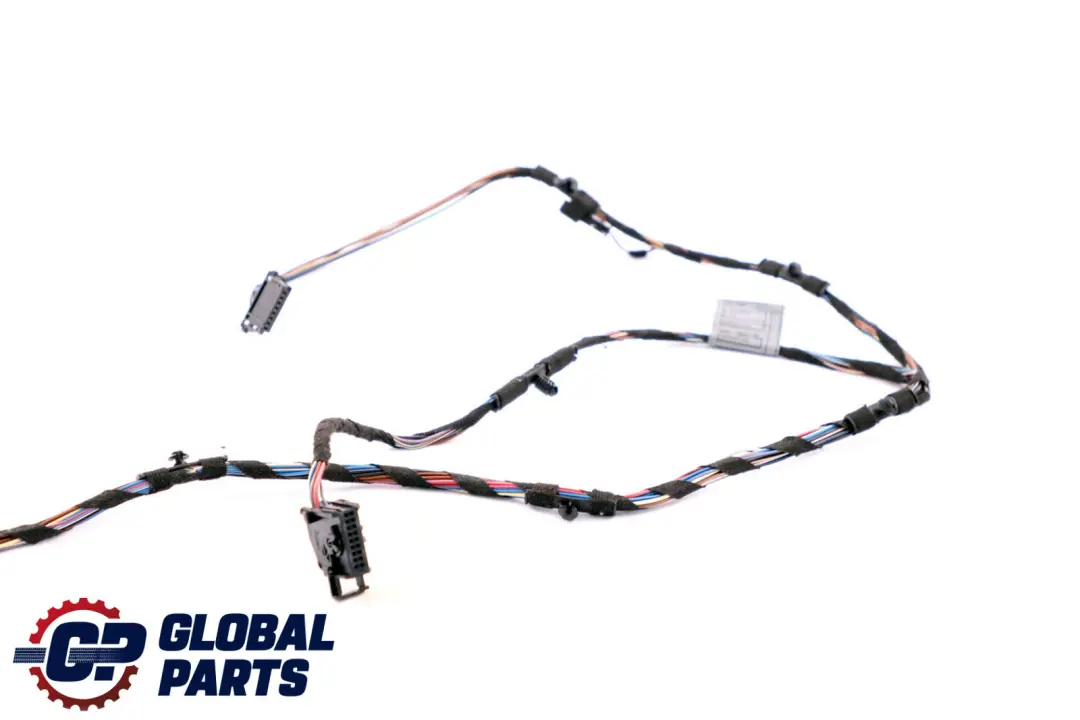

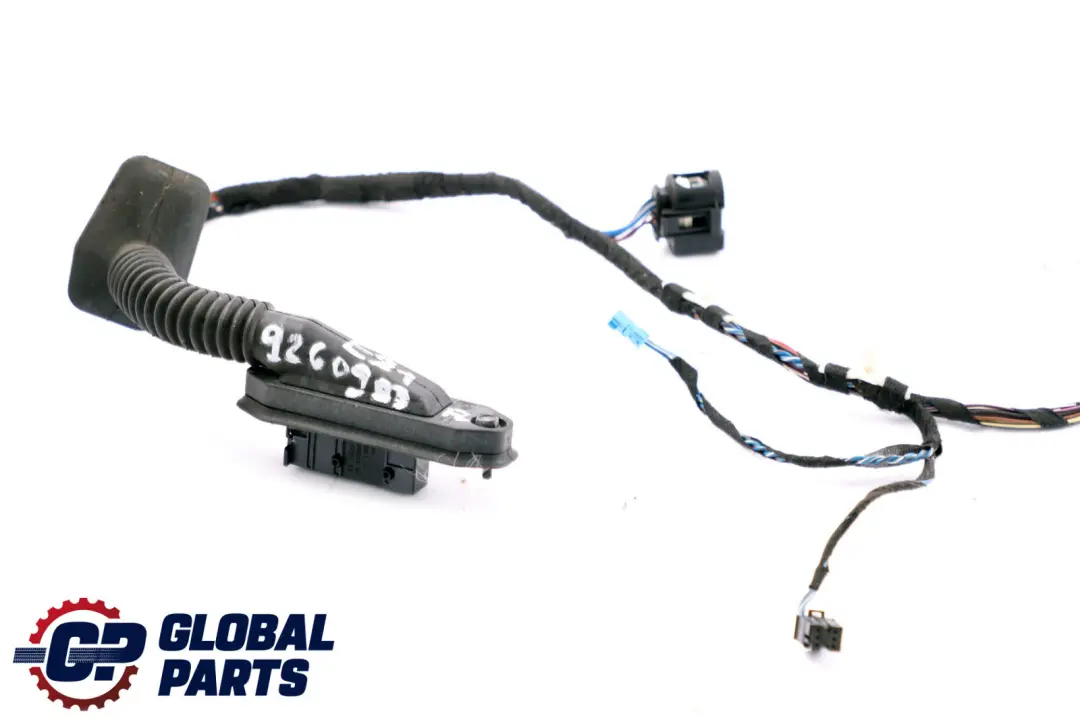

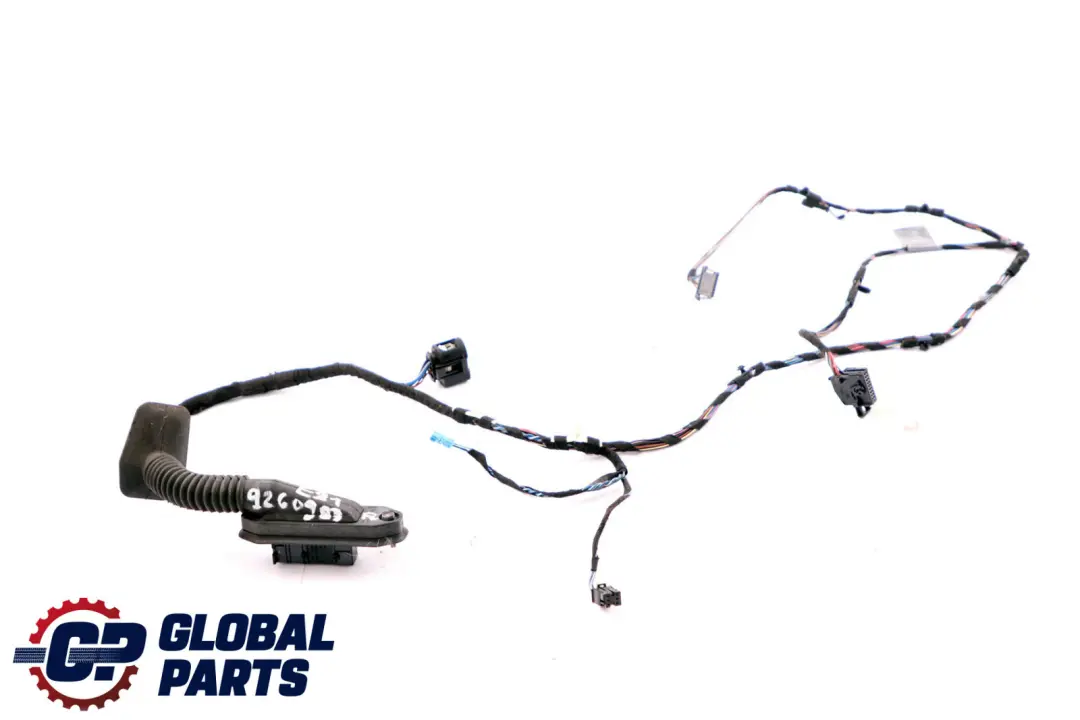

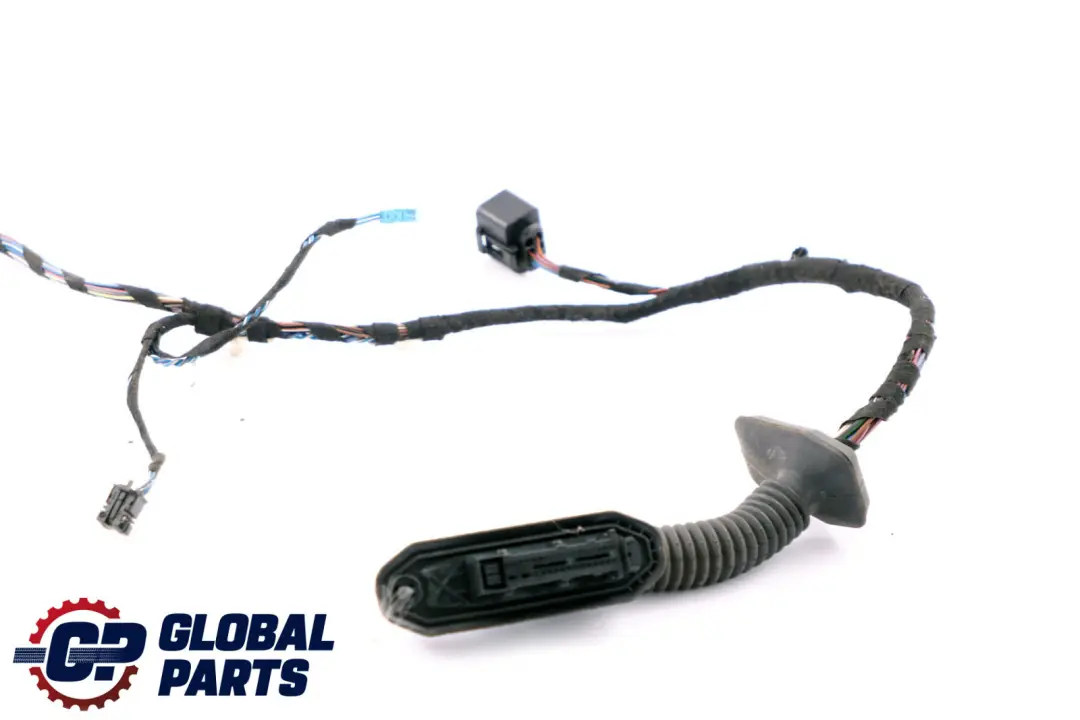

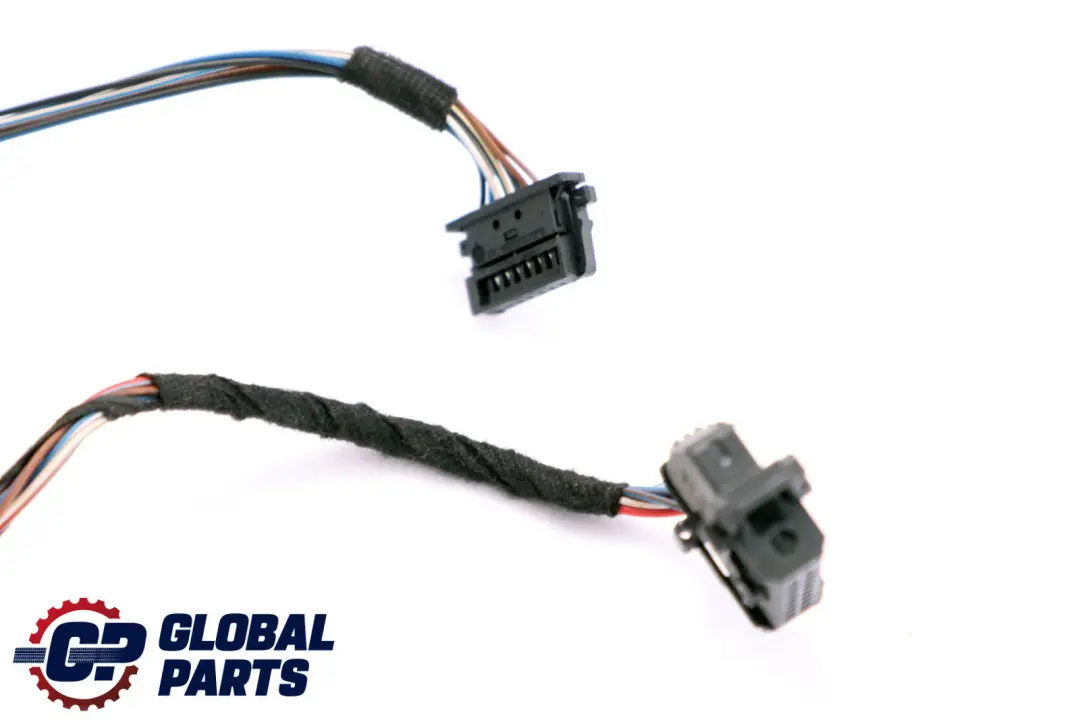

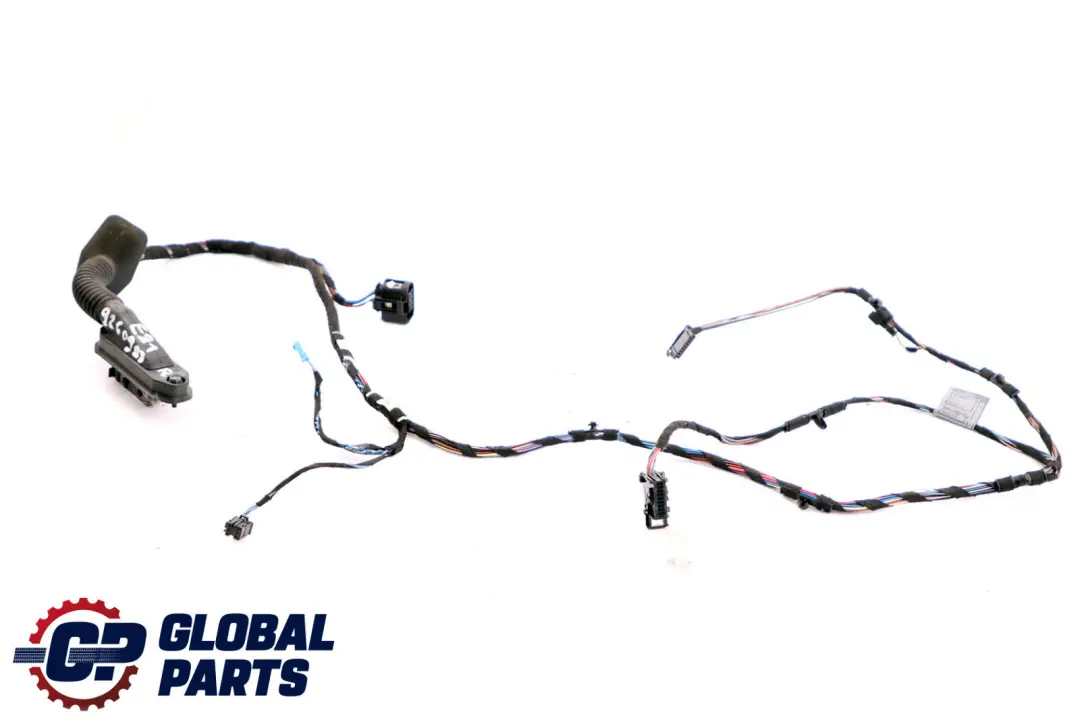

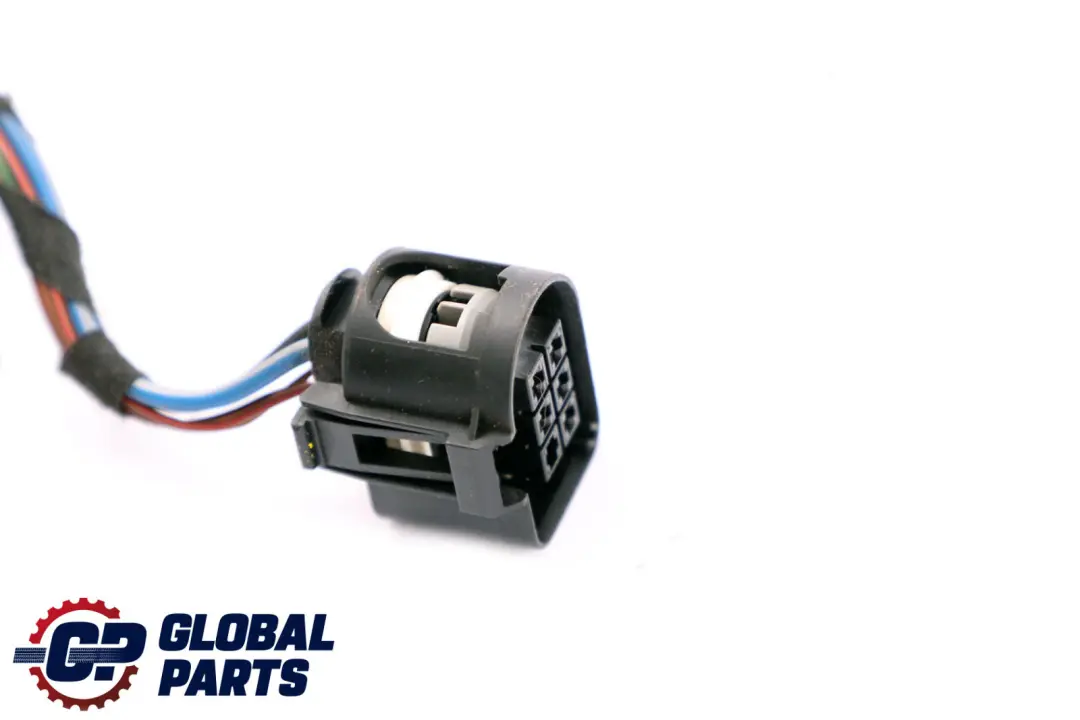

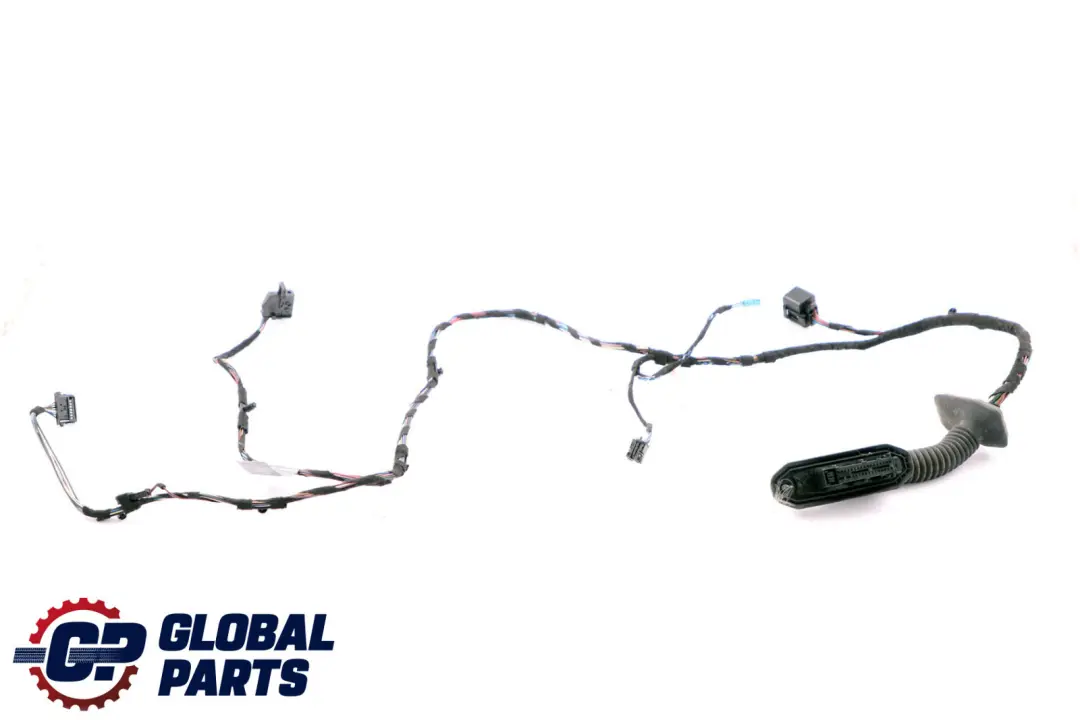

BMW 1 Series E81 E82 Cable Harness Loom Door Driver Side Wiring Set 9118102

BMW E81 E82 Left Door Wiring Harness 9118101 is an original electrical component from the BMW group, designed for the left door in E81 and E82 series models. The harness ensures proper connection of all factory-installed receivers in the door, guaranteeing stable communication with the body's electrical system and comfortable vehicle operation.

Specifications and technical data

• SKU: 9260903
• Mark: BMW (Genuine OE)
• Condition: Used

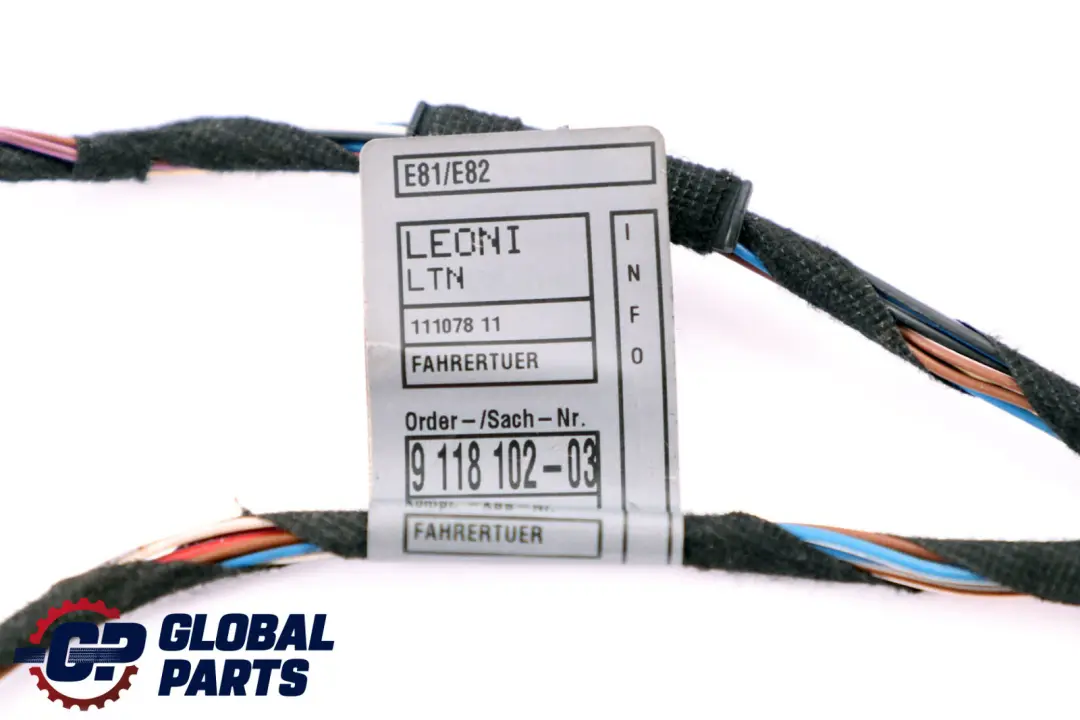

• OEM Part Number: 9260903
• Substitutable numbers: 61129260903, 9260903, 61129118103, 9118103, 9118102, 61129118102
• Category: Doors & Door Skins

Purpose and Function of the BMW E81 E82 Door Harness

The presented harness belongs to the Doors and Door Panels category and is dedicated to the left door in the compact BMW E81 and E82 models. It is responsible for transmitting signals and power between the body modules and the elements located in the door, such as window controls, central locking, and other factory-installed receivers specified in the vehicle's configuration.

By maintaining the original wiring and connector architecture, the harness allows for the preservation of the factory operating logic of the door systems, without the need for installation modifications or interference with the main body harness.

Advantages of Using an Original BMW Door Harness

Using an original BMW door harness to replace a damaged or incomplete one offers a number of practical benefits:

• factory connectors matched to door modules and hardware,
• appropriately selected wire gauges for individual circuits,
• compliance with factory wiring routing within the door and grommet,
• maintenance of correct communication with the body's electronics.

An original door harness reduces the risk of diagnostic problems, errors in control units, and unstable receiver operation, which often occur with aftermarket or unprofessionally repaired installations.

Product Characteristics and Installation

The harness is a used part, sourced from disassembly, which allows for full compliance with the factory BMW standard while optimizing repair costs. The wiring design and connector layout are consistent with the solutions used in the series production of the left doors of E81/E82 models, facilitating installation in place of a damaged harness.

When replacing, it is recommended to:

• check the condition of the grommet between the door and the pillar,
• verify the correct routing of the harness in the door guides,
• check the condition of the contacts in the connectors before final engagement.

This approach minimizes the risk of subsequent circuit interruptions and ensures stable operation of the electrical systems in the door.

Selection by Part Numbers and Vehicle Integration

The harness has a dedicated OEM part number and associated interchangeable numbers, which facilitates precise identification of the component for a specific equipment version. When selecting, it is recommended to compare the part number with the vehicle's documentation or the existing harness to ensure full compatibility with the control modules and door configuration.

A correctly selected harness helps avoid problems with inactive functions, communication errors, or the need for installation adaptation, which is particularly important in modern BMW vehicles where individual modules are closely linked to specific equipment variants.
