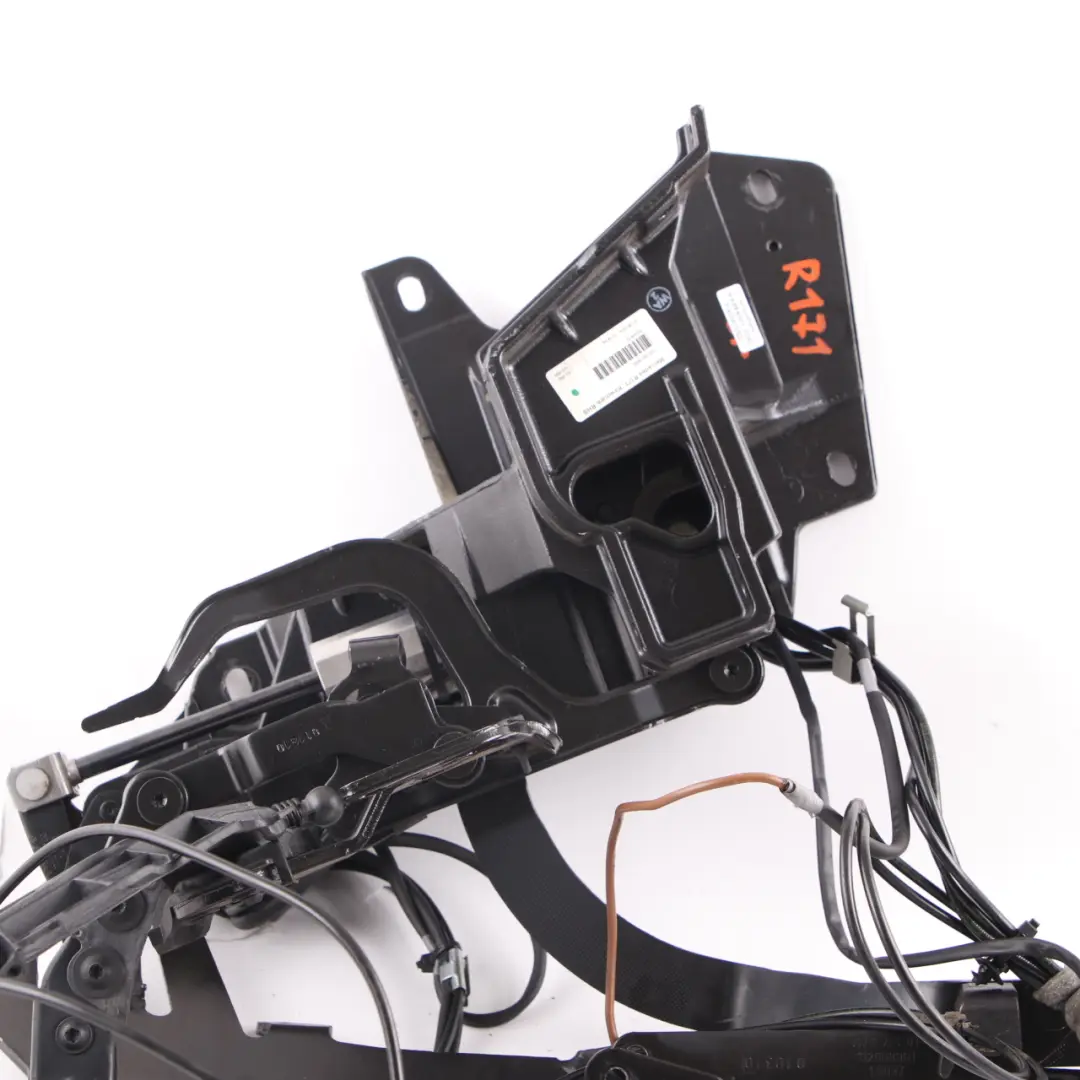

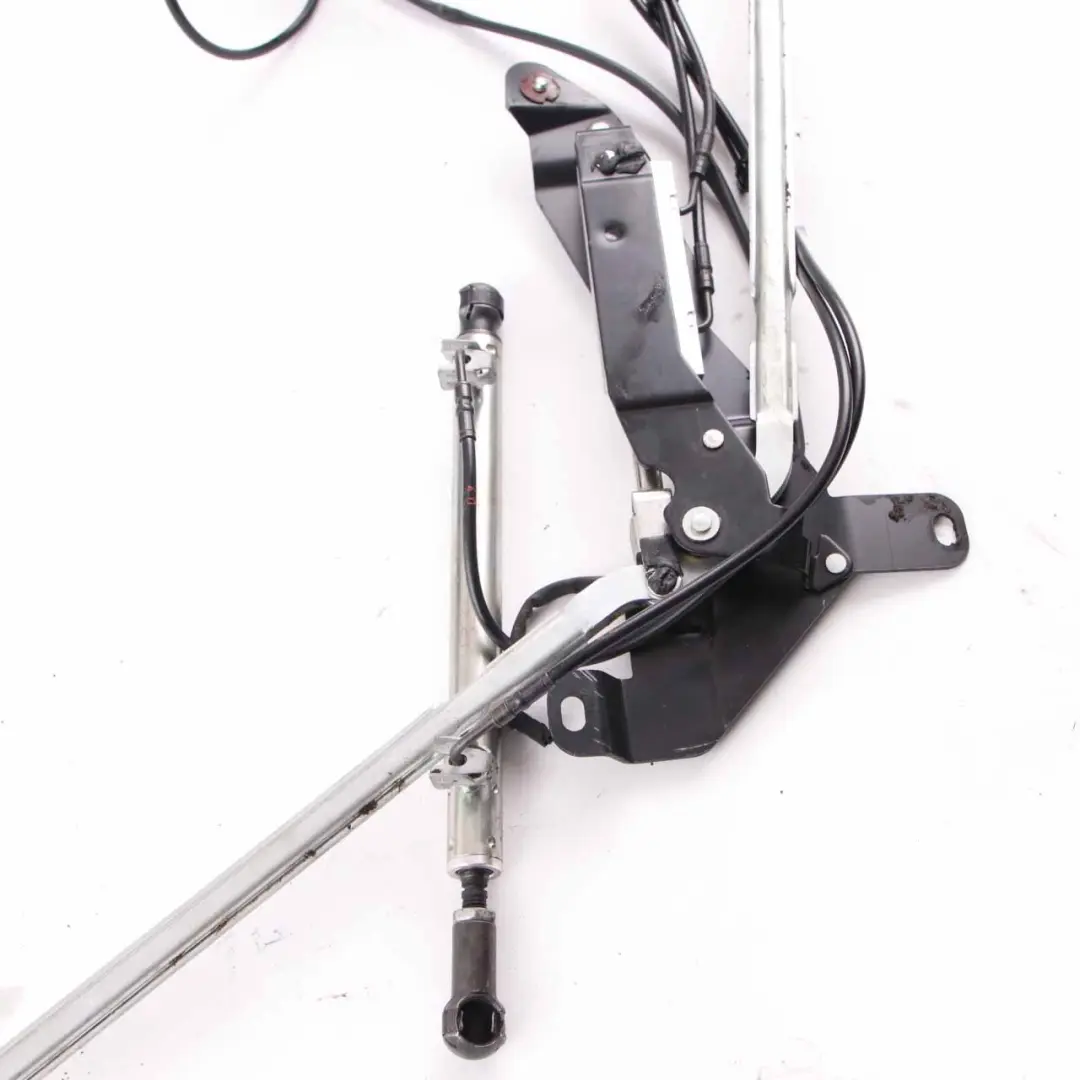

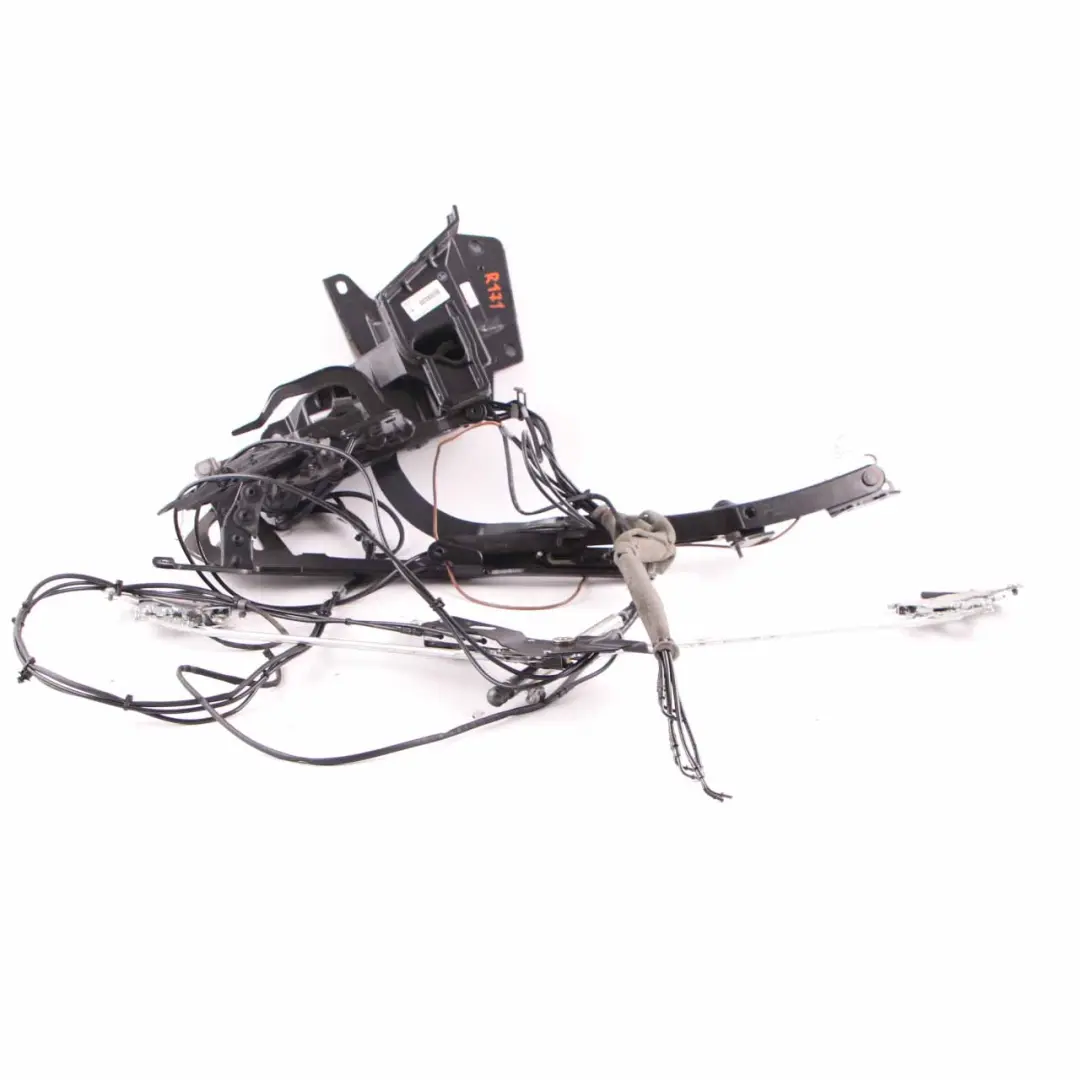

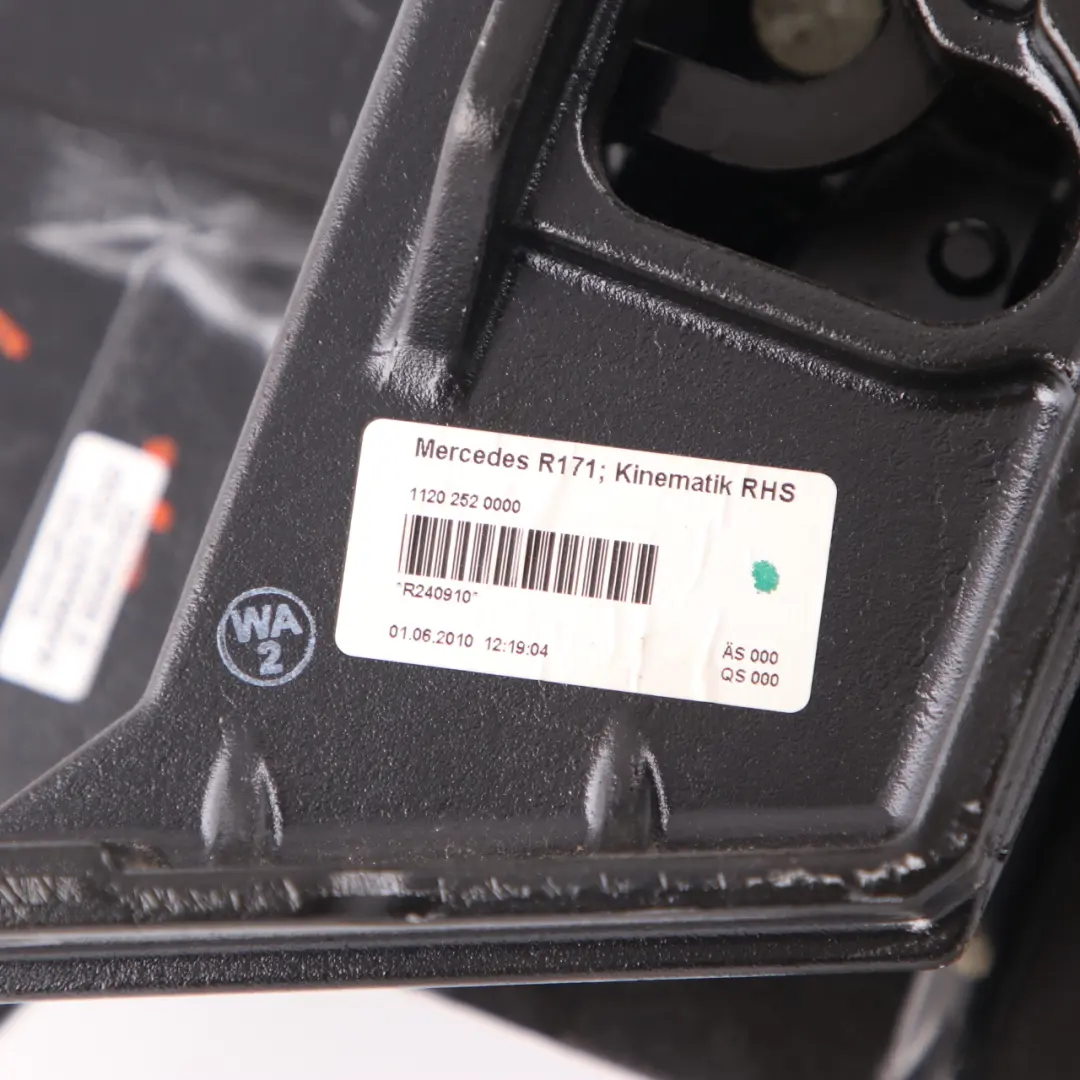

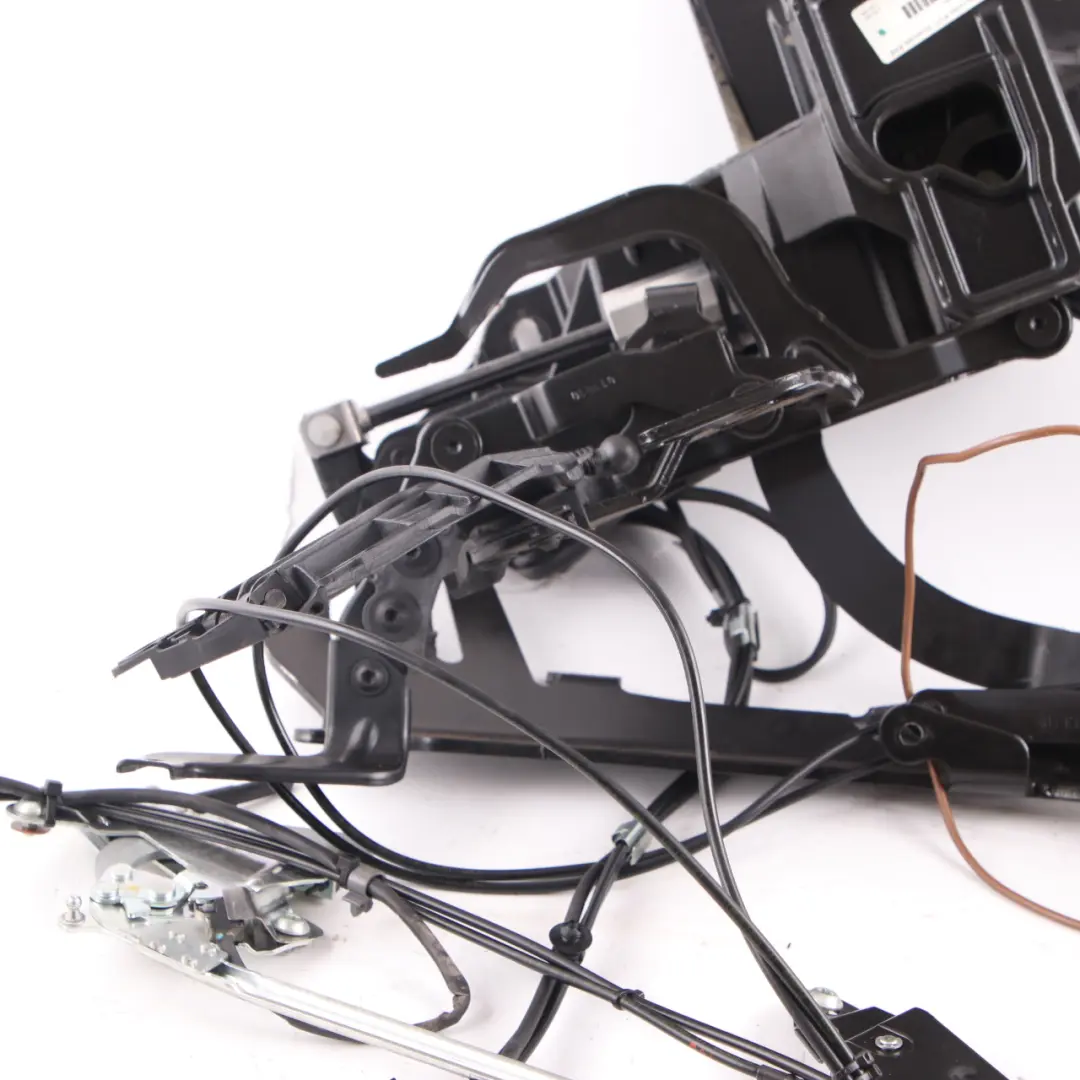

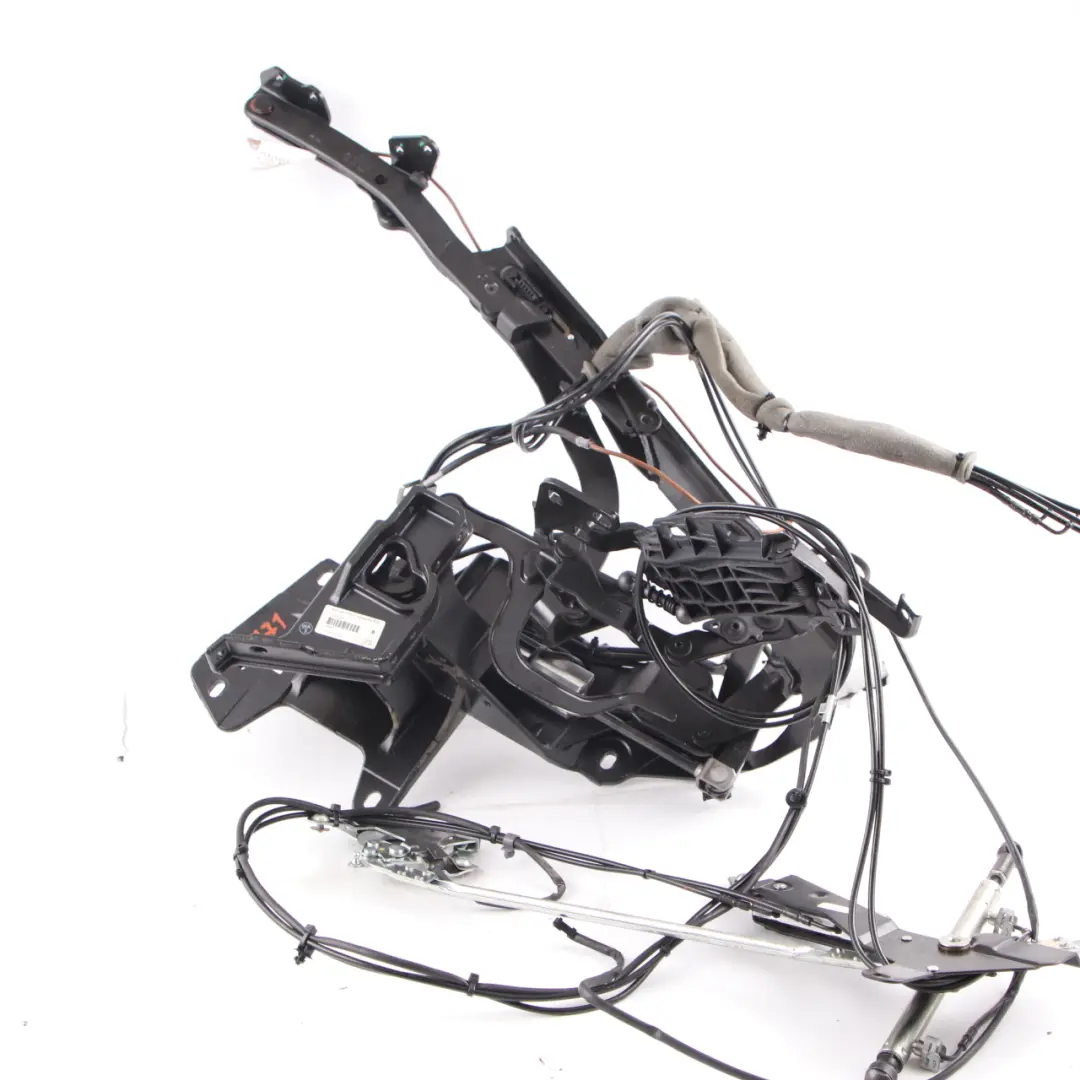

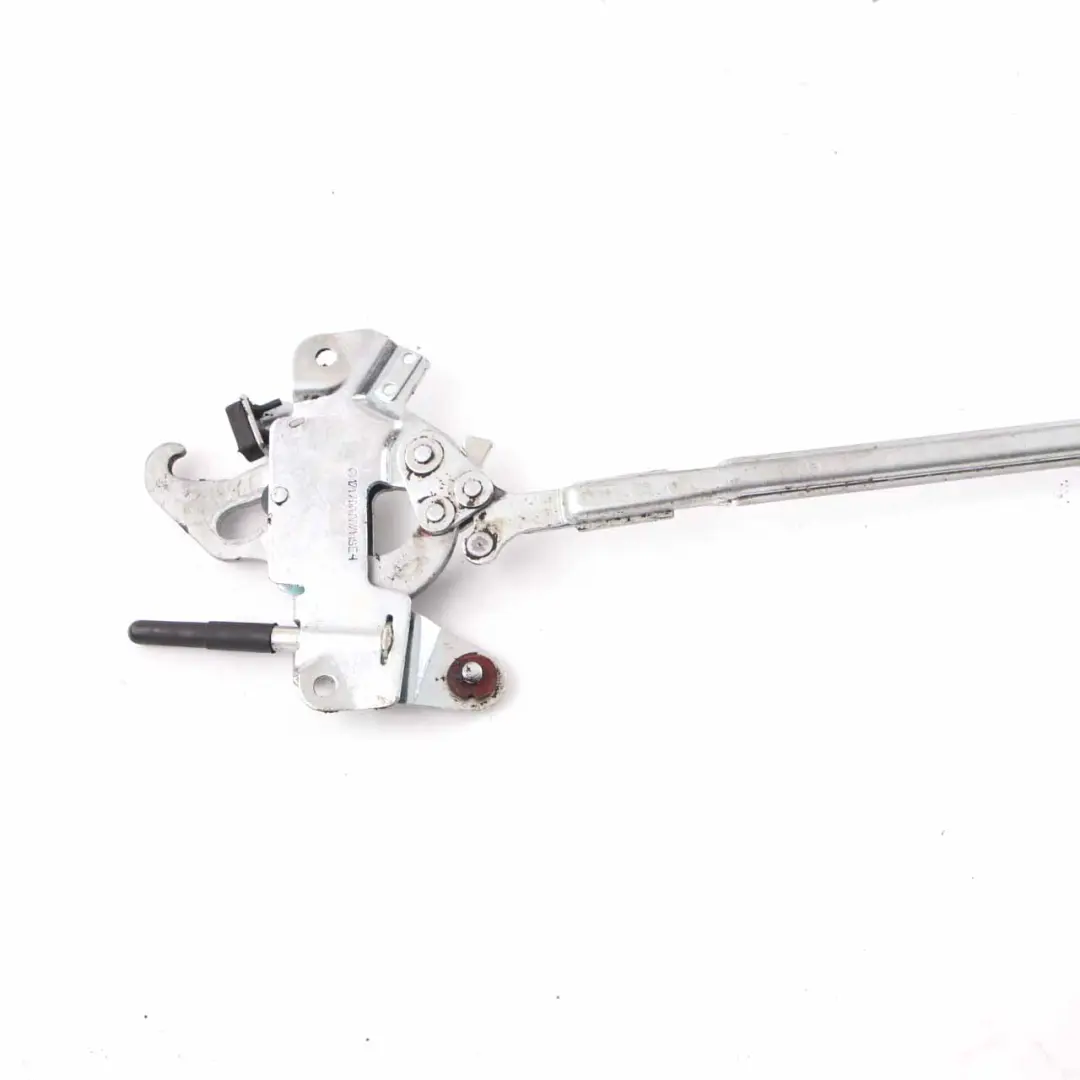

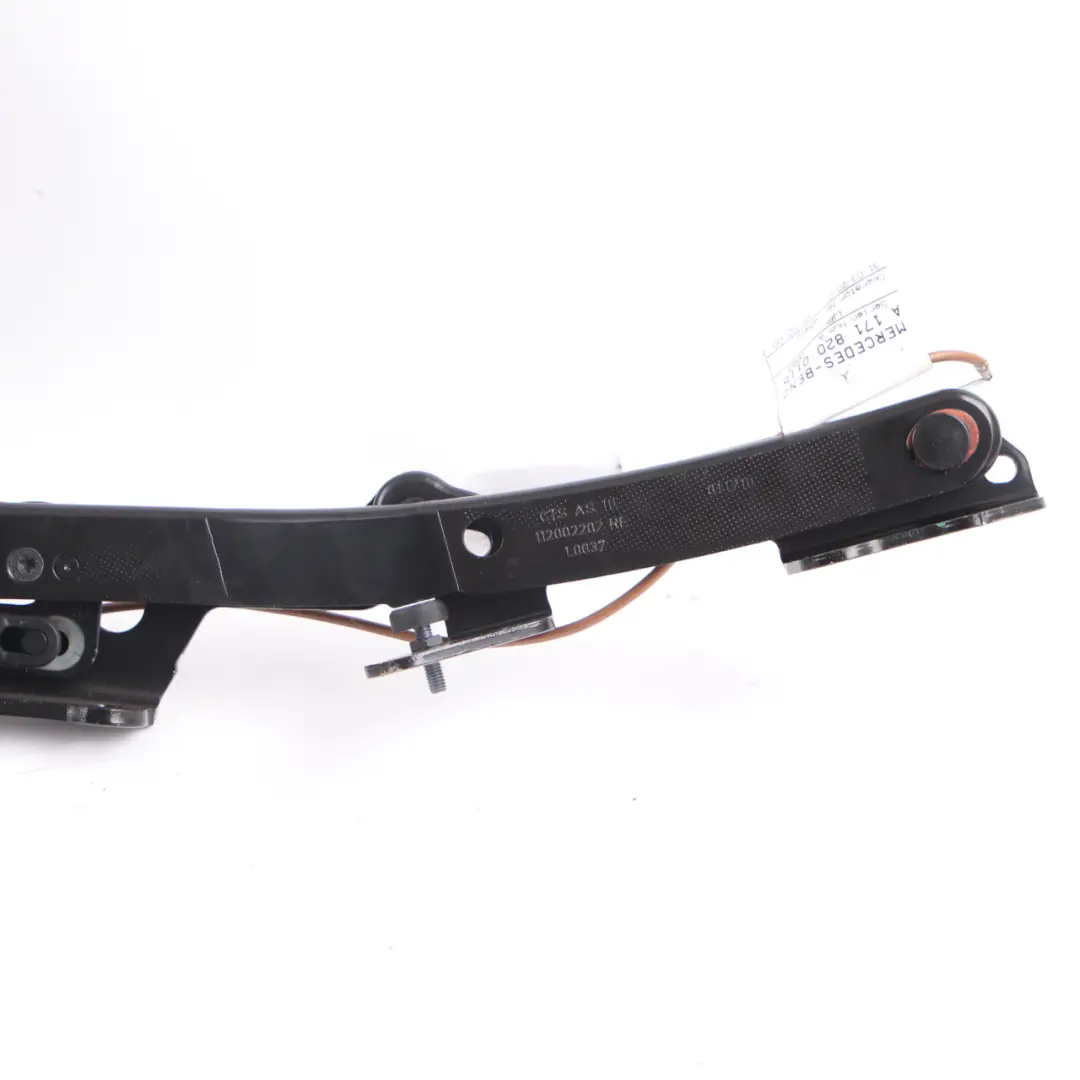

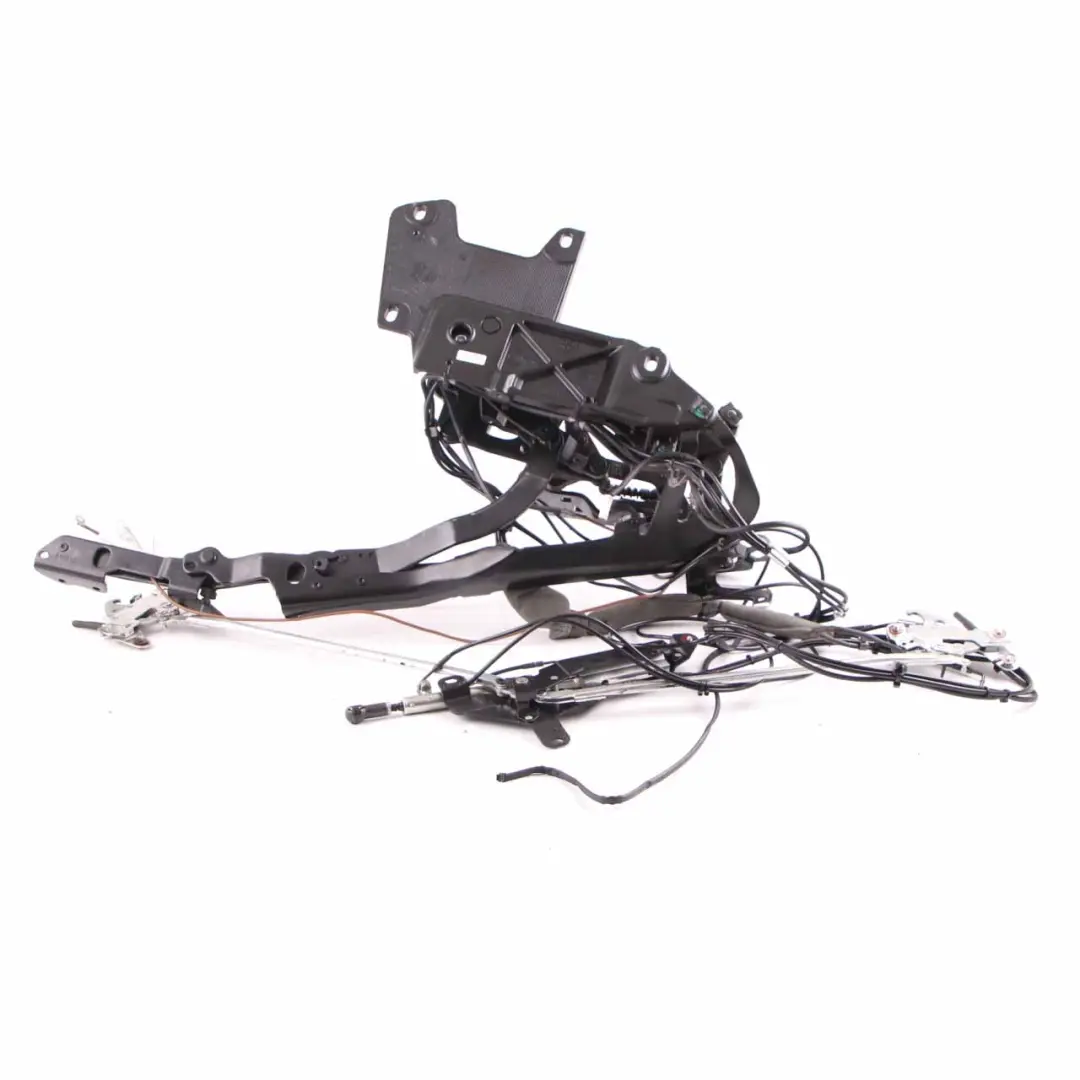

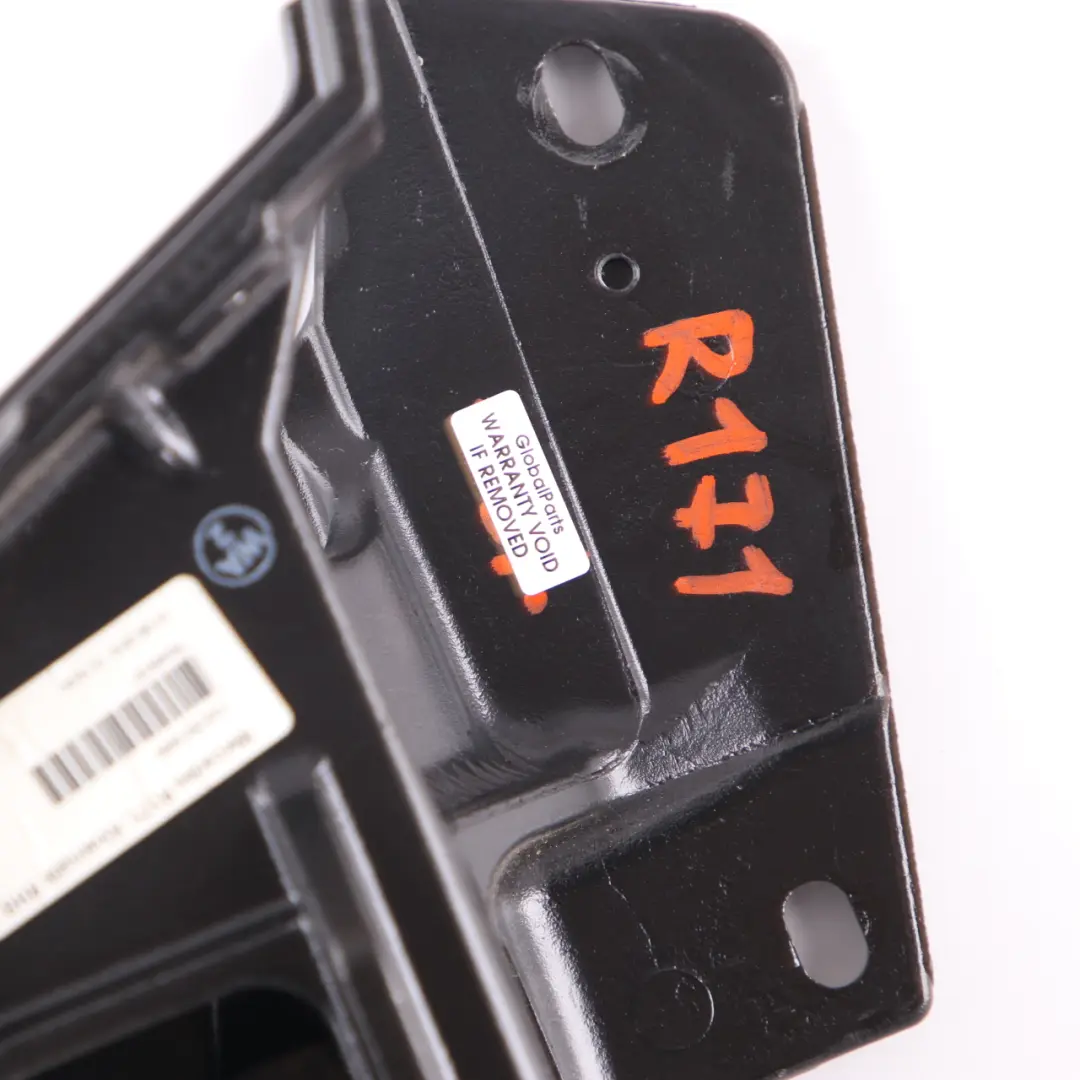

Mercedes SLK R171 Folding Top Roof Frame Arm Hinge Lock Right O/S 11202520000

The Right Hinge Arm of the Folding Roof Frame Lock for Mercedes SLK R171 is a precise component of the soft top mechanism, responsible for the stable guidance and secure locking of the structure. Thanks to its factory geometry and specific model fit, it ensures proper operation of the right side of the folding roof and reduces the risk of jams or uneven closing. This solution is designed for users who want to restore the full functionality of their convertible roof while maintaining its original operating characteristics.

Specifications and technical data

• SKU: 11202520000
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: 11202520000
• Substitutable numbers: 11202520000, BG
• Location on the vehicle: Right
• Category: Convertible Tops & Parts

Purpose and Function of the Component

The described element is the right hinge arm with a folding roof frame lock, used in the Mercedes SLK R171 generation. It is responsible for transferring loads between the roof structure and the body, as well as for the correct positioning of panels during opening and closing. Its placement on the right side of the vehicle allows for precise integration with the factory layout of guides, actuators, and other roof joints.

A properly selected hinge arm is crucial for:

• maintaining the geometry of the soft top frame during operation,
• stable locking of the roof in the closed position,
• smooth movement of the mechanism without excessive stress,
• reducing noise and play resulting from wear of the joint elements.

Benefits of Using a Used Original Part

A hinge arm with a frame lock sourced from disassembly retains its factory structural parameters, which translates to compatibility with the original roof mechanism in the Mercedes SLK R171. A used component allows for economical repair without the need to resort to aftermarket replacements with uncertain geometry or material quality.

The main advantages of using this type of solution include:

• maintaining the original kinematics of the folding roof's operation,
• the ability to replace only the damaged right-side arm,
• reducing service costs while maintaining high quality of workmanship,
• easier diagnostics and installation due to compliance with the factory system.

Installation and Vehicle Fitment

The element is designed as a structural part of the soft top frame, with a dedicated placement on the right side of the vehicle. This allows it to be integrated into existing mounting points and to work with original pins, bushings, and locks. During installation, it is recommended to:

• check the condition of other joints and mounting points of the frame,
• verify operating clearances after the entire mechanism is assembled,
• perform test cycles of opening and closing the roof after installing the element.

This approach allows for the restoration of correct operation of the entire system without the need to interfere with other components, provided they do not show signs of wear.

Application in the Soft Top System for Convertibles

The hinge arm of the frame lock is part of the Soft Tops for Convertibles and Parts group, which is a set of elements responsible for the sealing, rigidity, and smooth operation of the folding roof. If the arm on one side of the vehicle is damaged, problems with movement synchronization, uneven closing, or actuator overload may occur, making the replacement of this component important for the durability of the entire system.

If you are planning a comprehensive repair or upgrade of the folding roof area in your Mercedes and need other parts from the same group, such as frames, arms, or hinges, check the available parts in the category Soft Tops for Convertibles and Mercedes Parts.

Why Choose Used Original Components for Mercedes

For the Mercedes brand, using used, original components allows for the preservation of the characteristic comfort of the mechanisms' operation at reasonable service costs. This applies to both structural elements of the roof and other vehicle systems. You can find more about the advantages of using original parts from disassembly in Mercedes vehicles in the article Used Parts for Mercedes – Original Parts from Disassembly, which discusses the practical aspects of such a solution.

Summary

The Right Hinge Arm of the Folding Roof Frame Lock for Mercedes SLK R171 is a specialized structural element that restores the correct operation of the soft top mechanism on the passenger side. Using an original, used component allows for a technically correct repair, maintains the correct frame geometry, and reduces costs compared to purchasing new parts, while preserving the high quality characteristic of the Mercedes brand.
