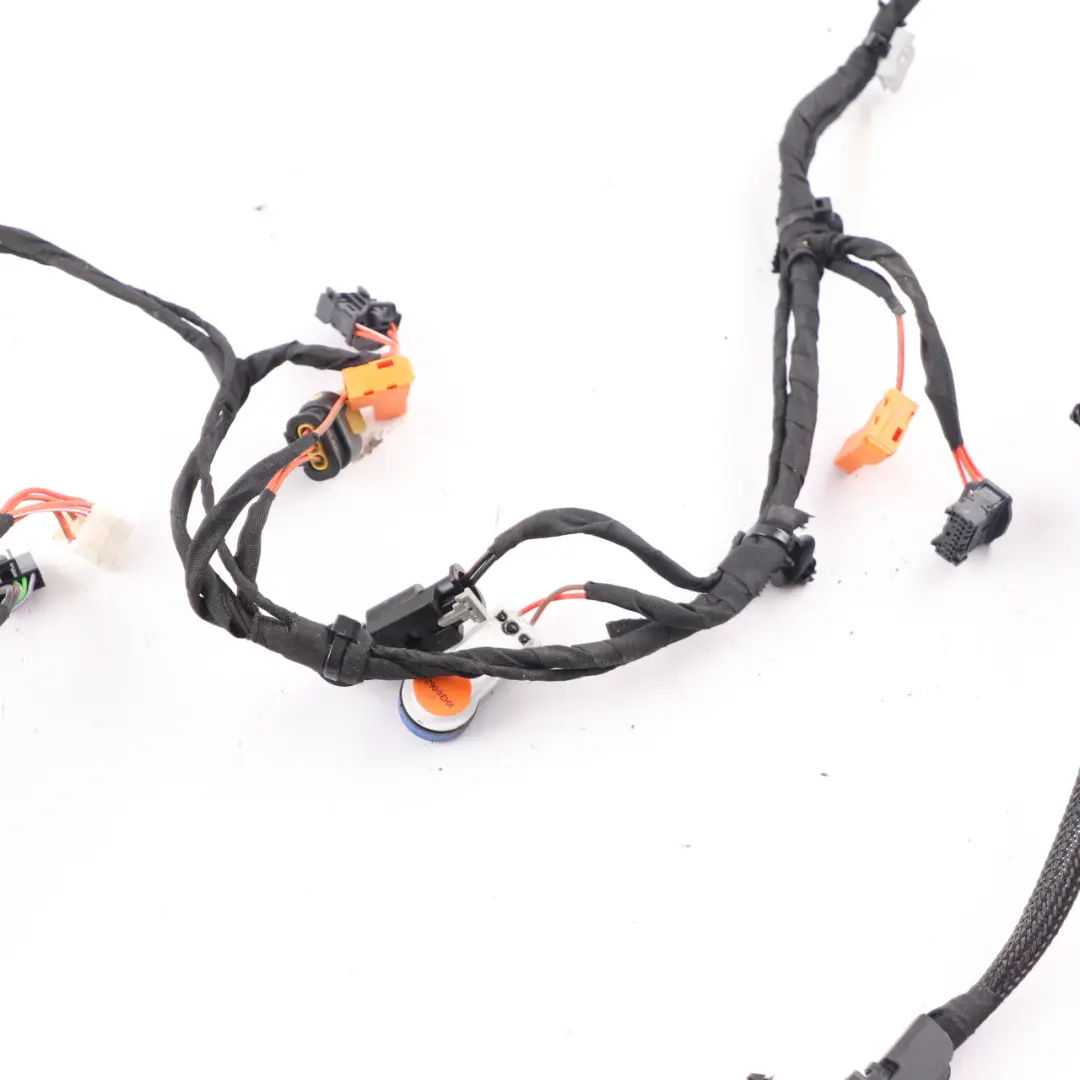

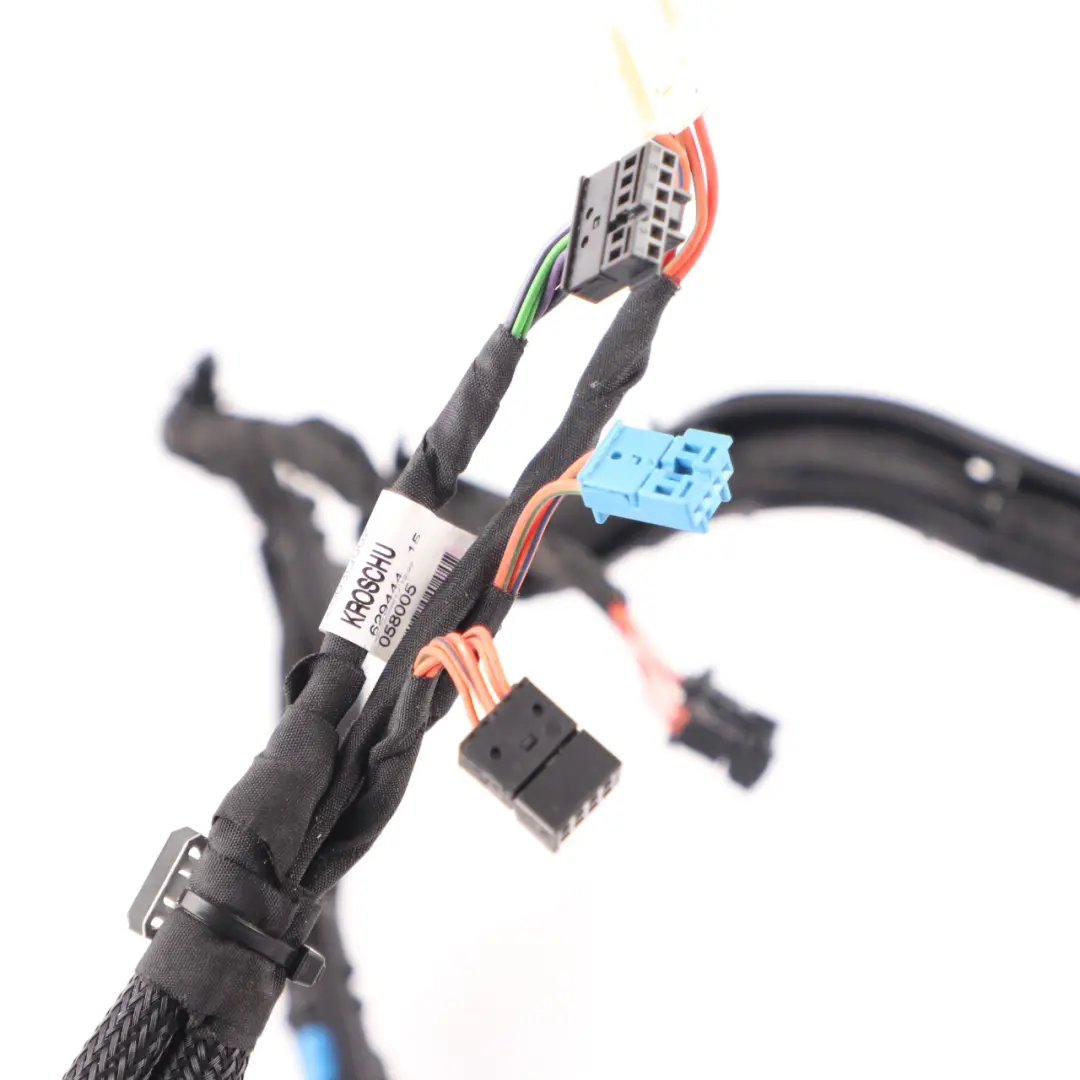

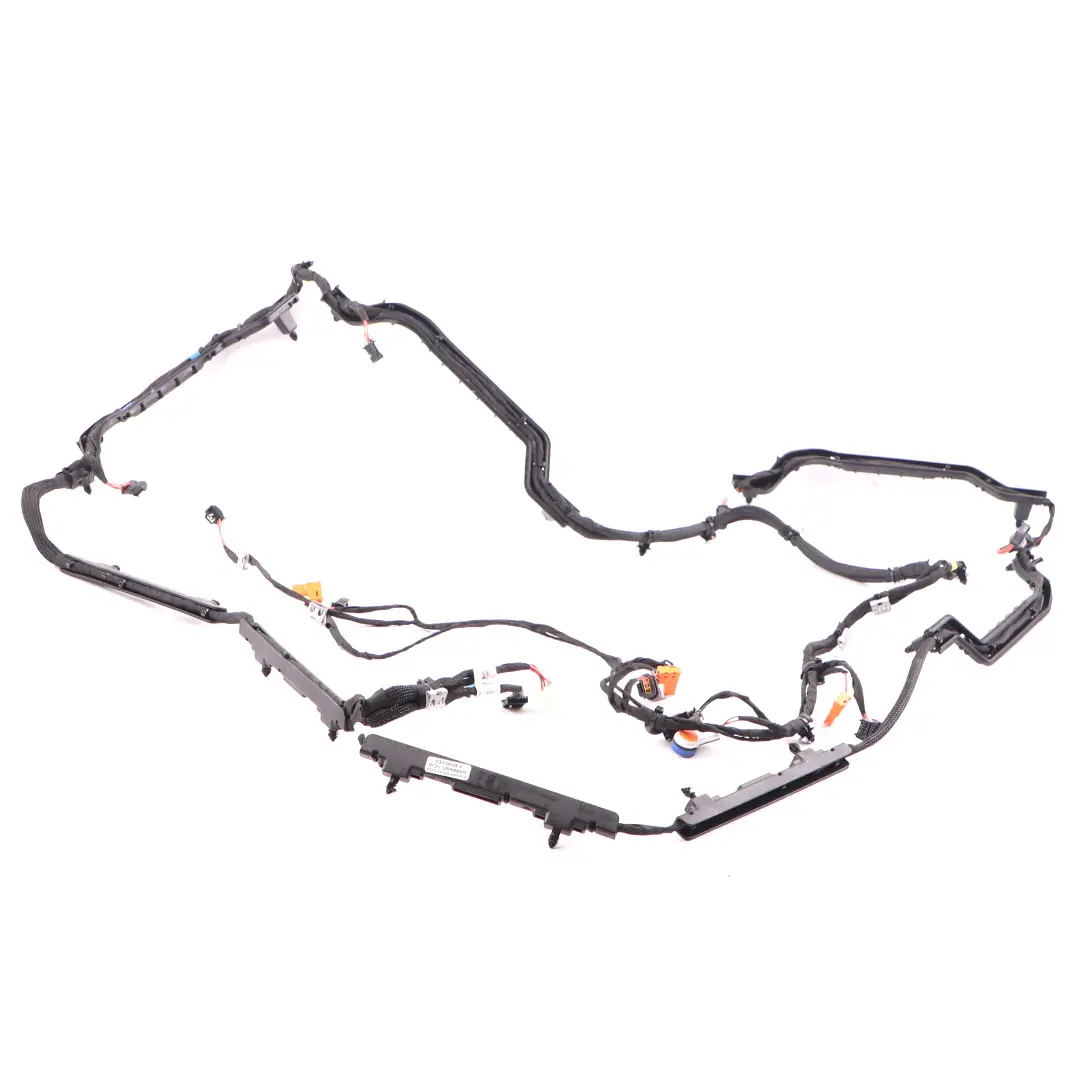

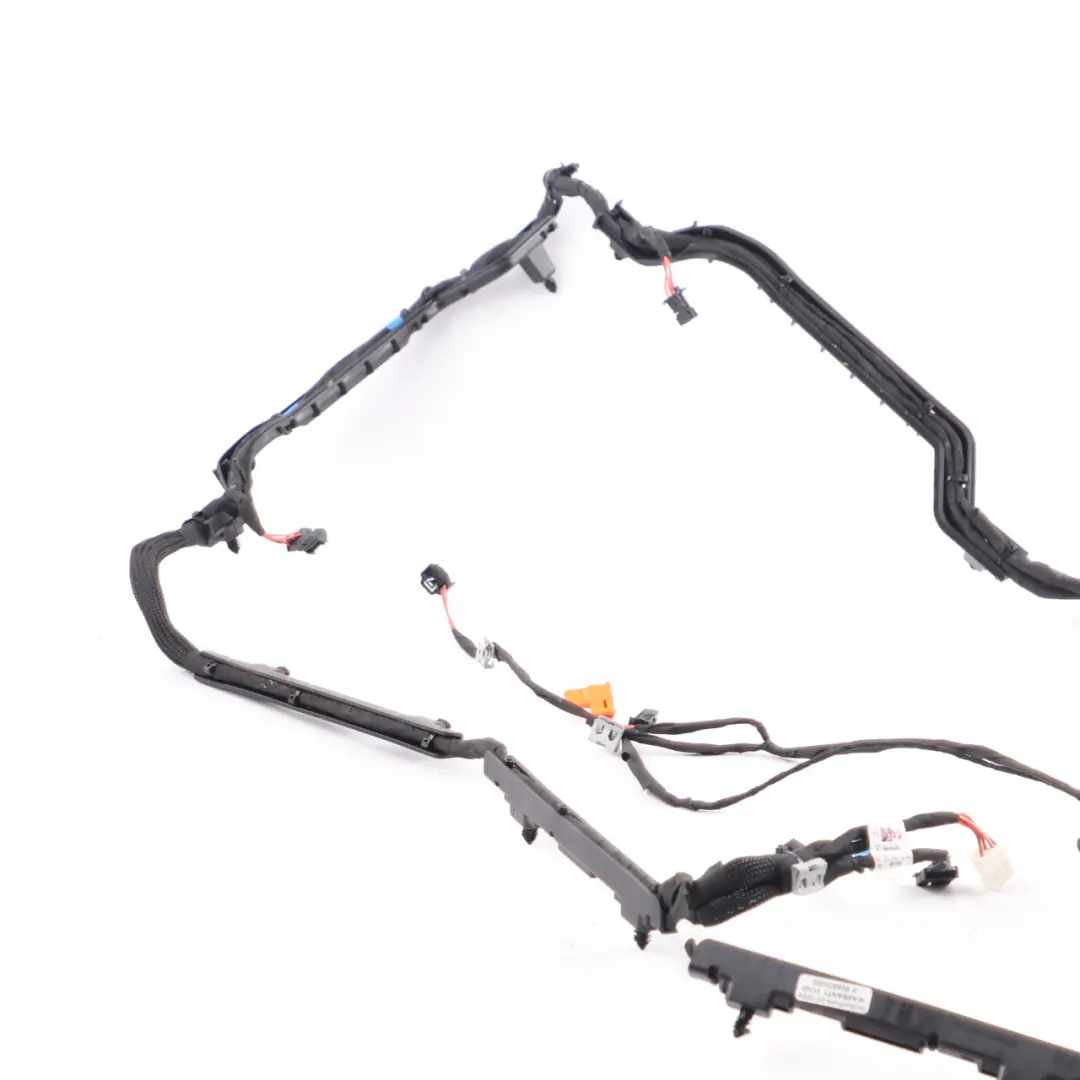

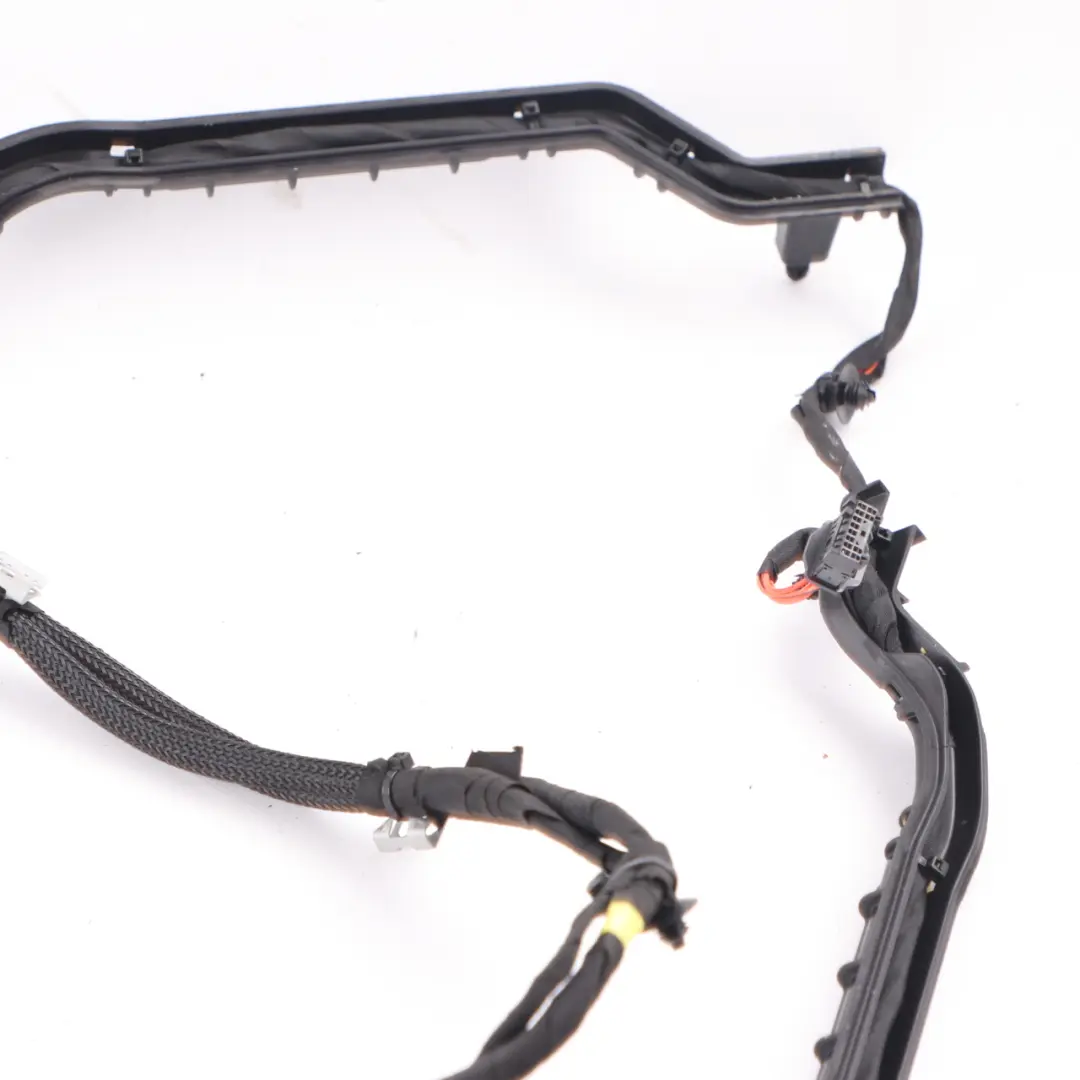

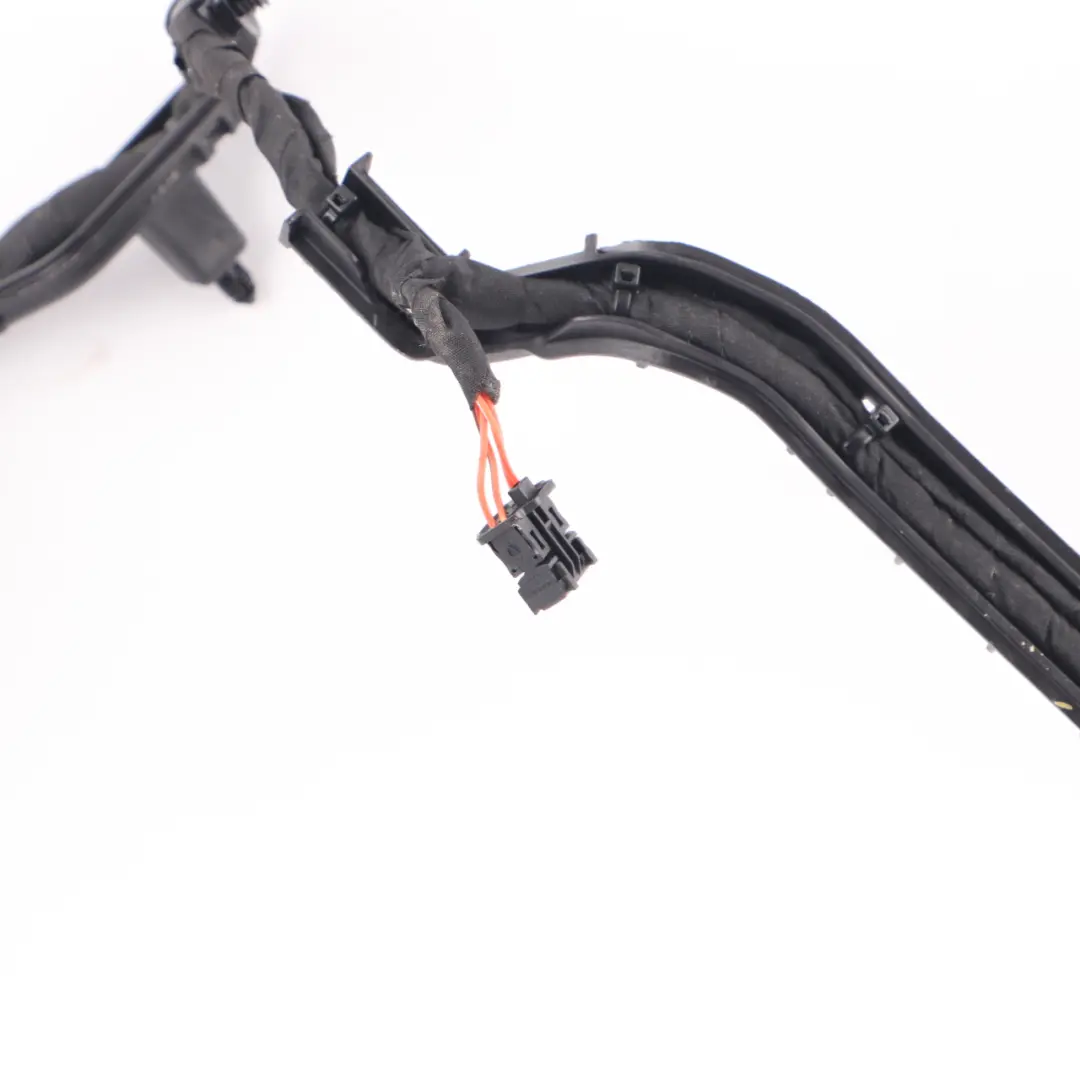

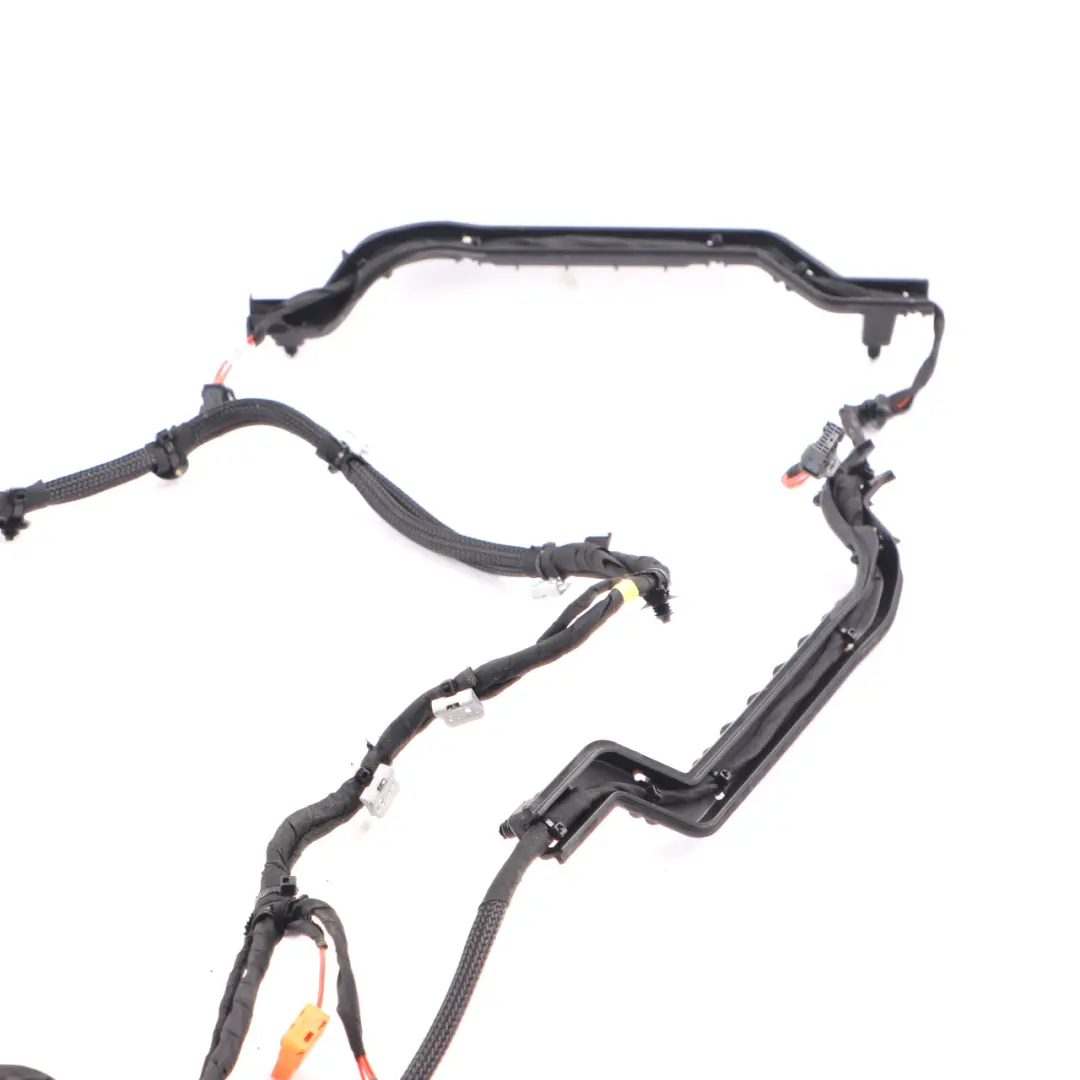

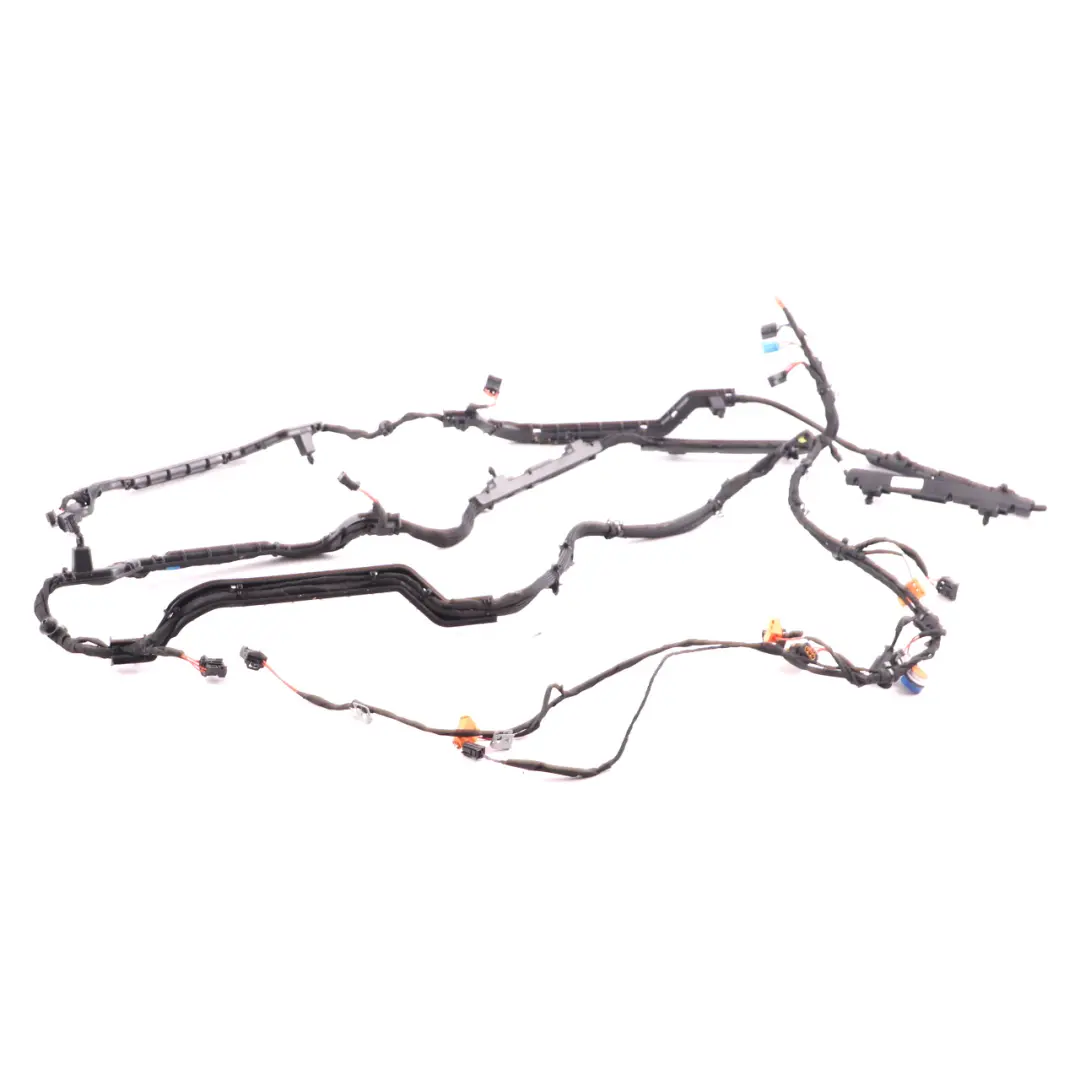

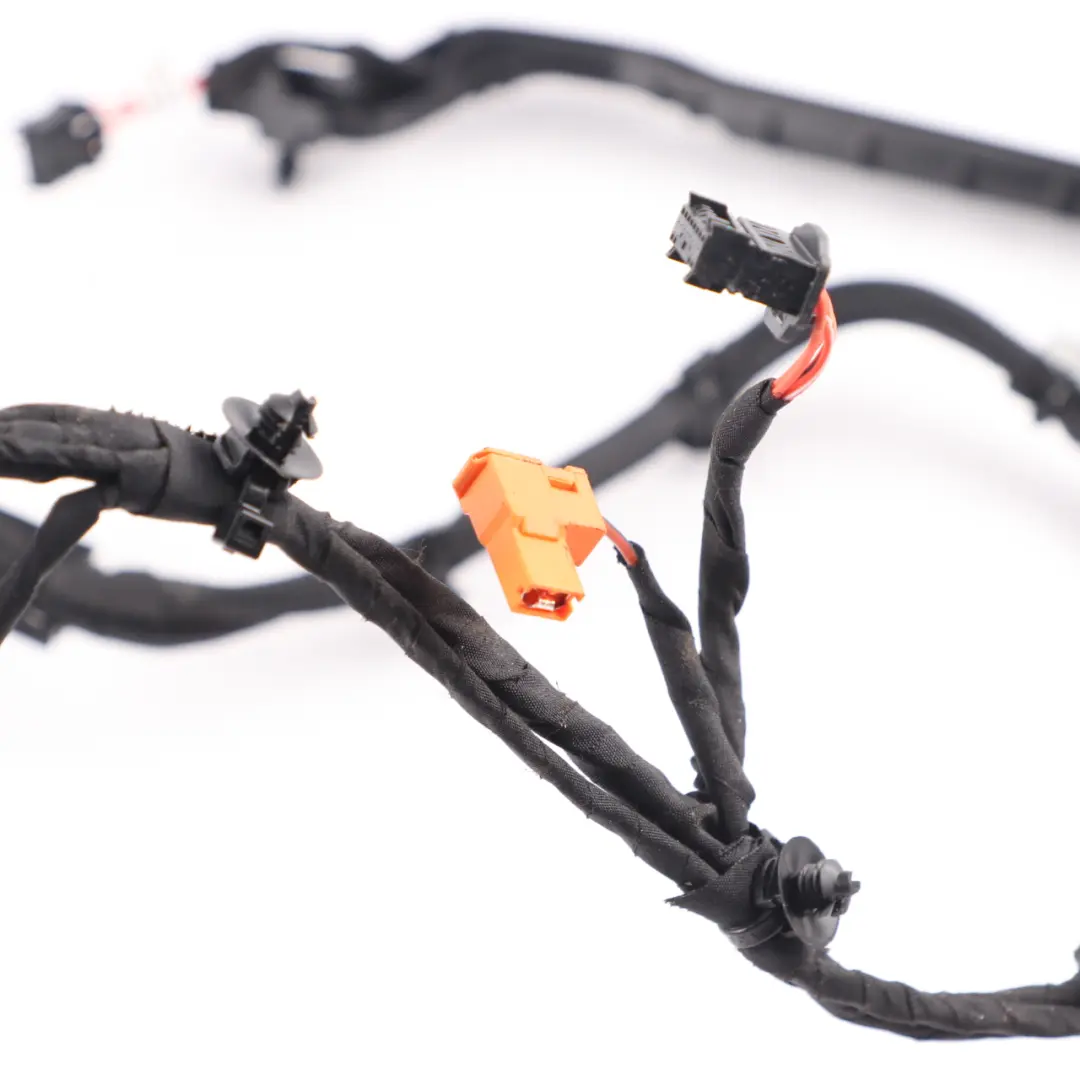

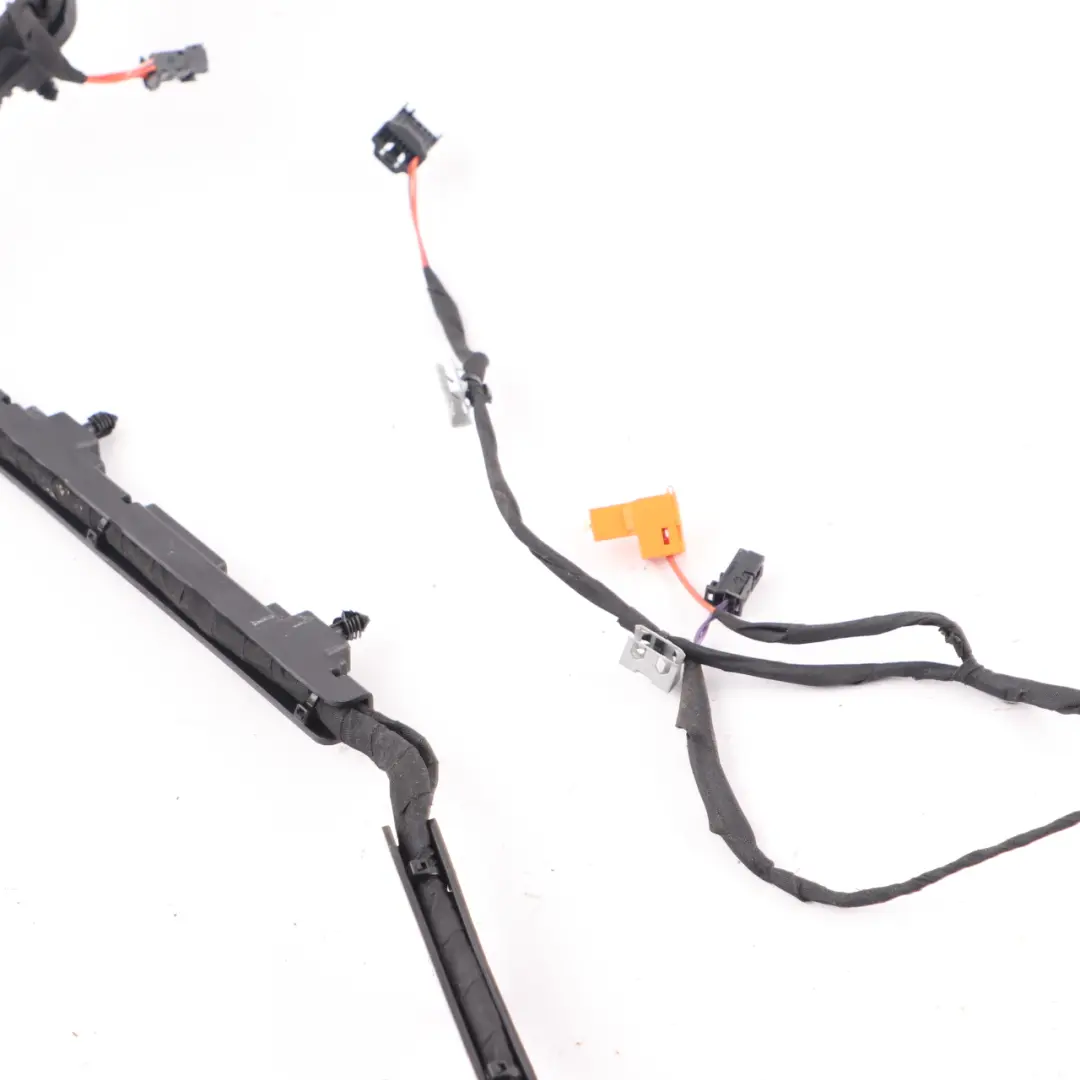

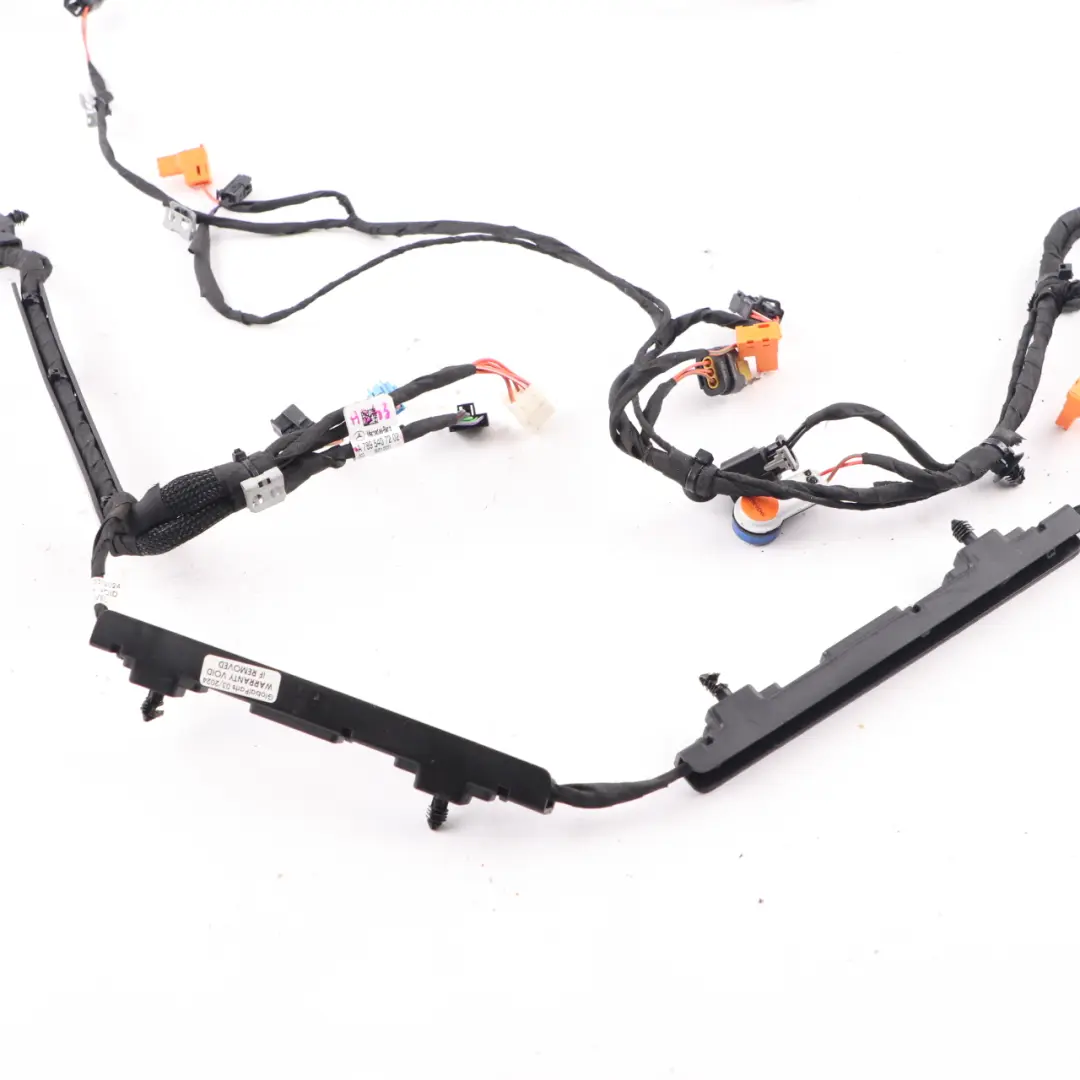

Mercedes EQA H243 Battery Cable High Voltage Engine Wiring Harness A7895407202

The Mercedes EQA H243 Engine High-Voltage Harness is a specialized component of the electric vehicle's electrical system, designed for the safe transfer of energy between the traction battery and the drive components. The offered high-voltage wiring harness comes from the original Mercedes production line and is structurally matched to the EQA H243 model's architecture. This ensures proper cable routing, stable connections, and compliance with factory high-voltage safety standards.

Specifications and technical data

• SKU: A7895407202
• Mark: Mercedes (Genuine OE)
• Condition: Used

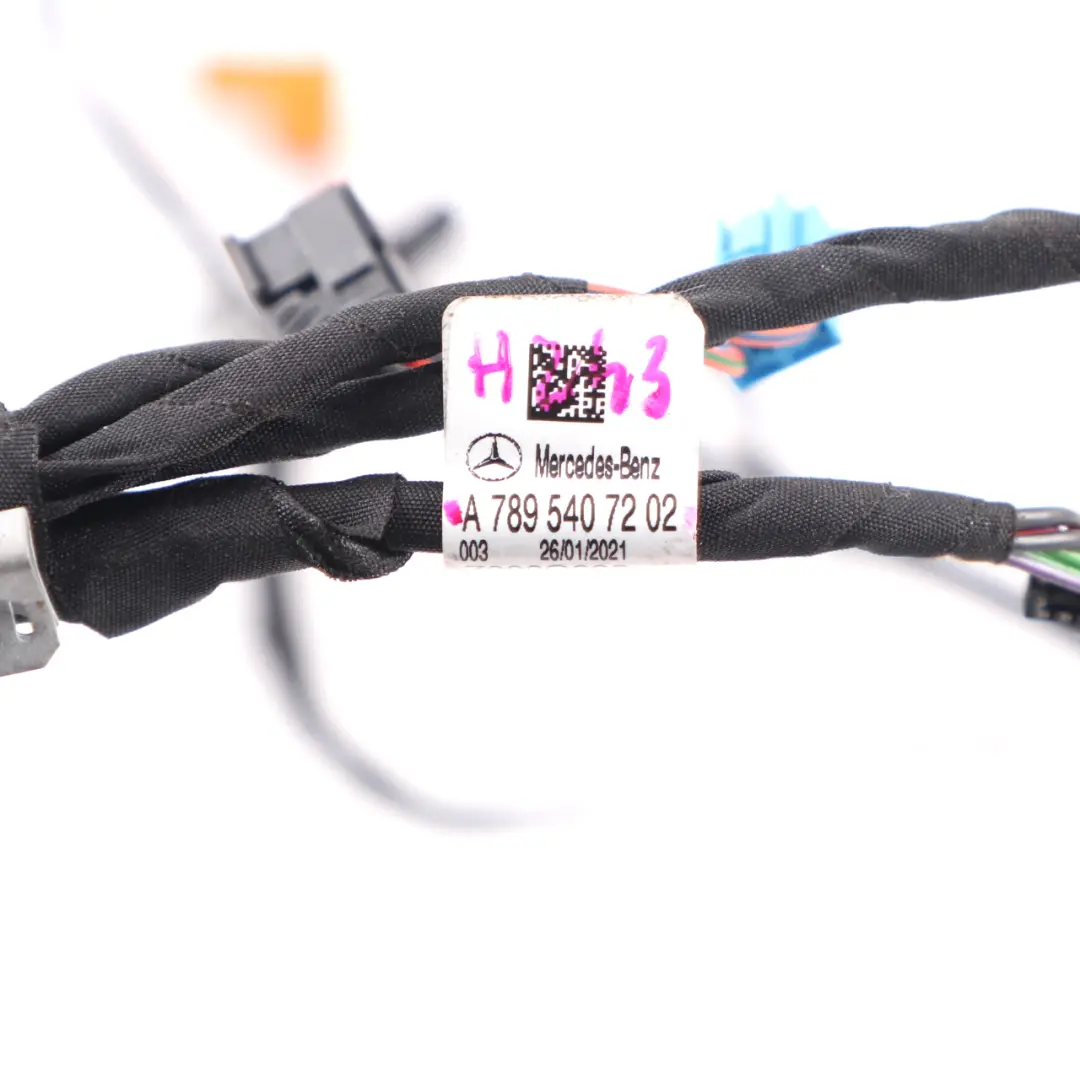

• OEM Part Number: A7895407202
• Substitutable numbers: A7895407202, A 789 540 72 02
• Category: Charging Cables

Purpose and Function in the High-Voltage System

The presented harness is a component of the high-voltage system responsible for connecting the traction battery to the drive unit in the Mercedes EQA H243. The cable construction is adapted for operation in a high-voltage environment, maintaining appropriate insulation clearances and cable routing within the engine compartment and adjacent areas.

Properly designed connectors and branching allow for a stable connection with the factory electric drive components, minimizing the risk of looseness, overheating, or improper contact. A correctly selected high-voltage harness is crucial for user safety and the proper functioning of the entire drive system.

Construction and Fit for Mercedes EQA H243

The harness has been developed for the specific geometry of the EQA H243 body and engine compartment, which translates to proper cable routing relative to structural elements and covers. It includes factory mounting points, brackets, and branches that facilitate installation and reduce mechanical stress on the cables during vehicle operation.

Original Mercedes origin signifies adherence to factory quality standards, including requirements for insulation resistance, compatibility with high-voltage equipment, and integration with other vehicle electrical system components.

Benefits of Using an Original High-Voltage Harness

Using a dedicated high-voltage harness in the Mercedes EQA H243 provides a number of practical technical benefits:

• maintaining the factory cable routing in the engine compartment and battery area,
• correct connector fit for electric drive components,
• reducing the risk of mechanical and thermal damage due to proper mounting,
• maintaining compliance with factory high-voltage safety standards,
• easier diagnostics and servicing in the future due to the use of the original harness architecture.

For electric vehicles, it is particularly important that high-voltage system components are consistent with the manufacturer's design, which affects safety, reliability, and predictable vehicle behavior under various operating conditions.

Condition, Verification, and Service Application

The offered harness is a used part, making it an attractive service solution for accident repairs, replacement of damaged wiring sections, or restoring the vehicle to full functionality after a high-voltage system failure. This type of component is particularly useful in situations where a complete section of wiring, including connectors, needs to be replaced, and local repair is not recommended for safety reasons.

Before installation, standard visual and electrical diagnostics are recommended in accordance with service procedures for high-voltage systems, including checking insulation, connector condition, and proper cable routing relative to the vehicle's structural elements.

Integration with the Mercedes Charging Cables Category

If you are planning a comprehensive repair or upgrade of the high-voltage installation area in your Mercedes and need other components from the same group, such as additional harnesses, cable sections, or service connectors, check the available parts in the Mercedes Charging Cables category.

Technical Support and Part Selection by Numbers

For high-voltage system components and electric vehicle electrical installations, precise component matching by catalog numbers and vehicle identification data is particularly important. When selecting parts, it is advisable to use service documentation and tools to verify compatibility by manufacturer numbers and vehicle markings.
