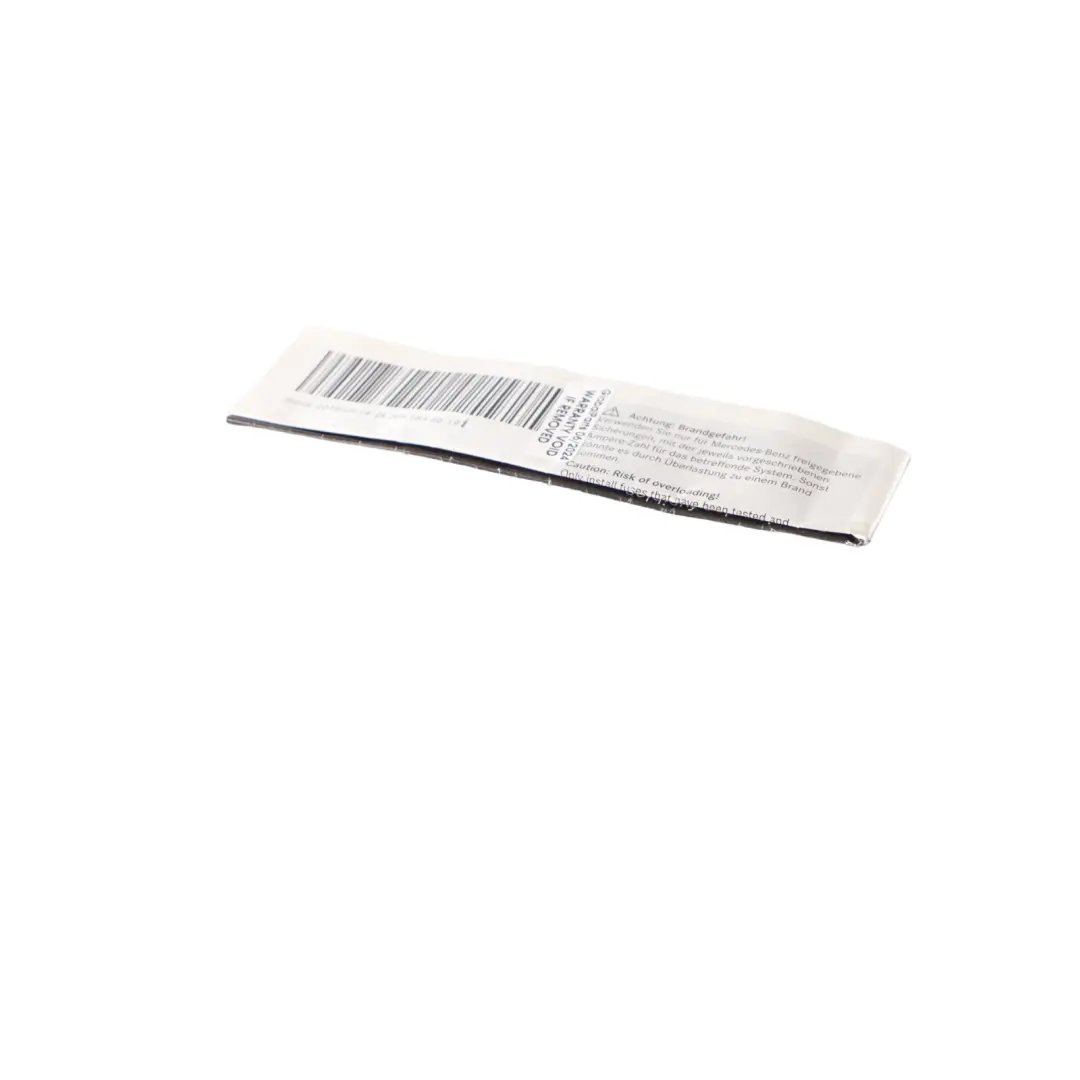

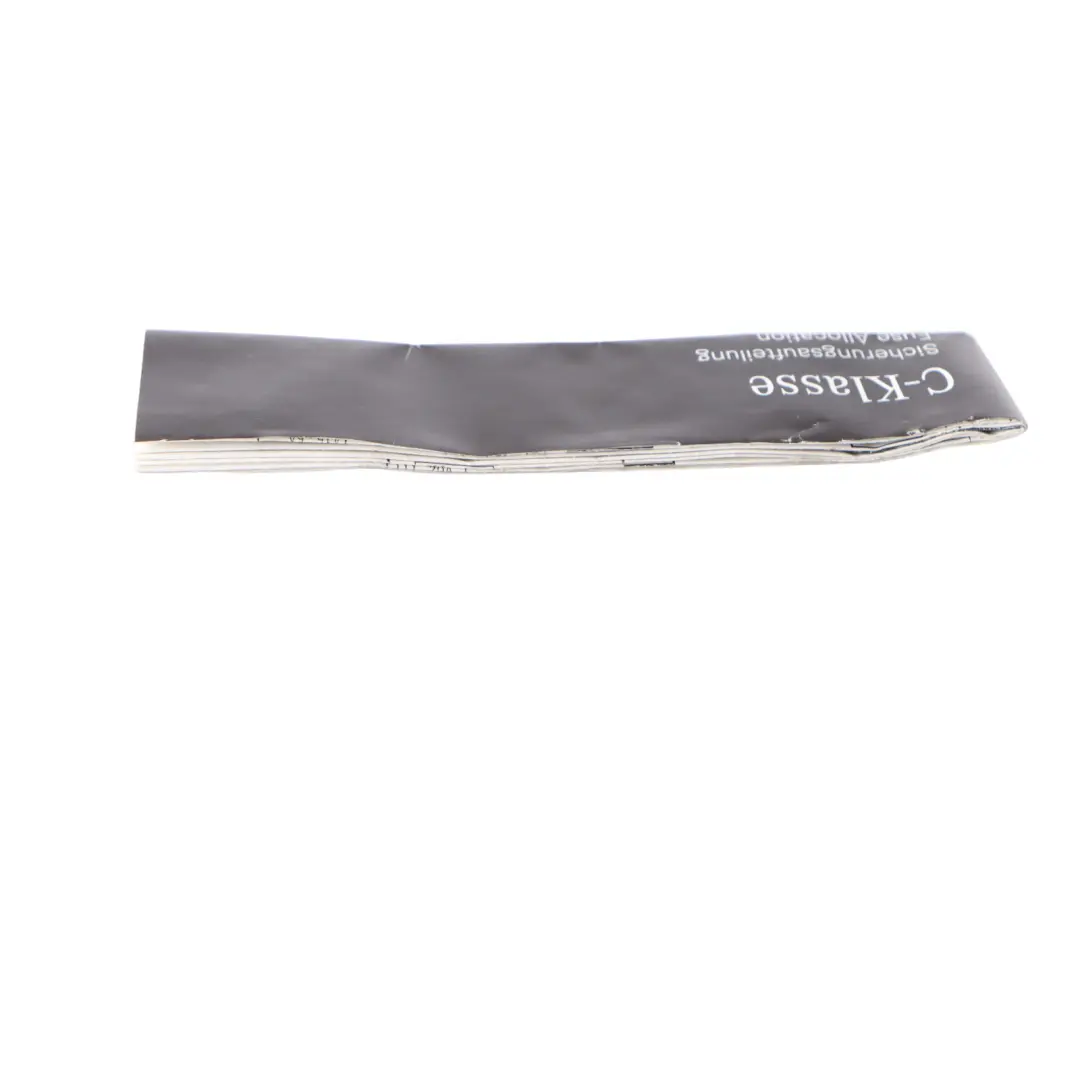

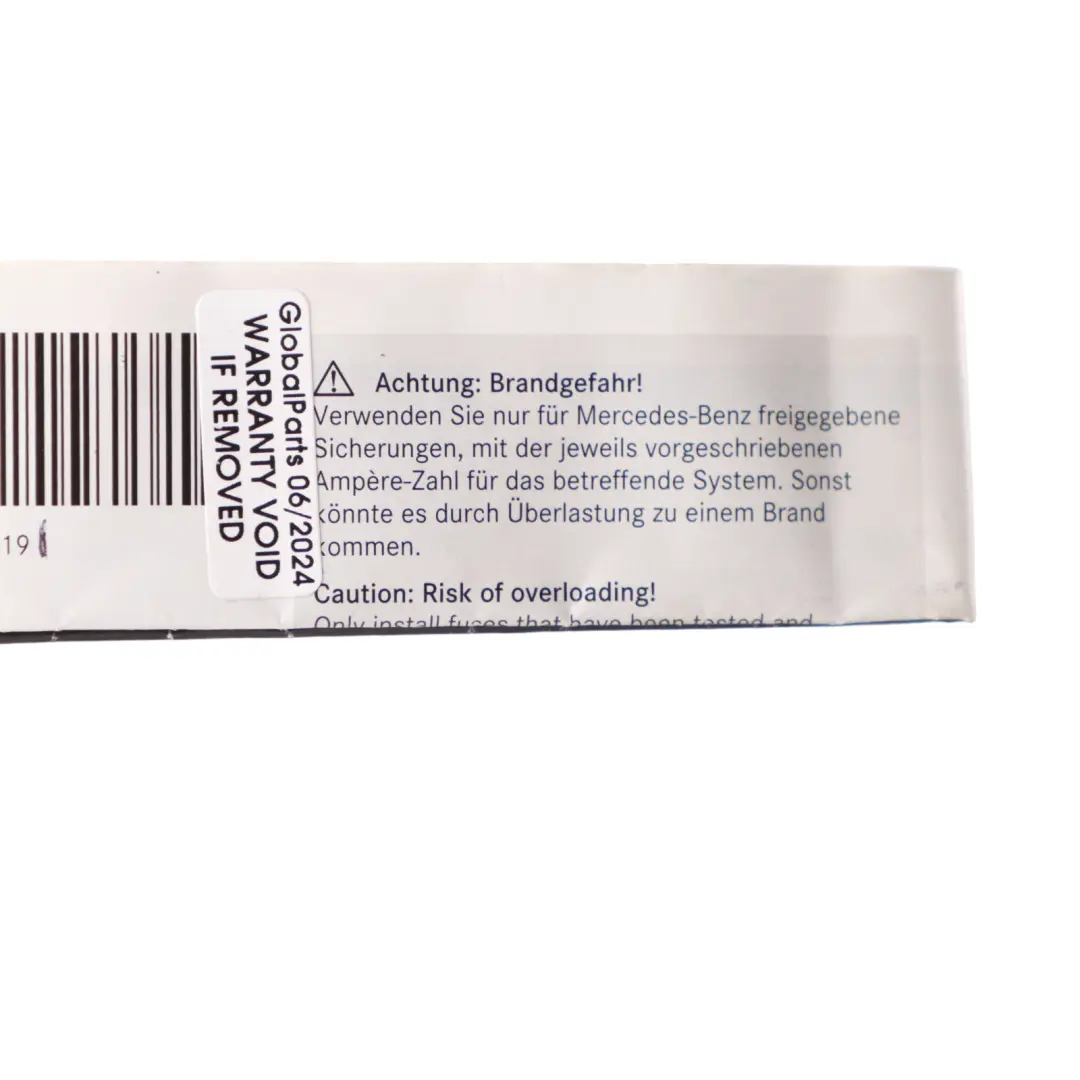

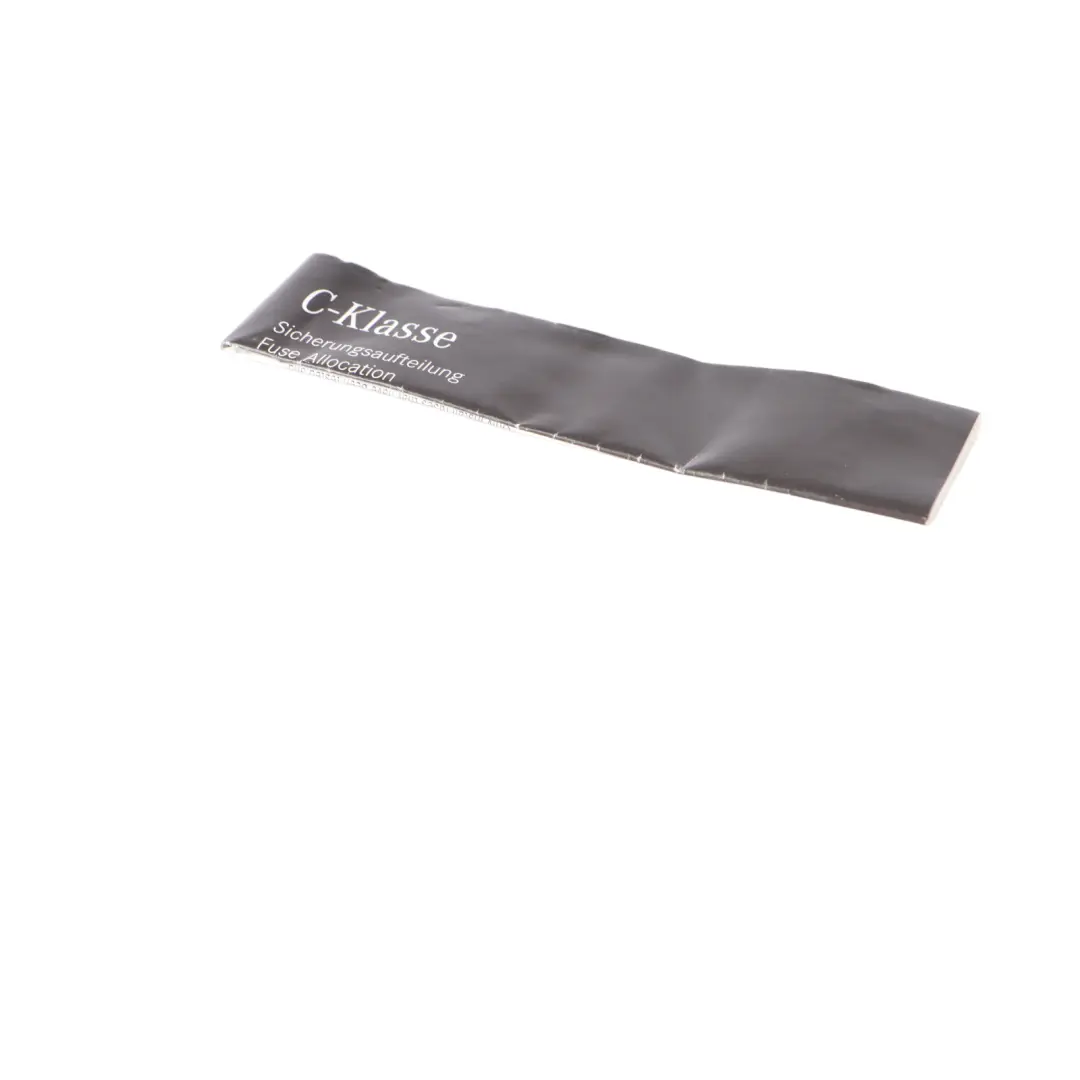

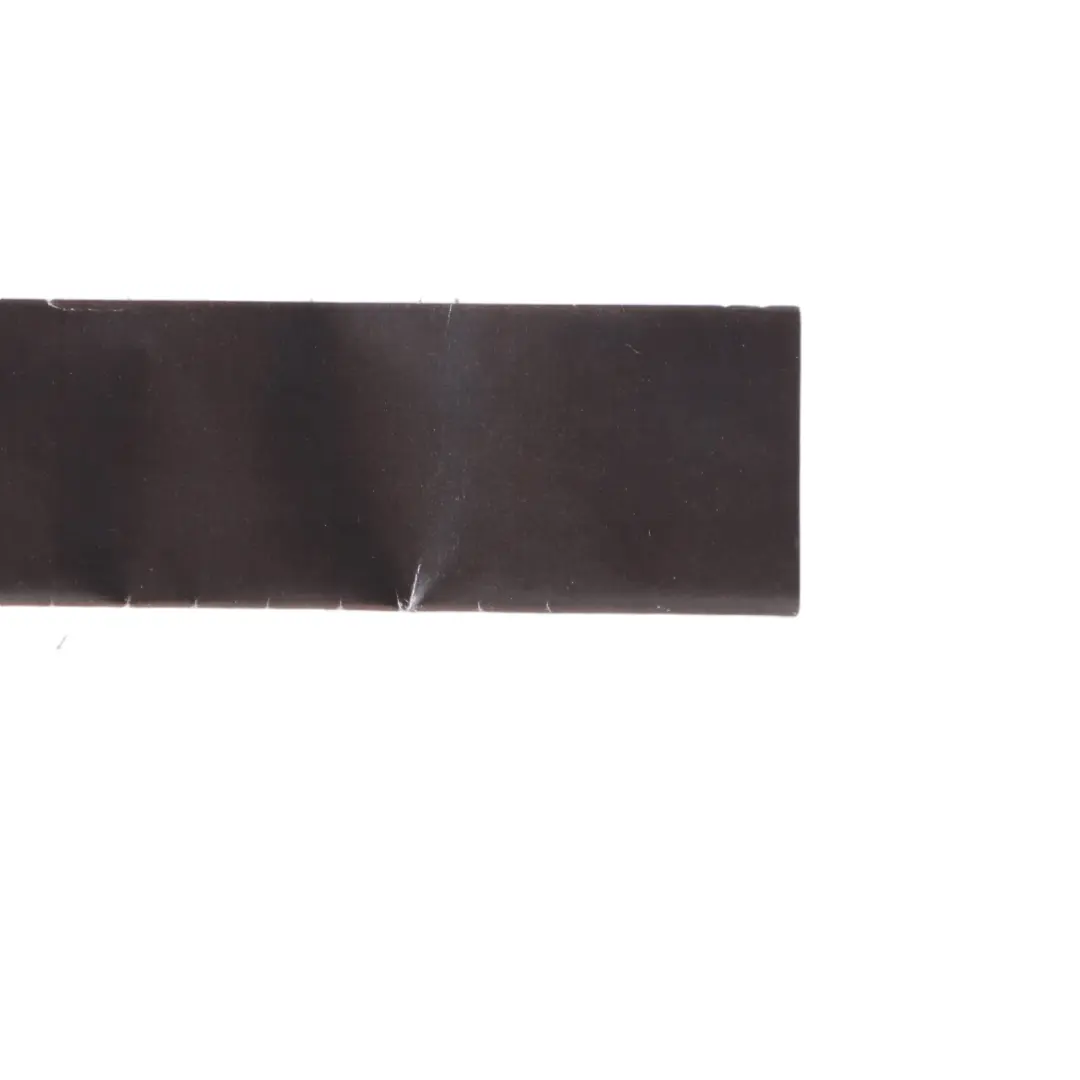

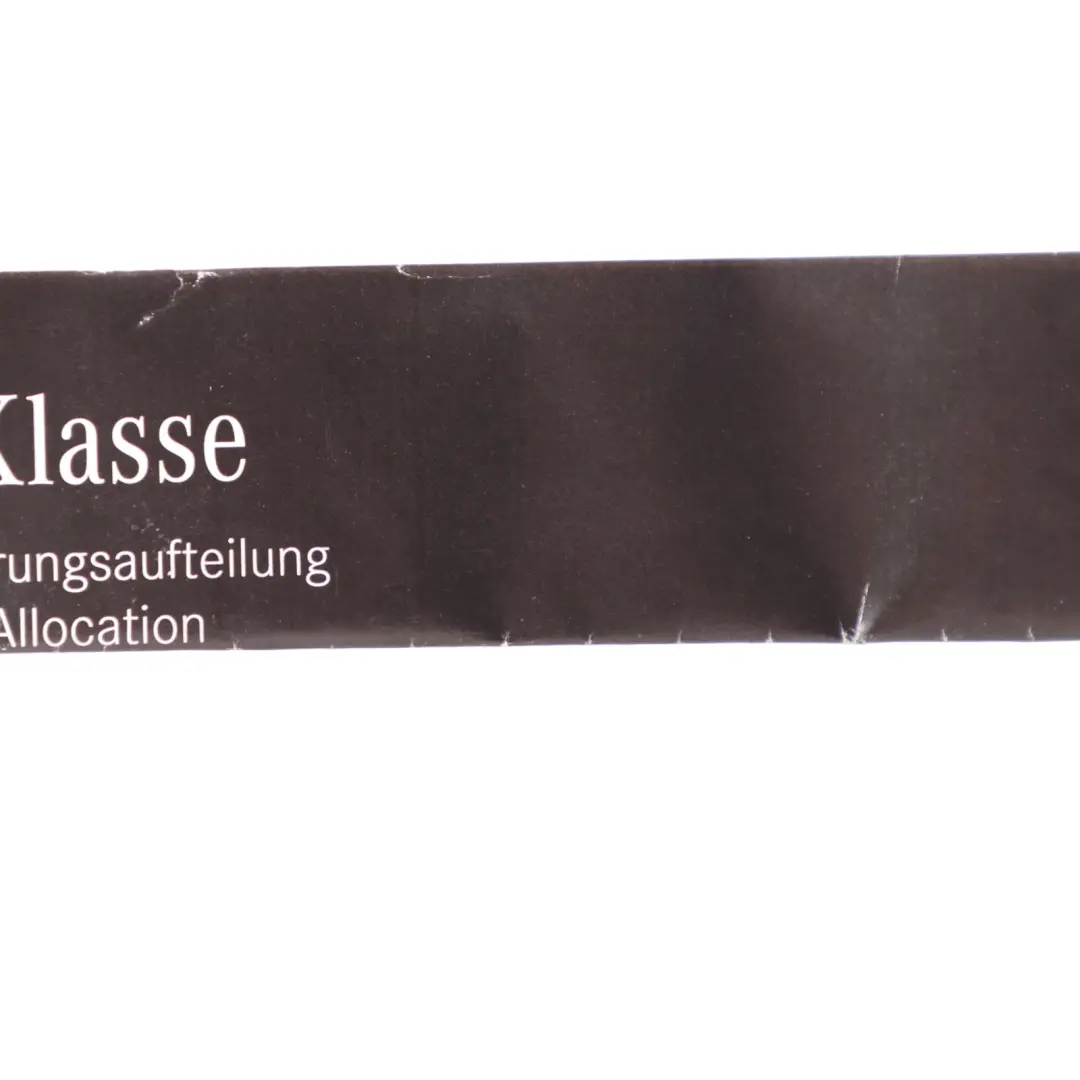

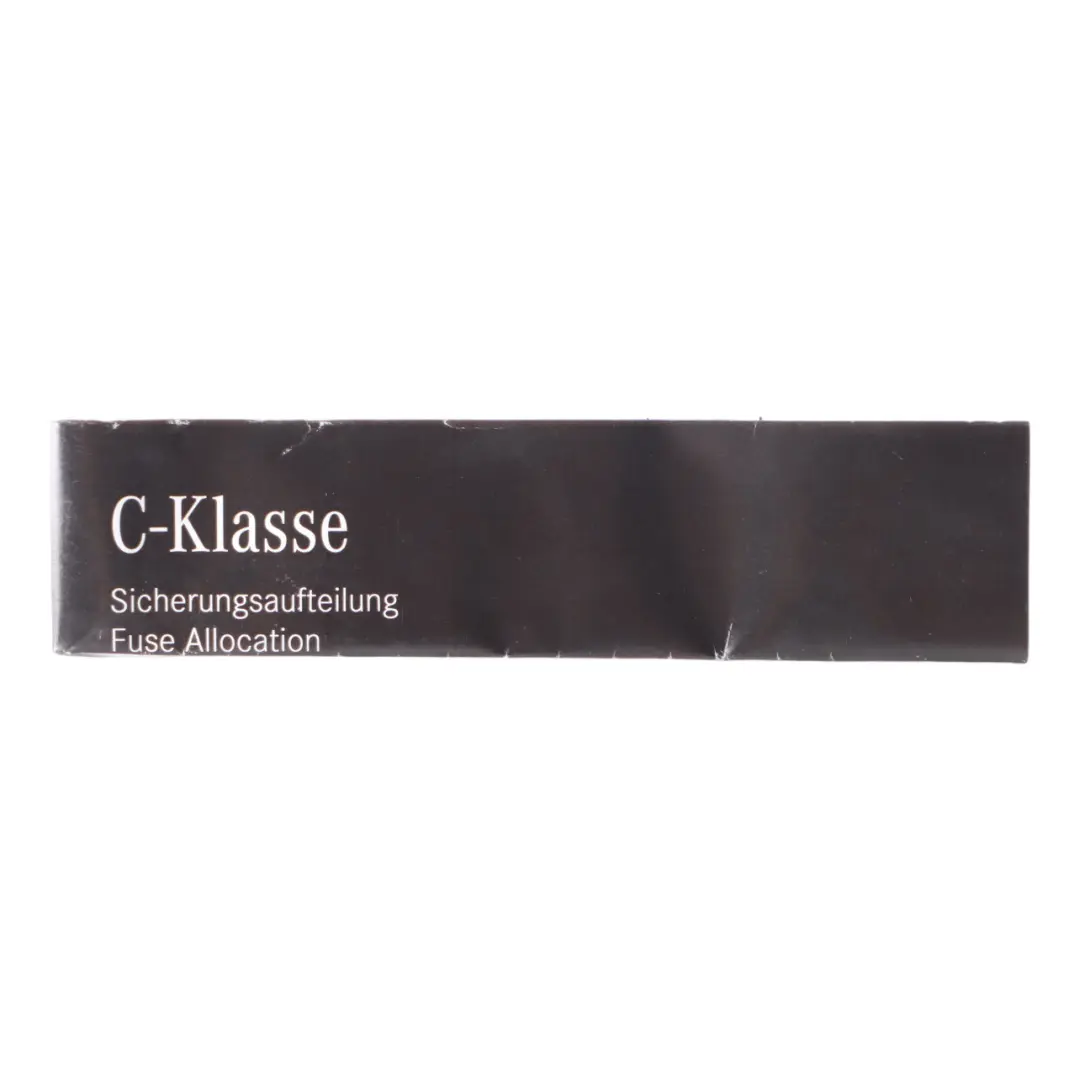

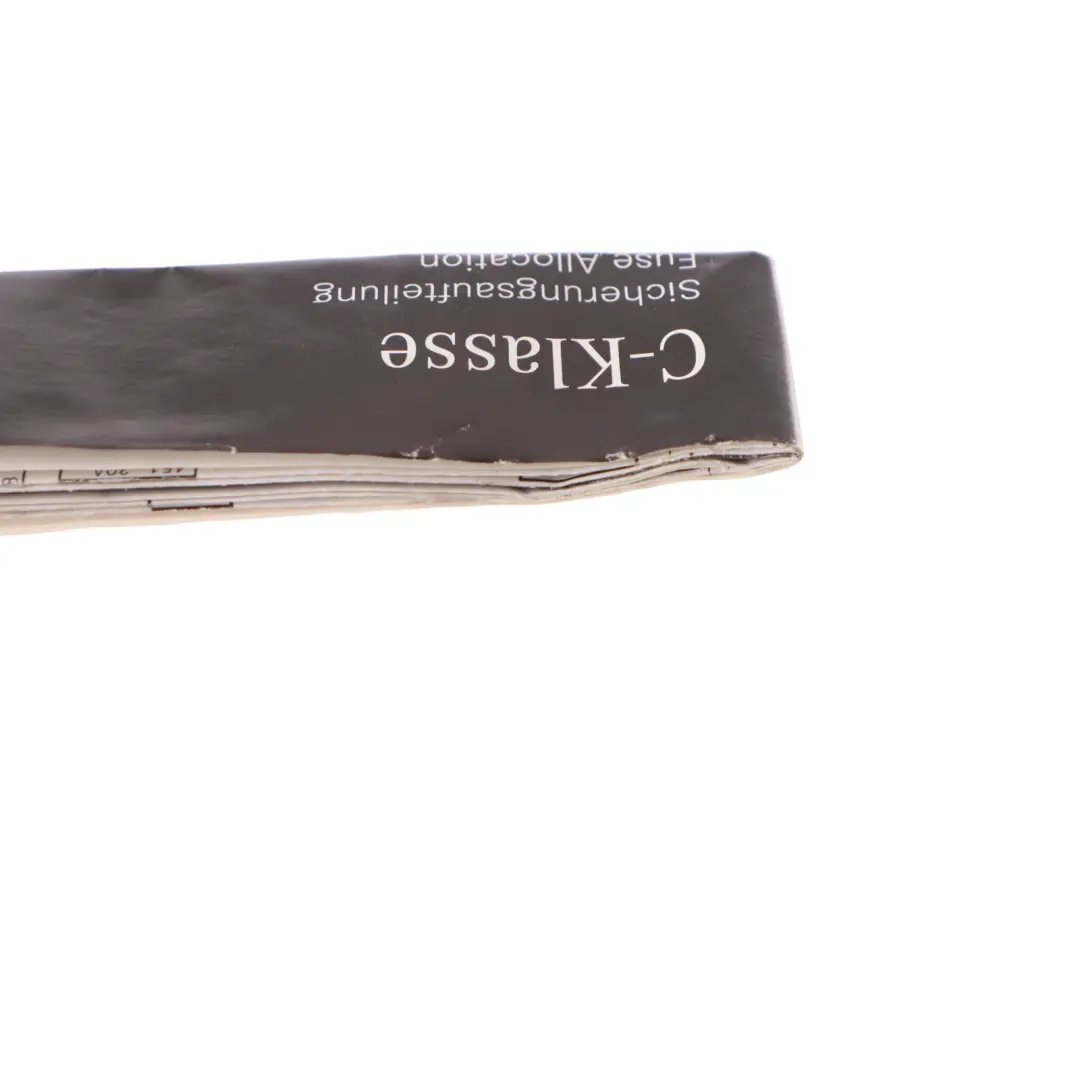

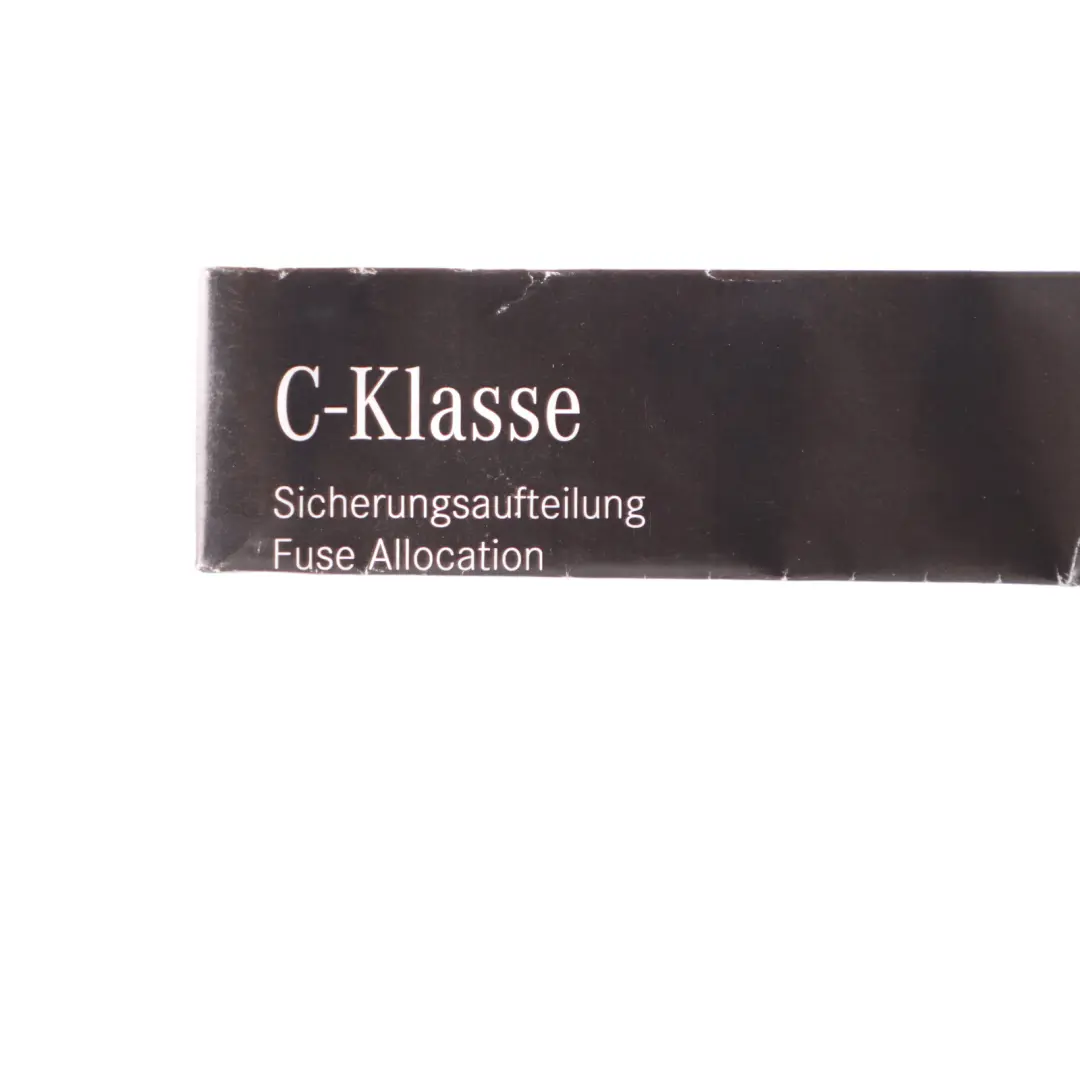

Mercedes W205 Fuses And Relays Information Sheet Card A2055846619

The Mercedes W205 Fuses And Relays Information Sheet Card is an original information card designed for Mercedes C-Class W205 models, facilitating quick identification of fuses and relays in the vehicle. This item from the Protective and Decorative Strips category serves a practical organizational function, supporting diagnostics and electrical system maintenance. Due to its factory origin, the card retains correct markings and layout consistent with manufacturer standards.

Specifications and technical data

• SKU: A2055846619
• Mark: Mercedes (Genuine OE)
• Condition: Used
• OEM Part Number: A2055846619
• Substitutable numbers: A2055846619, A 205 584 66 19
• Category: Body Mouldings & Trims

Purpose and Function of the Information Card

The Mercedes W205 Fuses And Relays Information Sheet Card is designed as a clear reference for the placement of fuses and relays in the vehicle. It aids in identifying individual electrical circuits, which is particularly useful for:

• locating the cause of a fault in a specific circuit,
• replacing individual fuses or relays,
• checking the correctness of protection after system modifications,
• periodic inspections and service work.

By maintaining the original layout of fields and descriptions, the card allows for efficient navigation of fuse boxes without needing to consult full service documentation.

Original Origin and Fitment

The product comes from the Mercedes range, ensuring compliance with factory quality standards and clarity of markings. The original information card is tailored to the specific electrical system configuration of W205 models, minimizing the risk of errors when handling fuses and relays.

The item from the Protective and Decorative Strips category acts as a practical information carrier, which also aesthetically integrates with the fuse box environment. Maintaining the correct format, graphics, and field layout facilitates quick data reading, even in limited lighting conditions.

Product Condition and Benefits of Choosing a Used Part

The card is offered in used condition, allowing for an economical replacement of a missing or damaged part while maintaining the original manufacturing standard. For this type of component, the clarity of the print and the integrity of the material are crucial, contributing to ease of work on the electrical system.

Choosing a used part is a sensible solution wherever functionality and compliance with factory specifications are important, rather than just the "newness" of the item. A well-preserved information card meets these requirements, ensuring correct markings and a clear layout.

If you want to learn more about the advantages of consciously choosing second-hand parts, it's worth reading the guide Used Parts – Your Guide to the Best Deals in the Automotive Store, which discusses the practical aspects of purchasing such components.

Application in Service Practice

During the diagnosis of electrical faults in a Mercedes W205, the fuses and relays information card allows the technician or user to:

• quickly identify the correct circuit responsible for a specific vehicle function,
• check which component protects a particular module or system,
• reduce the time required for disassembly and testing of incorrect positions,
• maintain order and consistency in service procedures.

This solution is particularly useful in modern vehicles, where the number of circuits and protective devices is significantly higher than in older designs, and access to full documentation is not always convenient in workshop conditions.

Complementing Mercedes Covers and Information Cards Area

If you are planning a comprehensive repair or upgrade of the covers and information cards area in your Mercedes and need other items from the same group, such as covers, overlays, or additional strips, check the available parts in the Mercedes Protective and Decorative Strips category.
