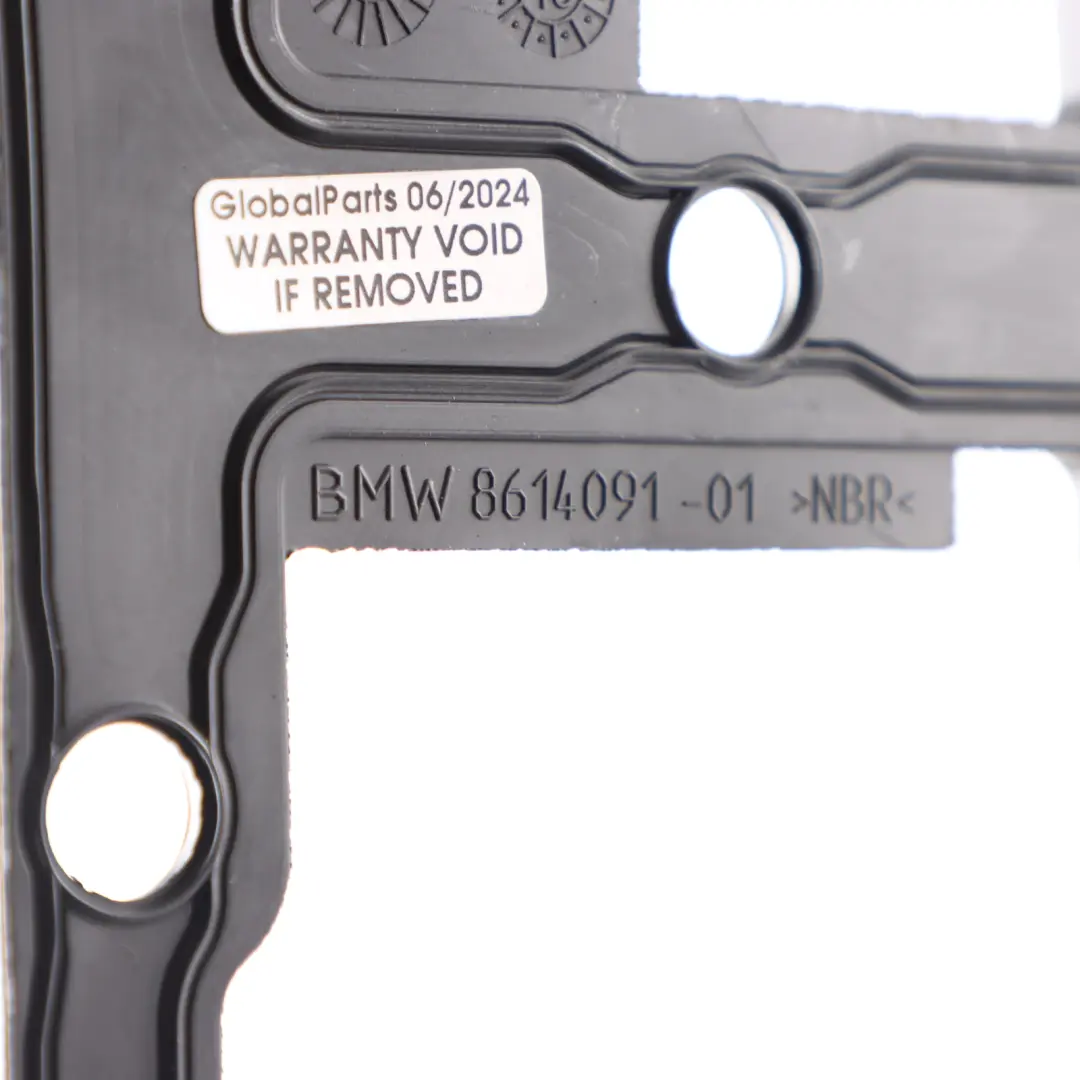

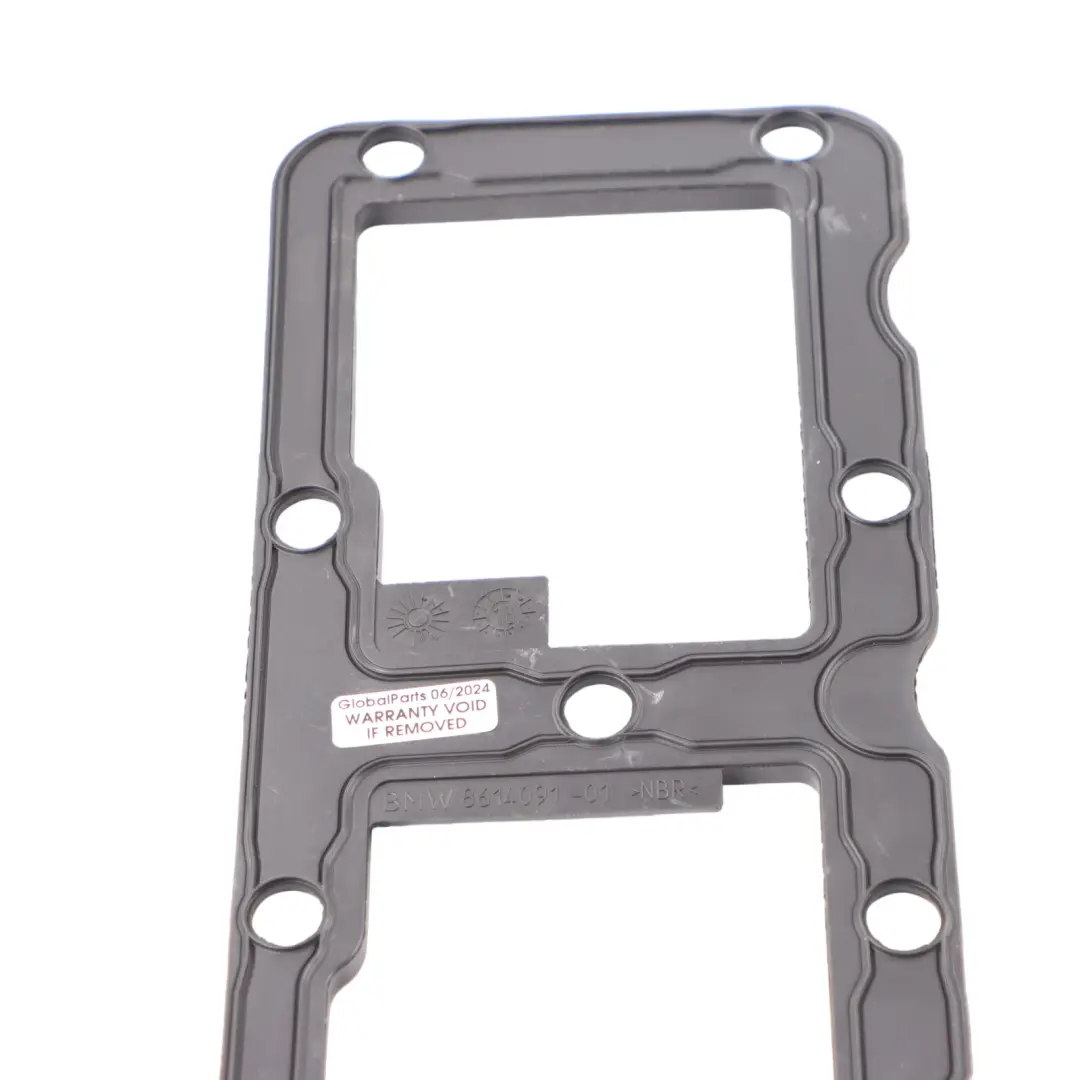

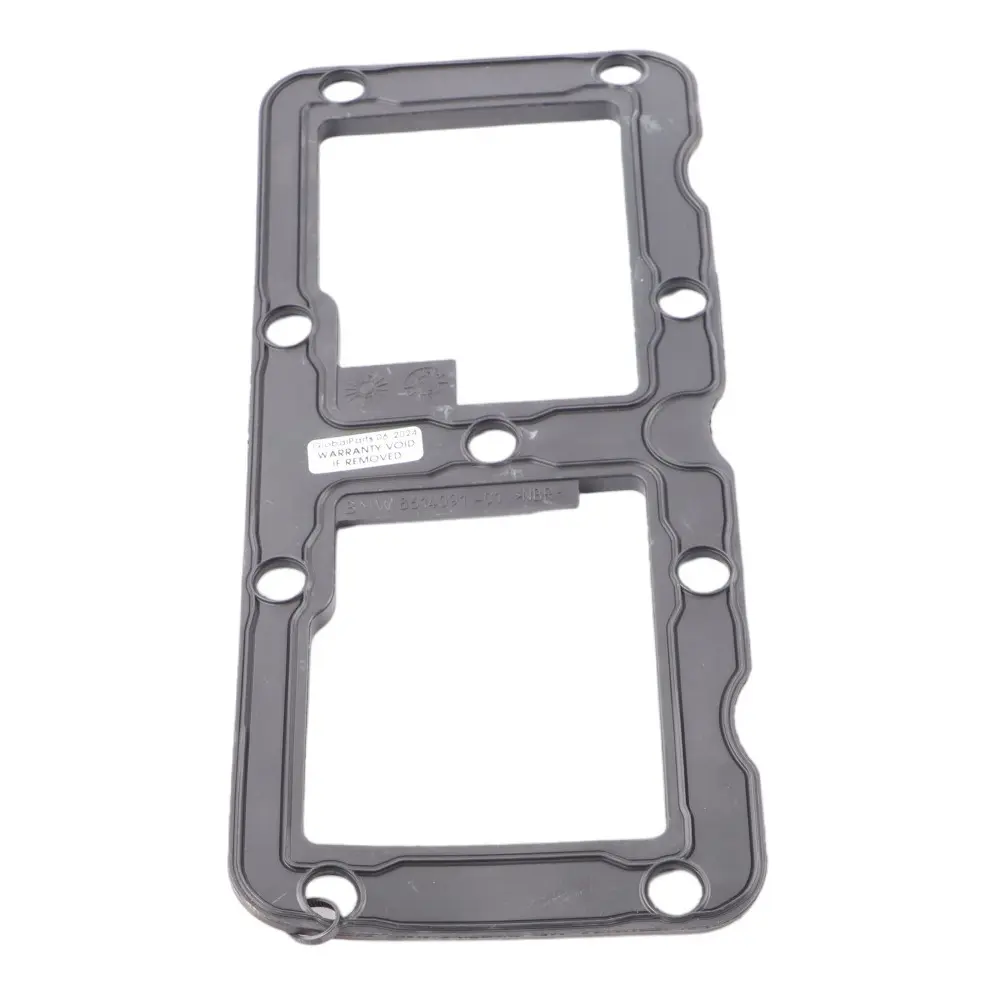

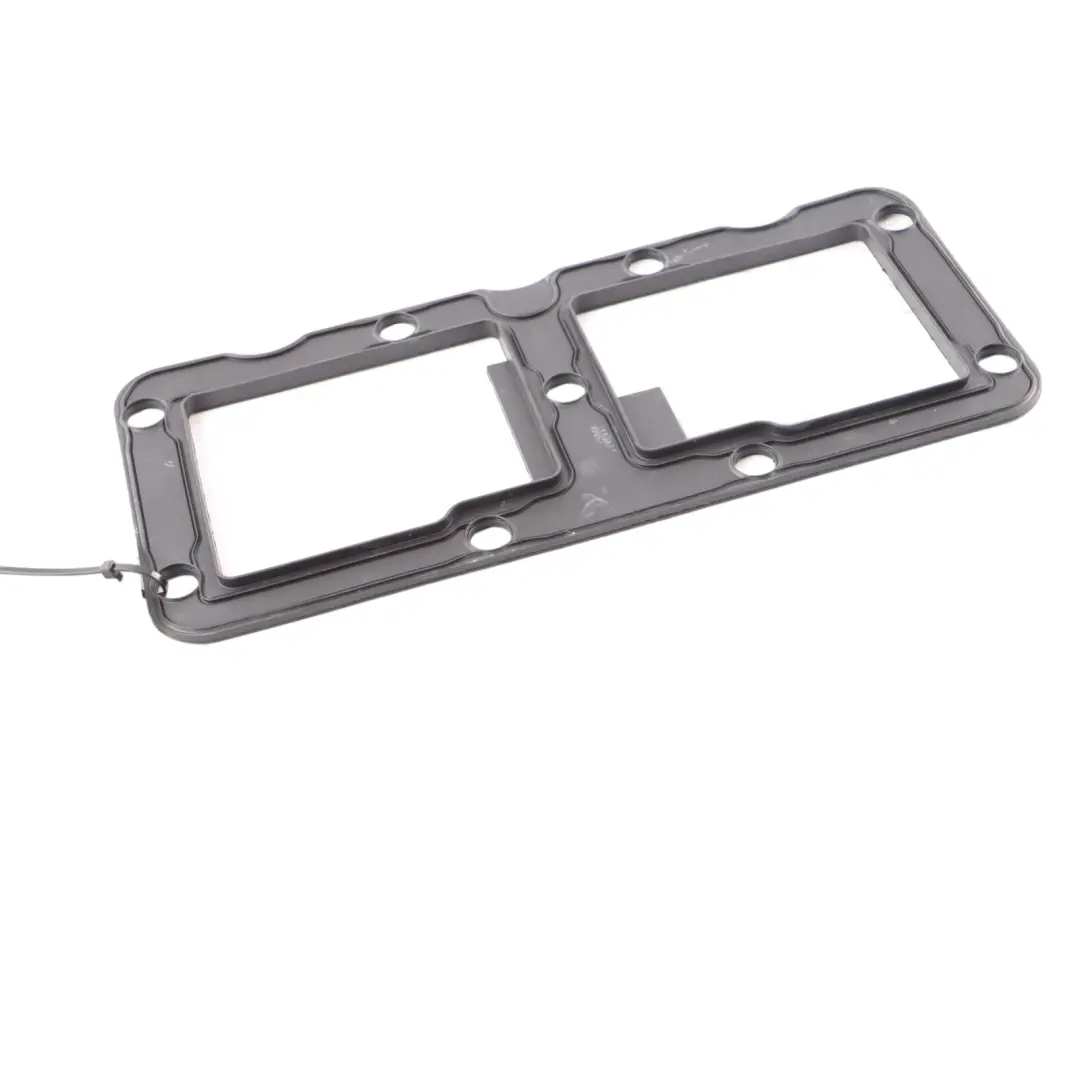

BMW X5 F15 Seal Service Cap High Voltage Battery Unit 8614091

The BMW X5 F15 Seal Service Cap High Voltage Battery Unit is a specialized service seal for the high-voltage battery unit cover, designed for use in BMW vehicles. This component belongs to the Battery Accessories group and is responsible for the secure, stable closure of the service access point to the high-voltage battery module, which is crucial for both the safety and durability of the entire system.

Specifications and technical data

• SKU: 8614091
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8614091
• Substitutable numbers: 8614091, 61278614091
• Category: Battery Accessories

Purpose and Technical Function

The service seal for the high-voltage unit cover in the BMW X5 F15 operates in direct proximity to the traction battery. Its function is to:

• limit the ingress of moisture and contaminants into the battery housing,
• stabilize the high-voltage service point,
• maintain the proper seal of the cover connection to the unit's body.

Thanks to its precise fit for the specific BMW X5 F15 construction, this component ensures the sealing geometry and protection parameters of the high-voltage system as designed by the manufacturer.

Benefits of Using an Original BMW Part

The offered service seal is a BMW part, which translates to maintaining factory dimensional tolerances and compatibility with the high-voltage battery housing in the BMW X5 F15. Using a dedicated component in the high-voltage area results in:

• a secure fit into the service socket without the need for modifications,
• consistency with the original battery protection concept,
• reduced risk of leaks caused by using parts with an incorrect profile.

This solution is particularly important for service work on high-voltage systems, where assembly repeatability and predictable behavior of sealing elements are paramount.

Performance Characteristics and Installation

The service seal for the high-voltage unit cover in the BMW X5 F15 is designed as a direct replacement part, facilitating workshop operations. In practice, this means:

• installation into existing battery housing sockets and guides,
• no need for modifications to the high-voltage module's structure,
• the ability to restore original sealing after previous service work.

This product is from the used parts circulation, which is a common solution for specialized components in high-voltage systems, allowing for economical repairs while maintaining the original design specifications.

Application in the BMW X5 F15 High-Voltage System

In BMW hybrid and electric vehicles, the high-voltage unit is one of the key components responsible for powering the drivetrain. The service seal for the cover plays a supporting, yet technically significant role in this system – it ensures the correct closure of the service point, which affects:

• maintaining appropriate operating conditions for electrical components,
• protection against external factors in the battery area,
• preservation of the battery housing design as intended by the manufacturer.

Selecting the correct part from the Battery Accessories group is especially important for repairs after collisions, battery module replacement, or service work on the high-voltage unit.

Expanding Service Work on BMW Batteries

If you are planning a comprehensive repair or upgrade of the battery area in your BMW and need other parts from the same group, such as additional seals, service caps, or mounting elements, check the available parts in the BMW Battery Accessories category.
