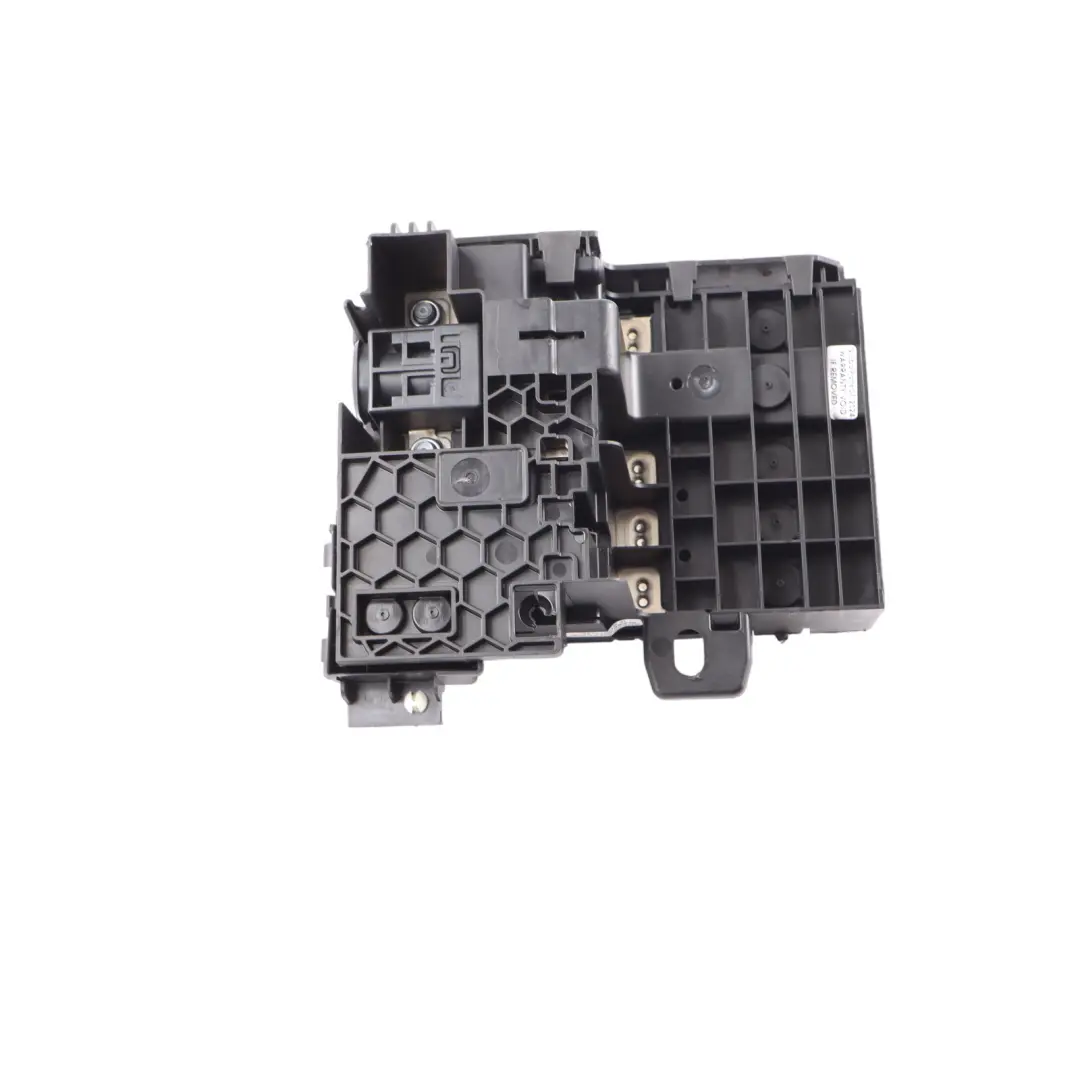

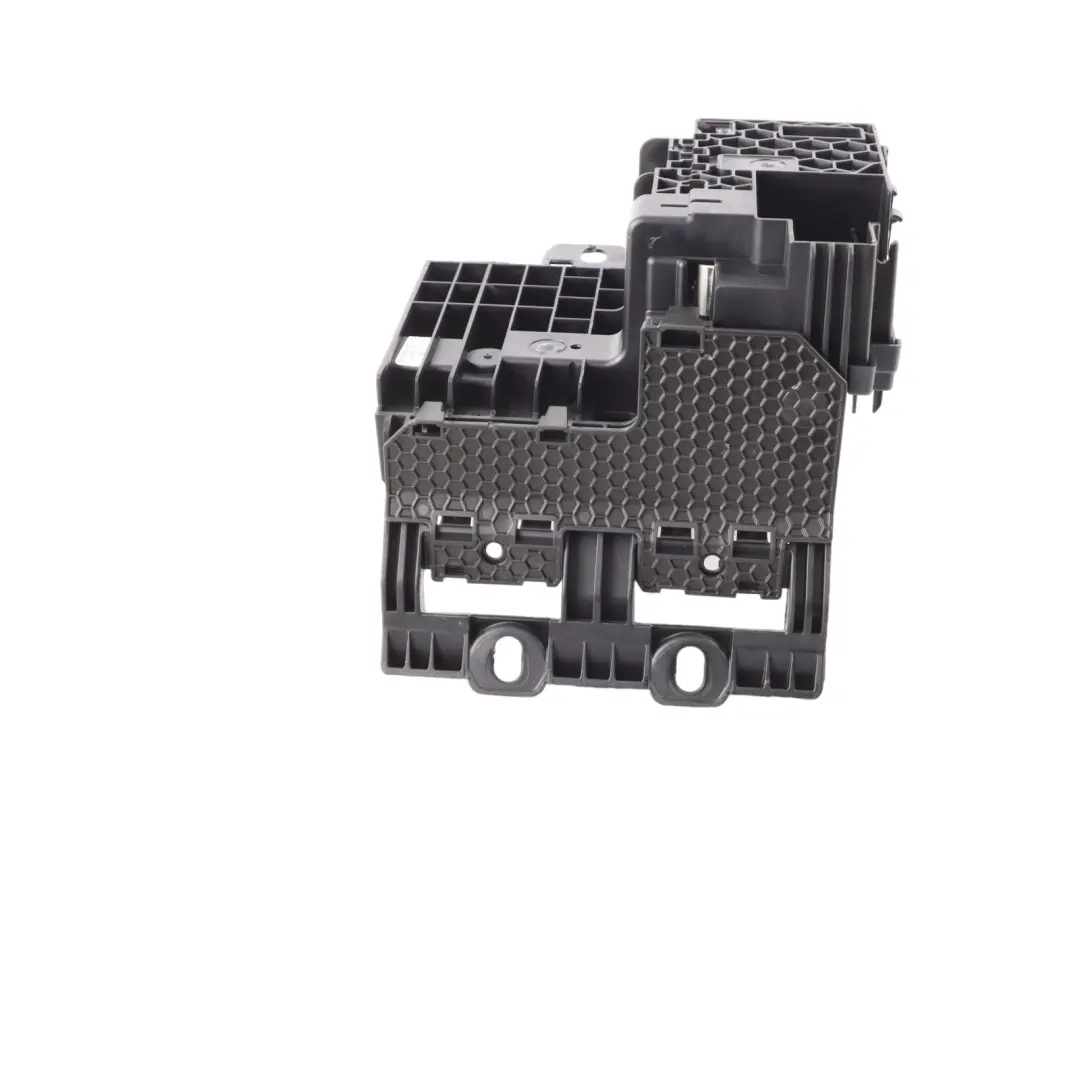

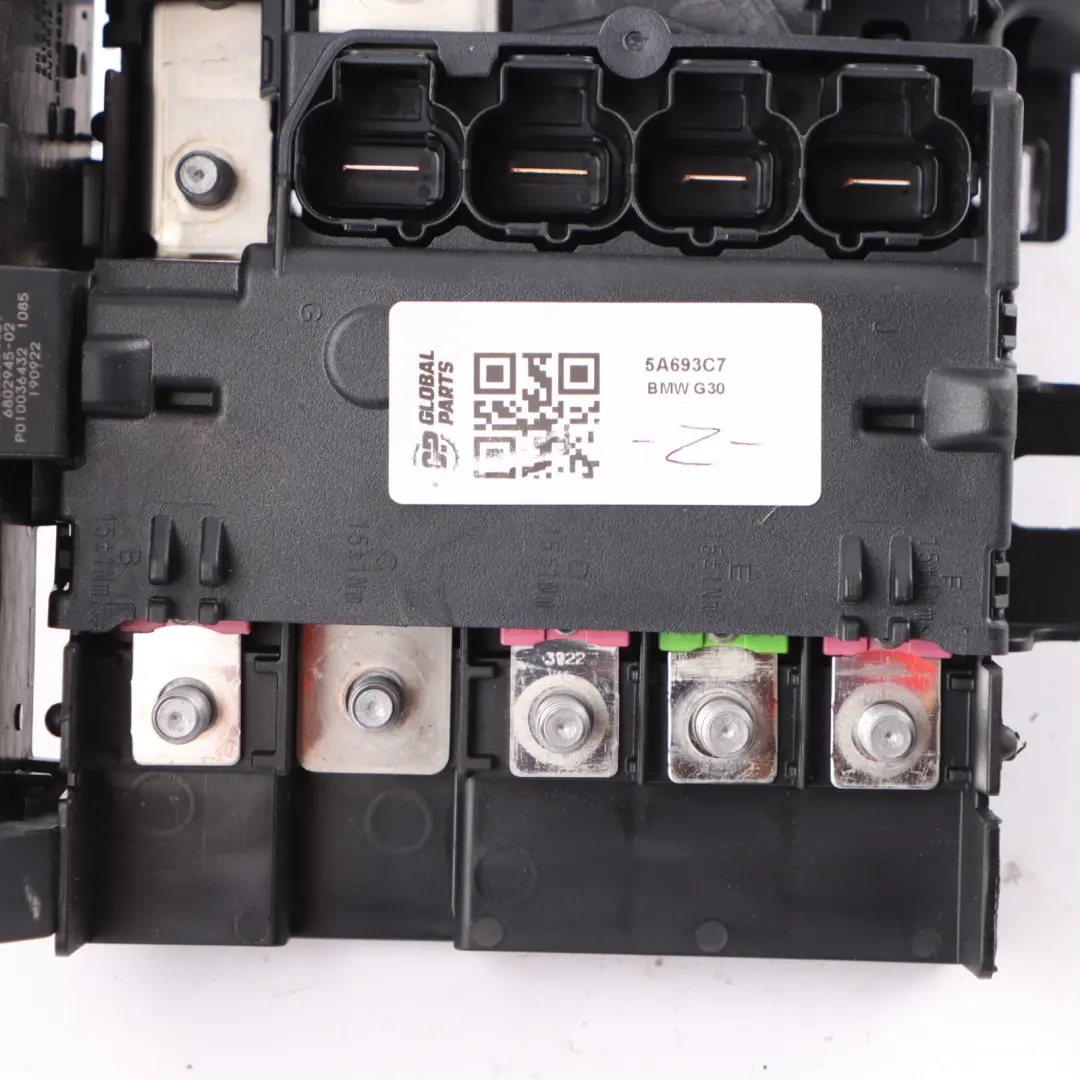

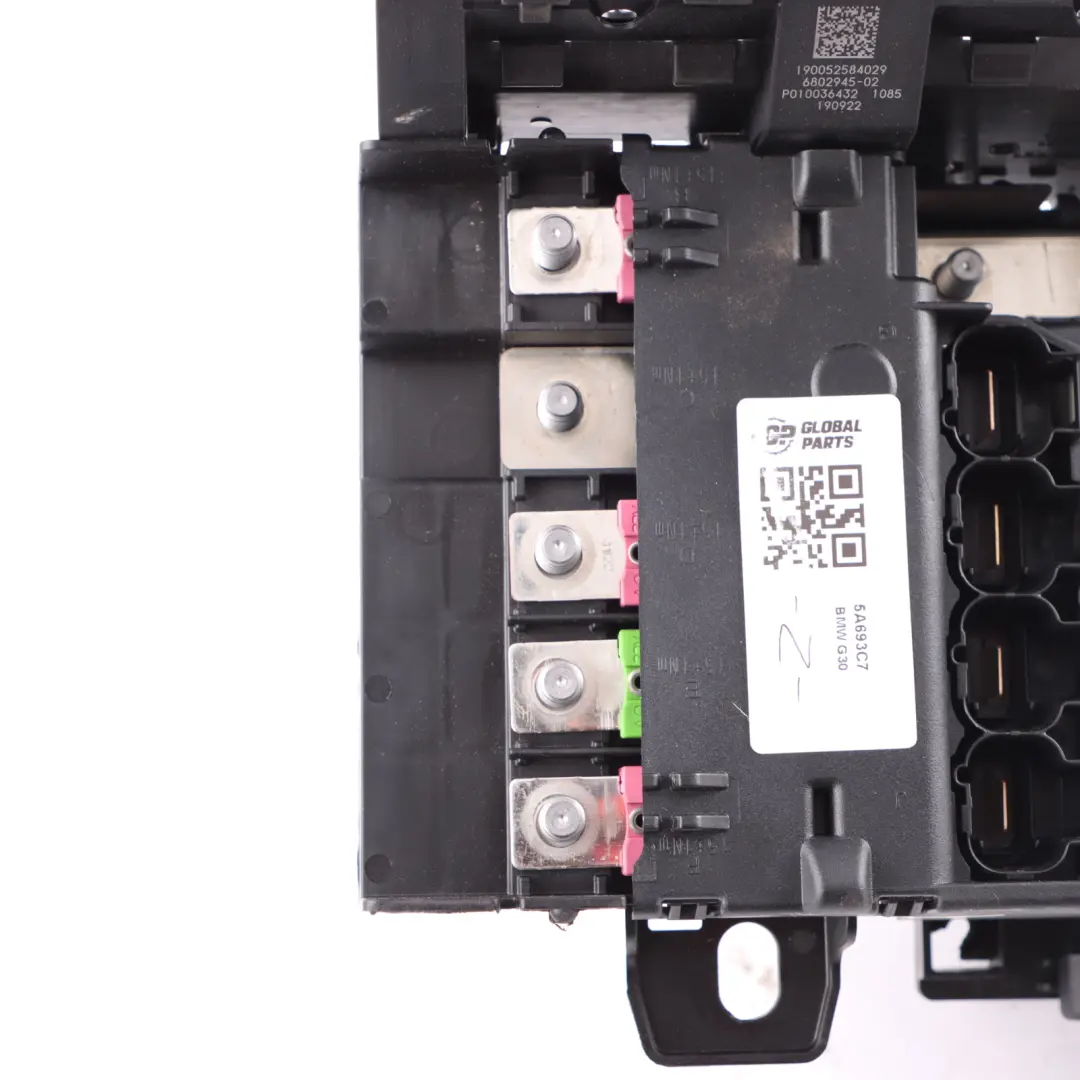

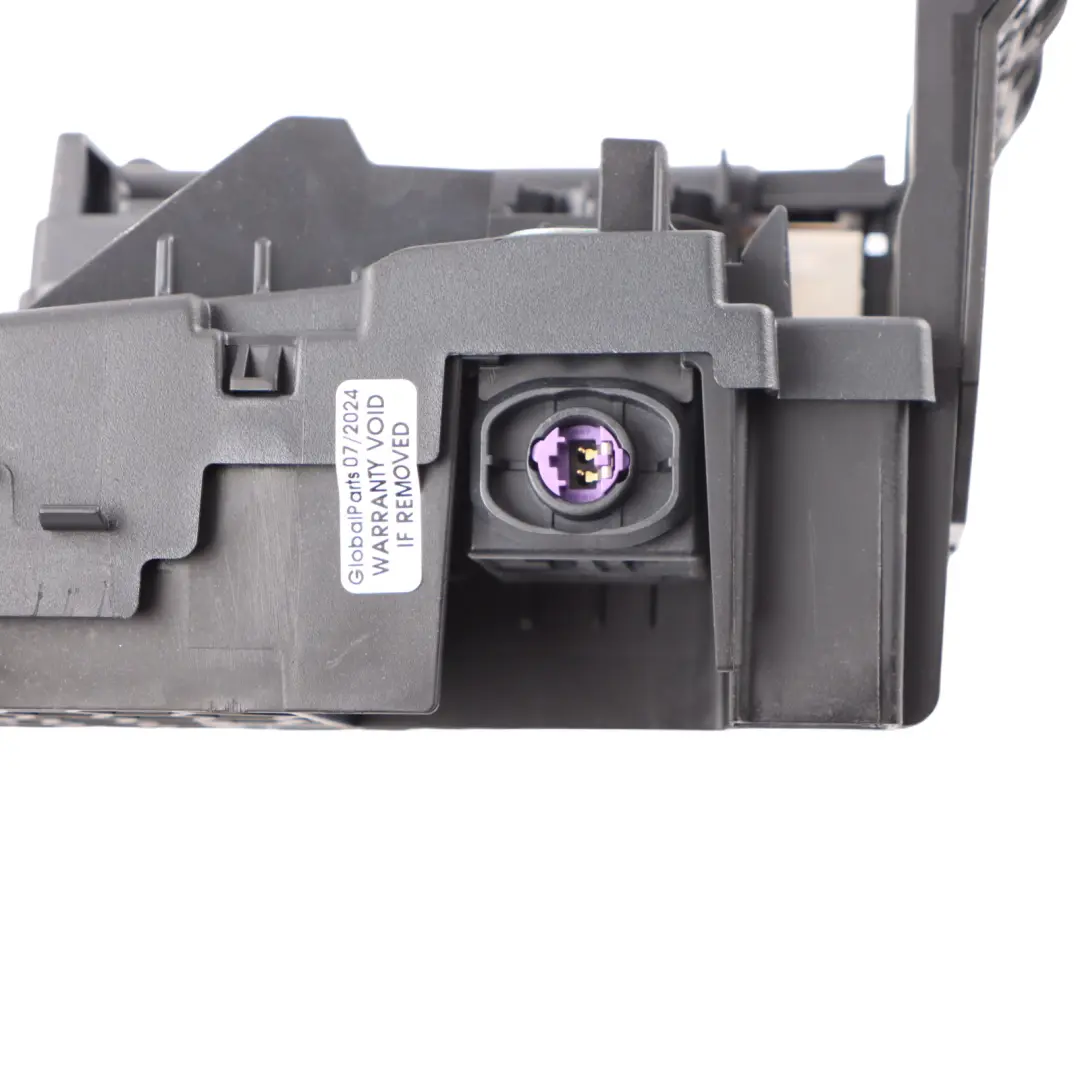

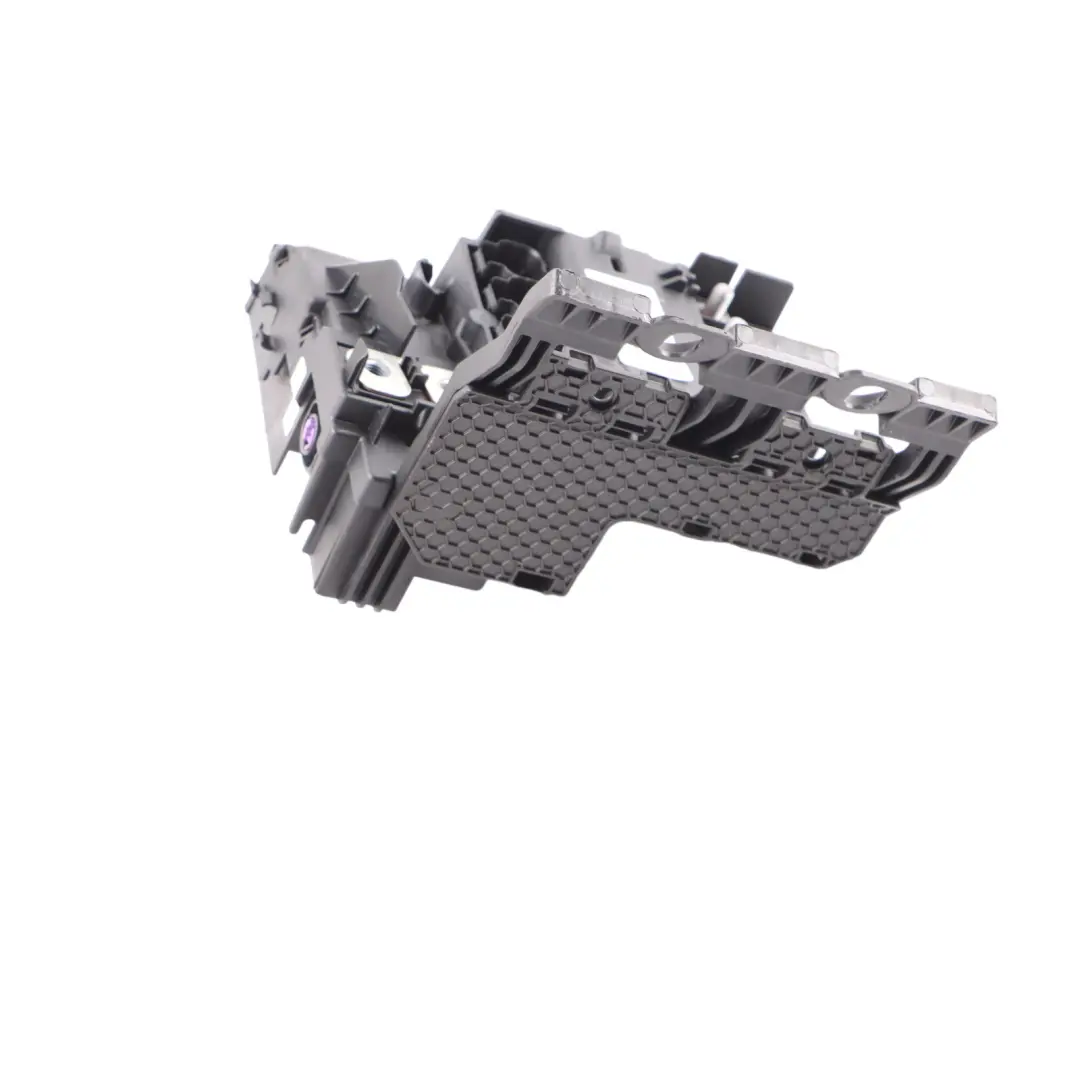

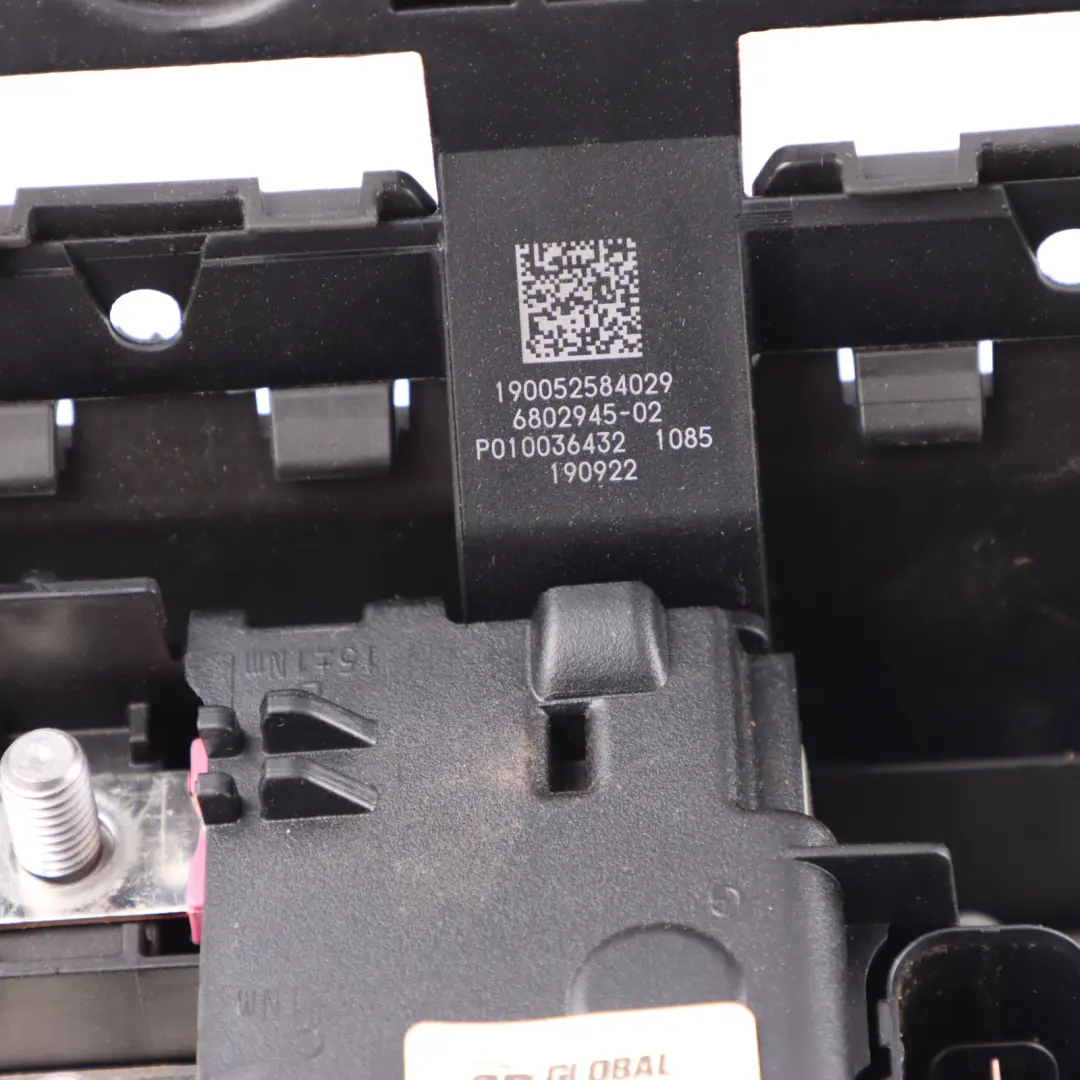

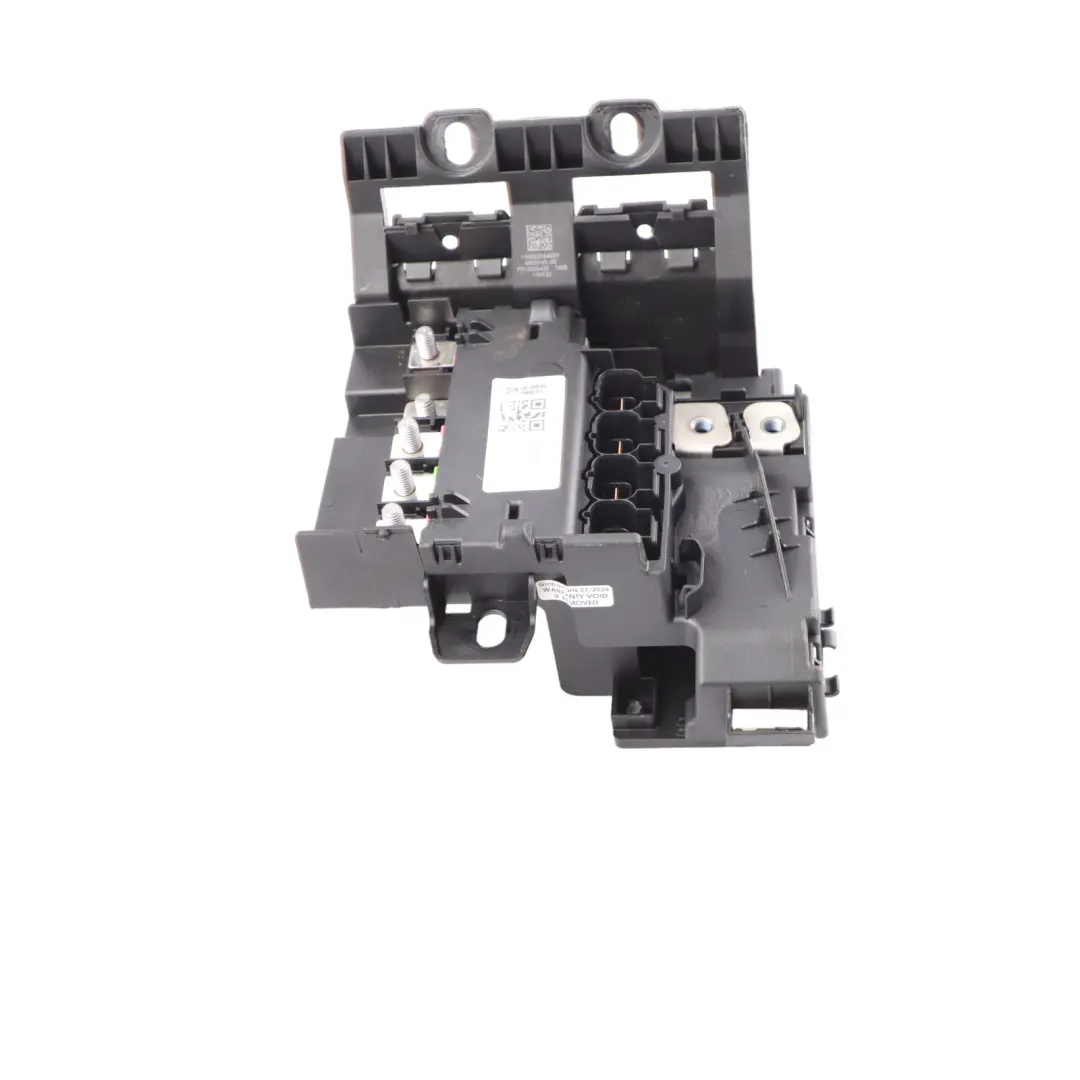

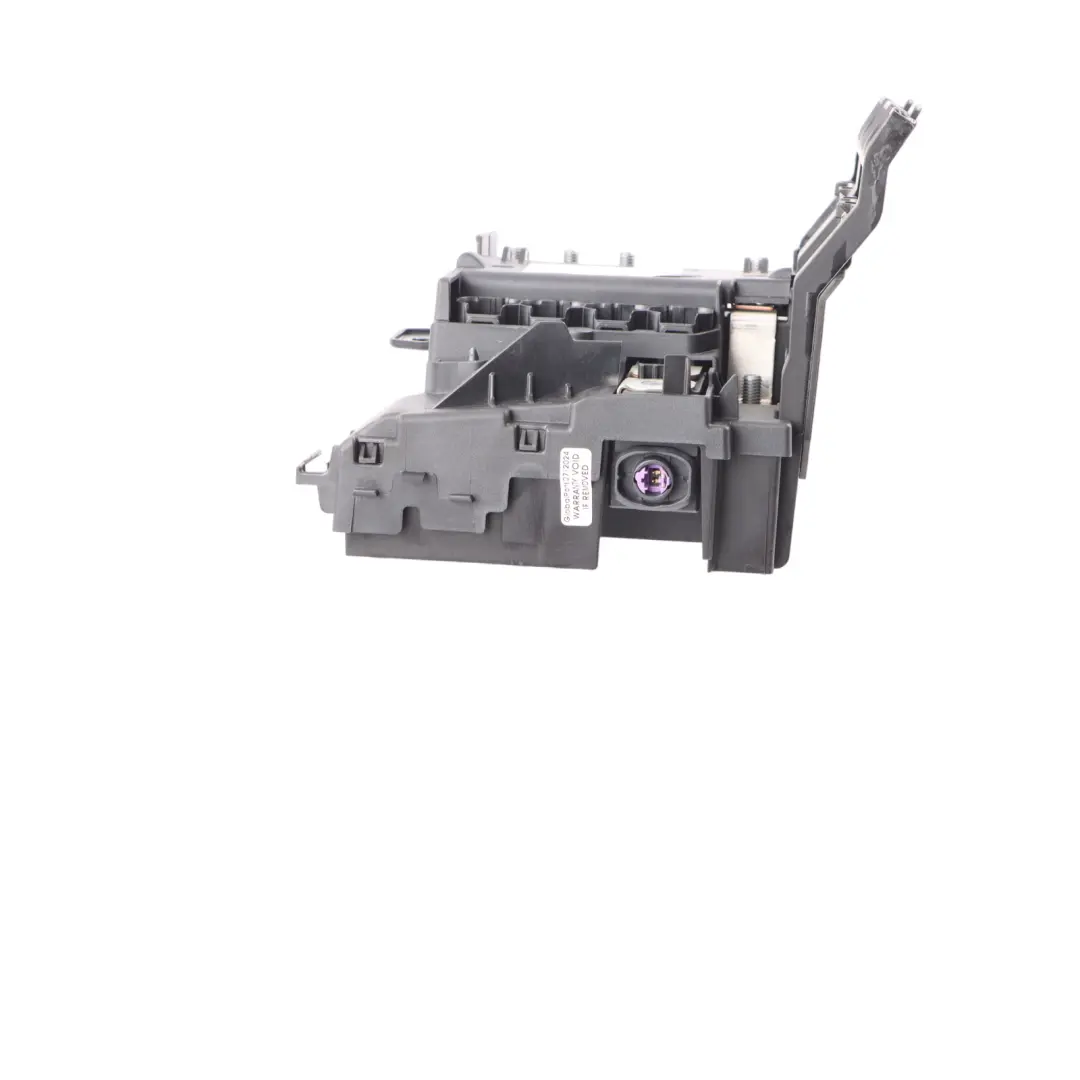

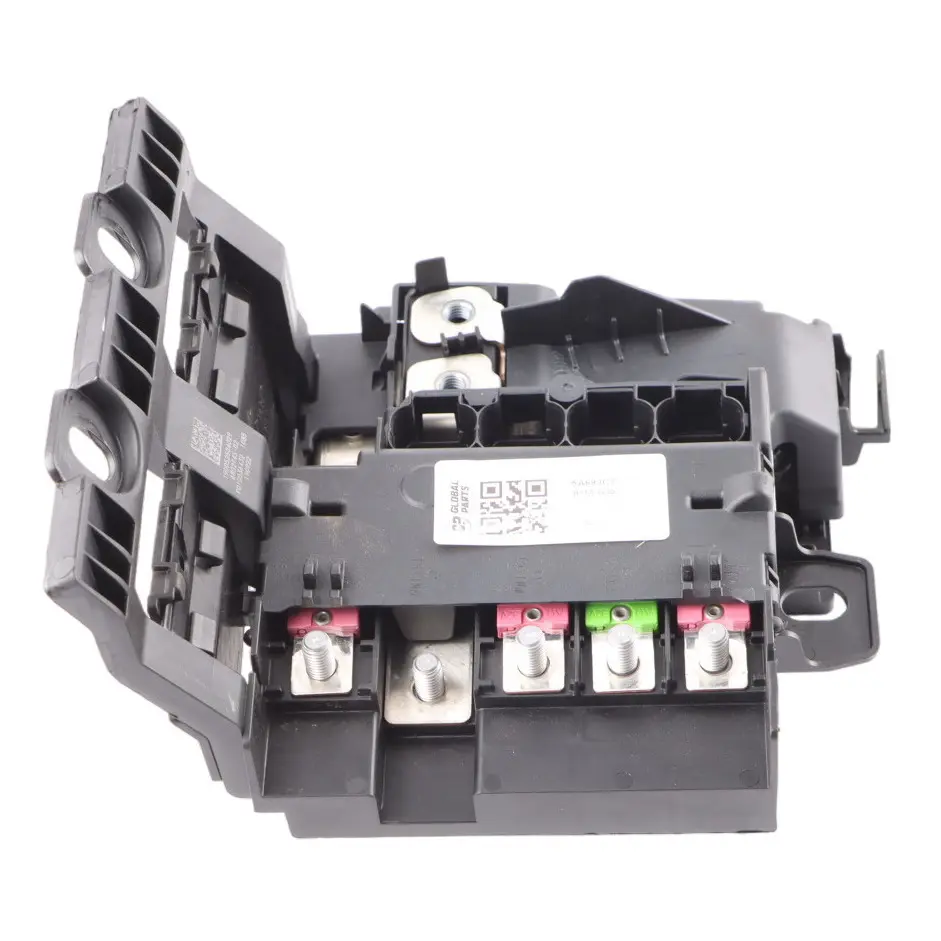

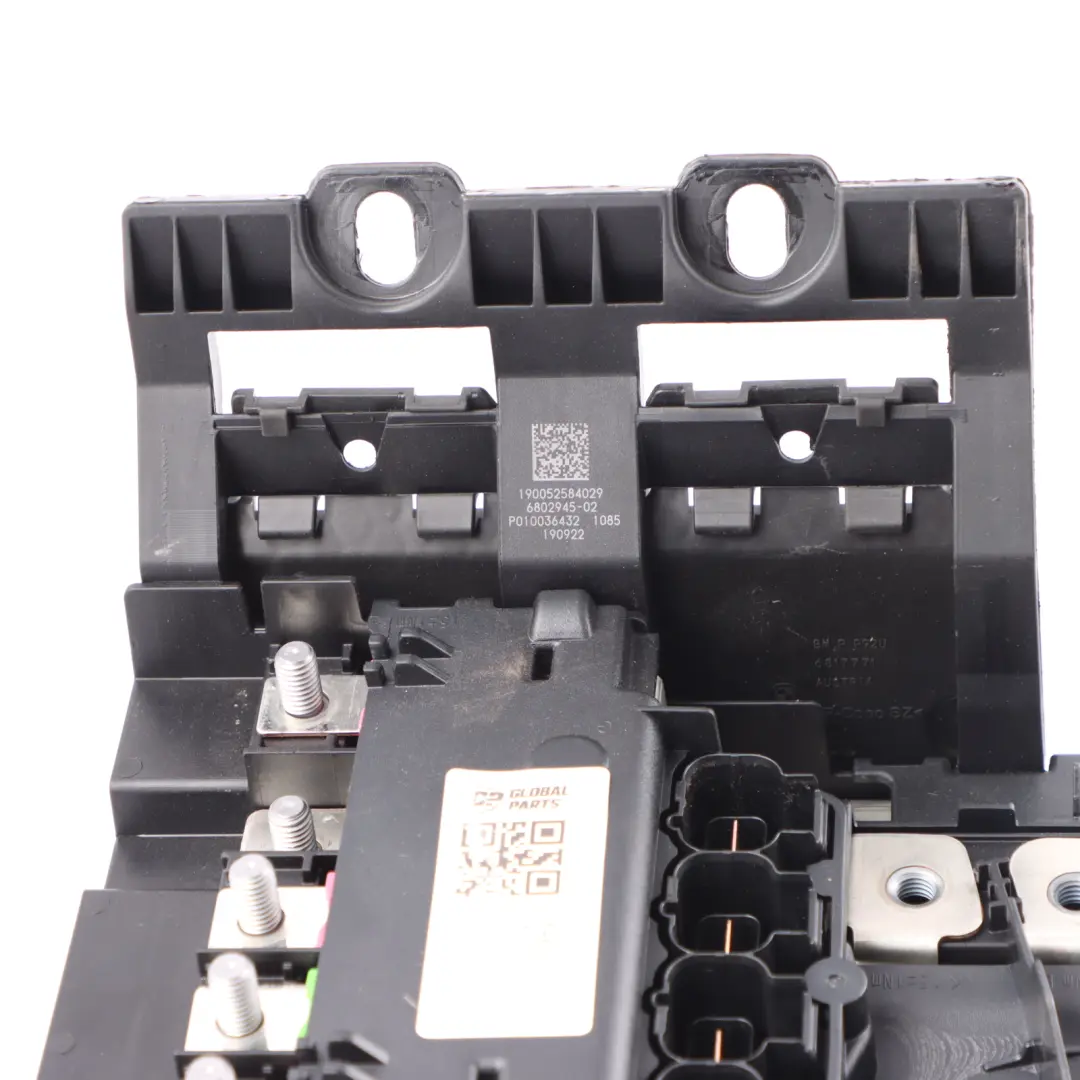

Distribution Box BMW G11 G12 G30 G31 Hybrid Junction Point B+ Rear 5A693C7

The Distribution Box BMW G11 G12 G30 G31 Hybrid Junction Point B+ Rear is a specialized electrical system component designed for the rear of hybrid BMW 7 Series G11/G12 and 5 Series G30/G31 vehicles. As an original component from the Battery Accessories group, it ensures stable B+ power distribution within the high-current system. This used OEM sub-assembly allows for technically correct repairs without altering the vehicle's original electrical architecture.

Specifications and technical data

• SKU: 5A693C7
• Mark: BMW (Genuine OE)
• Condition: Used

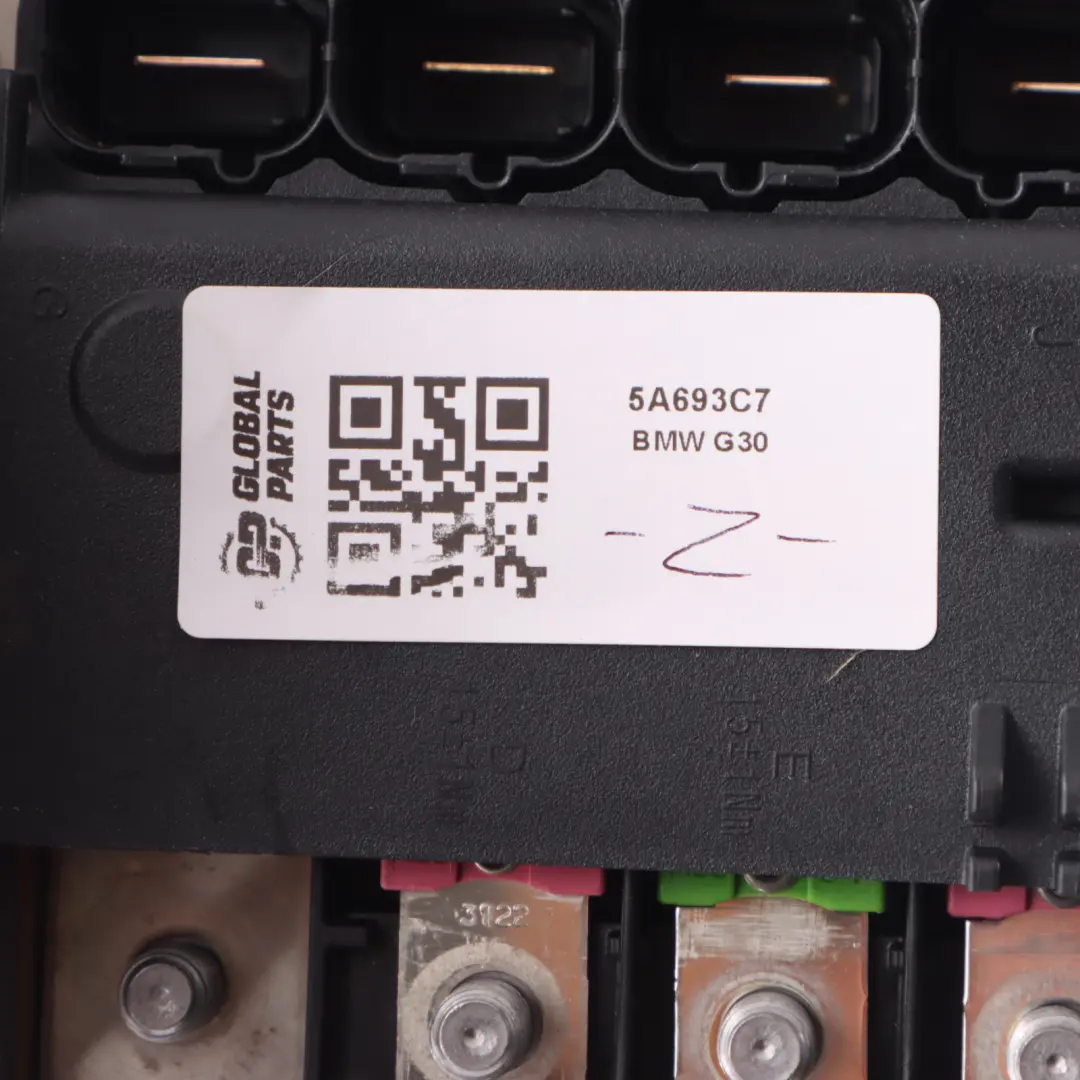

• OEM Part Number: 5A693C7
• Location on the vehicle: Rear
• Category: Battery Accessories

Vehicle Application and Function

The distribution box described is a rear electrical system component responsible for the safe routing and distribution of the positive B+ terminal in BMW hybrid vehicles. Its rear placement facilitates compact routing of power cables between the battery, power modules, and other energy consumers.

In practice, this component:

• organizes power cable connections in the rear of the body,
• reduces the risk of overheating and voltage drops through controlled current distribution,
• simplifies electrical system servicing with a clearly defined B+ connection point.

Construction and Technical Advantages

The B+ distribution box has been designed by BMW as a component tailored to the specifics of hybrid powertrains, where current loads are higher than in conventional systems. Its construction ensures:

• stable mounting in the rear of the vehicle, minimizing vibrations and cable stress,
• a clear connection layout, facilitating diagnostics and potential servicing,
• compatibility with factory wiring harnesses dedicated to the G11, G12, G30, and G31 platforms.

By maintaining the original geometry and mounting points, replacing with this component ensures factory cable routing and proper power system operating parameters.

Benefits of Using an Original BMW Part

Using an original distribution box to replace a damaged or overheated component offers several practical benefits:

• compliance with BMW service documentation and diagnostic procedures,
• no need for modifications to wiring harnesses, connectors, or ground points,
• reduced risk of secondary failures resulting from incorrect current distribution.

For hybrid vehicles, stable power supply to high-current systems is particularly crucial, making the use of a dedicated, original component a technically safe and predictable solution for operation.

Condition, Origin, and Service Application

The offered component is a used part from disassembly, intended for reinstallation in compatible BMW 5 and 7 Series models on G platforms. A used OEM sub-assembly is a sensible choice when a quick repair of the power system is necessary while maintaining factory specifications and optimizing service costs.

This type of solution is particularly effective for:

• post-accident repairs in the rear of the vehicle,
• mechanical or thermal damage to the existing distribution box,
• diagnosing faults related to unstable power supply in the rear area.

If you are planning a comprehensive repair or upgrade of the power and energy storage area in your BMW and need other parts from the same group, such as power cables, current connectors, or additional connection modules, check the available parts in the BMW Battery Accessories category.

Technical Support and Part Selection

In post-accident repairs, especially in the rear body area, correctly recreating the electrical system layout and selecting the right used OEM parts is crucial. To better plan the scope of work and understand the specifics of using used components, it is advisable to consult practical guide materials, such as the article Body and Chassis – Post-Accident Repairs Using Dismantled Parts, which discusses procedures, examples, and frequently asked questions related to such repairs.
