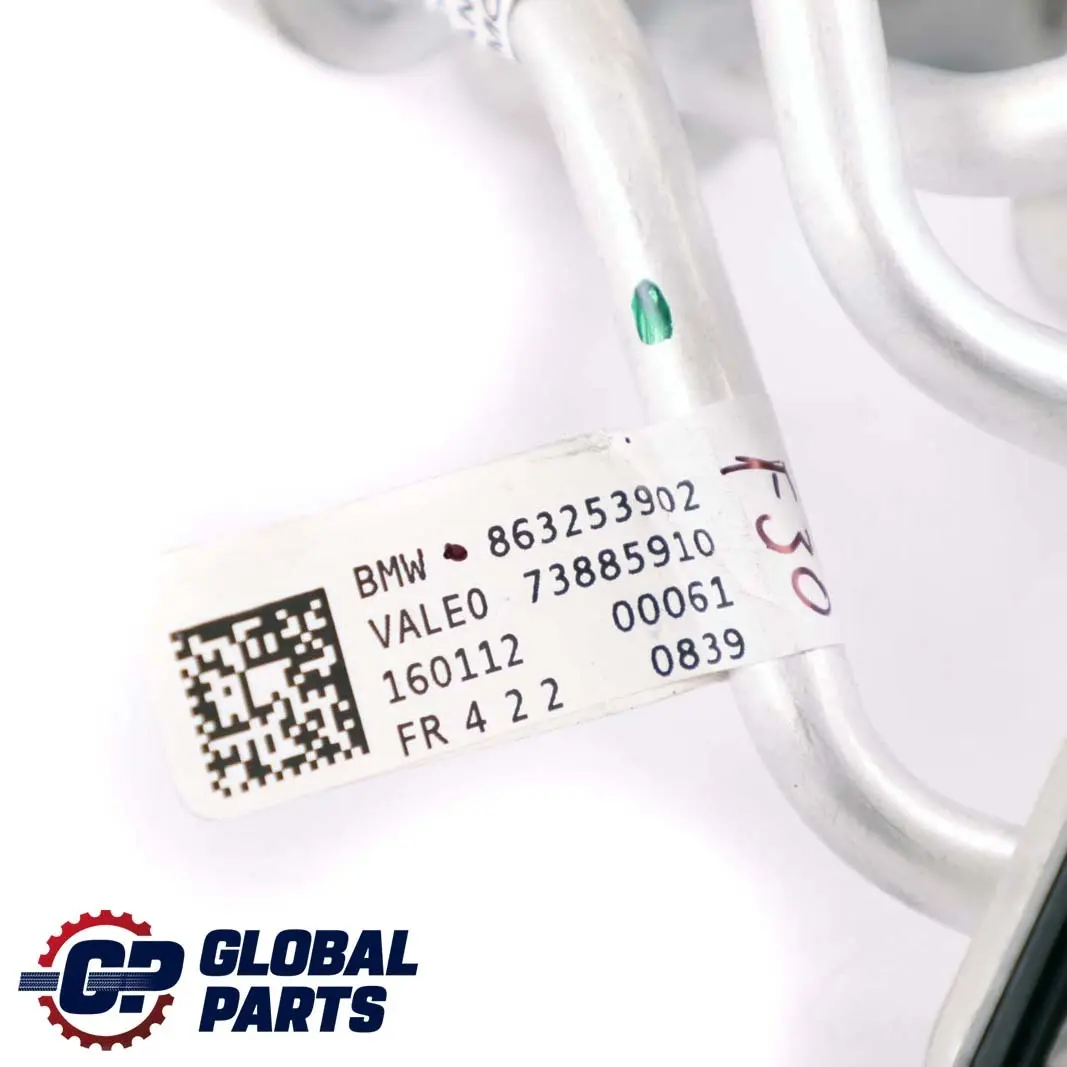

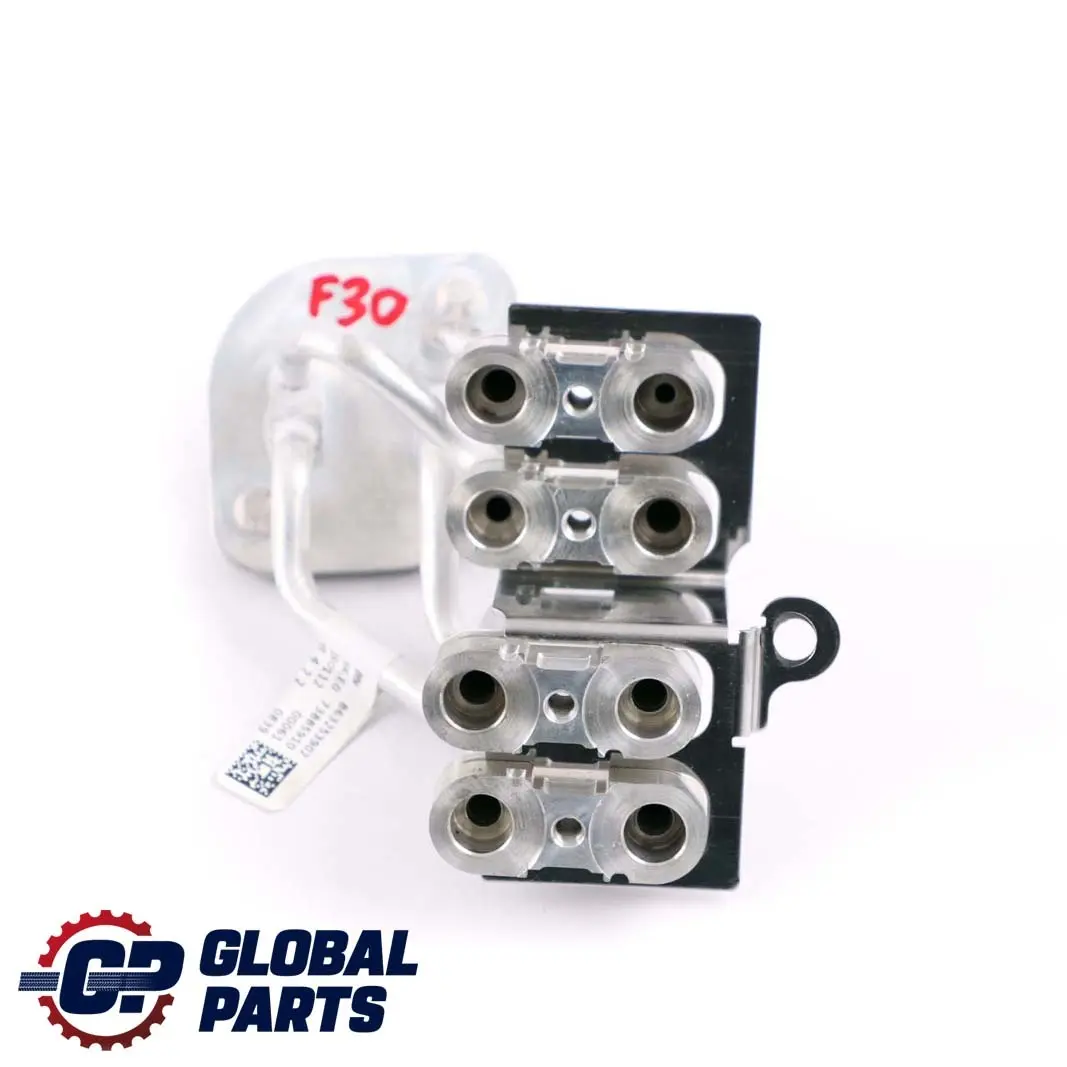

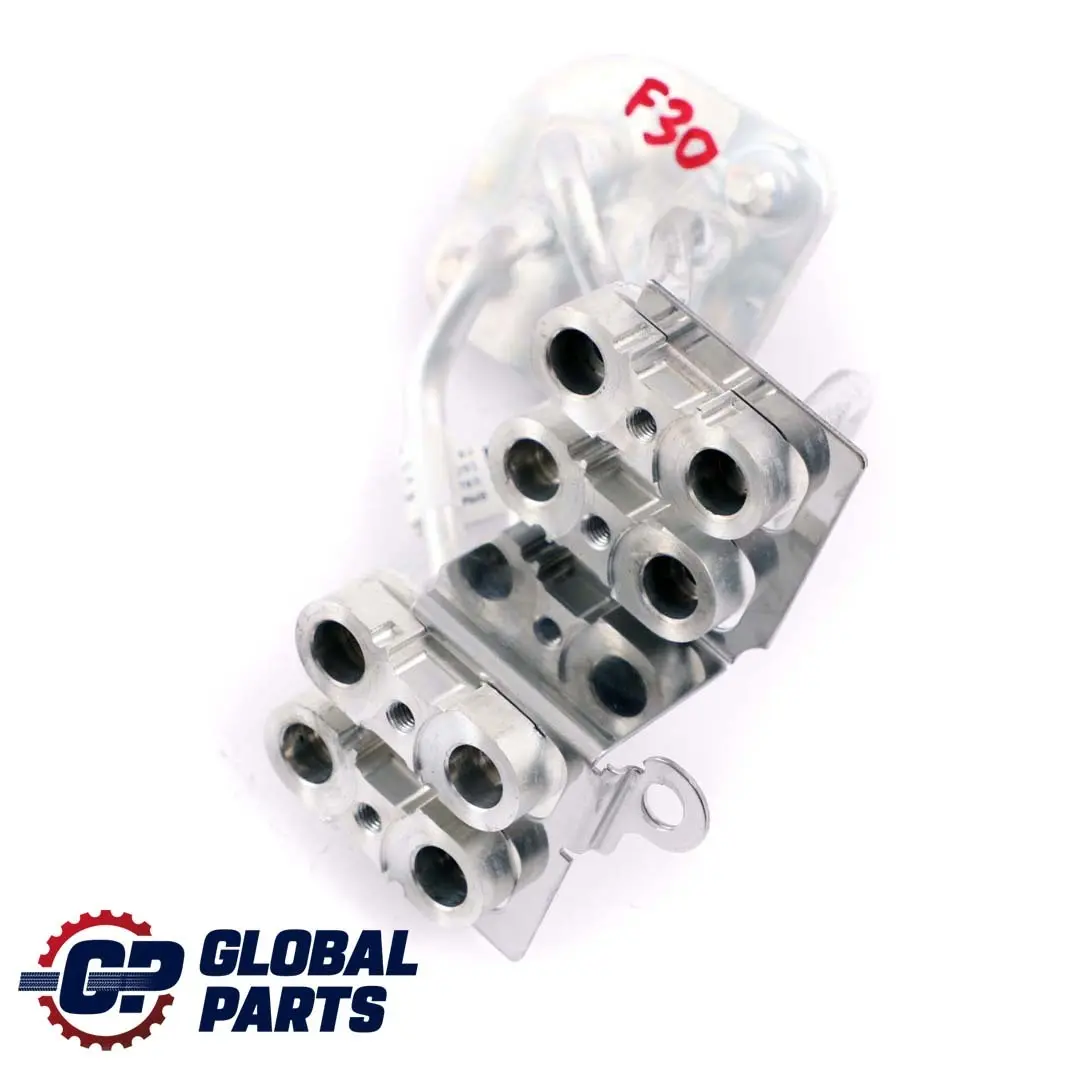

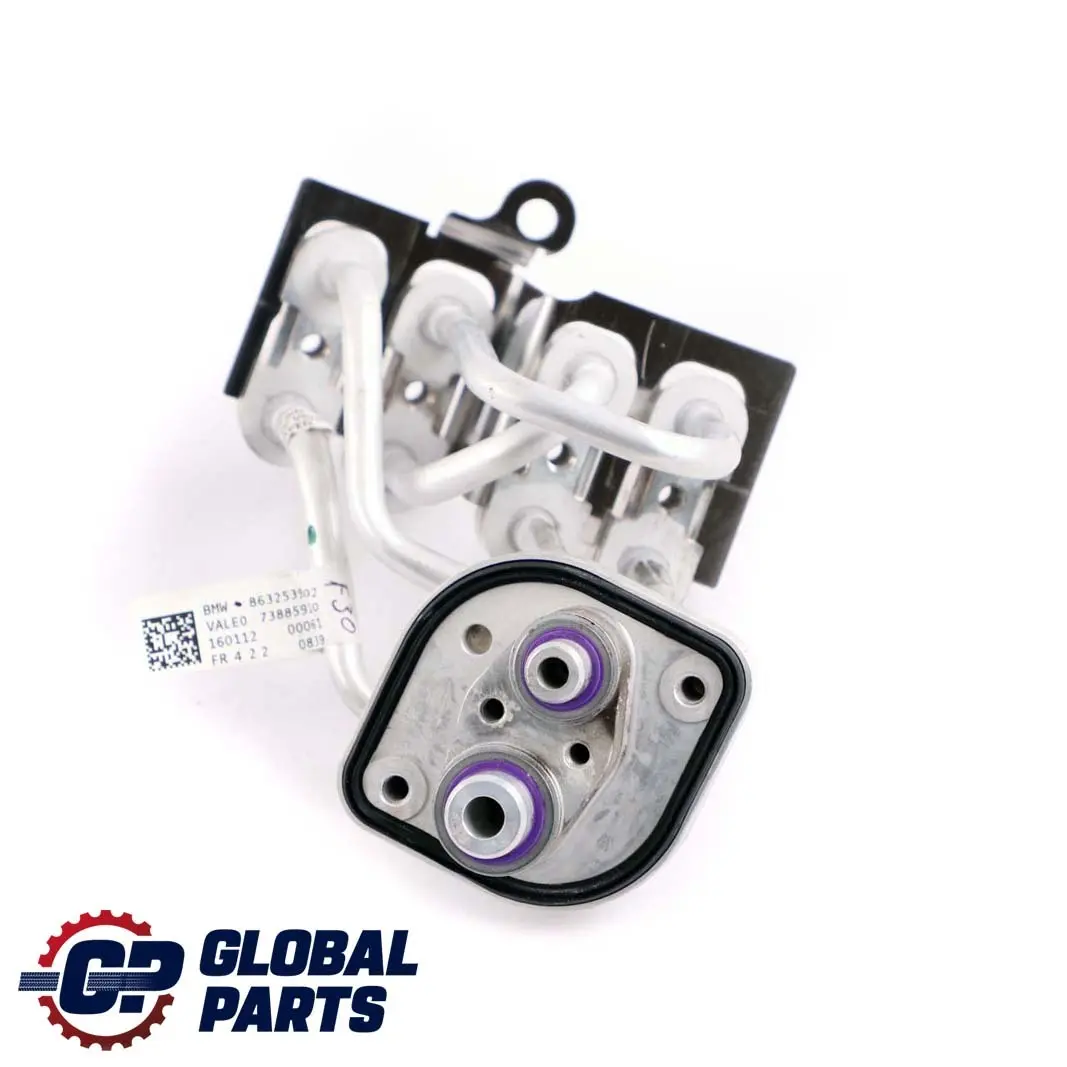

BMW F30 LCI 330e Hybrid Radiator Connection Line High Voltage Battery 8632539

The BMW F30 LCI 330e Hybrid High-Voltage Battery Coolant Line is an original high-voltage system component designed for the facelifted hybrid version of the 3 Series. Engineered by BMW to ensure a stable connection between the high-voltage battery and the cooling system, it guarantees safe operation of the traction battery under demanding temperature conditions.

Specifications and technical data

• SKU: 8632539
• Mark: BMW (Genuine OE)
• Condition: Used
• OEM Part Number: 8632539
• Substitutable numbers: 61278632539, 8632539, KZ
• Category: Batteries

Purpose and Function in the Hybrid System

The high-voltage battery coolant line in the BMW F30 LCI 330e provides a secure, leak-proof, and load-resistant connection for the battery cooling system components. In a plug-in hybrid, maintaining a stable battery temperature is crucial for:

• sustaining consistent electric drive performance,
• limiting battery capacity degradation over time,
• ensuring proper operation of high-voltage energy management systems.

By using an original part from the Batteries group, the factory routing geometry, correct diameter, and coolant flow characteristics are maintained, minimizing the risk of leaks and system malfunctions.

Benefits of Using an Original BMW Line

Choosing an original connection line for the hybrid BMW F30 LCI 330e primarily ensures compliance with the vehicle's original technical documentation. This component has been specifically designed to work with the high-voltage traction battery and its dedicated cooler, resulting in:

• a secure fit for existing mounts and cooling system connections,
• adequate resistance to operating temperature and pressure within the system,
• compatibility with the high-voltage battery's thermal management system.

Using an original used part allows for the preservation of the system's original operating characteristics, without the need for replacements with uncertain specifications.

Condition, Fitment, and Installation Aspects

The offered line is a used part, meaning it's a salvaged component. This allows for an economical repair of the battery cooling system while maintaining original manufacturing quality. The line is designed for installation in the hybrid BMW 3 Series F30 LCI 330e, where it connects to the high-voltage traction battery and the dedicated cooler.

During installation, it is recommended to:

• inspect the condition of the sockets and connectors to which the line is attached,
• replace seals and clamps according to BMW's service procedures,
• properly bleed the cooling system after completing the work.

Application in High-Voltage System Service and Upgrades

The high-voltage battery coolant line is particularly useful for:

• post-accident repairs within the high-voltage system,
• addressing leaks or mechanical damage to battery coolant lines,
• comprehensive servicing of the traction battery's thermal system in the BMW F30 LCI 330e.

Utilizing an original component helps maintain the integrity of the entire hybrid system, which is important for both battery longevity and the correct functioning of high-voltage safety features.

System Expansion and Related Components

If you are planning a comprehensive repair or upgrade of the power and energy storage area in your BMW and require other parts from the same group, such as connection lines, junction modules, or battery mounting components, check the available parts in the BMW Batteries category.
