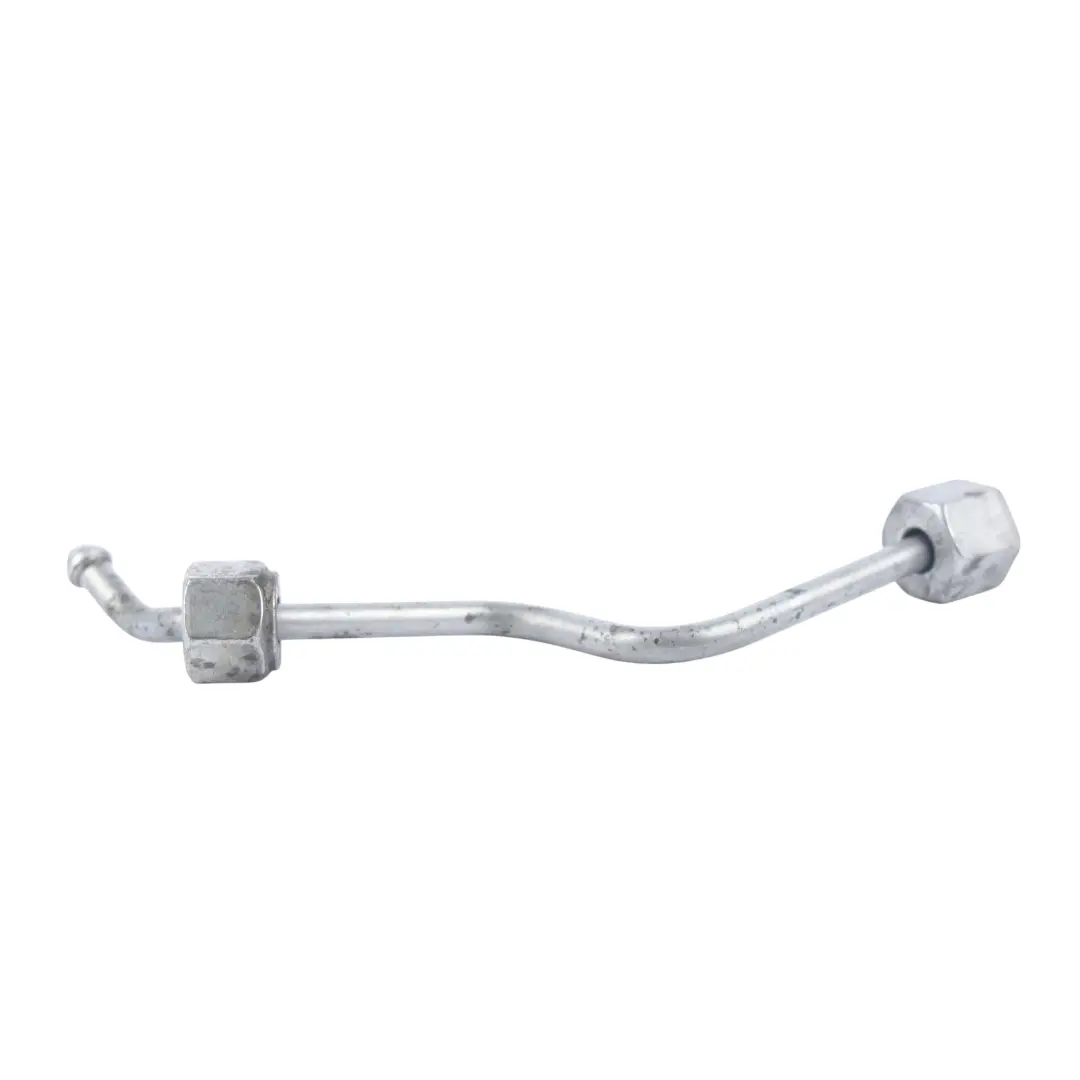

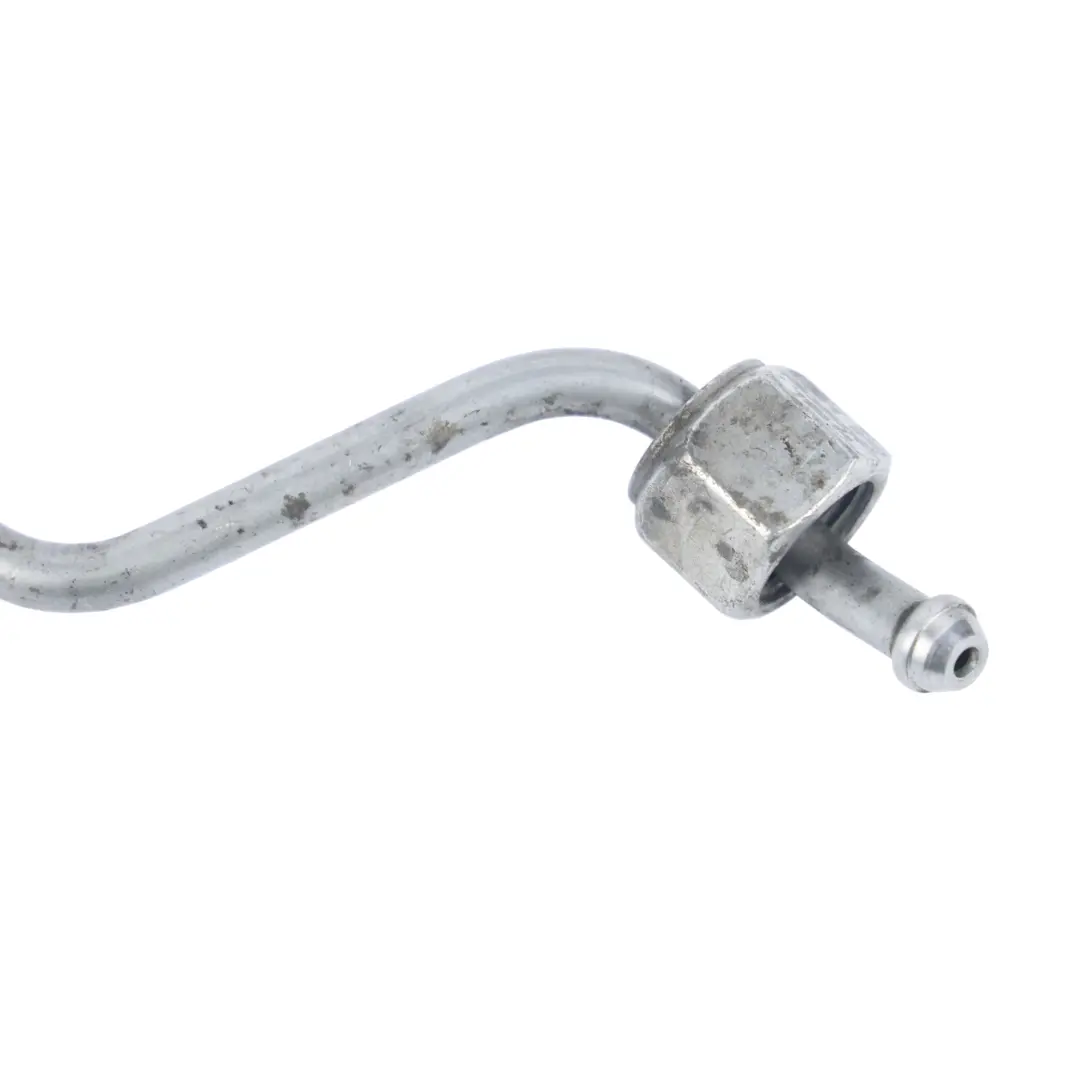

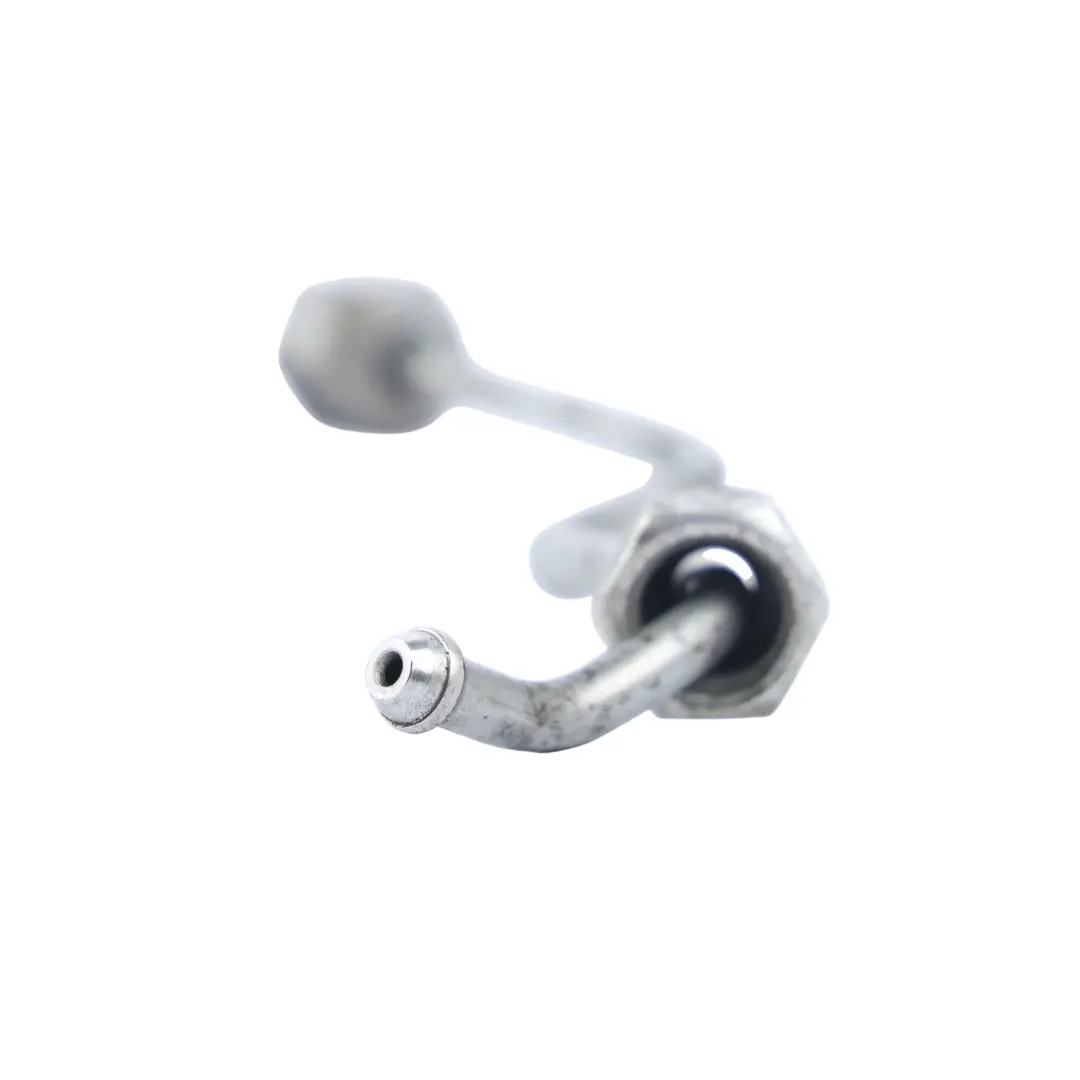

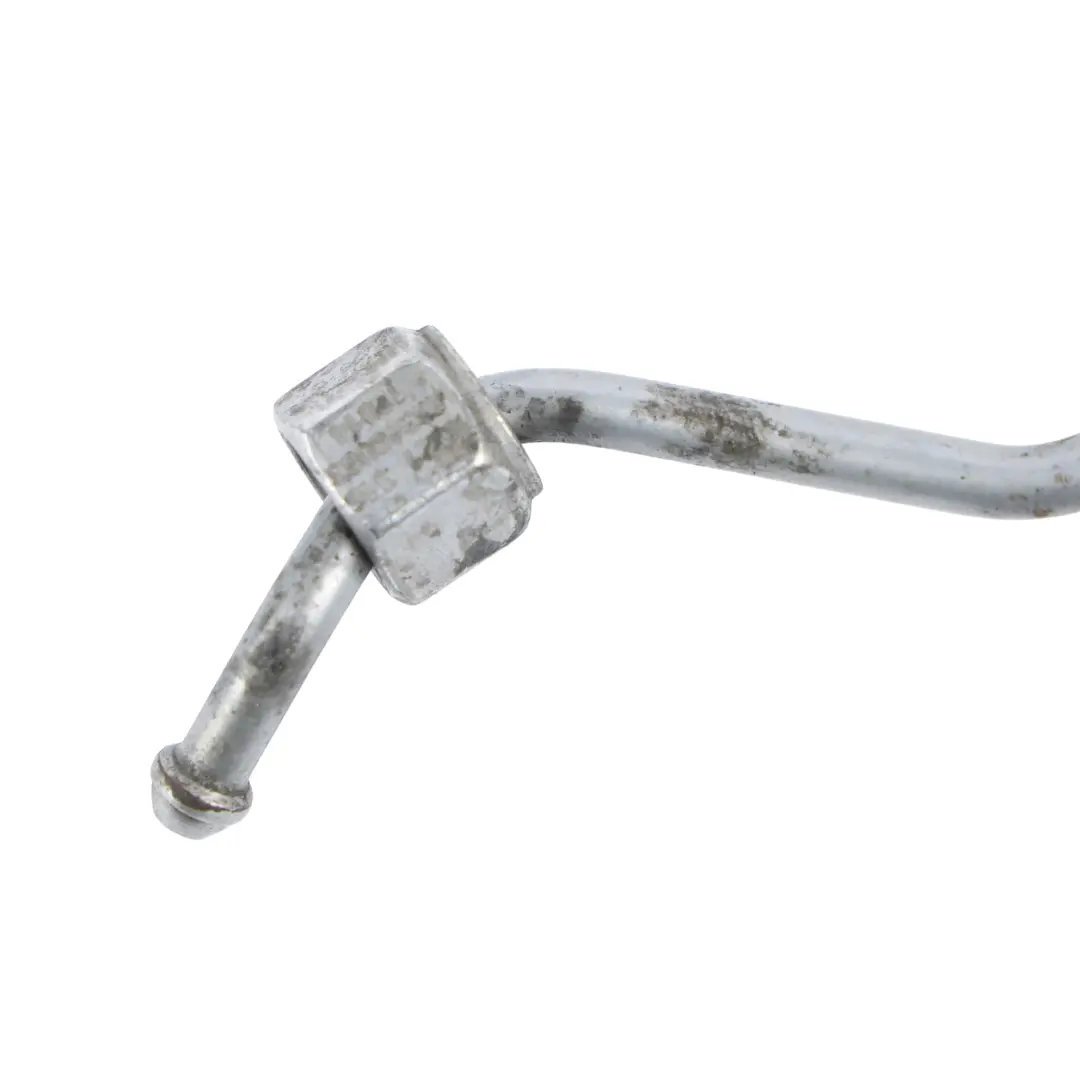

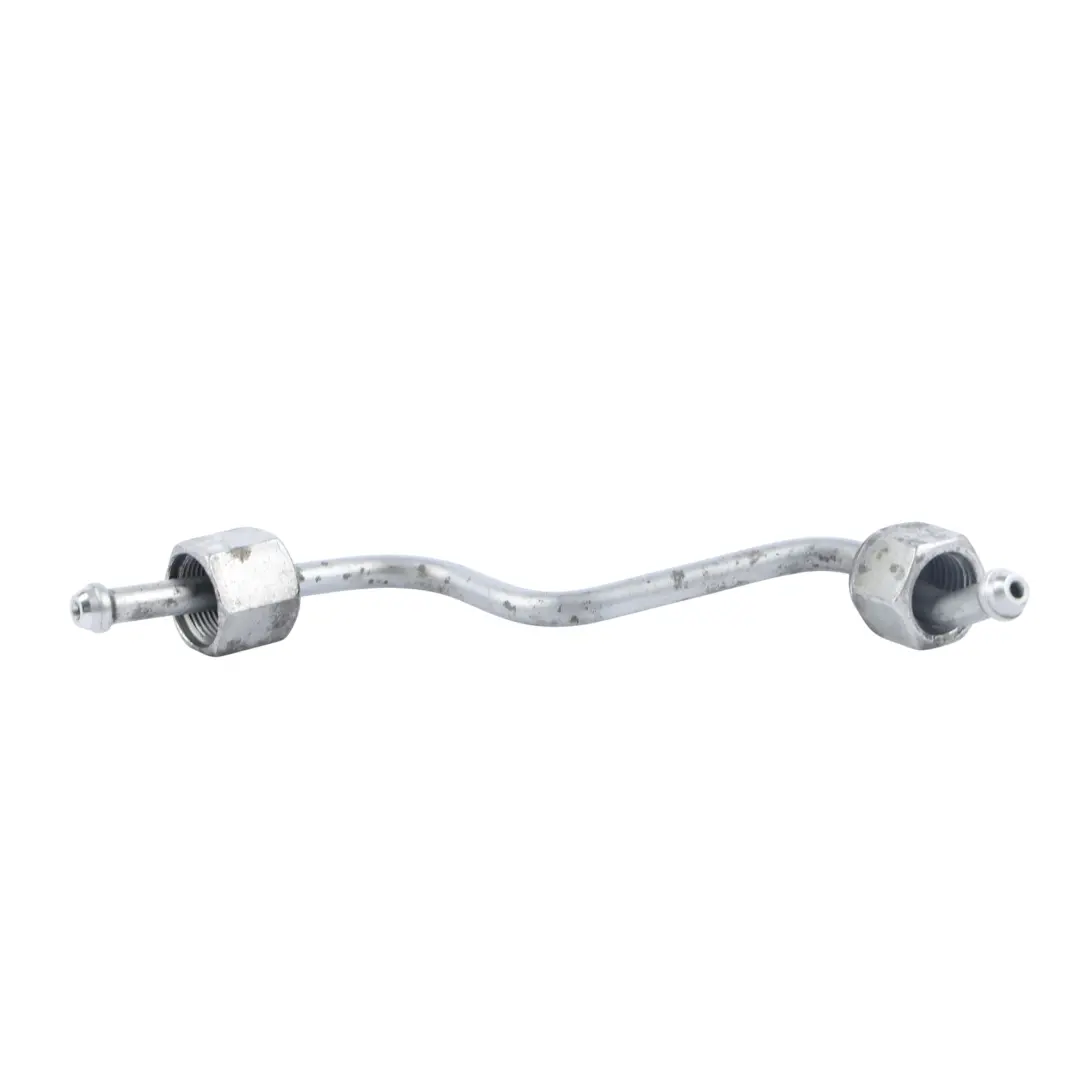

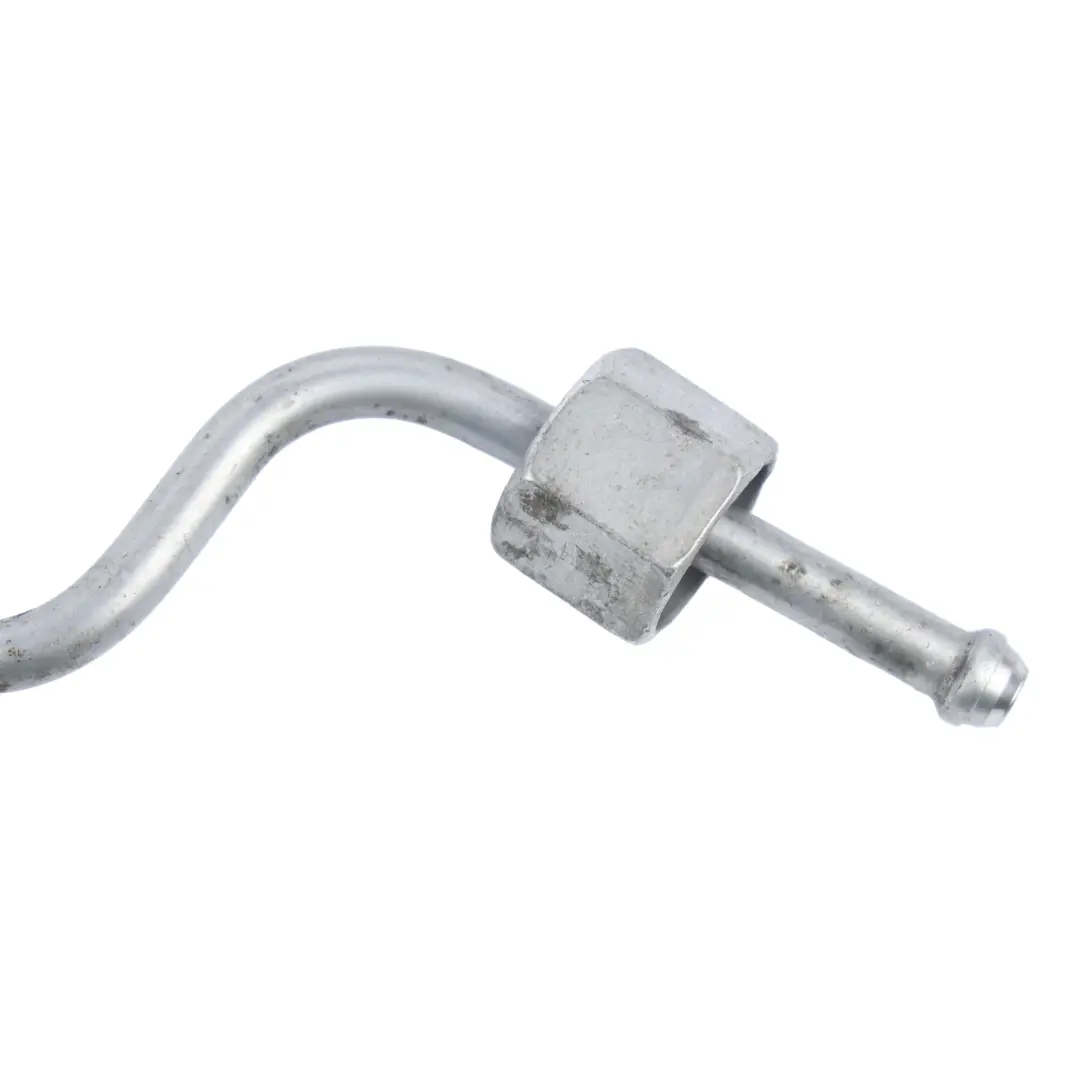

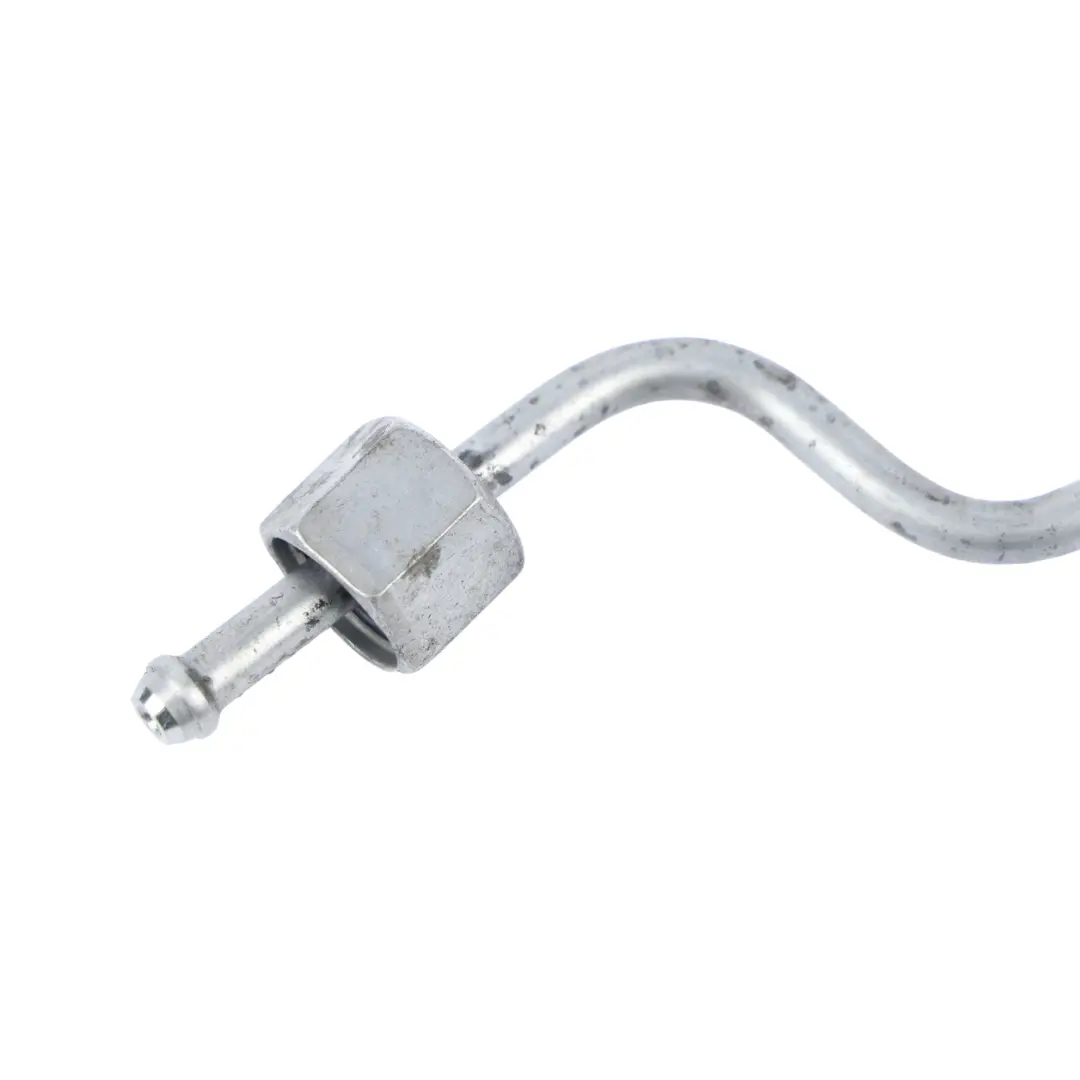

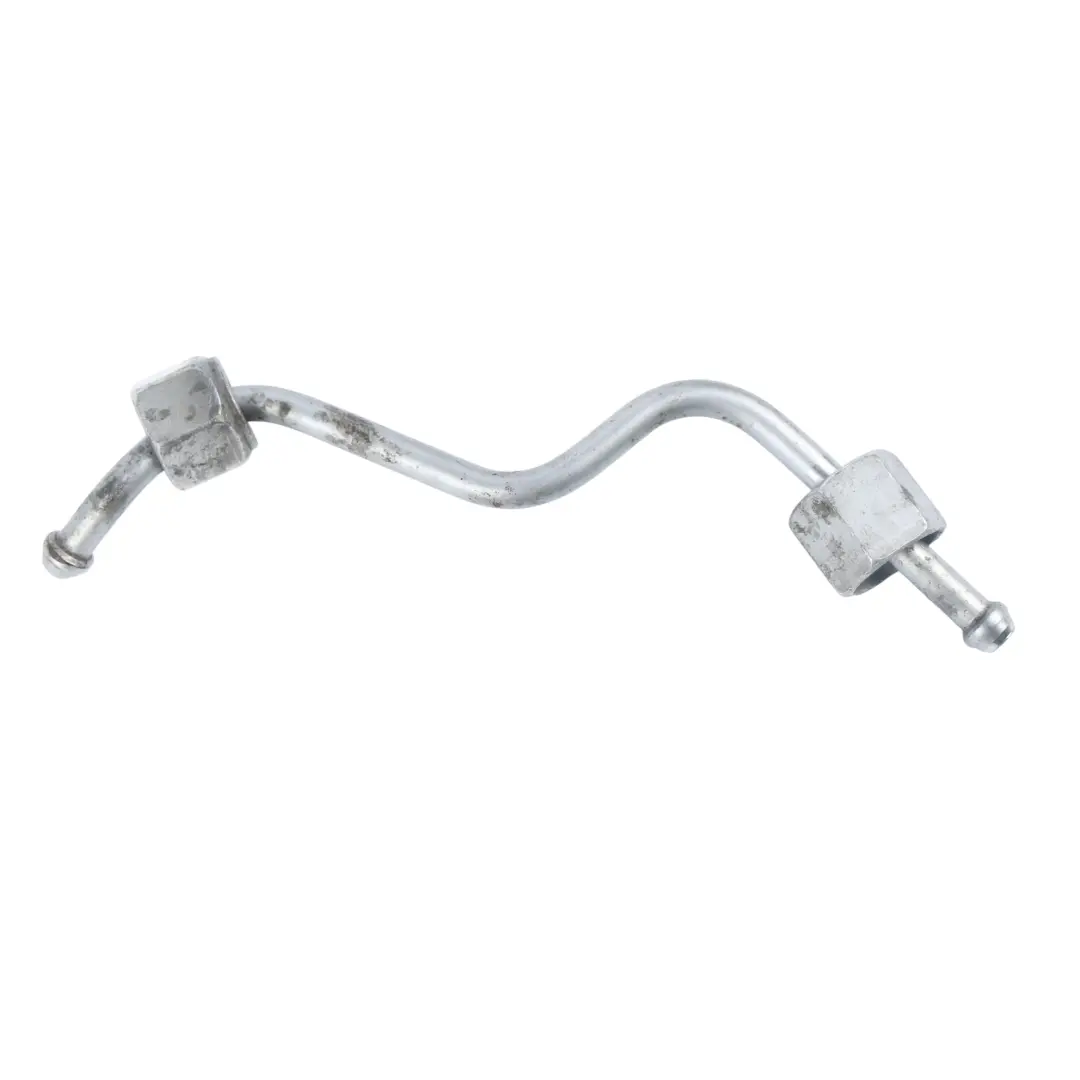

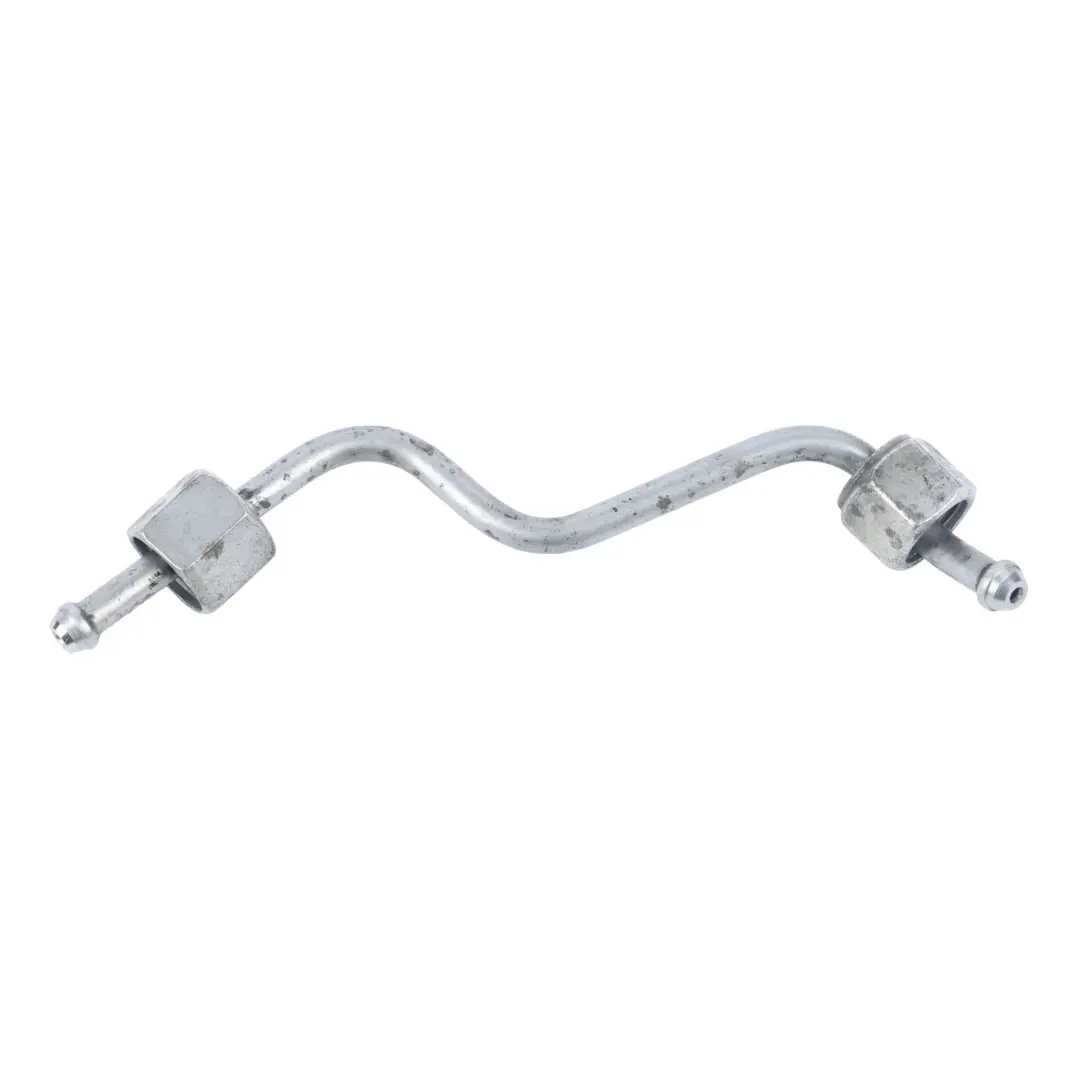

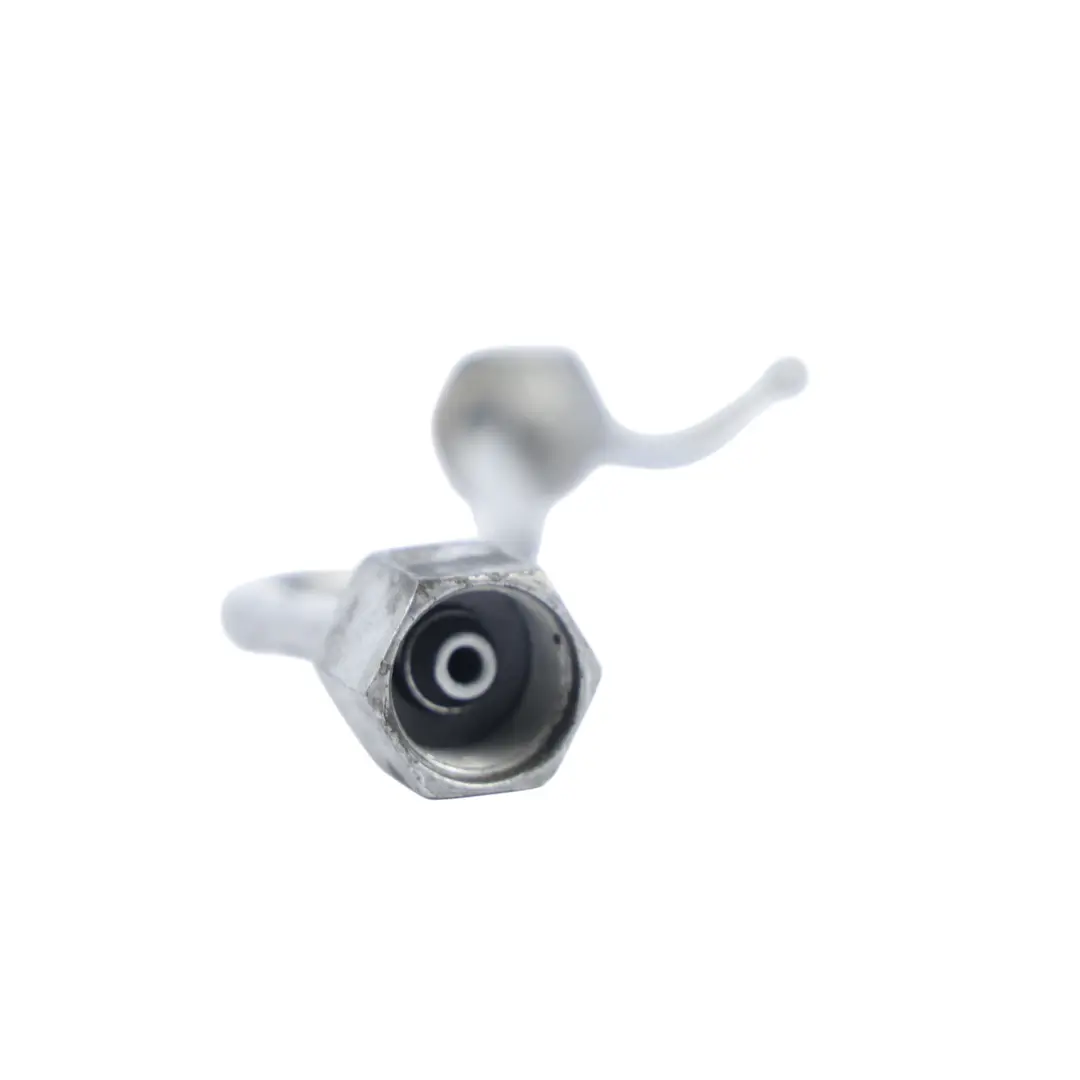

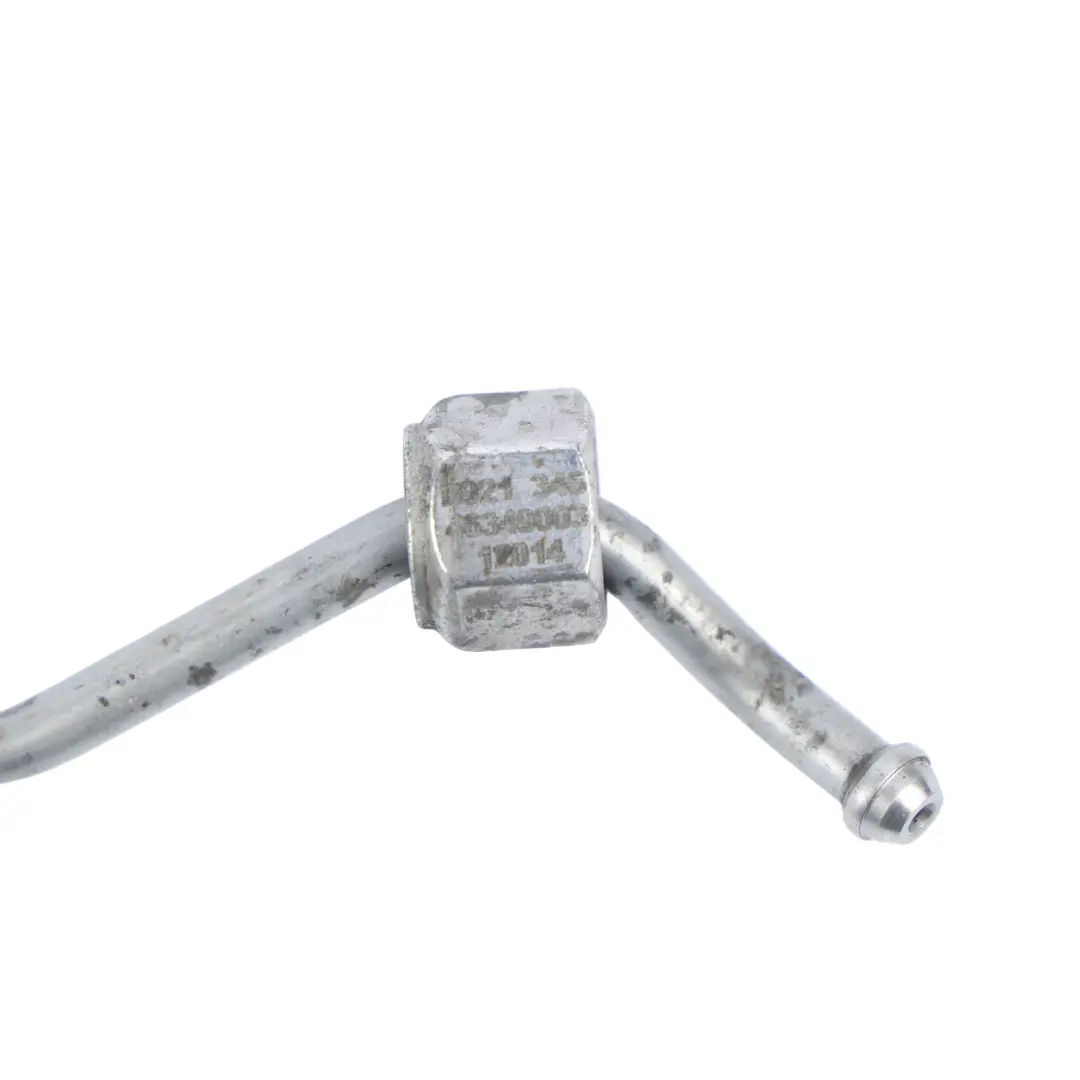

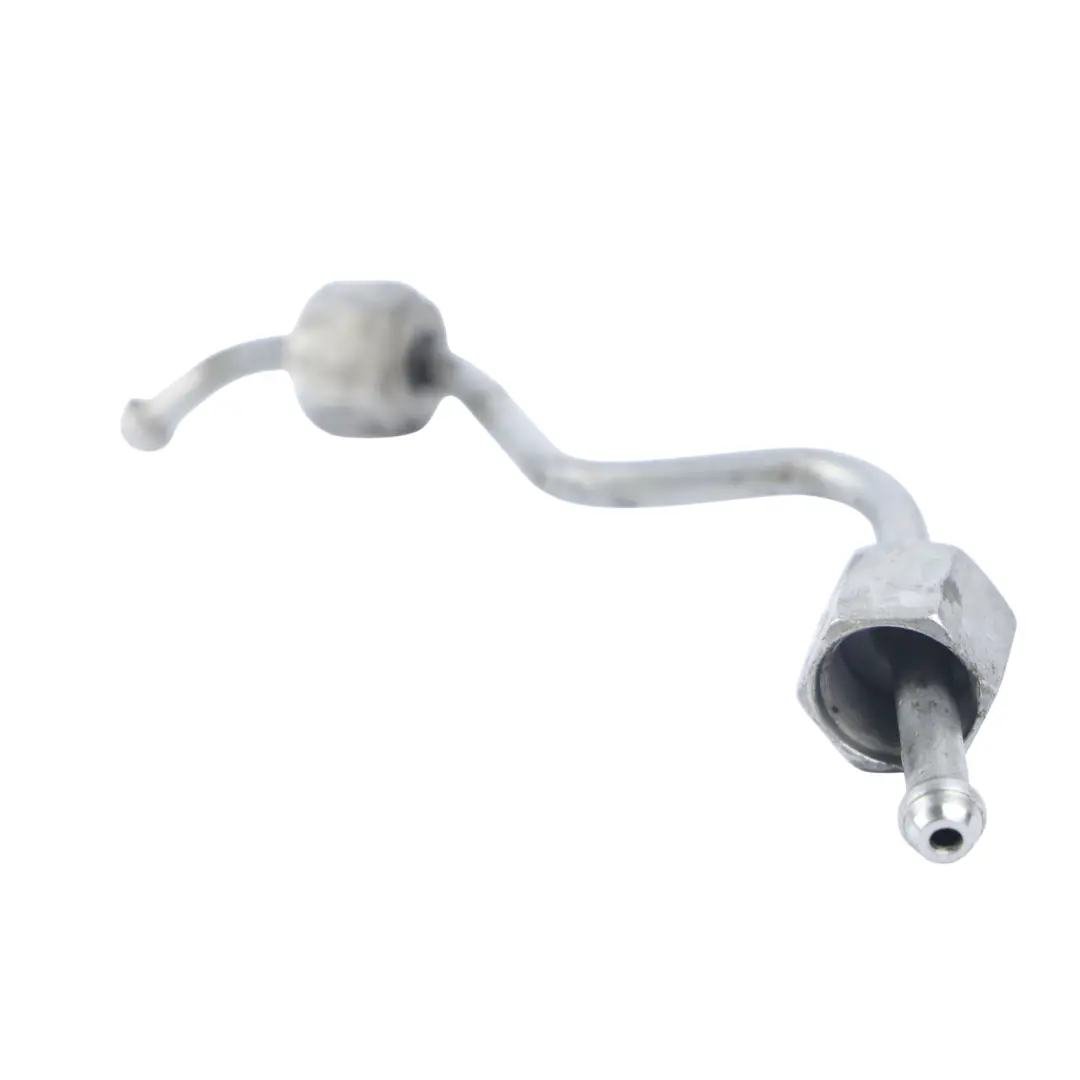

Fiat Ducato Mk3 Fuel Injection Rail Pressure Pipe Line 2.2 Diesel 46349003

Fiat Ducato Mk3 Fuel Injection Rail Pressure Pipe Line 2.2 Diesel is a precision component of the fuel supply system, responsible for safely delivering diesel fuel under high pressure to the injectors. The original design, dedicated to 2.2 Diesel units in the Fiat Ducato Mk3, ensures proper geometric fit, stable operation of the injection system, and predictable engine performance under load.

Specifications and technical data

• SKU: 46349003
• Mark: Fiat
• Condition: Used
• OEM Part Number: 46349003
• Substitutable numbers: 46349003
• Fuel type: Diesel
• Part type: Fuel Rail (Ramp)
• Category: Additional Fuel Injection Parts

The role of the injection pipe in a diesel fuel system

The high-pressure fuel injection pipe in a 2.2 Diesel engine is responsible for transporting fuel from the high-pressure rail to the injector, while maintaining proper sealing and resistance to pressure pulsations. In a correctly configured injection system, a stable pipe:

• limits pressure drops in the section between the rail and the injector,
• ensures a repeatable injection opening timing,
• minimizes the risk of micro-leaks and air ingress,
• supports smooth engine operation at idle and under load. By maintaining factory geometry and internal diameters, the pipe allows the injection system to operate according to the manufacturer's specifications, which translates into engine refinement and consistent fuel dosage.

Compatibility with Fiat Ducato Mk3 2.2 Diesel

The presented pipe has been designed for use in the Fiat Ducato Mk3 with a 2.2 Diesel engine, which means it fits the factory routing in the engine bay and the original mounting points. Using the correct component in this area is important for:

• maintaining the correct pipe path while adhering to required bending radii,
• limiting vibrations transmitted from the engine to the injection system,
• reducing fatigue stress in bend zones and at connections,
• trouble-free installation without the need to modify other components. Selecting a pipe dedicated to a specific engine version helps avoid problems with leaks, collisions with other engine components, and improper routing in the engine bay.

Technical characteristics and purpose

The pipe belongs to the Other injection system parts group, meaning it works with other high-pressure diesel supply components – the pump, rail, injectors, and pressure sensors. The pipe's construction is adapted to operate within the pressure ranges typical for modern diesel units, taking into account:

• resistance to variable thermal loads in the engine bay,
• dimensional stability during repeated heating and cooling cycles,
• resistance to torsional and bending vibrations generated by engine operation,
• compatibility with factory high-pressure connectors. The component is intended for systems powered by diesel fuel, therefore it should not be used in gasoline engines or other configurations for which it was not intended by the manufacturer.

Condition, selection, and installation of the pipe

The offered injection pipe is a used part, which allows for an economical repair of the injection system while maintaining the original manufacturer's specifications. For high-pressure components, it is particularly important during installation to:

• maintain the cleanliness of the connectors and prevent contaminants from entering the pipe,
• follow the appropriate tightening procedure for the connectors in accordance with service recommendations,
• perform a leak test of the system while the engine is running after installation,
• avoid additional bending of the pipe beyond the radii provided by the manufacturer. Before purchasing, it is worth comparing the shape and type of connectors with the removed part and verifying compatibility using the part numbers in the technical specification to ensure full compatibility with the given engine variant.

Technical support and related components

If you are planning a comprehensive repair or upgrade of the engine area in your Fiat and need other components from the same group, such as additional high-pressure lines, fuel rails, or auxiliary fuel supply sections, check out the available parts in the Other Fiat injection system parts category. When working with high-pressure diesel systems, it is worth knowing the typical symptoms of equipment failure, diagnostic methods, and the principles of safely selecting used components. Practical tips regarding, among other things, selecting equipment, recognizing damage symptoms, and optimizing service costs can be found in the article: Equipment failure in TSI and TDI engines: how to service a Volkswagen reasonably and not overpay at the workshop?.
