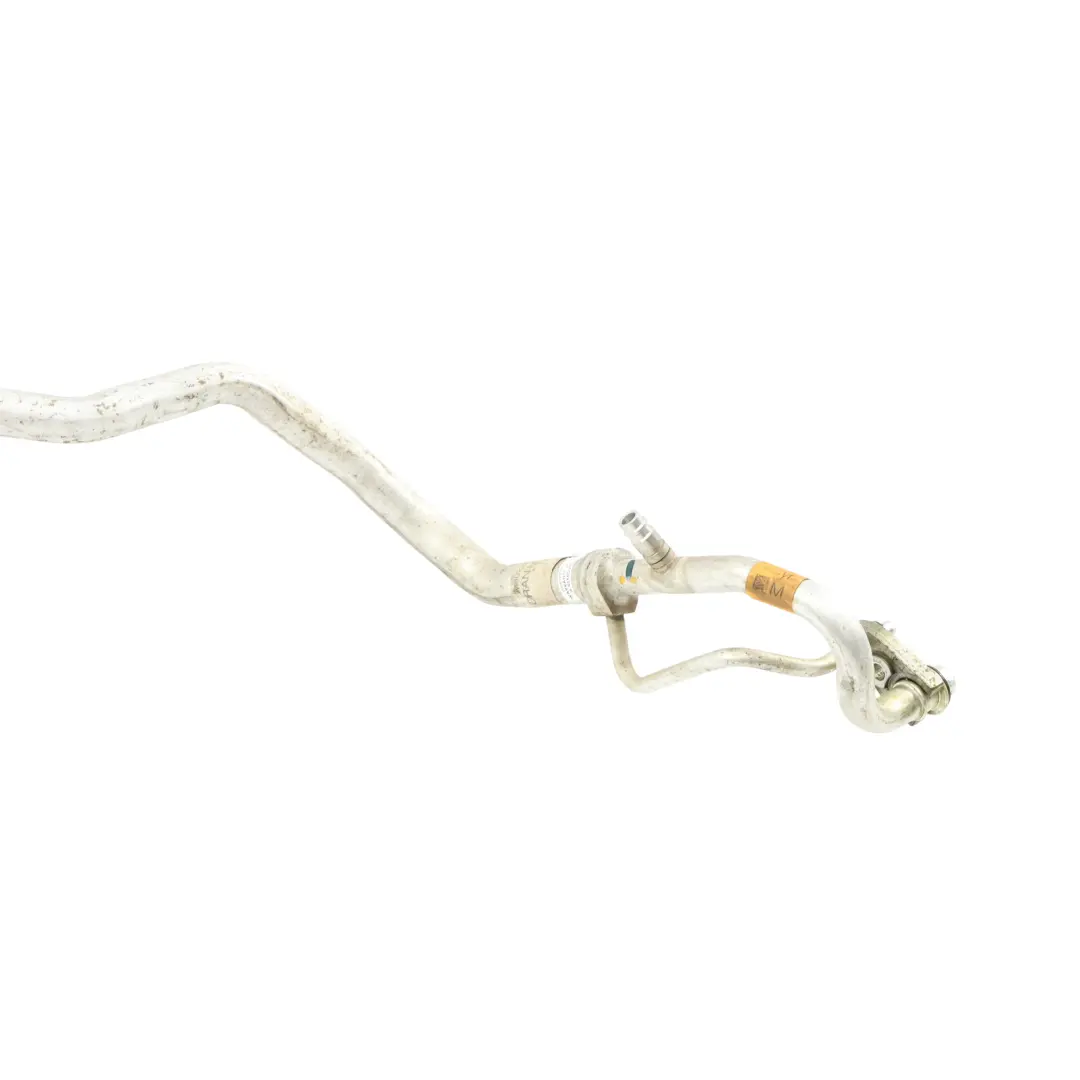

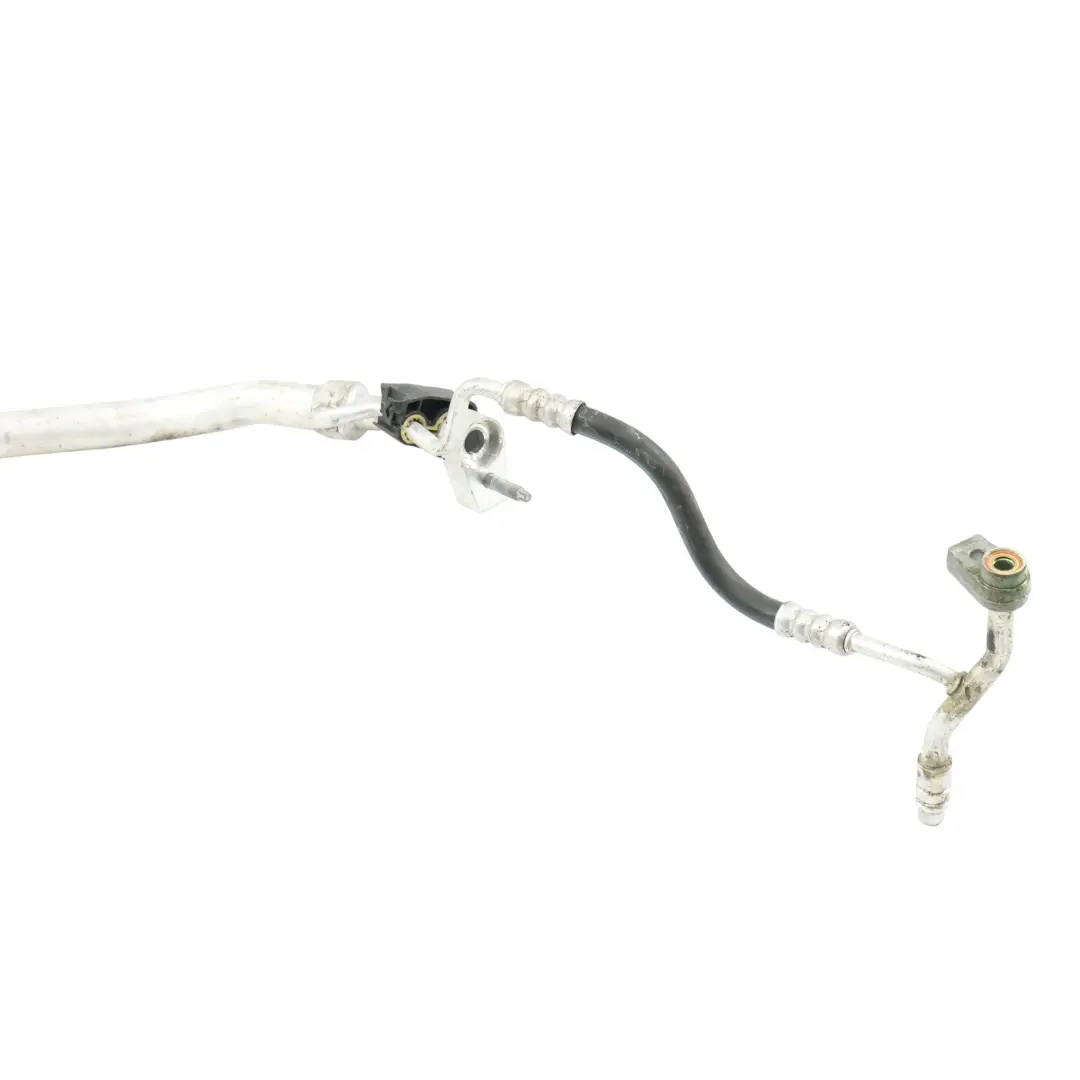

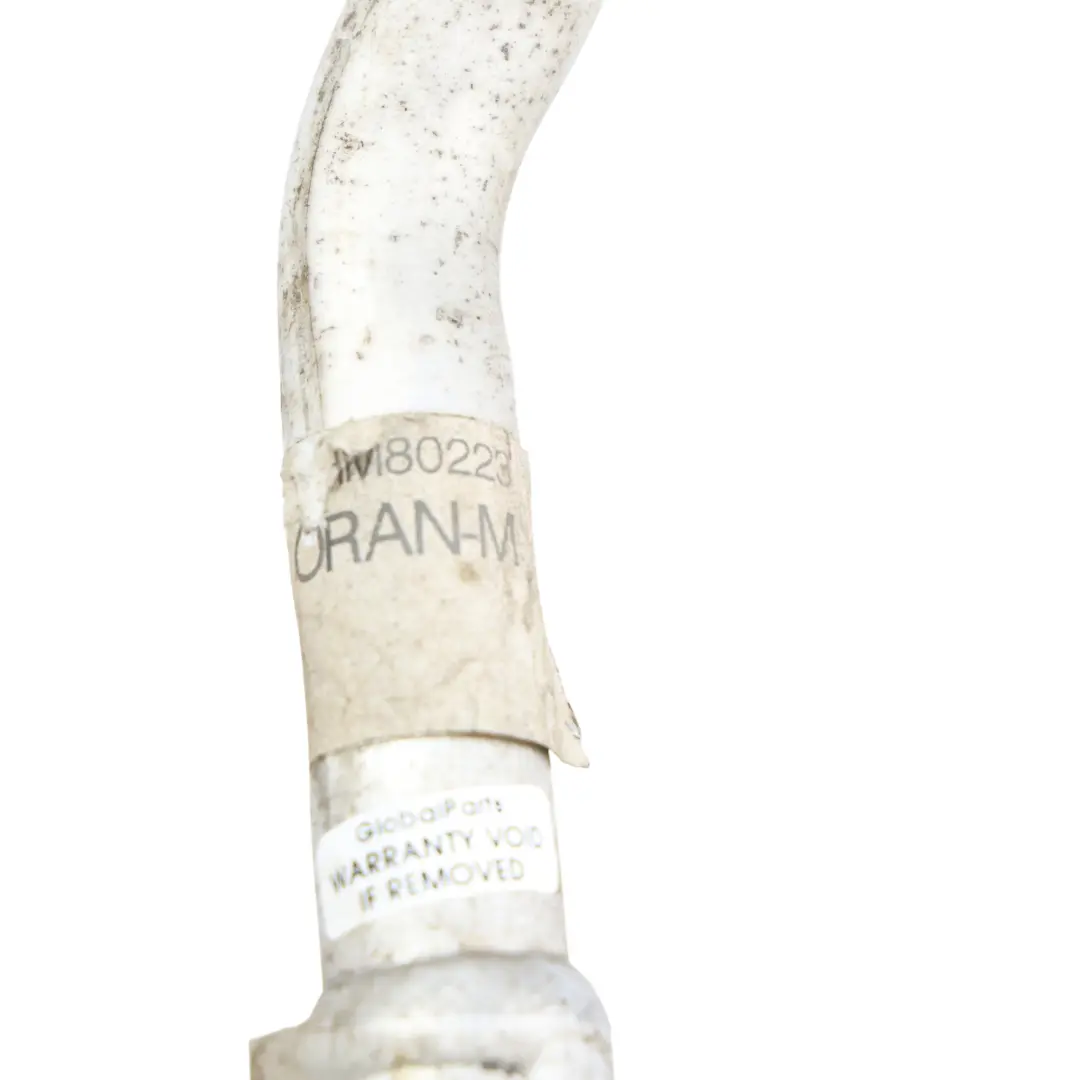

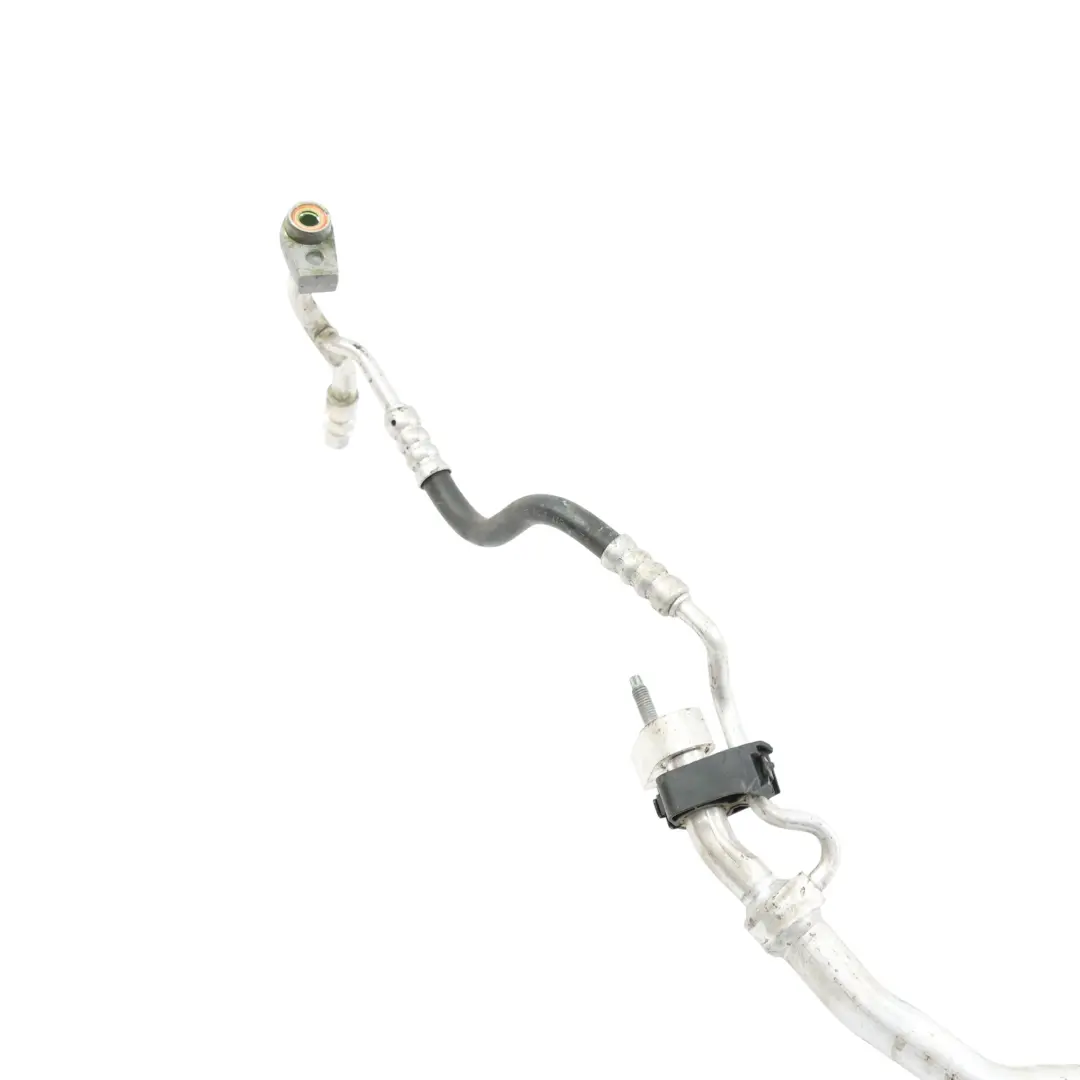

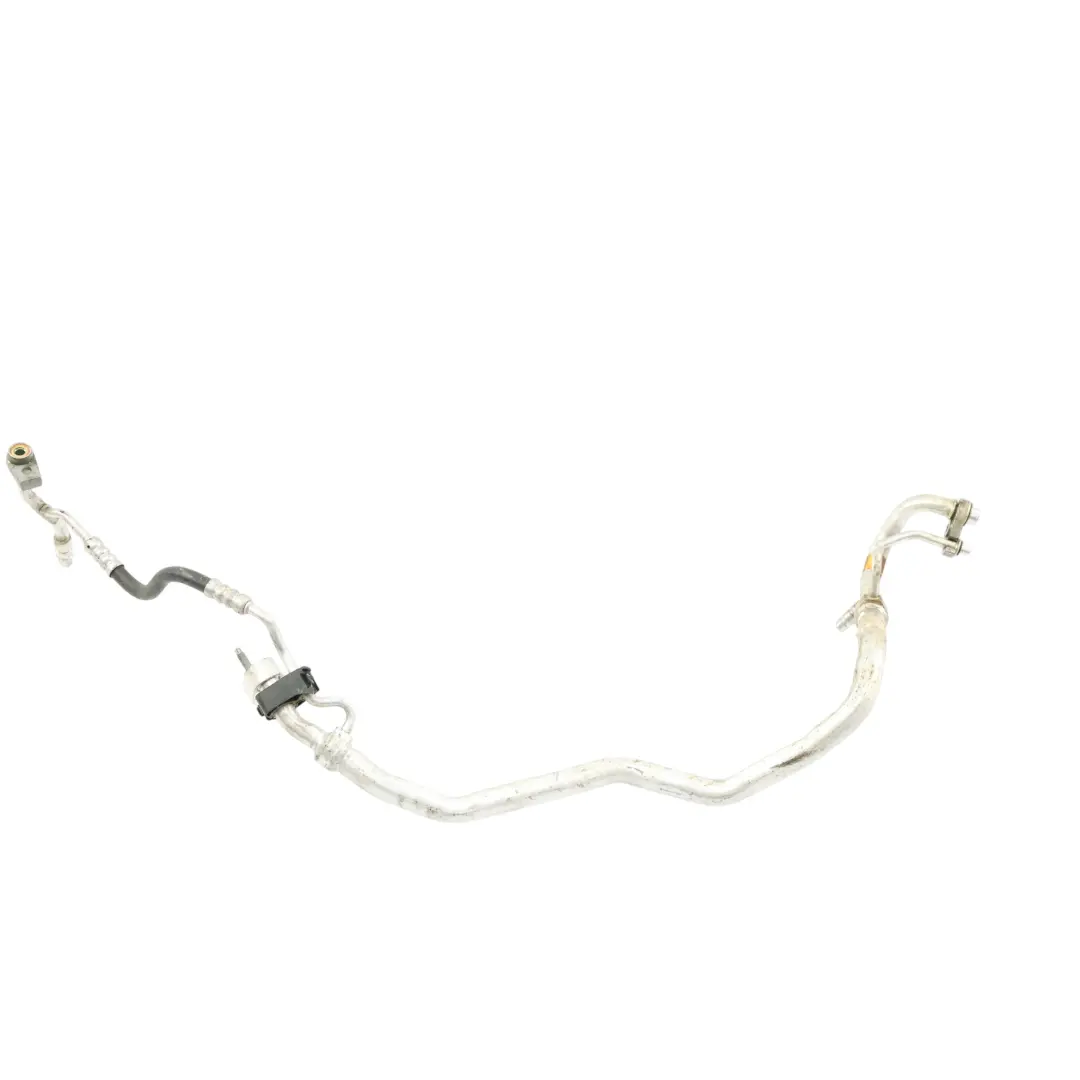

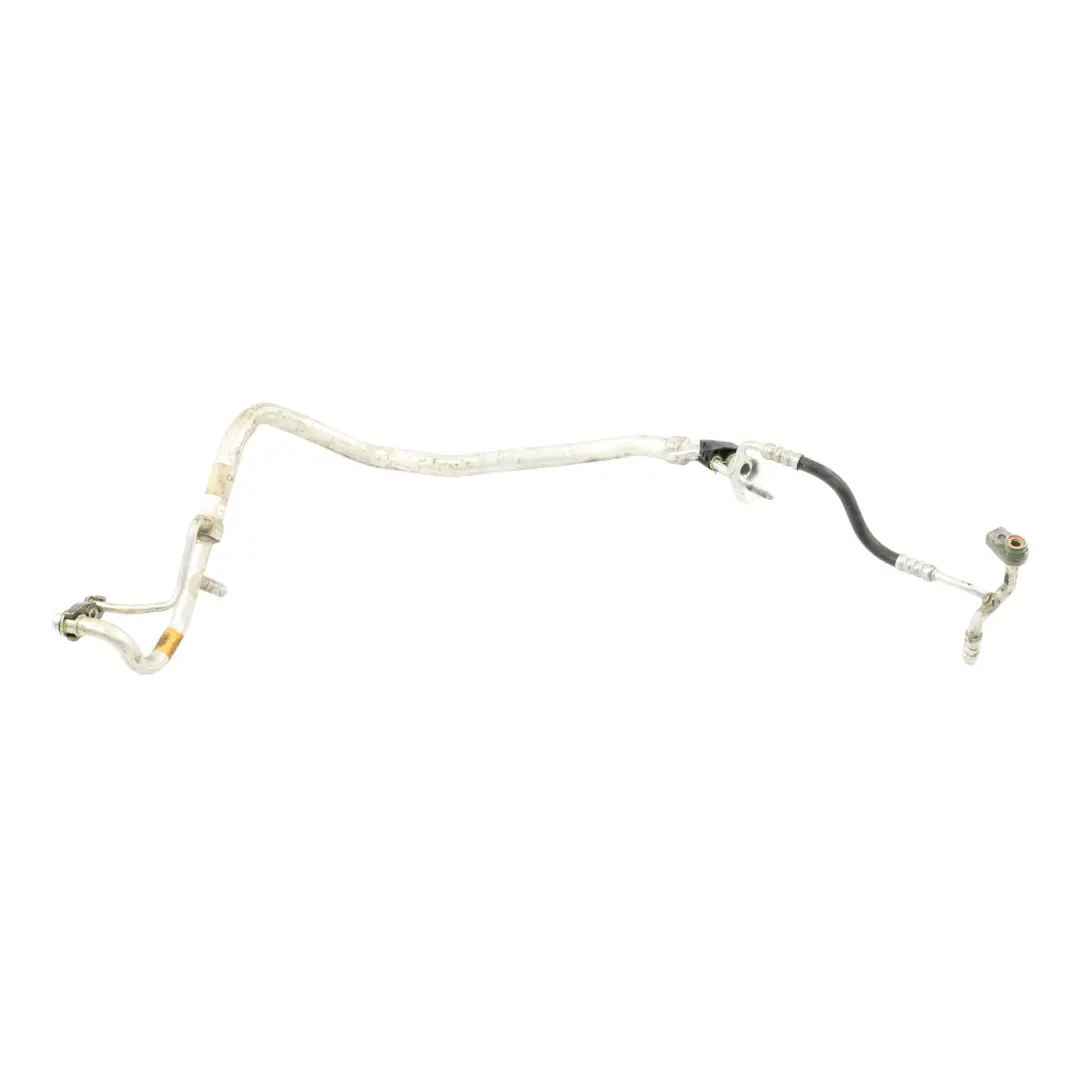

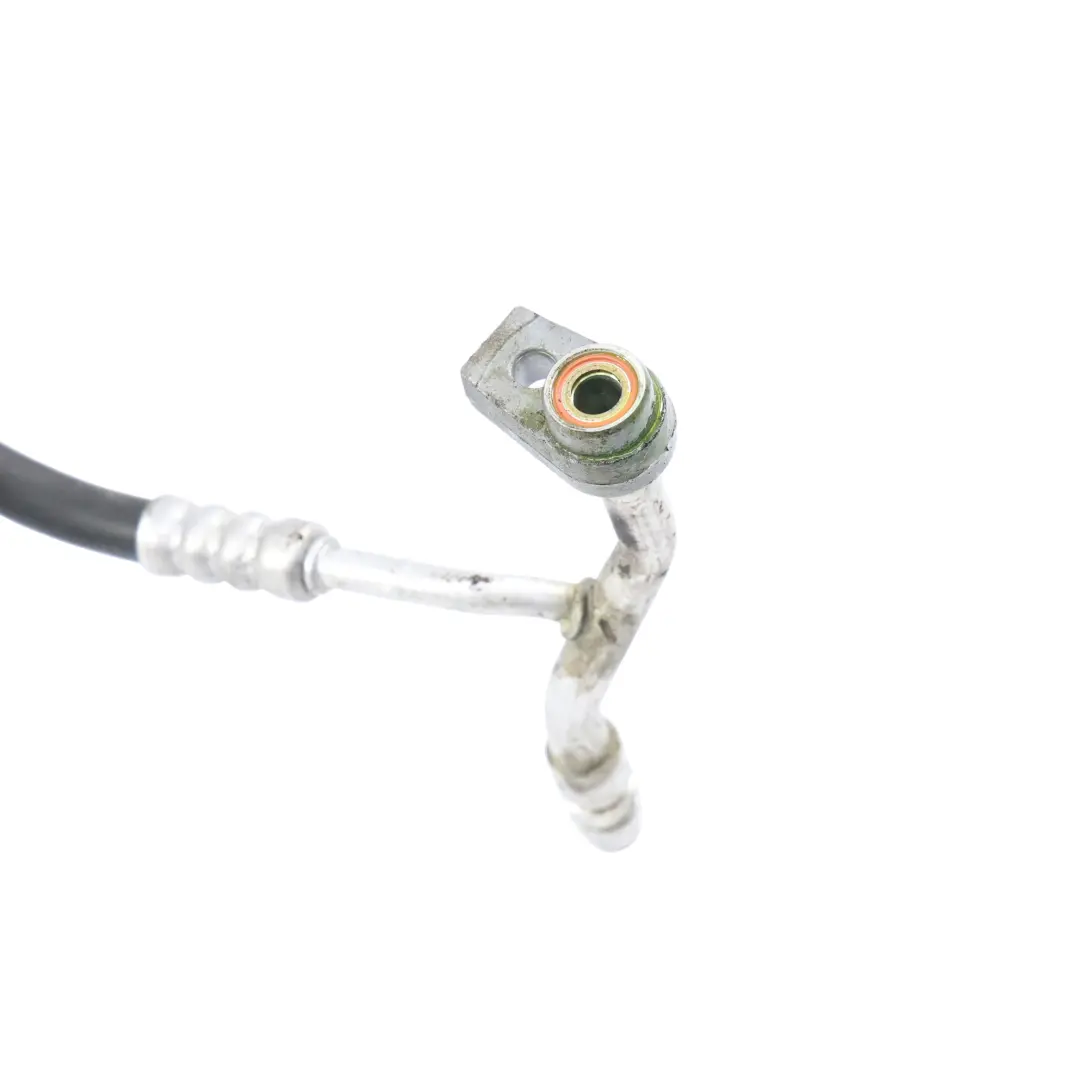

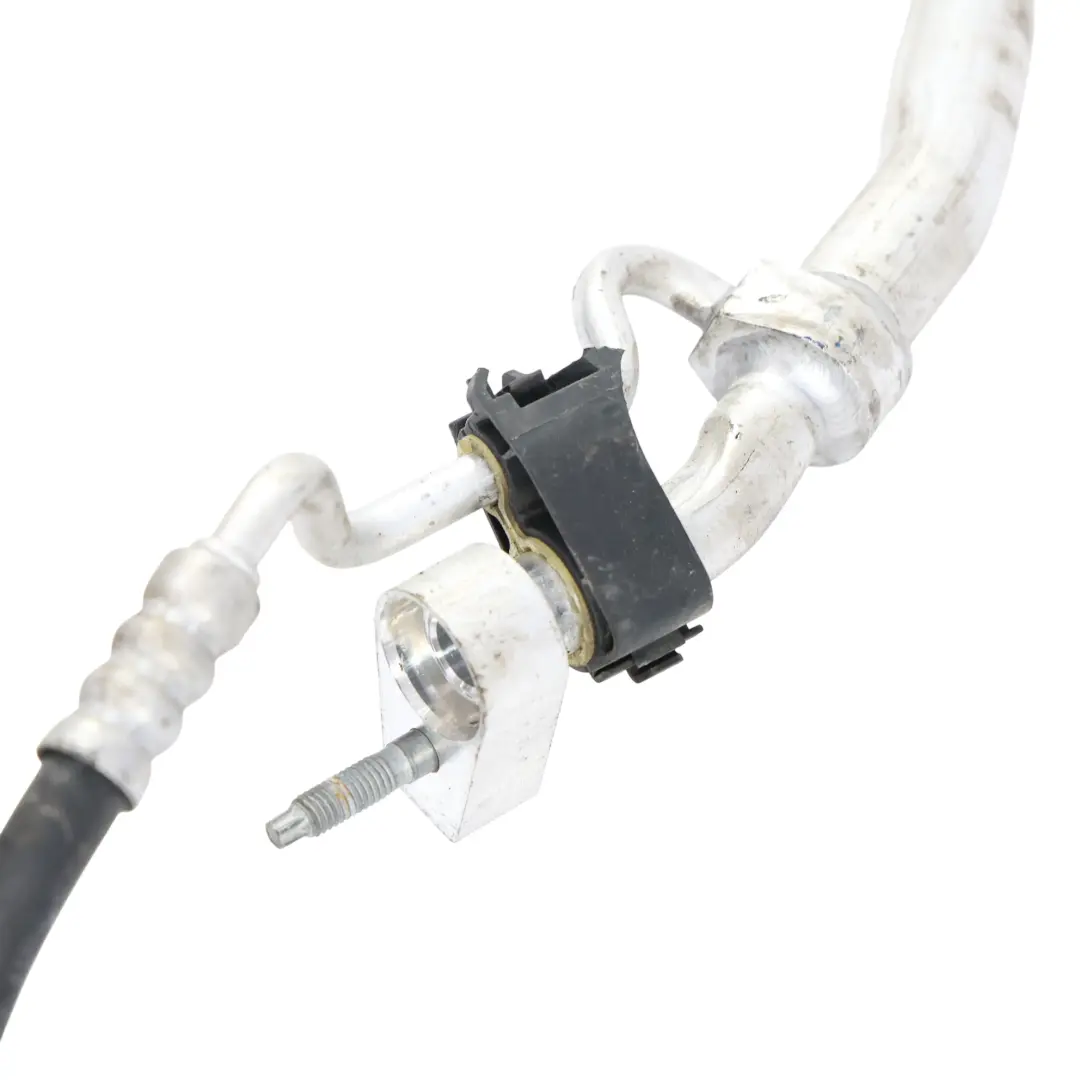

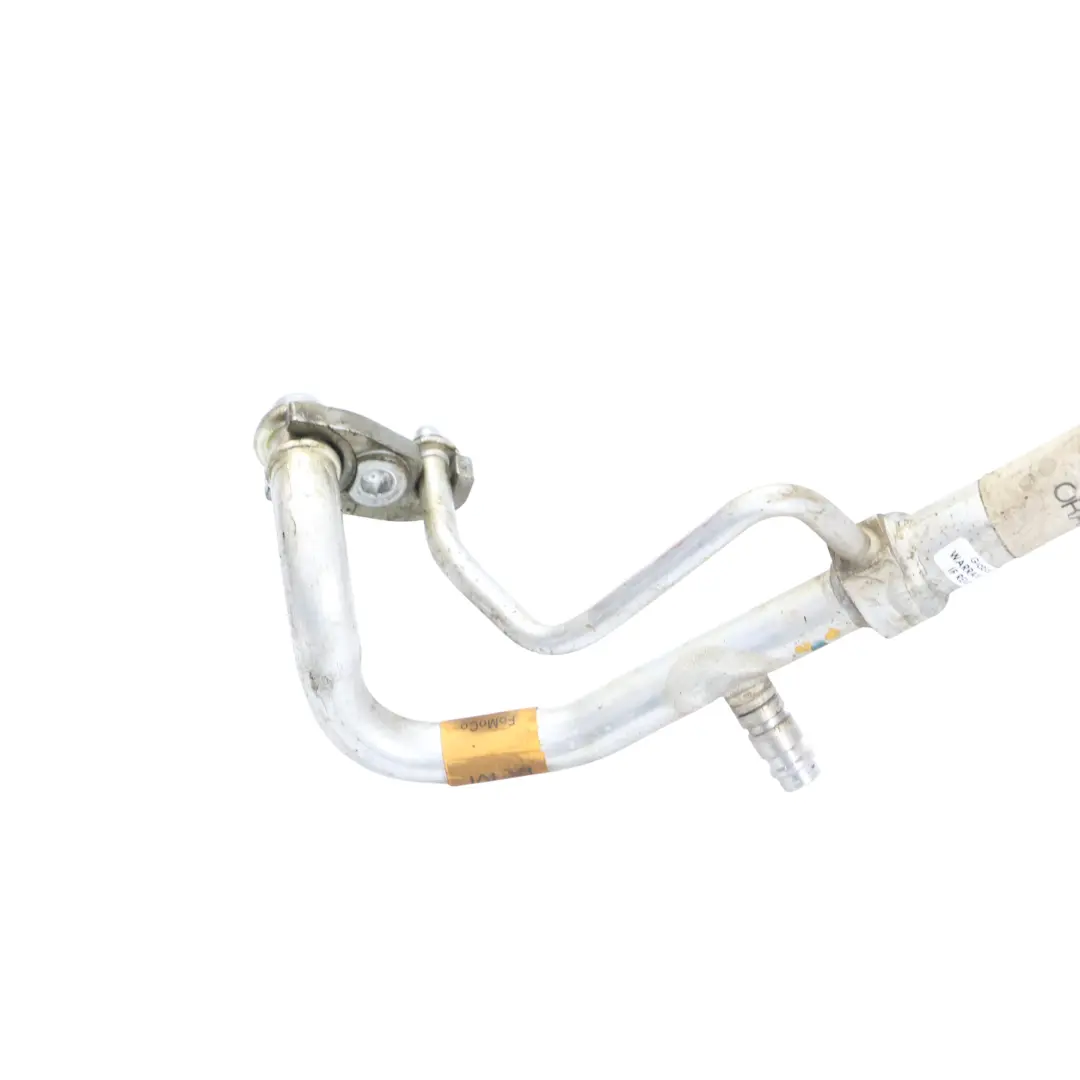

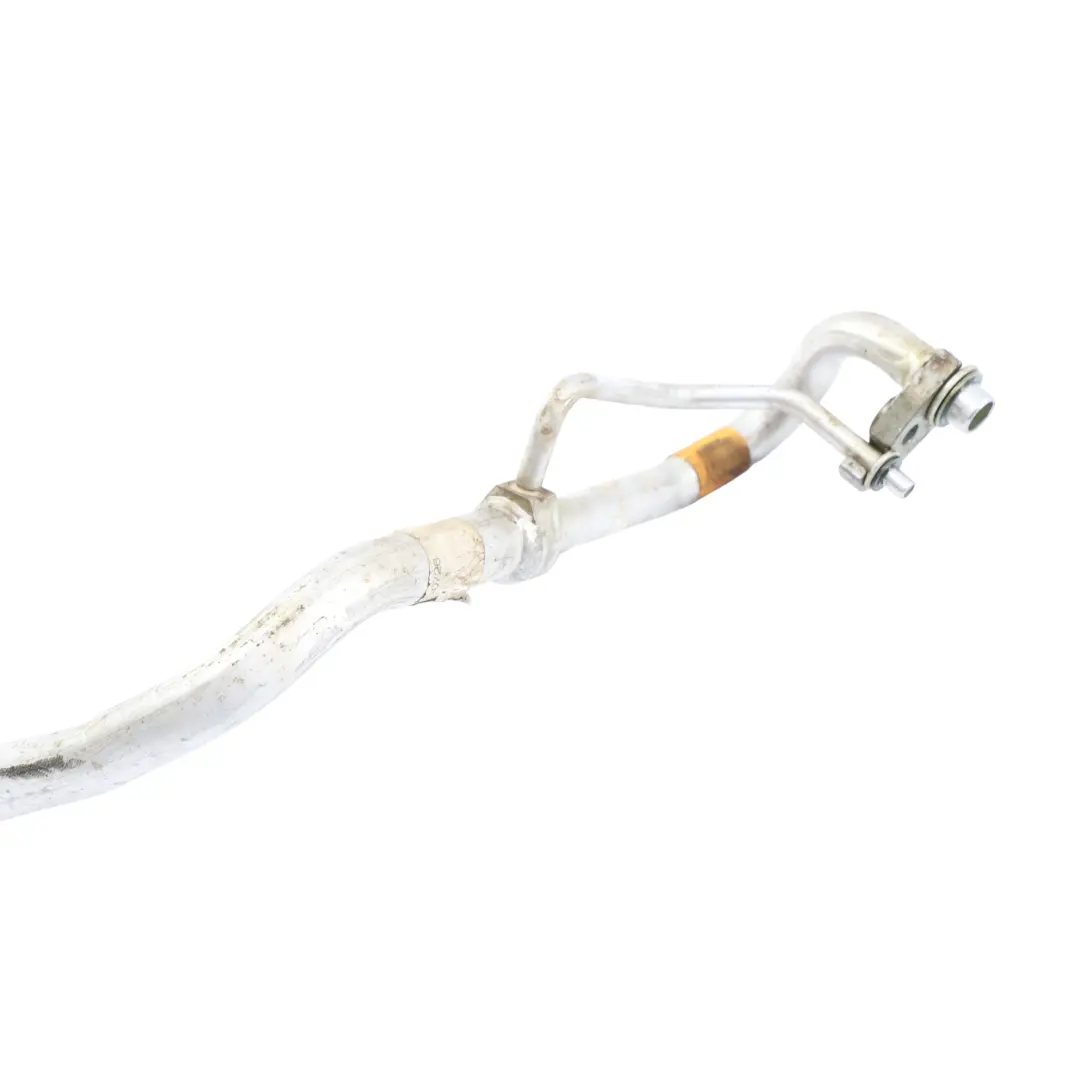

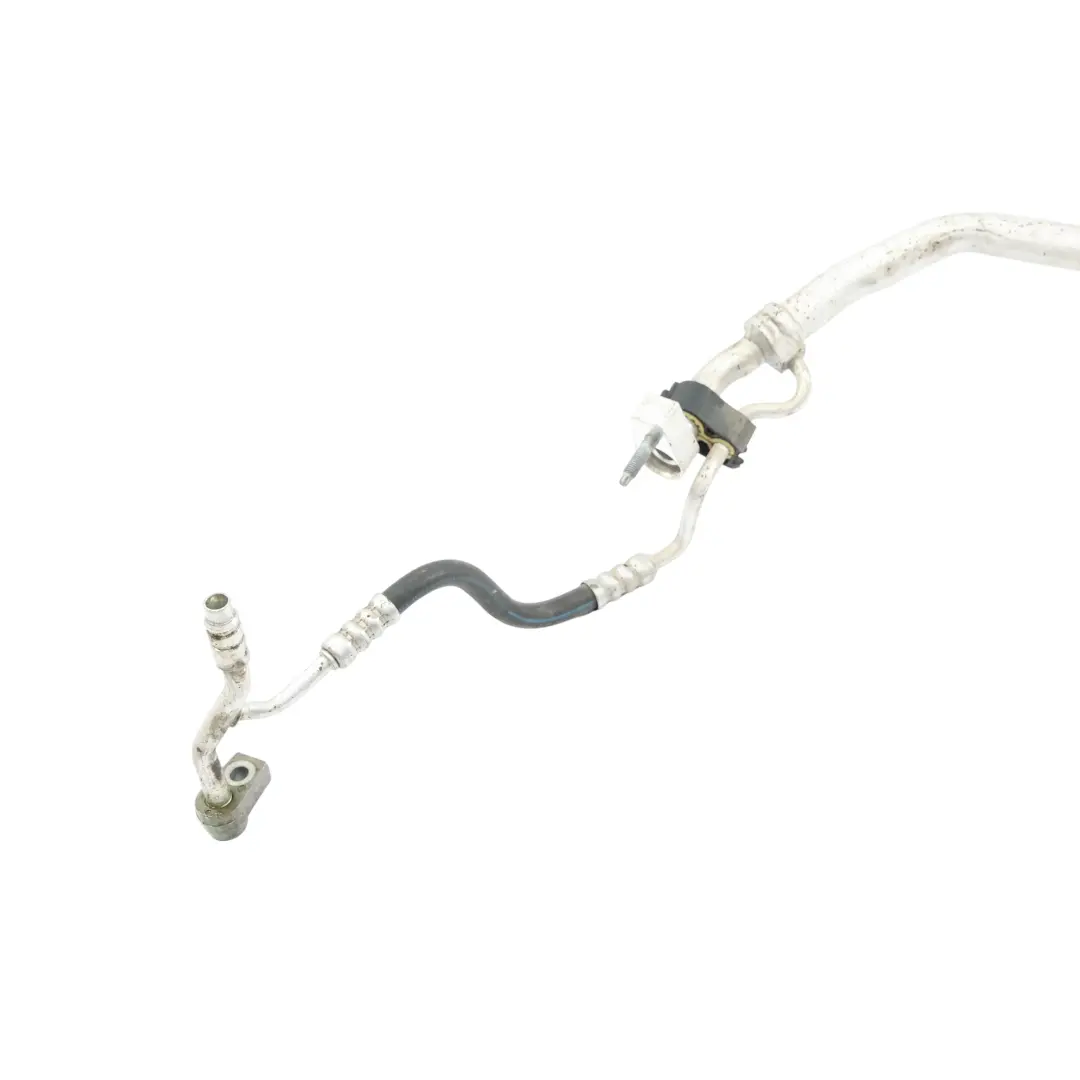

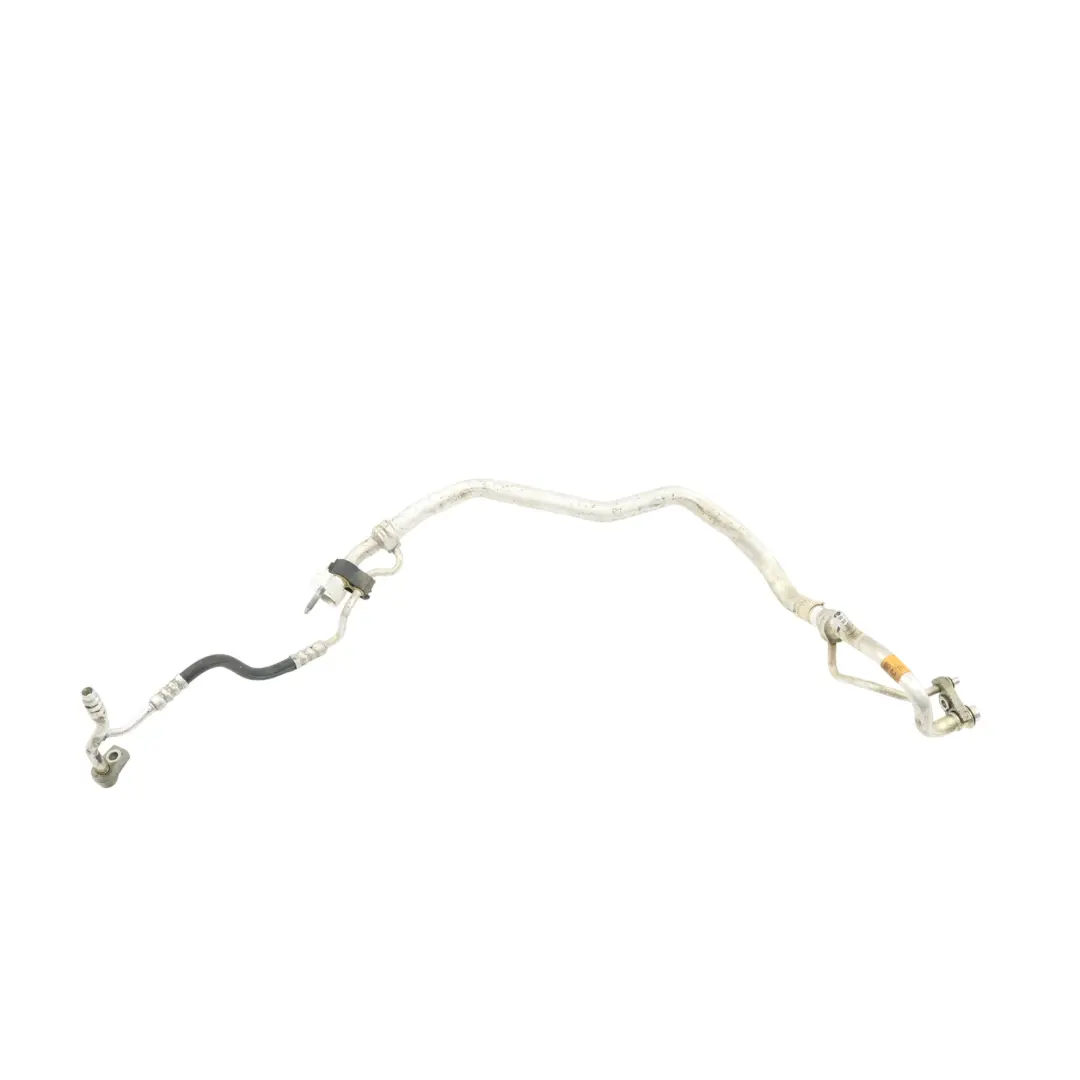

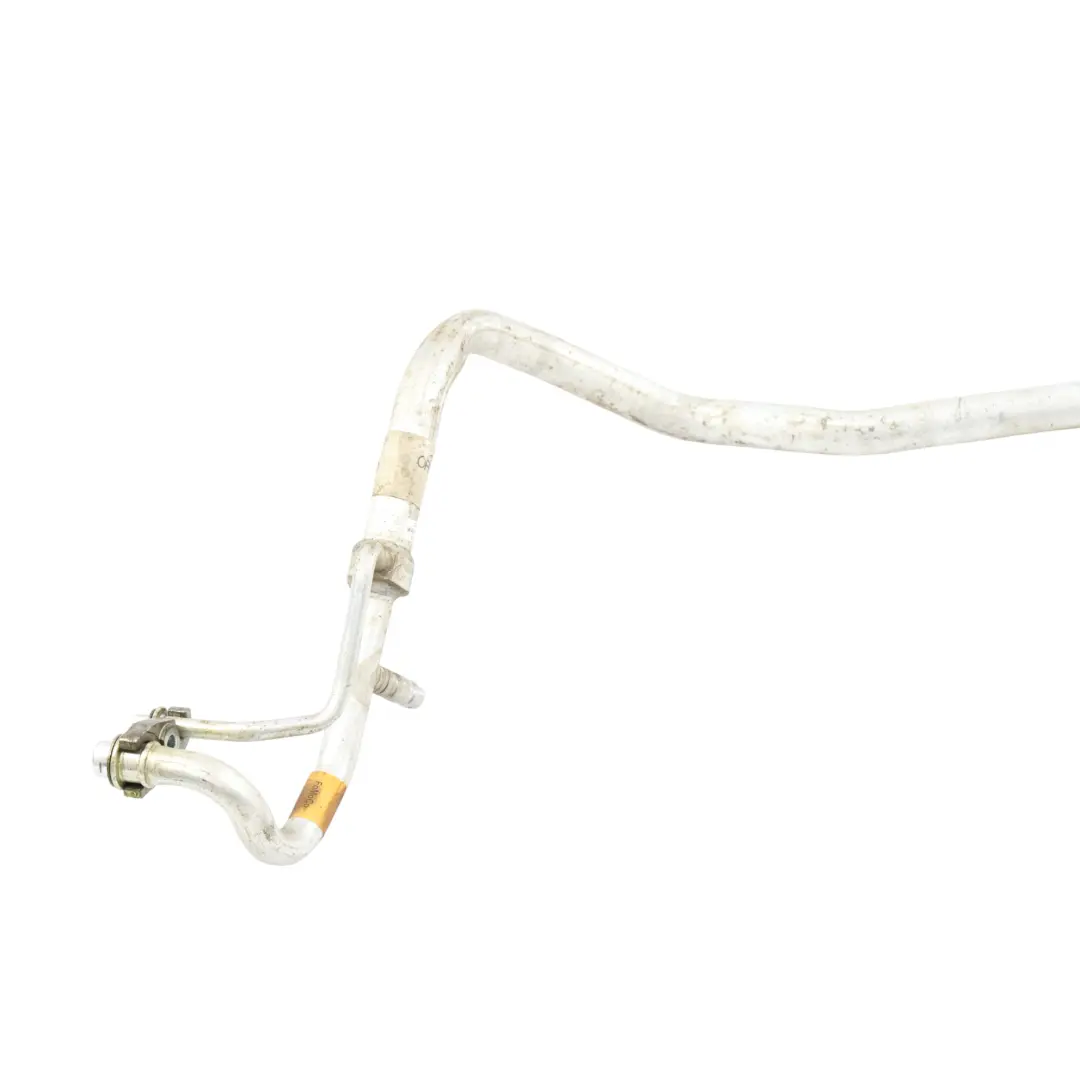

Ford Focus Mk3 C-Max Mk2 Air Conditioning A/C Bulkhead Tube Pipe Hose 2024932

Ford Focus Mk3 C-Max Mk2 Air Conditioning A/C Bulkhead Tube Pipe Hose is an original Ford A/C system component, responsible for a tight and stable connection between the compressor, condenser, and evaporator at the bulkhead. The precisely shaped tube with flexible hose sections ensures proper refrigerant flow, which translates into efficient and trouble-free air conditioning operation in daily use.

Specifications and technical data

• SKU: RHD-2024932
• Mark: Ford
• Condition: Used
• OEM Part Number: 2024932
• Substitutable numbers: 2024932, H1F1-19A834-MA, H1F119A834MA
• Part type: Pipe
• Category: A/C Hoses & Fittings

Purpose and function in the air conditioning system

This bulkhead pipe belongs to the Air conditioning lines, hoses and connectors group and is structurally matched to the engine bay architecture of the Ford Focus Mk3 and C-Max Mk2. It is responsible for transporting refrigerant between high and low-pressure components, maintaining proper tightness and resistance to vibrations and temperature changes. Thanks to factory profiling and properly selected internal diameters, the pipe maintains stable flow parameters, which reduces pressure drops and supports the correct operation of the compressor, condenser, and expansion valve. A correctly selected element of this type is crucial for uniform cooling of the vehicle interior and protecting other A/C system components from overload.

Construction, connectors and mounting fitment

The bulkhead tube combines rigid and flexible sections, which allows for compensating the movements of the power unit and the body without the risk of micro-cracks or leaks. The factory connector ends are prepared to work with original Ford air conditioning system ports, which facilitates installation and reduces the need for additional adapters. The properly shaped routing of the pipe minimizes the risk of rubbing against other elements in the engine bay and also facilitates service routing – access to connection points is provided in accordance with factory service procedures. Original construction promotes the preservation of factory tightness and durability parameters of the entire system.

Condition, verification and service application

The item comes from dismantling and is offered as a used part, which allows for economical repair of the air conditioning system while maintaining the manufacturer's original specifications. This type of pipe is particularly useful in case of mechanical damage (e.g., after a collision, pitting corrosion, or improper disassembly) when it is necessary to replace a specific section of the A/C installation without interfering with other components. The selection of the correct bulkhead pipe should always be confirmed based on the OEM part number and interchangeable numbers to ensure full compatibility with the specific engine version and model year of the vehicle. Precise fitment reduces installation time and decreases the risk of leaks after filling the system with refrigerant.

Installation and operating tips

When replacing the air conditioning bulkhead pipe, it is recommended to:

• perform a leak test of the entire system after installation,
• replace seals and O-rings at connection points,
• apply the appropriate tightening torque for connectors, in accordance with service documentation,
• fill the system with the correct amount and type of refrigerant and oil. To better understand the relationships between A/C lines and compressor operation and to consciously plan repairs, it is worth reading the guide: Air conditioning compressor – symptoms of failure, causes and safe replacement. This will allow you to assess whether replacing the pipe alone is sufficient or if a broader intervention in the system will be necessary.

Repair expansion and selection of related elements

If you are planning a comprehensive repair or upgrade of the air conditioning zone in your Ford and need other elements from the same group, such as additional lines, flexible hoses, or service connectors, check the available parts in the Ford air conditioning lines, hoses and connectors category. For larger service projects or car restoration using dismantled parts, a practical guide on planning repairs and selecting used components may also be helpful: Garage project, or how to cheaply rebuild your "daily" using proven parts from dismantling. This will make it easier for you to plan the scope of work, budget, and the order of replacing air conditioning system elements.
