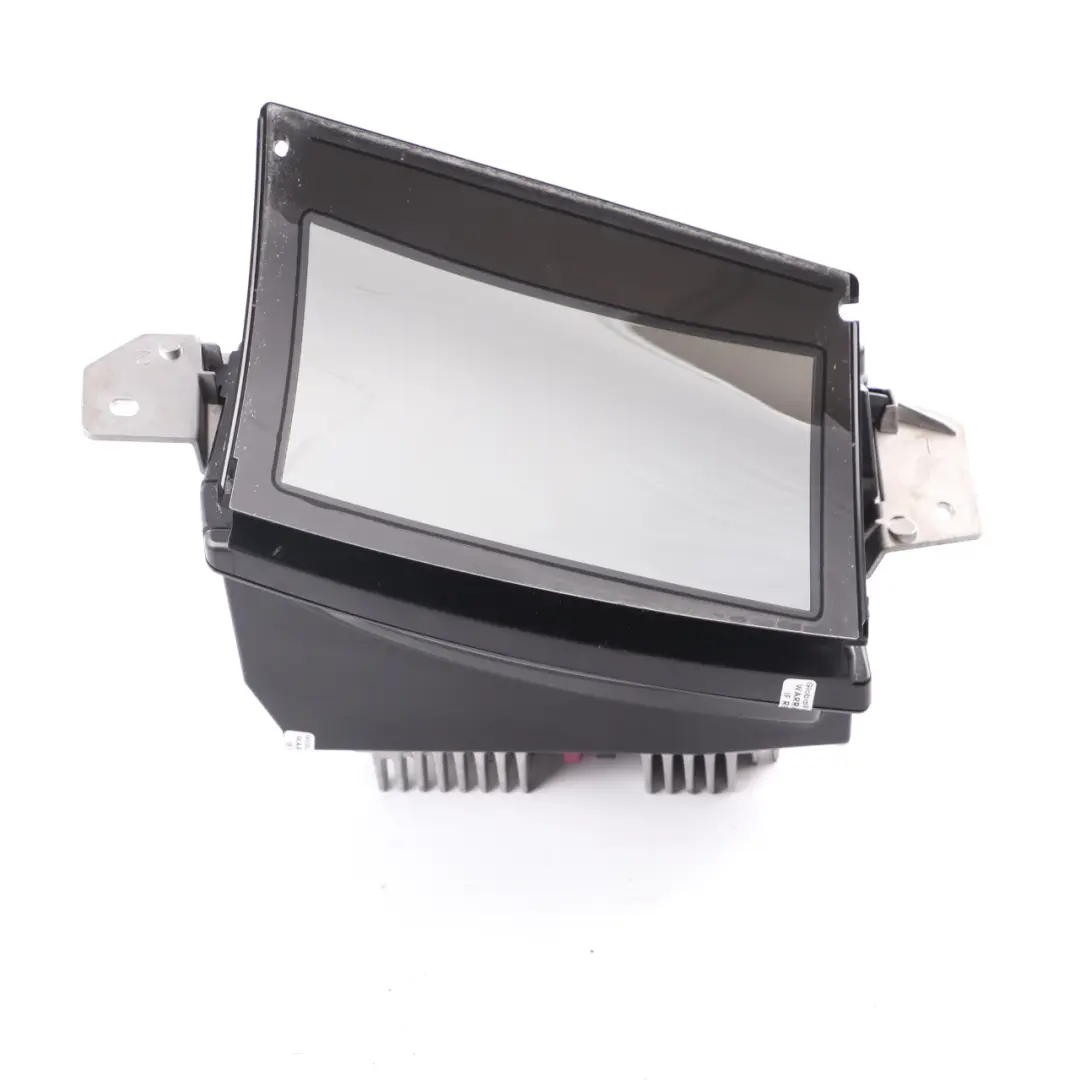

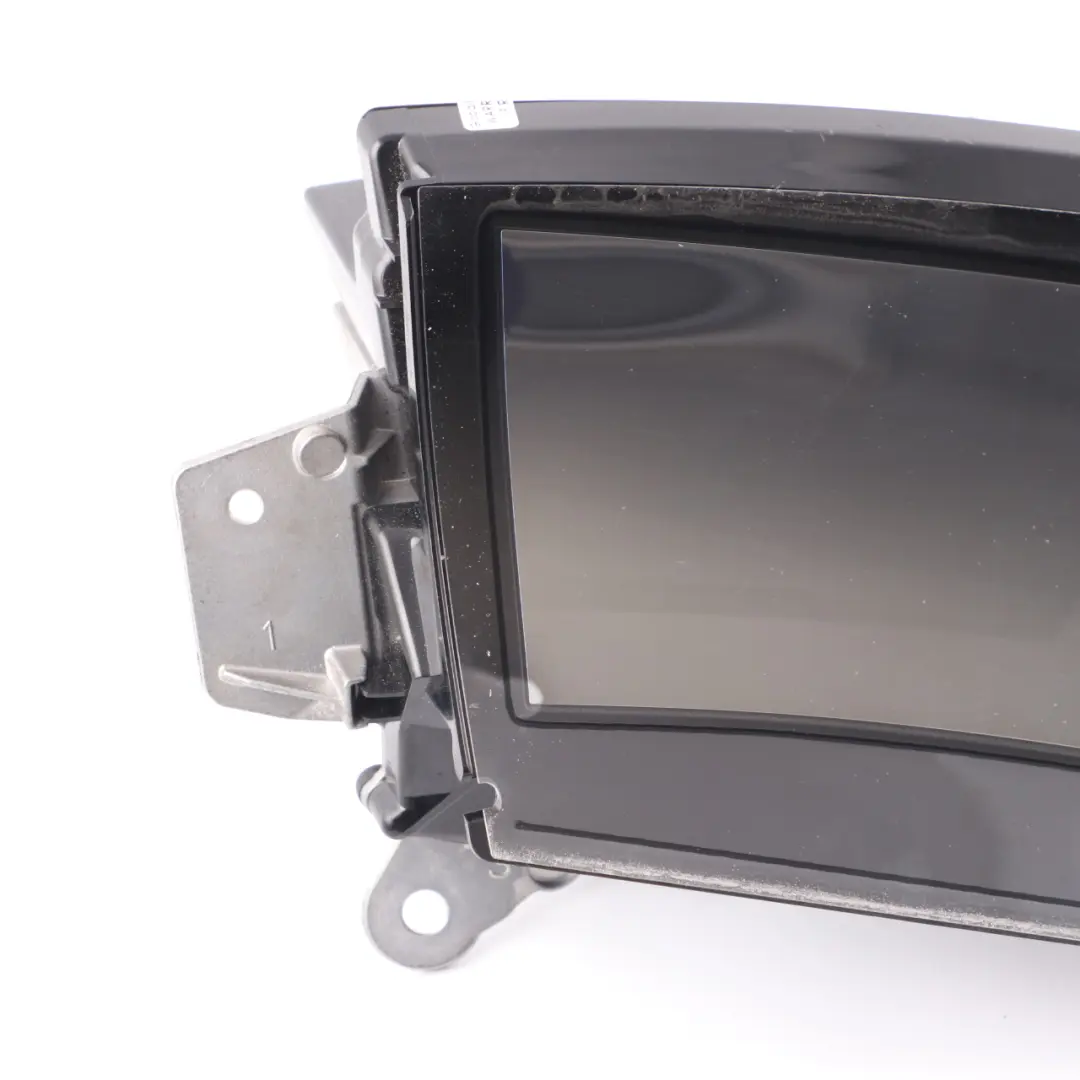

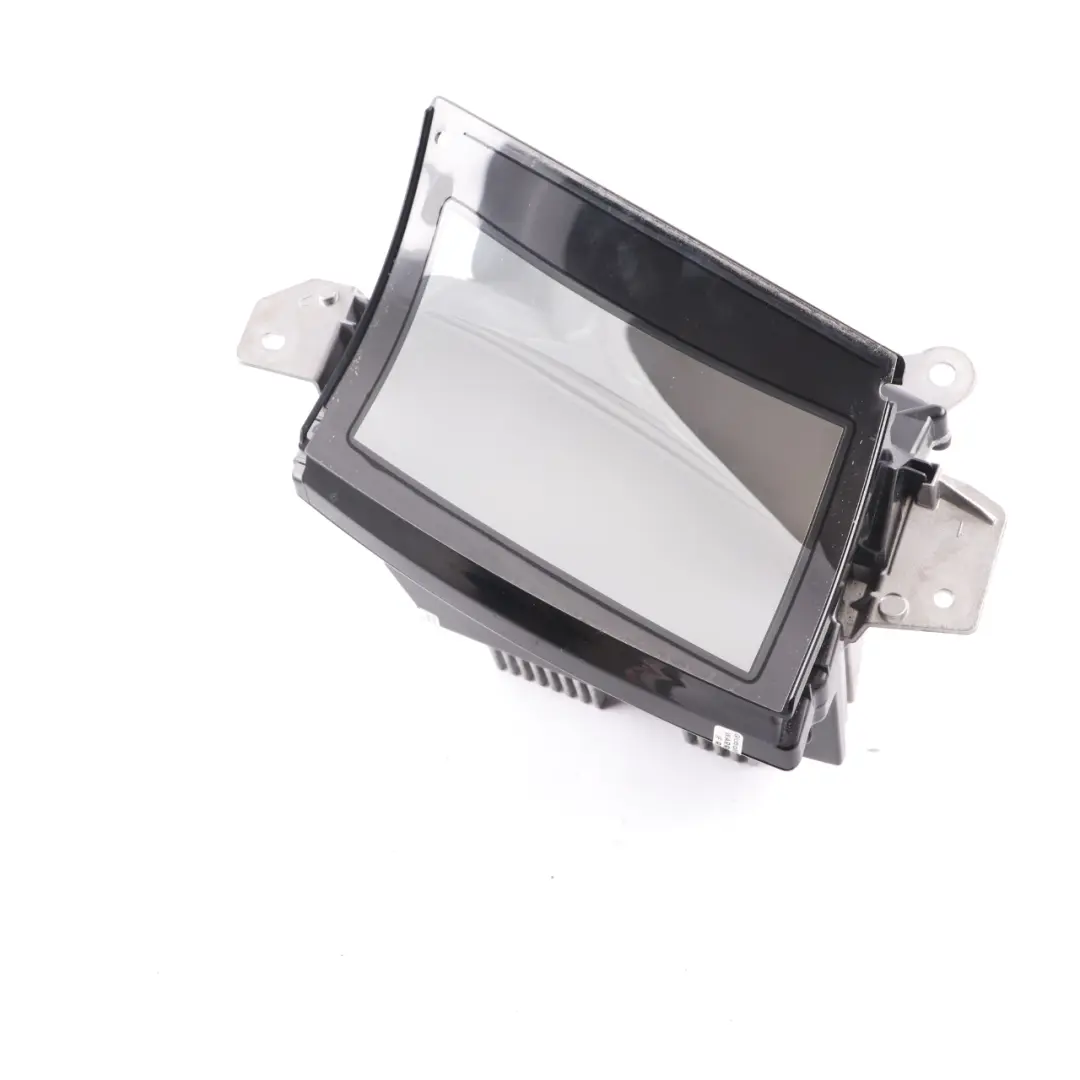

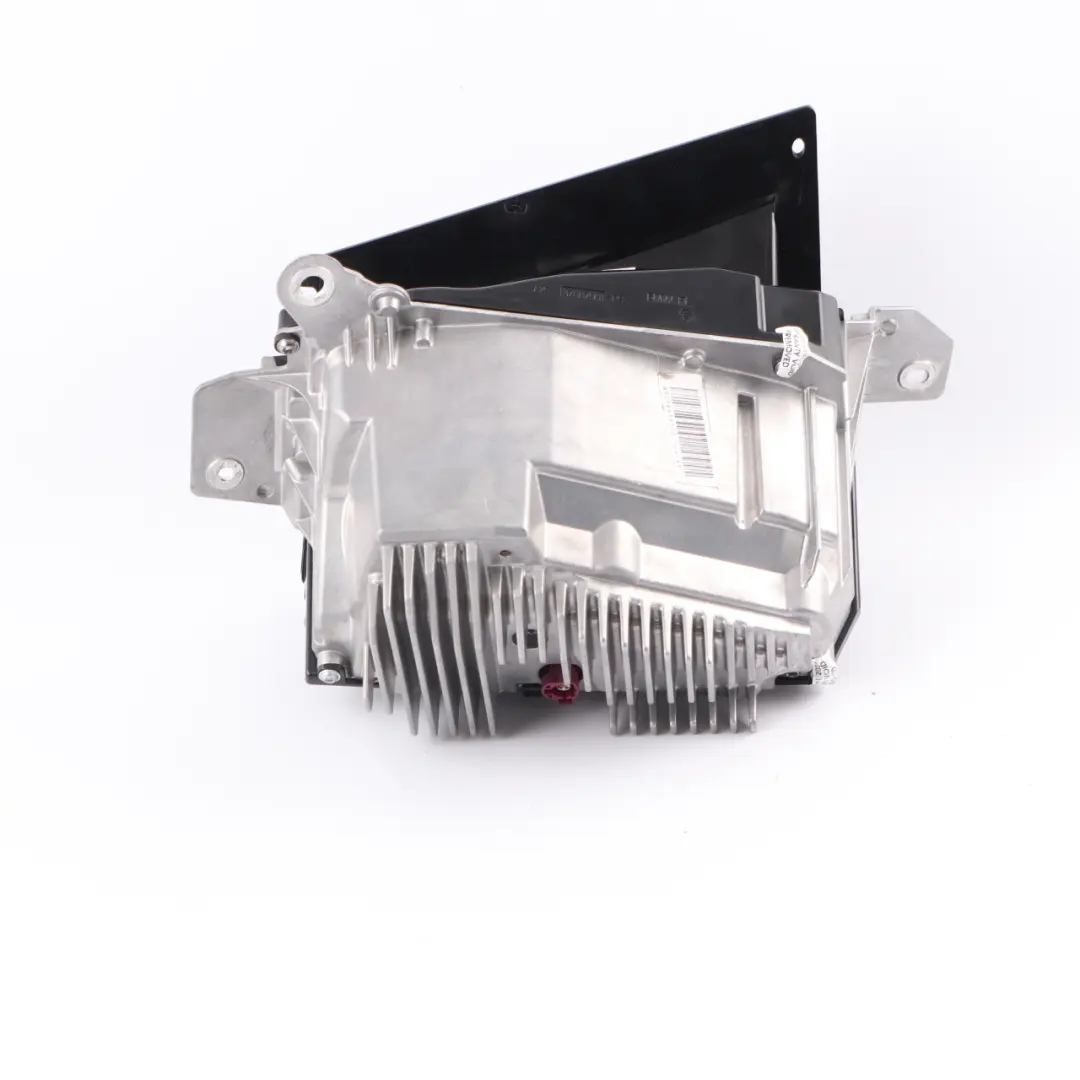

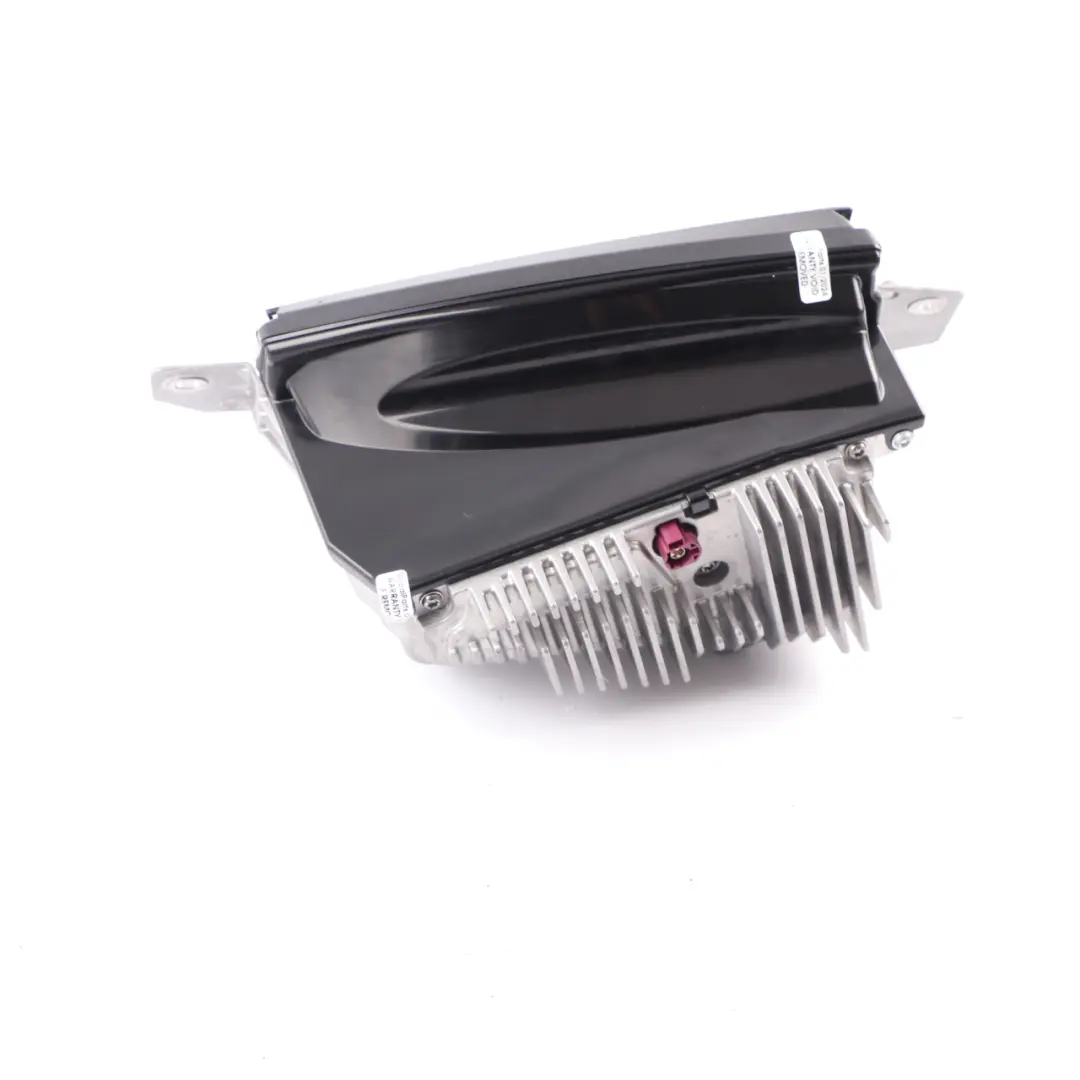

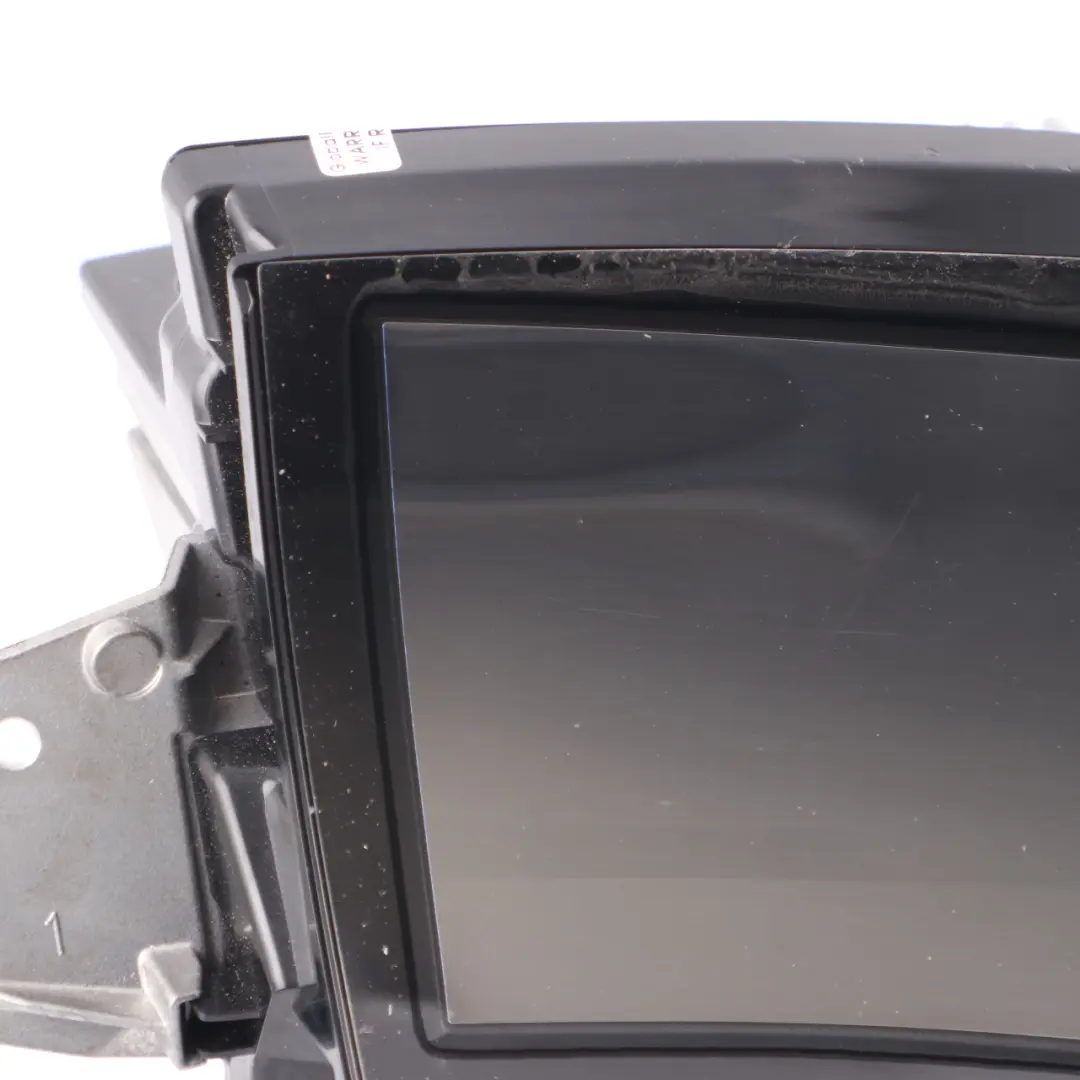

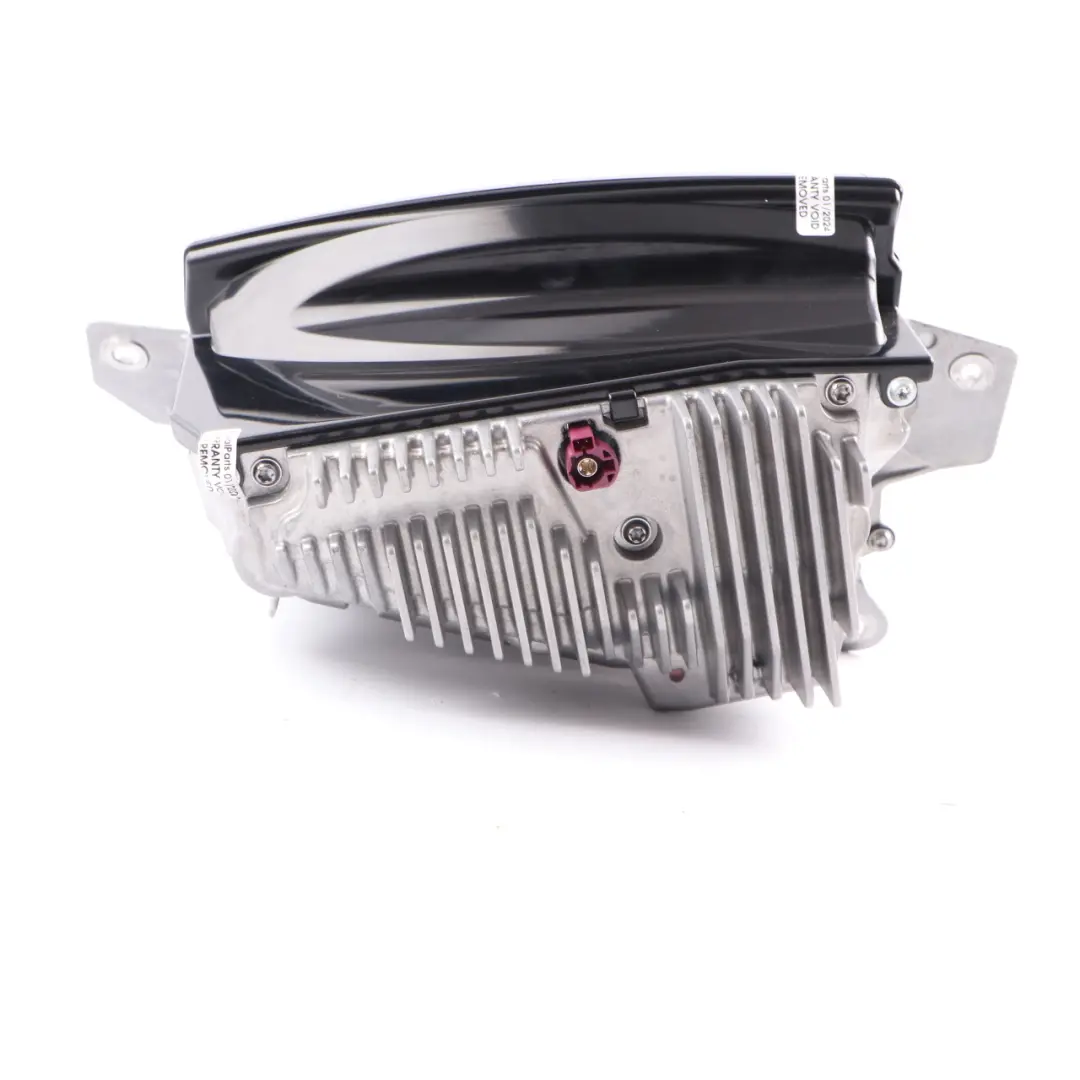

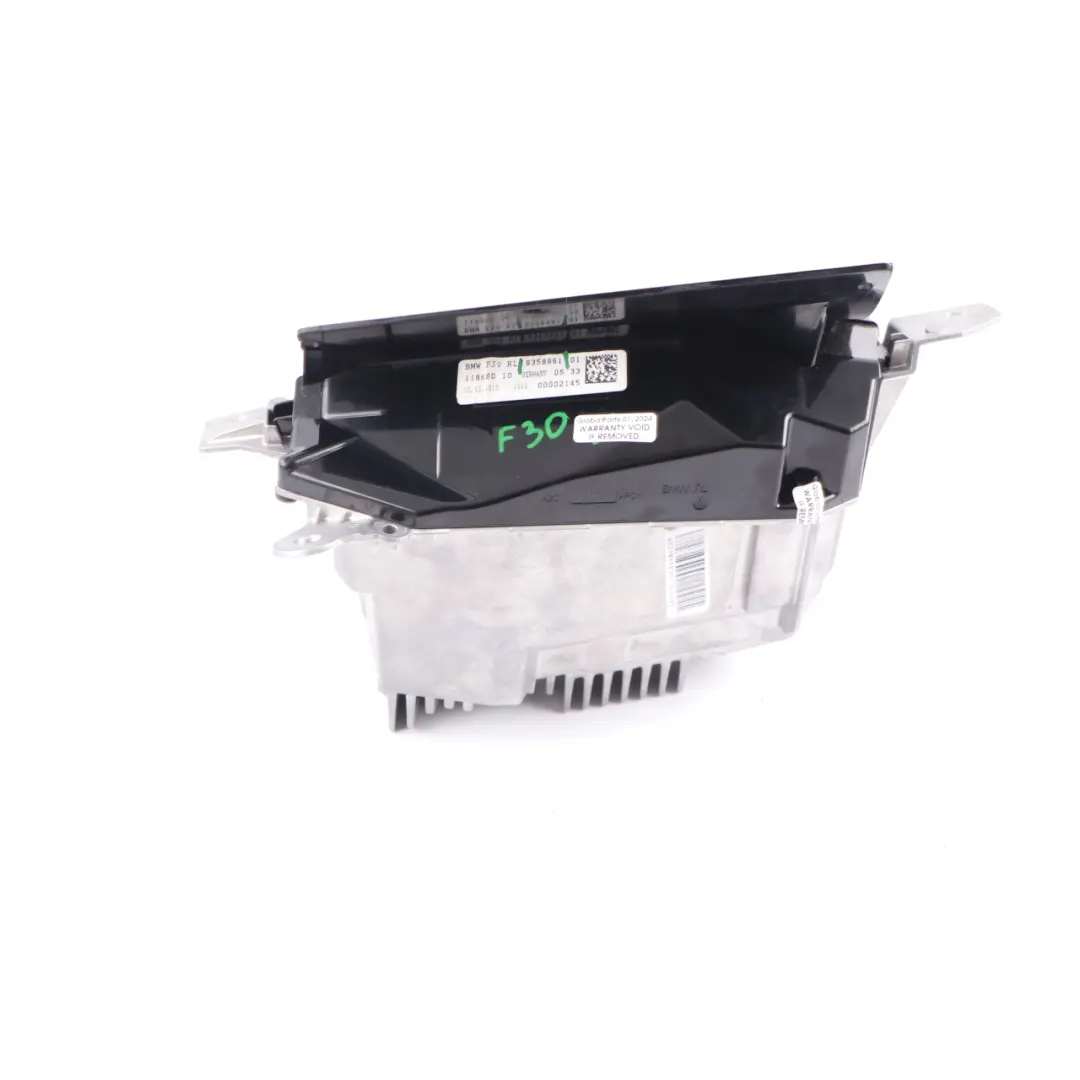

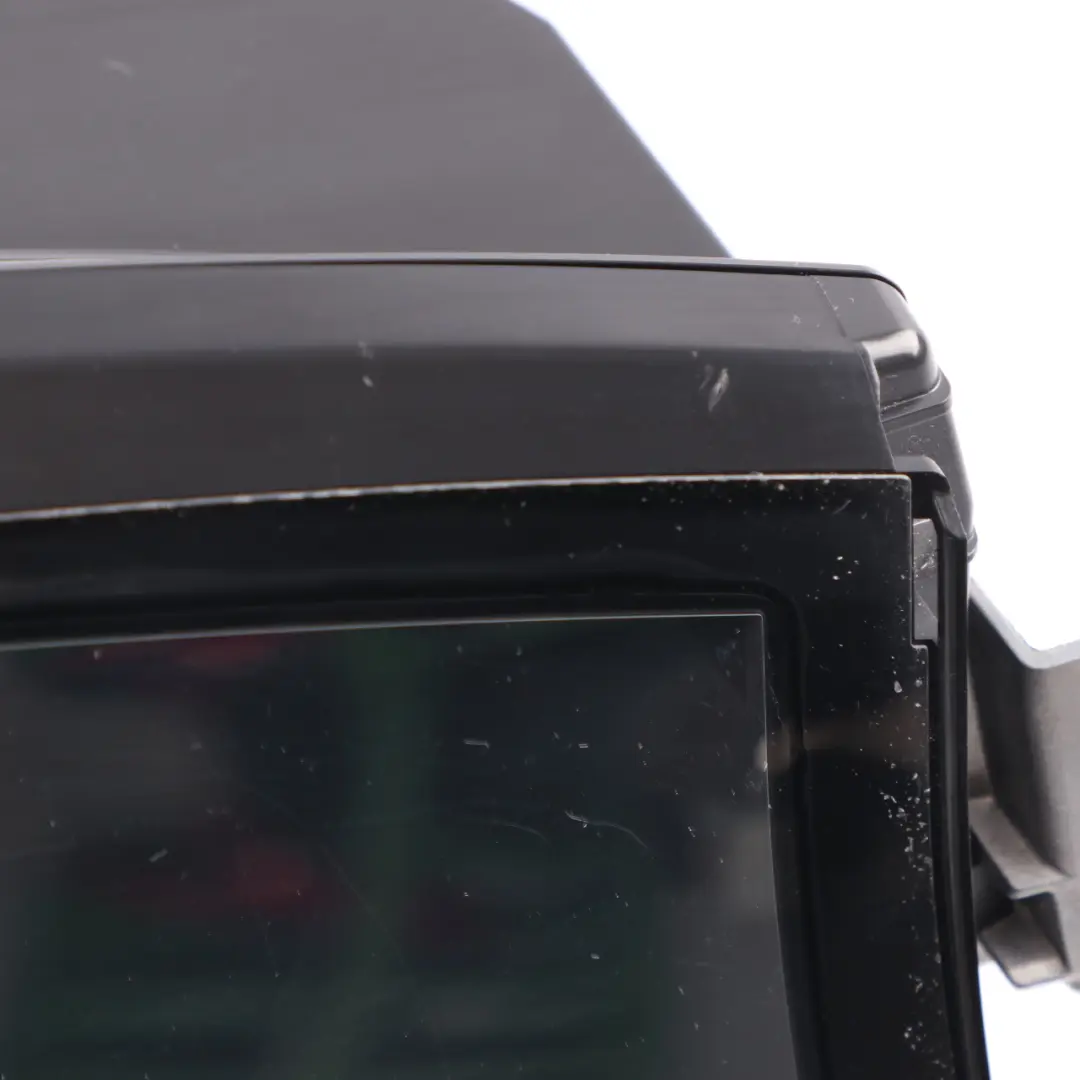

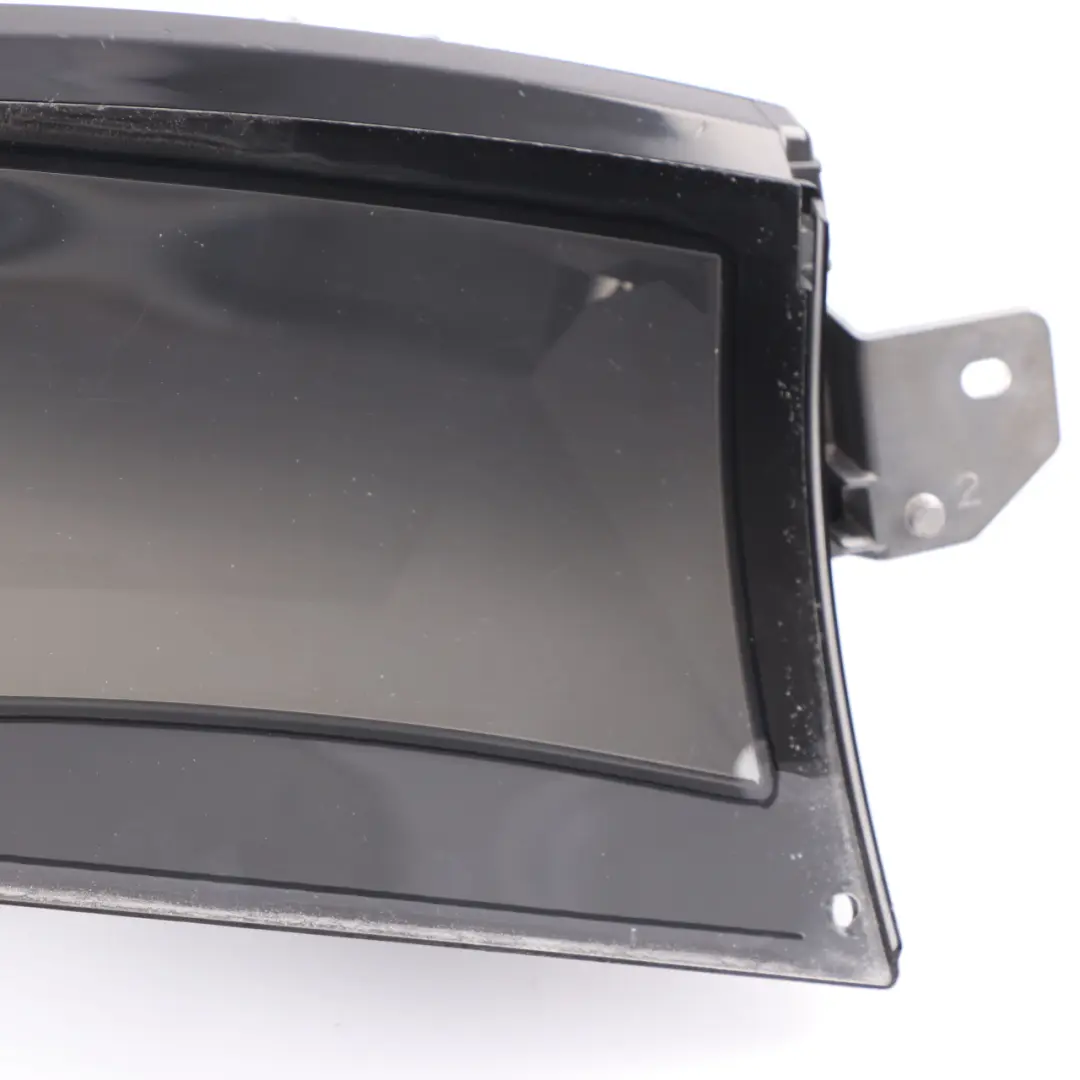

Head Up Display BMW F30 F31 Hud Projector Dash Screen Control Module 9358961

BMW F30 F31 Head Up Display – HUD projector module and dashboard controller is an original electronic control module designed for BMW 3 Series models, responsible for displaying key information on the windshield. Thanks to its factory OEM design, it ensures precise compatibility with the vehicle's electrical system and seamless integration with onboard systems such as iDrive or the instrument cluster.

Specifications and technical data

• SKU: rhd-9358961
• Mark: BMW (Genuine OE)
• Condition: Used

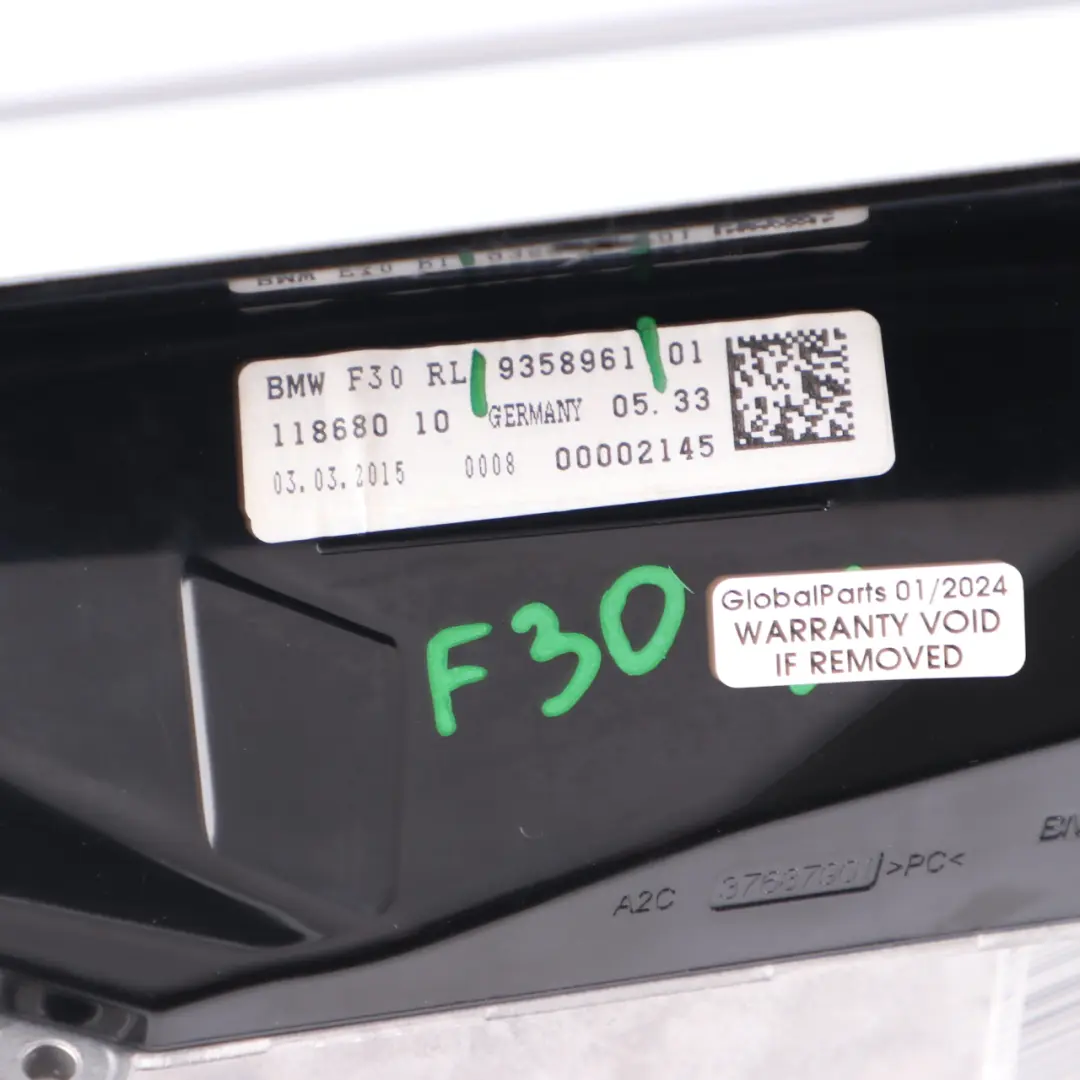

• OEM Part Number: 9358961
• Substitutable numbers: 9358961, 62309358961, 9865043, 62309865043, 6819696, 62306819696, 9268398, 62309268398, 9312773, 62309312773, 6820853, 62306820853, 9287541, 62309287541
• Category: ECUs & Computer Modules

Function and Application of the BMW F30 F31 Head Up Display Module

The presented Head Up Display module for BMW F30/F31 controls the HUD projector located in the dashboard and communicates with other vehicle controllers. This component processes data from CAN and LIN networks and then transmits it to the display, allowing the driver to read speed, navigation instructions, or system messages without taking their eyes off the road.

Thanks to integration with BMW's factory electronic architecture, the module ensures:

• stable operation of the HUD display in daily use,
• proper cooperation with the instrument cluster and multimedia system,
• preservation of the vehicle's original functionality after replacing a damaged controller.

Electronic Control Modules and Controllers – Characteristics of the BMW Solution

As part of the Electronic Control Modules and Controllers category, this HUD controller is an integral part of BMW's extensive onboard computer network. It is responsible for:

• receiving and interpreting signals from other modules (e.g., navigation system, speed sensors),
• controlling display parameters (brightness, position, information range),
• diagnostic communication with a service tester during configuration and coding.

Using an original BMW module ensures compatibility with the vehicle's software, which facilitates adaptation in service and minimizes the risk of communication errors between controllers.

Condition, Origin, and Benefits of Using a Used OEM Module

The offered HUD module is an original BMW part sourced from disassembly, meaning it has been previously used in a vehicle but retains its factory design and operating parameters as intended by the manufacturer. Compared to low-quality aftermarket alternatives, a used OEM controller ensures:

• hardware and software compatibility with the installation in BMW F30/F31,
• the ability to be correctly coded into the vehicle using standard service tools,
• maintenance of the original Head Up Display system functionality without interfering with wiring harnesses or requiring additional modifications.

This solution is particularly attractive for post-accident repairs or after an electronics failure, where restoring full functionality at a reasonable cost is a priority.

Selection, Compatibility, and Installation Aspects

To correctly select the Head Up Display module for a specific BMW F30/F31 configuration, it is crucial to compare the controller's markings and the list of interchangeable part numbers with the vehicle's specifications. This will ensure that:

• the module will work with the installed type of HUD display,
• the controller is compatible with the vehicle's equipment version and model year,
• no communication errors with other modules will occur after coding.

The installation itself typically involves replacing the controller within the dashboard and connecting the factory connectors, followed by a coding or adaptation procedure in the vehicle. Using an original module from the same reference family significantly simplifies the entire process.

More About Operating BMW Electronic Modules

If you want to better understand how to care for electronic modules in BMW 3 and 5 Series, how to diagnose controller faults, and when to opt for proven parts from disassembly, read the article: Years of Driving Pleasure – How to Care for iDrive Systems and Electronic Modules in BMW 3 and 5 Series Models.

If you are planning a comprehensive repair or upgrade of the onboard electronics in your BMW and need other components from the same group, such as comfort controllers, body modules, or driver assistance system controllers, check the available parts in the BMW Electronic Control Modules and Controllers category.
