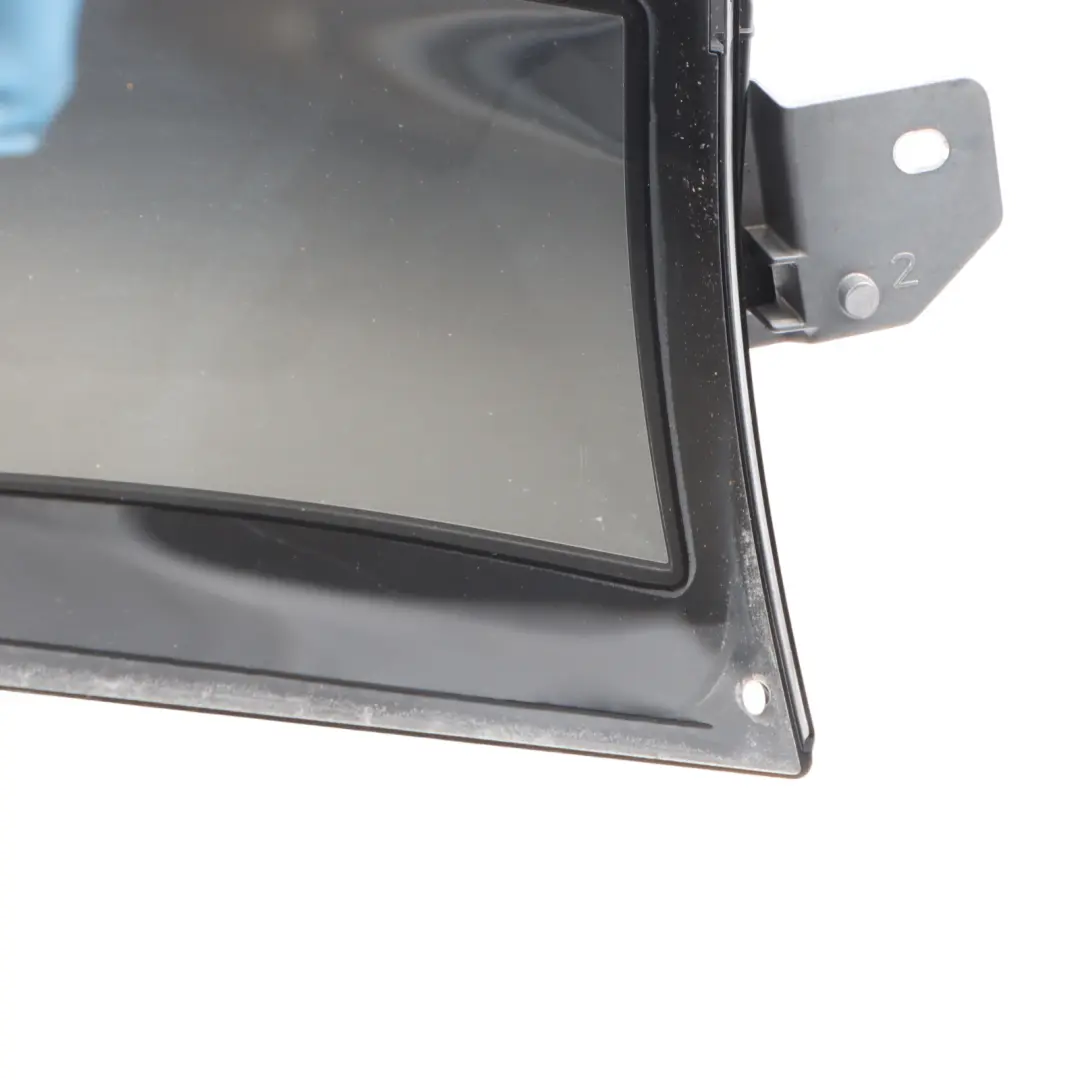

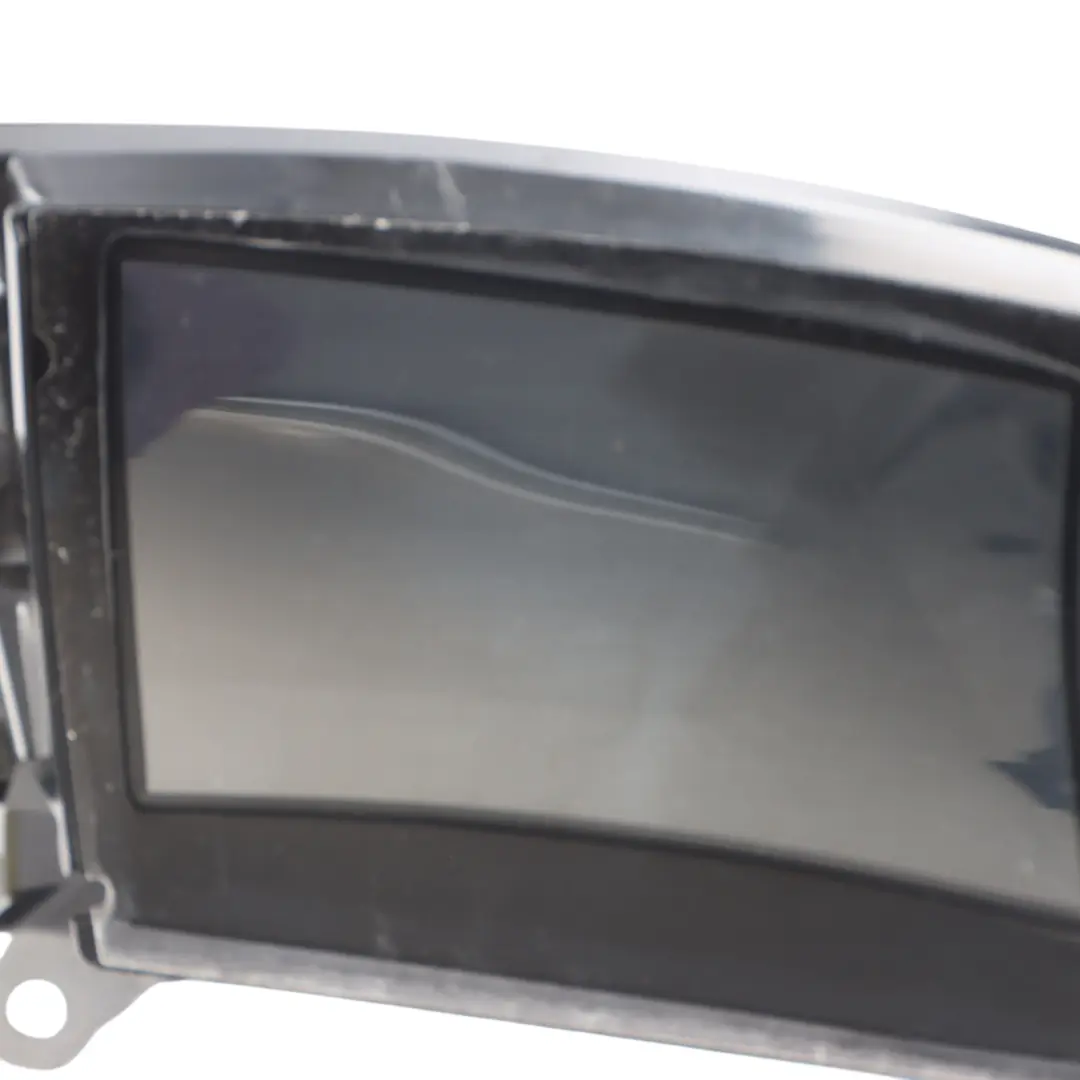

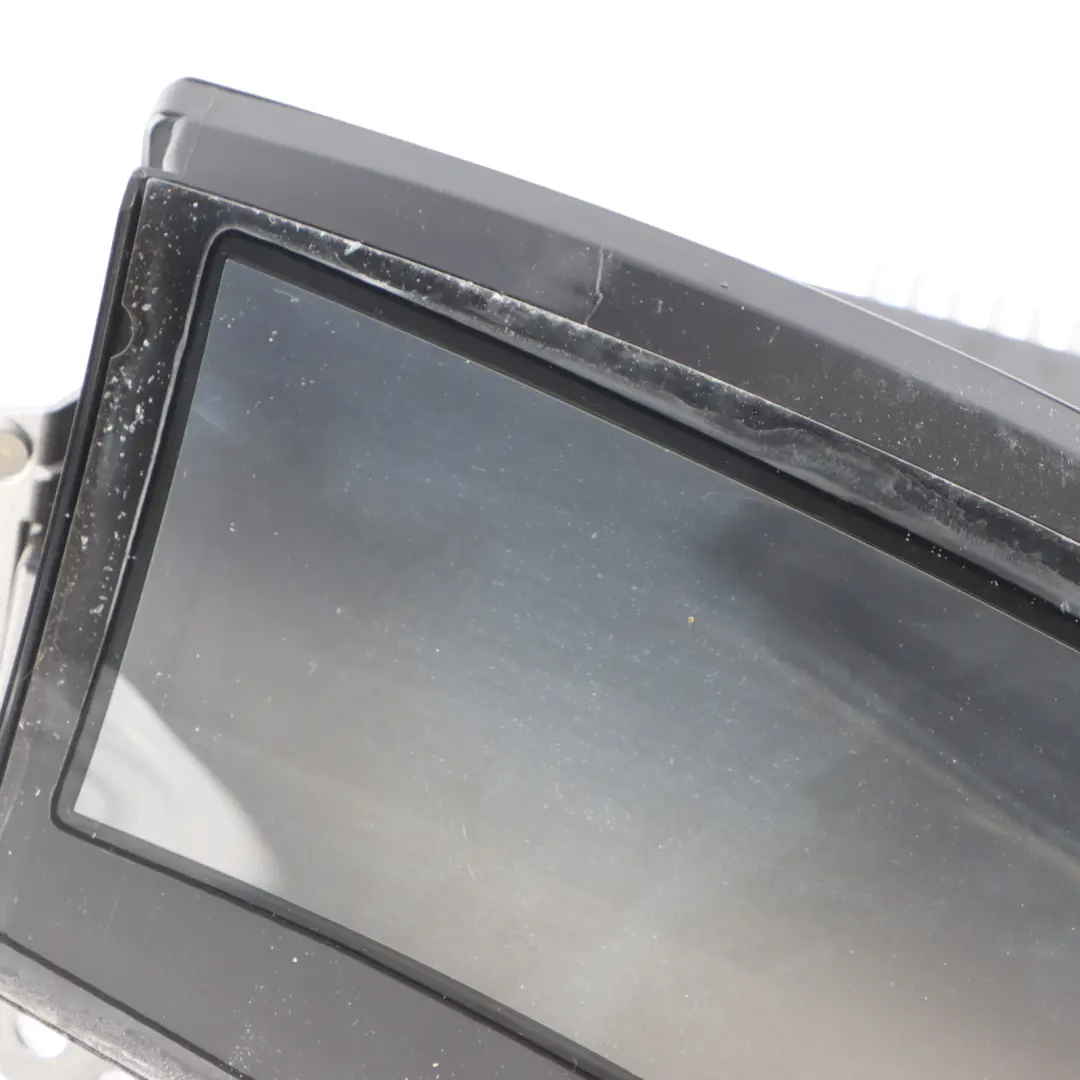

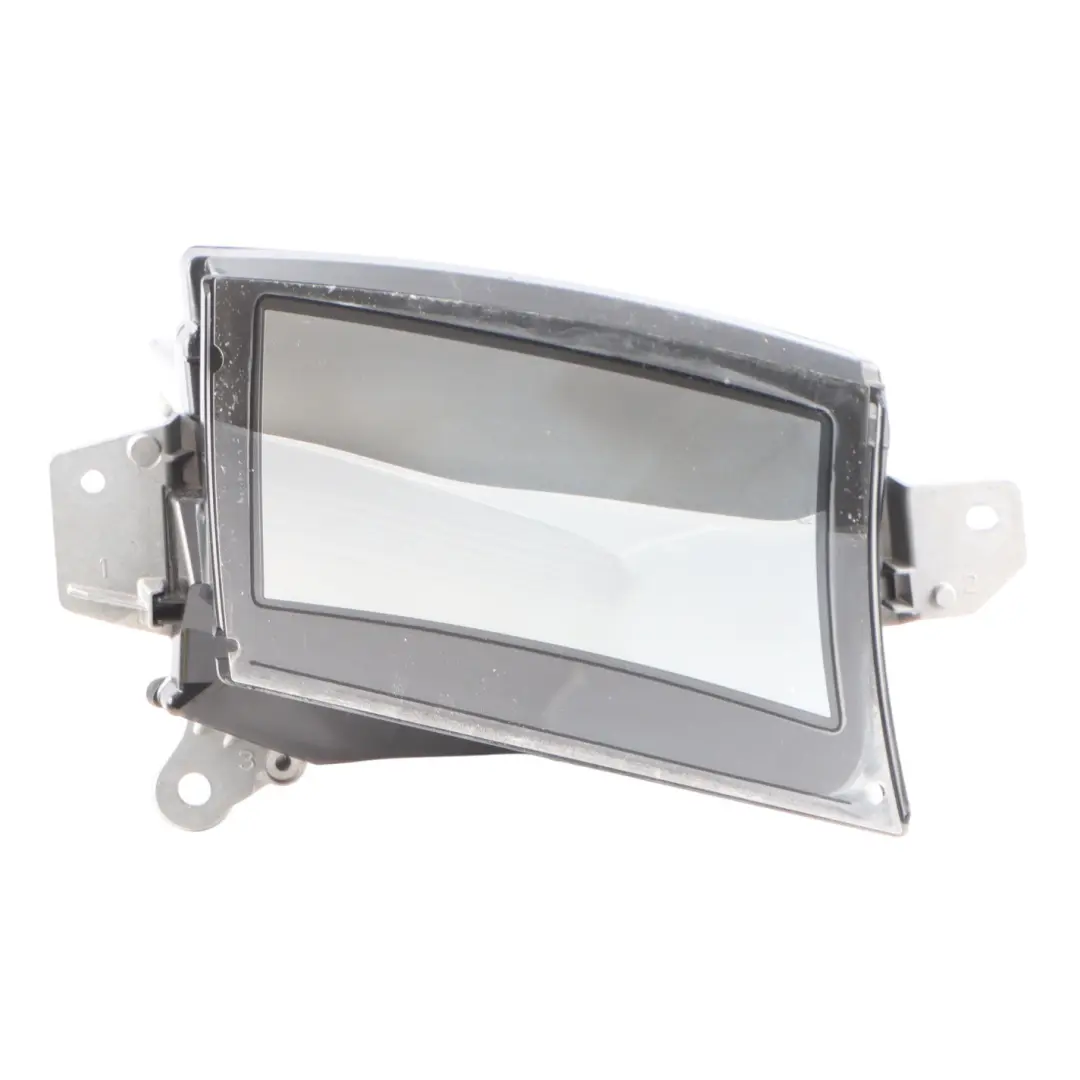

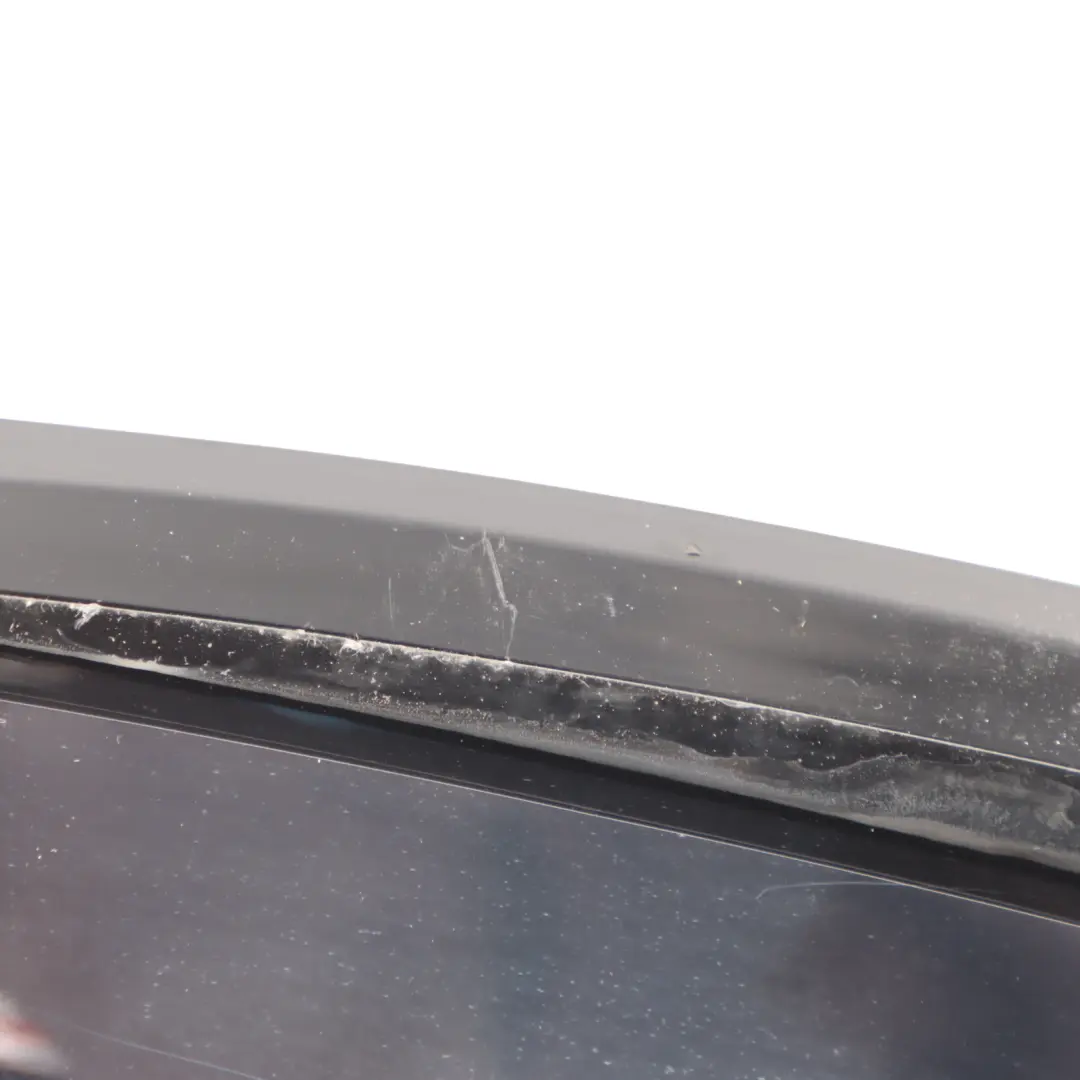

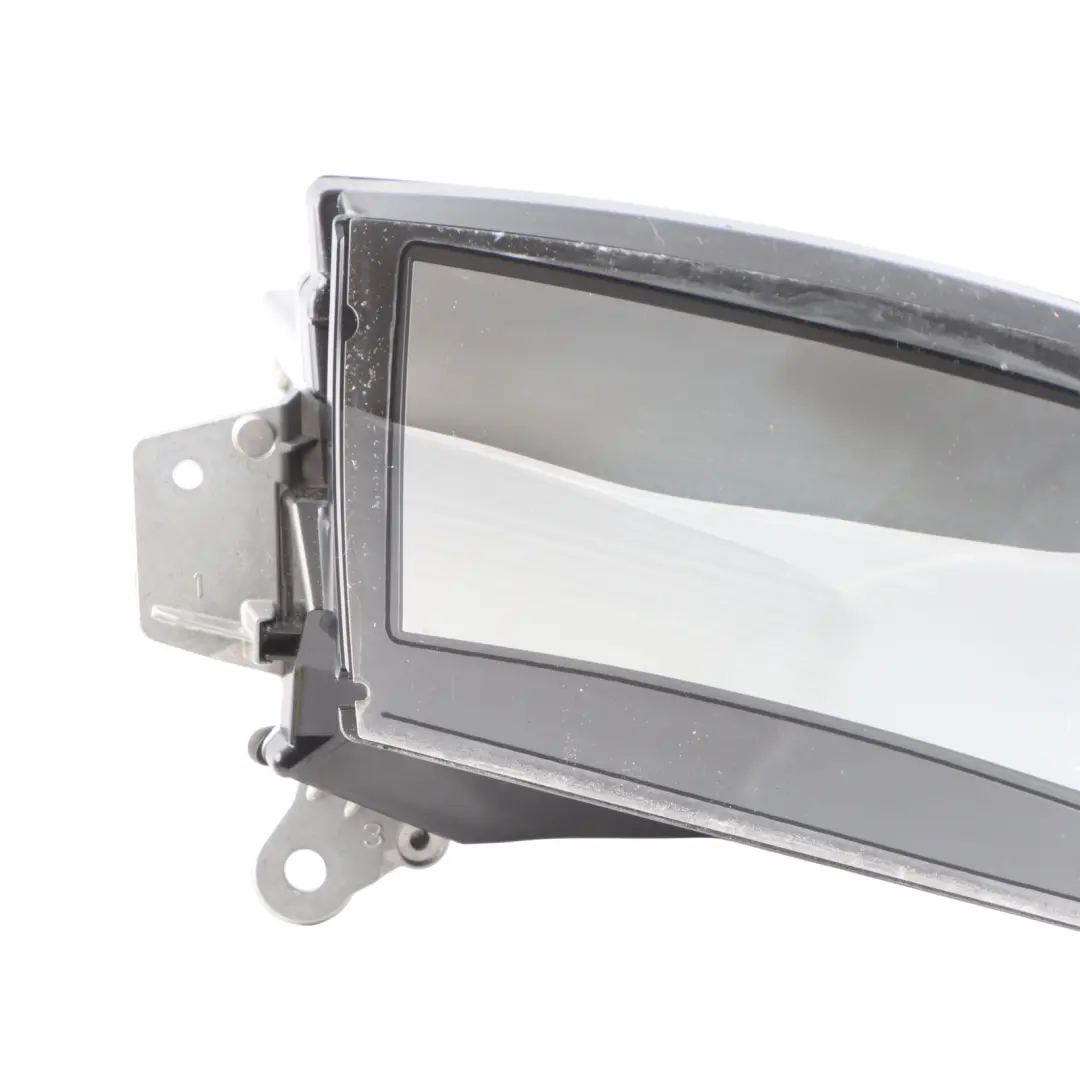

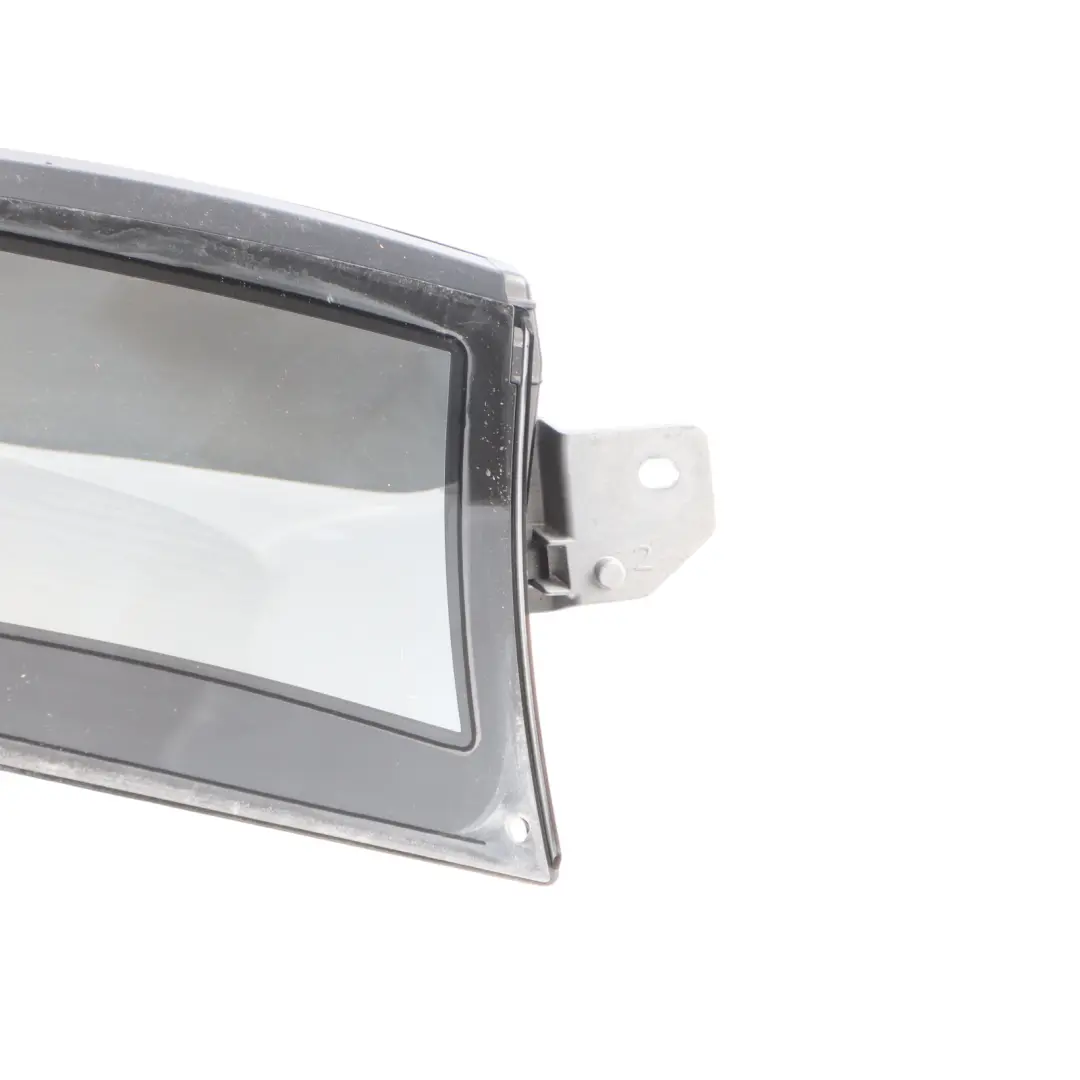

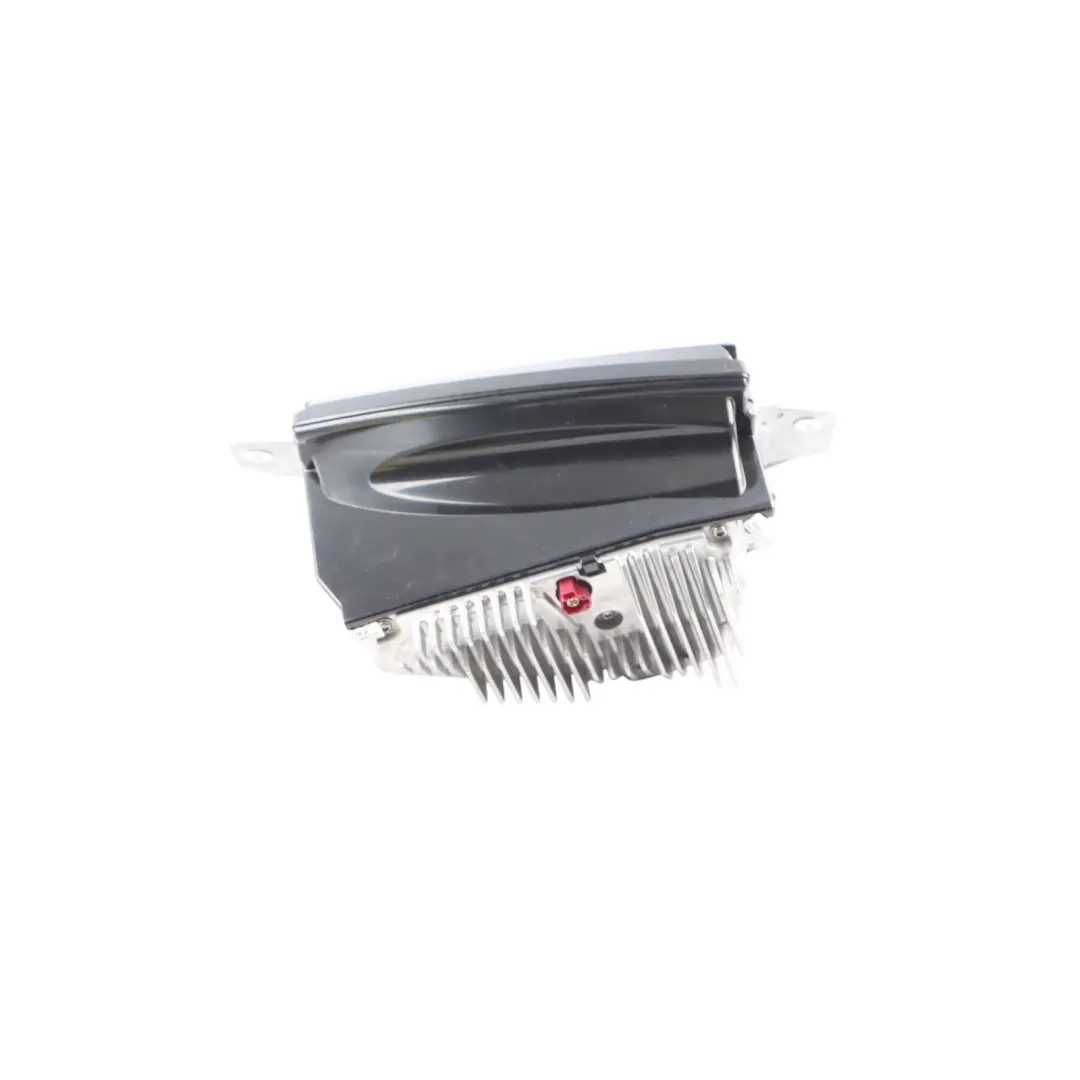

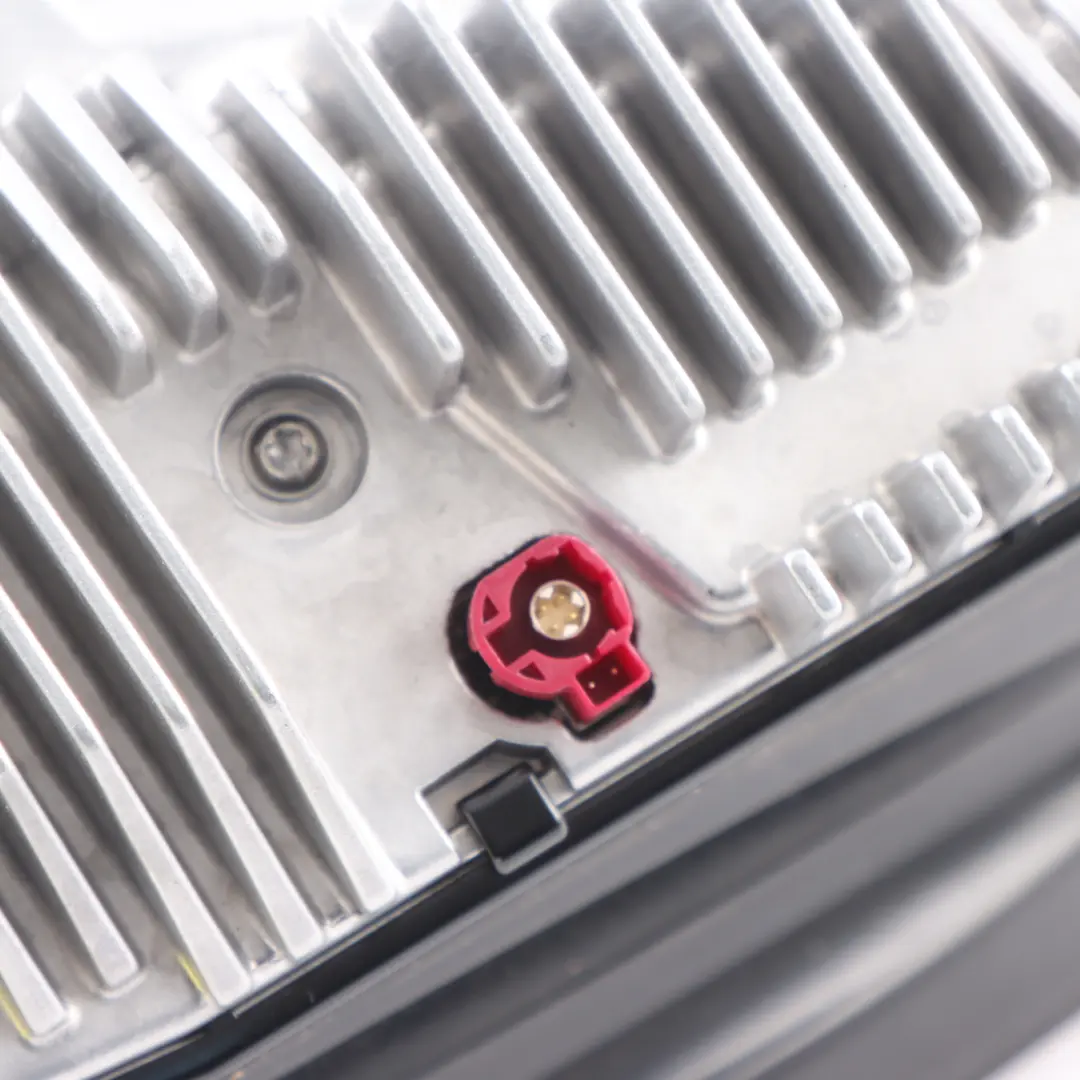

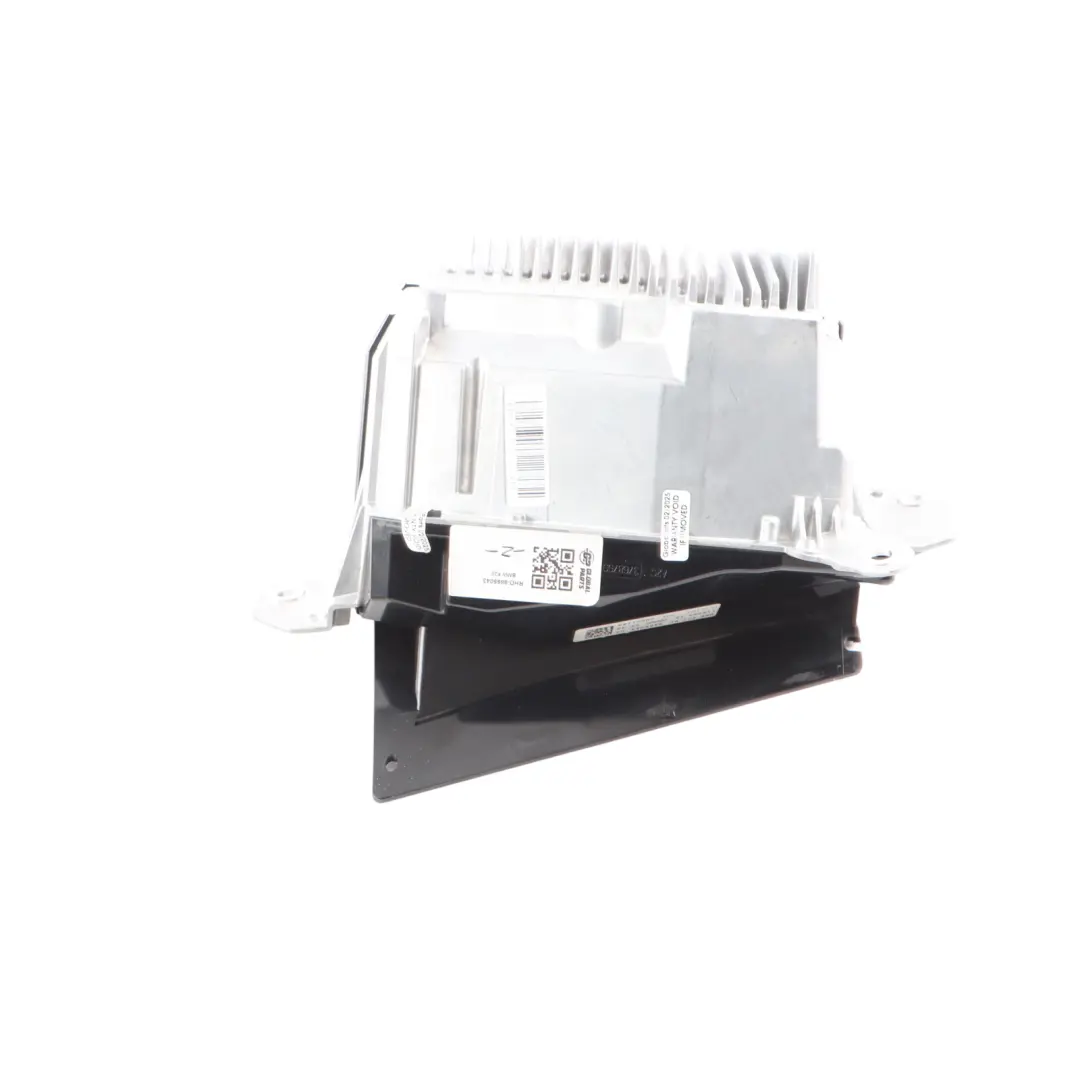

Head Up Display BMW F30 F31 Hud Projector Dash Screen Control Module 9865043

Head Up Display BMW F30 F31 Hud Projector Dash Screen Control Module is an original electronic control module responsible for the operation of the head-up display in the BMW 3 Series F30/F31 cockpit. This specialized controller ensures clear projection of data onto the windshield and stable communication with other vehicle systems, which translates into a more comfortable and safer driving experience. By using a factory BMW solution, you gain the assurance of proper fitment with the vehicle's electrical installation and electronic architecture.

Specifications and technical data

• SKU: RHD-9865043
• Mark: BMW (Genuine OE)
• Condition: Used

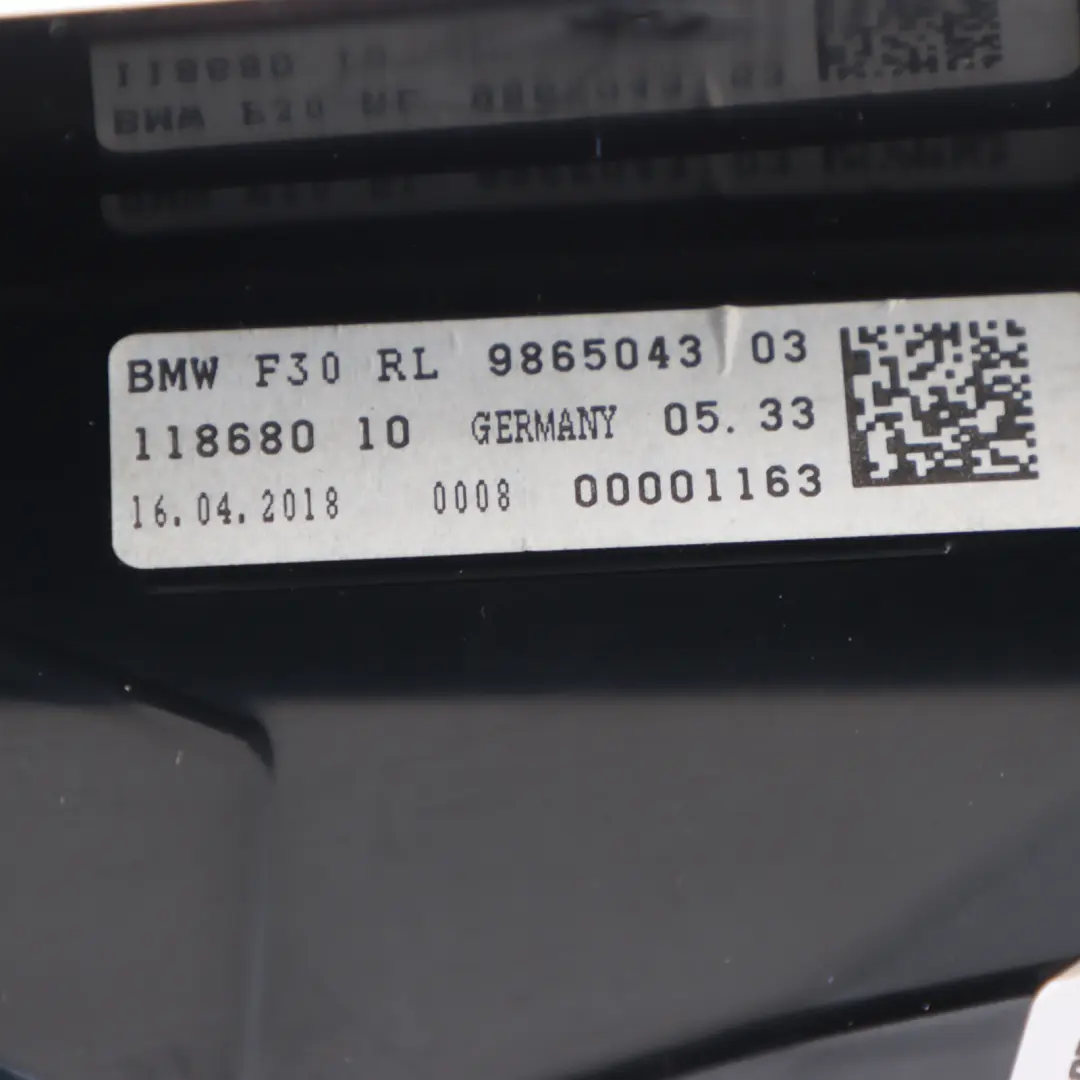

• OEM Part Number: 9865043
• Substitutable numbers: 9865043, 62309865043, 6819696, 62306819696, 9268398, 62309268398, 9312773, 62309312773, 6820853, 62306820853, 9287541, 62309287541, 9358961, 62309358961
• Category: ECUs & Computer Modules

Purpose and function of the Head Up Display module

The presented module belongs to the Electronic control modules and controllers group and is responsible for operating the HUD system in the BMW F30/F31. Its task is to process signals from the vehicle's network and control the projector and the head-up display screen so that key information, such as speed or onboard system indications, appears on the driver's windshield. Using an original BMW controller allows for maintaining operational consistency with factory software and the logic of comfort and safety systems.

Benefits of using an original BMW module

Choosing an original HUD module for the BMW 3 Series F30/F31 primarily means certainty of compatibility with the electrical installation and correct cooperation with other controllers in the vehicle. The factory solution minimizes the risk of communication errors in the bus, coding problems, or incorrect data display on the windshield. Additionally, using a dedicated module facilitates computer diagnostics – operating parameters and any potential errors are correctly recognized by the BMW service tester.

The module is a used part, which in practice means an attractive cost-to-functionality ratio while maintaining original build quality. This solution is particularly beneficial for post-accident repairs, replacing a damaged HUD projector, or restoring the functionality of factory equipment in fleet and private vehicles.

Integration with vehicle installation and systems

As part of the factory Head Up Display system, the controller has been designed to work within the electronic architecture of the BMW 3 Series F30/F31. This means matched connectors, appropriate communication topology, and correct signal mapping from other modules, such as the instrument cluster, assistance systems, or the multimedia unit. As a result, installation comes down to correctly connecting it in place of the original component and performing standard service procedures, such as potential coding or adaptation in the vehicle.

In practice, this translates into:

• stable operation of the head-up display without flickering or image loss,
• correct synchronization of data presented on the windshield with other indicators,
• preservation of factory HUD system functions after replacing a damaged module.

Application in service and BMW electronics repairs

This Head Up Display control module is particularly useful in specialized services dealing with BMW electronics and in workshops performing post-accident repairs. It allows for the restoration of full HUD system functionality after mechanical damage, flooding, or electronic failure. Because it is a part from the Electronic control modules and controllers group, it fits perfectly into the procedures of professional diagnostics and controller replacement in modern vehicles.

If you are planning a comprehensive repair or upgrade of the onboard electronics area in your BMW and need other components from the same group, such as comfort controllers, body modules, or driver assistance system management units, check the available parts in the BMW electronic control modules and controllers category.
