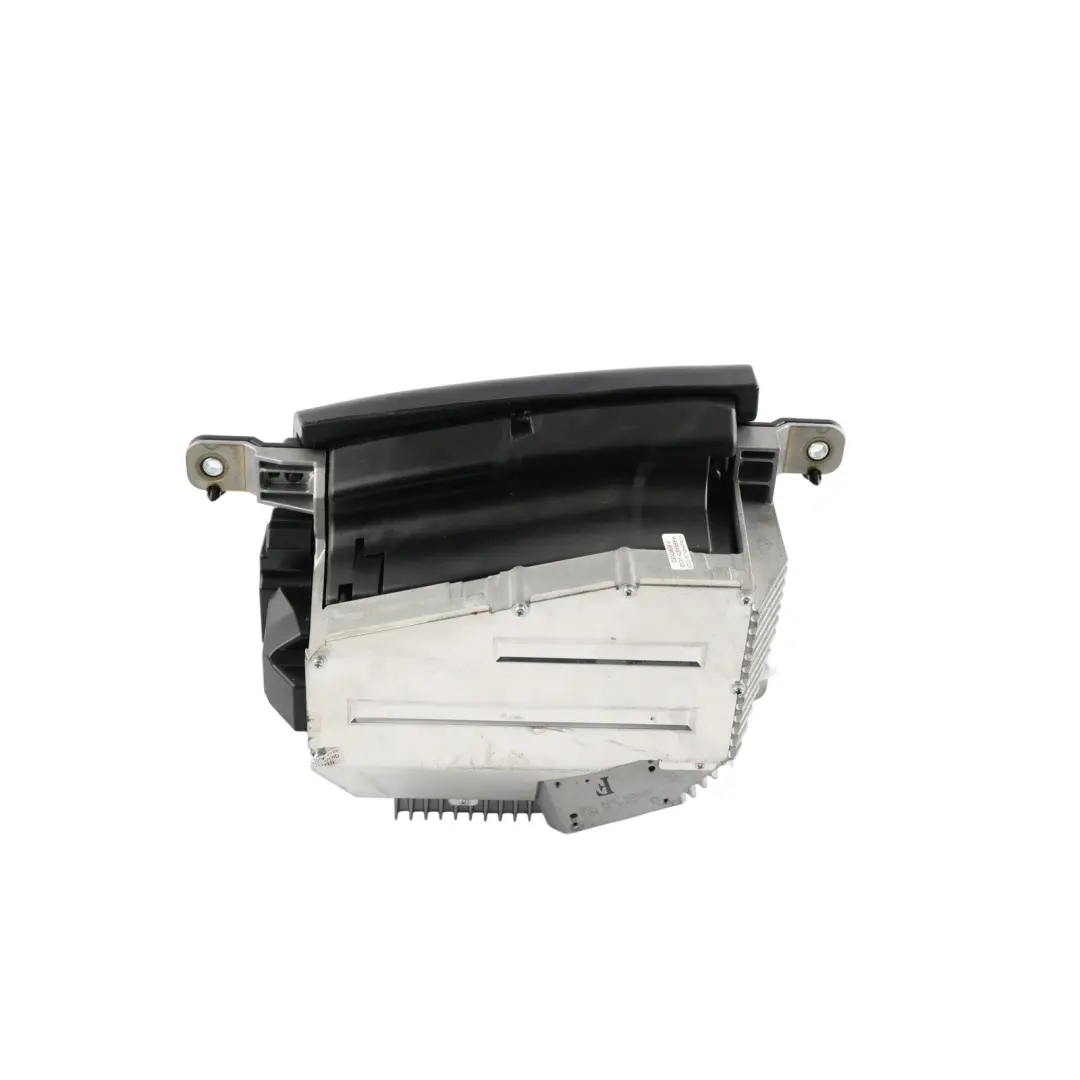

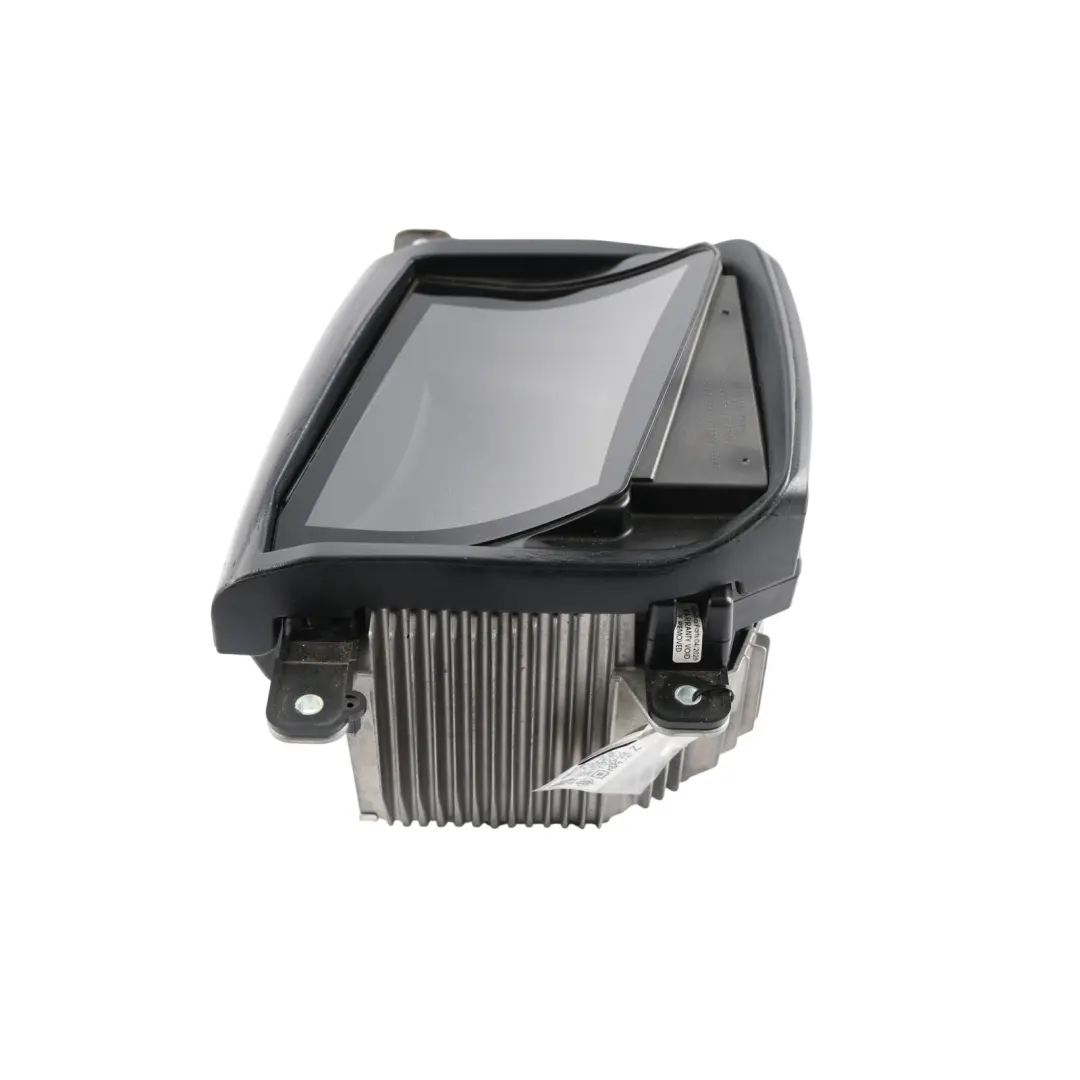

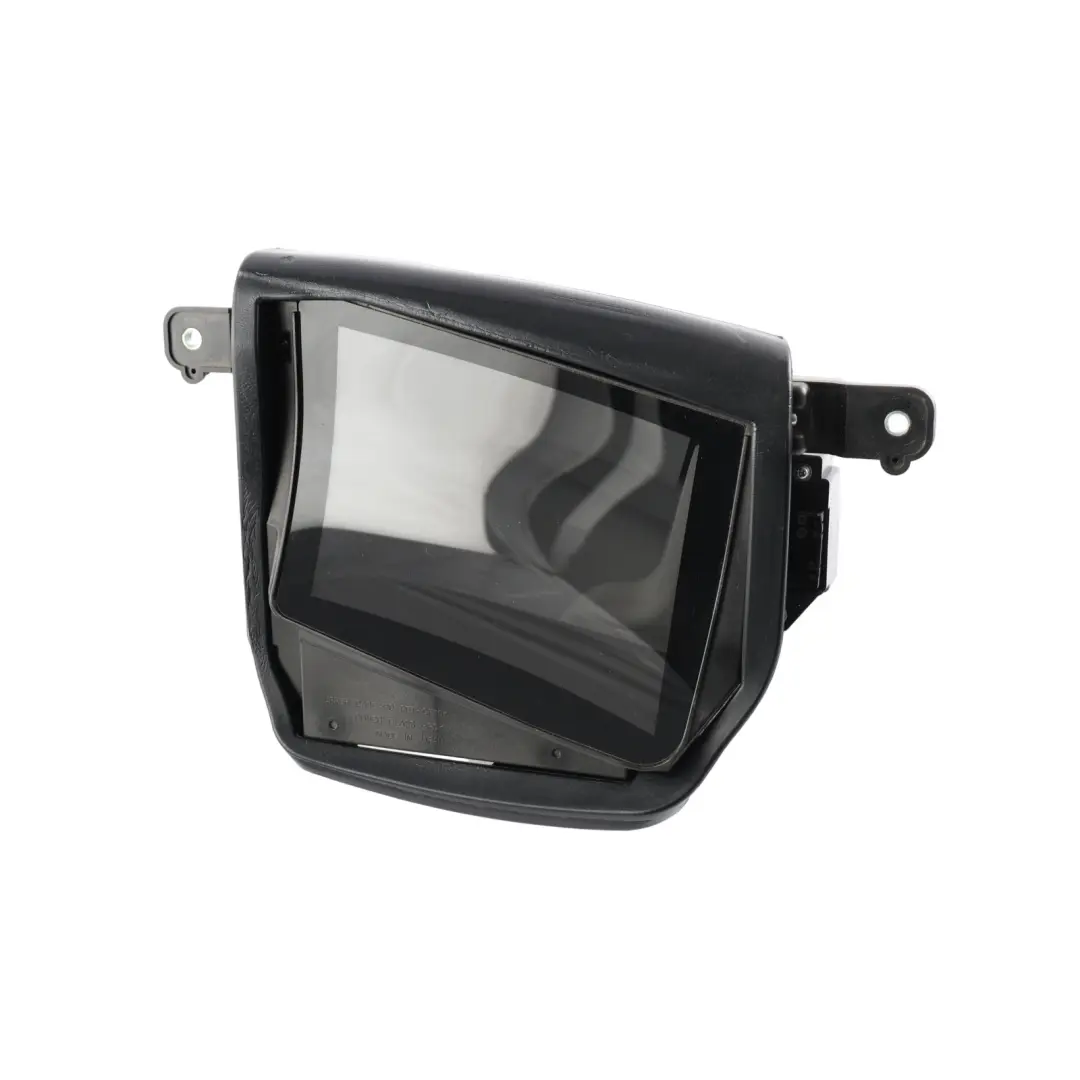

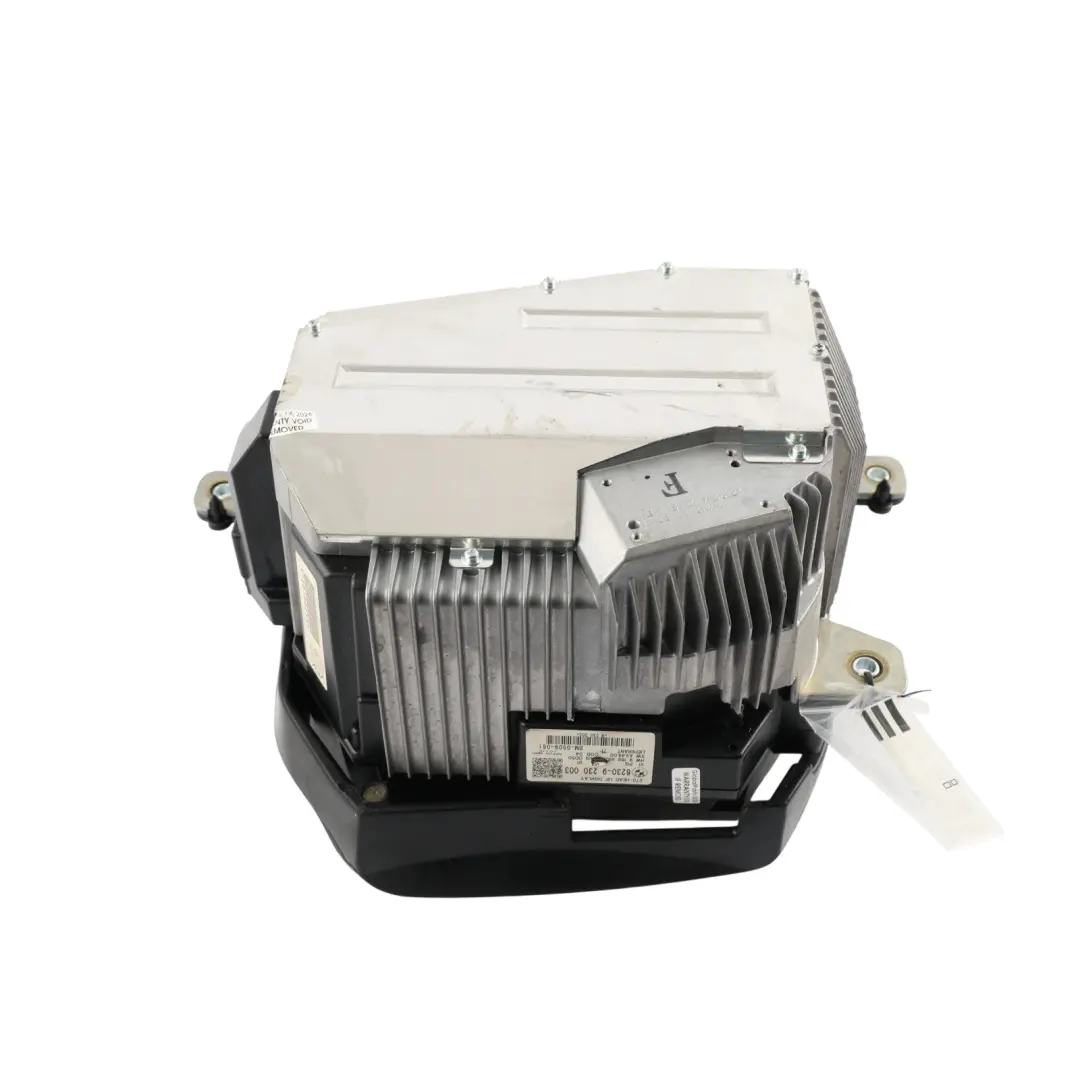

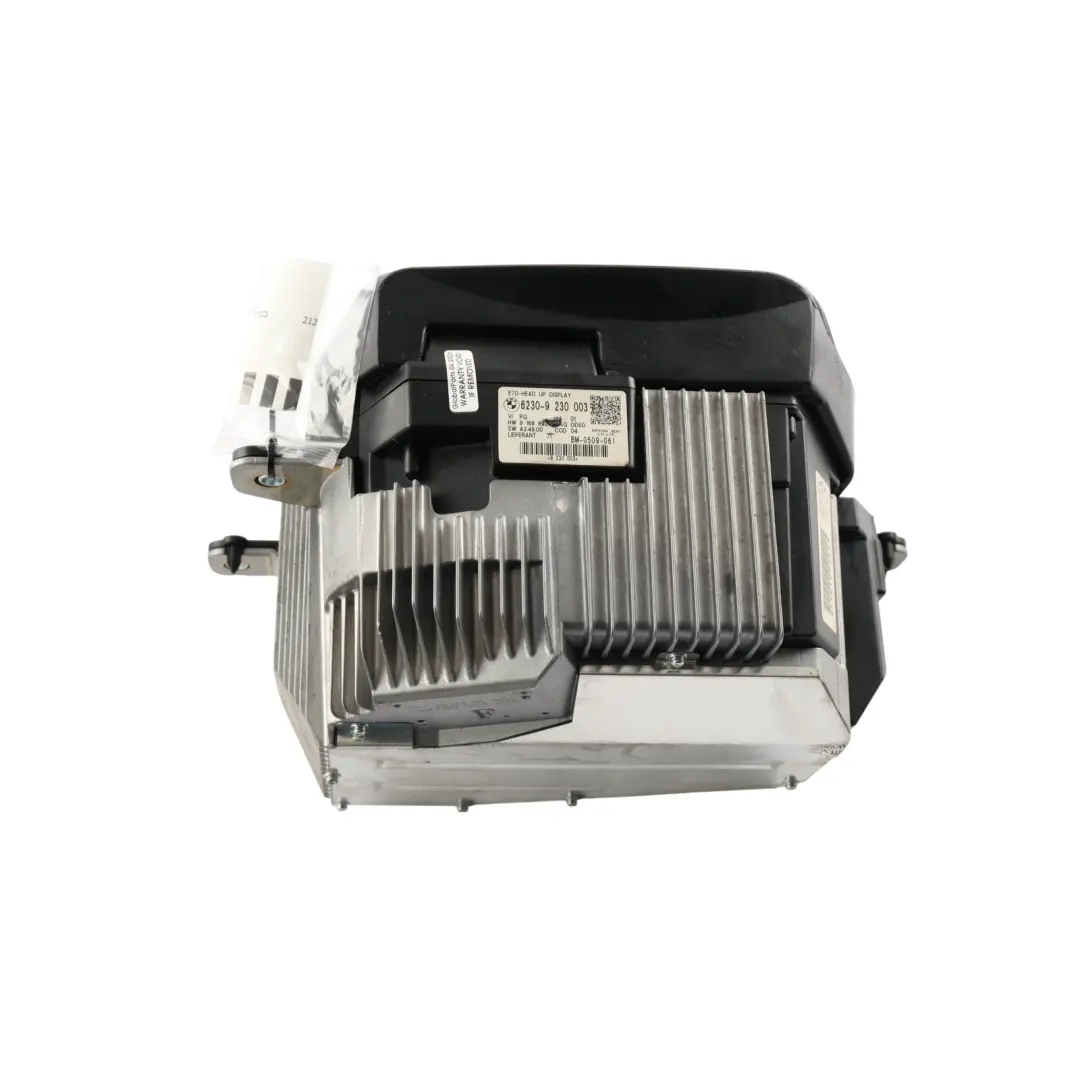

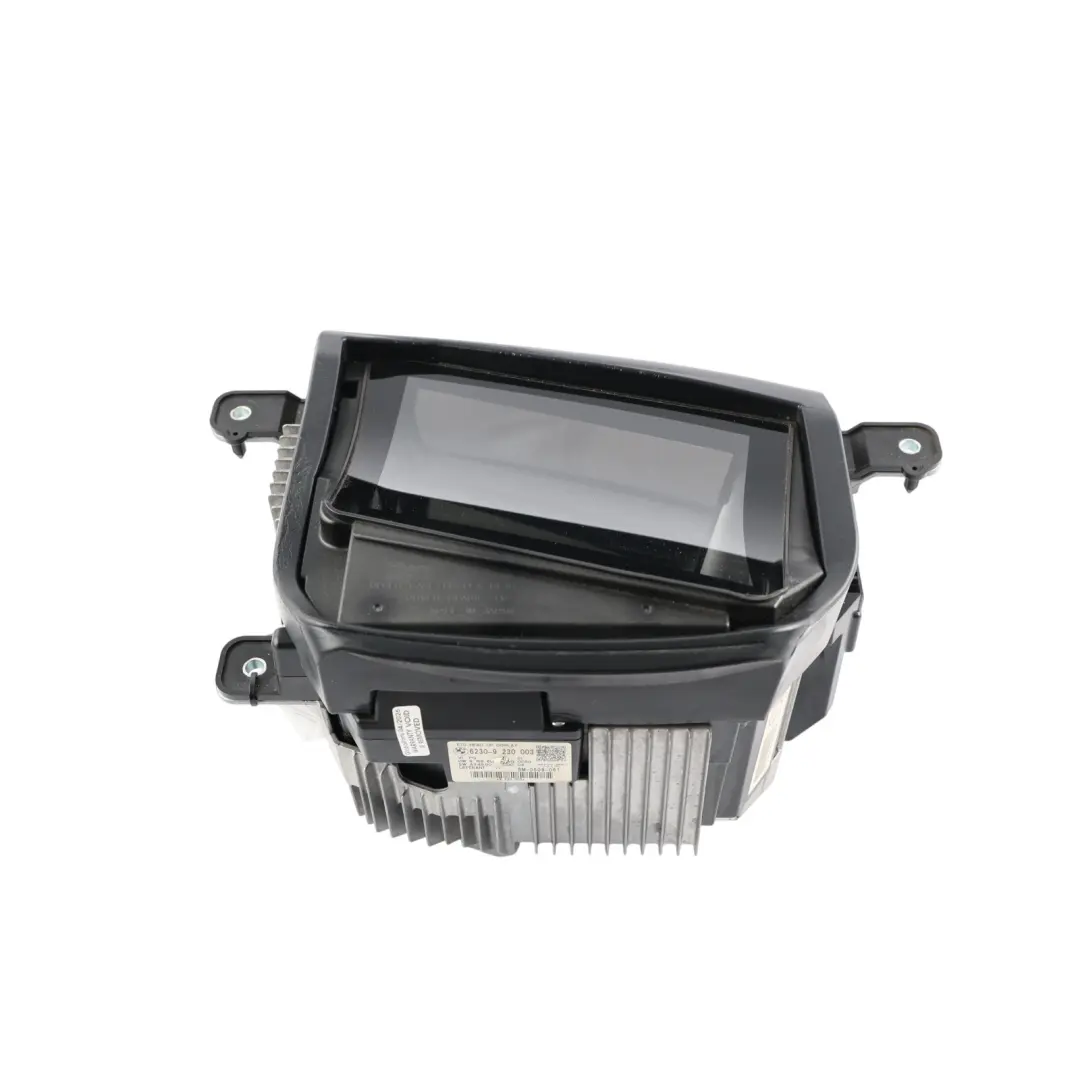

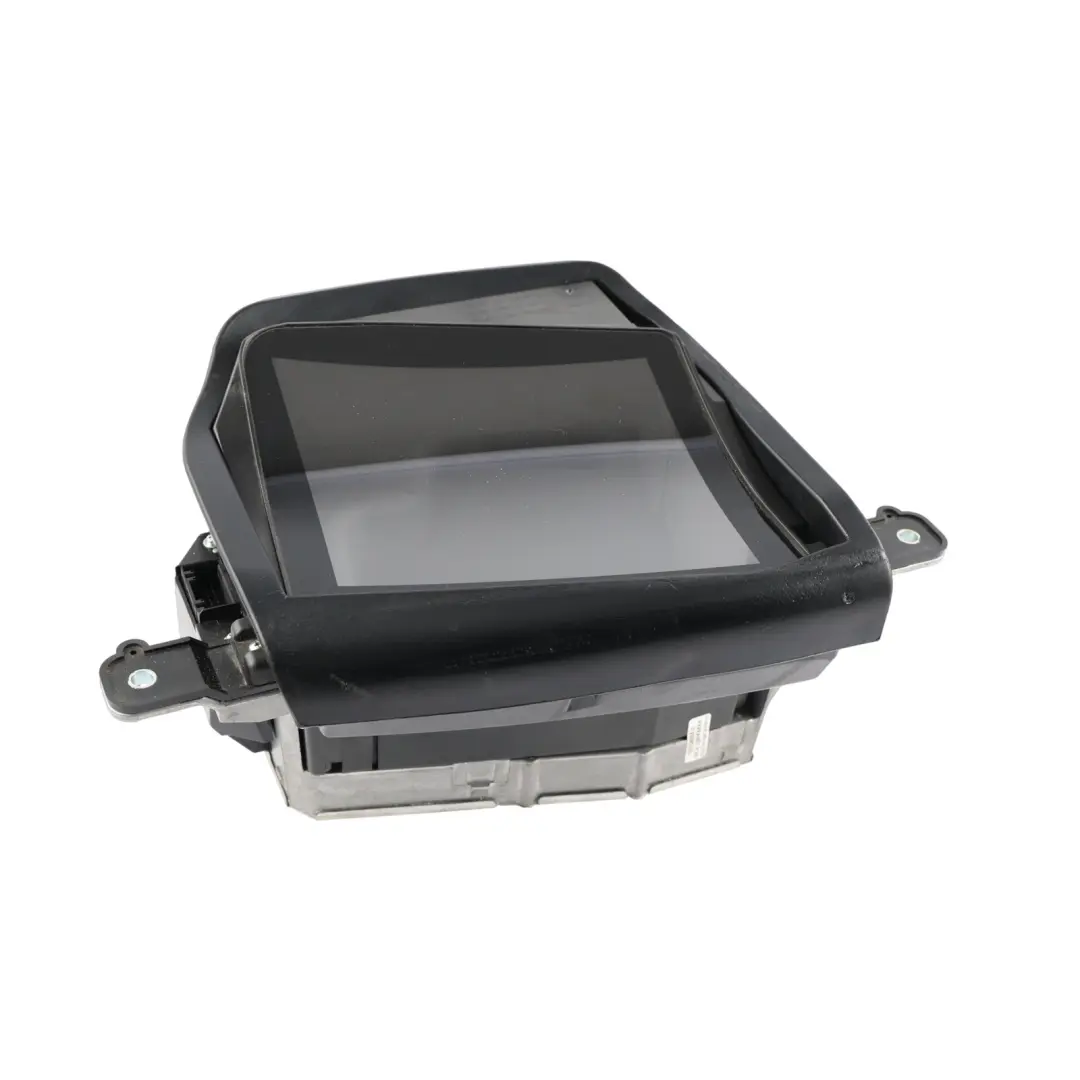

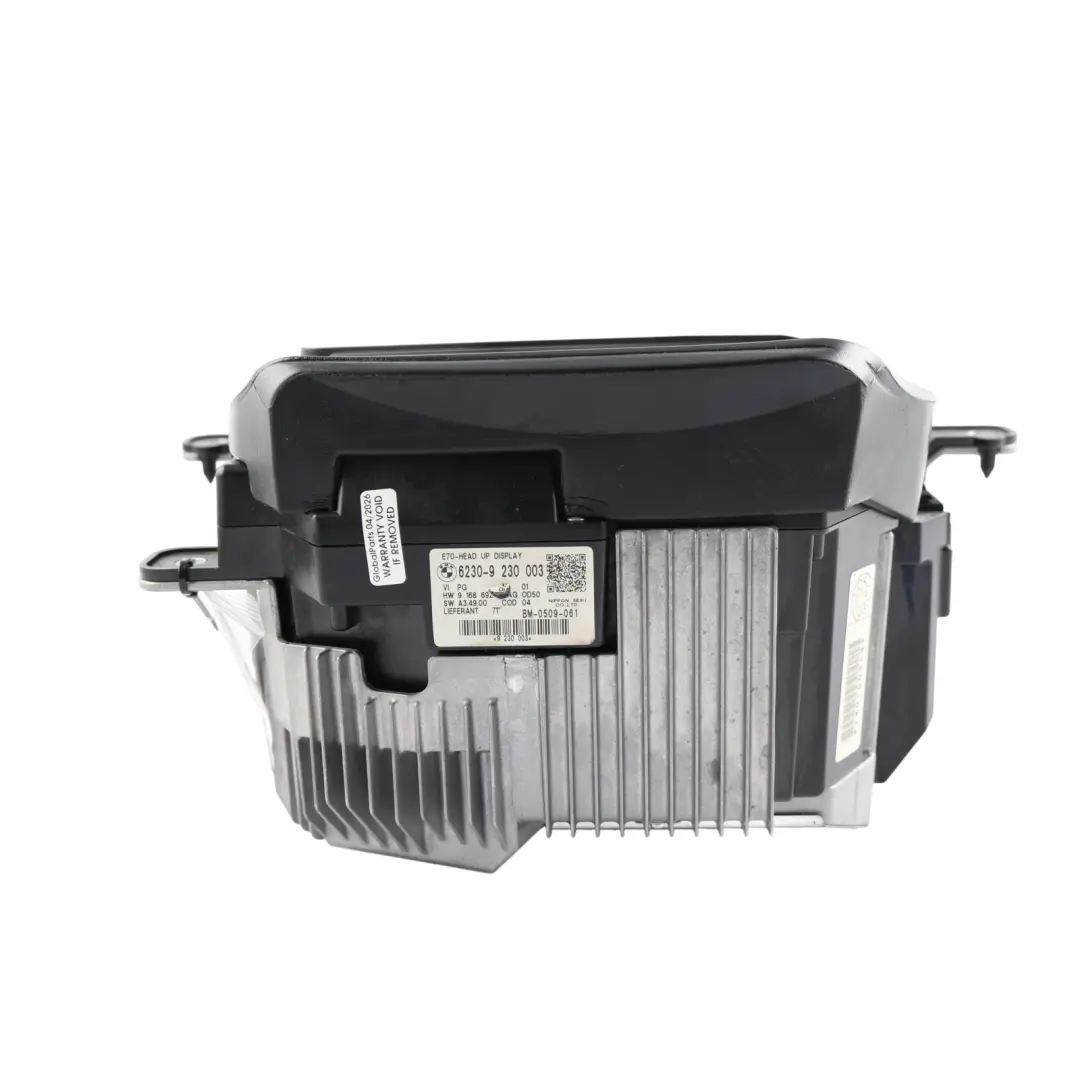

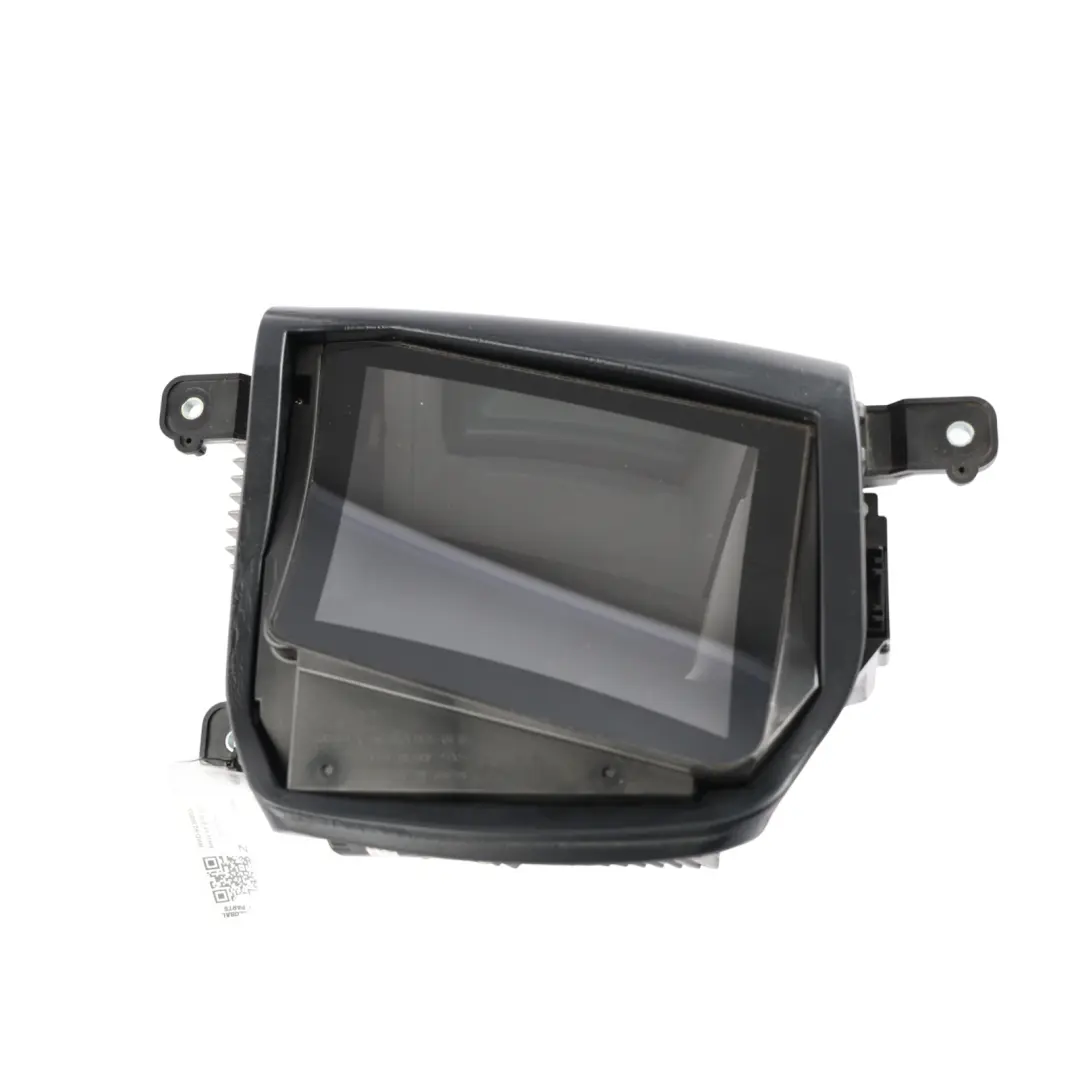

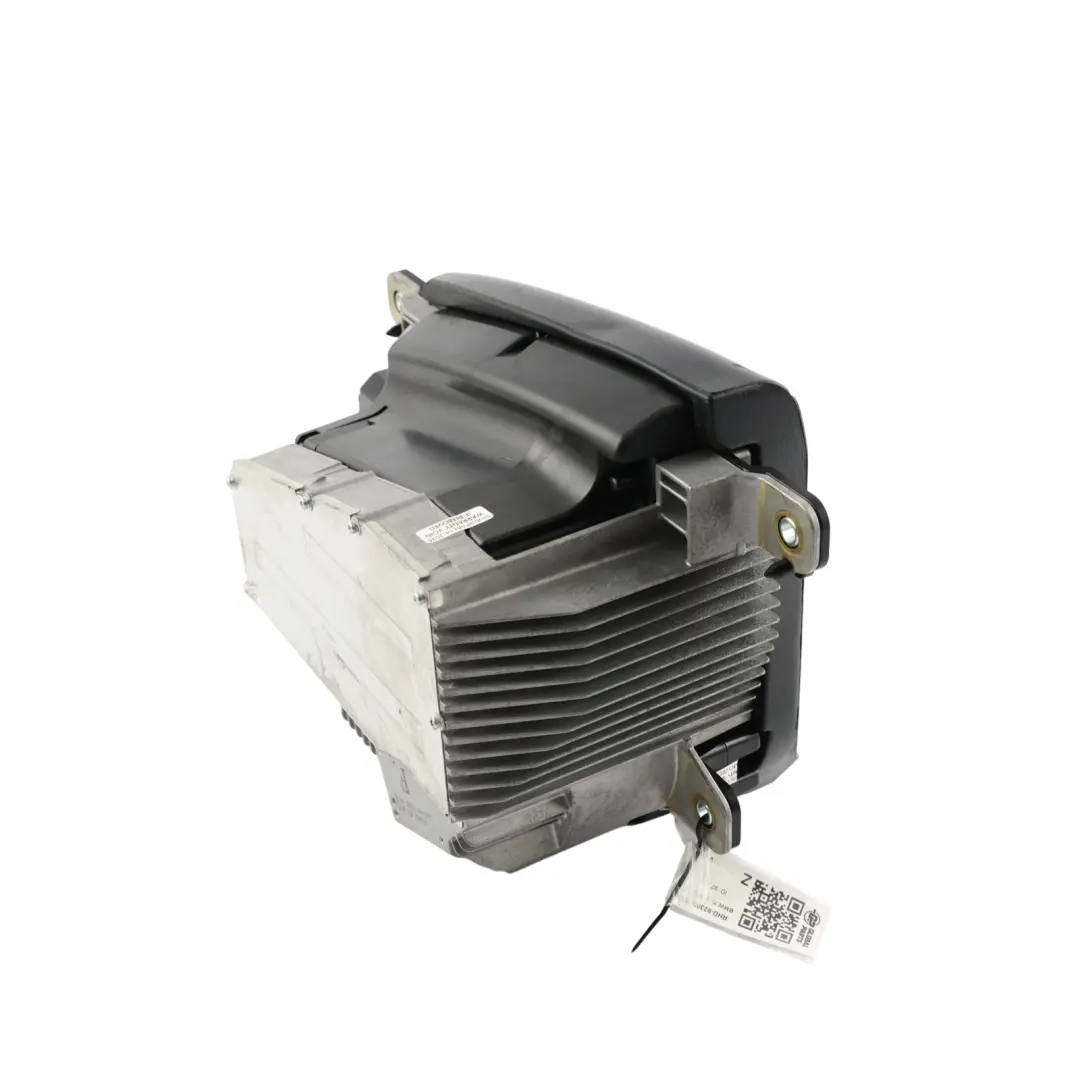

BMW X5 E70 Head Up Display Screen Projector Dashboard HUD 9230003

BMW X5 E70 Head Up Display Screen Projector Dashboard HUD is an original projection module designed for the factory head-up display system in the BMW X5 E70. This component from the Electronic control modules and controllers group is responsible for the precise projection of key information onto the windshield, improving data readability and driving comfort. This used HUD module is a solution that allows you to maintain factory functionality at optimal service costs.

Specifications and technical data

• SKU: RHD-9230003
• Mark: BMW (Genuine OE)
• Condition: Used

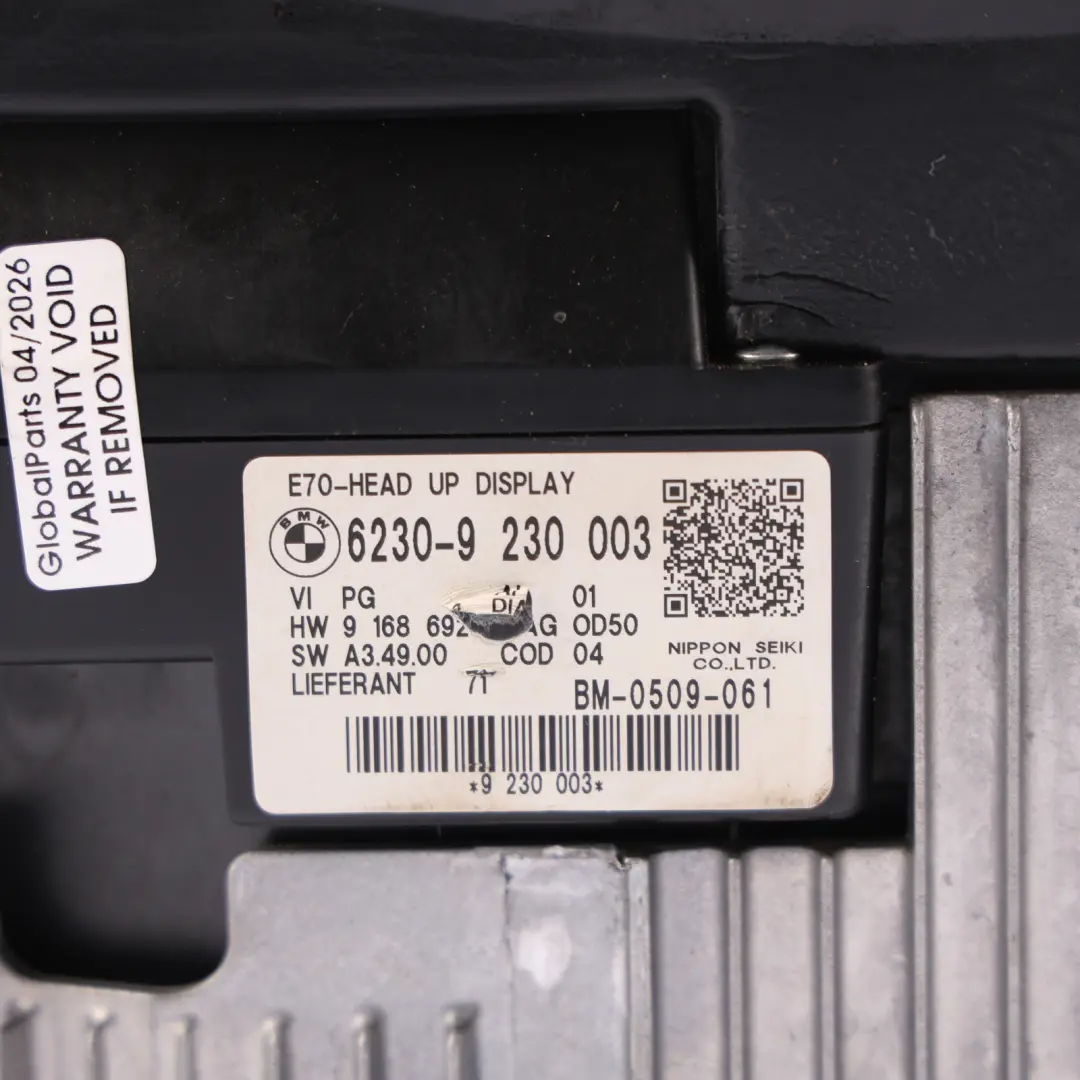

• OEM Part Number: 9230003
• Substitutable numbers: 9230003, 62309230003, 9262180, 62309262180, 9156376, 62309156376, 9129882, 62309129882, 9215323, 62309215323, 9195810, 62309195810, 9180658, 62309180658, 9154618, 62309154618
• Category: ECUs & Computer Modules

Function and application of the HUD display in the BMW X5 E70

The presented Head Up Display is an integral part of the BMW X5 E70 dashboard information system. It is responsible for projecting data such as speed, trip computer readings, or information from assistance systems directly into the driver's field of vision. This reduces the need to look at traditional gauges, which helps maintain constant control over the road situation.

The HUD module works with other vehicle controllers, using the BMW electronic architecture to receive and process signals. As an OEM component, it maintains full compatibility with the factory installation, which facilitates diagnostics, coding, and subsequent service maintenance.

Construction and integration with vehicle electronics

The Head Up Display in the BMW X5 E70 is designed as a closed electronic module mounted within the dashboard structure. It contains an optical system, a light source, and control electronics responsible for image generation and correction. The design provides for cooperation with vehicle sensors and controllers, such as modules responsible for speed, assistance systems, or the central unit.

As a part from the Electronic control modules and controllers category, the HUD communicates with the vehicle's data bus, which enables dynamic updating of displayed information. A properly selected module allows for maintaining the consistency of the entire electronic system's operation, without the need for wiring interference or mechanical adaptation.

Benefits of using an original used HUD module

Using an original, used Head Up Display in the BMW X5 E70 is a solution that combines the preservation of factory functionality with a rational approach to costs. Key advantages include:

• maintaining original integration with the vehicle's electronic systems,
• visual and functional consistency with factory equipment,
• possibility of diagnostics using standard BMW service tools,
• reduction of repair costs compared to purchasing a new module.

A used HUD module is a particularly beneficial solution when replacing a damaged component after an optics or electronics failure, or in the case of image display problems, allowing for the restoration of full functionality of the projection system.

Selection, compatibility, and installation aspects

To ensure the proper operation of the Head Up Display in the BMW X5 E70, it is crucial to match the module to the specific vehicle configuration. In practice, this means verifying compatibility by OEM part number and interchangeable numbers, as well as taking into account the equipment version and the car's model year. A properly selected module minimizes the risk of communication problems on the data bus and the need for additional programming.

During installation, it is important to ensure the module is correctly seated in the dashboard structure, that connectors are properly connected, and that the system is subsequently tested under road conditions. Due to the nature of the component, it is recommended that installation and any necessary coding be performed by a workshop with experience in BMW electronics.

If you are planning a comprehensive repair or upgrade of the cockpit area and display systems in your BMW and need other components from the same group, such as controllers, comfort modules, or control units, check out the available parts in the BMW electronic control modules and controllers category.

Expert support and selection of used electronics

When choosing a used HUD module for the BMW X5 E70, it is worth paying attention to the consistency of markings, hardware and software versions, and the part's origin history. Matching by VIN number and consulting with a specialized service center can be helpful to avoid compatibility issues.

If you want to better understand how to safely select used electronic modules, controllers, and sensors, as well as what to pay attention to during installation and diagnostics, read our guide: Used automotive electronics on board – why is it worth choosing second-hand ECU modules and sensors?

Summary

BMW X5 E70 Head Up Display Screen Projector Dashboard HUD is an original projection module from the control electronics group, designed to restore or maintain the factory functionality of the head-up display in the BMW X5 E70. A properly selected and correctly installed component ensures clear presentation of key information in the driver's field of vision, increasing driving comfort and safety while maintaining consistency with the vehicle's factory electronic system.
